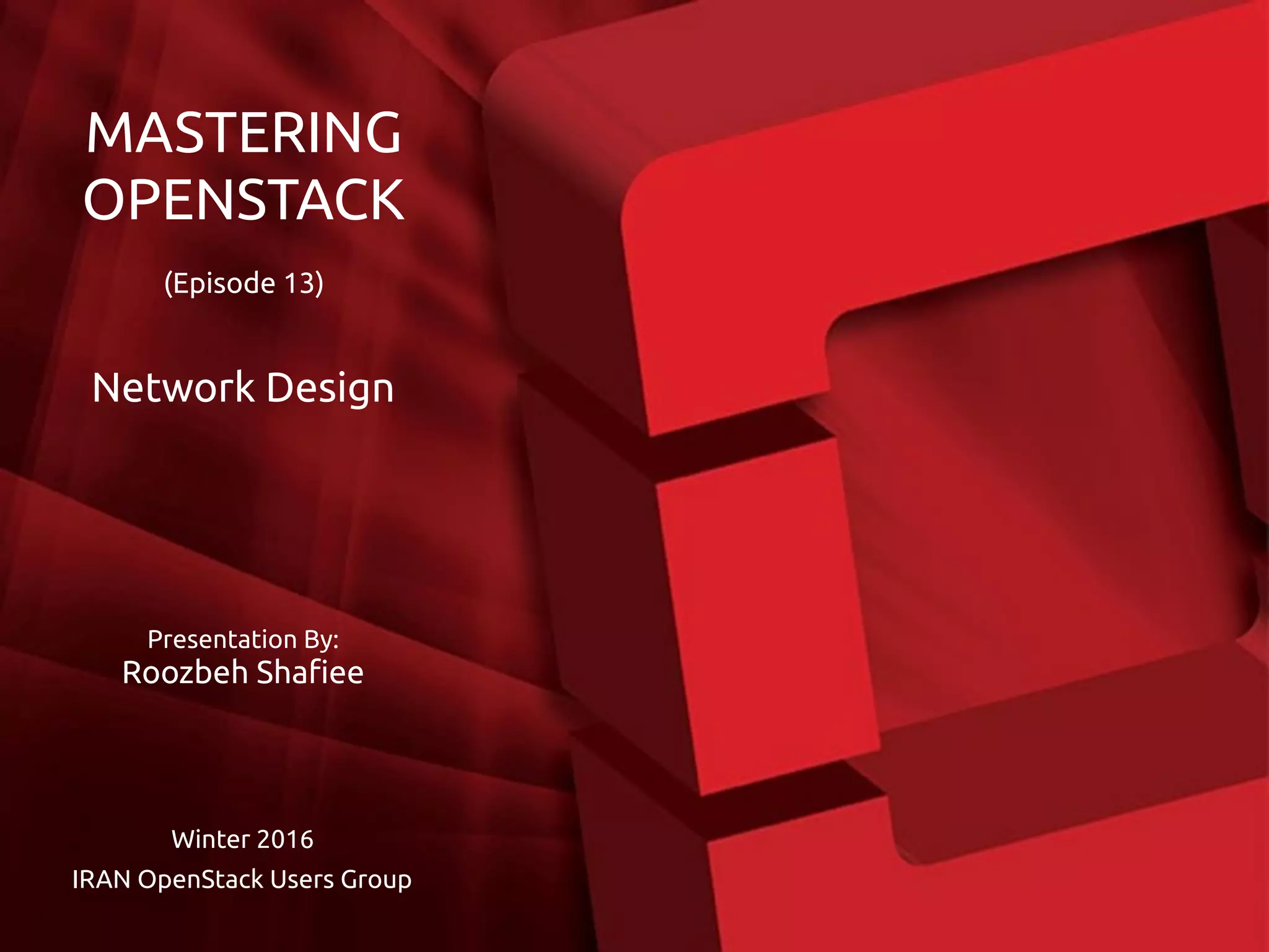

1. Presentation By:
Roozbeh Shafiee
Winter 2016
IRAN OpenStack Users Group
MASTERING
OPENSTACK
(Episode 13)
Network Design

2. IRAN Community| OpenStack.ir
Agenda:
• IP Address Planning
• Iran OpenStack Community
OpenStack Network Design

3. IRAN Community| OpenStack.ir
OpenStack Network Design

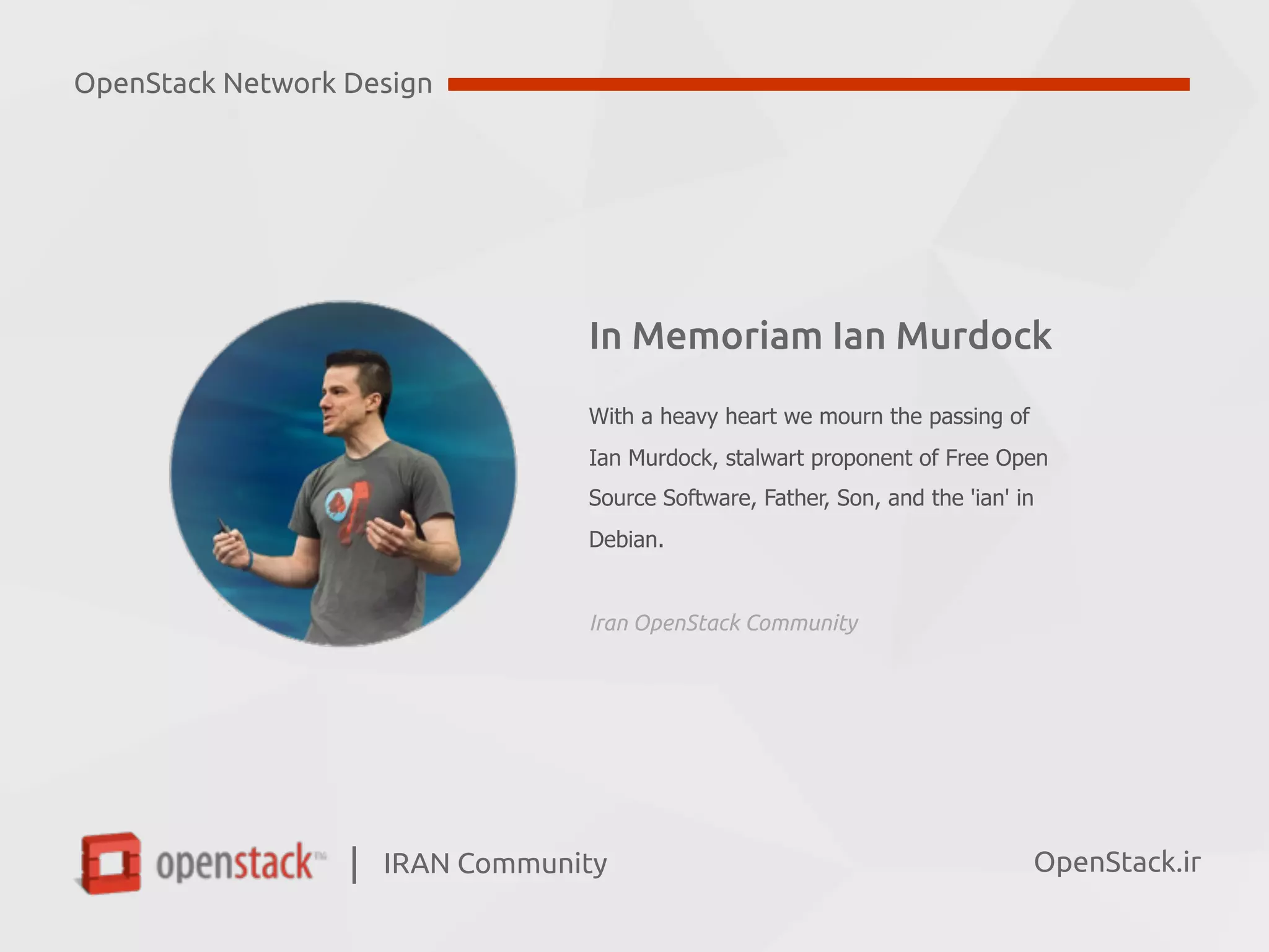

In Memoriam Ian Murdock
With a heavy heart we mourn the passing of
Ian Murdock, stalwart proponent of Free Open
Source Software, Father, Son, and the 'ian' in
Debian.
Iran OpenStack Community

4. IRAN Community| OpenStack.ir

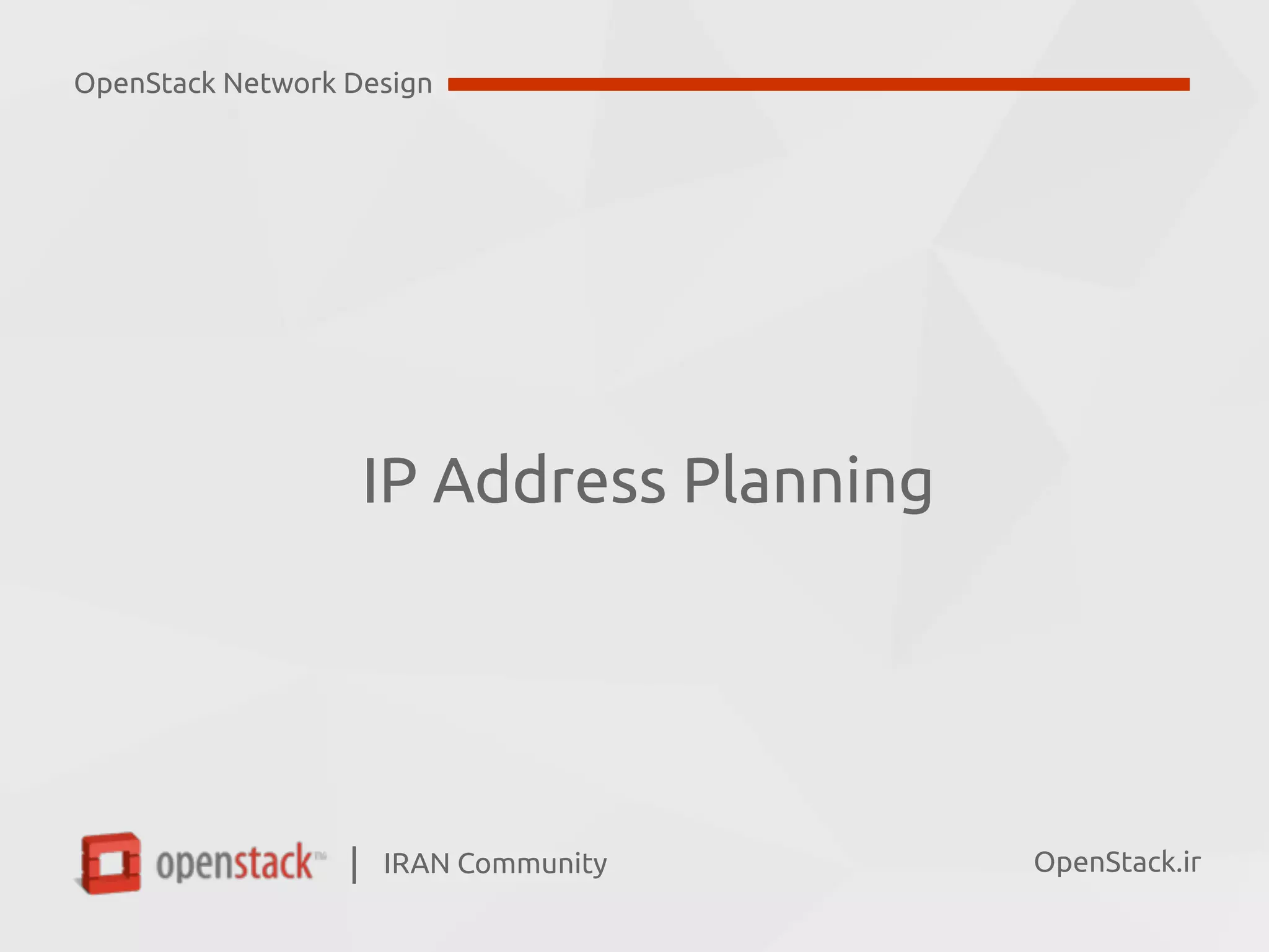

IP Address Planning
OpenStack Network Design

5. IRAN Community| OpenStack.ir

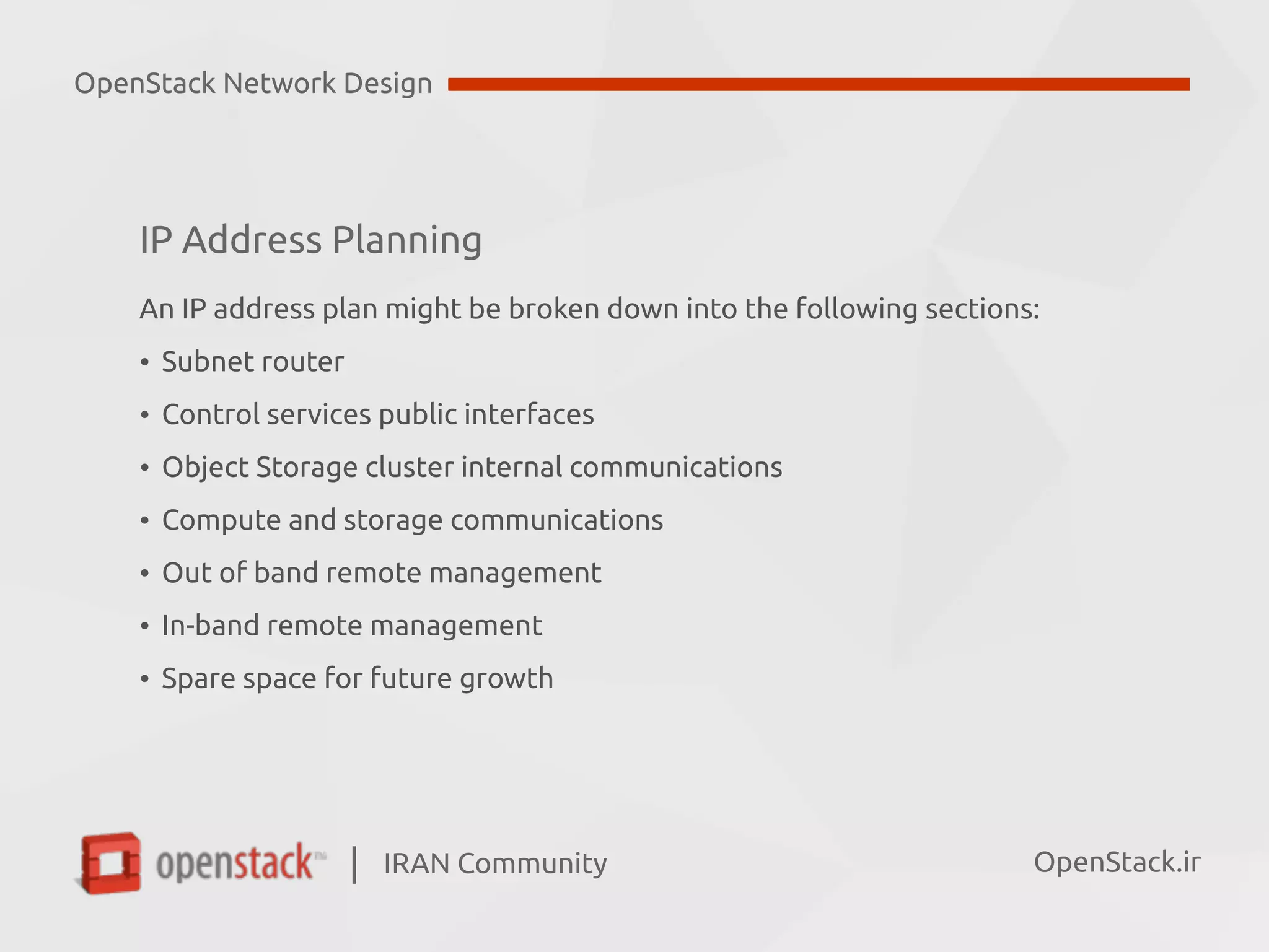

IP Address Planning
An IP address plan might be broken down into the following sections:
• Subnet router
• Control services public interfaces
• Object Storage cluster internal communications
• Compute and storage communications
• Out of band remote management
• In-band remote management
• Spare space for future growth
OpenStack Network Design

6. IRAN Community| OpenStack.ir

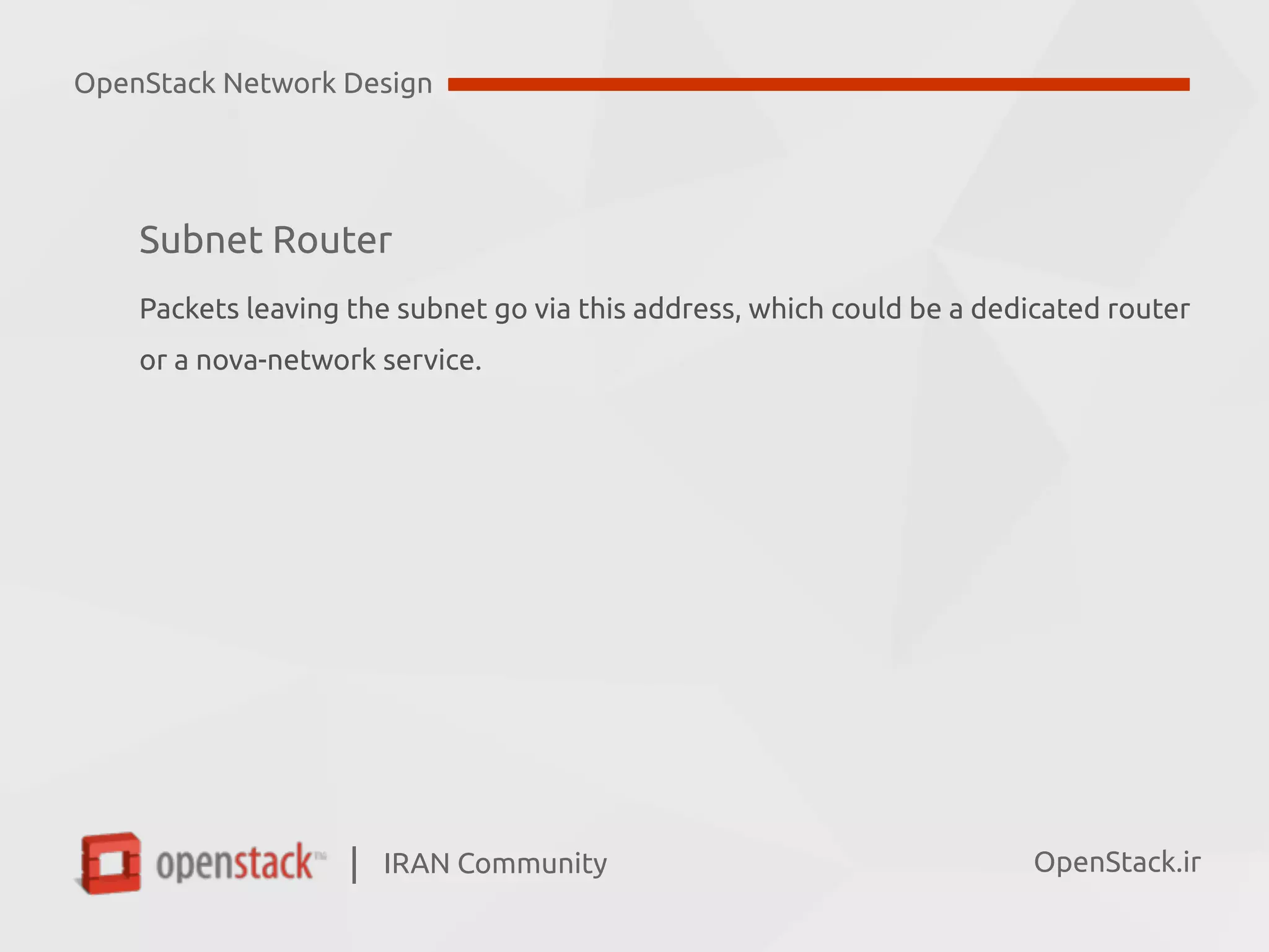

Subnet Router
Packets leaving the subnet go via this address, which could be a dedicated router
or a nova-network service.
OpenStack Network Design

7. IRAN Community| OpenStack.ir

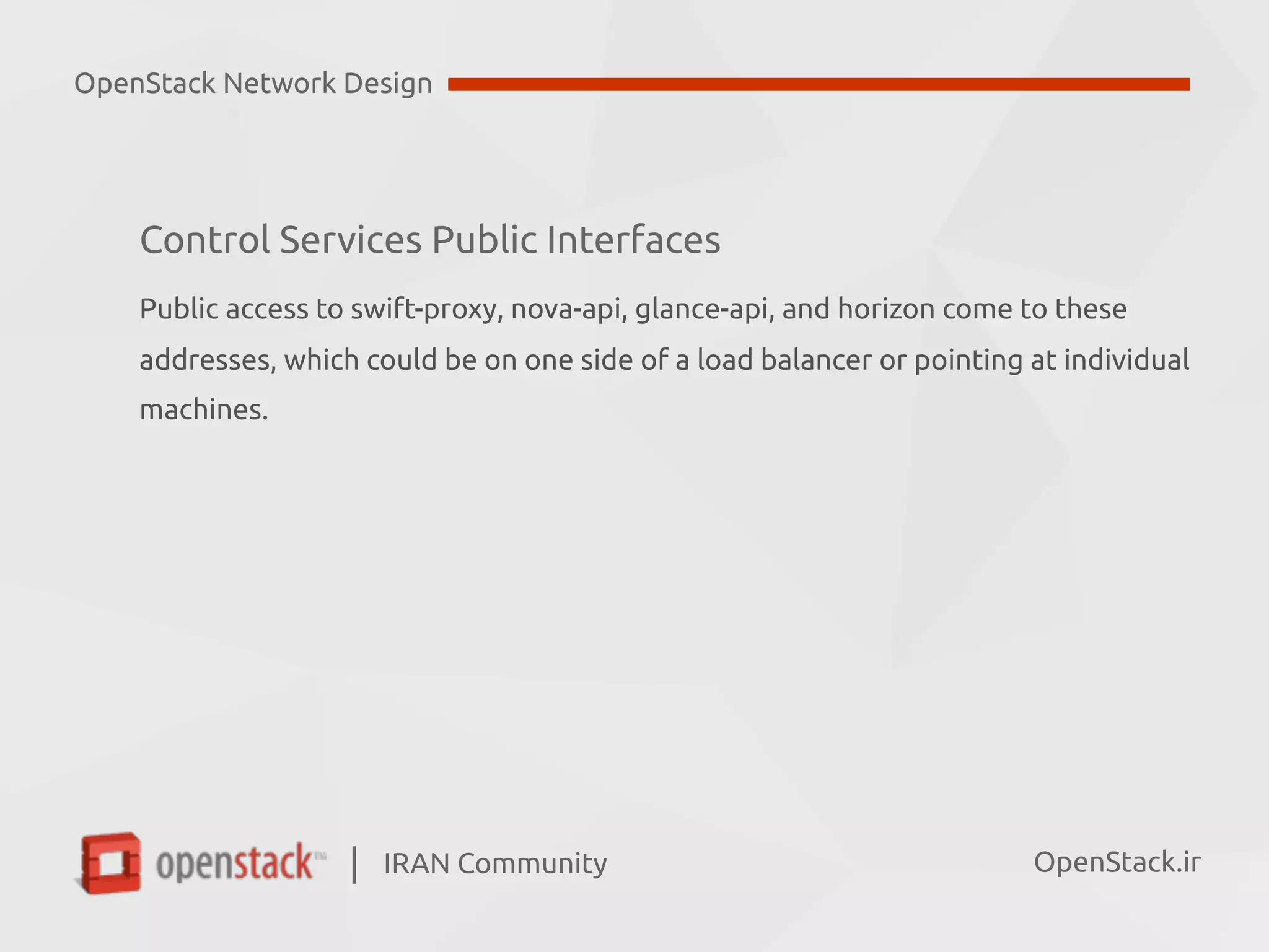

Control Services Public Interfaces
Public access to swift-proxy, nova-api, glance-api, and horizon come to these
addresses, which could be on one side of a load balancer or pointing at individual
machines.
OpenStack Network Design

8. IRAN Community| OpenStack.ir

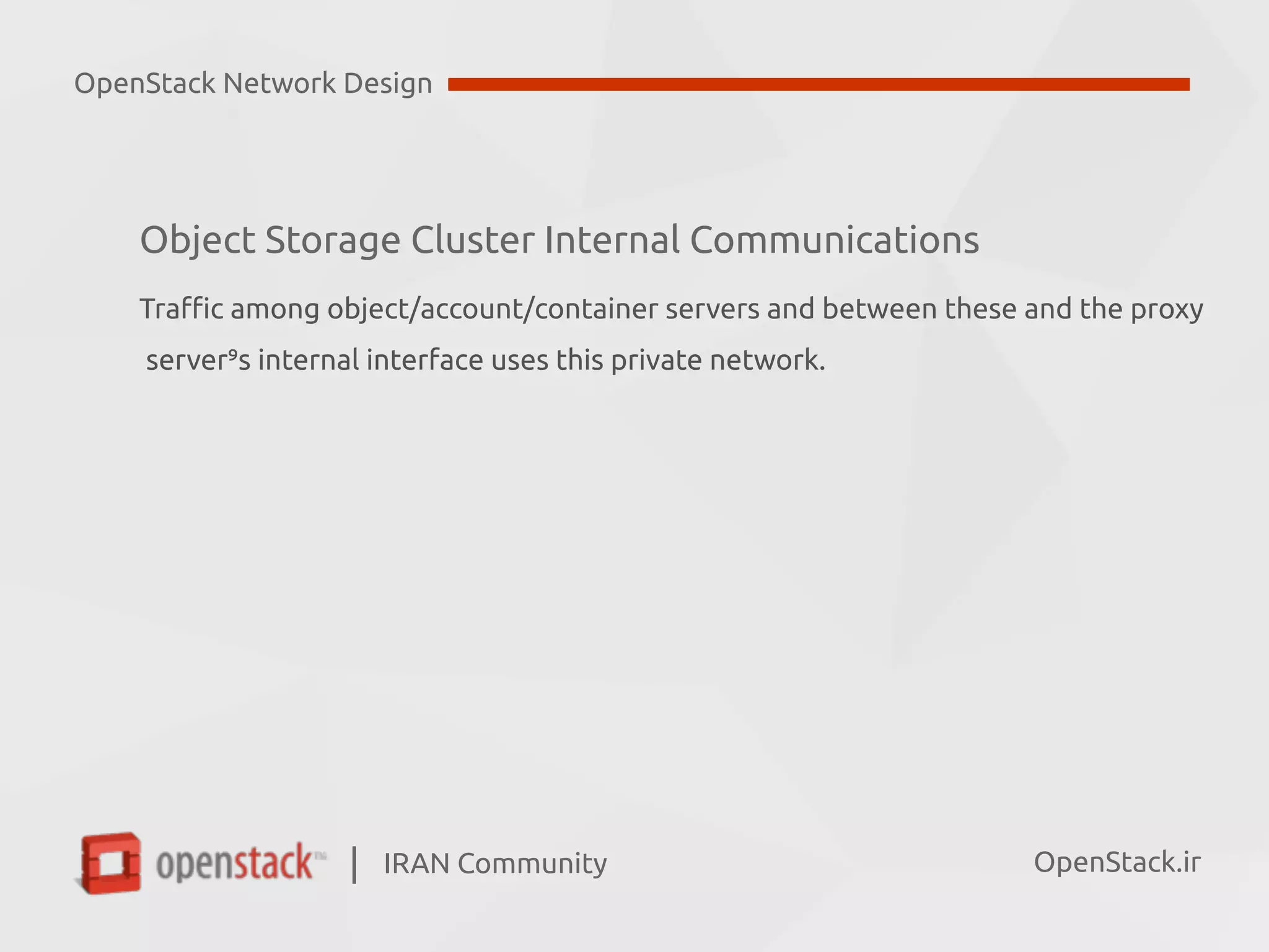

Object Storage Cluster Internal Communications
Traffic among object/account/container servers and between these and the proxy
server’s internal interface uses this private network.
OpenStack Network Design

9. IRAN Community| OpenStack.ir

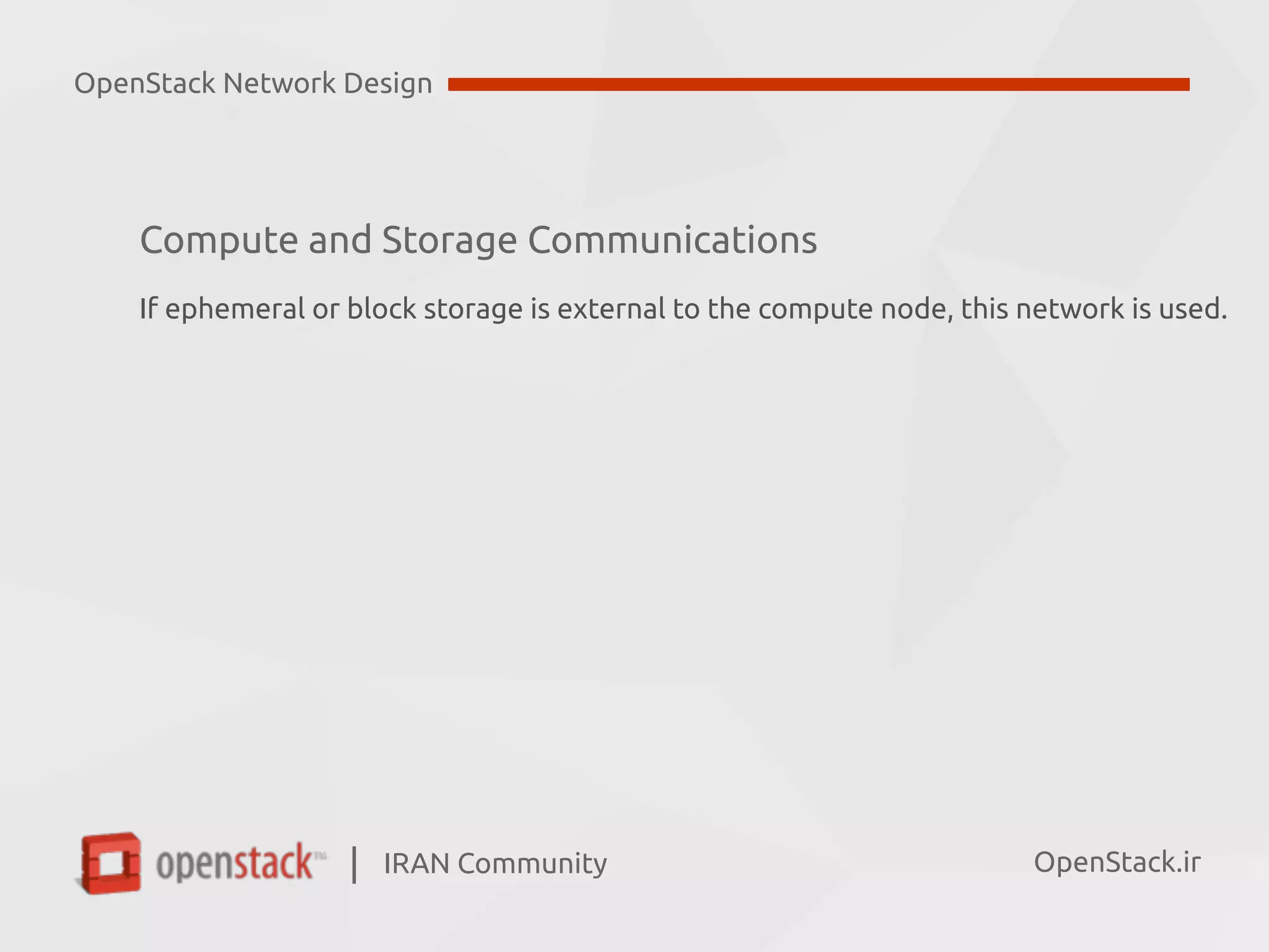

Compute and Storage Communications
If ephemeral or block storage is external to the compute node, this network is used.
OpenStack Network Design

10. IRAN Community| OpenStack.ir

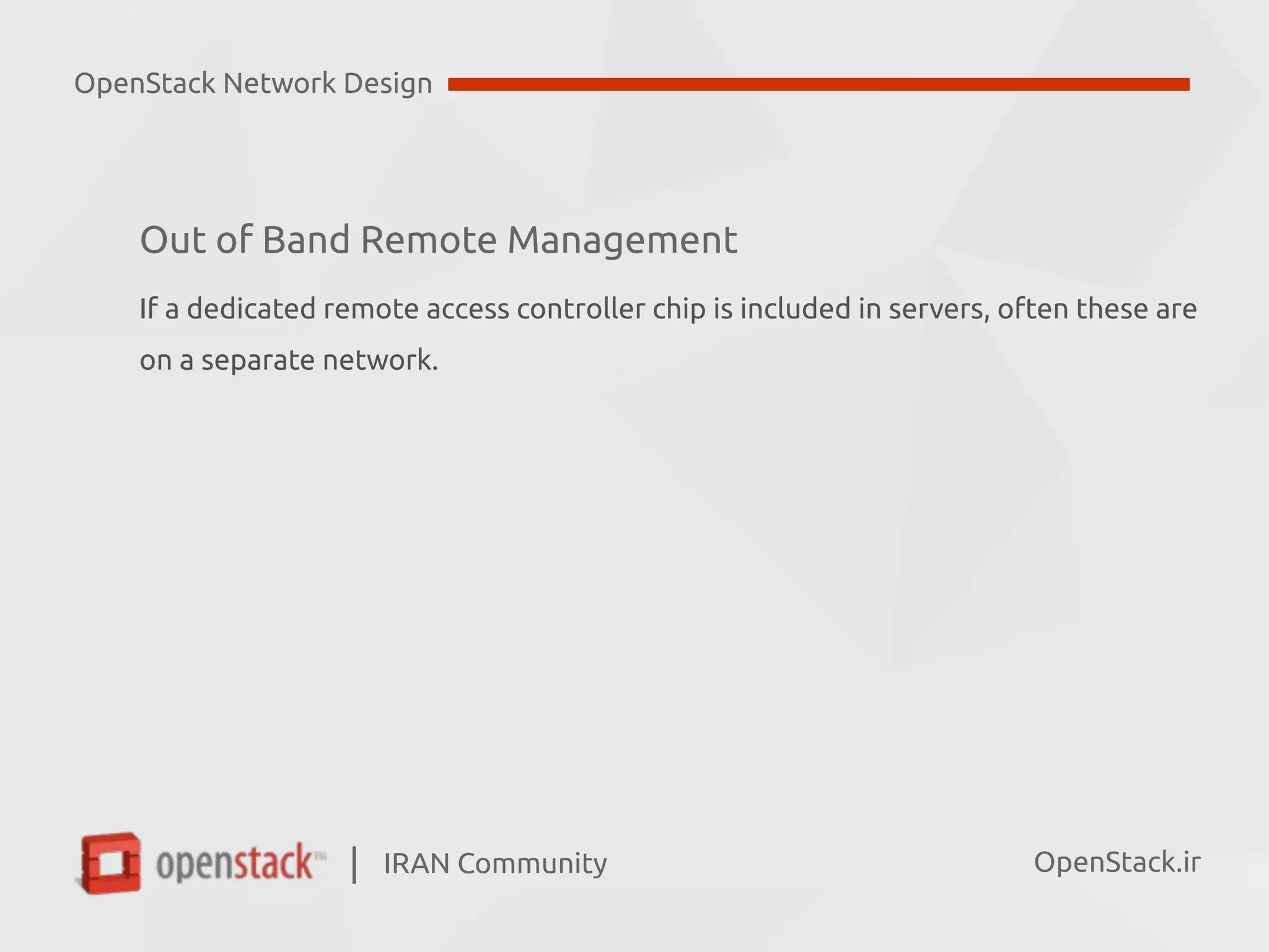

Out of Band Remote Management
If a dedicated remote access controller chip is included in servers, often these are
on a separate network.
OpenStack Network Design

11. IRAN Community| OpenStack.ir

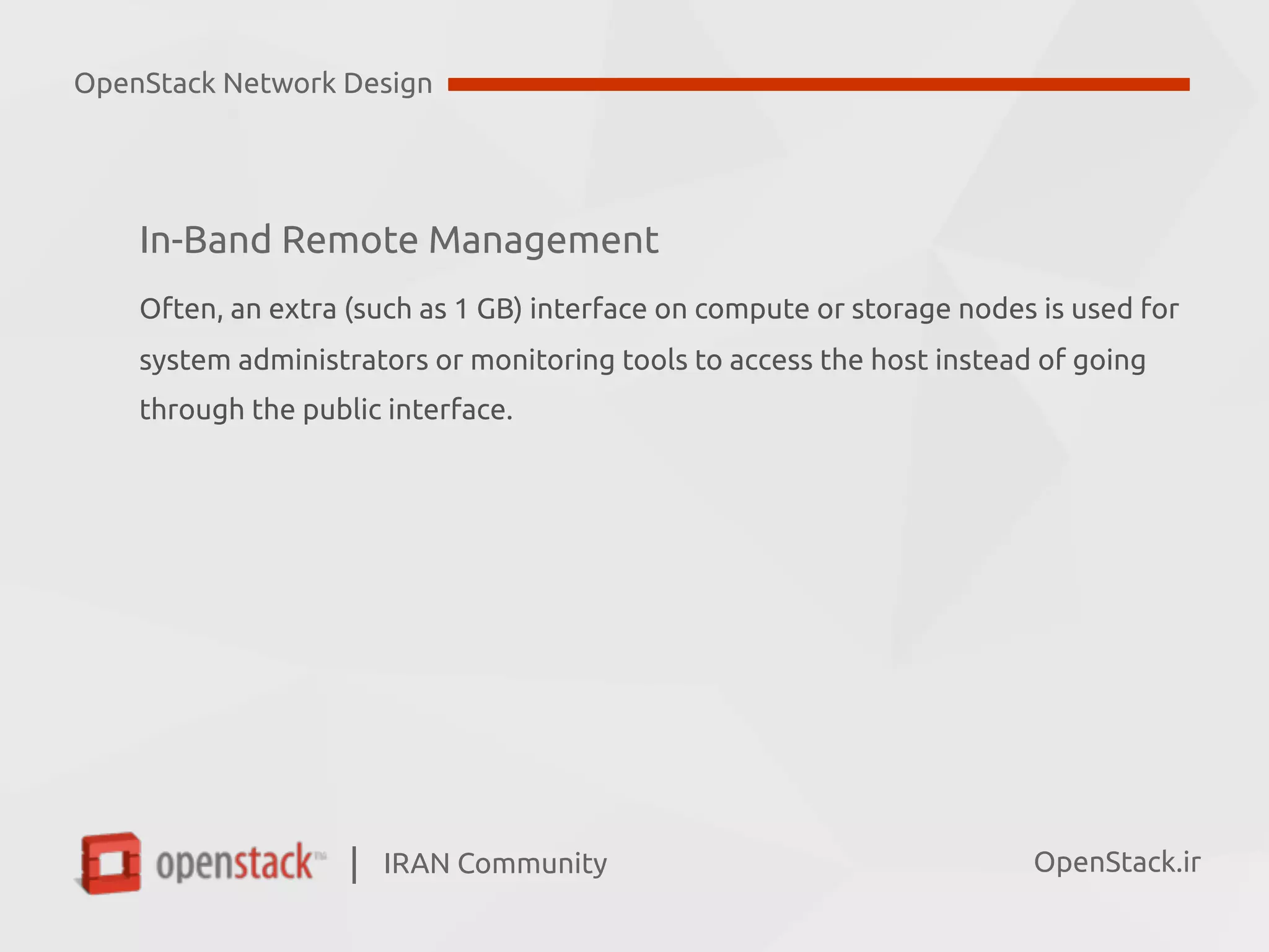

In-Band Remote Management
Often, an extra (such as 1 GB) interface on compute or storage nodes is used for
system administrators or monitoring tools to access the host instead of going
through the public interface.
OpenStack Network Design

12. IRAN Community| OpenStack.ir

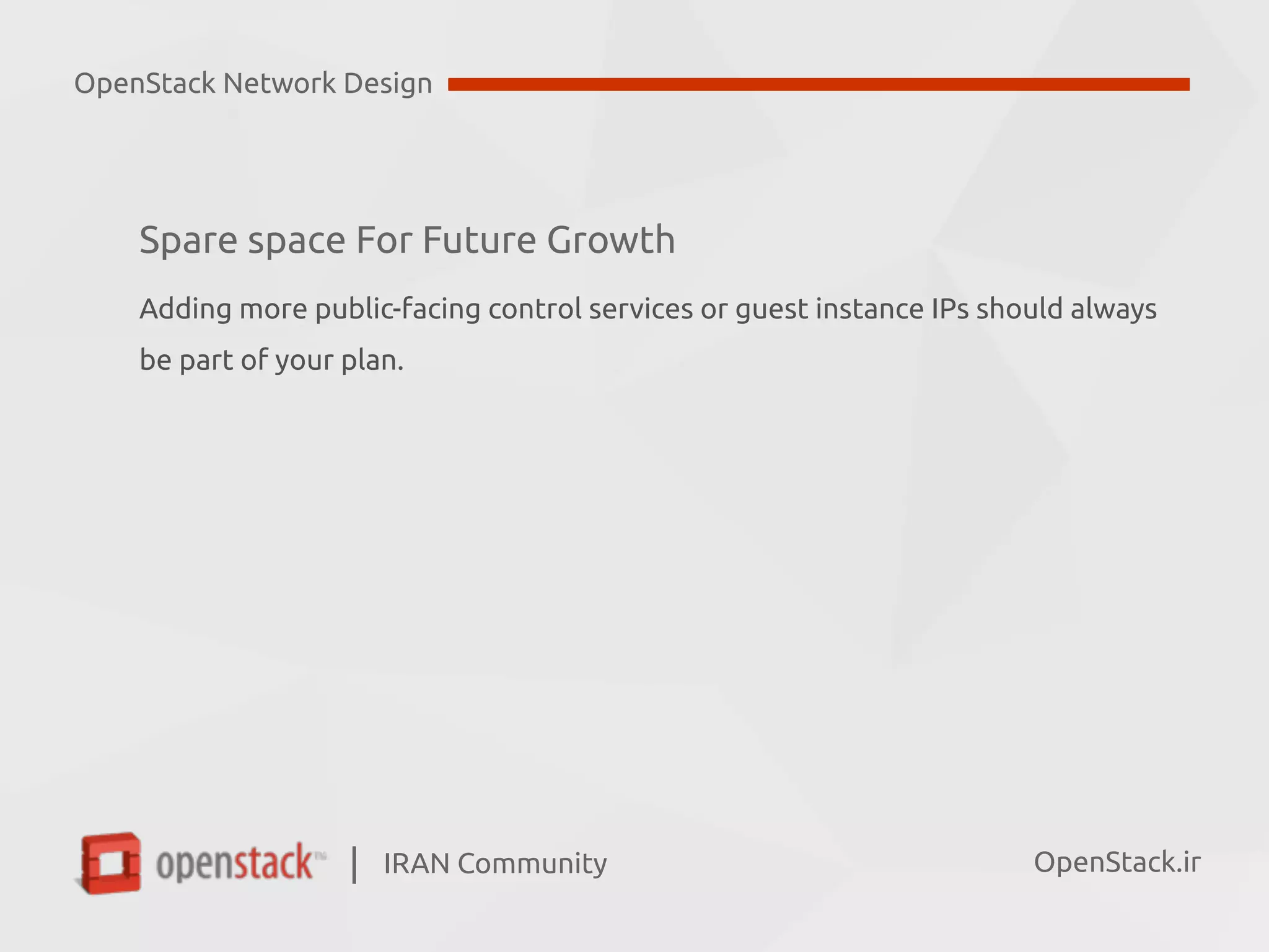

Spare space For Future Growth
Adding more public-facing control services or guest instance IPs should always
be part of your plan.
OpenStack Network Design

13. IRAN Community| OpenStack.ir

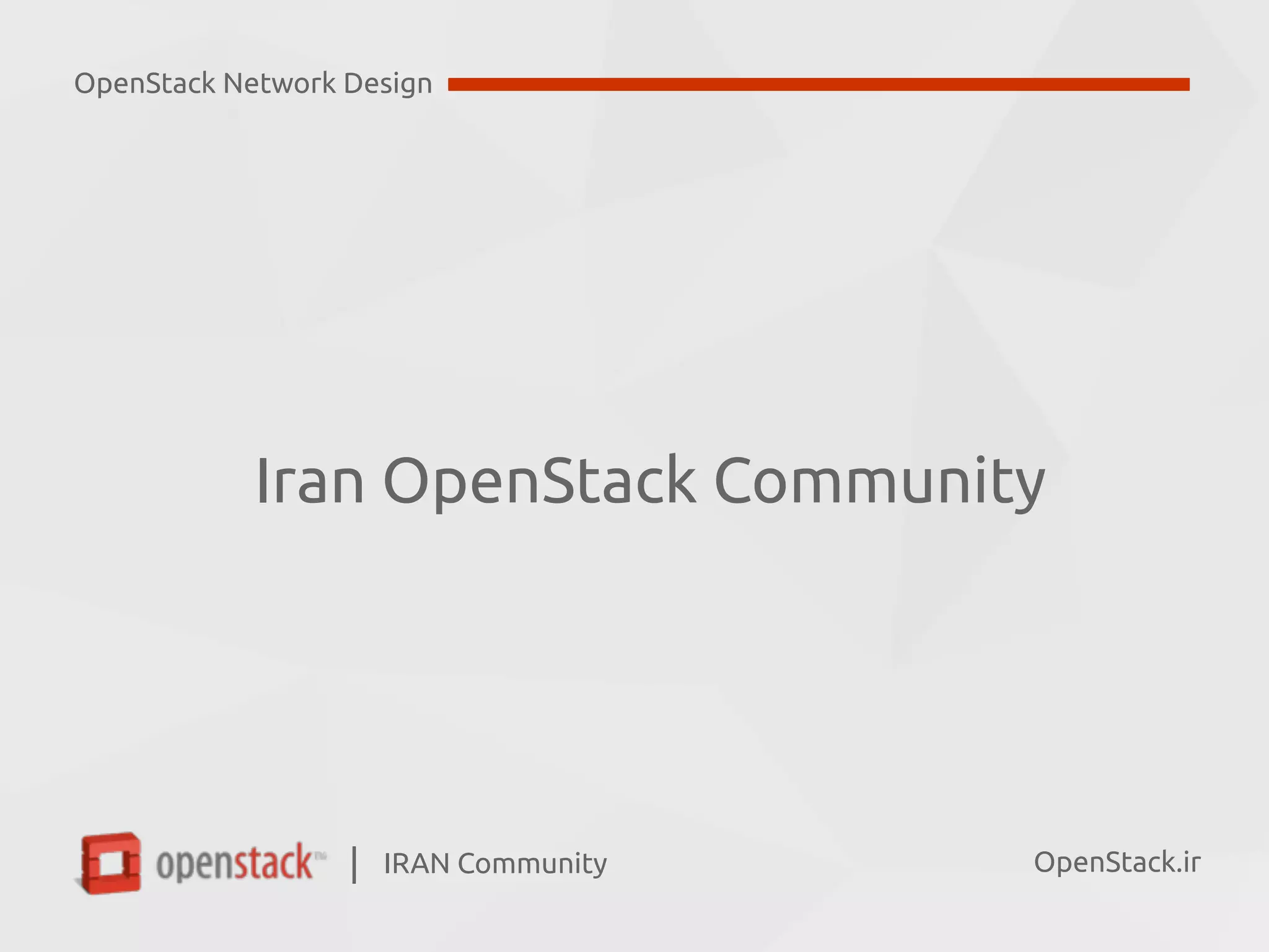

Iran OpenStack Community
OpenStack Network Design

14. IRAN Community| OpenStack.ir

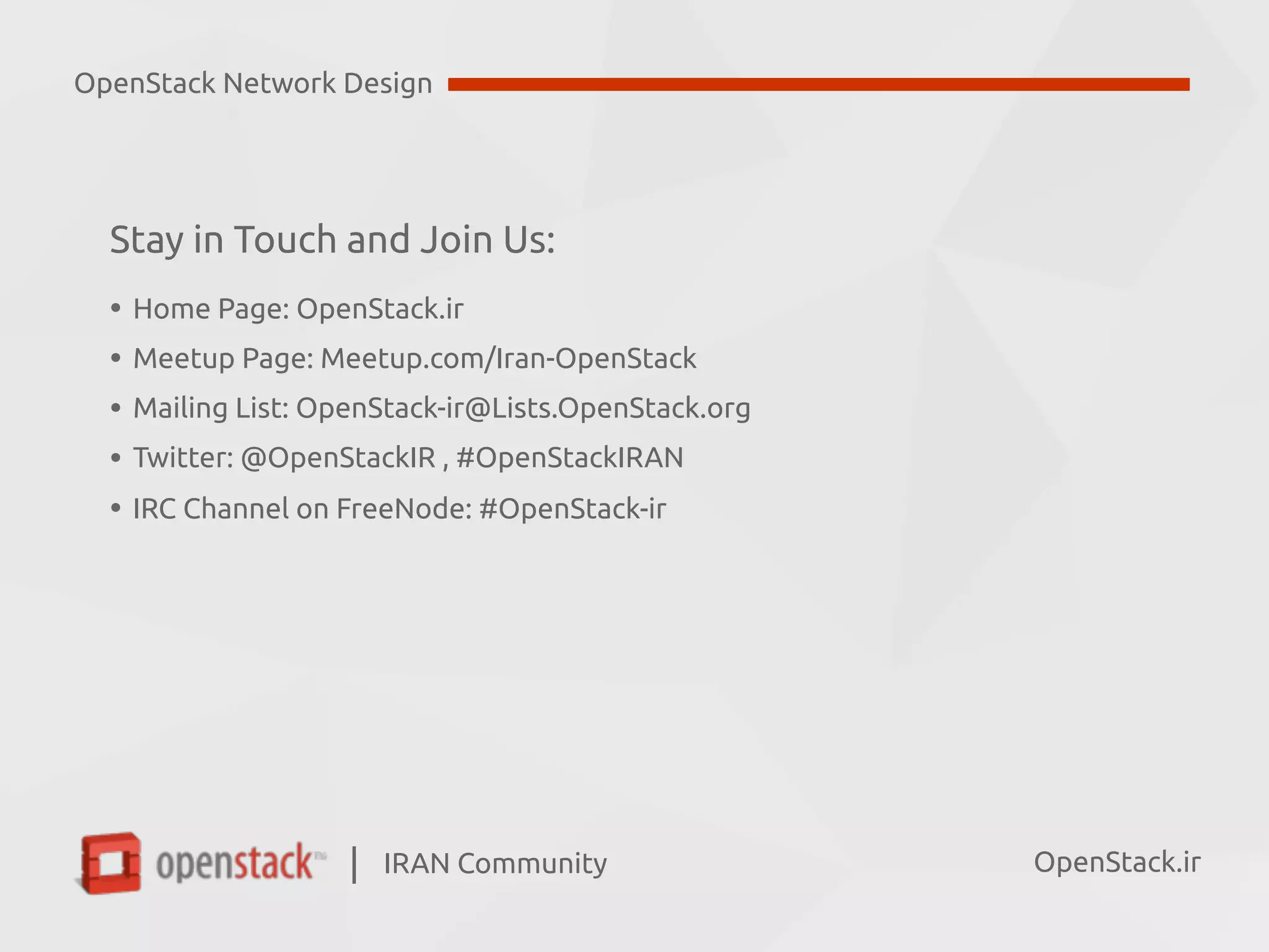

Stay in Touch and Join Us:
• Home Page: OpenStack.ir
• Meetup Page: Meetup.com/Iran-OpenStack
• Mailing List: OpenStack-ir@Lists.OpenStack.org
• Twitter: @OpenStackIR , #OpenStackIRAN
• IRC Channel on FreeNode: #OpenStack-ir
OpenStack Network Design

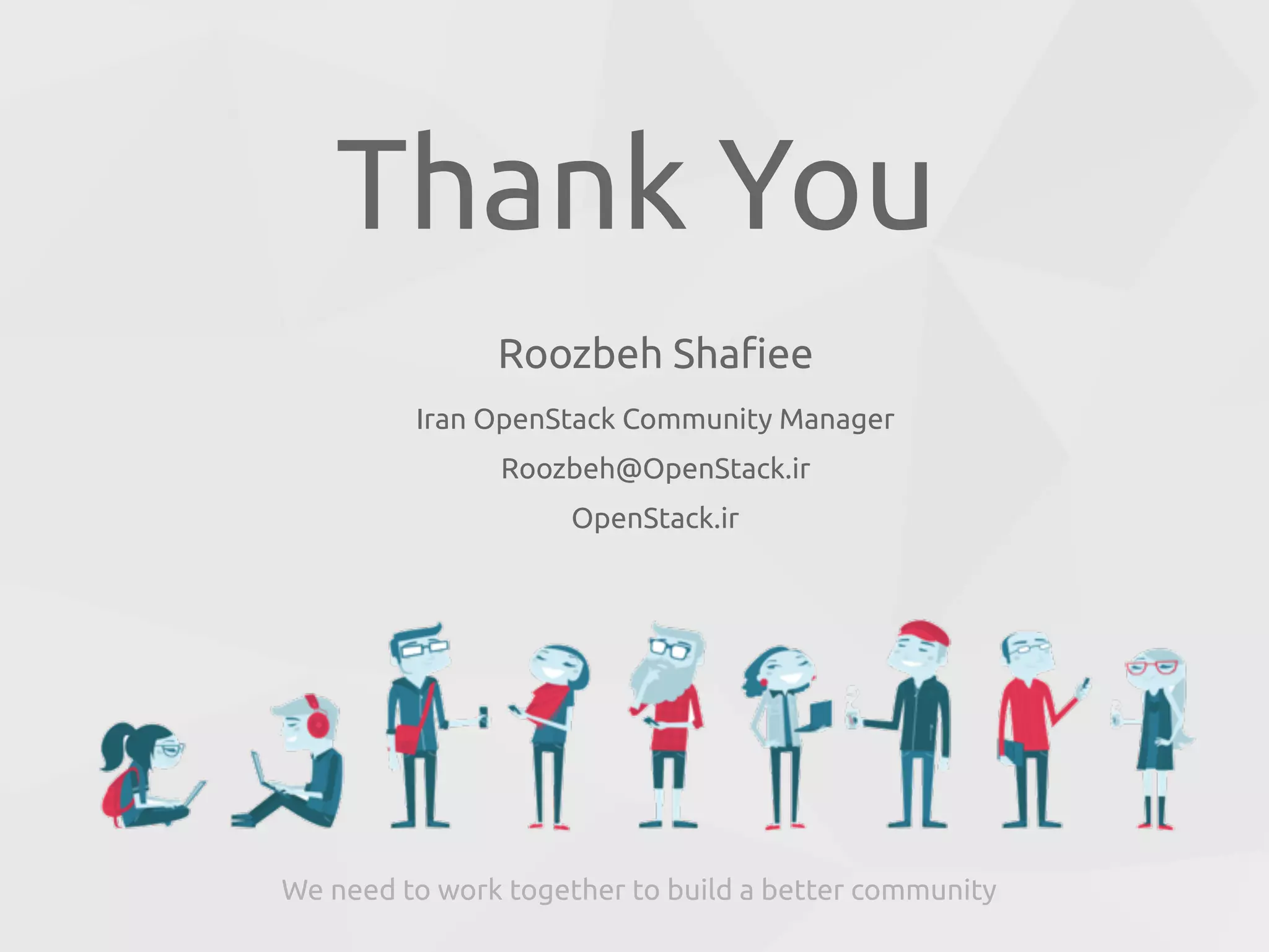

15. Roozbeh Shafiee
Iran OpenStack Community Manager
Roozbeh@OpenStack.ir
OpenStack.ir
Thank You
We need to work together to build a better community
