1. Java/J2EE Programming Training
Mapping Classes With Relational Databases

2. Page 2Classification: Restricted

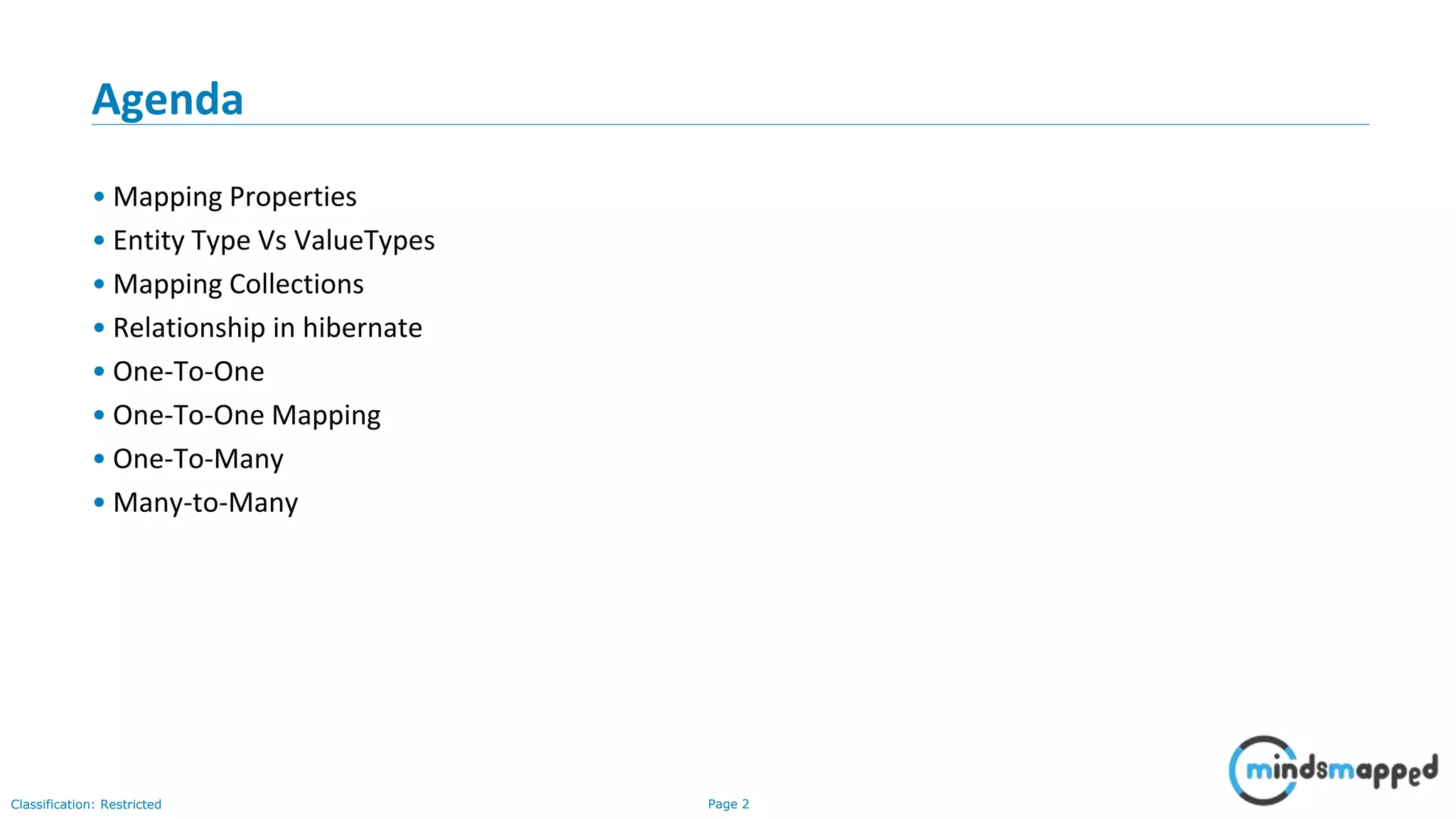

Agenda
• Mapping Properties
• Entity Type Vs ValueTypes
• Mapping Collections
• Relationship in hibernate
• One-To-One
• One-To-One Mapping
• One-To-Many
• Many-to-Many

3. Page 3Classification: Restricted

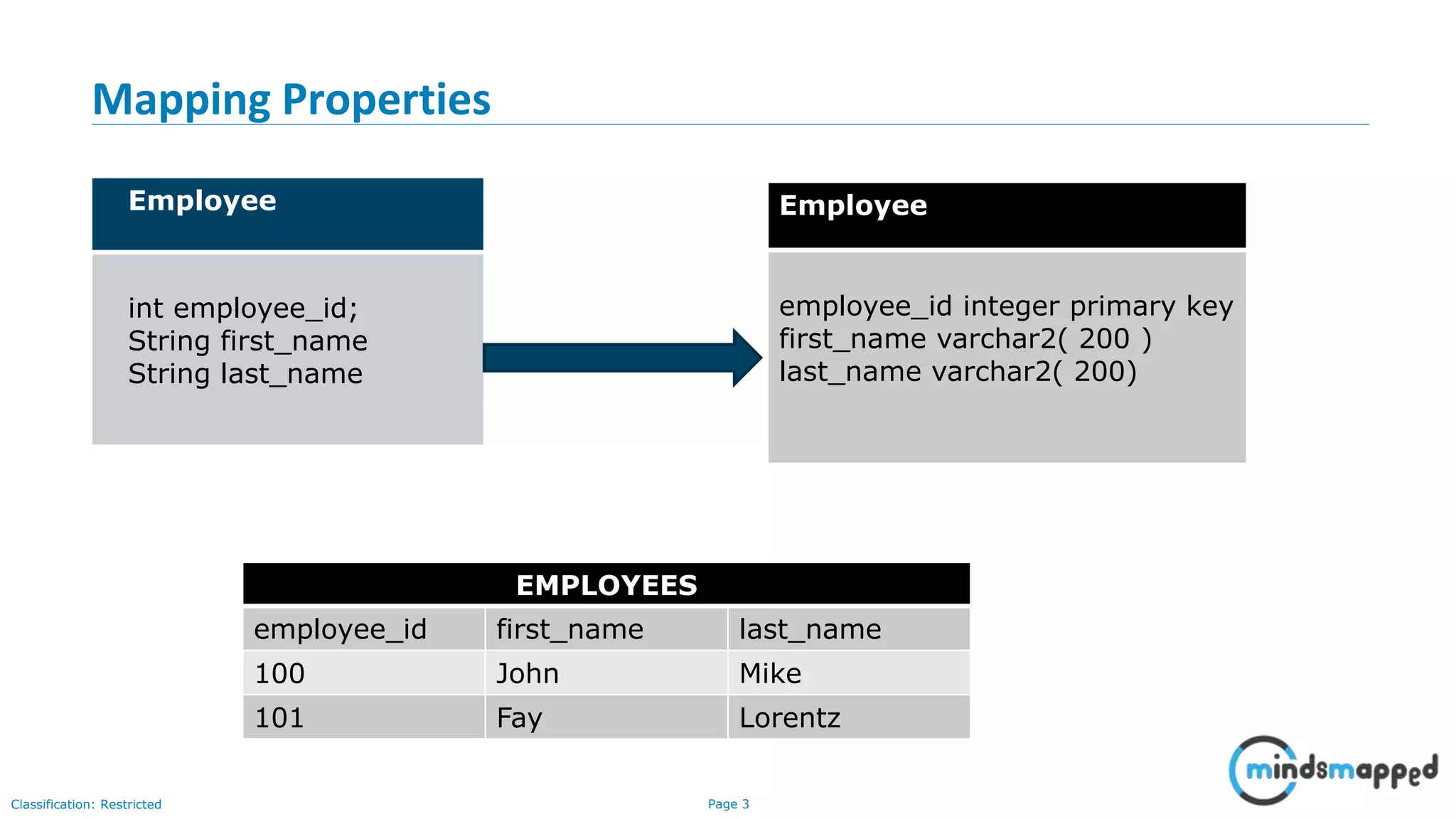

Mapping Properties
Employee
int employee_id;
String first_name
String last_name
Employee
employee_id integer primary key
first_name varchar2( 200 )
last_name varchar2( 200)
EMPLOYEES
employee_id first_name last_name
100 John Mike
101 Fay Lorentz

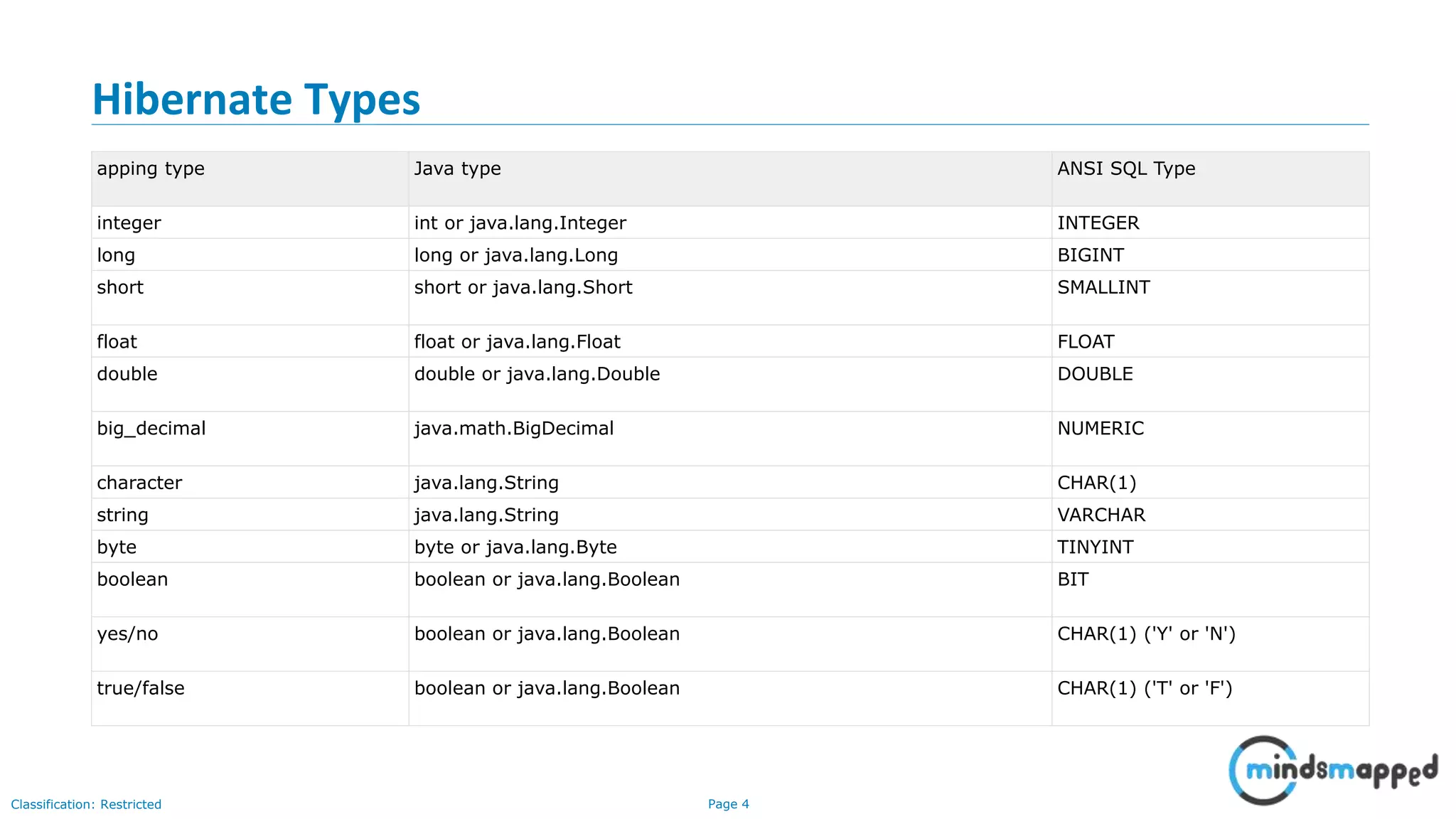

4. Page 4Classification: Restricted
Hibernate Types
apping type Java type ANSI SQL Type
integer int or java.lang.Integer INTEGER
long long or java.lang.Long BIGINT
short short or java.lang.Short SMALLINT
float float or java.lang.Float FLOAT
double double or java.lang.Double DOUBLE
big_decimal java.math.BigDecimal NUMERIC
character java.lang.String CHAR(1)
string java.lang.String VARCHAR
byte byte or java.lang.Byte TINYINT
boolean boolean or java.lang.Boolean BIT
yes/no boolean or java.lang.Boolean CHAR(1) ('Y' or 'N')
true/false boolean or java.lang.Boolean CHAR(1) ('T' or 'F')

5. Page 5Classification: Restricted

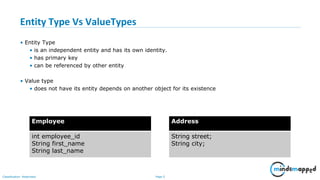

Entity Type Vs ValueTypes
• Entity Type
• is an independent entity and has its own identity.
• has primary key
• can be referenced by other entity
• Value type
• does not have its entity depends on another object for its existence
Employee
int employee_id
String first_name
String last_name
Address
String street;
String city;

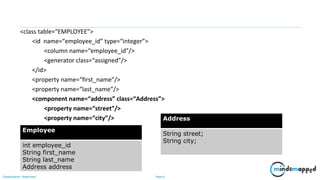

6. Page 6Classification: Restricted
<class table=“EMPLOYEE”>
<id name=“employee_id” type=“integer”>
<column name=“employee_id”/>
<generator class=“assigned”/>
</id>
<property name=“first_name”/>
<property name=“last_name”/>
<component name=“address” class=“Address”>
<property name=“street”/>
<property name=“city”/>
</componenet>Employee
int employee_id
String first_name
String last_name
Address address
Address
String street;
String city;

7. Page 7Classification: Restricted

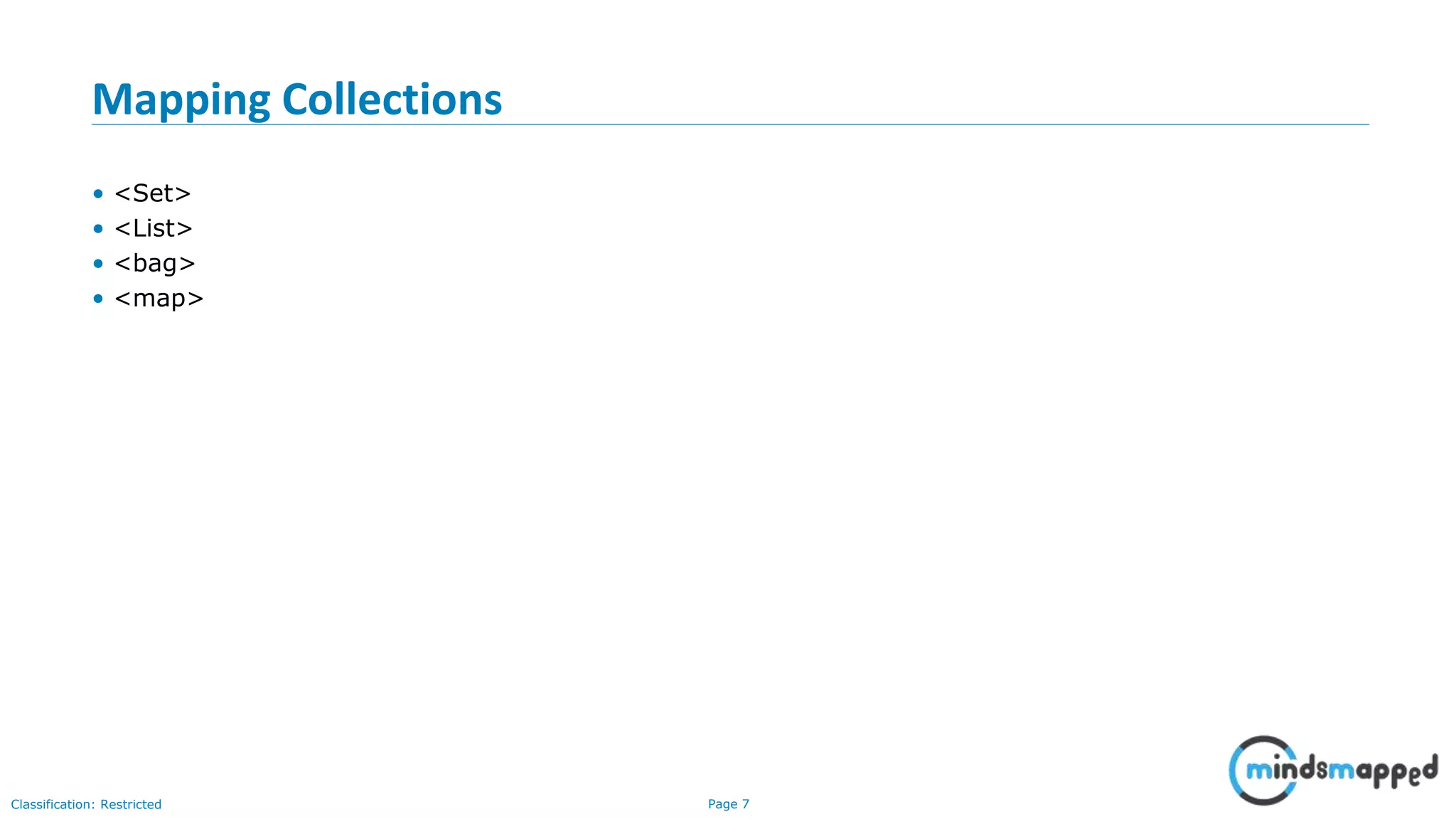

Mapping Collections
• <Set>
• <List>
• <bag>
• <map>

8. Page 8Classification: Restricted

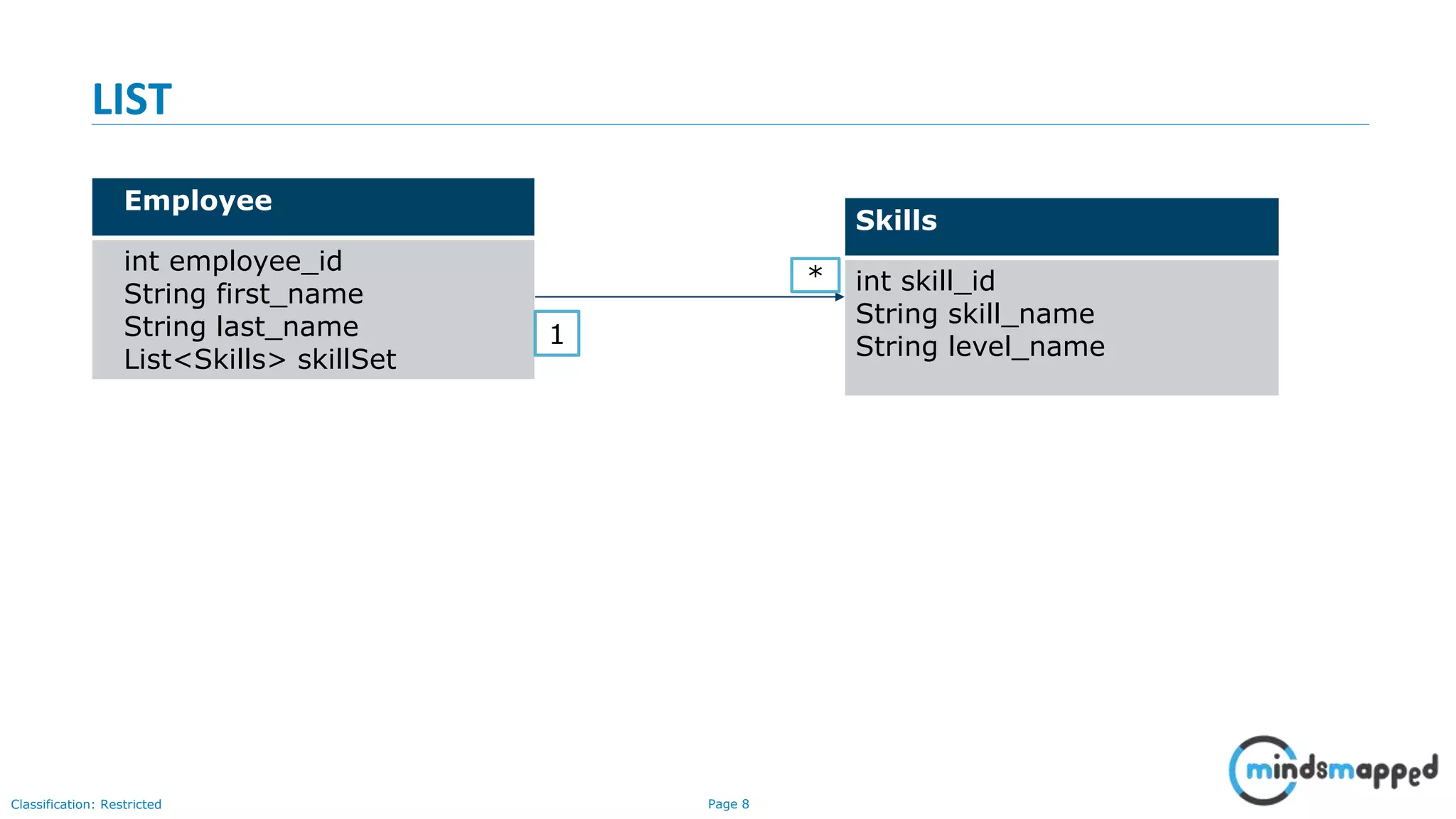

LIST
Employee
int employee_id
String first_name
String last_name
List<Skills> skillSet
Skills
int skill_id
String skill_name
String level_name1
*

9. Page 9Classification: Restricted

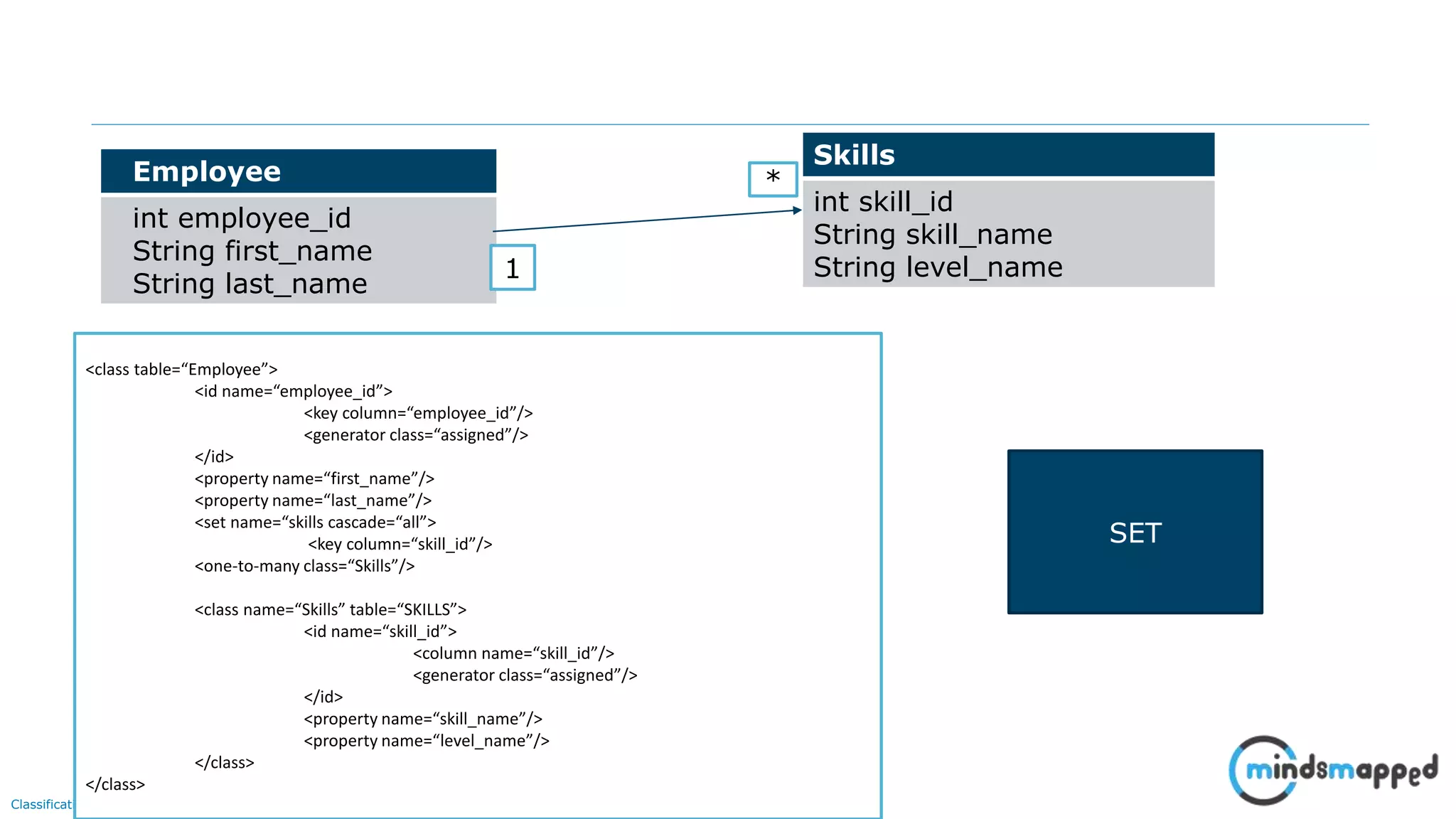

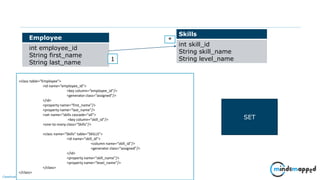

Employee
int employee_id
String first_name
String last_name
Skills
int skill_id
String skill_name
String level_name1
*
<class table=“Employee”>
<id name=“employee_id”>
<key column=“employee_id”/>
<generator class=“assigned”/>
</id>
<property name=“first_name”/>
<property name=“last_name”/>
<set name=“skills cascade=“all”>
<key column=“skill_id”/>
<one-to-many class=“Skills”/>
<class name=“Skills” table=“SKILLS”>
<id name=“skill_id”>
<column name=“skill_id”/>
<generator class=“assigned”/>
</id>
<property name=“skill_name”/>
<property name=“level_name”/>
</class>
</class>
SET

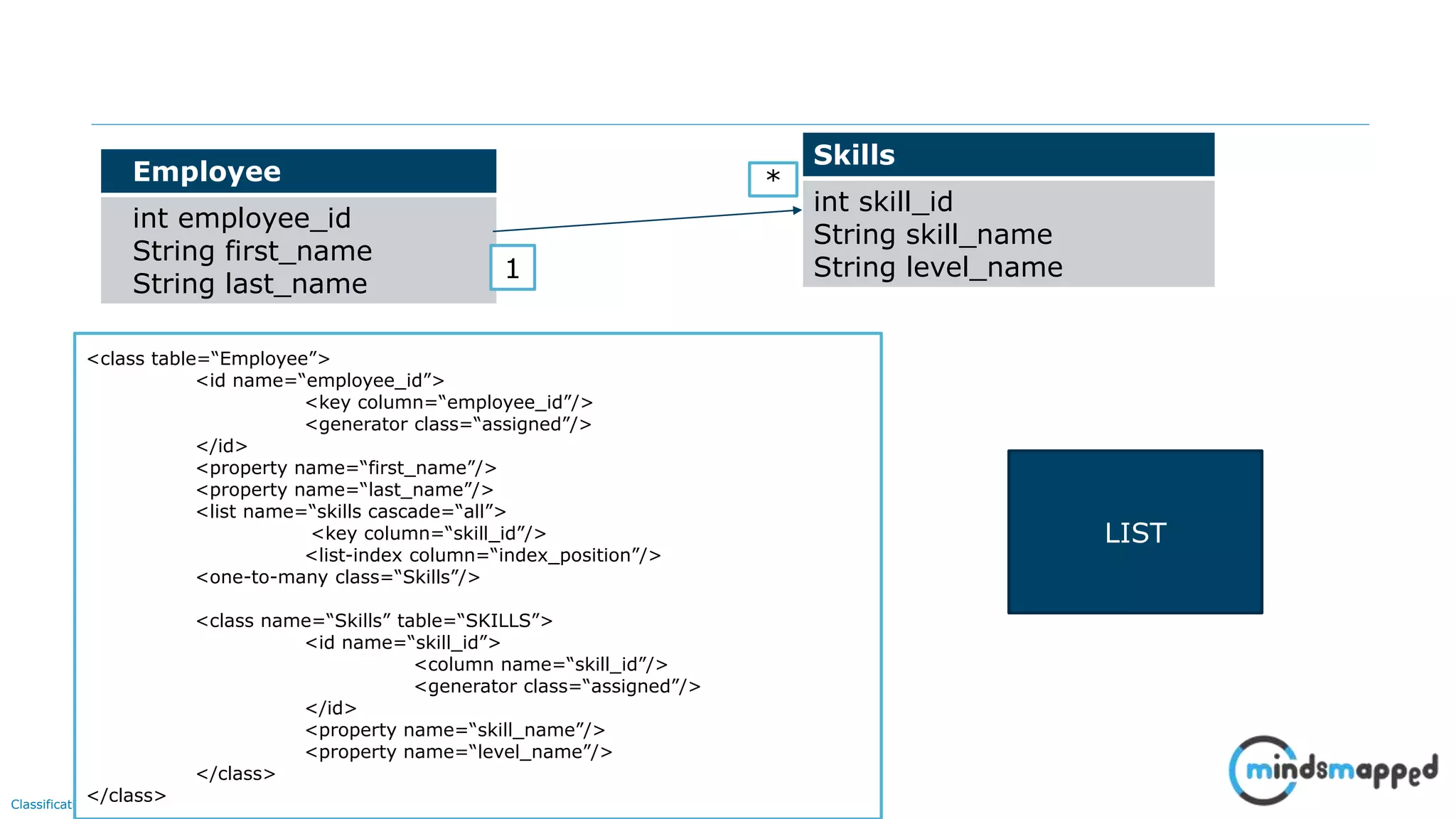

10. Page 10Classification: Restricted
Employee
int employee_id
String first_name
String last_name
Skills
int skill_id
String skill_name
String level_name1
*
<class table=“Employee”>
<id name=“employee_id”>
<key column=“employee_id”/>
<generator class=“assigned”/>
</id>
<property name=“first_name”/>
<property name=“last_name”/>
<list name=“skills cascade=“all”>
<key column=“skill_id”/>
<list-index column=“index_position”/>
<one-to-many class=“Skills”/>
<class name=“Skills” table=“SKILLS”>
<id name=“skill_id”>
<column name=“skill_id”/>
<generator class=“assigned”/>
</id>
<property name=“skill_name”/>
<property name=“level_name”/>
</class>
</class>
LIST

11. Page 11Classification: Restricted

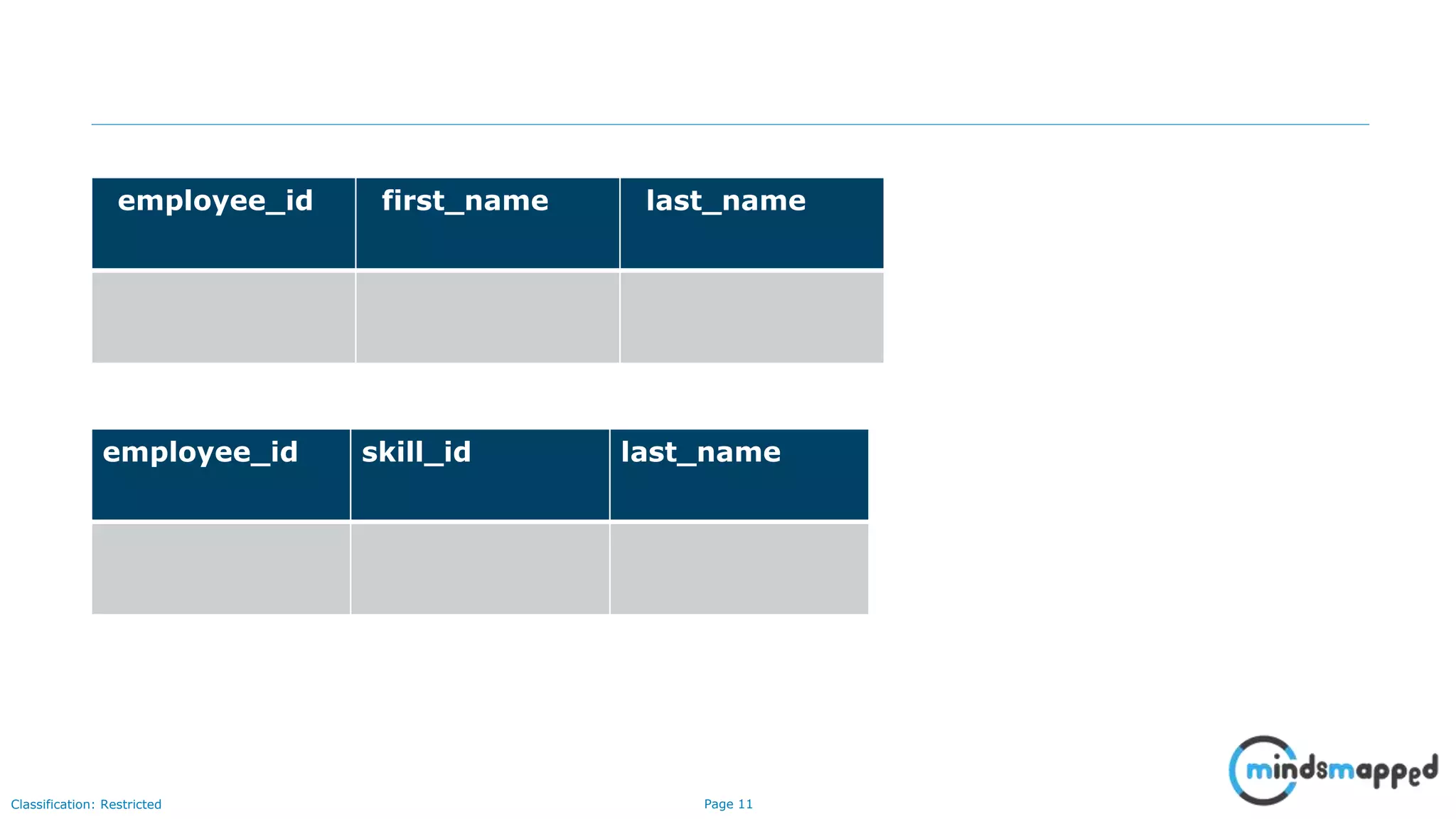

employee_id first_name last_name
employee_id skill_id last_name

12. Page 12Classification: Restricted

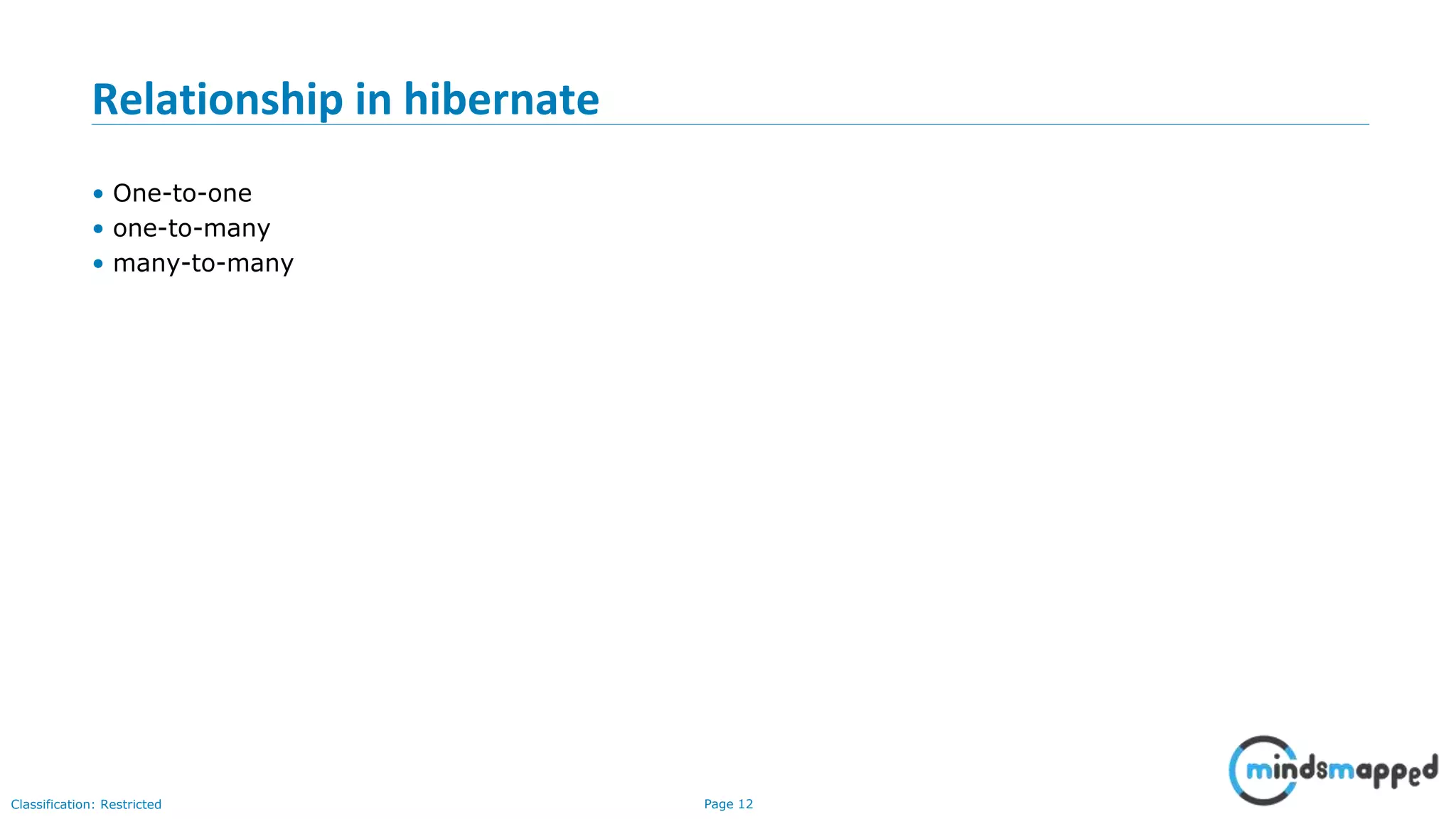

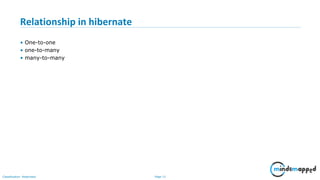

Relationship in hibernate
• One-to-one
• one-to-many
• many-to-many

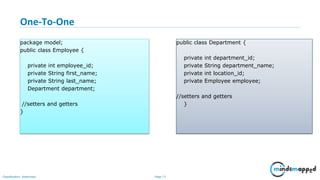

13. Page 13Classification: Restricted

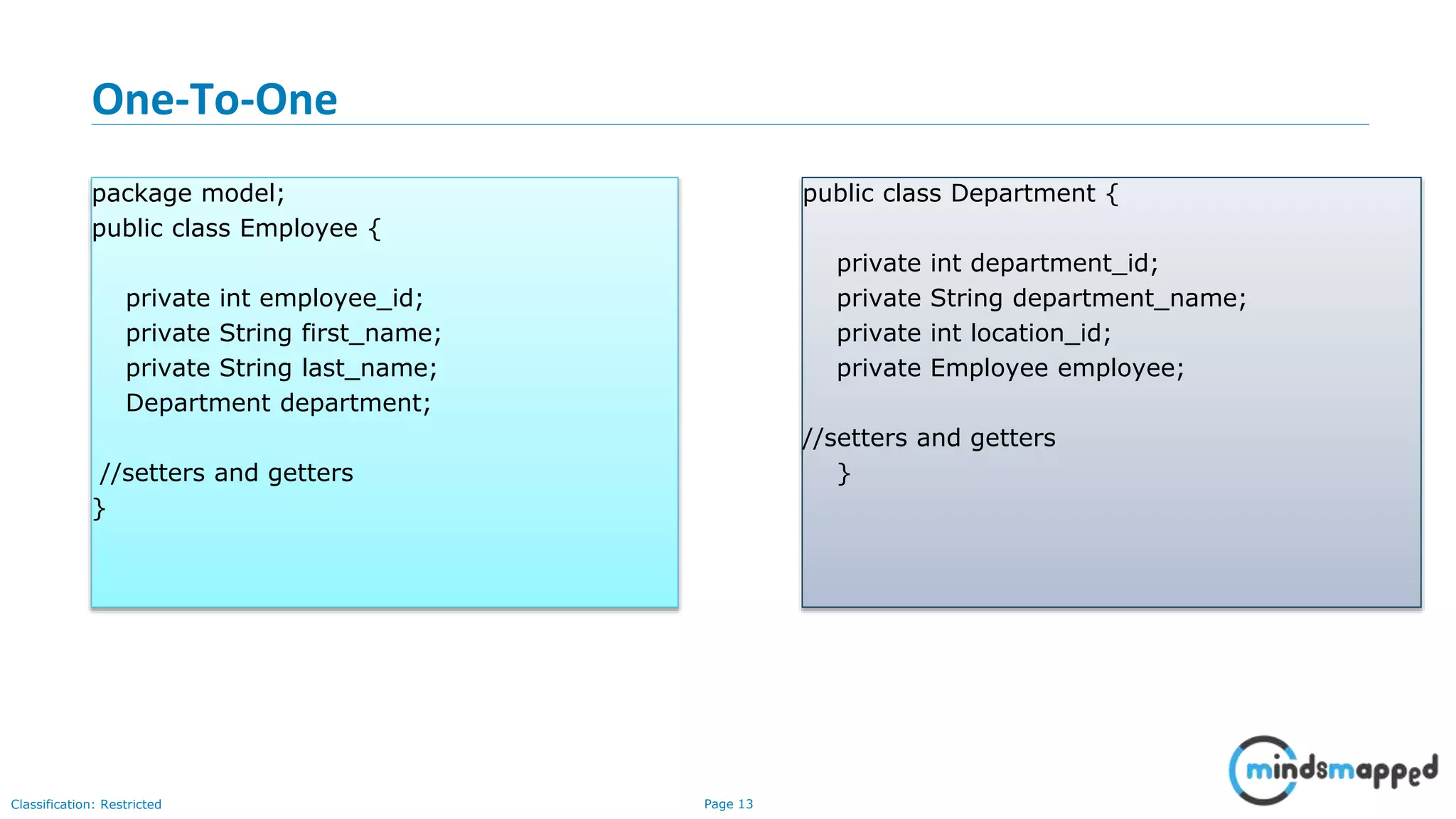

One-To-One
package model;
public class Employee {
private int employee_id;
private String first_name;
private String last_name;
Department department;
//setters and getters
}
public class Department {
private int department_id;
private String department_name;
private int location_id;
private Employee employee;
//setters and getters
}

14. Page 14Classification: Restricted

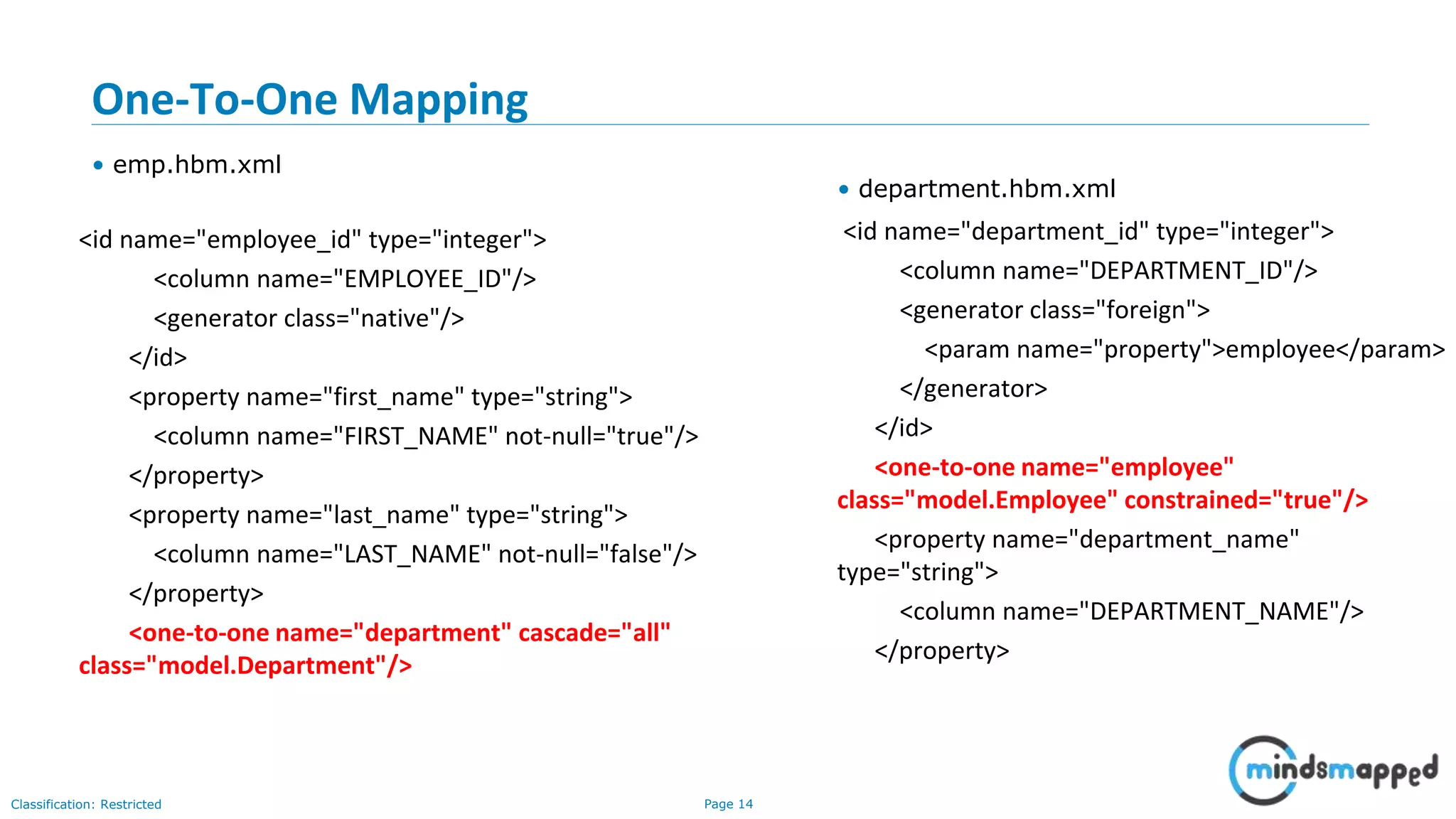

One-To-One Mapping
<id name="employee_id" type="integer">
<column name="EMPLOYEE_ID"/>
<generator class="native"/>
</id>
<property name="first_name" type="string">
<column name="FIRST_NAME" not-null="true"/>
</property>
<property name="last_name" type="string">
<column name="LAST_NAME" not-null="false"/>
</property>
<one-to-one name="department" cascade="all"
class="model.Department"/>
• emp.hbm.xml
• department.hbm.xml
<id name="department_id" type="integer">
<column name="DEPARTMENT_ID"/>
<generator class="foreign">
<param name="property">employee</param>
</generator>
</id>
<one-to-one name="employee"
class="model.Employee" constrained="true"/>
<property name="department_name"
type="string">
<column name="DEPARTMENT_NAME"/>
</property>

15. Page 15Classification: Restricted

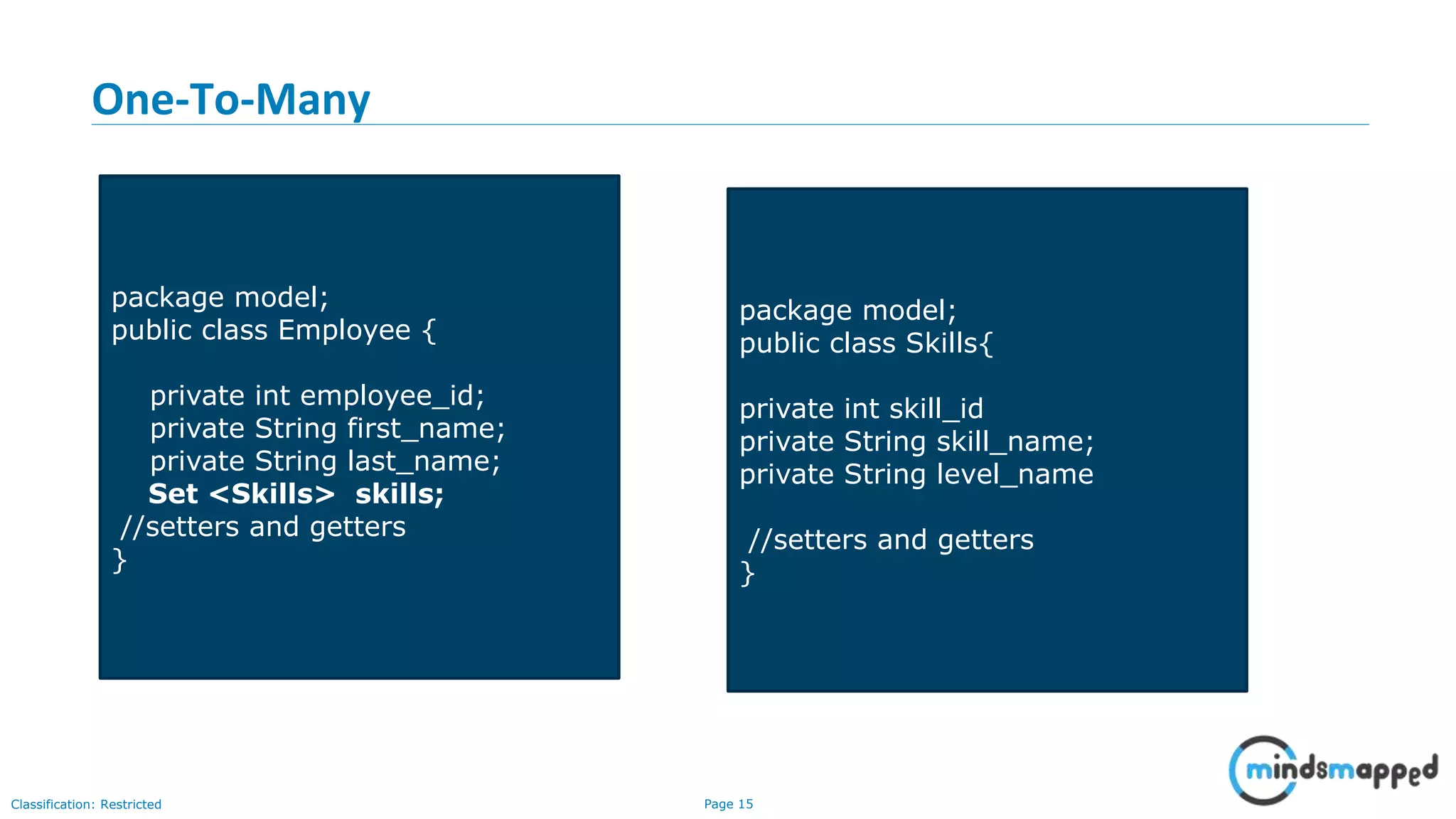

One-To-Many
package model;
public class Employee {
private int employee_id;
private String first_name;
private String last_name;
Set <Skills> skills;
//setters and getters
}
package model;
public class Skills{
private int skill_id
private String skill_name;
private String level_name
//setters and getters
}

16. Page 16Classification: Restricted

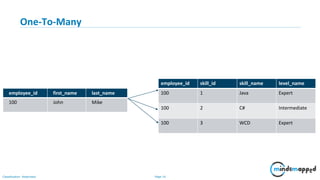

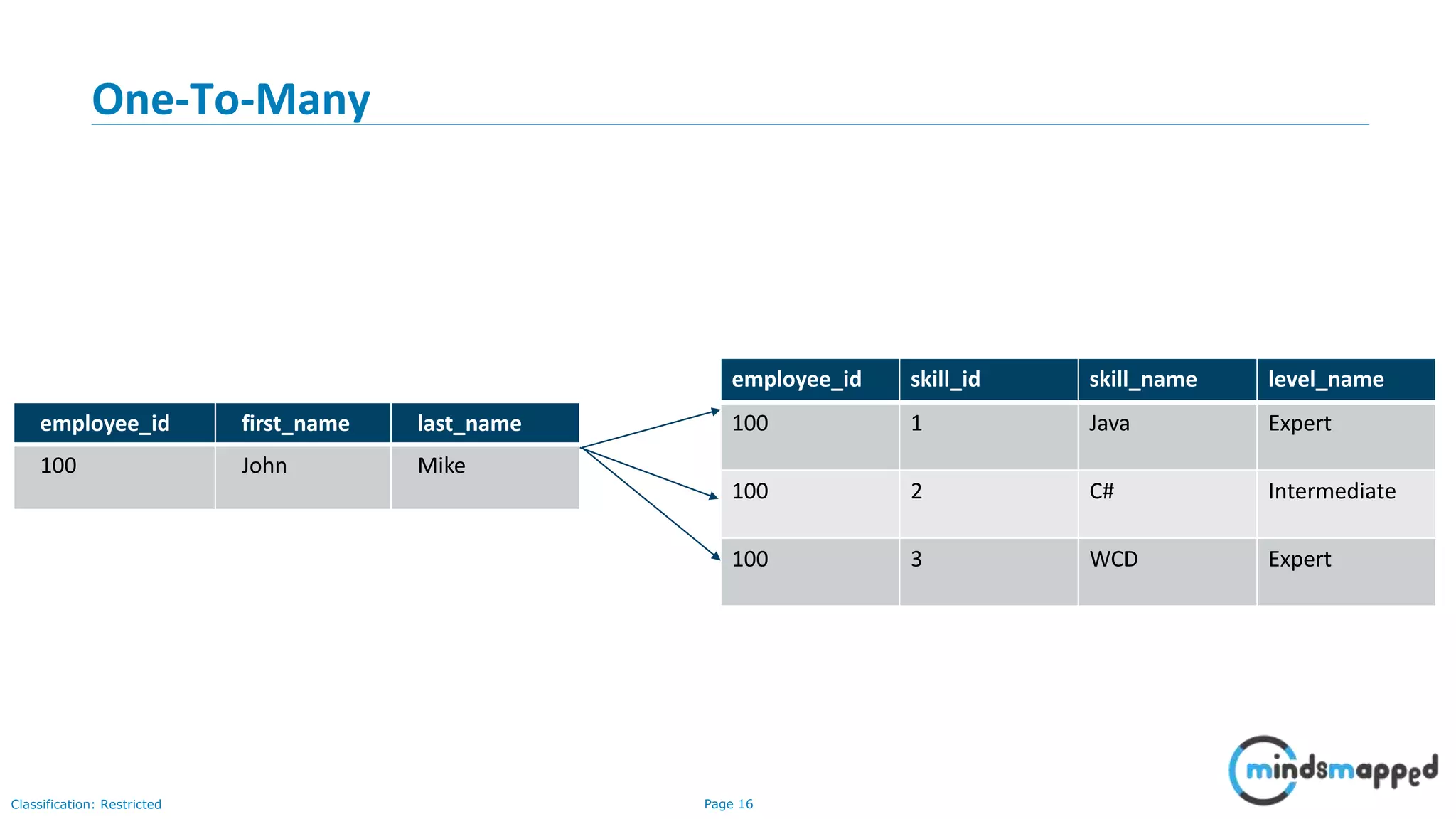

One-To-Many
employee_id first_name last_name
100 John Mike
employee_id skill_id skill_name level_name
100 1 Java Expert
100 2 C# Intermediate
100 3 WCD Expert

17. Page 17Classification: Restricted

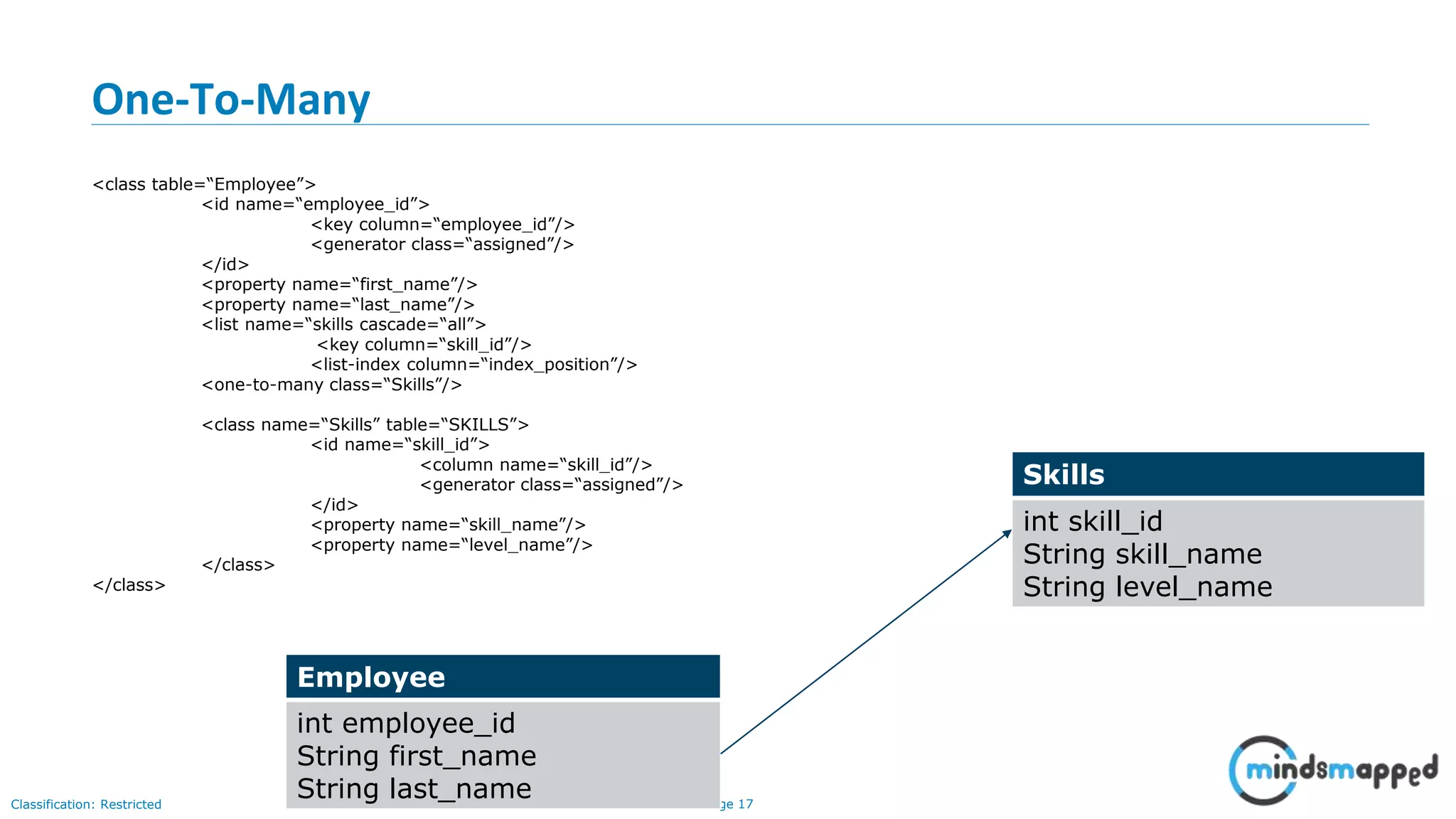

One-To-Many
<class table=“Employee”>
<id name=“employee_id”>
<key column=“employee_id”/>
<generator class=“assigned”/>
</id>
<property name=“first_name”/>
<property name=“last_name”/>
<list name=“skills cascade=“all”>
<key column=“skill_id”/>
<list-index column=“index_position”/>
<one-to-many class=“Skills”/>
<class name=“Skills” table=“SKILLS”>
<id name=“skill_id”>
<column name=“skill_id”/>
<generator class=“assigned”/>
</id>
<property name=“skill_name”/>
<property name=“level_name”/>
</class>
</class>
Employee
int employee_id
String first_name
String last_name
Skills
int skill_id
String skill_name
String level_name

18. Page 18Classification: Restricted

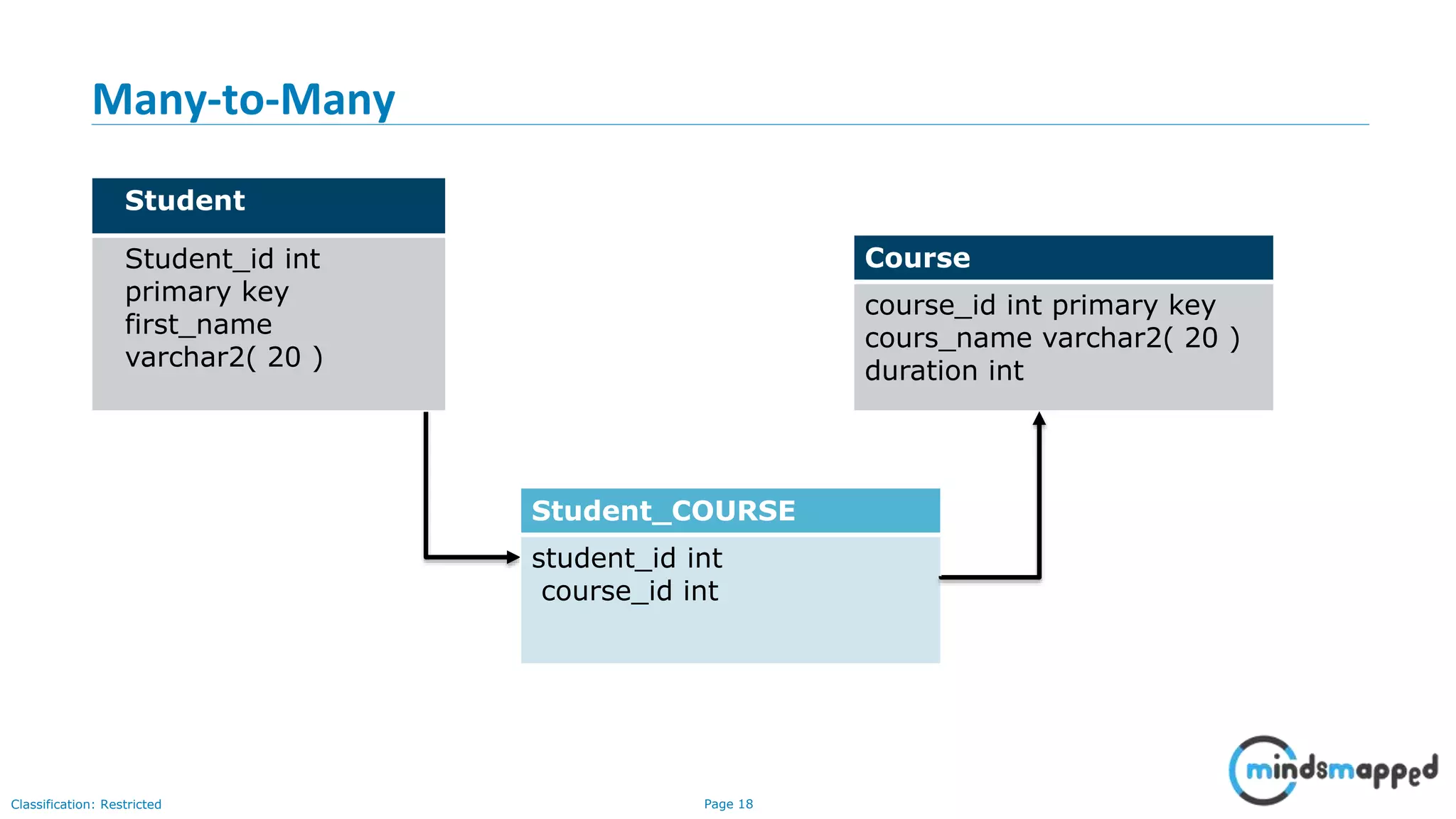

Many-to-Many
Student
Student_id int
primary key
first_name
varchar2( 20 )
Course
course_id int primary key
cours_name varchar2( 20 )
duration int
Student_COURSE
student_id int
course_id int

19. Page 19Classification: Restricted

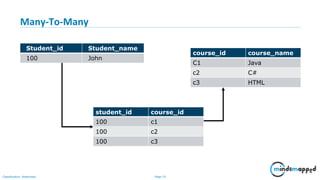

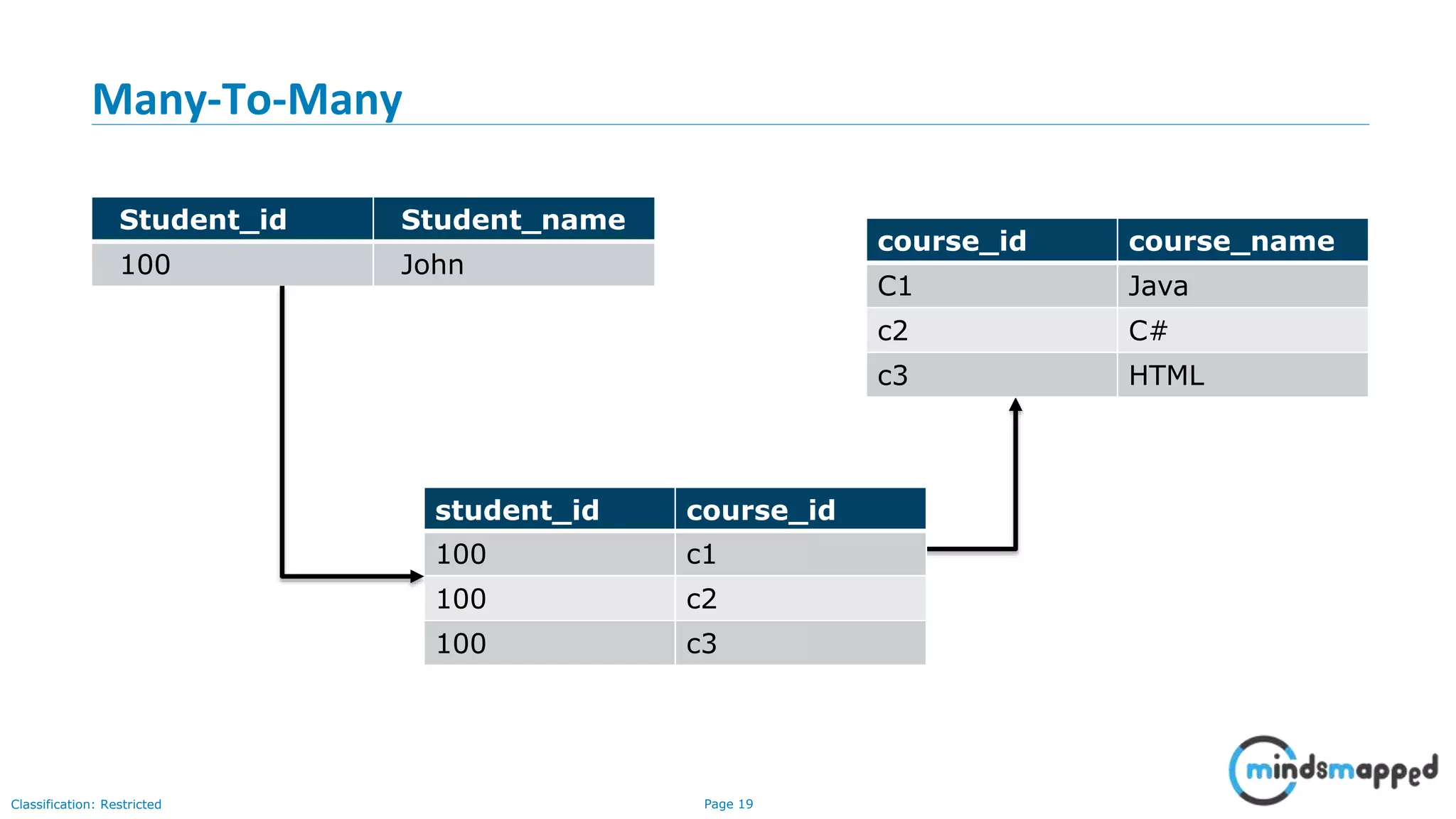

Many-To-Many
Student_id Student_name
100 John
course_id course_name
C1 Java
c2 C#
c3 HTML
student_id course_id
100 c1
100 c2
100 c3

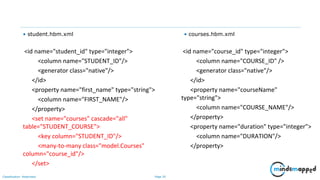

20. Page 20Classification: Restricted

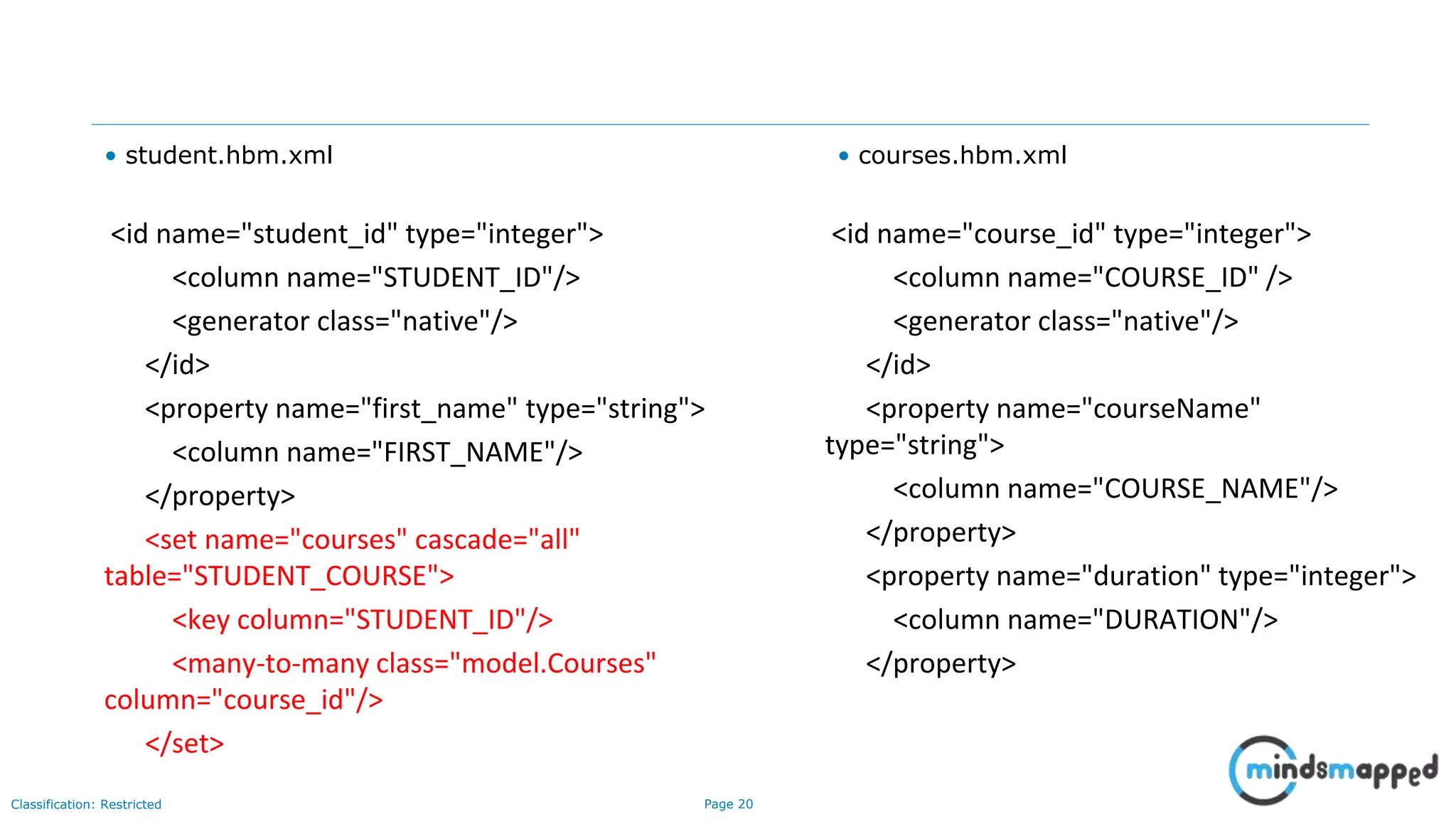

<id name="student_id" type="integer">
<column name="STUDENT_ID"/>
<generator class="native"/>
</id>
<property name="first_name" type="string">
<column name="FIRST_NAME"/>
</property>
<set name="courses" cascade="all"
table="STUDENT_COURSE">
<key column="STUDENT_ID"/>
<many-to-many class="model.Courses"
column="course_id"/>
</set>
• student.hbm.xml • courses.hbm.xml
<id name="course_id" type="integer">
<column name="COURSE_ID" />
<generator class="native"/>
</id>
<property name="courseName"
type="string">
<column name="COURSE_NAME"/>
</property>
<property name="duration" type="integer">
<column name="DURATION"/>
</property>

21. Page 21Classification: Restricted

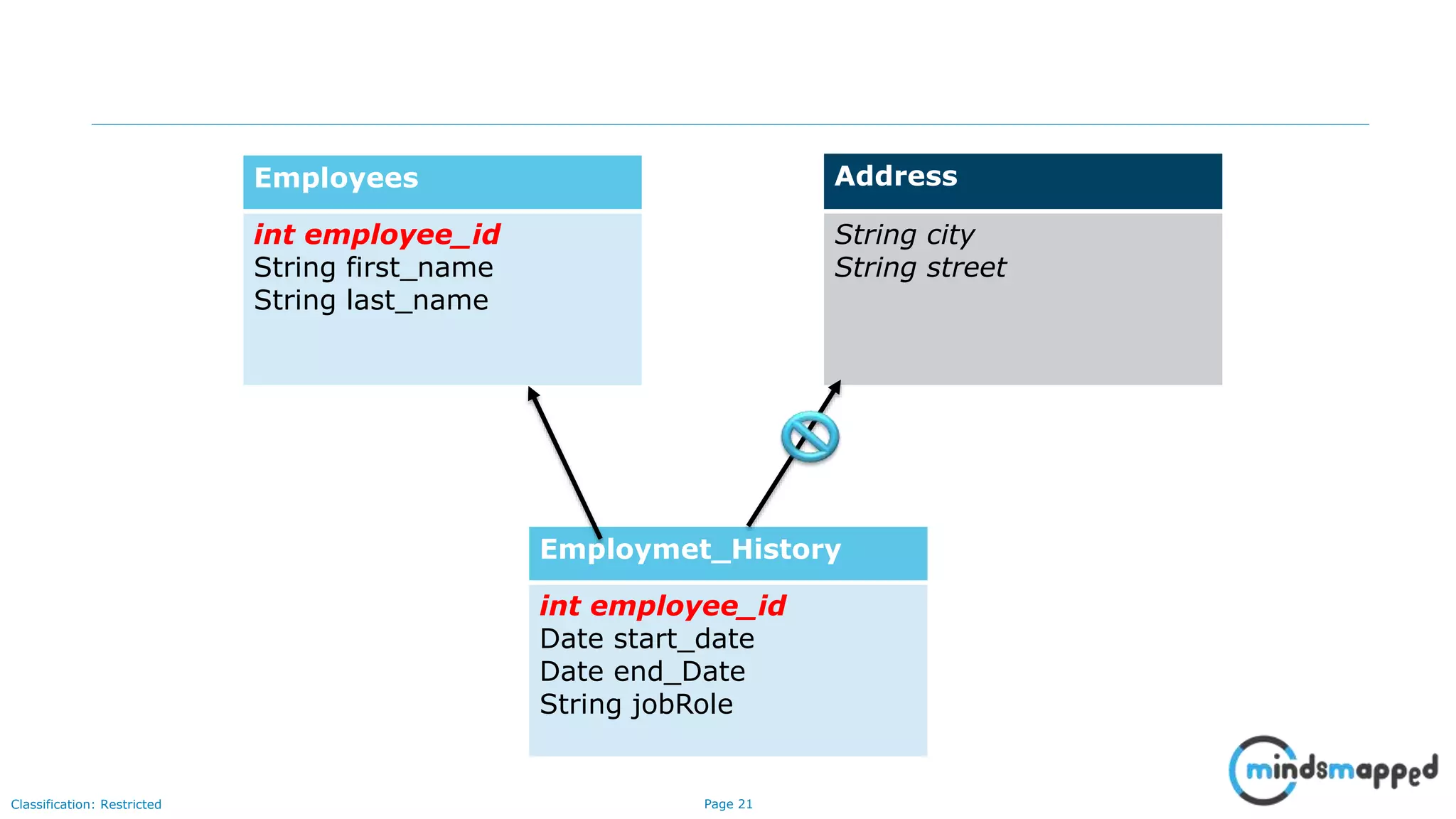

Employees
int employee_id
String first_name
String last_name
Address
String city
String street
Employmet_History
int employee_id
Date start_date
Date end_Date
String jobRole

22. Page 22Classification: Restricted
Thank You
