The document discusses Java filters, including the filter API, configuring filters in web.xml, and different dispatcher types. It provides code examples of a sample LoggingFilter class that implements the Filter interface. Filters can be used to log requests, perform authentication, authorization, and other cross-cutting concerns. Filters are configured in web.xml and can apply to specific URLs or servlets, and different dispatcher types determine when filters are invoked for requests, forwards, includes, or errors.

1. Java/J2EE Programming Training
Java Filters

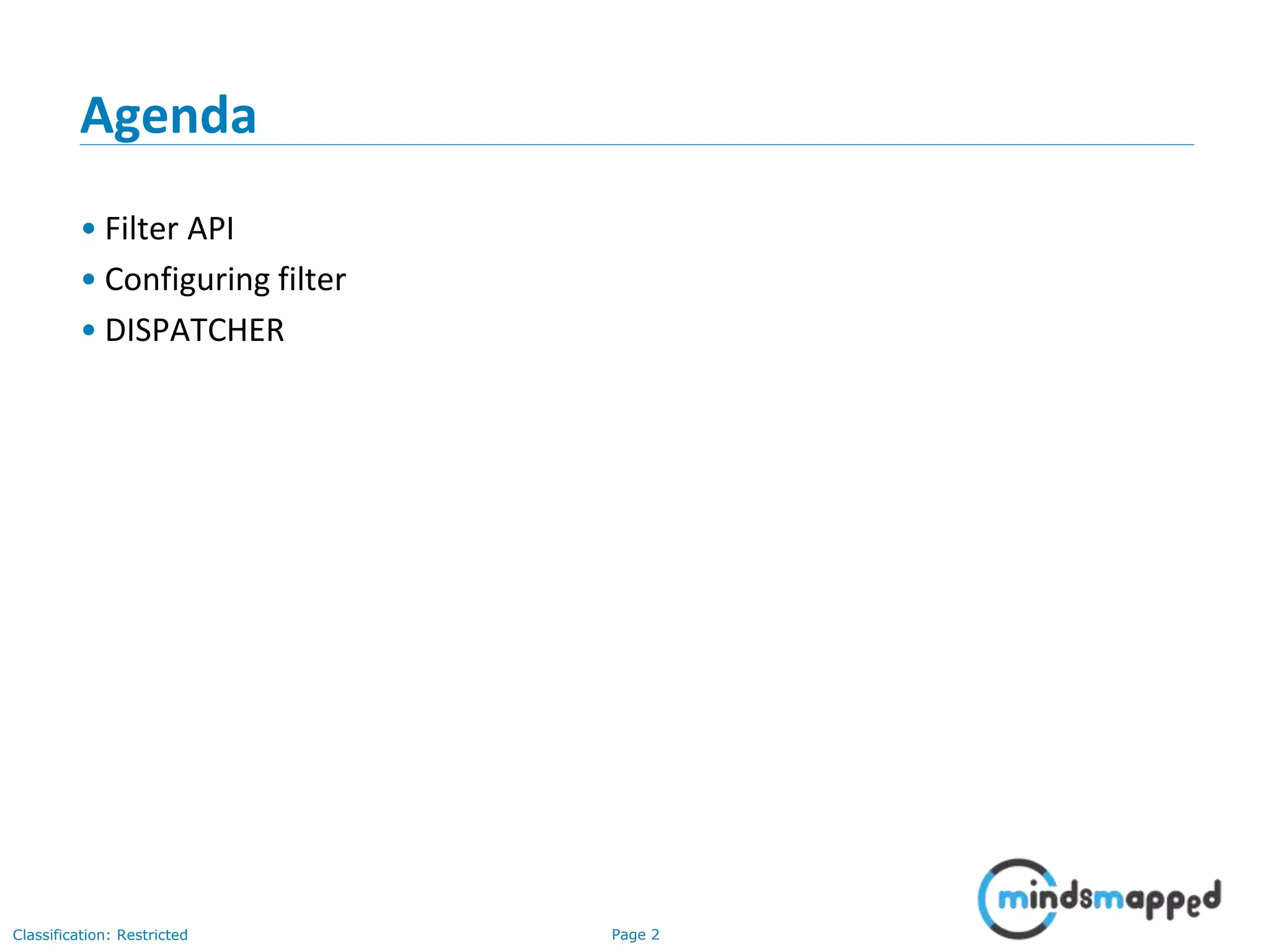

2. Page 2Classification: Restricted
Agenda
• Filter API
• Configuring filter
• DISPATCHER

3. Page 3Classification: Restricted

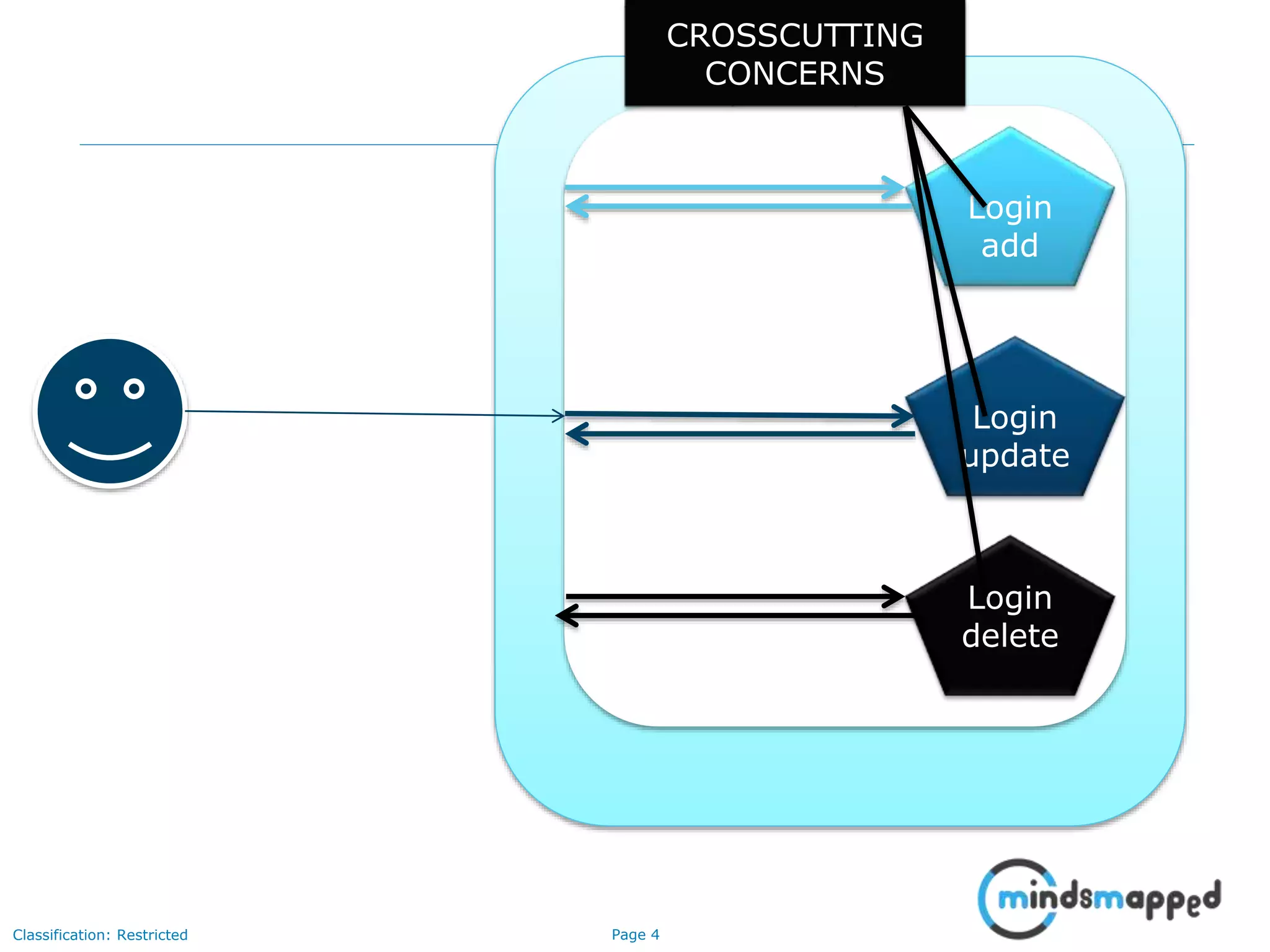

4. Page 4Classification: Restricted
Login
update
Login
add
Login
delete
CROSSCUTTING
CONCERNS

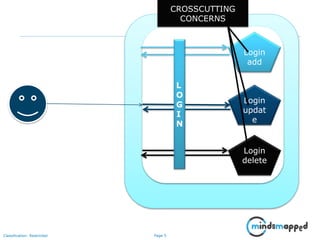

5. Page 5Classification: Restricted
Login
updat
e
Login
add
Login
delete
CROSSCUTTING
CONCERNS
L
O
G
I
N

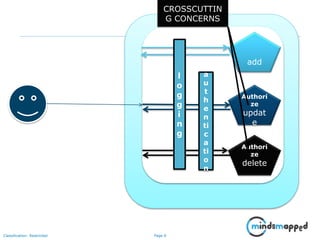

6. Page 6Classification: Restricted
Authori
ze
updat
e
add
Authori
ze
delete
CROSSCUTTIN
G CONCERNS
l
o
g
g
i
n
g
a
u
t
h
e
n
ti
c
a
ti
o
n

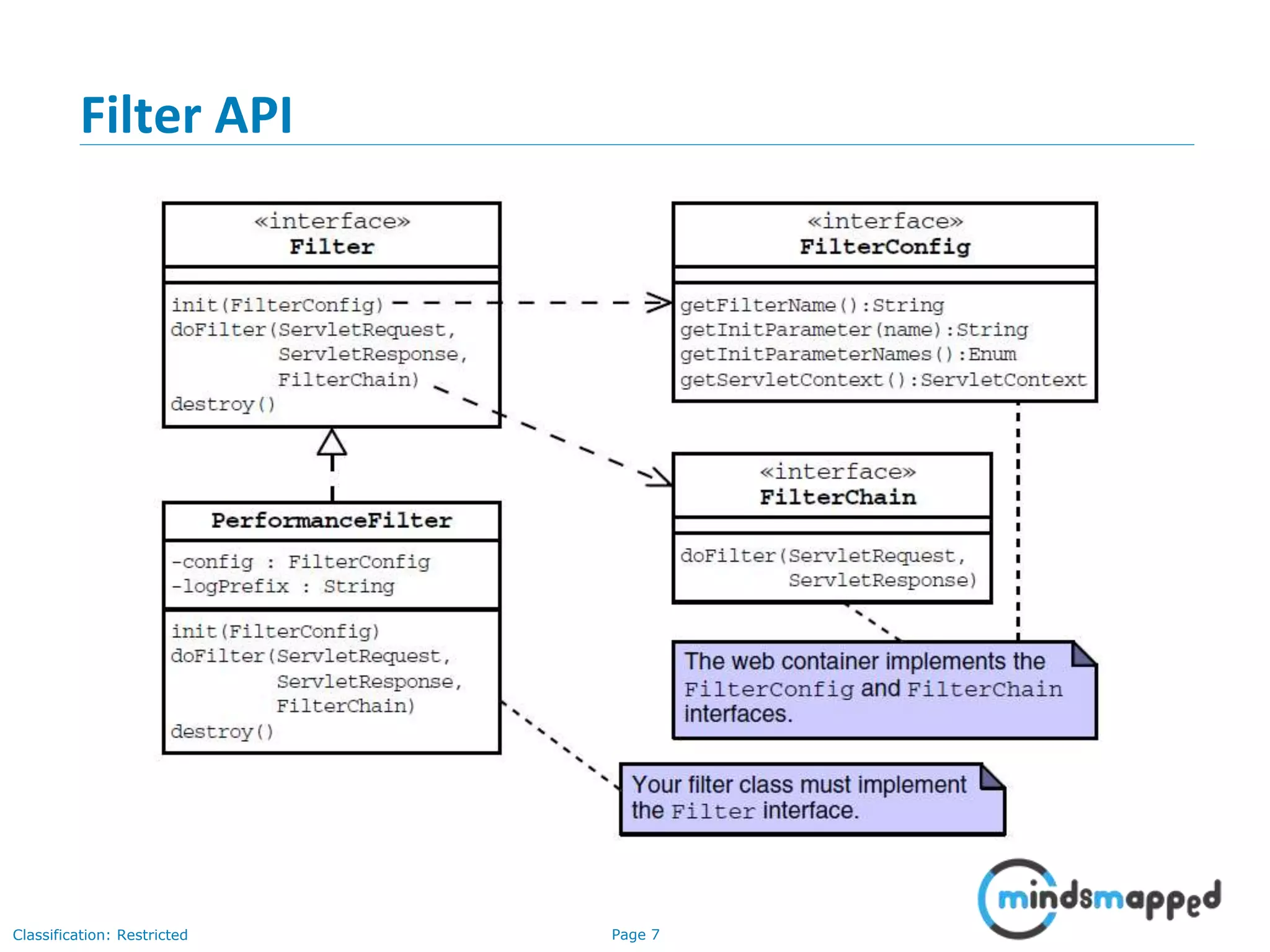

7. Page 7Classification: Restricted
Filter API

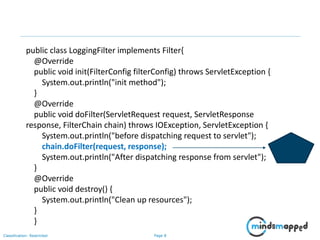

8. Page 8Classification: Restricted
public class LoggingFilter implements Filter{
@Override
public void init(FilterConfig filterConfig) throws ServletException {
System.out.println("init method");
}
@Override
public void doFilter(ServletRequest request, ServletResponse
response, FilterChain chain) throws IOException, ServletException {
System.out.println("before dispatching request to servlet");
chain.doFilter(request, response);
System.out.println("After dispatching response from servlet");
}
@Override
public void destroy() {
System.out.println("Clean up resources");
}
}

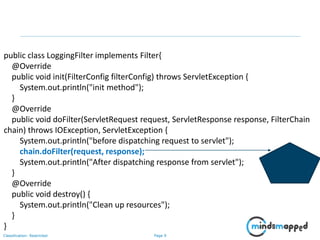

9. Page 9Classification: Restricted
public class LoggingFilter implements Filter{
@Override
public void init(FilterConfig filterConfig) throws ServletException {
System.out.println("init method");
}
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain
chain) throws IOException, ServletException {
System.out.println("before dispatching request to servlet");
chain.doFilter(request, response);
System.out.println("After dispatching response from servlet");
}
@Override
public void destroy() {
System.out.println("Clean up resources");
}
}

10. Page 10Classification: Restricted
Configuring filter
<filter>
<description>filter to log incoming request</description>
<filter-name>logFilter</filter-name>
<filter-class>com.example.filters.LoggingFilter</filter-class>
</filter>
URL PATTERN
<filter-mapping>
<filter-name>logFilter</filter-
name>
<url-pattern>/</url-pattern>
</filter-mapping>
SERVLET NAME
<filter-mapping>
<filter-name>logFilter</filter-name>
<servlet-name>TestServlet</servlet-
name>
</filter-mapping>

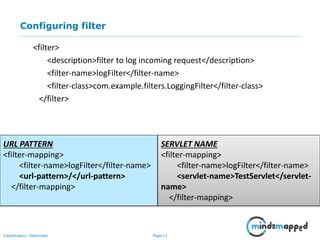

11. Page 11Classification: Restricted
Configuring filter
<filter>
<description>filter to log incoming request</description>
<filter-name>logFilter</filter-name>
<filter-class>com.example.filters.LoggingFilter</filter-class>
</filter>
URL PATTERN
<filter-mapping>
<filter-name>logFilter</filter-name>
<url-pattern>/</url-pattern>
</filter-mapping>
SERVLET NAME
<filter-mapping>
<filter-name>logFilter</filter-name>
<servlet-name>TestServlet</servlet-
name>
</filter-mapping>

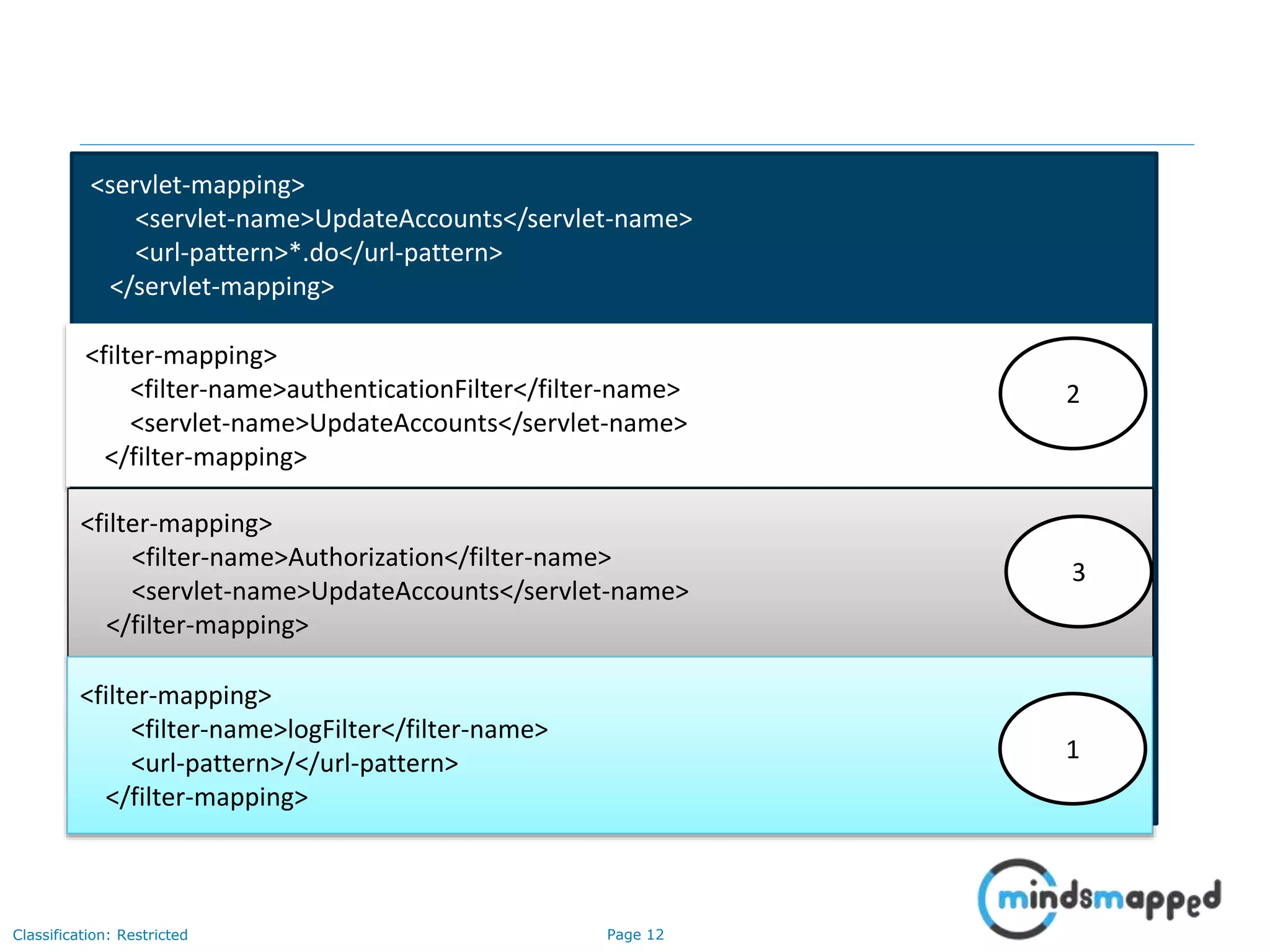

12. Page 12Classification: Restricted
<servlet-mapping>
<servlet-name>UpdateAccounts</servlet-name>
<url-pattern>*.do</url-pattern>
</servlet-mapping>
<filter-mapping>
<filter-name>authenticationFilter</filter-name>
<servlet-name>UpdateAccounts</servlet-name>
</filter-mapping>
<filter-mapping>
<filter-name>Authorization</filter-name>
<servlet-name>UpdateAccounts</servlet-name>
</filter-mapping>
<filter-mapping>
<filter-name>logFilter</filter-name>
<url-pattern>/</url-pattern>
</filter-mapping>
1
2
3

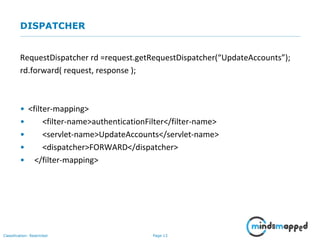

13. Page 13Classification: Restricted
DISPATCHER
RequestDispatcher rd =request.getRequestDispatcher(“UpdateAccounts”);
rd.forward( request, response );
• <filter-mapping>
• <filter-name>authenticationFilter</filter-name>
• <servlet-name>UpdateAccounts</servlet-name>
• <dispatcher>FORWARD</dispatcher>
• </filter-mapping>

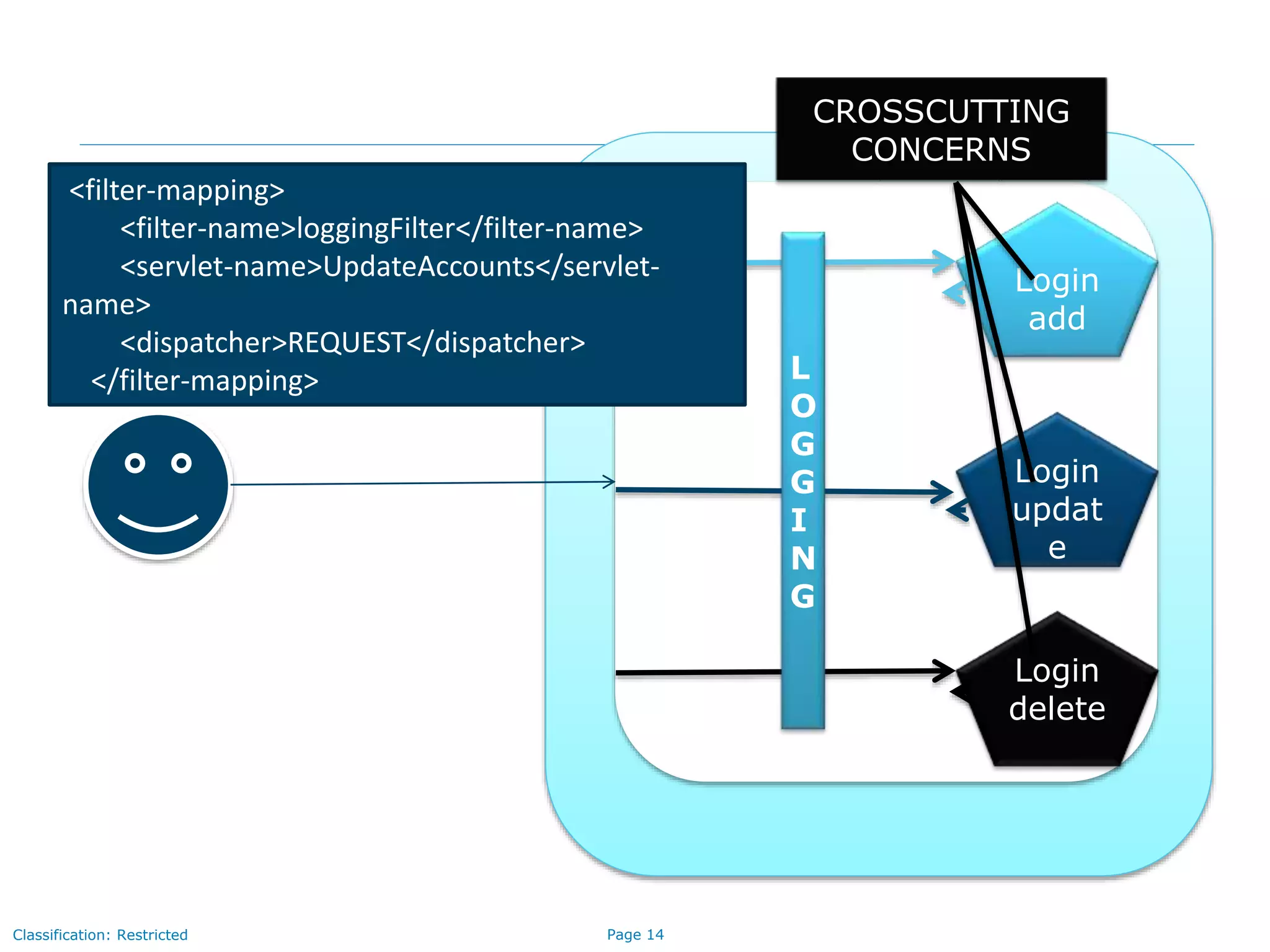

14. Page 14Classification: Restricted
Login
updat
e
Login
add
Login
delete
CROSSCUTTING
CONCERNS
L
O
G
G
I
N
G
<filter-mapping>
<filter-name>loggingFilter</filter-name>
<servlet-name>UpdateAccounts</servlet-
name>
<dispatcher>REQUEST</dispatcher>
</filter-mapping>

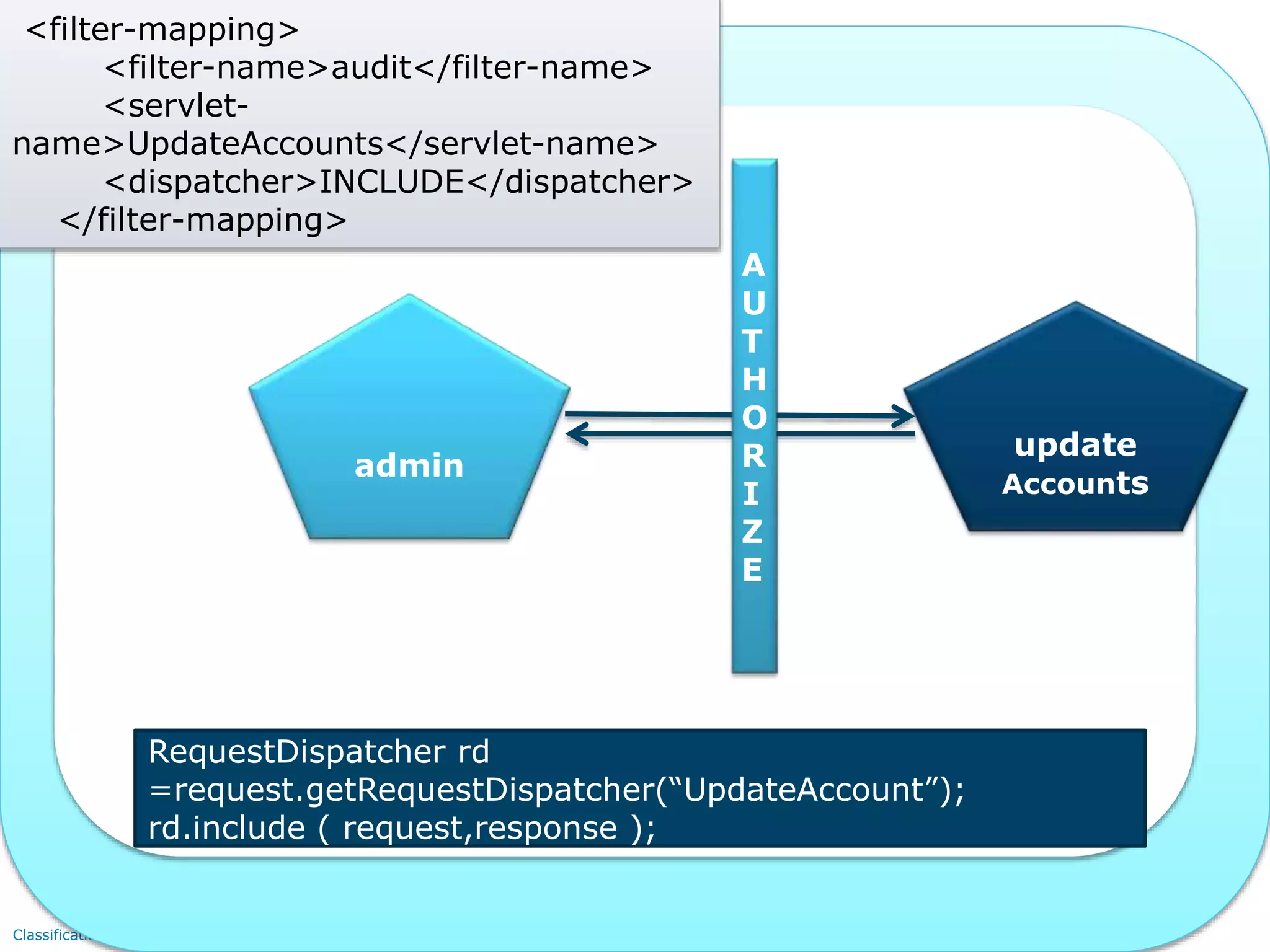

15. Page 15Classification: Restricted
update
Accounts
A
U
T
H
O
R
I
Z
E
<filter-mapping>
<filter-name>audit</filter-name>
<servlet-
name>UpdateAccounts</servlet-name>
<dispatcher>INCLUDE</dispatcher>
</filter-mapping>
admin
RequestDispatcher rd
=request.getRequestDispatcher(“UpdateAccount”);
rd.include ( request,response );

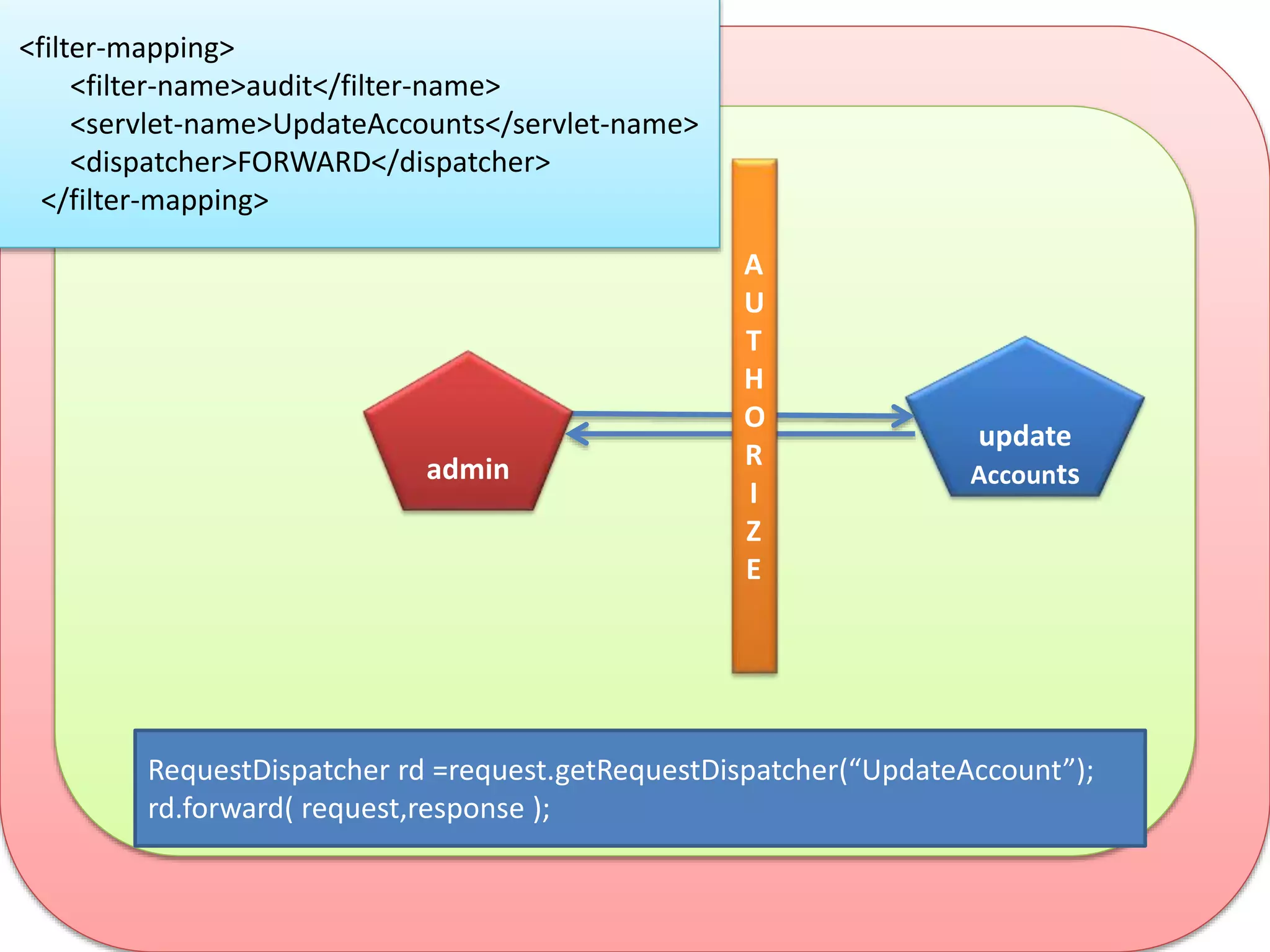

16. update
Accounts
A
U
T
H
O
R
I
Z
E
<filter-mapping>
<filter-name>audit</filter-name>
<servlet-name>UpdateAccounts</servlet-name>
<dispatcher>FORWARD</dispatcher>
</filter-mapping>
admin
RequestDispatcher rd =request.getRequestDispatcher(“UpdateAccount”);
rd.forward( request,response );

17. Page 17Classification: Restricted
update
Accounts
A
U
T
H
I
R
I
Z
E
<filter-mapping>
<filter-name>audit</filter-name>
<servlet-
name>UpdateAccounts</servlet-name>
<dispatcher>ERROR</dispatcher>
</filter-mapping>
admin
RequestDispatcher rd
=request.getRequestDispatcher(“UpdateAccount”);
rd.forward( request,response );

18. Page 18Classification: Restricted
