This document discusses object and collection mapping in Hibernate, including different collection types like sets, lists, bags, and maps. It provides examples of one-to-many and one-to-one relationships between entities using both bidirectional and unidirectional mappings. The effects of different fetching strategies like lazy loading, eager fetching, batch fetching, and subselect fetching are also explained.

1. Hibernate Association &
Collection Mapping
Also a Bit on Lazy Loading and
Fetching Strategies

2. Topics
• Object types in Hibernate
• Collection types in Hibernate
• Scrutinizing 1-2-Many Collections
• Fetching Strategies
2

3. Object Types in Hibernate
Entity Type Object
• Has its own DB
identity (i.e. PK).
• Can exist
independently of
any other entity.
• Has its own life
cycle.
Value Type Object
• Doesn’t have own DB
identity.
• Existence is dependent
on its owning entity.
• Lifespan is bounded by
the lifespan of the
owning entity.
3

4. Collection Types in Hibernate
Set: [java.util.HashSet]
• Unique Elements
• Unordered
List: [java.util.ArrayList]
• Duplicate Elements
• Ordered
Sorted Set:
[java.util.TreeSet]
• Unique Elements
• Ordered
Bag: [java.util.List]
• Unordered
• Duplicate Elements
Map: [java.util.Map]
• Unordered Unique Keys
• Duplicate Values
Sorted Map:
[java.util.TreeMap]
• Ordered Keys
• Duplicate Values
4

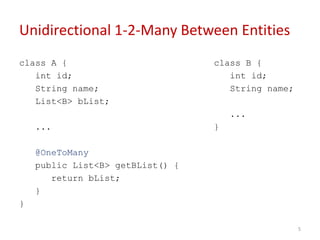

5. Unidirectional 1-2-Many Between Entities
class A {
int id;
String name;
List<B> bList;
...
@OneToMany
public List<B> getBList() {
return bList;
}
}
class B {
int id;
String name;
...
}
5

6. Unidirectional 1-2-Many Between Entities...
Resulting DB:
Conlusion:
By default Hibernate creates one-to many with join table.
This is same as:
@OneToMany
@JoinTable(name="A_B"
joinColumns=@JoinColumn(name="A_id"),
inverseJoinColumns=JoinColumn(name="bList_id")
)
6

7. Unidirectional 1-2-Many Between Entities...
For 1-2-Many without join table, use:
@OneToMany
@JoinColumn(name="a_id")
Resulting DB:
7

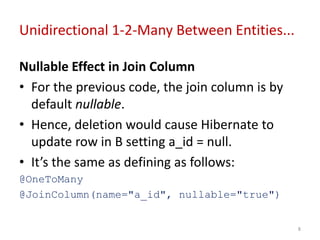

8. Unidirectional 1-2-Many Between Entities...
Nullable Effect in Join Column
• For the previous code, the join column is by
default nullable.
• Hence, deletion would cause Hibernate to
update row in B setting a_id = null.
• It’s the same as defining as follows:
@OneToMany
@JoinColumn(name="a_id", nullable="true")
8

9. Unidirectional 1-2-Many Between Entities...
Nullable Effect in Join Column (contd.)
• To set the join column NOT to be null, use:
@OneToMany
@JoinColumn(name="a_id", nullable="false")
• In that case, deletion would cause no effect in
Hibernate.
• To force delete child row when the parent is
removed, use:
@OneToMany(orphanRemoval=true)
@JoinColumn(name="a_id", nullable="false")
9

10. Unidirectional 1-2-Many Between Entities...
(List Semantics)
• By default, List collections are considered to be bags.
• To enforce List semantics, specify the index column:
@OneToMany
@JoinColumn(name="a_id", nullable="false")
@IndexColumn(name="idx")
A B
Id name Id a_id Name idx
1 A1 1 1 B1 0
2 1 B2 1
3 1 B3 2
10

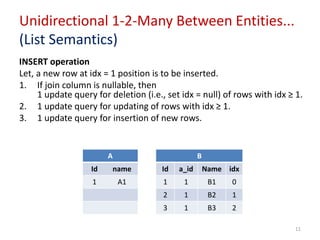

11. Unidirectional 1-2-Many Between Entities...
(List Semantics)
INSERT operation
Let, a new row at idx = 1 position is to be inserted.
1. If join column is nullable, then
1 update query for deletion (i.e., set idx = null) of rows with idx ≥ 1.
2. 1 update query for updating of rows with idx ≥ 1.
3. 1 update query for insertion of new rows.
A B
Id name Id a_id Name idx
1 A1 1 1 B1 0
2 1 B2 1
3 1 B3 2
11

12. Unidirectional 1-2-Many Between Entities...
(List Semantics)
DELETE operation
Let, row with idx = 1 is to be deleted.
1. 1 update query for updating of rows with idx > 1.
2. If orphanRemoval = true, then
1 delete query for deleting the row with idx = 1.
Note: If join column is not nullable and orphanRemoval = false, the row
with idx = 1 will remain, hence, there will be two rows with idx = 1.
A B
Id name Id a_id Name idx
1 A1 1 1 B1 0
2 1 B2 1
3 1 B3 2
12

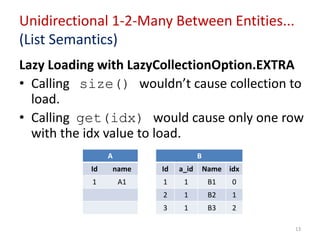

13. Unidirectional 1-2-Many Between Entities...
(List Semantics)
Lazy Loading with LazyCollectionOption.EXTRA
• Calling size() wouldn’t cause collection to
load.
• Calling get(idx) would cause only one row
with the idx value to load.
A B
Id name Id a_id Name idx
1 A1 1 1 B1 0
2 1 B2 1
3 1 B3 2
13

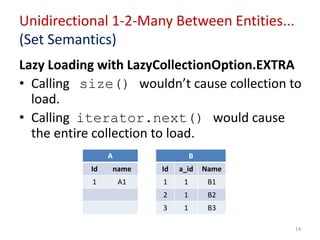

14. Unidirectional 1-2-Many Between Entities...
(Set Semantics)
Lazy Loading with LazyCollectionOption.EXTRA
• Calling size() wouldn’t cause collection to
load.
• Calling iterator.next() would cause
the entire collection to load.
A B
Id name Id a_id Name
1 A1 1 1 B1
2 1 B2
3 1 B3
14

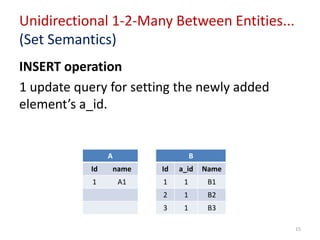

15. Unidirectional 1-2-Many Between Entities...
(Set Semantics)
INSERT operation
1 update query for setting the newly added
element’s a_id.
A B
Id name Id a_id Name
1 A1 1 1 B1
2 1 B2
3 1 B3
15

16. Unidirectional 1-2-Many Between Entities...
(Set Semantics)
DELETE operation
If join column is nullable,
1 update query for setting a_id = null.
Else
If orphanRemoval = false
No changes would be made.
Else
Completely delete the row in B.
A B
Id name Id a_id Name
1 A1 1 1 B1
2 1 B2
3 1 B3
16

17. Unidirectional 1-2-Many Between Entities...
(Bag Semantics)
Similar to SET semantics...
A B
Id name Id a_id Name
1 A1 1 1 B1
2 1 B2
3 1 B3
17

18. Unidirectional 1-2-Many With Value Type
(Bag Semantics)
INSERT, DELETE, UPDATE operations
1. Select * from B.
2. Delete * from B where a_id = 1.
3. Insert into B all rows – along with new rows (in
case of INSERT), or except rows to be delete (in
case of DELETE).
A B
Id name a_id Name
1 A1 1 B1
1 B2
1 B3
18

19. Unidirectional 1-2-Many With Value Type
(Set Semantics)
INSERT operation
1. Select * from B.
2. Insert into B the new rows to be added.
A B
Id name a_id Name
1 A1 1 B1
1 B2
1 B3
19

20. Unidirectional 1-2-Many With Value Type
(Set Semantics)
DELETE operation
1. Select * from B.
2. Delete from B where a_id = 1 and name = ?
A B
Id name a_id Name
1 A1 1 B1
1 B2
1 B3
20

21. Unidirectional 1-2-Many With Value Type
(Set Semantics)
UPDATE operation
1. Select * from B.
2. Delete the row to be updated.
3. Insert the newly updated object.
A B
Id name a_id Name
1 A1 1 B1
1 B2
1 B3
21

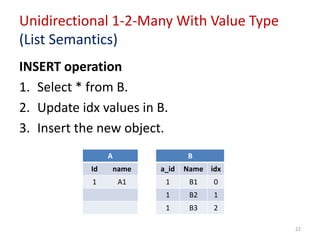

22. Unidirectional 1-2-Many With Value Type
(List Semantics)
INSERT operation
1. Select * from B.
2. Update idx values in B.
3. Insert the new object.
A B
Id name a_id Name idx
1 A1 1 B1 0
1 B2 1
1 B3 2
22

23. Unidirectional 1-2-Many With Value Type
(List Semantics)
DELETE operation
1. Select * from B.
2. Delete from B where idx = ?
3. Update the idx of other rows.
A B
Id name a_id Name idx
1 A1 1 B1 0
1 B2 1
1 B3 2
23

24. Unidirectional 1-2-Many With Value Type
(List Semantics)
UPDATE operation
Doesn’t seem to work!!!
A B
Id name a_id Name idx
1 A1 1 B1 0
1 B2 1
1 B3 2
24

25. Unidirectional 1-2-1 Between Entities
@OneToOne
• Defaults to eager fetching.
• To force lazy loading, use:
@OneToOne(fetch=FetchType.LAZY)
A B
Id name b_id id Name
1 A1 1 1 B1
25

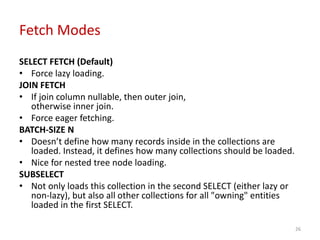

26. Fetch Modes
SELECT FETCH (Default)
• Force lazy loading.
JOIN FETCH
• If join column nullable, then outer join,
otherwise inner join.
• Force eager fetching.
BATCH-SIZE N
• Doesn’t define how many records inside in the collections are
loaded. Instead, it defines how many collections should be loaded.
• Nice for nested tree node loading.
SUBSELECT
• Not only loads this collection in the second SELECT (either lazy or
non-lazy), but also all other collections for all "owning" entities
loaded in the first SELECT.
26

27. Fetch Modes...
BATCH-SIZE N Example
List<A> aList = getList();
for (A a : aList) {
List<B> bList = a.getbList();
}
In Batch-size = 5, the select query would be:
select ...
from B
where a_id in (?, ?, ?, ?, ?)
A B
id name a_id Name
1 A1 1 B1
2 A2 1 B2
2 B3
27

28. Fetch Modes...
SUBSELECT Example
List<A> aList = getList();
for (A a : aList) {
List<B> bList = a.getbList();
}
In subselect, the select query would be:
select ...
from B
where a_id in (select id from A)
A B
id name a_id Name
1 A1 1 B1
2 A2 1 B2
2 B3
28

29. References
• A Short Primer On Fetching Strategies:
https://community.jboss.org/wiki/AShortPrimerO
nFetchingStrategies
• Hibernate – fetching strategies examples
http://www.mkyong.com/hibernate/hibernate-
fetching-strategies-examples/
• Bag is recommended over set:
http://stackoverflow.com/questions/1505874/hib
ernate-best-collection-type-to-use-bag-idbag-set-
list-map
29
