1. Making Effective, Useful
Software Development Tools
Gail C. Murphy
University of British Columbia
@gail_murphy
A more restrictive license has been
chosen given use of licensed images.
Image cannot be reused.

2. 2

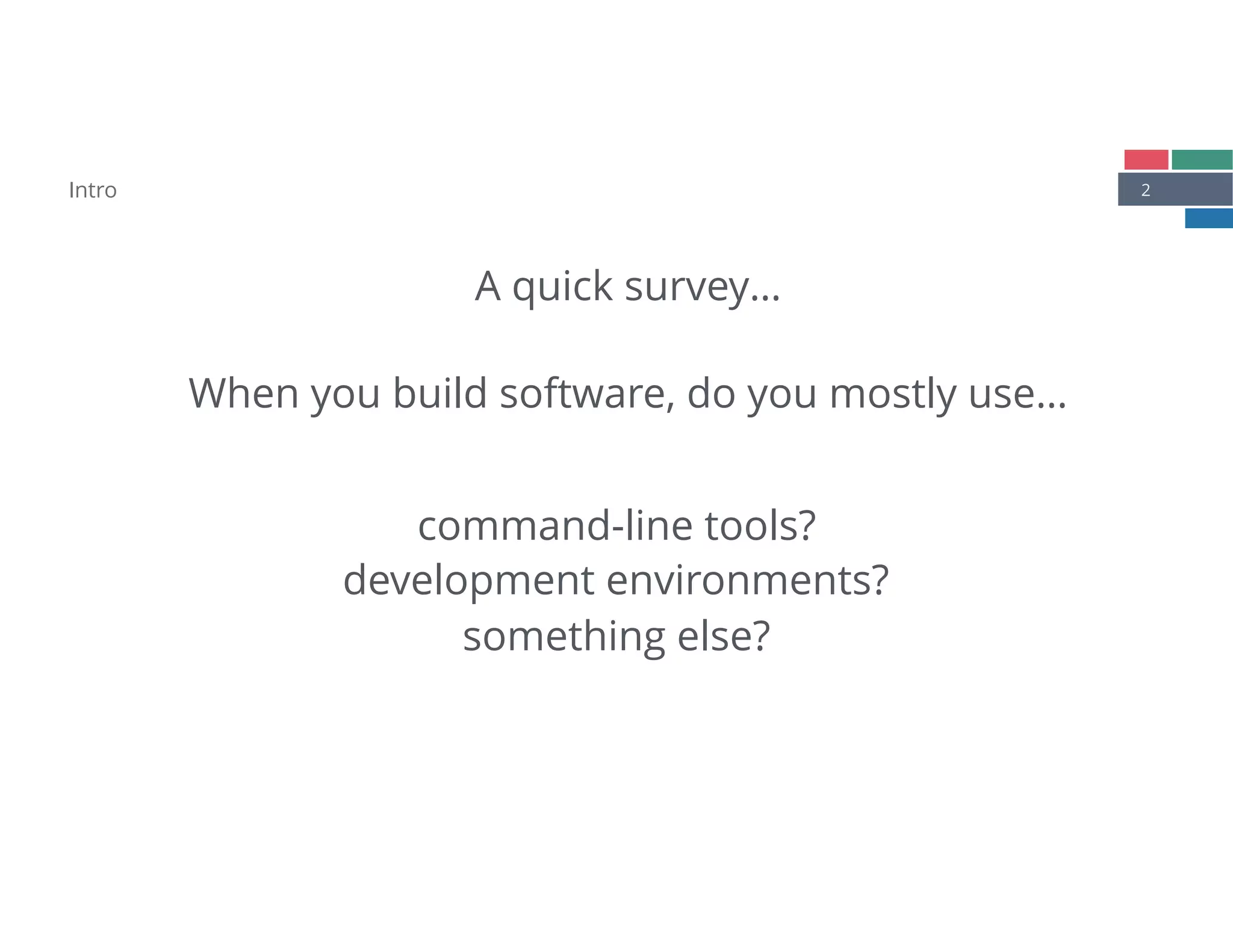

A quick survey…
Intro
When you build software, do you mostly use…
command-line tools?
development environments?
something else?

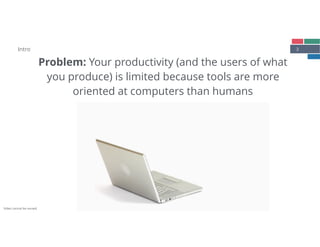

3. 3
Problem: Your productivity (and the users of what
you produce) is limited because tools are more
oriented at computers than humans
Intro
Video cannot be reused.

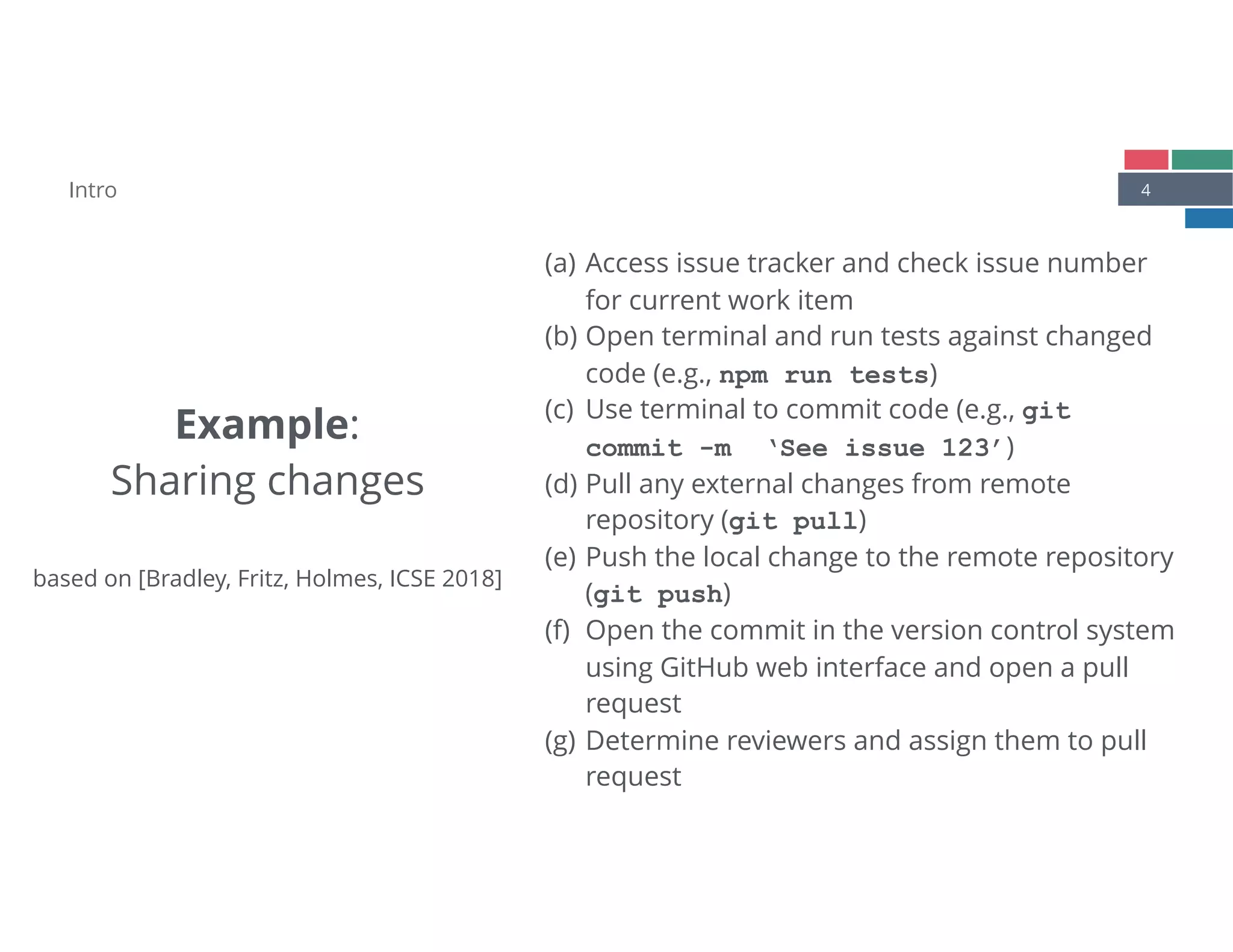

4. 4
Example:
Sharing changes
based on [Bradley, Fritz, Holmes, ICSE 2018]
(a) Access issue tracker and check issue number
for current work item
(b) Open terminal and run tests against changed
code (e.g., npm run tests)
(c) Use terminal to commit code (e.g., git
commit -m ‘See issue 123’)
(d) Pull any external changes from remote
repository (git pull)
(e) Push the local change to the remote repository
(git push)
(f) Open the commit in the version control system
using GitHub web interface and open a pull
request
(g) Determine reviewers and assign them to pull
request
Intro

5. 5Intro

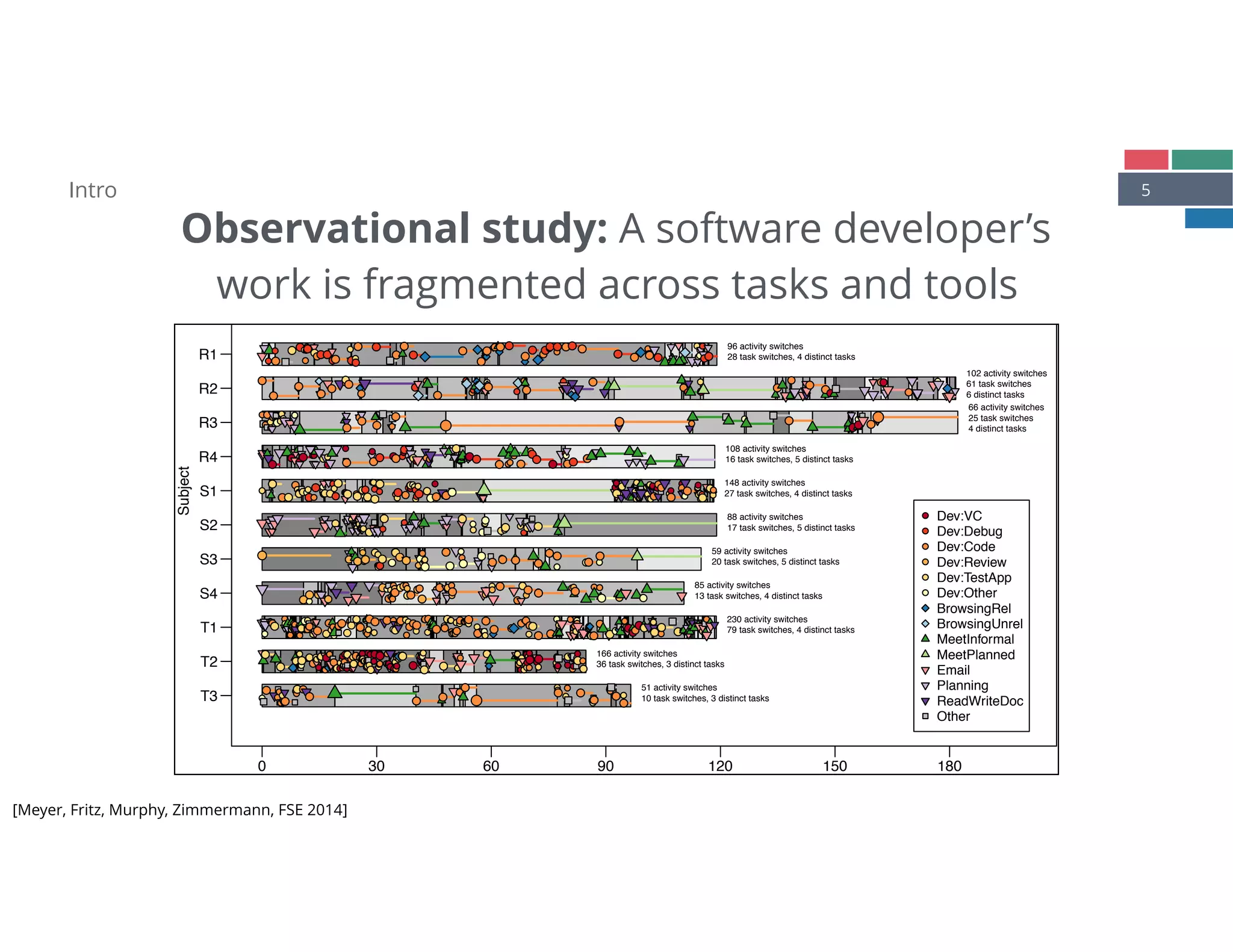

Observational study: A software developer’s
work is fragmented across tasks and tools
Actvities and Task Switches (Session 1)
Time [minutes]
Subject
0 30 60 90 120 150 180
T3
T2
T1
S4
S3
S2
S1
R4
R3
R2
R1
●
●
●
●
●
●
●●
●●●●
● ● ● ●
●
● ●●●●●
●
●
●●●
●●●
●●
●
51 activity switches
10 task switches, 3 distinct tasks
●
●
●●
●
●●●●
●
●●
●
●
●●
●●
●
●●
●●●
●●●●
●
●
●●
●
●
●
●●●
●
●
●
●●●
●
●●
●
●
●
●
●
●
●
●●
●
●
●
●
●
●●●●
●
●
●●
●
●●●●
●
●
●
●
●
●
●
●
● ● ●
● ● ●●
●●
●
●
●
●
●●
●
●
●
●
●
●●●
●
● ●
●
● ●
●
●●
●
●
●●
●
166 activity switches
36 task switches, 3 distinct tasks
●
●●●●
●
●
●
●●
●●●
●
●
●
●
●
●
●
●
●
●
●●
●
●●
●
●●●
●
●
●
●
●●●
●
●●
●
●
●
● ●
●
●
●
●●●●
●
●
●●●
●
●
●●
●
●
●●●
●●●
●●●
●●●●●
●
●
●●●●●●●●
●
●●●
●
● ●● ●●
●
●●
● ●●
●
●
●
●
●
●
●
●●
●
●●●●
●●●
●
●●
●
●●●●●●
●
●●
● ●●●
●
●
● 230 activity switches
79 task switches, 4 distinct tasks
●●
●● ●
●●
●
●
●●●
●
●●
●●●●●
●●
●●
●
●●●●●
●● ●
●●●●
●
●
●
● ●●
●●
● ●●
● ● ●
85 activity switches
13 task switches, 4 distinct tasks
● ●●
●●
●●
●
●
●
●●●
●●
●●●● ●
●
●
●●●
●
●
●
●
●
●
●
● ●● ● ●
●
●
●
●● ●
●
59 activity switches
20 task switches, 5 distinct tasks
● ●
●●●
●
●
●●●●
●●●
● ● ●
● ●
● ●
●●●
●●● ●
●
●
● ●
88 activity switches
17 task switches, 5 distinct tasks
●
●
●●●
●●●●●●●
●●
●●
●
●●●●
●
●
●
●
●●●●●
●
●
●
●●
●
●
●
●
●●
●●
●●●●●●●
●●
●
●●
●
●
●●●
●
●
●
●
● ●
●
●
●
●●
●
●
●
●
●●
●●
●●●
●●
●
●
●
●
● ●●●
●●
●
●
●
●●●
●
●
148 activity switches
27 task switches, 4 distinct tasks
●
●●● ●● ●●
●
●
●
●
●● ●●●●●
●●● ●●
●
●●●● ●●●
●
●
●
●●● ●
●●
●● ●
108 activity switches
16 task switches, 5 distinct tasks
●
●
●
●
●
●
●●
●
●●
●
●
●● ● ●
●
● ● ●
● ●
●
●
● ●
●
66 activity switches
25 task switches
4 distinct tasks
●
●
●
● ●
●●●
●
●
●
●
●
●●●
● ●
● ●
●
●
●
●
● ●●
●
● ●
●
● ●●
●●
●
●
102 activity switches
61 task switches
6 distinct tasks
●
●
●
●●●
●
●●●●●●●●●●
●
●●
●
● ●
●
●
● ●
●
●●●●●●●
●
● ●●●●●
●●●● ● ●
●
●●● ●
●
●●
●●
●●
96 activity switches
28 task switches, 4 distinct tasks
●
●
●
●
●
●
Dev:VC
Dev:Debug
Dev:Code
Dev:Review
Dev:TestApp
Dev:Other
BrowsingRel
BrowsingUnrel
MeetInformal
MeetPlanned
Email
Planning
ReadWriteDoc
Other
[Meyer, Fritz, Murphy, Zimmermann, FSE 2014]

6. 6
Solution: Build software development tools
around how humans work
Intro
Photo courtesy of
#WOCinTech
Photo courtesy of #WOCinTech

7. 7Intro
Bridging
Theory
Assessment of
Effectiveness
Identification of
Mismatch
Making Effective, Useful Software Development Tools
for Humans
Images cannot be reused.

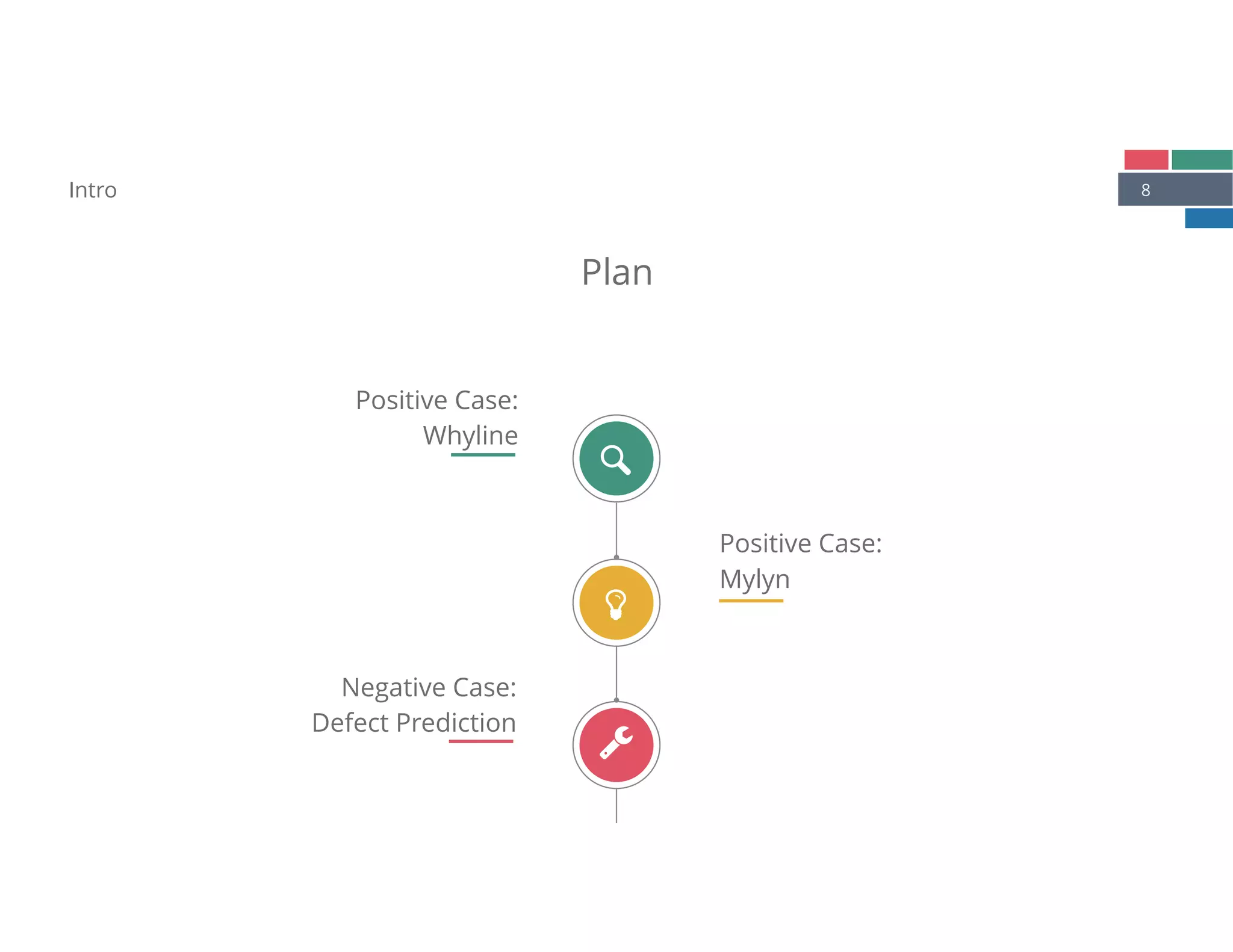

8. 8Intro
Plan
Positive Case:
Mylyn
Positive Case:
Whyline
Negative Case:
Defect Prediction
!
"

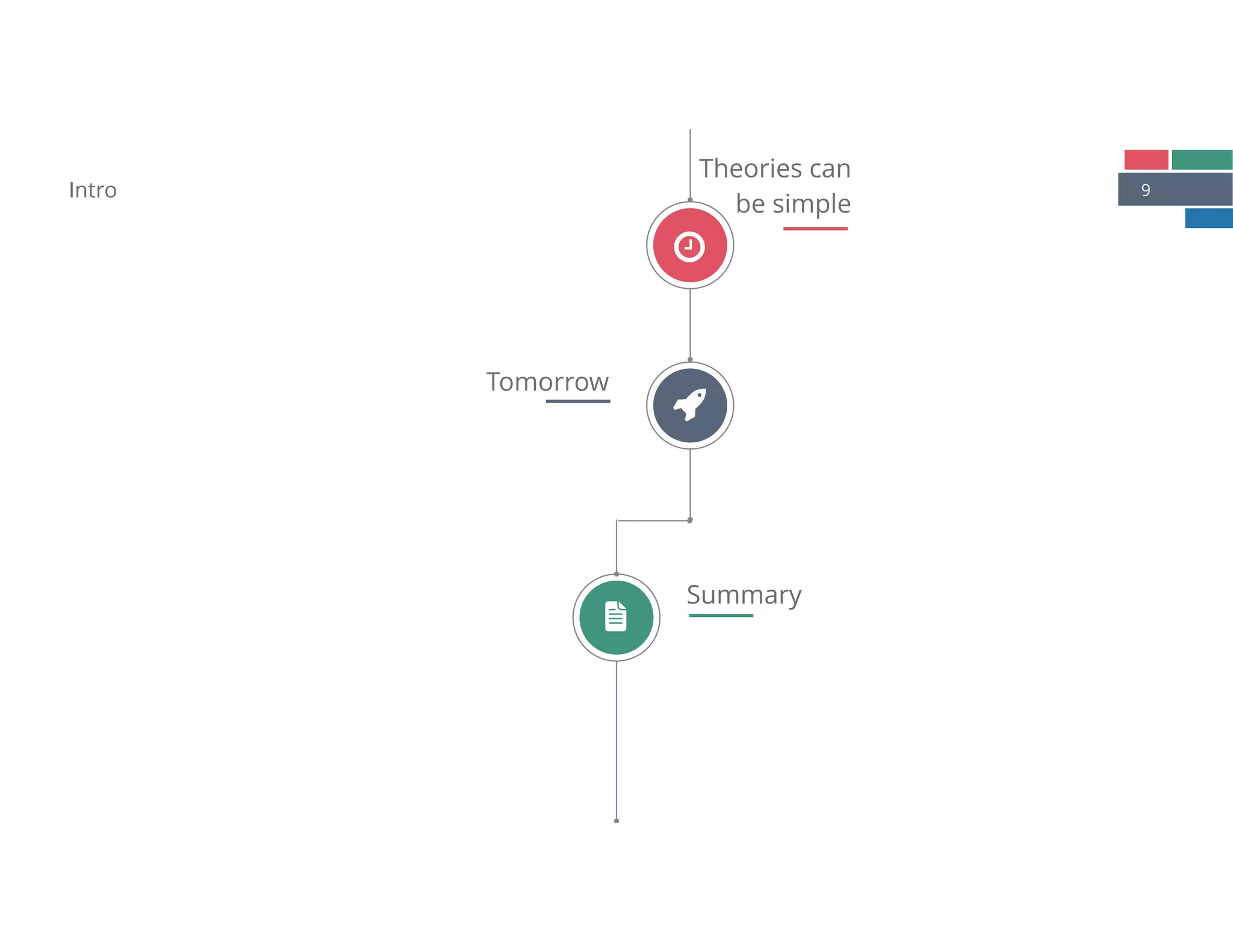

9. 9Intro
Theories can
be simple
Tomorrow
Summary
#
$
é

10. 10
Positive Case:
Whyline

11. 11Whyline
[Ko & Myers, CHI 2004]
Identification of
Mismatch
Bridging
Theory
Assessment of
Effectiveness
Positive Case: Whyline
Debugging tools do not
support inquisitive nature of activity
Directly support hypothesizing:
why did and why didn’t questions
Comparative lab study shows
Whyline reduces debugging time by
a factor of ~8

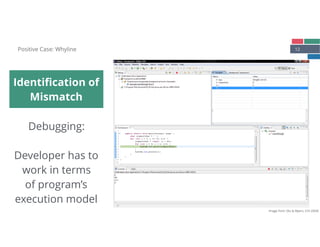

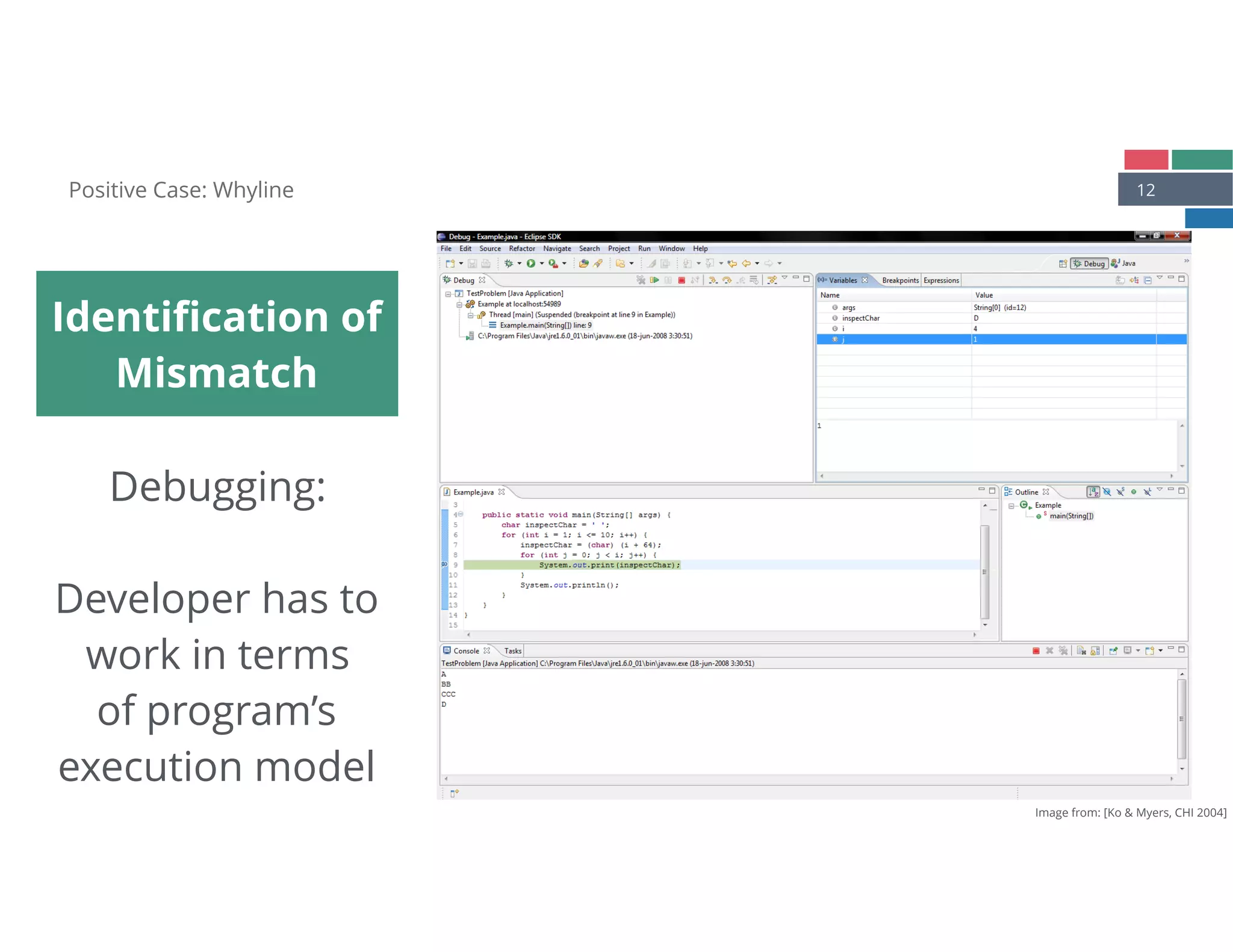

12. 12
Identification of
Mismatch
Positive Case: Whyline
Debugging:
Developer has to
work in terms
of program’s
execution model
Image from: [Ko & Myers, CHI 2004]

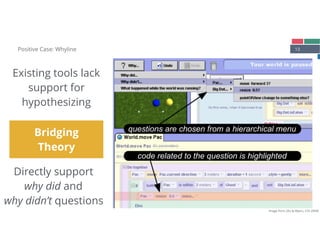

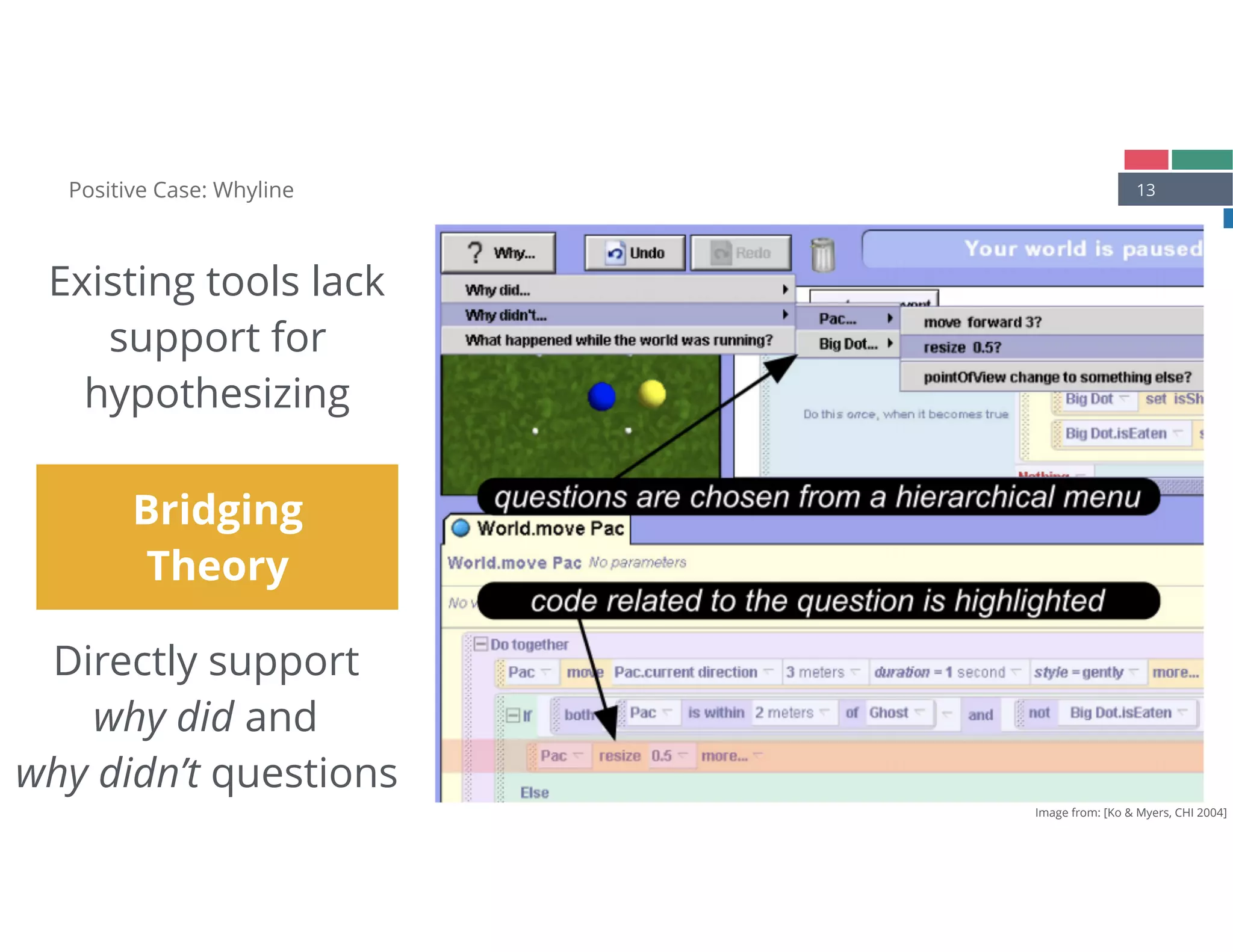

13. 13Positive Case: Whyline
Bridging
Theory
Existing tools lack
support for
hypothesizing
Directly support
why did and
why didn’t questions
Image from: [Ko & Myers, CHI 2004]

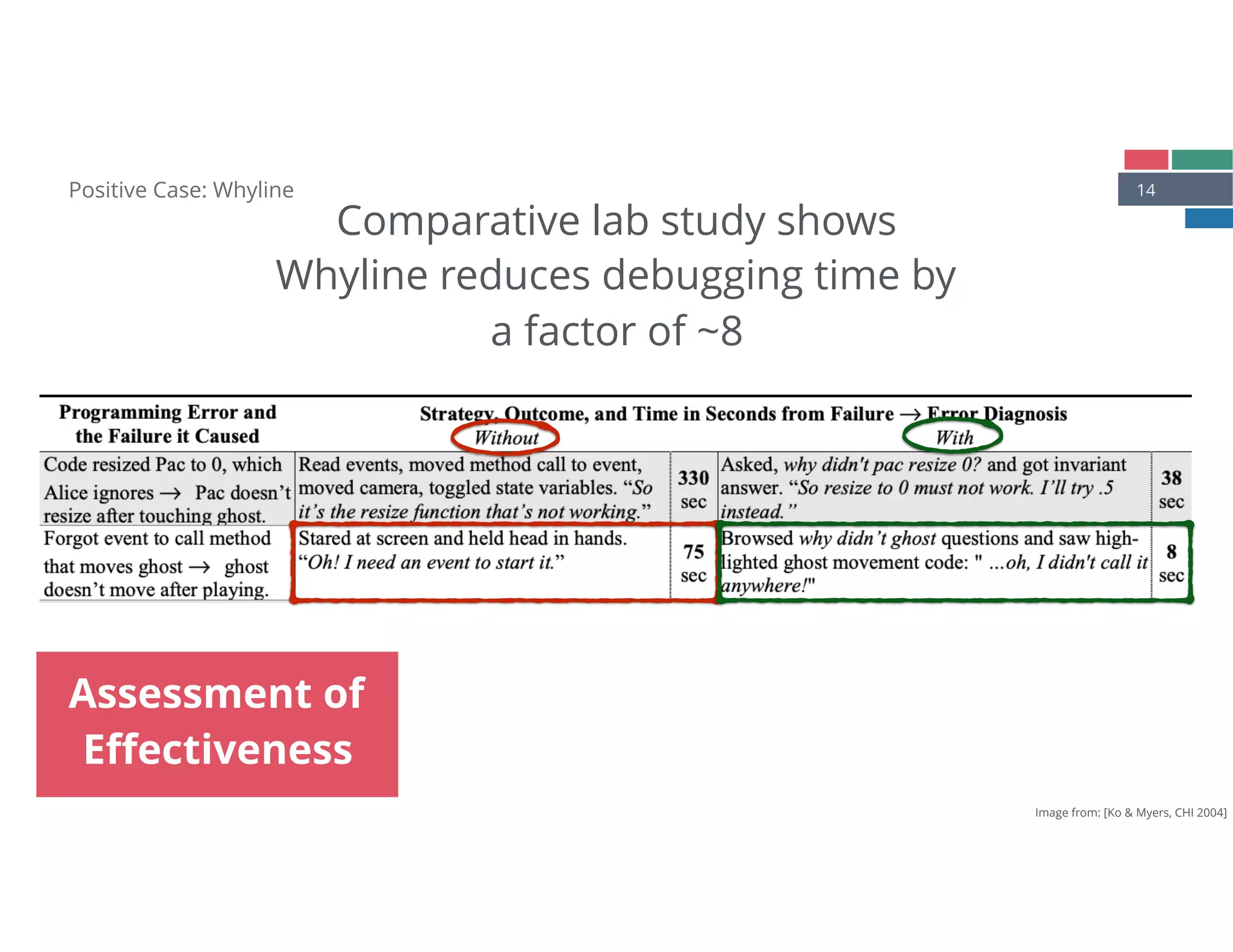

14. 14Positive Case: Whyline
Assessment of
Effectiveness
Comparative lab study shows
Whyline reduces debugging time by
a factor of ~8
Image from: [Ko & Myers, CHI 2004]

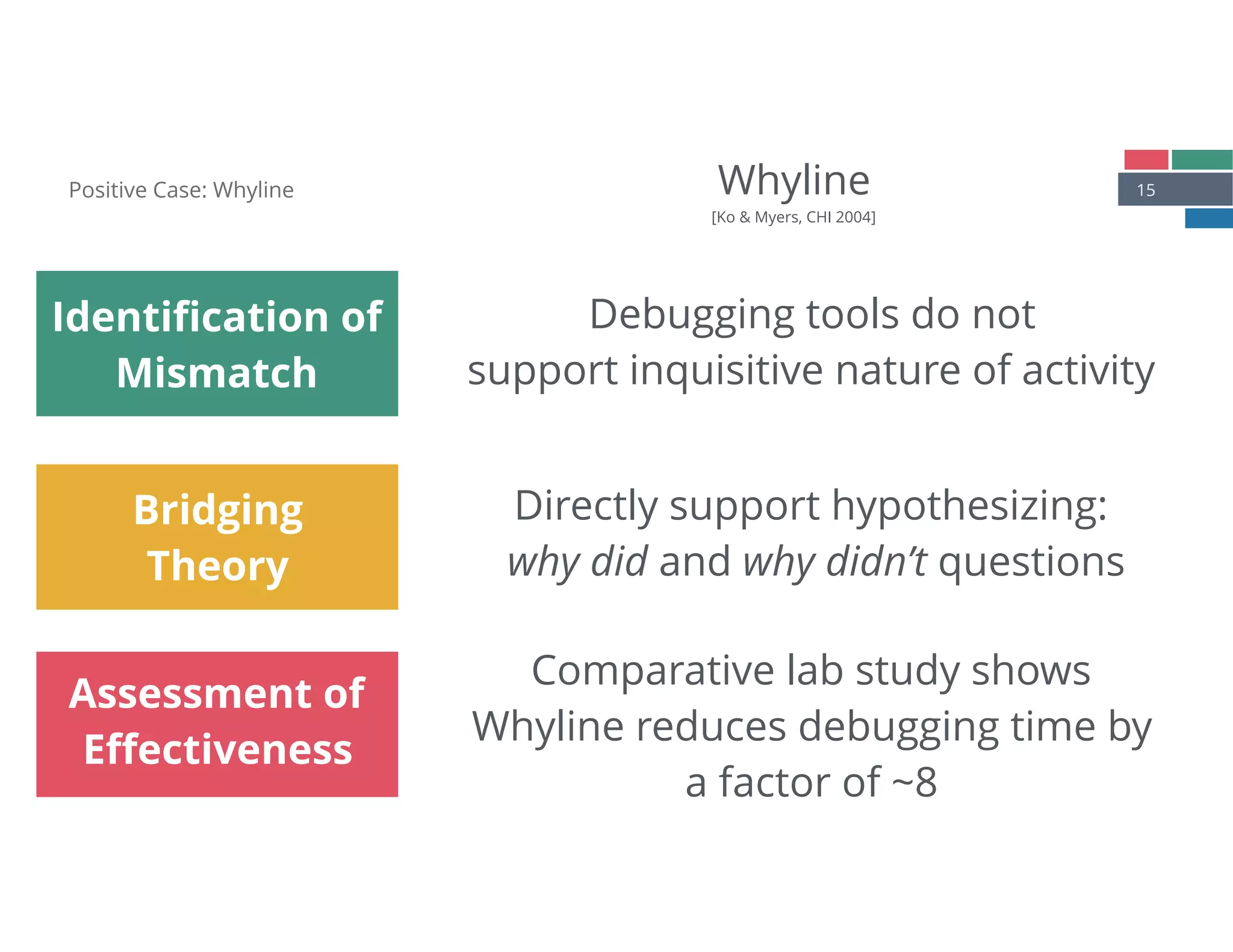

15. 15Whyline
[Ko & Myers, CHI 2004]
Identification of
Mismatch
Bridging
Theory
Assessment of
Effectiveness
Positive Case: Whyline
Debugging tools do not
support inquisitive nature of activity
Directly support hypothesizing:
why did and why didn’t questions
Comparative lab study shows
Whyline reduces debugging time by
a factor of ~8

16. 16
Positive Case:
Mylyn

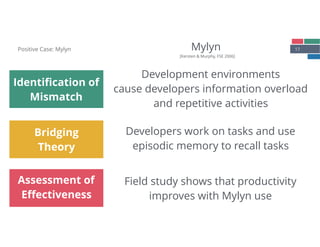

17. 17Mylyn
[Kersten & Murphy, FSE 2006]
Identification of
Mismatch
Bridging
Theory
Assessment of
Effectiveness
Positive Case: Mylyn
Development environments
cause developers information overload
and repetitive activities
Developers work on tasks and use
episodic memory to recall tasks
Field study shows that productivity
improves with Mylyn use

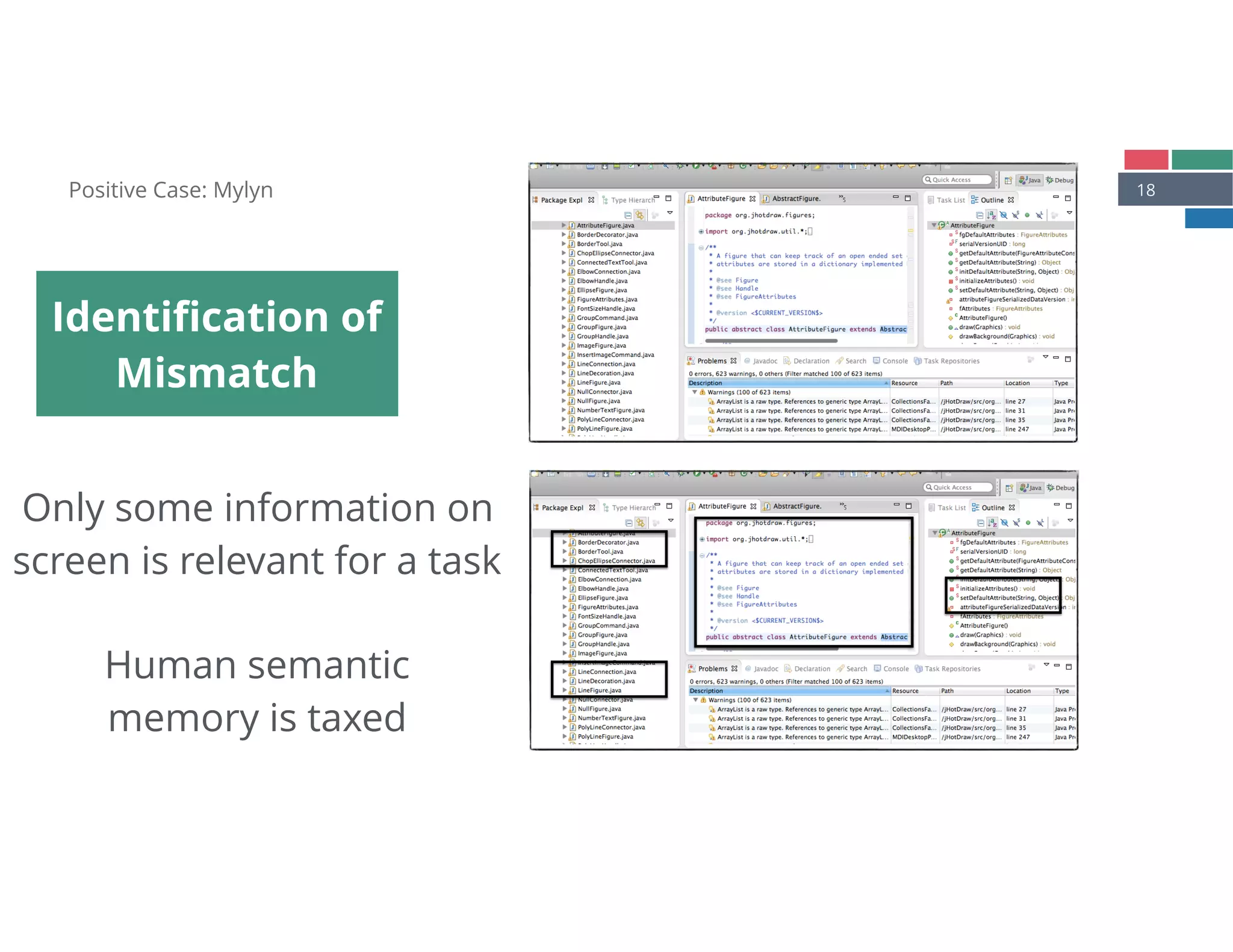

18. 18
Identification of
Mismatch
Positive Case: Mylyn
Only some information on
screen is relevant for a task
Human semantic
memory is taxed

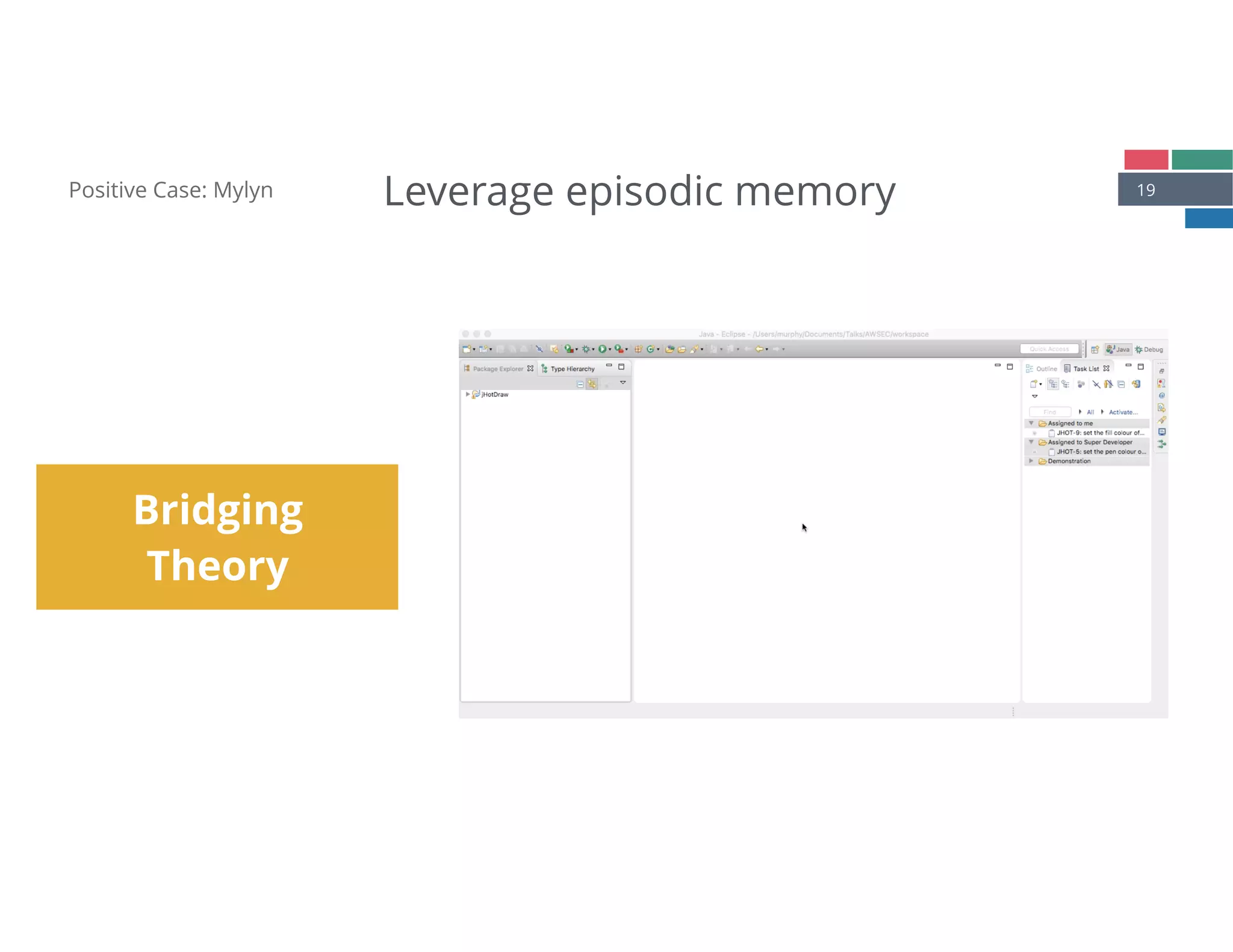

19. 19Positive Case: Mylyn
Bridging
Theory
Leverage episodic memory

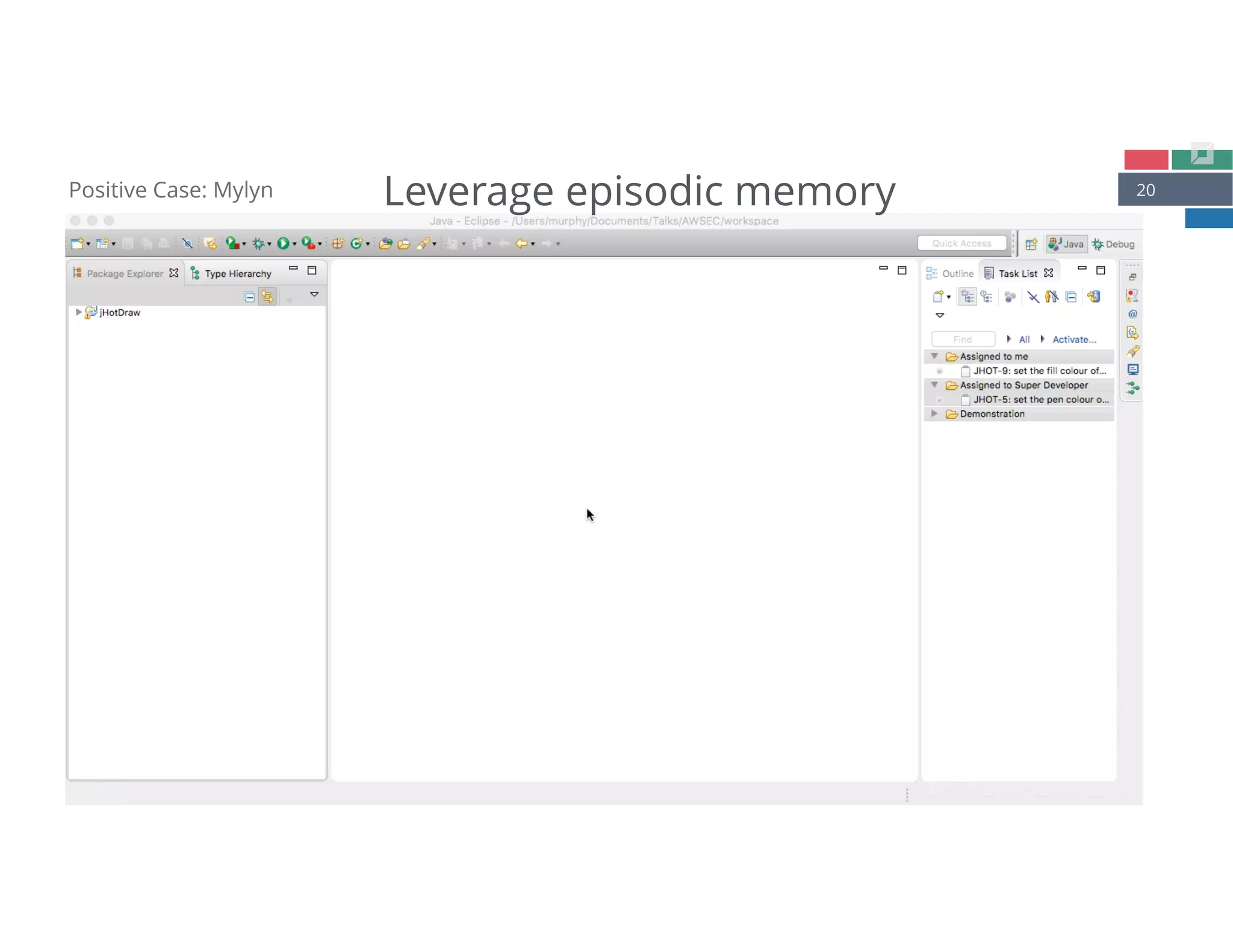

20. 20Positive Case: Mylyn Leverage episodic memory

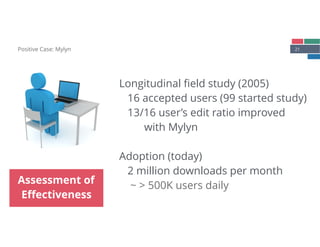

21. 21Positive Case: Mylyn
Assessment of
Effectiveness
Longitudinal field study (2005)
16 accepted users (99 started study)
13/16 user’s edit ratio improved
with Mylyn
Adoption (today)
2 million downloads per month
~ > 500K users daily

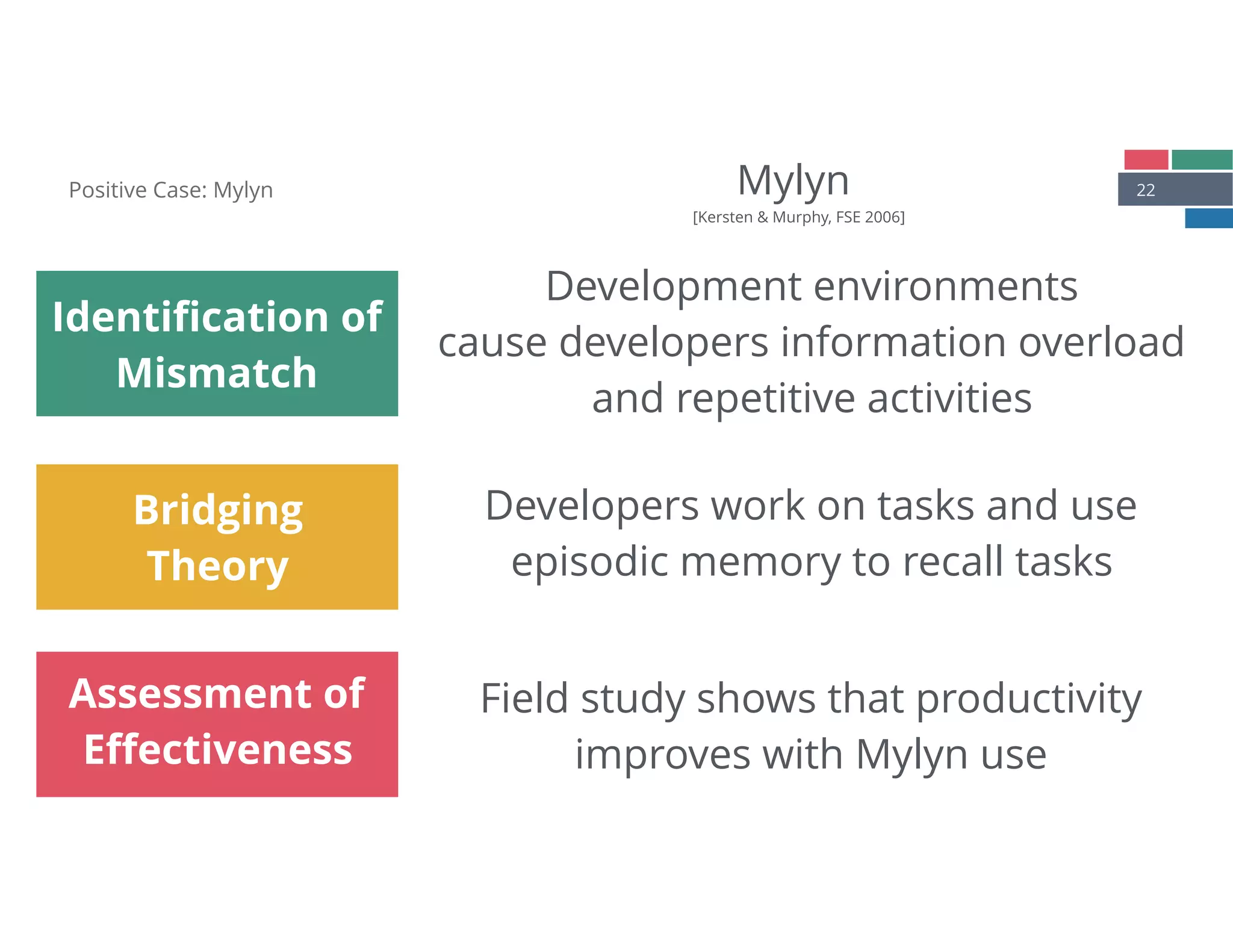

22. 22Mylyn
[Kersten & Murphy, FSE 2006]
Identification of
Mismatch
Bridging
Theory
Assessment of
Effectiveness
Positive Case: Mylyn
Development environments
cause developers information overload
and repetitive activities
Developers work on tasks and use
episodic memory to recall tasks
Field study shows that productivity
improves with Mylyn use

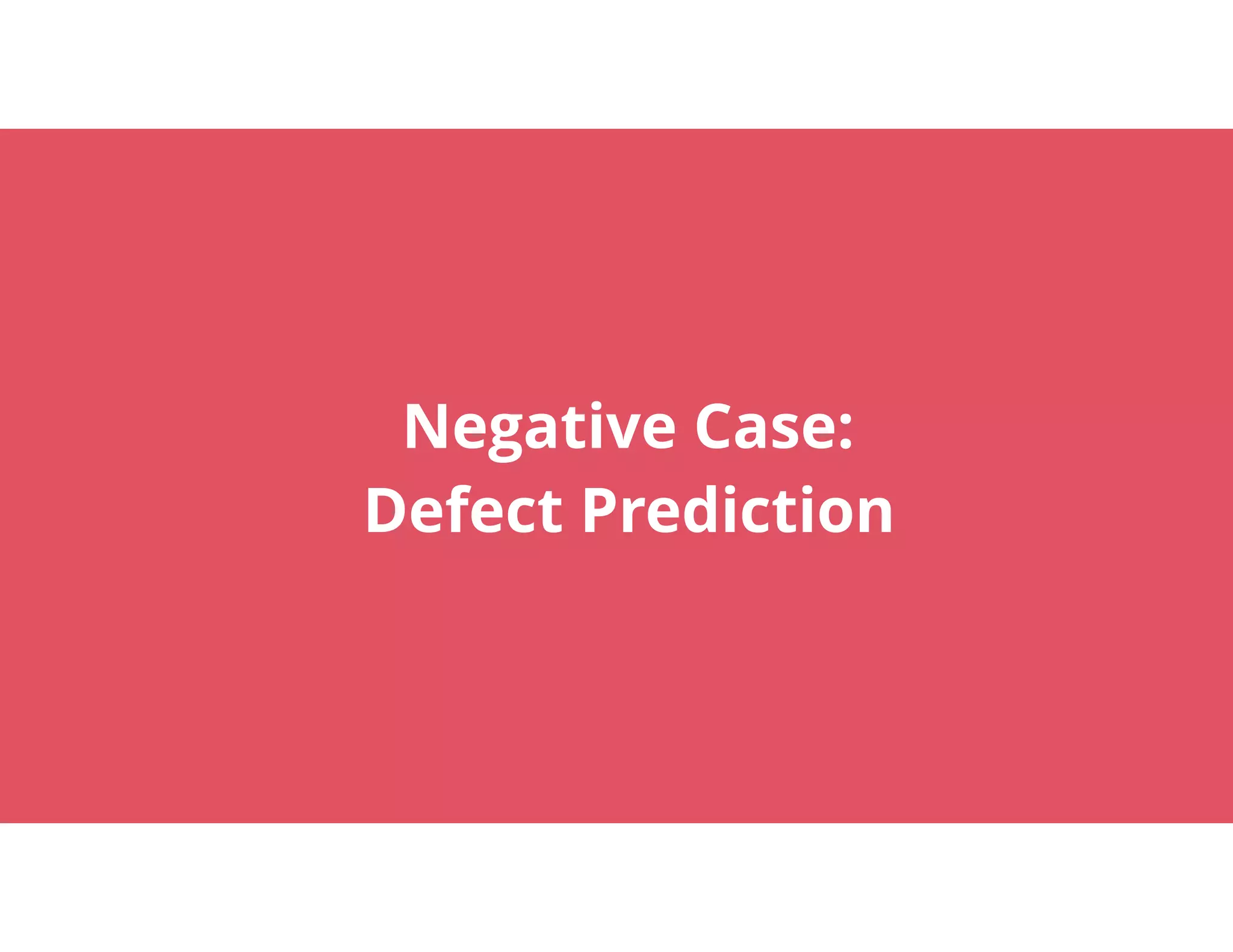

23. 23
Negative Case:
Defect Prediction

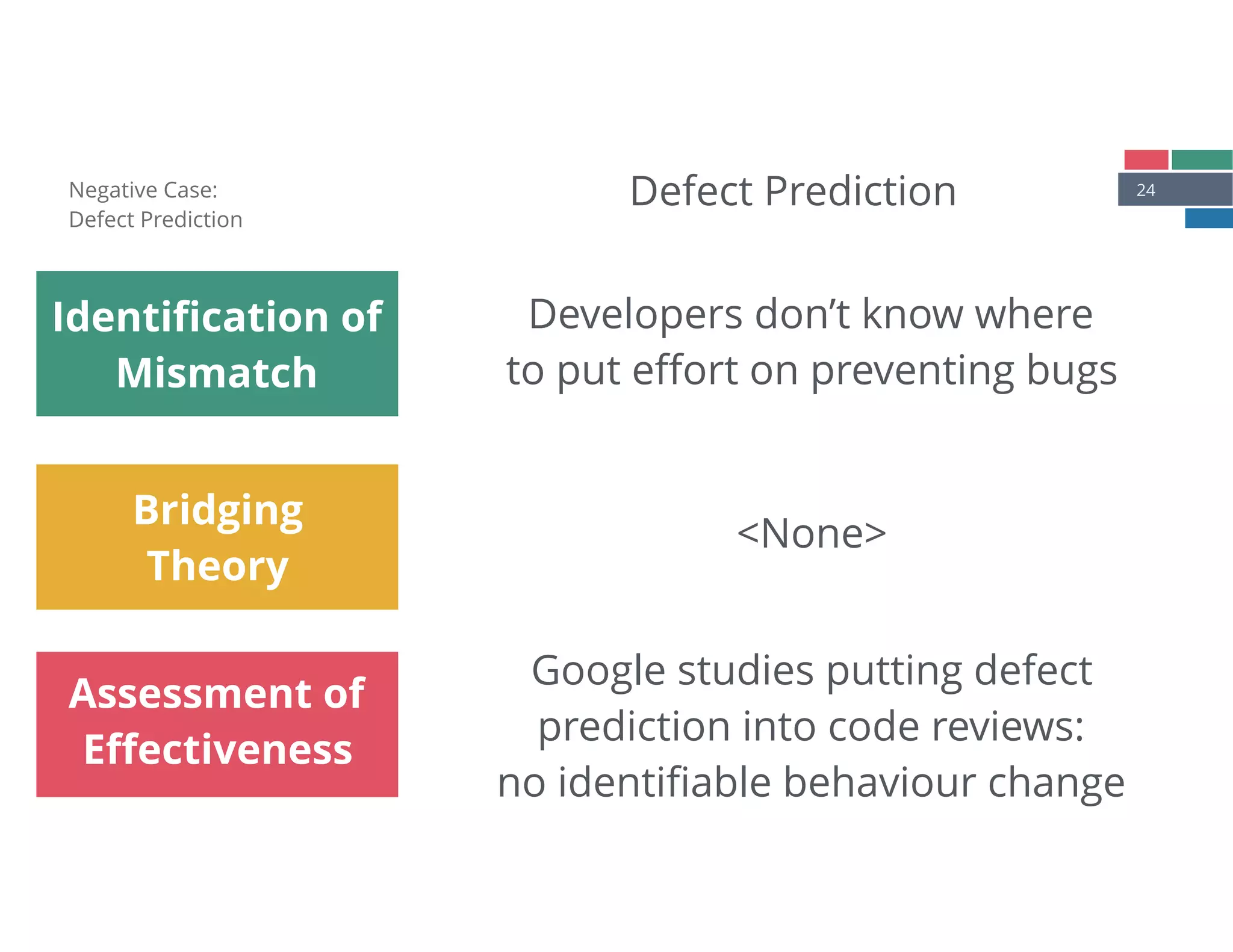

24. 24
Defect Prediction
Identification of
Mismatch
Bridging
Theory
Assessment of
Effectiveness
Negative Case:
Defect Prediction
Developers don’t know where
to put effort on preventing bugs
<None>
Google studies putting defect
prediction into code reviews:
no identifiable behaviour change

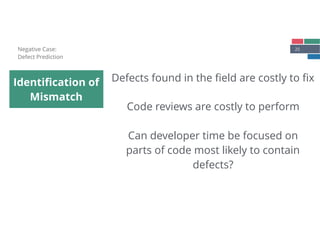

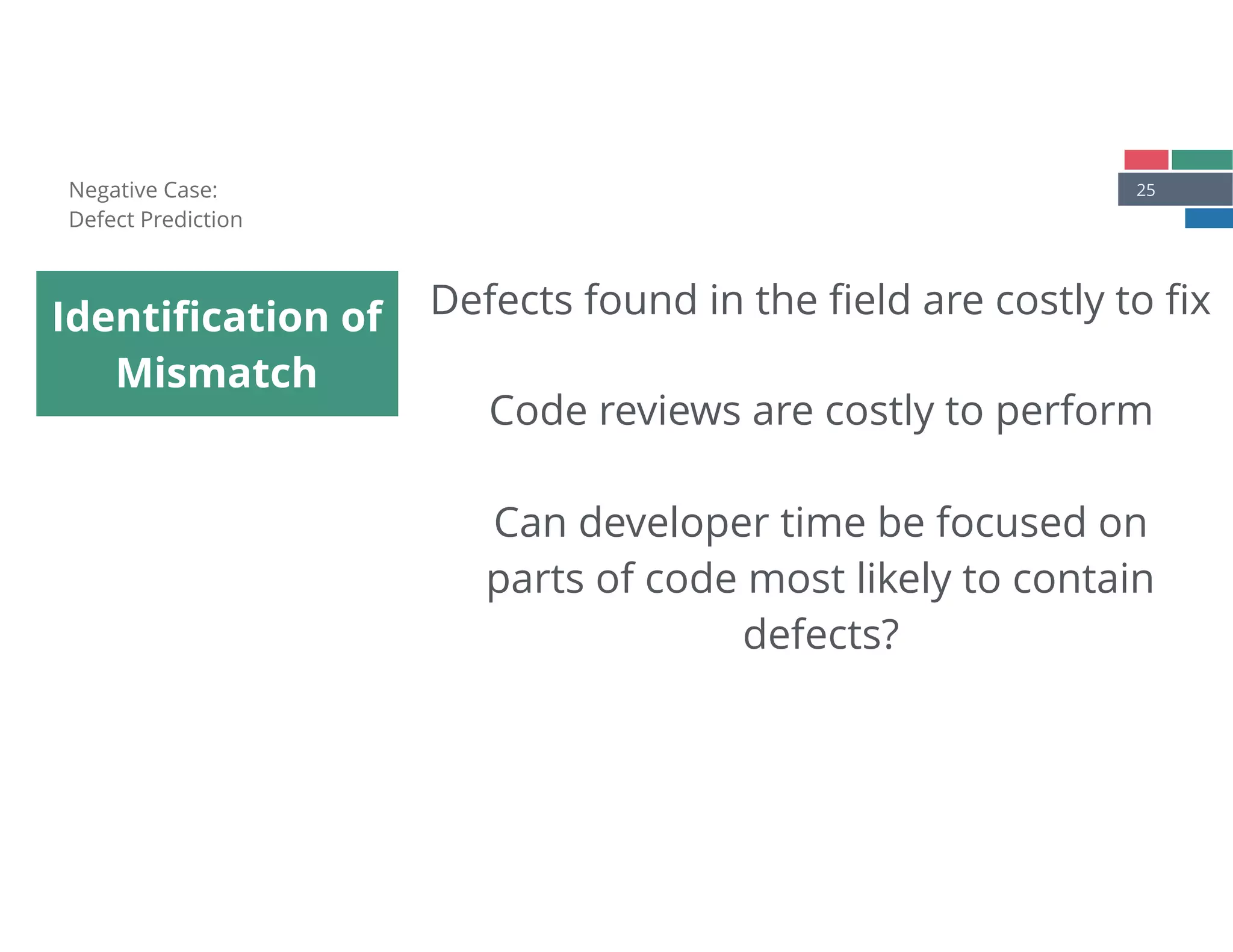

25. 25
Identification of
Mismatch
Negative Case:
Defect Prediction
Defects found in the field are costly to fix
Code reviews are costly to perform
Can developer time be focused on
parts of code most likely to contain
defects?

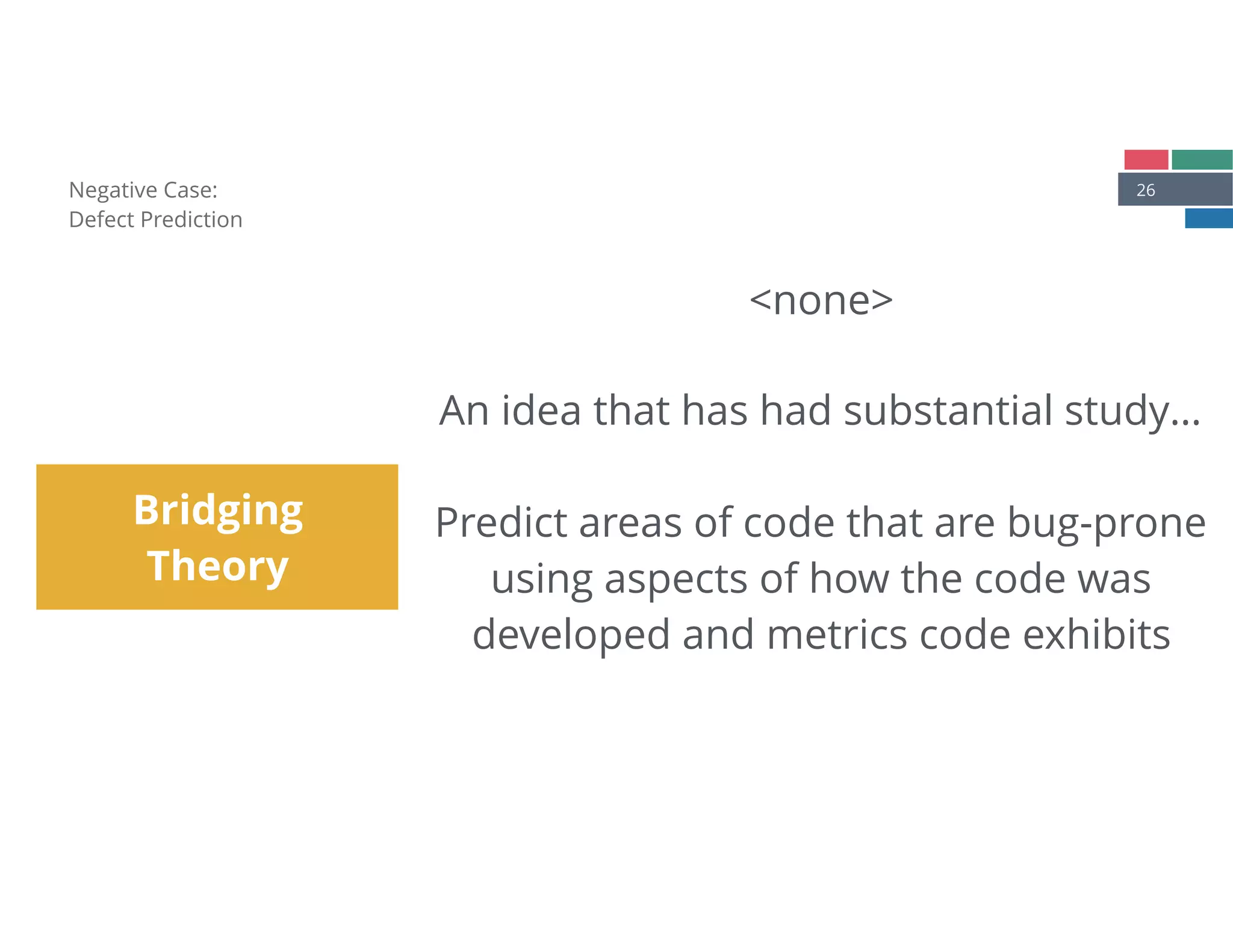

26. 26Negative Case:
Defect Prediction
Bridging
Theory
<none>
An idea that has had substantial study…
Predict areas of code that are bug-prone
using aspects of how the code was
developed and metrics code exhibits

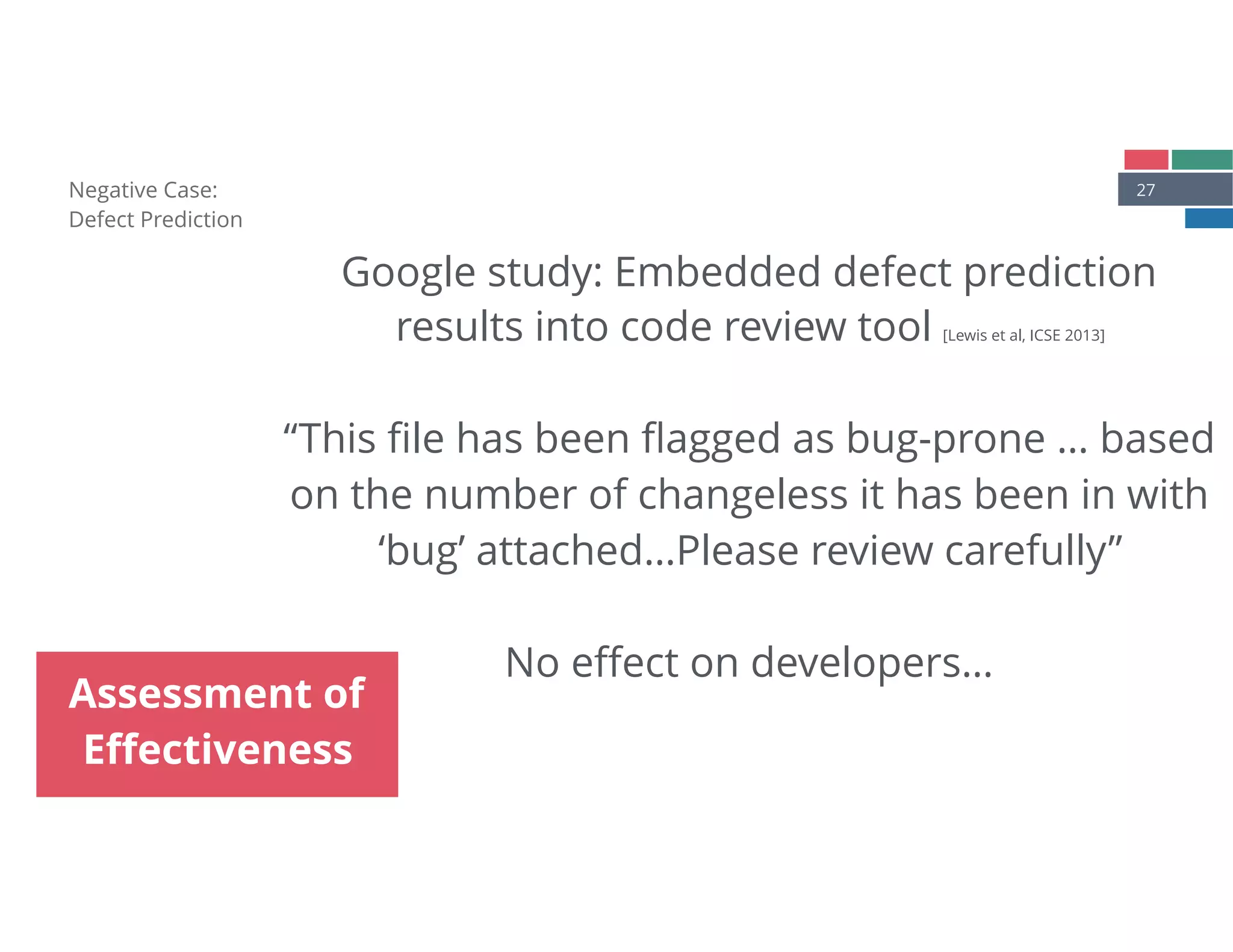

27. 27Negative Case:
Defect Prediction
Assessment of
Effectiveness
Google study: Embedded defect prediction
results into code review tool [Lewis et al, ICSE 2013]
“This file has been flagged as bug-prone … based
on the number of changeless it has been in with
‘bug’ attached…Please review carefully”
No effect on developers…

28. 28
Defect Prediction
Identification of
Mismatch
Bridging
Theory
Assessment of
Effectiveness
Negative Case:
Defect Prediction
Developers don’t know where
to put effort on preventing bugs
<None>
Google studies putting defect
prediction into code reviews:
no identifiable behaviour change

29. 29
Theories can be simple

30. 30

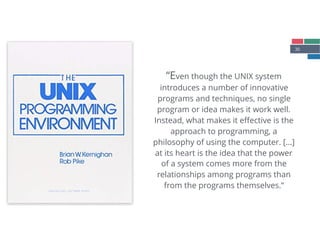

“Even though the UNIX system
introduces a number of innovative
programs and techniques, no single
program or idea makes it work well.
Instead, what makes it effective is the
approach to programming, a
philosophy of using the computer. […]
at its heart is the idea that the power
of a system comes more from the
relationships among programs than
from the programs themselves.”

31. 31
Humans can visualize,
understand and reason
about data pipelines
sort file1 | uniq > file2

32. 32
Tomorrow

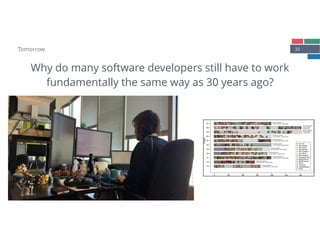

33. 33Tomorrow
Why do many software developers still have to work
fundamentally the same way as 30 years ago?
Actvities and Task Switches (Session 1)
Time [minutes]
Subject
0 30 60 90 120 150 180
T3
T2
T1
S4
S3
S2
S1
R4
R3
R2
R1
●
●
●
●
●
●
●●
●●●●
● ● ● ●
●
● ●●●●●
●
●
●●●
●●●
●●
●
51 activity switches
10 task switches, 3 distinct tasks
●
●
●●
●
●●●●
●
●●
●
●
●●
●●
●
●●
●●●
●●●●
●
●
●●
●
●
●
●●●
●
●
●
●●●
●
●●
●
●
●
●
●
●
●
●●
●
●
●
●
●
●●●●
●
●
●●
●
●●●●
●
●
●
●
●
●
●
●
● ● ●
● ● ●●
●●
●
●
●
●
●●
●
●
●
●
●
●●●
●
● ●
●
● ●
●
●●
●
●
●●
●
166 activity switches
36 task switches, 3 distinct tasks
●
●●●●
●
●
●
●●
●●●
●
●
●
●
●
●
●
●
●
●
●●
●
●●
●
●●●
●
●
●
●
●●●
●
●●
●
●
●
● ●
●
●
●
●●●●
●
●
●●●
●
●
●●
●
●
●●●
●●●
●●●
●●●●●
●
●
●●●●●●●●
●
●●●
●
● ●● ●●
●
●●
● ●●
●
●
●
●
●
●
●
●●
●
●●●●
●●●
●
●●
●
●●●●●●
●
●●
● ●●●
●
●
● 230 activity switches
79 task switches, 4 distinct tasks
●●
●● ●
●●
●
●
●●●
●
●●
●●●●●
●●
●●
●
●●●●●
●● ●
●●●●
●
●
●
● ●●
●●
● ●●
● ● ●
85 activity switches
13 task switches, 4 distinct tasks
● ●●
●●
●●
●
●
●
●●●
●●
●●●● ●
●
●
●●●
●
●
●
●
●
●
●
● ●● ● ●
●
●
●
●● ●
●
59 activity switches
20 task switches, 5 distinct tasks
● ●
●●●
●
●
●●●●
●●●
● ● ●
● ●
● ●
●●●
●●● ●
●
●
● ●
88 activity switches
17 task switches, 5 distinct tasks
●
●
●●●
●●●●●●●
●●
●●
●
●●●●
●
●
●
●
●●●●●
●
●
●
●●
●
●
●
●
●●
●●
●●●●●●●
●●
●
●●
●
●
●●●
●
●
●
●
● ●
●
●
●
●●
●
●
●
●
●●
●●
●●●
●●
●
●
●
●
● ●●●
●●
●
●
●
●●●
●
●
148 activity switches
27 task switches, 4 distinct tasks
●
●●● ●● ●●
●
●
●
●
●● ●●●●●
●●● ●●
●
●●●● ●●●
●
●
●
●●● ●
●●
●● ●
108 activity switches
16 task switches, 5 distinct tasks
●
●
●
●
●
●
●●
●
●●
●
●
●● ● ●
●
● ● ●
● ●
●
●
● ●
●
66 activity switches
25 task switches
4 distinct tasks
●
●
●
● ●
●●●
●
●
●
●
●
●●●
● ●
● ●
●
●
●
●
● ●●
●
● ●
●
● ●●
●●
●
●
102 activity switches
61 task switches
6 distinct tasks
●
●
●
●●●
●
●●●●●●●●●●
●
●●
●
● ●
●
●
● ●
●
●●●●●●●
●
● ●●●●●
●●●● ● ●
●
●●● ●
●
●●
●●
●●
96 activity switches
28 task switches, 4 distinct tasks
●
●
●
●
●
●
Dev:VC
Dev:Debug
Dev:Code
Dev:Review
Dev:TestApp
Dev:Other
BrowsingRel
BrowsingUnrel
MeetInformal
MeetPlanned
Email
Planning
ReadWriteDoc
Other

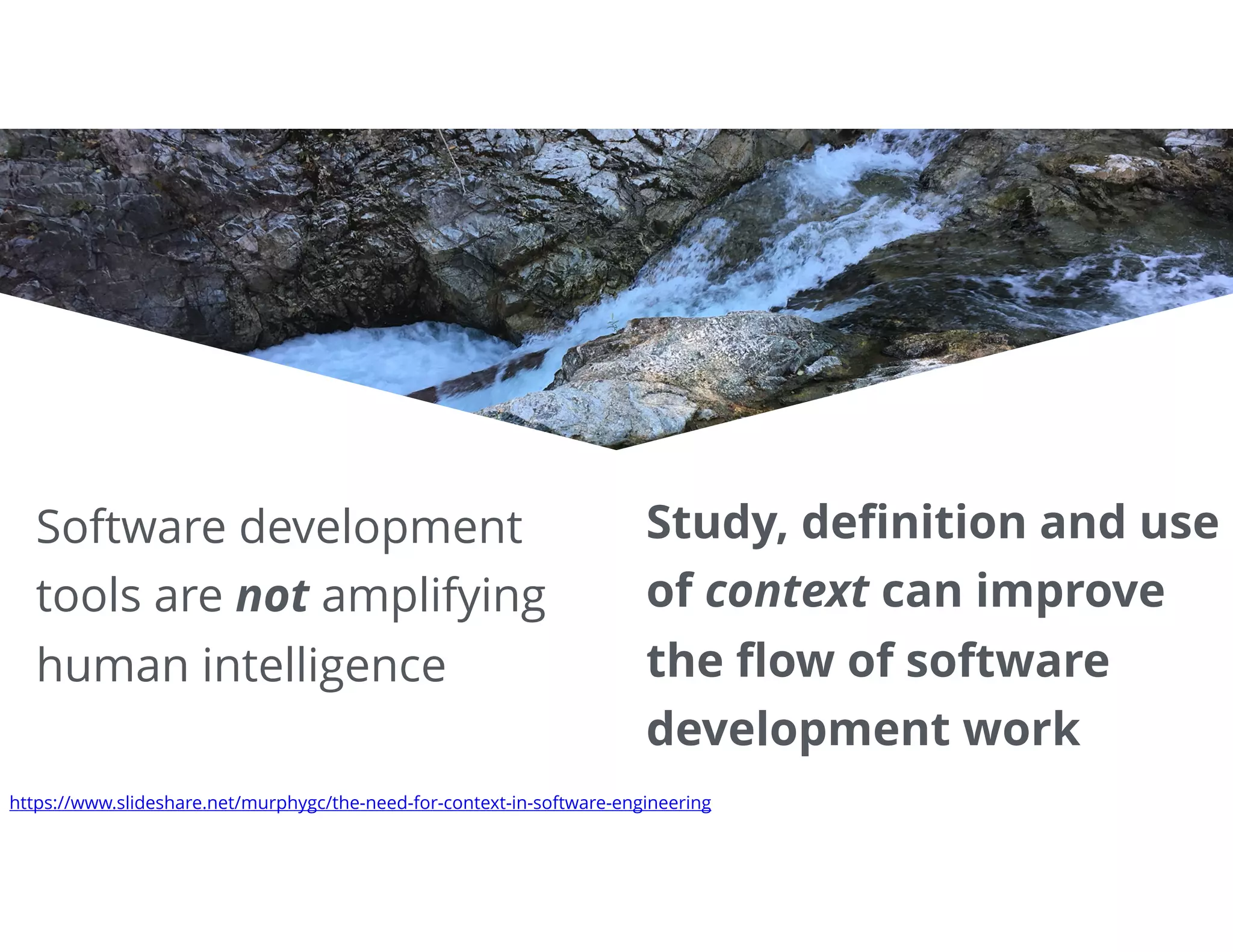

34. 34Tomorrow
Software development
tools are not amplifying
human intelligence
Study, definition and use
of context can improve
the flow of software
development work
https://www.slideshare.net/murphygc/the-need-for-context-in-software-engineering

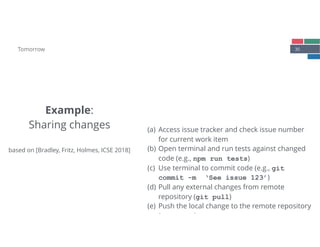

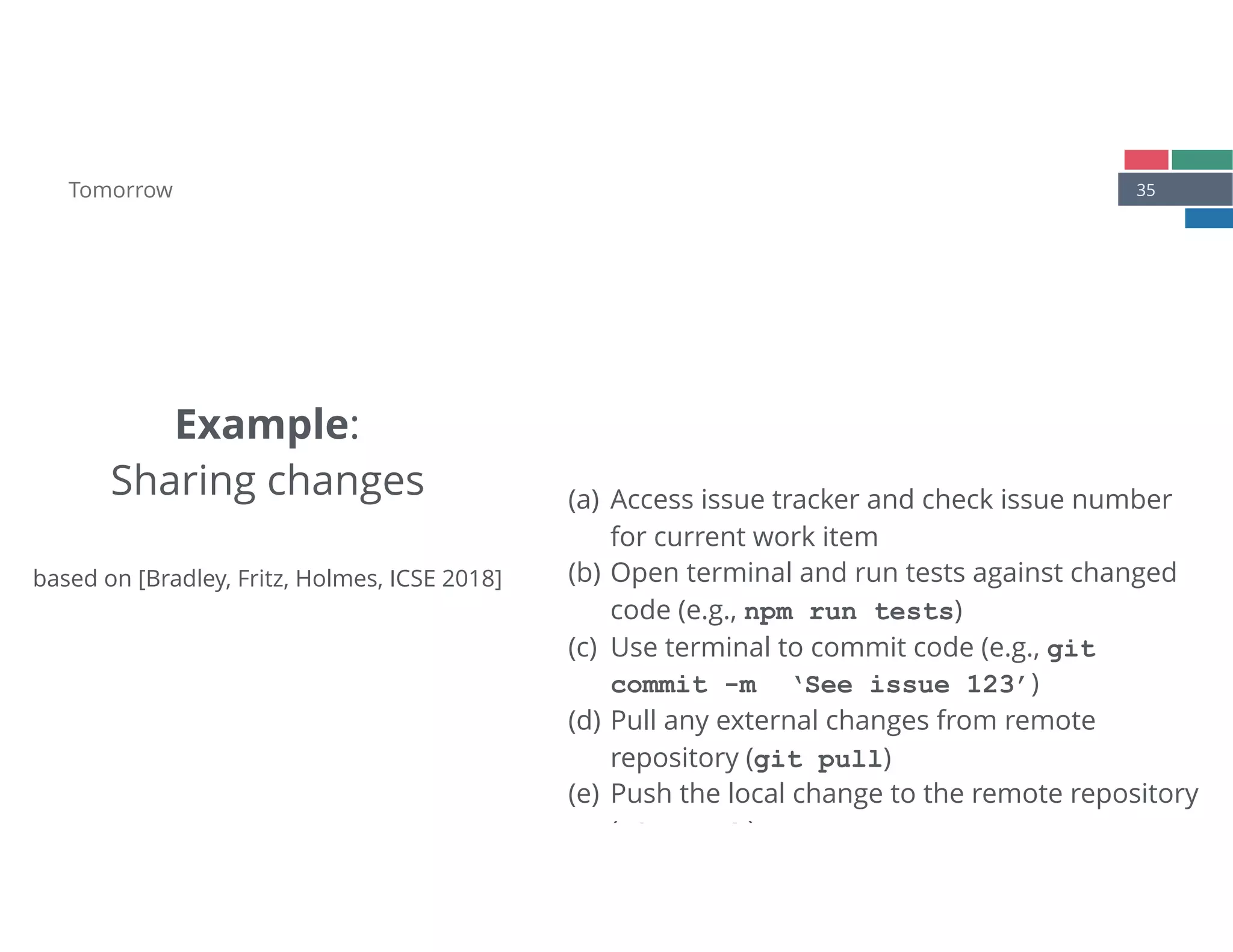

35. 35Tomorrow
(a) Access issue tracker and check issue number
for current work item
(b) Open terminal and run tests against changed
code (e.g., npm run tests)
(c) Use terminal to commit code (e.g., git
commit -m ‘See issue 123’)
(d) Pull any external changes from remote
repository (git pull)
(e) Push the local change to the remote repository
(git push)
Example:
Sharing changes
based on [Bradley, Fritz, Holmes, ICSE 2018]

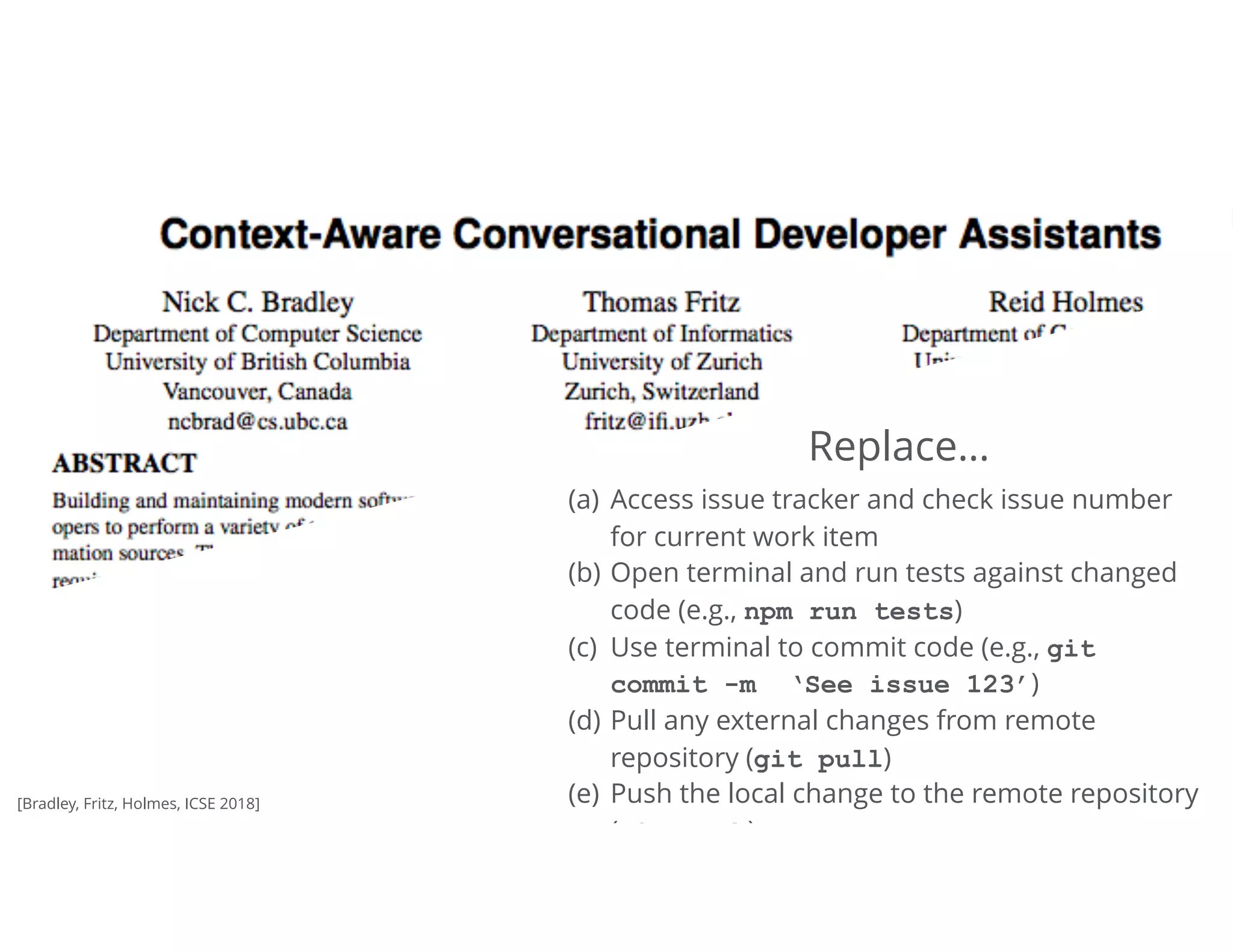

36. 36Tomorrow
(a) Access issue tracker and check issue number
for current work item
(b) Open terminal and run tests against changed
code (e.g., npm run tests)
(c) Use terminal to commit code (e.g., git
commit -m ‘See issue 123’)
(d) Pull any external changes from remote
repository (git pull)
(e) Push the local change to the remote repository
(git push)
Replace…
[Bradley, Fritz, Holmes, ICSE 2018]

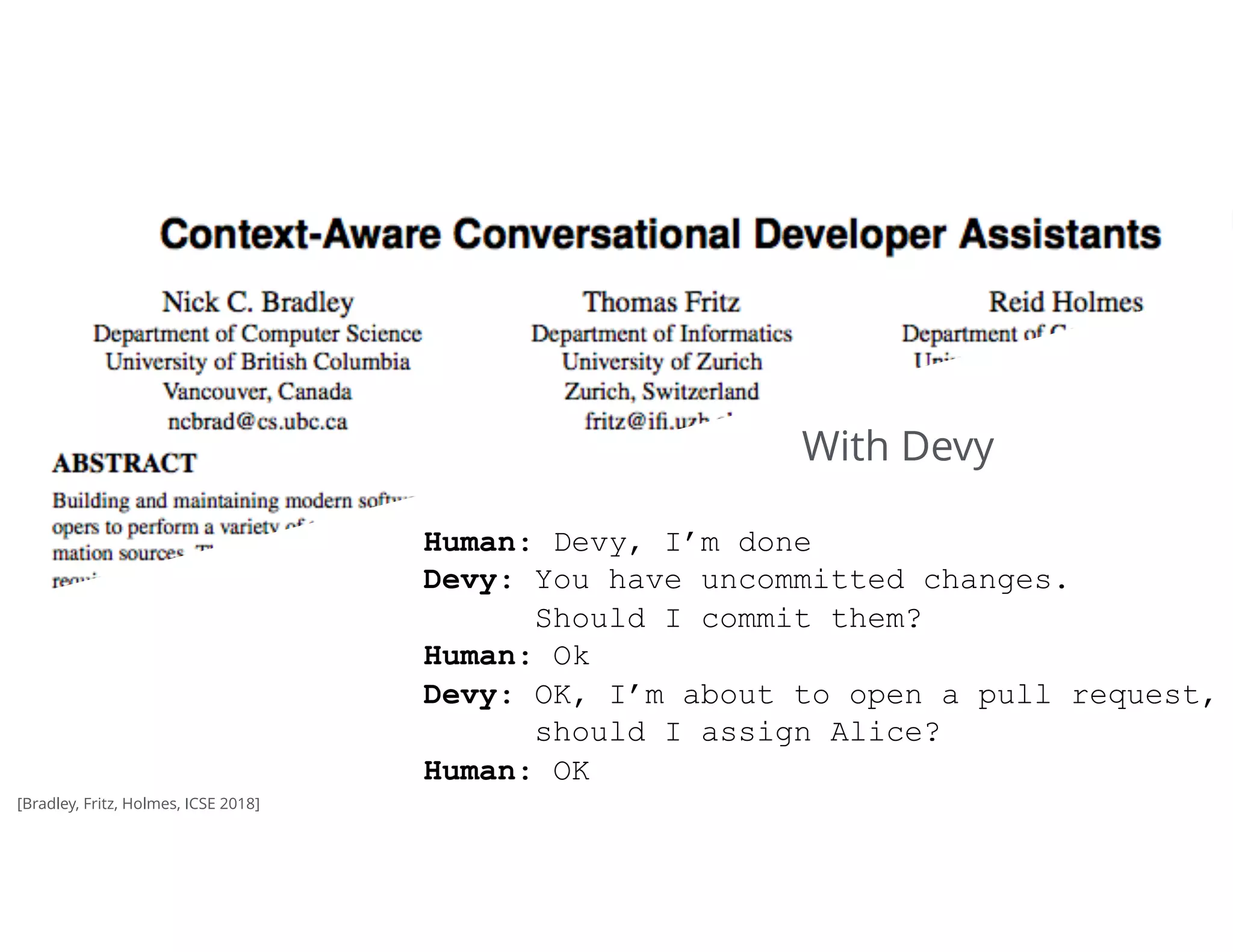

37. 37Tomorrow

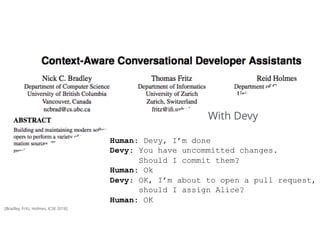

Human: Devy, I’m done
Devy: You have uncommitted changes.
Should I commit them?
Human: Ok
Devy: OK, I’m about to open a pull request,
should I assign Alice?
Human: OK
With Devy
[Bradley, Fritz, Holmes, ICSE 2018]

38. 38
Summary

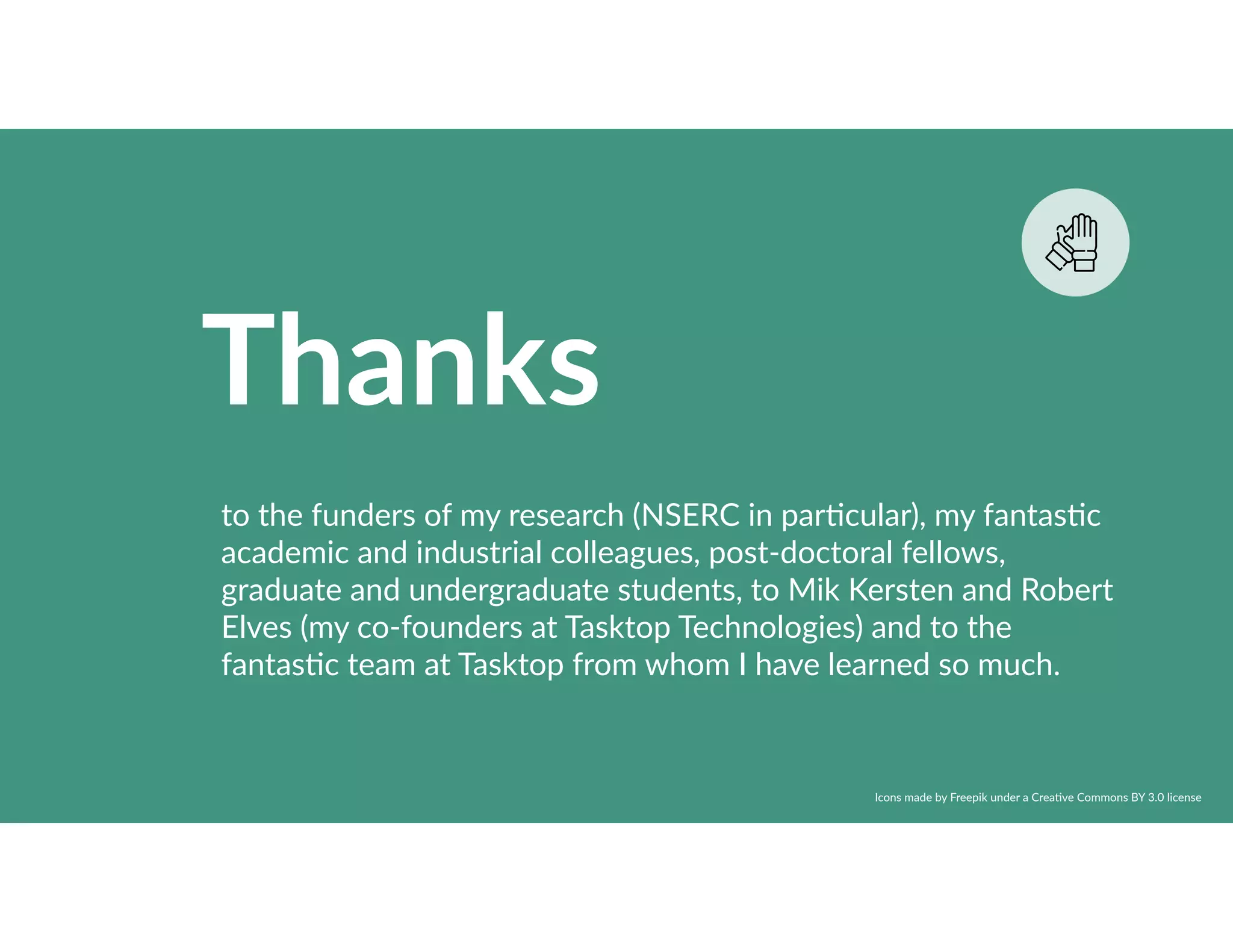

39. Thanks
to the funders of my research (NSERC in par8cular), my fantas8c
academic and industrial colleagues, post-doctoral fellows,
graduate and undergraduate students, to Mik Kersten and Robert
Elves (my co-founders at Tasktop Technologies) and to the
fantas8c team at Tasktop from whom I have learned so much.
Icons made by Freepik under a Crea8ve Commons BY 3.0 license

40. 40Summary
Let’s put the human
as the focus of the software
development tools
that we build
Image cannot be reused.

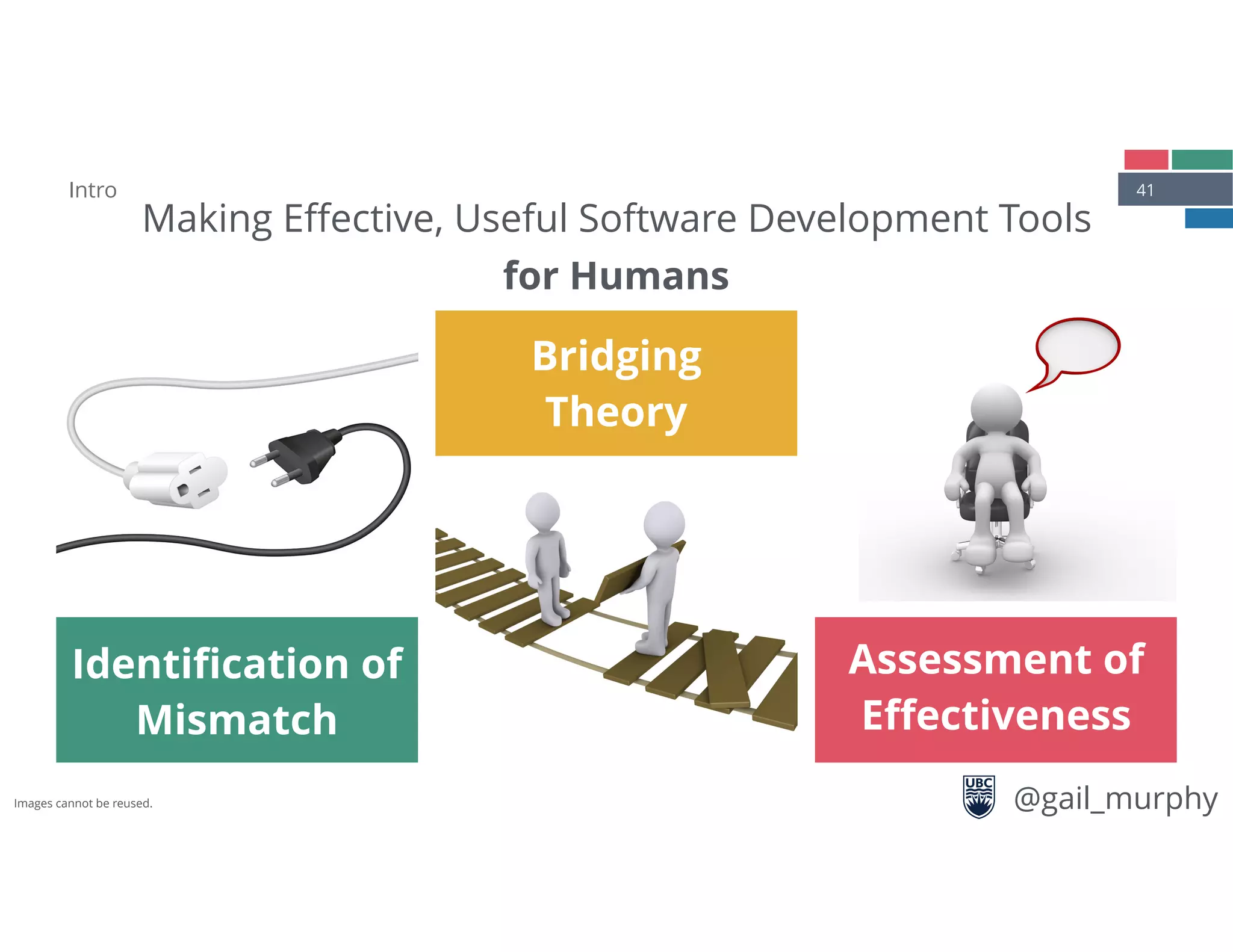

41. 41Intro
Bridging
Theory
Assessment of
Effectiveness
Identification of
Mismatch
Making Effective, Useful Software Development Tools
for Humans
@gail_murphyImages cannot be reused.
