An analytical balance is a precise instrument used in laboratories to measure mass with high accuracy, typically to four or five decimal places. It features a digital display, regular calibration requirements, and a taring function for accurate net weight measurement, while being sensitive to environmental factors. Analytical balances are essential in scientific research, pharmaceuticals, and quality control, available in mechanical and electronic types, with detailed maintenance procedures to ensure precision.

1. MAINTAIN ANALYTICAL
BALANCE

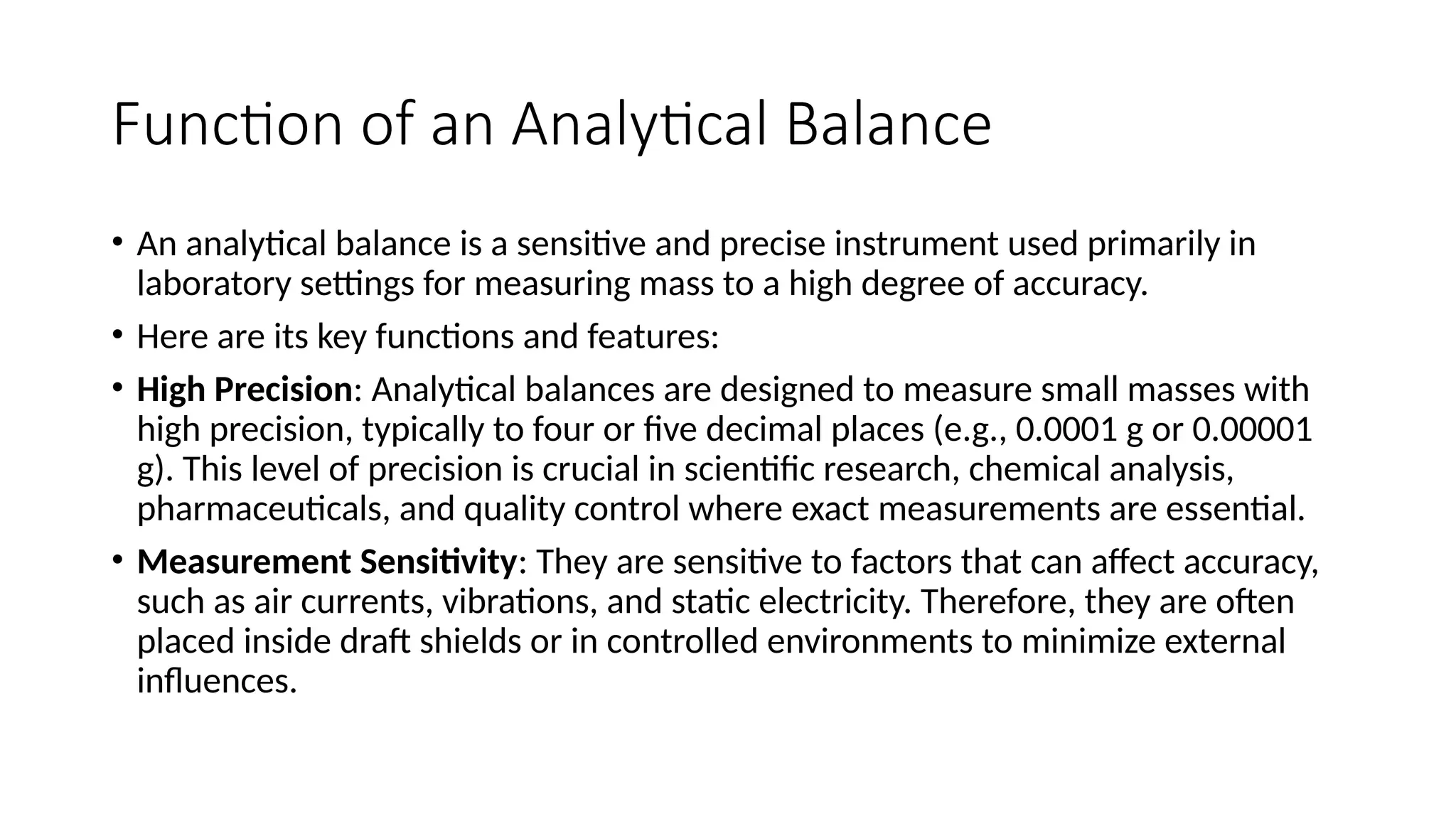

2. Function of an Analytical Balance
• An analytical balance is a sensitive and precise instrument used primarily in
laboratory settings for measuring mass to a high degree of accuracy.
• Here are its key functions and features:
• High Precision: Analytical balances are designed to measure small masses with
high precision, typically to four or five decimal places (e.g., 0.0001 g or 0.00001
g). This level of precision is crucial in scientific research, chemical analysis,
pharmaceuticals, and quality control where exact measurements are essential.
• Measurement Sensitivity: They are sensitive to factors that can affect accuracy,
such as air currents, vibrations, and static electricity. Therefore, they are often
placed inside draft shields or in controlled environments to minimize external
influences.

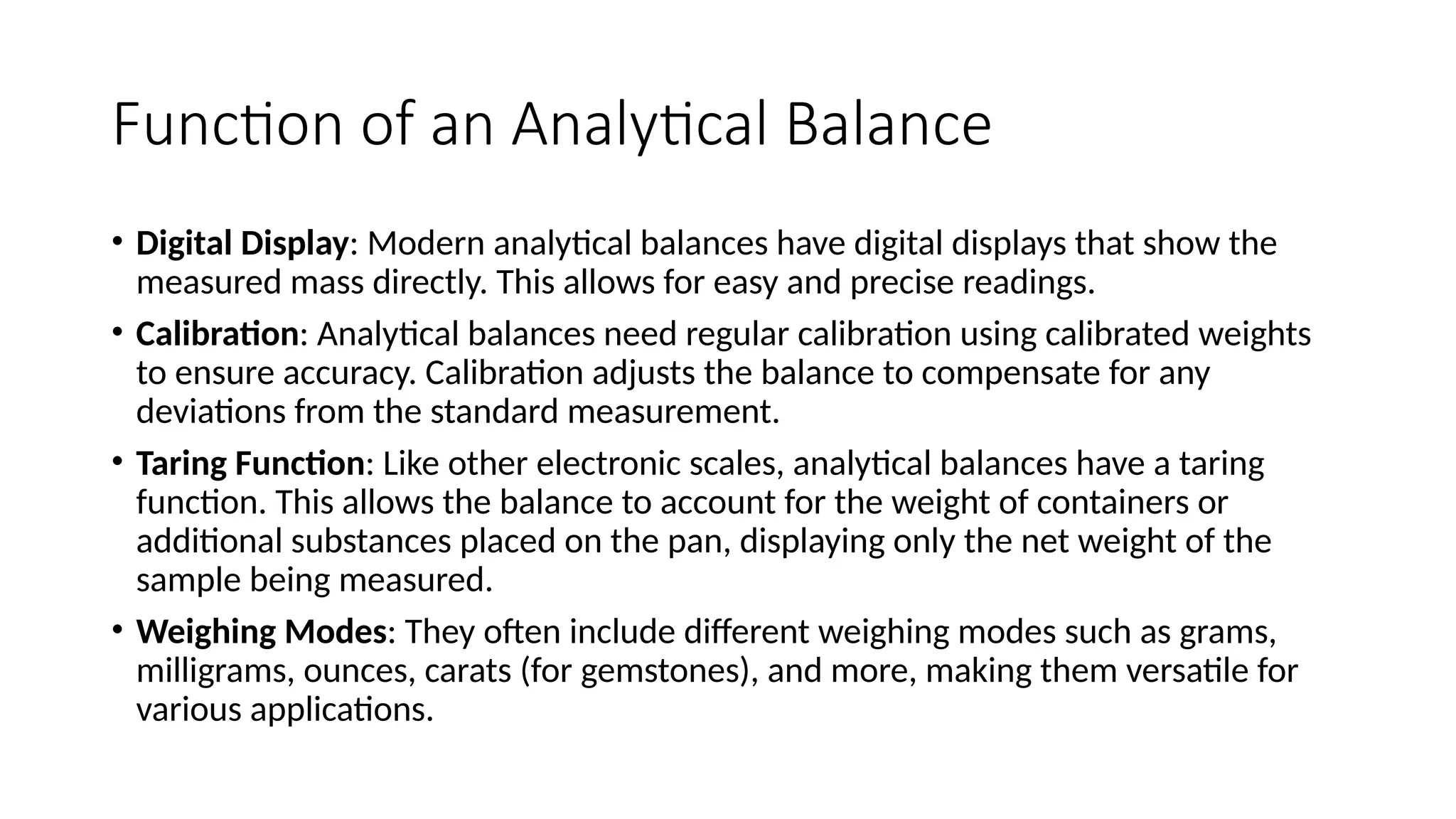

3. Function of an Analytical Balance
• Digital Display: Modern analytical balances have digital displays that show the
measured mass directly. This allows for easy and precise readings.
• Calibration: Analytical balances need regular calibration using calibrated weights
to ensure accuracy. Calibration adjusts the balance to compensate for any
deviations from the standard measurement.
• Taring Function: Like other electronic scales, analytical balances have a taring
function. This allows the balance to account for the weight of containers or
additional substances placed on the pan, displaying only the net weight of the
sample being measured.
• Weighing Modes: They often include different weighing modes such as grams,
milligrams, ounces, carats (for gemstones), and more, making them versatile for
various applications.

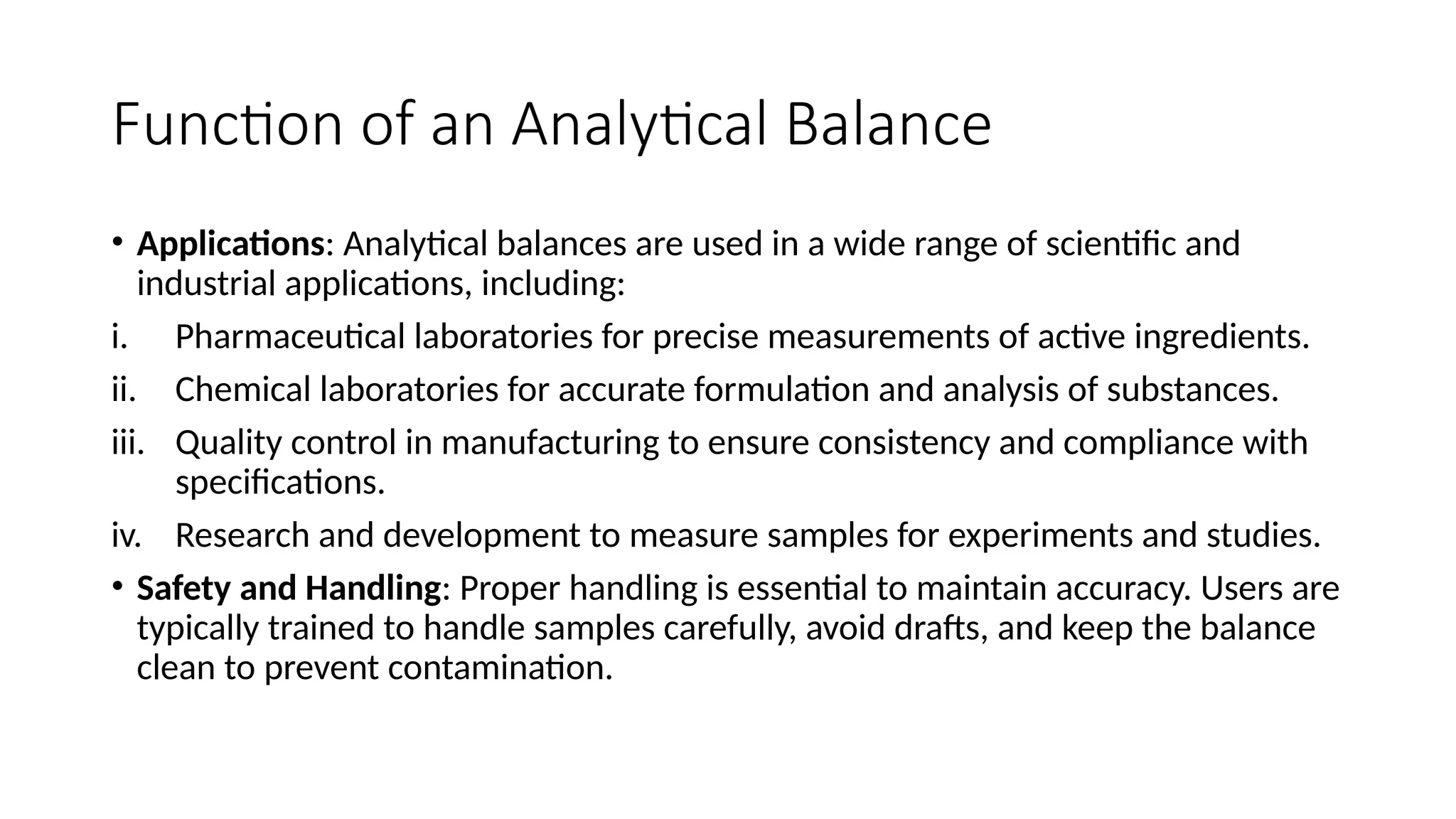

4. Function of an Analytical Balance
• Applications: Analytical balances are used in a wide range of scientific and
industrial applications, including:
i. Pharmaceutical laboratories for precise measurements of active ingredients.
ii. Chemical laboratories for accurate formulation and analysis of substances.
iii. Quality control in manufacturing to ensure consistency and compliance with
specifications.
iv. Research and development to measure samples for experiments and studies.
• Safety and Handling: Proper handling is essential to maintain accuracy. Users are
typically trained to handle samples carefully, avoid drafts, and keep the balance
clean to prevent contamination.

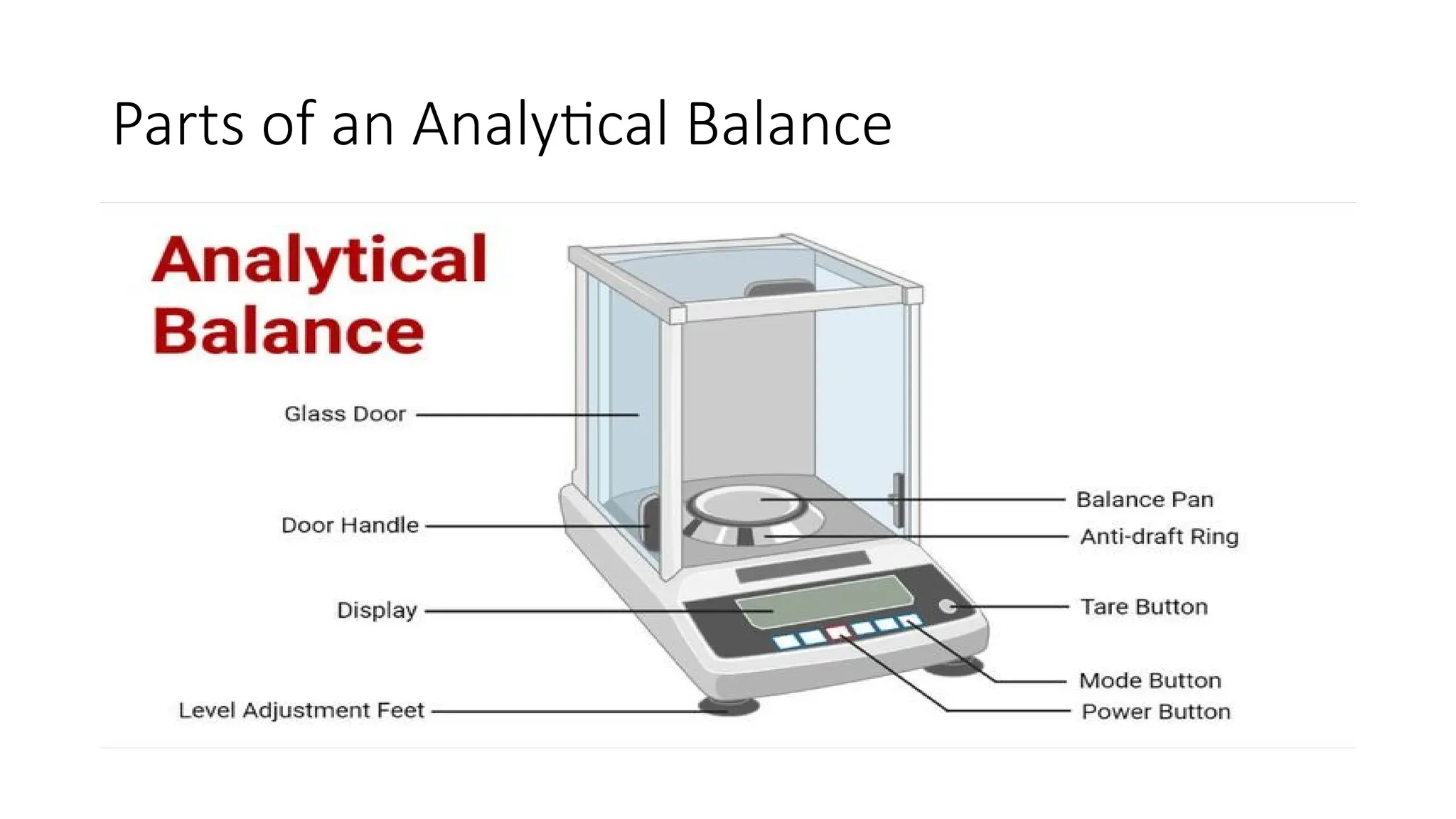

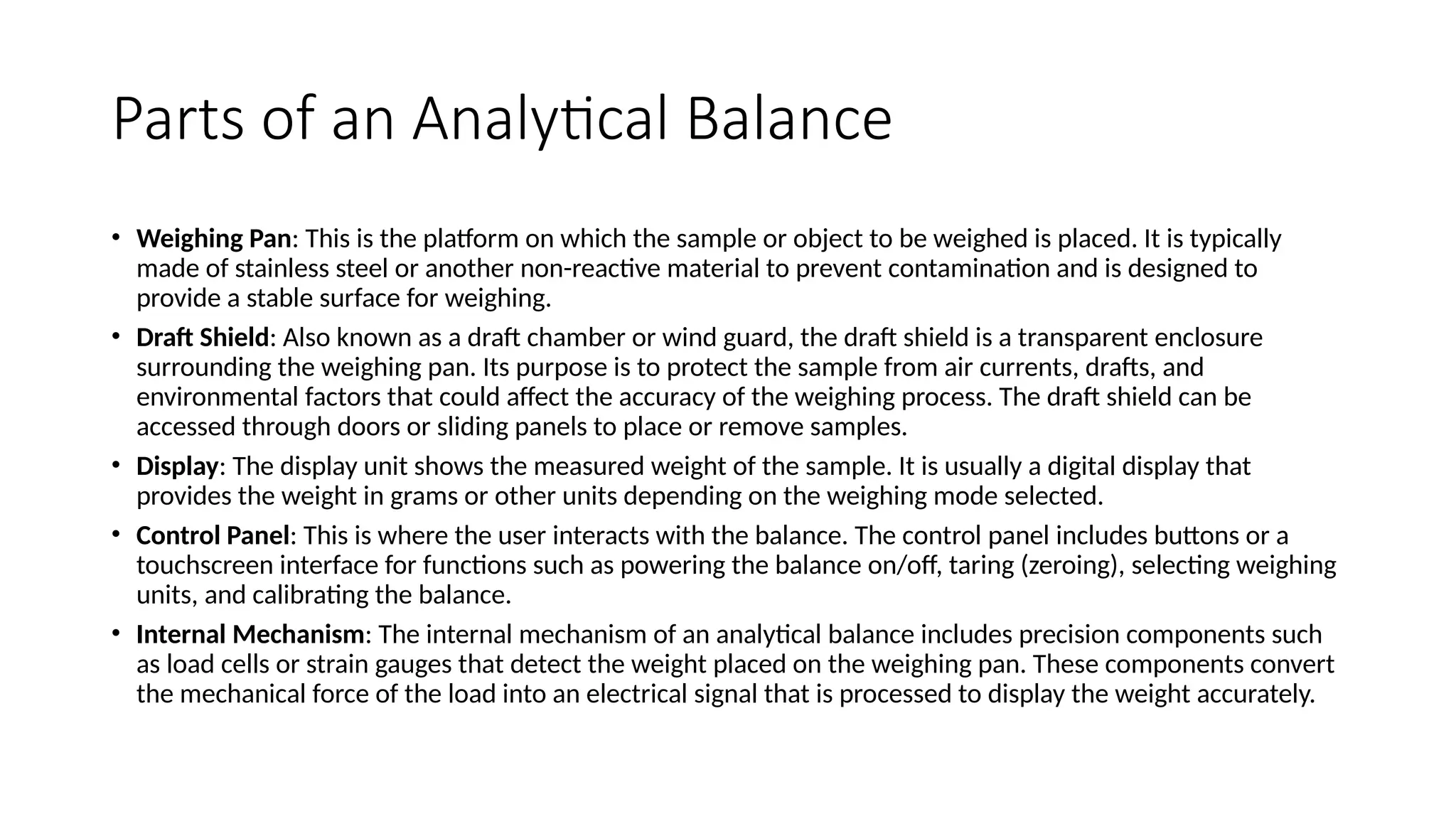

5. Parts of an Analytical Balance
• Weighing Pan: This is the platform on which the sample or object to be weighed is placed. It is typically
made of stainless steel or another non-reactive material to prevent contamination and is designed to
provide a stable surface for weighing.
• Draft Shield: Also known as a draft chamber or wind guard, the draft shield is a transparent enclosure
surrounding the weighing pan. Its purpose is to protect the sample from air currents, drafts, and
environmental factors that could affect the accuracy of the weighing process. The draft shield can be
accessed through doors or sliding panels to place or remove samples.
• Display: The display unit shows the measured weight of the sample. It is usually a digital display that
provides the weight in grams or other units depending on the weighing mode selected.
• Control Panel: This is where the user interacts with the balance. The control panel includes buttons or a
touchscreen interface for functions such as powering the balance on/off, taring (zeroing), selecting weighing
units, and calibrating the balance.
• Internal Mechanism: The internal mechanism of an analytical balance includes precision components such
as load cells or strain gauges that detect the weight placed on the weighing pan. These components convert
the mechanical force of the load into an electrical signal that is processed to display the weight accurately.

6. Parts of an Analytical Balance

7. Parts of an Analytical Balance
• Adjustment Feet: Analytical balances are often equipped with adjustable feet or leveling screws located
at the base. These allow the balance to be leveled on a stable surface, which is important for accurate
measurements.
• Calibration Weights: Analytical balances require calibration using standard weights to ensure accuracy.
Some balances may have a built-in calibration weight or a specific location to place external calibration
weights during the calibration process.
• Housing and Frame: The housing and frame of the analytical balance provide structural support and
protection for the internal components. They are typically made of durable materials such as metal or
plastic to withstand regular use in laboratory environments.
• Stabilization Indicator: Many analytical balances feature a stabilization indicator or icon on the display.
This indicates when the balance has stabilized after placing a sample, ensuring that accurate
measurements can be taken.
• Power Source: Analytical balances are powered by electricity, typically through a power cord connected
to an outlet. Some models may also have a rechargeable battery option for portable use or as a backup
during power outages.

8. Types of analytical balances
1. Mechanical analytical balances
2. Electronic analytical balances

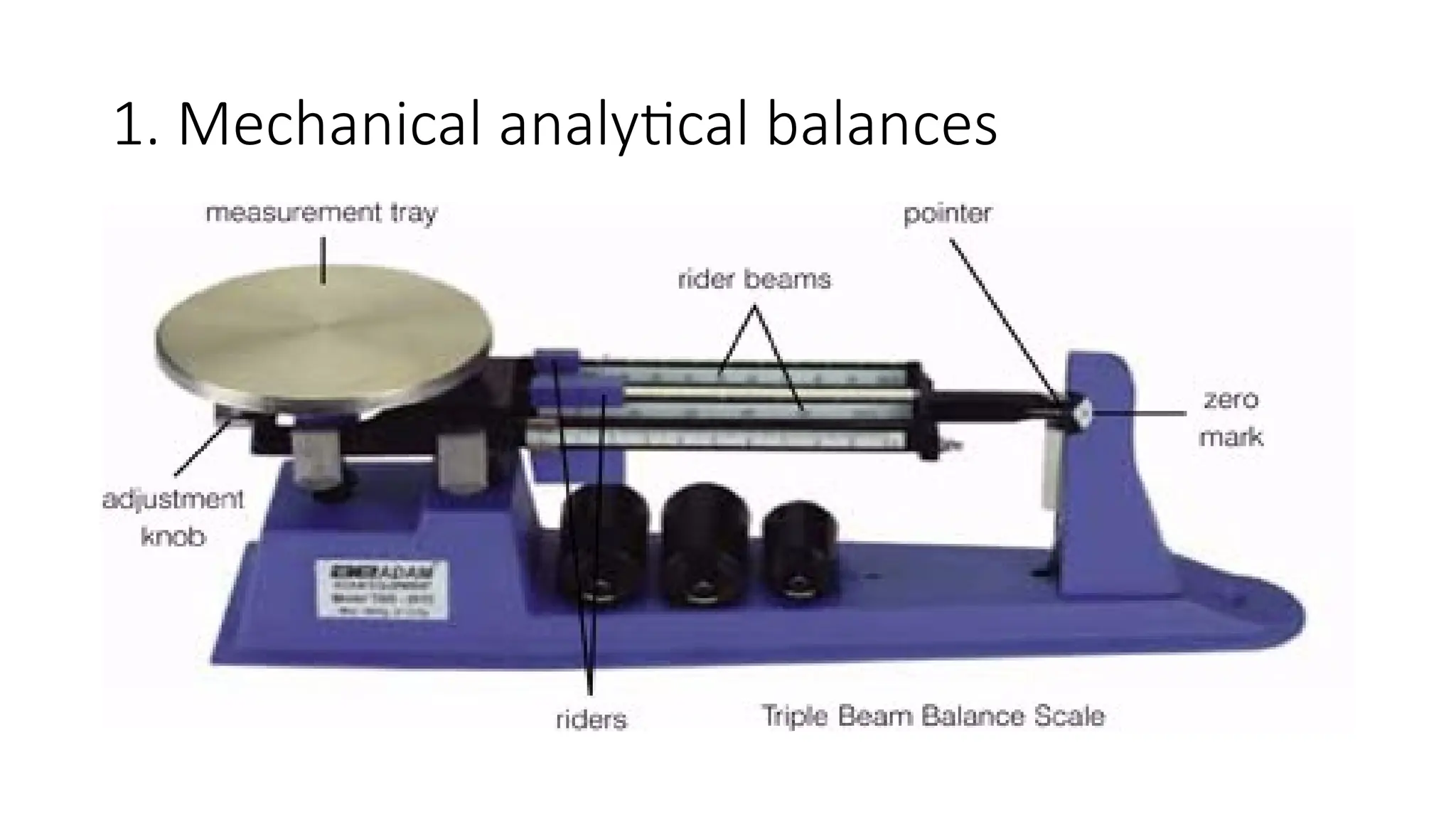

9. 1. Mechanical analytical balances
• Mechanical analytical balances are precision instruments used for measuring mass with high
accuracy in laboratory settings.
• Unlike electronic analytical balances that use electronic sensors and digital displays,
mechanical balances operate using purely mechanical principles.
• Here are the main parts and how they function:
• Beam: The beam is a horizontal bar or lever that pivots around a central point, often called
the fulcrum. It serves as the main mechanism for balancing weights.
• Pan: The pan is the platform where the sample or object to be weighed is placed. It is
suspended from one end of the beam and can move up and down based on the weight
placed on it.
• Knife-Edges and Bearings: The beam rests on knife-edges or bearings at the fulcrum point.
These provide low-friction support, allowing the beam to move freely in response to the
weight on the pan.

10. 1. Mechanical analytical balances

11. 1. Mechanical analytical balances
• Rider and Weights: To measure the mass of the sample, mechanical balances use a rider
or set of weights that slide along a calibrated scale on the beam. The position of the
rider indicates the mass of the sample based on the balance of torques around the
fulcrum.
• Graduated Scale: The beam of a mechanical balance typically has a graduated scale
along its length. This scale is calibrated in units of mass (e.g., grams or milligrams) and is
used to read the measurement based on the position of the rider.
• Adjustment Screws: Some mechanical balances have adjustment screws or knobs that
allow fine adjustments to the position of the beam or the sensitivity of the balance,
ensuring accurate readings.
• Enclosure: Mechanical balances may be housed in an enclosure or case to protect the
delicate components from dust, drafts, and external influences that could affect
measurements.

12. 1. Mechanical analytical balances
• Operation: To use a mechanical analytical balance:
• Place the sample on the pan.
• Adjust the weights or rider along the beam until the beam is balanced and horizontal.
• Read the mass directly from the position of the rider or weights on the graduated scale.
• Mechanical analytical balances are known for their durability, simplicity, and reliability
in providing accurate measurements.
• However, they require careful handling and periodic calibration to maintain accuracy.
• They are still used in certain applications where precise measurements are required and
where electronic balances may not be suitable due to environmental conditions or
power requirements.

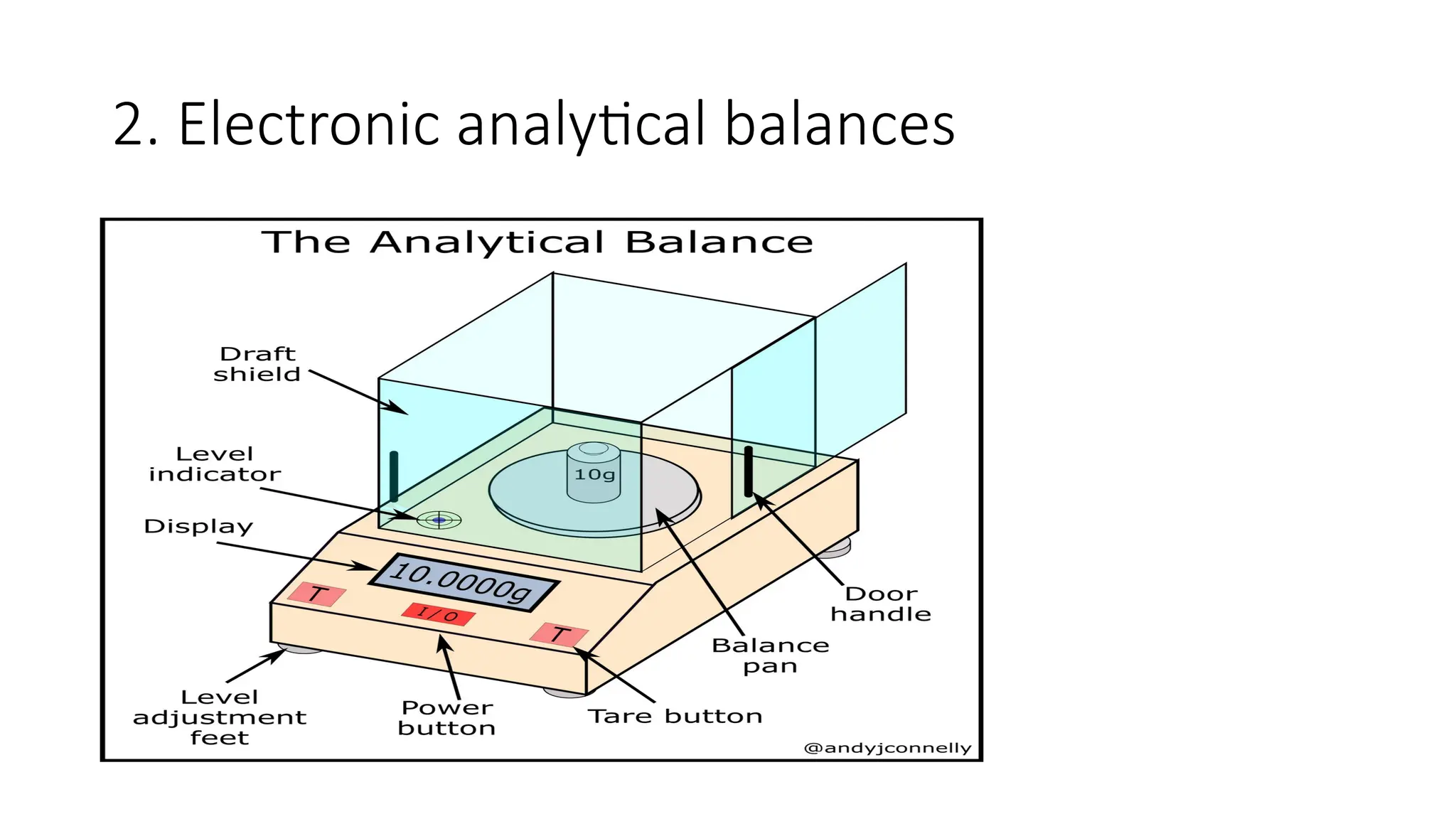

13. 2. Electronic analytical balances
• Electronic analytical balances are advanced precision instruments used for measuring
mass with high accuracy in laboratory and industrial settings.
• They operate based on electronic sensors and circuits rather than mechanical
components like their mechanical balance counterparts.
• Here are the key features and components of electronic analytical balances:
• Load Cell: Electronic analytical balances use a load cell as the primary sensor for
measuring the weight placed on the pan. A load cell converts the mechanical force of
the weight into an electrical signal, which is then processed electronically.
• Digital Display: Unlike mechanical balances, electronic analytical balances have a
digital display that shows the measured weight in grams or other units with high
precision. The display provides immediate and accurate readings, often to four or five
decimal places (e.g., 0.0001 g or 0.00001 g).

14. 2. Electronic analytical balances

15. 2. Electronic analytical balances
• Taring Function: Electronic balances include a taring function, allowing the user
to reset the display to zero after placing a container or additional substances on
the pan. This feature ensures that only the net weight of the sample being
weighed is measured.
• Internal Electronics: The internal electronics of electronic balances process the
signal from the load cell to calculate and display the weight accurately. They often
include microprocessors and digital circuitry to handle the measurement and
provide features such as unit conversion, calibration, and data logging.
• Calibration: Electronic balances require periodic calibration using calibrated
weights to ensure accuracy. Calibration adjusts the balance to compensate for any
deviations in measurement and is typically performed according to manufacturer
recommendations.

16. 2. Electronic analytical balances
• Touchscreen or Control Panel: Electronic balances feature a control panel with
buttons or a touchscreen interface for user interaction. This panel allows the
user to perform functions such as power on/off, tare adjustment, unit
selection, calibration, and data entry.
• Housing and Draft Shield: Many electronic balances are housed in a protective
casing with a built-in draft shield or wind guard. The draft shield minimizes the
impact of air currents and environmental factors on measurements, ensuring
accuracy.
• Connectivity: Some electronic balances offer connectivity options such as USB
ports or RS232 interfaces for data transfer to computers or printers. This
feature facilitates data logging, analysis, and documentation of measurements.

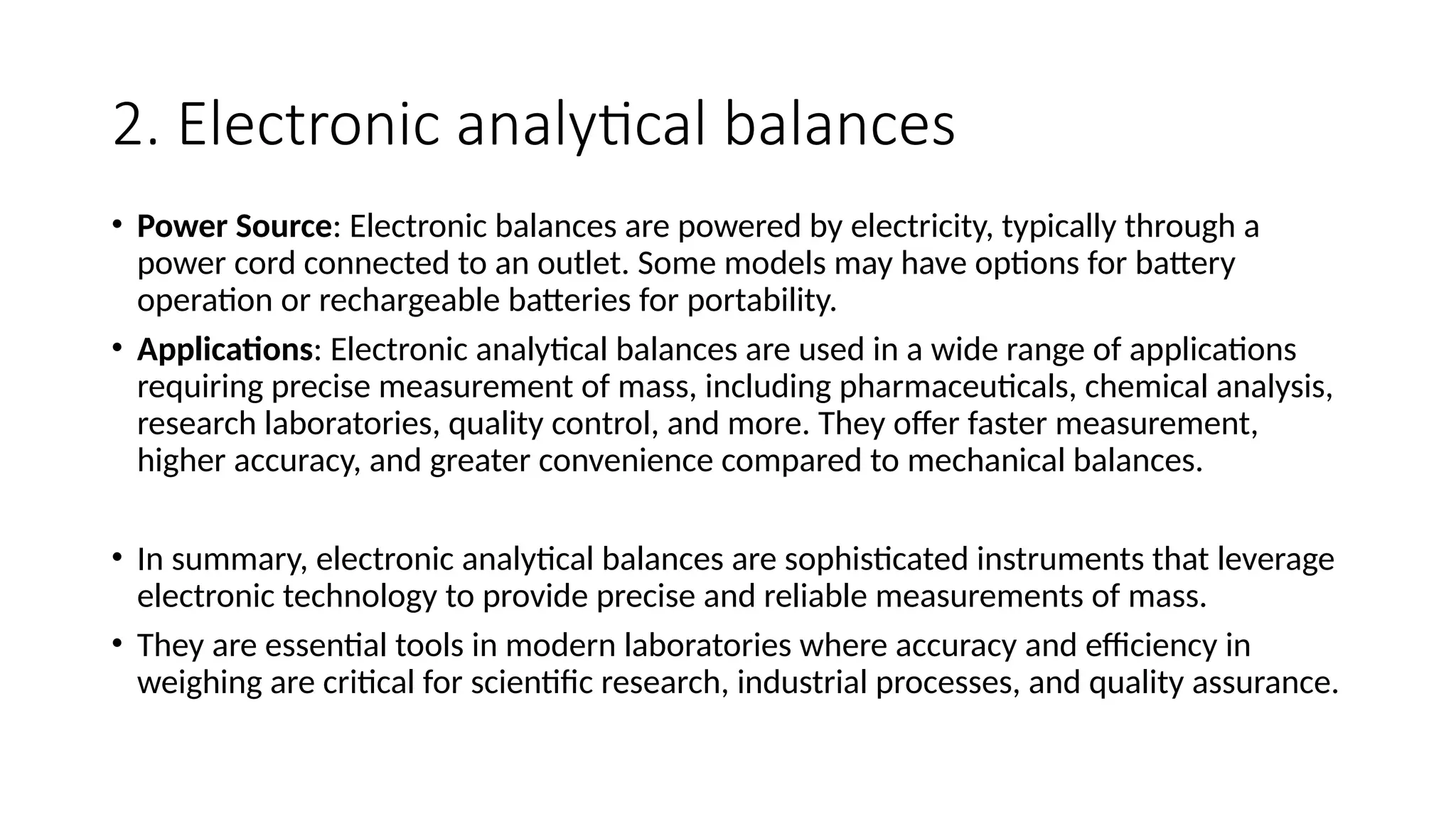

17. 2. Electronic analytical balances
• Power Source: Electronic balances are powered by electricity, typically through a
power cord connected to an outlet. Some models may have options for battery
operation or rechargeable batteries for portability.
• Applications: Electronic analytical balances are used in a wide range of applications
requiring precise measurement of mass, including pharmaceuticals, chemical analysis,
research laboratories, quality control, and more. They offer faster measurement,
higher accuracy, and greater convenience compared to mechanical balances.
• In summary, electronic analytical balances are sophisticated instruments that leverage
electronic technology to provide precise and reliable measurements of mass.
• They are essential tools in modern laboratories where accuracy and efficiency in
weighing are critical for scientific research, industrial processes, and quality assurance.

18. 2. Electronic analytical balances

19. 2. Electronic analytical balances

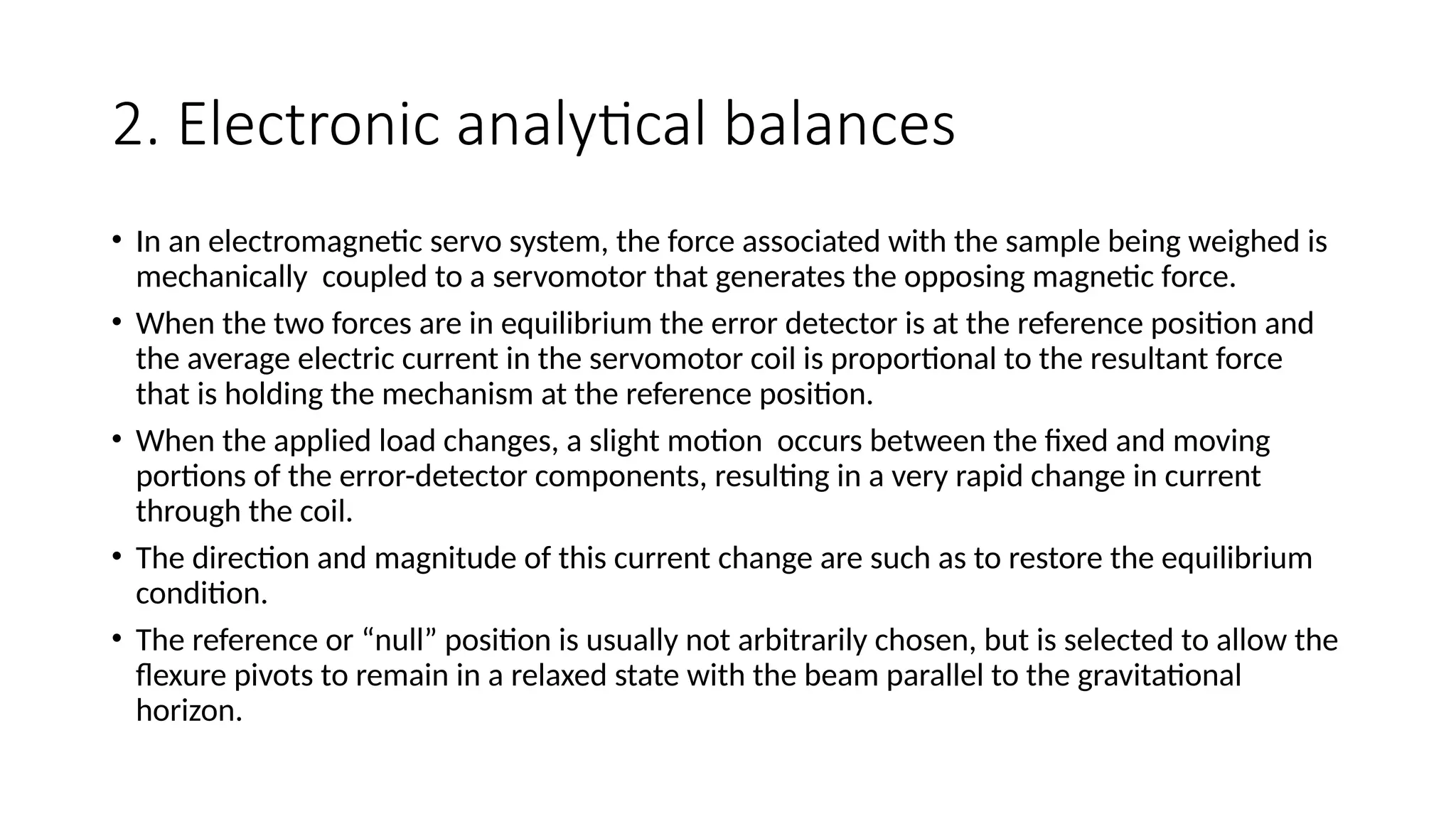

• In an electromagnetic servo system, the force associated with the sample being weighed is
mechanically coupled to a servomotor that generates the opposing magnetic force.
• When the two forces are in equilibrium the error detector is at the reference position and
the average electric current in the servomotor coil is proportional to the resultant force
that is holding the mechanism at the reference position.
• When the applied load changes, a slight motion occurs between the fixed and moving
portions of the error-detector components, resulting in a very rapid change in current
through the coil.
• The direction and magnitude of this current change are such as to restore the equilibrium
condition.
• The reference or “null” position is usually not arbitrarily chosen, but is selected to allow the
flexure pivots to remain in a relaxed state with the beam parallel to the gravitational
horizon.

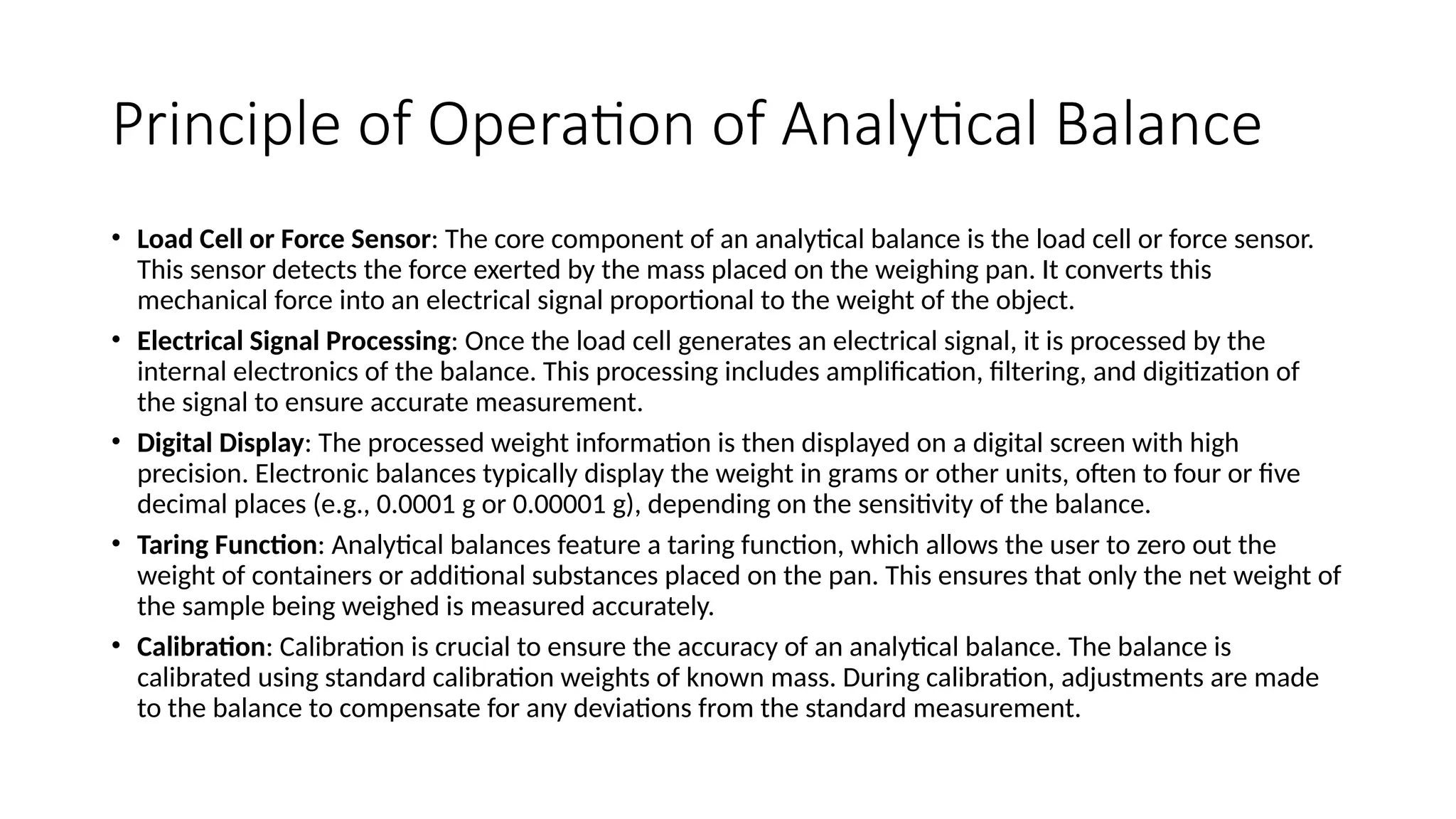

20. Principle of Operation of Analytical Balance
• Load Cell or Force Sensor: The core component of an analytical balance is the load cell or force sensor.
This sensor detects the force exerted by the mass placed on the weighing pan. It converts this
mechanical force into an electrical signal proportional to the weight of the object.
• Electrical Signal Processing: Once the load cell generates an electrical signal, it is processed by the
internal electronics of the balance. This processing includes amplification, filtering, and digitization of
the signal to ensure accurate measurement.
• Digital Display: The processed weight information is then displayed on a digital screen with high
precision. Electronic balances typically display the weight in grams or other units, often to four or five
decimal places (e.g., 0.0001 g or 0.00001 g), depending on the sensitivity of the balance.
• Taring Function: Analytical balances feature a taring function, which allows the user to zero out the
weight of containers or additional substances placed on the pan. This ensures that only the net weight of
the sample being weighed is measured accurately.
• Calibration: Calibration is crucial to ensure the accuracy of an analytical balance. The balance is
calibrated using standard calibration weights of known mass. During calibration, adjustments are made
to the balance to compensate for any deviations from the standard measurement.

21. Principle of Operation of Analytical Balance

22. Principle of Operation of Analytical Balance
• Environmental Considerations: To maintain accuracy, analytical balances are often housed in a
controlled environment. Many balances have built-in draft shields or wind guards to minimize
the impact of air currents and environmental factors that could affect measurement precision.
• User Interface: Analytical balances feature a user-friendly interface, typically with buttons or a
touchscreen panel. This interface allows the user to perform operations such as powering the
balance on/off, selecting units of measurement, taring, calibration, and accessing other
functions.
• Stabilization Indicator: Electronic balances often include a stabilization indicator on the display.
This indicator shows when the balance has stabilized after placing a sample on the pan,
ensuring that accurate measurements can be taken.
• Power Source: Analytical balances are powered by electricity, usually through a power cord
connected to a mains outlet. Some models may also have options for battery operation or
rechargeable batteries for portability.

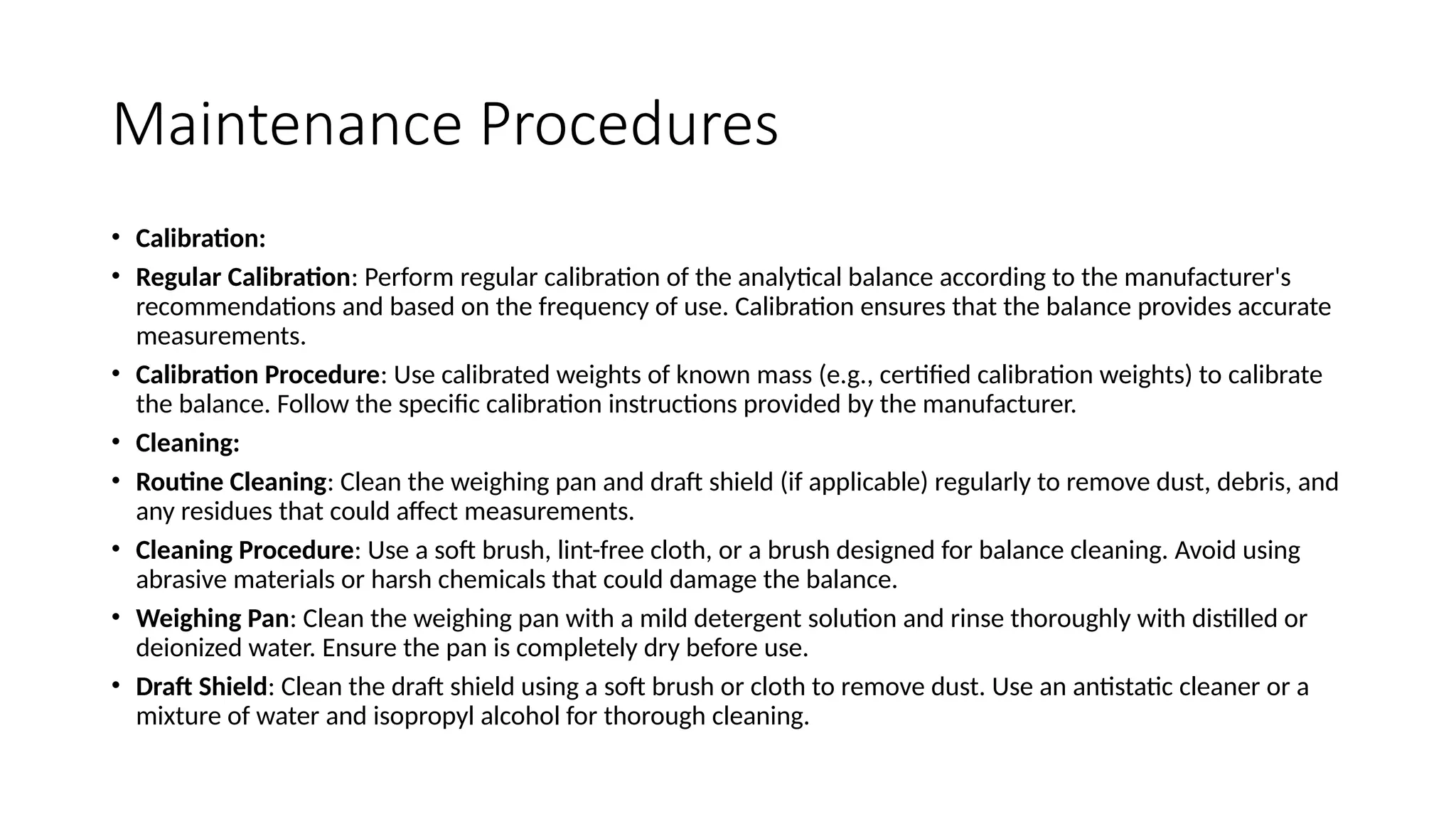

23. Maintenance Procedures
• Calibration:
• Regular Calibration: Perform regular calibration of the analytical balance according to the manufacturer's
recommendations and based on the frequency of use. Calibration ensures that the balance provides accurate
measurements.
• Calibration Procedure: Use calibrated weights of known mass (e.g., certified calibration weights) to calibrate
the balance. Follow the specific calibration instructions provided by the manufacturer.
• Cleaning:
• Routine Cleaning: Clean the weighing pan and draft shield (if applicable) regularly to remove dust, debris, and
any residues that could affect measurements.
• Cleaning Procedure: Use a soft brush, lint-free cloth, or a brush designed for balance cleaning. Avoid using
abrasive materials or harsh chemicals that could damage the balance.
• Weighing Pan: Clean the weighing pan with a mild detergent solution and rinse thoroughly with distilled or
deionized water. Ensure the pan is completely dry before use.
• Draft Shield: Clean the draft shield using a soft brush or cloth to remove dust. Use an antistatic cleaner or a
mixture of water and isopropyl alcohol for thorough cleaning.

24. Maintenance Procedures
• Environment:
• Controlled Environment: Place the analytical balance in a stable environment free from vibrations, air currents, and
temperature fluctuations. Use the built-in draft shield to minimize environmental disturbances during weighing.
• Location: Avoid placing the balance near sources of heat, direct sunlight, or areas with high humidity that could
affect the balance's performance.
• Leveling:
• Level Adjustment: Periodically check and adjust the balance to ensure it is level. Use the adjustable feet or leveling
screws located at the base of the balance for leveling.
• Leveling Procedure: Place a bubble level on the balance pan or use the balance's built-in leveling indicator (if
available) to ensure proper alignment.
• Handling:
• Proper Handling: Handle the analytical balance with care to avoid damage to sensitive components such as the
weighing pan, load cell, and electronics.
• Avoid Overloading: Do not exceed the maximum capacity of the balance. Use appropriate containers and ensure
that samples are evenly distributed on the weighing pan to avoid mechanical strain.

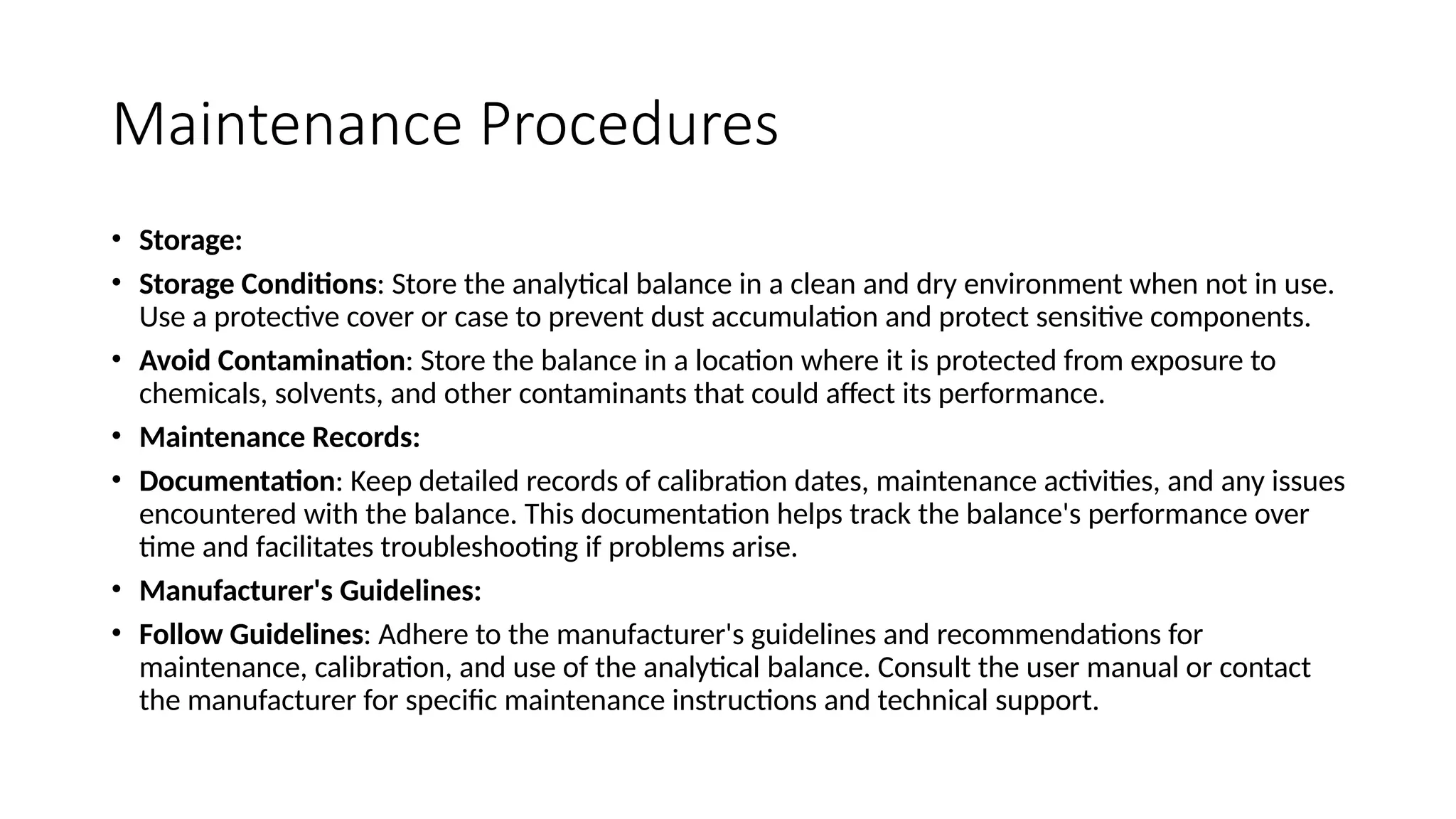

25. Maintenance Procedures
• Storage:
• Storage Conditions: Store the analytical balance in a clean and dry environment when not in use.
Use a protective cover or case to prevent dust accumulation and protect sensitive components.
• Avoid Contamination: Store the balance in a location where it is protected from exposure to
chemicals, solvents, and other contaminants that could affect its performance.
• Maintenance Records:
• Documentation: Keep detailed records of calibration dates, maintenance activities, and any issues
encountered with the balance. This documentation helps track the balance's performance over
time and facilitates troubleshooting if problems arise.
• Manufacturer's Guidelines:
• Follow Guidelines: Adhere to the manufacturer's guidelines and recommendations for
maintenance, calibration, and use of the analytical balance. Consult the user manual or contact
the manufacturer for specific maintenance instructions and technical support.
