Stop Making The Web Harder Than It Is; Real-world REST, HATEOAS, and Hypermedia APIs with Magpie

Stop Making The Web
Harder Than It Is;
Real-world REST, HATEOAS, and Hypermedia
APIs with Magpie
Kip Hampton
Senior Architect, Tamarou
@kiphampton
https://github.com/ubu
https://metacpan.org/author/KHAMPTON

I’m looking at you,
gphat...

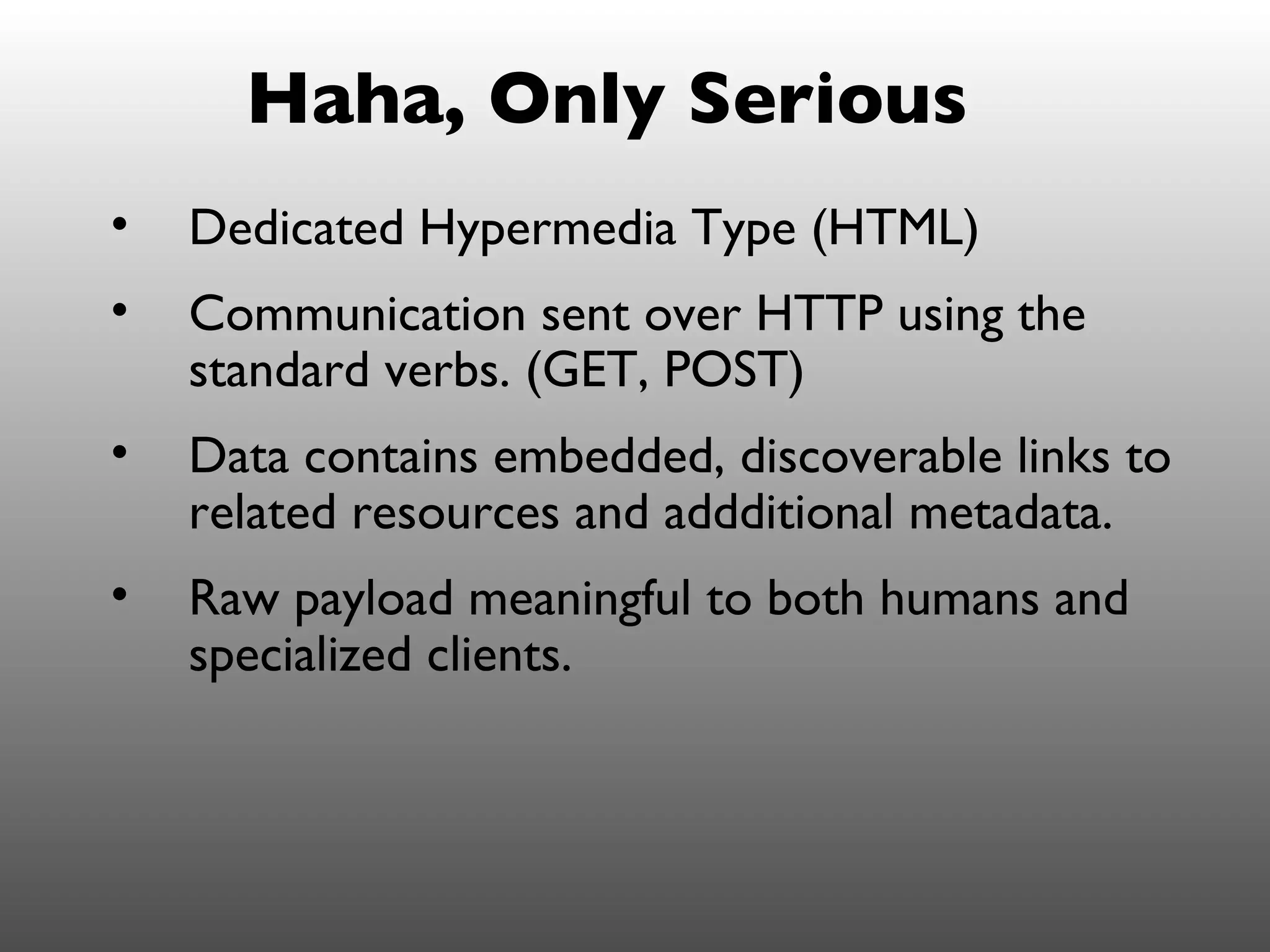

Haha, Only Serious
• Dedicated Hypermedia Type (HTML)
• Communication sent over HTTP using the
standard verbs. (GET, POST)
• Data contains embedded, discoverable links to
related resources and addditional metadata.
• Raw payload meaningful to both humans and
specialized clients.

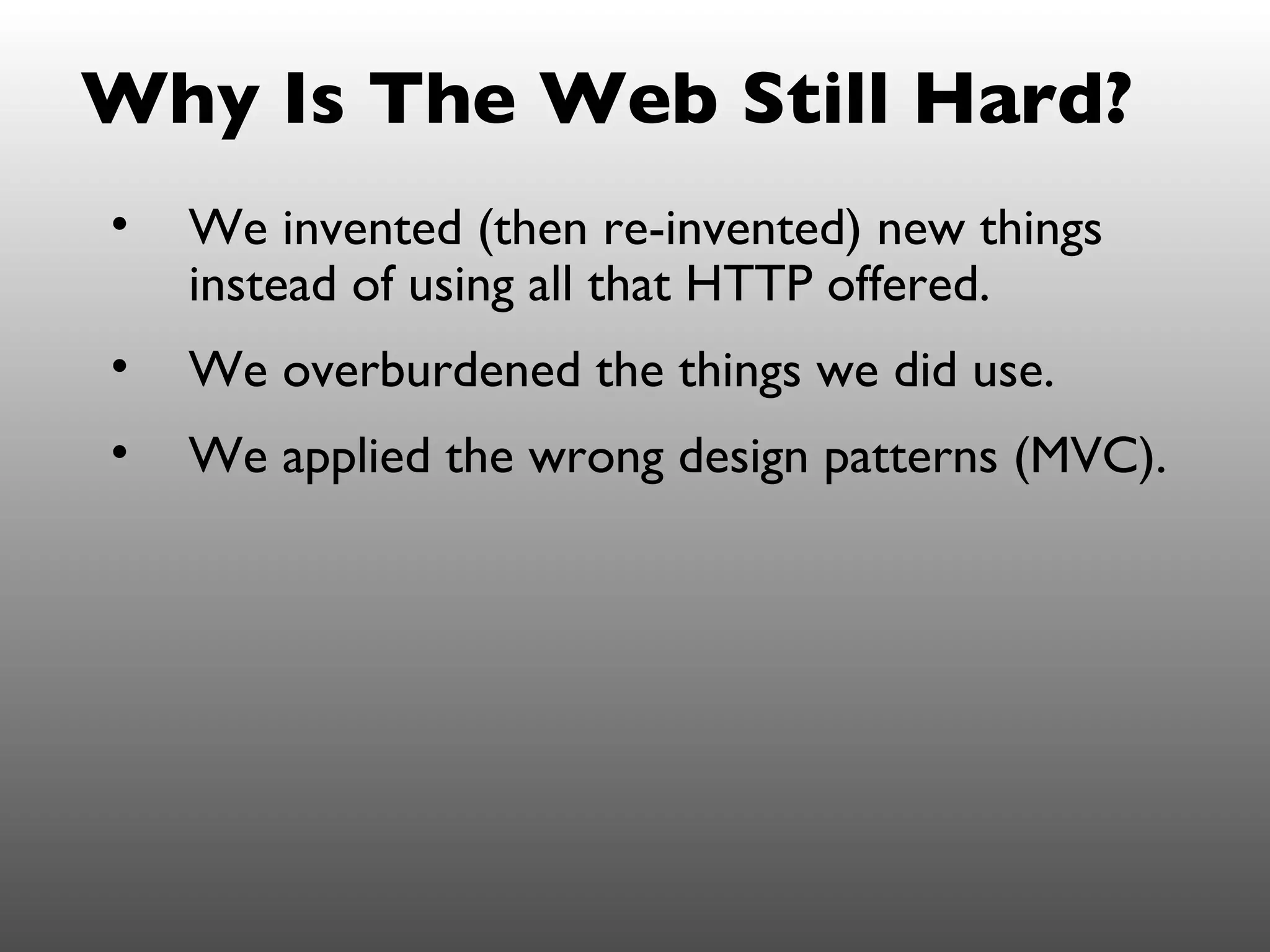

Why Is The Web Still Hard?
• We invented (then re-invented) new things
instead of using all that HTTP offered.
• We overburdened the things we did use.
• We applied the wrong design patterns (MVC).

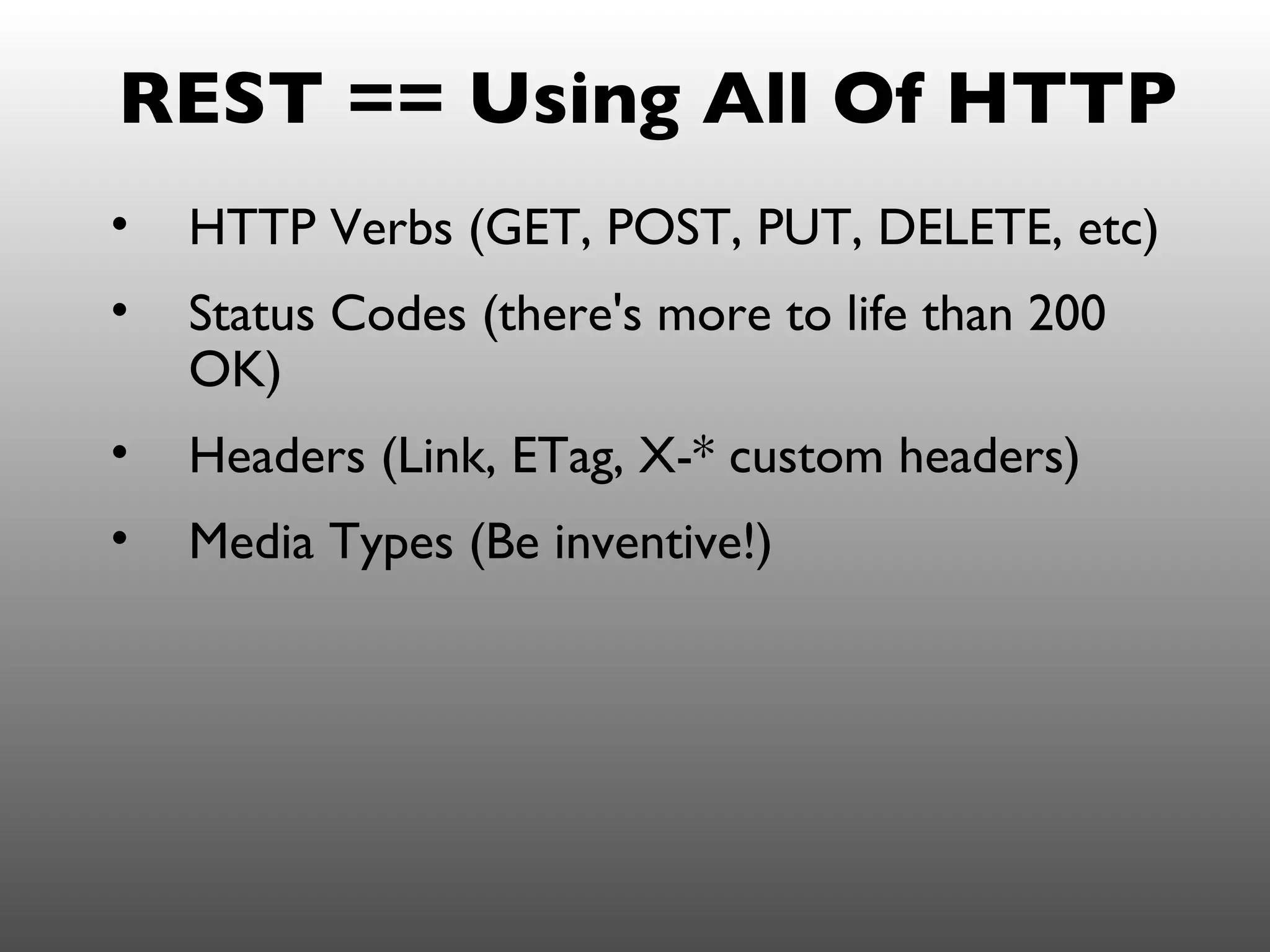

REST == Using All Of HTTP
• HTTP Verbs (GET, POST, PUT, DELETE, etc)
• Status Codes (there's more to life than 200
OK)
• Headers (Link, ETag, X-* custom headers)
• Media Types (Be inventive!)

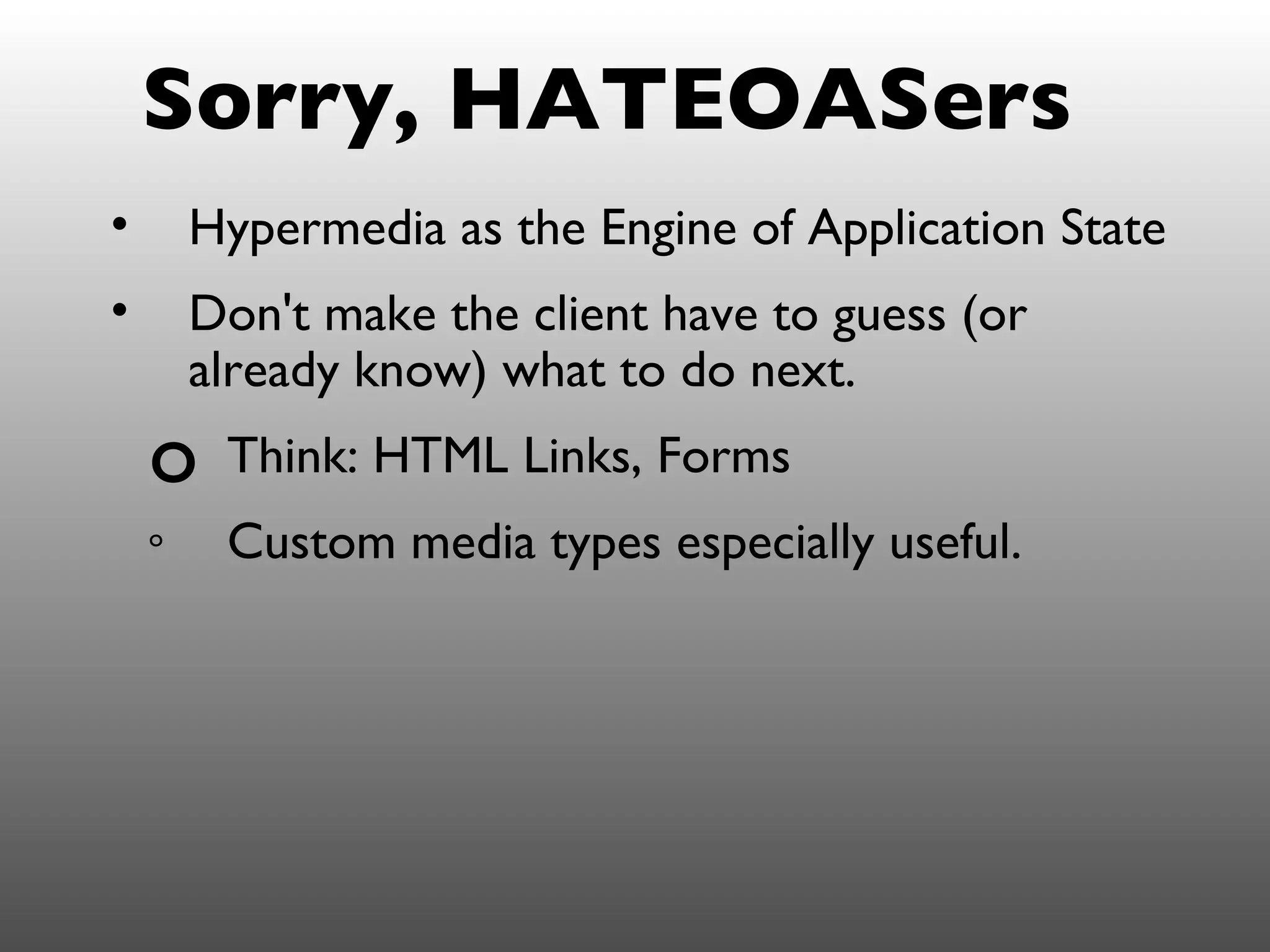

Sorry, HATEOASers
• Hypermedia as the Engine of Application State
• Don't make the client have to guess (or
already know) what to do next.
o Think: HTML Links, Forms
o Custom media types especially useful.

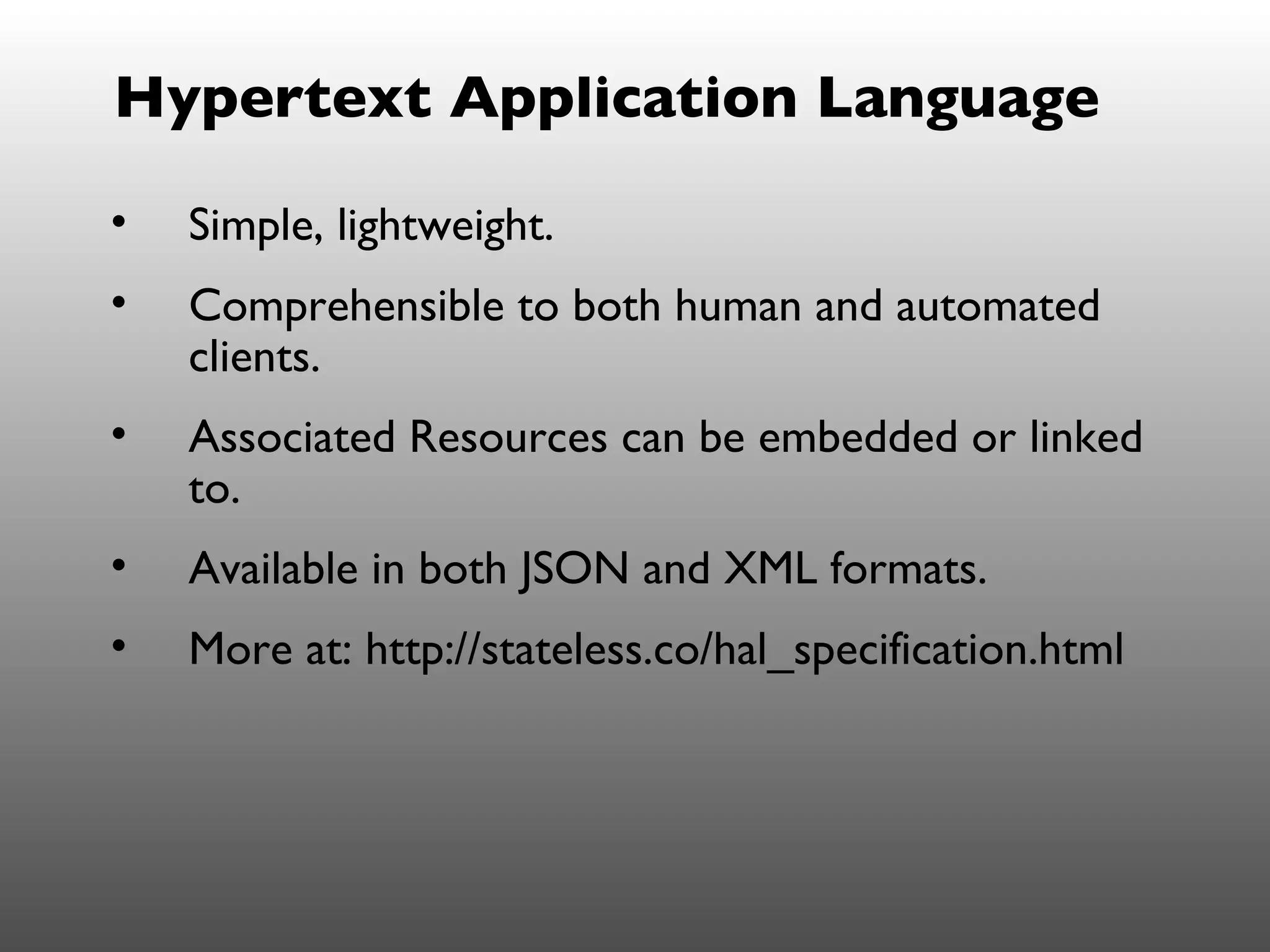

Hypertext Application Language

• Simple, lightweight.
• Comprehensible to both human and automated
clients.
• Associated Resources can be embedded or linked
to.
• Available in both JSON and XML formats.
• More at: http://stateless.co/hal_specification.html

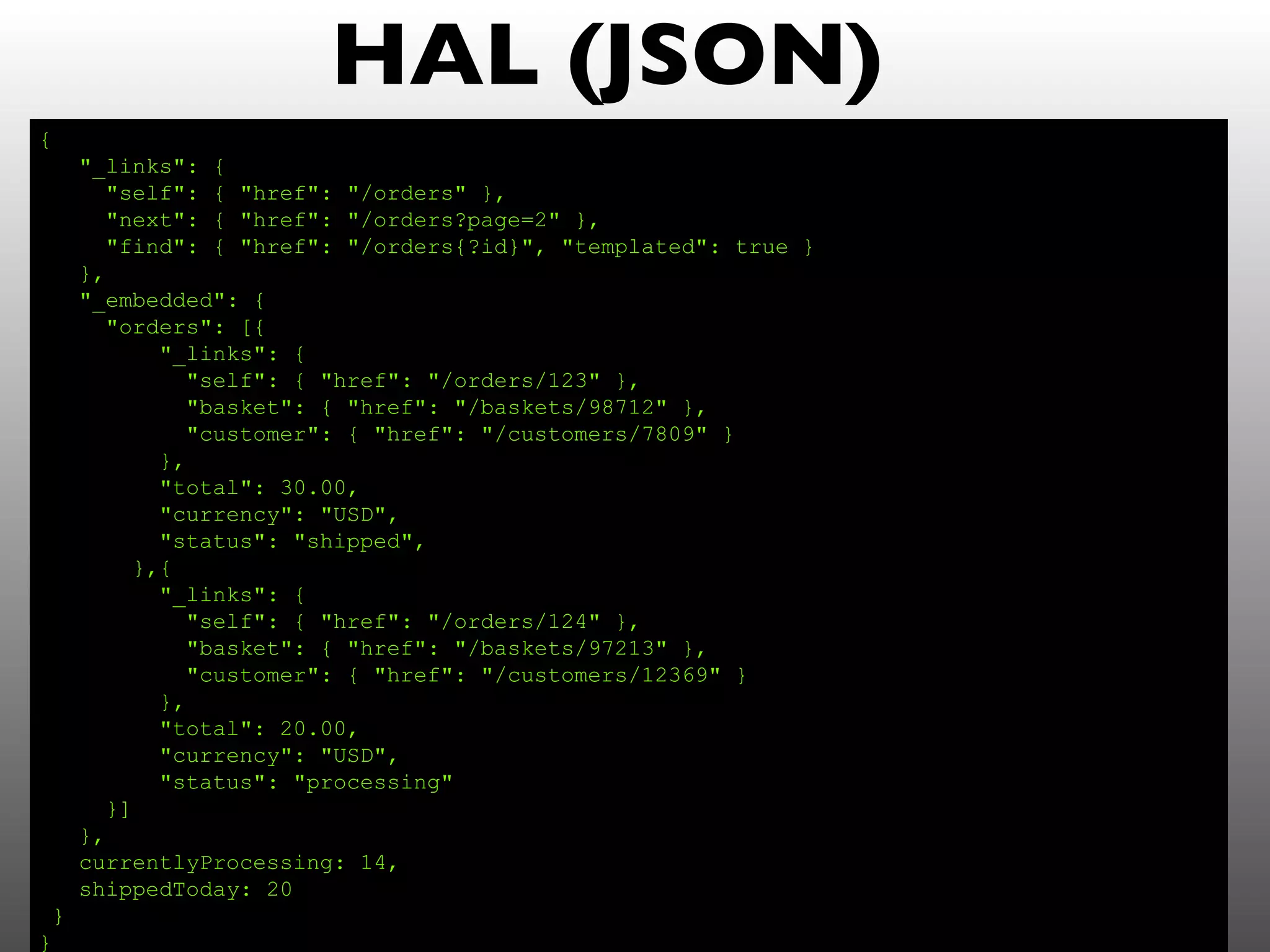

HAL (JSON)
{
"_links": {
"self": { "href": "/orders" },
"next": { "href": "/orders?page=2" },
"find": { "href": "/orders{?id}", "templated": true }
},
"_embedded": {
"orders": [{
"_links": {
"self": { "href": "/orders/123" },
"basket": { "href": "/baskets/98712" },
"customer": { "href": "/customers/7809" }
},
"total": 30.00,
"currency": "USD",
"status": "shipped",
},{
"_links": {
"self": { "href": "/orders/124" },
"basket": { "href": "/baskets/97213" },
"customer": { "href": "/customers/12369" }
},
"total": 20.00,
"currency": "USD",
"status": "processing"
}]
},
currentlyProcessing: 14,
shippedToday: 20
}
}

"A resource is not the thing
that is transferred across the
wire or picked up off the disk
or seen from afar while walking
your dog. Each of those is only
a representation."

Roy Fielding, 2002

The Resource Is
Not The Thing

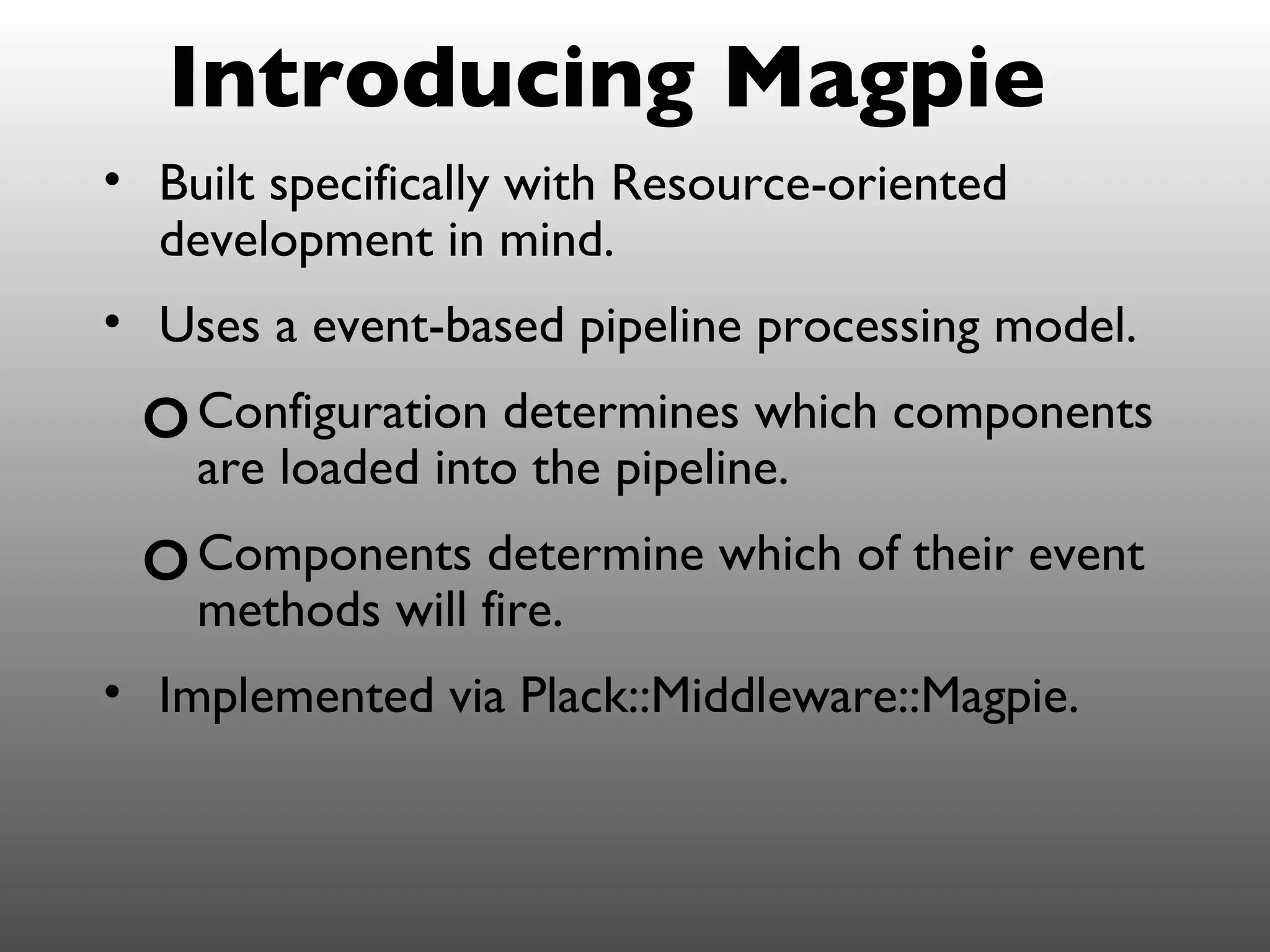

Introducing Magpie
• Built specifically with Resource-oriented
development in mind.
• Uses a event-based pipeline processing model.
o Configuration determines which components
are loaded into the pipeline.
o Components determine which of their event
methods will fire.
• Implemented via Plack::Middleware::Magpie.

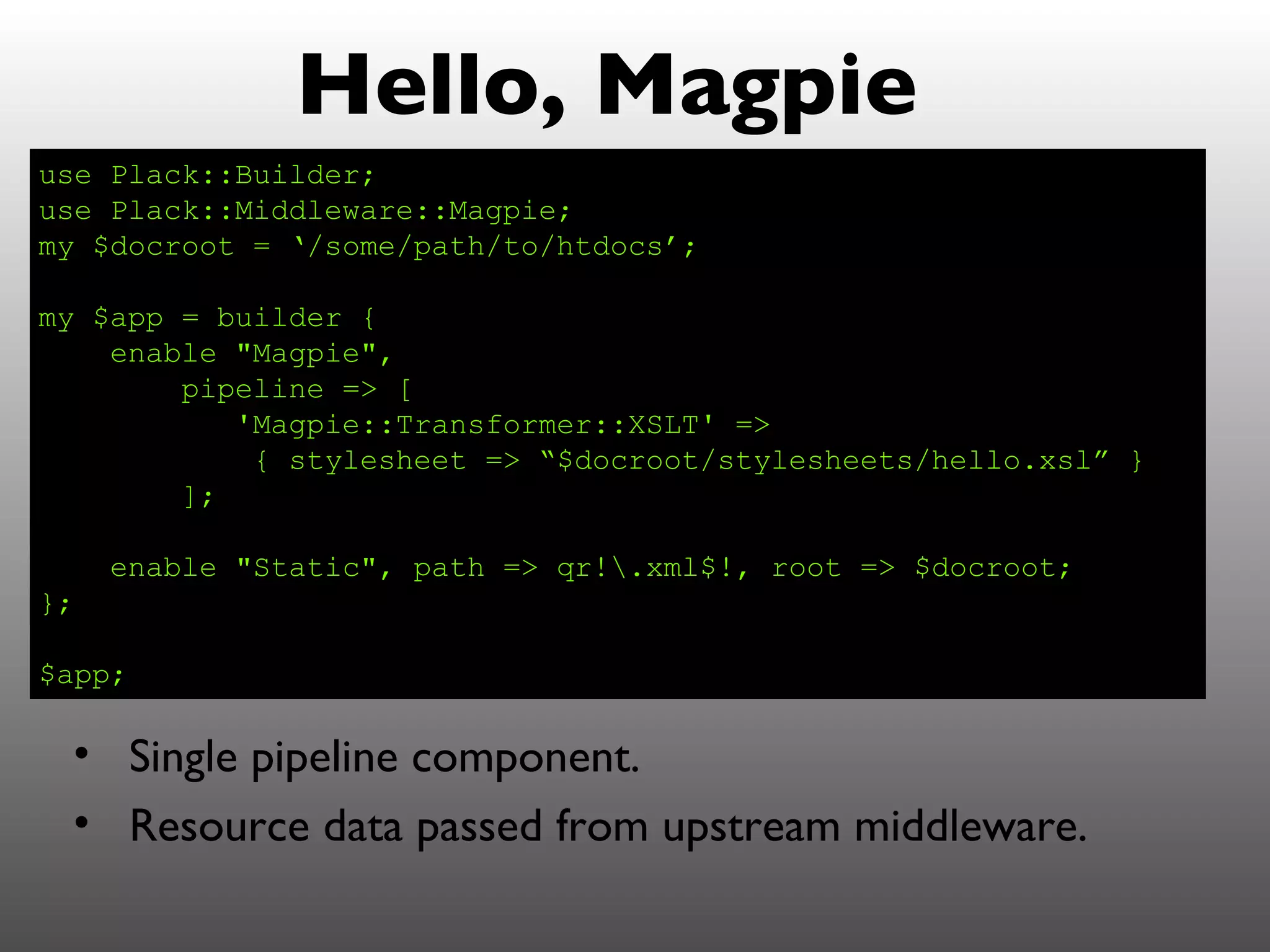

Hello, Magpie
use Plack::Builder;
use Plack::Middleware::Magpie;
my $docroot = ‘/some/path/to/htdocs’;

my $app = builder {
enable "Magpie",
pipeline => [
'Magpie::Transformer::XSLT' =>
{ stylesheet => “$docroot/stylesheets/hello.xsl” }
];

enable "Static", path => qr!.xml$!, root => $docroot;
};

$app;

• Single pipeline component.
• Resource data passed from upstream middleware.

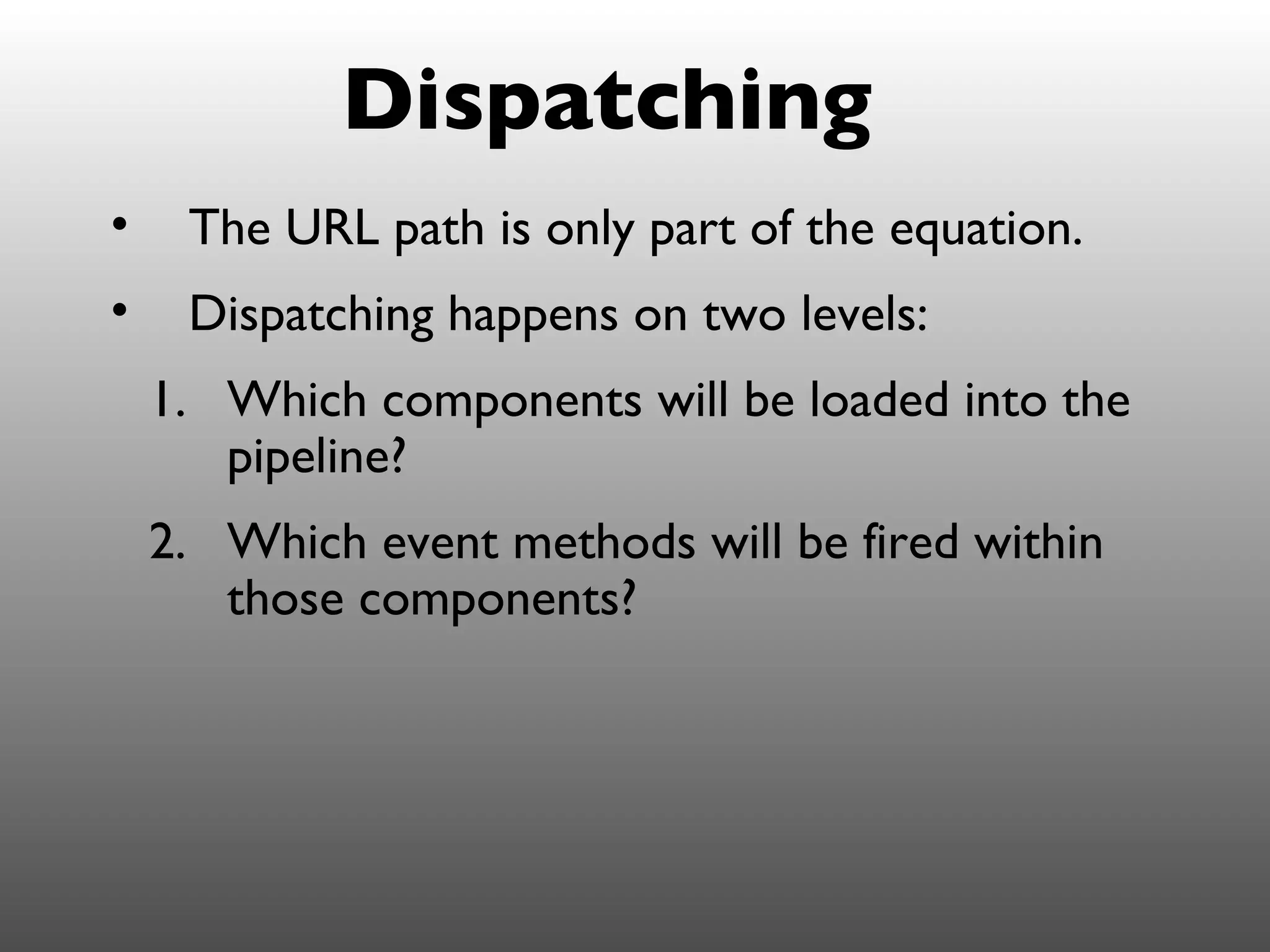

Dispatching
• The URL path is only part of the equation.
• Dispatching happens on two levels:
1. Which components will be loaded into the
pipeline?
2. Which event methods will be fired within
those components?

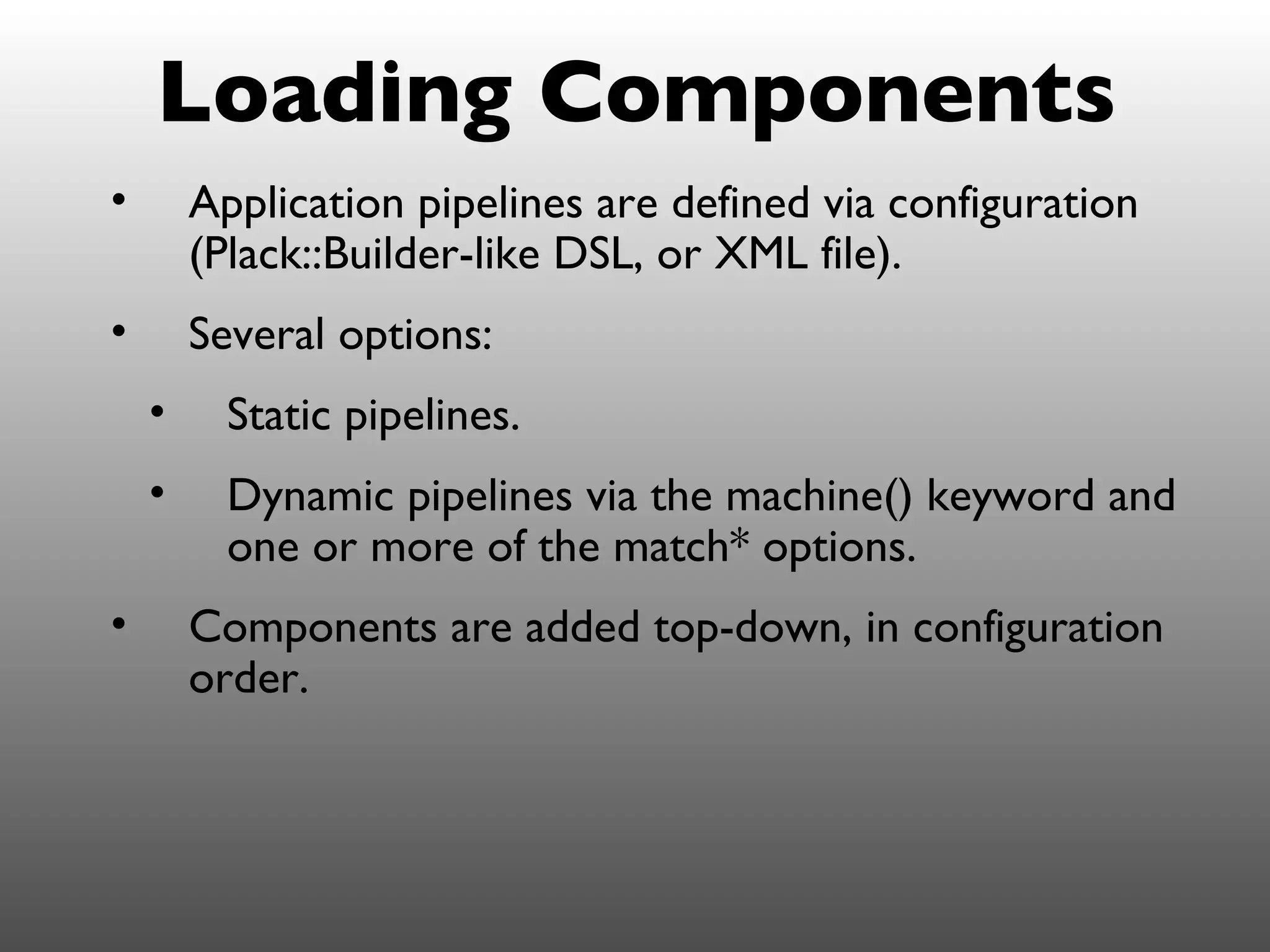

Loading Components
• Application pipelines are defined via configuration
(Plack::Builder-like DSL, or XML file).
• Several options:
• Static pipelines.
• Dynamic pipelines via the machine() keyword and
one or more of the match* options.
• Components are added top-down, in configuration
order.

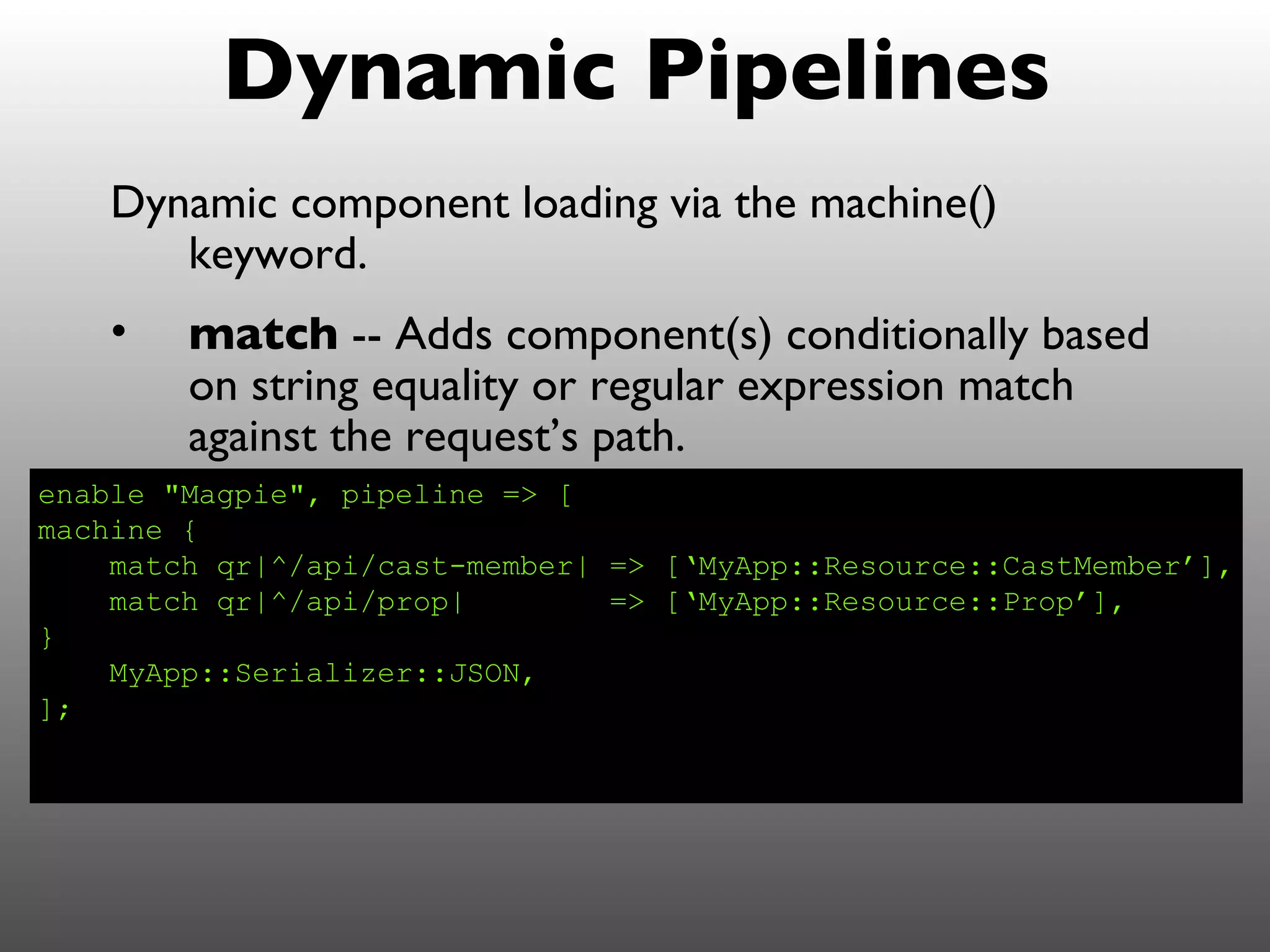

Dynamic Pipelines
Dynamic component loading via the machine()
keyword.
• match -- Adds component(s) conditionally based
on string equality or regular expression match
against the request’s path.
enable "Magpie", pipeline => [
machine {
match qr|^/api/cast-member| => [‘MyApp::Resource::CastMember’],
match qr|^/api/prop| => [‘MyApp::Resource::Prop’],
}
MyApp::Serializer::JSON,
];

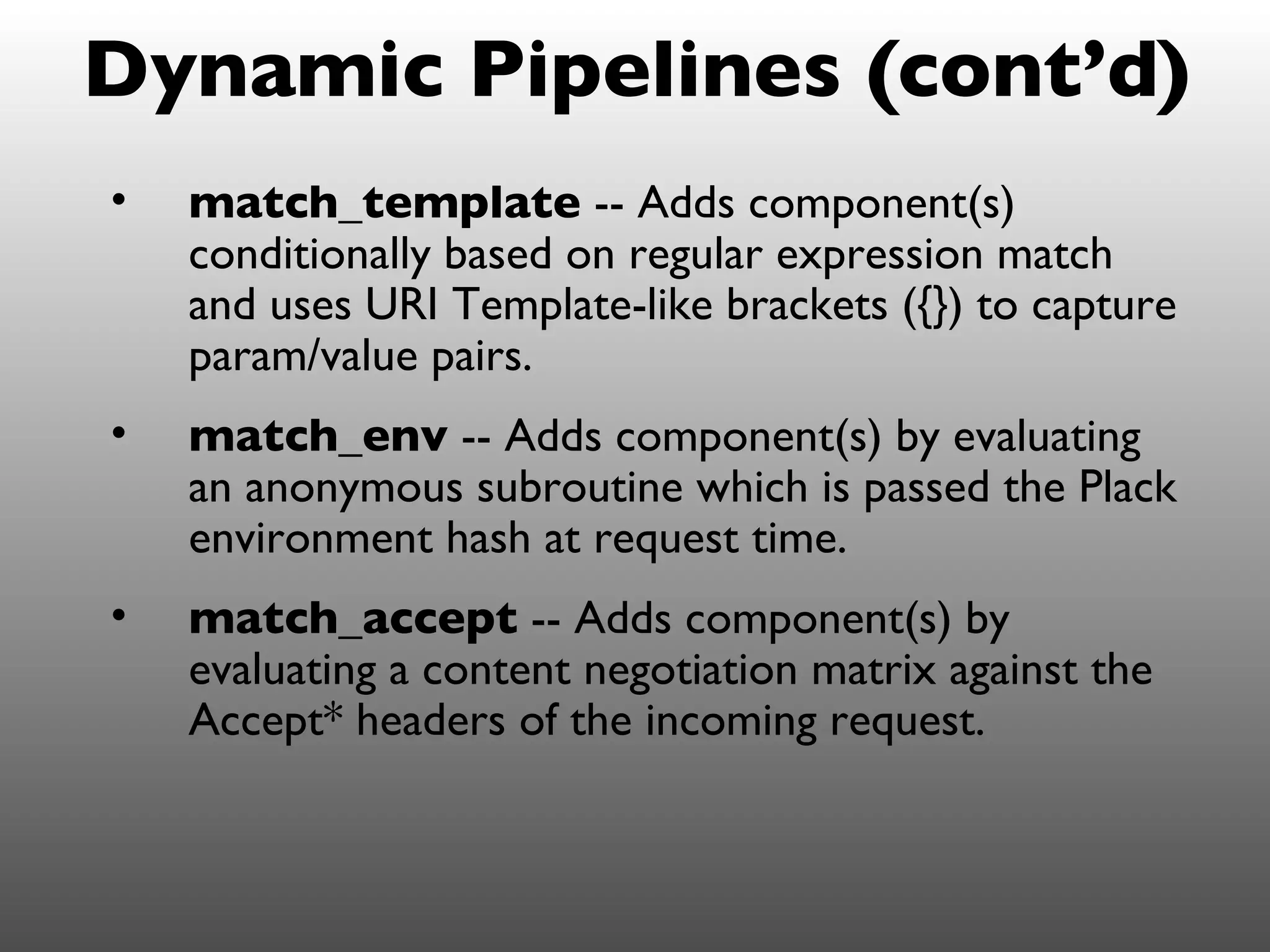

Dynamic Pipelines (cont’d)
• match_template -- Adds component(s)
conditionally based on regular expression match
and uses URI Template-like brackets ({}) to capture
param/value pairs.
• match_env -- Adds component(s) by evaluating
an anonymous subroutine which is passed the Plack
environment hash at request time.
• match_accept -- Adds component(s) by
evaluating a content negotiation matrix against the
Accept* headers of the incoming request.

Event Dispatching
• Each component class controls its own event dispatching.
• Standard event models.
o Magpie::Dispatcher::RequestMethod
o Magpie::Dispatcher::RequestParam
• Easy to roll your own.
o Write your event methods,
o Register the methods you want Magpie to know about,
o Implement load_queue() to define which events fire
under what circumstances.

Do I really need all
that?

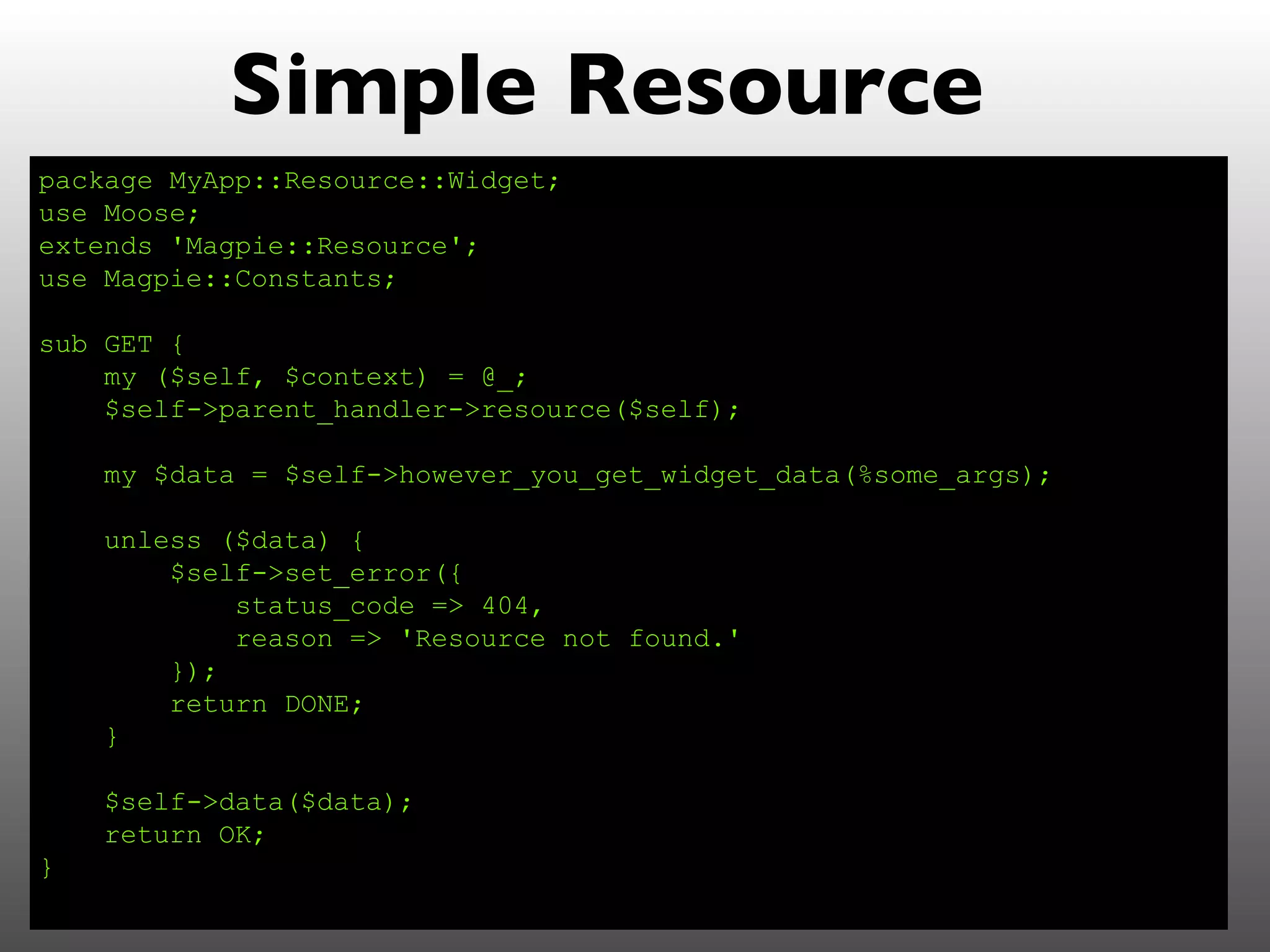

Simple Resource
package MyApp::Resource::Widget;
use Moose;
extends 'Magpie::Resource';
use Magpie::Constants;

sub GET {
my ($self, $context) = @_;
$self->parent_handler->resource($self);

my $data = $self->however_you_get_widget_data(%some_args);

unless ($data) {
$self->set_error({
status_code => 404,
reason => 'Resource not found.'
});
return DONE;
}

$self->data($data);
return OK;
}

If there's no Model
and the Resource
is not The Thing,
where does stuff
go?

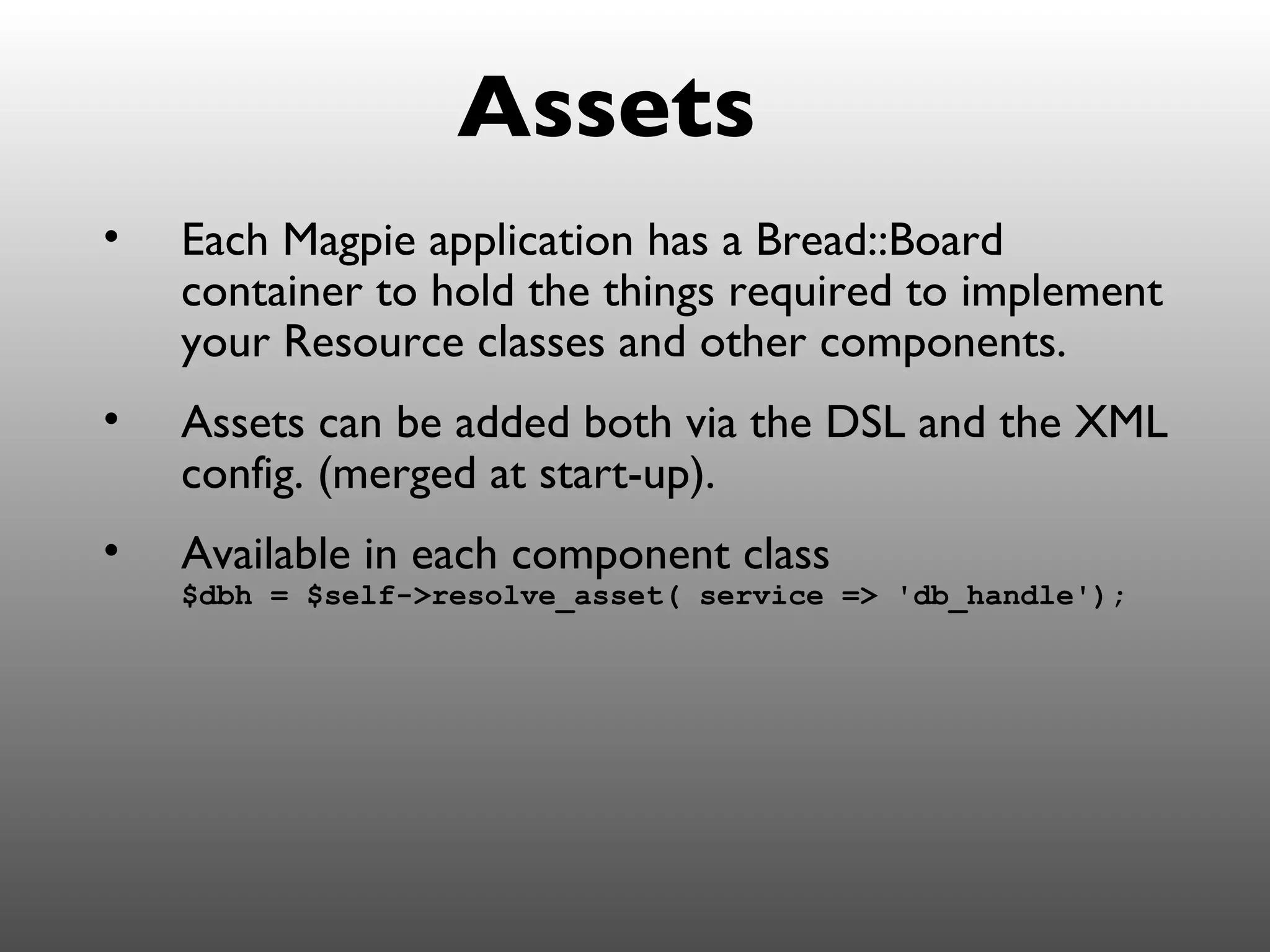

Assets
• Each Magpie application has a Bread::Board
container to hold the things required to implement
your Resource classes and other components.
• Assets can be added both via the DSL and the XML
config. (merged at start-up).
• Available in each component class
$dbh = $self->resolve_asset( service => 'db_handle');

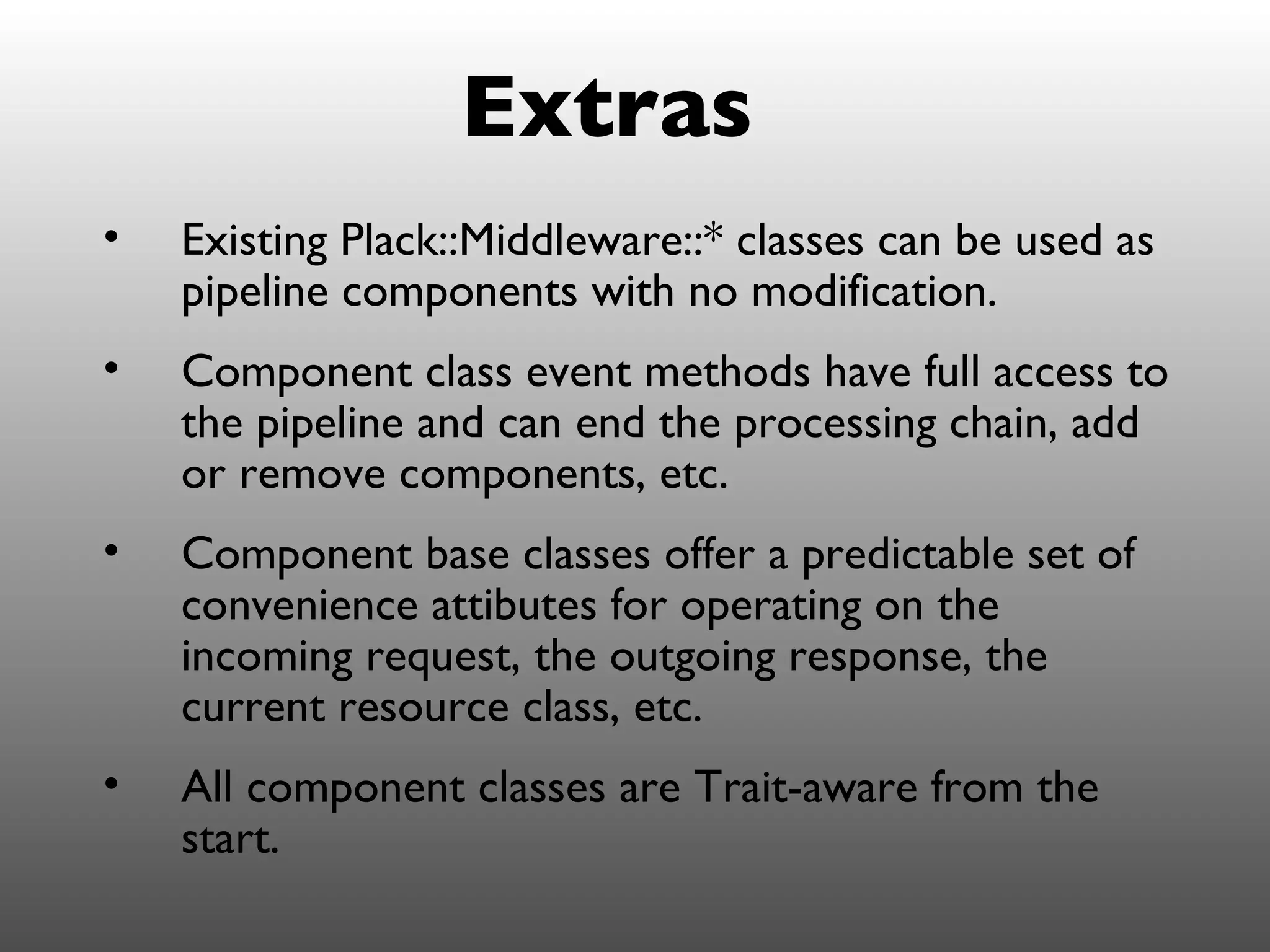

Extras
• Existing Plack::Middleware::* classes can be used as
pipeline components with no modification.
• Component class event methods have full access to
the pipeline and can end the processing chain, add
or remove components, etc.
• Component base classes offer a predictable set of
convenience attibutes for operating on the
incoming request, the outgoing response, the
current resource class, etc.
• All component classes are Trait-aware from the
start.

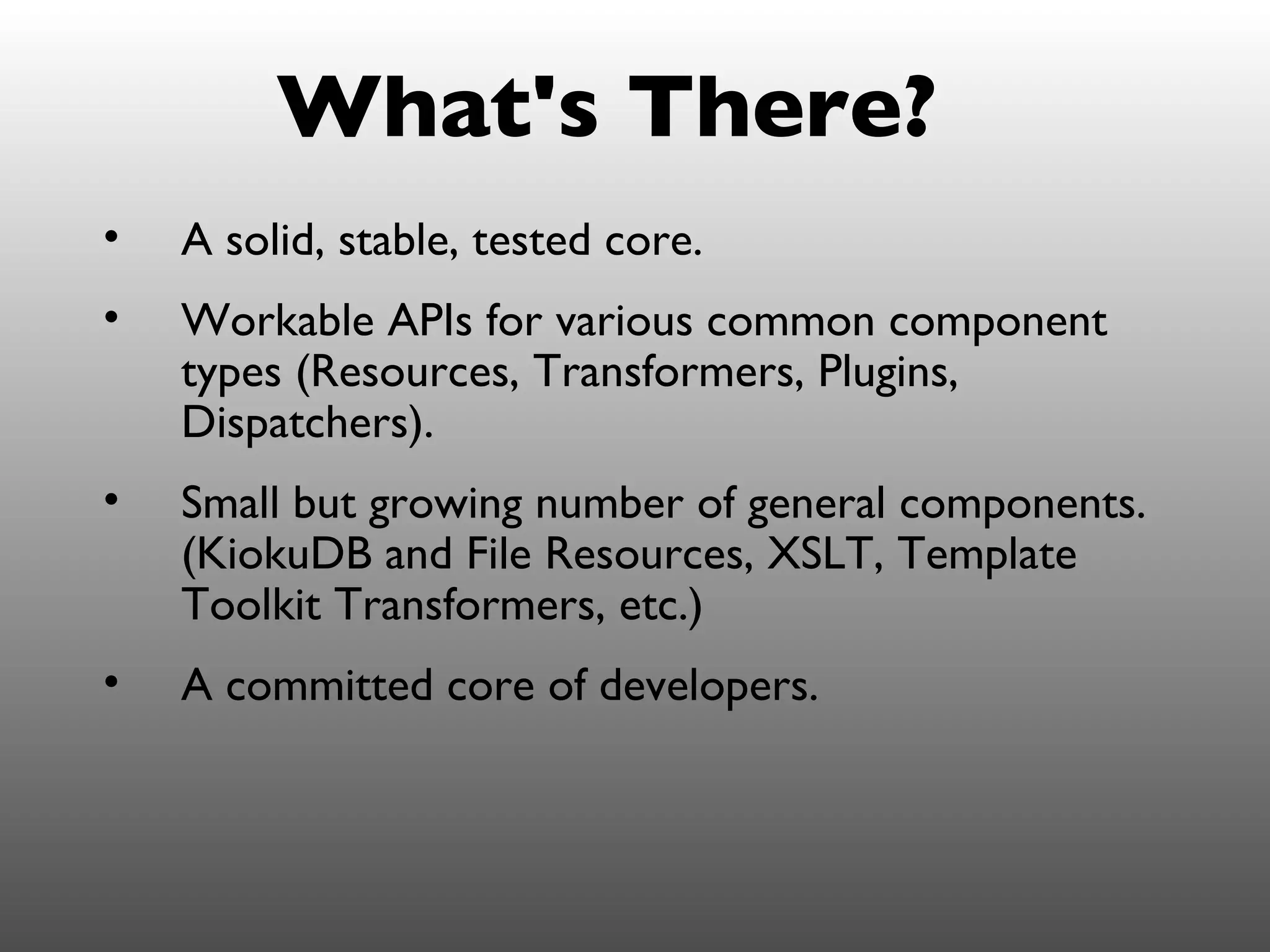

What's There?
• A solid, stable, tested core.
• Workable APIs for various common component
types (Resources, Transformers, Plugins,
Dispatchers).
• Small but growing number of general components.
(KiokuDB and File Resources, XSLT, Template
Toolkit Transformers, etc.)
• A committed core of developers.

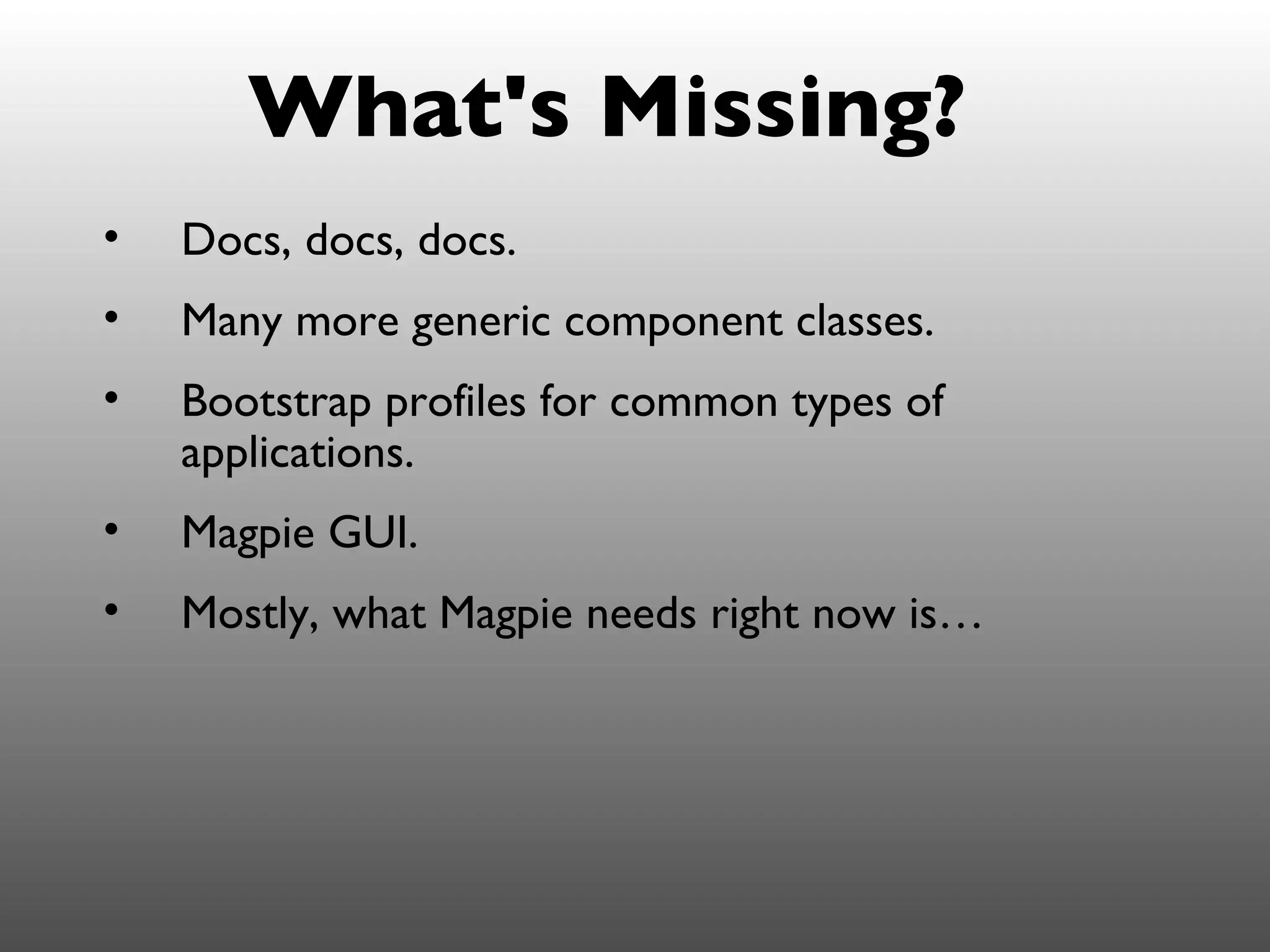

What's Missing?
• Docs, docs, docs.
• Many more generic component classes.
• Bootstrap profiles for common types of
applications.
• Magpie GUI.
• Mostly, what Magpie needs right now is…

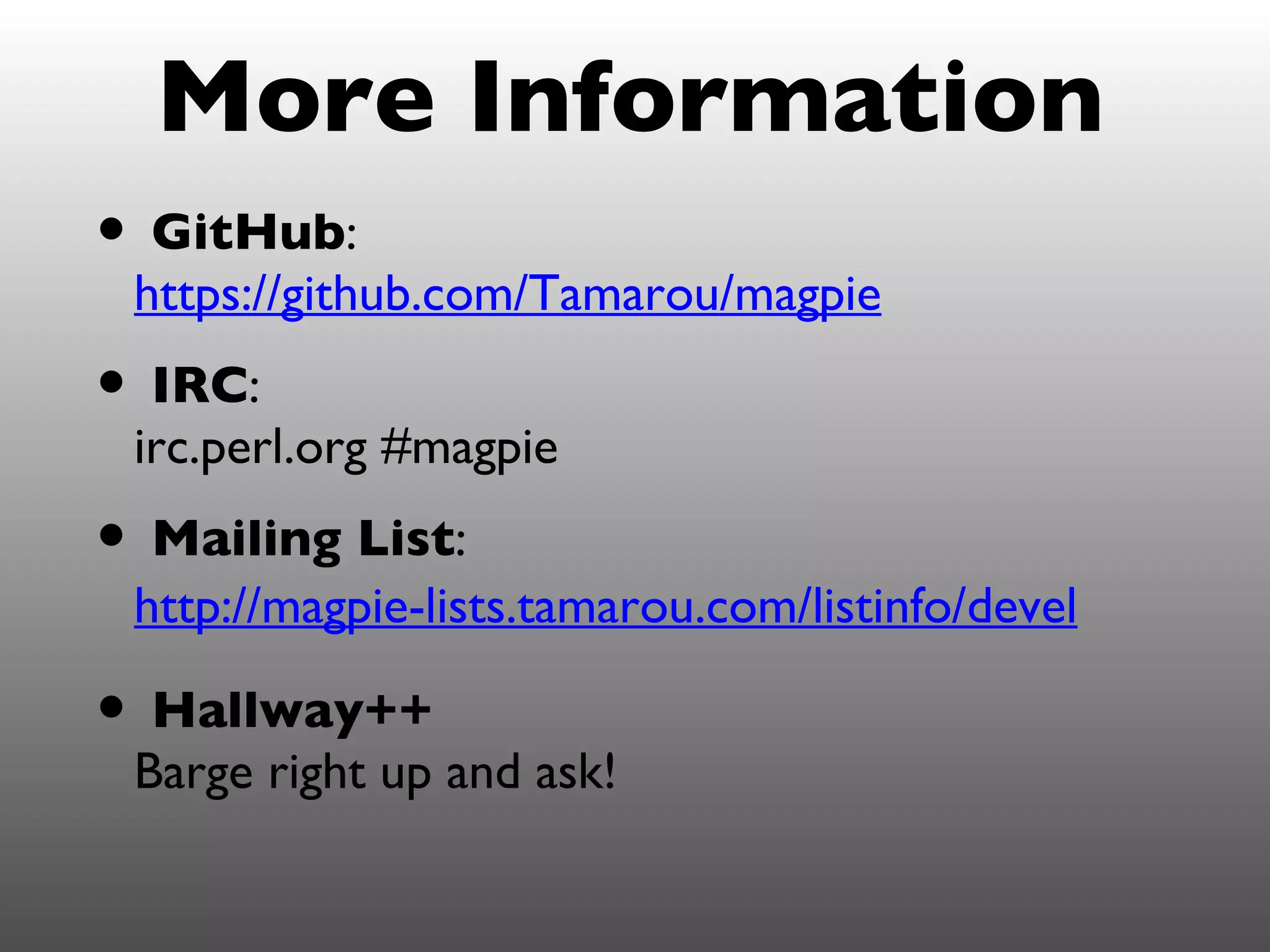

More Information
• GitHub:
https://github.com/Tamarou/magpie
• IRC:
irc.perl.org #magpie
• Mailing List:
http://magpie-lists.tamarou.com/listinfo/devel

• Hallway++
Barge right up and ask!
