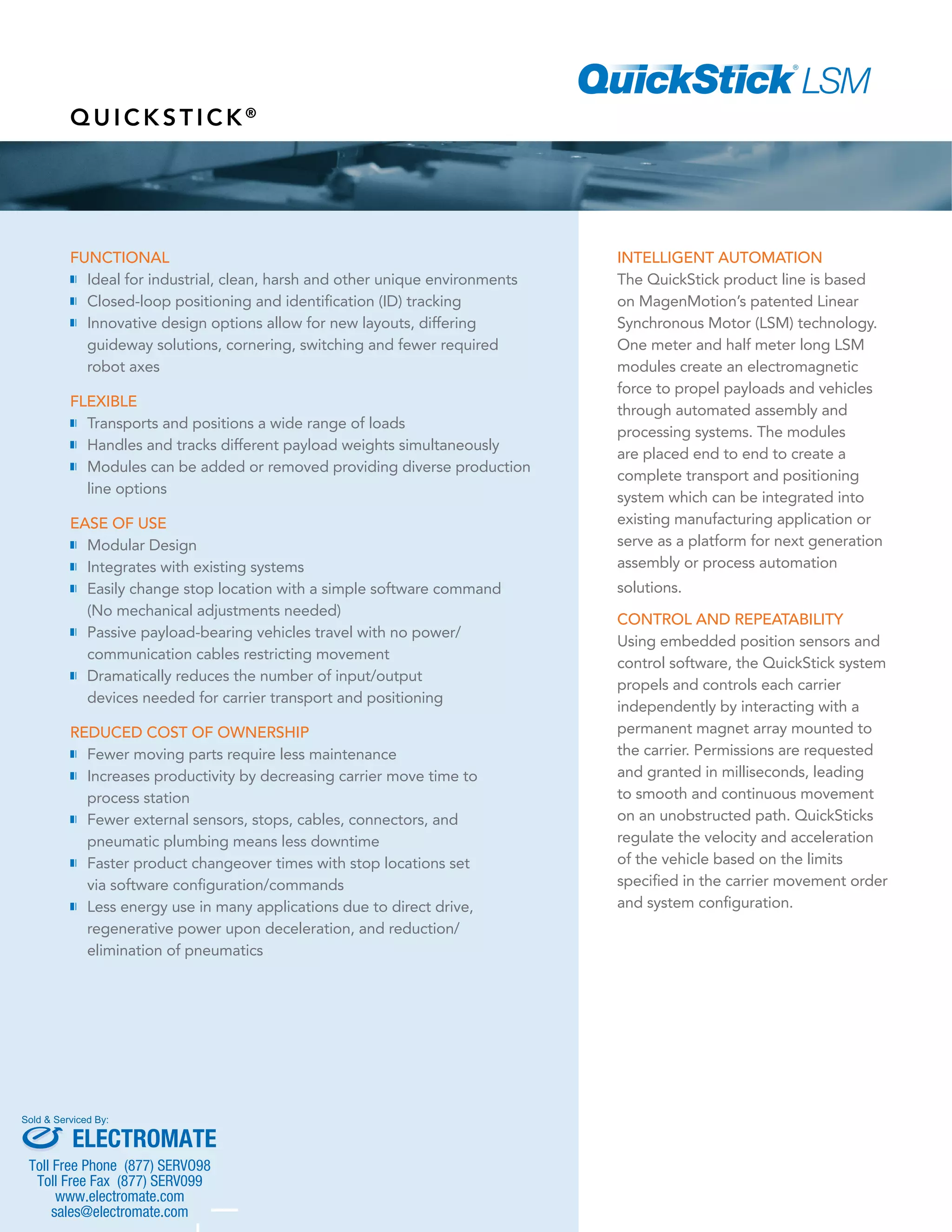

1. Intelligent Automation
The QuickStick product line is based
on MagenMotion’s patented Linear
Synchronous Motor (LSM) technology.
One meter and half meter long LSM
modules create an electromagnetic
force to propel payloads and vehicles
through automated assembly and
processing systems. The modules
are placed end to end to create a
complete transport and positioning
system which can be integrated into
existing manufacturing application or
serve as a platform for next generation
assembly or process automation
solutions.
Control and Repeatability
Using embedded position sensors and
control software, the QuickStick system
propels and controls each carrier
independently by interacting with a
permanent magnet array mounted to
the carrier. Permissions are requested
and granted in milliseconds, leading
to smooth and continuous movement
on an unobstructed path. QuickSticks
regulate the velocity and acceleration
of the vehicle based on the limits
specified in the carrier movement order
and system configuration.
QuickStick®
Functional
zx Ideal for industrial, clean, harsh and other unique environments
zx Closed-loop positioning and identification (ID) tracking
zx Innovative design options allow for new layouts, differing
guideway solutions, cornering, switching and fewer required
robot axes
Flexible
zx Transports and positions a wide range of loads
zx Handles and tracks different payload weights simultaneously
zx Modules can be added or removed providing diverse production
line options
Ease of Use
zx Modular Design
zx Integrates with existing systems
zx Easily change stop location with a simple software command
(No mechanical adjustments needed)
zx Passive payload-bearing vehicles travel with no power/
communication cables restricting movement
zx Dramatically reduces the number of input/output
devices needed for carrier transport and positioning
Reduced Cost of Ownership
zx Fewer moving parts require less maintenance
zx Increases productivity by decreasing carrier move time to
process station
zx Fewer external sensors, stops, cables, connectors, and
pneumatic plumbing means less downtime
zx Faster product changeover times with stop locations set
via software configuration/commands
zx Less energy use in many applications due to direct drive,
regenerative power upon deceleration, and reduction/
elimination of pneumatics
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

2. 1 Meter Motor
QuickStick®
QuickStick HT
zx High Thrust for larger payloads and high speed
applications
zx Payloads up to 4500 kg
zx Up to two vehicles per meter
zx Magnet array length starts at 250 mm
zx Speeds up to 2.5 m/s
zx Acceleration beyond 4G (mass dependent)
zx Embedded position sensing components;
zx Separate drive controller
zx Repeatability: ± 1 mm
zx 1 meter and 0.5 meter models available
QuickStick 100
zx High throughput for small to medium loads
zx Payloads up to 100 kg
zx Up to five vehicles per meter (depends on magnet array)
zx Magnet array lengths from 150 mm to 966 mm
zx Speeds up to 2.5 m/s (490 ft/minute)
zx Acceleration beyond 1G (mass dependent)
zx Embedded drive, controller, position-sensing components
zx Repeatability: ± 0.50 mm (at specified gap and friction)
zx Repeatability to ± 0.10 mm attainable with calibration
zx 1 meter and 0.5 meter models available
0.50 meter motor
Since 1996, MagneMotion has provided electro-magnetic solutions
to the assembly automation, processing, material handling, and
transportation industries for the fast, safe, clean, and efficient
transport of goods and people. The Company’s patented Linear
Synchronous Motor (LSM) technology offers the most advanced
solutions available to the many industries it serves. The scalable
nature of MagneMotion’s LSM technology allows for transport and
positioning systems that handle payloads ranging from grams to
metric tonnes.
