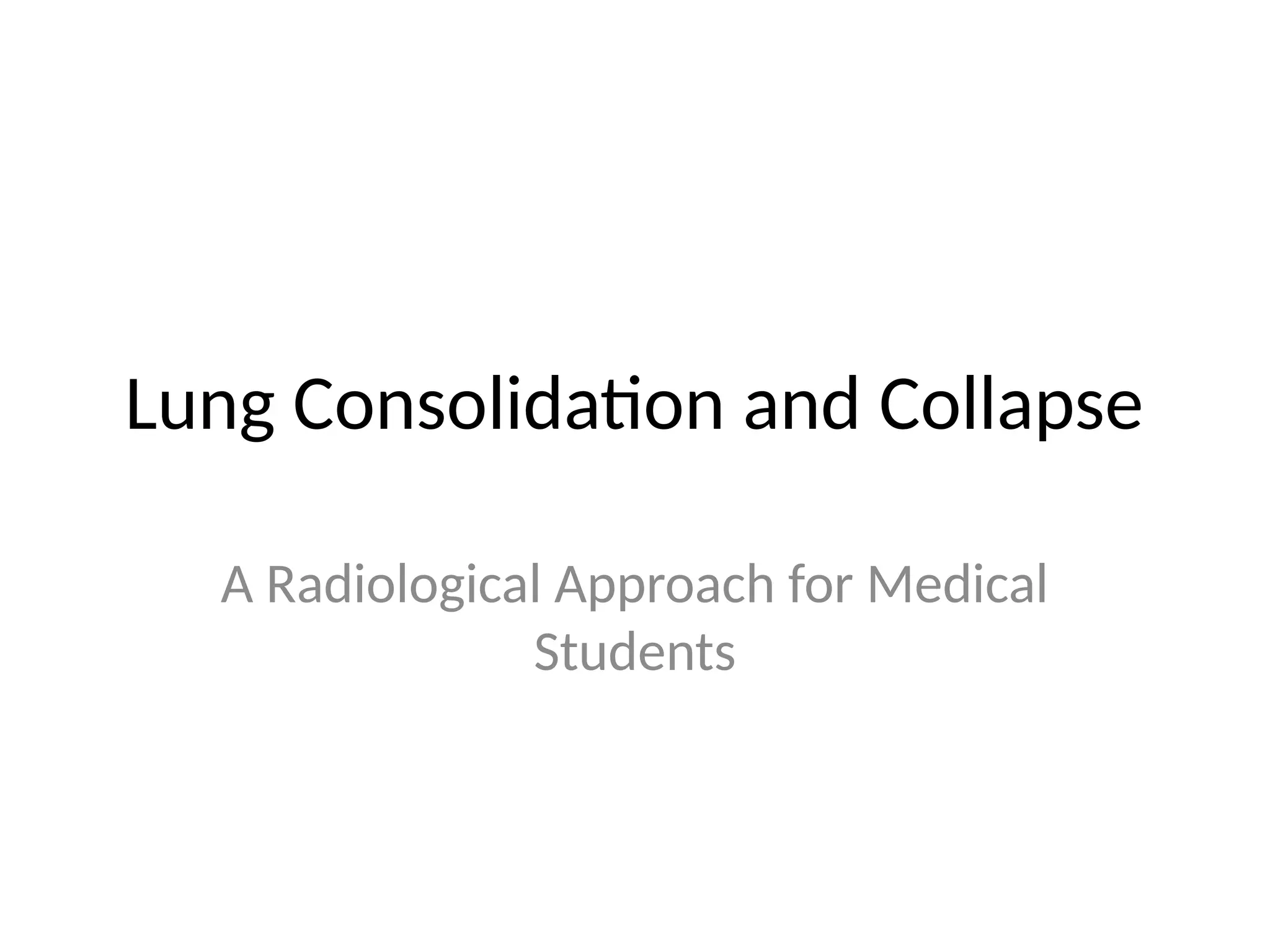

1. Lung Consolidation and Collapse
A Radiological Approach for Medical
Students

2. Introduction
• • Lung consolidation and collapse are
common radiological findings.
• • Understanding their features is crucial for
diagnosis and management.
• • This session will cover:
• – Definitions
• – Causes
• – Radiological features
• – Case examples with X-rays

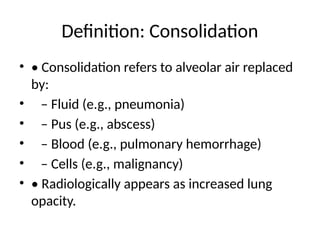

3. Definition: Consolidation
• • Consolidation refers to alveolar air replaced
by:
• – Fluid (e.g., pneumonia)
• – Pus (e.g., abscess)
• – Blood (e.g., pulmonary hemorrhage)
• – Cells (e.g., malignancy)
• • Radiologically appears as increased lung
opacity.

4. Definition: Collapse (Atelectasis)
• • Collapse (atelectasis) is loss of lung volume
due to airway obstruction or compression.
• • Types:
• – Obstructive (e.g., tumor, mucus plug)
• – Compressive (e.g., pleural effusion,
pneumothorax)
• • Radiologically seen as displacement of
structures and increased density.

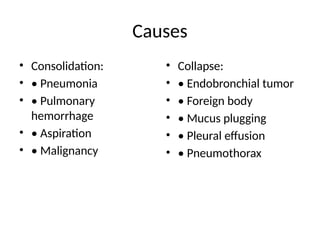

5. Causes
• Consolidation:
• • Pneumonia
• • Pulmonary
hemorrhage
• • Aspiration
• • Malignancy
• Collapse:
• • Endobronchial tumor
• • Foreign body
• • Mucus plugging
• • Pleural effusion
• • Pneumothorax

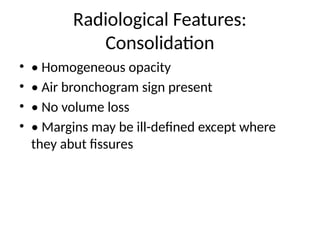

6. Radiological Features:
Consolidation
• • Homogeneous opacity
• • Air bronchogram sign present
• • No volume loss
• • Margins may be ill-defined except where
they abut fissures

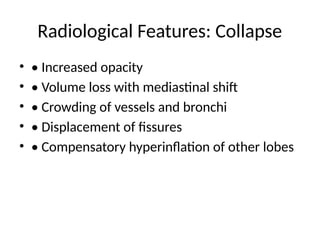

7. Radiological Features: Collapse
• • Increased opacity
• • Volume loss with mediastinal shift
• • Crowding of vessels and bronchi
• • Displacement of fissures
• • Compensatory hyperinflation of other lobes

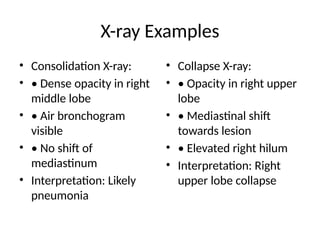

8. X-ray Examples
• Consolidation X-ray:
• • Dense opacity in right
middle lobe
• • Air bronchogram
visible
• • No shift of
mediastinum
• Interpretation: Likely
pneumonia
• Collapse X-ray:
• • Opacity in right upper
lobe
• • Mediastinal shift
towards lesion
• • Elevated right hilum
• Interpretation: Right
upper lobe collapse

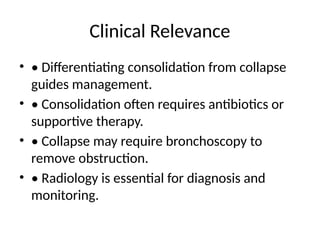

9. Clinical Relevance
• • Differentiating consolidation from collapse
guides management.
• • Consolidation often requires antibiotics or
supportive therapy.
• • Collapse may require bronchoscopy to
remove obstruction.
• • Radiology is essential for diagnosis and
monitoring.

10. Summary
• • Consolidation = alveolar filling, no volume
loss.
• • Collapse = volume loss with structural shift.
• • Both present as increased opacity but differ
in radiological features.
• • Careful interpretation of X-rays is key for
diagnosis.

11. Consolidation - Insert Image (Slide:
Radiological Features)
• Please insert a chest X-ray image showing consolidation here.
Recommended open-access images (download & insert):
1) X-ray lung consolidation — Wikimedia Commons (CC BY 2.0):
https://commons.wikimedia.org/wiki/File:X-ray_lung_consolidation.jpg
2) Pneumonia x-ray — Wikimedia Commons (public/CC):
https://commons.wikimedia.org/wiki/File:Pneumonia_x-ray.jpg
Suggested caption: 'Right middle lobe consolidation with air bronchograms. Source: Wikimedia Commons
(CC).'
After inserting the image, add a short interpretation: e.g., 'Air bronchograms present, no volume loss —
favors consolidation (pneumonia)'.
Right middle lobe consolidation with air bronchograms. Source: Wikimedia Commons (CC).

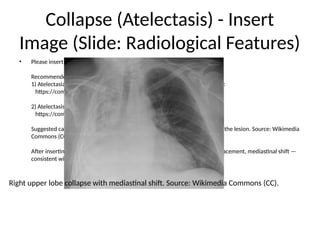

12. Collapse (Atelectasis) - Insert
Image (Slide: Radiological Features)
• Please insert a chest X-ray image showing lobar collapse here.
Recommended open-access images (download & insert):
1) Atelectasia1.jpg — Wikimedia Commons (Valencian Institute of Oncology):
https://commons.wikimedia.org/wiki/File:Atelectasia1.jpg
2) Atelectasis.png — Wikimedia Commons (CC BY-SA 4.0):
https://commons.wikimedia.org/wiki/File:Atelectasis.png
Suggested caption: 'Right upper lobe collapse with mediastinal shift towards the lesion. Source: Wikimedia
Commons (CC).'
After inserting the image, add interpretation: e.g., 'Volume loss, fissure displacement, mediastinal shift —
consistent with lobar collapse.'
Right upper lobe collapse with mediastinal shift. Source: Wikimedia Commons (CC).

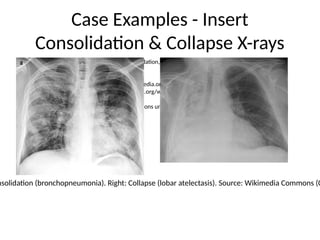

13. Case Examples - Insert
Consolidation & Collapse X-rays
• Insert two images side-by-side: (left) consolidation, (right) collapse.
Recommended images:
Left (consolidation): https://commons.wikimedia.org/wiki/File:X-ray_of_bronchopneumonia.png
Right (collapse): https://commons.wikimedia.org/wiki/File:Atelectasia1.jpg
Add boxed labels and brief bullet interpretations underneath each image.
