This document provides information on TVT's 5MP IPC product line including the S3A, S2, E2A, E2, and A3-PA models. It outlines the key features and specifications of each model including megapixels, frame rate, housing, lens options, light sensitivity, video encoding, intelligent functions, and more. The A3-PA is highlighted as TVT's first 5MP perimeter protection and video structure camera that can detect real human intrusions using embedded AI algorithms.

1. 5MP IPC
Product Line
Julian zhu
2019.05

2. S3A S2
E2 E2A
Performance
Price
New
Housing
New
Housing
Current
Housing
Current
Housing
A3-PAAI Based
New Housing
5MP Series IPC
Produce line map
ECO
Standard
PRO

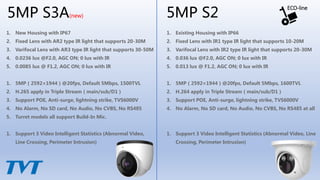

3. 1. New Housing with IP67
2. Fixed Lens with AR2 type IR light that supports 20-30M
3. Varifocal Lens with AR3 type IR light that supports 30-50M
4. 0.0236 lux @F2.0, AGC ON; 0 lux with IR
5. 0.0085 lux @ F1.2, AGC ON; 0 lux with IR
1. 5MP（2592×1944）@20fps, Default 5Mbps, 1500TVL
2. H.265 apply in Triple Stream（main/sub/D1）
3. Support POE, Anti-surge, lightning strike, TVS6000V
4. No Alarm, No SD card, No Audio, No CVBS, No RS485
5. Turret models all support Build-In Mic.
1. Support 3 Video Intelligent Statistics (Abnormal Video,
Line Crossing, Perimeter Intrusion)
5MP S3A(new)
1. Existing Housing with IP66
2. Fixed Lens with IR1 type IR light that supports 10-20M
3. Varifocal Lens with IR2 type IR light that supports 20-30M
4. 0.036 lux @F2.0, AGC ON; 0 lux with IR
5. 0.013 lux @ F1.2, AGC ON; 0 lux with IR
1. 5MP（2592×1944）@20fps, Default 5Mbps, 1600TVL
2. H.264 apply in Triple Stream（main/sub/D1）
3. Support POE, Anti-surge, lightning strike, TVS6000V
4. No Alarm, No SD card, No Audio, No CVBS, No RS485 at all
1. Support 3 Video Intelligent Statistics (Abnormal Video, Line
Crossing, Perimeter Intrusion)
5MP S2
ECO-line

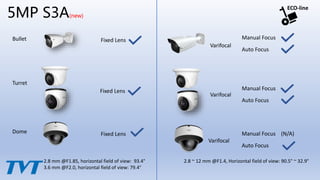

4. 5MP S3A(new)
Bullet
Turret
Varifocal
Varifocal
Manual Focus
Auto Focus
Manual Focus
Auto Focus
2.8 mm @F1.85, horizontal field of view: 93.4°
3.6 mm @F2.0, horizontal field of view: 79.4°
2.8 ~ 12 mm @F1.4, Horizontal field of view: 90.5° ~ 32.9°
ECO-line
Dome Fixed Lens Manual Focus (N/A)
Auto Focus
Varifocal
Fixed Lens
Fixed Lens

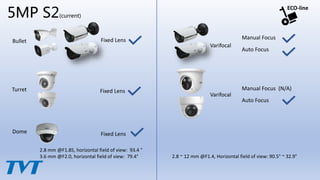

5. 5MP S2(current)
Bullet
Turret
Dome
Fixed Lens
Fixed Lens
Fixed Lens
Varifocal
Varifocal
Manual Focus
Auto Focus
2.8 mm @F1.85, horizontal field of view: 93.4 °
3.6 mm @F2.0, horizontal field of view: 79.4° 2.8 ~ 12 mm @F1.4, Horizontal field of view: 90.5° ~ 32.9°
ECO-line
Manual Focus (N/A)
Auto Focus

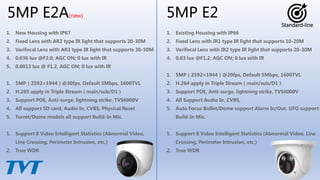

6. 1. New Housing with IP67
2. Fixed Lens with AR2 type IR light that supports 20-30M
3. Varifocal Lens with AR3 type IR light that supports 30-50M
4. 0.036 lux @F2.0, AGC ON; 0 lux with IR
5. 0.0013 lux @ F1.2, AGC ON; 0 lux with IR
1. 5MP（2592×1944）@30fps, Default 5Mbps, 1600TVL
2. H.265 apply in Triple Stream（main/sub/D1）
3. Support POE, Anti-surge, lightning strike, TVS6000V
4. All support SD card, Audio In, CVBS, Physical Reset
5. Turret/Dome models all support Build-In Mic.
1. Support 8 Video Intelligent Statistics (Abnormal Video,
Line Crossing, Perimeter Intrusion, etc.)
2. True WDR
5MP E2A(new)
1. Existing Housing with IP66
2. Fixed Lens with IR1 type IR light that supports 10-20M
3. Varifocal Lens with IR2 type IR light that supports 20-30M
4. 0.03 lux @F1.2, AGC ON; 0 lux with IR
1. 5MP（2592×1944）@20fps, Default 5Mbps, 1600TVL
2. H.264 apply in Triple Stream（main/sub/D1）
3. Support POE, Anti-surge, lightning strike, TVS6000V
4. All Support Audio In, CVBS,
5. Auto Focus Bullet/Dome support Alarm In/Out. UFO support
Build-In Mic.
1. Support 8 Video Intelligent Statistics (Abnormal Video, Line
Crossing, Perimeter Intrusion, etc.)
2. True WDR
5MP E2
Standard-line

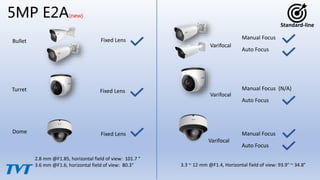

7. 5MP E2A(new)
Turret
Dome
Varifocal
Varifocal
Manual Focus
Auto Focus
2.8 mm @F1.85, horizontal field of view: 101.7 °
3.6 mm @F1.6, horizontal field of view: 80.3° 3.3 ~ 12 mm @F1.4, Horizontal field of view: 93.9° ~ 34.8°
Bullet
Manual Focus (N/A)
Auto Focus
Manual Focus
Auto Focus
Varifocal
Fixed Lens
Fixed Lens
Fixed Lens
Standard-line

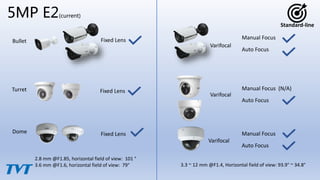

8. 5MP E2(current)
Bullet
Turret
Dome
Fixed Lens
Fixed Lens
Fixed Lens
Varifocal
Varifocal
Manual Focus
Auto Focus
2.8 mm @F1.85, horizontal field of view: 101 °
3.6 mm @F1.6, horizontal field of view: 79° 3.3 ~ 12 mm @F1.4, Horizontal field of view: 93.9° ~ 34.8°
Manual Focus (N/A)
Auto Focus
Manual Focus
Auto Focus
Standard-line
Varifocal

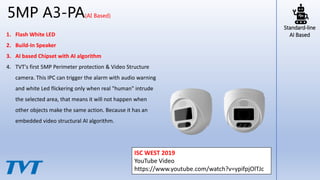

9. 1. Flash White LED
2. Build-In Speaker
3. AI based Chipset with AI algorithm
4. TVT's first 5MP Perimeter protection & Video Structure
camera. This IPC can trigger the alarm with audio warning
and white Led flickering only when real "human" intrude
the selected area, that means it will not happen when
other objects make the same action. Because it has an
embedded video structural AI algorithm.
5MP A3-PA(AI Based)
Standard-line
AI Based
ISC WEST 2019
YouTube Video
https://www.youtube.com/watch?v=ypifpjOlTJc
