Namespace of Linker in Android

1. 1
Linker Namespace Insight

2. 2

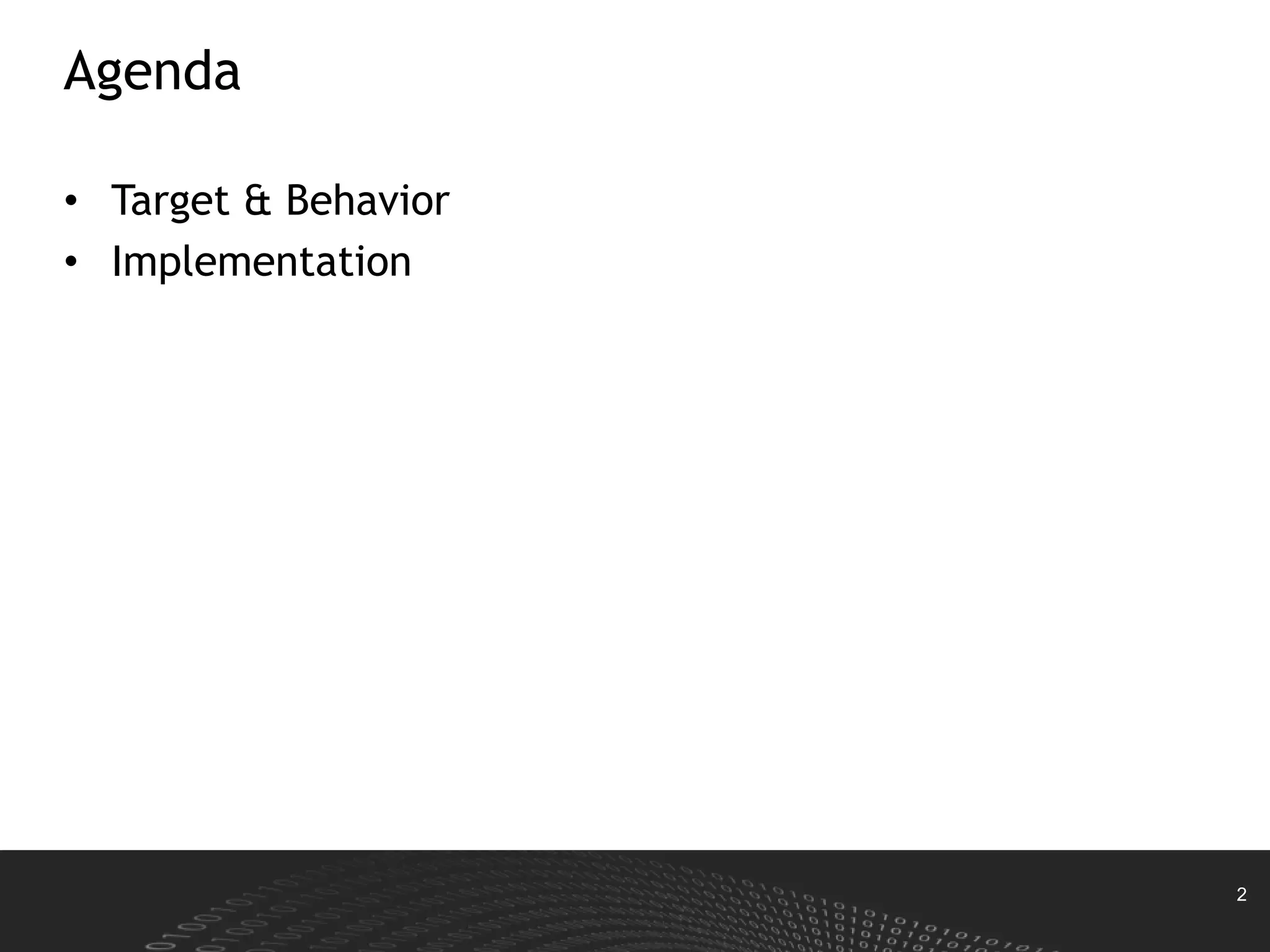

Agenda
• Target & Behavior
• Implementation

3. 3

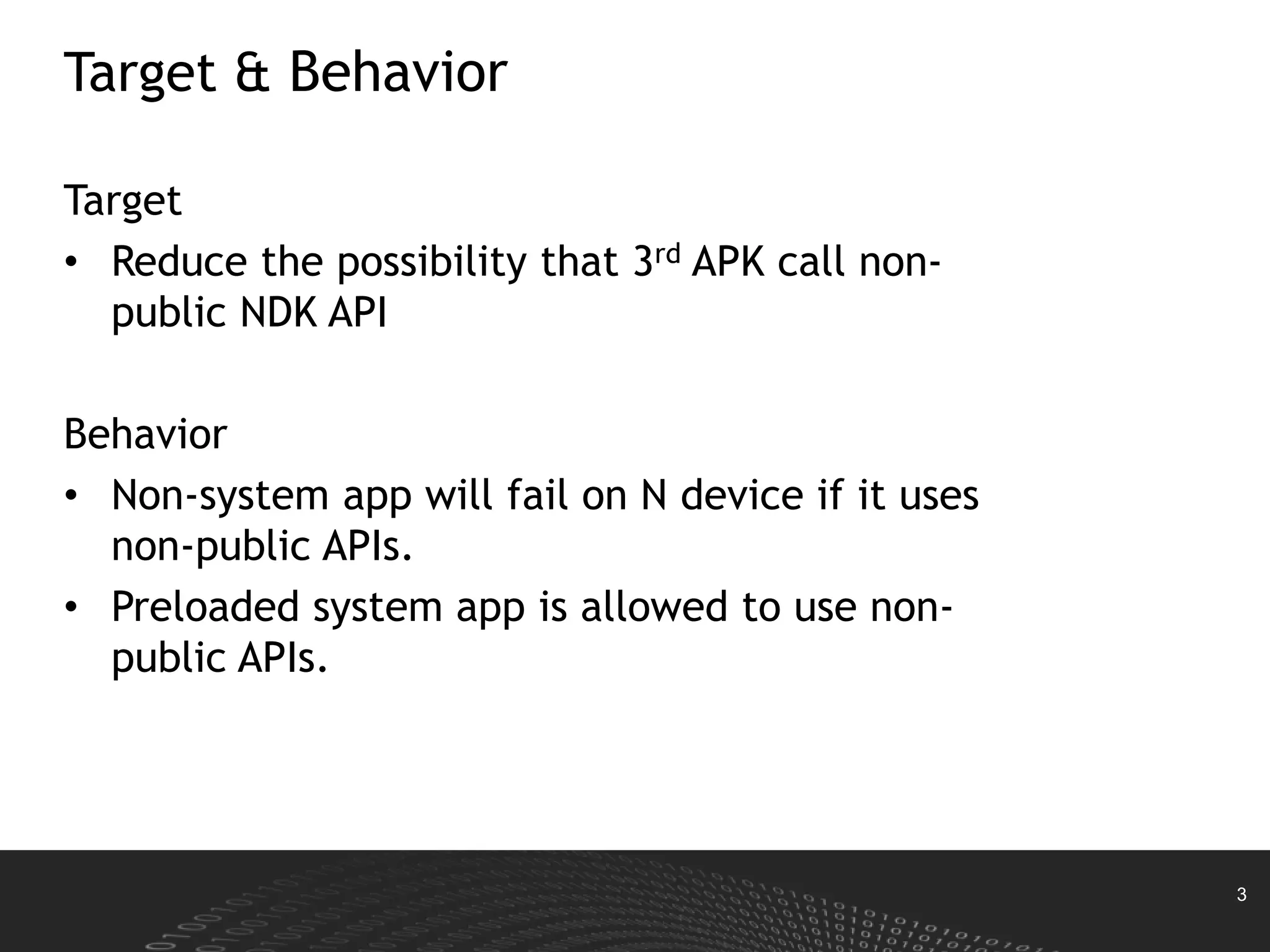

Target & Behavior
Target
• Reduce the possibility that 3rd APK call non-
public NDK API
Behavior
• Non-system app will fail on N device if it uses
non-public APIs.
• Preloaded system app is allowed to use non-
public APIs.

4. 4

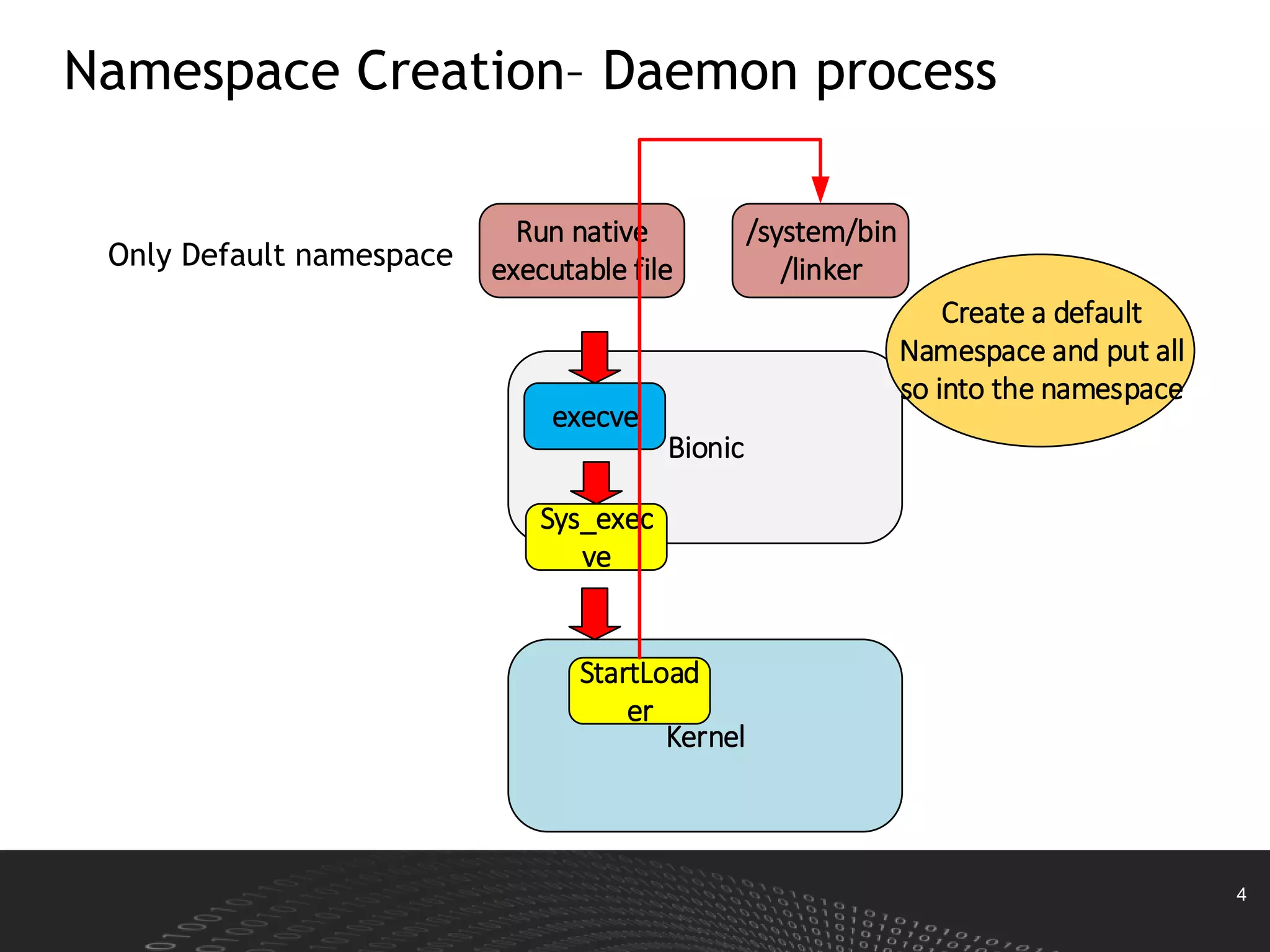

Namespace Creation– Daemon process
Only Default namespace
Run native
executable file
Bionic
execve
Kernel
Sys_exec
ve
StartLoad
er
/system/bin
/linker
Create a default
Namespace and put all
so into the namespace

5. 5

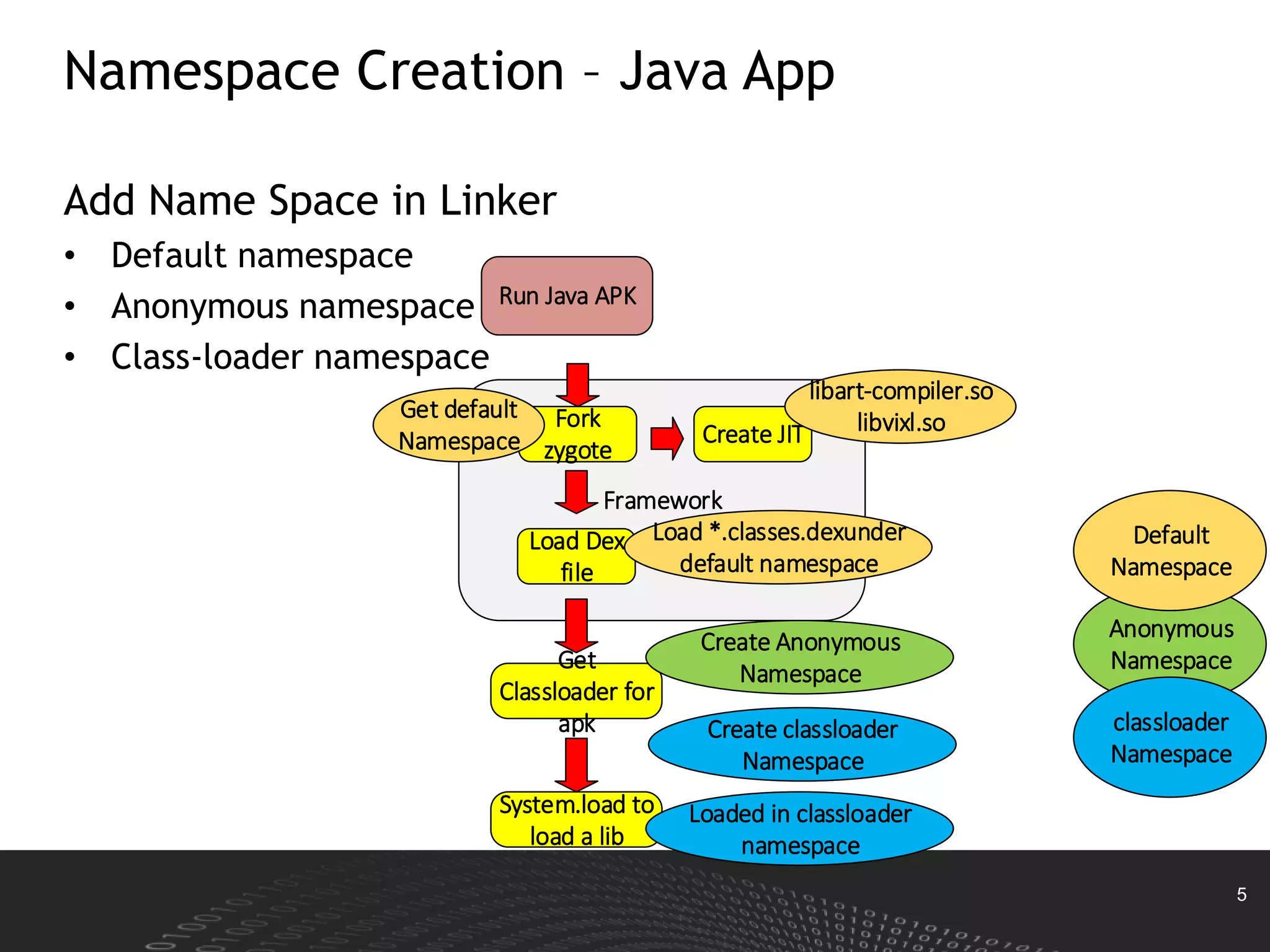

Namespace Creation – Java App
Add Name Space in Linker
• Default namespace
• Anonymous namespace
• Class-loader namespace
Run Java APK
Framework
Fork
zygote
Load Dex
file
Create JIT
Get default
Namespace
libart-compiler.so
libvixl.so
Load *.classes.dexunder
default namespace
Get
Classloader for
apk
Create Anonymous
Namespace
Create classloader
Namespace
System.load to
load a lib
Loaded in classloader
namespace
Anonymous
Namespace
Default
Namespace
classloader
Namespace

6. 6

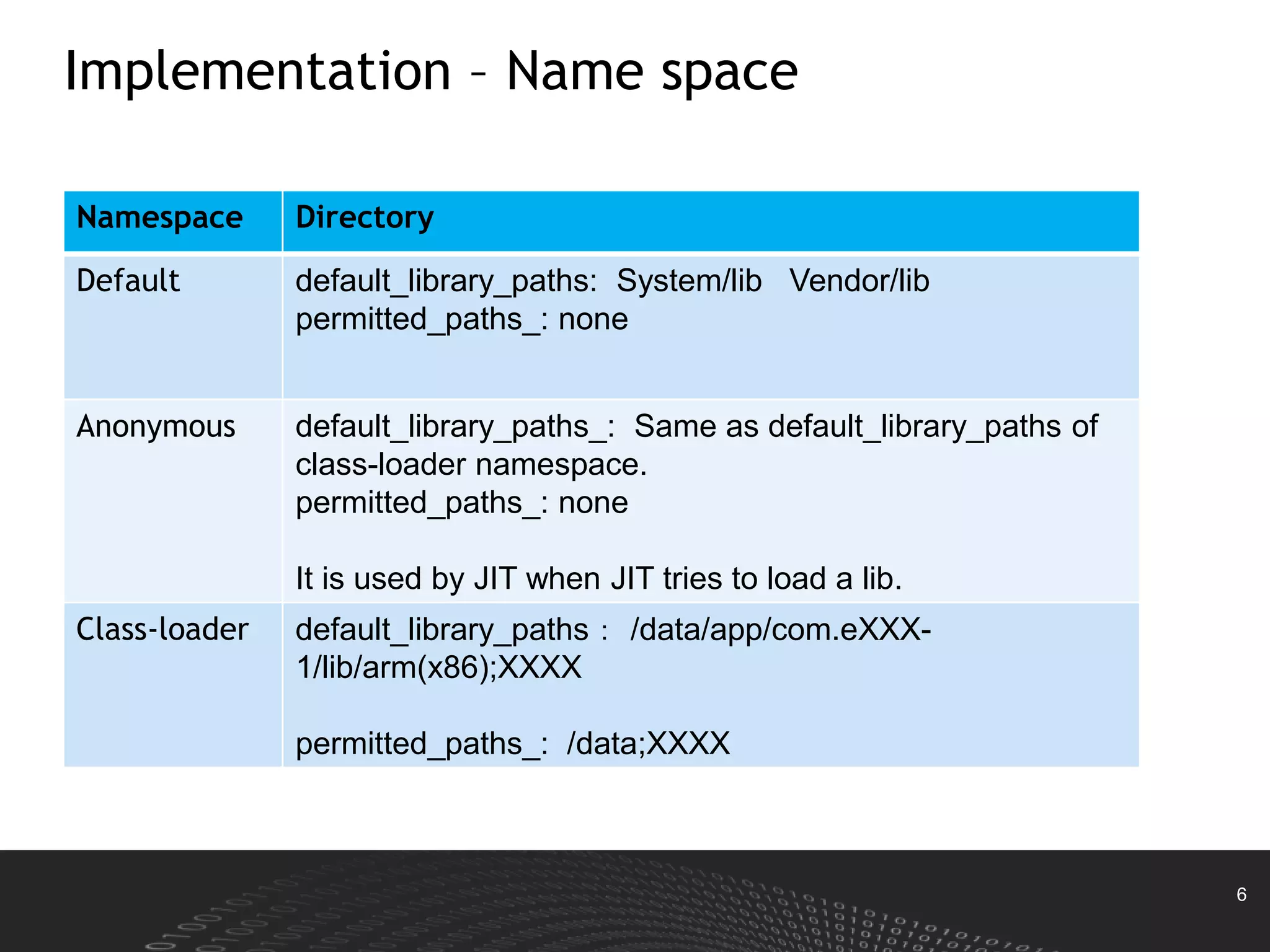

Implementation – Name space
Namespace Directory
Default default_library_paths: System/lib Vendor/lib
permitted_paths_: none
Anonymous default_library_paths_: Same as default_library_paths of
class-loader namespace.
permitted_paths_: none
It is used by JIT when JIT tries to load a lib.
Class-loader default_library_paths： /data/app/com.eXXX-
1/lib/arm(x86);XXXX
permitted_paths_: /data;XXXX

7. 7

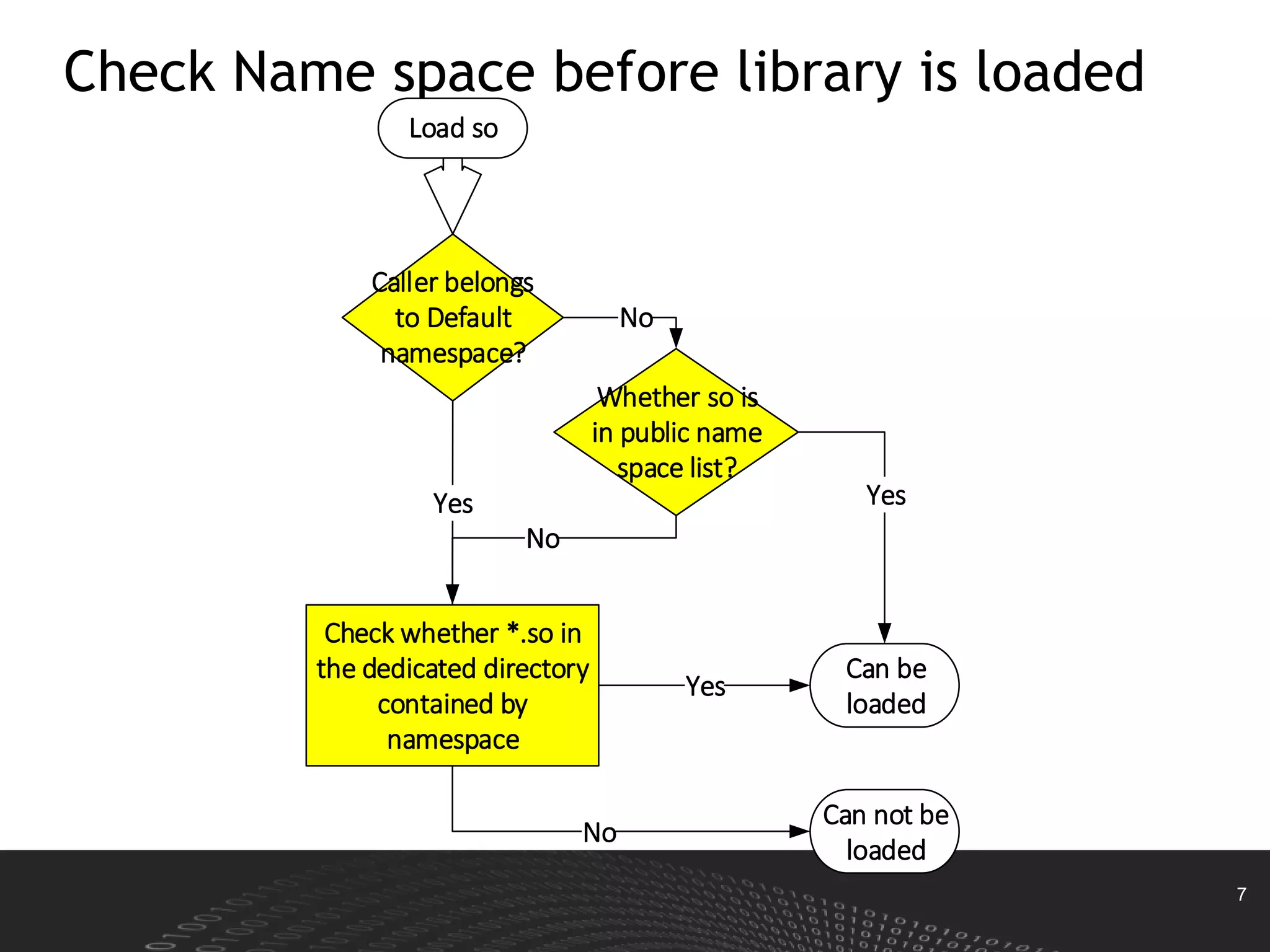

Check Name space before library is loaded
Caller belongs
to Default
namespace?
Load so
Whether so is
in public name
space list?
Can be
loaded
No
Yes
Check whether *.so in
the dedicated directory
contained by
namespace
Yes
No
Yes
Can not be
loaded
No

8. 8

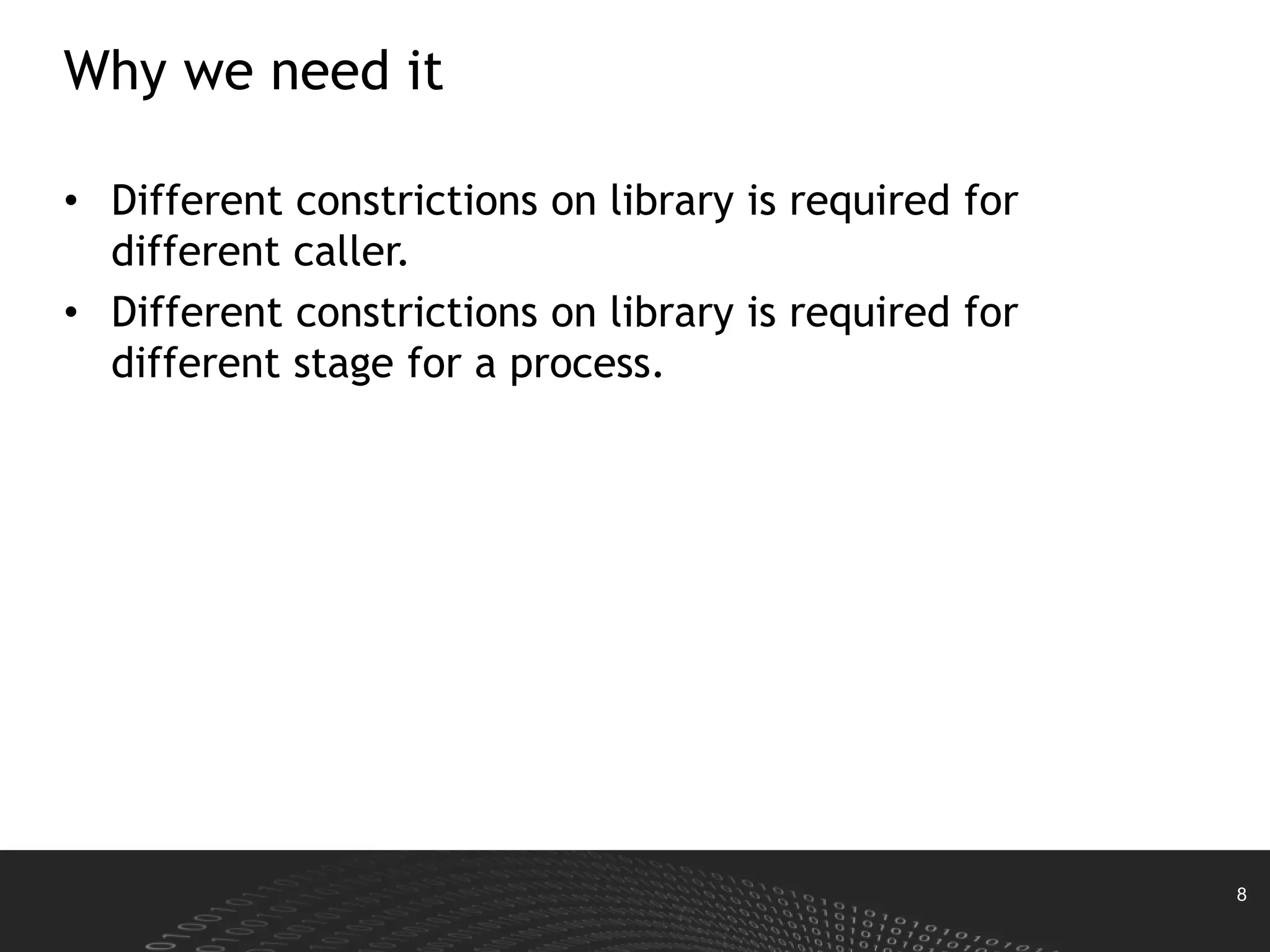

Why we need it
• Different constrictions on library is required for
different caller.
• Different constrictions on library is required for
different stage for a process.
