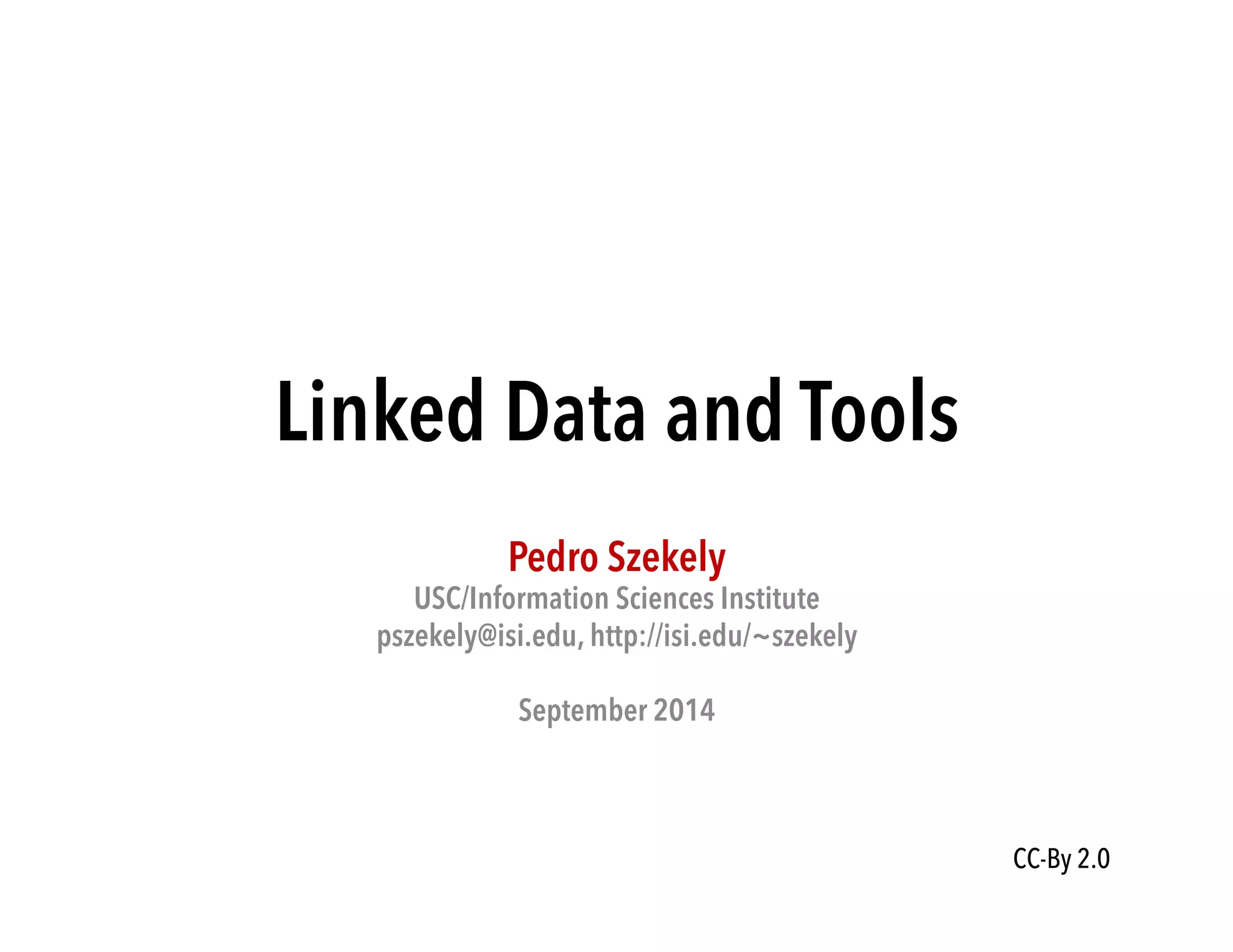

Linked Data and Tools
Pedro Szekely
USC/Information Sciences Institute
pszekely@isi.edu, http://isi.edu/~szekely
September 2014
CC-By 2.0

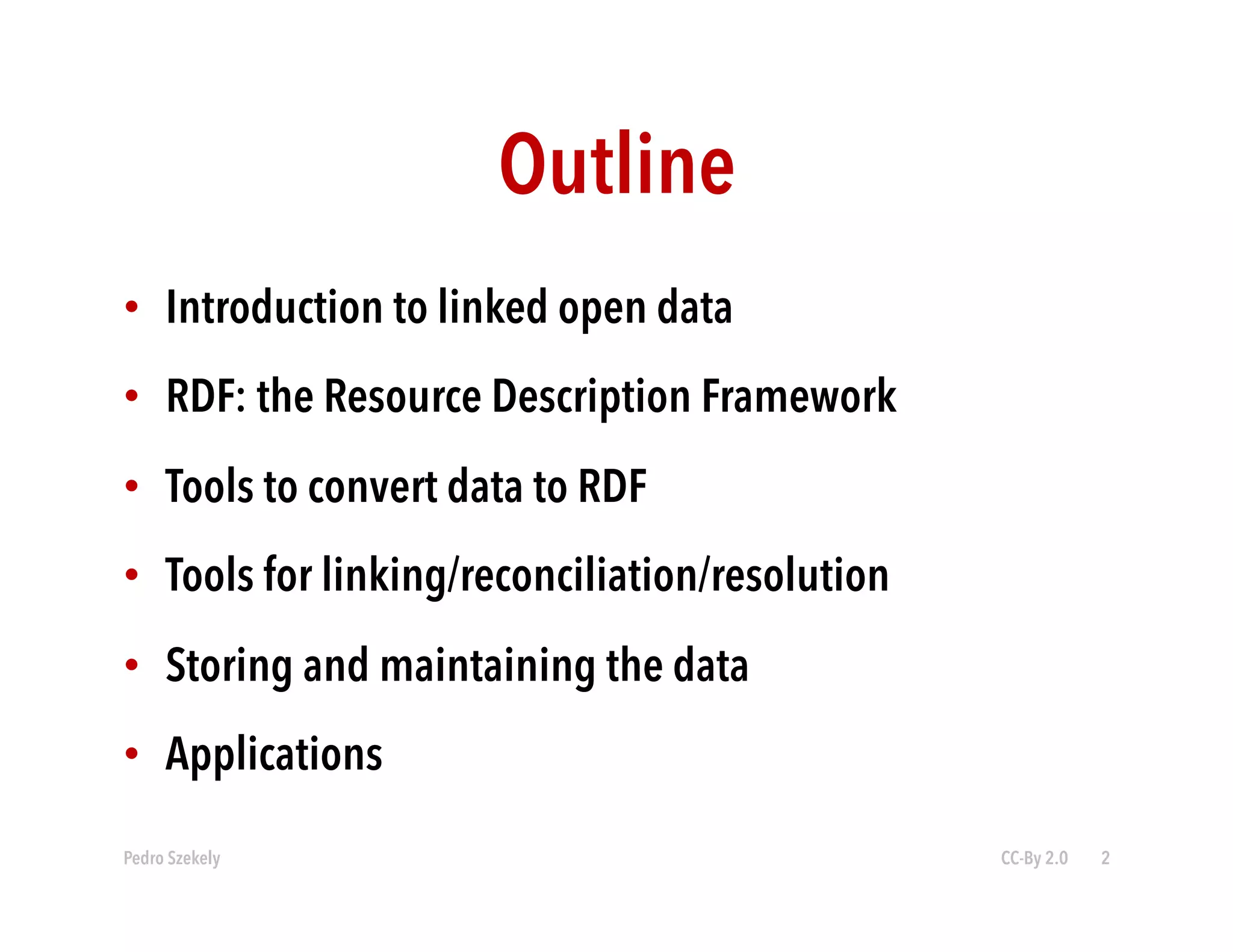

Outline
• Introduction to linked open data
• RDF: the Resource Description Framework
• Tools to convert data to RDF

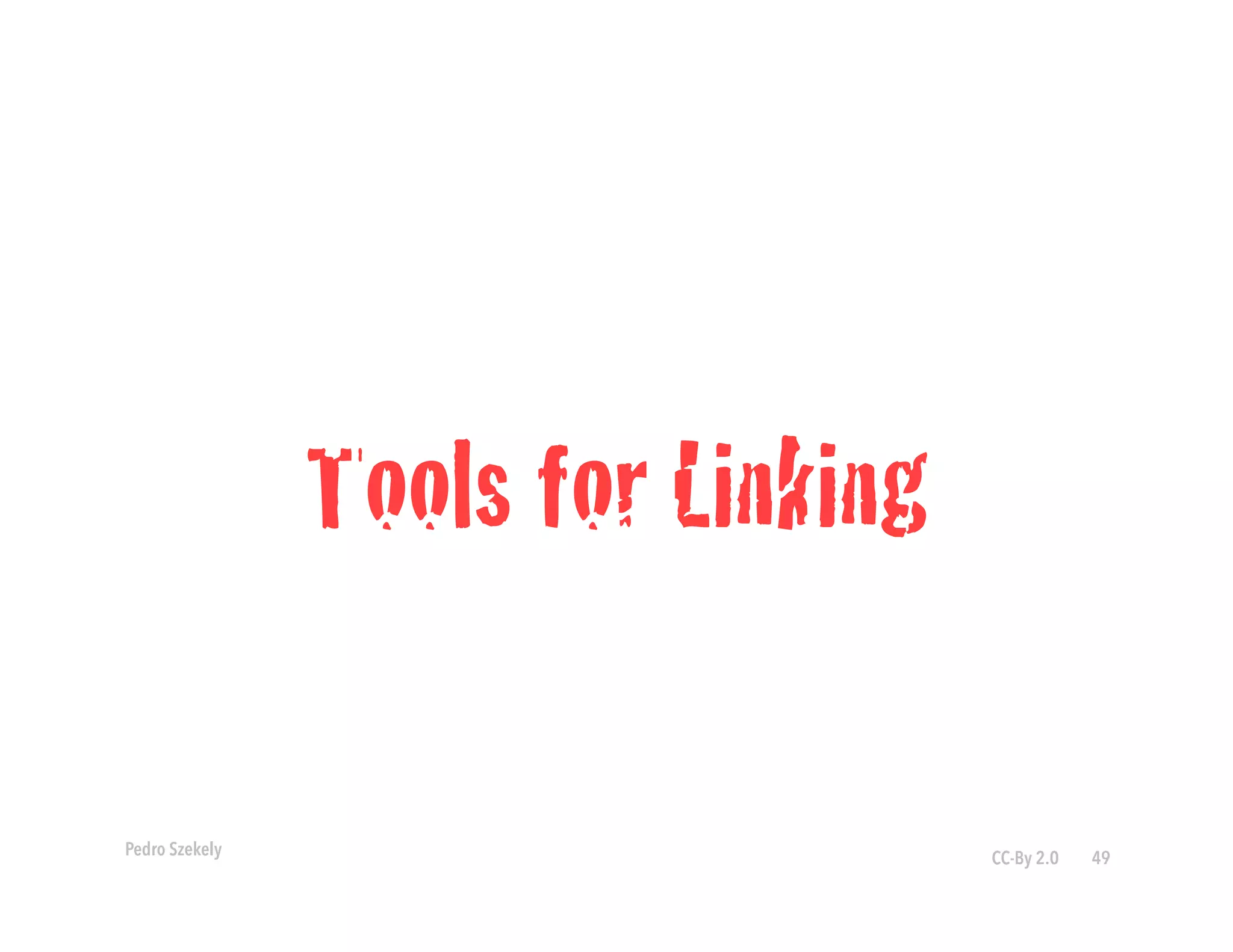

• Tools for linking/reconciliation/resolution

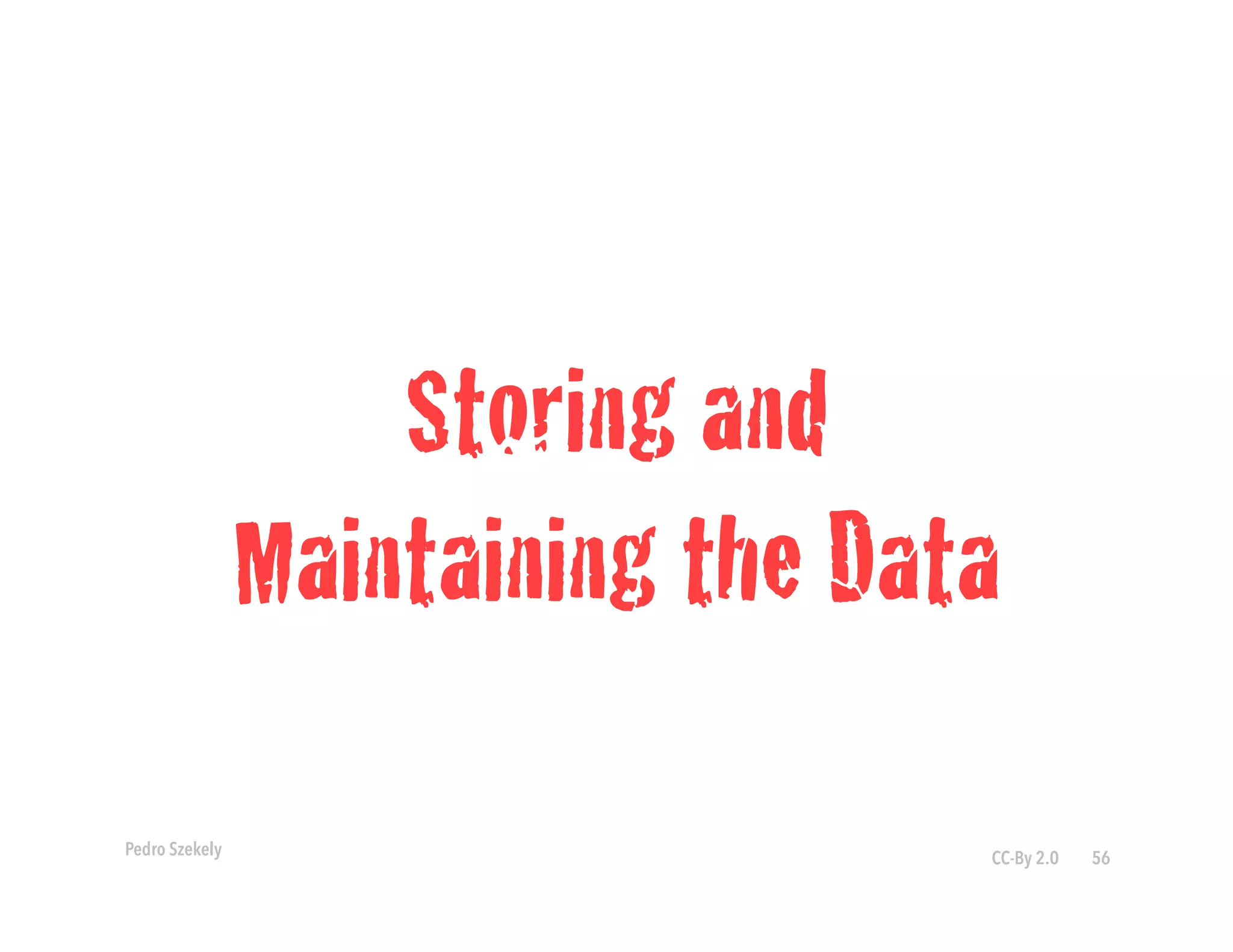

• Storing and maintaining the data
• Applications
Pedro Szekely CC-By 2.0 2
Pedro Szekely
Linked Open Data!
CC-By 2.0 3

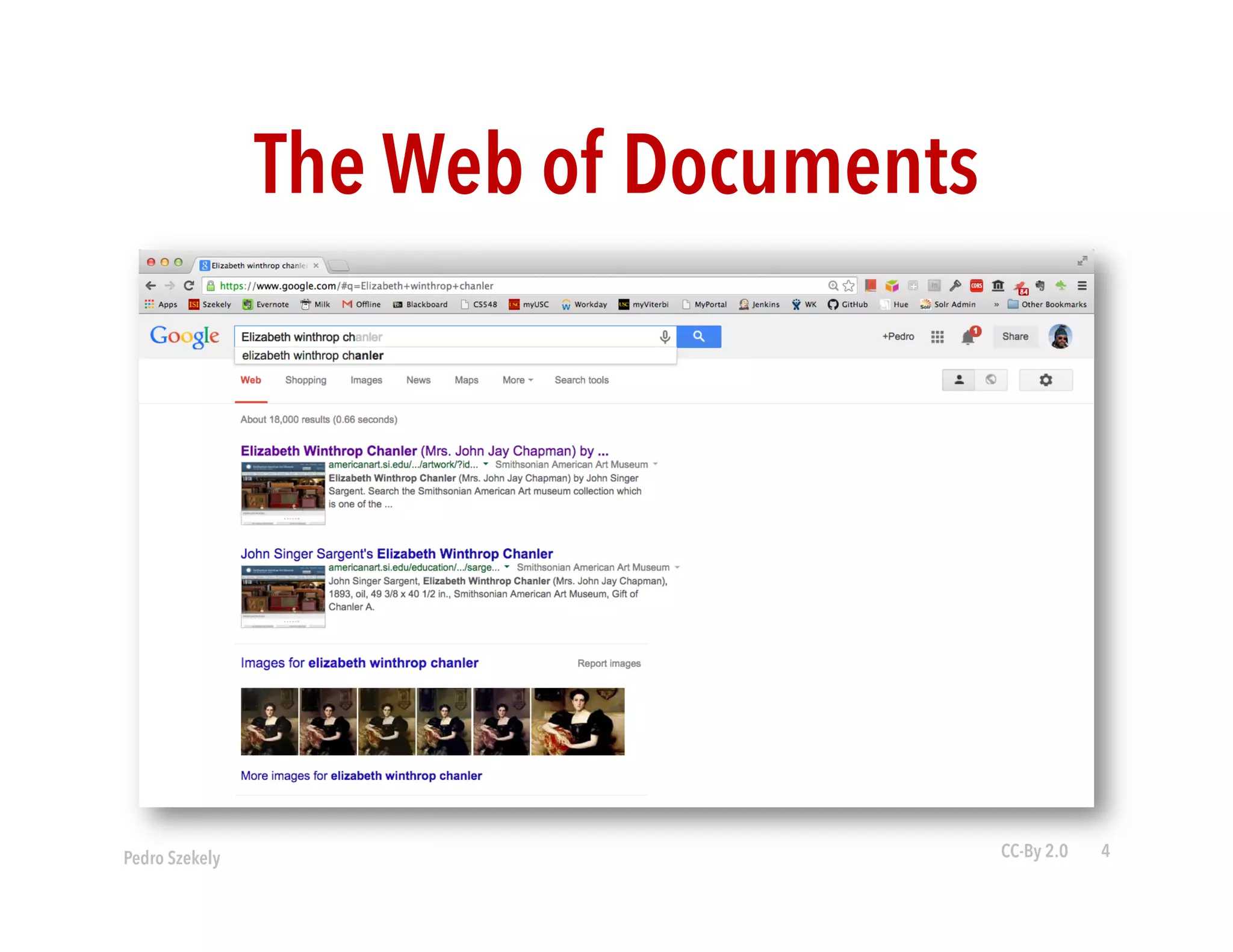

The Web of Documents
Pedro Szekely CC-By 2.0 4

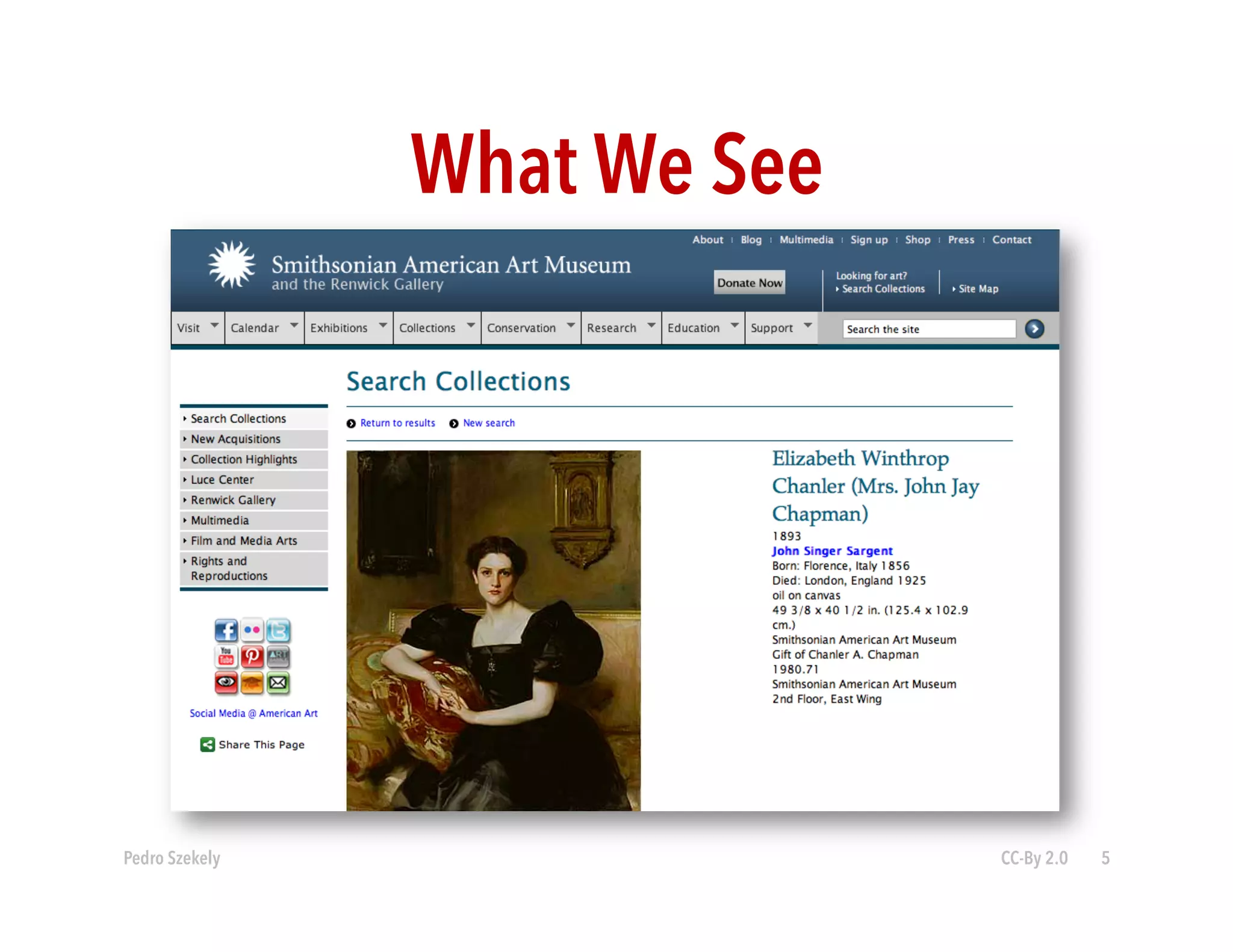

What We See
Pedro Szekely CC-By 2.0 5

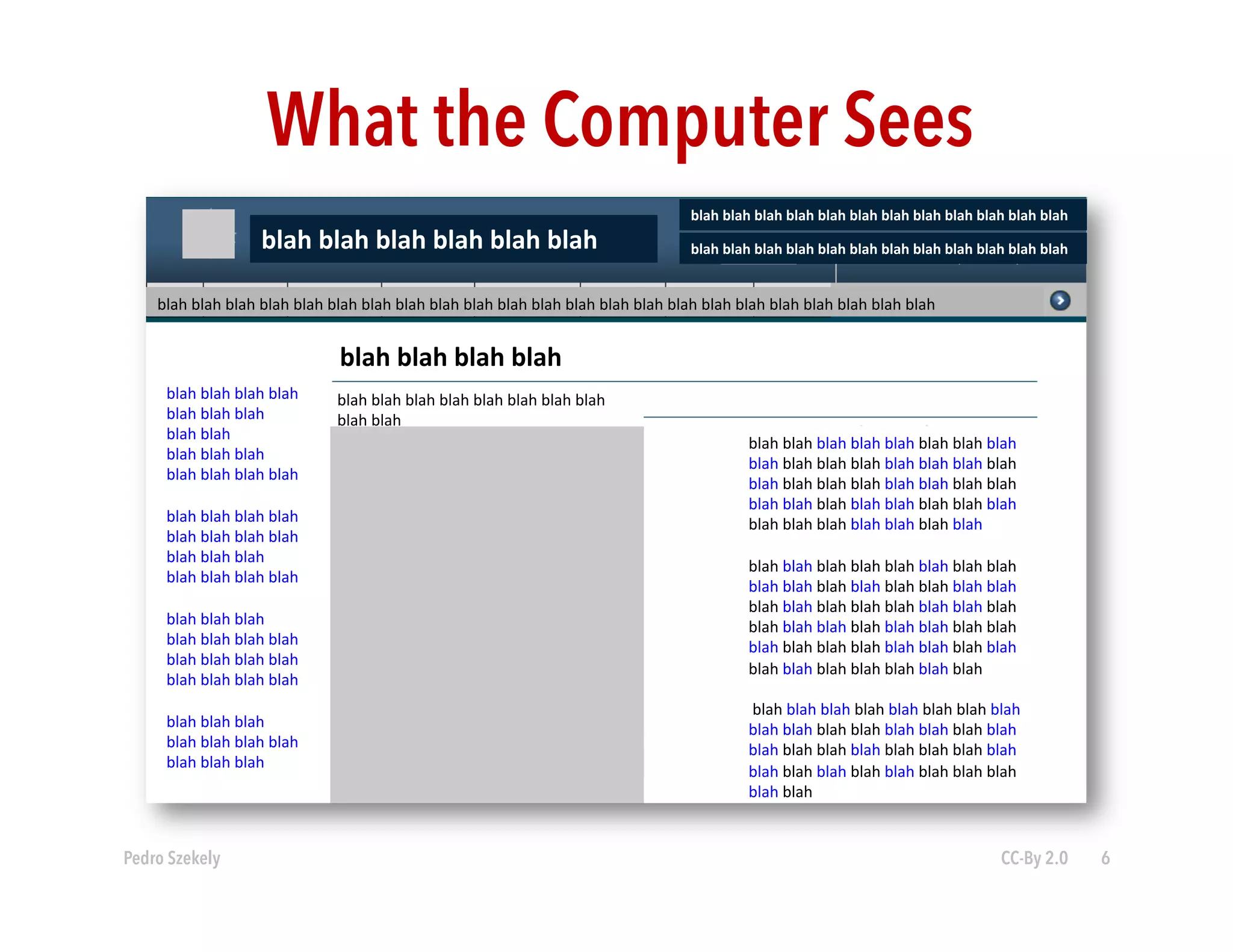

What the Computer Sees
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
blah
Pedro Szekely CC-By 2.0 6

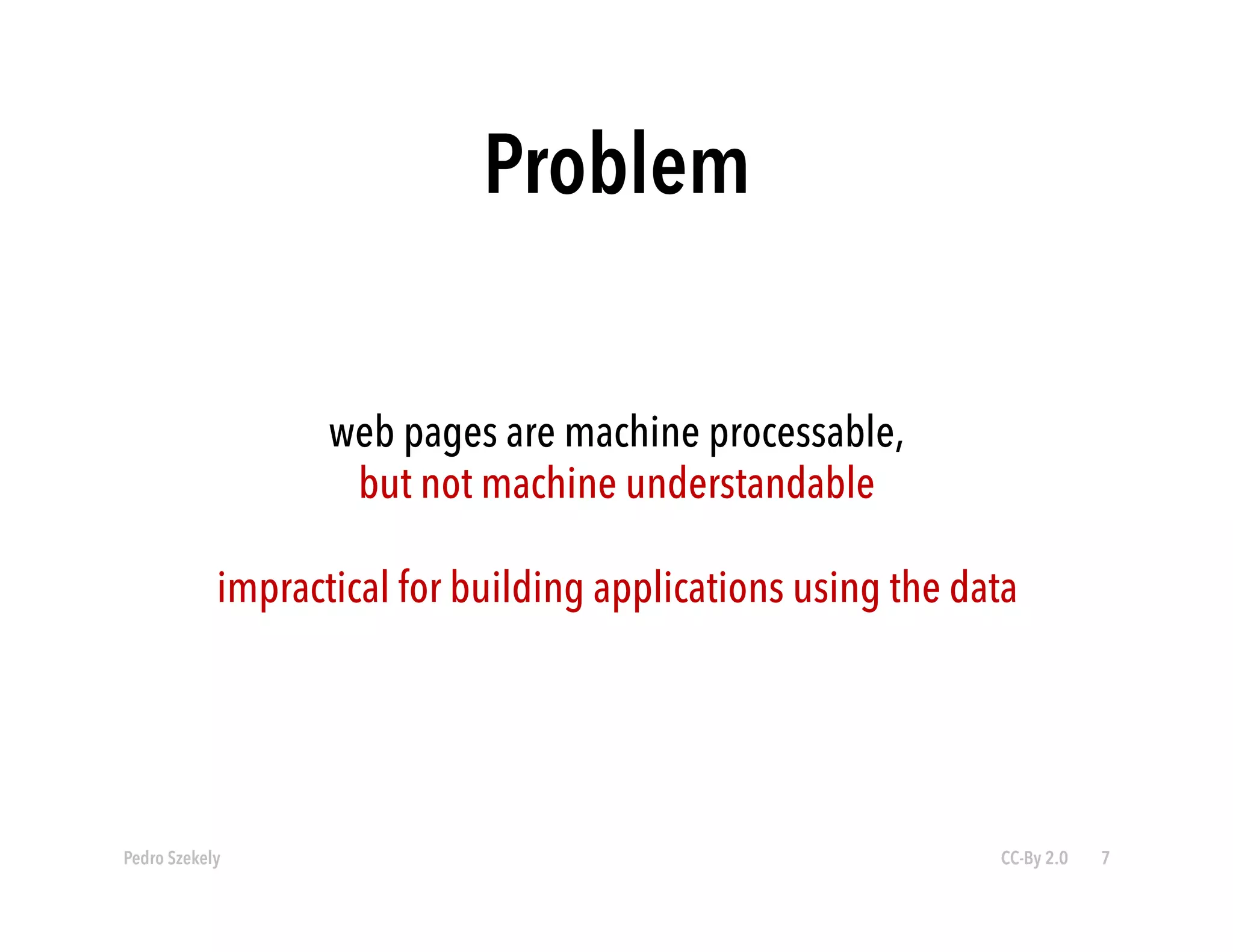

Problem
web pages are machine processable,
but not machine understandable
impractical for building applications using the data
Pedro Szekely CC-By 2.0 7

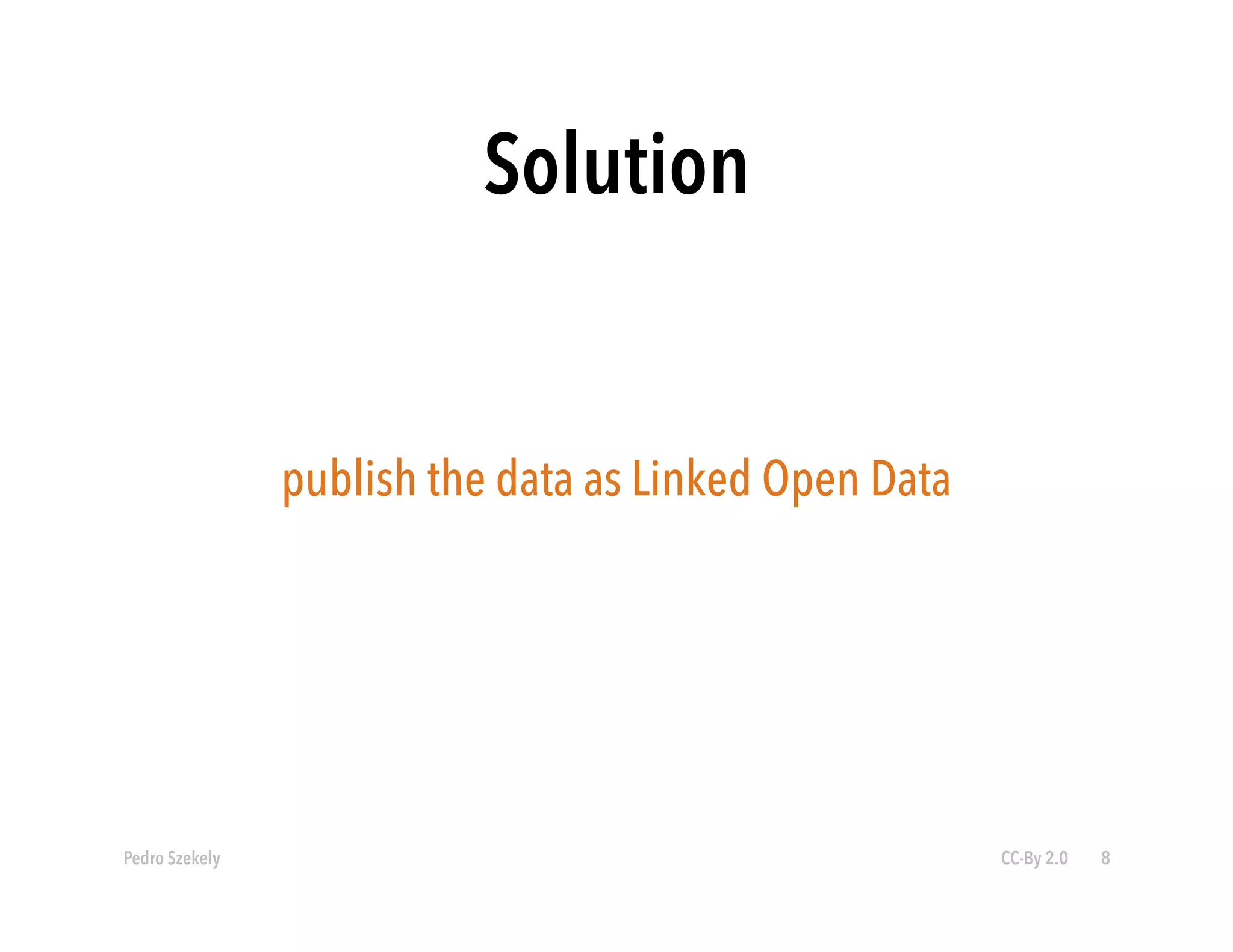

Solution
publish the data as Linked Open Data
Pedro Szekely CC-By 2.0 8

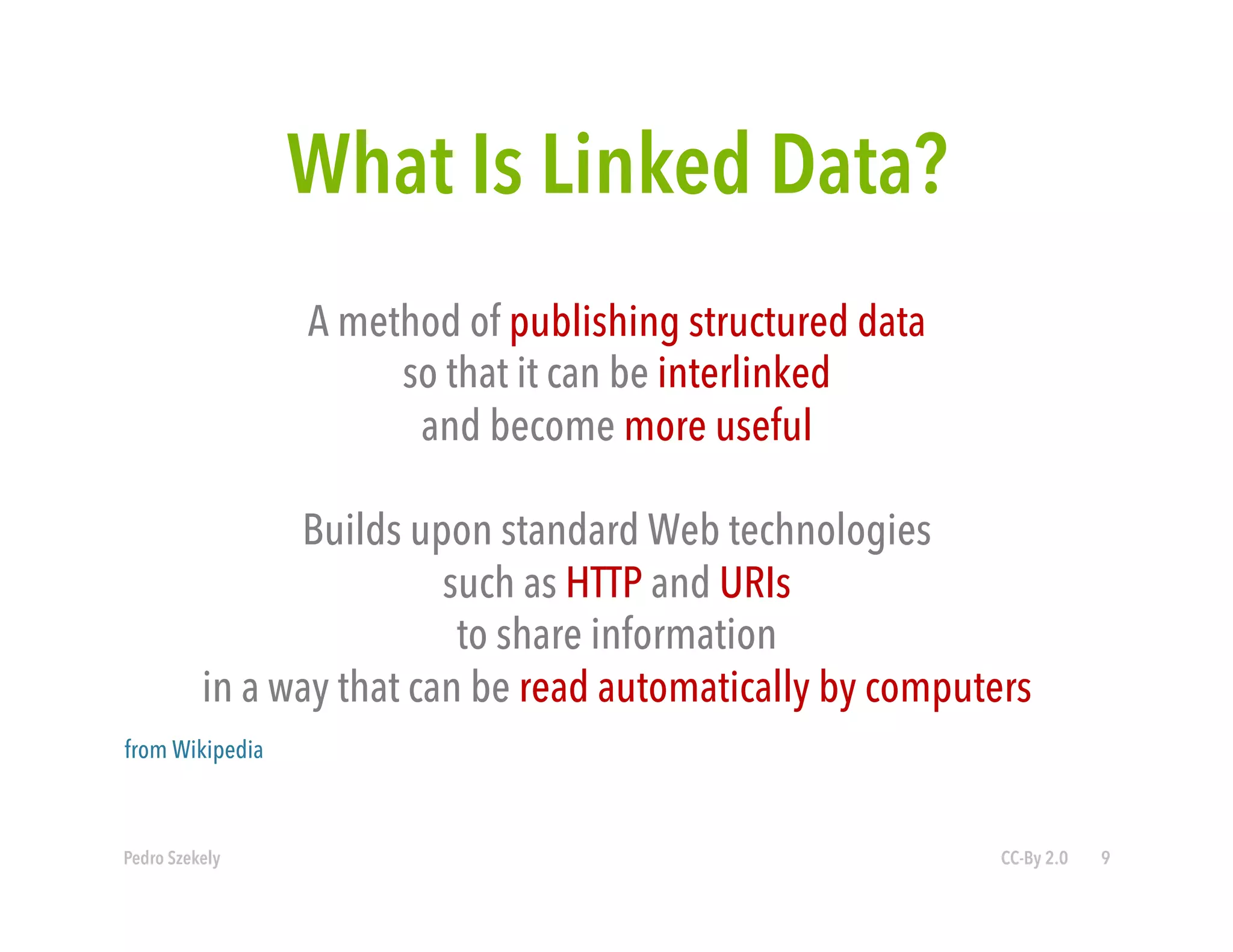

What Is Linked Data?
A method of publishing structured data
so that it can be interlinked
and become more useful
Builds upon standard Web technologies
such as HTTP and URIs
to share information
in a way that can be read automatically by computers
from Wikipedia
Pedro Szekely CC-By 2.0 9

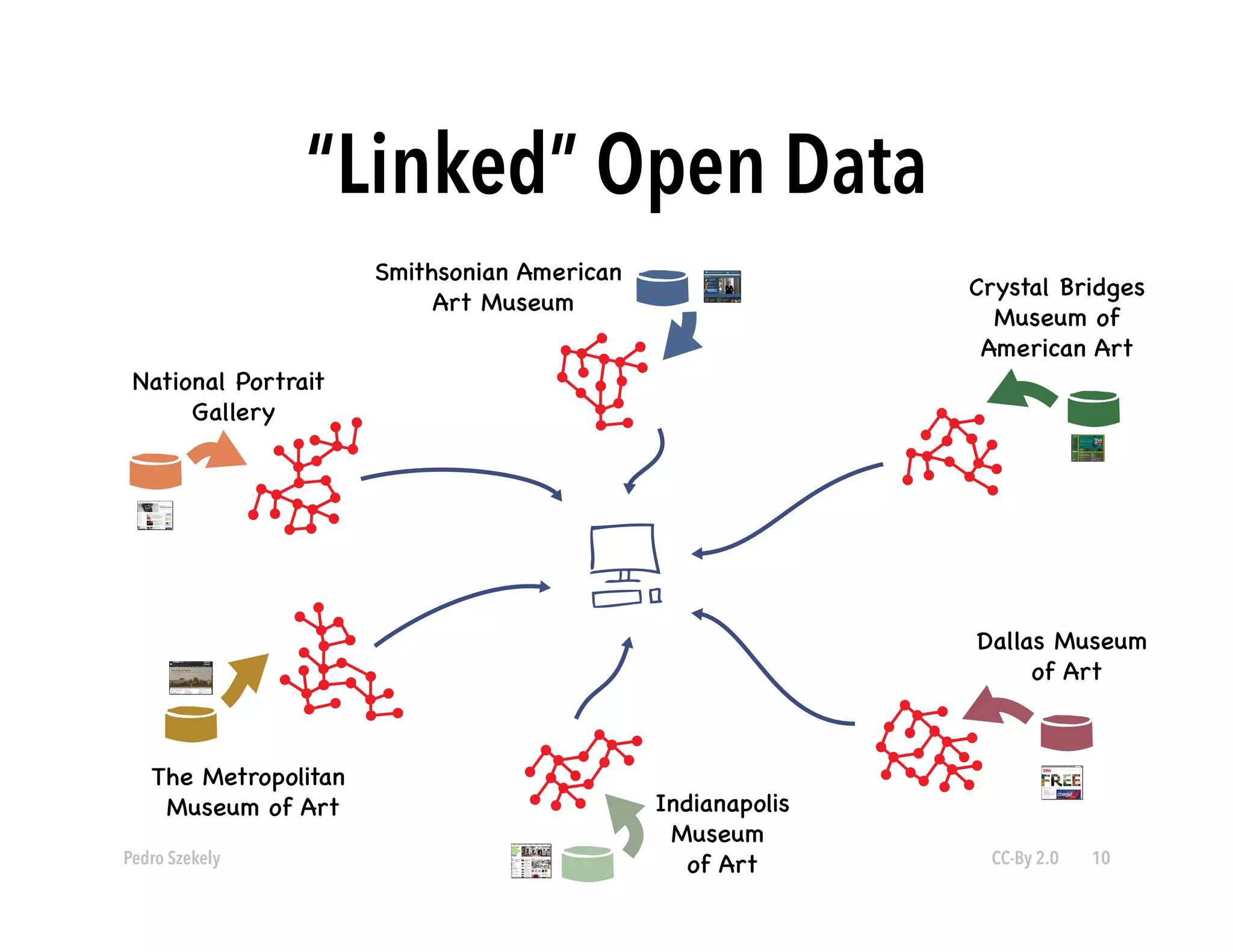

“Linked” Open Data
Crystal Bridges
Museum of
American Art
Dallas Museum
of Art
Indianapolis
Museum
of Art
National Portrait
Gallery
The Metropolitan
Museum of Art
Smithsonian American
Art Museum
Pedro Szekely CC-By 2.0 10

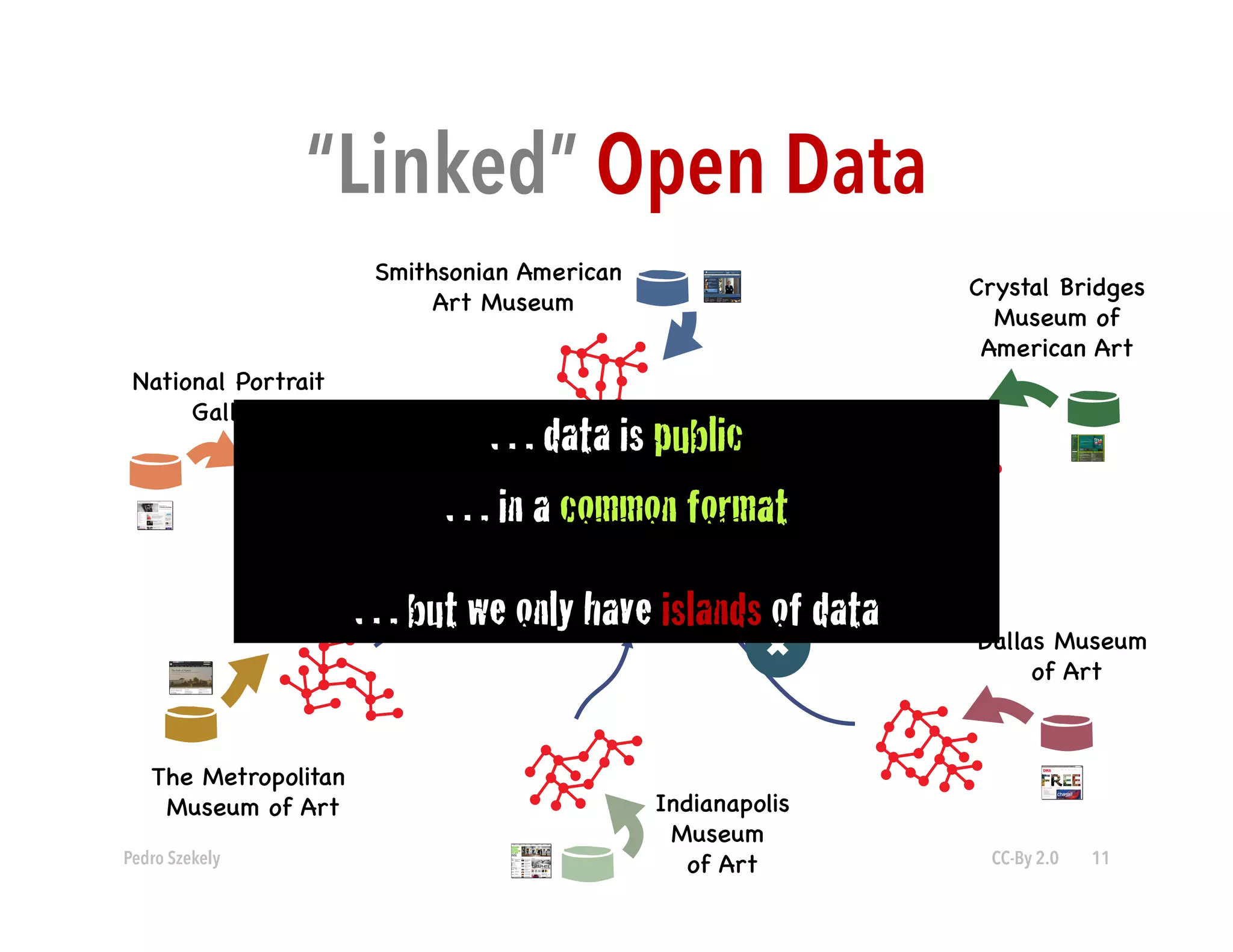

“Linked” Open Data
Crystal Bridges
Museum of
American Art
Dallas Museum
of Art
… data is public!
… in a common format!
… but we only have islands of data!
Indianapolis
Museum
of Art
National Portrait
Gallery
The Metropolitan
Museum of Art
Smithsonian American
Art Museum
✔
✖
Pedro Szekely CC-By 2.0 11

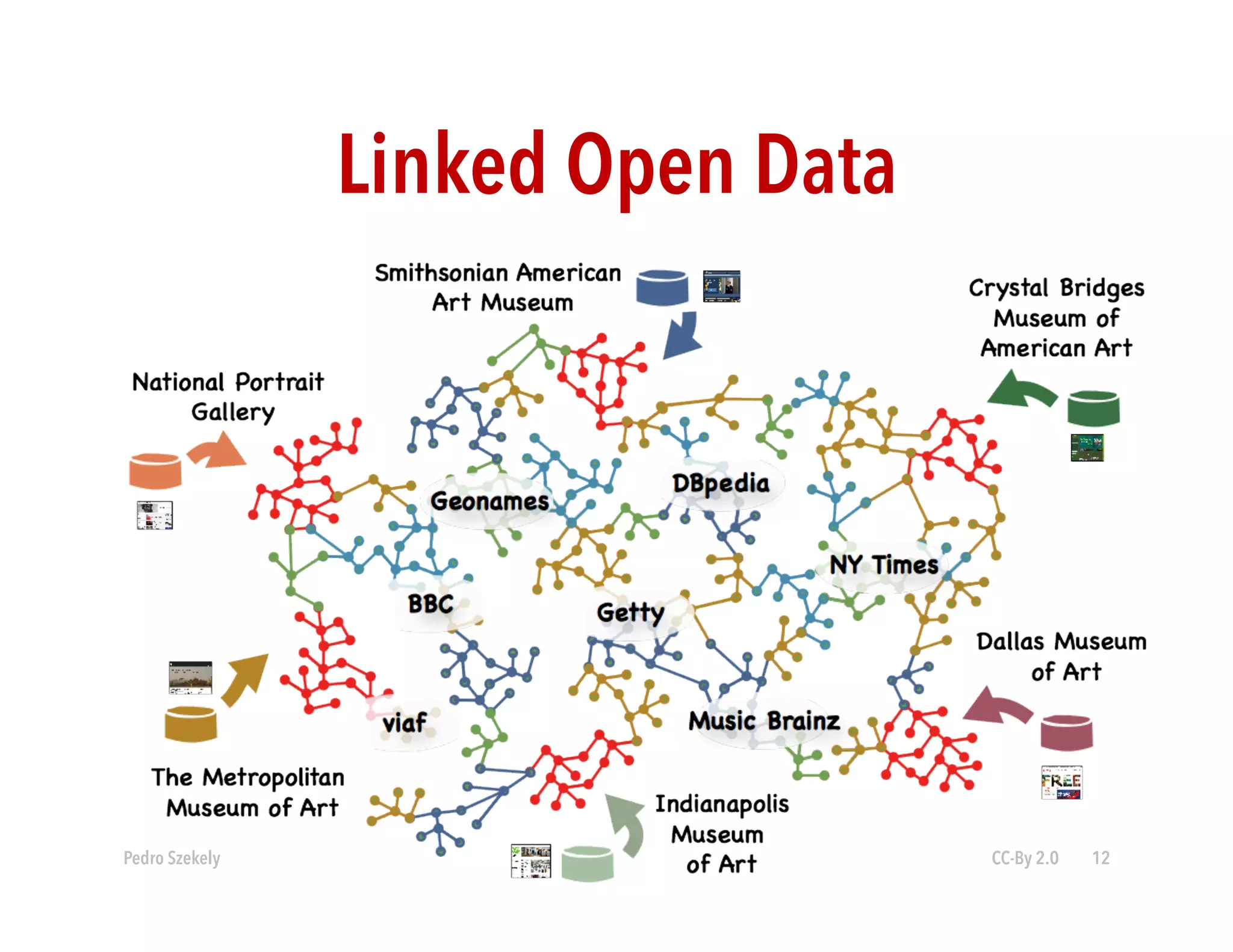

Linked Open Data
Pedro Szekely CC-By 2.0 12

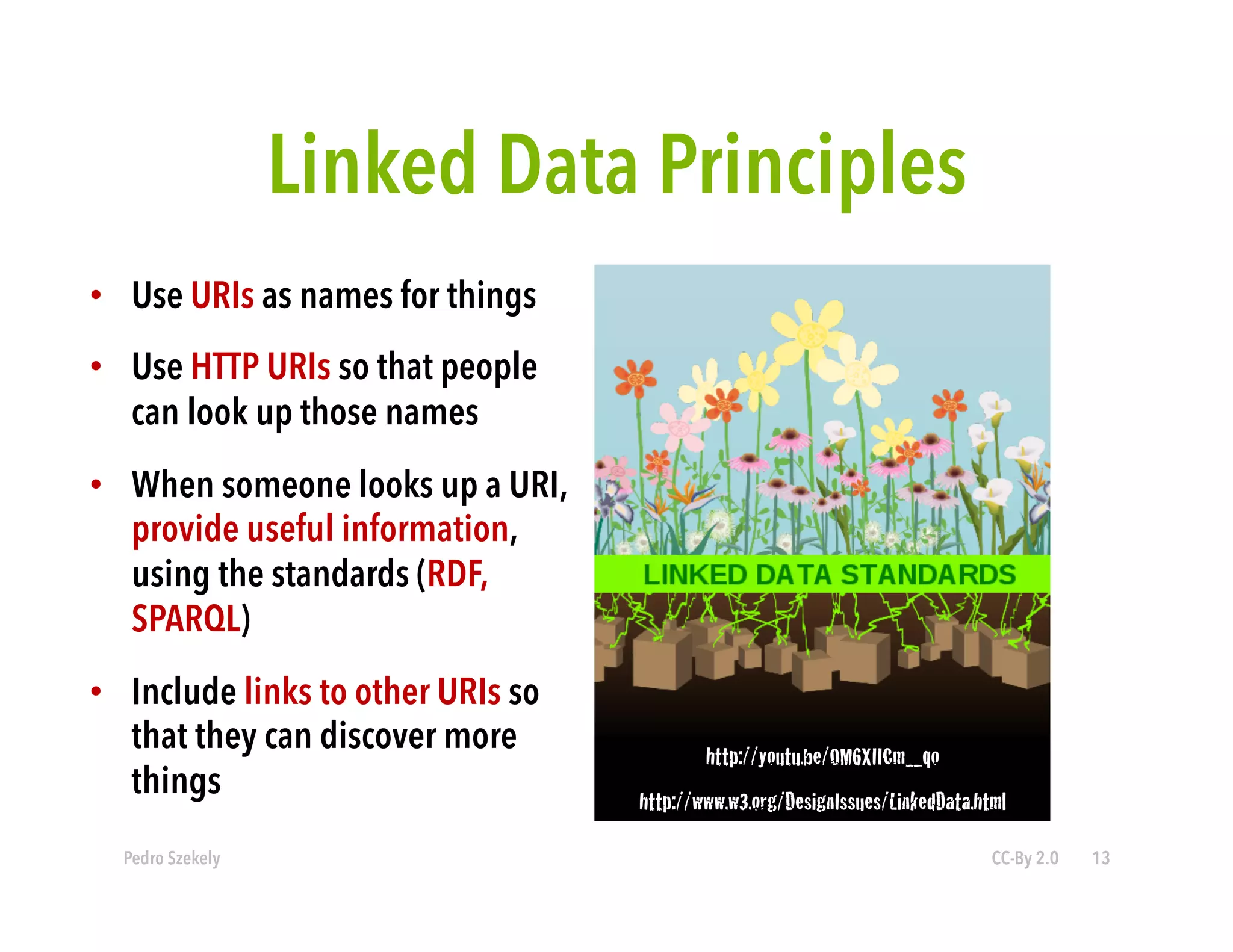

Linked Data Principles
• Use URIs as names for things
• Use HTTP URIs so that people
can look up those names
• When someone looks up a URI,
provide useful information,
using the standards (RDF,
SPARQL)
• Include links to other URIs so
that they can discover more
things http://youtu.be/OM6XIICm_qo!
http://www.w3.org/DesignIssues/LinkedData.html !
Pedro Szekely CC-By 2.0 13
Pedro Szekely

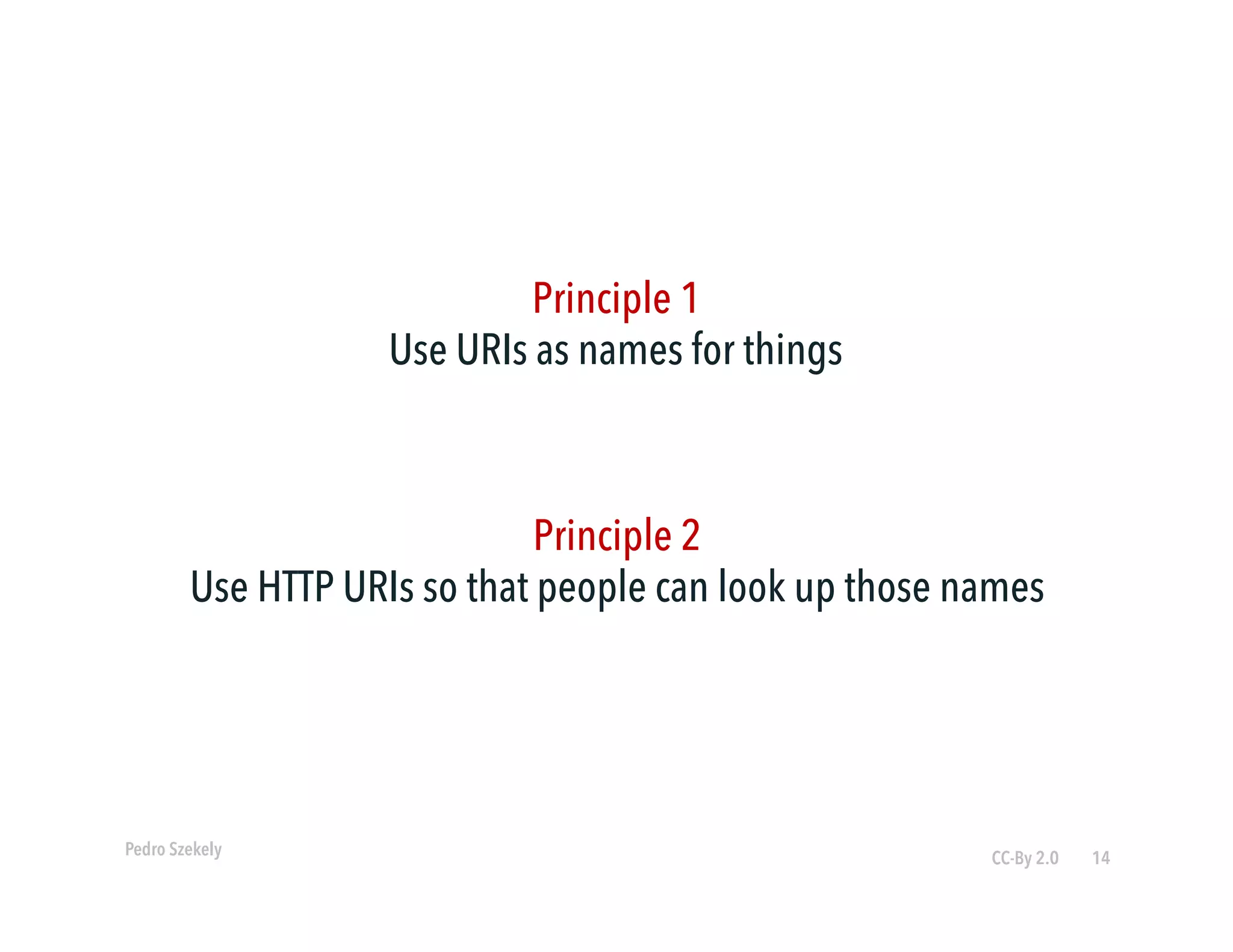

Principle 1
Use URIs as names for things
Principle 2
Use HTTP URIs so that people can look up those names
CC-By 2.0 14
Can USC Have a URI?
Pedro Szekely CC-By 2.0 15
http://dbpedia.org/resource/University_of_Southern_California
Pedro Szekely CC-By 2.0 16

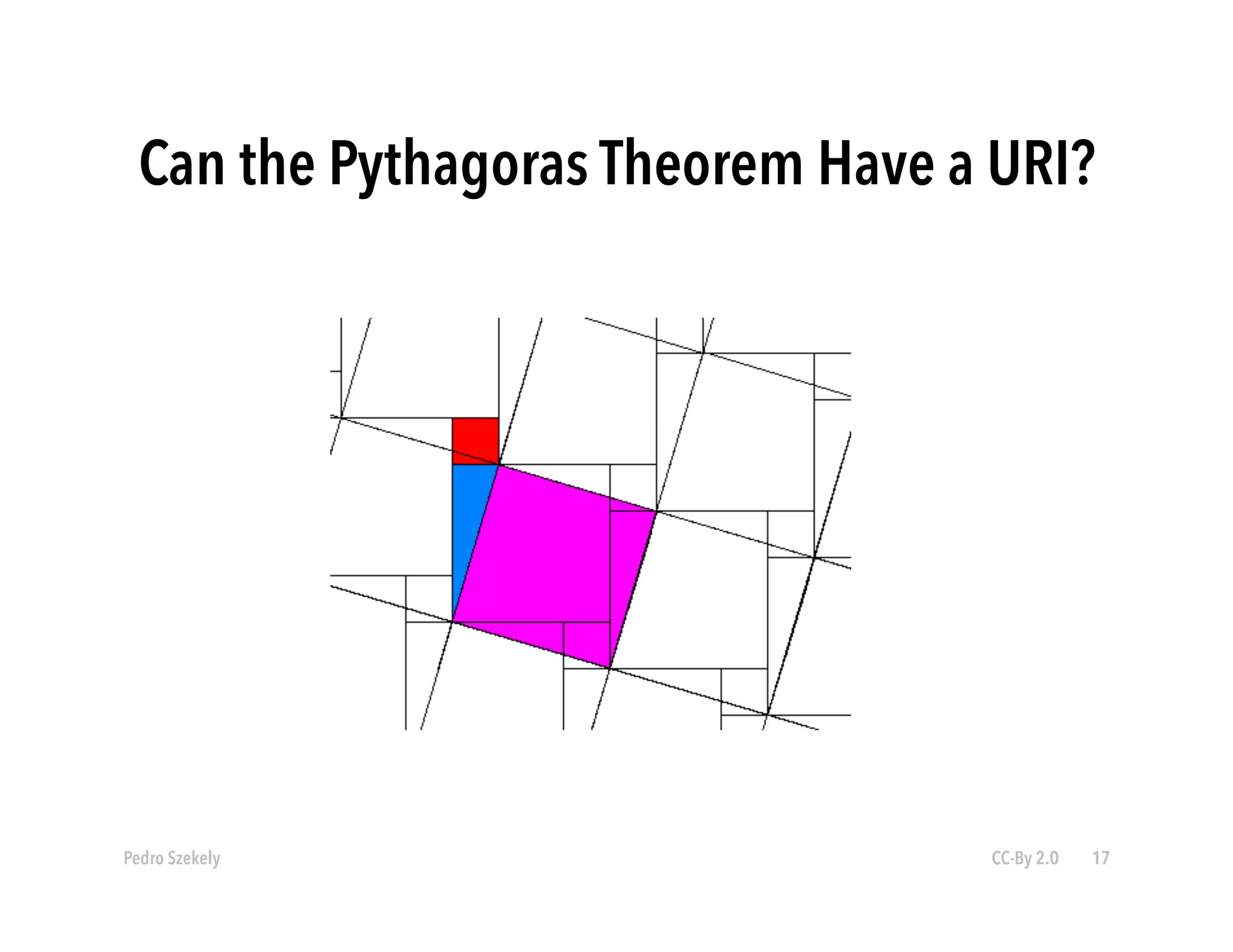

Can the Pythagoras Theorem Have a URI?
Pedro Szekely CC-By 2.0 17

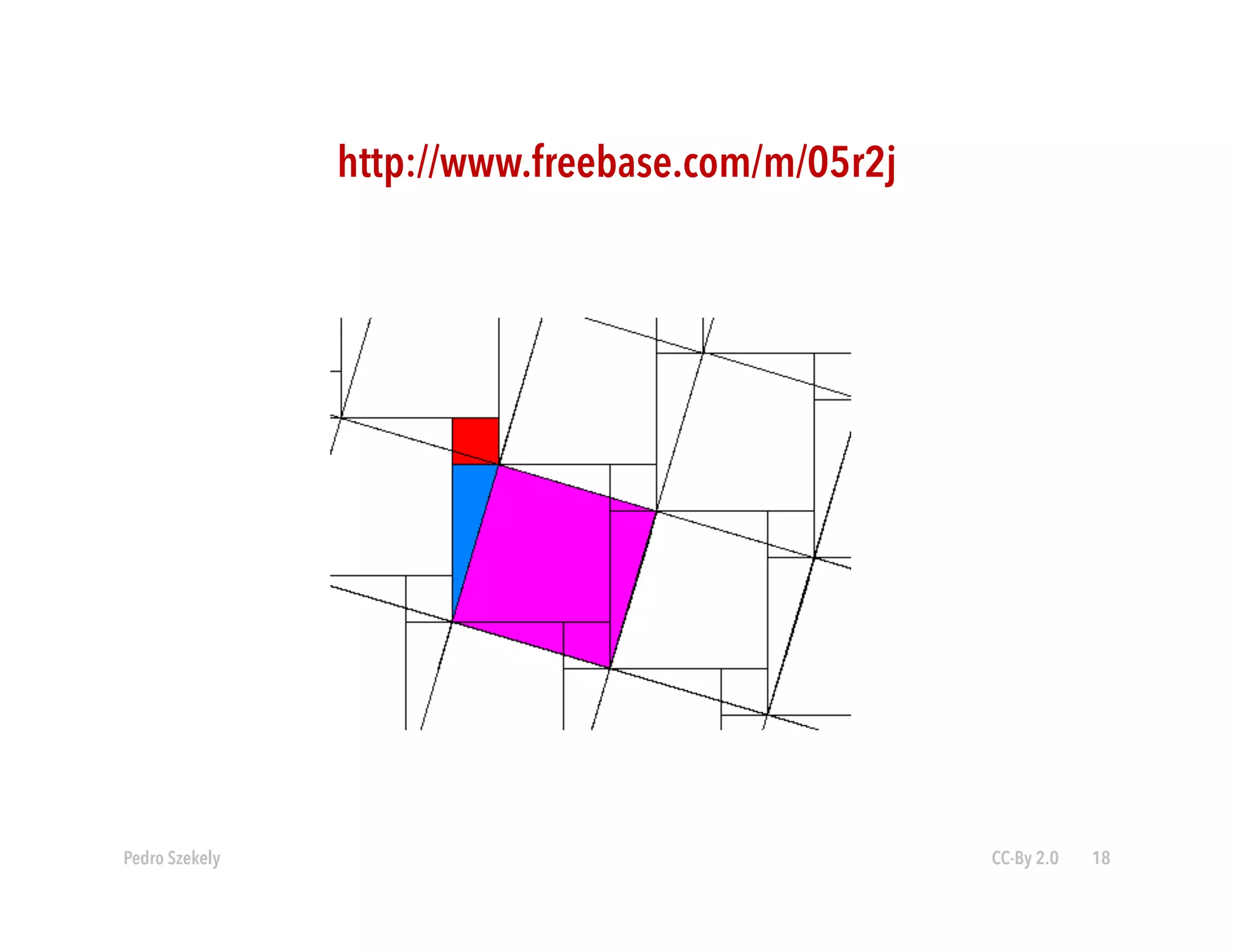

http://www.freebase.com/m/05r2j
Pedro Szekely CC-By 2.0 18
My Dog: Can He Have a URI?
Pedro Szekely CC-By 2.0 19
http://szekelys.com/diego
Pedro Szekely CC-By 2.0 20
Pedro Szekely

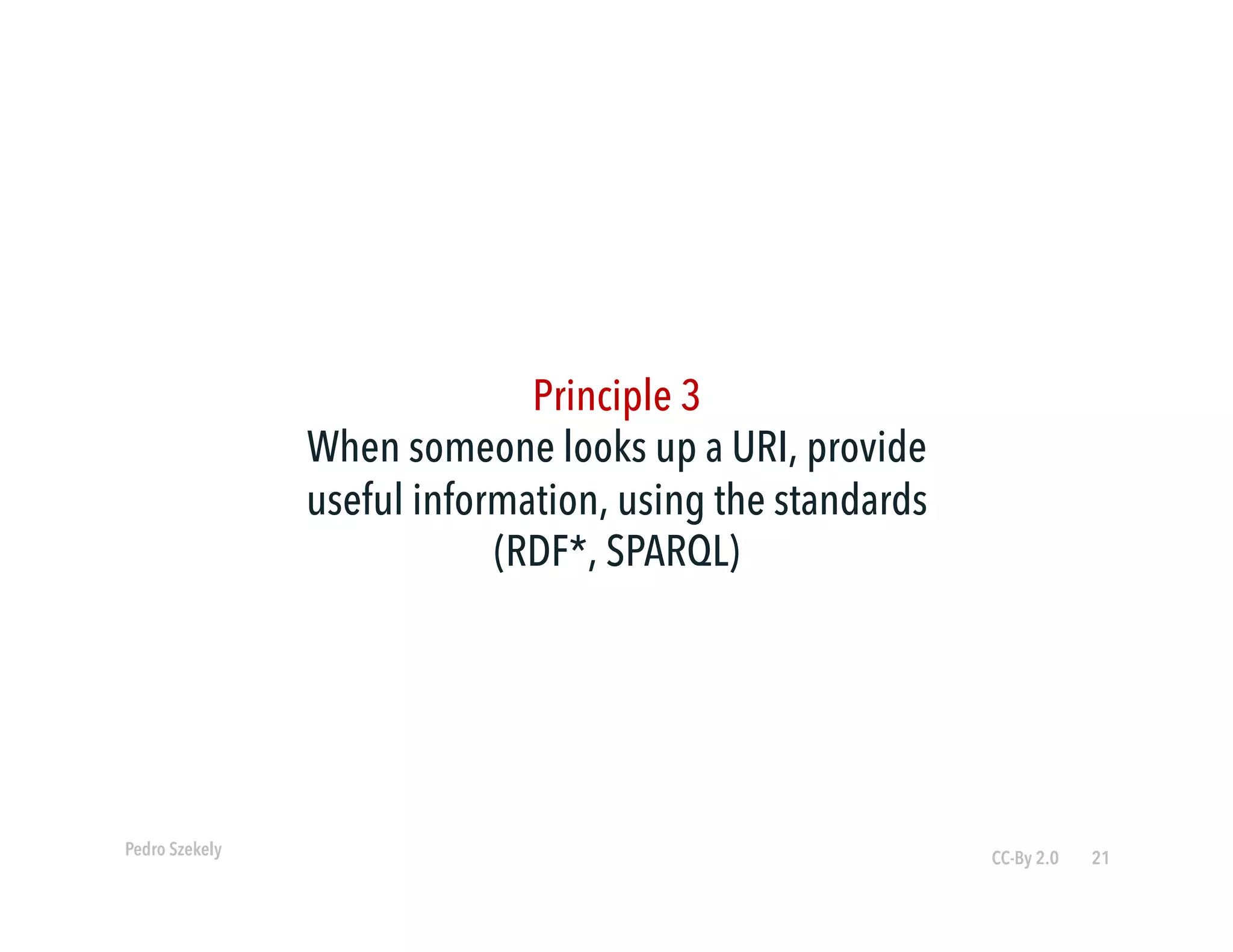

Principle 3
When someone looks up a URI, provide
useful information, using the standards
(RDF*, SPARQL)
CC-By 2.0 21
Pedro Szekely

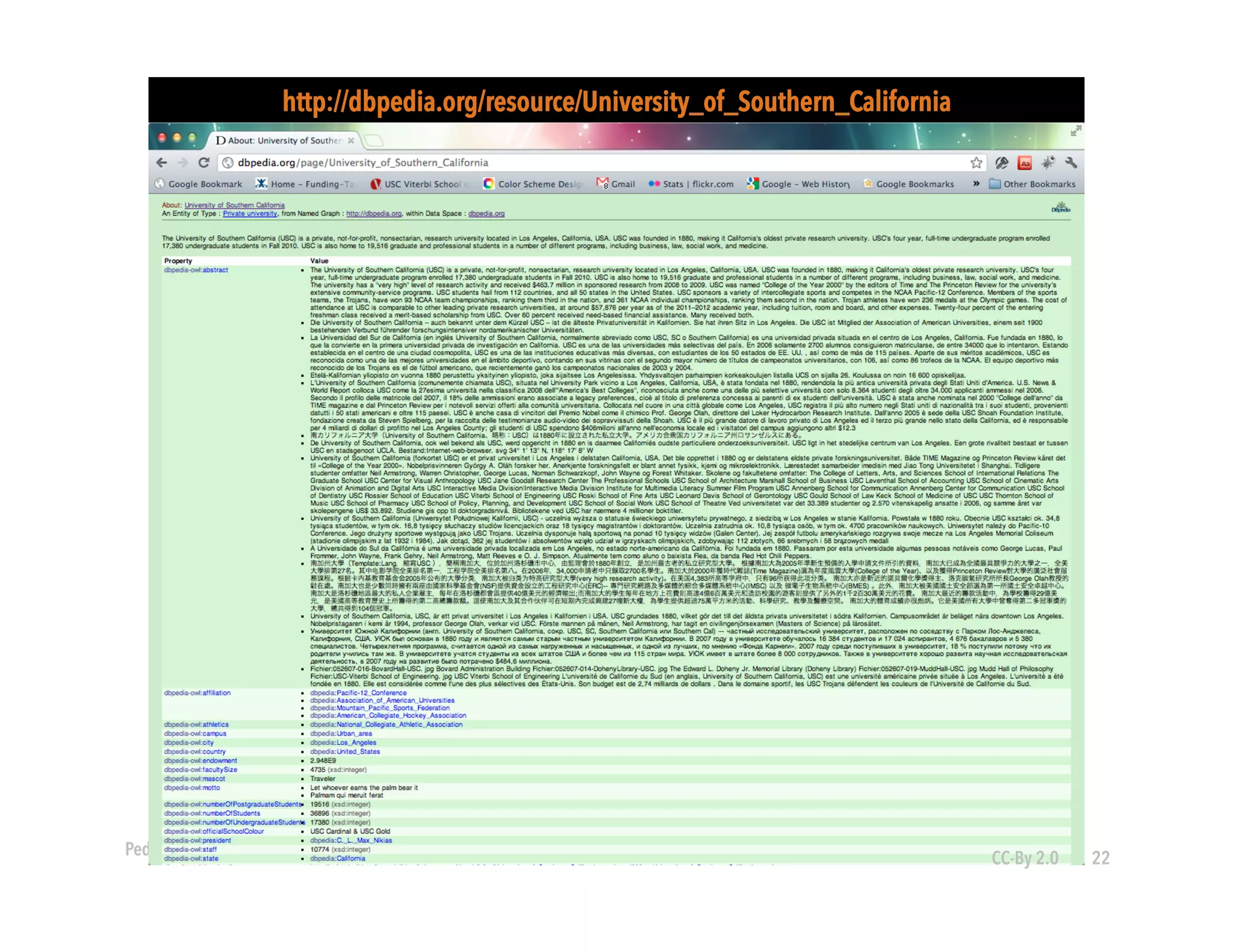

http://dbpedia.org/resource/University_of_Southern_California
CC-By 2.0 22
Pedro Szekely

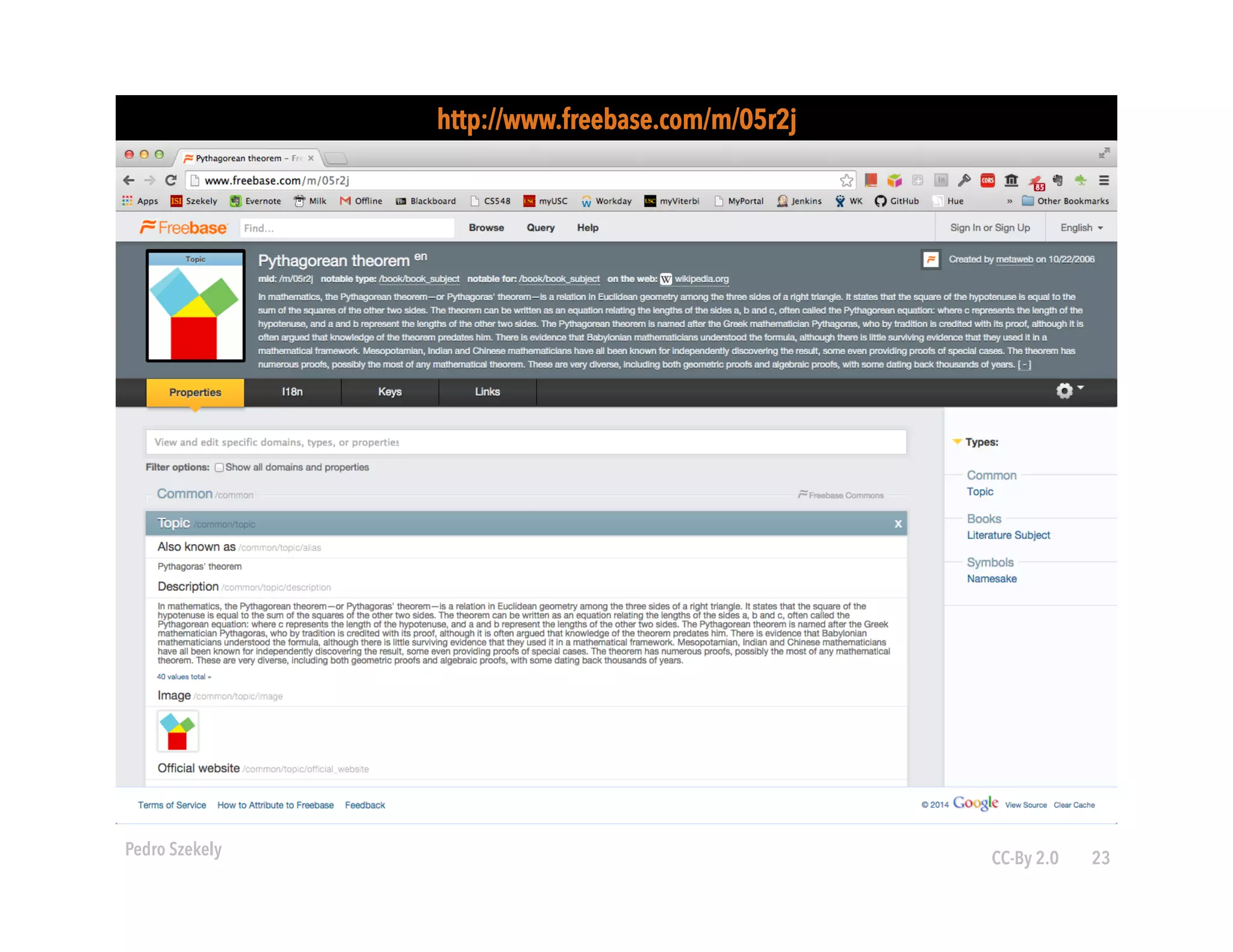

http://www.freebase.com/m/05r2j
CC-By 2.0 23

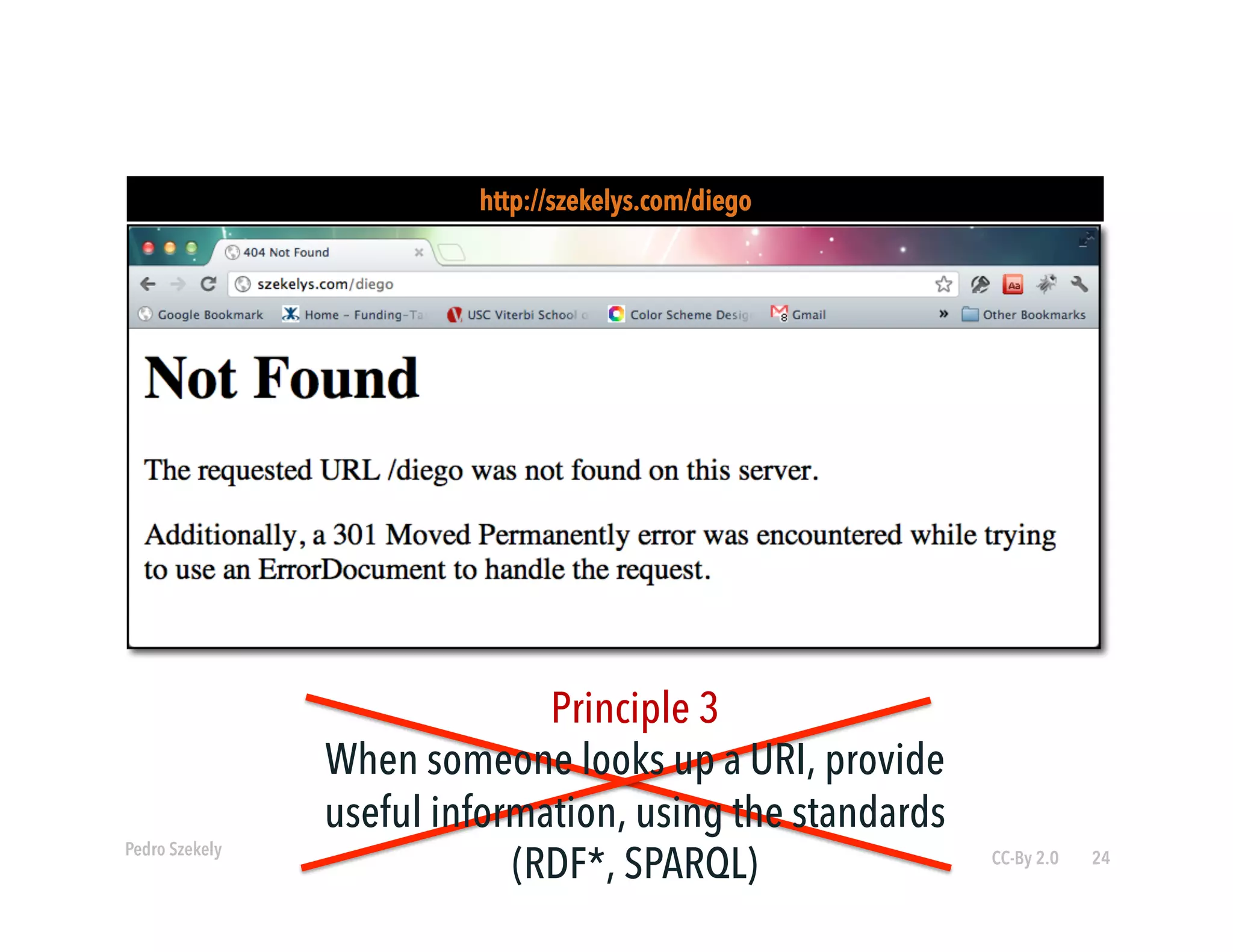

Pedro Szekely
http://szekelys.com/diego
Principle 3
When someone looks up a URI, provide
useful information, using the standards
(RDF*, SPARQL) CC-By 2.0 24
Pedro Szekely

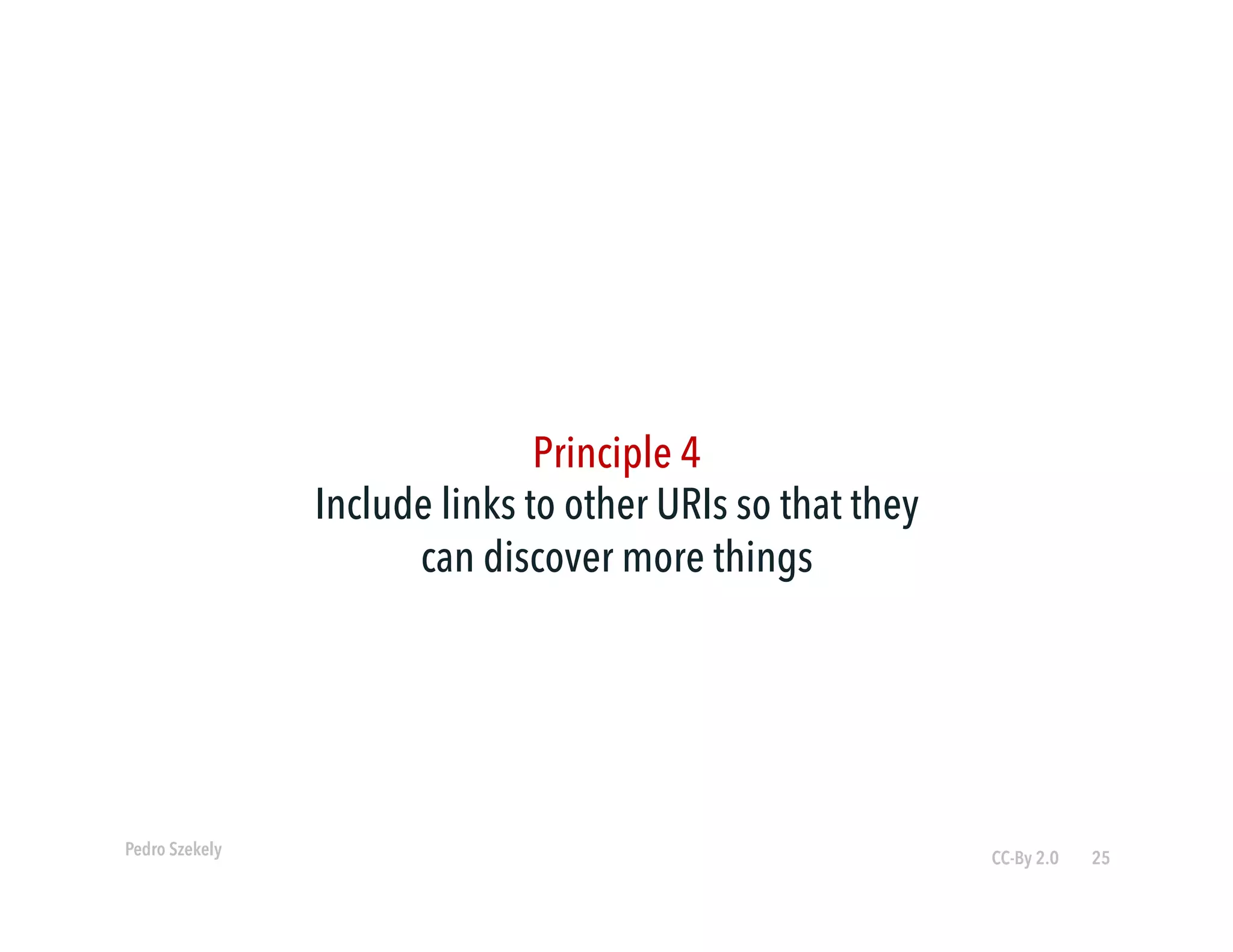

Principle 4
Include links to other URIs so that they
can discover more things
CC-By 2.0 25

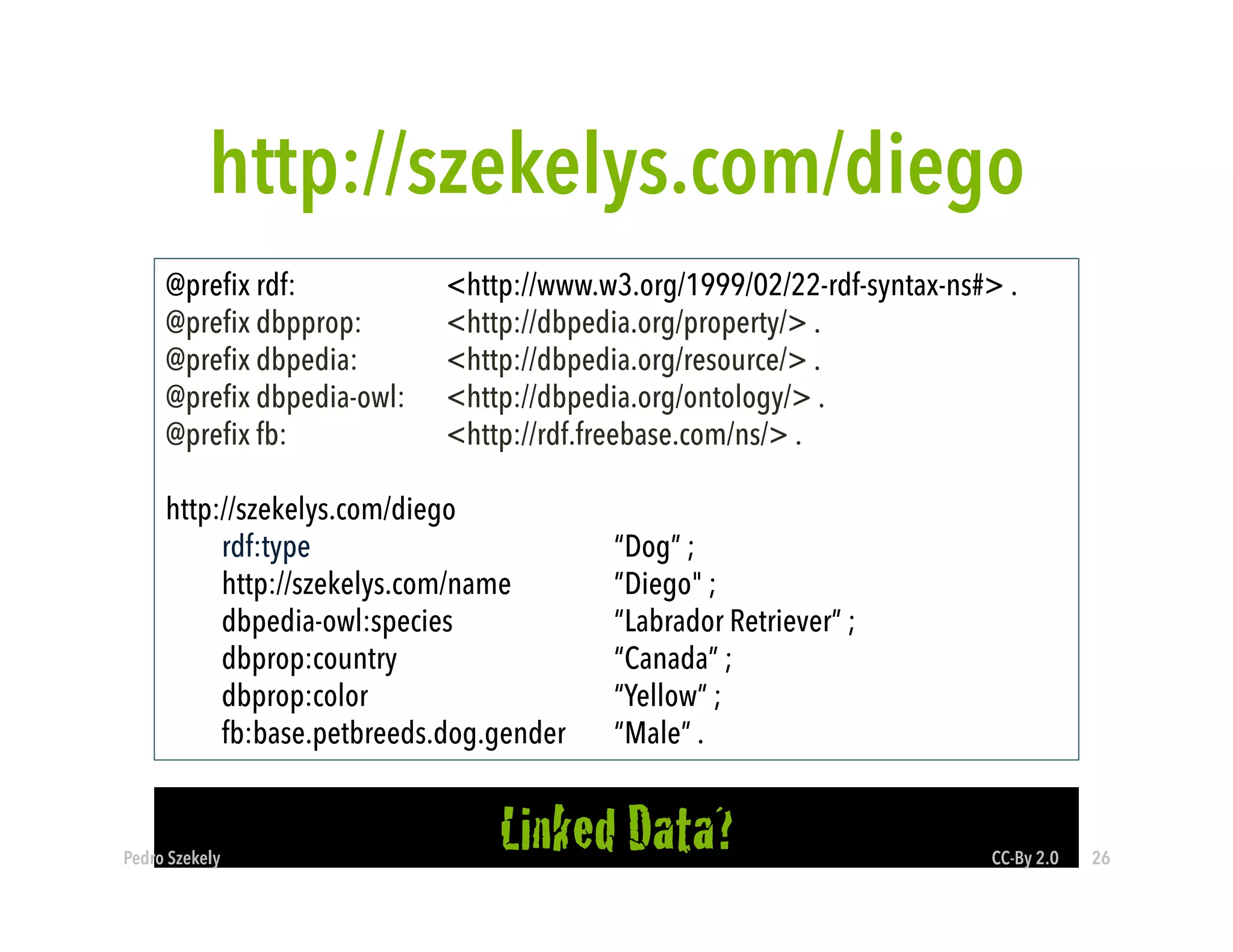

http://szekelys.com/diego
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix dbpprop: <http://dbpedia.org/property/> .
@prefix dbpedia: <http://dbpedia.org/resource/> .
@prefix dbpedia-owl: <http://dbpedia.org/ontology/> .
@prefix fb: <http://rdf.freebase.com/ns/> .
http://szekelys.com/diego
rdf:type “Dog” ;
http://szekelys.com/name ”Diego" ;
dbpedia-owl:species “Labrador Retriever” ;
dbprop:country “Canada” ;
dbprop:color “Yellow” ;
fb:base.petbreeds.dog.gender “Male” .
Linked Data?! Pedro Szekely CC-By 2.0 26

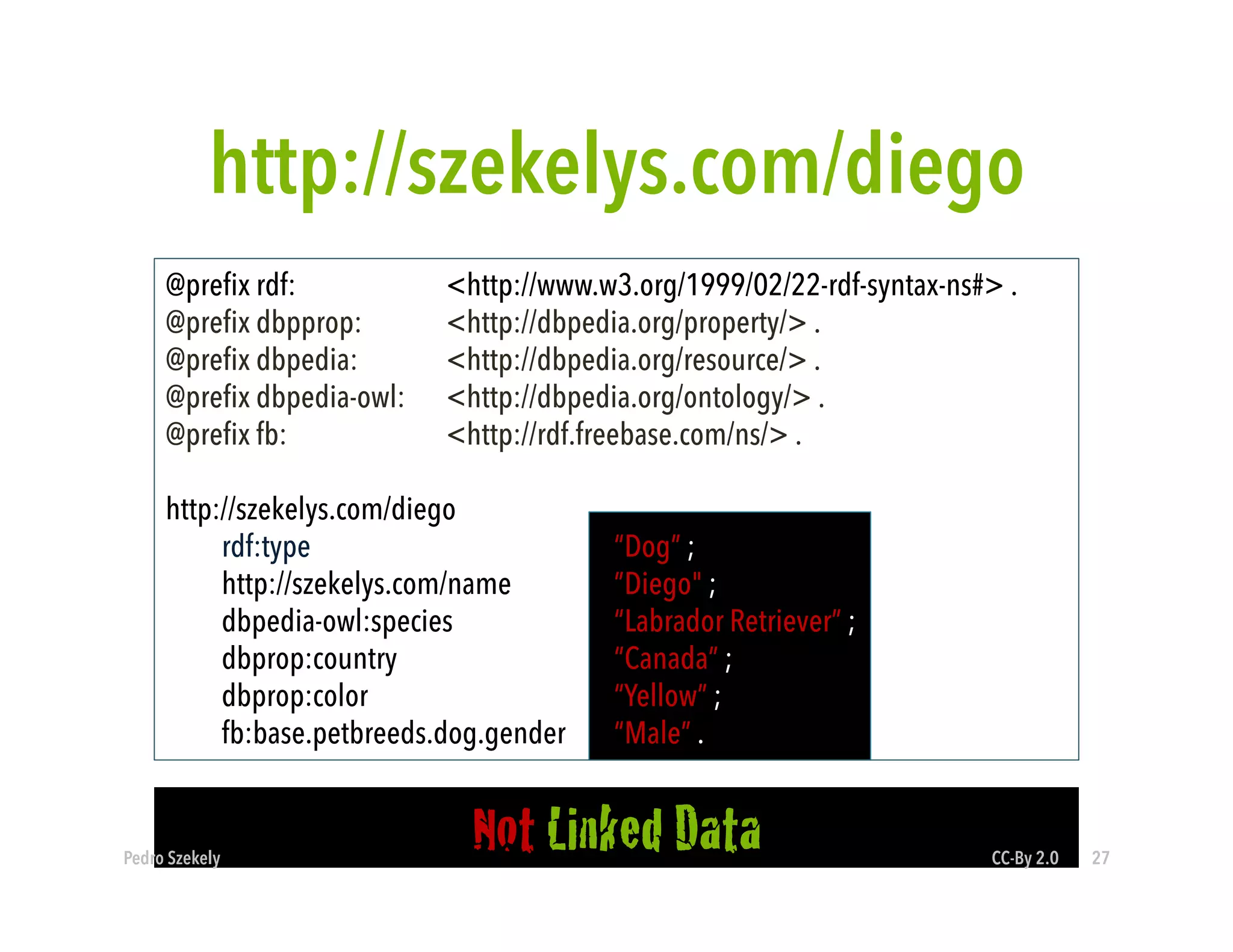

http://szekelys.com/diego
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix dbpprop: <http://dbpedia.org/property/> .
@prefix dbpedia: <http://dbpedia.org/resource/> .
@prefix dbpedia-owl: <http://dbpedia.org/ontology/> .
@prefix fb: <http://rdf.freebase.com/ns/> .
http://szekelys.com/diego
rdf:type “Dog” ;
http://szekelys.com/name ”Diego" ;
dbpedia-owl:species “Labrador Retriever” ;
dbprop:country “Canada” ;
dbprop:color “Yellow” ;
fb:base.petbreeds.dog.gender “Male” .
Not Linked Data! Pedro Szekely CC-By 2.0 27

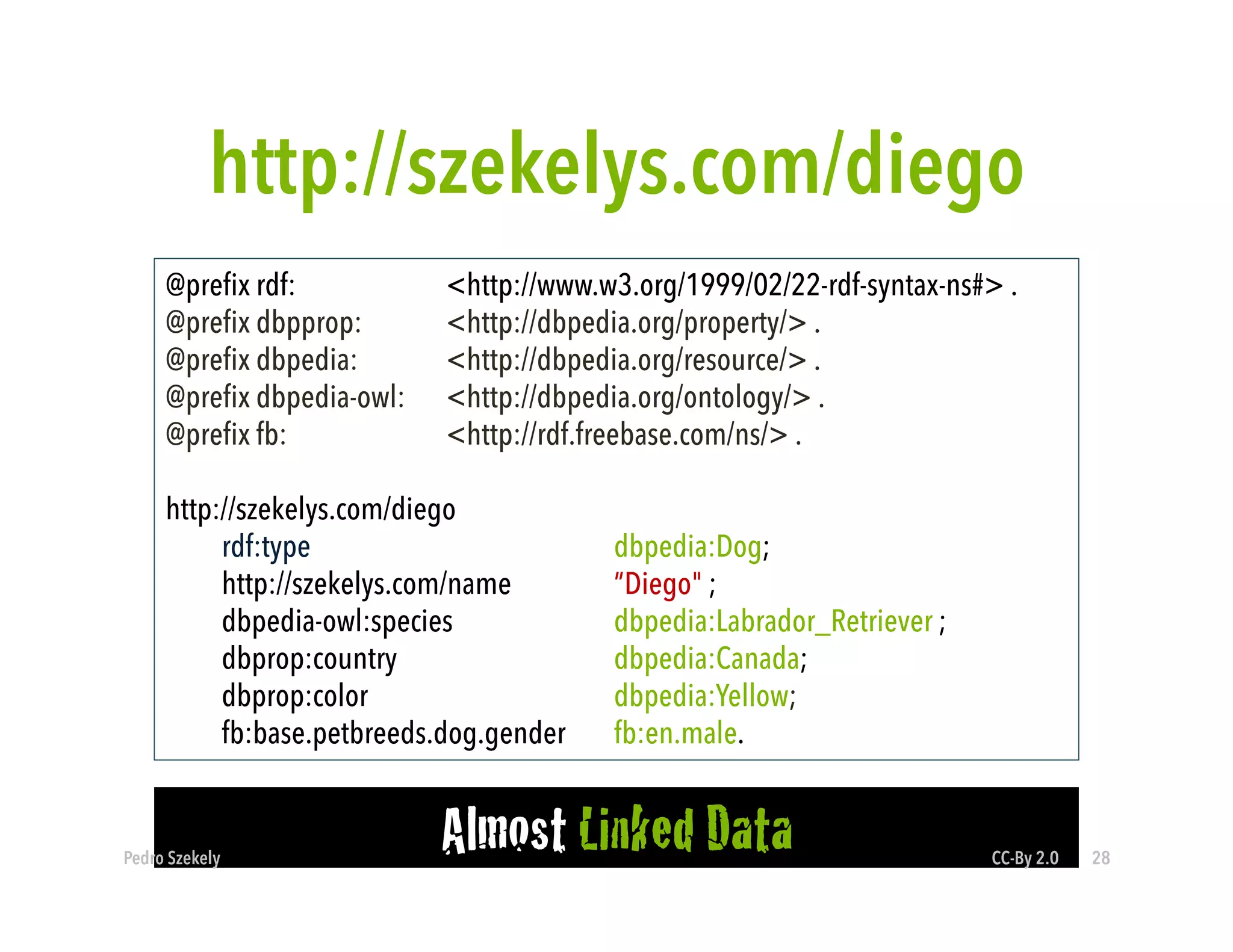

http://szekelys.com/diego
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix dbpprop: <http://dbpedia.org/property/> .
@prefix dbpedia: <http://dbpedia.org/resource/> .
@prefix dbpedia-owl: <http://dbpedia.org/ontology/> .
@prefix fb: <http://rdf.freebase.com/ns/> .
http://szekelys.com/diego
rdf:type dbpedia:Dog;
http://szekelys.com/name ”Diego" ;
dbpedia-owl:species dbpedia:Labrador_Retriever ;
dbprop:country dbpedia:Canada;
dbprop:color dbpedia:Yellow;
fb:base.petbreeds.dog.gender fb:en.male.
Almost Linked Data! Pedro Szekely CC-By 2.0 28

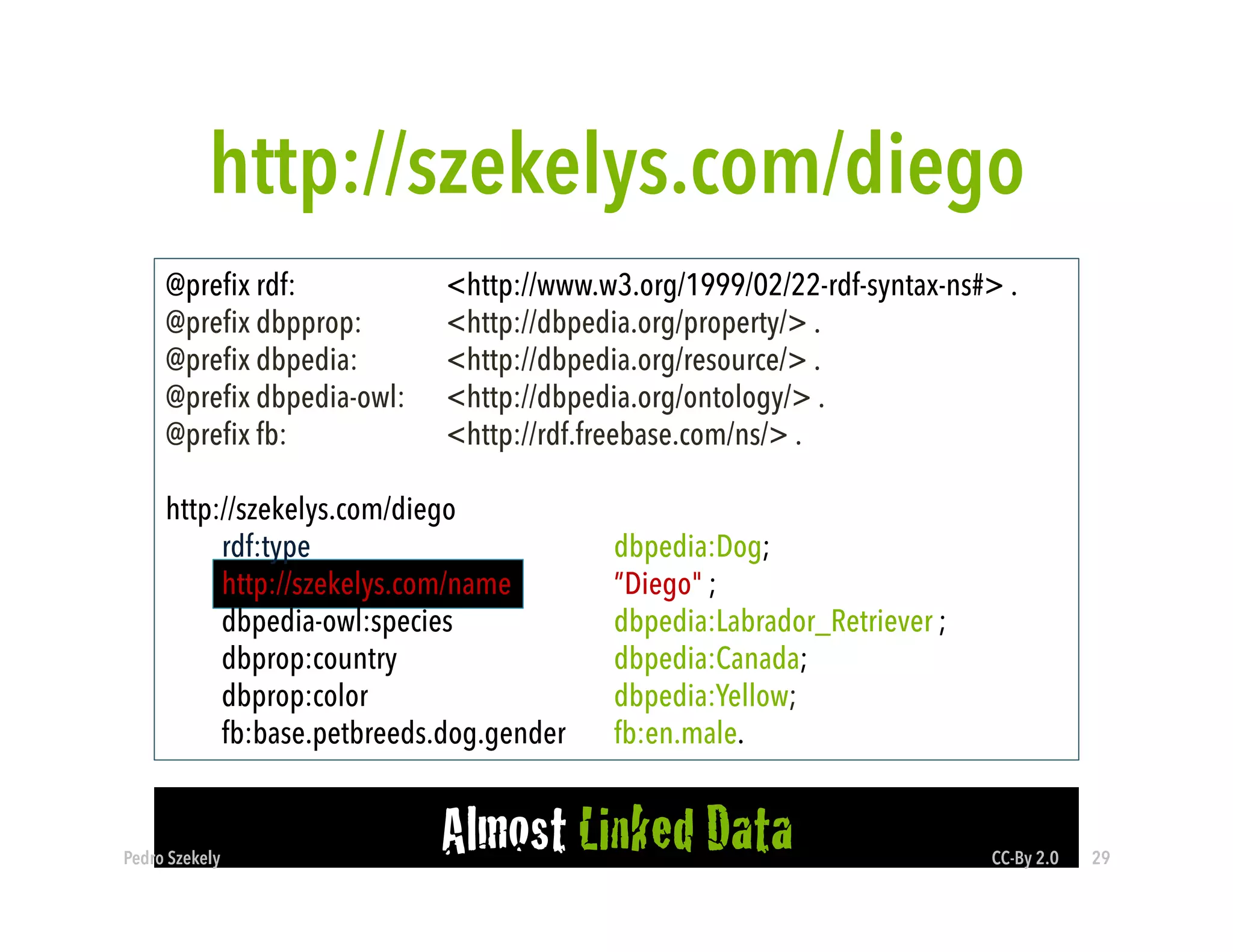

http://szekelys.com/diego
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix dbpprop: <http://dbpedia.org/property/> .
@prefix dbpedia: <http://dbpedia.org/resource/> .
@prefix dbpedia-owl: <http://dbpedia.org/ontology/> .
@prefix fb: <http://rdf.freebase.com/ns/> .
http://szekelys.com/diego
rdf:type dbpedia:Dog;
http://szekelys.com/name ”Diego" ;
dbpedia-owl:species dbpedia:Labrador_Retriever ;
dbprop:country dbpedia:Canada;
dbprop:color dbpedia:Yellow;
fb:base.petbreeds.dog.gender fb:en.male.
Almost Linked Data! Pedro Szekely CC-By 2.0 29

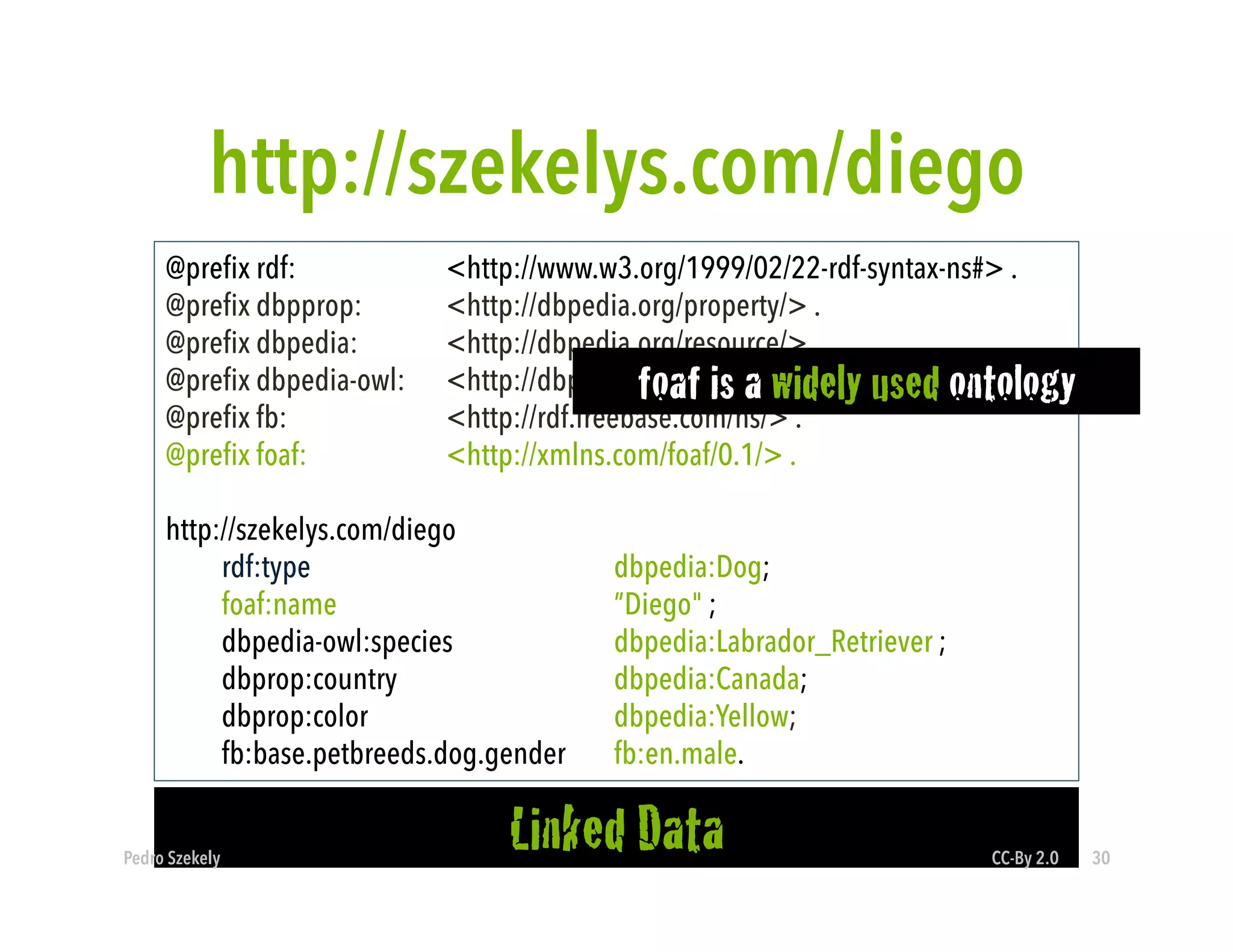

http://szekelys.com/diego
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix dbpprop: <http://dbpedia.org/property/> .
@prefix dbpedia: <http://dbpedia.org/resource/> .
@prefix dbpedia-owl: <http://dbpedia.org/ontology/> .
@prefix fb: <http://rdf.freebase.com/ns/> .
@prefix foaf: <http://xmlns.com/foaf/0.1/> .
http://szekelys.com/diego
foaf is a widely used ontology!
rdf:type dbpedia:Dog;
foaf:name ”Diego" ;
dbpedia-owl:species dbpedia:Labrador_Retriever ;
dbprop:country dbpedia:Canada;
dbprop:color dbpedia:Yellow;
fb:base.petbreeds.dog.gender fb:en.male.
Linked Data!
Pedro Szekely CC-By 2.0 30
Pedro Szekely
RDF!
CC-By 2.0 31

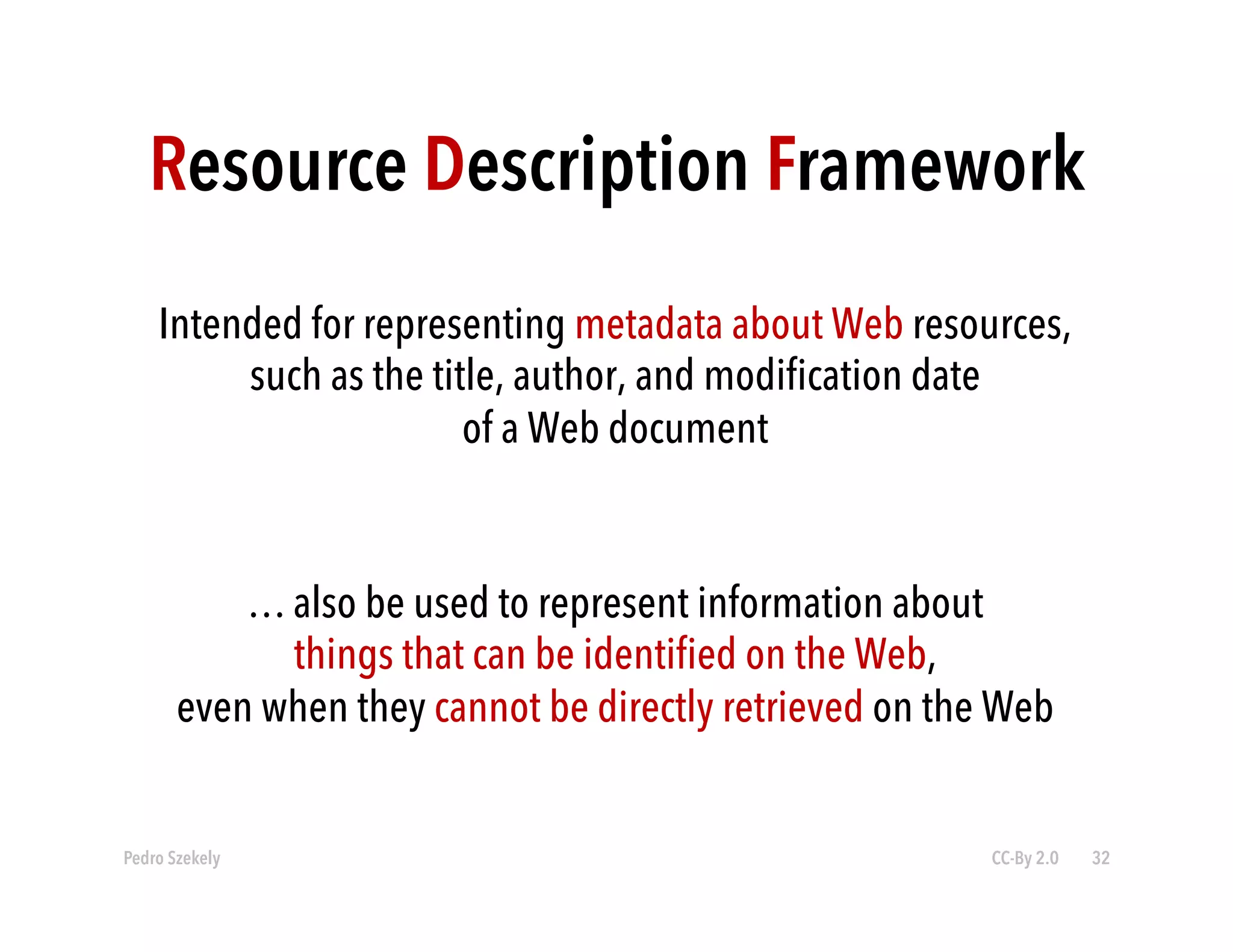

Resource Description Framework
Intended for representing metadata about Web resources,
such as the title, author, and modification date
of a Web document
… also be used to represent information about
things that can be identified on the Web,
even when they cannot be directly retrieved on the Web
Pedro Szekely CC-By 2.0 32

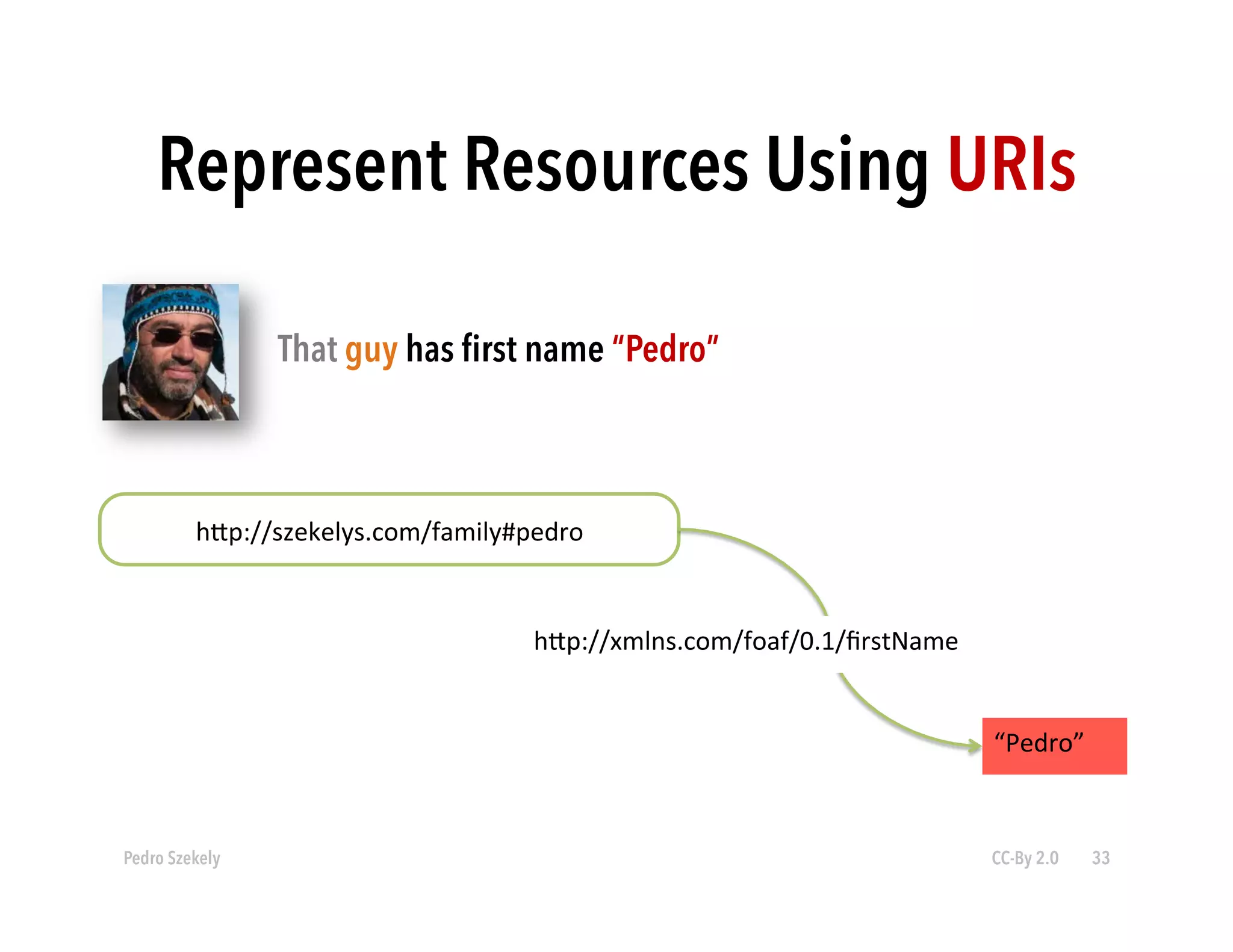

Represent Resources Using URIs
That guy has first name “Pedro”
h&p://szekelys.com/family#pedro
“Pedro”
h&p://xmlns.com/foaf/0.1/firstName
Pedro Szekely CC-By 2.0 33

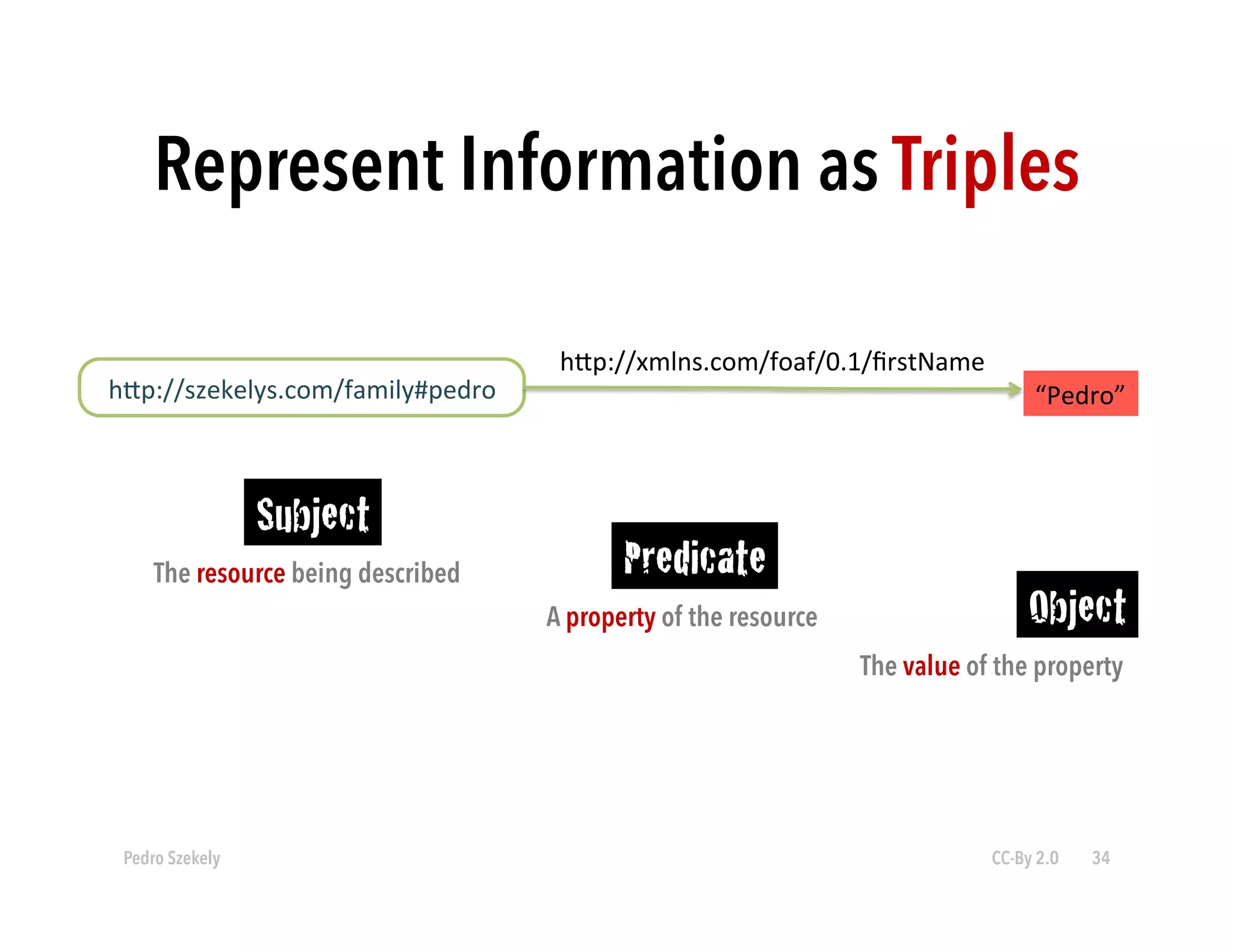

Represent Information as Triples
h&p://szekelys.com/family#pedro
h&p://xmlns.com/foaf/0.1/firstName
Subject!
Predicate!
“Pedro”
The resource being described
A property of the resource
Object! The value of the property
Pedro Szekely CC-By 2.0 34

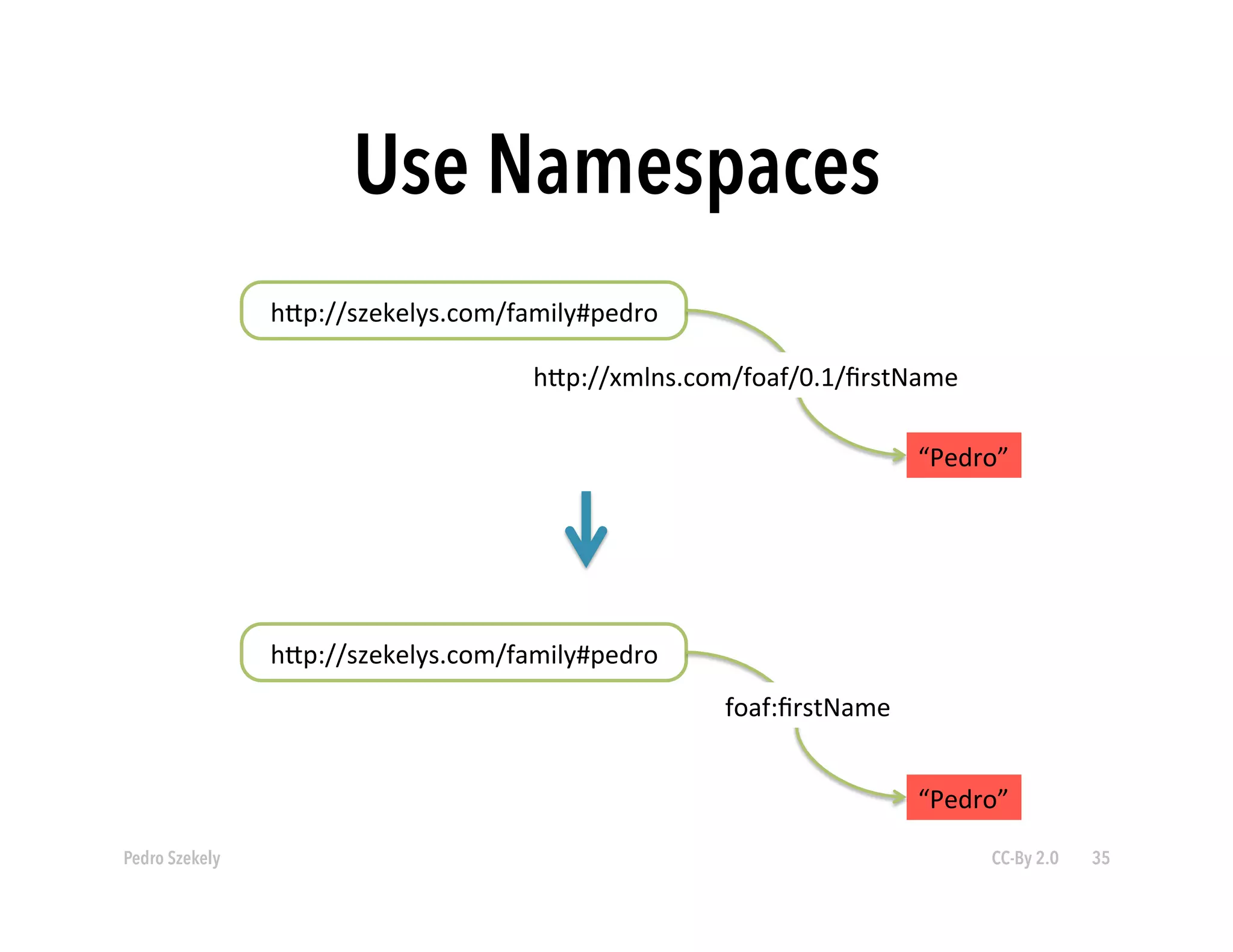

Use Namespaces
h&p://xmlns.com/foaf/0.1/firstName
h&p://szekelys.com/family#pedro
“Pedro”
foaf:firstName
h&p://szekelys.com/family#pedro
“Pedro”
Pedro Szekely CC-By 2.0 35

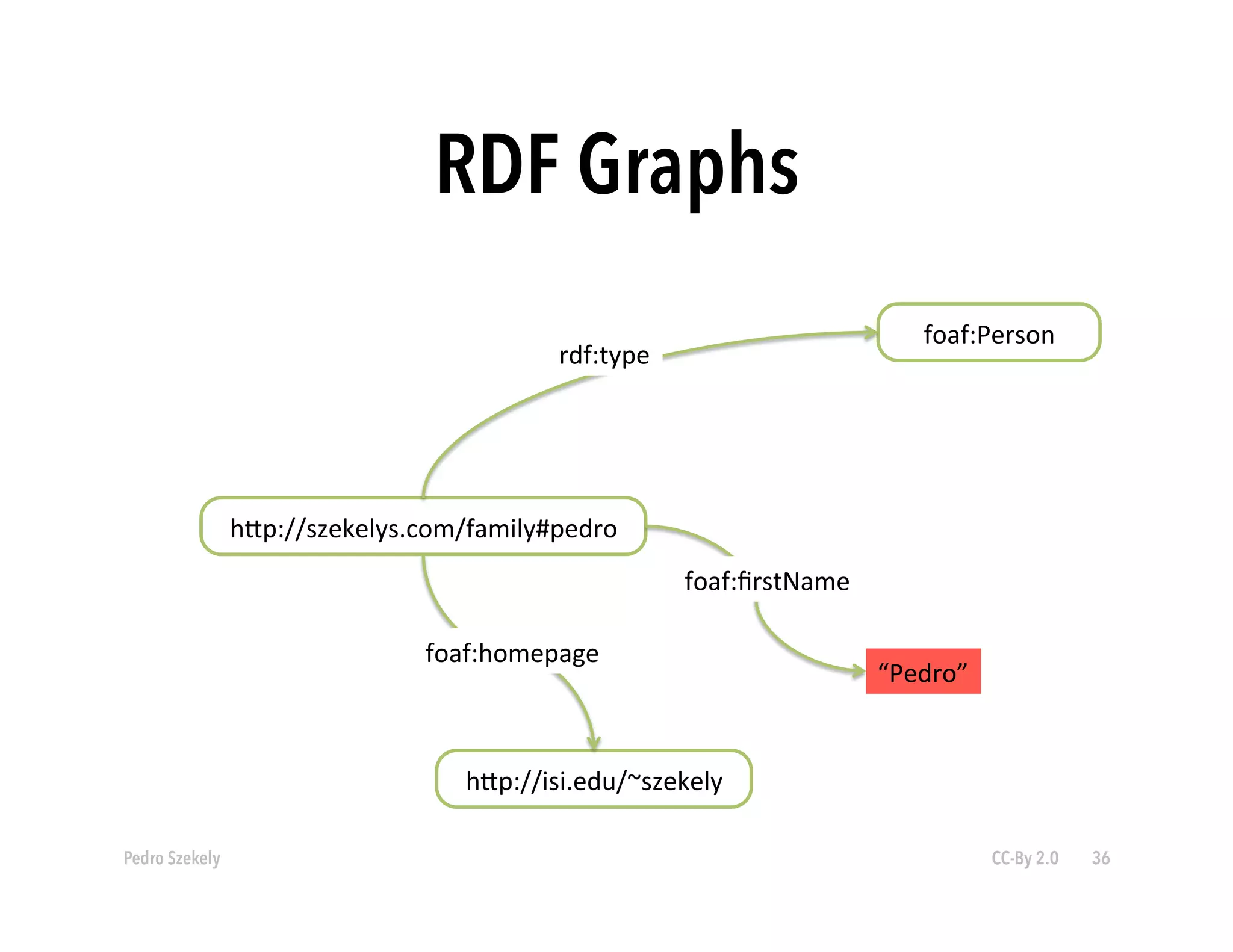

RDF Graphs
h&p://szekelys.com/family#pedro
“Pedro”
foaf:firstName
foaf:Person
rdf:type
foaf:homepage
h&p://isi.edu/~szekely
Pedro Szekely CC-By 2.0 36

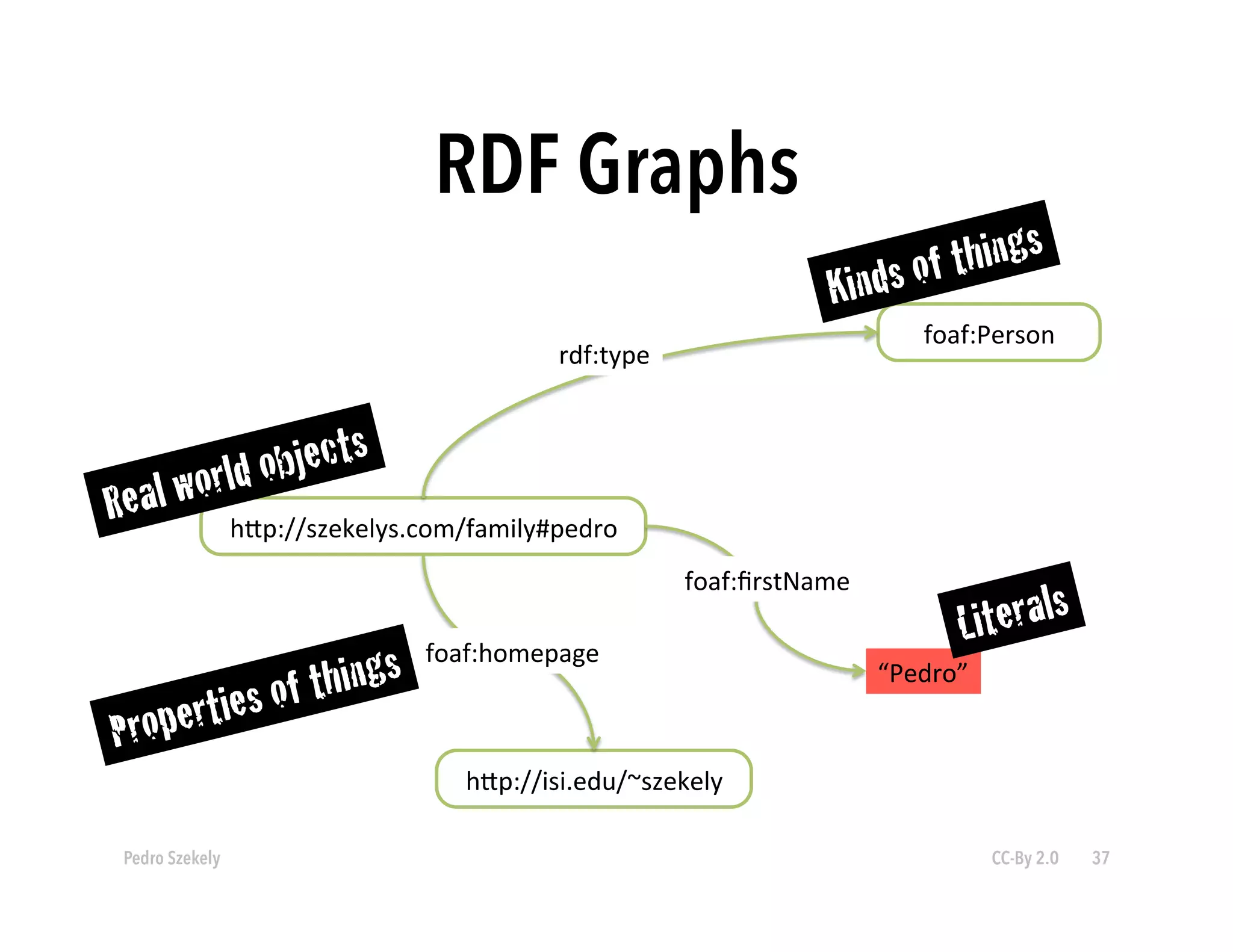

RDF Graphs
Real world objects! Kinds of things!
h&p://szekelys.com/family#pedro
“Pedro”
foaf:firstName
foaf:Person
rdf:type
foaf:homepage
h&p://isi.edu/~szekely
Literals!
Properties of things!
Pedro Szekely CC-By 2.0 37

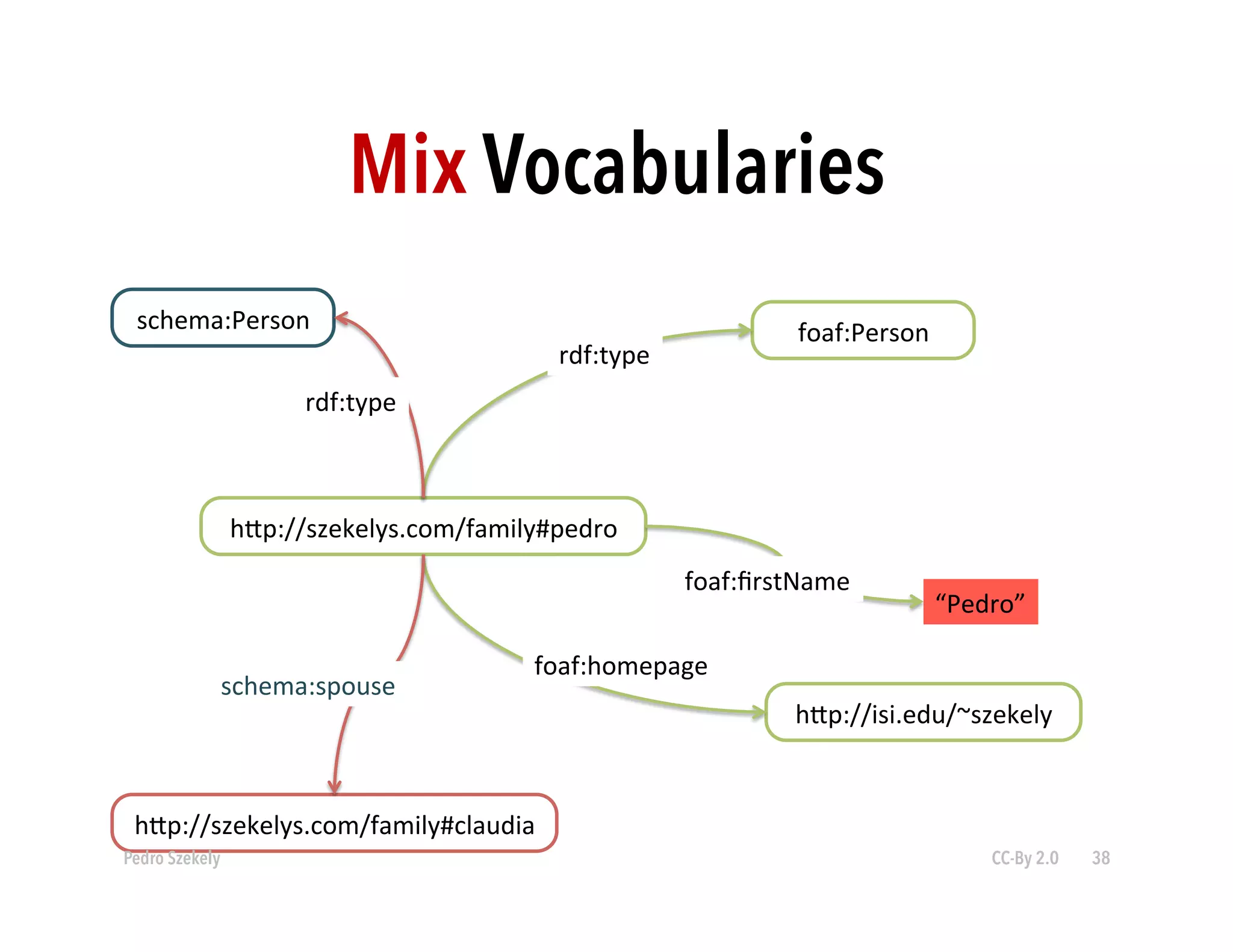

Mix Vocabularies
h&p://szekelys.com/family#pedro
“Pedro”
foaf:Person
foaf:firstName
rdf:type
h&p://isi.edu/~szekely
foaf:homepage
schema:Person
rdf:type
schema:spouse
h&p://szekelys.com/family#claudia
Pedro Szekely CC-By 2.0 38
Linked Open Data
Pedro Szekely CC-By 2.0 39
Tools to Convert Data
Pedro Szekely
to RDF!
CC-By 2.0 40

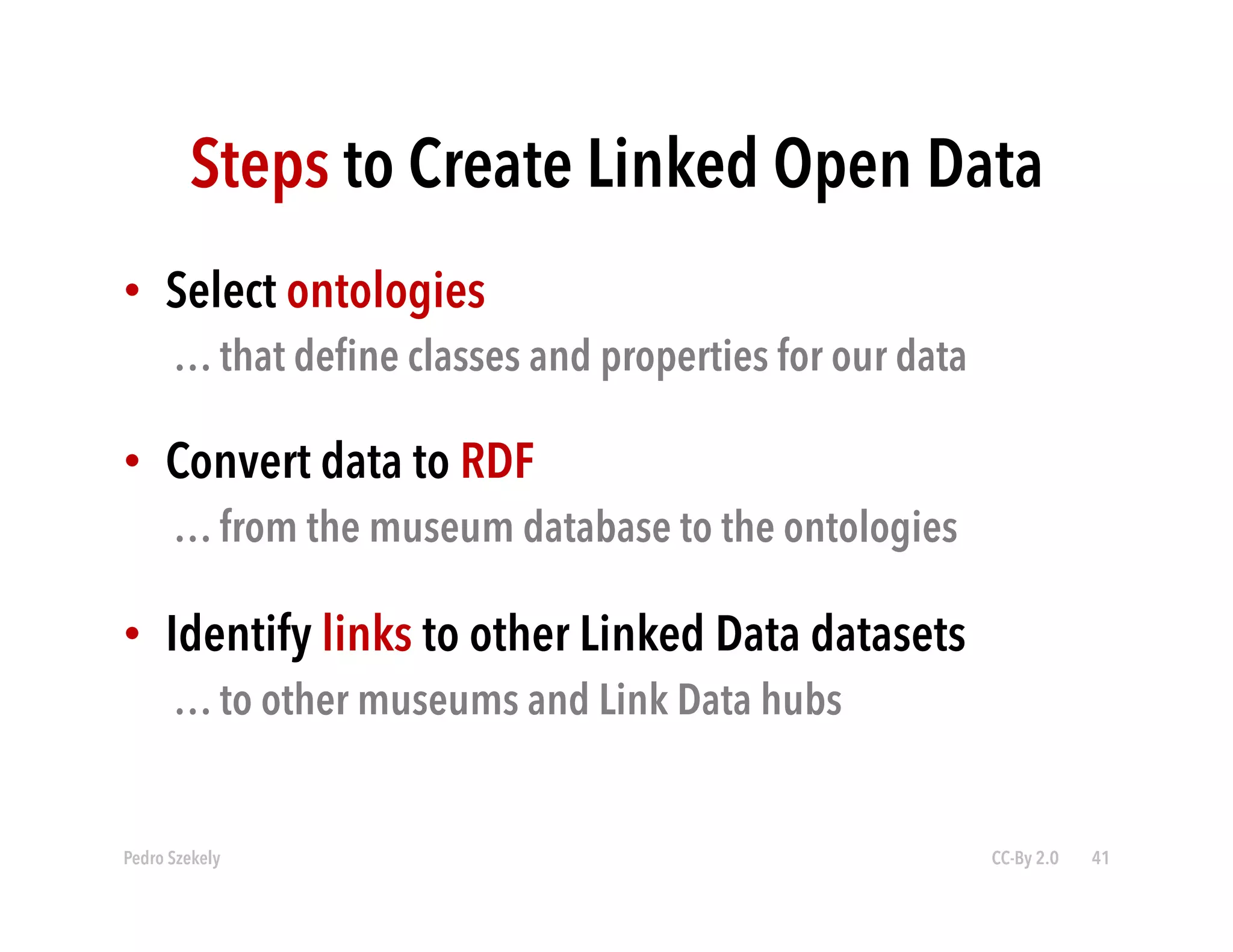

Steps to Create Linked Open Data
• Select ontologies
… that define classes and properties for our data
• Convert data to RDF
… from the museum database to the ontologies
• Identify links to other Linked Data datasets
… to other museums and Link Data hubs
Pedro Szekely CC-By 2.0 41

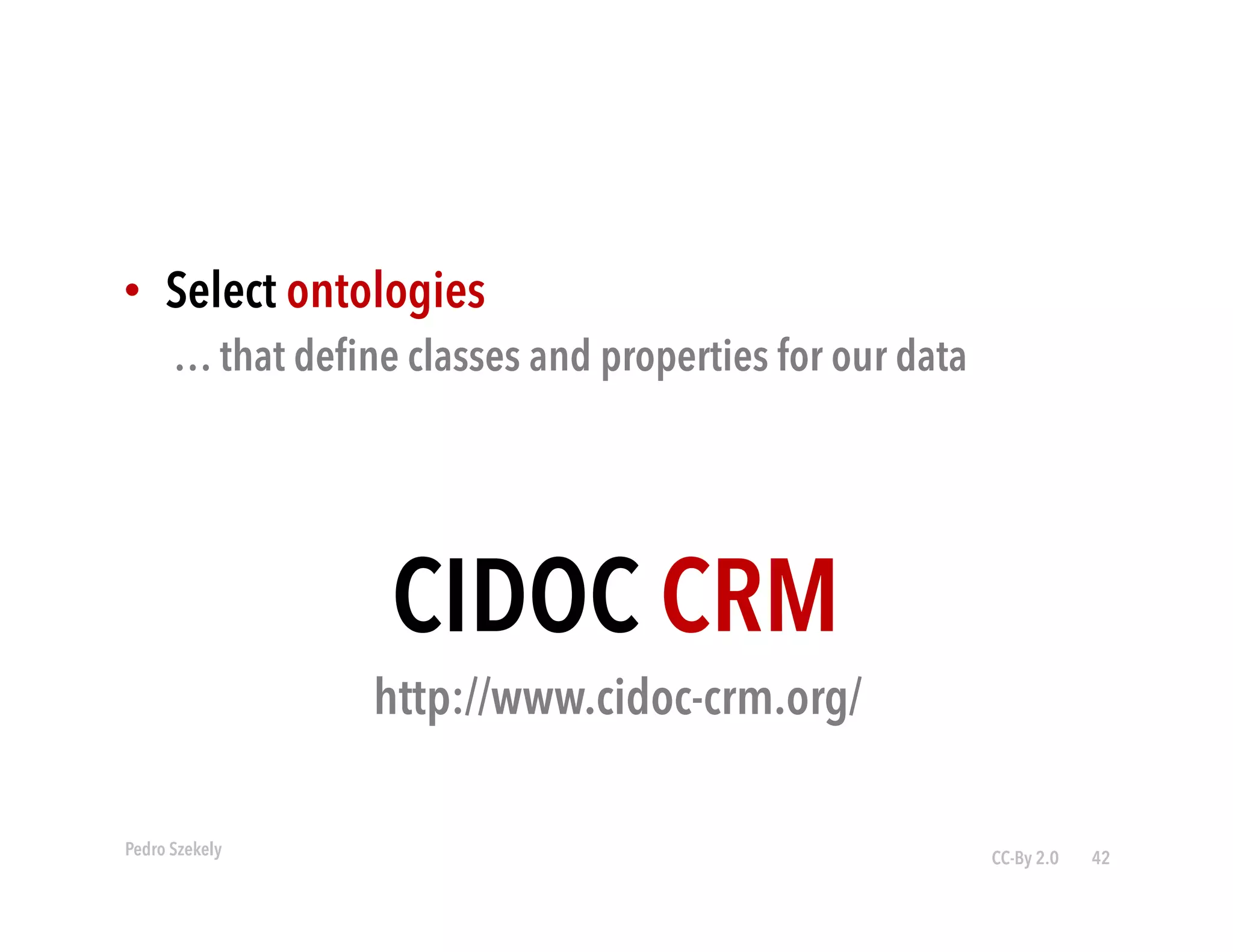

• Select ontologies
… that define classes and properties for our data
CIDOC CRM
http://www.cidoc-crm.org/
Pedro Szekely CC-By 2.0 42

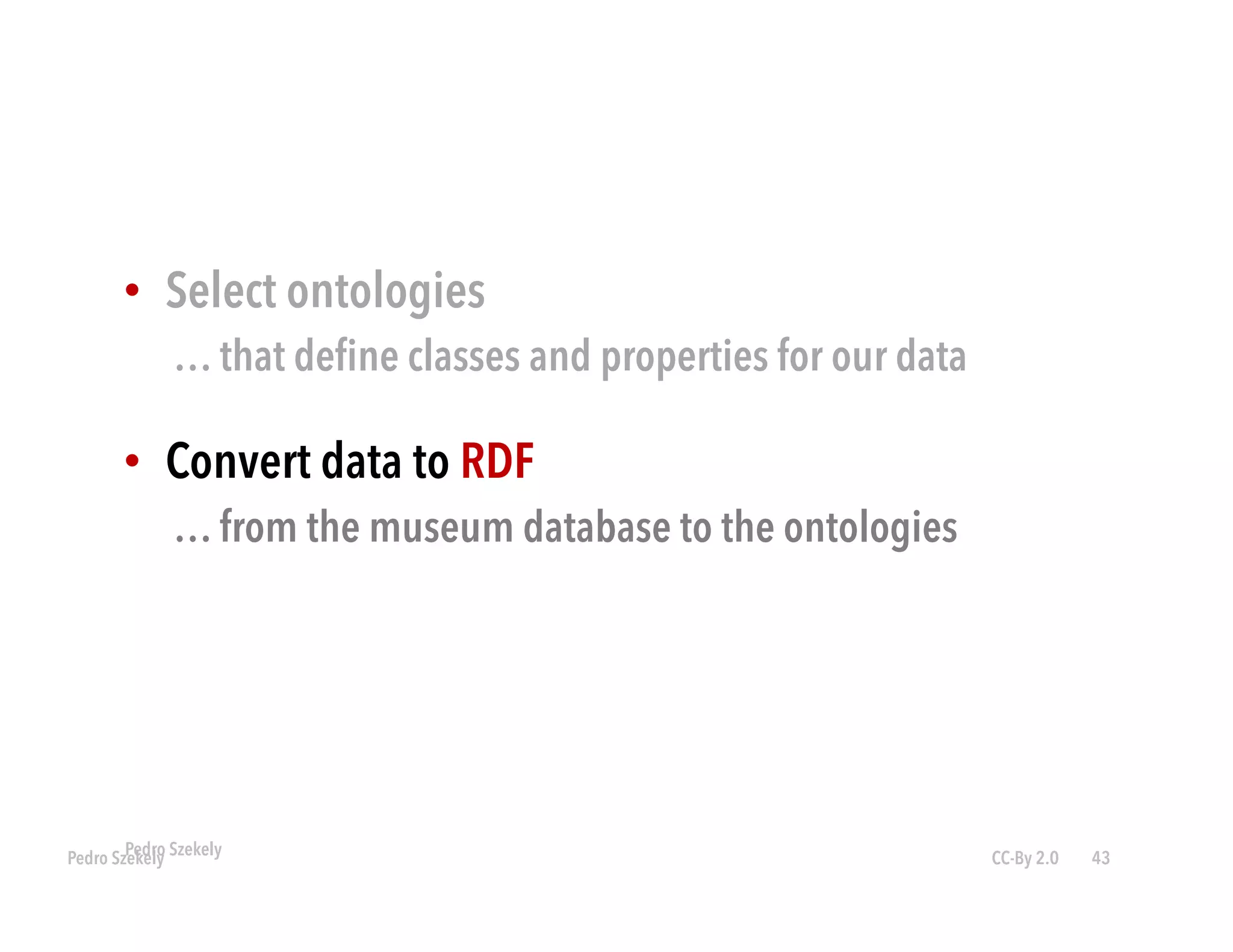

• Select ontologies
… that define classes and properties for our data
• Convert data to RDF
… from the museum database to the ontologies
Pedro SzPeekderlyo Szekely CC-By 2.0 43

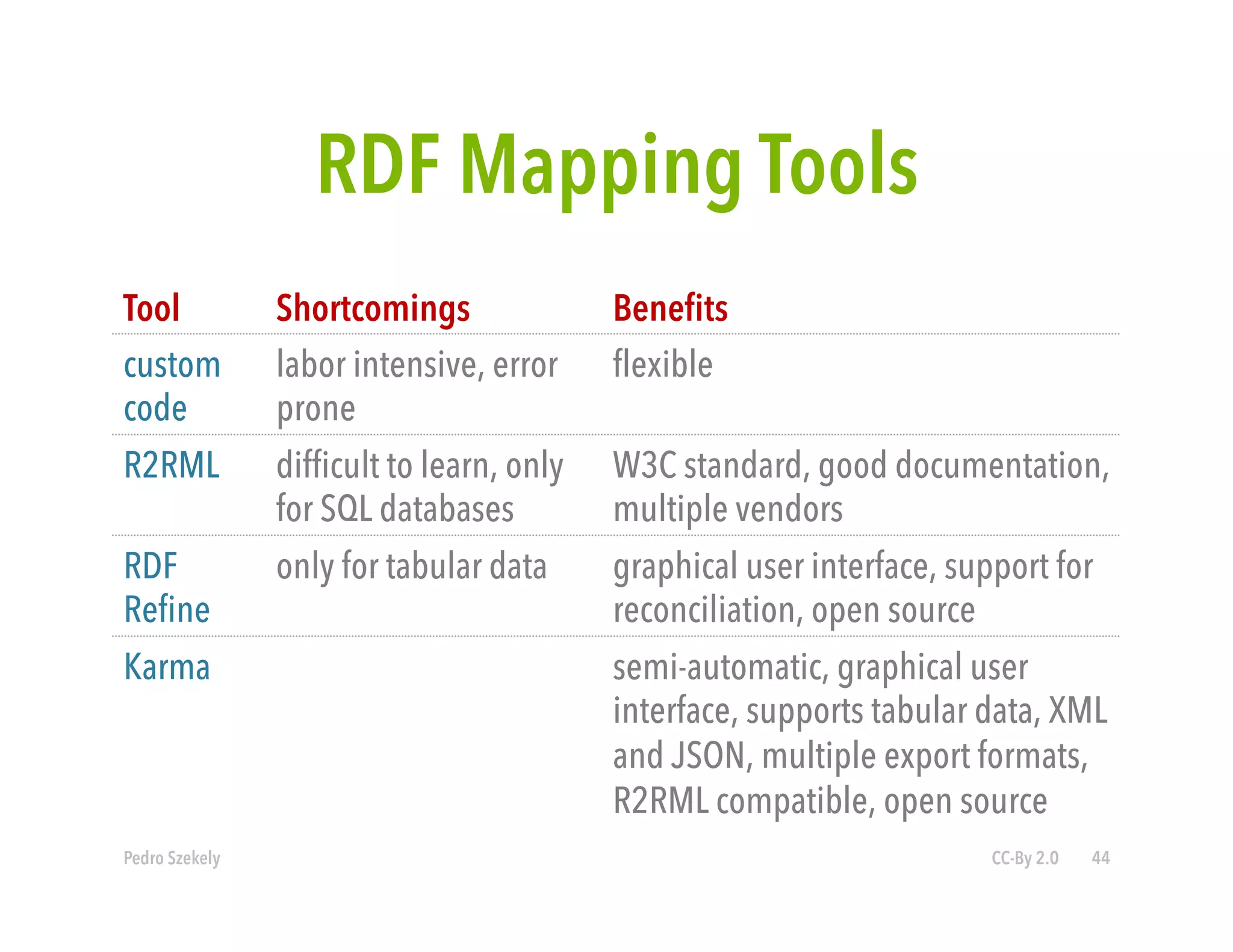

RDF Mapping Tools
Tool Shortcomings Benefits
custom
labor intensive, error
flexible
code
prone
R2RML difficult to learn, only
for SQL databases
W3C standard, good documentation,
multiple vendors

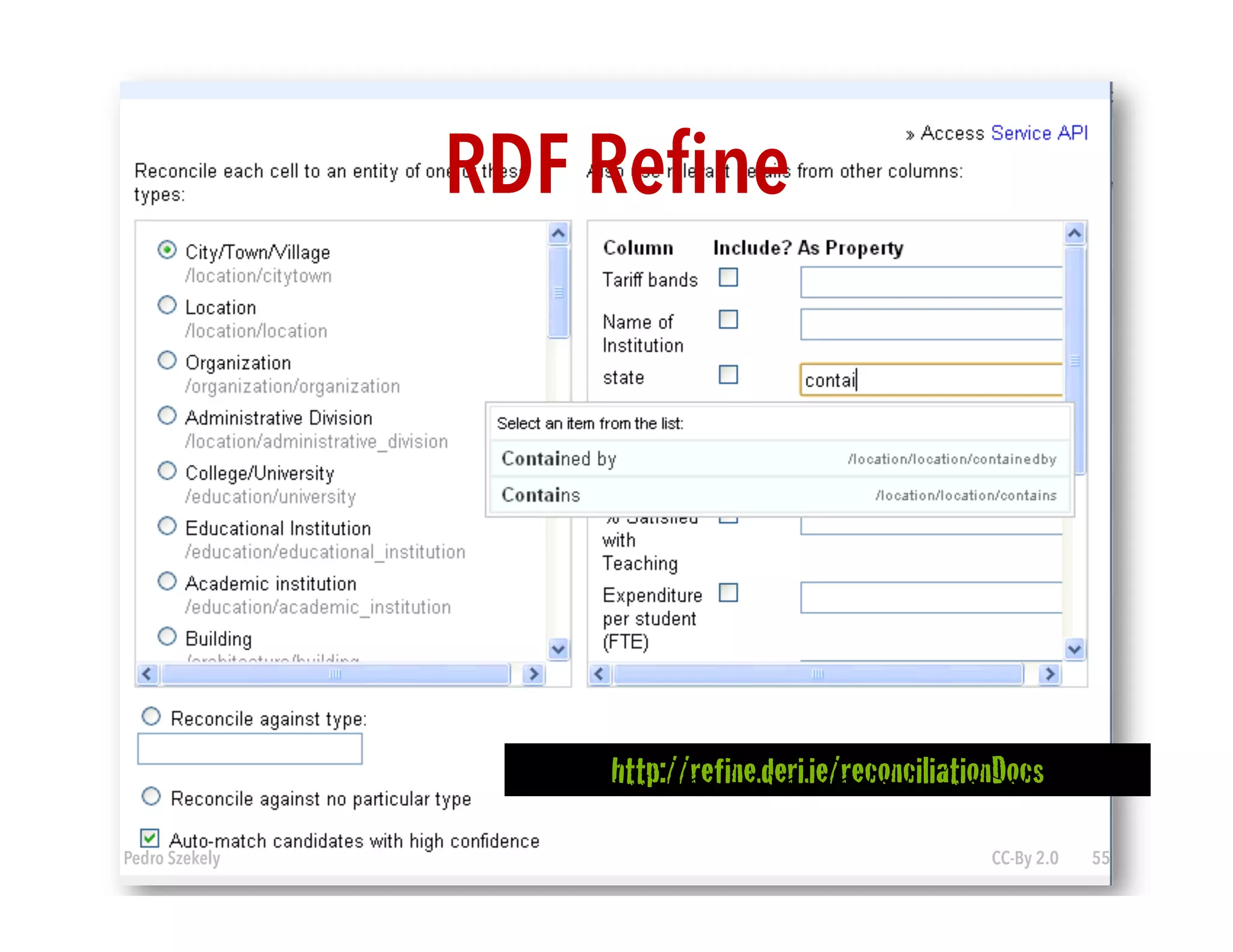

RDF
Refine
only for tabular data graphical user interface, support for
reconciliation, open source

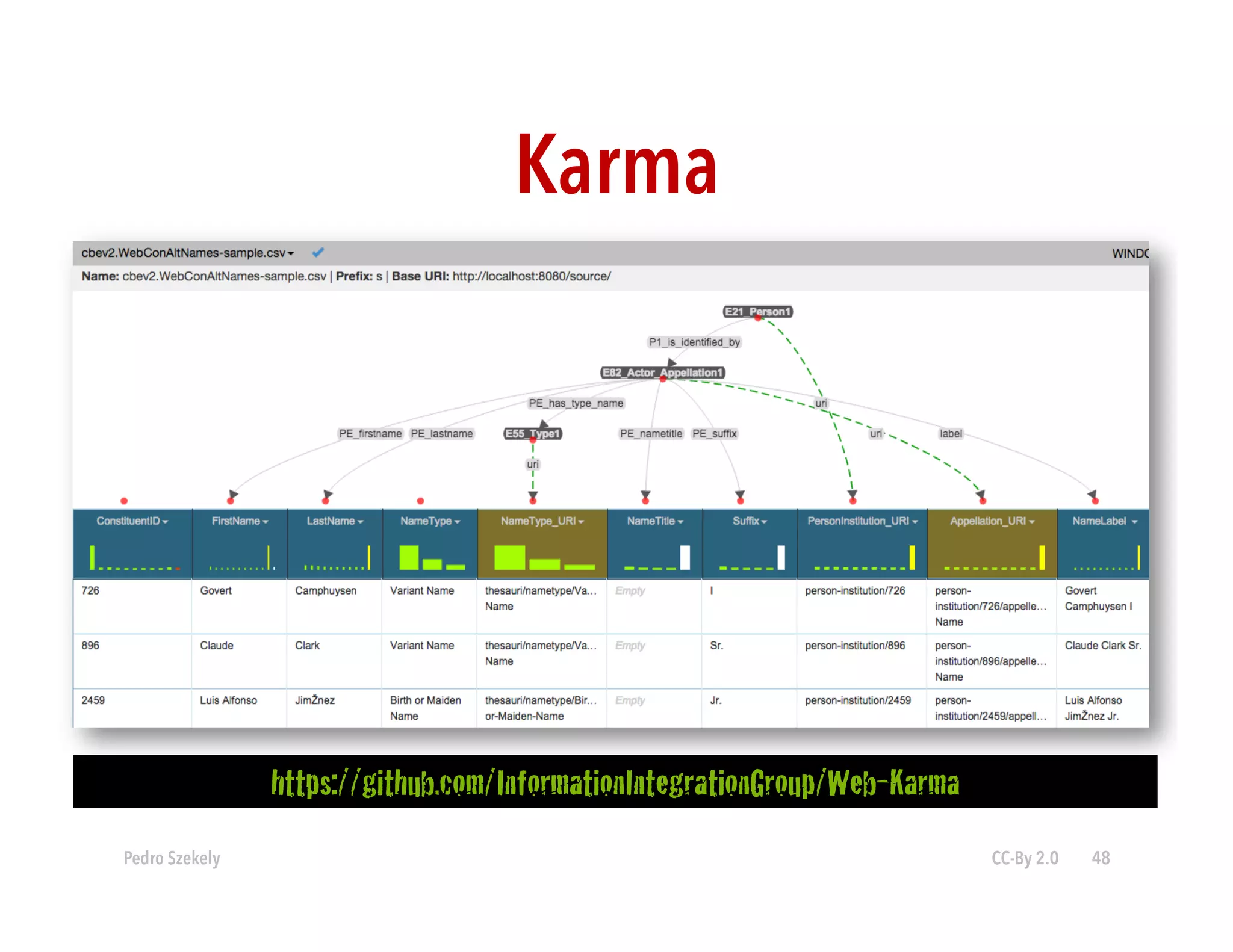

Karma semi-automatic, graphical user
interface, supports tabular data, XML
and JSON, multiple export formats,
R2RML compatible, open source
Pedro Szekely CC-By 2.0 44

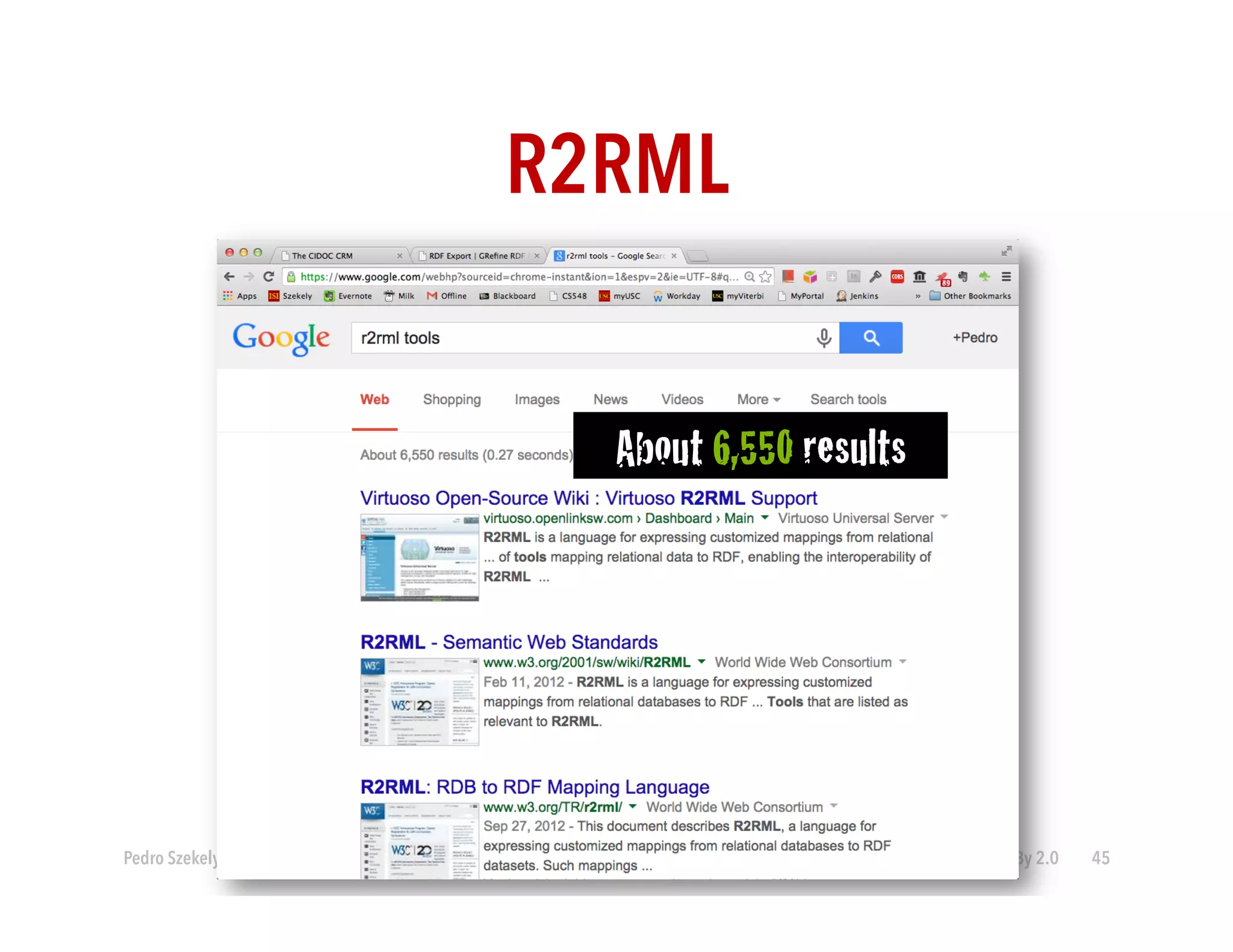

R2RML
About 6,550 results!
Pedro Szekely CC-By 2.0 45
R2RML Example
:Table1 rdf:type rr:TriplesMap ;
rr:logicalTable "Select ('<http:..isbn/' || ISBN || '>') AS isbn,
Author, Title, Publisher, Year from book_table";
rr:subjectMap [ rdf:type rr:IRIMap ; rr:column "isbn" ] ;
rr:propertyObjectMap [ rr:property a:title ; rr:column "Title" ; ] ;
rr:propertyObjectMap [ rr:property a:year ; rr:column "Year" ; ] ;
http://ivan-herman.name/2010/11/02/my-first-mapping-from-rdb-to-rdf-using-r2rml/!
http://www.w3.org/TR/r2rml/!
Pedro Szekely CC-By 2.0 46

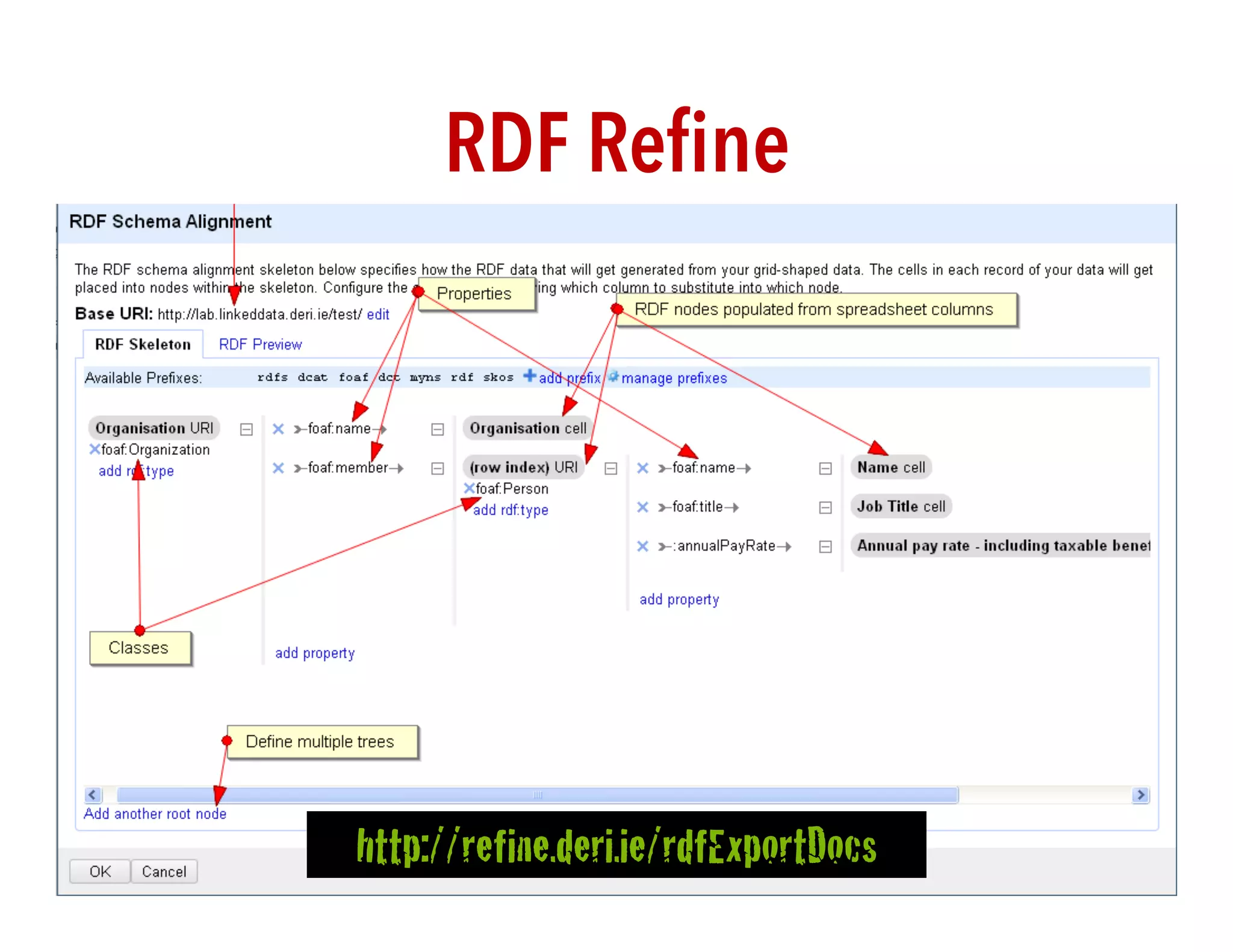

RDF Refine
Pedro Szekely http://refine.deri.ie/rdfExportDocs!CC-By 2.0 47
Karma
https://github.com/InformationIntegrationGroup/Web-Karma!
Pedro Szekely CC-By 2.0 48
Pedro Szekely
Tools for Linking!
CC-By 2.0 49

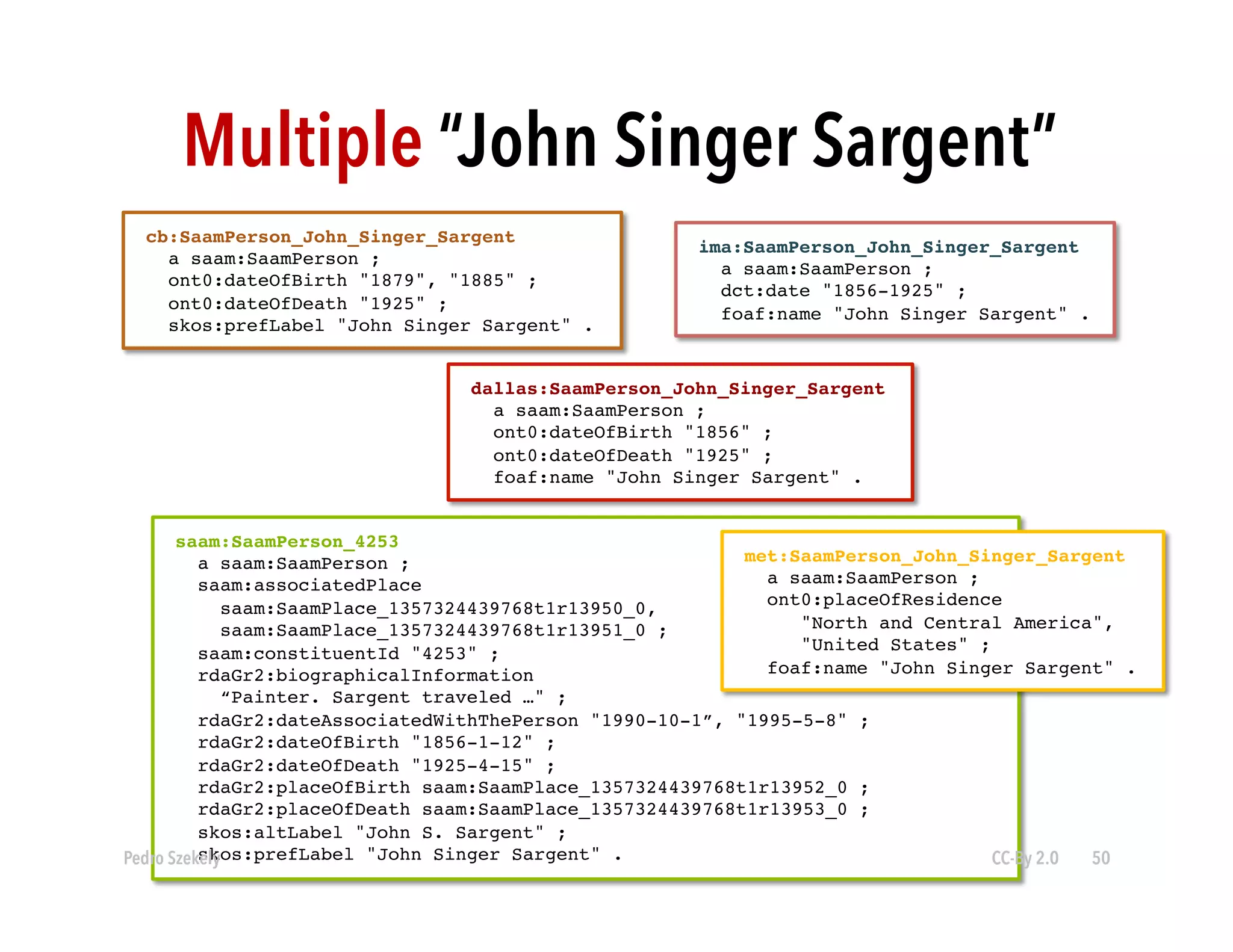

Multiple “John Singer Sargent”
ima:SaamPerson_John_Singer_Sargent!
a saam:SaamPerson ;!
dct:date "1856-1925" ;!
foaf:name "John Singer Sargent" .!
cb:SaamPerson_John_Singer_Sargent!
a saam:SaamPerson ;!
ont0:dateOfBirth "1879", "1885" ;!
ont0:dateOfDeath "1925" ;!
skos:prefLabel "John Singer Sargent" .!
saam:SaamPerson_4253!
a saam:SaamPerson ;!
saam:associatedPlace !
dallas:SaamPerson_John_Singer_Sargent!
a saam:SaamPerson ;!
ont0:dateOfBirth "1856" ;!
ont0:dateOfDeath "1925" ;!
foaf:name "John Singer Sargent" .!
met:SaamPerson_John_Singer_Sargent!
a saam:SaamPerson ;!
ont0:placeOfResidence !
saam:SaamPlace_1357324439768t1r13950_0, !
saam:SaamPlace_1357324439768t1r13951_0 ;!
saam:constituentId "4253" ;!
rdaGr2:biographicalInformation !
“Painter. Sargent traveled …" ;!
rdaGr2:dateAssociatedWithThePerson "1990-10-1”, "1995-5-8" ;!
rdaGr2:dateOfBirth "1856-1-12" ;!
rdaGr2:dateOfDeath "1925-4-15" ;!
rdaGr2:placeOfBirth saam:SaamPlace_1357324439768t1r13952_0 ;!
rdaGr2:placeOfDeath saam:SaamPlace_1357324439768t1r13953_0 ;!
skos:altLabel "John S. Sargent" ;!
skos:prefLabel "John Singer Sargent" .!
"North and Central America", !
"United States" ;!
foaf:name "John Singer Sargent" .!
Pedro Szekely CC-By 2.0 50
ima:SaamPerson_John_Singer_Sargent!
a saam:SaamPerson ;!
dct:date "1856-1925" ;!
foaf:name "John Singer Sargent" .!
cb:SaamPerson_John_Singer_Sargent!
a saam:SaamPerson ;!
ont0:dateOfBirth "1879", "1885" ;!
ont0:dateOfDeath "1925" ;!
skos:prefLabel "John Singer Sargent" .!
saam:SaamPerson_4253!
a saam:SaamPerson ;!
saam:associatedPlace !
dallas:SaamPerson_John_Singer_Sargent!
a saam:SaamPerson ;!
ont0:dateOfBirth "1856" ;!
ont0:dateOfDeath "1925" ;!
foaf:name "John Singer Sargent" .!
met:SaamPerson_John_Singer_Sargent!
a saam:SaamPerson ;!
ont0:placeOfResidence !
saam:SaamPlace_1357324439768t1r13950_0, !
saam:SaamPlace_1357324439768t1r13951_0 ;!
saam:constituentId "4253" ;!
rdaGr2:biographicalInformation !
“Painter. Sargent traveled …" ;!
rdaGr2:dateAssociatedWithThePerson "1990-10-1”, "1995-5-8" ;!
rdaGr2:dateOfBirth "1856-1-12" ;!
rdaGr2:dateOfDeath "1925-4-15" ;!
rdaGr2:placeOfBirth saam:SaamPlace_1357324439768t1r13952_0 ;!
rdaGr2:placeOfDeath saam:SaamPlace_1357324439768t1r13953_0 ;!
skos:altLabel "John S. Sargent" ;!
skos:prefLabel "John Singer Sargent" .!
"North and Central America", !
"United States" ;!
foaf:name "John Singer Sargent" .!

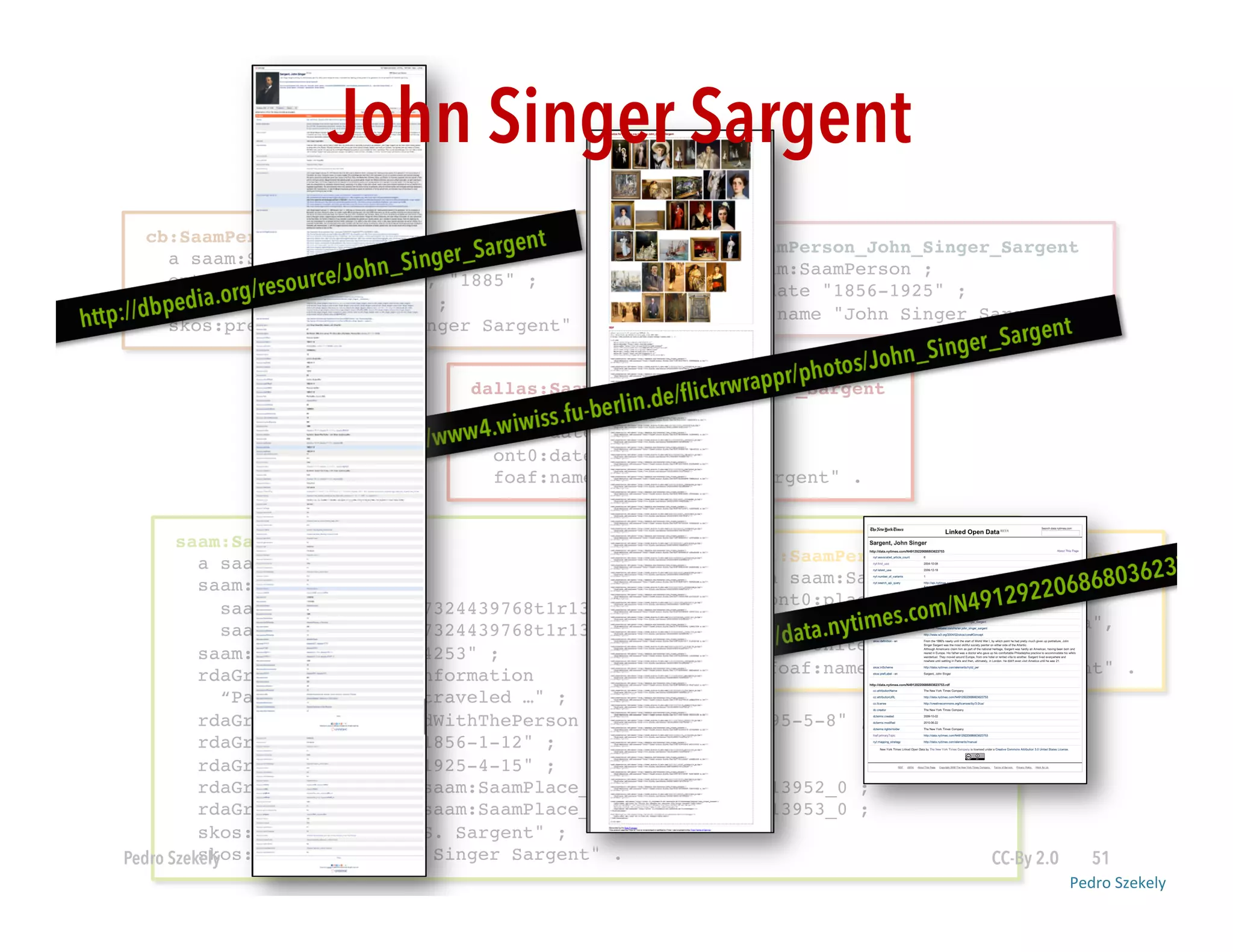

Pedro
Szekely
John Singer Sargent
Pedro Szekely CC-By 2.0 51

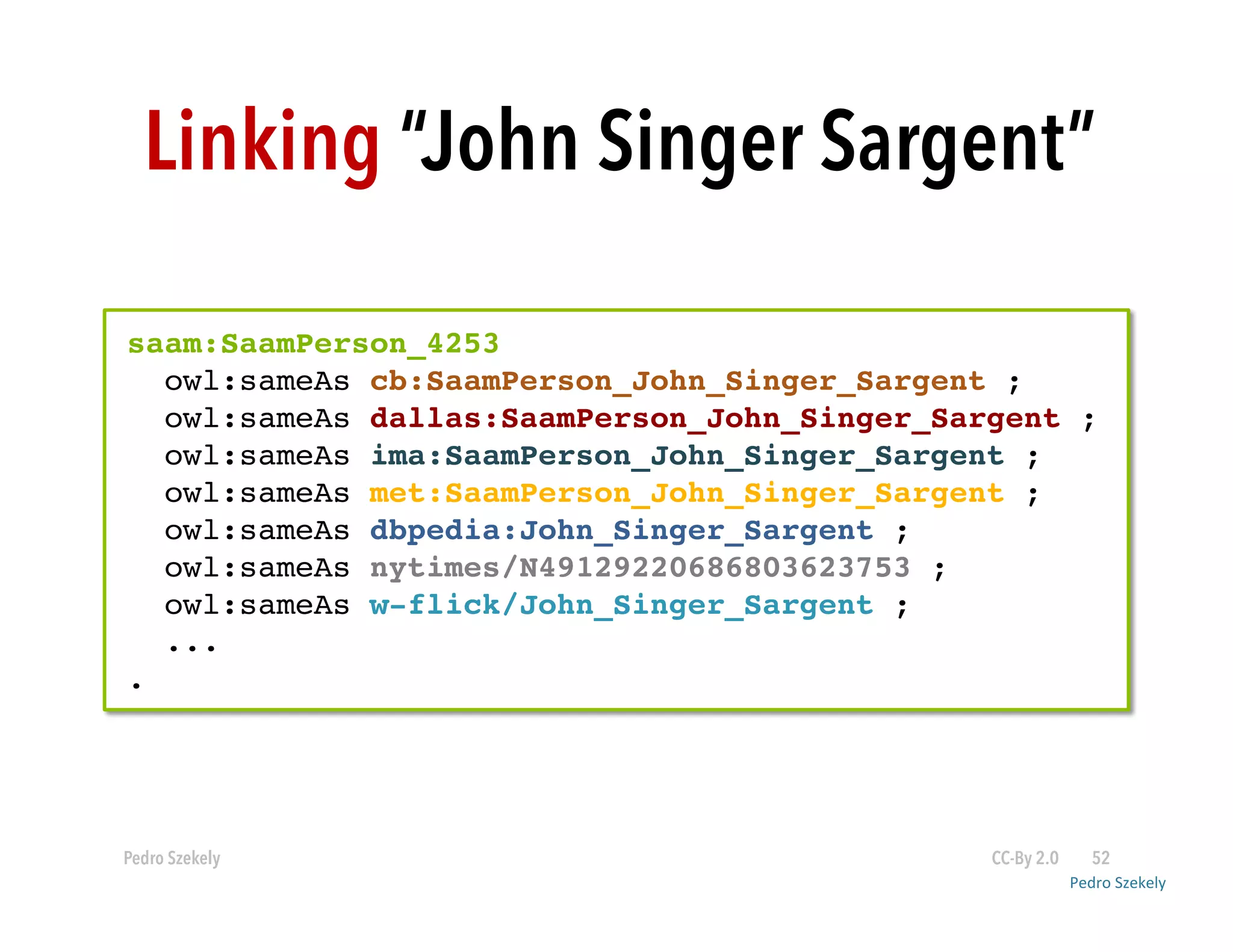

Linking “John Singer Sargent”
saam:SaamPerson_4253!
owl:sameAs cb:SaamPerson_John_Singer_Sargent ;!
owl:sameAs dallas:SaamPerson_John_Singer_Sargent ;!
owl:sameAs ima:SaamPerson_John_Singer_Sargent ;!
owl:sameAs met:SaamPerson_John_Singer_Sargent ;!
owl:sameAs dbpedia:John_Singer_Sargent ;!
owl:sameAs nytimes/N49129220686803623753 ;!
owl:sameAs w-flick/John_Singer_Sargent ;!
...!
.!
Pedro Szekely CC-By 2.0 52
Pedro
Szekely

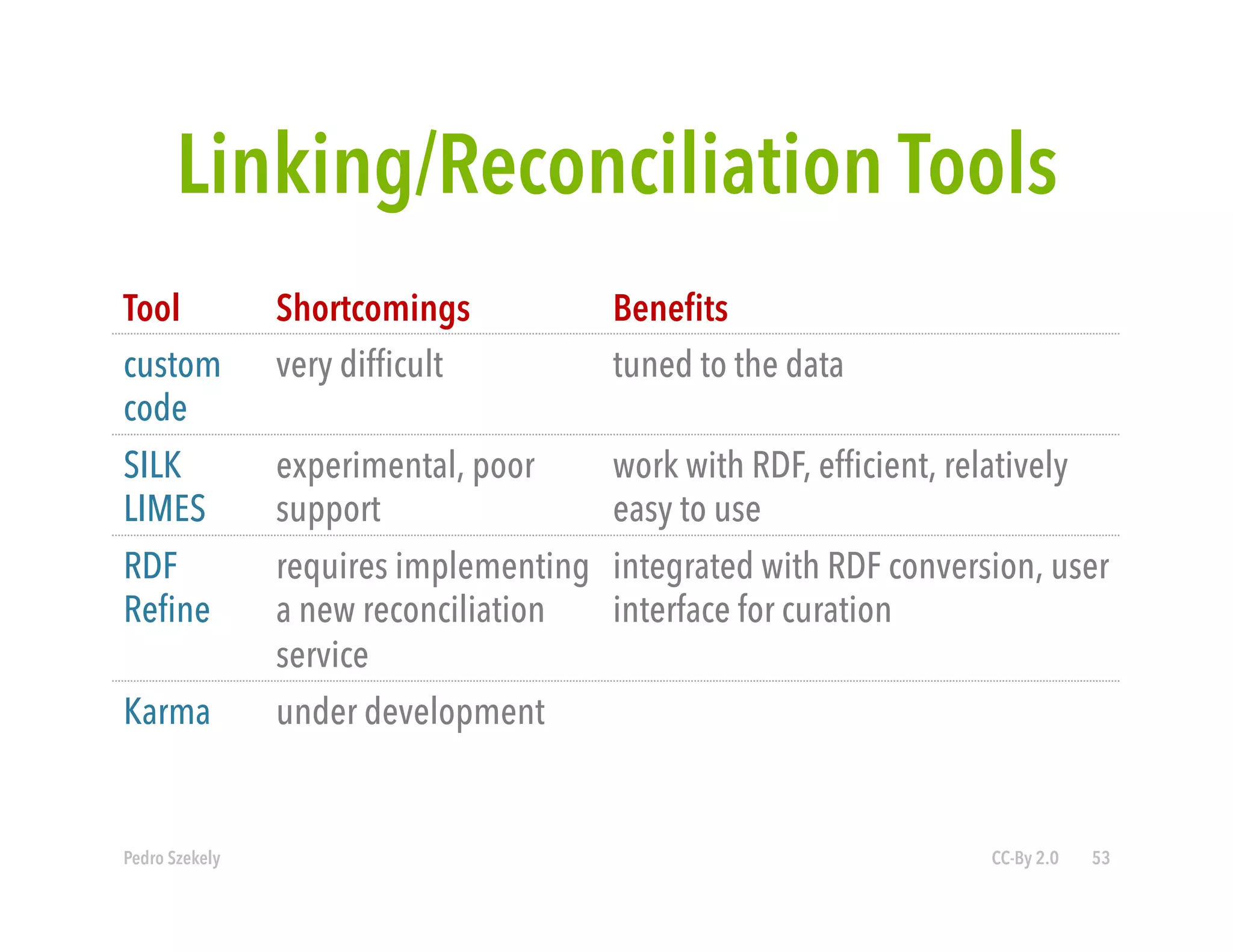

Linking/Reconciliation Tools
Tool Shortcomings Benefits
custom
code
very difficult tuned to the data
SILK
LIMES
experimental, poor
support
work with RDF, efficient, relatively
easy to use
RDF
Refine
requires implementing
a new reconciliation
service
integrated with RDF conversion, user
interface for curation
Karma under development
Pedro Szekely CC-By 2.0 53

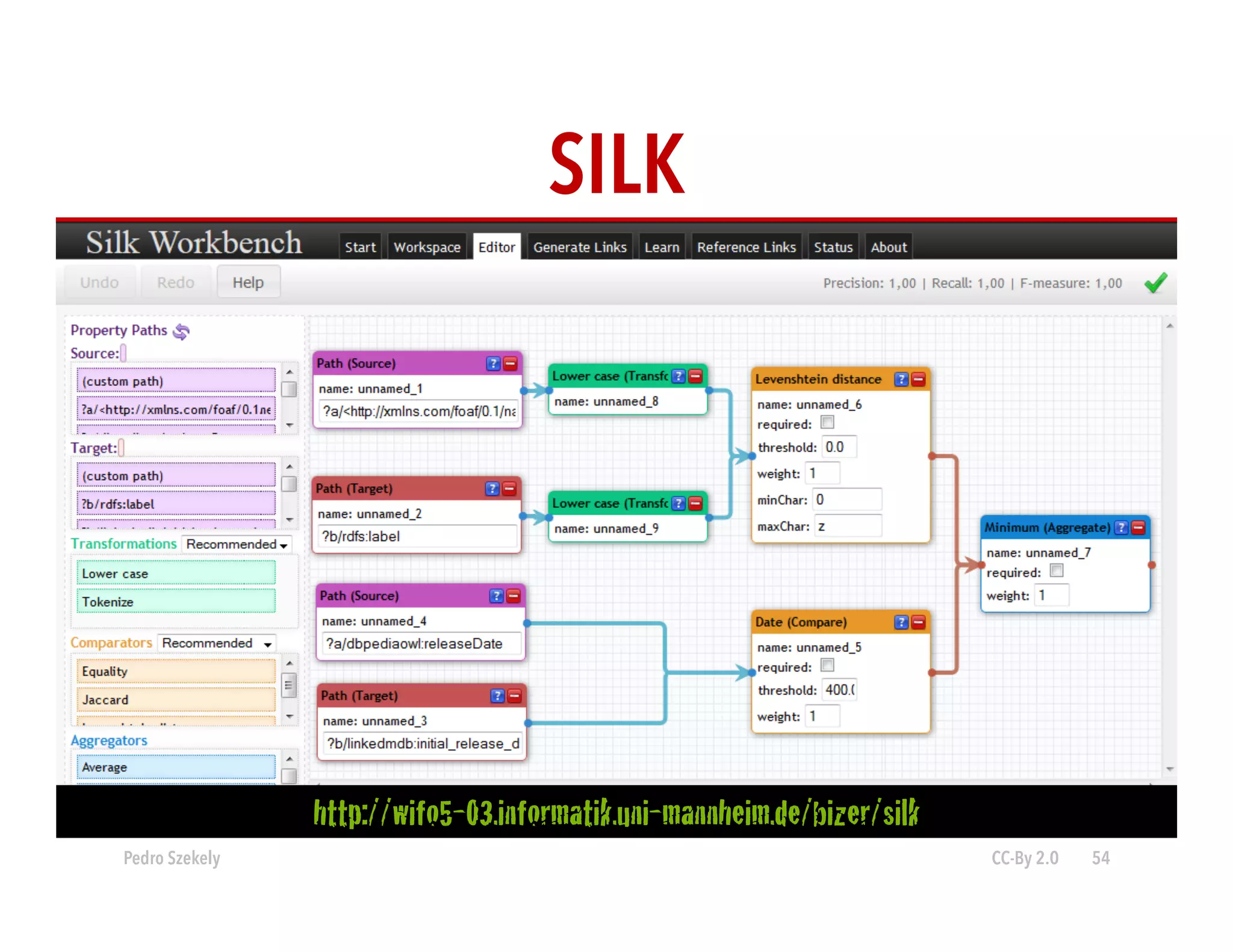

SILK
http://wifo5-03.informatik.uni-mannheim.de/bizer/silk!
Pedro Szekely CC-By 2.0 54
RDF Refine
http://refine.deri.ie/reconciliationDocs!
Pedro Szekely CC-By 2.0 55
Pedro Szekely
Storing and
Maintaining the Data!
CC-By 2.0 56

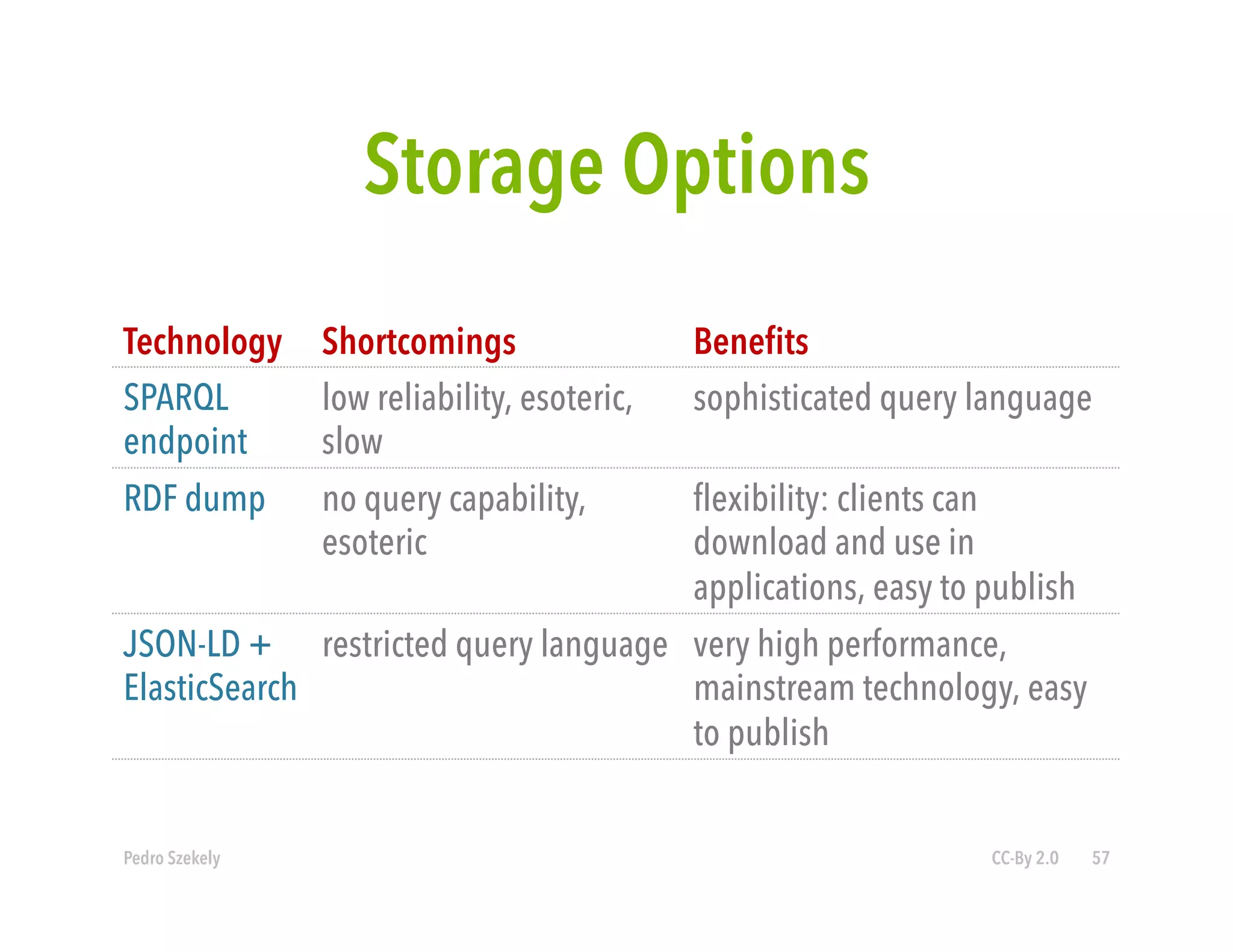

Storage Options
Technology Shortcomings Benefits
SPARQL
low reliability, esoteric,
endpoint
slow
sophisticated query language
RDF dump no query capability,
esoteric
flexibility: clients can
download and use in
applications, easy to publish
JSON-LD +
ElasticSearch
restricted query language very high performance,
mainstream technology, easy
to publish
Pedro Szekely CC-By 2.0 57

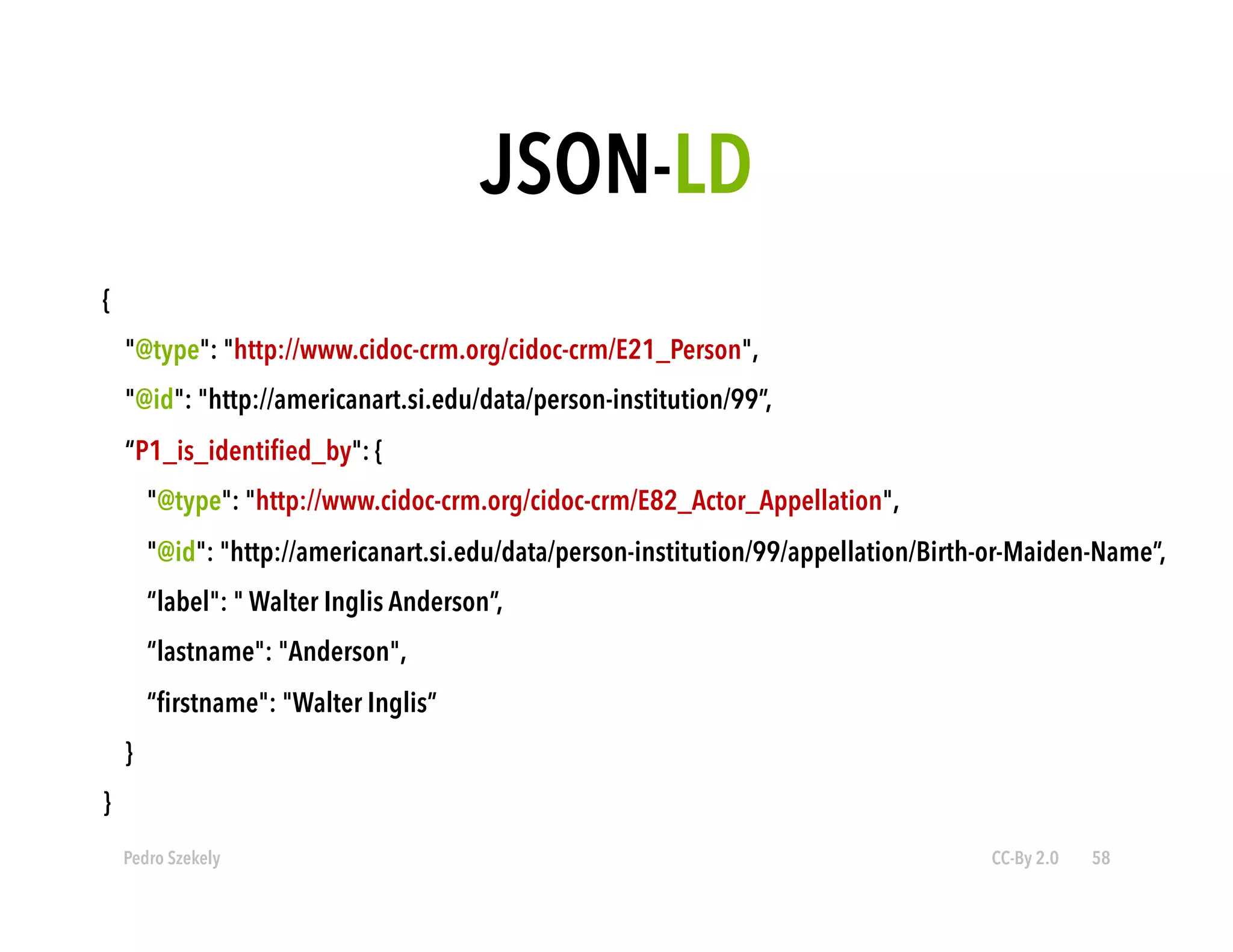

JSON-LD
{
"@type": "http://www.cidoc-crm.org/cidoc-crm/E21_Person",
"@id": "http://americanart.si.edu/data/person-institution/99”,
“P1_is_identified_by": {
"@type": "http://www.cidoc-crm.org/cidoc-crm/E82_Actor_Appellation",
"@id": "http://americanart.si.edu/data/person-institution/99/appellation/Birth-or-Maiden-Name”,
“label": " Walter Inglis Anderson”,
“lastname": "Anderson",
“firstname": "Walter Inglis”
}
}
Pedro Szekely CC-By 2.0 58

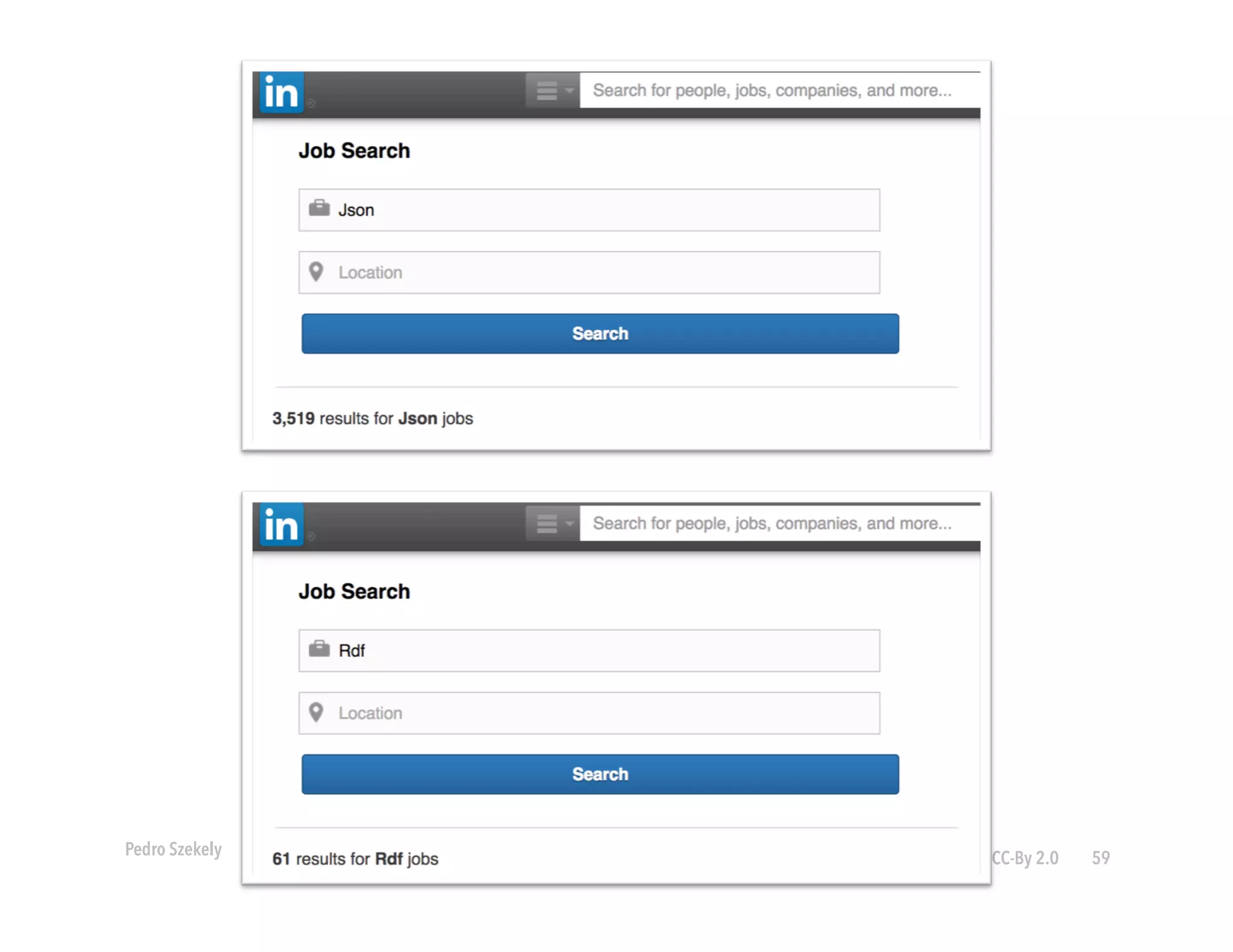

Pedro Szekely CC-By 2.0 59
Pedro Szekely
Applications!
CC-By 2.0 60

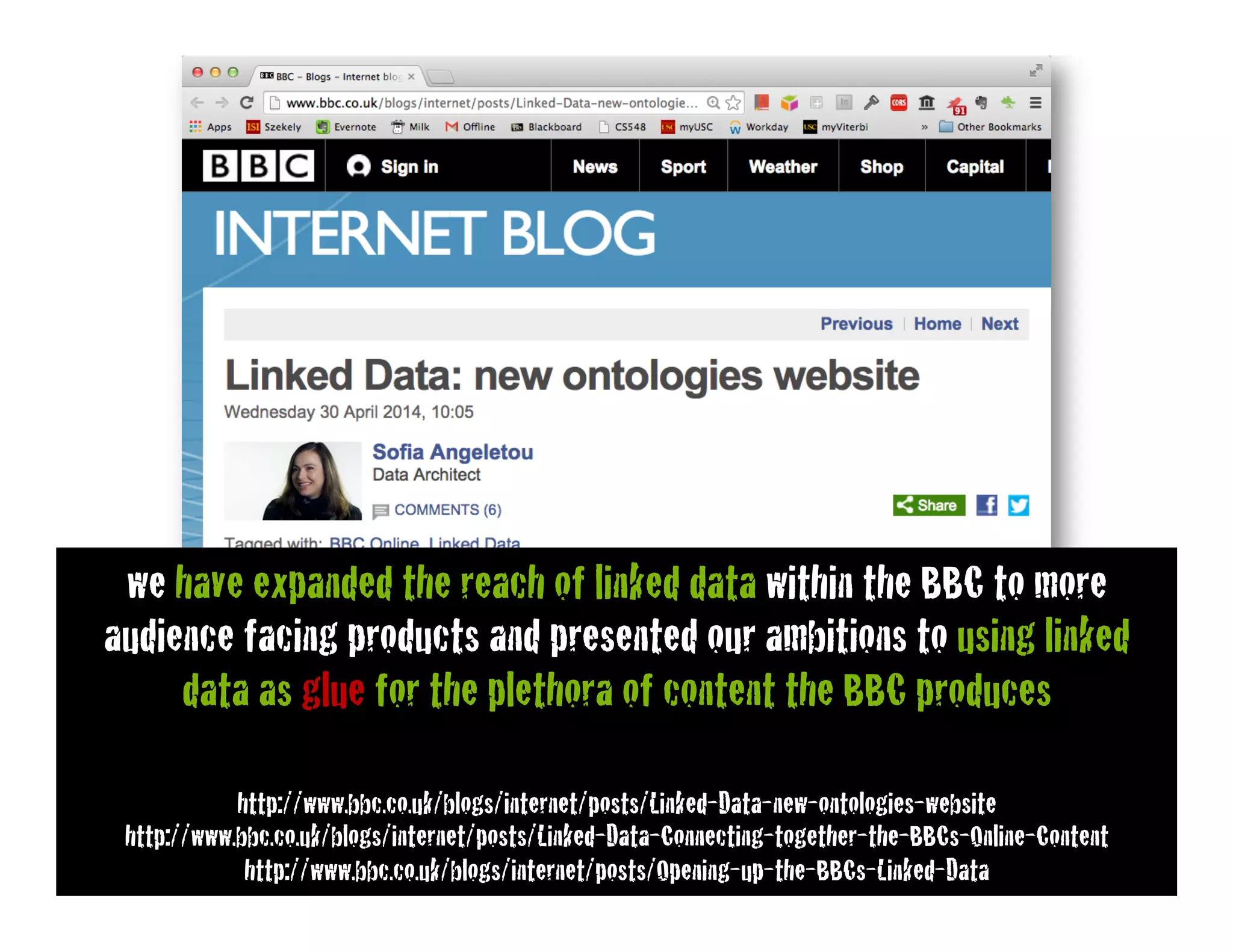

we have expanded the reach of linked data within the BBC to more
audience facing products and presented our ambitions to using linked
data as glue for the plethora of content the BBC produces!
!
http://www.bbc.co.uk/blogs/internet/posts/Linked-Data-new-ontologies-website!
http://www.bbc.co.uk/blogs/internet/posts/Linked-Data-Connecting-together-the-BBCs-Online-Content!
Pedro Szekely CC-By 2.0 61

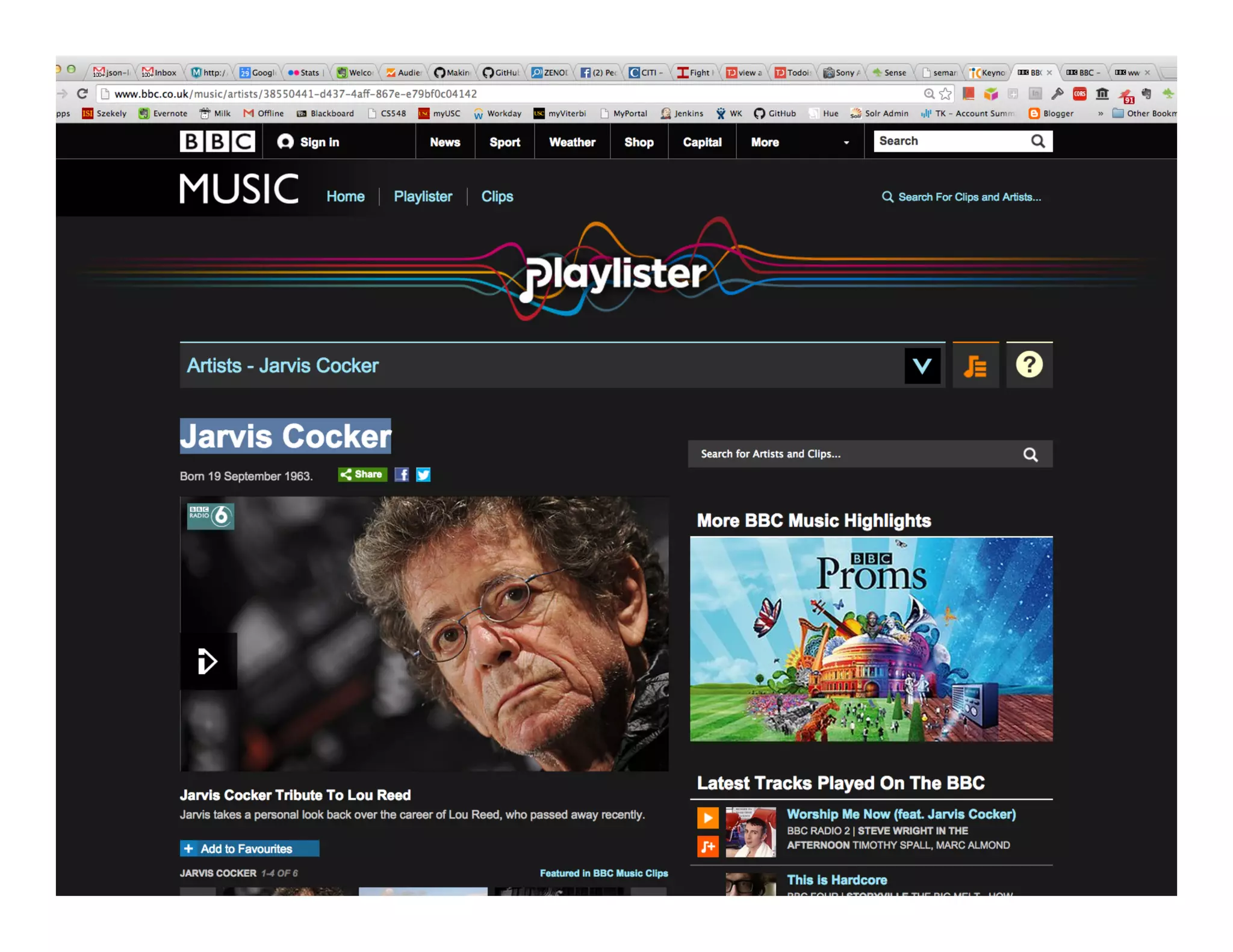

http://www.bbc.co.uk/blogs/internet/posts/Opening-up-the-BBCs-Linked-Data!
Pedro Szekely CC-By 2.0 62
Pedro Szekely CC-By 2.0 63

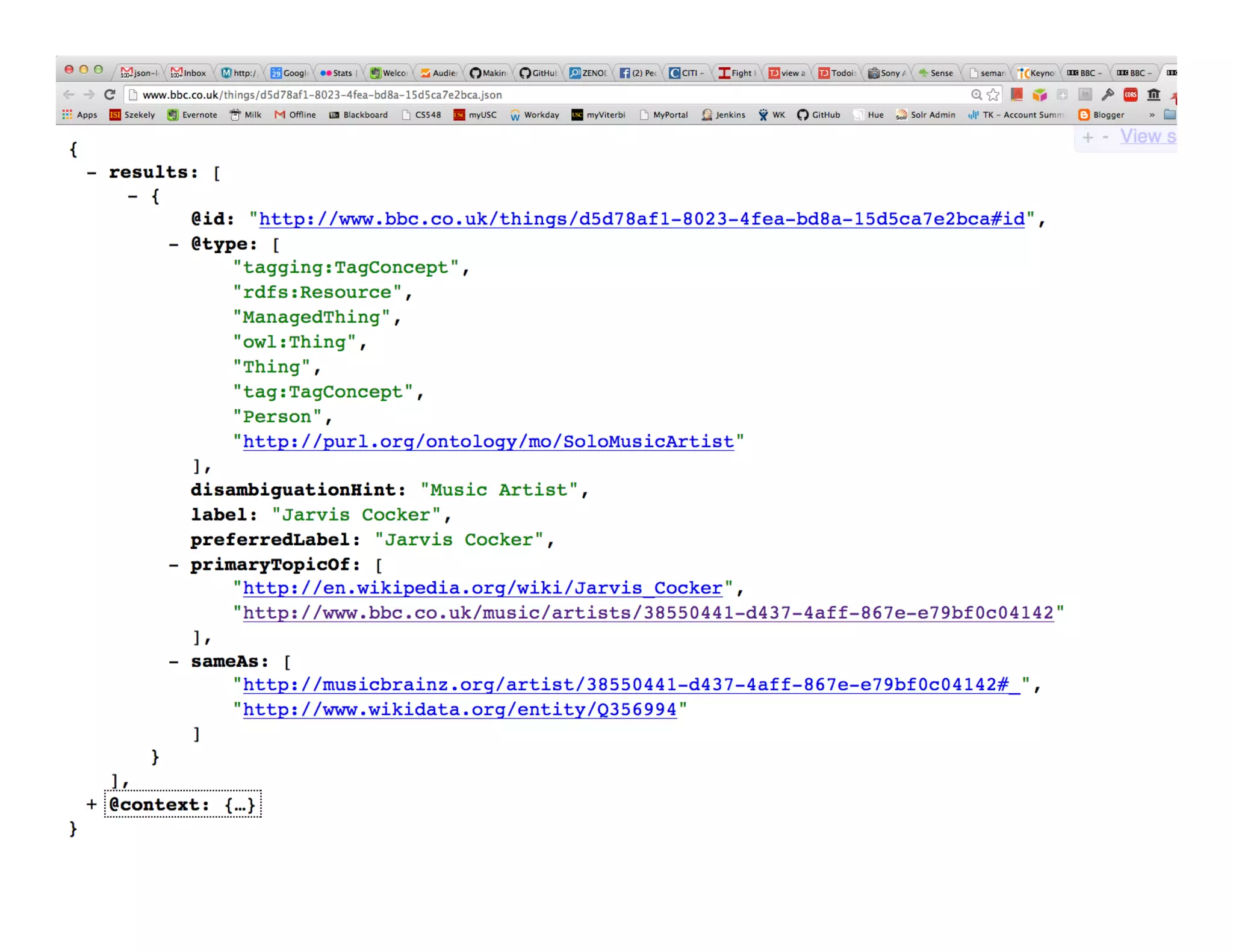

Pedro Szekely CC-By 2.0 64
thanks for your attention!
questions?!

More Related Content

What's hot

Social semantic web
Social semantic webSocial semantic web
Social semantic web
Vlad Posea

What is Linked Data, and What Does It Mean for Libraries?
What is Linked Data, and What Does It Mean for Libraries?What is Linked Data, and What Does It Mean for Libraries?
What is Linked Data, and What Does It Mean for Libraries?
Emily Nimsakont


What's hot (20)

American Arts Collaborative Grant Planning
American Arts Collaborative Grant PlanningAmerican Arts Collaborative Grant Planning
American Arts Collaborative Grant Planning

Social semantic web
Social semantic webSocial semantic web
Social semantic web

Linked (Open) Data
Linked (Open) DataLinked (Open) Data
Linked (Open) Data

Linked Data and Libraries: What? Why? How?
Linked Data and Libraries: What? Why? How?Linked Data and Libraries: What? Why? How?
Linked Data and Libraries: What? Why? How?

Expanding Machine-Readable Access Methods for Collections
Expanding Machine-Readable Access Methods for CollectionsExpanding Machine-Readable Access Methods for Collections
Expanding Machine-Readable Access Methods for Collections

The Importance of being LOUD
The Importance of being LOUDThe Importance of being LOUD
The Importance of being LOUD

Lecture: Ontologies and the Semantic Web
Lecture: Ontologies and the Semantic WebLecture: Ontologies and the Semantic Web
Lecture: Ontologies and the Semantic Web

Introduction to databases and metadata
Introduction to databases and metadataIntroduction to databases and metadata
Introduction to databases and metadata

Intro to Linked Open Data in Libraries Archives & Museums.
Intro to Linked Open Data in Libraries Archives & Museums.Intro to Linked Open Data in Libraries Archives & Museums.
Intro to Linked Open Data in Libraries Archives & Museums.

Introduction to digital scholarship tools
Introduction to digital scholarship toolsIntroduction to digital scholarship tools
Introduction to digital scholarship tools

Standards and Communities: Connected People, Consistent Data, Usable Applicat...
Standards and Communities: Connected People, Consistent Data, Usable Applicat...Standards and Communities: Connected People, Consistent Data, Usable Applicat...
Standards and Communities: Connected People, Consistent Data, Usable Applicat...

Intro to Linked Open Data in Libraries, Archives & Museums
Intro to Linked Open Data in Libraries, Archives & MuseumsIntro to Linked Open Data in Libraries, Archives & Museums
Intro to Linked Open Data in Libraries, Archives & Museums

Semantic Search with Semantic Web
Semantic Search with Semantic WebSemantic Search with Semantic Web
Semantic Search with Semantic Web

IIIF and Linked Data: A Cultural Heritage DAM Ecosystem
IIIF and Linked Data: A Cultural Heritage DAM EcosystemIIIF and Linked Data: A Cultural Heritage DAM Ecosystem
IIIF and Linked Data: A Cultural Heritage DAM Ecosystem

Linked Open Data in Romania
Linked Open Data in RomaniaLinked Open Data in Romania
Linked Open Data in Romania

What is Linked Data, and What Does It Mean for Libraries?
What is Linked Data, and What Does It Mean for Libraries?What is Linked Data, and What Does It Mean for Libraries?
What is Linked Data, and What Does It Mean for Libraries?

Web RDF
Web RDFWeb RDF
Web RDF

Linked data: what it means, why it matters. Karen Coyle
Linked data: what it means, why it matters. Karen CoyleLinked data: what it means, why it matters. Karen Coyle
Linked data: what it means, why it matters. Karen Coyle

Introducing linked data
Introducing linked dataIntroducing linked data
Introducing linked data

Research Data Services at the University of Utah
Research Data Services at the University of UtahResearch Data Services at the University of Utah
Research Data Services at the University of Utah


Similar to Linked Data and Tools

URI Disambiguation in the Context of Linked Data
URI Disambiguation in the Context of Linked DataURI Disambiguation in the Context of Linked Data
URI Disambiguation in the Context of Linked Data
butest

TPDL2013 tutorial linked data for digital libraries 2013-10-22
TPDL2013 tutorial linked data for digital libraries 2013-10-22TPDL2013 tutorial linked data for digital libraries 2013-10-22
TPDL2013 tutorial linked data for digital libraries 2013-10-22
jodischneider


Similar to Linked Data and Tools (20)

November 19, 2014 NISO Virtual Conference: Can't We All Work Together?: Inter...
November 19, 2014 NISO Virtual Conference: Can't We All Work Together?: Inter...November 19, 2014 NISO Virtual Conference: Can't We All Work Together?: Inter...
November 19, 2014 NISO Virtual Conference: Can't We All Work Together?: Inter...

Linked Data, Cultural Heritage & the Karma Mapping Software
Linked Data, Cultural Heritage & the Karma Mapping SoftwareLinked Data, Cultural Heritage & the Karma Mapping Software
Linked Data, Cultural Heritage & the Karma Mapping Software

Linked Data and Locah, UKSG2011
Linked Data and Locah, UKSG2011 Linked Data and Locah, UKSG2011
Linked Data and Locah, UKSG2011

Lifting the Lid on Linked Data
Lifting the Lid on Linked DataLifting the Lid on Linked Data
Lifting the Lid on Linked Data

URI Disambiguation in the Context of Linked Data
URI Disambiguation in the Context of Linked DataURI Disambiguation in the Context of Linked Data
URI Disambiguation in the Context of Linked Data

Linked Open Data for Archives
Linked Open Data for ArchivesLinked Open Data for Archives
Linked Open Data for Archives

Informal presentation about RES
Informal presentation about RESInformal presentation about RES
Informal presentation about RES

Linked Data and Discovery with Steve Meyer
Linked Data and Discovery with Steve MeyerLinked Data and Discovery with Steve Meyer
Linked Data and Discovery with Steve Meyer

SemWeb Fundamentals - Info Linking & Layering in Practice
SemWeb Fundamentals - Info Linking & Layering in PracticeSemWeb Fundamentals - Info Linking & Layering in Practice
SemWeb Fundamentals - Info Linking & Layering in Practice

Linked Data
Linked DataLinked Data
Linked Data

Webofdata
WebofdataWebofdata
Webofdata

20100614 ISWSA Keynote
20100614 ISWSA Keynote20100614 ISWSA Keynote
20100614 ISWSA Keynote

IFLA LIDASIG Open Session 2017: Introduction to Linked Data
IFLA LIDASIG Open Session 2017: Introduction to Linked DataIFLA LIDASIG Open Session 2017: Introduction to Linked Data
IFLA LIDASIG Open Session 2017: Introduction to Linked Data

TPDL2013 tutorial linked data for digital libraries 2013-10-22
TPDL2013 tutorial linked data for digital libraries 2013-10-22TPDL2013 tutorial linked data for digital libraries 2013-10-22
TPDL2013 tutorial linked data for digital libraries 2013-10-22

NISO/DCMI Webinar: Schema.org and Linked Data: Complementary Approaches to Pu...
NISO/DCMI Webinar: Schema.org and Linked Data: Complementary Approaches to Pu...NISO/DCMI Webinar: Schema.org and Linked Data: Complementary Approaches to Pu...
NISO/DCMI Webinar: Schema.org and Linked Data: Complementary Approaches to Pu...

Publishing and Using Linked Data
Publishing and Using Linked DataPublishing and Using Linked Data
Publishing and Using Linked Data

SPARQL1.1 Tutorial, given in UChile by Axel Polleres (DERI)
SPARQL1.1 Tutorial, given in UChile by Axel Polleres (DERI)SPARQL1.1 Tutorial, given in UChile by Axel Polleres (DERI)
SPARQL1.1 Tutorial, given in UChile by Axel Polleres (DERI)

Transmission6 - Publishing Linked Data
Transmission6 - Publishing Linked DataTransmission6 - Publishing Linked Data
Transmission6 - Publishing Linked Data

Linked Data Overview - AGI Technical SIG
Linked Data Overview - AGI Technical SIGLinked Data Overview - AGI Technical SIG
Linked Data Overview - AGI Technical SIG

WTF is Semantic Web?
WTF is Semantic Web?WTF is Semantic Web?
WTF is Semantic Web?


More from American Art Collaborative

More from American Art Collaborative (6)

The Provenance of Madame Bonnier: Museum Linked Data
The Provenance of Madame Bonnier: Museum Linked DataThe Provenance of Madame Bonnier: Museum Linked Data
The Provenance of Madame Bonnier: Museum Linked Data

IIIF and Mirador at the YCBA: image based scholarly collaboration and research
IIIF and Mirador at the YCBA: image based scholarly collaboration and researchIIIF and Mirador at the YCBA: image based scholarly collaboration and research
IIIF and Mirador at the YCBA: image based scholarly collaboration and research

Linked Open Data at SAAM: Past, Present, Future
Linked Open Data at SAAM: Past, Present, FutureLinked Open Data at SAAM: Past, Present, Future
Linked Open Data at SAAM: Past, Present, Future

American Art Collaborative: Perspectives and Considerations
American Art Collaborative: Perspectives and ConsiderationsAmerican Art Collaborative: Perspectives and Considerations
American Art Collaborative: Perspectives and Considerations

Getty Vocabularies and LOD Conversion
Getty Vocabularies and LOD ConversionGetty Vocabularies and LOD Conversion
Getty Vocabularies and LOD Conversion

The CIDOC CRM Family and LOD
The CIDOC CRM Family and LODThe CIDOC CRM Family and LOD
The CIDOC CRM Family and LOD


Recently uploaded

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
FIDO Alliance

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...
FIDO Alliance

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
FIDO Alliance

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
panagenda


Recently uploaded (20)

Design and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data ScienceDesign and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data Science

WebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceWebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM Performance

Vector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxVector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptx

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform Engineering

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx

Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx
Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptxCyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx
Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx

Overview of Hyperledger Foundation
Overview of Hyperledger FoundationOverview of Hyperledger Foundation
Overview of Hyperledger Foundation

Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...

Portal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russePortal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russe

Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx

Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...

Oauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoftOauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoft

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

JavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate GuideJavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate Guide

Six Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal OntologySix Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal Ontology

AI mind or machine power point presentation
AI mind or machine power point presentationAI mind or machine power point presentation
AI mind or machine power point presentation

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...


Linked Data and Tools

  • 1. Linked Data and Tools Pedro Szekely USC/Information Sciences Institute pszekely@isi.edu, http://isi.edu/~szekely September 2014 CC-By 2.0
  • 2. Outline • Introduction to linked open data • RDF: the Resource Description Framework • Tools to convert data to RDF • Tools for linking/reconciliation/resolution • Storing and maintaining the data • Applications Pedro Szekely CC-By 2.0 2
  • 3. Pedro Szekely Linked Open Data! CC-By 2.0 3
  • 4. The Web of Documents Pedro Szekely CC-By 2.0 4
  • 5. What We See Pedro Szekely CC-By 2.0 5
  • 6. What the Computer Sees blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah blah Pedro Szekely CC-By 2.0 6
  • 7. Problem web pages are machine processable, but not machine understandable impractical for building applications using the data Pedro Szekely CC-By 2.0 7
  • 8. Solution publish the data as Linked Open Data Pedro Szekely CC-By 2.0 8
  • 9. What Is Linked Data? A method of publishing structured data so that it can be interlinked and become more useful Builds upon standard Web technologies such as HTTP and URIs to share information in a way that can be read automatically by computers from Wikipedia Pedro Szekely CC-By 2.0 9
  • 10. “Linked” Open Data Crystal Bridges Museum of American Art Dallas Museum of Art Indianapolis Museum of Art National Portrait Gallery The Metropolitan Museum of Art Smithsonian American Art Museum Pedro Szekely CC-By 2.0 10
  • 11. “Linked” Open Data Crystal Bridges Museum of American Art Dallas Museum of Art … data is public! … in a common format! … but we only have islands of data! Indianapolis Museum of Art National Portrait Gallery The Metropolitan Museum of Art Smithsonian American Art Museum ✔ ✖ Pedro Szekely CC-By 2.0 11
  • 12. Linked Open Data Pedro Szekely CC-By 2.0 12
  • 13. Linked Data Principles • Use URIs as names for things • Use HTTP URIs so that people can look up those names • When someone looks up a URI, provide useful information, using the standards (RDF, SPARQL) • Include links to other URIs so that they can discover more things http://youtu.be/OM6XIICm_qo! http://www.w3.org/DesignIssues/LinkedData.html ! Pedro Szekely CC-By 2.0 13
  • 14. Pedro Szekely Principle 1 Use URIs as names for things Principle 2 Use HTTP URIs so that people can look up those names CC-By 2.0 14
  • 15. Can USC Have a URI? Pedro Szekely CC-By 2.0 15
  • 17. Can the Pythagoras Theorem Have a URI? Pedro Szekely CC-By 2.0 17
  • 19. My Dog: Can He Have a URI? Pedro Szekely CC-By 2.0 19
  • 21. Pedro Szekely Principle 3 When someone looks up a URI, provide useful information, using the standards (RDF*, SPARQL) CC-By 2.0 21
  • 24. Pedro Szekely http://szekelys.com/diego Principle 3 When someone looks up a URI, provide useful information, using the standards (RDF*, SPARQL) CC-By 2.0 24
  • 25. Pedro Szekely Principle 4 Include links to other URIs so that they can discover more things CC-By 2.0 25
  • 26. http://szekelys.com/diego @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> . @prefix dbpprop: <http://dbpedia.org/property/> . @prefix dbpedia: <http://dbpedia.org/resource/> . @prefix dbpedia-owl: <http://dbpedia.org/ontology/> . @prefix fb: <http://rdf.freebase.com/ns/> . http://szekelys.com/diego rdf:type “Dog” ; http://szekelys.com/name ”Diego" ; dbpedia-owl:species “Labrador Retriever” ; dbprop:country “Canada” ; dbprop:color “Yellow” ; fb:base.petbreeds.dog.gender “Male” . Linked Data?! Pedro Szekely CC-By 2.0 26
  • 27. http://szekelys.com/diego @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> . @prefix dbpprop: <http://dbpedia.org/property/> . @prefix dbpedia: <http://dbpedia.org/resource/> . @prefix dbpedia-owl: <http://dbpedia.org/ontology/> . @prefix fb: <http://rdf.freebase.com/ns/> . http://szekelys.com/diego rdf:type “Dog” ; http://szekelys.com/name ”Diego" ; dbpedia-owl:species “Labrador Retriever” ; dbprop:country “Canada” ; dbprop:color “Yellow” ; fb:base.petbreeds.dog.gender “Male” . Not Linked Data! Pedro Szekely CC-By 2.0 27
  • 28. http://szekelys.com/diego @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> . @prefix dbpprop: <http://dbpedia.org/property/> . @prefix dbpedia: <http://dbpedia.org/resource/> . @prefix dbpedia-owl: <http://dbpedia.org/ontology/> . @prefix fb: <http://rdf.freebase.com/ns/> . http://szekelys.com/diego rdf:type dbpedia:Dog; http://szekelys.com/name ”Diego" ; dbpedia-owl:species dbpedia:Labrador_Retriever ; dbprop:country dbpedia:Canada; dbprop:color dbpedia:Yellow; fb:base.petbreeds.dog.gender fb:en.male. Almost Linked Data! Pedro Szekely CC-By 2.0 28
  • 29. http://szekelys.com/diego @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> . @prefix dbpprop: <http://dbpedia.org/property/> . @prefix dbpedia: <http://dbpedia.org/resource/> . @prefix dbpedia-owl: <http://dbpedia.org/ontology/> . @prefix fb: <http://rdf.freebase.com/ns/> . http://szekelys.com/diego rdf:type dbpedia:Dog; http://szekelys.com/name ”Diego" ; dbpedia-owl:species dbpedia:Labrador_Retriever ; dbprop:country dbpedia:Canada; dbprop:color dbpedia:Yellow; fb:base.petbreeds.dog.gender fb:en.male. Almost Linked Data! Pedro Szekely CC-By 2.0 29
  • 30. http://szekelys.com/diego @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> . @prefix dbpprop: <http://dbpedia.org/property/> . @prefix dbpedia: <http://dbpedia.org/resource/> . @prefix dbpedia-owl: <http://dbpedia.org/ontology/> . @prefix fb: <http://rdf.freebase.com/ns/> . @prefix foaf: <http://xmlns.com/foaf/0.1/> . http://szekelys.com/diego foaf is a widely used ontology! rdf:type dbpedia:Dog; foaf:name ”Diego" ; dbpedia-owl:species dbpedia:Labrador_Retriever ; dbprop:country dbpedia:Canada; dbprop:color dbpedia:Yellow; fb:base.petbreeds.dog.gender fb:en.male. Linked Data! Pedro Szekely CC-By 2.0 30
  • 31. Pedro Szekely RDF! CC-By 2.0 31
  • 32. Resource Description Framework Intended for representing metadata about Web resources, such as the title, author, and modification date of a Web document … also be used to represent information about things that can be identified on the Web, even when they cannot be directly retrieved on the Web Pedro Szekely CC-By 2.0 32
  • 33. Represent Resources Using URIs That guy has first name “Pedro” h&p://szekelys.com/family#pedro “Pedro” h&p://xmlns.com/foaf/0.1/firstName Pedro Szekely CC-By 2.0 33
  • 34. Represent Information as Triples h&p://szekelys.com/family#pedro h&p://xmlns.com/foaf/0.1/firstName Subject! Predicate! “Pedro” The resource being described A property of the resource Object! The value of the property Pedro Szekely CC-By 2.0 34
  • 35. Use Namespaces h&p://xmlns.com/foaf/0.1/firstName h&p://szekelys.com/family#pedro “Pedro” foaf:firstName h&p://szekelys.com/family#pedro “Pedro” Pedro Szekely CC-By 2.0 35
  • 36. RDF Graphs h&p://szekelys.com/family#pedro “Pedro” foaf:firstName foaf:Person rdf:type foaf:homepage h&p://isi.edu/~szekely Pedro Szekely CC-By 2.0 36
  • 37. RDF Graphs Real world objects! Kinds of things! h&p://szekelys.com/family#pedro “Pedro” foaf:firstName foaf:Person rdf:type foaf:homepage h&p://isi.edu/~szekely Literals! Properties of things! Pedro Szekely CC-By 2.0 37
  • 38. Mix Vocabularies h&p://szekelys.com/family#pedro “Pedro” foaf:Person foaf:firstName rdf:type h&p://isi.edu/~szekely foaf:homepage schema:Person rdf:type schema:spouse h&p://szekelys.com/family#claudia Pedro Szekely CC-By 2.0 38
  • 39. Linked Open Data Pedro Szekely CC-By 2.0 39
  • 40. Tools to Convert Data Pedro Szekely to RDF! CC-By 2.0 40
  • 41. Steps to Create Linked Open Data • Select ontologies … that define classes and properties for our data • Convert data to RDF … from the museum database to the ontologies • Identify links to other Linked Data datasets … to other museums and Link Data hubs Pedro Szekely CC-By 2.0 41
  • 42. • Select ontologies … that define classes and properties for our data CIDOC CRM http://www.cidoc-crm.org/ Pedro Szekely CC-By 2.0 42
  • 43. • Select ontologies … that define classes and properties for our data • Convert data to RDF … from the museum database to the ontologies Pedro SzPeekderlyo Szekely CC-By 2.0 43
  • 44. RDF Mapping Tools Tool Shortcomings Benefits custom labor intensive, error flexible code prone R2RML difficult to learn, only for SQL databases W3C standard, good documentation, multiple vendors RDF Refine only for tabular data graphical user interface, support for reconciliation, open source Karma semi-automatic, graphical user interface, supports tabular data, XML and JSON, multiple export formats, R2RML compatible, open source Pedro Szekely CC-By 2.0 44
  • 45. R2RML About 6,550 results! Pedro Szekely CC-By 2.0 45
  • 46. R2RML Example :Table1 rdf:type rr:TriplesMap ; rr:logicalTable "Select ('<http:..isbn/' || ISBN || '>') AS isbn, Author, Title, Publisher, Year from book_table"; rr:subjectMap [ rdf:type rr:IRIMap ; rr:column "isbn" ] ; rr:propertyObjectMap [ rr:property a:title ; rr:column "Title" ; ] ; rr:propertyObjectMap [ rr:property a:year ; rr:column "Year" ; ] ; http://ivan-herman.name/2010/11/02/my-first-mapping-from-rdb-to-rdf-using-r2rml/! http://www.w3.org/TR/r2rml/! Pedro Szekely CC-By 2.0 46
  • 47. RDF Refine Pedro Szekely http://refine.deri.ie/rdfExportDocs!CC-By 2.0 47
  • 49. Pedro Szekely Tools for Linking! CC-By 2.0 49
  • 50. Multiple “John Singer Sargent” ima:SaamPerson_John_Singer_Sargent! a saam:SaamPerson ;! dct:date "1856-1925" ;! foaf:name "John Singer Sargent" .! cb:SaamPerson_John_Singer_Sargent! a saam:SaamPerson ;! ont0:dateOfBirth "1879", "1885" ;! ont0:dateOfDeath "1925" ;! skos:prefLabel "John Singer Sargent" .! saam:SaamPerson_4253! a saam:SaamPerson ;! saam:associatedPlace ! dallas:SaamPerson_John_Singer_Sargent! a saam:SaamPerson ;! ont0:dateOfBirth "1856" ;! ont0:dateOfDeath "1925" ;! foaf:name "John Singer Sargent" .! met:SaamPerson_John_Singer_Sargent! a saam:SaamPerson ;! ont0:placeOfResidence ! saam:SaamPlace_1357324439768t1r13950_0, ! saam:SaamPlace_1357324439768t1r13951_0 ;! saam:constituentId "4253" ;! rdaGr2:biographicalInformation ! “Painter. Sargent traveled …" ;! rdaGr2:dateAssociatedWithThePerson "1990-10-1”, "1995-5-8" ;! rdaGr2:dateOfBirth "1856-1-12" ;! rdaGr2:dateOfDeath "1925-4-15" ;! rdaGr2:placeOfBirth saam:SaamPlace_1357324439768t1r13952_0 ;! rdaGr2:placeOfDeath saam:SaamPlace_1357324439768t1r13953_0 ;! skos:altLabel "John S. Sargent" ;! skos:prefLabel "John Singer Sargent" .! "North and Central America", ! "United States" ;! foaf:name "John Singer Sargent" .! Pedro Szekely CC-By 2.0 50
  • 51. ima:SaamPerson_John_Singer_Sargent! a saam:SaamPerson ;! dct:date "1856-1925" ;! foaf:name "John Singer Sargent" .! cb:SaamPerson_John_Singer_Sargent! a saam:SaamPerson ;! ont0:dateOfBirth "1879", "1885" ;! ont0:dateOfDeath "1925" ;! skos:prefLabel "John Singer Sargent" .! saam:SaamPerson_4253! a saam:SaamPerson ;! saam:associatedPlace ! dallas:SaamPerson_John_Singer_Sargent! a saam:SaamPerson ;! ont0:dateOfBirth "1856" ;! ont0:dateOfDeath "1925" ;! foaf:name "John Singer Sargent" .! met:SaamPerson_John_Singer_Sargent! a saam:SaamPerson ;! ont0:placeOfResidence ! saam:SaamPlace_1357324439768t1r13950_0, ! saam:SaamPlace_1357324439768t1r13951_0 ;! saam:constituentId "4253" ;! rdaGr2:biographicalInformation ! “Painter. Sargent traveled …" ;! rdaGr2:dateAssociatedWithThePerson "1990-10-1”, "1995-5-8" ;! rdaGr2:dateOfBirth "1856-1-12" ;! rdaGr2:dateOfDeath "1925-4-15" ;! rdaGr2:placeOfBirth saam:SaamPlace_1357324439768t1r13952_0 ;! rdaGr2:placeOfDeath saam:SaamPlace_1357324439768t1r13953_0 ;! skos:altLabel "John S. Sargent" ;! skos:prefLabel "John Singer Sargent" .! "North and Central America", ! "United States" ;! foaf:name "John Singer Sargent" .! Pedro Szekely John Singer Sargent Pedro Szekely CC-By 2.0 51
  • 52. Linking “John Singer Sargent” saam:SaamPerson_4253! owl:sameAs cb:SaamPerson_John_Singer_Sargent ;! owl:sameAs dallas:SaamPerson_John_Singer_Sargent ;! owl:sameAs ima:SaamPerson_John_Singer_Sargent ;! owl:sameAs met:SaamPerson_John_Singer_Sargent ;! owl:sameAs dbpedia:John_Singer_Sargent ;! owl:sameAs nytimes/N49129220686803623753 ;! owl:sameAs w-flick/John_Singer_Sargent ;! ...! .! Pedro Szekely CC-By 2.0 52 Pedro Szekely
  • 53. Linking/Reconciliation Tools Tool Shortcomings Benefits custom code very difficult tuned to the data SILK LIMES experimental, poor support work with RDF, efficient, relatively easy to use RDF Refine requires implementing a new reconciliation service integrated with RDF conversion, user interface for curation Karma under development Pedro Szekely CC-By 2.0 53
  • 56. Pedro Szekely Storing and Maintaining the Data! CC-By 2.0 56
  • 57. Storage Options Technology Shortcomings Benefits SPARQL low reliability, esoteric, endpoint slow sophisticated query language RDF dump no query capability, esoteric flexibility: clients can download and use in applications, easy to publish JSON-LD + ElasticSearch restricted query language very high performance, mainstream technology, easy to publish Pedro Szekely CC-By 2.0 57
  • 58. JSON-LD { "@type": "http://www.cidoc-crm.org/cidoc-crm/E21_Person", "@id": "http://americanart.si.edu/data/person-institution/99”, “P1_is_identified_by": { "@type": "http://www.cidoc-crm.org/cidoc-crm/E82_Actor_Appellation", "@id": "http://americanart.si.edu/data/person-institution/99/appellation/Birth-or-Maiden-Name”, “label": " Walter Inglis Anderson”, “lastname": "Anderson", “firstname": "Walter Inglis” } } Pedro Szekely CC-By 2.0 58
  • 61. we have expanded the reach of linked data within the BBC to more audience facing products and presented our ambitions to using linked data as glue for the plethora of content the BBC produces! ! http://www.bbc.co.uk/blogs/internet/posts/Linked-Data-new-ontologies-website! http://www.bbc.co.uk/blogs/internet/posts/Linked-Data-Connecting-together-the-BBCs-Online-Content! Pedro Szekely CC-By 2.0 61 http://www.bbc.co.uk/blogs/internet/posts/Opening-up-the-BBCs-Linked-Data!
  • 65. thanks for your attention! questions?!
