2. Presented By :
Md. Abaidul Haque(Id:Cse04906413)
Omer Faruk(Id:Cse04906418)
Md. Rafiul Islam(Id:Cse04806333)
Habibur Rahman(Id:Cse04906400)
Emdadun Nahar(Id:Cse04906401)
Farzana kanak(Id:Cse04806356)
Guided By
Kazi Wasif Ahmed
3. Introduction
• Library is the collection of different types of books.
• It provides Books for large number of readers.
• Thus we need web based system for managing the
Library.
• Library Management System provides the
systematic handling the records of books and
readers.
• Adding new users, books and
magazines/newspapers.
• Updating Users, books and magazines/newspapers.
• Deleting Users, books and magazines/newspapers.
4. Existing System Overview
• In our library of Stamford University Bangladesh,
many of the transactions are done manually.
• No online book reservation system
• No complete Book list available
• No auto fine system
• Such system creates haphazard records of library.
• Manual system can give only the information about
the book issued by the students .
• While updating data misplacing records
,redundancy problem etc.

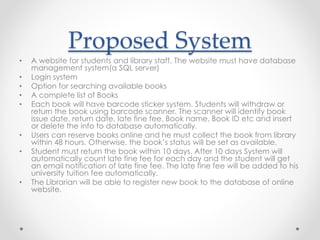

6. Proposed System
• A website for students and library staff. The website must have database
management system(a SQL server)
• Login system
• Option for searching available books
• A complete list of Books
• Each book will have barcode sticker system. Students will withdraw or
return the book using barcode scanner. The scanner will identify book
issue date, return date, late fine fee, Book name, Book ID etc and insert
or delete the info to database automatically.
• Users can reserve books online and he must collect the book from library
within 48 hours. Otherwise, the book’s status will be set as available.
• Student must return the book within 10 days. After 10 days System will
automatically count late fine fee for each day and the student will get
an email notification of late fine fee. The late fine fee will be added to his
university tuition fee automatically.
• The Librarian will be able to register new book to the database of online
website.

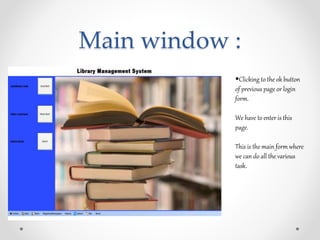

8. Main window :
Clicking to the ok button
of previous page or login
form.
We have to enter is this
page.
This is the main form where
we can do all the various
task.
10. OPUS MAIN
System
Student
Admin
Log in
search book in database Find book
search for book Submit requisition
Issue on card
Validate signature Issue book to student
sign
<<include>>
Register in Library
System

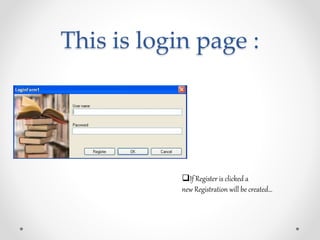

12. This is login page :
If Register is clicked a
new Registration will be created…

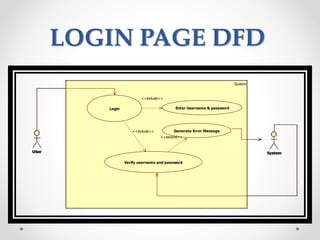

13. LOGIN PAGE DFD
System
USer System
Login
Verify username and password
Enter Username & password
<<include>>
<<include>> Generate Error Message
<<extend>>
14. Various Operation By
Users :
To enter into this page we have
to click on the MenuStrip button
then select Add New User
button (From Users button)
from the previous page or the
main window.
In this page we can add new
user.
Similarly, we can update, delete
the user too, by using the given
button on the main window as I
have mention before in the

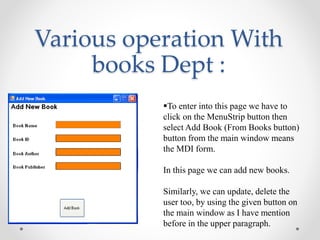

16. Various operation With
books Dept :
To enter into this page we have to
click on the MenuStrip button then
select Add Book (From Books button)
button from the main window means
the MDI form.
In this page we can add new books.
Similarly, we can update, delete the
user too, by using the given button on
the main window as I have mention
before in the upper paragraph.

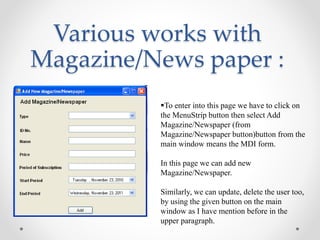

18. Various works with
Magazine/News paper :
To enter into this page we have to click on
the MenuStrip button then select Add
Magazine/Newspaper (from
Magazine/Newspaper button)button from the
main window means the MDI form.
In this page we can add new
Magazine/Newspaper.
Similarly, we can update, delete the user too,
by using the given button on the main
window as I have mention before in the
upper paragraph.
19. Searching Operation :
If you are in the main page, means
library management system page click
on Search button a Context MenuStrip
is appear from it select search by
student/staff ID tab.
Here you can search the following
information of Staff/student ID,
Staff/student Name. From the Database
which have saved into the Library
Management System.
In the context manustrip there are some
other Search operation is available for
doing various operation.

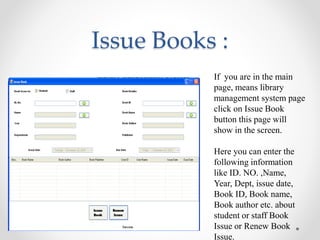

21. Issue Books :
If you are in the main
page, means library
management system page
click on Issue Book
button this page will
show in the screen.
Here you can enter the
following information
like ID. NO. ,Name,
Year, Dept, issue date,
Book ID, Book name,
Book author etc. about
student or staff Book
Issue or Renew Book
Issue.
23. Return Books :
If you are in the main
page, means library
management system page
click on Return Book
button this page will show
in the screen.
Here you can enter the
following information like
Book ID, Book name,
Book author, Fine, Name
etc. and Return Book
from the library.
24. Book Issue and Fine form
:
When we are entering from the login page to the
main MDI page in that case this page will be
display.
In this page we can issue the amount of books to be
issued with issued days.
From the Fine tab we can put Fine amount for the
staff, for the Student.
30. CLASS DIAGRAM
Administrator
-fname
-lname
-address
+state
+city
+pin
+age
+phoneno
+designation
+date of join
+month
+year
+1.Add book()
+2.Add student information()
+3.calculate fine()
+4.Order supplier for book()
+5.Isuue books()
Book
+Books title
+Publisher's name
+Author's name
+ISBN NO.
+Category
Supplier
+Supplier name
+Address
+Phone number
+Manufacturer
+Local
+Dealers
+Month
+Date
+Year
+1.Order assessment()
+2.Dispatch order()
Student
+User name
+Userid
+Address
+Phone number
+Department
+1.Check availability()
+2.Submit requistion()
manage
interact with
issue order
access
31. Conclusion :
• The project LIBRARY MANAGEMENT SYSTEM is for
computerizing the working in a library.
• The software takes care of all the requirements of
an a library and is capable to provide easy
and effective storage of information related to
books & users.
