Leveraging Symfony2 Forms
Bernhard Schussek gave a presentation on leveraging Symfony2 forms at the Symfony Live conference in March 2011. He discussed the evolution of the Symfony form component, its service-oriented architecture, and how forms are decoupled from business logic. He provided an example of an online sausage shop order form to demonstrate how form data is bound to objects and submitted. The presentation covered the form configuration class, form processing, field types, validation, embedding forms, and form themes.
Leveraging Symfony2 Forms
- 1. Bernhard Schussek Leveraging Symfony2 Forms Symfony Live Conference, March 03rd 2011
- 2. About myself Software Architect in Vienna Student of Software Engineering Symfony since 2006 Outdoor and music junkie

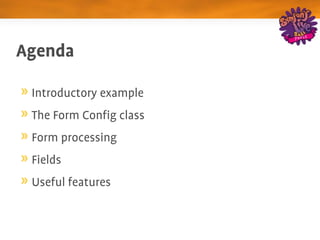

- 3. Agenda Introductory example The Form Config class Form processing Fields Useful features
- 4. The Symfony2 Form component
- 5. The Symfony2 Form component Evolution of symfony1 sfForm 2.5 years development Fixes most of its problems Reusable widgets Embedded forms
- 6.
- 7.
- 8. Service Oriented Architecture Applications provide services Services are exchangable These services can be consumed by different actors Humans Machines
- 9. Forms don't contain business logic
- 10.
- 11.

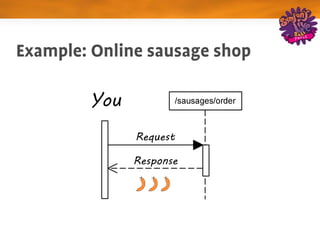

- 12. Example: Online sausage shop You Request Response

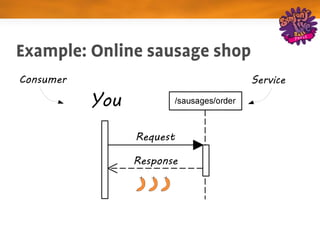

- 13. Example: Online sausage shop Consumer Service You Request Response
- 14. Example: Online sausage shop Consumer Service Request Response
- 15. Example: Online sausage shop Consumer Service Request Response

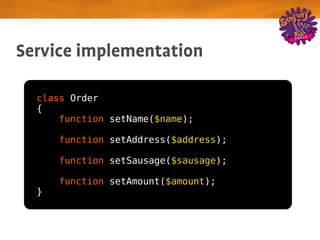

- 16. Service implementation classOrder { function setName($name); function setAddress($address); function setSausage($sausage); function setAmount($amount); }
- 17. Flow of information I am Max!
- 18. Flow of information I am Max! $order->setName('Max')

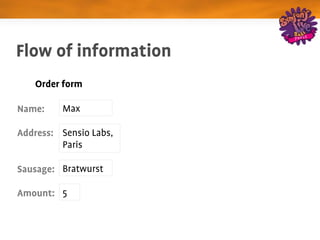

- 19. Flow of information Order form Name: Max Address: Sensio Labs, Paris Sausage: Bratwurst Amount: 5

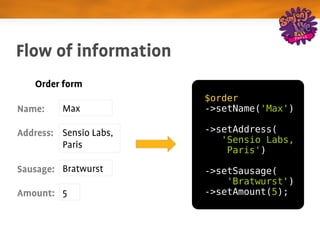

- 20. Flow of information Order form $order Name: Max ->setName('Max') Address: Sensio Labs, ->setAddress( 'Sensio Labs, Paris Paris') Sausage: Bratwurst ->setSausage( 'Bratwurst') Amount: 5 ->setAmount(5);

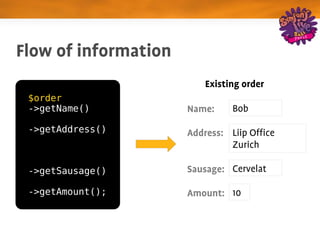

- 21. Flow of information Existing order $order ->getName() Name: Bob ->getAddress() Address: Liip Office Zurich ->getSausage() Sausage: Cervelat ->getAmount(); Amount: 10
- 22.

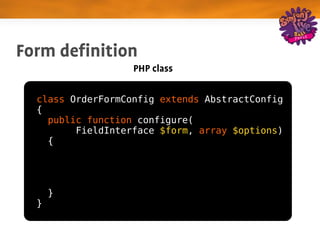

- 23. Form definition PHP class class OrderFormConfig extends AbstractConfig { public function configure( FieldInterface $form, array $options) { } }

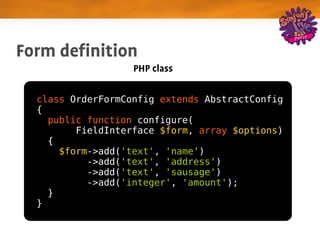

- 24. Form definition PHP class class OrderFormConfig extends AbstractConfig { public function configure( FieldInterface $form, array $options) { $form->add('text', 'name') ->add('text', 'address') ->add('text', 'sausage') ->add('integer', 'amount'); } }

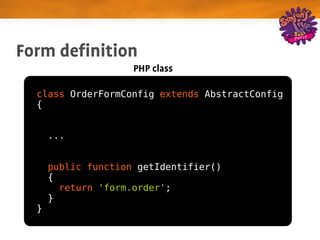

- 25. Form definition PHP class class OrderFormConfig extends AbstractConfig { ... public function getIdentifier() { return 'form.order'; } }
- 26.

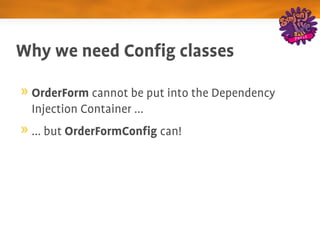

- 27. Why we need Config classes OrderForm cannot be put into the Dependency Injection Container ... ... but OrderFormConfig can!

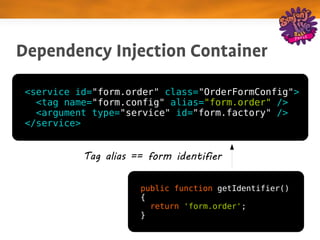

- 28. Dependency Injection Container <service id="form.order"class="OrderFormConfig"> <tag name="form.config" alias="form.order" /> <argument type="service" id="form.factory" /> </service> Tag alias == form identifier public function getIdentifier() { return 'form.order'; }

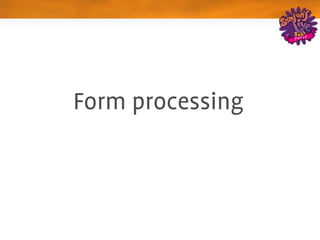

- 29.

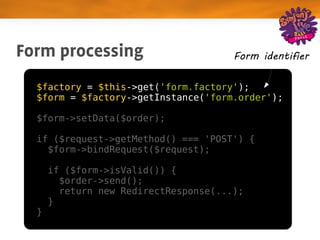

- 30. Form processing Form identifier $factory = $this->get('form.factory'); $form = $factory->getInstance('form.order'); $form->setData($order); if ($request->getMethod() === 'POST') { $form->bindRequest($request); if ($form->isValid()) { $order->send(); return new RedirectResponse(...); } }
- 31. Form processing $factory= $this->get('form.factory'); $form = $factory->getInstance('form.order'); $form->setData($order); Service object if ($request->getMethod() === 'POST') { $form->bindRequest($request); if ($form->isValid()) { $order->send(); return new RedirectResponse(...); } }

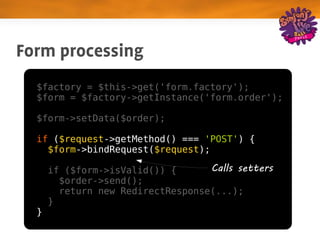

- 32. Form processing $factory= $this->get('form.factory'); $form = $factory->getInstance('form.order'); $form->setData($order); if ($request->getMethod() === 'POST') { $form->bindRequest($request); if ($form->isValid()) { Calls setters $order->send(); return new RedirectResponse(...); } }

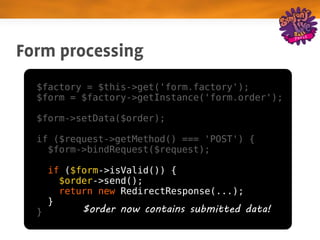

- 33. Form processing $factory= $this->get('form.factory'); $form = $factory->getInstance('form.order'); $form->setData($order); if ($request->getMethod() === 'POST') { $form->bindRequest($request); if ($form->isValid()) { $order->send(); return new RedirectResponse(...); } } $order now contains submitted data!

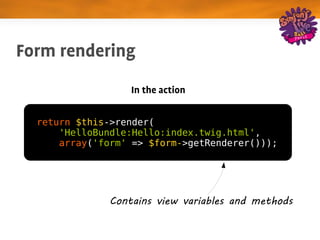

- 34. Form rendering In the action return $this->render( 'HelloBundle:Hello:index.twig.html', array('form' => $form->getRenderer())); Contains view variables and methods

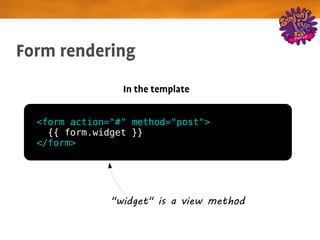

- 35. Form rendering In the template <form action="#" method="post"> {{ form.widget }} </form> "widget" is a view method

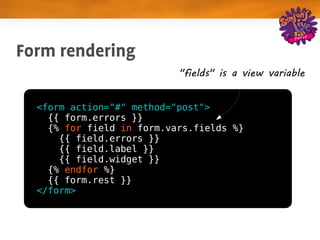

- 36. Form rendering "fields" is a view variable <form action="#" method="post"> {{ form.errors }} {% for field in form.vars.fields %} {{ field.errors }} {{ field.label }} {{ field.widget }} {% endfor %} {{ form.rest }} </form>

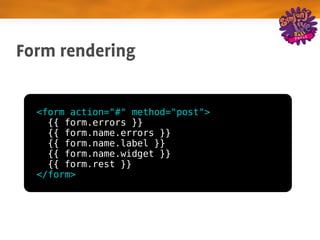

- 37. Form rendering <formaction="#" method="post"> {{ form.errors }} {{ form.name.errors }} {{ form.name.label }} {{ form.name.widget }} {{ form.rest }} </form>

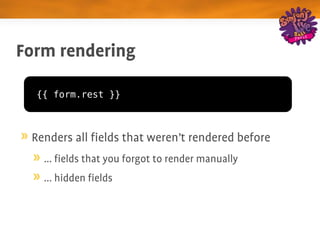

- 38. Form rendering {{form.rest }} Renders all fields that weren't rendered before ... fields that you forgot to render manually ... hidden fields
- 39.

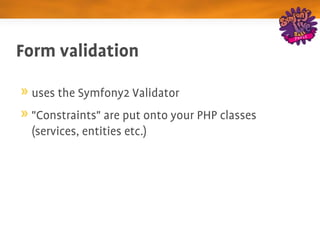

- 40. Form validation uses the Symfony2 Validator "Constraints" are put onto your PHP classes (services, entities etc.)

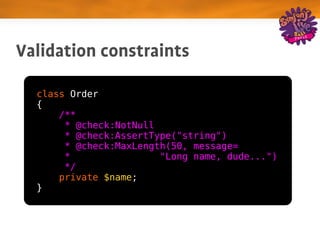

- 41. Validation constraints classOrder { /** * @check:NotNull * @check:AssertType("string") * @check:MaxLength(50, message= * "Long name, dude...") */ private $name; }
- 42.

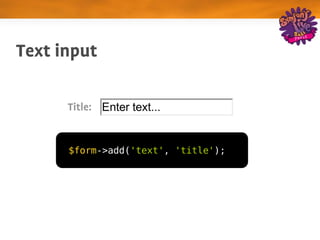

- 43. Text input Title: $form->add('text', 'title');
- 44. Textarea Content: $form->add('textarea', 'content');

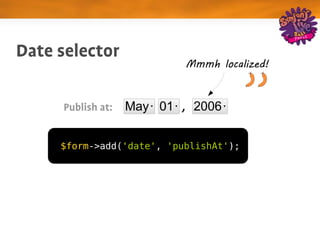

- 45. Date selector Mmmh localized! Publish at: $form->add('date', 'publishAt');

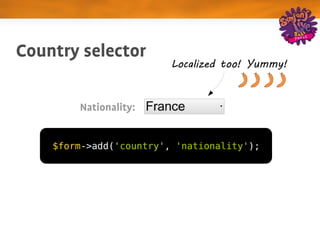

- 46. Country selector Localized too! Yummy! Nationality: $form->add('country', 'nationality');

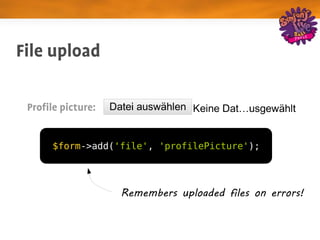

- 47. File upload Profile picture: $form->add('file', 'profilePicture'); Remembers uploaded files on errors!

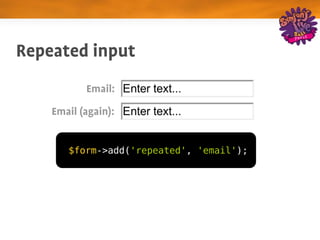

- 48. Repeated input Email: Email (again): $form->add('repeated', 'email');

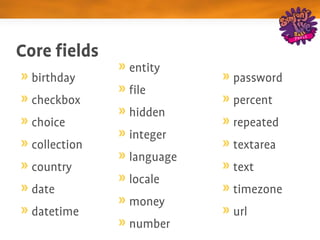

- 49. Core fields entity birthday password file checkbox percent hidden choice repeated integer collection textarea language country text locale date timezone money datetime url number

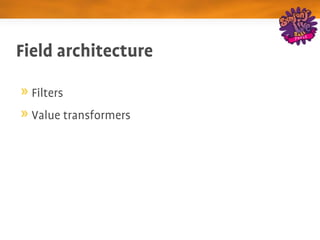

- 50. Field architecture Filters Value transformers

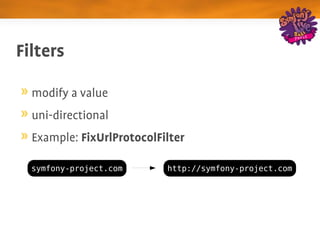

- 51. Filters modify a value unidirectional Example: FixUrlProtocolFilter symfony-project.com http://symfony-project.com

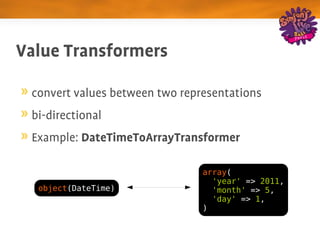

- 52. Value Transformers convert values between two representations bidirectional Example: DateTimeToArrayTransformer array( 'year' => 2011, object(DateTime) 'month' => 5, 'day' => 1, )
- 53. Example: Entity field The user sees: Symfony sees: Entity field Checkbox Checkbox Checkbox Checkbox "0" "1" "2" "3" Tag IDs

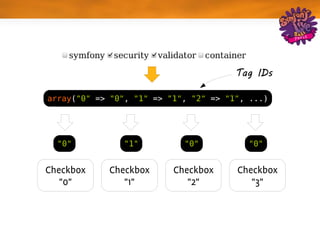

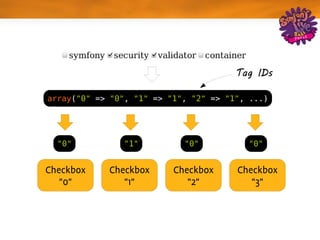

- 54. Tag IDs array("0" =>"0", "1" => "1", "2" => "1", ...) "0" "1" "0" "0" Checkbox Checkbox Checkbox Checkbox "0" "1" "2" "3"
- 55. Tag IDs array("0" =>"0", "1" => "1", "2" => "1", ...) "0" "1" "0" "0" Checkbox Checkbox Checkbox Checkbox "0" "1" "2" "3"
- 56. Checkbox Checkbox Checkbox Checkbox "0" "1" "2" "3" false true true false array("0" => false, "1" => true, "2" => true, ...) ArrayCollection($securityTag, $validatorTag)

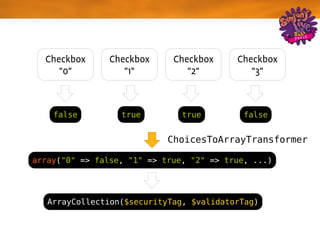

- 57. Checkbox Checkbox Checkbox Checkbox "0" "1" "2" "3" false true true false ChoicesToArrayTransformer array("0" => false, "1" => true, "2" => true, ...) ArrayCollection($securityTag, $validatorTag)

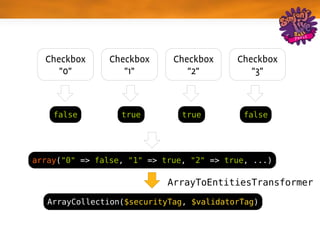

- 58. Checkbox Checkbox Checkbox Checkbox "0" "1" "2" "3" false true true false array("0" => false, "1" => true, "2" => true, ...) ArrayToEntitiesTransformer ArrayCollection($securityTag, $validatorTag)
- 59. CSRF protection CrossSite Request Forgery A form is submitted using the session of another person All kinds of misuse Builtin protection in Symfony2

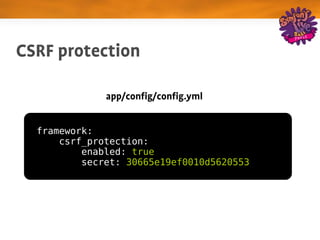

- 60. CSRF protection app/config/config.yml framework: csrf_protection: enabled: true secret: 30665e19ef0010d5620553

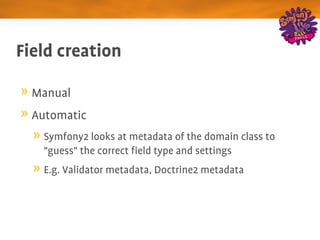

- 61. Field creation Manual Automatic Symfony2 looks at metadata of the domain class to "guess" the correct field type and settings E.g. Validator metadata, Doctrine2 metadata

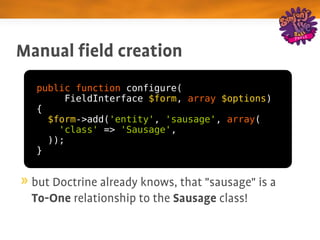

- 62. Manual field creation publicfunction configure( FieldInterface $form, array $options) { $form->add('entity', 'sausage', array( 'class' => 'Sausage', )); } but Doctrine already knows, that "sausage" is a ToOne relationship to the Sausage class!

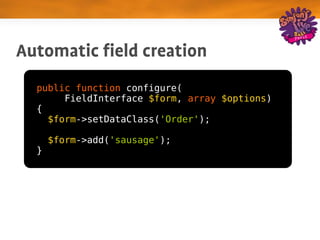

- 63. Automatic field creation publicfunction configure( FieldInterface $form, array $options) { $form->setDataClass('Order'); $form->add('sausage'); }
- 64. Automatic with options overriding publicfunction configure( FieldInterface $form, array $options) { $form->setDataClass('Order') ->add('sausage', array( 'required' => false, )); }
- 65. Embedded forms Symfony2 allows to embed forms into another very easily Fields and forms implement FieldInterface "A form is a field"

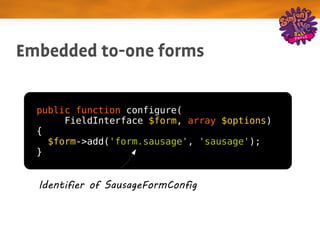

- 66. Embedded toone forms publicfunction configure( FieldInterface $form, array $options) { $form->add('form.sausage', 'sausage'); } Identifier of SausageFormConfig

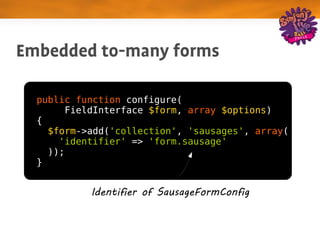

- 67. Embedded tomany forms publicfunction configure( FieldInterface $form, array $options) { $form->add('collection', 'sausages', array( 'identifier' => 'form.sausage' )); } Identifier of SausageFormConfig

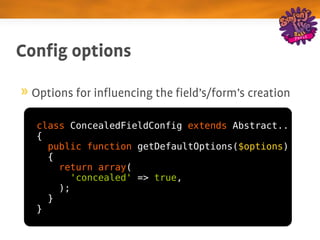

- 68. Config options Options for influencing the field's/form's creation class ConcealedFieldConfig extends Abstract.. { public function getDefaultOptions($options) { return array( 'concealed' => true, ); } }

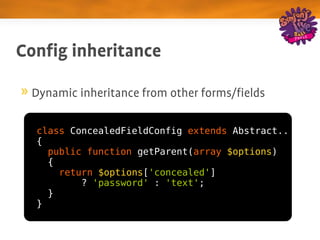

- 69. Config inheritance Dynamic inheritance from other forms/fields class ConcealedFieldConfig extends Abstract.. { public function getParent(array $options) { return $options['concealed'] ? 'password' : 'text'; } }

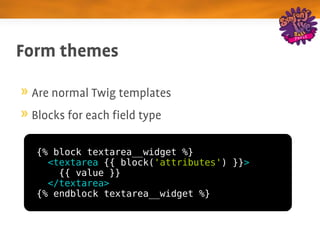

- 70. Form themes Are normal Twig templates Blocks for each field type {% block textarea__widget %} <textarea {{ block('attributes') }}> {{ value }} </textarea> {% endblock textarea__widget %}

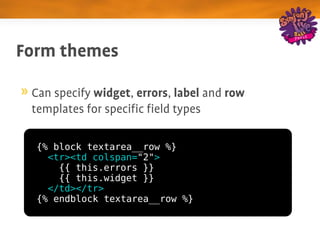

- 71. Form themes Can specify widget, errors, label and row templates for specific field types {% block textarea__row %} <tr><td colspan="2"> {{ this.errors }} {{ this.widget }} </td></tr> {% endblock textarea__row %}
- 72. Form themes Core themes: TwigBundle::div_layout.html.twig TwigBundle::table_layout.html.twig Configuration in the DI parameter "form.theme.template" More flexible configuration options coming soon
- 73. Questions? Thanks for listening! Code can currently be found on https://github.com/bschussek/symfony/tree/experimental Bernhard Schussek Twitter: @webmozart
- 74.
