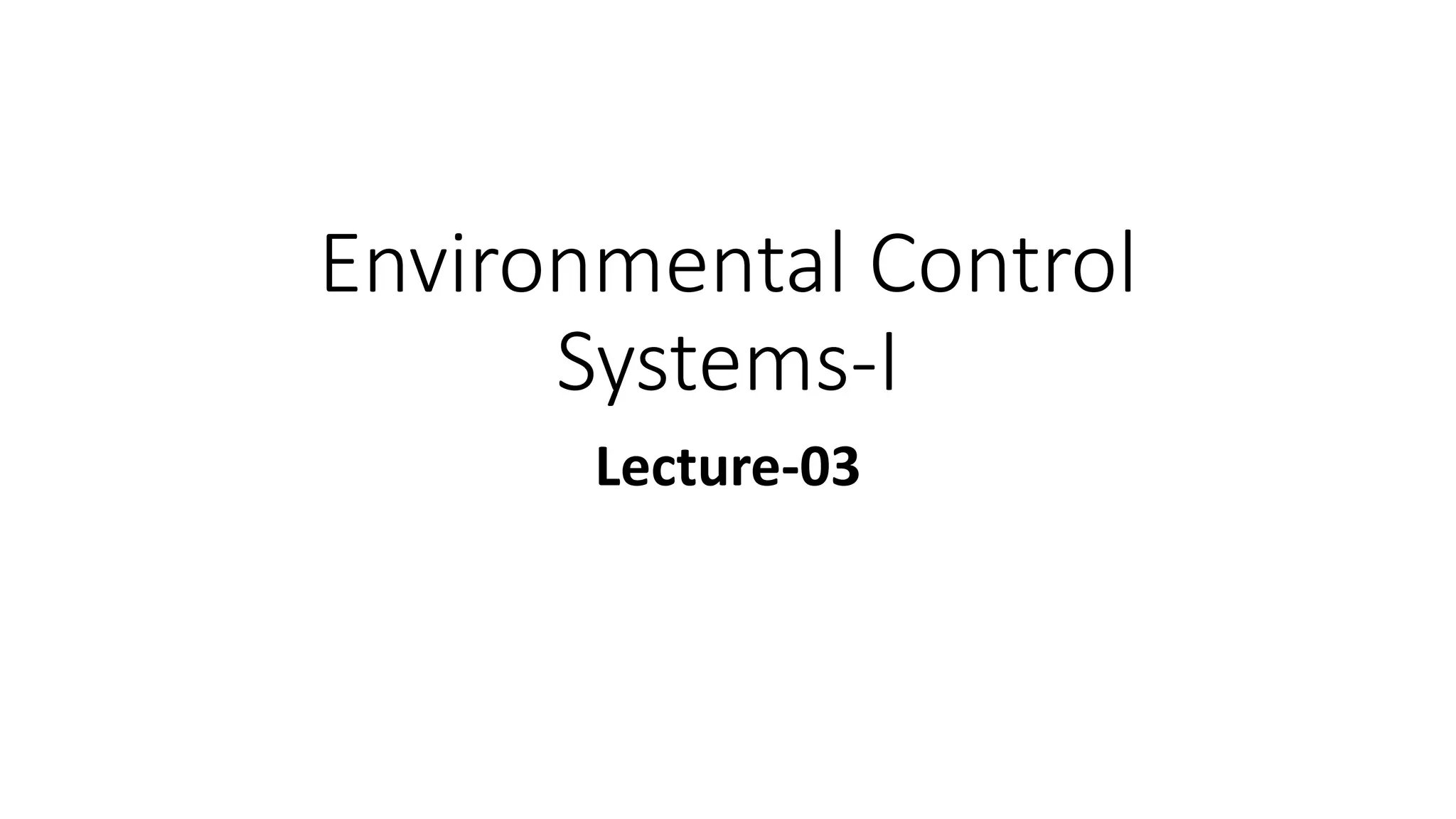

Environmental Control
Systems-I
Lecture-03

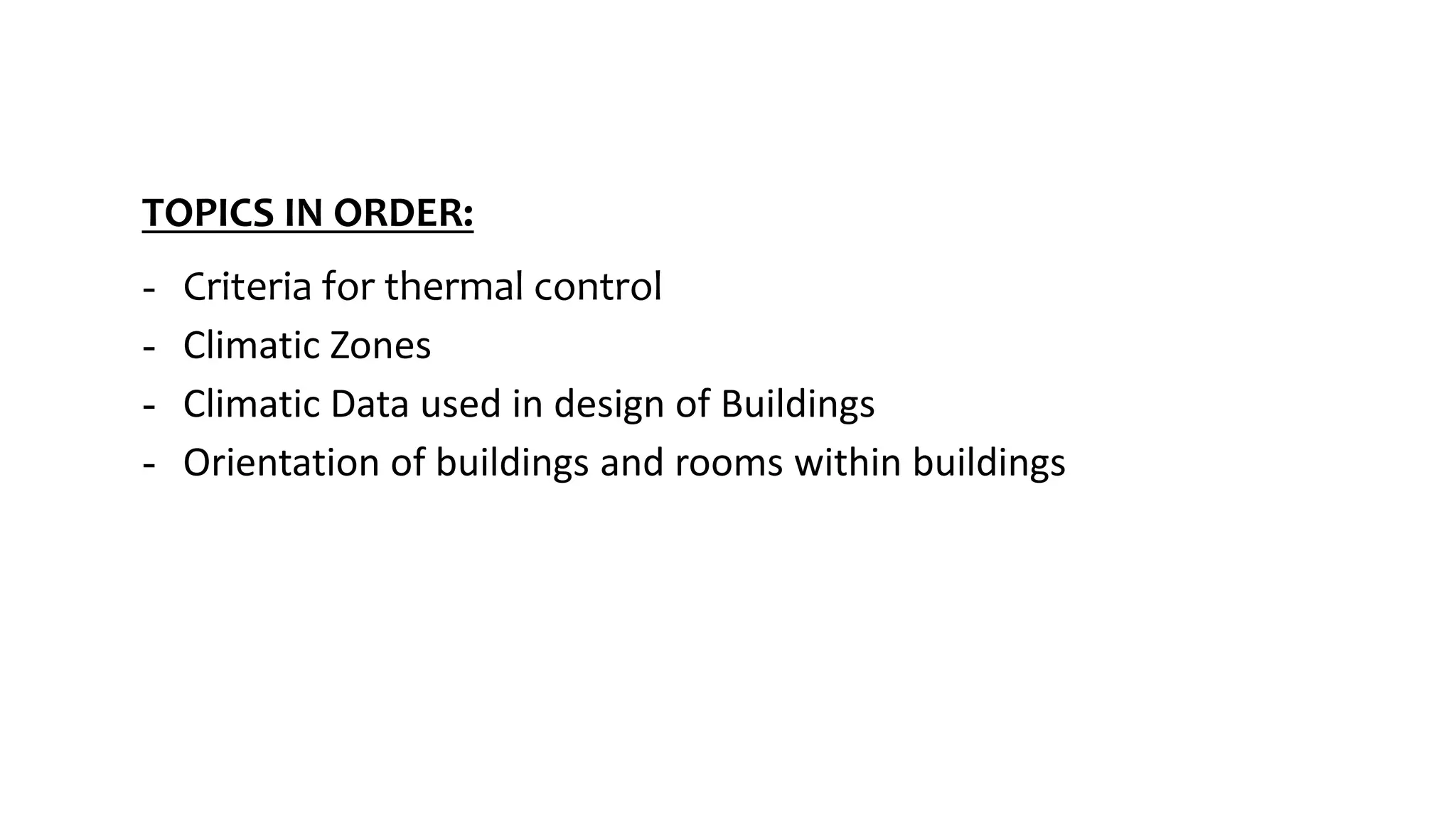

TOPICS IN ORDER:
- Criteria for thermal control
- Climatic Zones
- Climatic Data used in design of Buildings
- Orientation of buildings and rooms within buildings

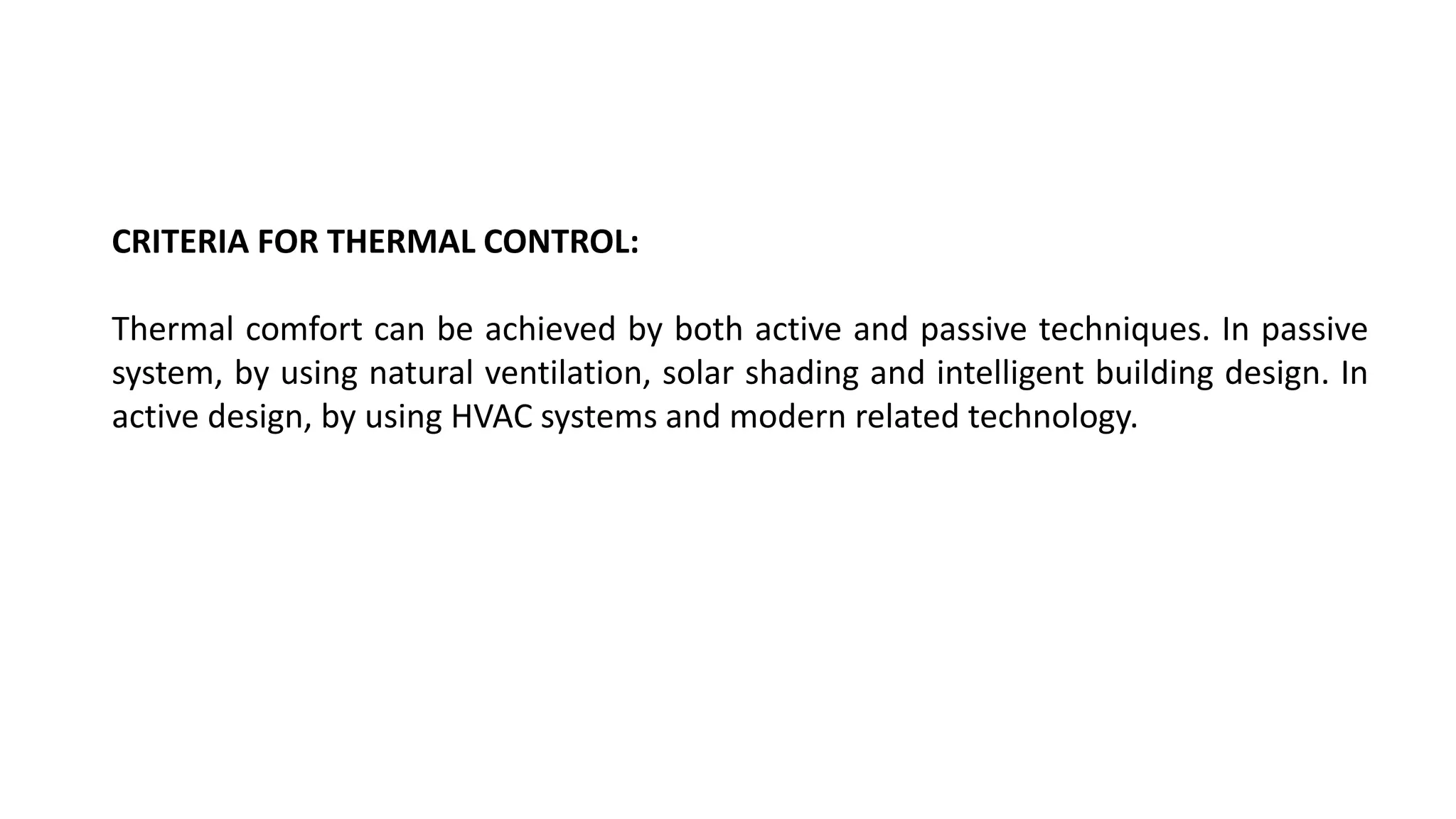

CRITERIA FOR THERMAL CONTROL:
Thermal comfort can be achieved by both active and passive techniques. In passive
system, by using natural ventilation, solar shading and intelligent building design. In
active design, by using HVAC systems and modern related technology.

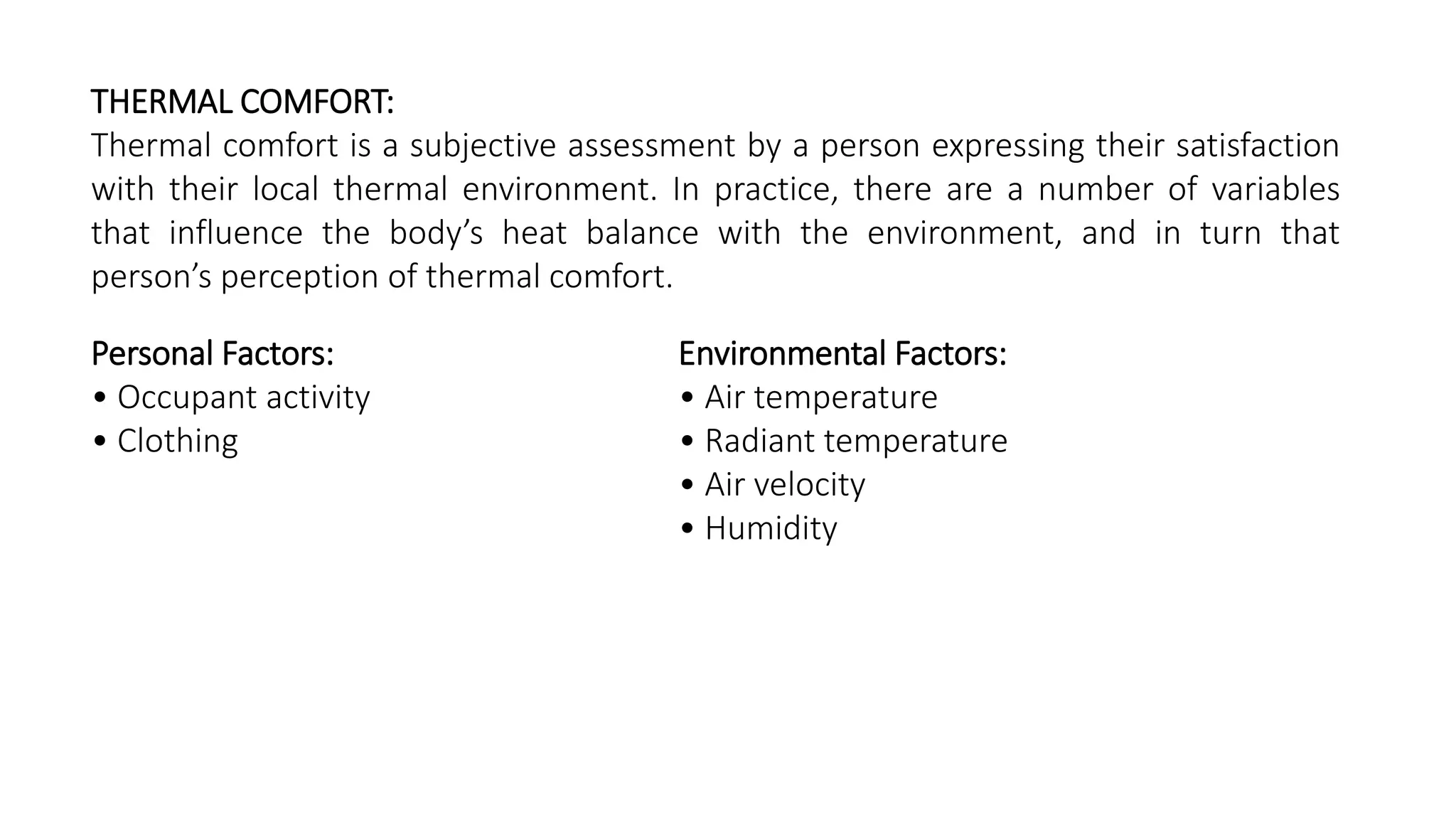

THERMAL COMFORT:
Thermal comfort is a subjective assessment by a person expressing their satisfaction
with their local thermal environment. In practice, there are a number of variables
that influence the body’s heat balance with the environment, and in turn that
person’s perception of thermal comfort.
Personal Factors:
• Occupant activity
• Clothing
Environmental Factors:
• Air temperature
• Radiant temperature
• Air velocity
• Humidity
SWEAT
EXHALATION
INSENSIBLE
PERSPIRATION
EVAPORATION
CONVECTION
CONDUCTION
RADIATION
RADIATION

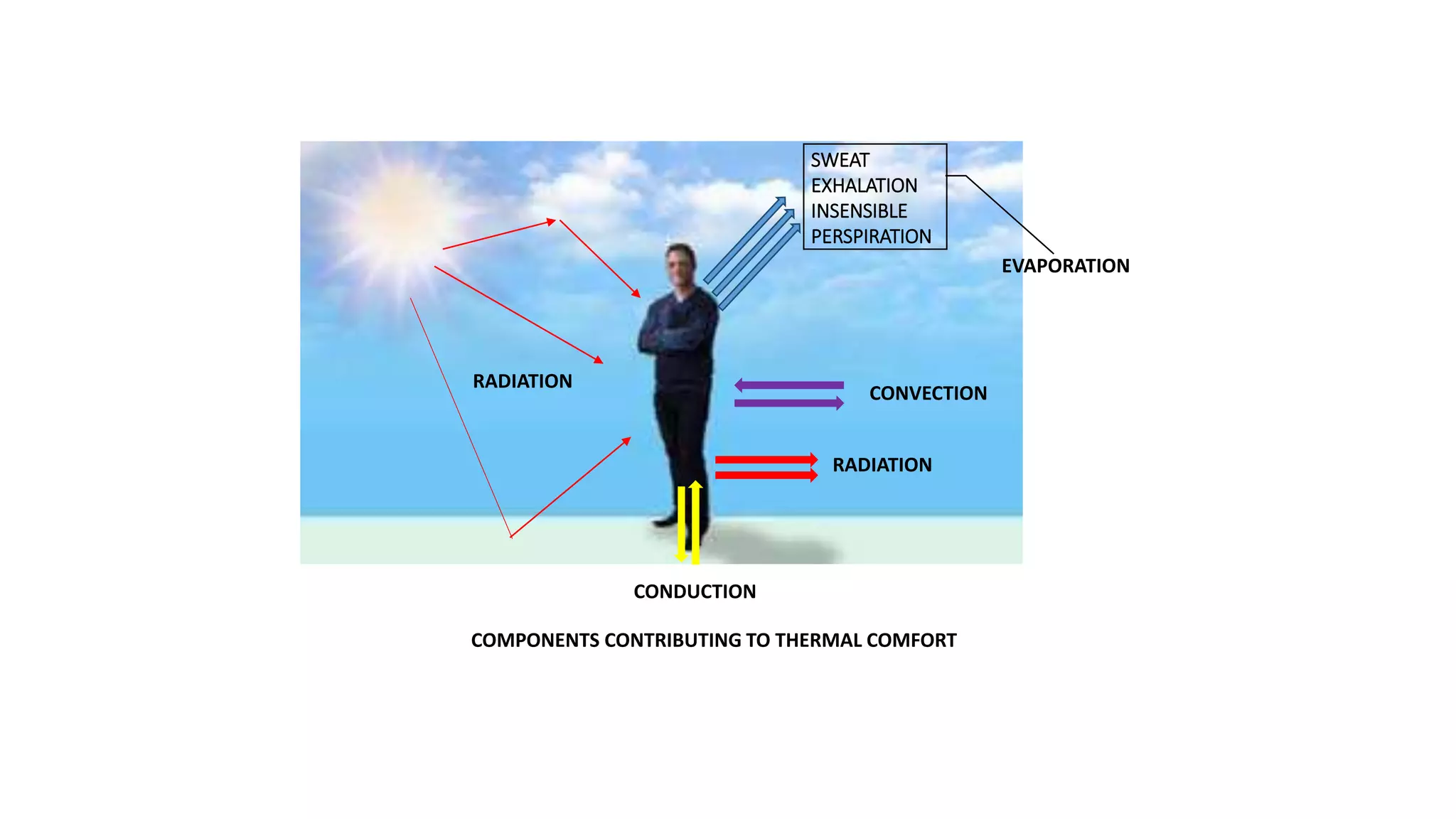

COMPONENTS CONTRIBUTING TO THERMAL COMFORT
“PERSONAL FACTORS”

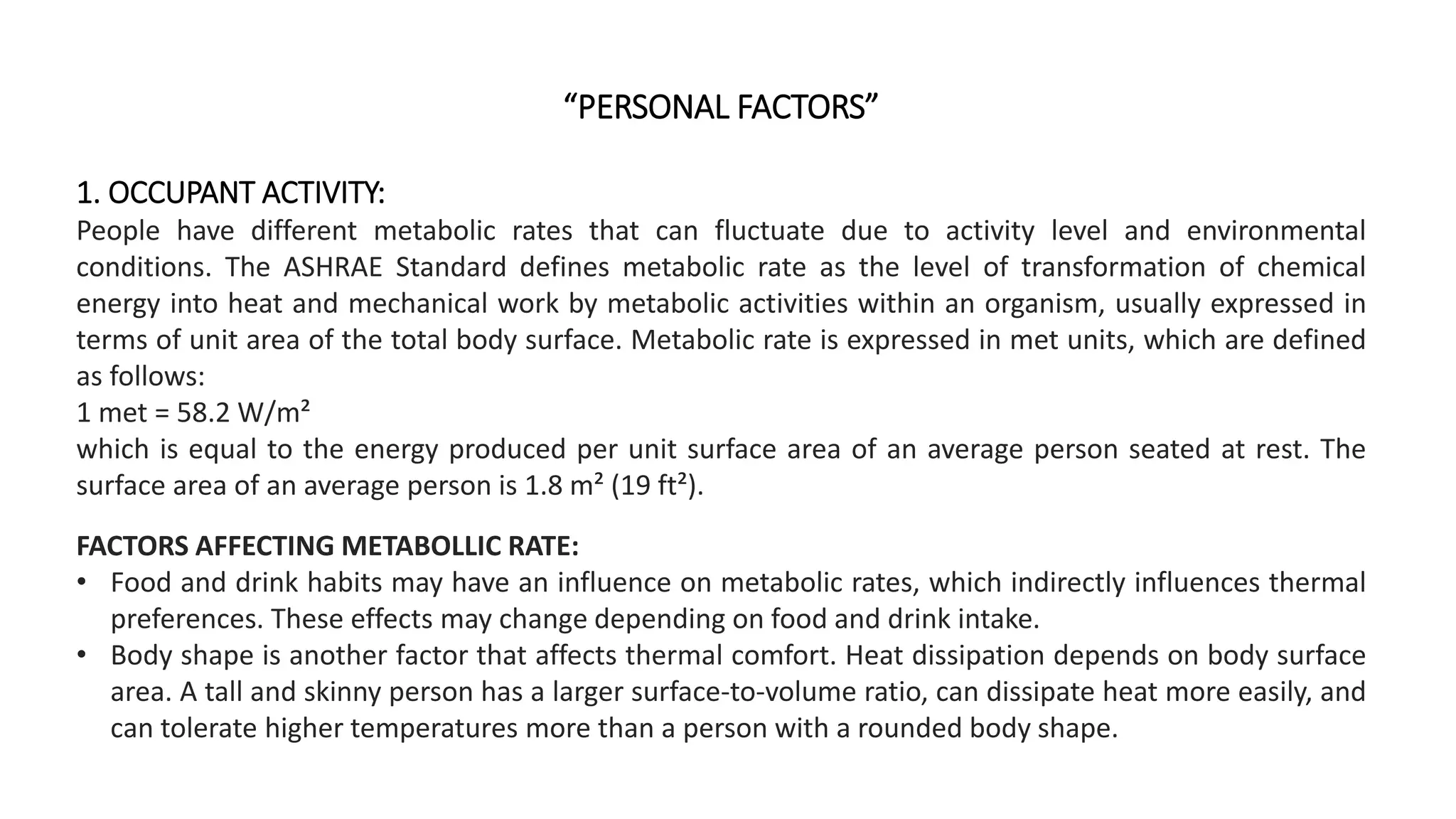

1. OCCUPANT ACTIVITY:
People have different metabolic rates that can fluctuate due to activity level and environmental
conditions. The ASHRAE Standard defines metabolic rate as the level of transformation of chemical
energy into heat and mechanical work by metabolic activities within an organism, usually expressed in
terms of unit area of the total body surface. Metabolic rate is expressed in met units, which are defined
as follows:
1 met = 58.2 W/m²
which is equal to the energy produced per unit surface area of an average person seated at rest. The
surface area of an average person is 1.8 m² (19 ft²).
FACTORS AFFECTING METABOLLIC RATE:
• Food and drink habits may have an influence on metabolic rates, which indirectly influences thermal
preferences. These effects may change depending on food and drink intake.
• Body shape is another factor that affects thermal comfort. Heat dissipation depends on body surface
area. A tall and skinny person has a larger surface-to-volume ratio, can dissipate heat more easily, and
can tolerate higher temperatures more than a person with a rounded body shape.

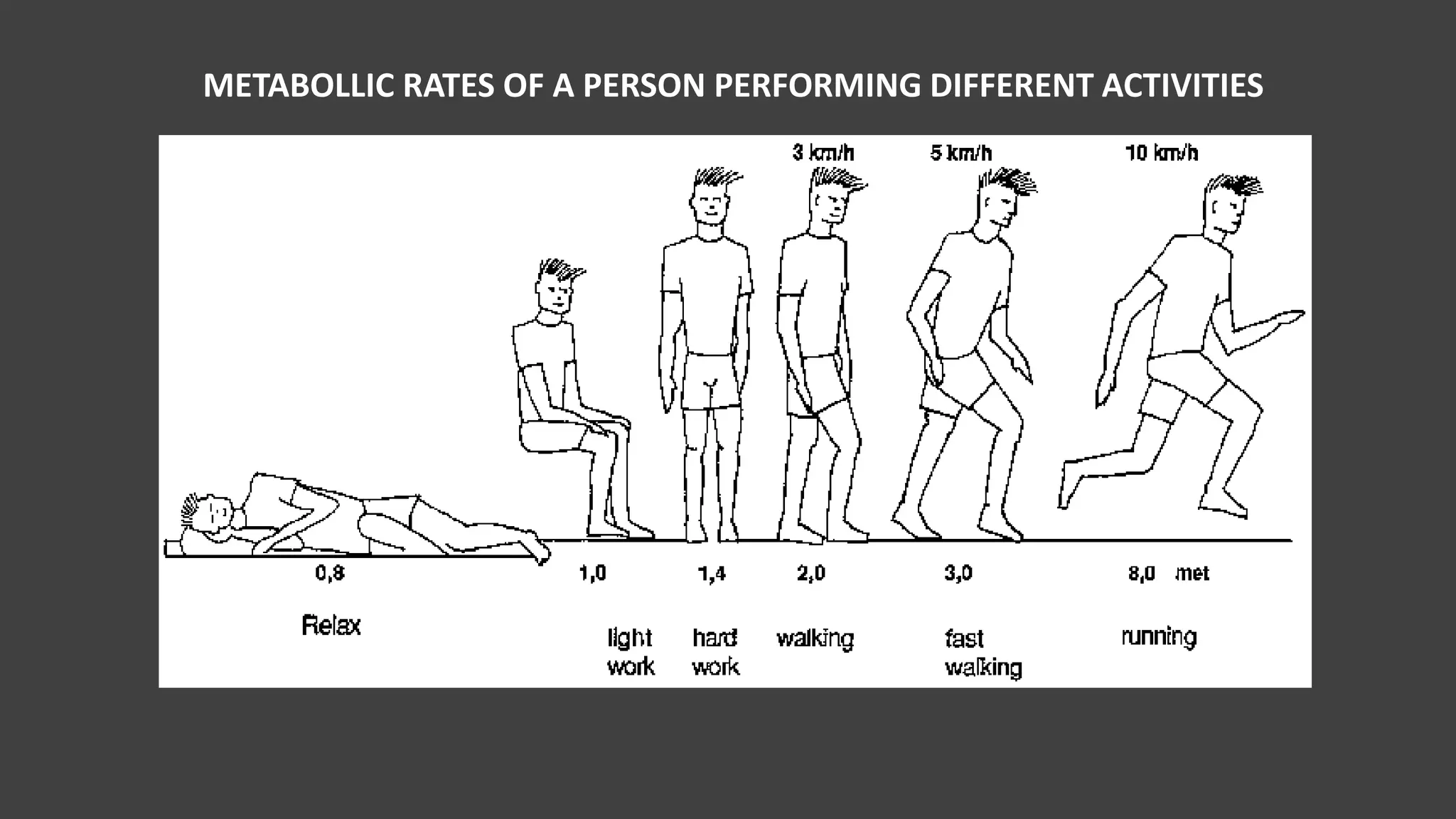

METABOLLIC RATES OF A PERSON PERFORMING DIFFERENT ACTIVITIES
2. CLOTHING:
The amount of thermal insulation worn by a person has a substantial impact on thermal comfort, as it
influences the heat loss and consequently the thermal balance. Layers of insulating clothing prevent
heat loss and can either help keep a person warm or lead to overheating. Generally, the thicker the
garment is, the greater insulating ability it has. Depending on the type of material the clothing is made
out of, air movement and relative humidity can decrease the insulating ability of the material.

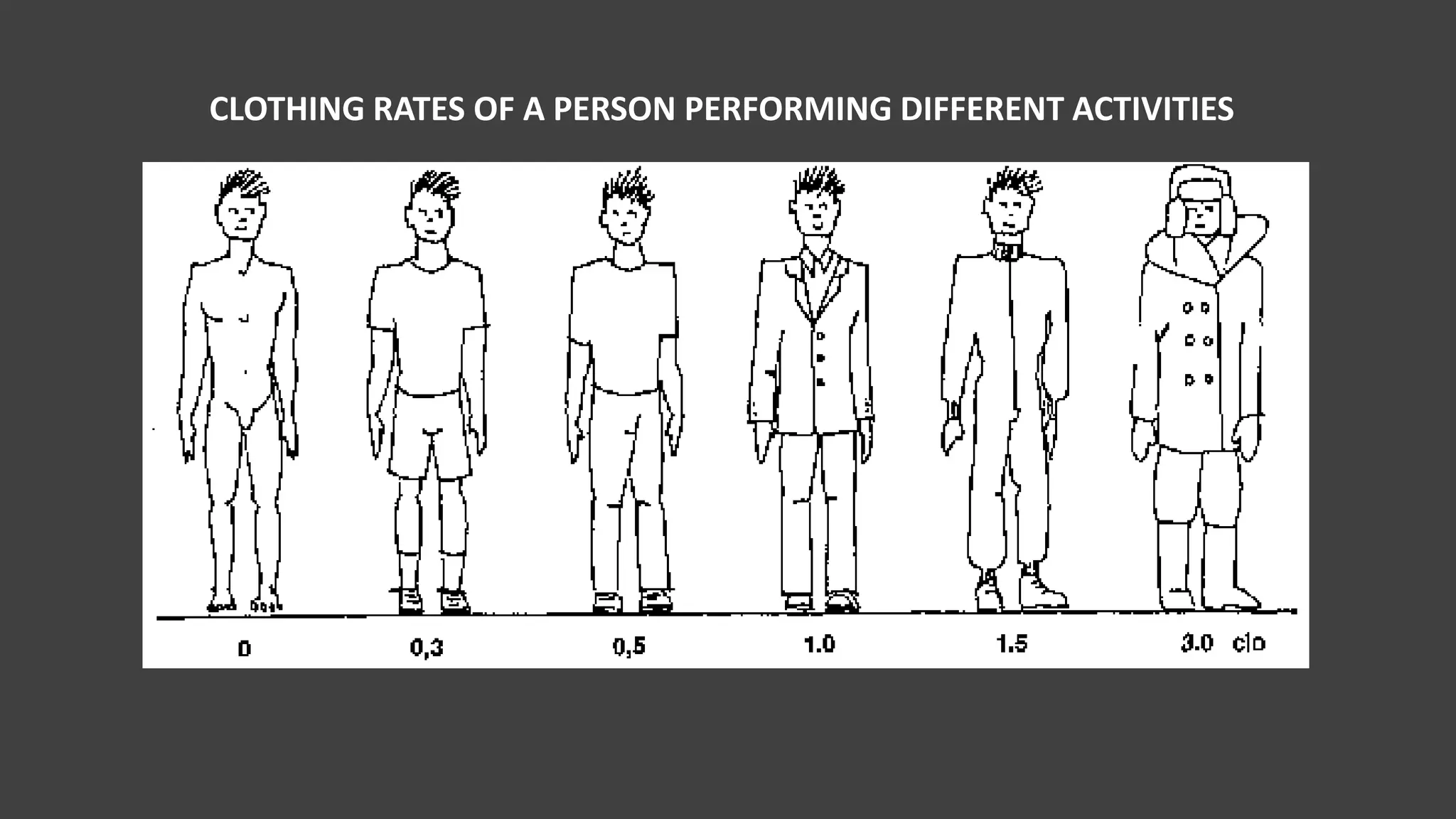

CLOTHING RATES OF A PERSON PERFORMING DIFFERENT ACTIVITIES
“ENVIRONMENTAL FACTORS”

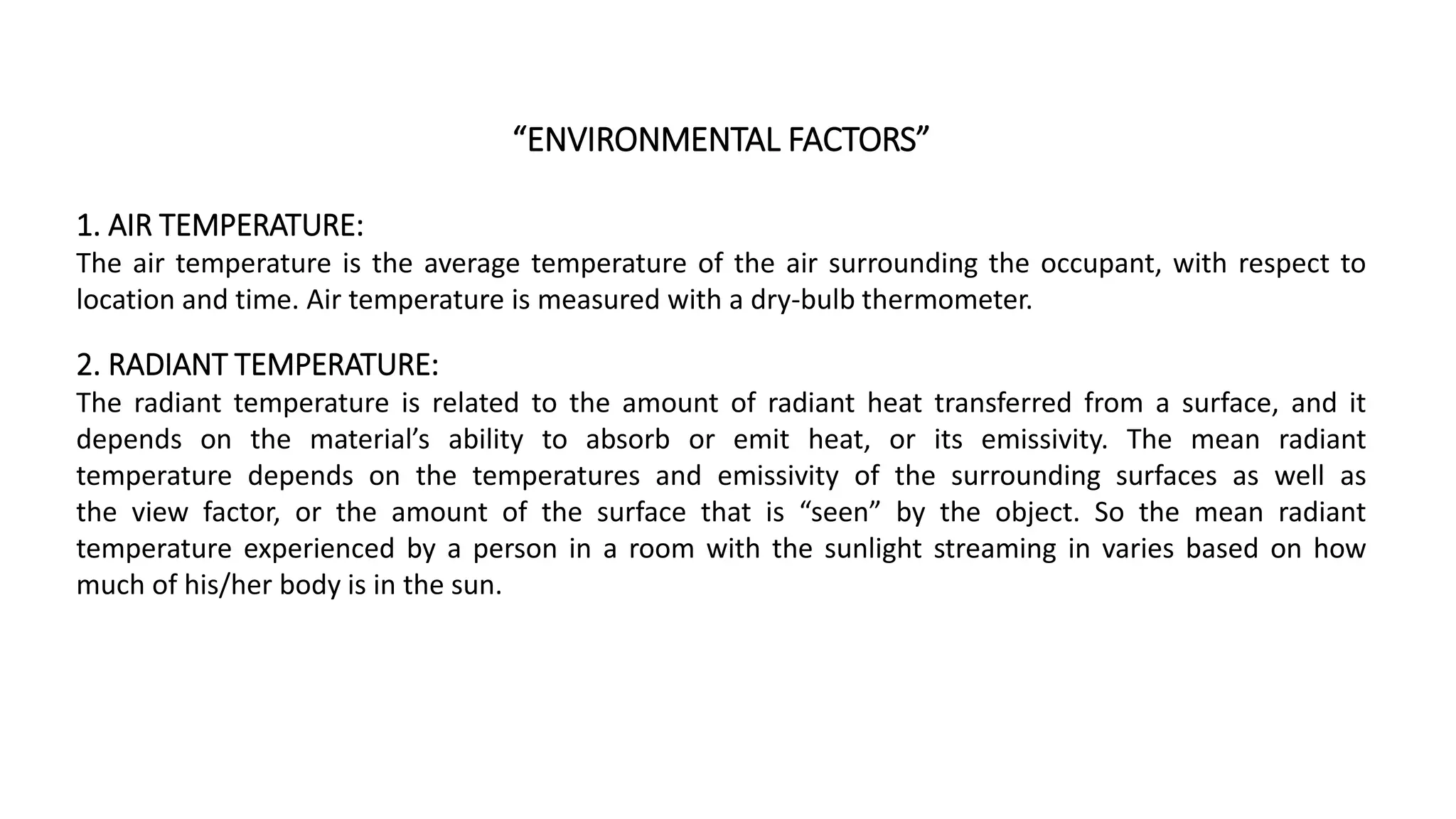

1. AIR TEMPERATURE:
The air temperature is the average temperature of the air surrounding the occupant, with respect to
location and time. Air temperature is measured with a dry-bulb thermometer.
2. RADIANT TEMPERATURE:
The radiant temperature is related to the amount of radiant heat transferred from a surface, and it
depends on the material’s ability to absorb or emit heat, or its emissivity. The mean radiant
temperature depends on the temperatures and emissivity of the surrounding surfaces as well as
the view factor, or the amount of the surface that is “seen” by the object. So the mean radiant
temperature experienced by a person in a room with the sunlight streaming in varies based on how
much of his/her body is in the sun.
“ENVIRONMENTAL FACTORS”

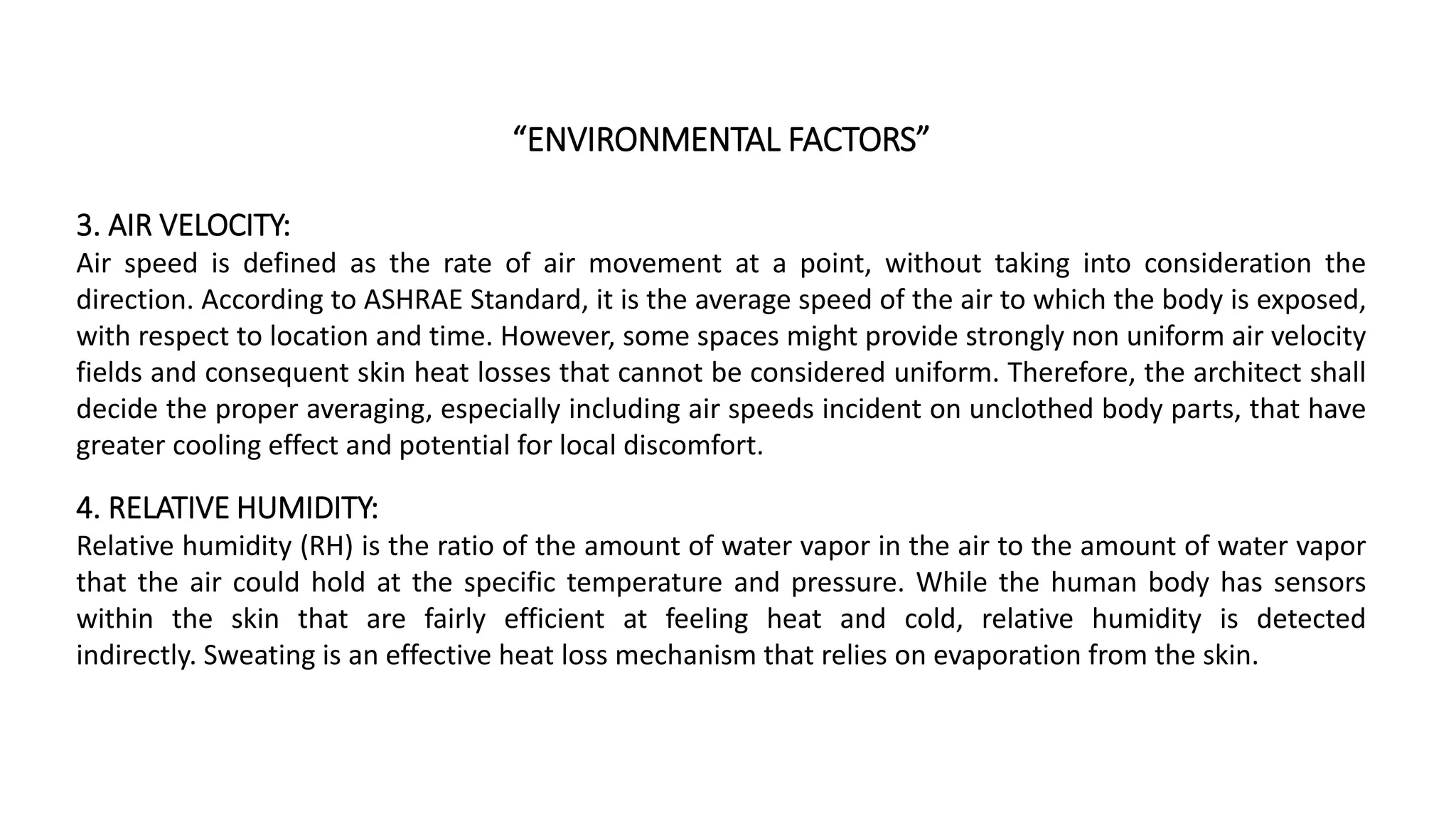

3. AIR VELOCITY:
Air speed is defined as the rate of air movement at a point, without taking into consideration the
direction. According to ASHRAE Standard, it is the average speed of the air to which the body is exposed,
with respect to location and time. However, some spaces might provide strongly non uniform air velocity
fields and consequent skin heat losses that cannot be considered uniform. Therefore, the architect shall
decide the proper averaging, especially including air speeds incident on unclothed body parts, that have
greater cooling effect and potential for local discomfort.
4. RELATIVE HUMIDITY:
Relative humidity (RH) is the ratio of the amount of water vapor in the air to the amount of water vapor
that the air could hold at the specific temperature and pressure. While the human body has sensors
within the skin that are fairly efficient at feeling heat and cold, relative humidity is detected
indirectly. Sweating is an effective heat loss mechanism that relies on evaporation from the skin.

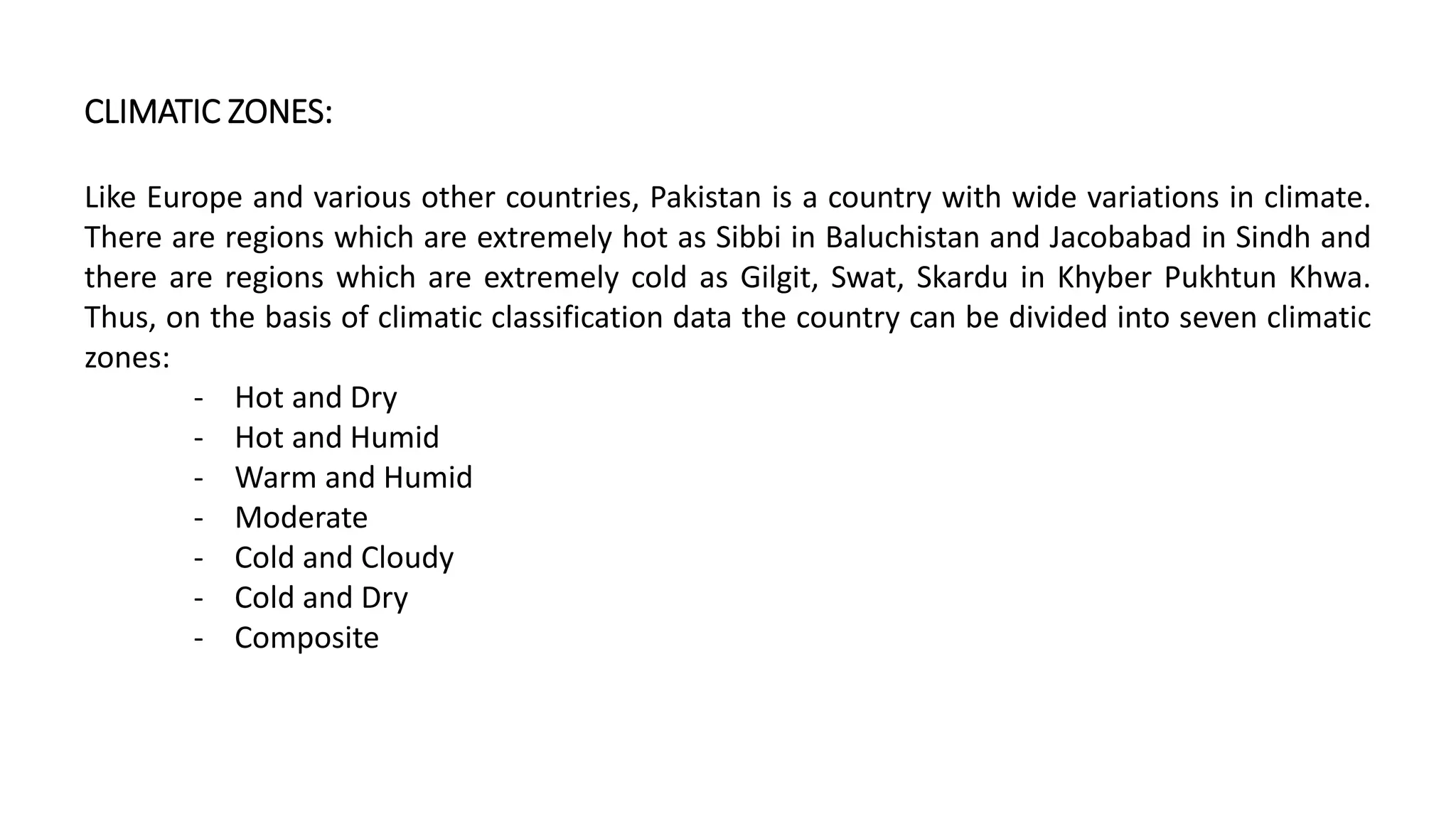

CLIMATIC ZONES:
Like Europe and various other countries, Pakistan is a country with wide variations in climate.
There are regions which are extremely hot as Sibbi in Baluchistan and Jacobabad in Sindh and
there are regions which are extremely cold as Gilgit, Swat, Skardu in Khyber Pukhtun Khwa.
Thus, on the basis of climatic classification data the country can be divided into seven climatic
zones:
‐ Hot and Dry
‐ Hot and Humid
‐ Warm and Humid
‐ Moderate
‐ Cold and Cloudy
‐ Cold and Dry
‐ Composite

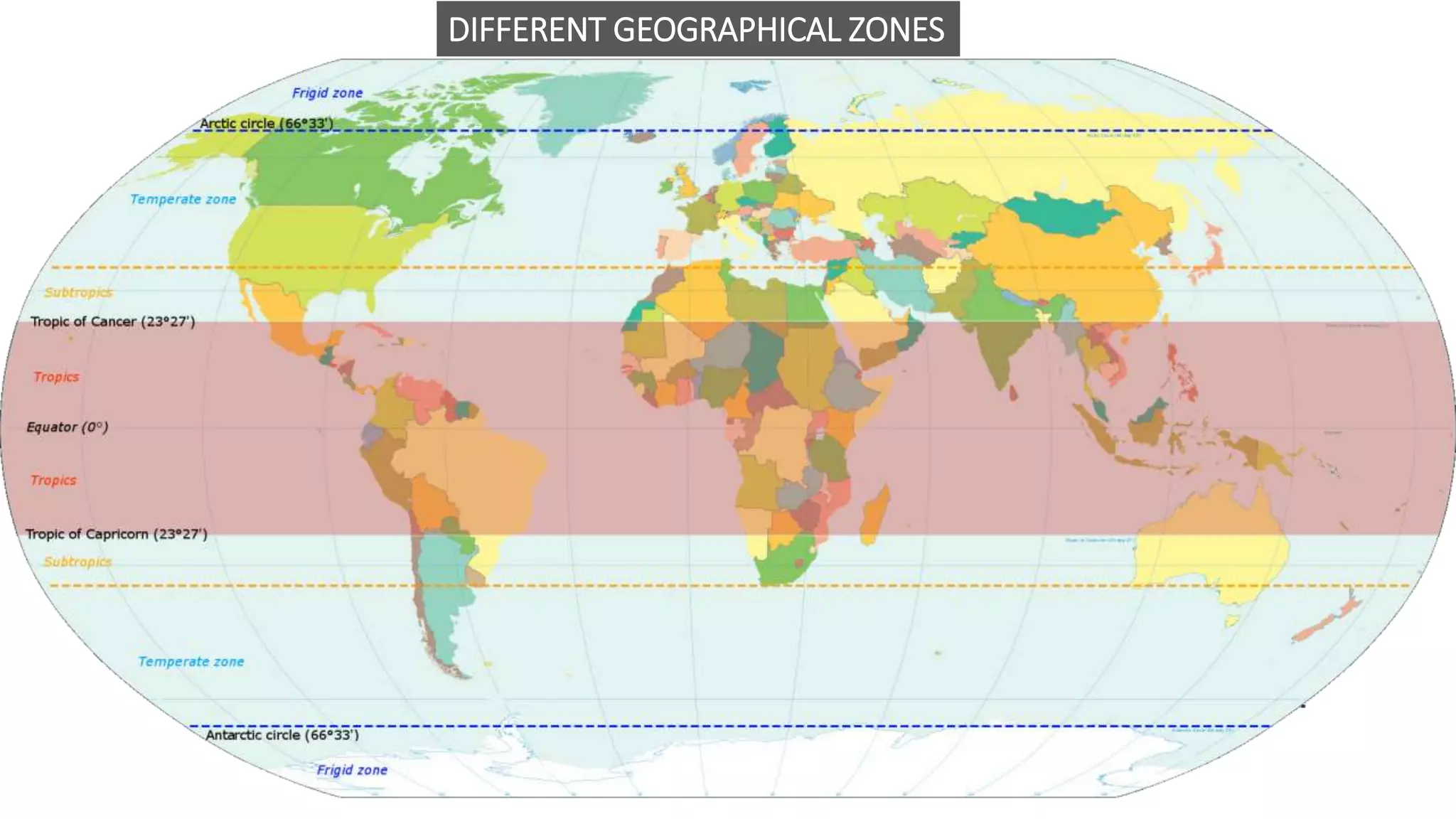

DIFFERENT GEOGRAPHICAL ZONES

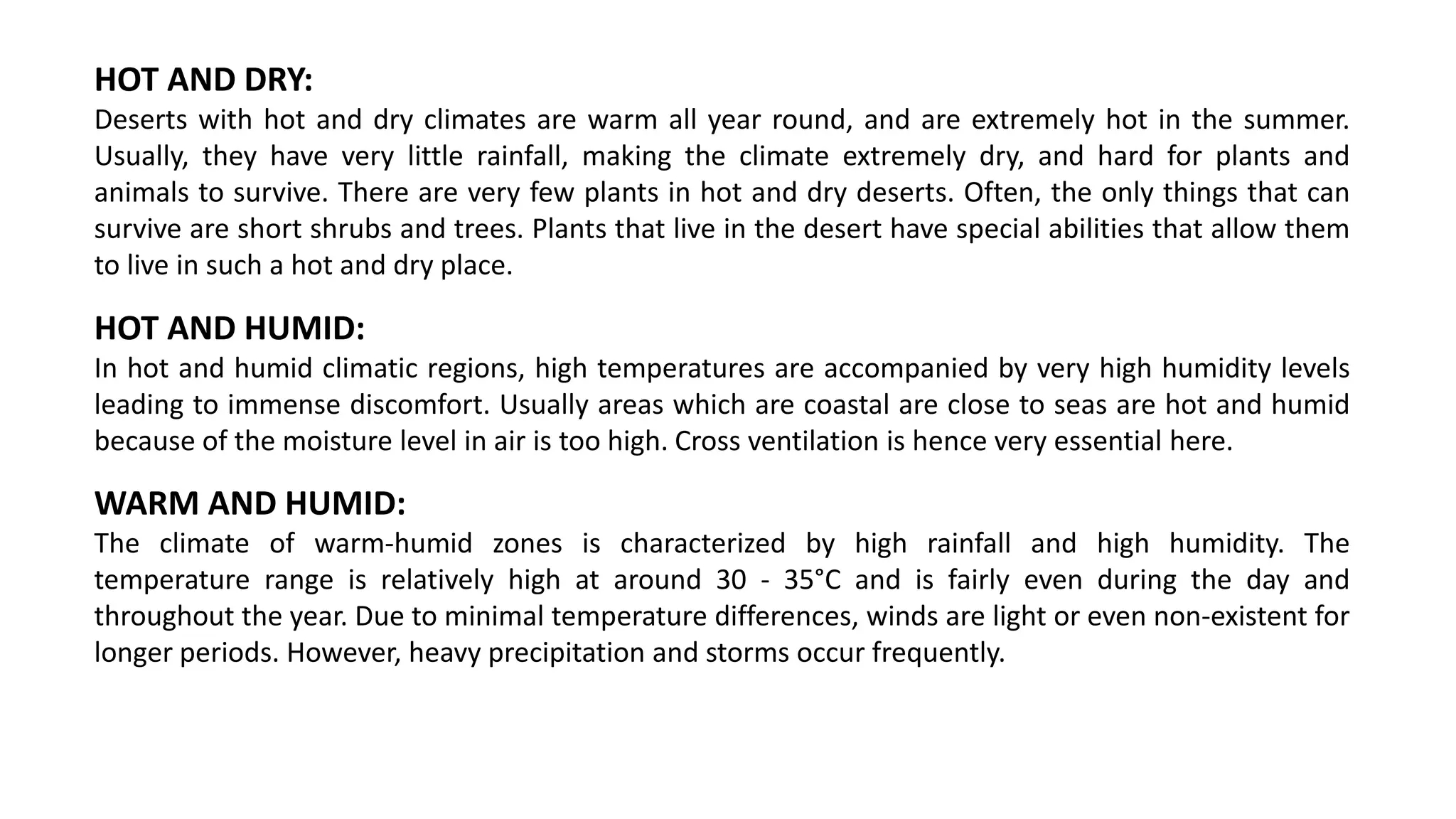

HOT AND DRY:
Deserts with hot and dry climates are warm all year round, and are extremely hot in the summer.
Usually, they have very little rainfall, making the climate extremely dry, and hard for plants and
animals to survive. There are very few plants in hot and dry deserts. Often, the only things that can
survive are short shrubs and trees. Plants that live in the desert have special abilities that allow them
to live in such a hot and dry place.
HOT AND HUMID:
In hot and humid climatic regions, high temperatures are accompanied by very high humidity levels
leading to immense discomfort. Usually areas which are coastal are close to seas are hot and humid
because of the moisture level in air is too high. Cross ventilation is hence very essential here.
WARM AND HUMID:
The climate of warm-humid zones is characterized by high rainfall and high humidity. The
temperature range is relatively high at around 30 - 35°C and is fairly even during the day and
throughout the year. Due to minimal temperature differences, winds are light or even non-existent for
longer periods. However, heavy precipitation and storms occur frequently.

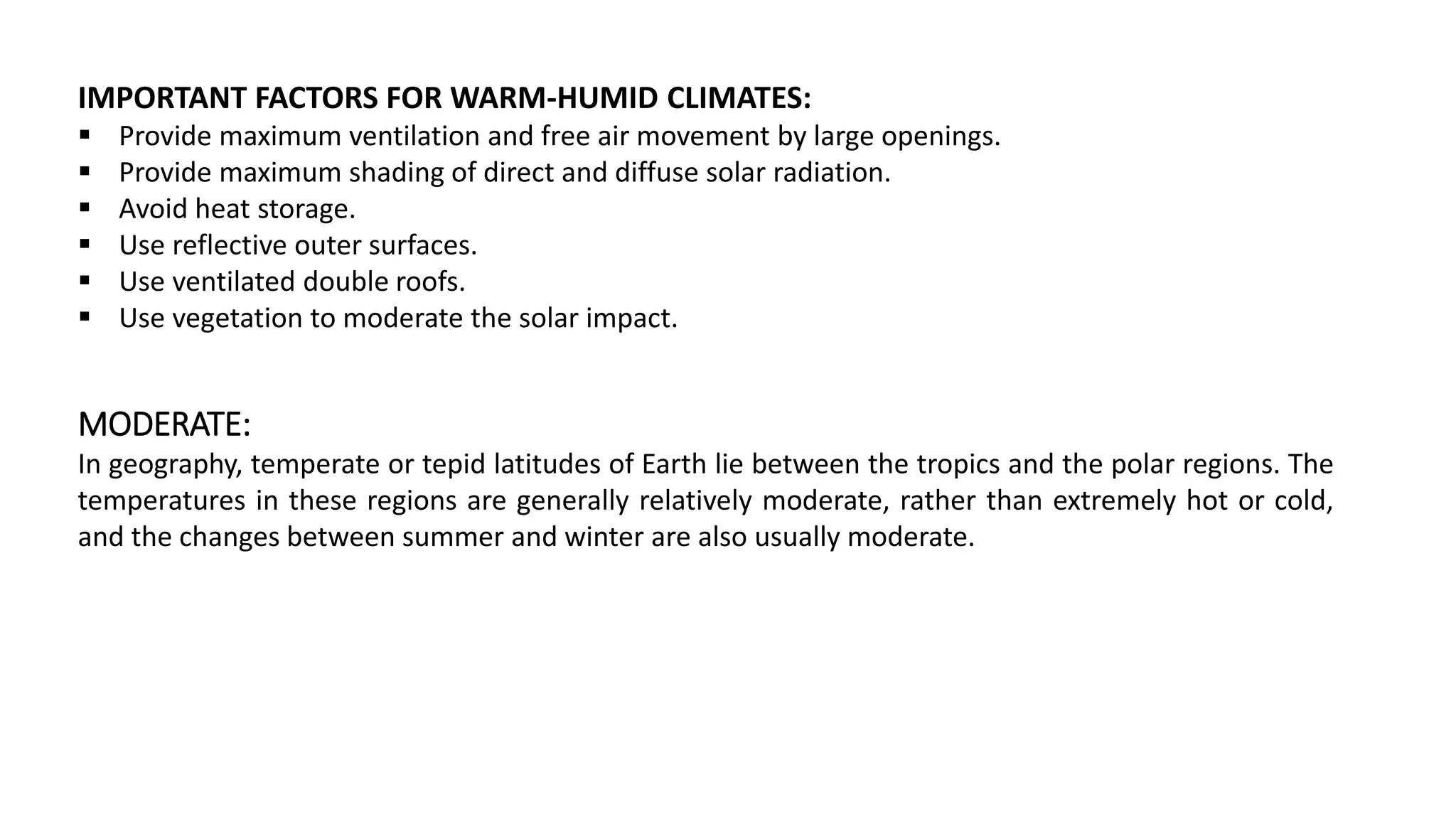

IMPORTANT FACTORS FOR WARM-HUMID CLIMATES:
 Provide maximum ventilation and free air movement by large openings.
 Provide maximum shading of direct and diffuse solar radiation.
 Avoid heat storage.
 Use reflective outer surfaces.
 Use ventilated double roofs.
 Use vegetation to moderate the solar impact.
MODERATE:
In geography, temperate or tepid latitudes of Earth lie between the tropics and the polar regions. The
temperatures in these regions are generally relatively moderate, rather than extremely hot or cold,
and the changes between summer and winter are also usually moderate.

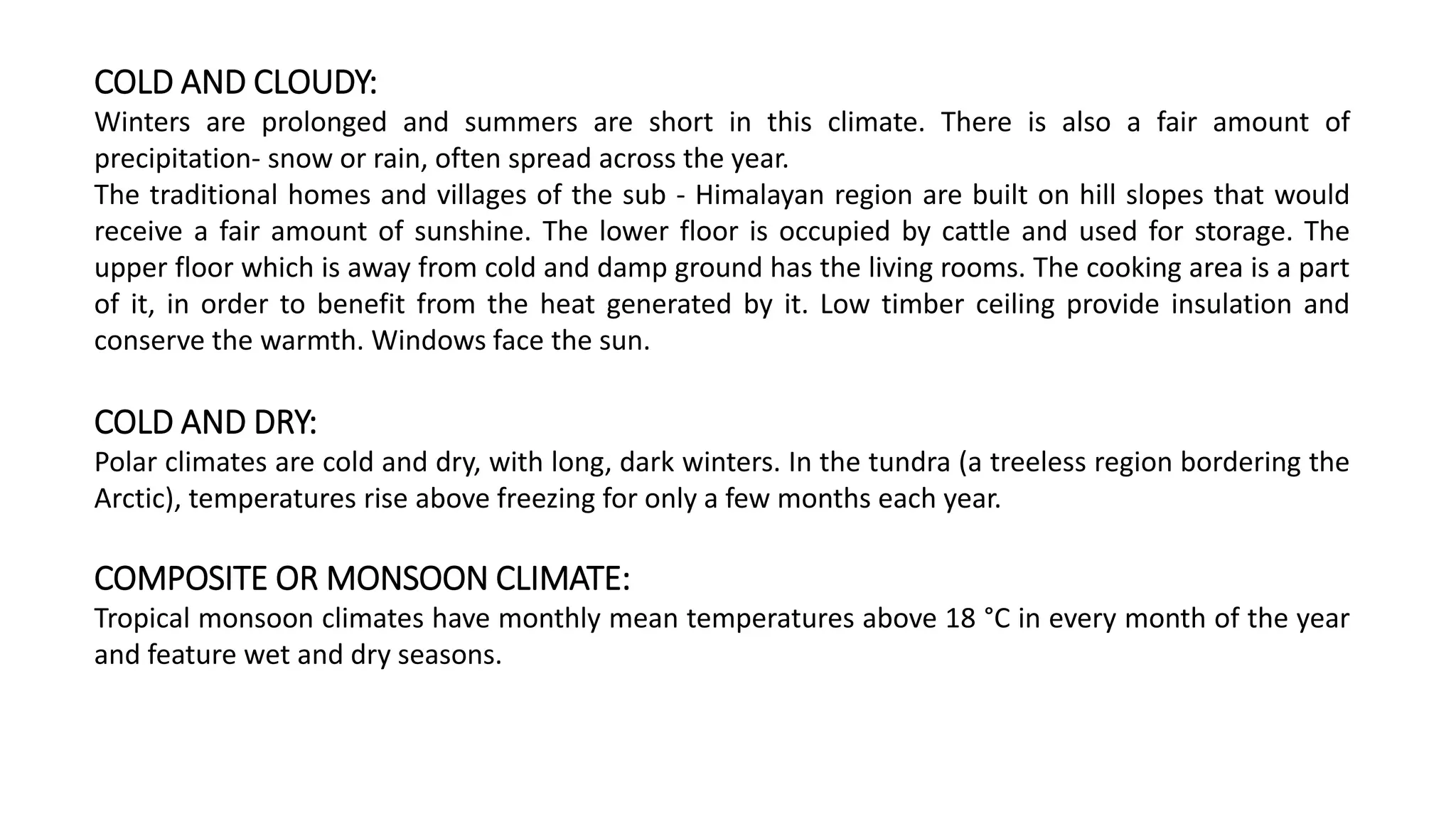

COLD AND CLOUDY:
Winters are prolonged and summers are short in this climate. There is also a fair amount of
precipitation- snow or rain, often spread across the year.
The traditional homes and villages of the sub - Himalayan region are built on hill slopes that would
receive a fair amount of sunshine. The lower floor is occupied by cattle and used for storage. The
upper floor which is away from cold and damp ground has the living rooms. The cooking area is a part
of it, in order to benefit from the heat generated by it. Low timber ceiling provide insulation and
conserve the warmth. Windows face the sun.
COLD AND DRY:
Polar climates are cold and dry, with long, dark winters. In the tundra (a treeless region bordering the
Arctic), temperatures rise above freezing for only a few months each year.
COMPOSITE OR MONSOON CLIMATE:
Tropical monsoon climates have monthly mean temperatures above 18 °C in every month of the year
and feature wet and dry seasons.

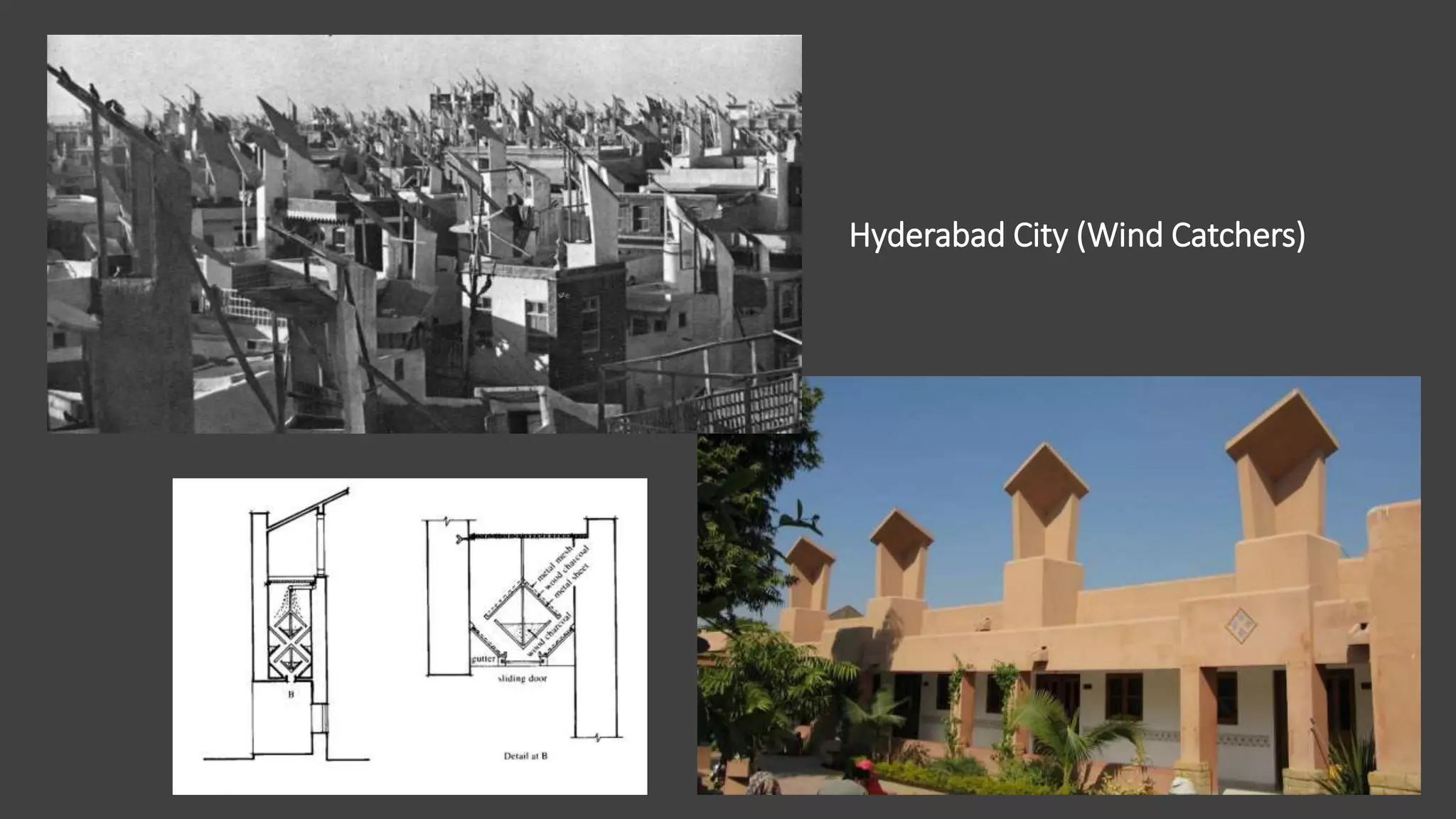

Hyderabad City (Wind Catchers)

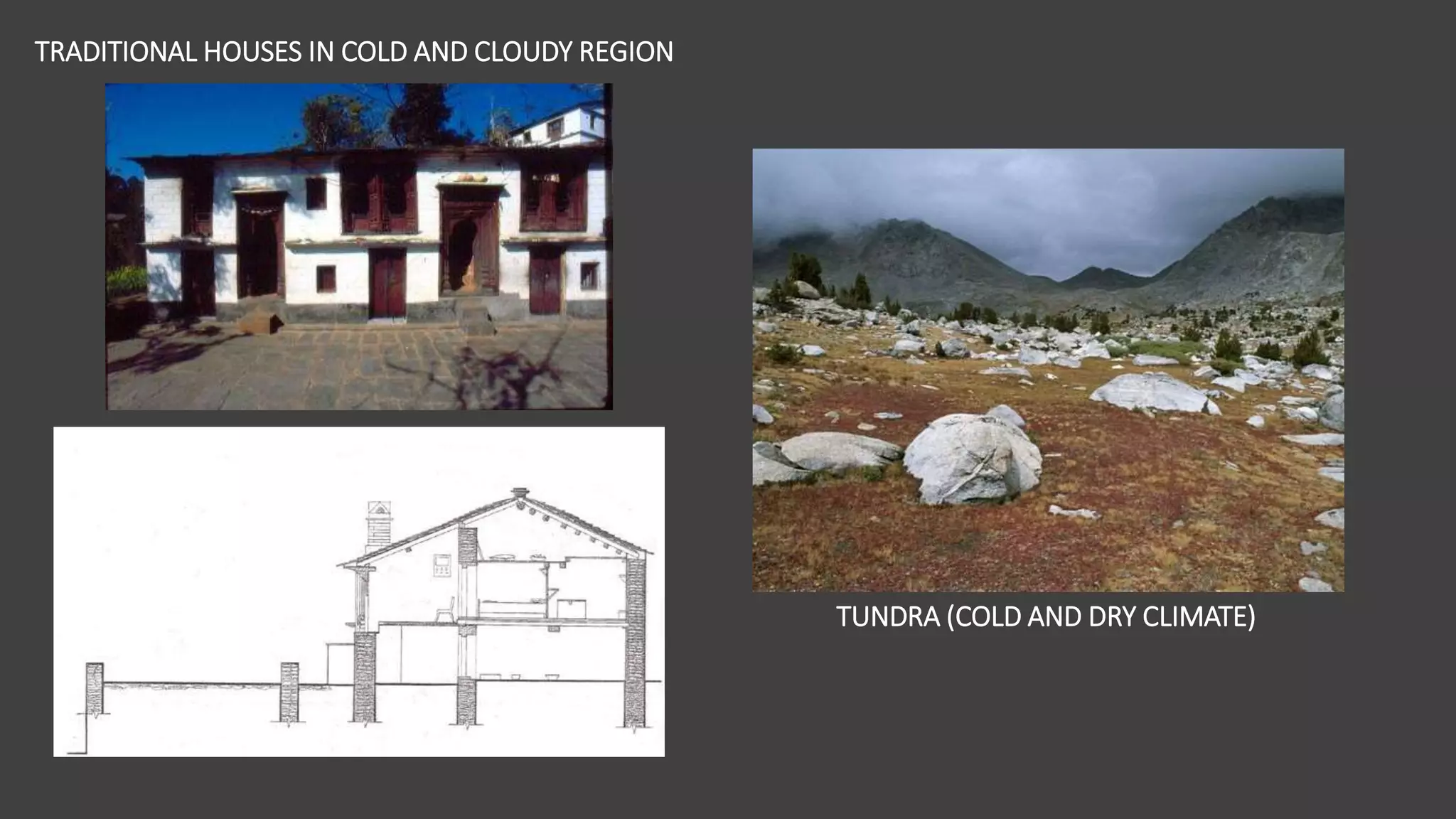

TRADITIONAL HOUSES IN COLD AND CLOUDY REGION
TUNDRA (COLD AND DRY CLIMATE)

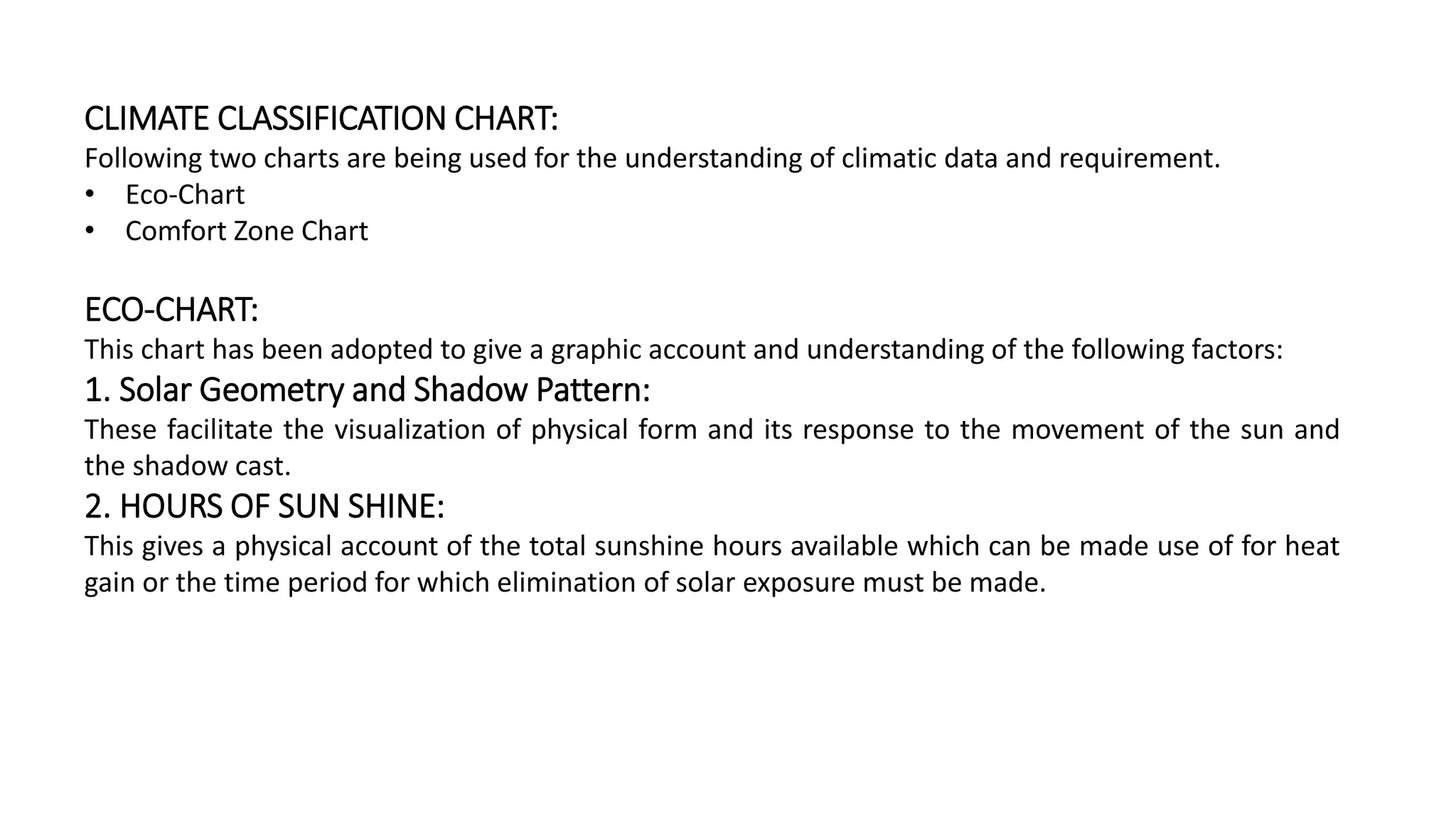

CLIMATE CLASSIFICATION CHART:
Following two charts are being used for the understanding of climatic data and requirement.
• Eco-Chart
• Comfort Zone Chart
ECO-CHART:
This chart has been adopted to give a graphic account and understanding of the following factors:
1. Solar Geometry and Shadow Pattern:
These facilitate the visualization of physical form and its response to the movement of the sun and
the shadow cast.
2. HOURS OF SUN SHINE:
This gives a physical account of the total sunshine hours available which can be made use of for heat
gain or the time period for which elimination of solar exposure must be made.

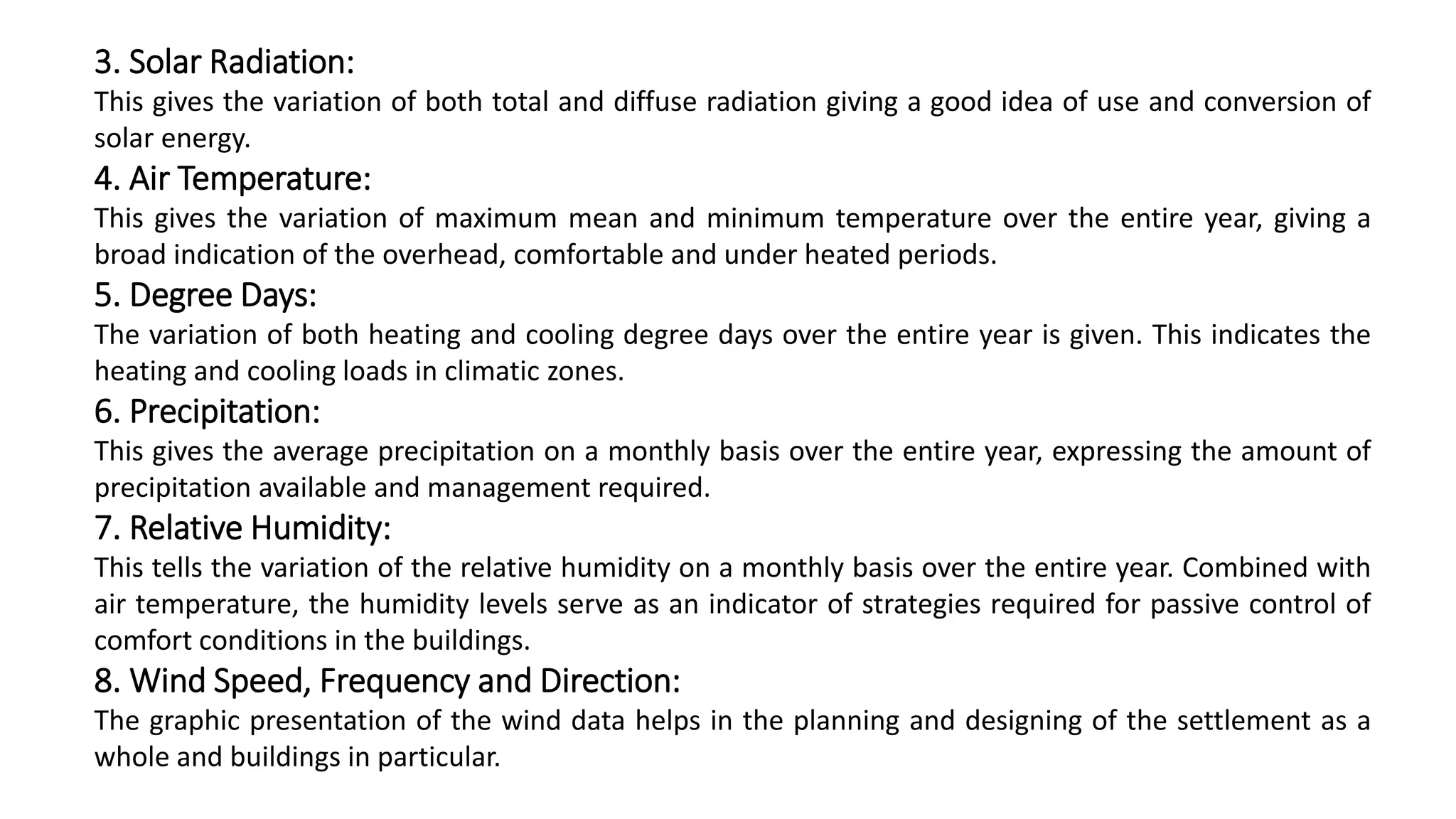

3. Solar Radiation:
This gives the variation of both total and diffuse radiation giving a good idea of use and conversion of
solar energy.
4. Air Temperature:
This gives the variation of maximum mean and minimum temperature over the entire year, giving a
broad indication of the overhead, comfortable and under heated periods.
5. Degree Days:
The variation of both heating and cooling degree days over the entire year is given. This indicates the
heating and cooling loads in climatic zones.
6. Precipitation:
This gives the average precipitation on a monthly basis over the entire year, expressing the amount of
precipitation available and management required.
7. Relative Humidity:
This tells the variation of the relative humidity on a monthly basis over the entire year. Combined with
air temperature, the humidity levels serve as an indicator of strategies required for passive control of
comfort conditions in the buildings.
8. Wind Speed, Frequency and Direction:
The graphic presentation of the wind data helps in the planning and designing of the settlement as a
whole and buildings in particular.

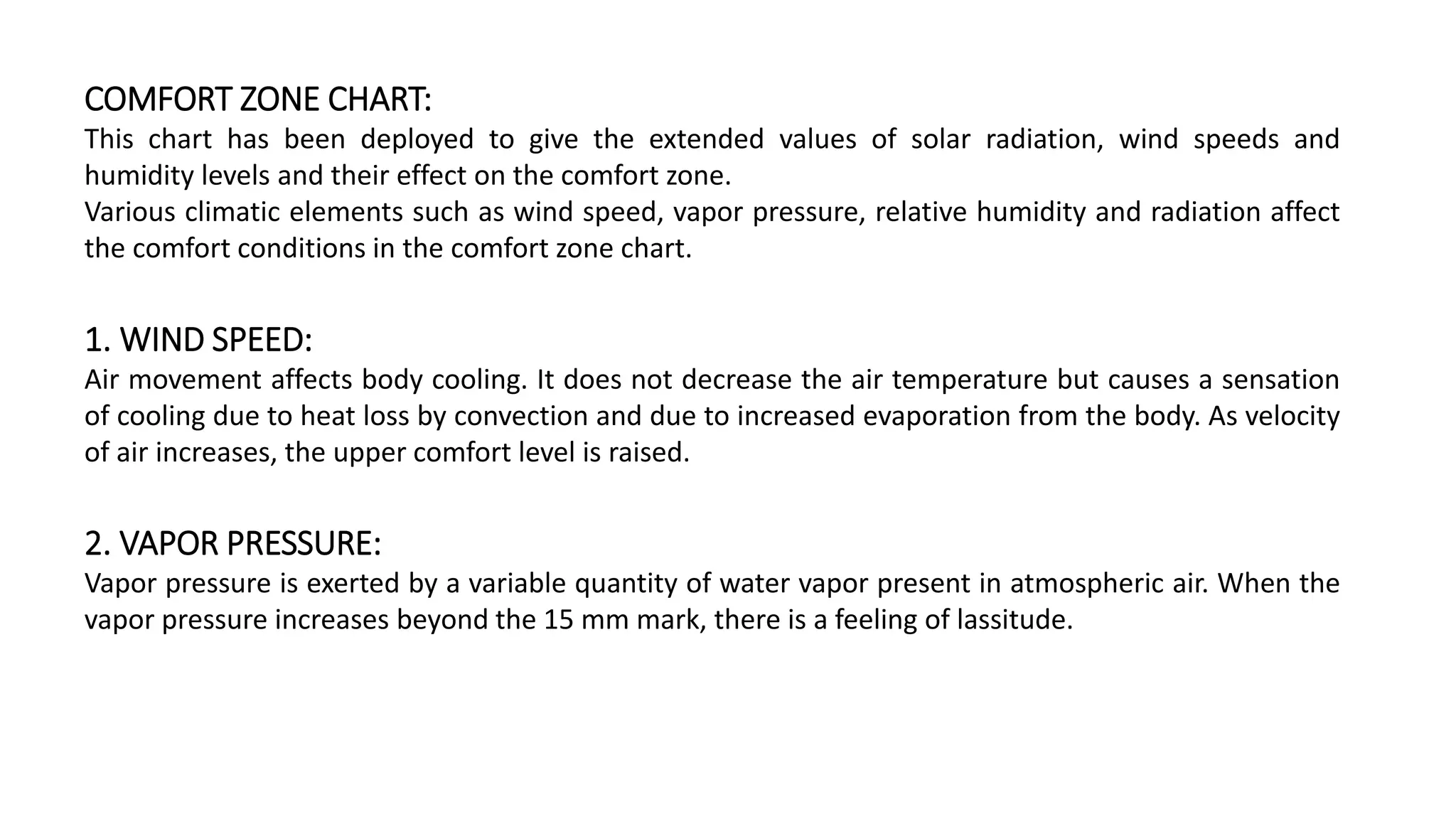

COMFORT ZONE CHART:
This chart has been deployed to give the extended values of solar radiation, wind speeds and
humidity levels and their effect on the comfort zone.
Various climatic elements such as wind speed, vapor pressure, relative humidity and radiation affect
the comfort conditions in the comfort zone chart.
1. WIND SPEED:
Air movement affects body cooling. It does not decrease the air temperature but causes a sensation
of cooling due to heat loss by convection and due to increased evaporation from the body. As velocity
of air increases, the upper comfort level is raised.
2. VAPOR PRESSURE:
Vapor pressure is exerted by a variable quantity of water vapor present in atmospheric air. When the
vapor pressure increases beyond the 15 mm mark, there is a feeling of lassitude.
3. HUMIDITY:
Higher value of relative humidity increases the feeling of discomfort.

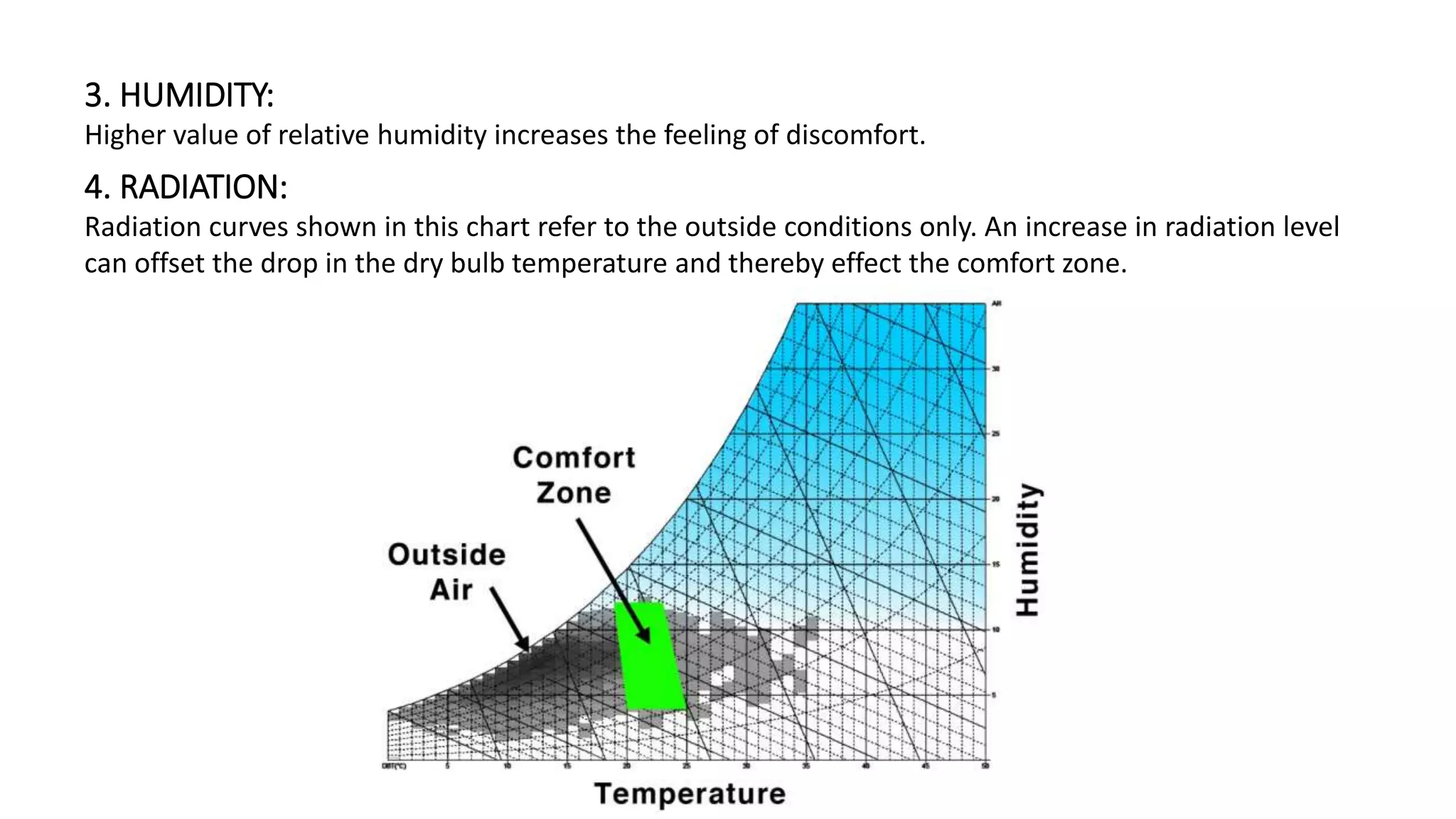

4. RADIATION:
Radiation curves shown in this chart refer to the outside conditions only. An increase in radiation level
can offset the drop in the dry bulb temperature and thereby effect the comfort zone.
CLIMATIC DATA USED IN BUILDINGS:
Following are the main points of climatic data to be used in designing a building:
‐ Typical Landscape and Vegetation
‐ Solar Radiation
‐ Mean Temperature
‐ Relative Humidity
‐ Precipitation
‐ Winds
‐ Sky Conditions
‐ Miscellaneous

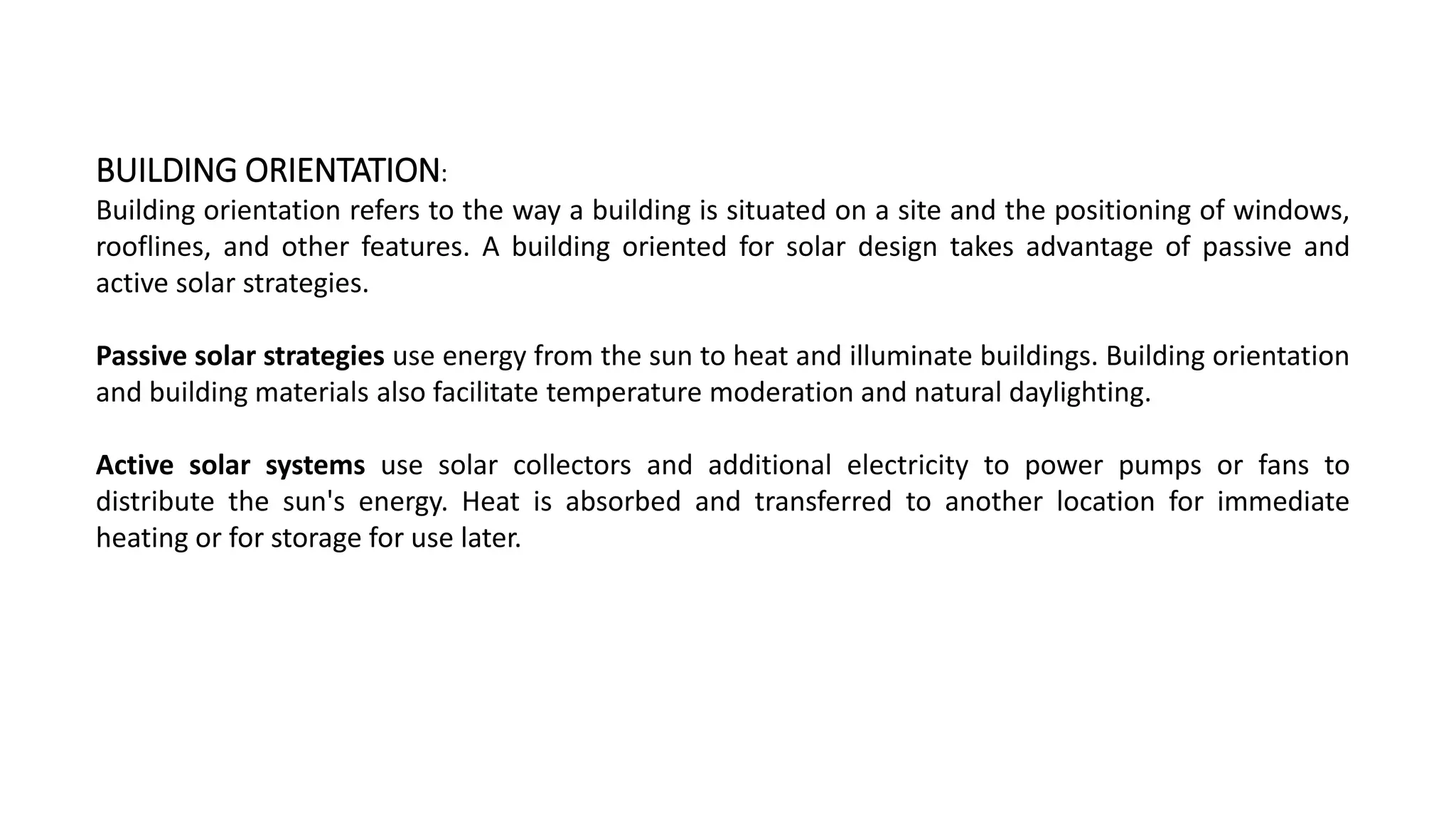

BUILDING ORIENTATION:
Building orientation refers to the way a building is situated on a site and the positioning of windows,
rooflines, and other features. A building oriented for solar design takes advantage of passive and
active solar strategies.

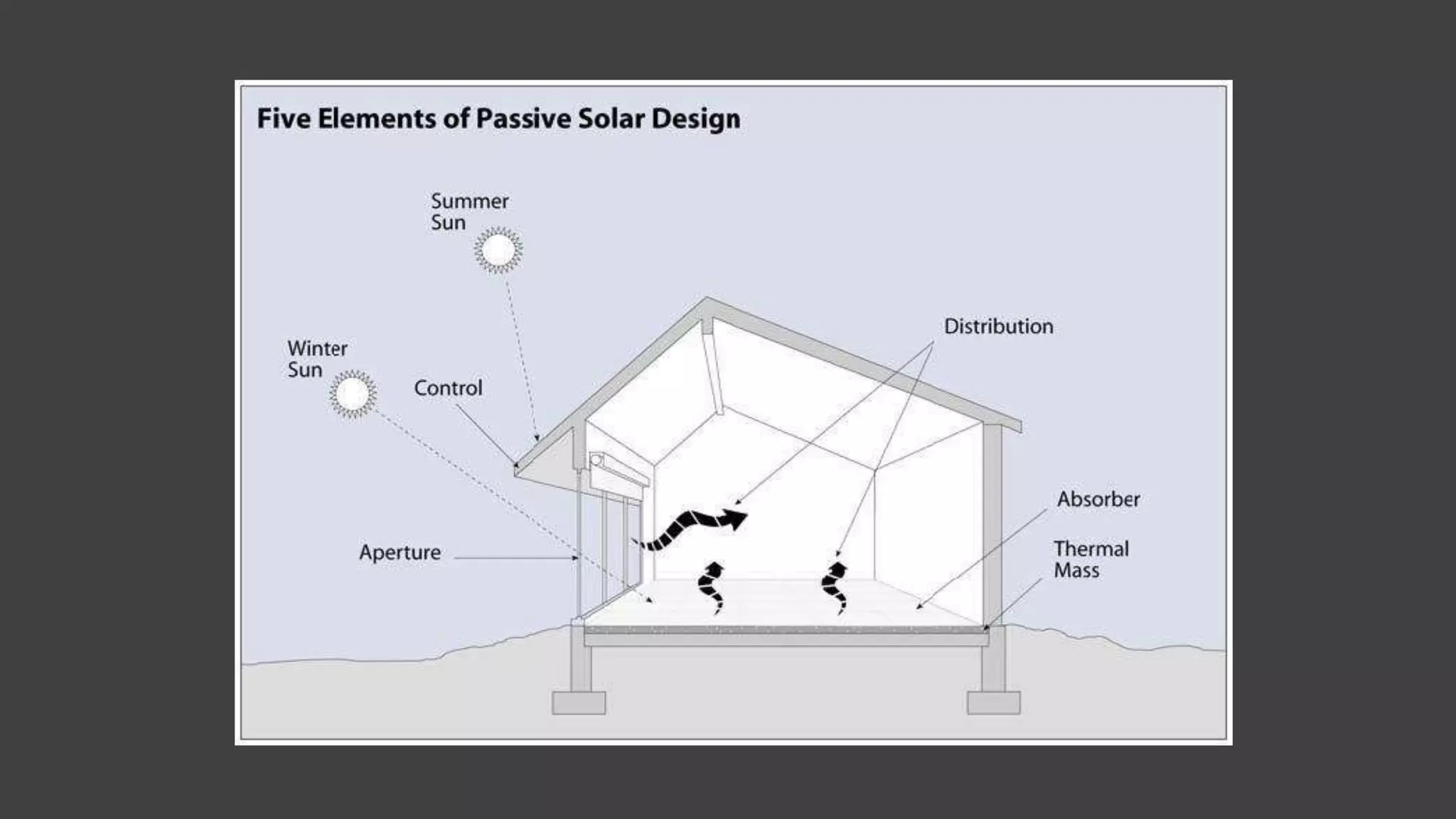

Passive solar strategies use energy from the sun to heat and illuminate buildings. Building orientation
and building materials also facilitate temperature moderation and natural daylighting.
Active solar systems use solar collectors and additional electricity to power pumps or fans to
distribute the sun's energy. Heat is absorbed and transferred to another location for immediate
heating or for storage for use later.

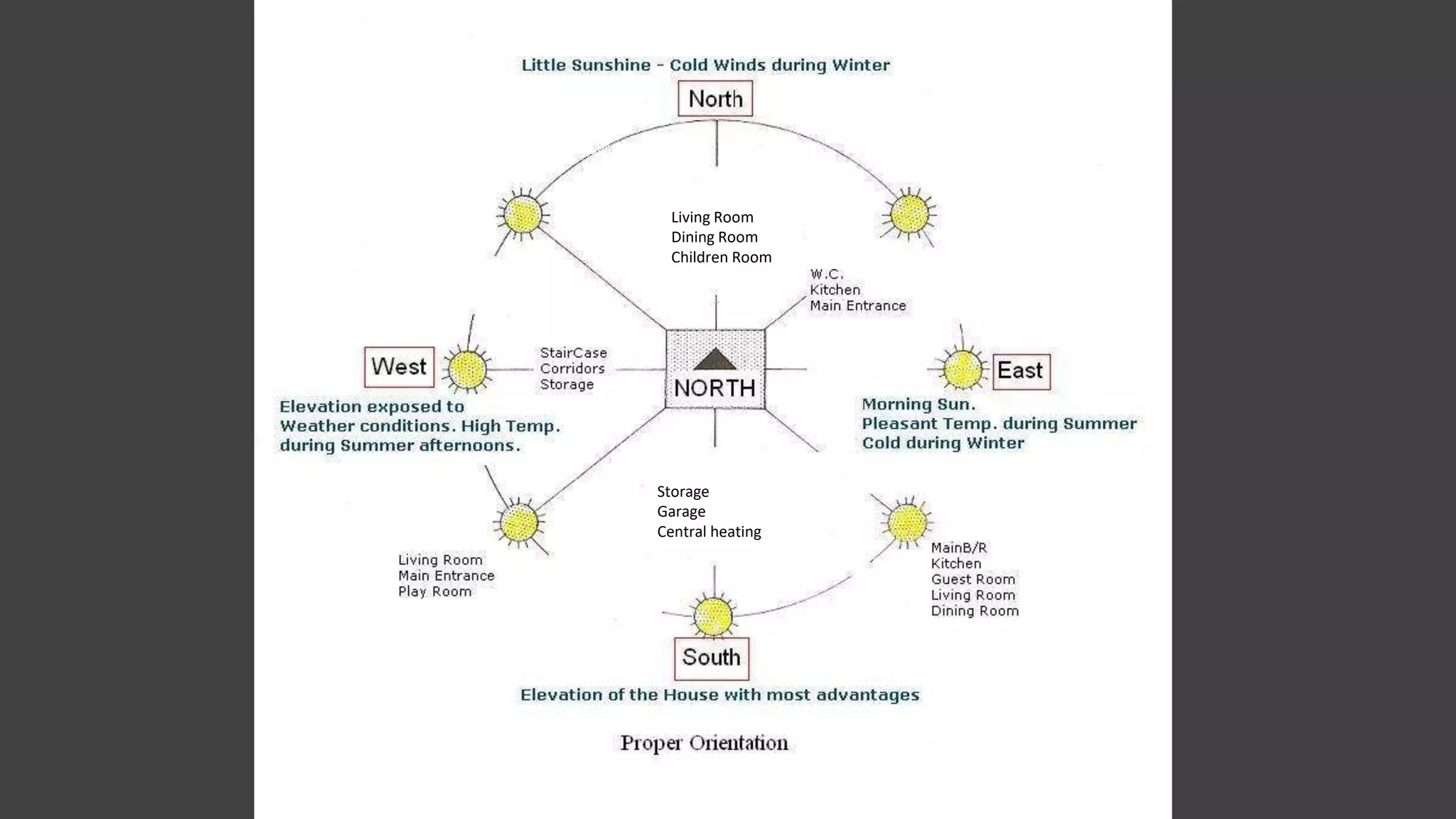

Living Room
Dining Room
Children Room
Storage
Garage
Central heating

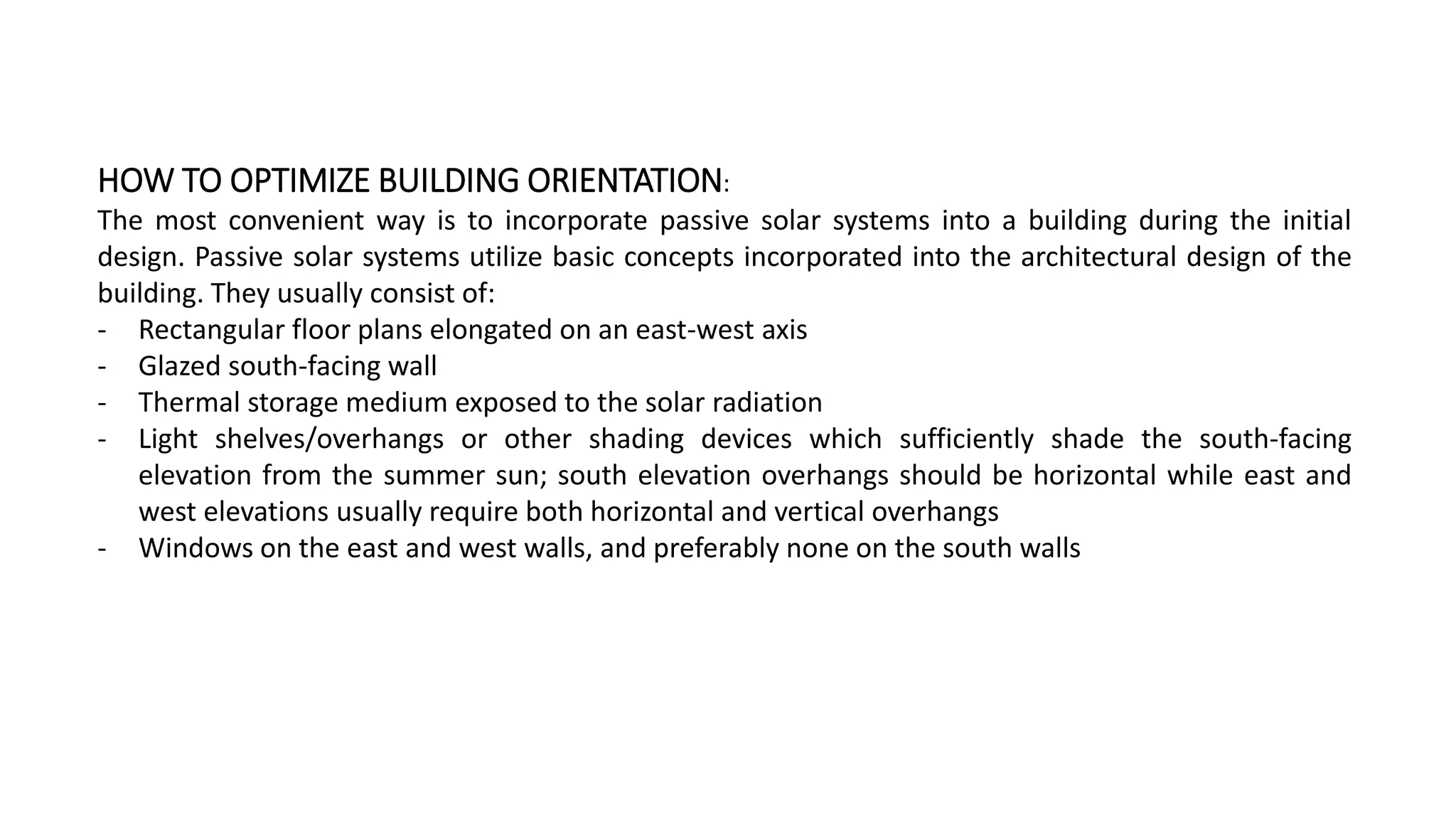

HOW TO OPTIMIZE BUILDING ORIENTATION:
The most convenient way is to incorporate passive solar systems into a building during the initial
design. Passive solar systems utilize basic concepts incorporated into the architectural design of the
building. They usually consist of:
‐ Rectangular floor plans elongated on an east-west axis
‐ Glazed south-facing wall
‐ Thermal storage medium exposed to the solar radiation
‐ Light shelves/overhangs or other shading devices which sufficiently shade the south-facing
elevation from the summer sun; south elevation overhangs should be horizontal while east and
west elevations usually require both horizontal and vertical overhangs
‐ Windows on the east and west walls, and preferably none on the south walls
Lecture-06.pptx
“Lecture No. 04”
TOPICS IN ORDER:
- Thermal transmittance of walls, floors and roofs
- Insulation and techniques
- Reflectivity of Building’s Surfaces

More Related Content

Similar to Lecture-06.pptx

Heat and Moisture in the Atmosphere and Human Comfort
Heat and Moisture in the Atmosphere and Human ComfortHeat and Moisture in the Atmosphere and Human Comfort
Heat and Moisture in the Atmosphere and Human Comfort
Jacques Blaquera

Elements of climate
Elements of climateElements of climate
Elements of climate
PriyanshTirkey

Lec 1 climate & its components
Lec 1 climate & its componentsLec 1 climate & its components
Lec 1 climate & its components
Mahnoor Khawaja

Unit 4 - Climate
Unit 4 - ClimateUnit 4 - Climate
Unit 4 - Climate
Rocío G.

Sem 2 bs1 ventitation 2
Sem 2 bs1 ventitation   2Sem 2 bs1 ventitation   2
Sem 2 bs1 ventitation 2
Est

The atmosphere
The atmosphereThe atmosphere
The atmosphere
memuflo

Climate presentation
Climate presentationClimate presentation
Climate presentation
Angy Silva

Air Conditioning System
Air Conditioning SystemAir Conditioning System
Air Conditioning System
Sumit Ranjan

Airconditioning
AirconditioningAirconditioning
Airconditioning
Vinayak Medar

Climate
ClimateClimate
Climate
Gita Cipta

Human thermal comfort
Human thermal comfortHuman thermal comfort
Human thermal comfort
KAPIL WADKAR

Climate weather physical factors
Climate  weather physical factorsClimate  weather physical factors
Climate weather physical factors
Jasmine John

Control of tropical_microclimates_through_landscape_design
Control of tropical_microclimates_through_landscape_designControl of tropical_microclimates_through_landscape_design
Control of tropical_microclimates_through_landscape_design
Shatabdi Mahanta

climate and its types
climate and its typesclimate and its types
climate and its types
sahil saifi

CLIMATE.pptx
CLIMATE.pptxCLIMATE.pptx
CLIMATE.pptx
NehaPaliwal31

Shelter for composite climate
Shelter for composite climateShelter for composite climate
Shelter for composite climate
Muhammad Abdullah

Psychrometry and air conditioning
Psychrometry and air conditioningPsychrometry and air conditioning
Psychrometry and air conditioning
nitin184shukla

Indian Climatic Conditions and their impact on building design
Indian Climatic Conditions and their impact on building designIndian Climatic Conditions and their impact on building design
Indian Climatic Conditions and their impact on building design
Saransh Gupta

Meteorological environment
Meteorological environmentMeteorological environment
Meteorological environment
Rupesh Sahu

Climatology Intro.pptx
Climatology Intro.pptxClimatology Intro.pptx
Climatology Intro.pptx
Harish Gupta


Similar to Lecture-06.pptx (20)

Heat and Moisture in the Atmosphere and Human Comfort
Heat and Moisture in the Atmosphere and Human ComfortHeat and Moisture in the Atmosphere and Human Comfort
Heat and Moisture in the Atmosphere and Human Comfort

Elements of climate
Elements of climateElements of climate
Elements of climate

Lec 1 climate & its components
Lec 1 climate & its componentsLec 1 climate & its components
Lec 1 climate & its components

Unit 4 - Climate
Unit 4 - ClimateUnit 4 - Climate
Unit 4 - Climate

Sem 2 bs1 ventitation 2
Sem 2 bs1 ventitation   2Sem 2 bs1 ventitation   2
Sem 2 bs1 ventitation 2

The atmosphere
The atmosphereThe atmosphere
The atmosphere

Climate presentation
Climate presentationClimate presentation
Climate presentation

Air Conditioning System
Air Conditioning SystemAir Conditioning System
Air Conditioning System

Airconditioning
AirconditioningAirconditioning
Airconditioning

Climate
ClimateClimate
Climate

Human thermal comfort
Human thermal comfortHuman thermal comfort
Human thermal comfort

Climate weather physical factors
Climate  weather physical factorsClimate  weather physical factors
Climate weather physical factors

Control of tropical_microclimates_through_landscape_design
Control of tropical_microclimates_through_landscape_designControl of tropical_microclimates_through_landscape_design
Control of tropical_microclimates_through_landscape_design

climate and its types
climate and its typesclimate and its types
climate and its types

CLIMATE.pptx
CLIMATE.pptxCLIMATE.pptx
CLIMATE.pptx

Shelter for composite climate
Shelter for composite climateShelter for composite climate
Shelter for composite climate

Psychrometry and air conditioning
Psychrometry and air conditioningPsychrometry and air conditioning
Psychrometry and air conditioning

Indian Climatic Conditions and their impact on building design
Indian Climatic Conditions and their impact on building designIndian Climatic Conditions and their impact on building design
Indian Climatic Conditions and their impact on building design

Meteorological environment
Meteorological environmentMeteorological environment
Meteorological environment

Climatology Intro.pptx
Climatology Intro.pptxClimatology Intro.pptx
Climatology Intro.pptx


More from SaadSohail54

Sustainable Housing Project Proposal by Slidesgo.pptx
Sustainable Housing Project Proposal by Slidesgo.pptxSustainable Housing Project Proposal by Slidesgo.pptx
Sustainable Housing Project Proposal by Slidesgo.pptx
SaadSohail54

Sustainable Housing Project Proposal by Slidesgo.pptx
Sustainable Housing Project Proposal by Slidesgo.pptxSustainable Housing Project Proposal by Slidesgo.pptx
Sustainable Housing Project Proposal by Slidesgo.pptx
SaadSohail54

Questionnair Designing lec3 RESEARCH METHODOLOGY
Questionnair Designing lec3 RESEARCH METHODOLOGYQuestionnair Designing lec3 RESEARCH METHODOLOGY
Questionnair Designing lec3 RESEARCH METHODOLOGY
SaadSohail54

Pie Chart Infographics DESIGN BY SAAD SOHAIL
Pie Chart Infographics DESIGN BY SAAD SOHAILPie Chart Infographics DESIGN BY SAAD SOHAIL
Pie Chart Infographics DESIGN BY SAAD SOHAIL
SaadSohail54

RESEARCH.pptx
RESEARCH.pptxRESEARCH.pptx
RESEARCH.pptx
SaadSohail54

LECTURE WEEK 13.pdf
LECTURE WEEK 13.pdfLECTURE WEEK 13.pdf
LECTURE WEEK 13.pdf
SaadSohail54

LECTURE WEEK 10 & 11.pptx
LECTURE WEEK 10 & 11.pptxLECTURE WEEK 10 & 11.pptx
LECTURE WEEK 10 & 11.pptx
SaadSohail54

LECTURE WEEK 10 & 11.pptx
LECTURE WEEK 10 & 11.pptxLECTURE WEEK 10 & 11.pptx
LECTURE WEEK 10 & 11.pptx
SaadSohail54

SAAD SOHAIL 022.pptx
SAAD SOHAIL 022.pptxSAAD SOHAIL 022.pptx
SAAD SOHAIL 022.pptx
SaadSohail54

2f26d156-46ac-479a-9026-6d019dddb70b-161117082202.pptx
2f26d156-46ac-479a-9026-6d019dddb70b-161117082202.pptx2f26d156-46ac-479a-9026-6d019dddb70b-161117082202.pptx
2f26d156-46ac-479a-9026-6d019dddb70b-161117082202.pptx
SaadSohail54

SITE ANALYSIS.pptx
SITE ANALYSIS.pptxSITE ANALYSIS.pptx
SITE ANALYSIS.pptx
SaadSohail54


More from SaadSohail54 (11)

Sustainable Housing Project Proposal by Slidesgo.pptx
Sustainable Housing Project Proposal by Slidesgo.pptxSustainable Housing Project Proposal by Slidesgo.pptx
Sustainable Housing Project Proposal by Slidesgo.pptx

Sustainable Housing Project Proposal by Slidesgo.pptx
Sustainable Housing Project Proposal by Slidesgo.pptxSustainable Housing Project Proposal by Slidesgo.pptx
Sustainable Housing Project Proposal by Slidesgo.pptx

Questionnair Designing lec3 RESEARCH METHODOLOGY
Questionnair Designing lec3 RESEARCH METHODOLOGYQuestionnair Designing lec3 RESEARCH METHODOLOGY
Questionnair Designing lec3 RESEARCH METHODOLOGY

Pie Chart Infographics DESIGN BY SAAD SOHAIL
Pie Chart Infographics DESIGN BY SAAD SOHAILPie Chart Infographics DESIGN BY SAAD SOHAIL
Pie Chart Infographics DESIGN BY SAAD SOHAIL

RESEARCH.pptx
RESEARCH.pptxRESEARCH.pptx
RESEARCH.pptx

LECTURE WEEK 13.pdf
LECTURE WEEK 13.pdfLECTURE WEEK 13.pdf
LECTURE WEEK 13.pdf

LECTURE WEEK 10 & 11.pptx
LECTURE WEEK 10 & 11.pptxLECTURE WEEK 10 & 11.pptx
LECTURE WEEK 10 & 11.pptx

LECTURE WEEK 10 & 11.pptx
LECTURE WEEK 10 & 11.pptxLECTURE WEEK 10 & 11.pptx
LECTURE WEEK 10 & 11.pptx

SAAD SOHAIL 022.pptx
SAAD SOHAIL 022.pptxSAAD SOHAIL 022.pptx
SAAD SOHAIL 022.pptx

2f26d156-46ac-479a-9026-6d019dddb70b-161117082202.pptx
2f26d156-46ac-479a-9026-6d019dddb70b-161117082202.pptx2f26d156-46ac-479a-9026-6d019dddb70b-161117082202.pptx
2f26d156-46ac-479a-9026-6d019dddb70b-161117082202.pptx

SITE ANALYSIS.pptx
SITE ANALYSIS.pptxSITE ANALYSIS.pptx
SITE ANALYSIS.pptx


Recently uploaded

OSHA LOTO training, LOTO, lock out tag out
OSHA LOTO training, LOTO, lock out tag outOSHA LOTO training, LOTO, lock out tag out
OSHA LOTO training, LOTO, lock out tag out
Ateeb19

IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptxIE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
BehairyAhmed2

Introduction And Differences Between File System And Dbms.pptx
Introduction And Differences Between File System And Dbms.pptxIntroduction And Differences Between File System And Dbms.pptx
Introduction And Differences Between File System And Dbms.pptx
SerendipityYoon

Red Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdfRed Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdf
mdfkobir

readers writers Problem in operating system
readers writers Problem in operating systemreaders writers Problem in operating system
readers writers Problem in operating system
VADAPALLYPRAVEENKUMA1

ARITMETICO.pdf xxxxxxxxxxxxxxxxxxxxxxxx
ARITMETICO.pdf  xxxxxxxxxxxxxxxxxxxxxxxxARITMETICO.pdf  xxxxxxxxxxxxxxxxxxxxxxxx
ARITMETICO.pdf xxxxxxxxxxxxxxxxxxxxxxxx
alemaro1123

Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
IJAEMSJORNAL

Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
rawankhanlove256

RECENT DEVELOPMENTS IN RING SPINNING.pptx
RECENT DEVELOPMENTS IN RING SPINNING.pptxRECENT DEVELOPMENTS IN RING SPINNING.pptx
RECENT DEVELOPMENTS IN RING SPINNING.pptx
peacesoul123

Metrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical EngineeringMetrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical Engineering
leakingvideo

d2d entrance exam imp ppt DDCET PHY sics
d2d entrance exam imp ppt DDCET PHY sicsd2d entrance exam imp ppt DDCET PHY sics
d2d entrance exam imp ppt DDCET PHY sics
UrvashiModashiya

printing of ic circuits.pdf
printing       of        ic     circuits.pdfprinting       of        ic     circuits.pdf
printing of ic circuits.pdf
chidambaramnatarajar

libro de modelado de diseño-part-1[160-250].pdf
libro de modelado de diseño-part-1[160-250].pdflibro de modelado de diseño-part-1[160-250].pdf
libro de modelado de diseño-part-1[160-250].pdf
celiosilva66

CGR-Unit-1 Basics of Computer Graphics.pdf
CGR-Unit-1 Basics of Computer Graphics.pdfCGR-Unit-1 Basics of Computer Graphics.pdf
CGR-Unit-1 Basics of Computer Graphics.pdf
Rugved Collection

Online fraud prediction and prevention.pptx
Online fraud prediction and prevention.pptxOnline fraud prediction and prevention.pptx
Online fraud prediction and prevention.pptx
madihasultana209

Rockets and missiles notes engineering ppt
Rockets and missiles notes engineering pptRockets and missiles notes engineering ppt
Rockets and missiles notes engineering ppt
archithaero

Online airline reservation system project report.pdf
Online airline reservation system project report.pdfOnline airline reservation system project report.pdf
Online airline reservation system project report.pdf
Kamal Acharya

Ludo system project report management .pdf
Ludo  system project report management .pdfLudo  system project report management .pdf
Ludo system project report management .pdf
Kamal Acharya

李易峰祝绪丹做爱视频流出【网芷:ht28.co】可爱学生妹>>>[网趾:ht28.co】]<<<
李易峰祝绪丹做爱视频流出【网芷:ht28.co】可爱学生妹>>>[网趾:ht28.co】]<<<李易峰祝绪丹做爱视频流出【网芷:ht28.co】可爱学生妹>>>[网趾:ht28.co】]<<<
李易峰祝绪丹做爱视频流出【网芷:ht28.co】可爱学生妹>>>[网趾:ht28.co】]<<<
amzhoxvzidbke

Python programming Introduction about Python
Python programming Introduction about PythonPython programming Introduction about Python
Python programming Introduction about Python
Senthil Vit


Recently uploaded (20)

OSHA LOTO training, LOTO, lock out tag out
OSHA LOTO training, LOTO, lock out tag outOSHA LOTO training, LOTO, lock out tag out
OSHA LOTO training, LOTO, lock out tag out

IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptxIE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx

Introduction And Differences Between File System And Dbms.pptx
Introduction And Differences Between File System And Dbms.pptxIntroduction And Differences Between File System And Dbms.pptx
Introduction And Differences Between File System And Dbms.pptx

Red Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdfRed Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdf

readers writers Problem in operating system
readers writers Problem in operating systemreaders writers Problem in operating system
readers writers Problem in operating system

ARITMETICO.pdf xxxxxxxxxxxxxxxxxxxxxxxx
ARITMETICO.pdf  xxxxxxxxxxxxxxxxxxxxxxxxARITMETICO.pdf  xxxxxxxxxxxxxxxxxxxxxxxx
ARITMETICO.pdf xxxxxxxxxxxxxxxxxxxxxxxx

Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...

Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City

RECENT DEVELOPMENTS IN RING SPINNING.pptx
RECENT DEVELOPMENTS IN RING SPINNING.pptxRECENT DEVELOPMENTS IN RING SPINNING.pptx
RECENT DEVELOPMENTS IN RING SPINNING.pptx

Metrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical EngineeringMetrology Book, Bachelors in Mechanical Engineering
Metrology Book, Bachelors in Mechanical Engineering

d2d entrance exam imp ppt DDCET PHY sics
d2d entrance exam imp ppt DDCET PHY sicsd2d entrance exam imp ppt DDCET PHY sics
d2d entrance exam imp ppt DDCET PHY sics

printing of ic circuits.pdf
printing       of        ic     circuits.pdfprinting       of        ic     circuits.pdf
printing of ic circuits.pdf

libro de modelado de diseño-part-1[160-250].pdf
libro de modelado de diseño-part-1[160-250].pdflibro de modelado de diseño-part-1[160-250].pdf
libro de modelado de diseño-part-1[160-250].pdf

CGR-Unit-1 Basics of Computer Graphics.pdf
CGR-Unit-1 Basics of Computer Graphics.pdfCGR-Unit-1 Basics of Computer Graphics.pdf
CGR-Unit-1 Basics of Computer Graphics.pdf

Online fraud prediction and prevention.pptx
Online fraud prediction and prevention.pptxOnline fraud prediction and prevention.pptx
Online fraud prediction and prevention.pptx

Rockets and missiles notes engineering ppt
Rockets and missiles notes engineering pptRockets and missiles notes engineering ppt
Rockets and missiles notes engineering ppt

Online airline reservation system project report.pdf
Online airline reservation system project report.pdfOnline airline reservation system project report.pdf
Online airline reservation system project report.pdf

Ludo system project report management .pdf
Ludo  system project report management .pdfLudo  system project report management .pdf
Ludo system project report management .pdf

李易峰祝绪丹做爱视频流出【网芷:ht28.co】可爱学生妹>>>[网趾:ht28.co】]<<<
李易峰祝绪丹做爱视频流出【网芷:ht28.co】可爱学生妹>>>[网趾:ht28.co】]<<<李易峰祝绪丹做爱视频流出【网芷:ht28.co】可爱学生妹>>>[网趾:ht28.co】]<<<
李易峰祝绪丹做爱视频流出【网芷:ht28.co】可爱学生妹>>>[网趾:ht28.co】]<<<

Python programming Introduction about Python
Python programming Introduction about PythonPython programming Introduction about Python
Python programming Introduction about Python


Lecture-06.pptx

  • 2. TOPICS IN ORDER: - Criteria for thermal control - Climatic Zones - Climatic Data used in design of Buildings - Orientation of buildings and rooms within buildings
  • 3. CRITERIA FOR THERMAL CONTROL: Thermal comfort can be achieved by both active and passive techniques. In passive system, by using natural ventilation, solar shading and intelligent building design. In active design, by using HVAC systems and modern related technology.
  • 4. THERMAL COMFORT: Thermal comfort is a subjective assessment by a person expressing their satisfaction with their local thermal environment. In practice, there are a number of variables that influence the body’s heat balance with the environment, and in turn that person’s perception of thermal comfort. Personal Factors: • Occupant activity • Clothing Environmental Factors: • Air temperature • Radiant temperature • Air velocity • Humidity
  • 6. “PERSONAL FACTORS” 1. OCCUPANT ACTIVITY: People have different metabolic rates that can fluctuate due to activity level and environmental conditions. The ASHRAE Standard defines metabolic rate as the level of transformation of chemical energy into heat and mechanical work by metabolic activities within an organism, usually expressed in terms of unit area of the total body surface. Metabolic rate is expressed in met units, which are defined as follows: 1 met = 58.2 W/m² which is equal to the energy produced per unit surface area of an average person seated at rest. The surface area of an average person is 1.8 m² (19 ft²). FACTORS AFFECTING METABOLLIC RATE: • Food and drink habits may have an influence on metabolic rates, which indirectly influences thermal preferences. These effects may change depending on food and drink intake. • Body shape is another factor that affects thermal comfort. Heat dissipation depends on body surface area. A tall and skinny person has a larger surface-to-volume ratio, can dissipate heat more easily, and can tolerate higher temperatures more than a person with a rounded body shape.
  • 7. METABOLLIC RATES OF A PERSON PERFORMING DIFFERENT ACTIVITIES
  • 8. 2. CLOTHING: The amount of thermal insulation worn by a person has a substantial impact on thermal comfort, as it influences the heat loss and consequently the thermal balance. Layers of insulating clothing prevent heat loss and can either help keep a person warm or lead to overheating. Generally, the thicker the garment is, the greater insulating ability it has. Depending on the type of material the clothing is made out of, air movement and relative humidity can decrease the insulating ability of the material.
  • 9. CLOTHING RATES OF A PERSON PERFORMING DIFFERENT ACTIVITIES
  • 10. “ENVIRONMENTAL FACTORS” 1. AIR TEMPERATURE: The air temperature is the average temperature of the air surrounding the occupant, with respect to location and time. Air temperature is measured with a dry-bulb thermometer. 2. RADIANT TEMPERATURE: The radiant temperature is related to the amount of radiant heat transferred from a surface, and it depends on the material’s ability to absorb or emit heat, or its emissivity. The mean radiant temperature depends on the temperatures and emissivity of the surrounding surfaces as well as the view factor, or the amount of the surface that is “seen” by the object. So the mean radiant temperature experienced by a person in a room with the sunlight streaming in varies based on how much of his/her body is in the sun.
  • 11. “ENVIRONMENTAL FACTORS” 3. AIR VELOCITY: Air speed is defined as the rate of air movement at a point, without taking into consideration the direction. According to ASHRAE Standard, it is the average speed of the air to which the body is exposed, with respect to location and time. However, some spaces might provide strongly non uniform air velocity fields and consequent skin heat losses that cannot be considered uniform. Therefore, the architect shall decide the proper averaging, especially including air speeds incident on unclothed body parts, that have greater cooling effect and potential for local discomfort. 4. RELATIVE HUMIDITY: Relative humidity (RH) is the ratio of the amount of water vapor in the air to the amount of water vapor that the air could hold at the specific temperature and pressure. While the human body has sensors within the skin that are fairly efficient at feeling heat and cold, relative humidity is detected indirectly. Sweating is an effective heat loss mechanism that relies on evaporation from the skin.
  • 12. CLIMATIC ZONES: Like Europe and various other countries, Pakistan is a country with wide variations in climate. There are regions which are extremely hot as Sibbi in Baluchistan and Jacobabad in Sindh and there are regions which are extremely cold as Gilgit, Swat, Skardu in Khyber Pukhtun Khwa. Thus, on the basis of climatic classification data the country can be divided into seven climatic zones: ‐ Hot and Dry ‐ Hot and Humid ‐ Warm and Humid ‐ Moderate ‐ Cold and Cloudy ‐ Cold and Dry ‐ Composite
  • 14. HOT AND DRY: Deserts with hot and dry climates are warm all year round, and are extremely hot in the summer. Usually, they have very little rainfall, making the climate extremely dry, and hard for plants and animals to survive. There are very few plants in hot and dry deserts. Often, the only things that can survive are short shrubs and trees. Plants that live in the desert have special abilities that allow them to live in such a hot and dry place. HOT AND HUMID: In hot and humid climatic regions, high temperatures are accompanied by very high humidity levels leading to immense discomfort. Usually areas which are coastal are close to seas are hot and humid because of the moisture level in air is too high. Cross ventilation is hence very essential here. WARM AND HUMID: The climate of warm-humid zones is characterized by high rainfall and high humidity. The temperature range is relatively high at around 30 - 35°C and is fairly even during the day and throughout the year. Due to minimal temperature differences, winds are light or even non-existent for longer periods. However, heavy precipitation and storms occur frequently.
  • 15. IMPORTANT FACTORS FOR WARM-HUMID CLIMATES:  Provide maximum ventilation and free air movement by large openings.  Provide maximum shading of direct and diffuse solar radiation.  Avoid heat storage.  Use reflective outer surfaces.  Use ventilated double roofs.  Use vegetation to moderate the solar impact. MODERATE: In geography, temperate or tepid latitudes of Earth lie between the tropics and the polar regions. The temperatures in these regions are generally relatively moderate, rather than extremely hot or cold, and the changes between summer and winter are also usually moderate.
  • 16. COLD AND CLOUDY: Winters are prolonged and summers are short in this climate. There is also a fair amount of precipitation- snow or rain, often spread across the year. The traditional homes and villages of the sub - Himalayan region are built on hill slopes that would receive a fair amount of sunshine. The lower floor is occupied by cattle and used for storage. The upper floor which is away from cold and damp ground has the living rooms. The cooking area is a part of it, in order to benefit from the heat generated by it. Low timber ceiling provide insulation and conserve the warmth. Windows face the sun. COLD AND DRY: Polar climates are cold and dry, with long, dark winters. In the tundra (a treeless region bordering the Arctic), temperatures rise above freezing for only a few months each year. COMPOSITE OR MONSOON CLIMATE: Tropical monsoon climates have monthly mean temperatures above 18 °C in every month of the year and feature wet and dry seasons.
  • 17. Hyderabad City (Wind Catchers)
  • 18. TRADITIONAL HOUSES IN COLD AND CLOUDY REGION TUNDRA (COLD AND DRY CLIMATE)
  • 19. CLIMATE CLASSIFICATION CHART: Following two charts are being used for the understanding of climatic data and requirement. • Eco-Chart • Comfort Zone Chart ECO-CHART: This chart has been adopted to give a graphic account and understanding of the following factors: 1. Solar Geometry and Shadow Pattern: These facilitate the visualization of physical form and its response to the movement of the sun and the shadow cast. 2. HOURS OF SUN SHINE: This gives a physical account of the total sunshine hours available which can be made use of for heat gain or the time period for which elimination of solar exposure must be made.
  • 20. 3. Solar Radiation: This gives the variation of both total and diffuse radiation giving a good idea of use and conversion of solar energy. 4. Air Temperature: This gives the variation of maximum mean and minimum temperature over the entire year, giving a broad indication of the overhead, comfortable and under heated periods. 5. Degree Days: The variation of both heating and cooling degree days over the entire year is given. This indicates the heating and cooling loads in climatic zones. 6. Precipitation: This gives the average precipitation on a monthly basis over the entire year, expressing the amount of precipitation available and management required. 7. Relative Humidity: This tells the variation of the relative humidity on a monthly basis over the entire year. Combined with air temperature, the humidity levels serve as an indicator of strategies required for passive control of comfort conditions in the buildings. 8. Wind Speed, Frequency and Direction: The graphic presentation of the wind data helps in the planning and designing of the settlement as a whole and buildings in particular.
  • 21. COMFORT ZONE CHART: This chart has been deployed to give the extended values of solar radiation, wind speeds and humidity levels and their effect on the comfort zone. Various climatic elements such as wind speed, vapor pressure, relative humidity and radiation affect the comfort conditions in the comfort zone chart. 1. WIND SPEED: Air movement affects body cooling. It does not decrease the air temperature but causes a sensation of cooling due to heat loss by convection and due to increased evaporation from the body. As velocity of air increases, the upper comfort level is raised. 2. VAPOR PRESSURE: Vapor pressure is exerted by a variable quantity of water vapor present in atmospheric air. When the vapor pressure increases beyond the 15 mm mark, there is a feeling of lassitude.
  • 22. 3. HUMIDITY: Higher value of relative humidity increases the feeling of discomfort. 4. RADIATION: Radiation curves shown in this chart refer to the outside conditions only. An increase in radiation level can offset the drop in the dry bulb temperature and thereby effect the comfort zone.
  • 23. CLIMATIC DATA USED IN BUILDINGS: Following are the main points of climatic data to be used in designing a building: ‐ Typical Landscape and Vegetation ‐ Solar Radiation ‐ Mean Temperature ‐ Relative Humidity ‐ Precipitation ‐ Winds ‐ Sky Conditions ‐ Miscellaneous
  • 24. BUILDING ORIENTATION: Building orientation refers to the way a building is situated on a site and the positioning of windows, rooflines, and other features. A building oriented for solar design takes advantage of passive and active solar strategies. Passive solar strategies use energy from the sun to heat and illuminate buildings. Building orientation and building materials also facilitate temperature moderation and natural daylighting. Active solar systems use solar collectors and additional electricity to power pumps or fans to distribute the sun's energy. Heat is absorbed and transferred to another location for immediate heating or for storage for use later.
  • 25. Living Room Dining Room Children Room Storage Garage Central heating
  • 26. HOW TO OPTIMIZE BUILDING ORIENTATION: The most convenient way is to incorporate passive solar systems into a building during the initial design. Passive solar systems utilize basic concepts incorporated into the architectural design of the building. They usually consist of: ‐ Rectangular floor plans elongated on an east-west axis ‐ Glazed south-facing wall ‐ Thermal storage medium exposed to the solar radiation ‐ Light shelves/overhangs or other shading devices which sufficiently shade the south-facing elevation from the summer sun; south elevation overhangs should be horizontal while east and west elevations usually require both horizontal and vertical overhangs ‐ Windows on the east and west walls, and preferably none on the south walls
  • 28. “Lecture No. 04” TOPICS IN ORDER: - Thermal transmittance of walls, floors and roofs - Insulation and techniques - Reflectivity of Building’s Surfaces
