This slides contains contents of introduction of Algorithm and Analysis

1. 1
Algorithms Analysis and Design
Lecture 1
Prepared by
ZARA

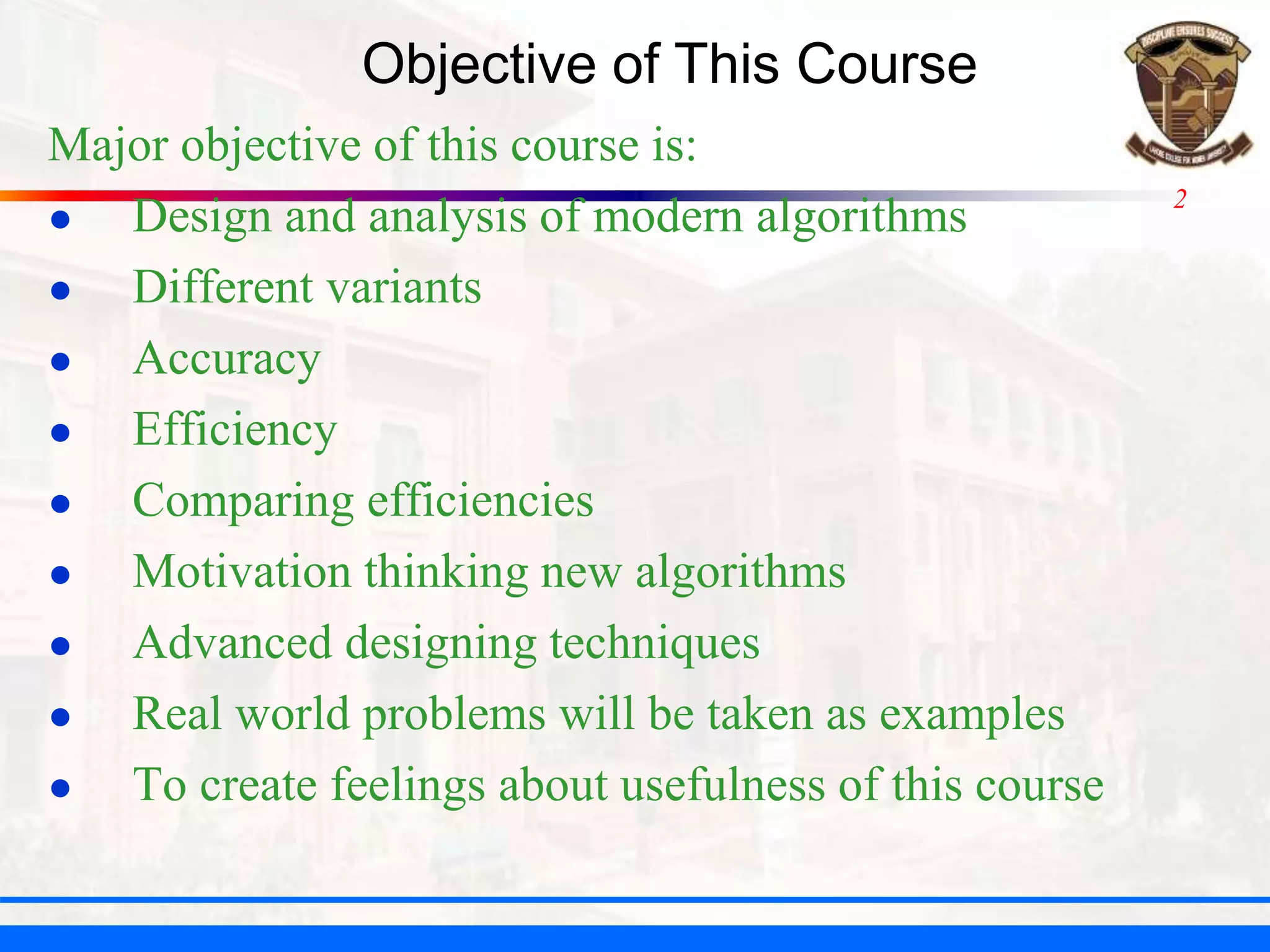

2. 2
Major objective of this course is:
● Design and analysis of modern algorithms
● Different variants
● Accuracy
● Efficiency
● Comparing efficiencies
● Motivation thinking new algorithms
● Advanced designing techniques
● Real world problems will be taken as examples
● To create feelings about usefulness of this course
Objective of This Course

3. 3

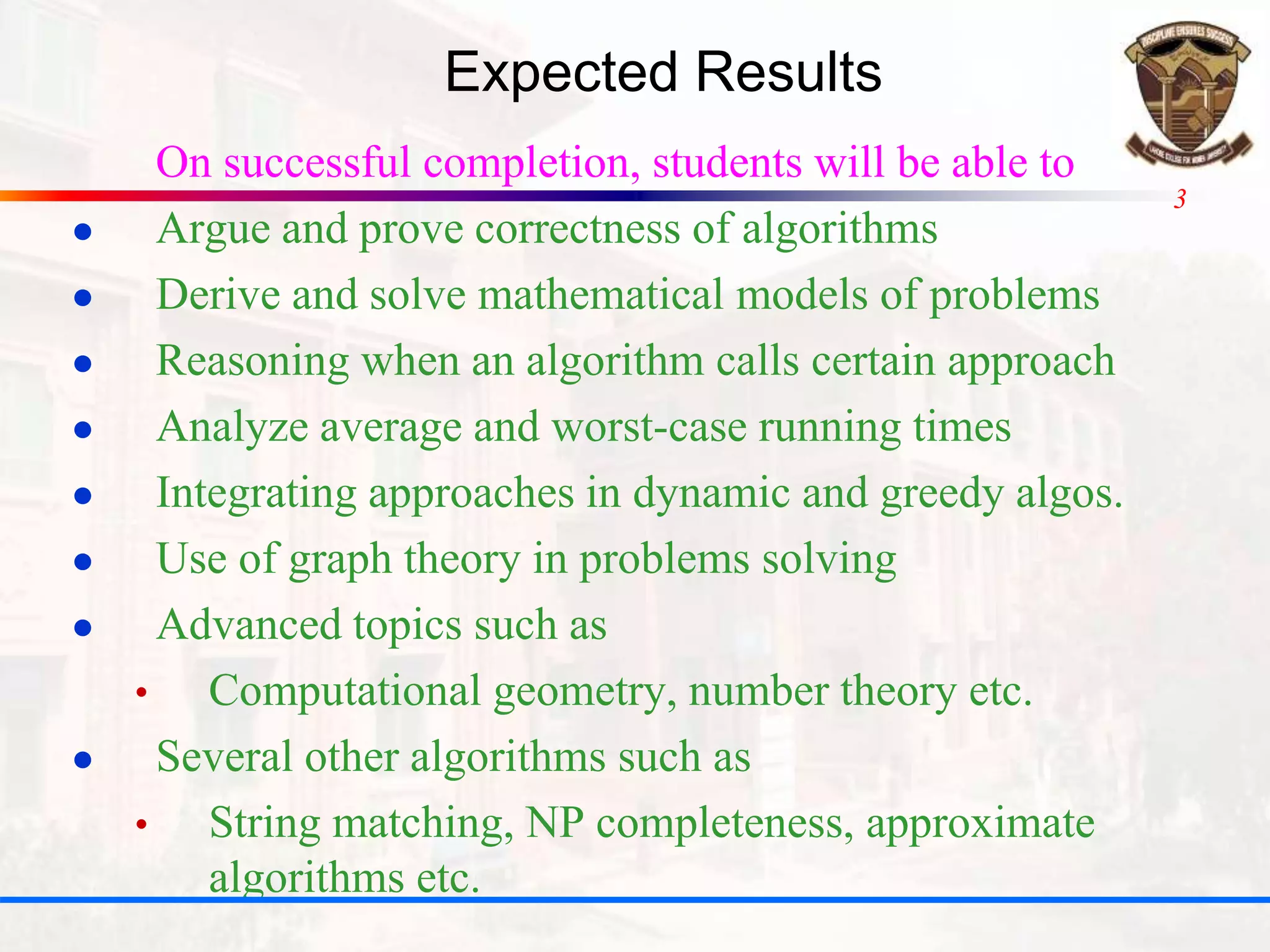

On successful completion, students will be able to
● Argue and prove correctness of algorithms
● Derive and solve mathematical models of problems
● Reasoning when an algorithm calls certain approach
● Analyze average and worst-case running times
● Integrating approaches in dynamic and greedy algos.
● Use of graph theory in problems solving
● Advanced topics such as
• Computational geometry, number theory etc.
● Several other algorithms such as
• String matching, NP completeness, approximate
algorithms etc.
Expected Results

4. 4
Lecture No 1
Introduction
(What, Why and Where Algorithms . . .)

5. 5

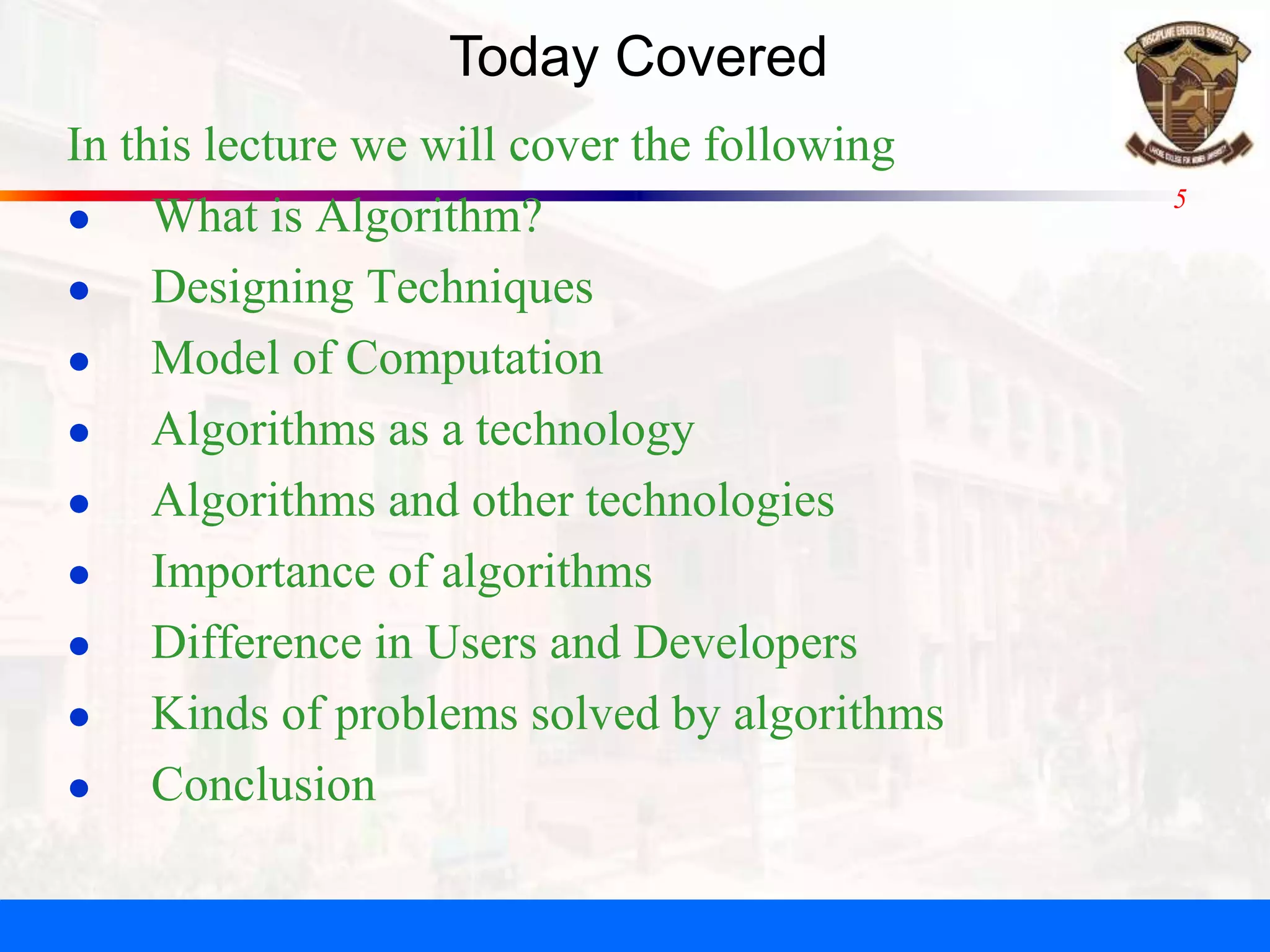

In this lecture we will cover the following
● What is Algorithm?
● Designing Techniques
● Model of Computation
● Algorithms as a technology
● Algorithms and other technologies
● Importance of algorithms
● Difference in Users and Developers
● Kinds of problems solved by algorithms
● Conclusion
Today Covered

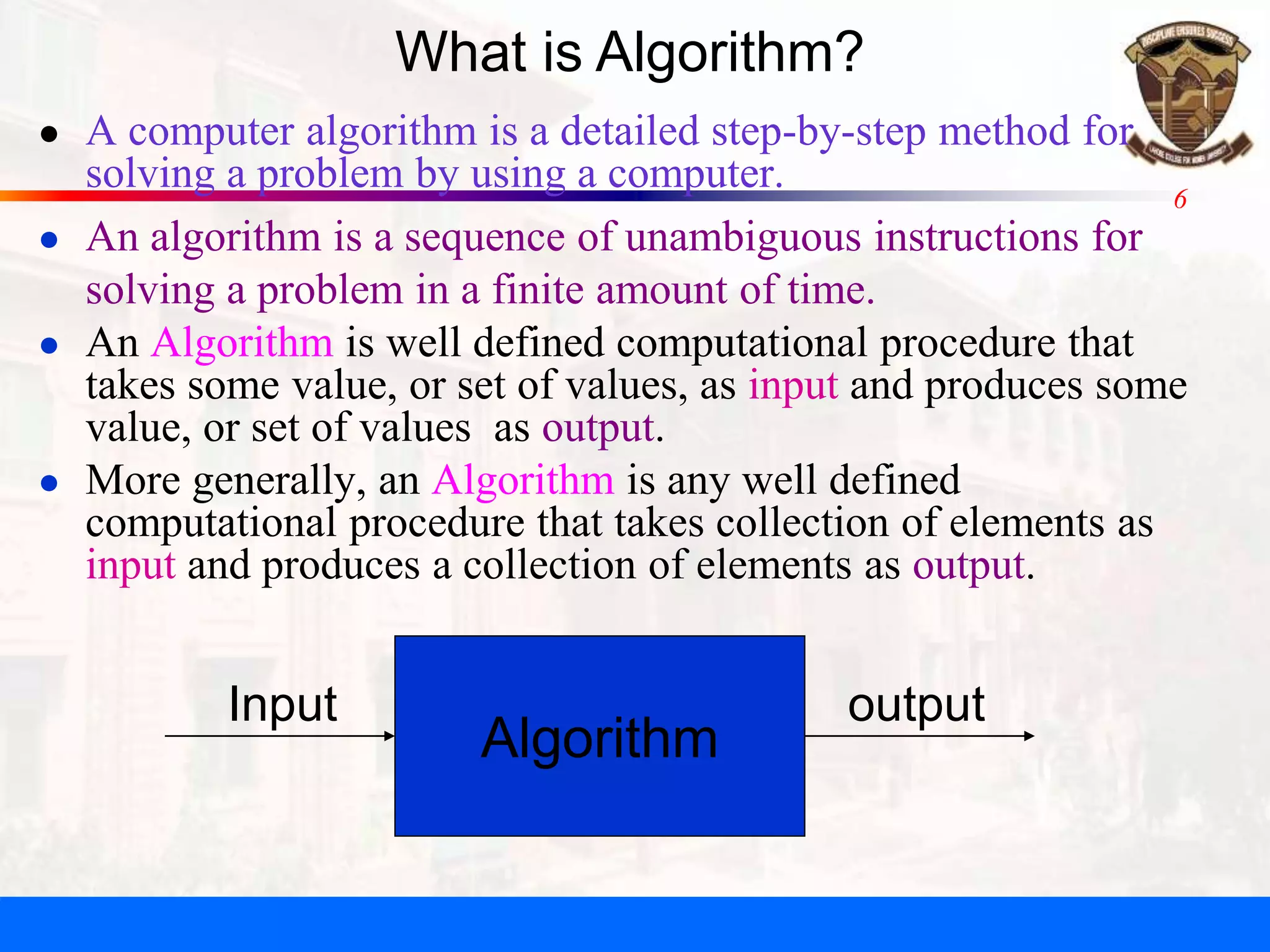

6. 6
● A computer algorithm is a detailed step-by-step method for
solving a problem by using a computer.
● An algorithm is a sequence of unambiguous instructions for
solving a problem in a finite amount of time.
● An Algorithm is well defined computational procedure that
takes some value, or set of values, as input and produces some
value, or set of values as output.
● More generally, an Algorithm is any well defined
computational procedure that takes collection of elements as
input and produces a collection of elements as output.
Algorithm
Input output
What is Algorithm?

7. 7
● Most basic and popular algorithms are
■ Sorting algorithms
■ Searching algorithms
Which algorithm is best?
● Mainly, it depends upon various factors, for example in
case of sorting
■ The number of items to be sorted
■ The extent to which the items are already sorted
■ Possible restrictions on the item values
■ The kind of storage device to be used etc.
Popular Algorithms, Factors of Dependence

8. 8
Problem
● The statement of the problem specifies, in general terms,
the desired input/output relationship.
Algorithm
● The algorithm describes a specific computational
procedure for achieving input/output relationship.
Example
● One might need to sort a sequence of numbers into non-
decreasing order.
Algorithms
● Various algorithms e.g. merge sort, quick sort, heap
sorts etc.
One Problem, Many Algorithms

9. 9
● Brute Force
■ Straightforward, naive approach
■ Mostly expensive
● Divide-and-Conquer
■ Divide into smaller sub-problems
● Iterative Improvement
■ Improve one change at a time
● Decrease-and-Conquer
■ Decrease instance size
● Transform-and-Conquer
■ Modify problem first and then solve it
● Space and Time Tradeoffs
■ Use more space now to save time later
Important Designing Techniques

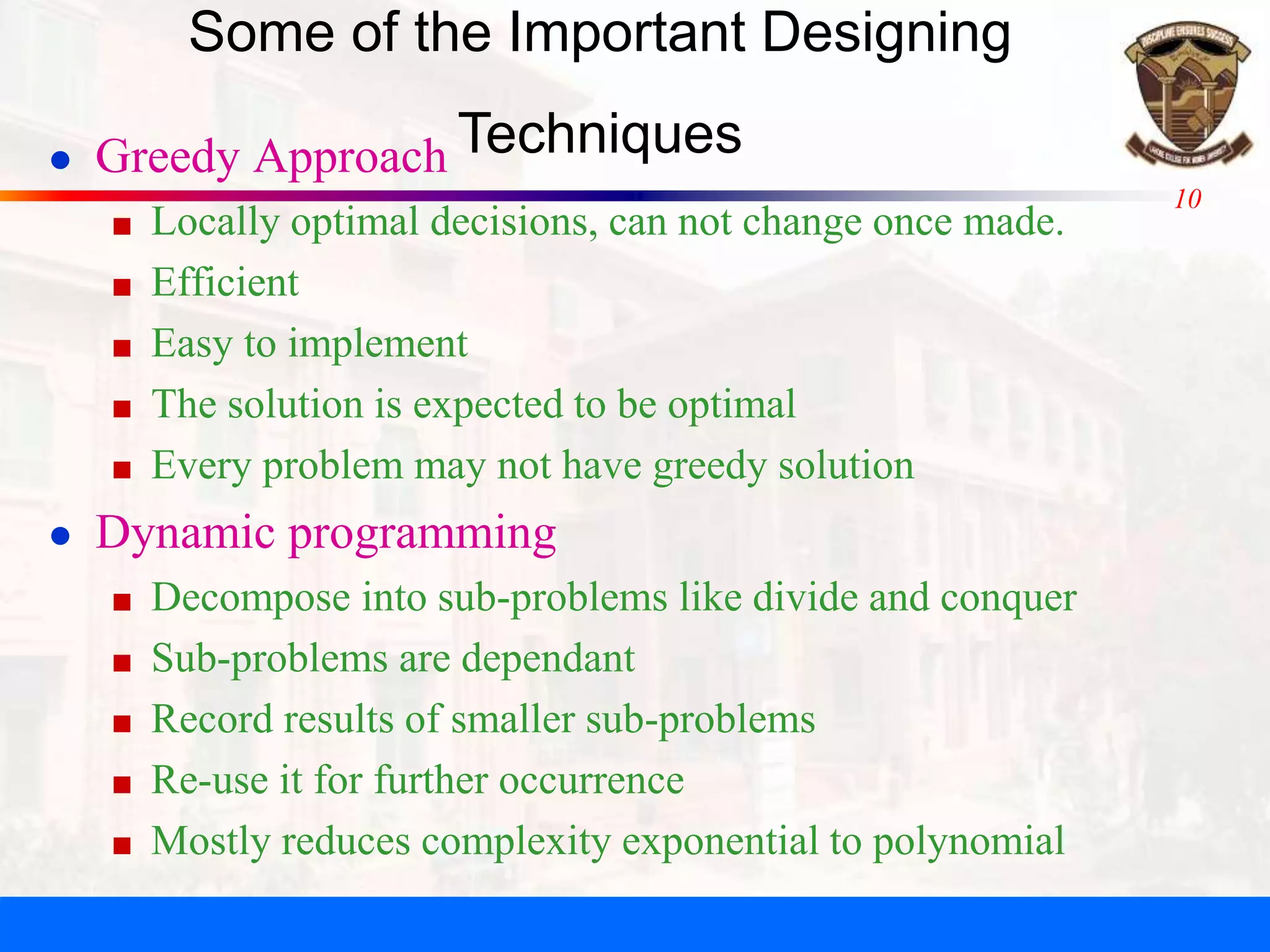

10. 10

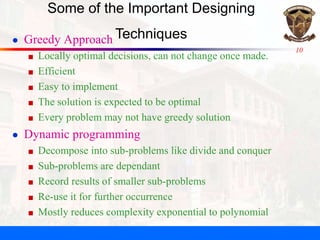

● Greedy Approach
■ Locally optimal decisions, can not change once made.
■ Efficient
■ Easy to implement
■ The solution is expected to be optimal
■ Every problem may not have greedy solution
● Dynamic programming
■ Decompose into sub-problems like divide and conquer
■ Sub-problems are dependant
■ Record results of smaller sub-problems
■ Re-use it for further occurrence
■ Mostly reduces complexity exponential to polynomial
Some of the Important Designing
Techniques

11. 11
● Analysis
■ How does system work?
■ Breaking a system down to known components
■ How components (processes) relate to each other
■ Breaking a process down to known functions
● Synthesis
■ Building tools
■ Building functions with supporting tools
■ Composing functions to form a process
■ How components should be put together?
■ Final solution
Problem Solving Phases

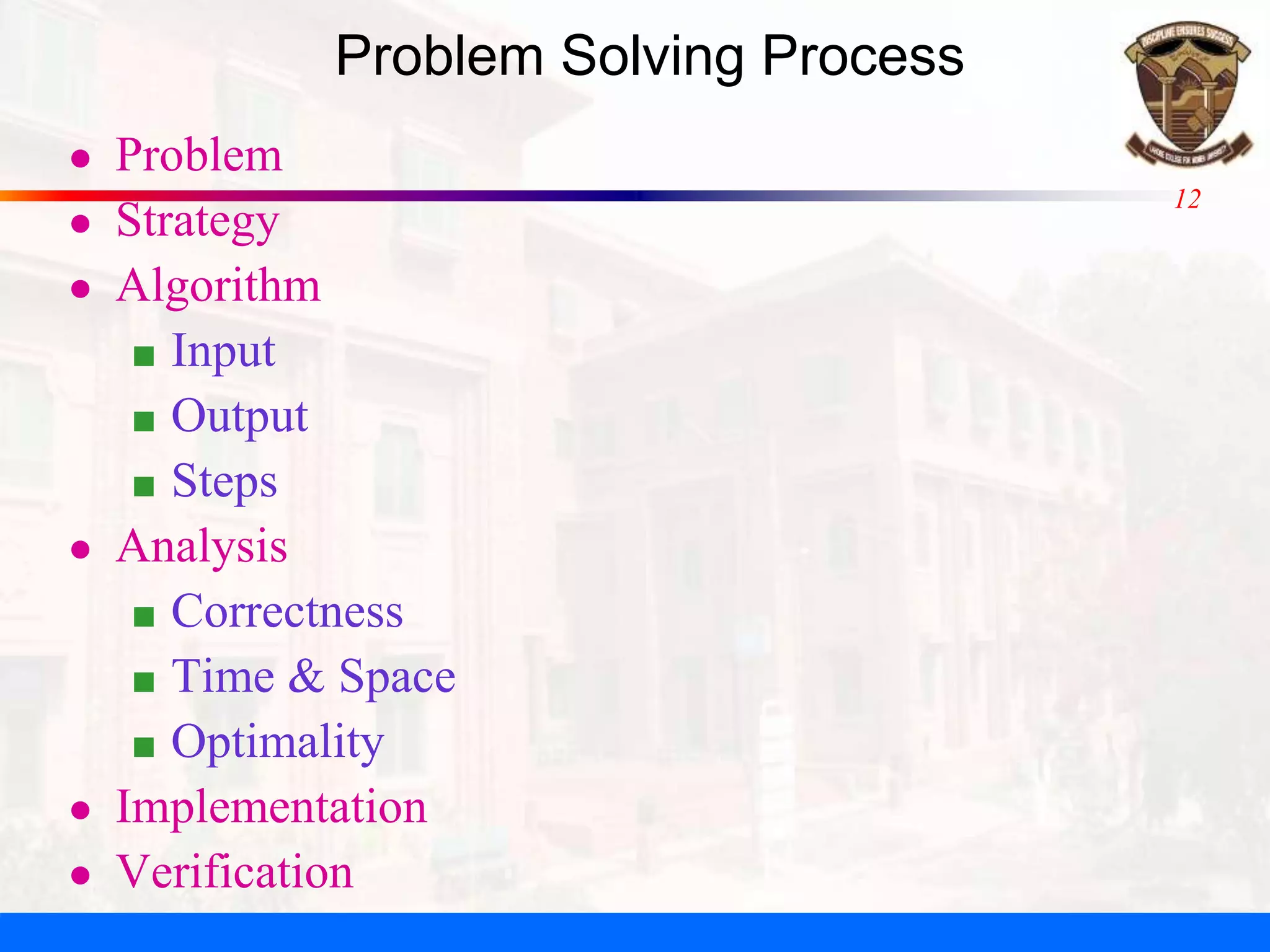

12. 12
● Problem
● Strategy
● Algorithm
■ Input
■ Output
■ Steps
● Analysis
■ Correctness
■ Time & Space
■ Optimality
● Implementation
● Verification
Problem Solving Process

13. 13
● Design assumption
■ Level of abstraction which meets our requirements
■ Neither more nor less e.g. [0, 1] infinite continuous interval
● Analysis independent of the variations in
■ Machine
■ Operating system
■ Programming languages
■ Compiler etc.
● Low-level details will not be considered
● Our model will be an abstraction of a standard generic
single-processor machine, called a random access
machine or RAM.
Model of Computation (Assumptions)

14. 14
● A RAM is assumed to be an idealized machine
■ Infinitely large random-access memory
■ Instructions execute sequentially
● Every instruction is in fact a basic operation on two values in
the machines memory which takes unit time.
● These might be characters or integers.
● Example of basic operations include
■ Assigning a value to a variable
■ Arithmetic operation (+, - , × , /) on integers
■ Performing any comparison e.g. a < b
■ Boolean operations
■ Accessing an element of an array.
Model of Computation (Assumptions)

15. 15

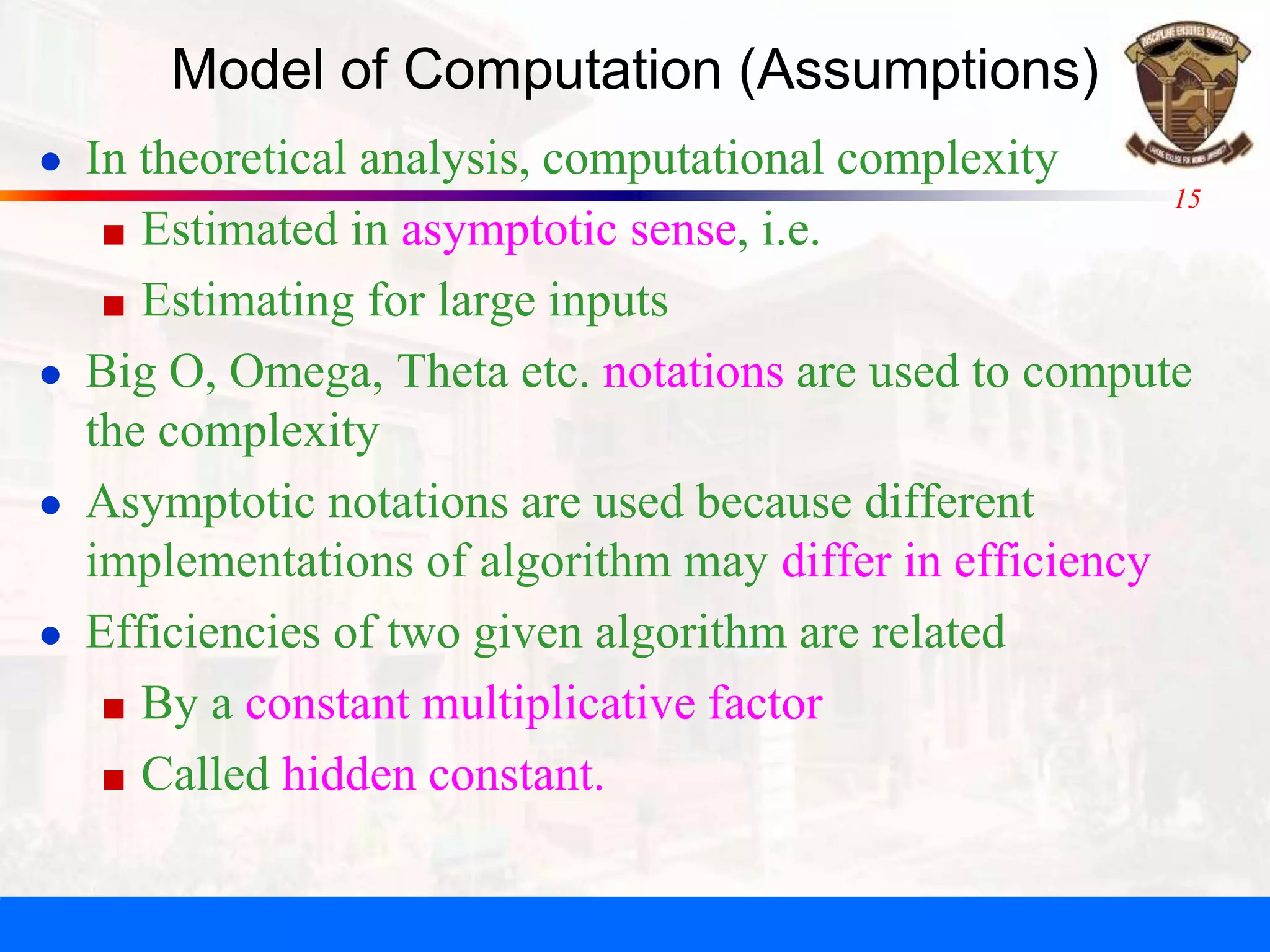

● In theoretical analysis, computational complexity
■ Estimated in asymptotic sense, i.e.
■ Estimating for large inputs
● Big O, Omega, Theta etc. notations are used to compute
the complexity
● Asymptotic notations are used because different
implementations of algorithm may differ in efficiency
● Efficiencies of two given algorithm are related
■ By a constant multiplicative factor
■ Called hidden constant.
Model of Computation (Assumptions)

16. 16

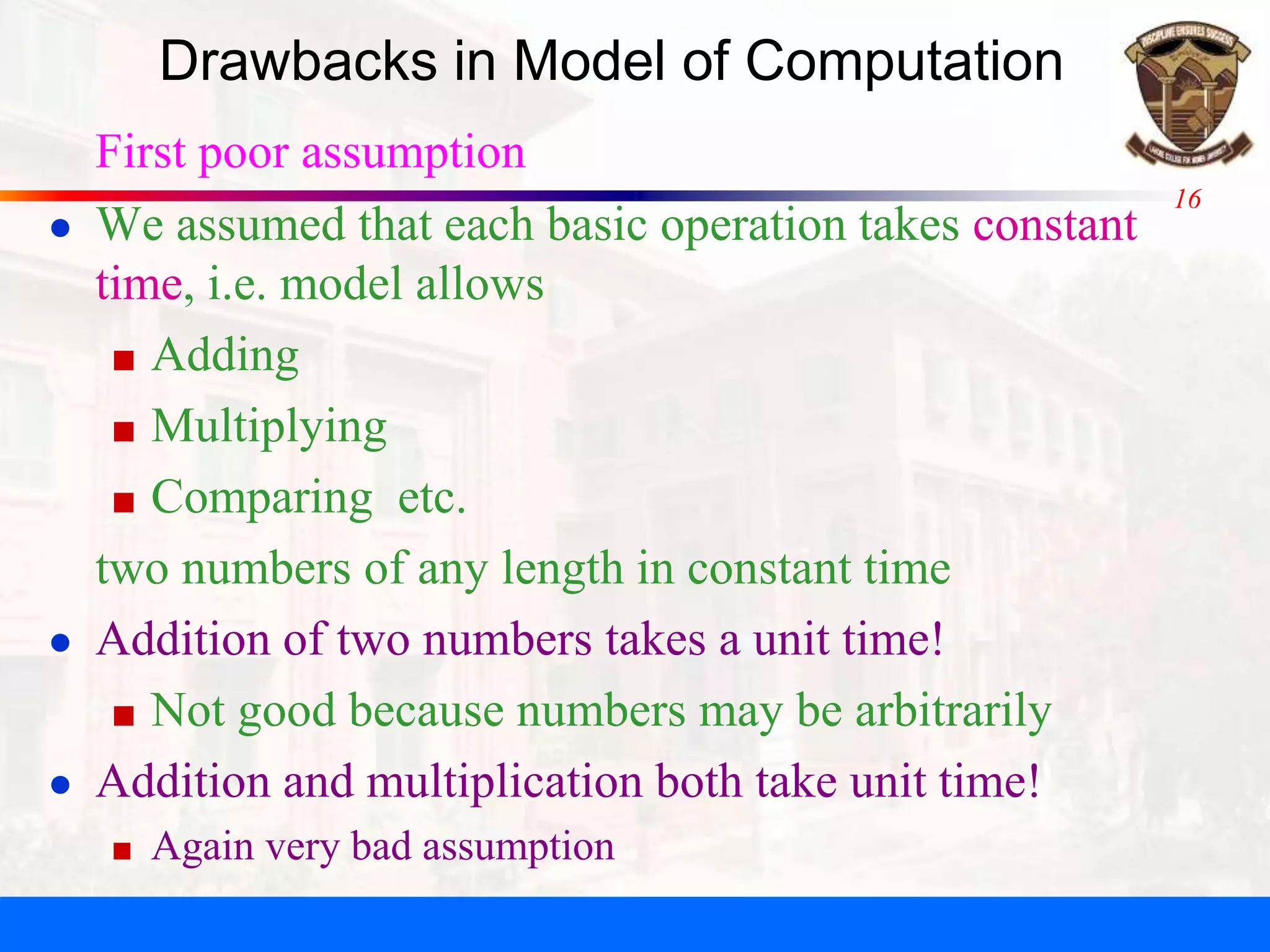

First poor assumption
● We assumed that each basic operation takes constant
time, i.e. model allows
■ Adding
■ Multiplying
■ Comparing etc.
two numbers of any length in constant time
● Addition of two numbers takes a unit time!
■ Not good because numbers may be arbitrarily
● Addition and multiplication both take unit time!
■ Again very bad assumption
Drawbacks in Model of Computation

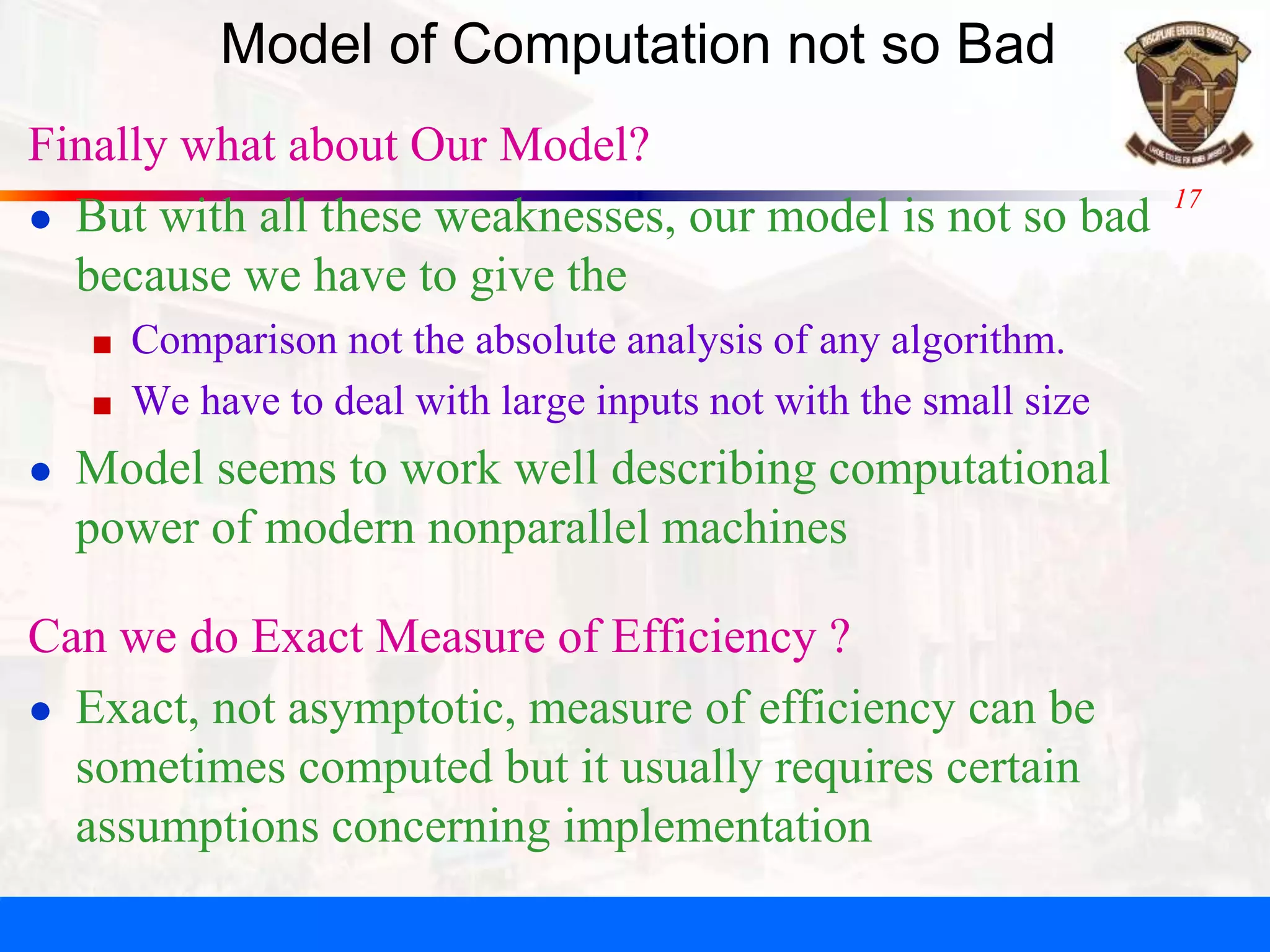

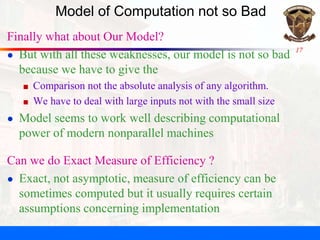

17. 17
Finally what about Our Model?
● But with all these weaknesses, our model is not so bad
because we have to give the
■ Comparison not the absolute analysis of any algorithm.
■ We have to deal with large inputs not with the small size
● Model seems to work well describing computational
power of modern nonparallel machines
Can we do Exact Measure of Efficiency ?
● Exact, not asymptotic, measure of efficiency can be
sometimes computed but it usually requires certain
assumptions concerning implementation
Model of Computation not so Bad

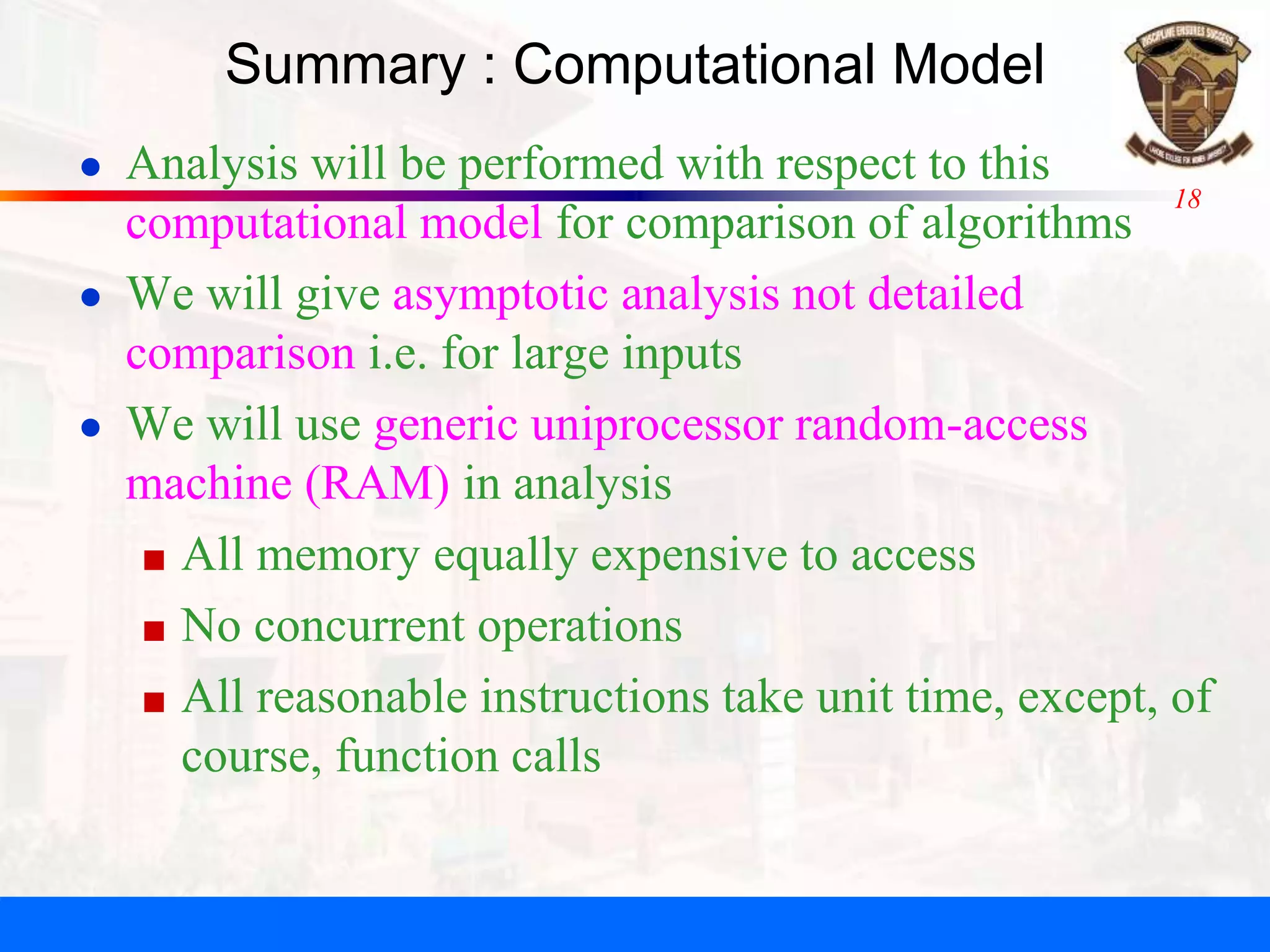

18. 18
● Analysis will be performed with respect to this
computational model for comparison of algorithms
● We will give asymptotic analysis not detailed
comparison i.e. for large inputs
● We will use generic uniprocessor random-access
machine (RAM) in analysis
■ All memory equally expensive to access
■ No concurrent operations
■ All reasonable instructions take unit time, except, of
course, function calls
Summary : Computational Model

19. 19
Algorithm As a Technology
● Efficiency:
● – Different algorithms solve the same problem often
differ noticeably in their efficiency
● – These differences can be much more significant
than difference due to hardware and software
● For example, insertion sort takes time roughly equal
to c1n 2 (c1 is constant) to sort n items. But, merge
sort takes time roughly equal to c2nlg n (c2 is
constant)

20. 20
Algorithm As a Technology
● Algorithms as a technology • For example,
assume a faster computer A (1010
instructions/sec) running insertion sort against
a slower computer B (107 instructions/sec)
running merge sort. • Suppose that c1=2，
c2=50 and n = 107 . • the execution time of
computer A is 2(107 ) 2 / 1010 instructions/sec
= 20,000 seconds • the execution time of
computer B is 50 · 107 lg 107 / 107
instructions/sec = 1,163 seconds

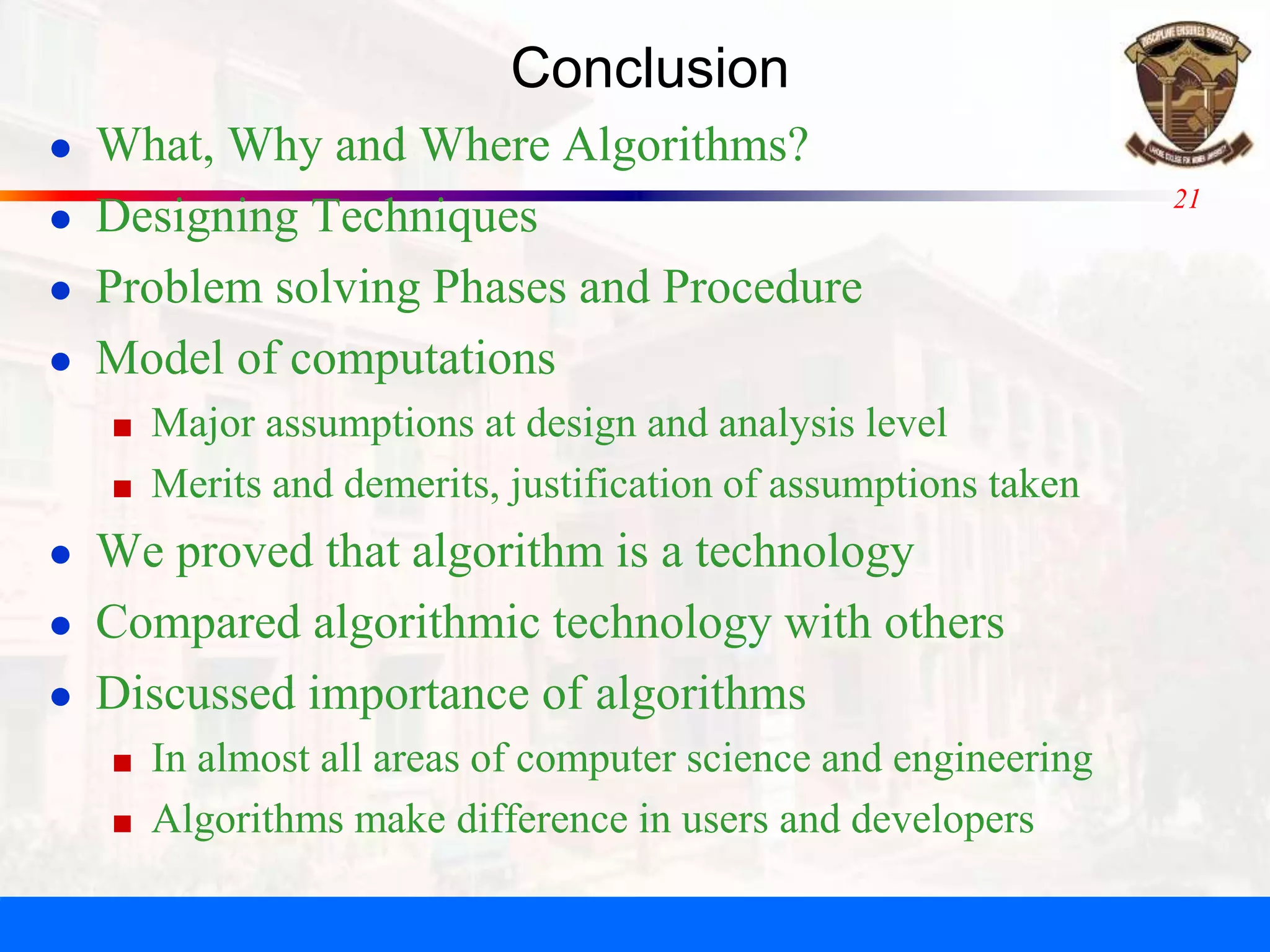

21. 21

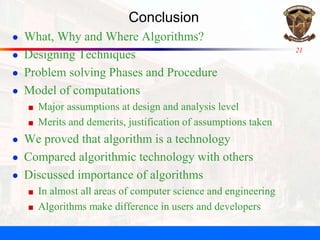

● What, Why and Where Algorithms?
● Designing Techniques
● Problem solving Phases and Procedure
● Model of computations
■ Major assumptions at design and analysis level
■ Merits and demerits, justification of assumptions taken
● We proved that algorithm is a technology
● Compared algorithmic technology with others
● Discussed importance of algorithms
■ In almost all areas of computer science and engineering
■ Algorithms make difference in users and developers
Conclusion
