1. Object Oriented Analysis
&
Design
3/27/2014 1

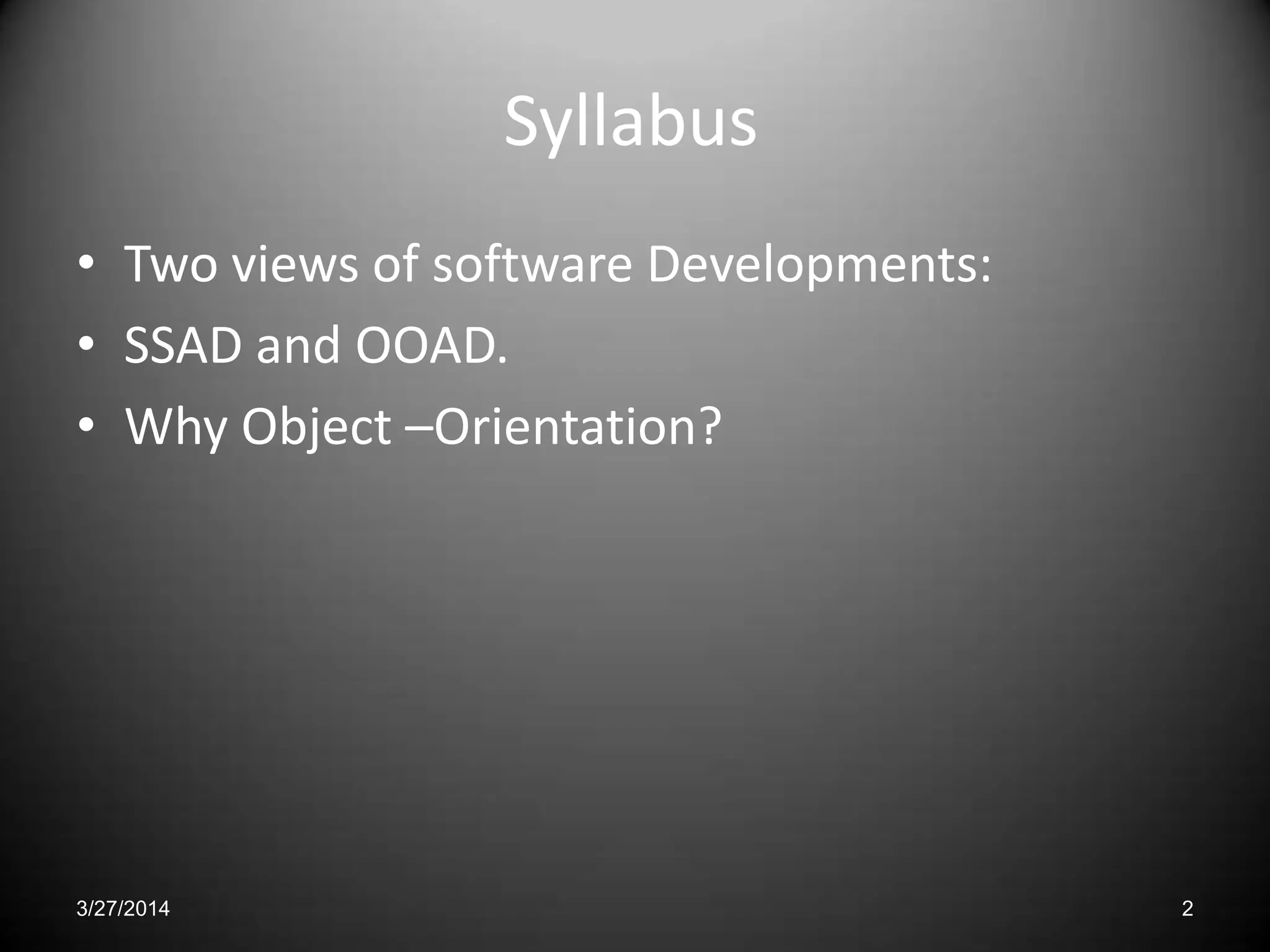

2. Syllabus
• Two views of software Developments:
• SSAD and OOAD.
• Why Object –Orientation?
3/27/2014 2

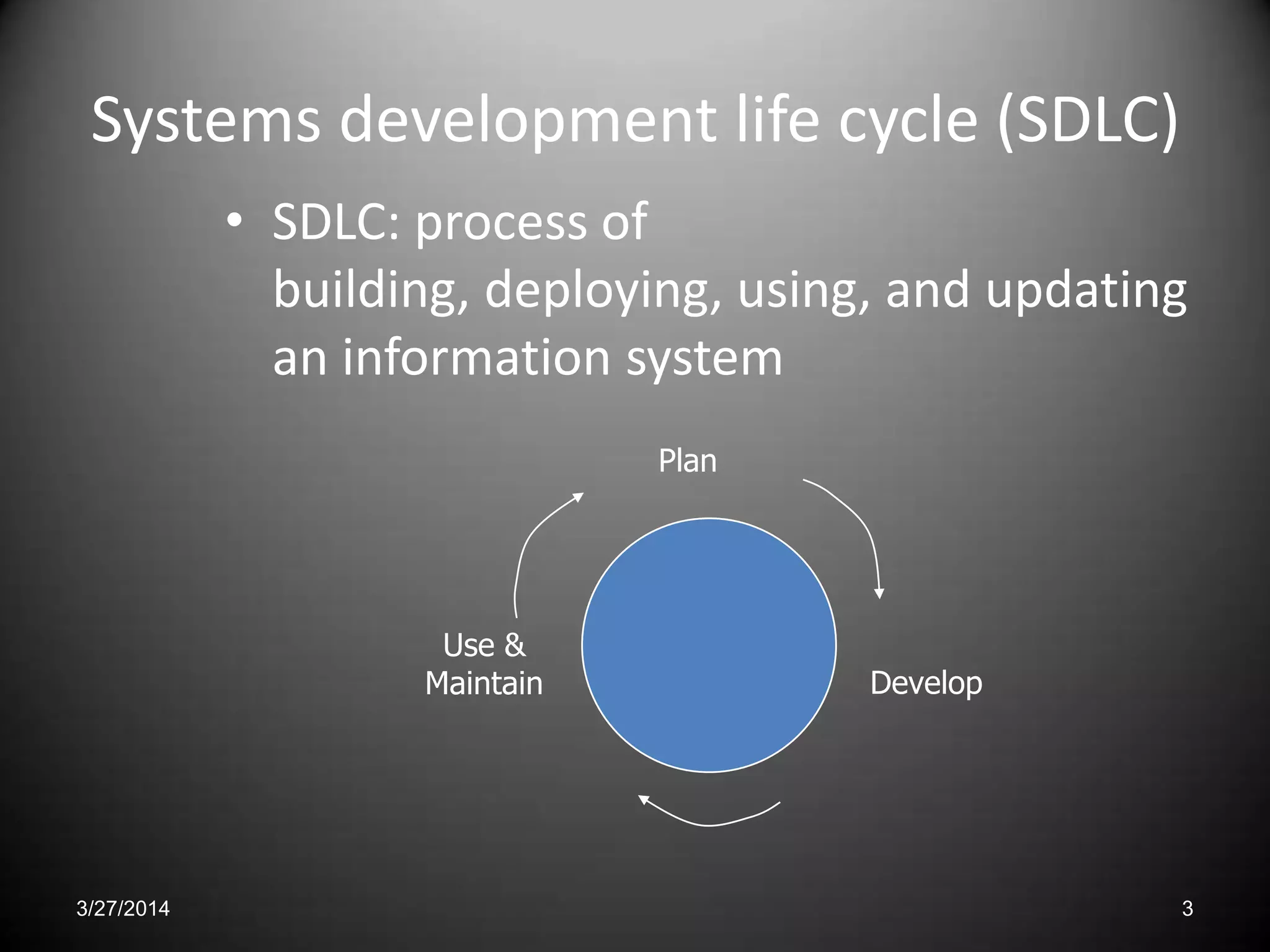

3. Systems development life cycle (SDLC)
• SDLC: process of
building, deploying, using, and updating
an information system
Plan
Develop
Use &
Maintain
3/27/2014 3

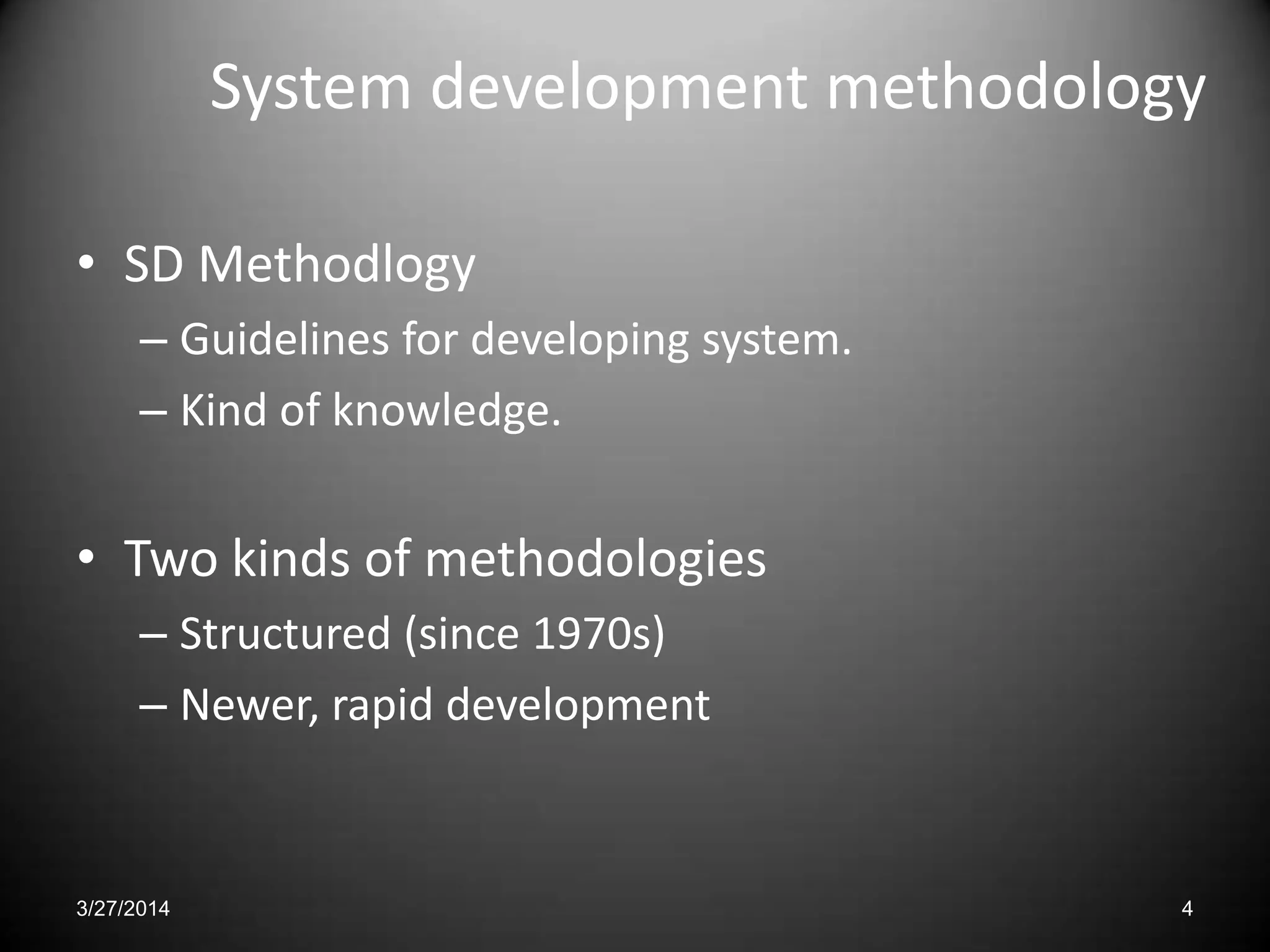

4. System development methodology
• SD Methodlogy
– Guidelines for developing system.
– Kind of knowledge.
• Two kinds of methodologies
– Structured (since 1970s)
– Newer, rapid development
3/27/2014 4

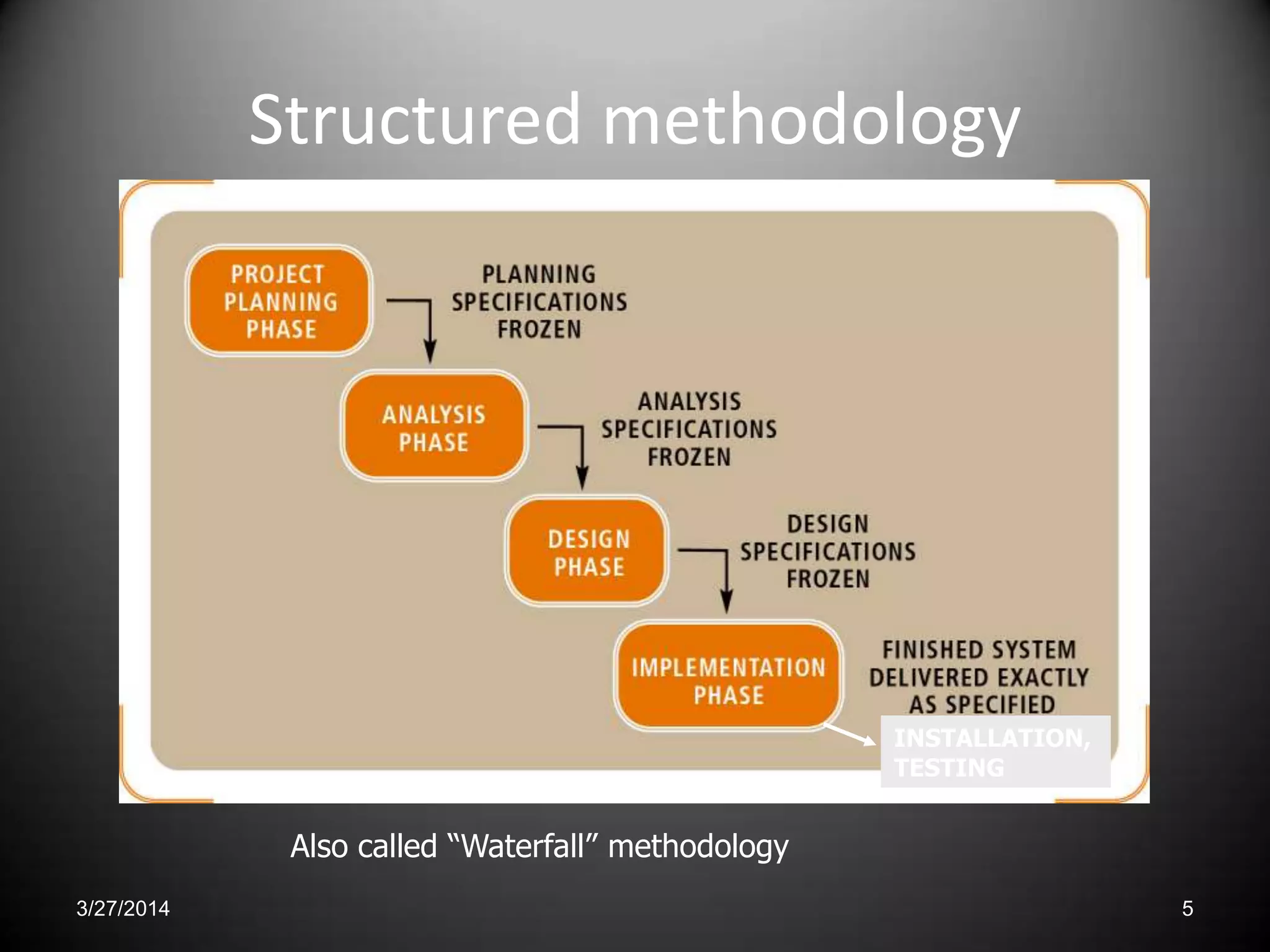

5. Structured methodology
Also called “Waterfall” methodology
INSTALLATION,
TESTING
3/27/2014 5

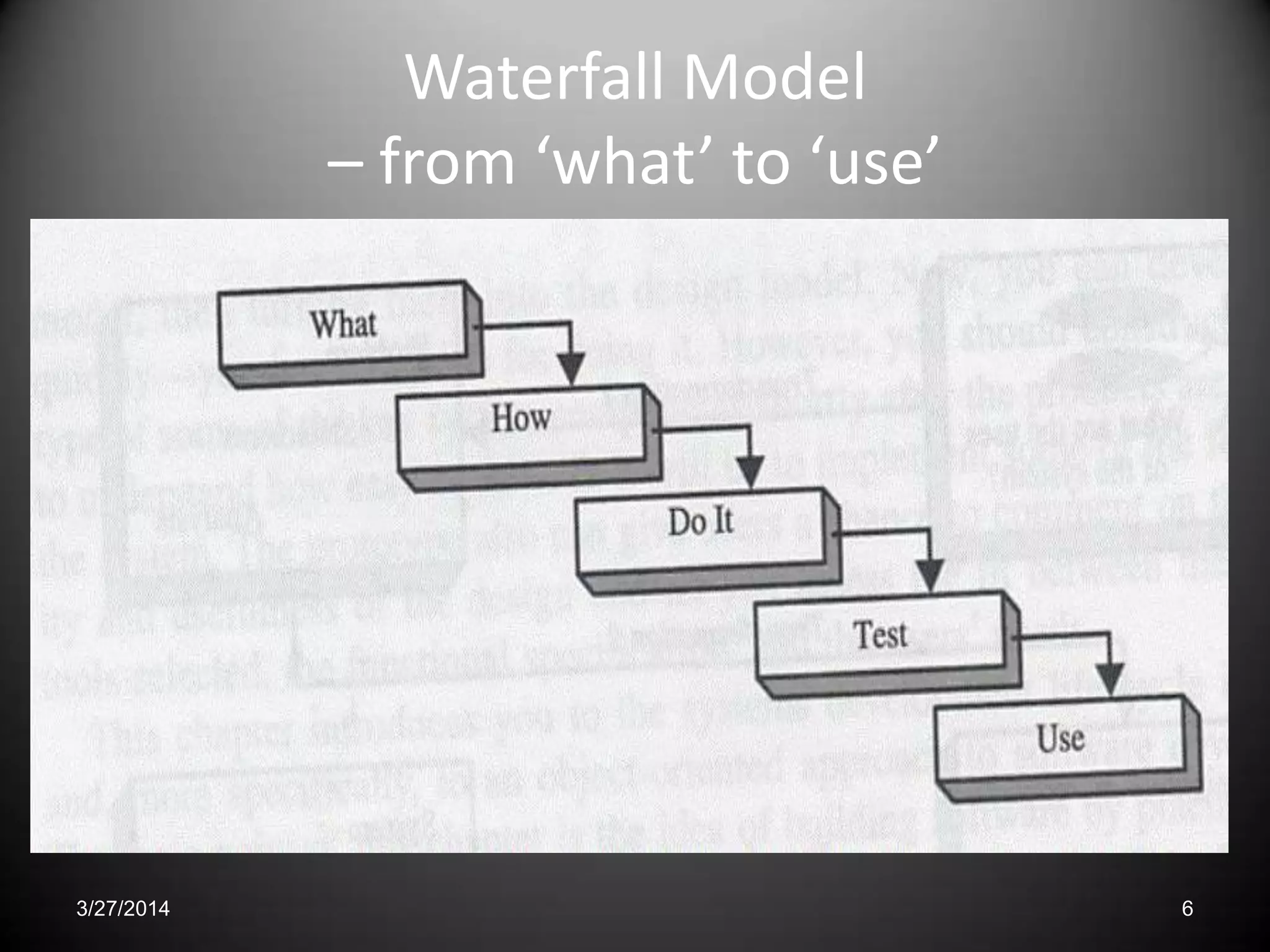

6. Waterfall Model
– from ‘what’ to ‘use’
3/27/2014 6

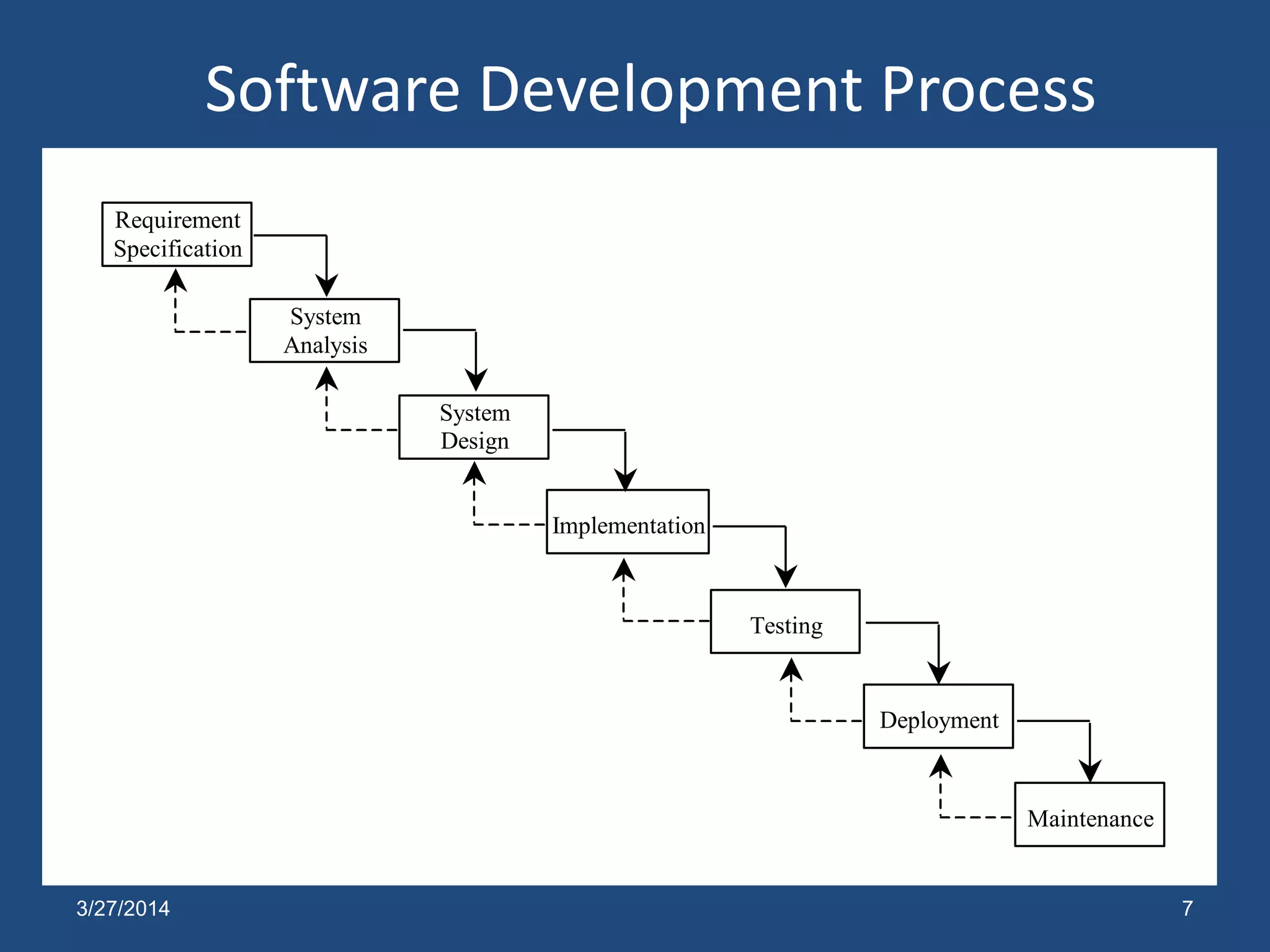

7. Software Development Process
7
Requirement
Specification
System
Analysis
System
Design
Testing
Implementation
Maintenance
Deployment
3/27/2014

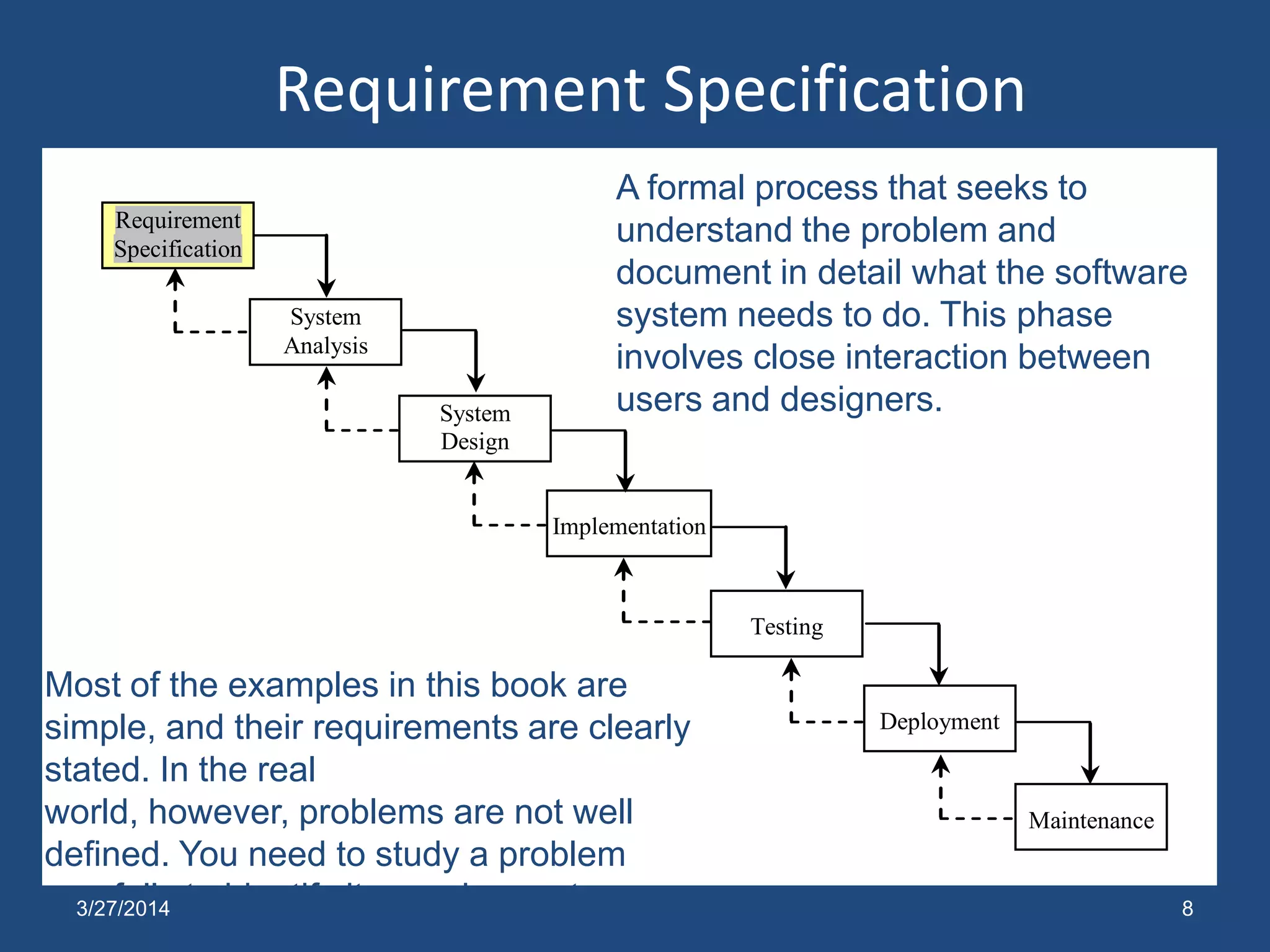

8. Requirement Specification
8
Requirement
Specification
System
Analysis
System
Design
Testing
Implementation
Maintenance
Deployment
A formal process that seeks to
understand the problem and
document in detail what the software
system needs to do. This phase
involves close interaction between
users and designers.
Most of the examples in this book are
simple, and their requirements are clearly
stated. In the real
world, however, problems are not well
defined. You need to study a problem
carefully to identify its requirements.3/27/2014

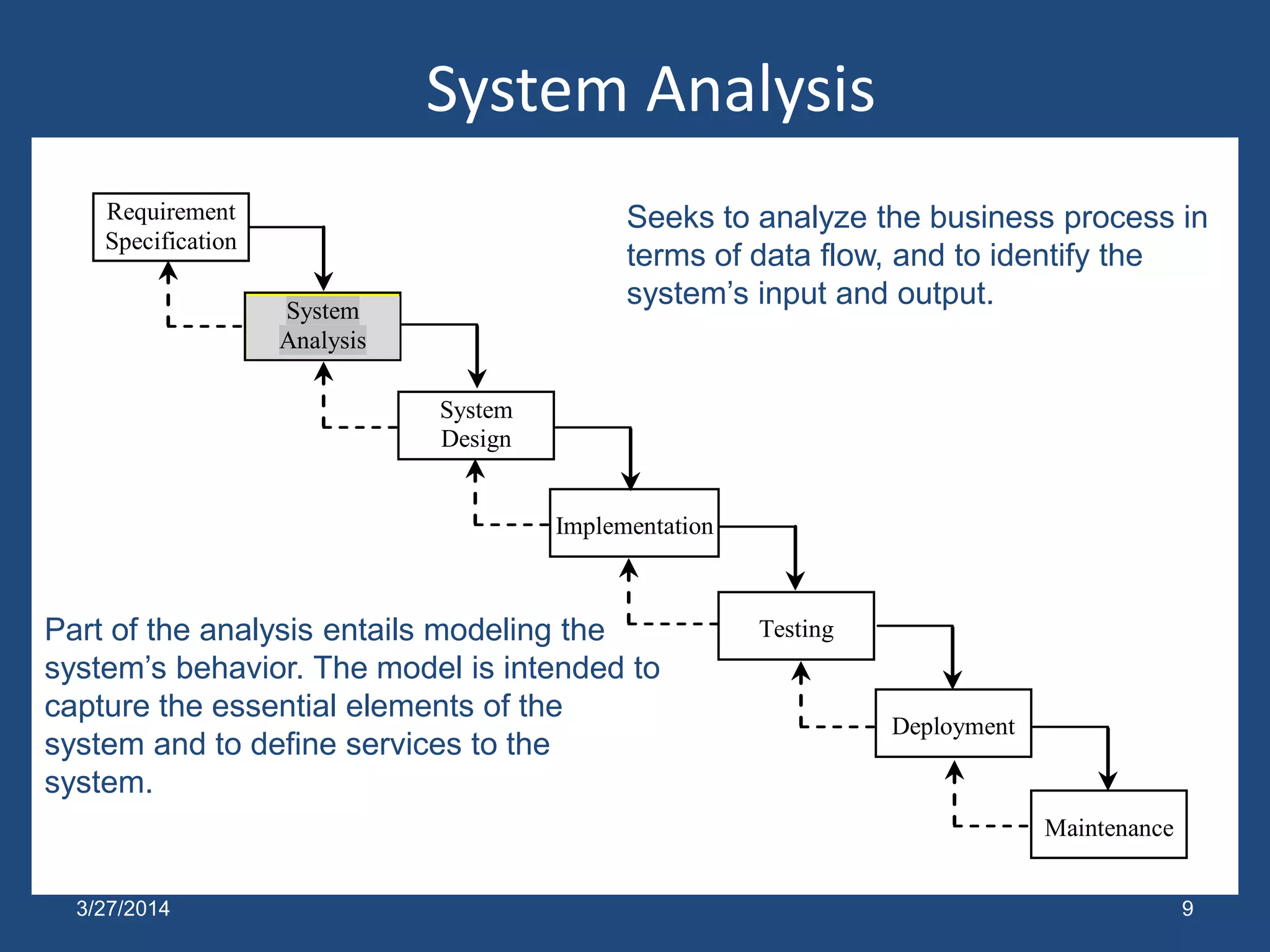

9. System Analysis
9
Requirement
Specification
System
Analysis
System
Design
Testing
Implementation
Maintenance
Deployment
Seeks to analyze the business process in
terms of data flow, and to identify the
system’s input and output.
Part of the analysis entails modeling the
system’s behavior. The model is intended to
capture the essential elements of the
system and to define services to the
system.
3/27/2014

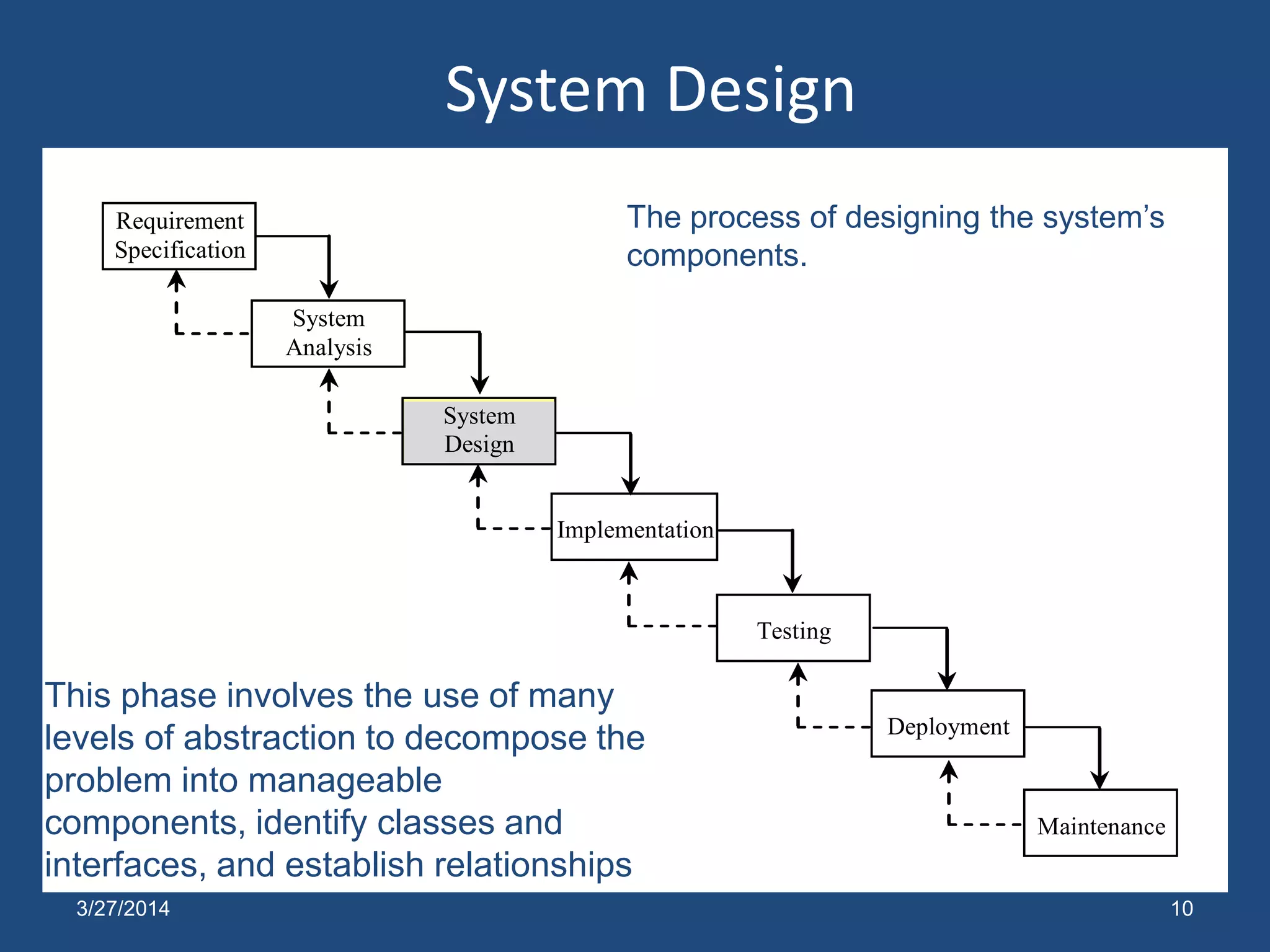

10. System Design
10
Requirement
Specification
System
Analysis
System
Design
Testing
Implementation
Maintenance
Deployment
The process of designing the system’s
components.
This phase involves the use of many
levels of abstraction to decompose the
problem into manageable
components, identify classes and
interfaces, and establish relationships
among the classes and interfaces.3/27/2014

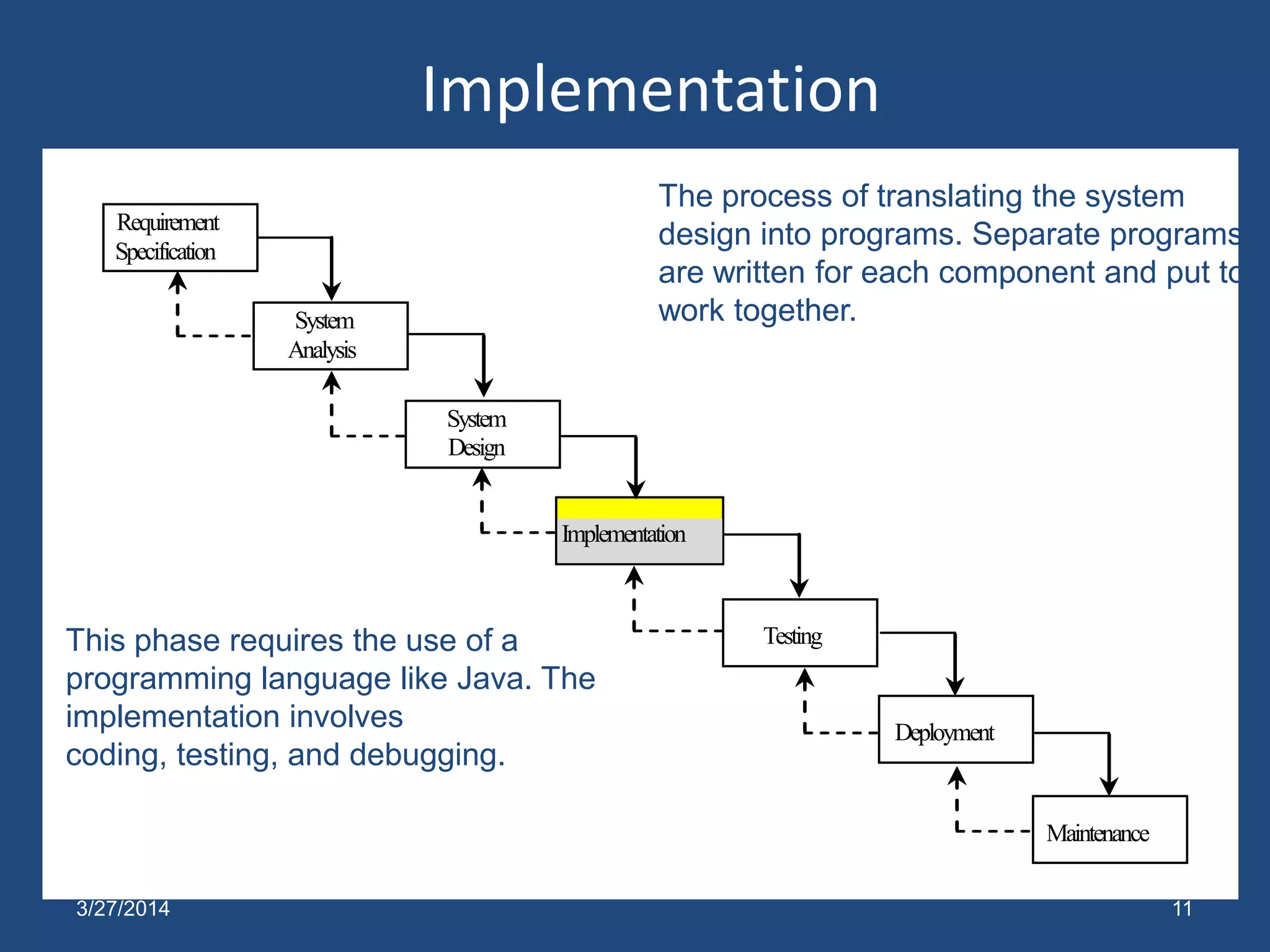

11. Implementation
11
Requirement
Specification
System
Analysis
System
Design
Testing
Implementation
Maintenance
Deployment
The process of translating the system
design into programs. Separate programs
are written for each component and put to
work together.
This phase requires the use of a
programming language like Java. The
implementation involves
coding, testing, and debugging.
3/27/2014

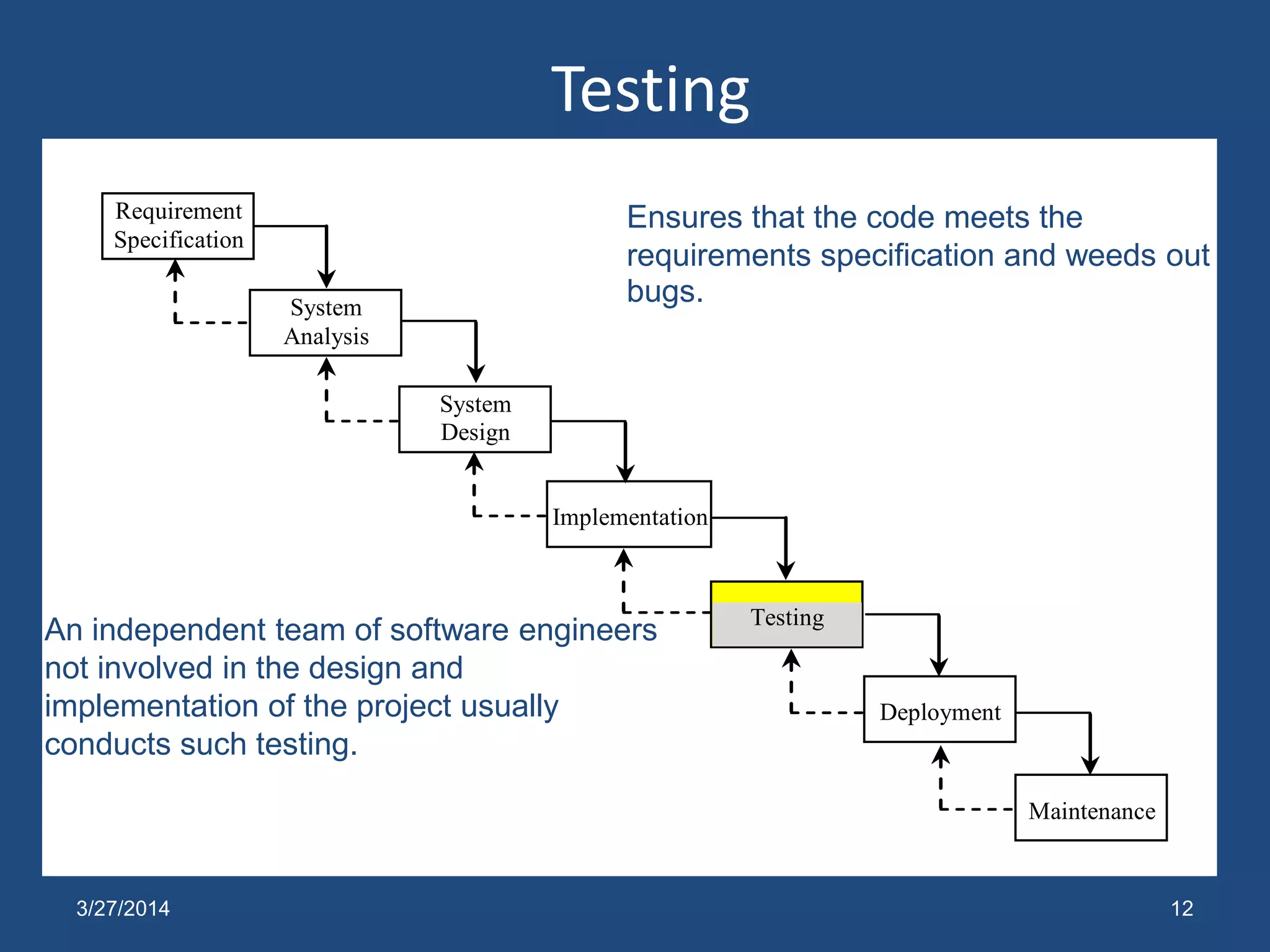

12. Testing
12
Requirement
Specification
System
Analysis
System
Design
Testing
Implementation
Maintenance
Deployment
Ensures that the code meets the
requirements specification and weeds out
bugs.
An independent team of software engineers
not involved in the design and
implementation of the project usually
conducts such testing.
3/27/2014

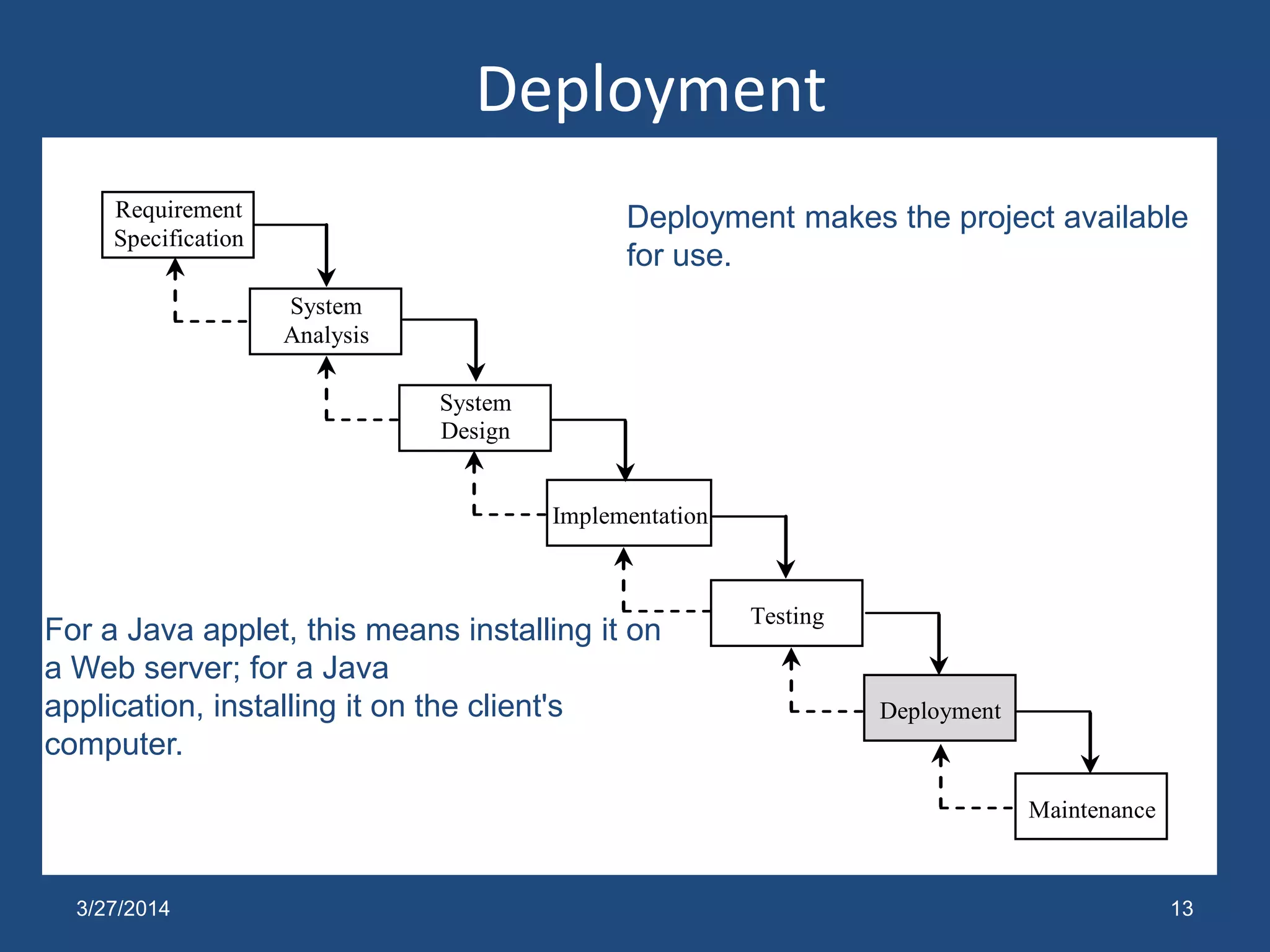

13. Deployment
13
Requirement
Specification
System
Analysis
System
Design
Testing
Implementation
Maintenance
Deployment
Deployment makes the project available
for use.
For a Java applet, this means installing it on
a Web server; for a Java
application, installing it on the client's
computer.
3/27/2014

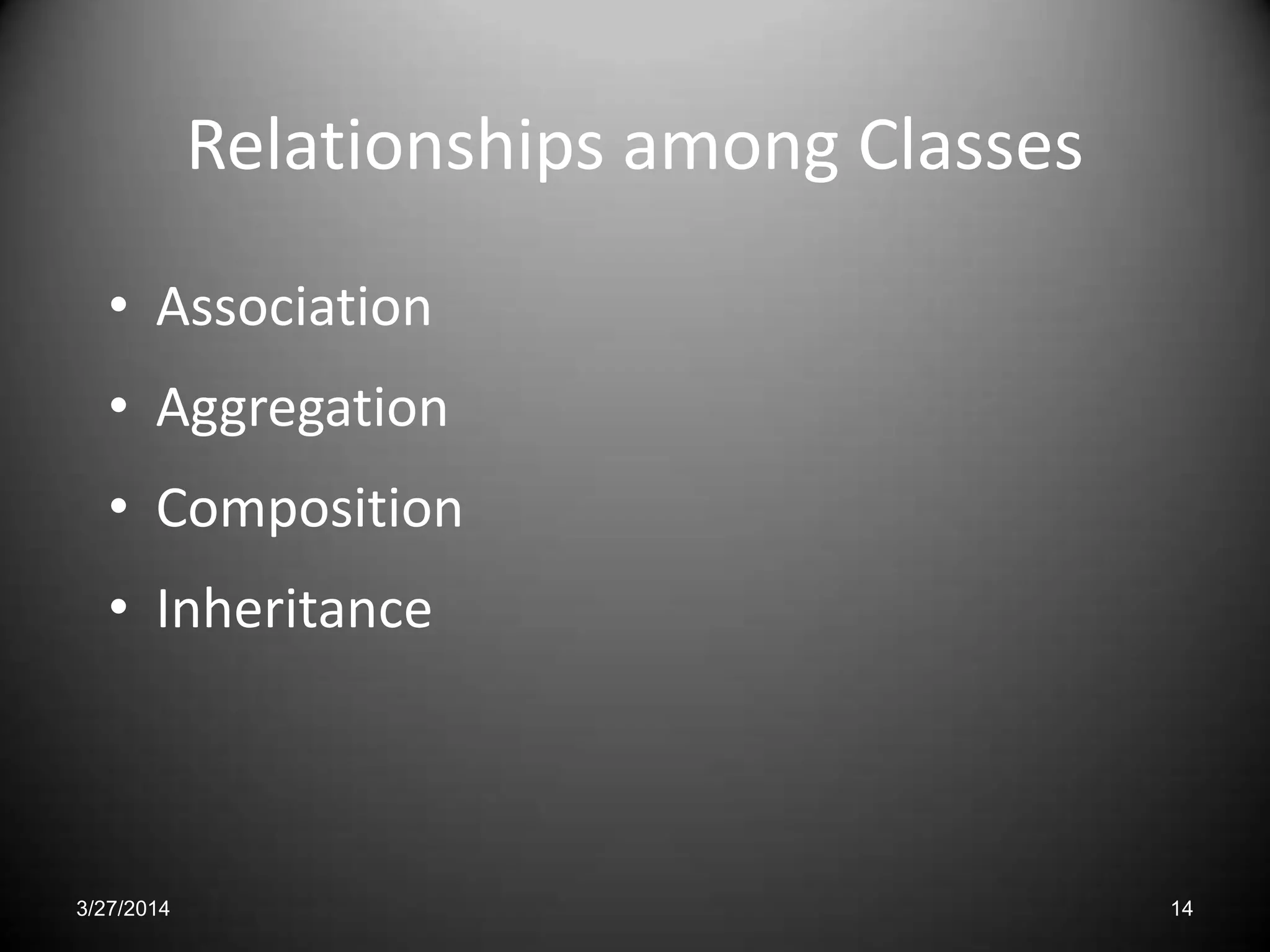

14. Relationships among Classes
• Association
• Aggregation
• Composition
• Inheritance
143/27/2014

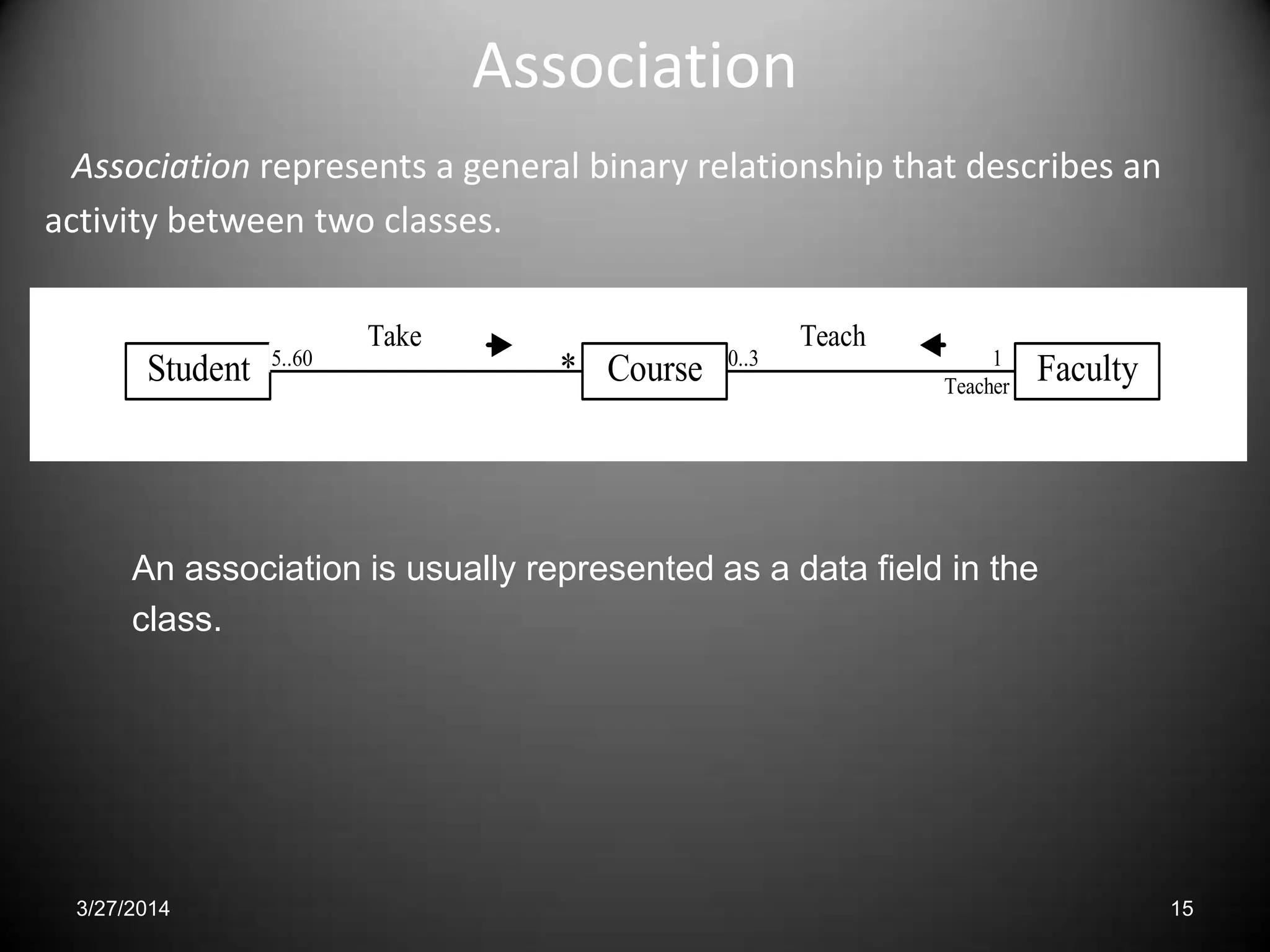

15. Association
Association represents a general binary relationship that describes an
activity between two classes.
15
Student *5..60
Take Teach
0..3 1
Teacher
FacultyCourse
An association is usually represented as a data field in the
class.
3/27/2014

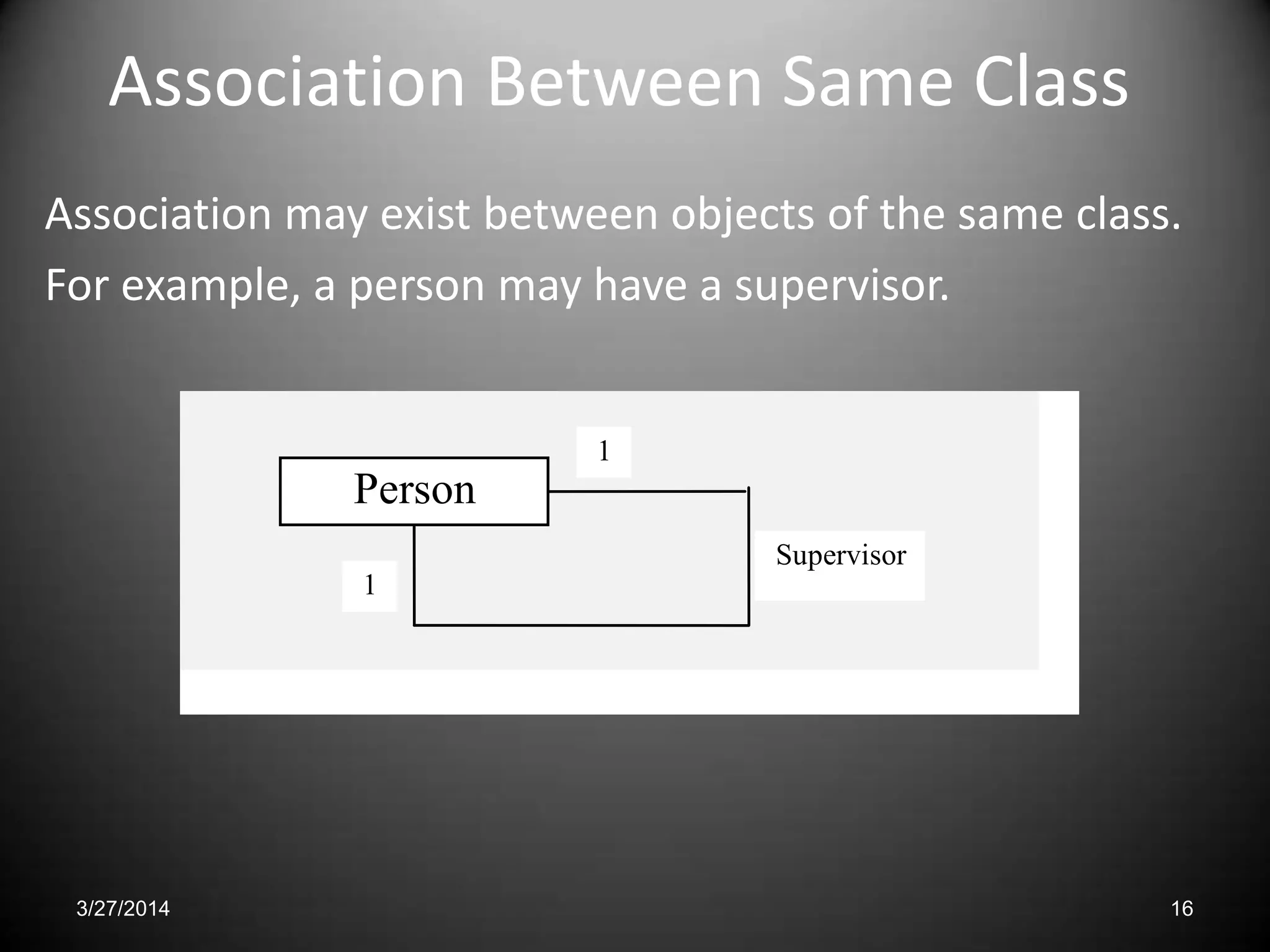

16. Association Between Same Class
Association may exist between objects of the same class.
For example, a person may have a supervisor.
16
Person
Supervisor
1
1
3/27/2014

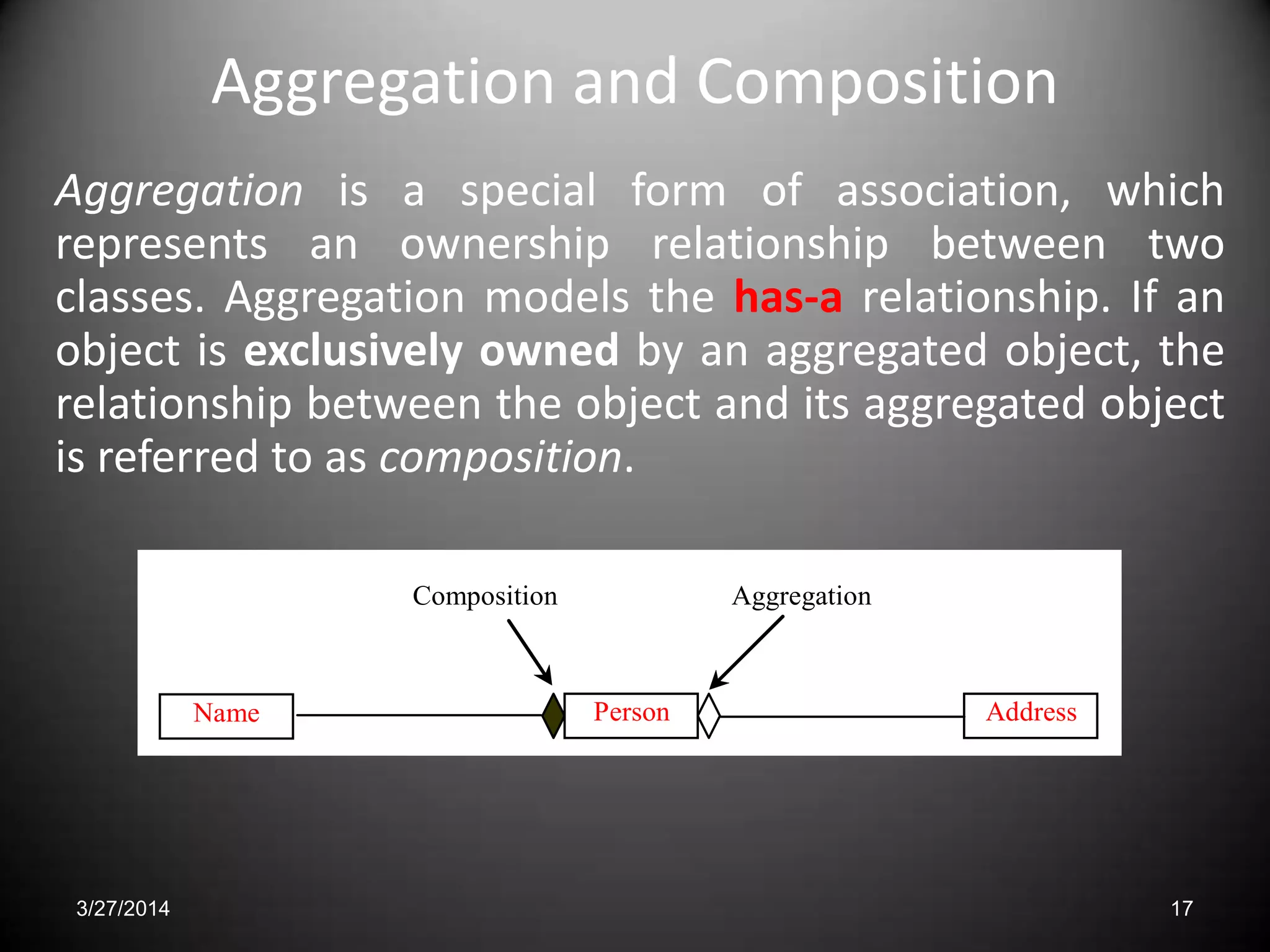

17. Aggregation and Composition
Aggregation is a special form of association, which
represents an ownership relationship between two
classes. Aggregation models the has-a relationship. If an
object is exclusively owned by an aggregated object, the
relationship between the object and its aggregated object
is referred to as composition.
17
Name AddressPerson
Composition Aggregation
3/27/2014

18. 3/27/2014 18
Aggregation and Composition

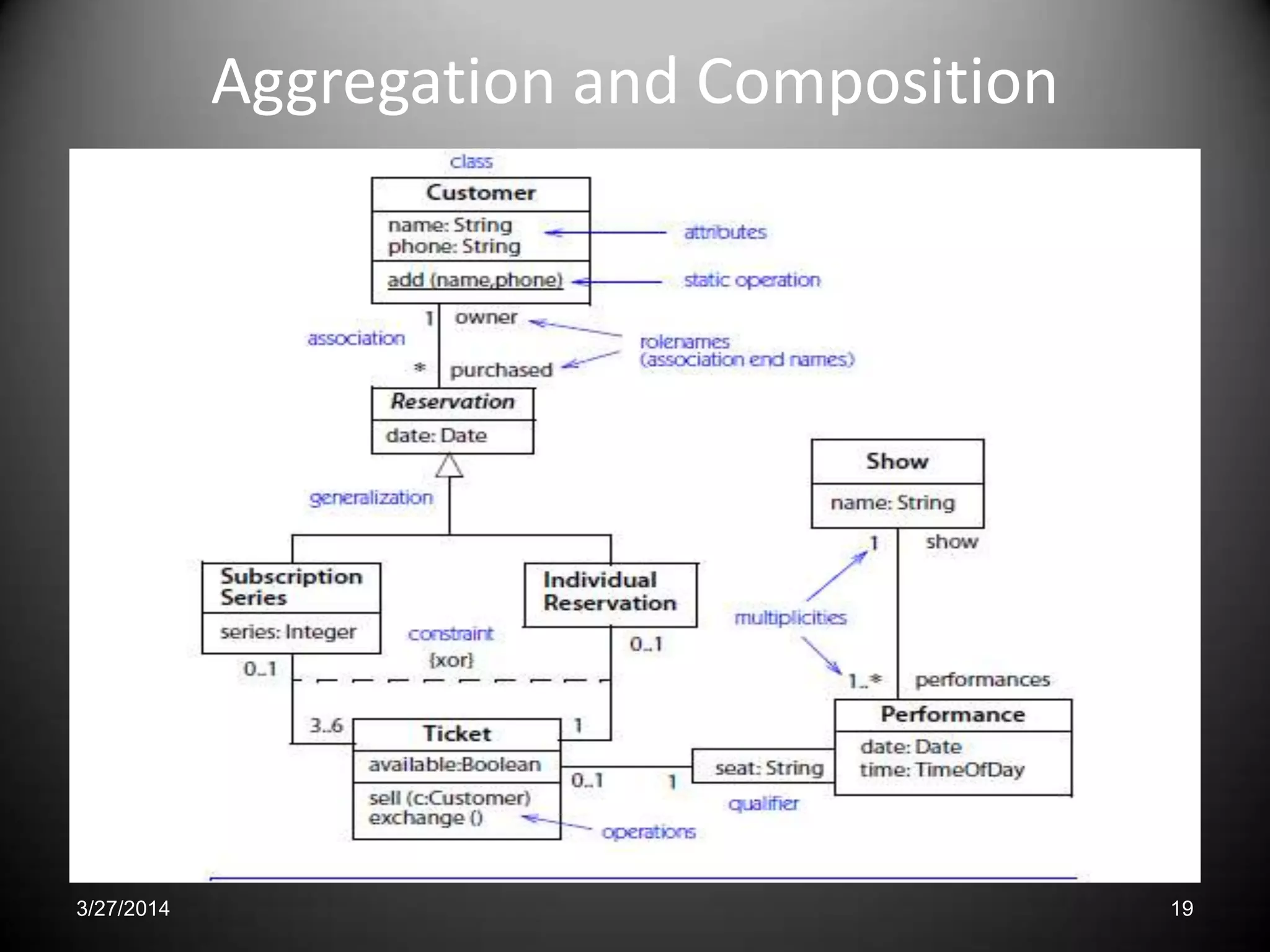

19. 3/27/2014 19
Aggregation and Composition

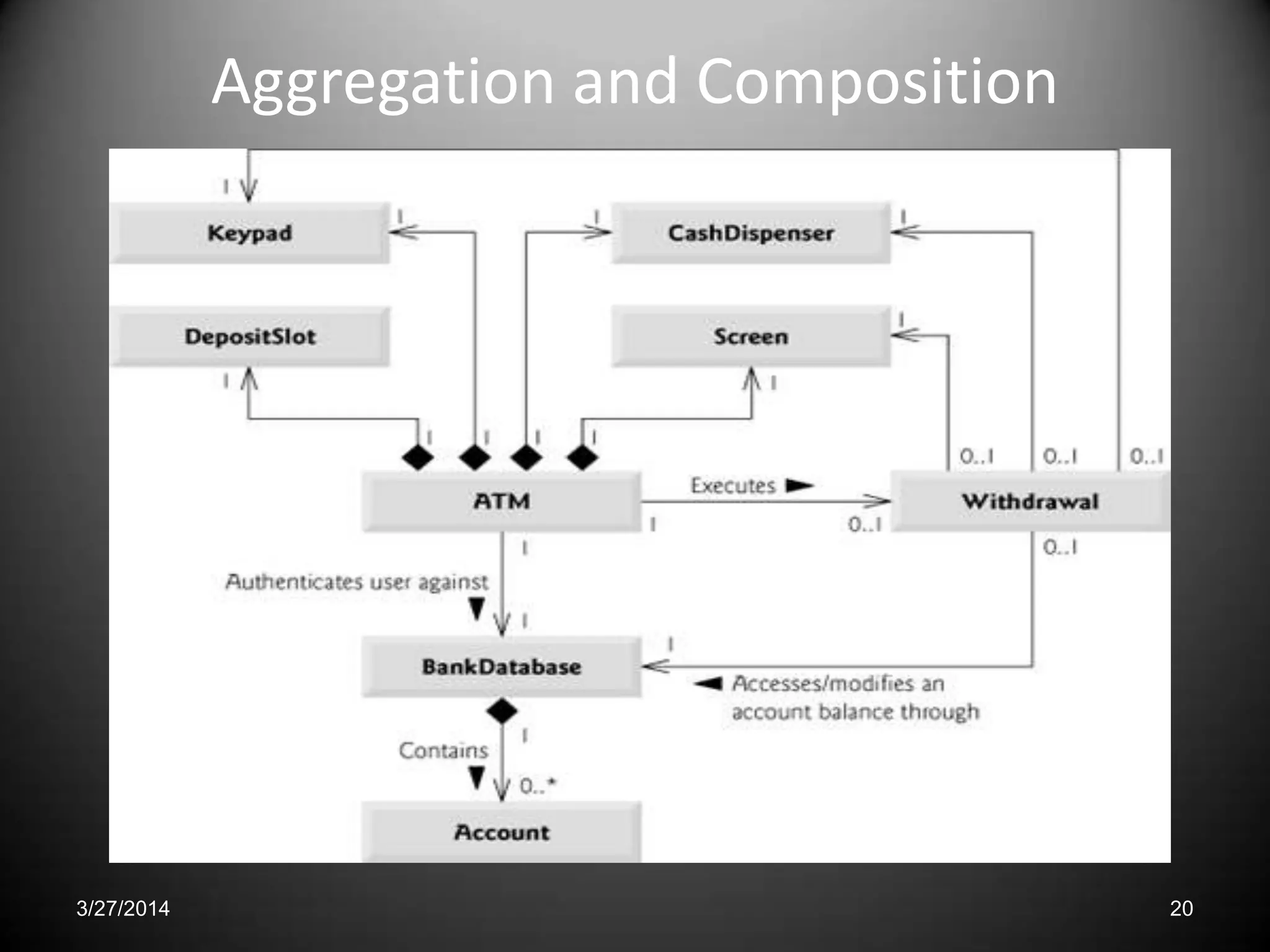

20. 3/27/2014 20
Aggregation and Composition

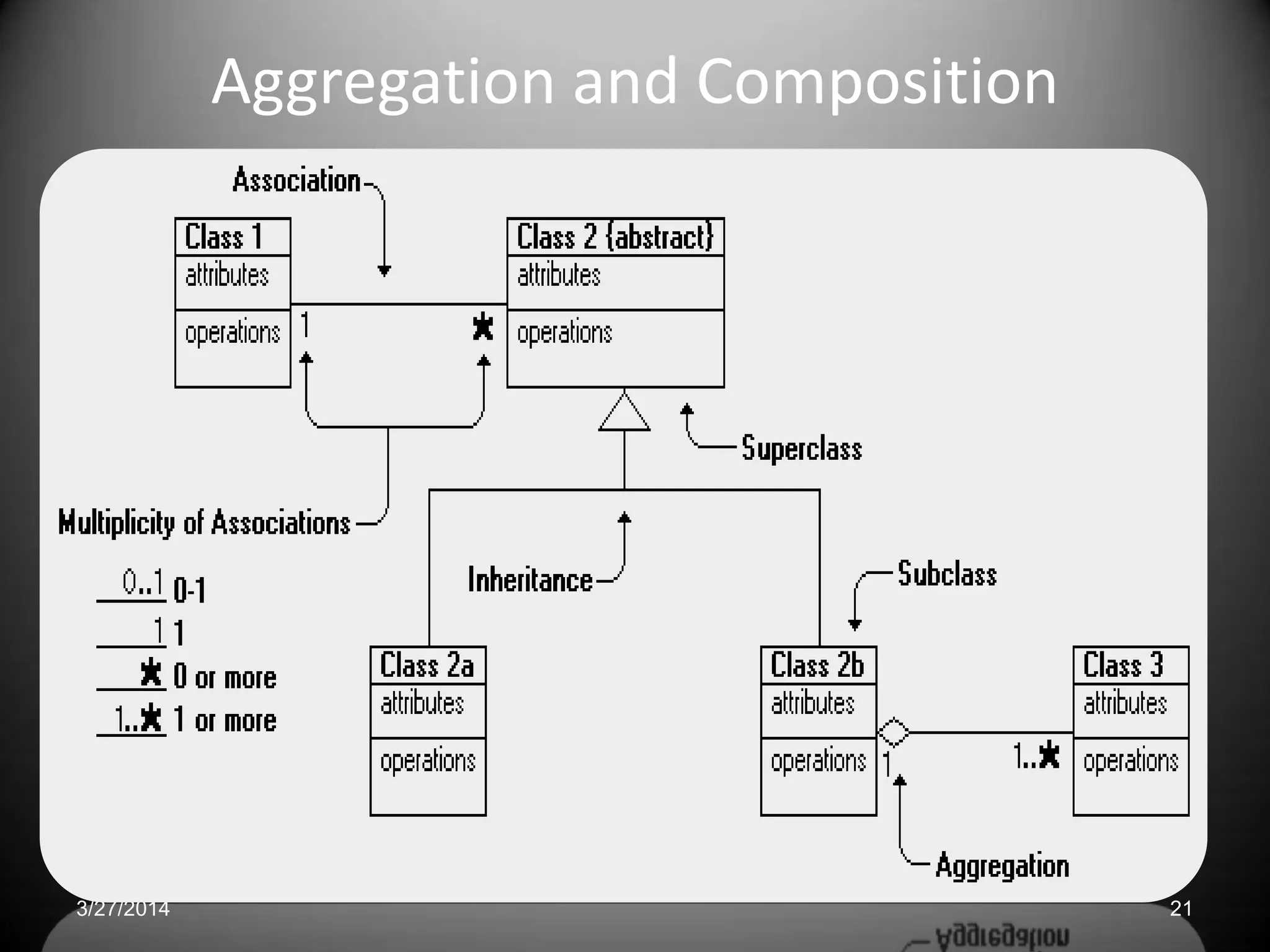

21. 3/27/2014 21
Aggregation and Composition

22. 3/27/2014 22

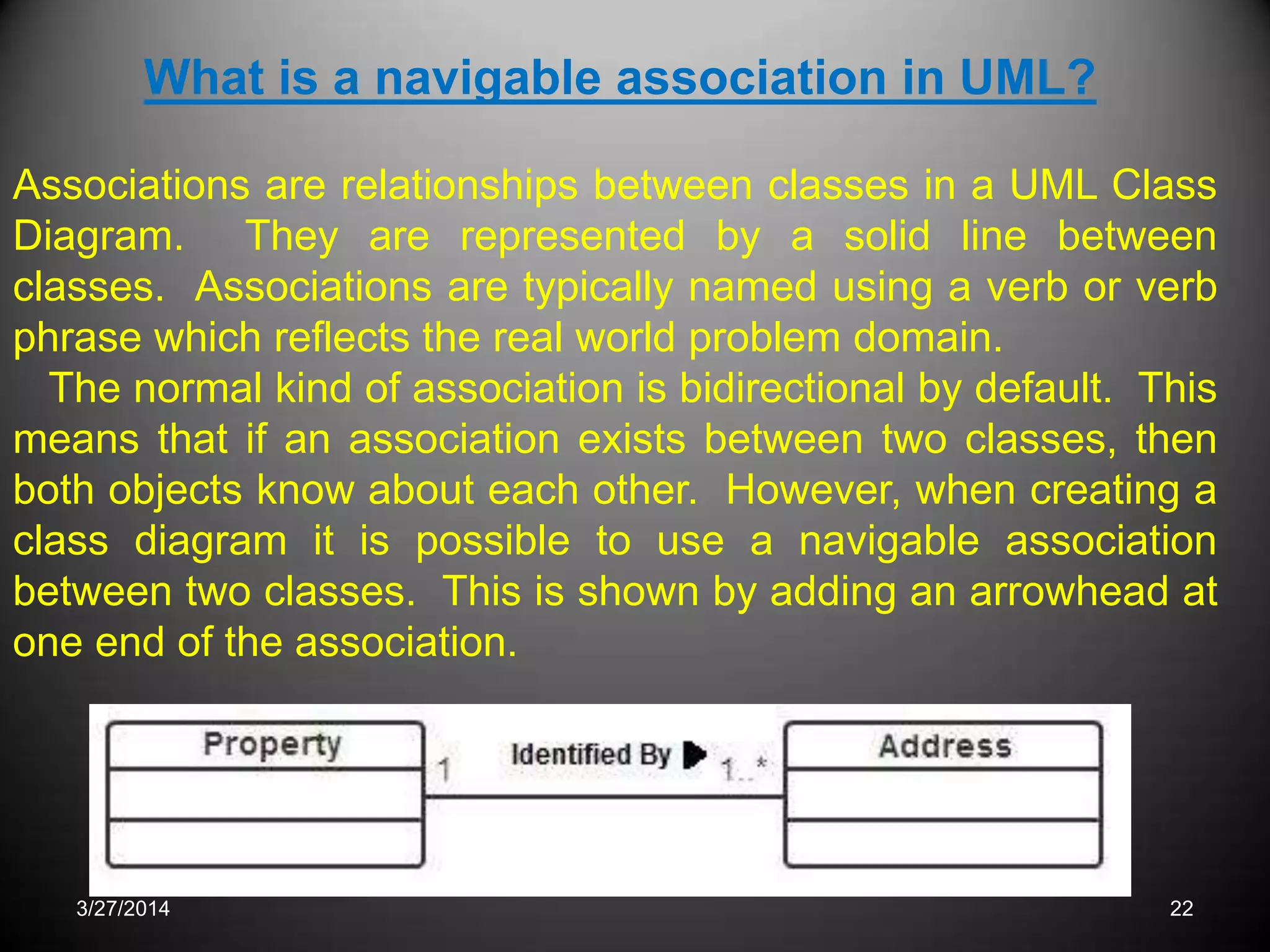

What is a navigable association in UML?
Associations are relationships between classes in a UML Class
Diagram. They are represented by a solid line between
classes. Associations are typically named using a verb or verb
phrase which reflects the real world problem domain.
The normal kind of association is bidirectional by default. This
means that if an association exists between two classes, then
both objects know about each other. However, when creating a
class diagram it is possible to use a navigable association
between two classes. This is shown by adding an arrowhead at
one end of the association.

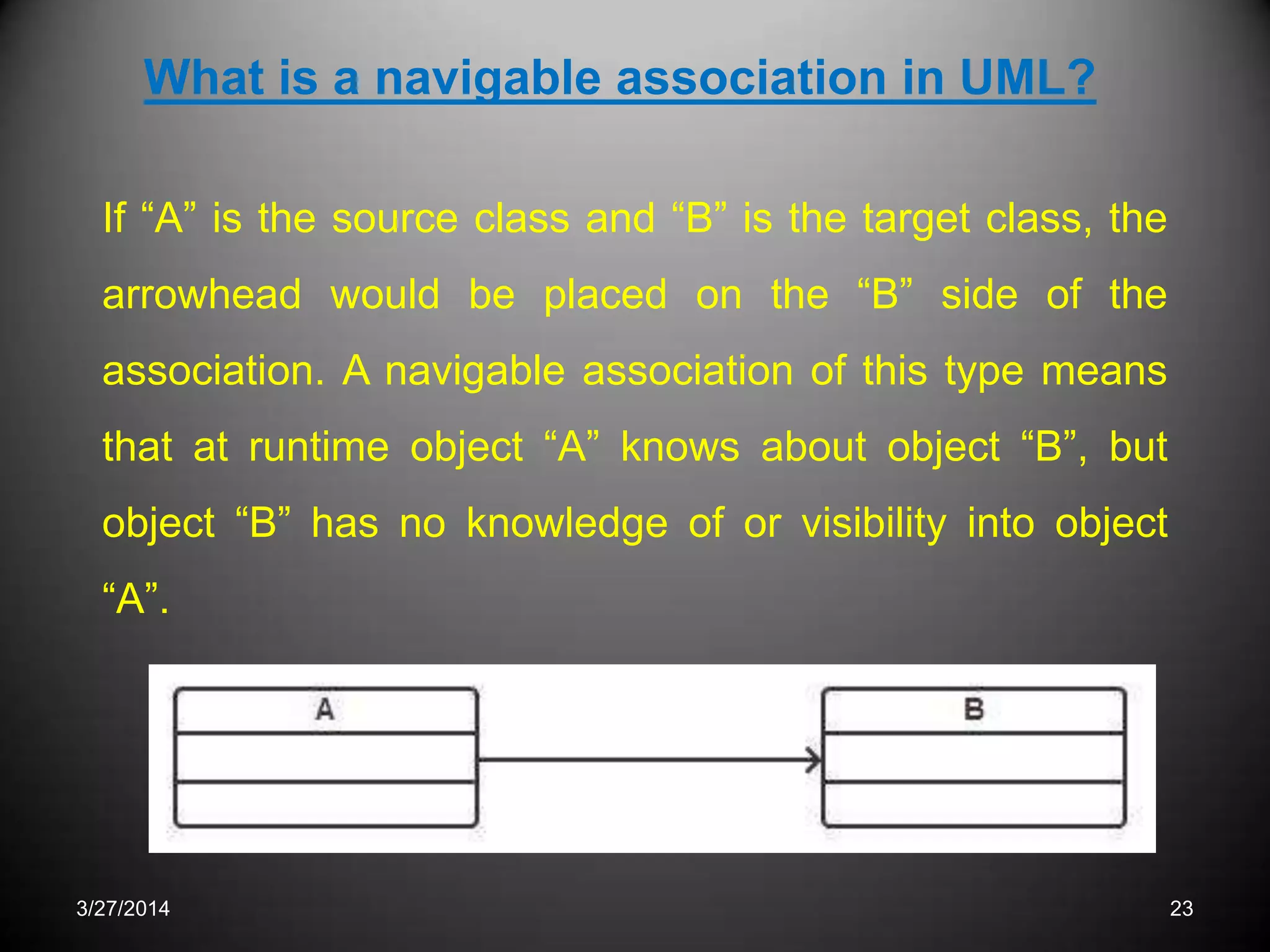

23. 3/27/2014 23
What is a navigable association in UML?
If “A” is the source class and “B” is the target class, the
arrowhead would be placed on the “B” side of the
association. A navigable association of this type means
that at runtime object “A” knows about object “B”, but
object “B” has no knowledge of or visibility into object
“A”.

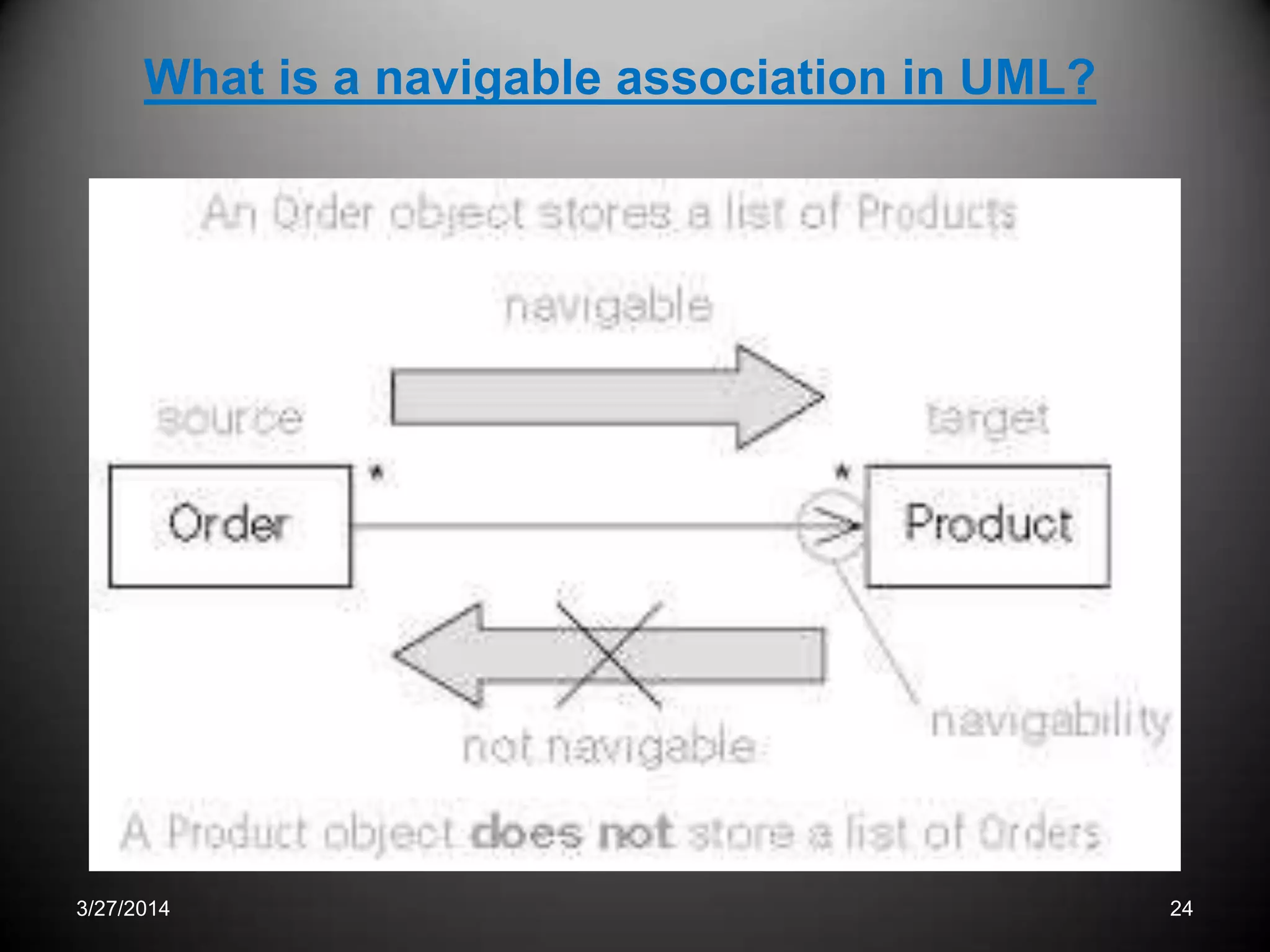

24. 3/27/2014 24
What is a navigable association in UML?

25. 3/27/2014 25

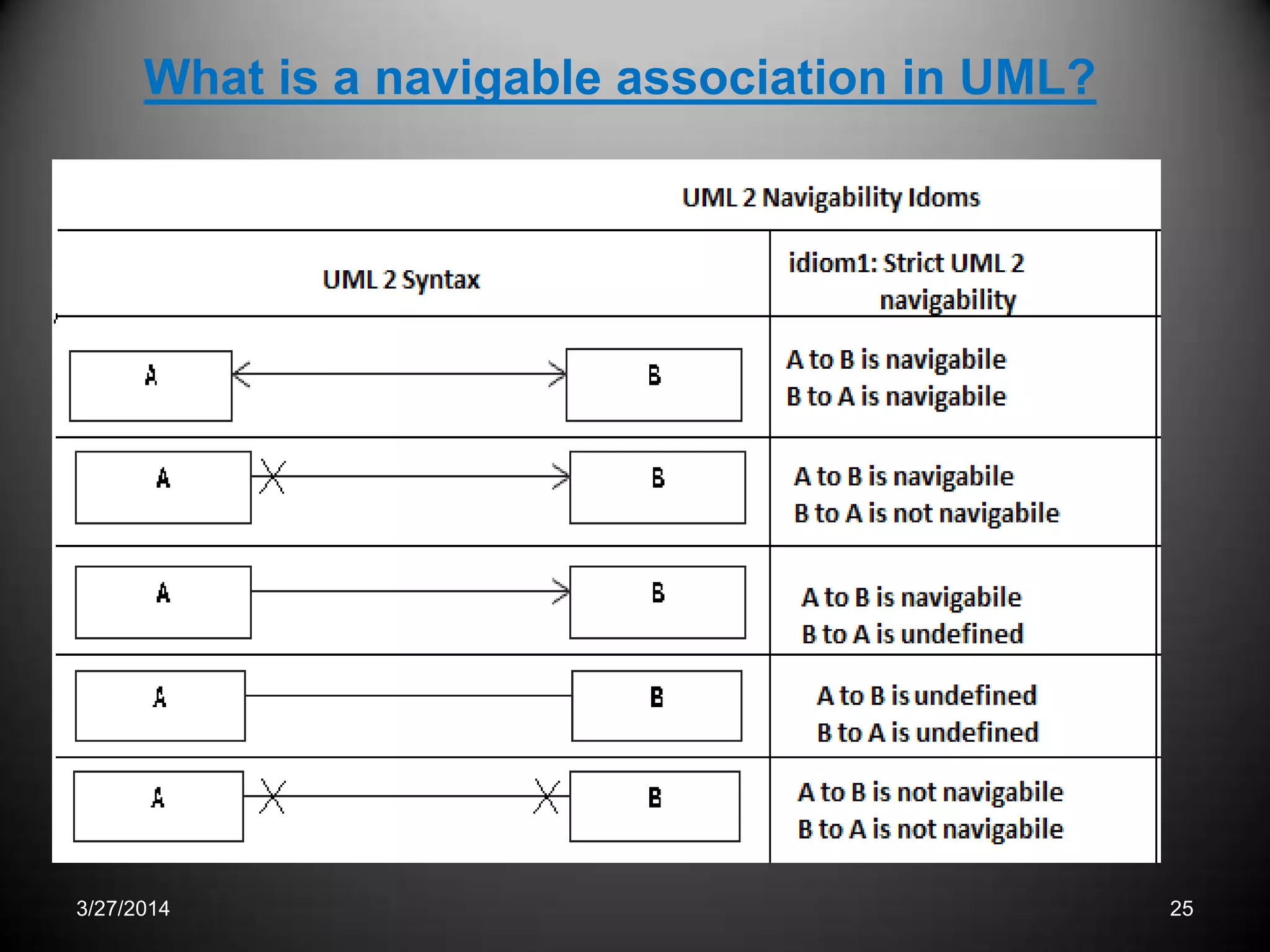

What is a navigable association in UML?

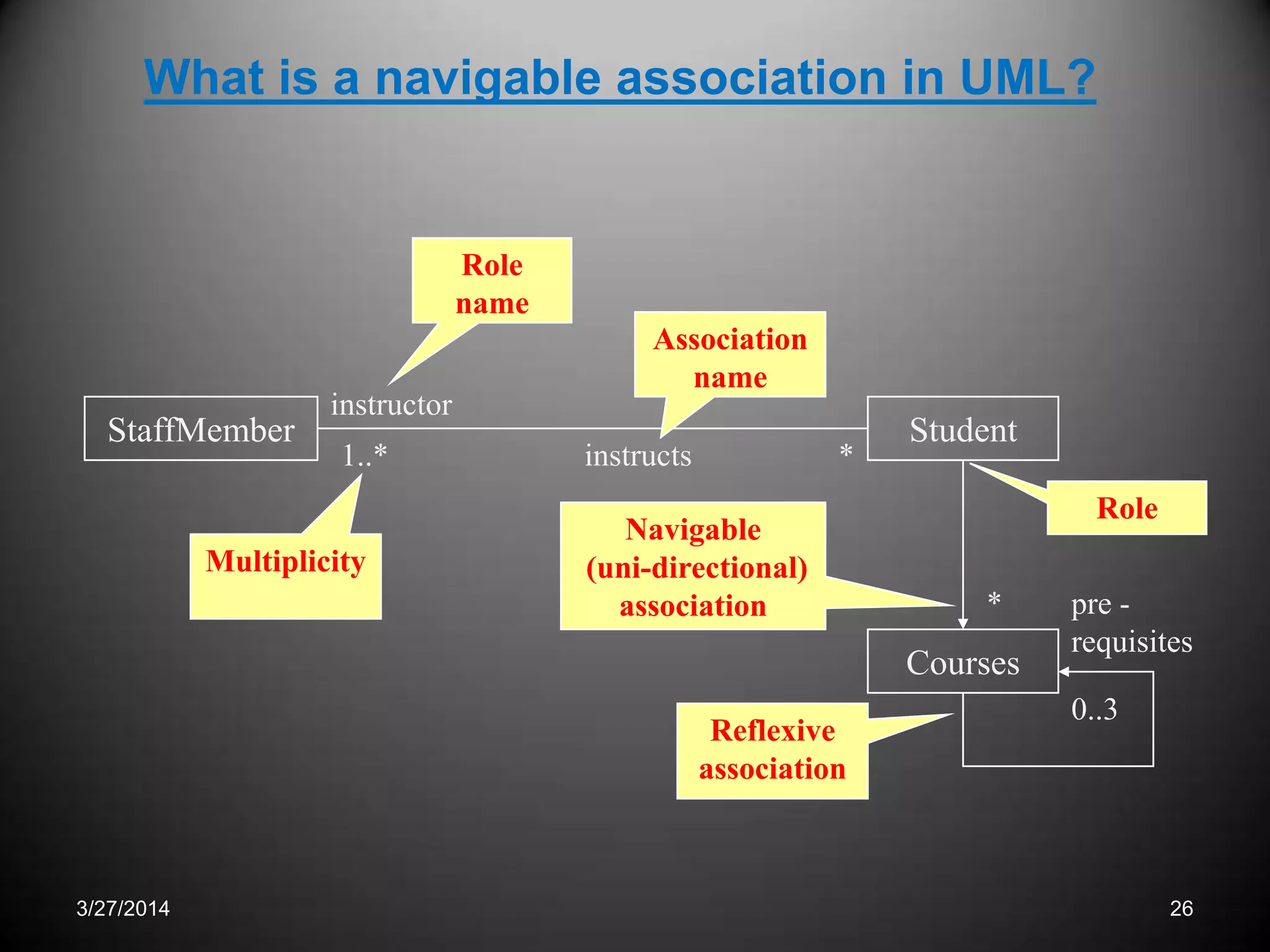

26. 3/27/2014 26
What is a navigable association in UML?
StaffMember Student
1..* *instructs
instructor
Association
name
Role
name
Multiplicity
Navigable
(uni-directional)
association
Courses
pre -
requisites
0..3
Reflexive
association
Role
*

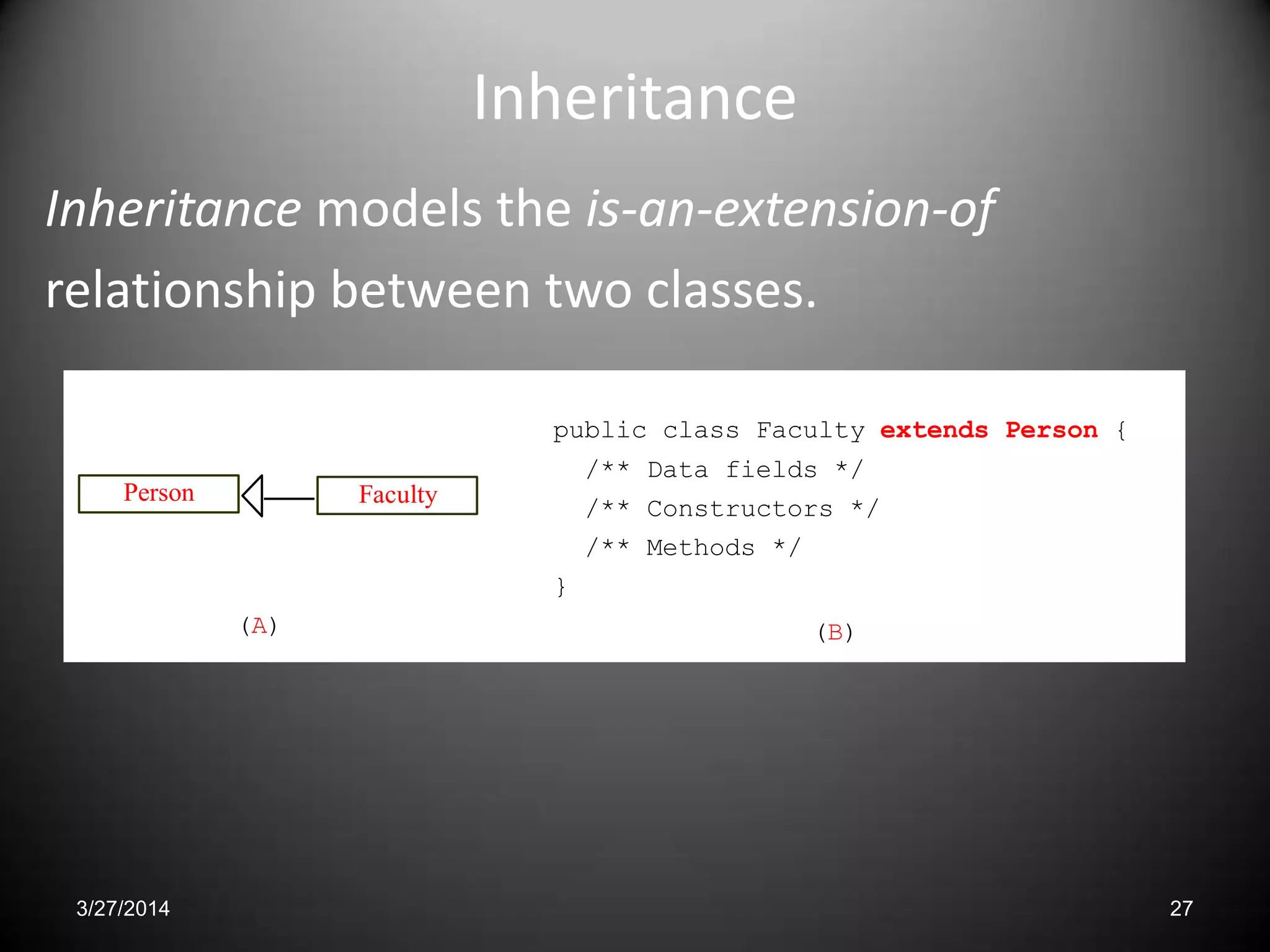

27. Inheritance
Inheritance models the is-an-extension-of
relationship between two classes.
27
Person Faculty
public class Faculty extends Person {
/** Data fields */
/** Constructors */
/** Methods */
}
(A) (B)
3/27/2014

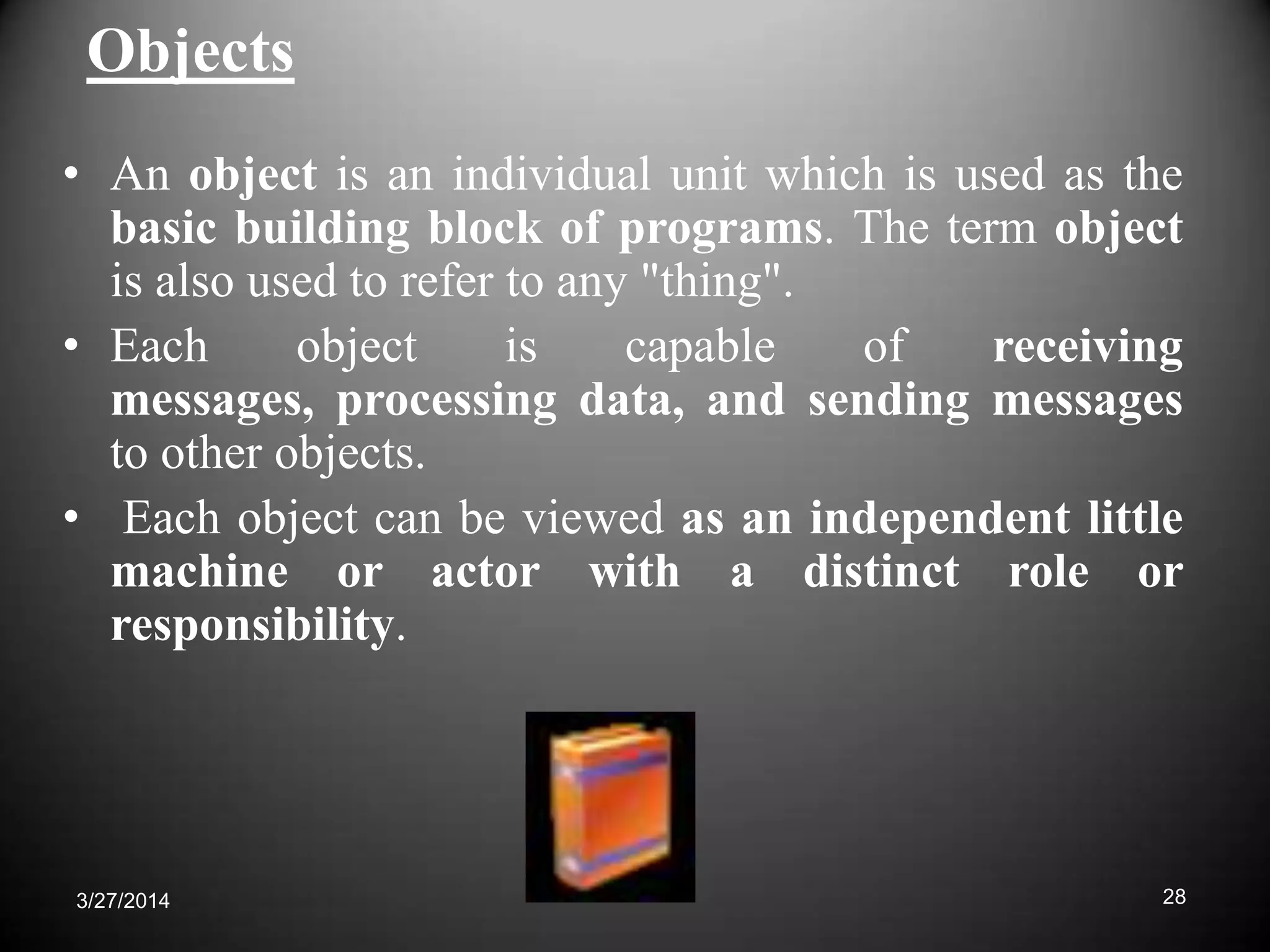

28. Objects
• An object is an individual unit which is used as the
basic building block of programs. The term object
is also used to refer to any "thing".
• Each object is capable of receiving
messages, processing data, and sending messages
to other objects.
• Each object can be viewed as an independent little
machine or actor with a distinct role or
responsibility.
283/27/2014

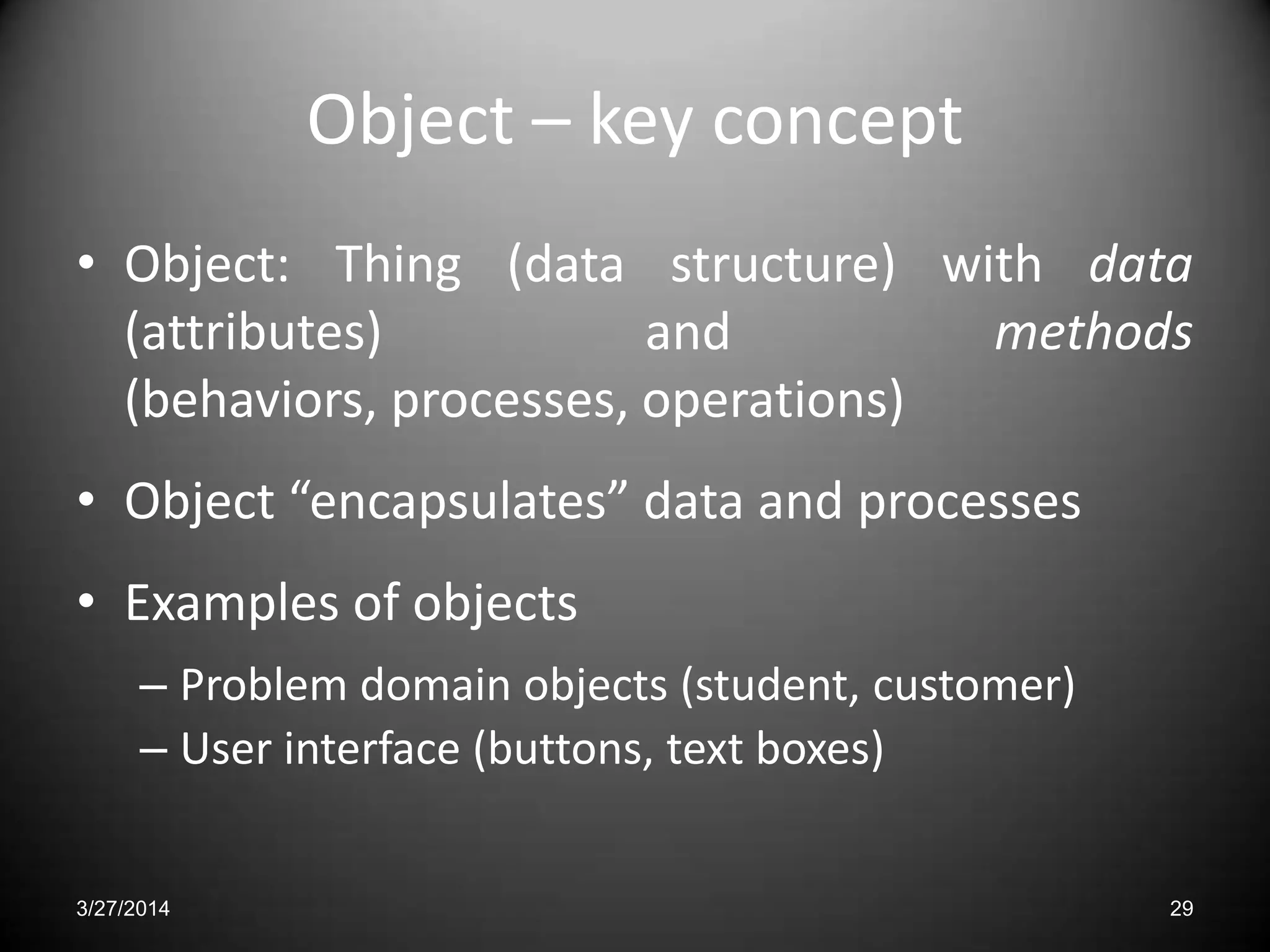

29. Object – key concept
• Object: Thing (data structure) with data
(attributes) and methods
(behaviors, processes, operations)
• Object “encapsulates” data and processes
• Examples of objects
– Problem domain objects (student, customer)
– User interface (buttons, text boxes)
3/27/2014 29

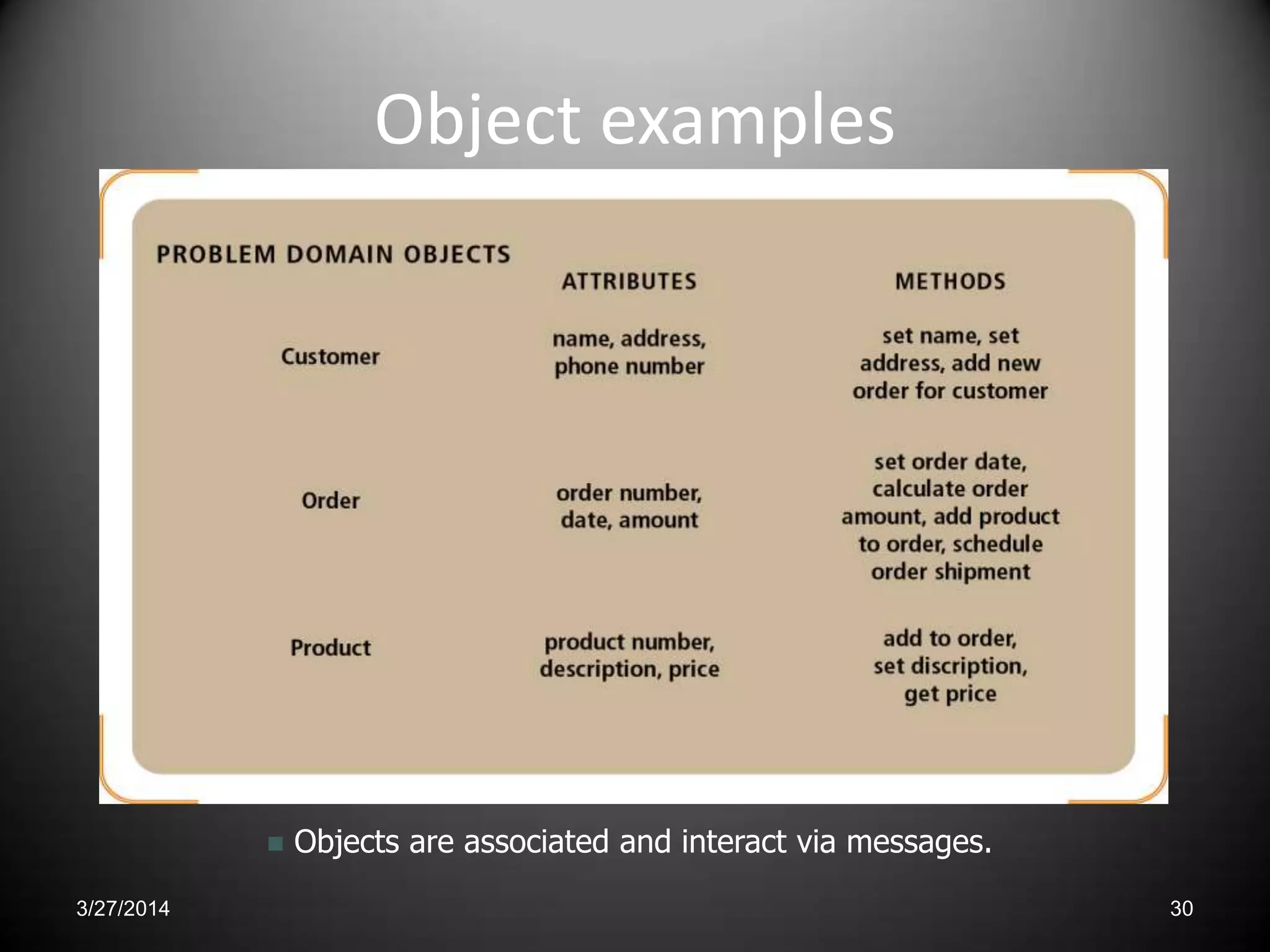

30. Object examples
 Objects are associated and interact via messages.
3/27/2014 30

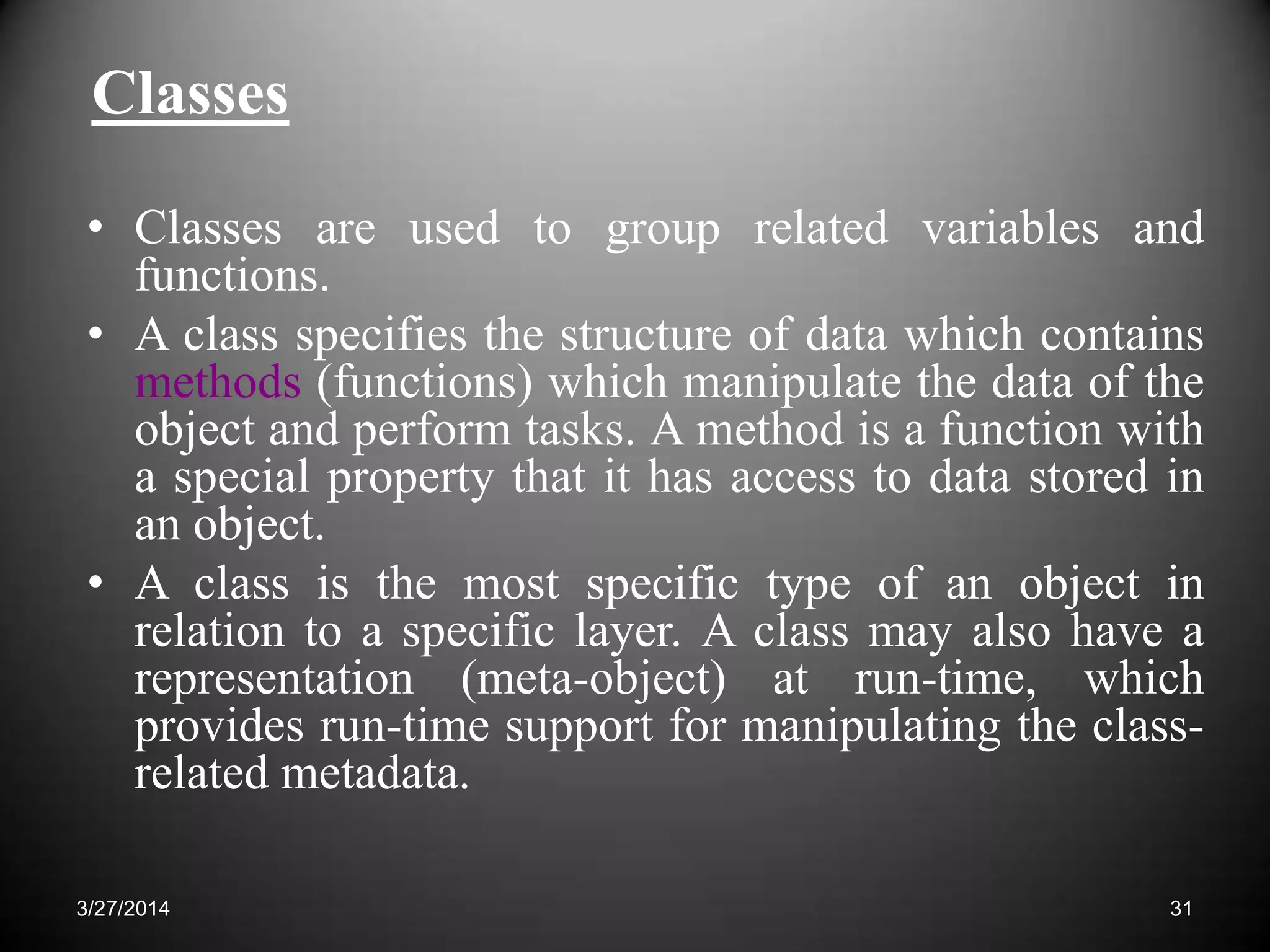

31. Classes
• Classes are used to group related variables and
functions.
• A class specifies the structure of data which contains
methods (functions) which manipulate the data of the
object and perform tasks. A method is a function with
a special property that it has access to data stored in
an object.
• A class is the most specific type of an object in
relation to a specific layer. A class may also have a
representation (meta-object) at run-time, which
provides run-time support for manipulating the class-
related metadata.
313/27/2014

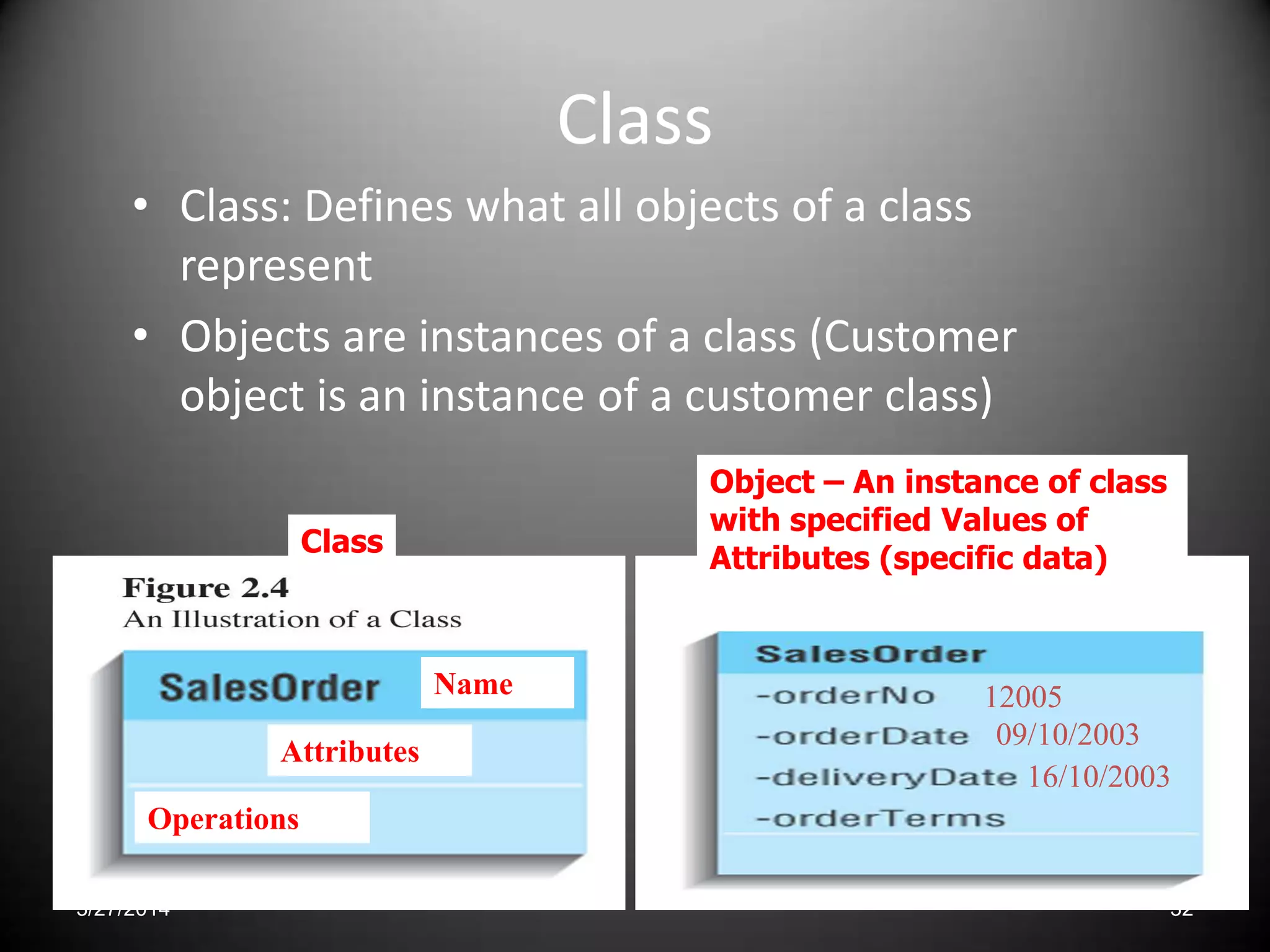

32. Class
• Class: Defines what all objects of a class
represent
• Objects are instances of a class (Customer
object is an instance of a customer class)
Name
Attributes
Operations
Object – An instance of class
with specified Values of
Attributes (specific data)
12005
09/10/2003
16/10/2003
Class
3/27/2014 32

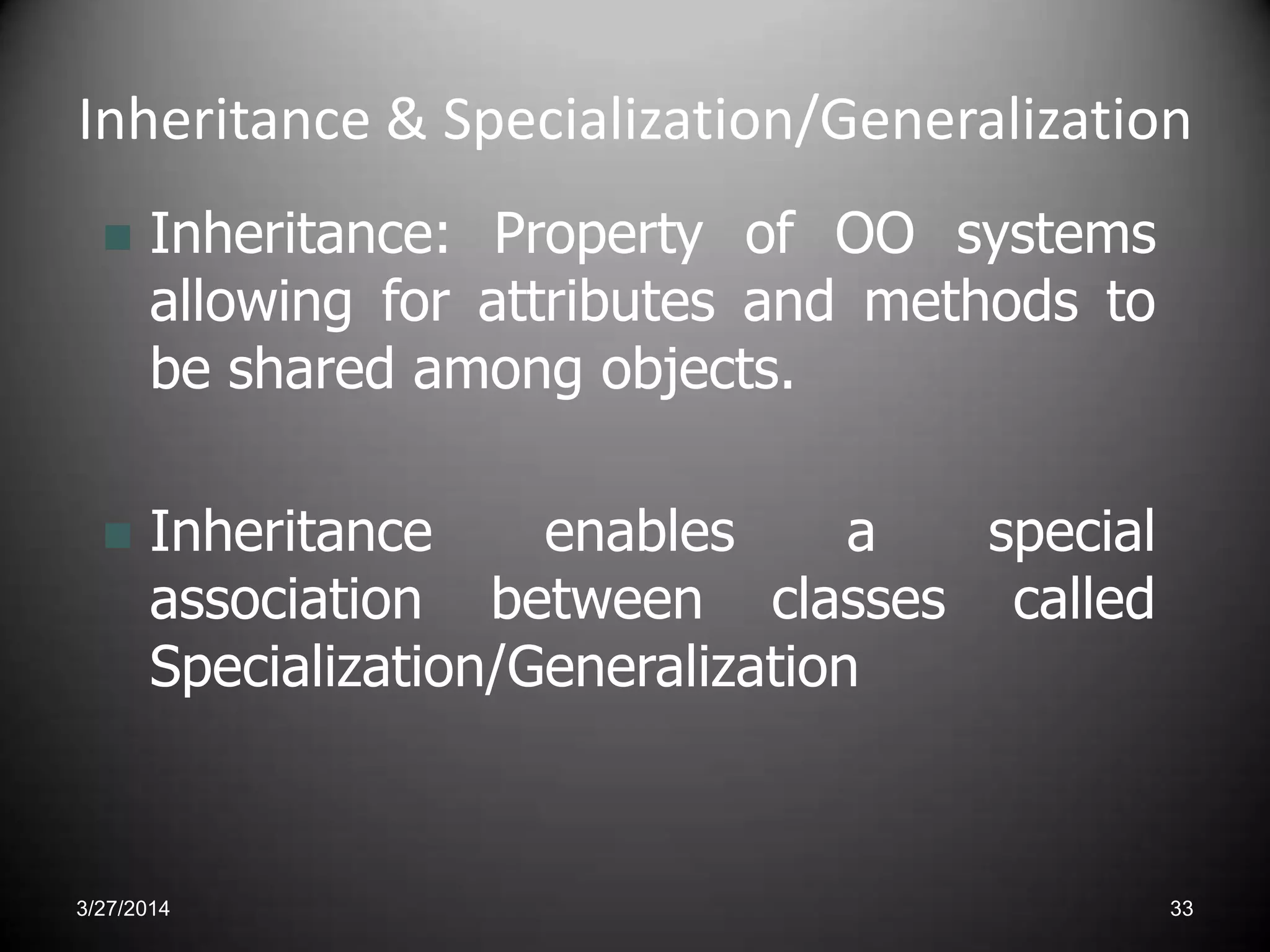

33. Inheritance & Specialization/Generalization
 Inheritance: Property of OO systems
allowing for attributes and methods to
be shared among objects.
 Inheritance enables a special
association between classes called
Specialization/Generalization
3/27/2014 33

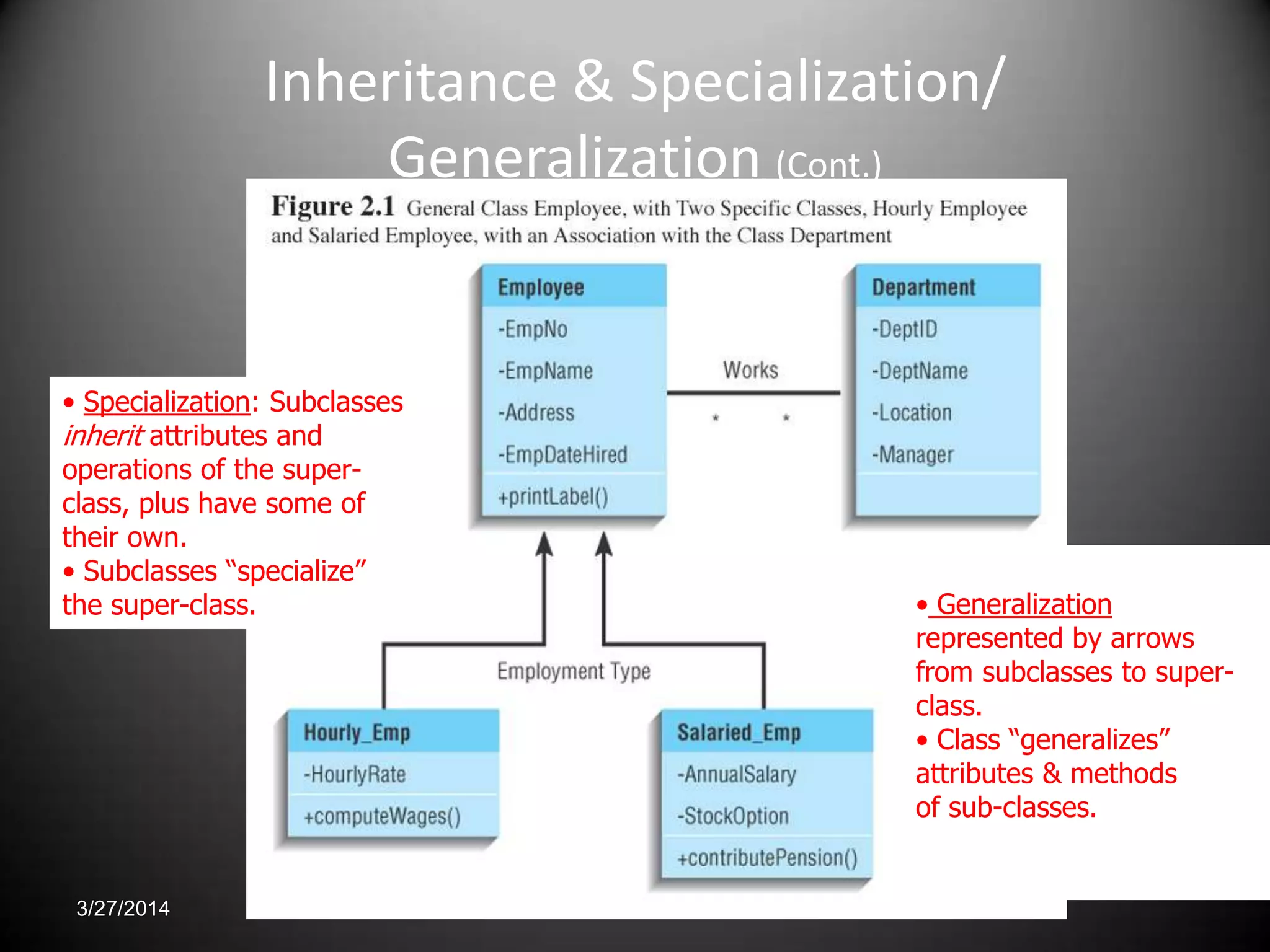

34. Inheritance & Specialization/
Generalization (Cont.)
34 of 13
• Specialization: Subclasses
inherit attributes and
operations of the super-
class, plus have some of
their own.
• Subclasses “specialize”
the super-class. • Generalization
represented by arrows
from subclasses to super-
class.
• Class “generalizes”
attributes & methods
of sub-classes.
3/27/2014

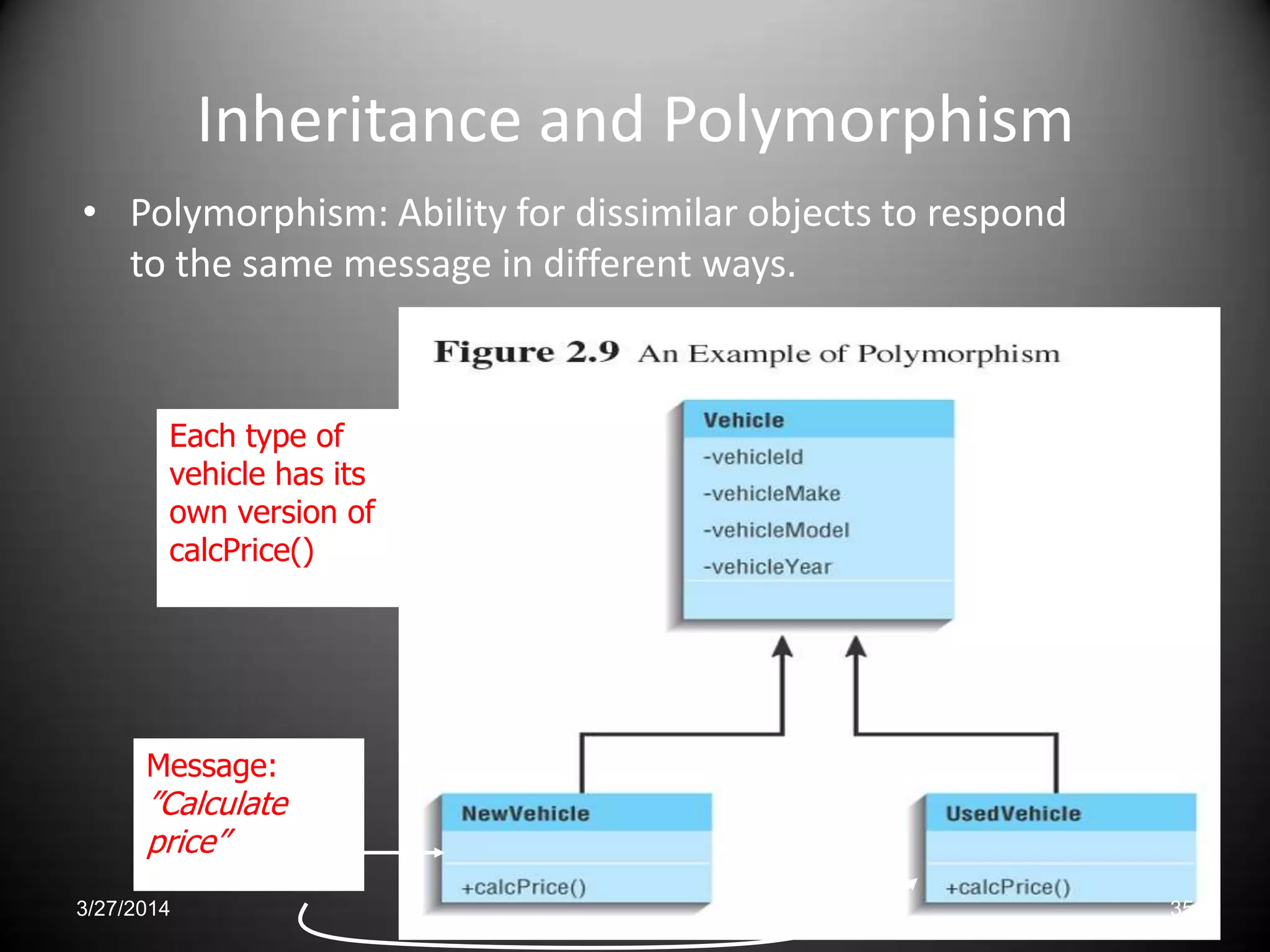

35. Each type of
vehicle has its
own version of
calcPrice()
Message:
”Calculate
price”
Inheritance and Polymorphism
• Polymorphism: Ability for dissimilar objects to respond
to the same message in different ways.
3/27/2014 35

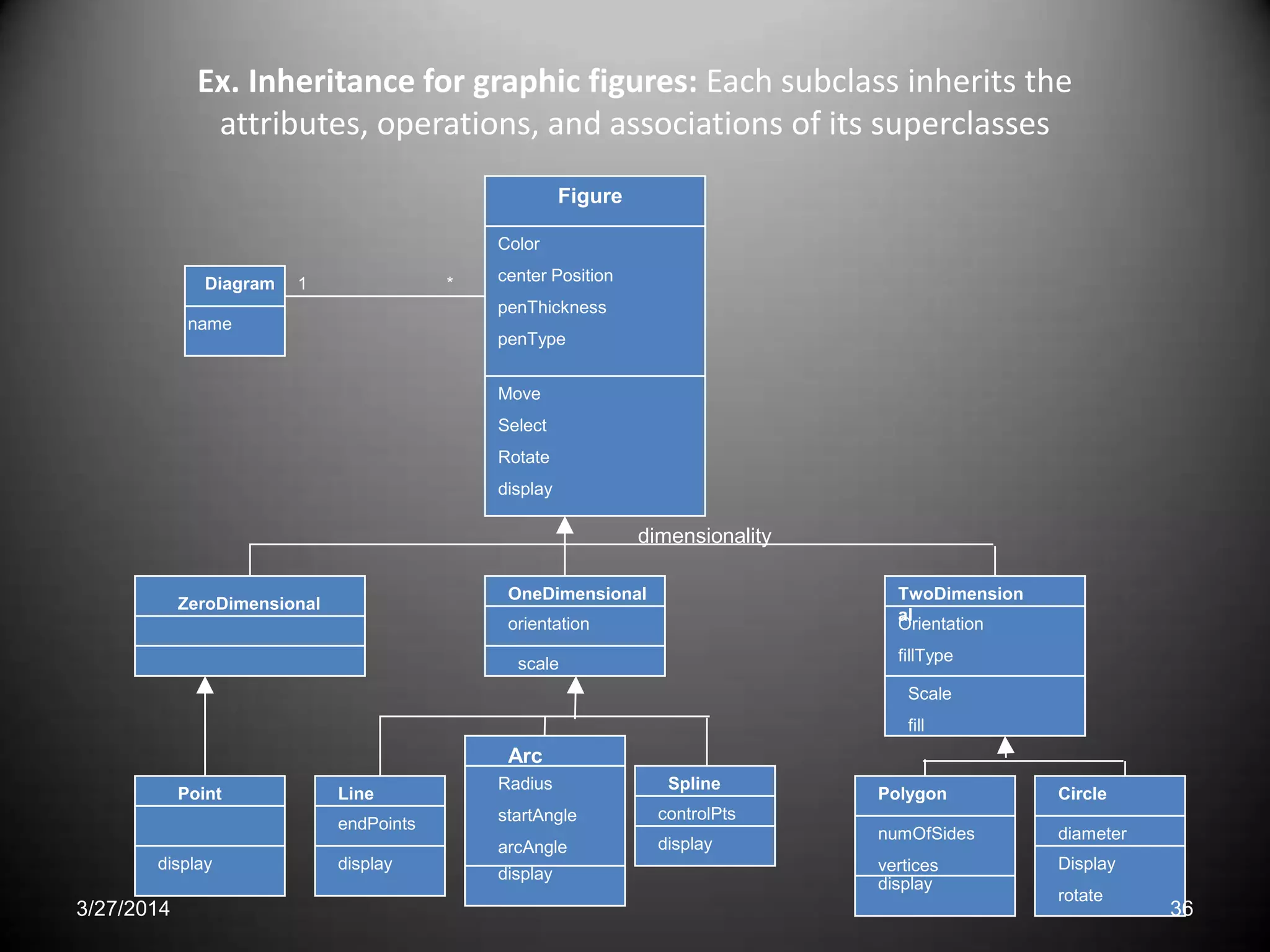

36. Ex. Inheritance for graphic figures: Each subclass inherits the
attributes, operations, and associations of its superclasses
Figure
Color
center Position
penThickness
penType
Move
Select
Rotate
display
Diagram
name
ZeroDimensional
OneDimensional
orientation
scale
TwoDimension
al
Orientation
fillType
Scale
fill
Point
display
Line
endPoints
display
Arc
Radius
startAngle
arcAngle
display
Spline
controlPts
display
Polygon
numOfSides
vertices
display
Circle
diameter
Display
rotate
Radius
startAngle
arcAngle
display
Arc
Radius
startAngle
arcAngle
display
Arc
Radius
startAngle
arcAngle
display
Arc
Radius
startAngle
arcAngle
display
Arc
Radius
startAngle
arcAngle
display
1 *
dimensionality
3/27/2014 36

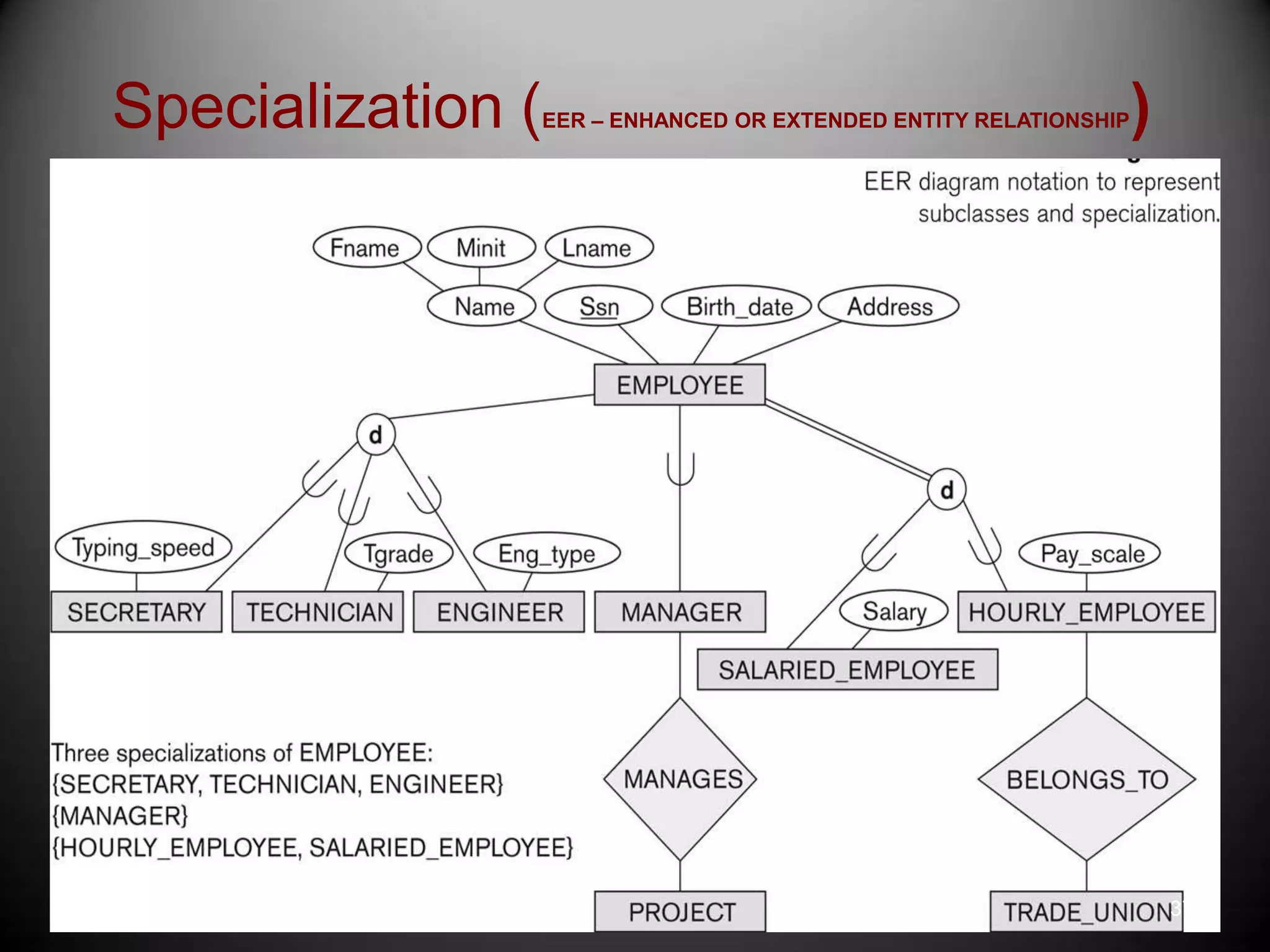

37. Specialization (EER – ENHANCED OR EXTENDED ENTITY RELATIONSHIP)
3/27/2014 37

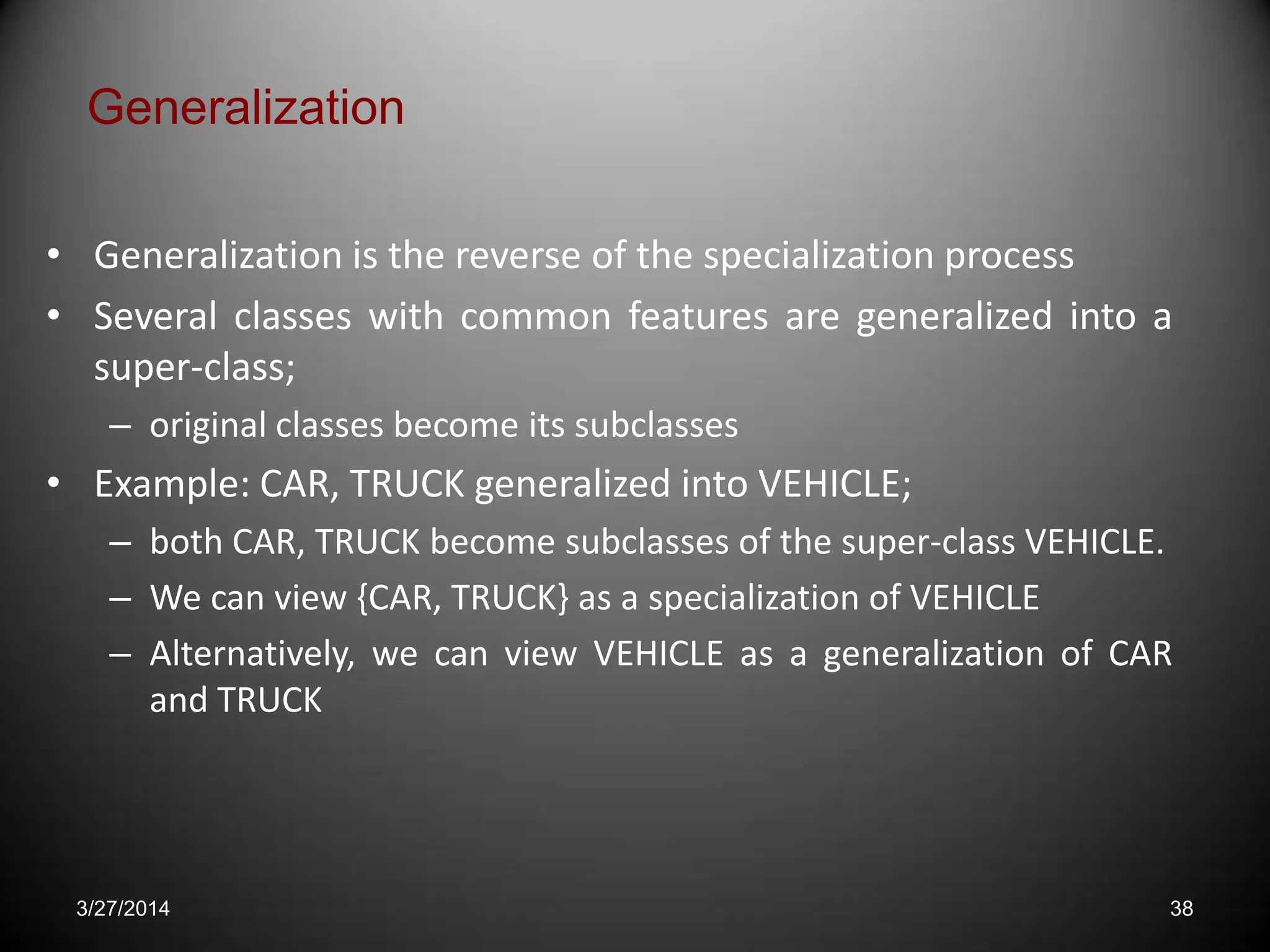

38. • Generalization is the reverse of the specialization process
• Several classes with common features are generalized into a
super-class;
– original classes become its subclasses
• Example: CAR, TRUCK generalized into VEHICLE;
– both CAR, TRUCK become subclasses of the super-class VEHICLE.
– We can view {CAR, TRUCK} as a specialization of VEHICLE
– Alternatively, we can view VEHICLE as a generalization of CAR
and TRUCK
Generalization
3/27/2014 38

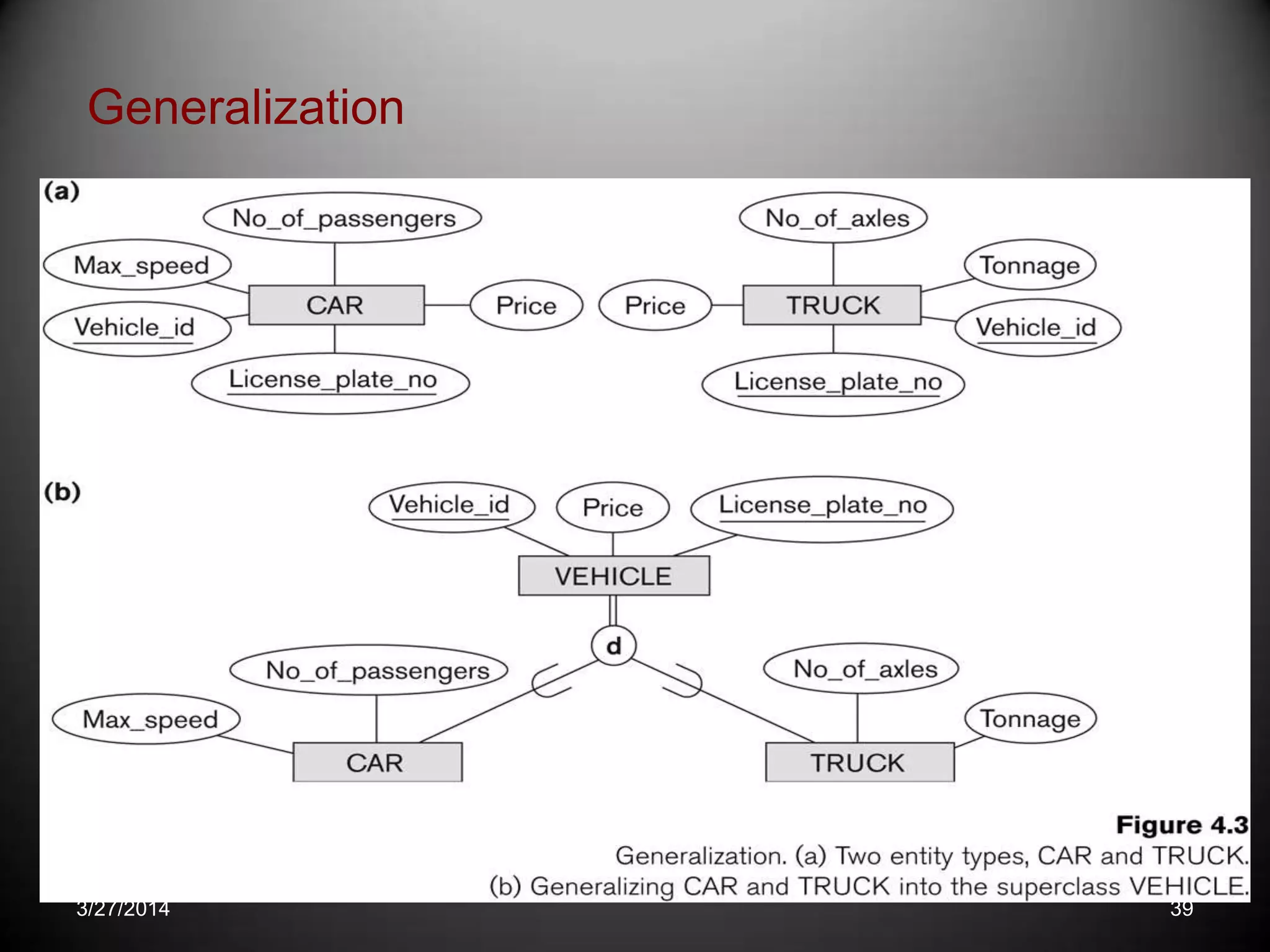

39. Generalization
3/27/2014 39

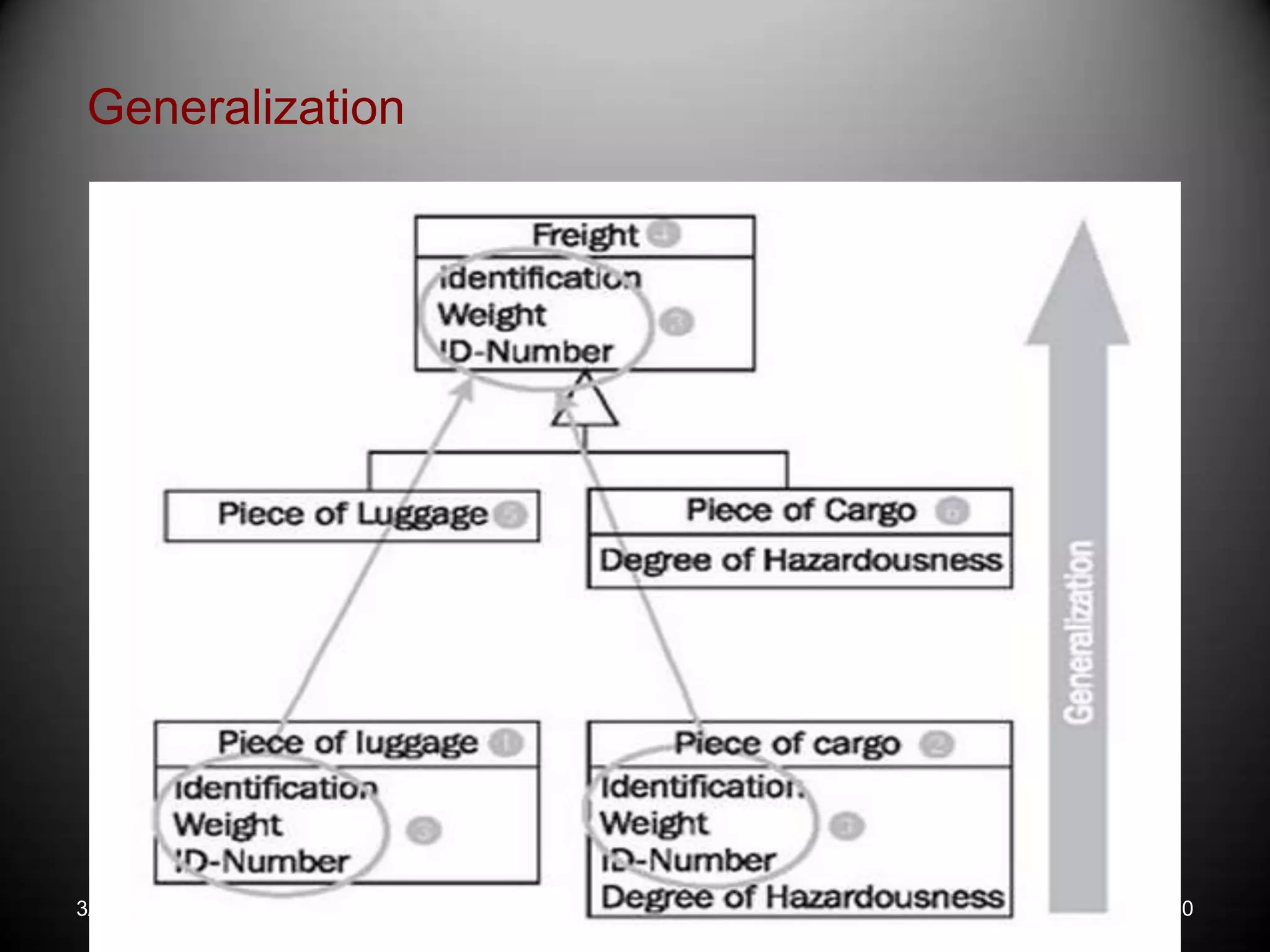

40. Generalization
3/27/2014 40

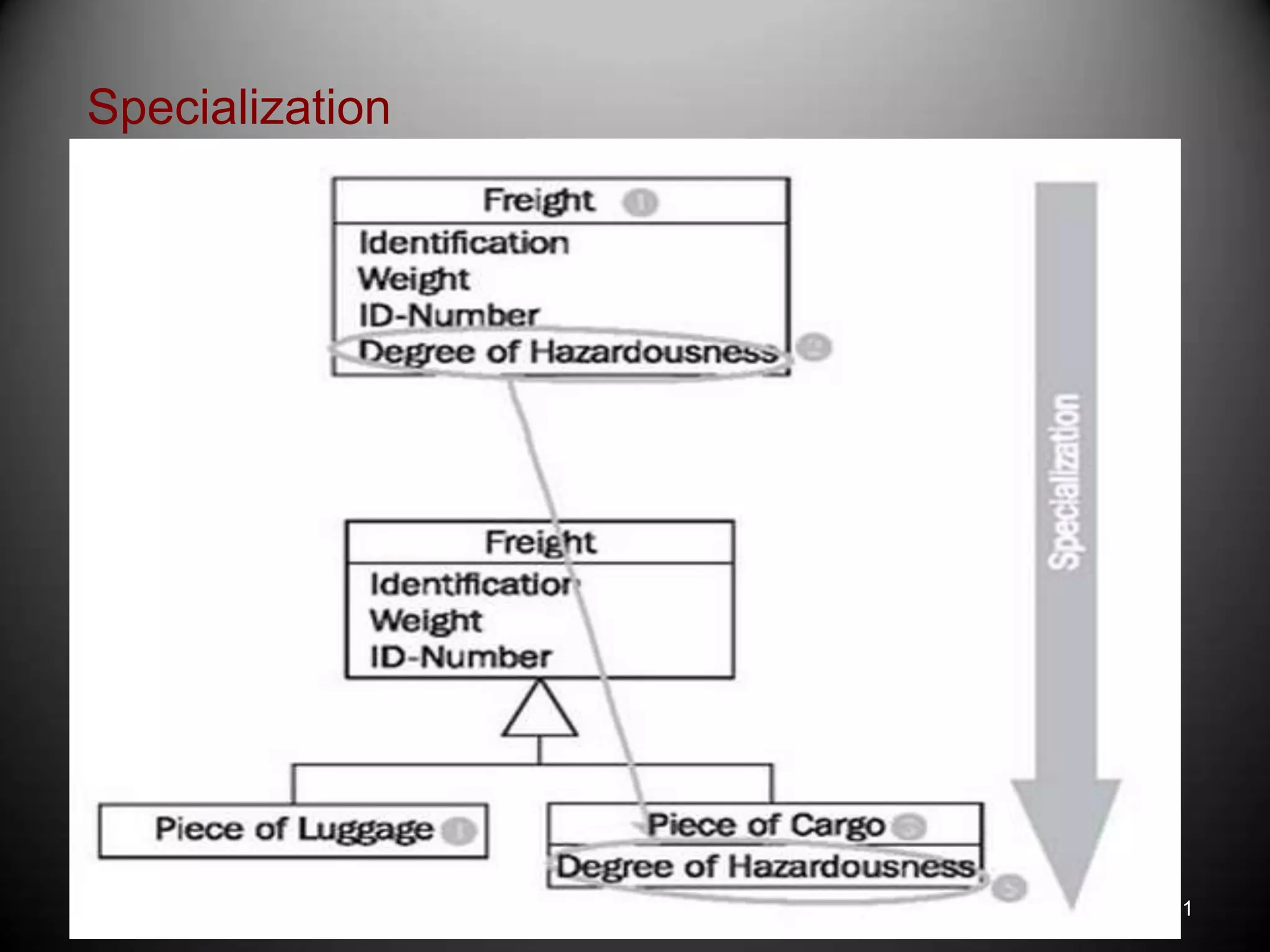

41. Specialization
3/27/2014 41

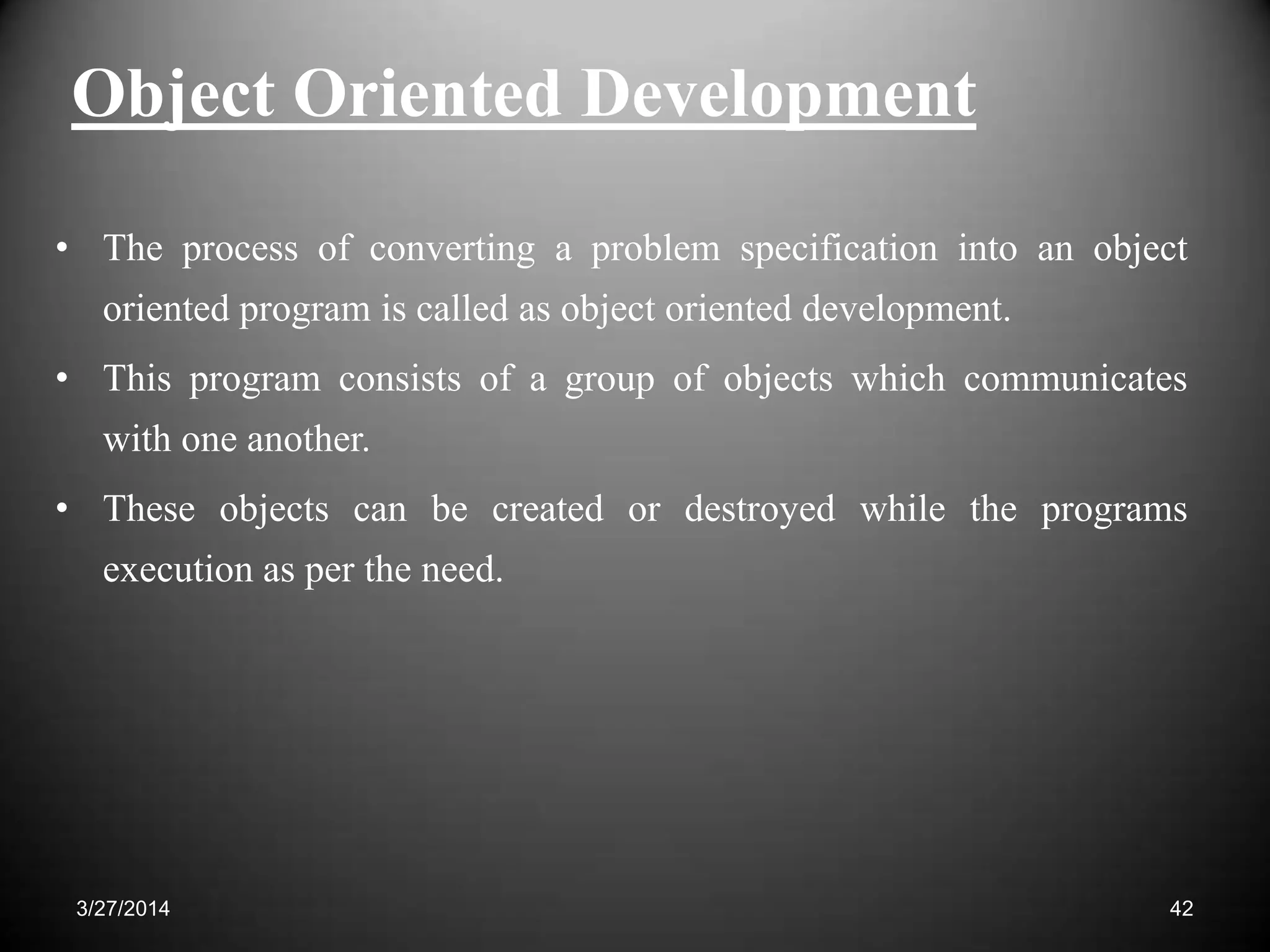

42. Object Oriented Development
• The process of converting a problem specification into an object
oriented program is called as object oriented development.
• This program consists of a group of objects which communicates
with one another.
• These objects can be created or destroyed while the programs
execution as per the need.
423/27/2014

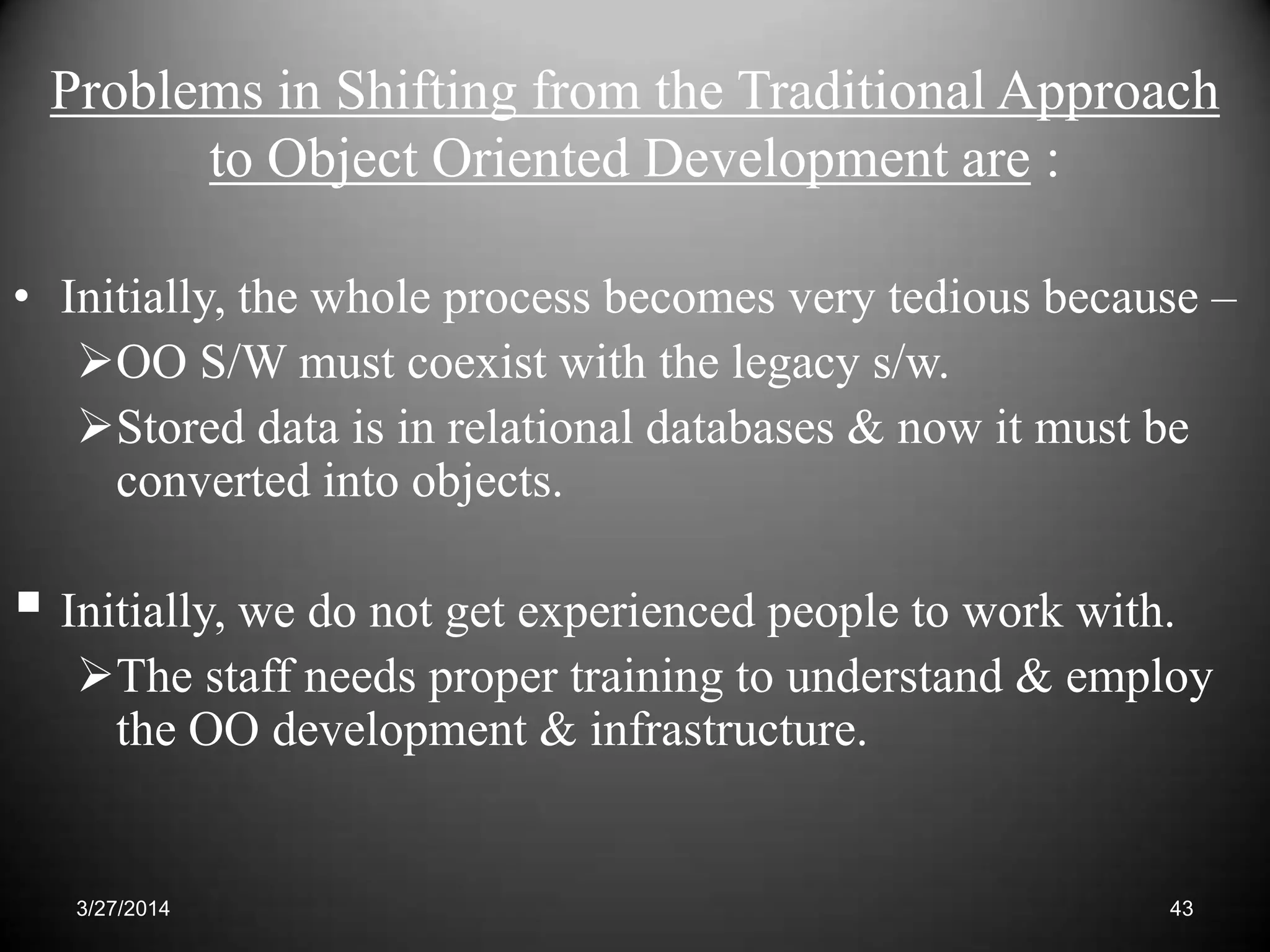

43. Problems in Shifting from the Traditional Approach
to Object Oriented Development are :
• Initially, the whole process becomes very tedious because –
OO S/W must coexist with the legacy s/w.
Stored data is in relational databases & now it must be
converted into objects.
 Initially, we do not get experienced people to work with.
The staff needs proper training to understand & employ
the OO development & infrastructure.
433/27/2014

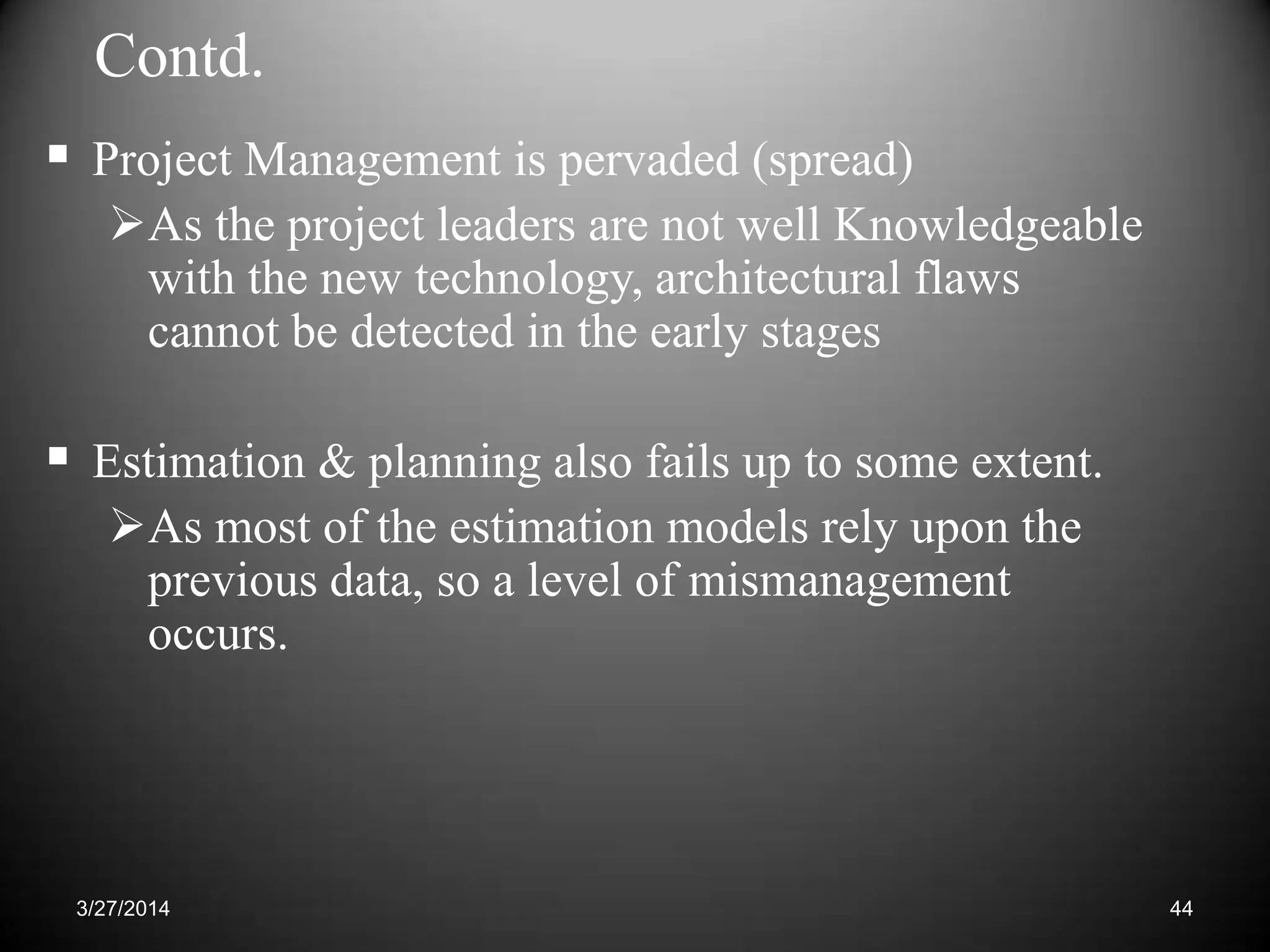

44. Contd.
 Project Management is pervaded (spread)
As the project leaders are not well Knowledgeable
with the new technology, architectural flaws
cannot be detected in the early stages
 Estimation & planning also fails up to some extent.
As most of the estimation models rely upon the
previous data, so a level of mismanagement
occurs.
443/27/2014
