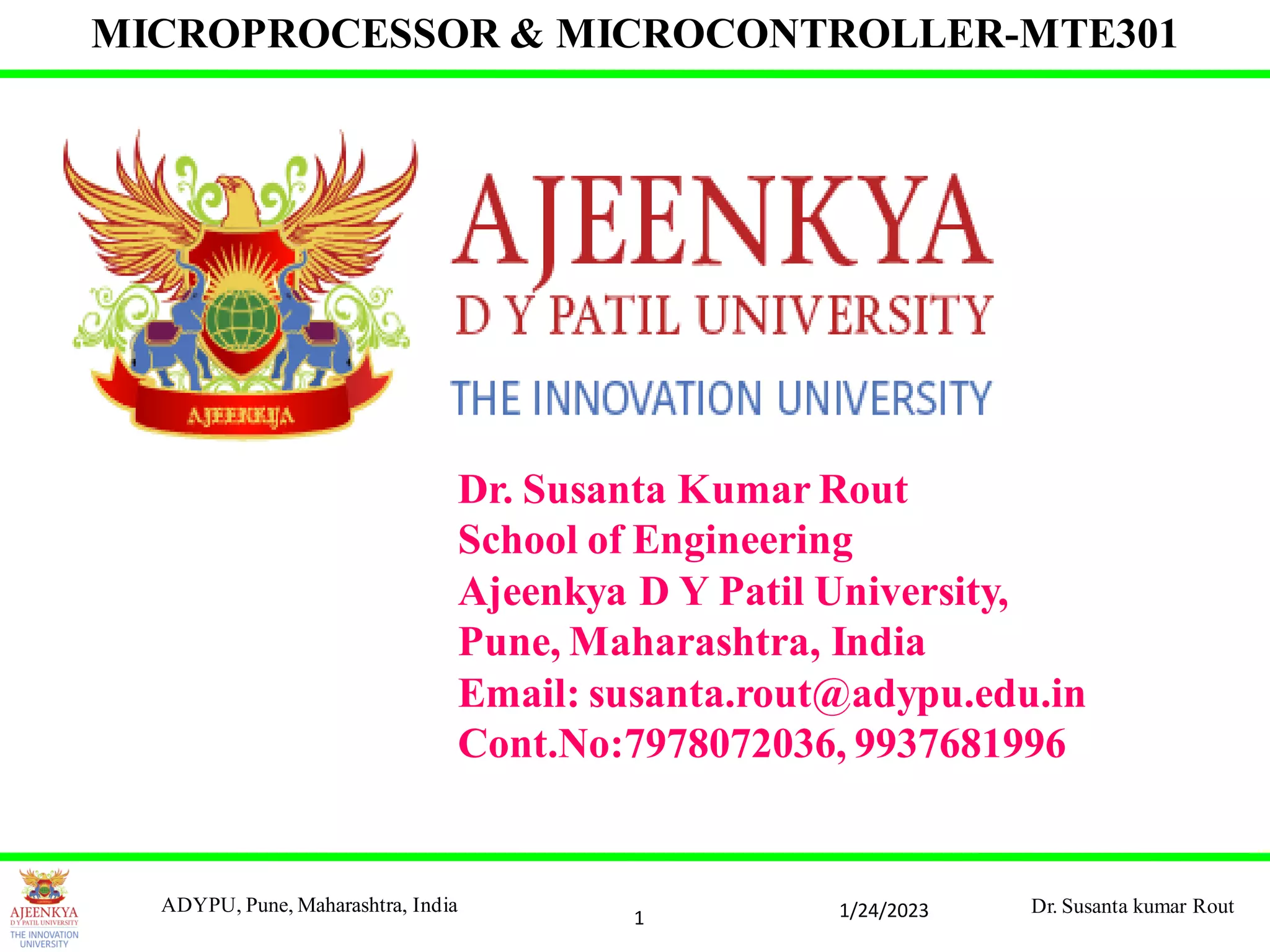

MICROPROCESSOR & MICROCONTROLLER-MTE301
Dr. Susanta Kumar Rout
School of Engineering
Ajeenkya D Y Patil University,
Pune, Maharashtra, India
Email: susanta.rout@adypu.edu.in
Cont.No:7978072036, 9937681996
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout

2. 2
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout

3. 3
1.Coursenumberand name : MTE301-Microprocessor& Microcontroller
2.Credits andcontact hours : 3-Credits and 3-hours/week
3.Instructor’sor coursecoordinator’s name: Dr. SusantaKumarRout
4.Textbook, title, and author
A. The 8051 Microcontroller and Embedded Systems using Assembly and C,
MuhammasMazidi, Janice Mazidi and RolinMcKinlay, Pearson Education, 2nd
edition.
B. The8051 Microcontroller, KennethJ. Ayala, CengageLearning.
5. Referencebook, title, and author
A. Microcontrollers Theoryand Applications, AjayDeshmukh, TATAMcGraw Hill.
B. Embedded Systems and Robots- Projects using the 8051 Microcontroller, Subrata
Ghoshal,CengageLearning.
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout
Microprocessor & Microcontroller-MTE301

4. 4
6. Outcome Related Course Learning Objectives:
CLO-1: To impart basic understanding of the internal architecture of 8086
Microprocessor and 8051 microcontrollers.
CLO-2: Introduce the concepts of interfacing microprocessors with external devices.
CLO-3: Develop Assembly language programming skills.
CLO-4: To solve real world problems in an efficient manner, this course also emphasis on
architecture, Programming and system design used in various day to day gadgets.
CLO-5: Understand microcontroller-based system design for various applications.
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout
Cont…

5. 5

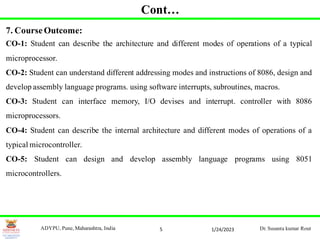

7. Course Outcome:
CO-1: Student can describe the architecture and different modes of operations of a typical
microprocessor.
CO-2: Student can understand different addressing modes and instructions of 8086, design and
develop assembly language programs. using software interrupts, subroutines, macros.
CO-3: Student can interface memory, I/O devises and interrupt. controller with 8086
microprocessors.
CO-4: Student can describe the internal architecture and different modes of operations of a
typical microcontroller.
CO-5: Student can design and develop assembly language programs using 8051
microcontrollers.
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout
Cont…

6. 6

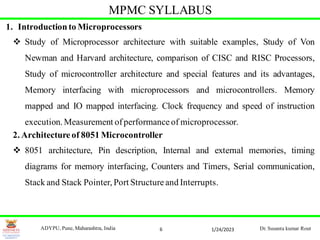

MPMC SYLLABUS
1. Introduction to Microprocessors
 Study of Microprocessor architecture with suitable examples, Study of Von
Newman and Harvard architecture, comparison of CISC and RISC Processors,
Study of microcontroller architecture and special features and its advantages,
Memory interfacing with microprocessors and microcontrollers. Memory
mapped and IO mapped interfacing. Clock frequency and speed of instruction
execution. Measurement ofperformance of microprocessor.
2. Architecture of 8051 Microcontroller
 8051 architecture, Pin description, Internal and external memories, timing
diagrams for memory interfacing, Counters and Timers, Serial communication,
Stack and Stack Pointer, Port Structure and Interrupts.
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout

7. 7
3. Addressing Modeand InstructionSet of 8051
 8051 Addressing modes, 8051 Instruction set, Microcontroller Application
Development tools Simulator, Emulator, In-circuit Emulator (ICE), Logic Analyzer,
ISP, Cross assembler, Introductionto Embedded C programming.
4. Real WorldInterfacing
 Interfacing 8051/89C51 to LED with and without interrupt, ADC, DAC, LCD and
keypad (consider debounce), Stepper motor, SPI bus. RS 232, RS 485, I2C bus
standard, InterfacingADC, DAC, memory, RTC with 8051 using I2C bus.
5. CaseStudy: Data AcquisitionSystem Design
 Designing microcontroller-based Data Acquisition System. Design of sensor
interfacing, signal conditioning of input stage, selection of ADC, selection of output
drivers.WritingefficientprogramsusingAssemblylanguageorEmbedded C.
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout
MPMC SYLLABUS

8. 8

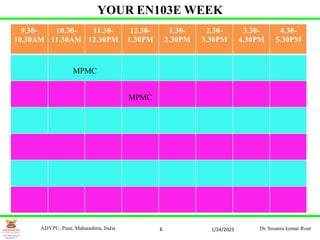

YOUR EN103E WEEK
9.30-
10.30AM
10.30-
11.30AM
11.30-
12.30PM
12.30-
1.30PM
1.30-
2.30PM
2.30-
3.30PM
3.30-
4.30PM
4.30-
5.30PM
MPMC
MPMC
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout

9. 9
Class Organization
1. 2 Lectures and 1 Practice /Tutorial class per week
2. 10 HW assignments, 7-10 Labs / Reports
3. 2 Continuous Assessment, 1 End Term
 CA-1, CA-2
 End Term
4. Grading policy:
 Home works: To Improve Your Performance
 Practice: 50 Marks
 CA: 40 Marks
 End Term: 60 Marks
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout

10. 10
Some Important Announcements
1. Please don’t take foods during class hour.
2. Please maintain discipline in my class hour.
3. Each person do the lab individually, and turn in individual report.
4. Homework should be done individually.
5. Cheating will result in automatic fail.
1/24/2023
ADYPU, Pune, Maharashtra, India Dr. Susanta kumar Rout

11. 11

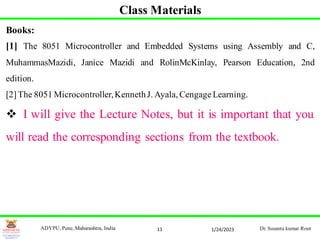

Class Materials
