This document provides information about retractable security doors manufactured by VIOMETALOUMIN. It describes the benefits of the retractable security doors, which include security from locking in 4 points with a uniform hinge along the entire frame length, aesthetics from its simple form matching modern and traditional homes, and minimal space requirements when open. The document also details technical specifications for different models of the retractable security doors and provides images to illustrate features like the steel rotating bars, locks, scissors, and 180 degree rotation.

1. R E T R A C T A B L E S E C U R I T Y D O O R SR E T R A C T A B L E S E C U R I T Y D O O R S
VIOMETALOUMIN
Because burglary is part of our daily life…Because burglary is part of our daily life…Because burglary is part of our daily life…
Sleep tight with open balcony doorsSleep tight with open balcony doorsSleep tight with open balcony doors

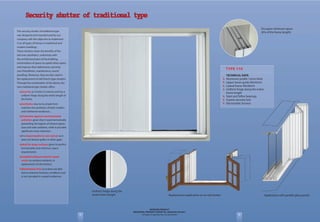

2. 2 3
Uniform hinge along the
entire frame length Replacement application on an old shutter Application with parallel glass panels
Occupies minimum space
(6% of the frame length)
Security shutter of traditional typeSecurity shutter of traditional typeSecurity shutter of traditional type
The security shutter of traditional type
was designed and manufactured by our
company with the objective to implement
it on all types of frames in traditional and
modern buildings.
These shutters retain the benefits of the
old ones (aesthetics, uniformity with
the architectural plan of the building,
minimization of space occupied when open),
and improve their deficiencies (security,
user-friendliness, maintenance, sound
proofing). Moreover, they are also used in
the replacement of old French-type shutters.
Through the combination of the above, the
new traditional type shutter offers:
Security as it locks in 4 points and has a
uniform hinge along the entire length of
the frame.
Aesthetics due to its simple form
matches the aesthetics of both modern
and traditional residences.
Protection against environmental
pollution given that it seals hermetically
preventing the ingress of exhaust gases,
dust and solar radiation, while it provides
significant noise reduction.
It is impermeable to rain and air as it
does not feature grilles or other gaps.
Ideal for large surfaces given its perfect
functionality and minimum space
requirements.
Installed without need for repair
works on existent residents, in
replacement of old shutters.
Maintenance free as it does not alter
due to external moisture conditions and
is not corroded in coastal residences.
•
•
•
•
•
•
•
PATENTED PRODUCT
INDUSTRIAL PROPERTY PATENT No. 20020100138-O.B.I.
All types of reproduction are prohibited
TYPE 110
TECHNICAL DATA
Aluminum profile 12mm thick
Upper-lower guide 40x35mm
Lateral frame 40x30mm
Uniform hinge along the entire
frame length
Steel and Teflon bearings
4-point security lock
Electrostatic furnace
•
•
•
•
•
•
•

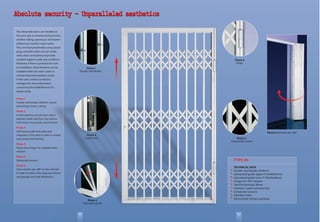

3. Photo 6: Rotation per 180°
Photo 3
Split lower guide
Photo 5
Galvanized scissors
Photo 4
Hinge
Photo 1
Double steel blades
Photo 2
2-point lock
4 5
Absolute security – Unparalleled aestheticsAbsolute security – Unparalleled aestheticsAbsolute security – Unparalleled aesthetics
The retractable doors are installed on
the same day on already existing frames,
whether sliding, opening or roll shutters
without any need for repair works.
They are fixed peripherally using special
plugs and bolts which are not visible
when doors are locked and provide
excellent support under any conditions.
Moreover, if there is provision for such
an installation, these elements can be
installed within the wall in order to
achieve improved aesthetic results.
In this case, contact our factory
managers for more information
concerning the establishment of a
design-study.
Photo 1
Double steel blades 20x4mm, layout
preventing scissors cutting
Photo 2
In-laid stainless security lock, with a
keyhole visible only from the interior,
that locks in two points, up and down
Photo 3
Split lower guide that raises and
integrates to the door in order to enable
easy access and cleaning
Photo 4
Heavy duty hinges for complete door
rotation
Photo 5
Galvanized scissors
Photo 6
Door rotation per 180° on the wall side
in order to retain a free opening without
any passage and view hindrances.
TYPE 90
TECHNICAL DATA
Double steel blades 20x4mm
Galvanized guide upper Π 55x30x55mm
Galvanized guide lower Π 40x30x40mm
Hinges for 180° rotation
Steel fix bearings 30mm
Stainless 2-point security lock
Galvanized scissors
Stainless rivets
Electrostatic furnace painting
•
•
•
•
•
•
•
•
•

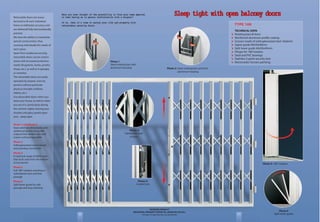

4. Photo 5: 180° rotation
Photo 6
Split lower guide
Photo 2: Steel rotating bars and lock
aluminum housing
Photo 3:
Galvanized steel
scissors
Photo 4:
2-point lock
Photo 1
Steel rotating bars and
aluminum housing
6 7
Have you ever thought of the possibility to find your home emptied,
or even having an in person confrontation with a burglar?
If so, then it’s time to secure your life and property with
retractable security doors
Sleep tight with open balcony doorsSleep tight with open balcony doorsSleep tight with open balcony doorsRetractable doors are manu-
factured to fit each individual
frame at millimeter accuracy and
are delivered fully electrostatically
painted.
We have the ability to materialize
special constructions, thus
covering individually the needs of
each space.
Apart from residences security,
retractable doors can be used in
stores with increased protection
needs (drugstores, banks, jewelry
shops, etc.), as well as in garages,
or verandas.
The retractable doors are easily
operated by anyone, even by
persons without particular
physical strength (children,
elderly, etc.).
Use retractable doors when you
leave your house, as well as when
you are in it, particularly during
the summer nights, leaving your
shutters and glass panels open
and…sleep tight.
Photo 1 and Photo 2
Steel solid bars that rotate, and
reinforced aluminum profile,
a layout that renders saw and
scissor cutting impossible
Photo 3
Solid galvanized steel scissors
and seamless connection
Photo 4
In-laid lock made of INOX steel
that locks only from the interior
at two points
Photo 5
Full 180° rotation resulting in
unhindered view and free
passage
Photo 6
Split lower guide for safe
passage and easy cleaning
PATENTED PRODUCT
INDUSTRIAL PROPERTY PATENT No. 20020100138-O.B.I.
All types of reproduction are prohibited
TYPE 100
TECHNICAL DATA
Rotating bars Ø 4mm
Reinforced aluminum profile coating
Scissors made of solid galvanized steel 16x6mm
Upper guide 40x50x40mm
Split lower guide 40x50x40mm
Hinges for 180°rotation
Steel and PVC bearings
Stainless 2-point security lock
Electrostatic furnace painting
•
•
•
•
•
•
•
•
•

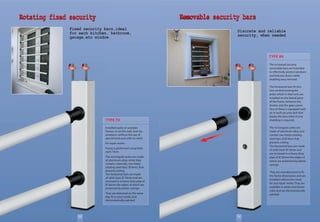

5. 8 9
Rotating fixed securityRotating fixed securityRotating fixed security
Fixed security bars,ideal
for each kitchen, bathroom,
garage,etc window.
Removable security barsRemovable security barsRemovable security bars
Discrete and reliable
security, when needed
TYPE 70
Installed easily on wooden
frames, or on the wall, even by
amateurs, without the use of
special tools and with no need
for repair works.
Fixing is performed using bolts
each 15cm.
The rectangular poles are made
of aluminum alloy, while they
contain, internally, two freely
rotating steel bars, Ø 4mm, that
prevent cutting.
The horizontal bars are made
of solid steel, Ø 18mm and are
enclosed in a heavy duty pipe of
Ø 26mm the edges of which are
protected by plastic casings.
They are delivered on the same
day, fit to your needs, and
electrostatically painted.
TYPE 80
The increased security
removable bars are intended
to effectively protect windows
and balcony doors, while
enabling easy removal.
The horizontal bars fit into
two vertical rectangular
poles which in their turn are
installed on the lateral parts
of the frame, between the
shutter and the glass panel.
One of these is equipped with
an in-built security lock that
blocks the bars when frame
shielding is required.
The rectangular poles are
made of aluminum alloy and
contain two freely rotating
steel bars of Ø 4mm that
prevent cutting.
The horizontal bars are made
of solid steel, Ø 18mm and
are enclosed in a heavy duty
pipe of Ø 26mm the edges of
which are protected by plastic
casings.
They are manufactured to fit
the frame dimensions and are
installed without the need
for any repair works. They are
available in white and brown
color and are electrostatically
painted.

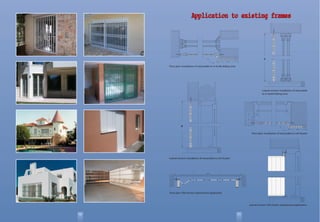

6. 10 11
Floor plan: Installation of retractable to in-build sliding ones
Floor plan: Installation of retractable to roll shutter
Floor plan: Old shutter replacement application
Lateral section: Old shutter replacement application
Lateral section: Installation of retractable to roll shutter
Lateral section: Installation of retractable
to in-build sliding ones
υ
υ
20%
κ
λ
20%
Application to existing framesApplication to existing framesApplication to existing frames

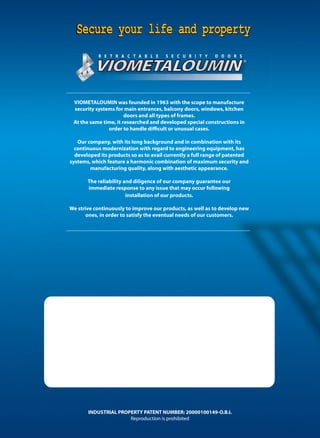

7. VIOMETALOUMIN
Secure your life and propertySecure your life and propertySecure your life and property
R E T R A C T A B L E S E C U R I T Y D O O R S
VIOMETALOUMIN was founded in 1963 with the scope to manufacture
security systems for main entrances, balcony doors, windows, kitchen
doors and all types of frames.
At the same time, it researched and developed special constructions in
order to handle difficult or unusual cases.
Our company, with its long background and in combination with its
continuous modernization with regard to engineering equipment, has
developed its products so as to avail currently a full range of patented
systems, which feature a harmonic combination of maximum security and
manufacturing quality, along with aesthetic appearance.
The reliability and diligence of our company guarantee our
immediate response to any issue that may occur following
installation of our products.
We strive continuously to improve our products, as well as to develop new
ones, in order to satisfy the eventual needs of our customers.
INDUSTRIAL PROPERTY PATENT NUMBER: 20000100149-O.B.I.
Reproduction is prohibited
