SLIDING & FOLD DOOR

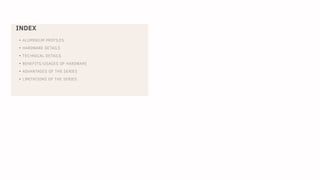

INDEX • ALUMINIUM PROFILES • HARDWARE DETAILS • TECHNICAL DETAILS • BENEFITS/USAGES OF HARDWARE • ADVANTAGES OF THE SERIES • LIMITATIONS OF THE SERIES

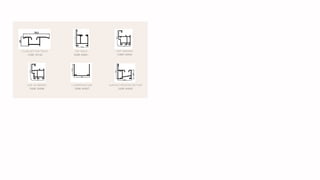

FLUSH BOTTOM TRACK CODE 35102 LEAF OUTWARDS CODE 55006 LEAF INWARDS CODE 55004 U COMPENSATION CODE 45007 TOP TRACK CODE 45001 SURFACE MOUNTED BOTTOM CODE 45002

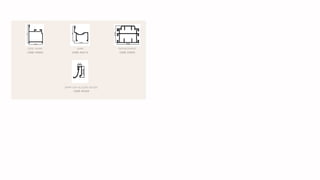

SIDE FRAME CODE 45003 JAMB CODE 45014 ENFORCEMENT CODE 55005 26MM GAP GLAZING BEADS CODE 94304

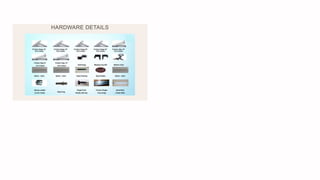

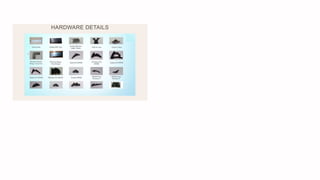

HARDWARE DETAILS
HARDWARE DETAILS
HARDWARE DETAILS

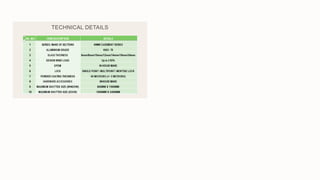

TECHNICAL DETAILS
HARDWARE BENEFITS Locks:-Locks are used to lock the shutter & this will be in Manual Mode with Single Point / Multi Point Lock & Mortise Lock. Mullion Cleats:-For better angular joints of the mullions without any impact of the screws directly on the walls of the shutters. Which provides high strength with respect to angular joints. Spring Loaded Corner Cleats:- For better angular joints of the Frame without any impact of the screws directly on the walls of the frame, which provides high strength with respect to angular joints. Butt Hinges :- Frame wing connectors are used to join the corners of outer frame (Tracks) which ensure the proper alignment of vertical or horizontal sections at the joint of frames.
HARDWARE BENEFITS Meeting Cap (D40):- Meeting caps are used to cover the flying mullion from the top and bottom sides once installed. Friction Hinges:- Friction hinges are used in openable windows where the windows can stand at a single position when it is open. It stands at one desired position with the help of the provided hinge where there won't be any movement of windows even with the high external wind pressures. It helps in cleaning the windows on both sides and is safer than compared with Butt Hinge. Friction hinges come in different sizes from 10inch to 22inches of (18X2.5mm) & (22X2.5mm). It can be used at side opening/top hung opening. It mainly restricts the window opening as desired by the operator. Single Tongue Handle:- Single tongue handle will consider as multi-point lock These locks can be provided where the shutter height is up to 4 feet as the transmission rod comes up to 1200mm only. EPDM :- EPDM is a Durable Synthetic Rubber which reduces metal to metal Impact (Friction Losses) which in turn can say as reduces wear and tear between two metal bodies. Generally these EPDM’s are used in Interlock Portion, Glass Packing, & Frame and Shutters.
HARDWARE BENEFITS Double Tongue Handle:- Double tongue handle referred to as multi point lock. These locks can be provided where the shutter height is up to 8 feet, here we will be using the Locking rod with the combination of Polyamide Strip which constitutes the multi point locking. Weather Sealant:- Prevent any seepage of water along any hair-line joints of the shutters and frames. Weather Sealant can provide thermal and acoustical insulation where we can save energy on heating & air conditioning. Also used to block the passage of fluids through the surface or joints or openings in materials. Transmission Bar:-Transmission bars are used for multi point locking system. It helps in locking the latch at 2 different points with the help of transition rods. Rawl Plug :-Beneficial for better gripping of Wood Screws with the help of silicon to fix the frame.

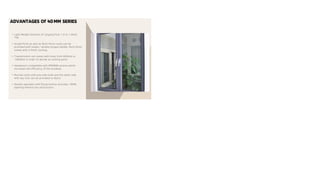

ADVANTAGES Of 40MM SERIES • Light Weight Sections of ranging from 1.0 to 1.6mm Thk. • Single Point as well as Multi Point Locks can be provided with single / double tongue handle. Multi Point comes with 2 Point Locking. • Transmission rod comes with sizes from 600mm to 1200mm in order to decide on locking point. • Hardware's compatible with PROWIN section which increases the efficiency of the windows. • Mortise locks with one side knob and the other side with key lock can be provided to doors. • Double openable with flying mullion provides 100% opening without any obstruction.

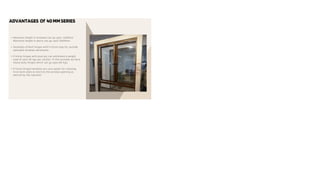

ADVANTAGES Of 40MMSERIES • Maximum height in windows can go upto 1500mm Maximum height in doors can go upto 2400mm. • Assembly of Butt hinges with Friction stay for outside openable windows developed. • Friction hinges with dual qty can withstand a weight load of upto 45 kgs per shutter. If this exceeds we have Heavy Duty Hinges which can go upto 60 Kgs. • Friction hinged windows are very easier for cleaning from both sides & restricts the window opening as desired by the operator

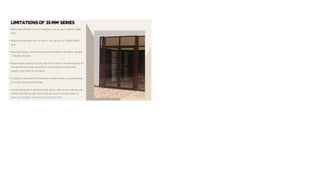

LIMITATIONSOF 35 MM SERIES • Maximum shutter size in windows can go up to 600X1500 mm. • Maximum shutter size in Doors can go up to 1000X2400 mm. • Maximum glass thickness would be 24mm Thk Either Single / Double Glazed. • Butt Hinges without a stay will be a case of accidents due to the overflow swing movement of shutters in which the hinges may tend to collapse. • Limited to provide the Flymesh shutters with a combination of inside opening windows. • Inside opening of windows and doors lack on providing with add on profile as the clip tends on outer and we need to have a Z-Shutter section to overcome this.
THANK YOU
27X60MM GUIDE R AIL SYSTEM
INDEX • ALUMINIUM PROFILES • HARDWARE DETAILS • TECHNICAL DETAILS • BENEFITS/USAGES OF HARDWARE • ADVANTAGES OF THE SERIES • LIMITATIONS OF THE SERIES • COMBINATION SERIES
ADDON 2 TRACK WEIGHT KG/M - 1.04 CODE G27A2T DOUBLE GLASS SHUTTER WEIGHT KG/M - 0.72 CODE GDS276 ADDON 4 TRACK WEIGHT KG/M - 2.10 CODE G427GR KPA D.G HANDLE SHUTTER KG/M - 1.10 CODE G27KPH ADDON 3 TRACK WEIGHT KG/M - 1.55 CODE G27A3T S.G SHUTTER KG/M - 0.70 CODE GSS276

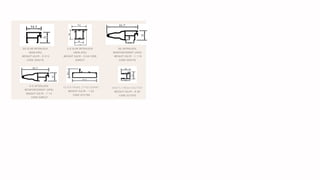

DG SLIM INTERLOCK (NON KPA) WEIGHT KG/M - 0.515 CODE GIN276 S.G SLIM INTERLOCK (NON KPA) WEIGHT KG/M - 0.54 CODE GINS27 DG INTERLOCK REINFORCEMENT (KPA) WEIGHT KG/M - 1.119 CODE GIR276 S.G INTERLOCK REINFORCEMENT (KPA) WEIGHT KG/M - 1.14 CODE GIRS27 OUTER FRAME 27*60 (95MM) WEIGHT KG/M - 1.02 CODE GF2760 NEW FLY MESH SHUTTER WEIGHT KG/M - 0.58 CODE G27SFS

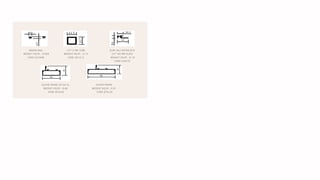

ADDON RAIL WEIGHT KG/M - 0.054 CODE G27AOR 12*12 MM TUBE WEIGHT KG/M - 0.15 CODE H01212 SLIM JALI INTERLOCK (27 *60 MM SLIM) WEIGHT KG/M - 0.19 CODE GJN276 OUTER FRAME 25*54 3L WEIGHT KG/M - 0.66 CODE GF3L25 OUTER FRAME WEIGHT KG/M - 0.91 CODE GF2L25

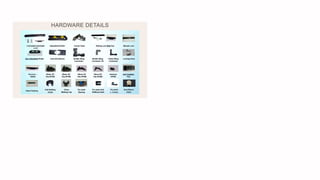

HARDWARE DETAILS
HARDWARE DETAILS

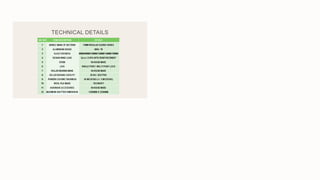

TECHNICAL DETAILS

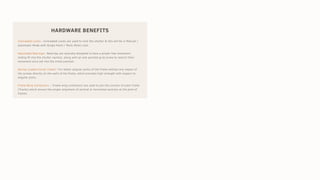

HARDWARE BENEFITS Concealed Locks:- Concealed Locks are used to lock the shutter & this will be in Manual / Automatic Mode with Single Point / Multi-Point Lock. Adjustable Bearings:- Bearings are specially designed to have a proper free movement sliding fit into the shutter cavities, along with an end-pointed grub screw to restrict their movement once set into the initial position. Spring Loaded Corner Cleats:- For better angular joints of the Frame without any impact of the screws directly on the walls of the frame, which provides high strength with respect to angular joints. Frame Wing Connectors :- Frame wing connectors are used to join the corners of outer frame (Tracks) which ensure the proper alignment of vertical or horizontal sections at the joint of frames.
HARDWARE BENEFITS Lock Guide:- Prevents the damage of locks when the shutter gets locked from the receiver. I.e., It prevents striking of shutter frame with the outer tracks when closed harshly. Anti Lift Interlock:- Anti lifts are designed to prevent lifting of the shutter once installed, Either from inside or from outside. Wool Pile:- It prevents leakage of water and dust and maintains internal temperature. Its silicon bristles are water-resistant and ensure longer life. EPDM :- EPDM is a Durable Synthetic Rubber which reduces metal to metal Impact (Friction Losses) which in turn can say as reduces wear and tear between two metal bodies. Generally these EPDM’s are used in Interlock Portion, Glass Packing, & Frame and Shutters.
HARDWARE BENEFITS Anti Capillary Pad:- Anti-capillary pads are provided to prevent water from going away from the exposed track part to the unexposed part. It will restrict the free flow of water in the entire width of the track. It also helps in preventing infiltration of air/dust when the window is in a closed position. Weather Sealant:- Prevent any seepage of water along any hair-line joints of the shutters and frames. Weather Sealant can provide thermal and acoustical insulation where we can save energy on heating & air conditioning. Also used to block the passage of fluids through the surface or joints or openings in materials. Shutter Corner Cleat :-For better angular joints of the Frame without any impact of the screws directly on the walls of the frame, which provides a high strength with respect to angular joints.

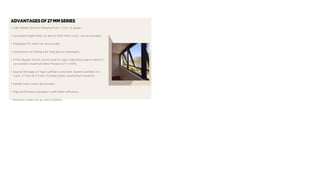

ADVANTAGESOF27 MMSERIES • Light Weight Sections Ranging from 1.2 to 1.4 gauge. • Concealed Single Point, as well as Multi Point Locks, can be provided. • Integrated Fly mesh can be provided. • Combination of Sliding with fixed portion developed. • 27mm Regular Series can be used for major high Rise projects where it can sustain a maximum Wind Pressure of 1.5 KPA. • Special Drainage (Z-Type) outflow is provided. System available in 2 Track, 3 Track & 4 Track. Provides better sound/heat insulation. • Handle locks cannot be provided. • High performance hardware's with better efficiency. • Maximum height can go Upto 2200mm

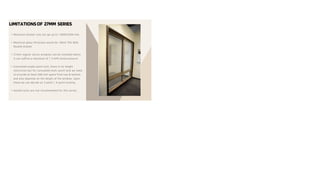

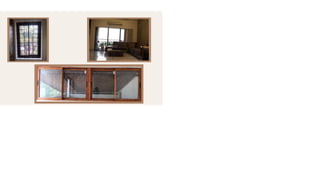

LIMITATIONSOF 27MM SERIES • Maximum shutter size can go up to 1200X2200 mm. • Maximum glass thickness would be 18mm Thk With Double Glazed. • 27mm regular series windows can be installed where it can suffice a maximum of 1.5 KPA wind pressure. • Concealed single-point lock, there is no height restriction but for concealed multi-point lock we need to provide at least 300 mm space from top & bottom and also depends on the height of the window. Upon these we can decide on 3 point / 4 point locking. • Handle locks are not recommended for this series.
27MM COMBINATIONSERIES • Woodminium Combination Series are the Special series developed considering new regulations of BMC where balconies are not provided. • It provides maximum window opening with the safety structure of bottom fix. • This design reduces the prices incurred for railings in the balcony.
THANK YOU
40MM WINDOW & DOOR
INDEX • ALUMINIUM PROFILES • HARDWARE DETAILS • TECHNICAL DETAILS • BENEFITS/USAGES OF HARDWARE • ADVANTAGES OF THE SERIES • LIMITATIONS OF THE SERIES
OUTER FRAME WEIGHT KG/M - 0.545 CODE Z40FRM FLYING MULLION WEIGHT KG/M - 0.661 CODE Z40MTG INVERSION CLIP WEIGHT KG/M - 0.52 CODE Z400IC DGS GLASS CLIP (18 & 20 MM ) KG/M - 0.211 CODE Z40DGC WINDOW SHUTTER MULLION WEIGHT KG/M - 0.662 CODE Z40OWS SINGLE GLASS CLIP KG/M - 0.217 CODE Z40SGC

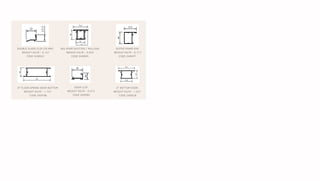

DOUBLE GLASS CLIP (24 MM) WEIGHT KG/M - 0.157 CODE Z40DG2 BIG DOOR SHUTTER / MULLION WEIGHT KG/M - 0.932 CODE Z40BDS OUTER FRAME KPA WEIGHT KG/M - 0.717 CODE Z40KPF 6" FLOOR SPRING DOOR BOTTOM WEIGHT KG/M - 1.747 CODE Z40FDB DOOR CLIP WEIGHT KG/M - 0.273 CODE Z40DBC 4" BOTTOM DOOR WEIGHT KG/M - 1.327 CODE Z40DCB

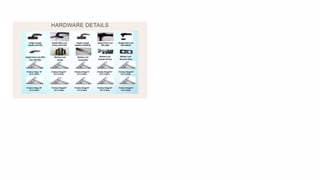

HARDWARE DETAILS
HARDWARE DETAILS
HARDWARE DETAILS
TECHNICAL DETAILS

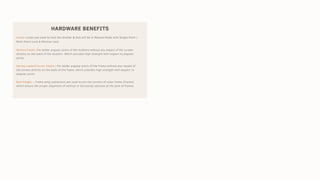

HARDWARE BENEFITS Locks:-Locks are used to lock the shutter & this will be in Manual Mode with Single Point / Multi Point Lock & Mortise Lock. Mullion Cleats:-For better angular joints of the mullions without any impact of the screws directly on the walls of the shutters. Which provides high strength with respect to angular joints. Spring Loaded Corner Cleats:- For better angular joints of the Frame without any impact of the screws directly on the walls of the frame, which provides high strength with respect to angular joints. Butt Hinges :- Frame wing connectors are used to join the corners of outer frame (Tracks) which ensure the proper alignment of vertical or horizontal sections at the joint of frames.

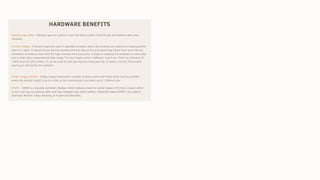

HARDWARE BENEFITS Meeting Cap (D40):- Meeting caps are used to cover the flying mullion from the top and bottom sides once installed. Friction Hinges:- Friction hinges are used in openable windows where the windows can stand at a single position when it is open. It stands at one desired position with the help of the provided hinge where there won't be any movement of windows even with the high external wind pressures. It helps in cleaning the windows on both sides and is safer than compared with Butt Hinge. Friction hinges come in different sizes from 10inch to 22inches of (18X2.5mm) & (22X2.5mm). It can be used at side opening/top hung opening. It mainly restricts the window opening as desired by the operator. Single Tongue Handle:- Single tongue handle will consider as multi-point lock These locks can be provided where the shutter height is up to 4 feet as the transmission rod comes up to 1200mm only. EPDM :- EPDM is a Durable Synthetic Rubber which reduces metal to metal Impact (Friction Losses) which in turn can say as reduces wear and tear between two metal bodies. Generally these EPDM’s are used in Interlock Portion, Glass Packing, & Frame and Shutters.

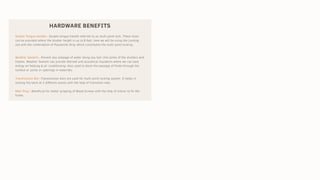

HARDWARE BENEFITS Double Tongue Handle:- Double tongue handle referred to as multi point lock. These locks can be provided where the shutter height is up to 8 feet, here we will be using the Locking rod with the combination of Polyamide Strip which constitutes the multi point locking. Weather Sealant:- Prevent any seepage of water along any hair-line joints of the shutters and frames. Weather Sealant can provide thermal and acoustical insulation where we can save energy on heating & air conditioning. Also used to block the passage of fluids through the surface or joints or openings in materials. Transmission Bar:-Transmission bars are used for multi point locking system. It helps in locking the latch at 2 different points with the help of transition rods. Rawl Plug :-Beneficial for better gripping of Wood Screws with the help of silicon to fix the frame.
ADVANTAGES Of 40MM SERIES • Light Weight Sections of ranging from 1.0 to 1.6mm Thk. • Single Point as well as Multi Point Locks can be provided with single / double tongue handle. Multi Point comes with 2 Point Locking. • Transmission rod comes with sizes from 600mm to 1200mm in order to decide on locking point. • Hardware's compatible with PROWIN section which increases the efficiency of the windows. • Mortise locks with one side knob and the other side with key lock can be provided to doors. • Double openable with flying mullion provides 100% opening without any obstruction.
ADVANTAGES Of 40MMSERIES • Maximum height in windows can go upto 1500mm Maximum height in doors can go upto 2400mm. • Assembly of Butt hinges with Friction stay for outside openable windows developed. • Friction hinges with dual qty can withstand a weight load of upto 45 kgs per shutter. If this exceeds we have Heavy Duty Hinges which can go upto 60 Kgs. • Friction hinged windows are very easier for cleaning from both sides & restricts the window opening as desired by the operator

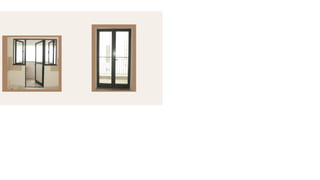

LIMITATIONSOF 35 MM SERIES • Maximum shutter size in windows can go up to 600X1500 mm. • Maximum shutter size in Doors can go up to 1000X2400 mm. • Maximum glass thickness would be 24mm Thk Either Single / Double Glazed. • Butt Hinges without a stay will be a case of accidents due to the overflow swing movement of shutters in which the hinges may tend to collapse. • Limited to provide the Flymesh shutters with a combination of inside opening windows. • Inside opening of windows and doors lack on providing with add on profile as the clip tends on outer and we need to have a Z-Shutter section to overcome this.
THANK YOU
35X70MM SLIM S.G
INDEX • ALUMINIUM PROFILES • HARDWARE DETAILS • TECHNICAL DETAILS • BENEFITS/USAGES OF HARDWARE • ADVANTAGES OF THE SERIES • LIMITATIONS OF THE SERIES • COMBINATION SERIES

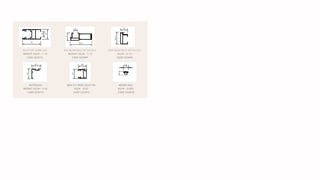

SHUTTER 18 MM GAP WEIGHT KG/M - 1.15 CODE GS3572 INTERLOCK WEIGHT KG/M - 2.55 CODE GI3575 NON RIENFORCE INTERLOCK KG/M - 0.75 CODE GI35KN NEW FLY MESH SHUTTER KG/M - 0.62 CODE G35SFS KPA REINFORCE INTERLOCK WEIGHT KG/M - 1.72 CODE GI35KR ADDON RAIL KG/M - 0.093 CODE G35AOR

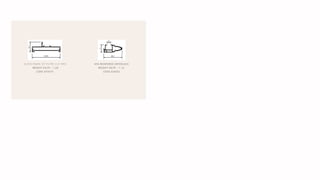

OUTER FRAME 35*75 MM (127 MM) WEIGHT KG/M - 1.28 CODE GF3575 KPA REINFORCE INTERLOCK WEIGHT KG/M - 1.14. CODE GI35K2

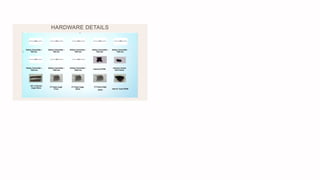

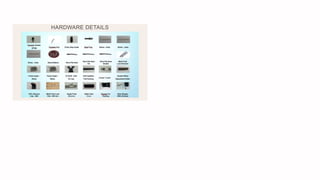

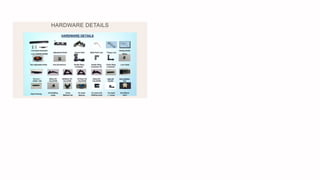

HARDWARE DETAILS
HARDWARE DETAILS
HARDWARE DETAILS

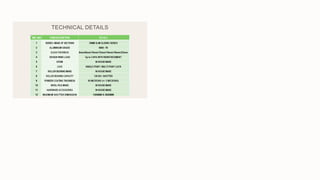

TECHNICAL DETAILS

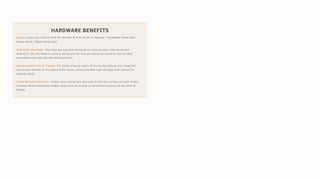

HARDWARE BENEFITS Locks:-Locks are used to lock the shutter & this will be in Manual / Automatic Mode with Single Point / Multi Point Lock. Adjustable Bearings:- Bearings are specially designed to have a proper free movement sliding fit into the shutter cavities, along with an end-pointed grub screw to restrict their movement once set into the initial position. Spring Loaded Corner Cleats:- For better angular joints of the Frame without any impact of the screws directly on the walls of the frame, which provides high strength with respect to angular joints. Frame Wing Connectors :- Frame wing connectors are used to join the corners of outer frame (Tracks) which ensure the proper alignment of vertical or horizontal sections at the joint of frames.

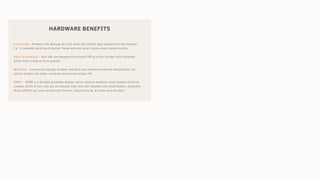

HARDWARE BENEFITS Lock Guide:- Prevents the damage of locks when the shutter gets locked from the receiver. I.e., It prevents striking of shutter frame with the outer tracks when closed harshly. Anti Lift Interlock:- Anti lifts are designed to prevent lifting of the shutter once installed, Either from inside or from outside. Wool Pile:- It prevents leakage of water and dust and maintains internal temperature. Its silicon bristles are water-resistant and ensure longer life. EPDM :- EPDM is a Durable Synthetic Rubber which reduces metal to metal Impact (Friction Losses) which in turn can say as reduces wear and tear between two metal bodies. Generally these EPDM’s are used in Interlock Portion, Glass Packing, & Frame and Shutters.

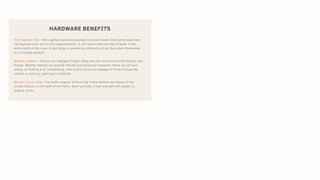

HARDWARE BENEFITS Anti Capillary Pad:- Anti-capillary pads are provided to prevent water from going away from the exposed track part to the unexposed part. It will restrict the free flow of water in the entire width of the track. It also helps in preventing infiltration of air/dust when the window is in a closed position. Weather Sealant:- Prevent any seepage of water along any hair-line joints of the shutters and frames. Weather Sealant can provide thermal and acoustical insulation where we can save energy on heating & air conditioning. Also used to block the passage of fluids through the surface or joints or openings in materials. Shutter Corner Cleat :-For better angular joints of the Frame without any impact of the screws directly on the walls of the frame, which provides a high strength with respect to angular joints.

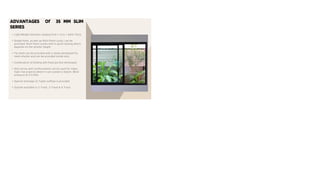

ADVANTAGES Of 35 MM SLIM SERIES • Light Weight Sections ranging from 1.4 to 1.6mm Thick. • Single Point, as well as Multi Point Locks, can be provided. Multi Point comes with 4-point locking where depends on the shutter height. • Fly mesh can be provided with a newly developed Fly mesh shutter and can be provided inside only. • Combination of Sliding with fixed portion developed. • Slim series with reinforcement can be used for major high-rise projects where it can sustain a maxim. Wind pressure of 2.5 KPA. • Special drainage (Z-Type) outflow is provided. • System available in 2 Track, 3 Track & 4 Track.

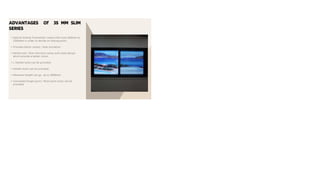

ADVANTAGES Of 35 MM SLIM SERIES • Special Sliding Transmitter comes with sizes 600mm to 2000mm in order to decide on locking point. • Provides better sound / heat insulation. • Reinforced / Slim interlock comes with sleek design which provide a better vision. • L Handle locks can be provided. • Handle locks can be provided. • Maximum height can go up to 2800mm • Concealed Single point / Multi point locks can be provided

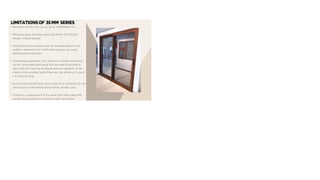

LIMITATIONSOF 35 MM SERIES • Maximum shutter size can go up to 1500X2800 mm. • Maximum glass thickness would be 22mm Thick Either Single / Double Glazed. • 35mm Slim series windows can be installed where it can suffice a maximum of 2.5 KPA wind pressure by using Reinforcement Interlock. • Concealed single-point lock, there is no height restriction but for concealed multi-point lock we need to provide at least 300 mm from top & bottom and also depends on the height of the window. Upon these, we can decide on 3-point / 4-point locking. • By providing handle locks there might be a complaint on the intersection of the handle with another shutter sash. • If there is a requirement of Fly mesh then both sides KPA cannot be provided as it intersects with net shutter.

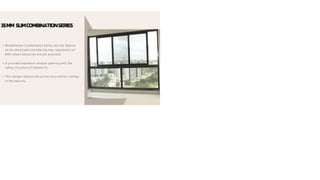

35MM SLIMCOMBINATIONSERIES • Woodminium Combination Series are the Special series developed considering new regulations of BMC where balconies are not provided. • It provides maximum window opening with the safety structure of bottom fix. • This design reduces the prices incurred for railings in the balcony.
THANK YOU
