Hettich Hinges Product Range
- 1.

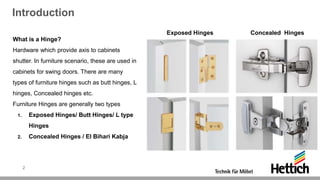

- 2. What is aHinge? Hardware which provide axis to cabinets shutter. In furniture scenario, these are used in cabinets for swing doors. There are many types of furniture hinges such as butt hinges, L hinges, Concealed hinges etc. Furniture Hinges are generally two types 1. Exposed Hinges/ Butt Hinges/ L type Hinges 2. Concealed Hinges / El Bihari Kabja Introduction Exposed Hinges Concealed Hinges 2

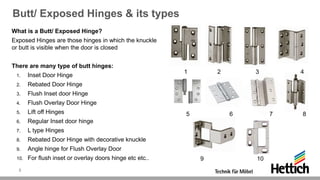

- 3. Butt/ Exposed Hinges& its types What is a Butt/ Exposed Hinge? Exposed Hinges are those hinges in which the knuckle or butt is visible when the door is closed There are many type of butt hinges: 1. Inset Door Hinge 2. Rebated Door Hinge 3. Flush Inset door Hinge 4. Flush Overlay Door Hinge 5. Lift off Hinges 6. Regular Inset door hinge 7. L type Hinges 8. Rebated Door Hinge with decorative knuckle 9. Angle hinge for Flush Overlay Door 10. For flush inset or overlay doors hinge etc etc.. 1 2 3 4 5 6 7 8 9 10 3

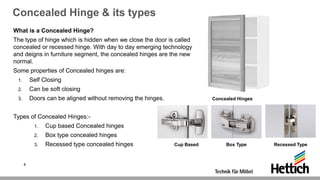

- 4. Concealed Hinge &its types What is a Concealed Hinge? The type of hinge which is hidden when we close the door is called concealed or recessed hinge. With day to day emerging technology and deigns in furniture segment, the concealed hinges are the new normal. Some properties of Concealed hinges are: 1. Self Closing 2. Can be soft closing 3. Doors can be aligned without removing the hinges. Types of Concealed Hinges:- 1. Cup based Concealed hinges 2. Box type concealed hinges 3. Recessed type concealed hinges Cup Based Box Type Recessed Type 4 Concealed Hinges

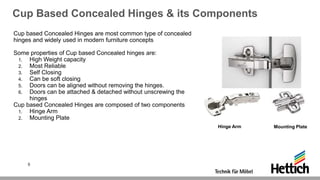

- 5. Cup Based ConcealedHinges & its Components Cup based Concealed Hinges are most common type of concealed hinges and widely used in modern furniture concepts Some properties of Cup based Concealed hinges are: 1. High Weight capacity 2. Most Reliable 3. Self Closing 4. Can be soft closing 5. Doors can be aligned without removing the hinges. 6. Doors can be attached & detached without unscrewing the hinges Cup based Concealed Hinges are composed of two components 1. Hinge Arm 2. Mounting Plate Hinge Arm Mounting Plate 5

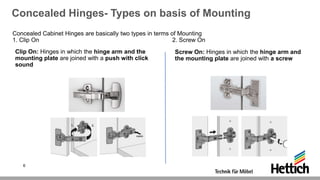

- 6. Concealed Hinges- Typeson basis of Mounting Concealed Cabinet Hinges are basically two types in terms of Mounting 1. Clip On 2. Screw On Clip On: Hinges in which the hinge arm and the mounting plate are joined with a push with click sound Screw On: Hinges in which the hinge arm and the mounting plate are joined with a screw 6

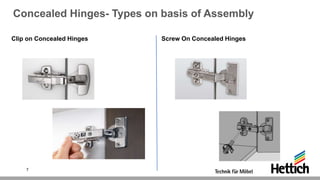

- 7. Concealed Hinges- Typeson basis of Assembly Clip on Concealed Hinges Screw On Concealed Hinges 7
- 8. 8 Clip on concealedHinges Clip-on assembly The hinge is slipped into the front of the mounting plate …then a light finger pressure and the hinge arm latches onto the mounting plate Disassembly The hinge is unlatched by pressing lightly on the latch which is hidden under the side arm for security reasons.

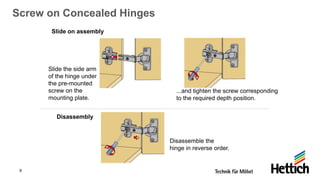

- 9. 9 Screw on ConcealedHinges Slide on assembly Slide the side arm of the hinge under the pre-mounted screw on the mounting plate. ...and tighten the screw corresponding to the required depth position. Disassemble the hinge in reverse order. Disassembly
- 10. Concealed Hinges- Typeson basis of Cranking 10

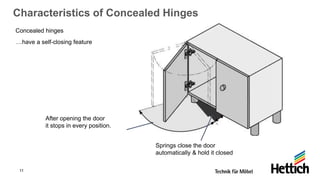

- 11. 11 Characteristics of ConcealedHinges Concealed hinges …have a self-closing feature Springs close the door automatically & hold it closed After opening the door it stops in every position.
- 12. 12 Characteristics of ConcealedHinges 3D door adjustment Overlay adjustment Height adjustment Depth adjustment

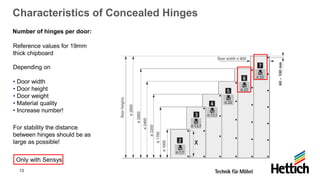

- 13. 13 Characteristics of ConcealedHinges Number of hinges per door: Depending on • Door width • Door height • Door weight • Material quality • Increase number! Reference values for 19mm thick chipboard For stability the distance between hinges should be as large as possible! Only with Sensys

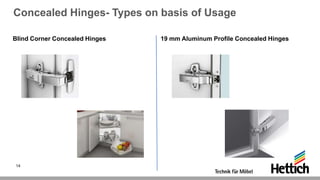

- 14. Concealed Hinges- Typeson basis of Usage Blind Corner Concealed Hinges 19 mm Aluminum Profile Concealed Hinges 14

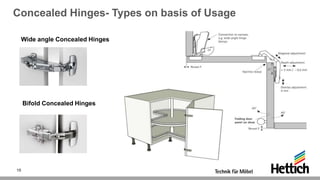

- 15. Concealed Hinges- Typeson basis of Usage Wide angle Concealed Hinges Bifold Concealed Hinges 15
- 16. Concealed Hinges- Typeson basis of Usage Screw on Glass Concealed Hinges 270° Opening Concealed Hinges 16

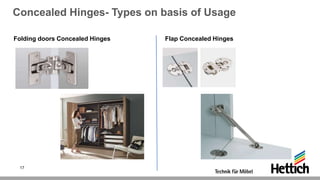

- 17. Concealed Hinges- Typeson basis of Usage Folding doors Concealed Hinges Flap Concealed Hinges 17

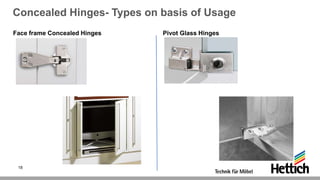

- 18. Concealed Hinges- Typeson basis of Usage Face frame Concealed Hinges Pivot Glass Hinges 18

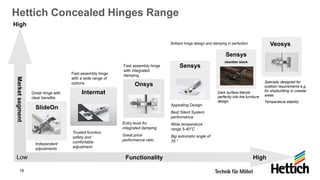

- 19. 19 Hettich Concealed HingesRange SlideOn Appealing Design Best Silent System performance Wide temperature range 5-40°C Big automatic angle of 35 ° Brilliant hinge design and damping in perfection Great hinge with clear benefits Independent adjustments Market segment Functionality Fast assembly hinge with a wide range of options Trusted function, safety and comfortable adjustment Intermat Sensys Sensys obsidian black Dark surface blends perfectly into the furniture design Fast assembly hinge with integrated damping Entry level for integrated damping Great price performance ratio Onsys Low High High Veosys Specially designed for outdoor requirements e.g. for shipbuilding or coastal areas Temperature stability

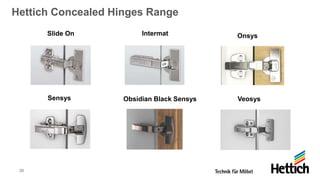

- 20. 20 Hettich Concealed HingesRange Intermat Slide On Sensys Onsys Obsidian Black Sensys Veosys

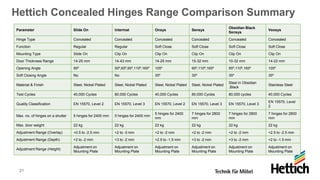

- 21. 21 Hettich Concealed HingesRange Comparison Summary Parameter Slide On Intermat Onsys Sensys Obsidian Black Sensys Veosys Hinge Type Concealed Concealed Concealed Concealed Concealed Concealed Function Regular Regular Soft Close Soft Close Soft Close Soft Close Mounting Type Slide On Clip On Clip On Clip On Clip On Clip On Door Thickness Range 14-25 mm 14-43 mm 14-25 mm 15-32 mm 10-32 mm 14-22 mm Opening Angle 95⁰ 50⁰,65⁰,95⁰,110⁰,165⁰ 105⁰ 95⁰,110⁰,165⁰ 95⁰,110⁰,165⁰ 105⁰ Soft Closing Angle No No 35⁰ 35⁰ 35⁰ 35⁰ Material & Finish Steel, Nickel Plated Steel, Nickel Plated Steel, Nickel Plated Steel, Nickel Plated Steel in Obsidian ,Black Stainless Steel Test Cycles 40,000 Cycles 80,000 Cycles 40,000 Cycles 80,000 Cycles 80,000 cycles 40,000 Cycles Quality Classification EN 15570, Level 2 EN 15570, Level 3 EN 15570, Level 2 EN 15570, Level 3 EN 15570, Level 3 EN 15570, Level 2 Max. no. of hinges on a shutter 5 hinges for 2400 mm 5 hinges for 2400 mm 5 hinges for 2400 mm 7 hinges for 2800 mm 7 hinges for 2800 mm 7 hinges for 2800 mm Max. door weight 22 kg 22 kg 22 kg 22 kg 22 kg 22 kg Adjustment Range (Overlay) +0.5 to -2.5 mm +2 to -3 mm +2 to -2 mm +2 to -2 mm +2 to -2 mm +2.5 to -2.5 mm Adjustment Range (Depth) +2 to -2 mm +3 to -2 mm +2.5 to -1.5 mm +3 to -2 mm +3 to -2 mm +2 to -1.5 mm Adjustment Range (Height) Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate
- 22.

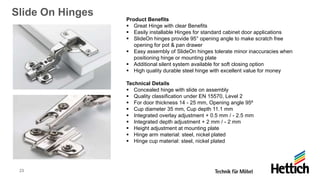

- 23. 23 Slide On Hinges ProductBenefits ▪ Great Hinge with clear Benefits ▪ Easily installable Hinges for standard cabinet door applications ▪ SlideOn hinges provide 95° opening angle to make scratch free opening for pot & pan drawer ▪ Easy assembly of SlideOn hinges tolerate minor inaccuracies when positioning hinge or mounting plate ▪ Additional silent system available for soft closing option ▪ High quality durable steel hinge with excellent value for money Technical Details ▪ Concealed hinge with slide on assembly ▪ Quality classification under EN 15570, Level 2 ▪ For door thickness 14 - 25 mm, Opening angle 95⁰ ▪ Cup diameter 35 mm, Cup depth 11.1 mm ▪ Integrated overlay adjustment + 0.5 mm / - 2.5 mm ▪ Integrated depth adjustment + 2 mm / - 2 mm ▪ Height adjustment at mounting plate ▪ Hinge arm material: steel, nickel plated ▪ Hinge cup material: steel, nickel plated

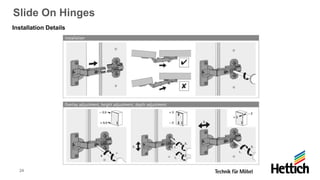

- 24.
- 25.

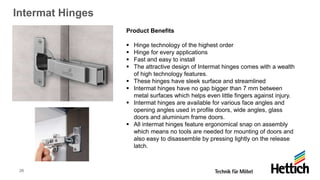

- 26. 26 Intermat Hinges Product Benefits ▪Hinge technology of the highest order ▪ Hinge for every applications ▪ Fast and easy to install ▪ The attractive design of Intermat hinges comes with a wealth of high technology features. ▪ These hinges have sleek surface and streamlined ▪ Intermat hinges have no gap bigger than 7 mm between metal surfaces which helps even little fingers against injury. ▪ Intermat hinges are available for various face angles and opening angles used in profile doors, wide angles, glass doors and aluminium frame doors. ▪ All intermat hinges feature ergonomical snap on assembly which means no tools are needed for mounting of doors and also easy to disassemble by pressing lightly on the release latch.

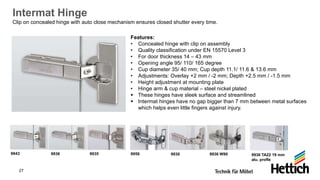

- 27. 27 Intermat Hinge Clip onconcealed hinge with auto close mechanism ensures closed shutter every time. Features: • Concealed hinge with clip on assembly • Quality classification under EN 15570 Level 3 • For door thickness 14 – 43 mm • Opening angle 95/ 110/ 165 degree • Cup diameter 35/ 40 mm; Cup depth 11.1/ 11.6 & 13.6 mm • Adjustments: Overlay +2 mm / -2 mm; Depth +2.5 mm / -1.5 mm • Height adjustment at mounting plate • Hinge arm & cup material – steel nickel plated ▪ These hinges have sleek surface and streamlined ▪ Intermat hinges have no gap bigger than 7 mm between metal surfaces which helps even little fingers against injury. 9943 9936 9935 9956 9930 9936 W90 9936 TA22 19 mm alu. profle

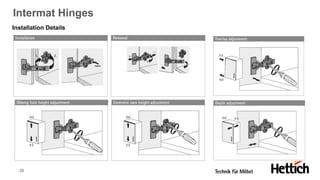

- 28.

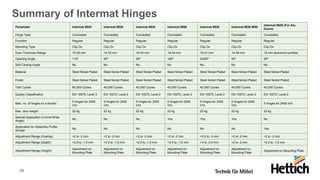

- 29. 29 Summary of IntermatHinges Parameter Intermat 9943 Intermat 9936 Intermat 9935 Intermat 9956 Intermat 9930 Intermat 9936 W90 Intermat 9936 (For Alu. Doors) Hinge Type Concealed Concealed Concealed Concealed Concealed Concealed Concealed Function Regular Regular Regular Regular Regular Regular Regular Mounting Type Clip On Clip On Clip On Clip On Clip On Clip On Clip On Door Thickness Range 15-25 mm 14-32 mm 16-43 mm 16-24 mm 16-21 mm 14-28 mm 19 mm aluminium profiles Opening Angle 110⁰ 95⁰ 95⁰ 165⁰ 50/65⁰ 95⁰ 95⁰ Soft Closing Angle No No No No No No No Material Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Finish Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Test Cycles 80,000 Cycles 40,000 Cycles 40,000 Cycles 40,000 Cycles 40,000 Cycles 40,000 Cycles 40,000 Cycles Quality Classification EN 15570, Level 3 EN 15570, Level 2 EN 15570, Level 2 EN 15570, Level 2 EN 15570, Level 2 EN 15570, Level 2 EN 15570, Level 2 Max. no. of hinges on a shutter 5 hinges for 2400 mm 5 hinges for 2400 mm 5 hinges for 2400 mm 5 hinges for 2400 mm 5 hinges for 2400 mm 5 hinges for 2400 mm 5 hinges for 2400 mm Max. door weight 22 kg 22 kg 22 kg 22 kg 22 kg 22 kg 22 kg Special Application (Corner/Wide Angle) No No No Yes Yes Yes No Application for Glass/Alu Profile Shutter No No No No No No Yes Adjustment Range (Overlay) +2 to -2 mm +2 to -2 mm +2 to -2 mm +2 to -2 mm +0.5 to -3 mm +2 to -2 mm +2 to -2 mm Adjustment Range (Depth) +2.5 to -1.5 mm +2.5 to -1.5 mm +2.5 to -1.5 mm +2.5 to -1.5 mm +3 to -0.5 mm +2 to -2 mm +2.5 to -1.5 mm Adjustment Range (Height) Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate
- 30.

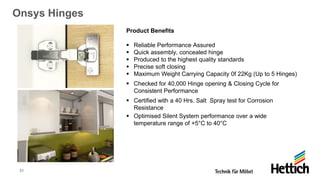

- 31. 31 Onsys Hinges Product Benefits ▪Reliable Performance Assured ▪ Quick assembly, concealed hinge ▪ Produced to the highest quality standards ▪ Precise soft closing ▪ Maximum Weight Carrying Capacity 0f 22Kg (Up to 5 Hinges) ▪ Checked for 40,000 Hinge opening & Closing Cycle for Consistent Performance ▪ Certified with a 40 Hrs. Salt Spray test for Corrosion Resistance ▪ Optimised Silent System performance over a wide temperature range of +5°C to 40°C

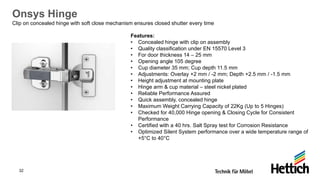

- 32. 32 Onsys Hinge Clip onconcealed hinge with soft close mechanism ensures closed shutter every time Features: • Concealed hinge with clip on assembly • Quality classification under EN 15570 Level 3 • For door thickness 14 – 25 mm • Opening angle 105 degree • Cup diameter 35 mm; Cup depth 11.5 mm • Adjustments: Overlay +2 mm / -2 mm; Depth +2.5 mm / -1.5 mm • Height adjustment at mounting plate • Hinge arm & cup material – steel nickel plated • Reliable Performance Assured • Quick assembly, concealed hinge • Maximum Weight Carrying Capacity of 22Kg (Up to 5 Hinges) • Checked for 40,000 Hinge opening & Closing Cycle for Consistent Performance • Certified with a 40 hrs. Salt Spray test for Corrosion Resistance • Optimized Silent System performance over a wide temperature range of +5°C to 40°C

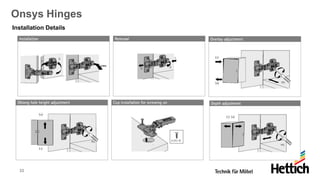

- 33.
- 34.

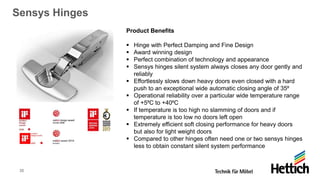

- 35. 35 Sensys Hinges Product Benefits ▪Hinge with Perfect Damping and Fine Design ▪ Award winning design ▪ Perfect combination of technology and appearance ▪ Sensys hinges silent system always closes any door gently and reliably ▪ Effortlessly slows down heavy doors even closed with a hard push to an exceptional wide automatic closing angle of 35⁰ ▪ Operational reliability over a particular wide temperature range of +5⁰C to +40⁰C ▪ If temperature is too high no slamming of doors and if temperature is too low no doors left open ▪ Extremely efficient soft closing performance for heavy doors but also for light weight doors ▪ Compared to other hinges often need one or two sensys hinges less to obtain constant silent system performance

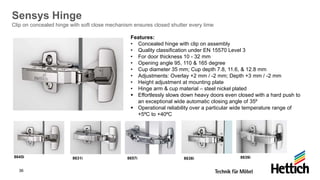

- 36. 36 Sensys Hinge Clip onconcealed hinge with soft close mechanism ensures closed shutter every time Features: • Concealed hinge with clip on assembly • Quality classification under EN 15570 Level 3 • For door thickness 10 - 32 mm • Opening angle 95, 110 & 165 degree • Cup diameter 35 mm; Cup depth 7.8, 11.6, & 12.8 mm • Adjustments: Overlay +2 mm / -2 mm; Depth +3 mm / -2 mm • Height adjustment at mounting plate • Hinge arm & cup material – steel nickel plated ▪ Effortlessly slows down heavy doors even closed with a hard push to an exceptional wide automatic closing angle of 35⁰ ▪ Operational reliability over a particular wide temperature range of +5⁰C to +40⁰C 8645i 8631i 8657i 8638i 8639i

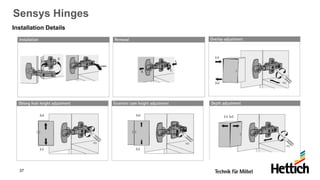

- 37.

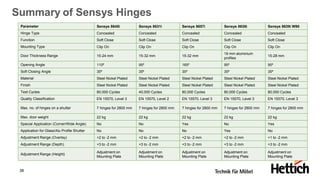

- 38. 38 Summary of SensysHinges Parameter Sensys 8645i Sensys 8631i Sensys 8657i Sensys 8638i Sensys 8639i W90 Hinge Type Concealed Concealed Concealed Concealed Concealed Function Soft Close Soft Close Soft Close Soft Close Soft Close Mounting Type Clip On Clip On Clip On Clip On Clip On Door Thickness Range 15-24 mm 15-32 mm 15-32 mm 19 mm aluminium profiles 15-28 mm Opening Angle 110⁰ 95⁰ 165⁰ 95⁰ 95⁰ Soft Closing Angle 35⁰ 35⁰ 35⁰ 35⁰ 35⁰ Material Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Finish Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Test Cycles 80,000 Cycles 40,000 Cycles 80,000 Cycles 80,000 Cycles 80,000 Cycles Quality Classification EN 15570, Level 3 EN 15570, Level 2 EN 15570, Level 3 EN 15570, Level 3 EN 15570, Level 3 Max. no. of hinges on a shutter 7 hinges for 2800 mm 7 hinges for 2800 mm 7 hinges for 2800 mm 7 hinges for 2800 mm 7 hinges for 2800 mm Max. door weight 22 kg 22 kg 22 kg 22 kg 22 kg Special Application (Corner/Wide Angle) No No Yes No Yes Application for Glass/Alu Profile Shutter No No No Yes No Adjustment Range (Overlay) +2 to -2 mm +2 to -2 mm +2 to -2 mm +2 to -2 mm +1 to -2 mm Adjustment Range (Depth) +3 to -2 mm +3 to -2 mm +3 to -2 mm +3 to -2 mm +3 to -2 mm Adjustment Range (Height) Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate
- 39. Obsidian Black SensysHinges https://web.hettich.com/en-in/products-catalogue/hinges#/

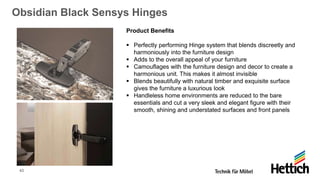

- 40. 40 Obsidian Black SensysHinges Product Benefits ▪ Perfectly performing Hinge system that blends discreetly and harmoniously into the furniture design ▪ Adds to the overall appeal of your furniture ▪ Camouflages with the furniture design and decor to create a harmonious unit. This makes it almost invisible ▪ Blends beautifully with natural timber and exquisite surface gives the furniture a luxurious look ▪ Handleless home environments are reduced to the bare essentials and cut a very sleek and elegant figure with their smooth, shining and understated surfaces and front panels

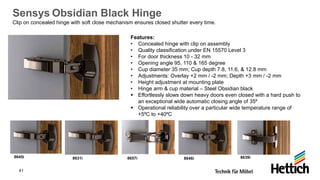

- 41. 41 Sensys Obsidian BlackHinge Clip on concealed hinge with soft close mechanism ensures closed shutter every time. Features: • Concealed hinge with clip on assembly • Quality classification under EN 15570 Level 3 • For door thickness 10 - 32 mm • Opening angle 95, 110 & 165 degree • Cup diameter 35 mm; Cup depth 7.8, 11.6, & 12.8 mm • Adjustments: Overlay +2 mm / -2 mm; Depth +3 mm / -2 mm • Height adjustment at mounting plate • Hinge arm & cup material – Steel Obsidian black ▪ Effortlessly slows down heavy doors even closed with a hard push to an exceptional wide automatic closing angle of 35⁰ ▪ Operational reliability over a particular wide temperature range of +5⁰C to +40⁰C 8645i 8631i 8657i 8646i 8639i

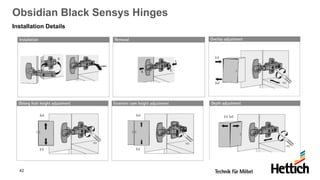

- 42. 42 Obsidian Black SensysHinges Installation Details

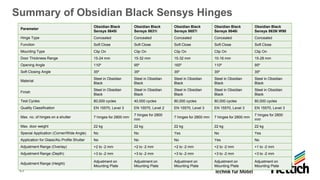

- 43. 43 Summary of ObsidianBlack Sensys Hinges Parameter Obsidian Black Sensys 8645i Obsidian Black Sensys 8631i Obsidian Black Sensys 8657i Obsidian Black Sensys 8646i Obsidian Black Sensys 8639i W90 Hinge Type Concealed Concealed Concealed Concealed Concealed Function Soft Close Soft Close Soft Close Soft Close Soft Close Mounting Type Clip On Clip On Clip On Clip On Clip On Door Thickness Range 15-24 mm 15-32 mm 15-32 mm 10-16 mm 15-28 mm Opening Angle 110⁰ 95⁰ 165⁰ 110⁰ 95⁰ Soft Closing Angle 35⁰ 35⁰ 35⁰ 35⁰ 35⁰ Material Steel in Obsidian Black Steel in Obsidian Black Steel in Obsidian Black Steel in Obsidian Black Steel in Obsidian Black Finish Steel in Obsidian Black Steel in Obsidian Black Steel in Obsidian Black Steel in Obsidian Black Steel in Obsidian Black Test Cycles 80,000 cycles 40,000 cycles 80,000 cycles 80,000 cycles 80,000 cycles Quality Classification EN 15570, Level 3 EN 15570, Level 2 EN 15570, Level 3 EN 15570, Level 3 EN 15570, Level 3 Max. no. of hinges on a shutter 7 hinges for 2800 mm 7 hinges for 2800 mm 7 hinges for 2800 mm 7 hinges for 2800 mm 7 hinges for 2800 mm Max. door weight 22 kg 22 kg 22 kg 22 kg 22 kg Special Application (Corner/Wide Angle) No No Yes No Yes Application for Glass/Alu Profile Shutter No No No Yes No Adjustment Range (Overlay) +2 to -2 mm +2 to -2 mm +2 to -2 mm +2 to -2 mm +1 to -2 mm Adjustment Range (Depth) +3 to -2 mm +3 to -2 mm +3 to -2 mm +3 to -2 mm +3 to -2 mm Adjustment Range (Height) Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate Adjustment on Mounting Plate
- 44.

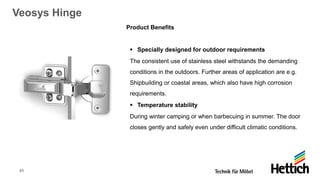

- 45. 45 Veosys Hinge Product Benefits ▪Specially designed for outdoor requirements The consistent use of stainless steel withstands the demanding conditions in the outdoors. Further areas of application are e.g. Shipbuilding or coastal areas, which also have high corrosion requirements. ▪ Temperature stability During winter camping or when barbecuing in summer. The door closes gently and safely even under difficult climatic conditions.

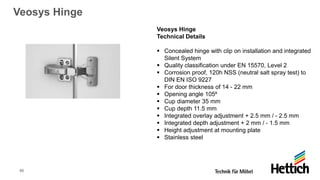

- 46. 46 Veosys Hinge Veosys Hinge TechnicalDetails ▪ Concealed hinge with clip on installation and integrated Silent System ▪ Quality classification under EN 15570, Level 2 ▪ Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN ISO 9227 ▪ For door thickness of 14 - 22 mm ▪ Opening angle 105⁰ ▪ Cup diameter 35 mm ▪ Cup depth 11.5 mm ▪ Integrated overlay adjustment + 2.5 mm / - 2.5 mm ▪ Integrated depth adjustment + 2 mm / - 1.5 mm ▪ Height adjustment at mounting plate ▪ Stainless steel

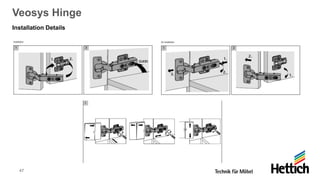

- 47.
- 48.

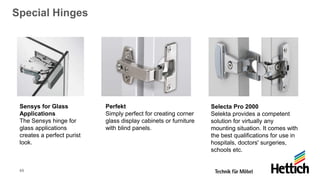

- 49. 49 Special Hinges Sensys forGlass Applications The Sensys hinge for glass applications creates a perfect purist look. Perfekt Simply perfect for creating corner glass display cabinets or furniture with blind panels. Selecta Pro 2000 Selekta provides a competent solution for virtually any mounting situation. It comes with the best qualifications for use in hospitals, doctors' surgeries, schools etc.

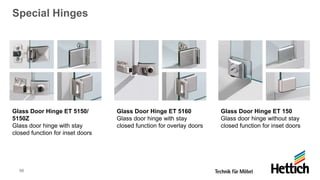

- 50. 50 Special Hinges Glass DoorHinge ET 5150/ 5150Z Glass door hinge with stay closed function for inset doors Glass Door Hinge ET 5160 Glass door hinge with stay closed function for overlay doors Glass Door Hinge ET 150 Glass door hinge without stay closed function for inset doors

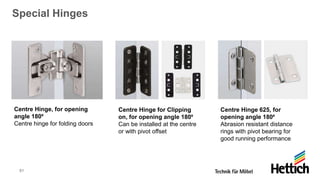

- 51. 51 Special Hinges Centre Hinge,for opening angle 180⁰ Centre hinge for folding doors Centre Hinge for Clipping on, for opening angle 180⁰ Can be installed at the centre or with pivot offset Centre Hinge 625, for opening angle 180⁰ Abrasion resistant distance rings with pivot bearing for good running performance

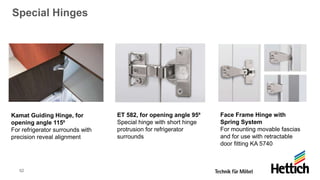

- 52. 52 Special Hinges Kamat GuidingHinge, for opening angle 115⁰ For refrigerator surrounds with precision reveal alignment ET 582, for opening angle 95⁰ Special hinge with short hinge protrusion for refrigerator surrounds Face Frame Hinge with Spring System For mounting movable fascias and for use with retractable door fitting KA 5740

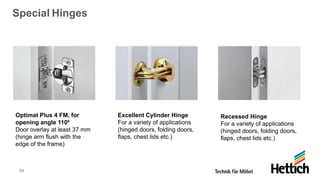

- 53. 53 Special Hinges Optimat Plus4 FM, for opening angle 110⁰ Door overlay at least 37 mm (hinge arm flush with the edge of the frame) Excellent Cylinder Hinge For a variety of applications (hinged doors, folding doors, flaps, chest lids etc.) Recessed Hinge For a variety of applications (hinged doors, folding doors, flaps, chest lids etc.)

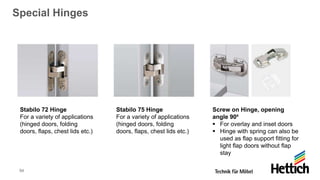

- 54. 54 Special Hinges Stabilo 72Hinge For a variety of applications (hinged doors, folding doors, flaps, chest lids etc.) Stabilo 75 Hinge For a variety of applications (hinged doors, folding doors, flaps, chest lids etc.) Screw on Hinge, opening angle 90⁰ ▪ For overlay and inset doors ▪ Hinge with spring can also be used as flap support fitting for light flap doors without flap stay

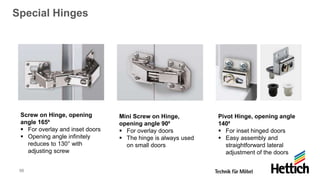

- 55. 55 Special Hinges Screw onHinge, opening angle 165⁰ ▪ For overlay and inset doors ▪ Opening angle infinitely reduces to 130° with adjusting screw Mini Screw on Hinge, opening angle 90⁰ ▪ For overlay doors ▪ The hinge is always used on small doors Pivot Hinge, opening angle 140⁰ ▪ For inset hinged doors ▪ Easy assembly and straightforward lateral adjustment of the doors

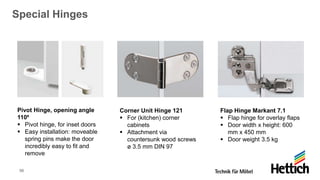

- 56. 56 Special Hinges Pivot Hinge,opening angle 110⁰ ▪ Pivot hinge, for inset doors ▪ Easy installation: moveable spring pins make the door incredibly easy to fit and remove Corner Unit Hinge 121 ▪ For (kitchen) corner cabinets ▪ Attachment via countersunk wood screws ø 3.5 mm DIN 97 Flap Hinge Markant 7.1 ▪ Flap hinge for overlay flaps ▪ Door width x height: 600 mm x 450 mm ▪ Door weight 3.5 kg

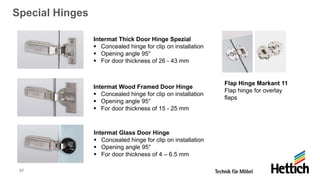

- 57. 57 Special Hinges Flap HingeMarkant 11 Flap hinge for overlay flaps Intermat Thick Door Hinge Spezial ▪ Concealed hinge for clip on installation ▪ Opening angle 95° ▪ For door thickness of 26 - 43 mm Intermat Wood Framed Door Hinge ▪ Concealed hinge for clip on installation ▪ Opening angle 95° ▪ For door thickness of 15 - 25 mm Intermat Glass Door Hinge ▪ Concealed hinge for clip on installation ▪ Opening angle 95° ▪ For door thickness of 4 – 6.5 mm
