1. P R O D U C T I V I T Y T H R O U G H T E C H N O L O G Y

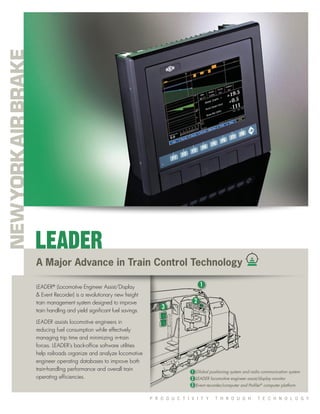

A Major Advance in Train Control Technology
LEADER®
(Locomotive Engineer Assist/Display
& Event Recorder) is a revolutionary new freight
train management system designed to improve
train handling and yield significant fuel savings.
LEADER assists locomotive engineers in
reducing fuel consumption while effectively
managing trip time and minimizing in-train
forces. LEADER’s back-office software utilities
help railroads organize and analyze locomotive
engineer operating databases to improve both
train-handling performance and overall train
operating efficiencies.
LEADER
1
3
2
Global positioning system and radio communication system
LEADER locomotive engineer assist/display monitor
Event recorder/computer and Profiler®
computer platform
1
2
3

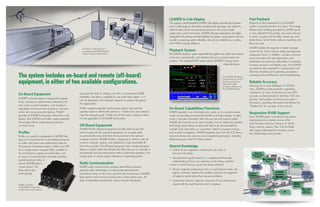

2. On-Board Equipment
LEADER®
on-board electronic equipment captures,
stores, and reports real-time data collected as the
train works in normal operation, and includes a
cab display that shows train dynamics in real time
as the train moves across the territory. Profiler®
provides all LEADER functionality without the in-cab
display. Both LEADER and Profiler create substantial
fuel savings without compromising cycle time
or in-train forces.
Profiler
Profiler is a specific configuration of LEADER that
does not incorporate the in-cab display/computer
to collect and report train performance data for
the purpose of post-trip analysis. Profiler uses GPS
and a single board computer (SBC) installed on
the locomotive to capture and store data, and
an array of communications channels including
spread spectrum radio, to
transmit LEADER data to
a base station. The
base station then
automatically
processes the data for analysis. As with a conventional LEADER
installation, the data is available for use at the base station, or it
can be delivered to the railroad’s network for analysis throughout
the organization.
Profiler captures engineers’ performance metrics and real-time
operation data to identify the optimal or “Golden Run” best suited to
meet the railroad’s goals. Profiler has all the hooks in place to allow
it to be upgraded to full LEADER functionality.
Off-Board Equipment
LEADER/Profiler off-board equipment includes data servers that
communicate with the on-board equipment via wayside radio
to automatically move data from the locomotive to the railroad
computer network. LEADER/Profiler is designed to interface with all
common computer systems, and establishes a high bandwidth RF
link to the wayside. The off-board equipment also includes playback
stations, located within the railroad, that allow the user to manually or
automatically process performance data to profile the operation, find
trouble spots, or ensure proper adherence to operating policy.
Radio Communication
LEADER radio communication employs state-of-the-art spread
spectrum radio technology to communicate data between
locomotives when on the move, and from the locomotives to LEADER
base stations when the locomotives enter a base station zone. All
data is transmitted automatically without manual intervention.
Fast Payback
Payback on the investment for a full LEADER
system is typically less than two years. The energy-
efficient train handling provided by LEADER results
in very substantial fuel savings, less wear and tear
on track, couplers and knuckles, wheel sets, and
brake shoes—which further reduces operating and
life-cycle costs.
LEADER enables the engineer to better manage
in-train forces, which reduces lading damage and
subsequent claims. In addition, accident insurance
costs associated with train separations and
derailments are reduced, while safety is increased,
lowering insurance and liability costs. And LEADER
provides the data required for creating more cost-
effective scheduling and operating procedures—
increasing railroad efficiency and competitiveness.
Reliable Accuracy
Drawing from a track database of 120,000
miles, LEADER provides predictive algorithmic
calculations of in-train forces that are over 95%
accurate, as demonstrated in field tests. TDS’ train
dynamic track profiles are the most accurate in
the industry, providing information that defines the
“Golden Run” for any type of train service.
Responsive NYAB Support
Every LEADER system is backed by the expert
engineering and customer service of the
Train Dynamics Services Group in Ft. Worth,
Texas, and the superior New York Air Brake
field support delivered from locations across
the United States and Canada.
LEADER®
Dynamics
Models
Back-Office®
Tools
Advanced
Event Recorder
Playback
Driver Assist
Based On
Golden Run
Analysis
Databases
Consist
Track Profile GPS
Human-
Machine
Interface
Profiler®
Analyzed
Run Data
Run Data
Raw Data:
Sensor Array
or LSI
On-Board
Storage
Profiler provides
all LEADER functionality
without the in-cab display.
The system includes on-board and remote (off-board)
equipment, in either of two available configurations.
LEADER In-Cab Display
The rugged, sunlight-readable LEADER cab display provides the engineer
with a wide range of information including track topology, train trajectory,
real-time status of trail and remote locomotives in the consist, brake
system status, and in-train forces. LEADER software applications are highly
integrated with existing on-board display/computers, saving space and cost
as well as improving system reliability, and can be installed as an overlay
with NYAB computer platforms.
Playback System
The LEADER playback system assembles the logfiles from all the locomotives
in the train automatically, and identifies the train’s correct location for
analysis. The integrated GPS system allows LEADER to always know
where the train is.
On-Board Capabilities/Functions
LEADER operates in an information-only mode, or in a proactive-assist
mode, by providing recommended throttle and brake settings. In either
mode, it provides information that will save fuel and improve safety.
LEADER also functions as an event recorder, and its underlying simulator
technology easily allows its real-world data to be downloaded for
in-depth study and replay on a simulator—ideal for engineer training
and incident investigation. LEADER integrates input from the EOT device,
trail and remote units, and any microcomputer-based system, including
distributed power and ECP brake systems.
Shared Knowledge
• Enable all your engineers, including the very best, to
become even better.
• Set operational goals based on a complete and thorough
understanding of how your operation works today, and then
monitor to ensure that your goals are being achieved.
• Monitor engineer performance from a road foreman’s desk with
regular, automatic analysis that enables proactive management
of negative trends before they become problems.
• Understand common, objective measures of train performance
shared with the road foreman and/or engineer.
The LEADER playback
screen features control
(bottom panel) and
status (far right)
windows adjacent to
the LEADER display.
All data is collected and
processed by LEADER/Profiler
without manual intervention.

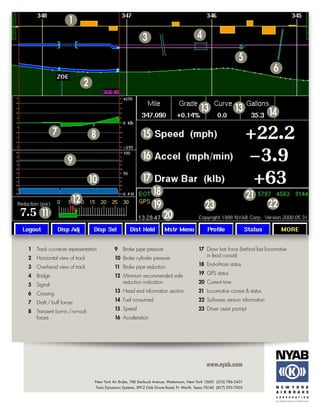

3. New York Air Brake, 748 Starbuck Avenue, Watertown, New York 13601 (315) 786-5431
Train Dynamics Systems, 8912 Oak Grove Road, Ft. Worth, Texas 76140 (817) 293-7005
www.nyab.com
17 Draw bar force (behind last locomotive
in lead consist)
18 End-of-train status
19 GPS status
20 Current time
21 Locomotive consist & status
22 Software version information
23 Driver assist prompt
1 Track curvature representation
2 Horizontal view of track
3 Overhead view of track
4 Bridge
5 Signal
6 Crossing
7 Draft / buff forces
8 Transient (run-in /run-out)
forces
9 Brake pipe pressure
10 Brake cylinder pressure
11 Brake pipe reduction
12 Minimum recommended safe
reduction indication
13 Head end information section
14 Fuel consumed
15 Speed
16 Acceleration
22
1
2
3 4
5
6
7 8
9
10
11
12
13 13 14
15
16
17
18
19
20
21
23
