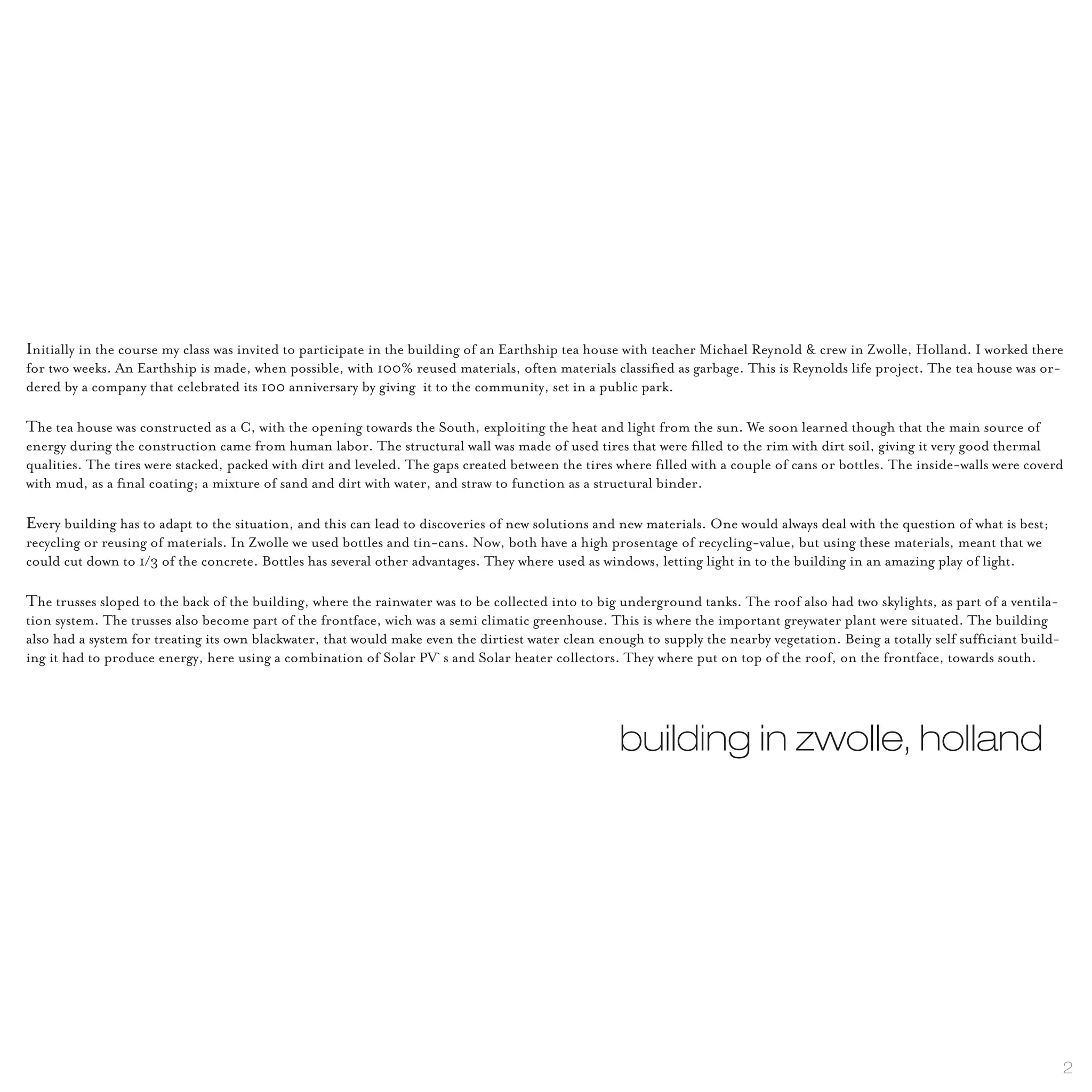

3. Initially in the course my class was invited to participate in the building of an Earthship tea house with teacher Michael Reynold & crew in Zwolle, Holland. I worked there
for two weeks. An Earthship is made, when possible, with 100% reused materials, often materials classified as garbage. This is Reynolds life project. The tea house was or-
dered by a company that celebrated its 100 anniversary by giving it to the community, set in a public park.

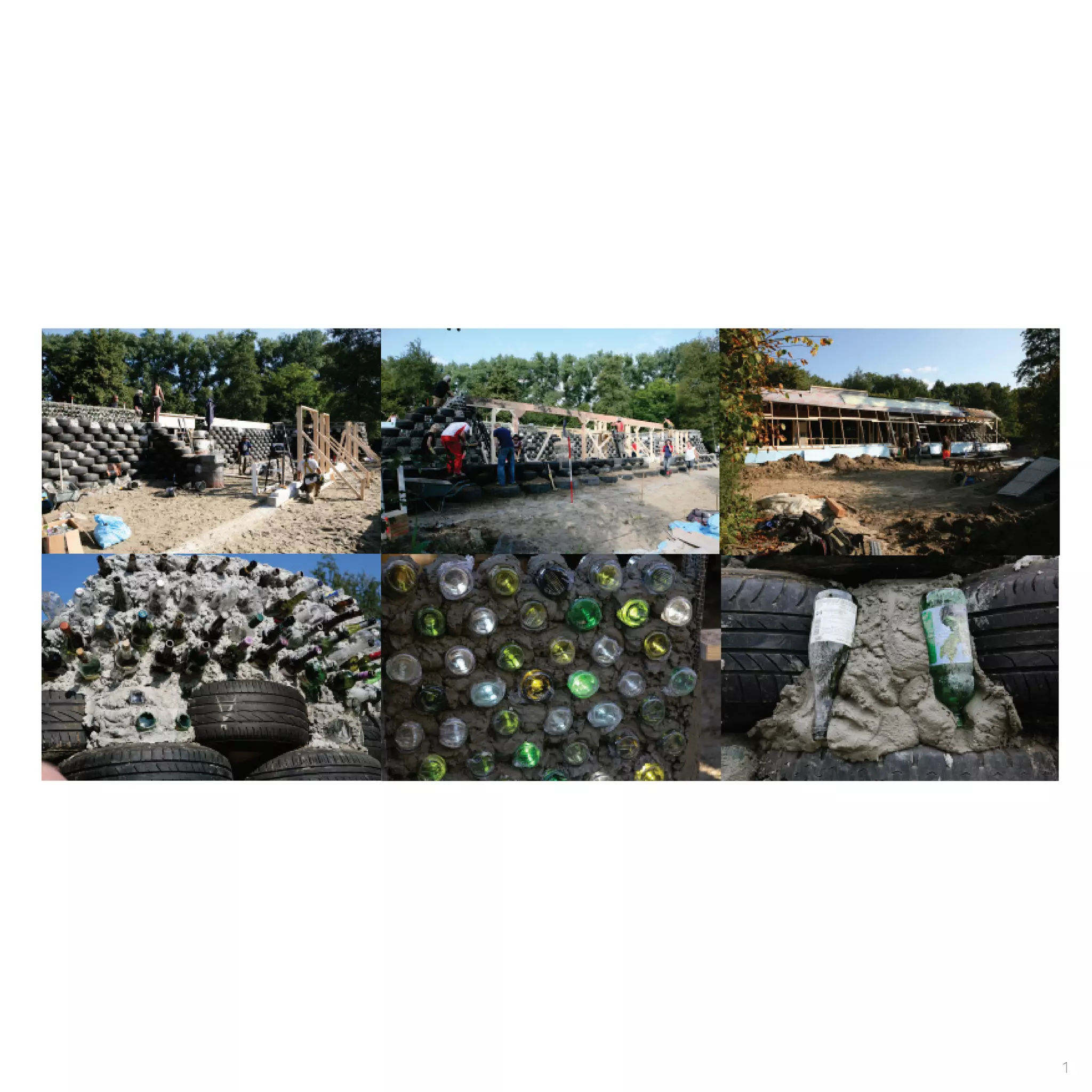

The tea house was constructed as a C, with the opening towards the South, exploiting the heat and light from the sun. We soon learned though that the main source of
energy during the construction came from human labor. The structural wall was made of used tires that were filled to the rim with dirt soil, giving it very good thermal
qualities. The tires were stacked, packed with dirt and leveled. The gaps created between the tires where filled with a couple of cans or bottles. The inside-walls were coverd
with mud, as a final coating; a mixture of sand and dirt with water, and straw to function as a structural binder.
Every building has to adapt to the situation, and this can lead to discoveries of new solutions and new materials. One would always deal with the question of what is best;
recycling or reusing of materials. In Zwolle we used bottles and tin-cans. Now, both have a high prosentage of recycling-value, but using these materials, meant that we
could cut down to 1/3 of the concrete. Bottles has several other advantages. They where used as windows, letting light in to the building in an amazing play of light.
The trusses sloped to the back of the building, where the rainwater was to be collected into to big underground tanks. The roof also had two skylights, as part of a ventila-
tion system. The trusses also become part of the frontface, wich was a semi climatic greenhouse. This is where the important greywater plant were situated. The building
also had a system for treating its own blackwater, that would make even the dirtiest water clean enough to supply the nearby vegetation. Being a totally self sufficiant build-
ing it had to produce energy, here using a combination of Solar PV`s and Solar heater collectors. They where put on top of the roof, on the frontface, towards south.
building in zwolle, holland
2

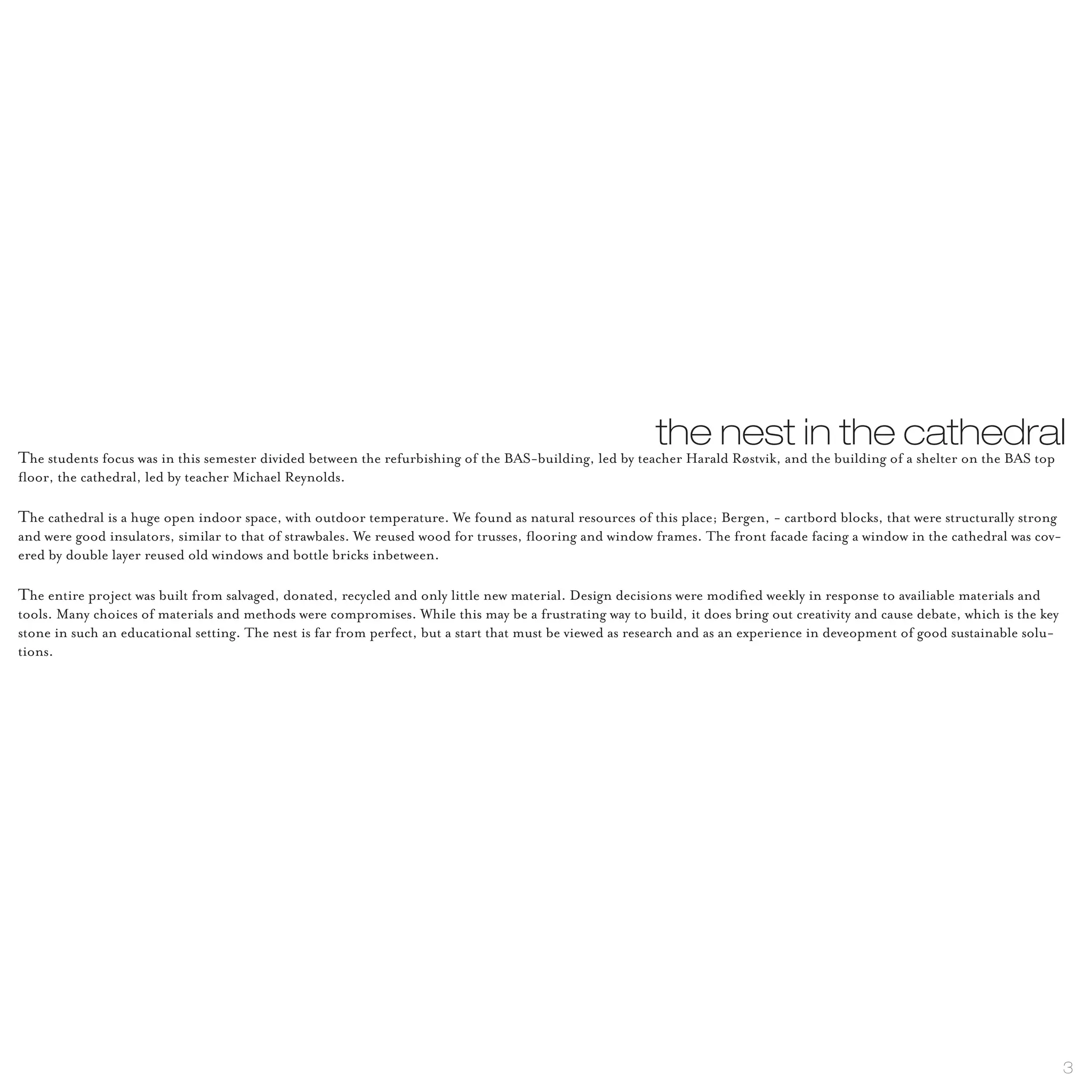

4. the nest in the cathedral
The students focus was in this semester divided between the refurbishing of the BAS-building, led by teacher Harald Røstvik, and the building of a shelter on the BAS top
floor, the cathedral, led by teacher Michael Reynolds.

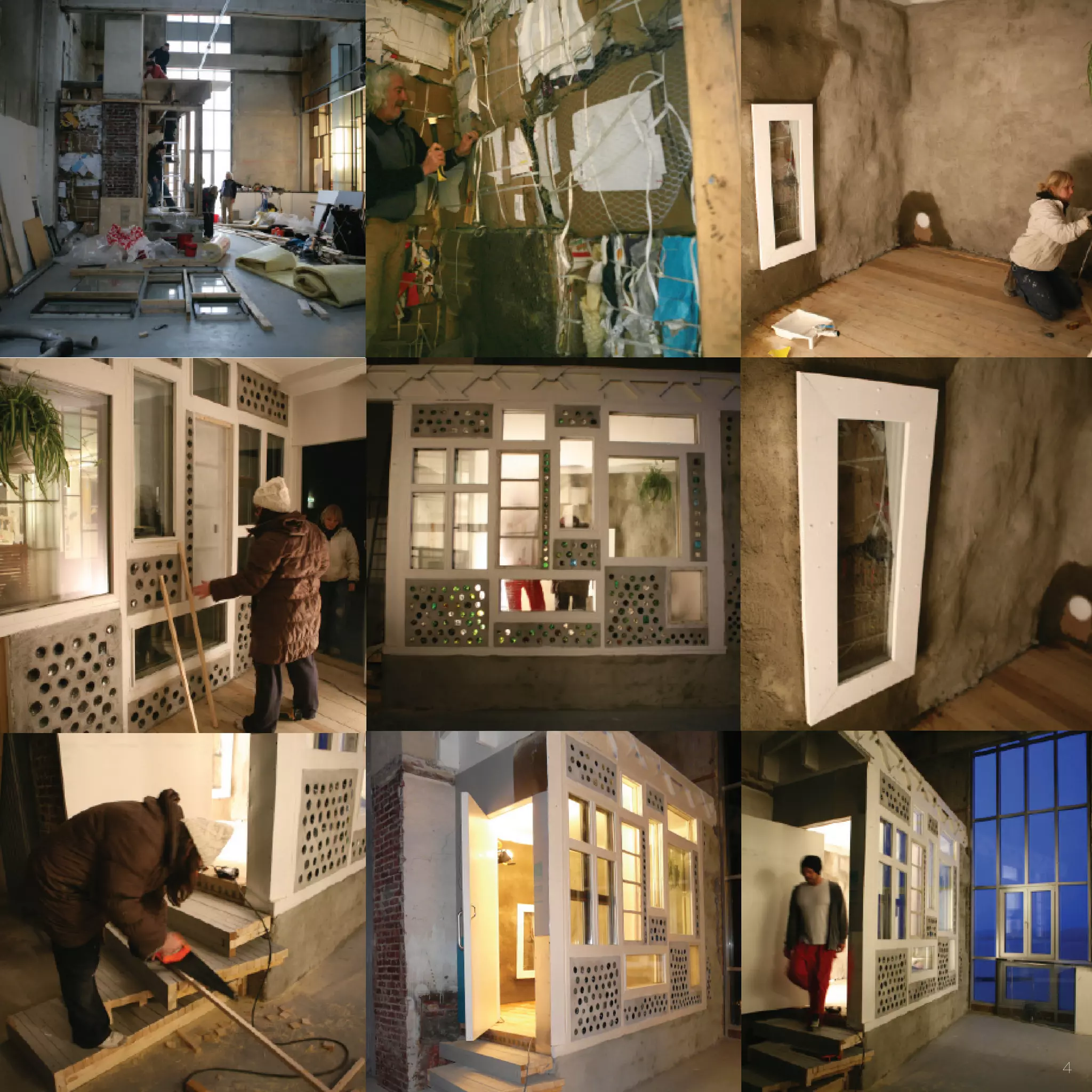

The cathedral is a huge open indoor space, with outdoor temperature. We found as natural resources of this place; Bergen, - cartbord blocks, that were structurally strong
and were good insulators, similar to that of strawbales. We reused wood for trusses, flooring and window frames. The front facade facing a window in the cathedral was cov-
ered by double layer reused old windows and bottle bricks inbetween.
The entire project was built from salvaged, donated, recycled and only little new material. Design decisions were modified weekly in response to availiable materials and
tools. Many choices of materials and methods were compromises. While this may be a frustrating way to build, it does bring out creativity and cause debate, which is the key
stone in such an educational setting. The nest is far from perfect, but a start that must be viewed as research and as an experience in deveopment of good sustainable solu-
tions.
3

5. 4

6. bas - potentially
Space as something you envolve your self in, put on and dress up in
5

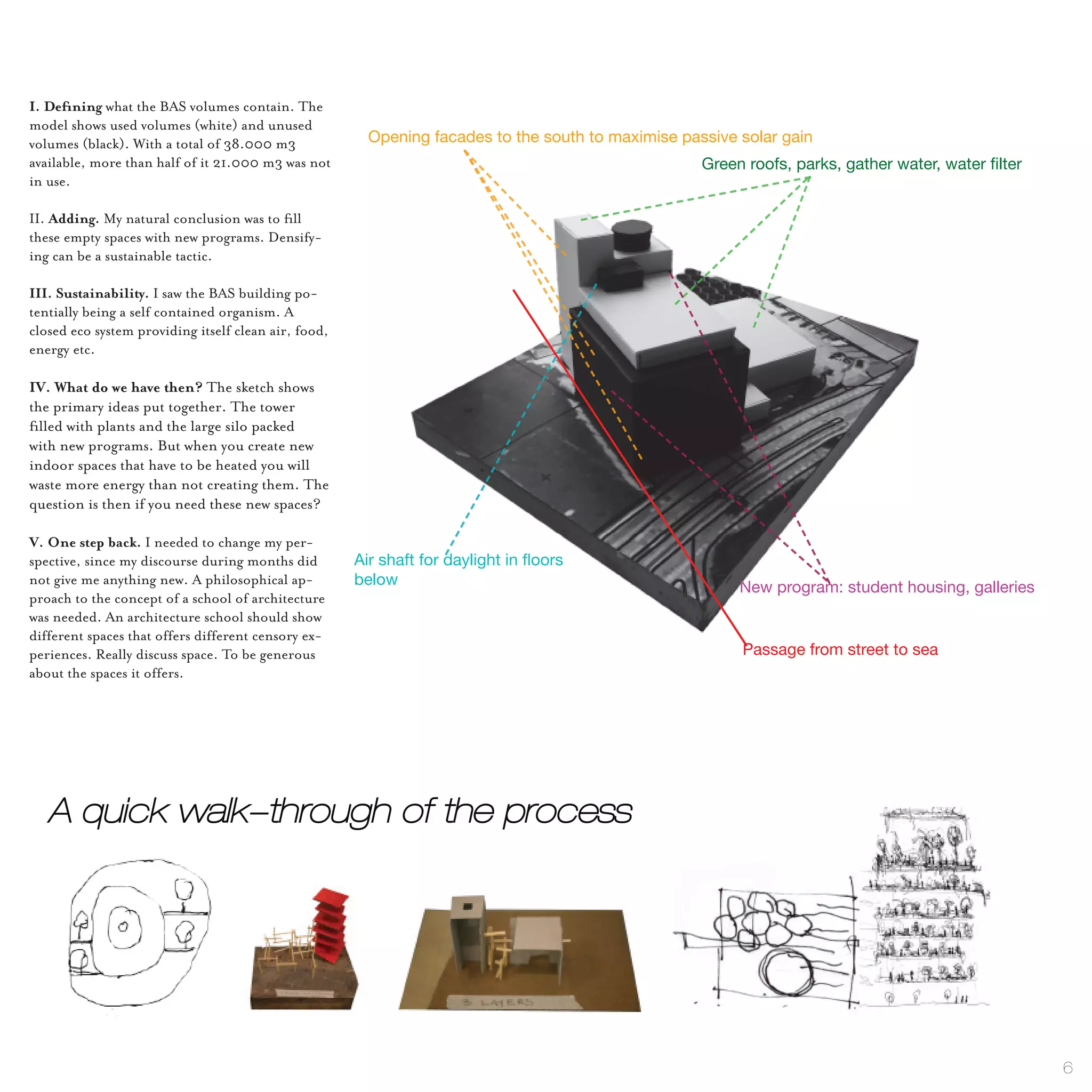

7. I. Defining what the BAS volumes contain. The
model shows used volumes (white) and unused
volumes (black). With a total of 38.000 m3 Opening facades to the south to maximise passive solar gain
available, more than half of it 21.000 m3 was not Green roofs, parks, gather water, water filter
in use.
II. Adding. My natural conclusion was to fill
these empty spaces with new programs. Densify-
ing can be a sustainable tactic.
III. Sustainability. I saw the BAS building po-
tentially being a self contained organism. A
closed eco system providing itself clean air, food,
energy etc.
IV. What do we have then? The sketch shows
the primary ideas put together. The tower
filled with plants and the large silo packed
with new programs. But when you create new
indoor spaces that have to be heated you will
waste more energy than not creating them. The
question is then if you need these new spaces?
V. One step back. I needed to change my per-
spective, since my discourse during months did Air shaft for daylight in floors
not give me anything new. A philosophical ap- below New program: student housing, galleries
proach to the concept of a school of architecture
was needed. An architecture school should show
different spaces that offers different censory ex-
periences. Really discuss space. To be generous Passage from street to sea
about the spaces it offers.
A quick walk-through of the process
6

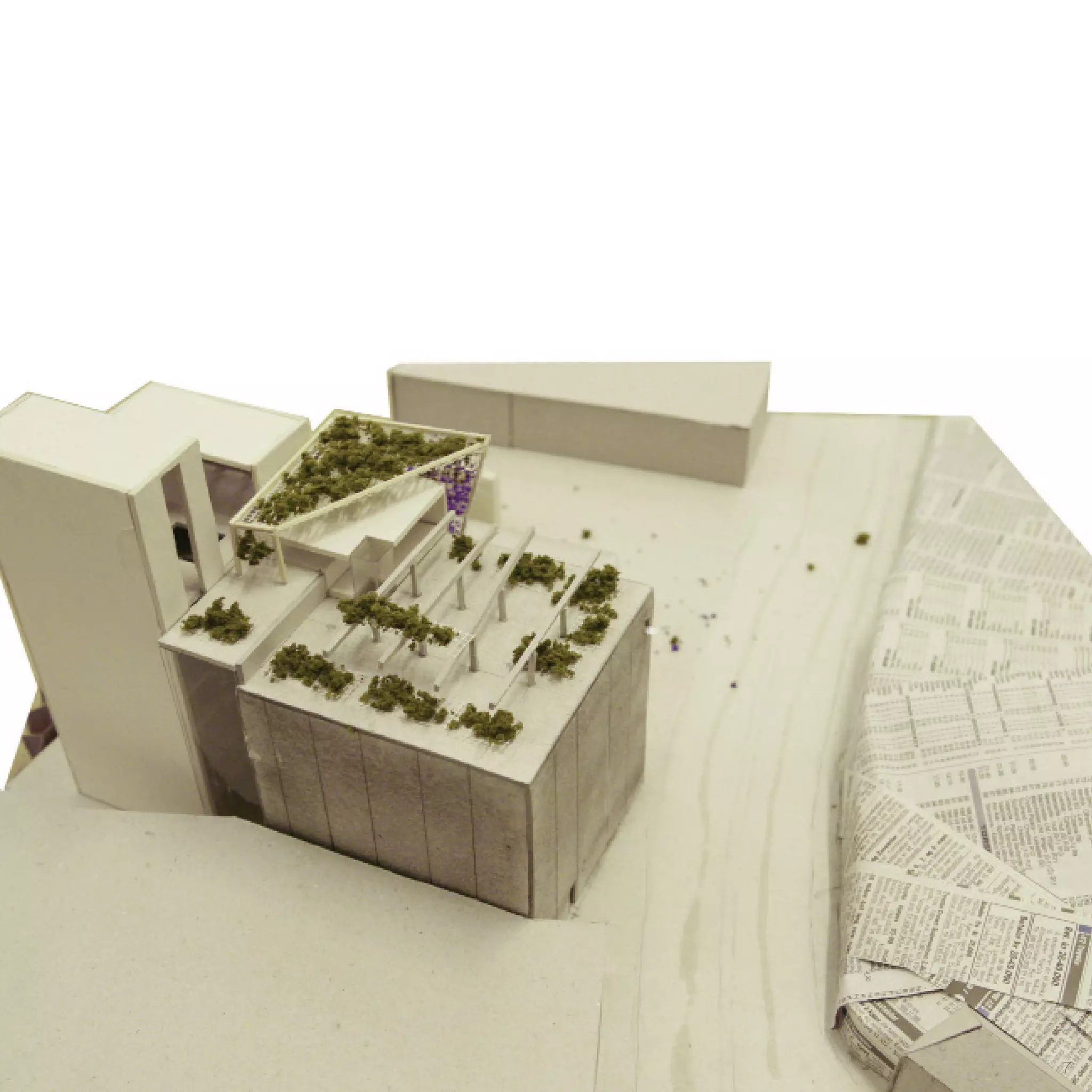

8. 7

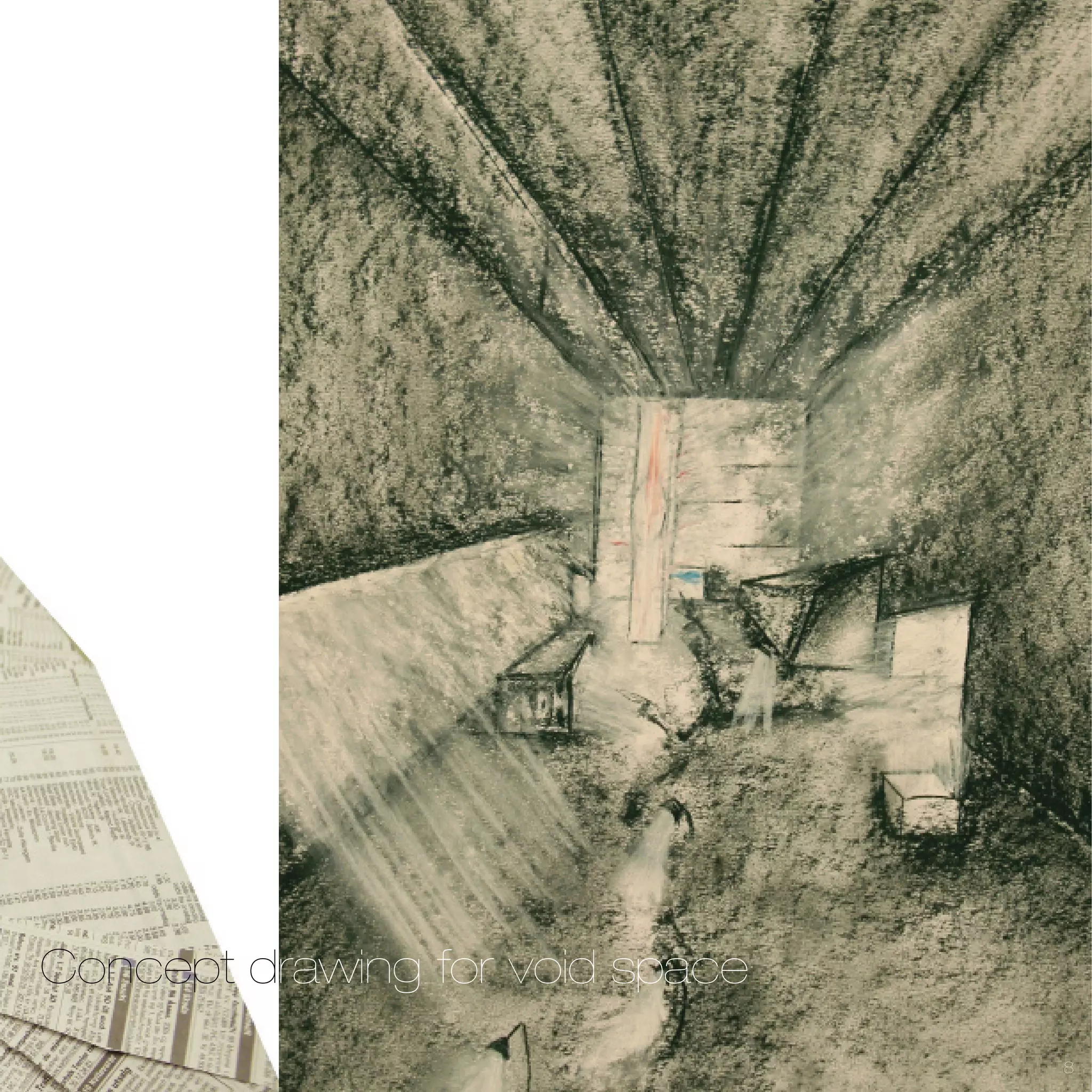

9. Concept drawing for void space
8

10. New BAS nocturnal landscape
9

11. b
Park area light and shadows
S.O.S sleep
Pier for the floating BAS-
satelite
2
e
nc
era
Ent
Workshops
a
BAS gallery
WhiteBox
Aud. A Garden
Admin.
a
b En
ter
an
ce
1(
se
cre
t)

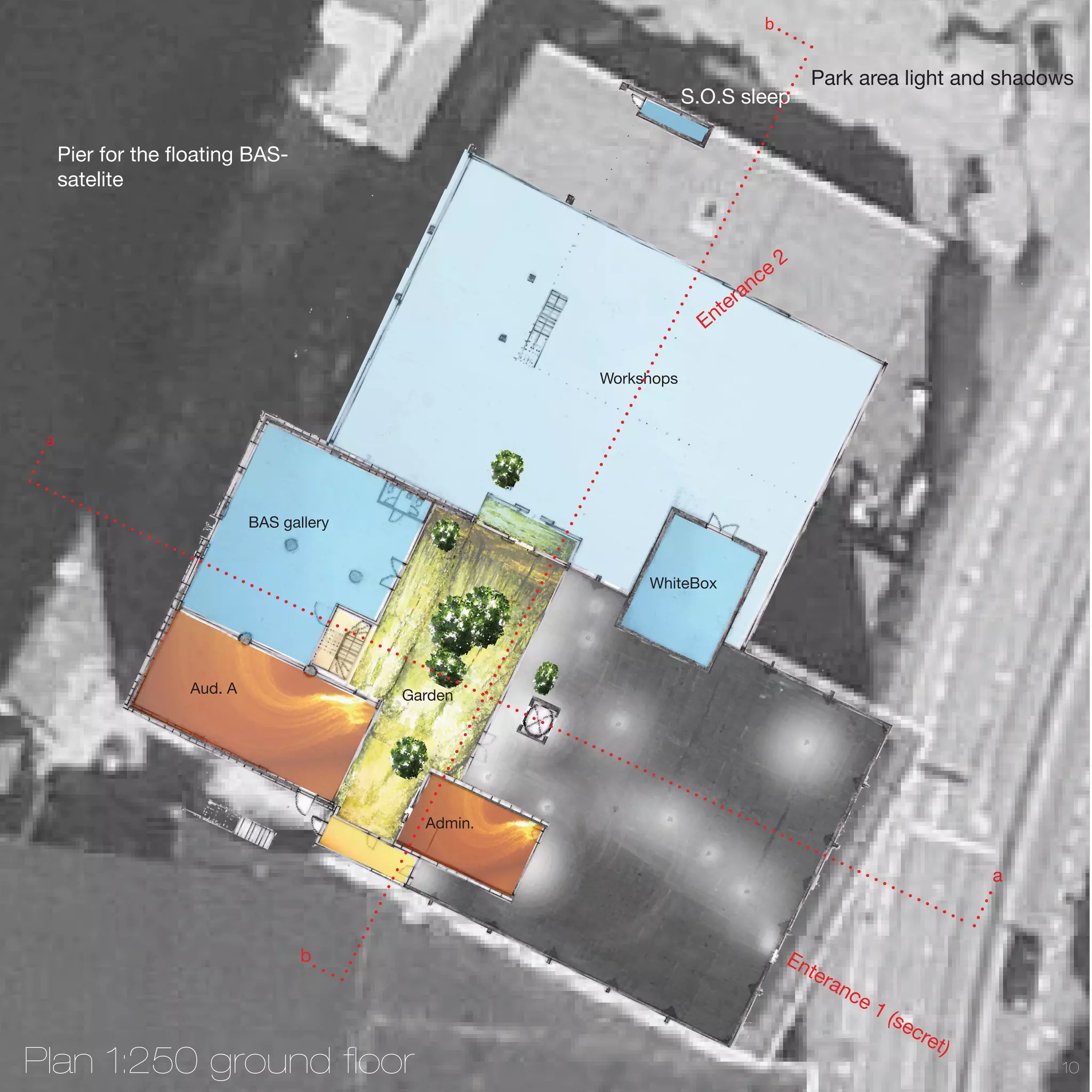

Plan 1:250 ground floor 10

12. b

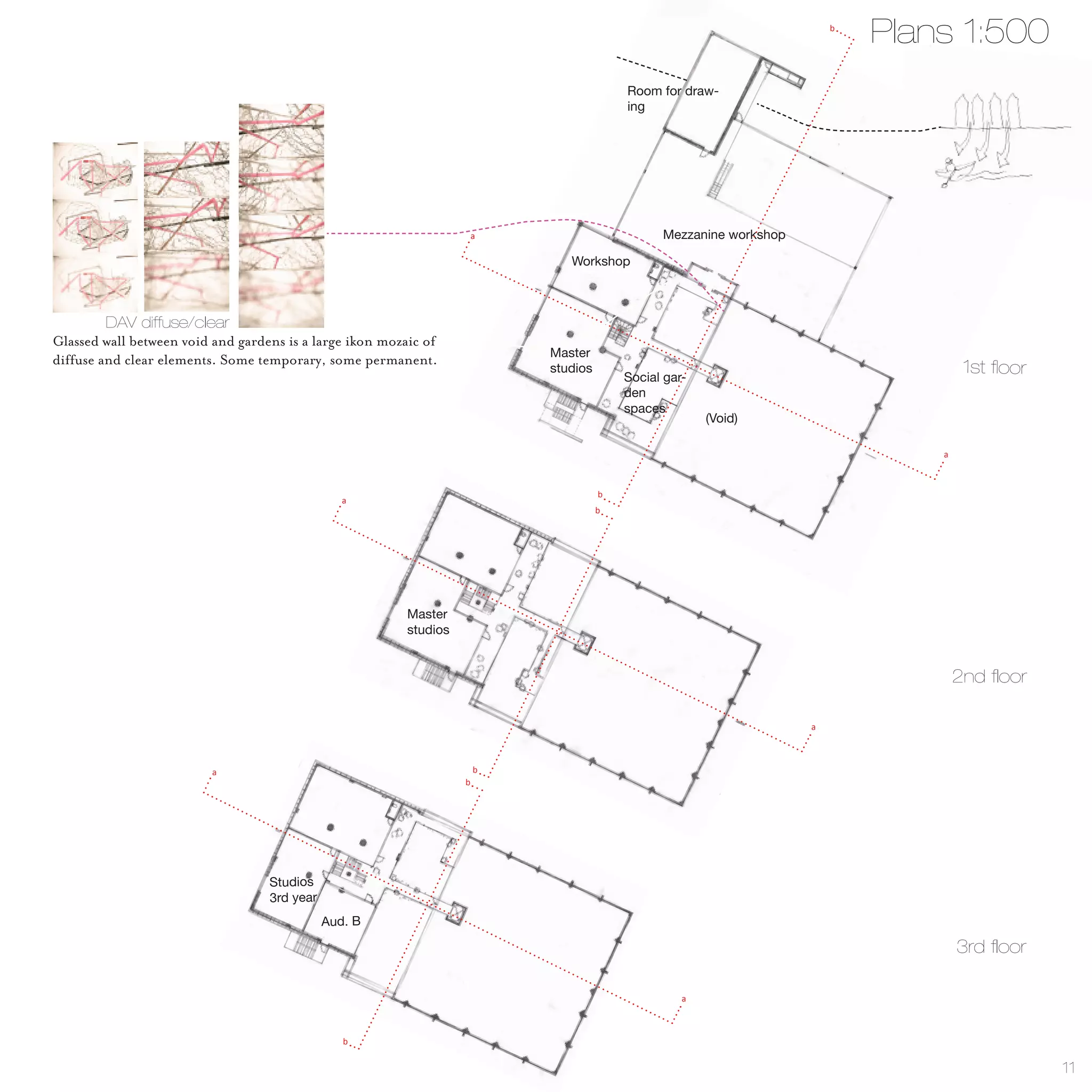

Plans 1:500
Room for draw-
ing
a Mezzanine workshop
Workshop
DAV diffuse/clear
Glassed wall between void and gardens is a large ikon mozaic of
Master
diffuse and clear elements. Some temporary, some permanent.
studios
Social gar-
1st floor
den
spaces
(Void)
a
b
a
b
Master
studios
2nd floor
a
a b
b
Studios
3rd year
Aud. B
3rd floor
a
b
11

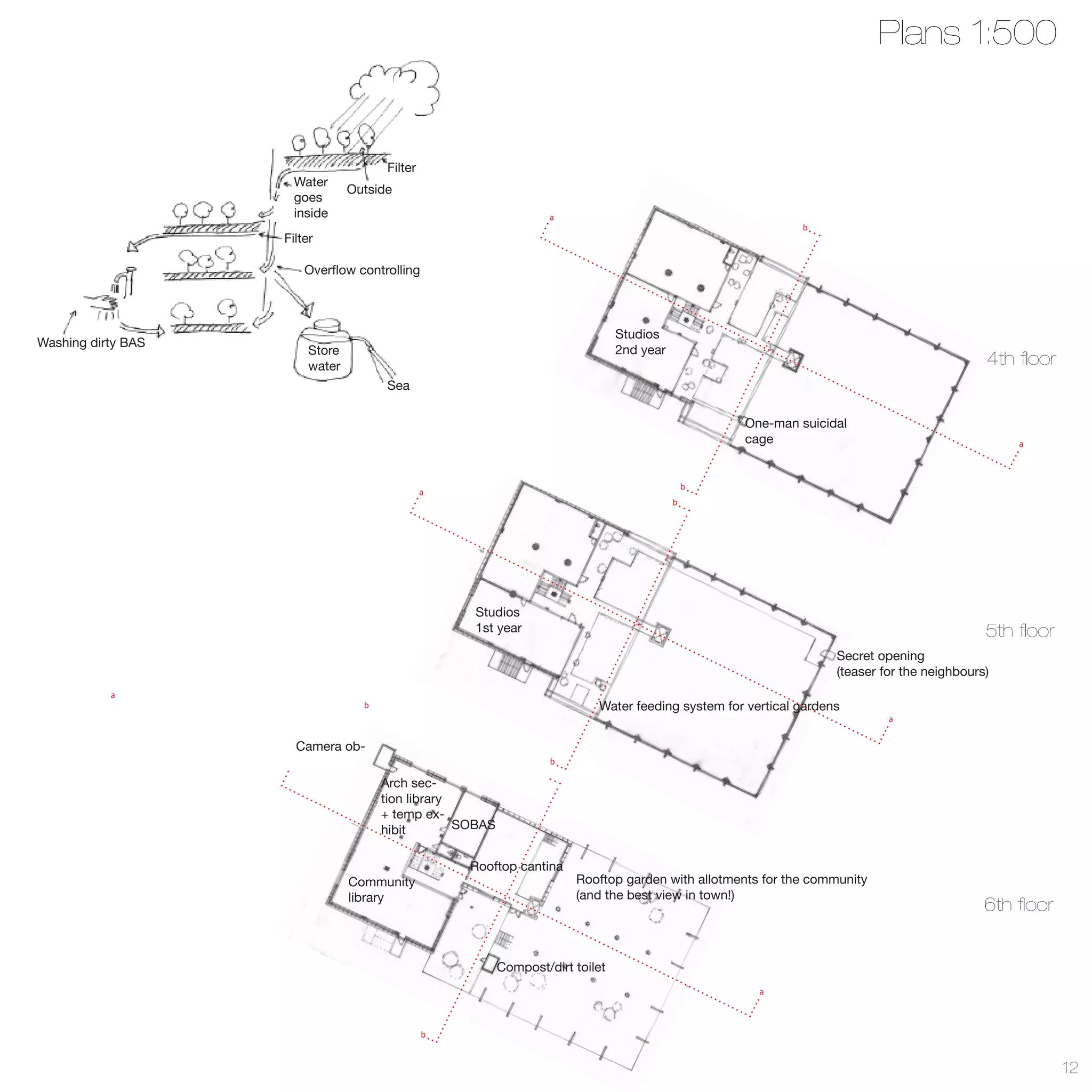

13. Plans 1:500
Filter
Water
Outside
goes
inside a
b
Filter
Overflow controlling
Studios
Washing dirty BAS
Store 2nd year
water 4th floor
Sea
One-man suicidal
cage a
b
a
b
Studios
1st year 5th floor
Secret opening
(teaser for the neighbours)
a
b Water feeding system for vertical gardens
a
Camera ob-
b
Arch sec-
tion library
+ temp ex-
hibit SOBAS
Rooftop cantina
Community Rooftop garden with allotments for the community
library (and the best view in town!)
6th floor
Compost/dirt toilet
a
b
12

14. Sections 1:250
Section a-a
Heatexchange

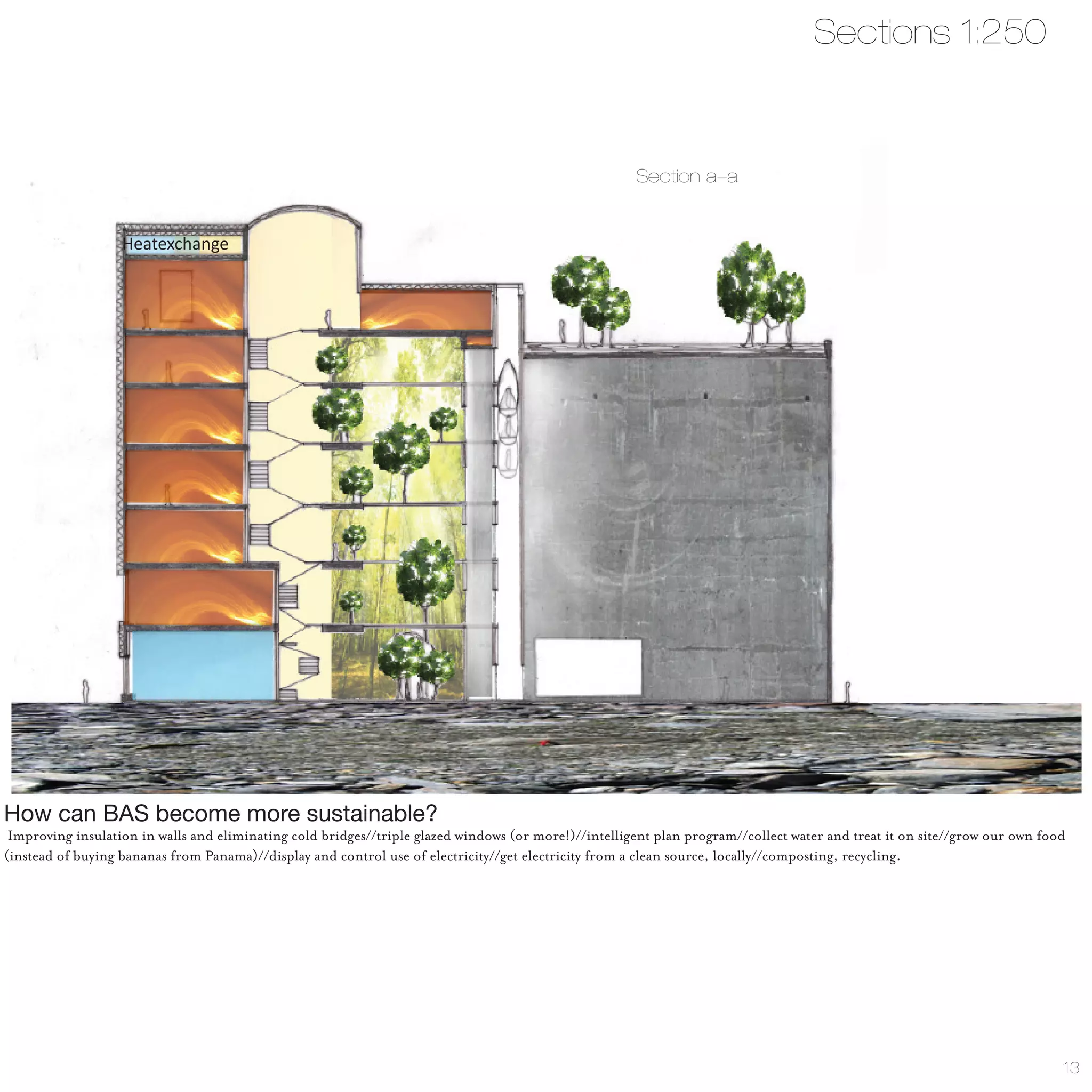

How can BAS become more sustainable?
Improving insulation in walls and eliminating cold bridges//triple glazed windows (or more!)//intelligent plan program//collect water and treat it on site//grow our own food
(instead of buying bananas from Panama)//display and control use of electricity//get electricity from a clean source, locally//composting, recycling.
13

15. Section b-b

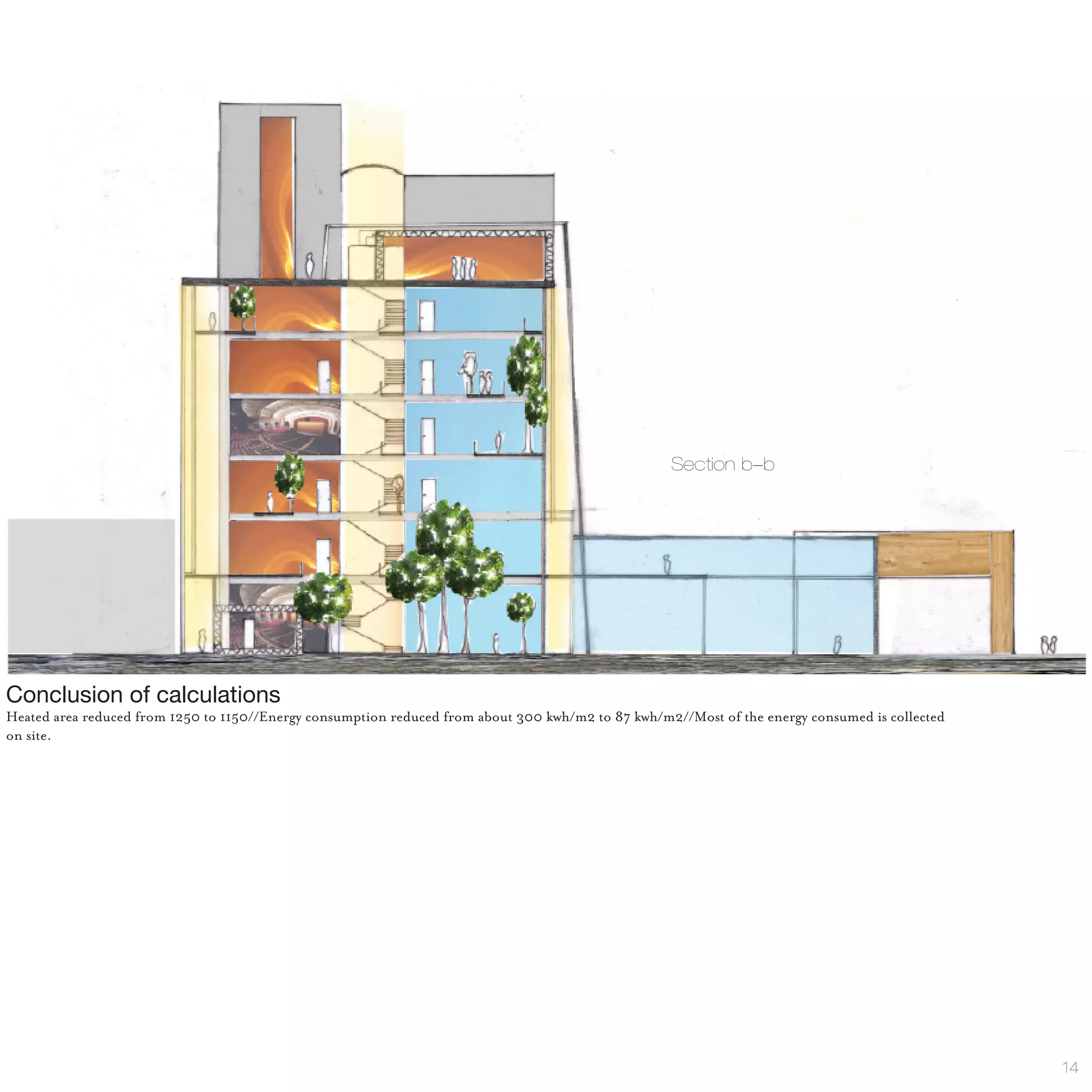

Conclusion of calculations
Heated area reduced from 1250 to 1150//Energy consumption reduced from about 300 kwh/m2 to 87 kwh/m2//Most of the energy consumed is collected
on site.
