1. LARAVEL.IO
A USE CASE ARCHITECTURE

2. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
HI, I’M SHAWN

3. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
LARAVEL.IO ORIGIN

4. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
Laravel.IO Now
LARAVEL.IO FORUM
from Nick Spelt and myself
LIONA (LioBot)
from Sam Evaskitas and Matthew Machuga
LARAVEL WEEKLY NEWSLETTER
by Dries Vints
PODCAST
http://bit.ly/laravelio-podcast
Assets available for contribution at: https://github.com/LaravelIO

5. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
AKA ENGINEERING
MANAGING COMPLEXITY

6. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
FUNCTIONAL REQUIREMENTS

7. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
USE CASES

8. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

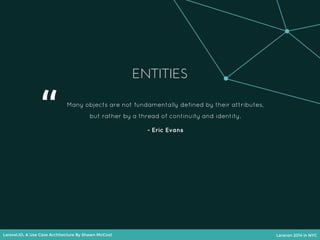

ENTITIES
Many objects are not fundamentally defined by their attributes,
but rather by a thread of continuity and identity.
- Eric Evans
“

9. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
PeoplePERSON

10. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
Jane Doe
People
Jane Doe
PERSON

11. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
Jane Doe
People
Jane DoeJane Doe
PERSON
Jane Doe

12. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
Jane Doe
PERSON
Age: 27
Jane Doe
Age: 27

13. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
Jane Doe
PERSON
Age: 27
From: NYC
Jane Doe
Age: 27
From: NYC

14. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
THE ACTIVERECORD PATTERN

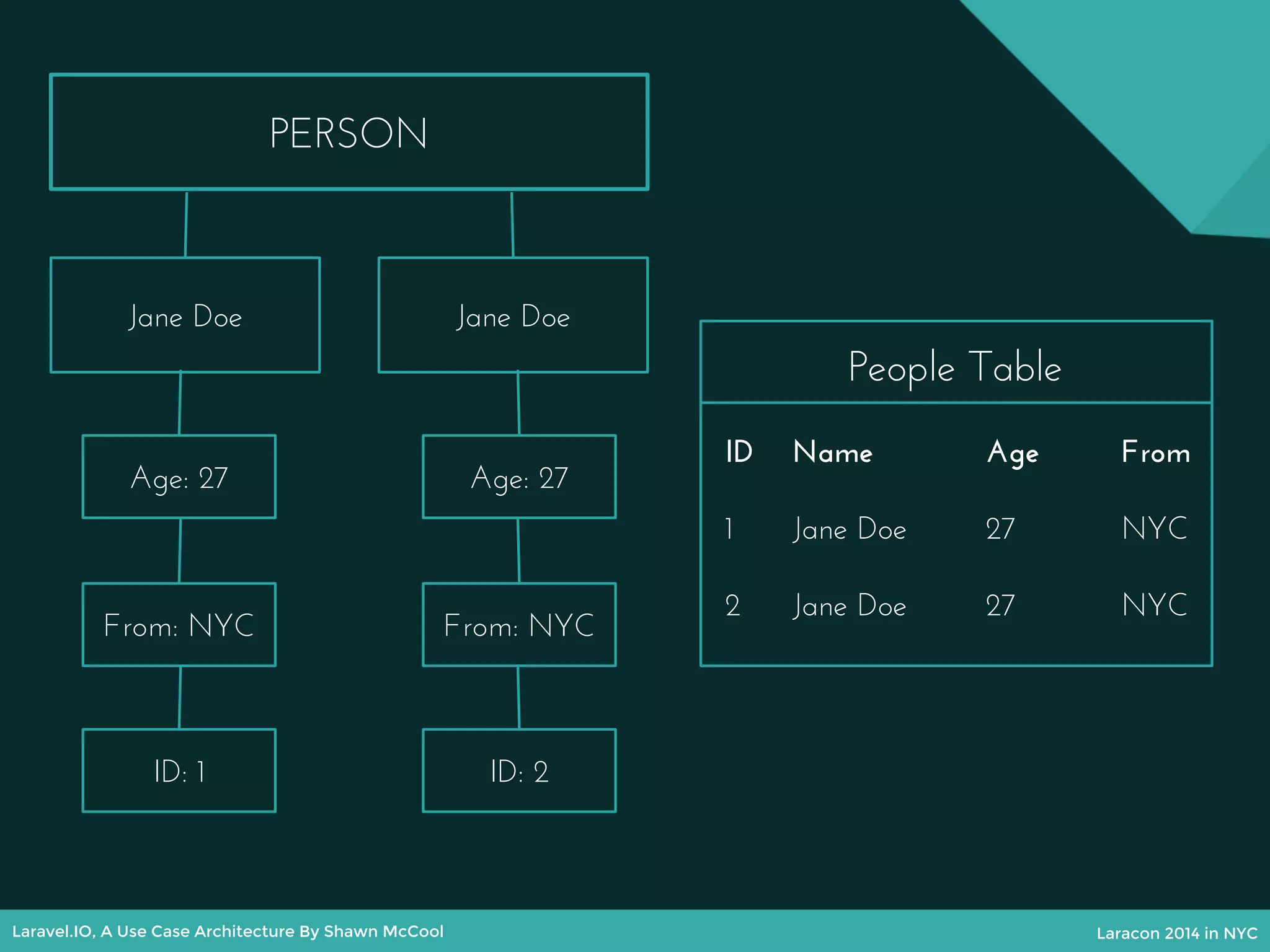

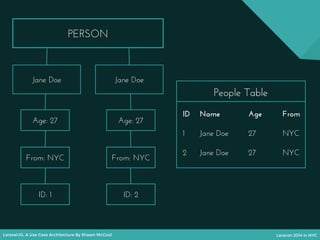

15. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
ID: 1 ID: 2
Jane Doe
PERSON
Age: 27
From: NYC
Jane Doe
Age: 27
From: NYC
People Table
ID
1
2
Age
27
27
From
NYC
NYC
Name
Jane Doe
Jane Doe

16. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
ENTITIES AND ACTIVERECORD

17. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
THIS IS NOT DDD

18. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
LAYERED ARCHITECTURE

19. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

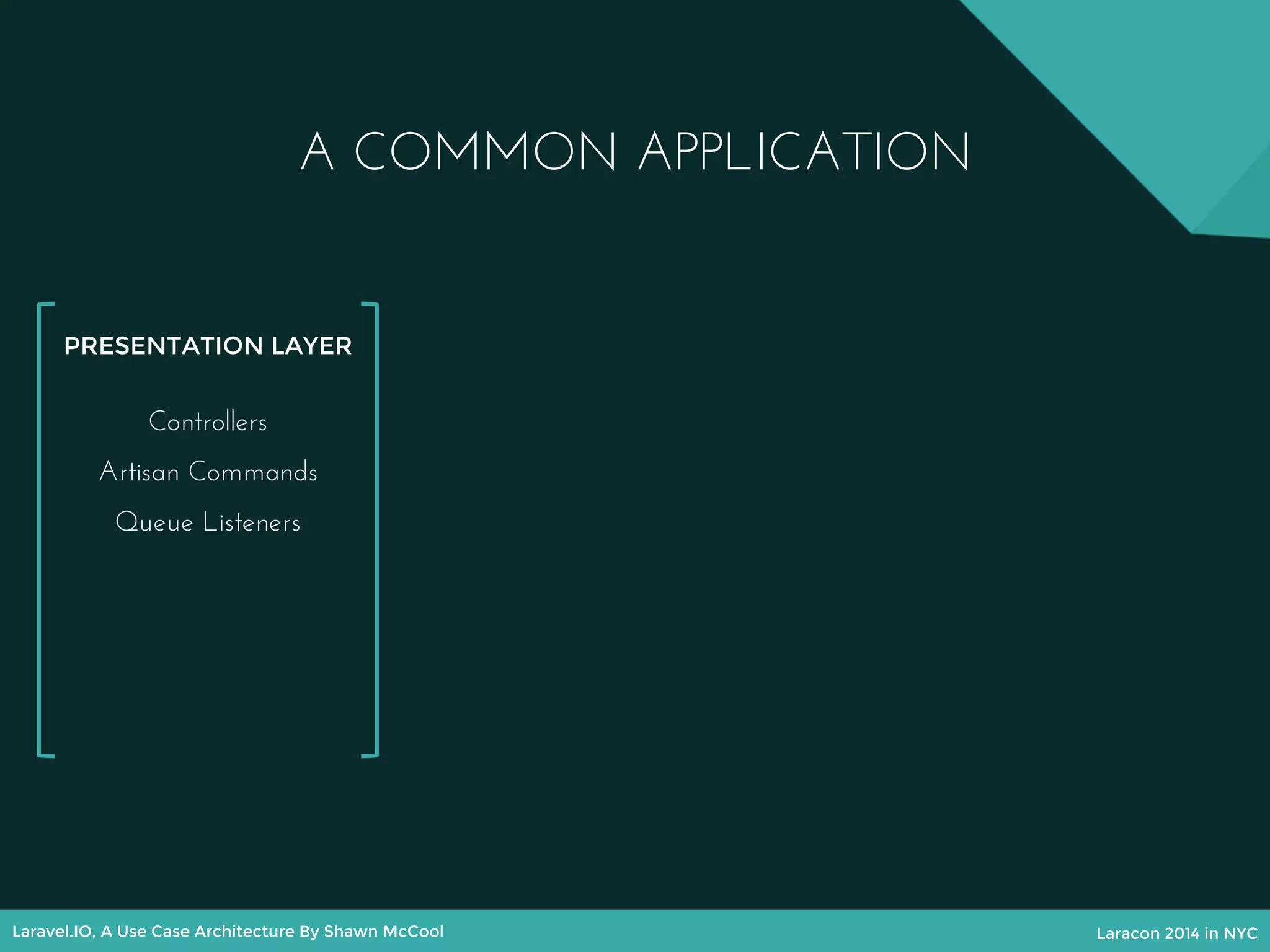

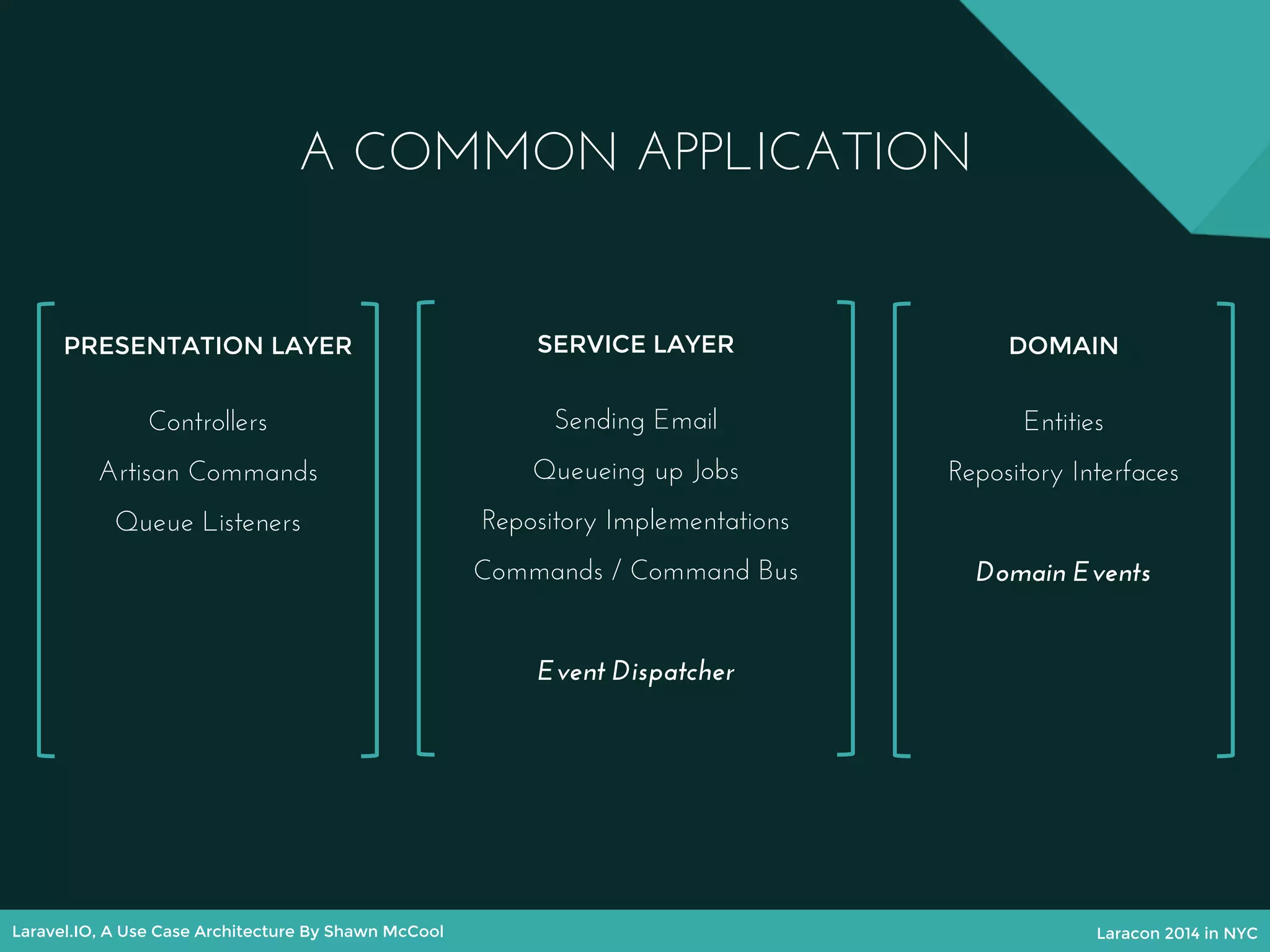

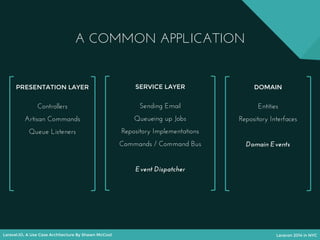

A COMMON APPLICATION
PRESENTATION LAYER
Controllers
Artisan Commands
Queue Listeners

20. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
PRESENTATION LAYER
Controllers
Artisan Commands
Queue Listeners
DOMAIN
Entities
Repository Interfaces
A COMMON APPLICATION

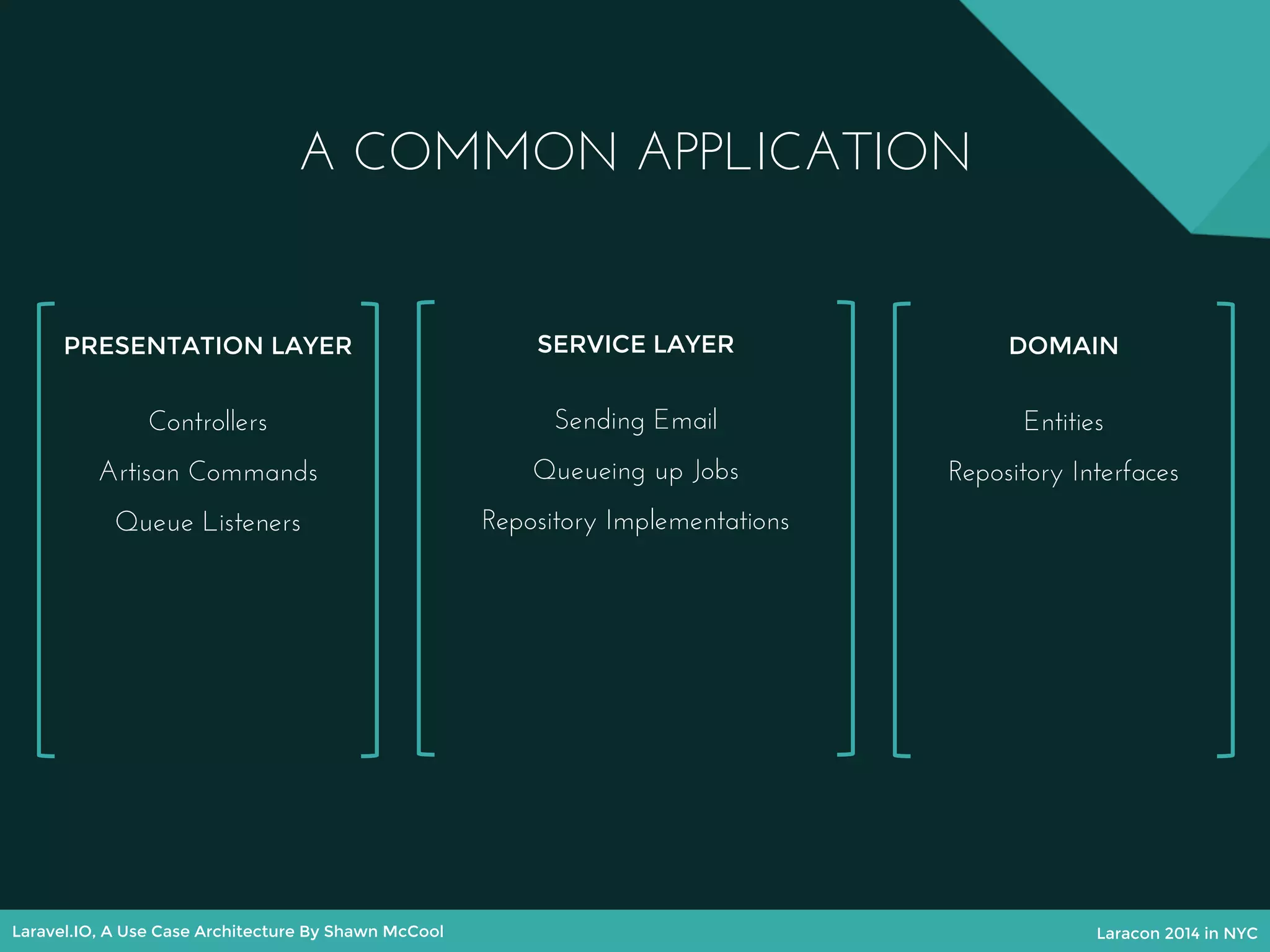

21. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
PRESENTATION LAYER
Controllers
Artisan Commands
Queue Listeners
SERVICE LAYER
Sending Email
Queueing up Jobs
Repository Implementations
DOMAIN
Entities
Repository Interfaces
A COMMON APPLICATION

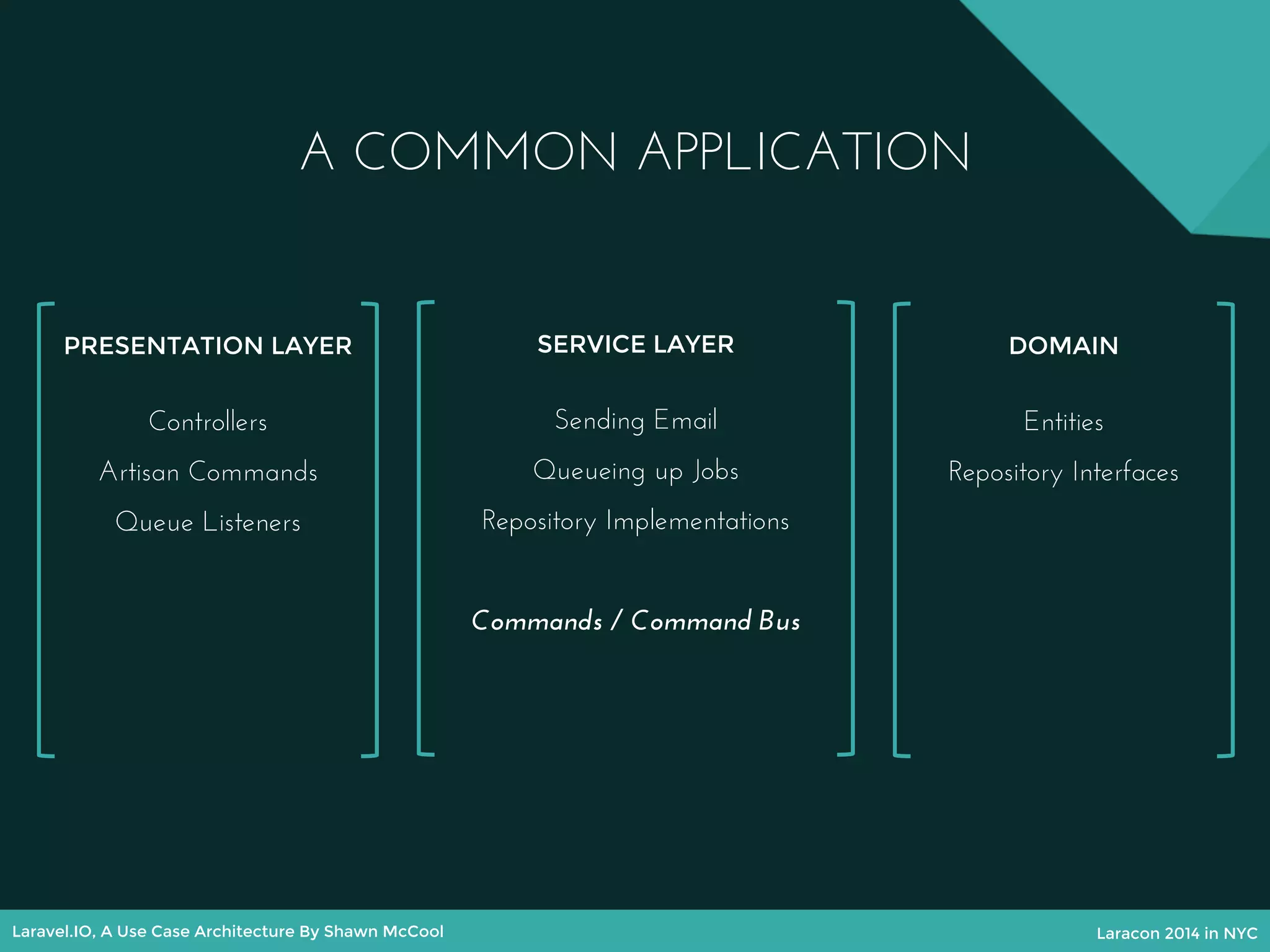

22. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
PRESENTATION LAYER
Controllers
Artisan Commands
Queue Listeners
SERVICE LAYER
Sending Email
Queueing up Jobs
Repository Implementations
Commands / Command Bus
DOMAIN
Entities
Repository Interfaces
A COMMON APPLICATION

23. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
A COMMAND ORIENTED INTERFACE

24. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MEAT OF THE APPLICATION

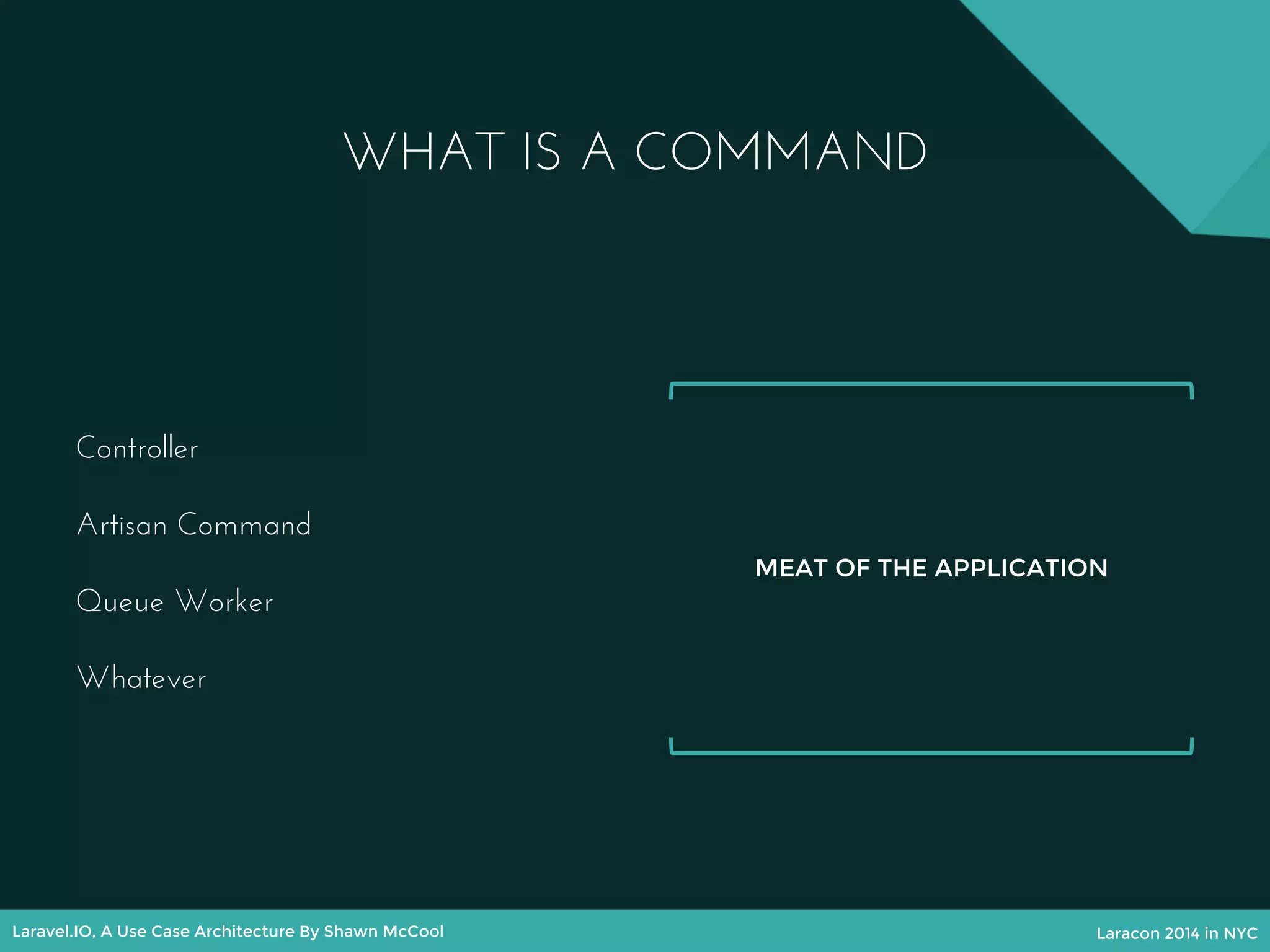

WHAT IS A COMMAND

25. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
Controller
Artisan Command
Queue Worker
Whatever
MEAT OF THE APPLICATION
WHAT IS A COMMAND

26. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

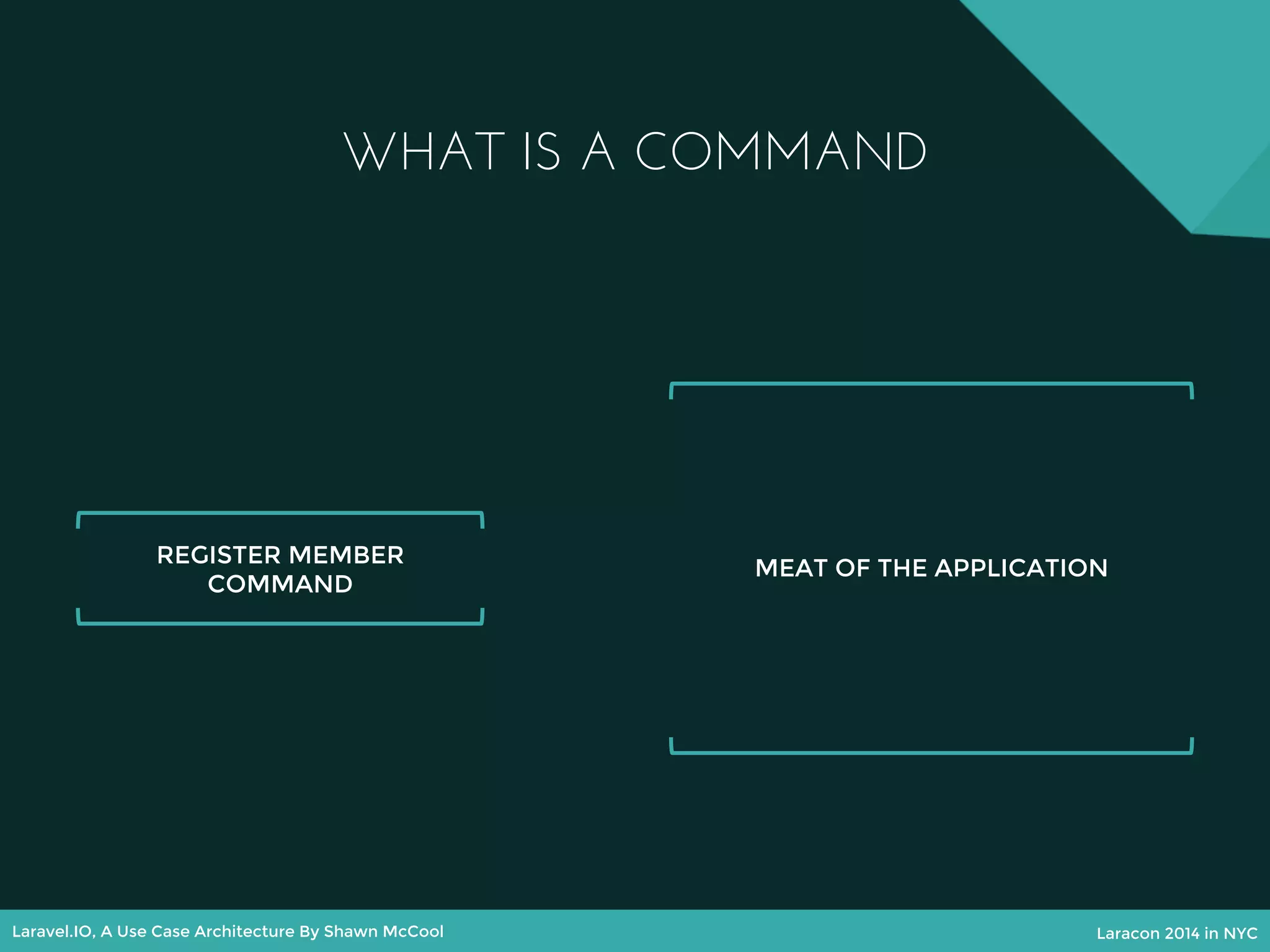

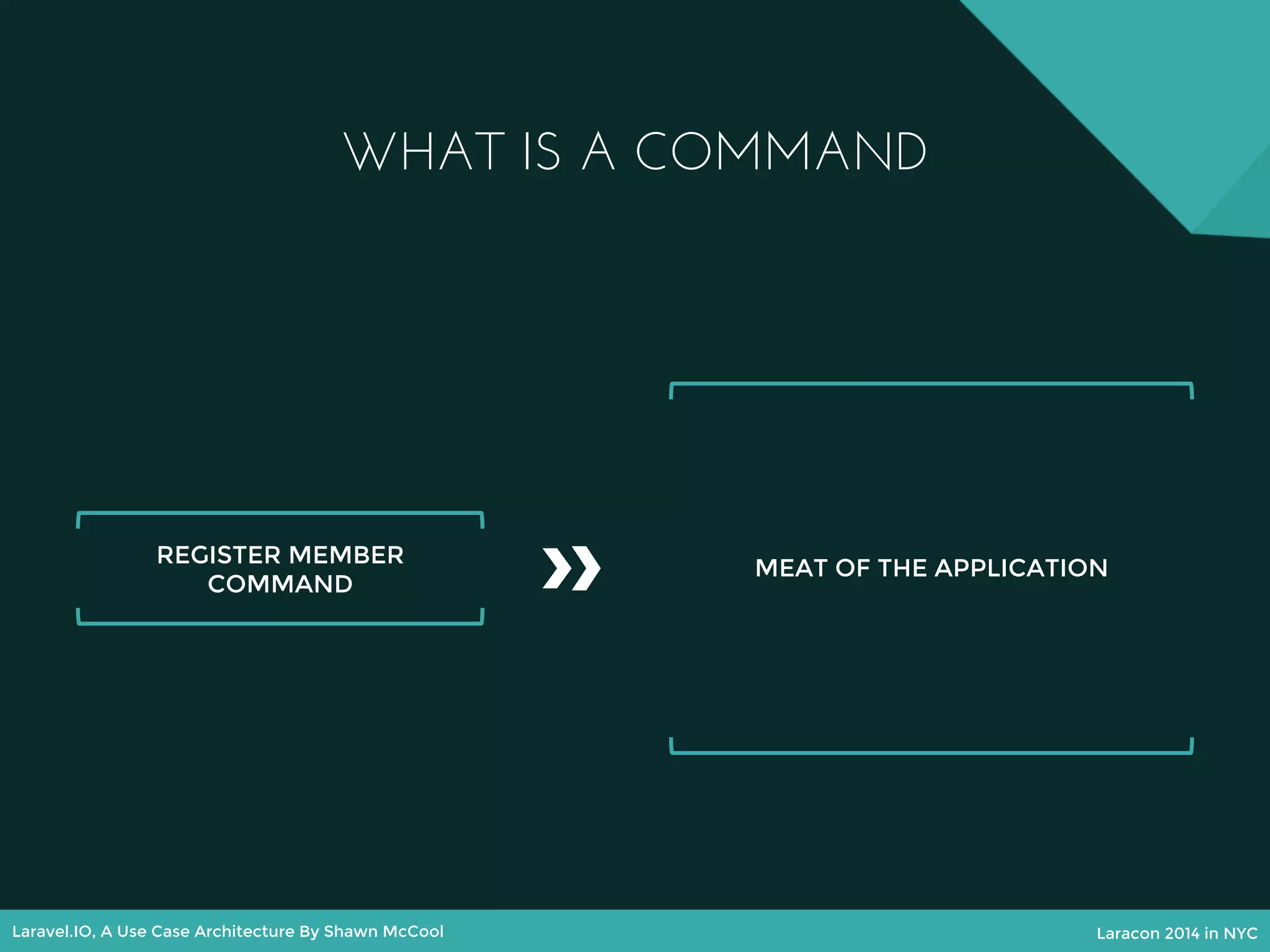

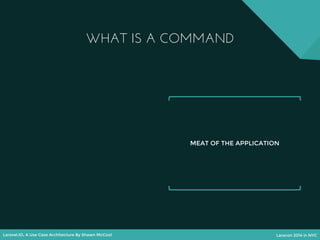

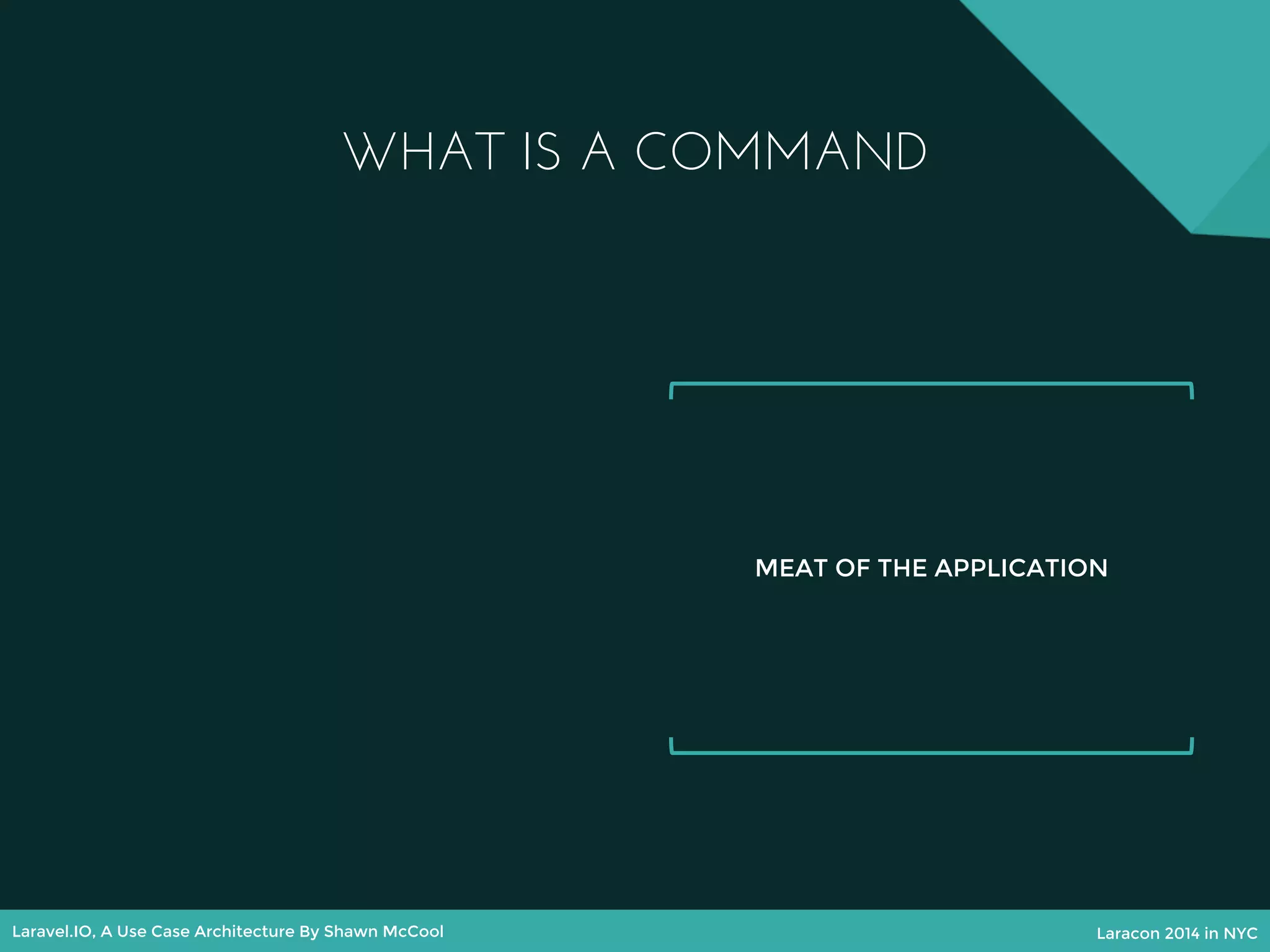

WHAT IS A COMMAND
MEAT OF THE APPLICATION
REGISTER MEMBER
COMMAND

27. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
WHAT IS A COMMAND
MEAT OF THE APPLICATION
REGISTER MEMBER
COMMAND

28. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

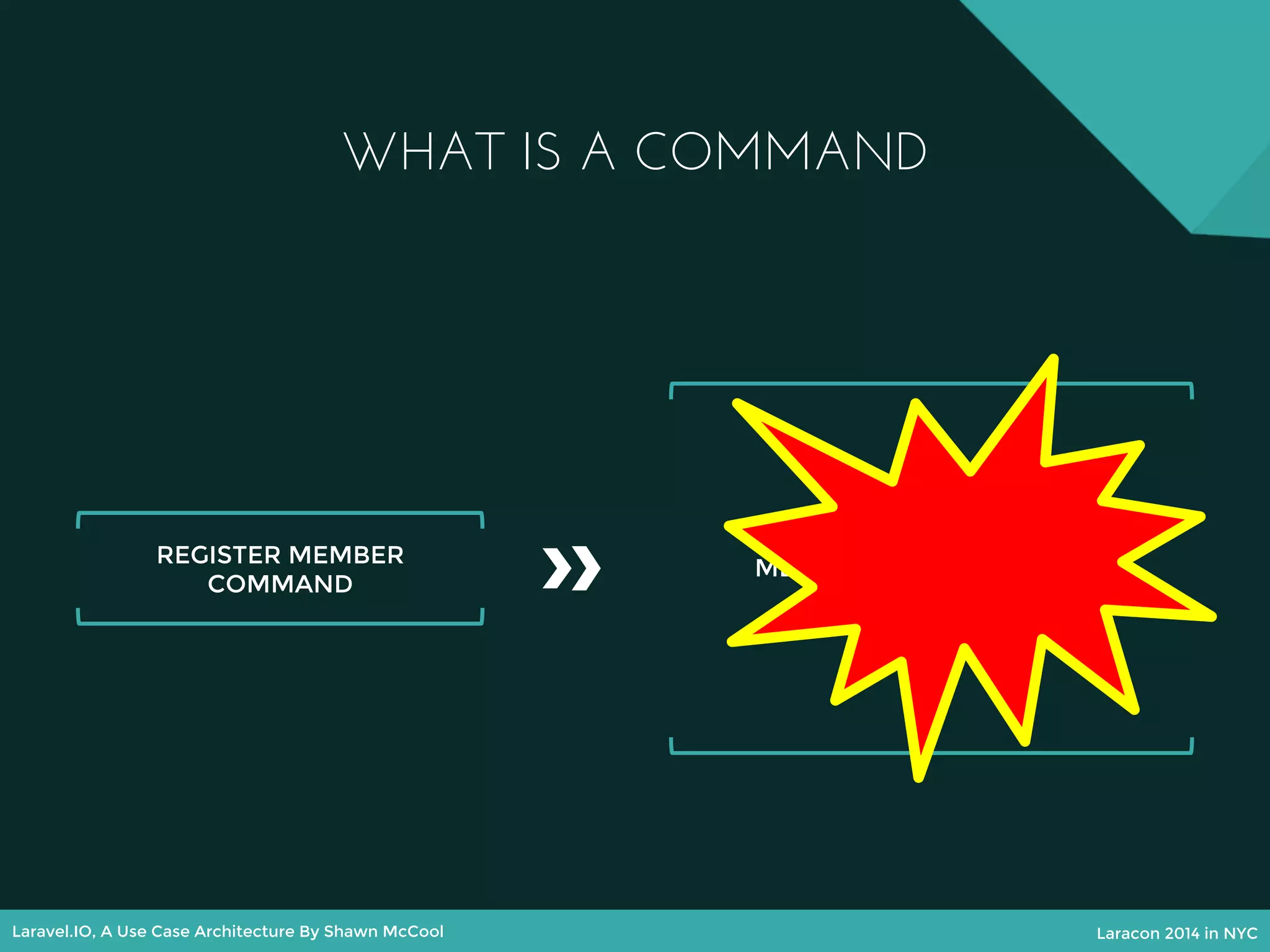

WHAT IS A COMMAND
REGISTER MEMBER
COMMAND
MEAT OF THE APPLICATION

29. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

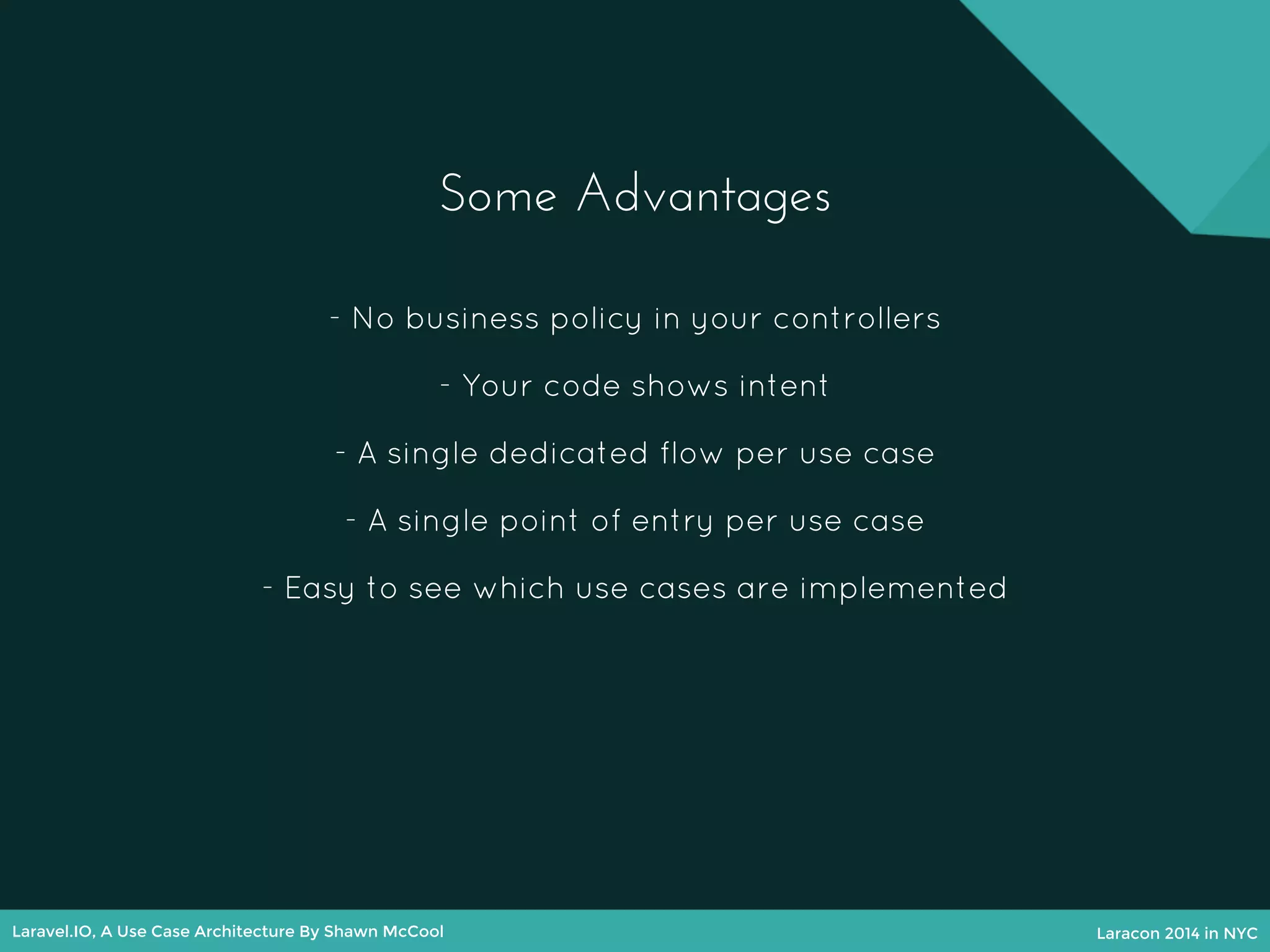

Some Advantages
- No business policy in your controllers
- Your code shows intent
- A single dedicated flow per use case
- A single point of entry per use case
- Easy to see which use cases are implemented

30. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
COMMAND ANATOMY

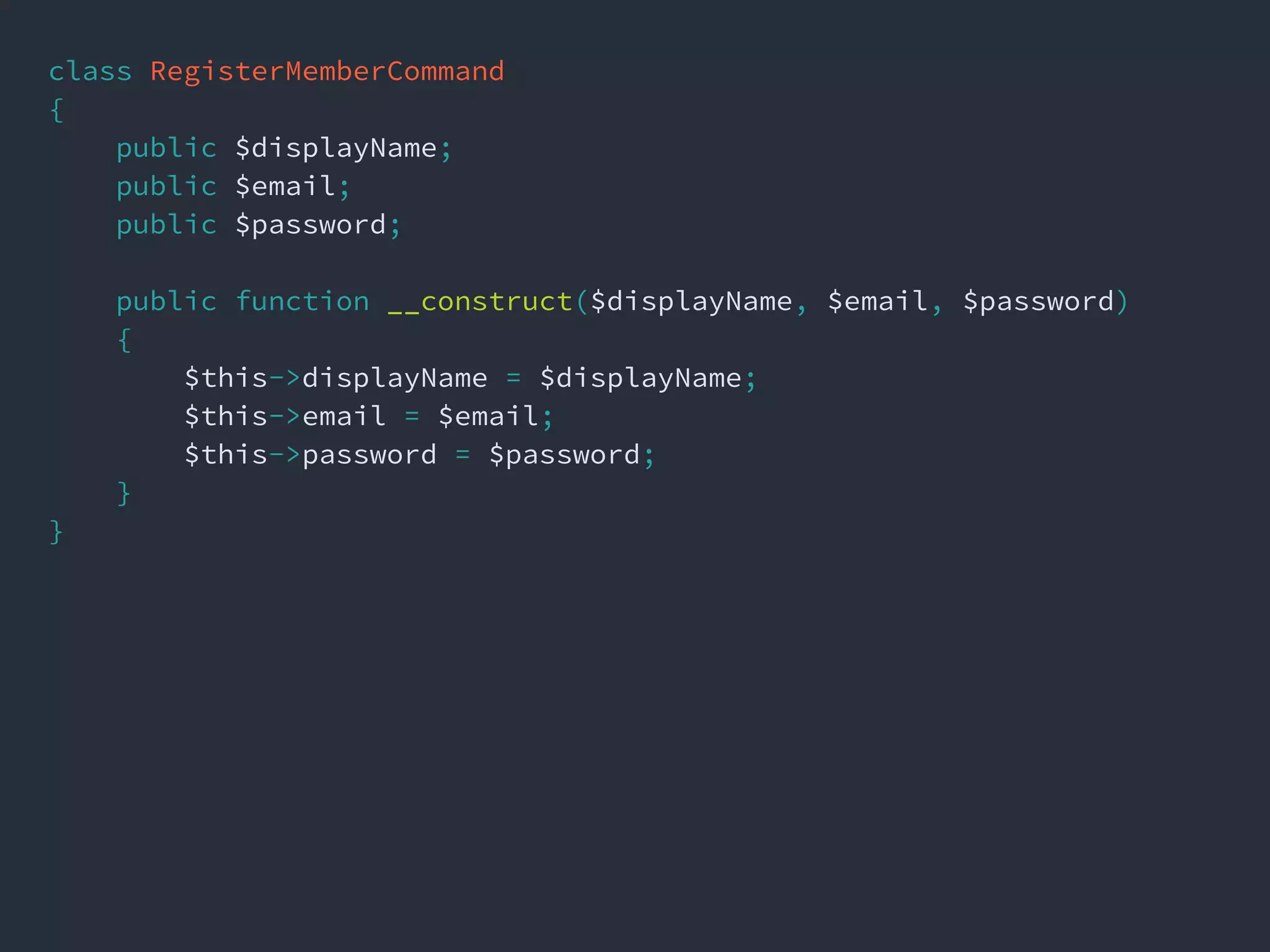

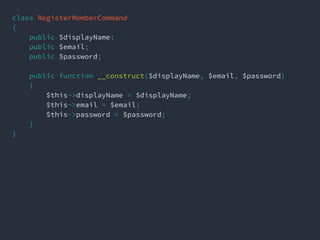

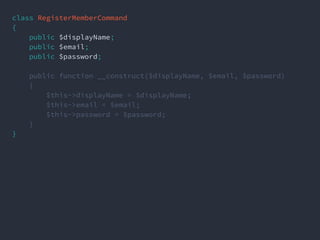

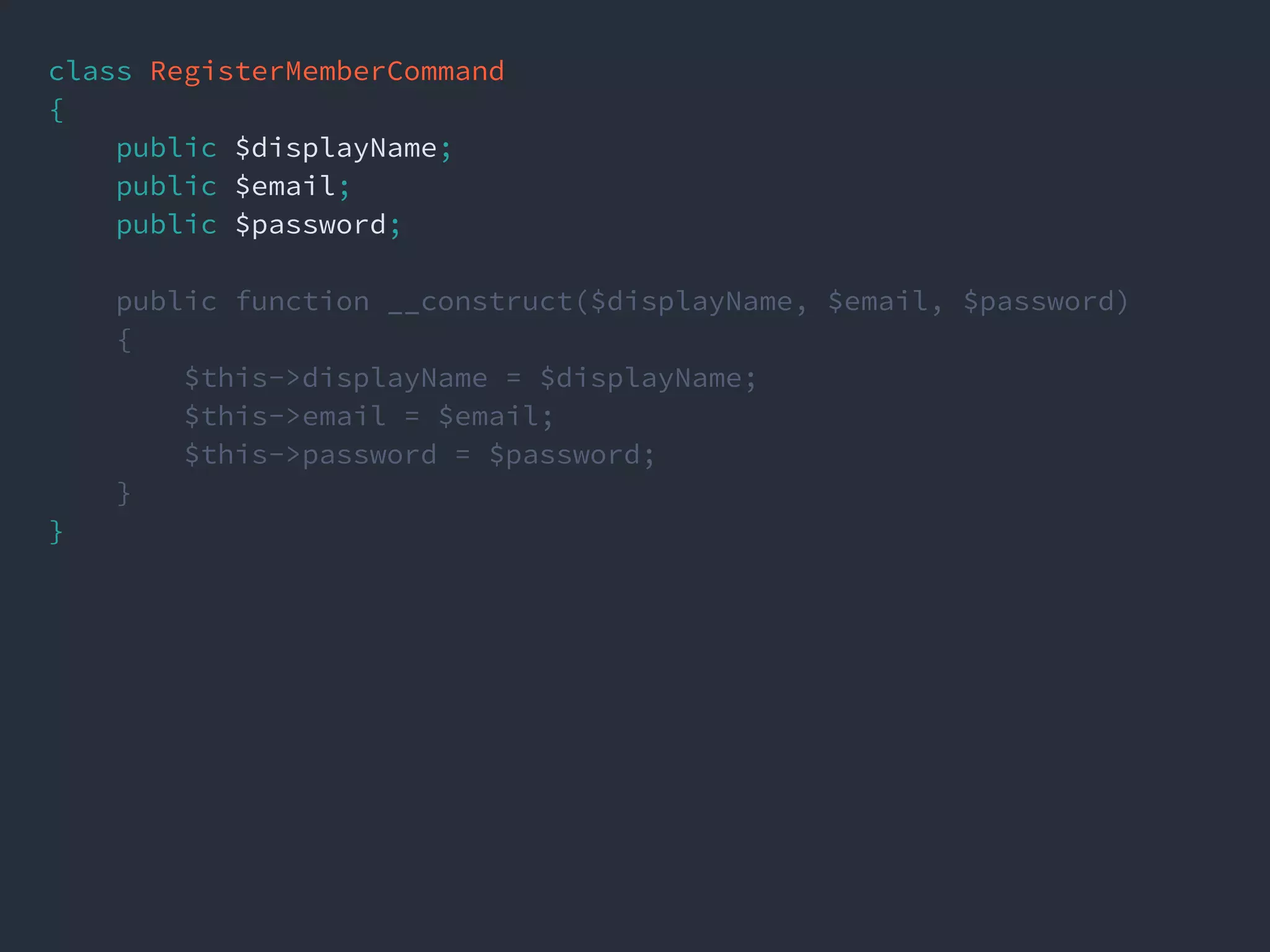

31. class RegisterMemberCommand
{
public $displayName;
public $email;
public $password;
public function __construct($displayName, $email, $password)
{
$this->displayName = $displayName;
$this->email = $email;
$this->password = $password;
}
}

32. class RegisterMemberCommand
{
public $displayName;
public $email;
public $password;
public function __construct($displayName, $email, $password)
{
$this->displayName = $displayName;
$this->email = $email;
$this->password = $password;
}
}

33. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

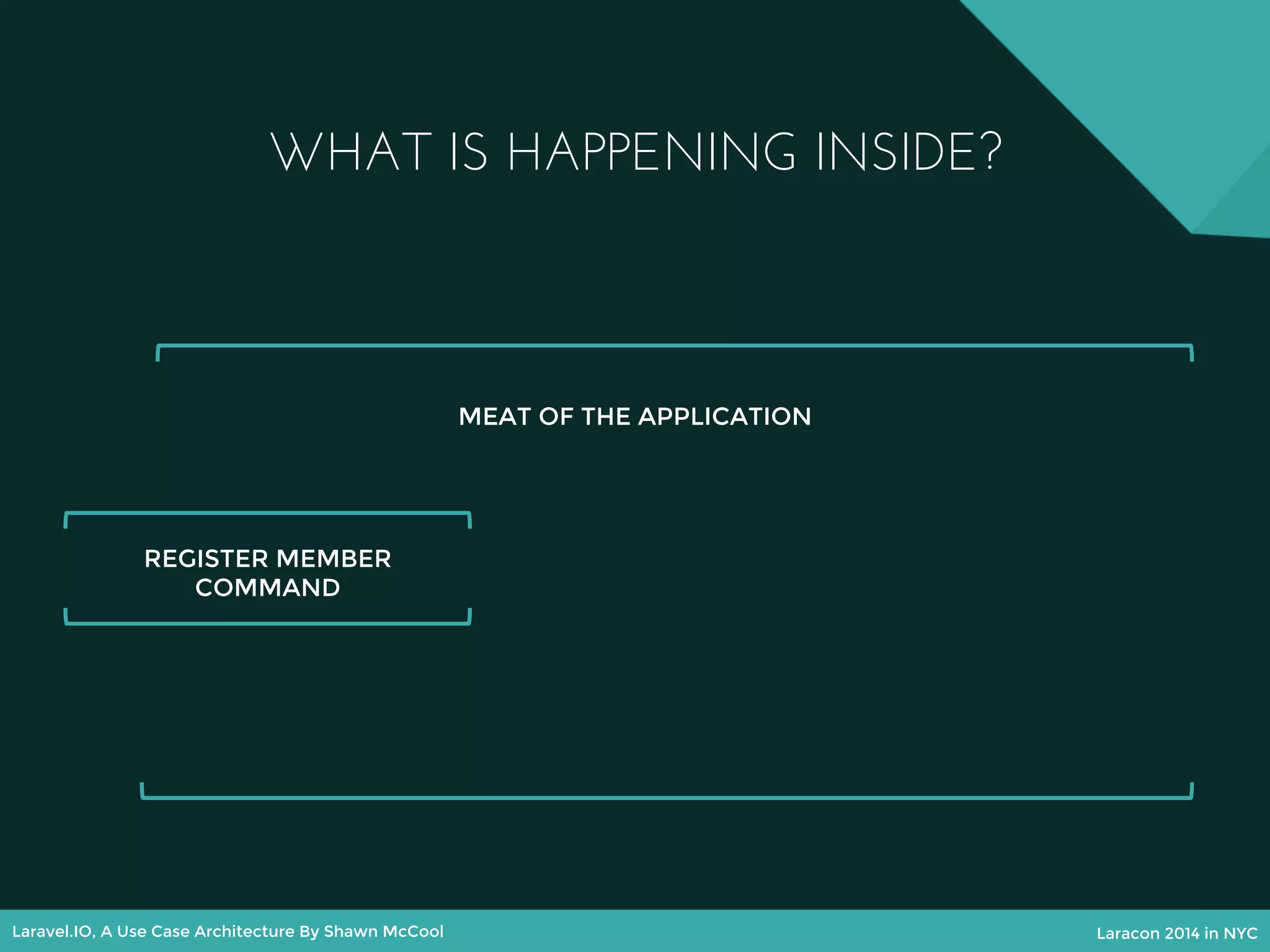

WHAT IS HAPPENING INSIDE?
MEAT OF THE APPLICATION
REGISTER MEMBER
COMMAND

34. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

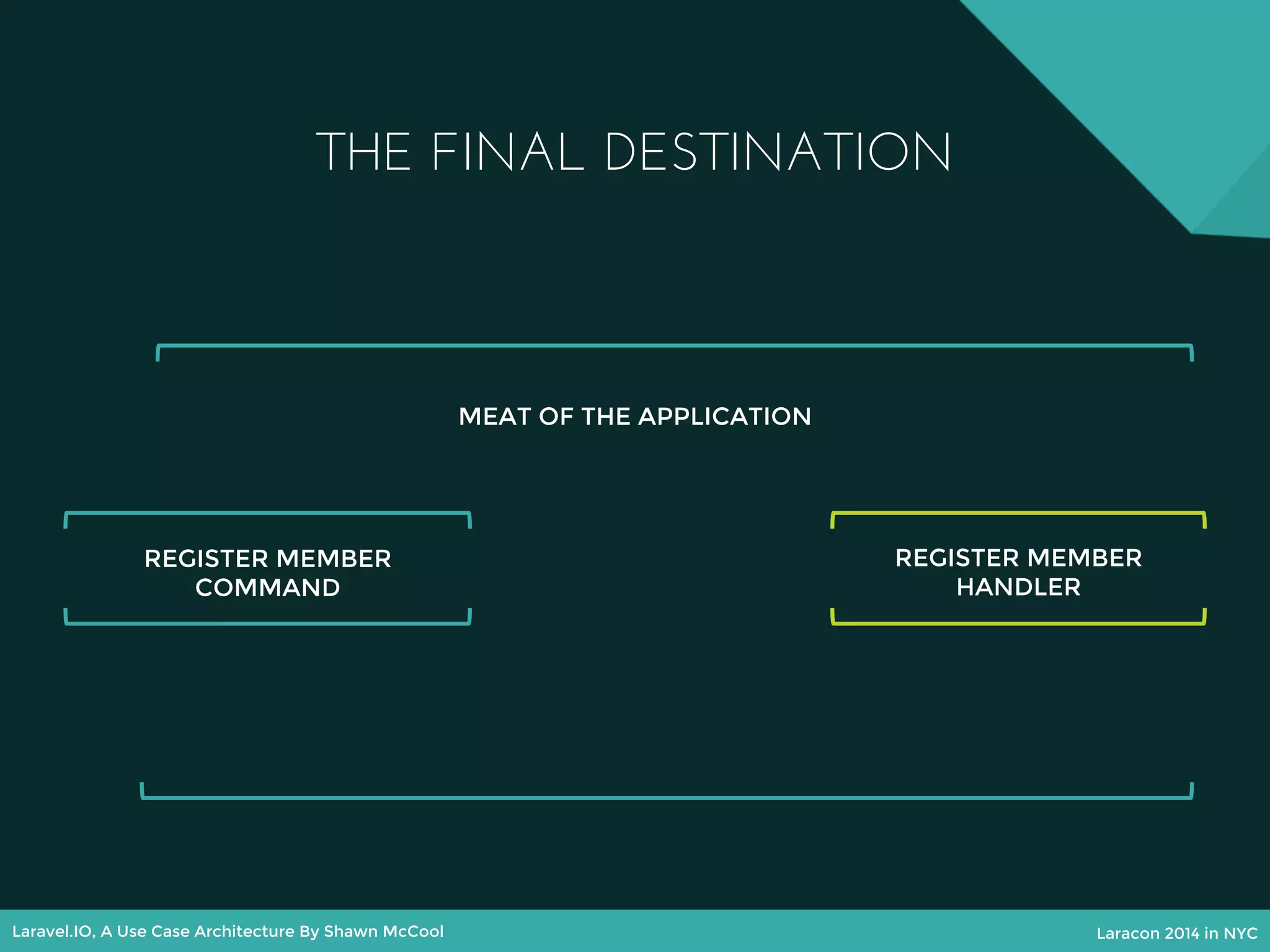

THE FINAL DESTINATION
MEAT OF THE APPLICATION
REGISTER MEMBER
HANDLER
REGISTER MEMBER
COMMAND

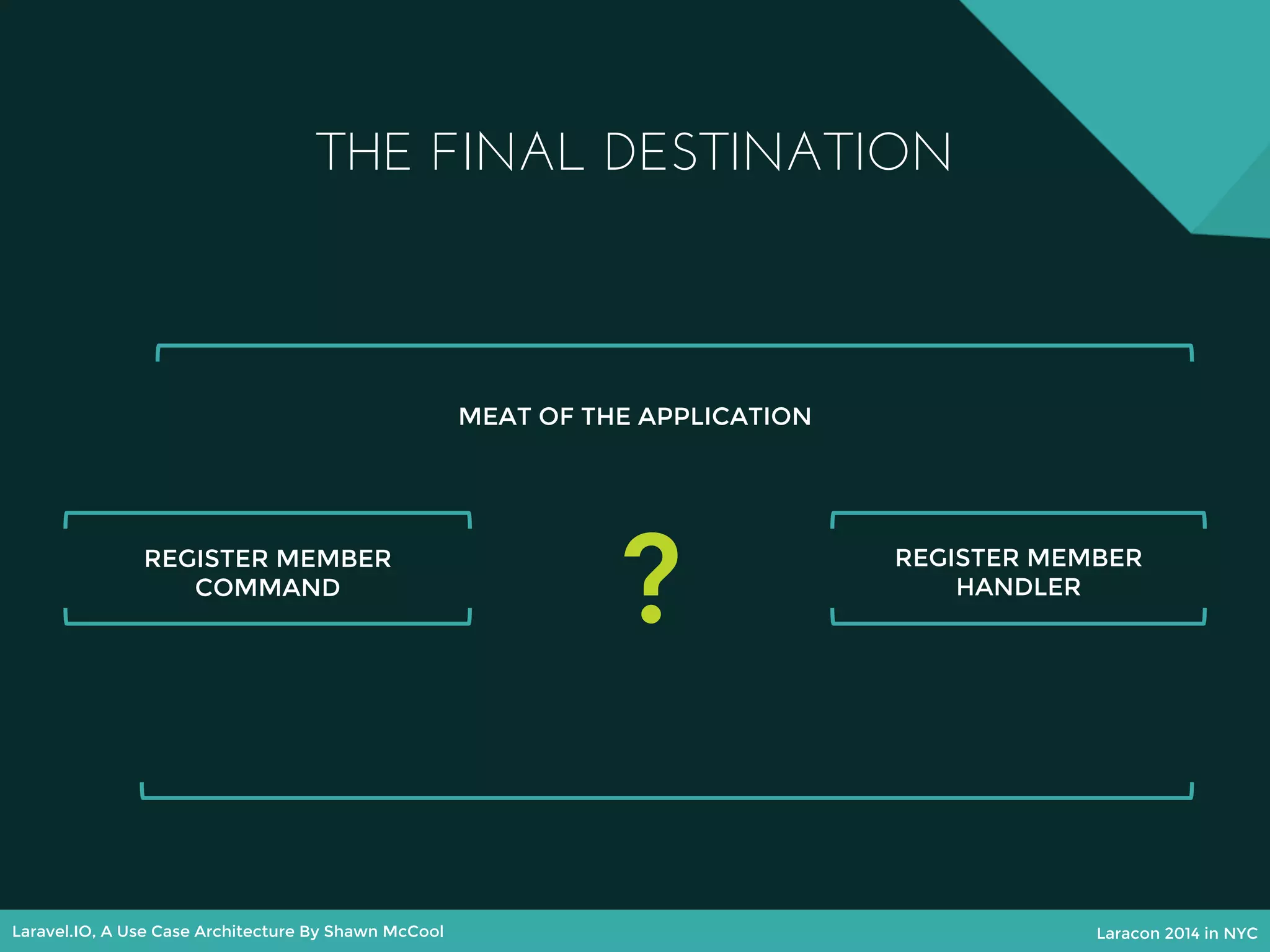

35. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
THE FINAL DESTINATION
MEAT OF THE APPLICATION
?REGISTER MEMBER
COMMAND
REGISTER MEMBER
HANDLER

36. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

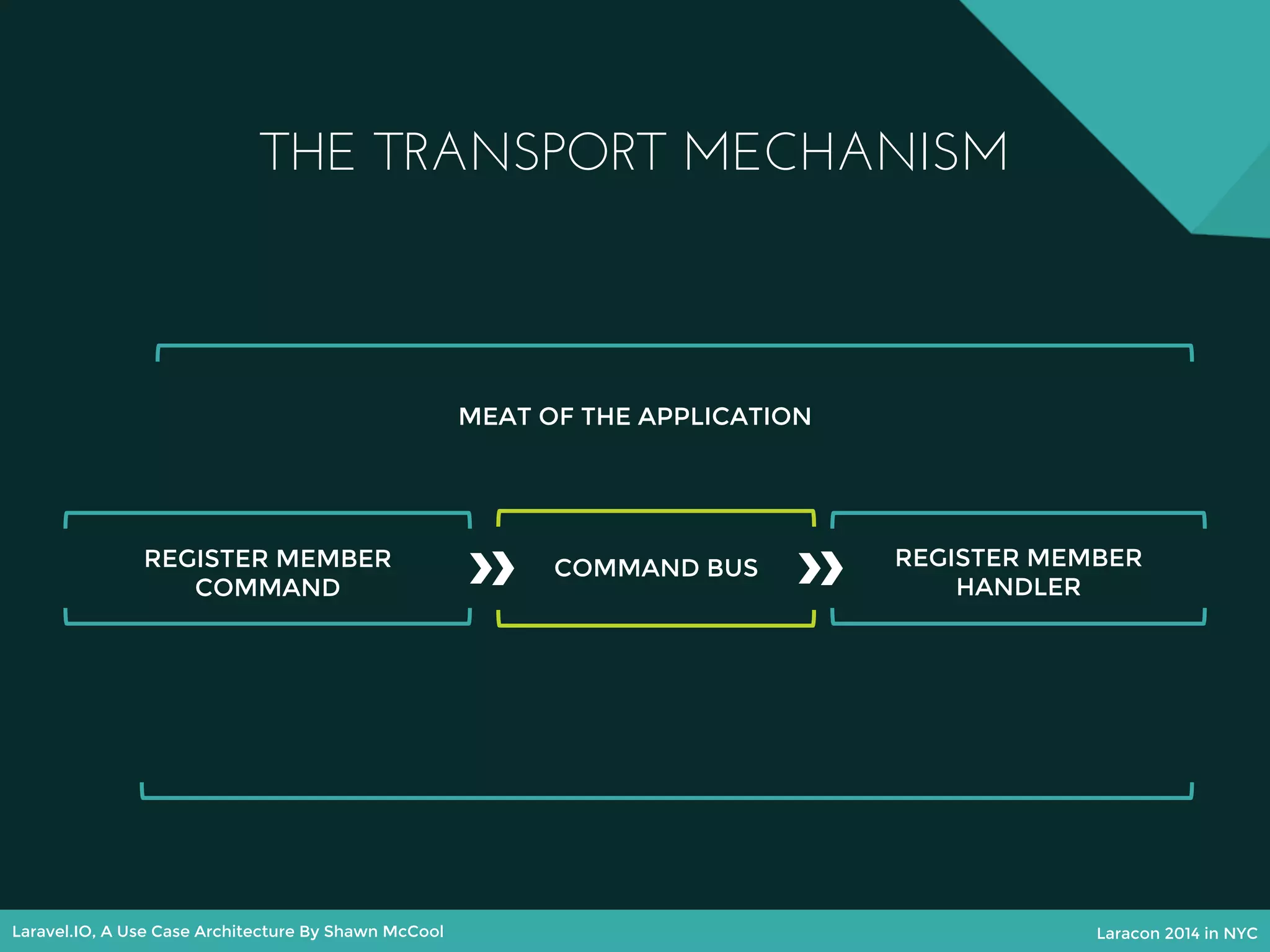

THE TRANSPORT MECHANISM
MEAT OF THE APPLICATION
COMMAND BUSREGISTER MEMBER
COMMAND
REGISTER MEMBER
HANDLER

37. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
COMMAND BUS IMPLEMENTATION

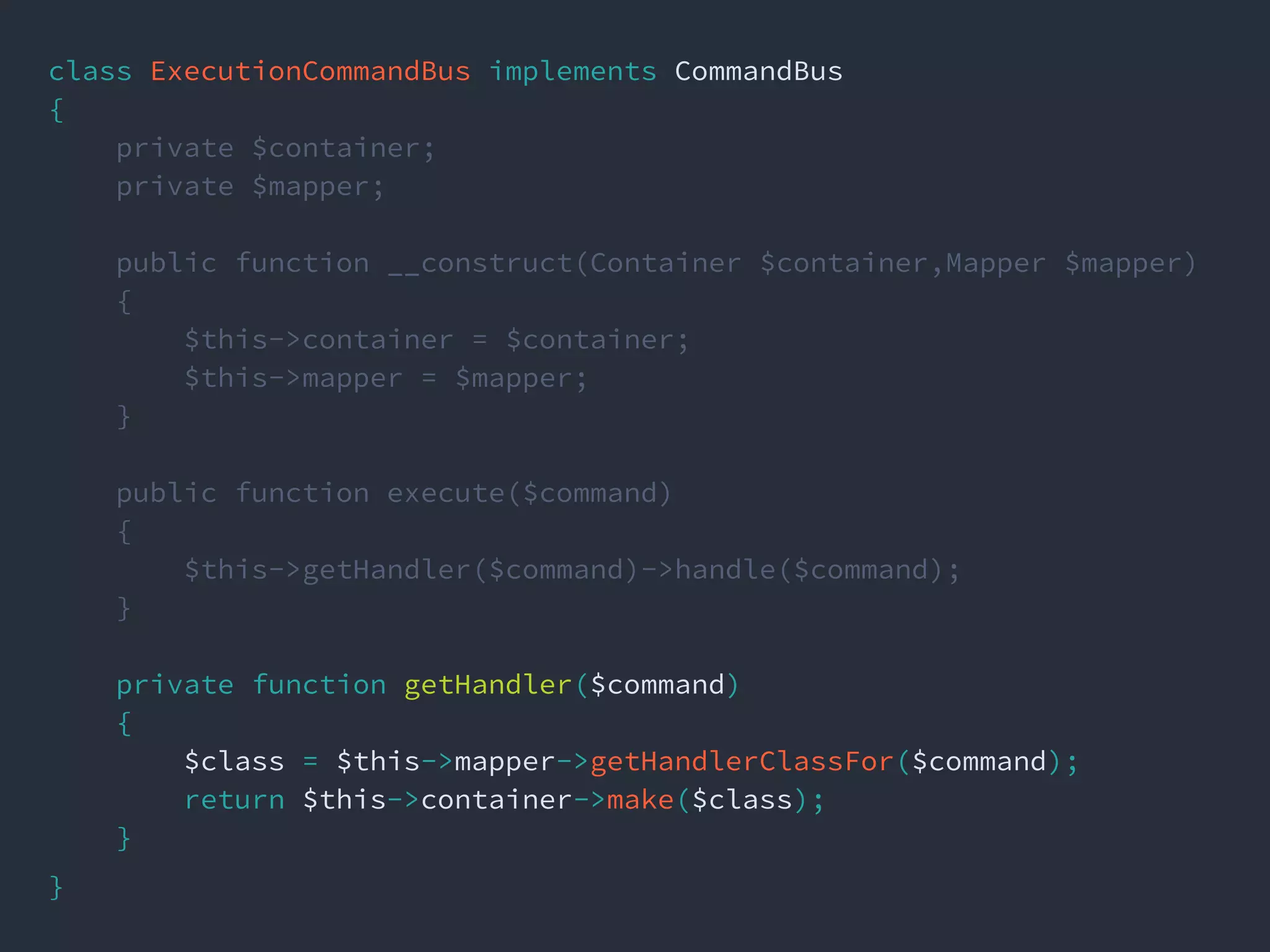

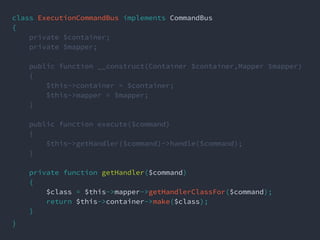

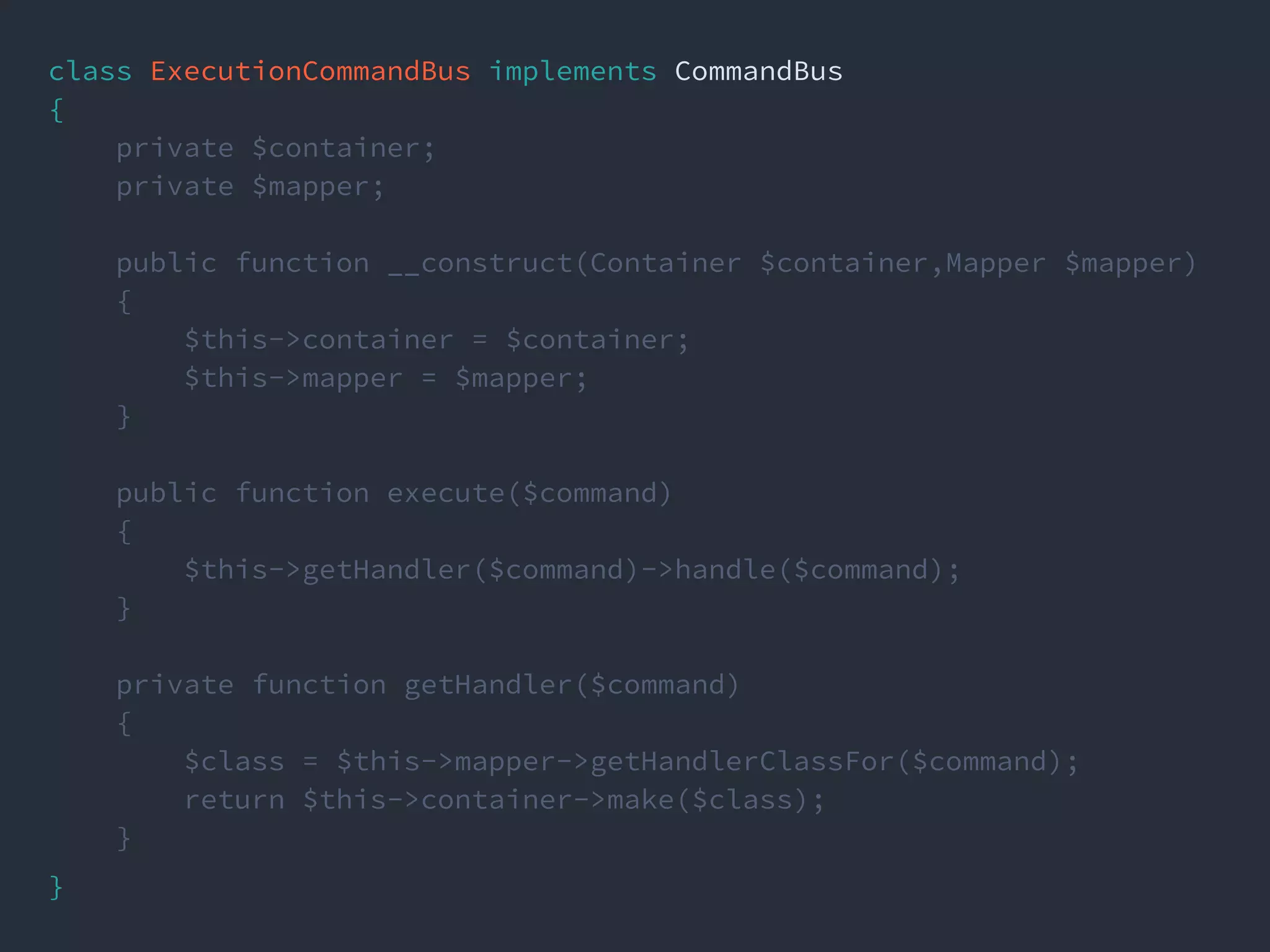

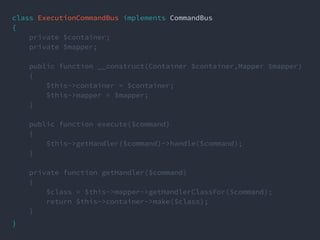

38. class ExecutionCommandBus implements CommandBus
{
private $container;
private $mapper;
public function __construct(Container $container,Mapper $mapper)
{
$this->container = $container;
$this->mapper = $mapper;
}
public function execute($command)
{
$this->getHandler($command)->handle($command);
}
private function getHandler($command)
{
$class = $this->mapper->getHandlerClassFor($command);
return $this->container->make($class);
}
}

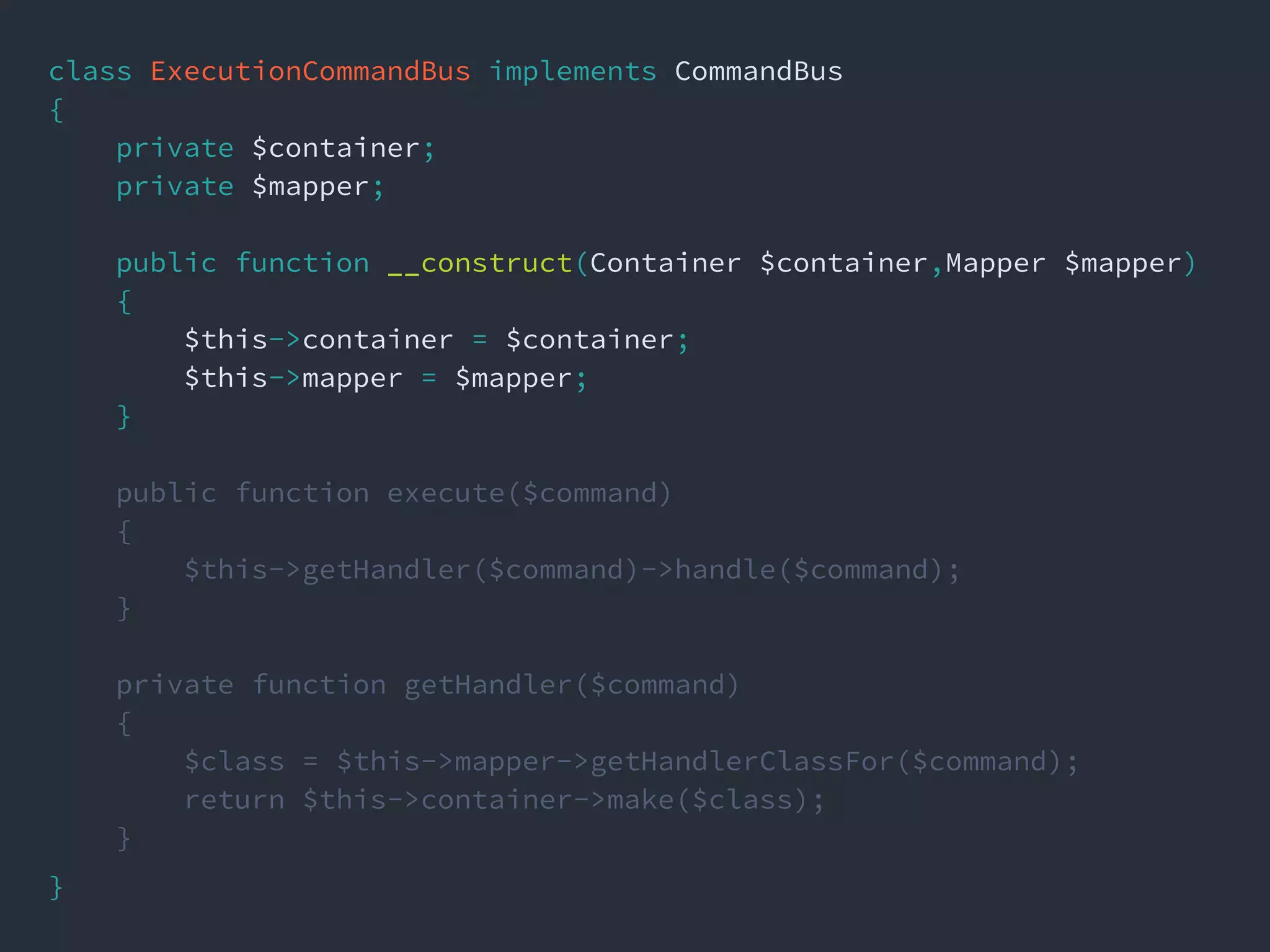

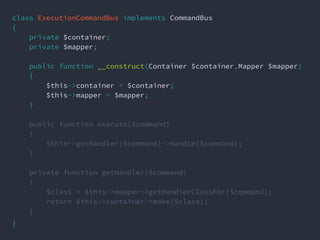

39. class ExecutionCommandBus implements CommandBus
{
private $container;
private $mapper;
public function __construct(Container $container,Mapper $mapper)
{
$this->container = $container;
$this->mapper = $mapper;
}
public function execute($command)
{
$this->getHandler($command)->handle($command);
}
private function getHandler($command)
{
$class = $this->mapper->getHandlerClassFor($command);
return $this->container->make($class);
}
}

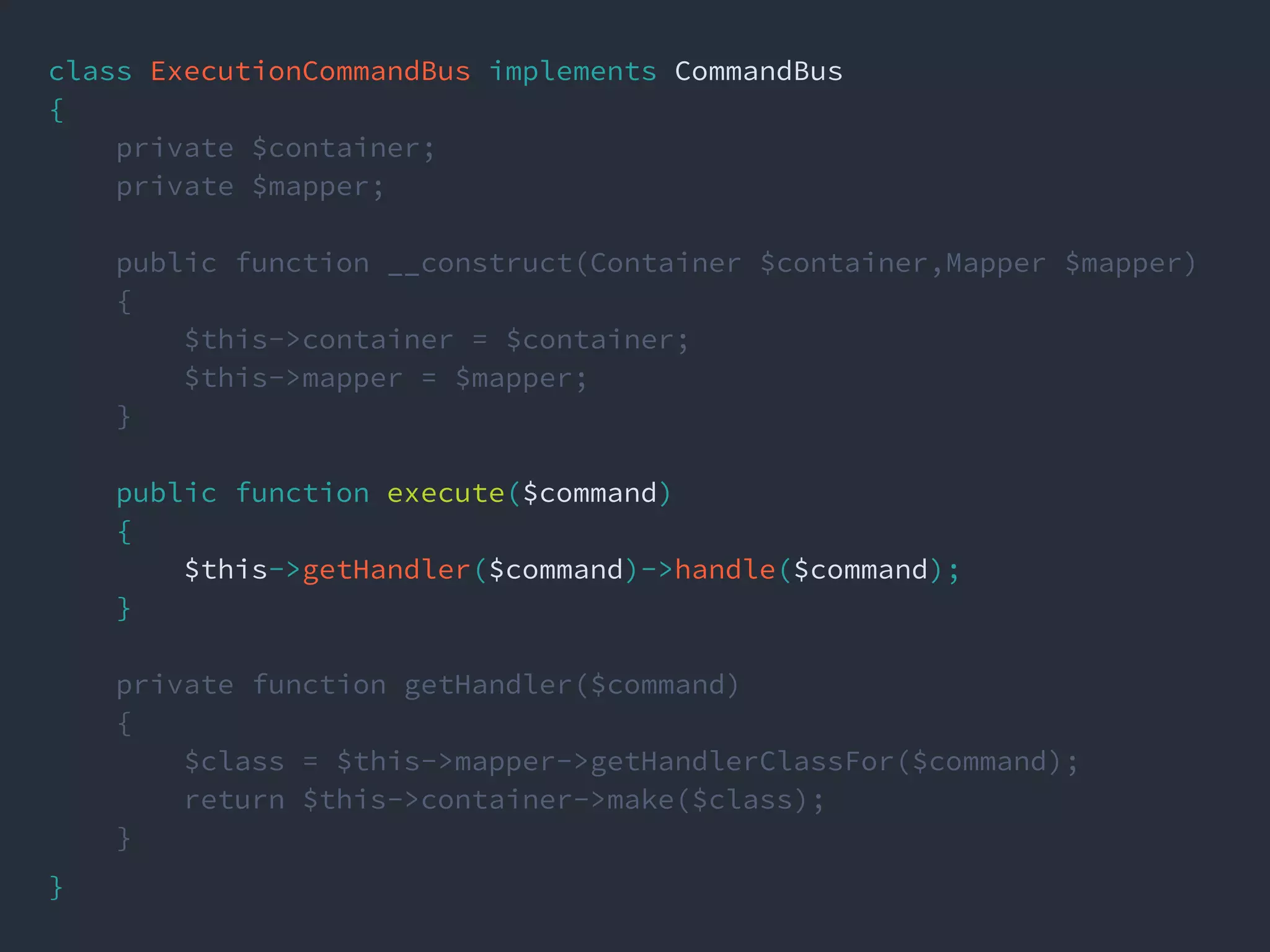

40. class ExecutionCommandBus implements CommandBus
{
private $container;
private $mapper;
public function __construct(Container $container,Mapper $mapper)
{
$this->container = $container;
$this->mapper = $mapper;
}
public function execute($command)
{
$this->getHandler($command)->handle($command);
}
private function getHandler($command)
{
$class = $this->mapper->getHandlerClassFor($command);
return $this->container->make($class);
}
}

41. class ExecutionCommandBus implements CommandBus
{
private $container;
private $mapper;
public function __construct(Container $container,Mapper $mapper)
{
$this->container = $container;
$this->mapper = $mapper;
}
public function execute($command)
{
$this->getHandler($command)->handle($command);
}
private function getHandler($command)
{
$class = $this->mapper->getHandlerClassFor($command);
return $this->container->make($class);
}
}

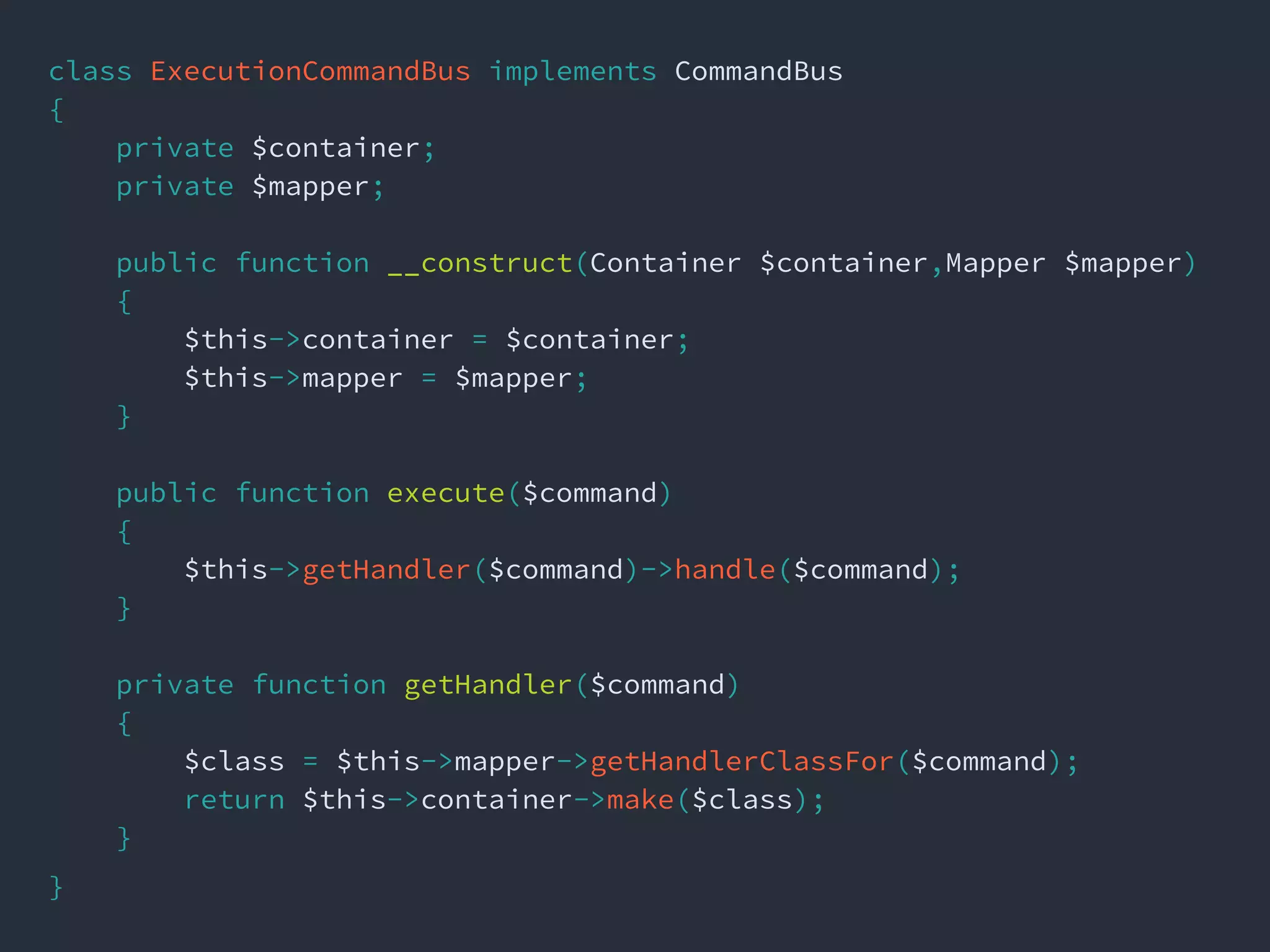

42. class ExecutionCommandBus implements CommandBus
{
private $container;
private $mapper;
public function __construct(Container $container,Mapper $mapper)
{
$this->container = $container;
$this->mapper = $mapper;
}
public function execute($command)
{
$this->getHandler($command)->handle($command);
}
private function getHandler($command)
{
$class = $this->mapper->getHandlerClassFor($command);
return $this->container->make($class);
}
}

43. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
HOW DOES THE MAPPER KNOW?

44. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
ONE HANDLER PER COMMAND

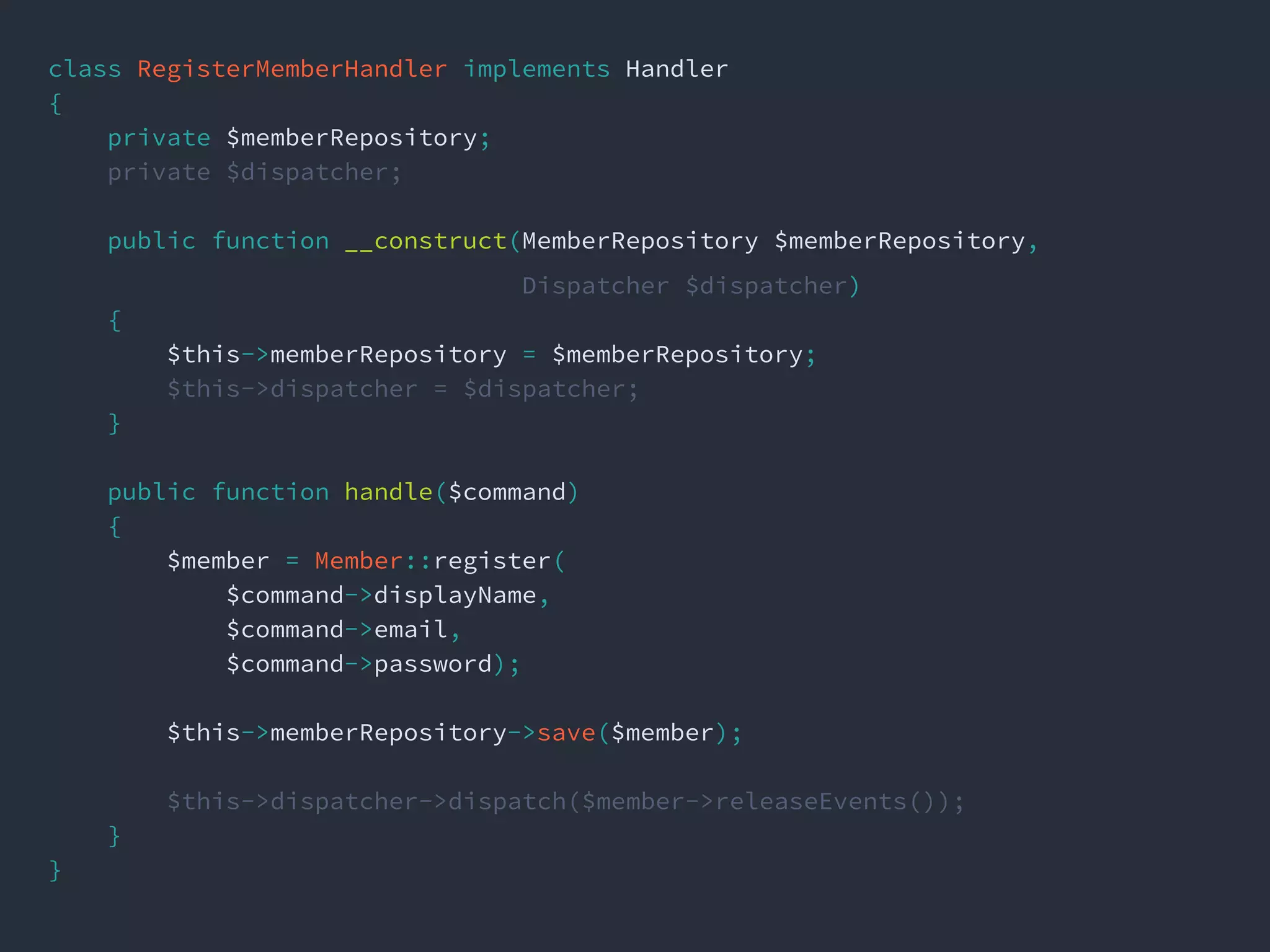

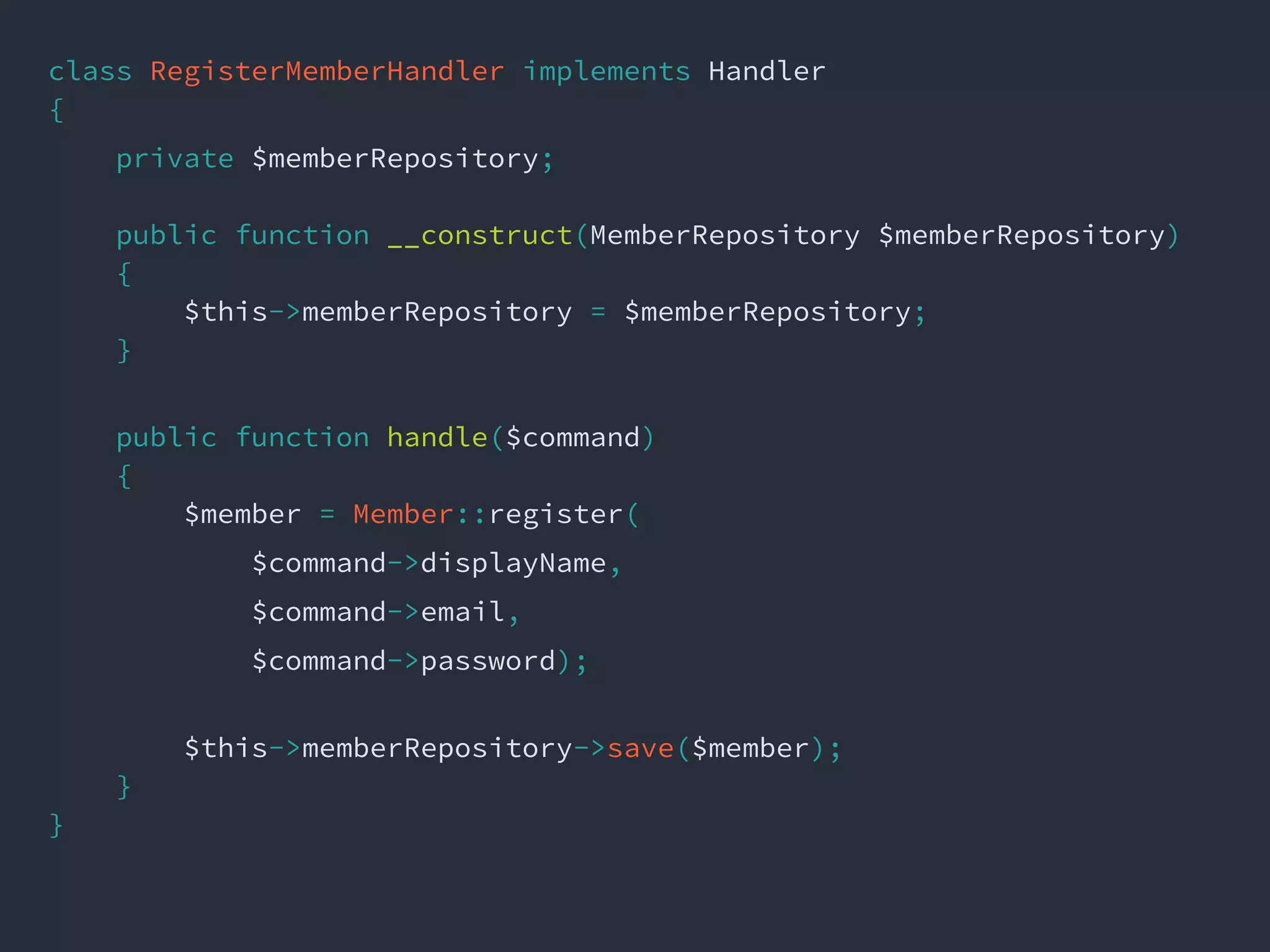

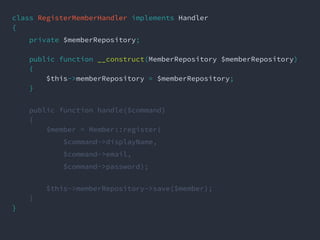

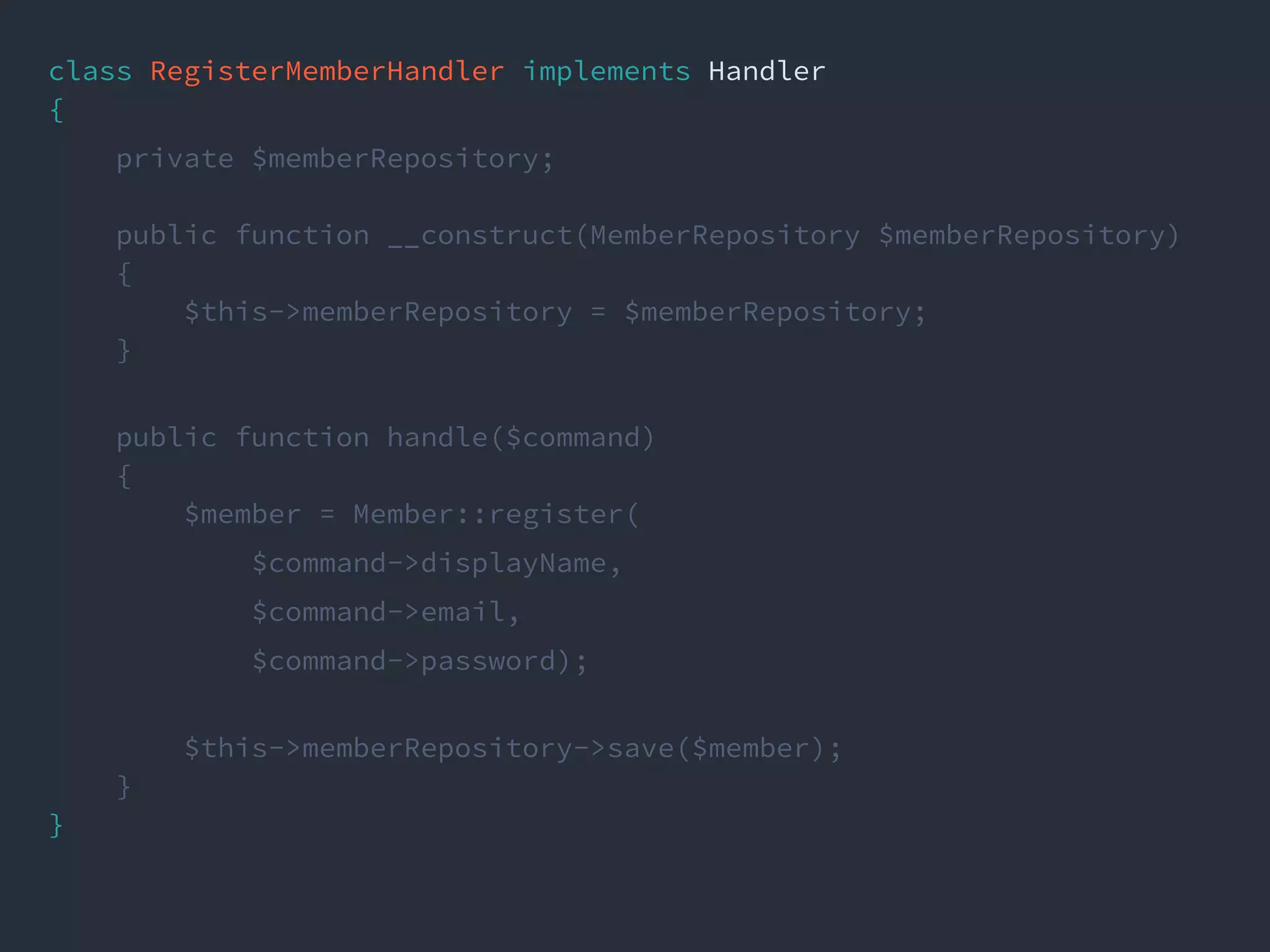

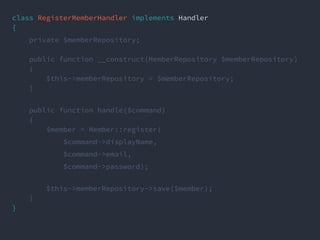

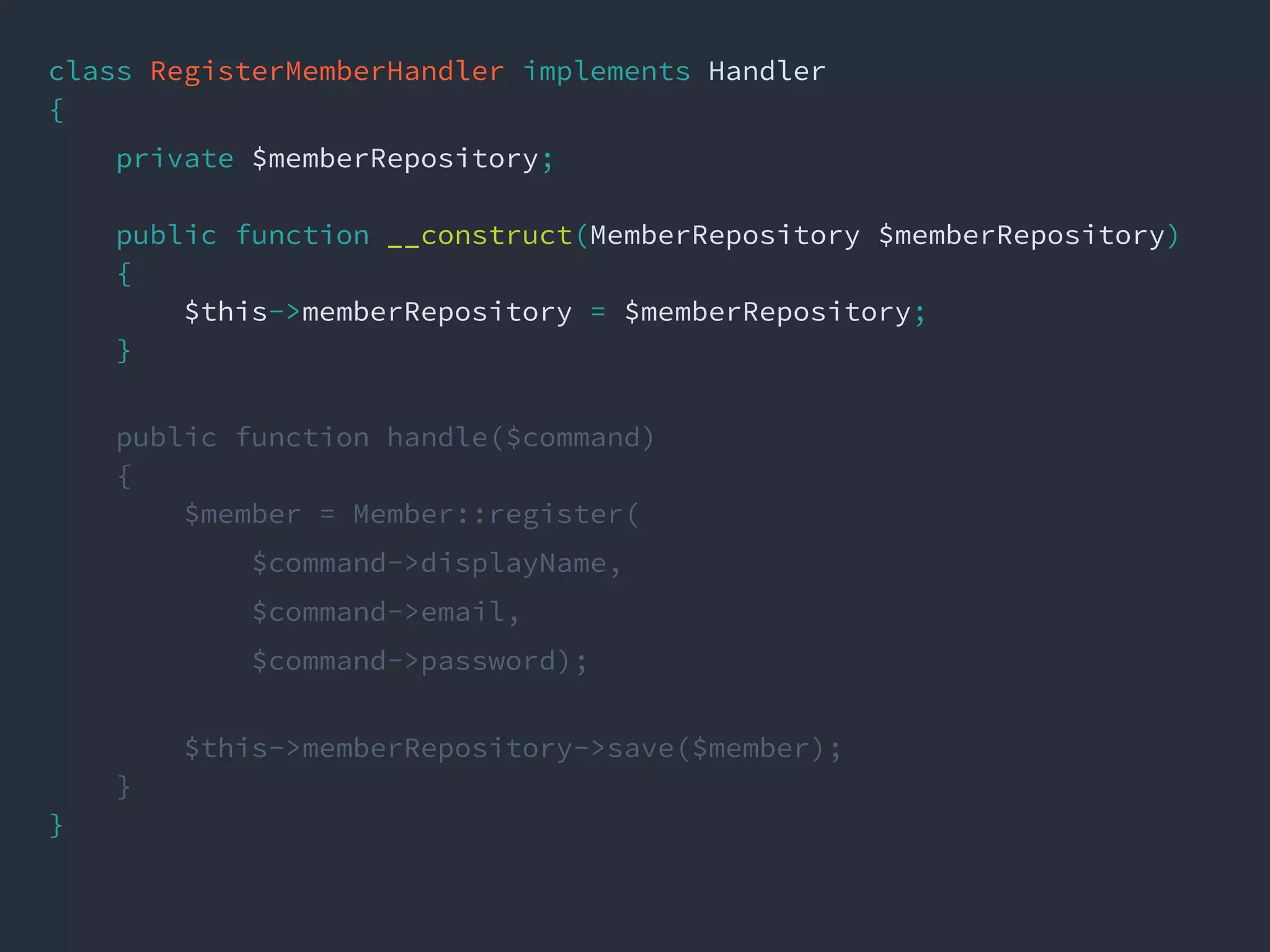

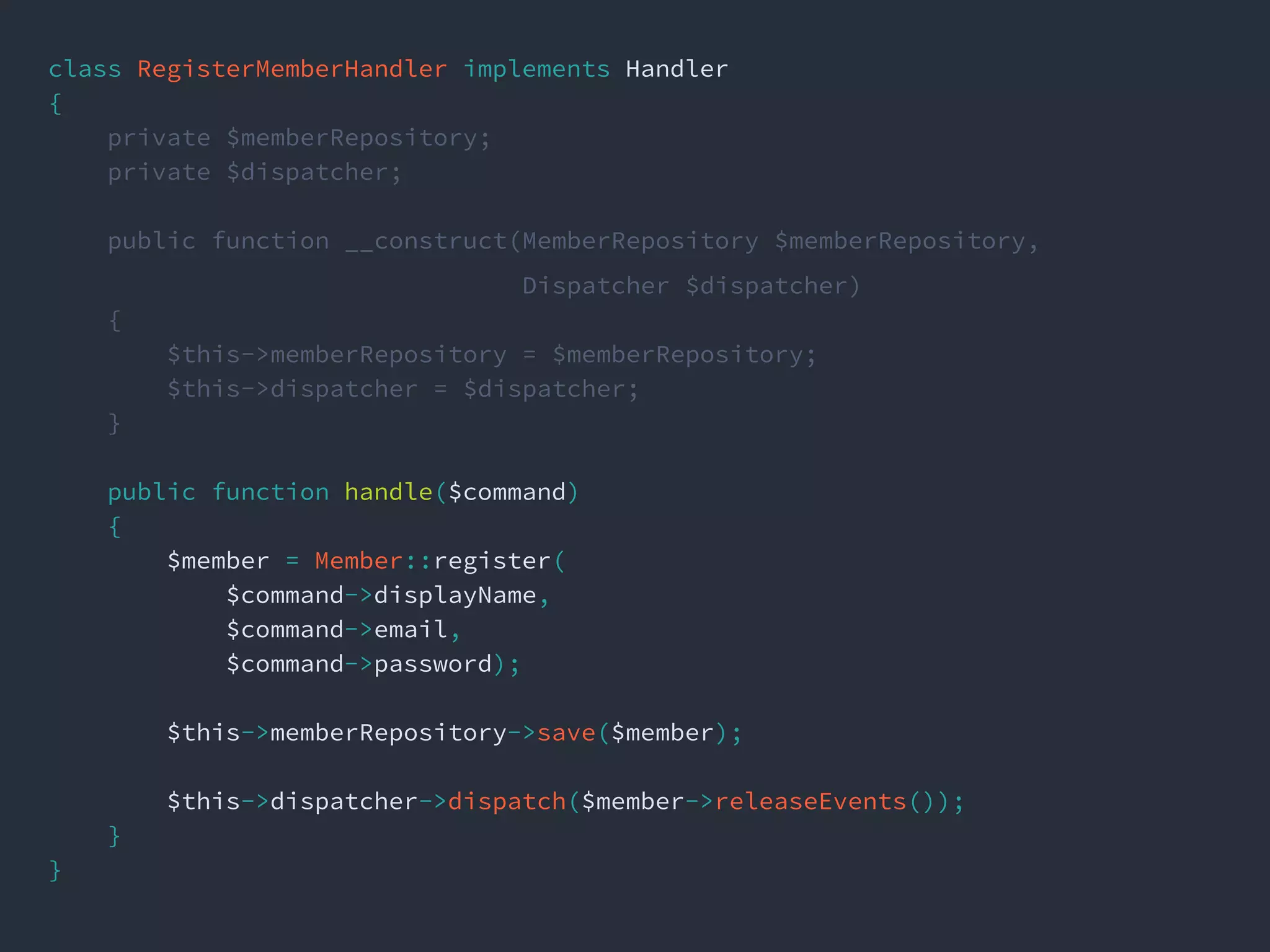

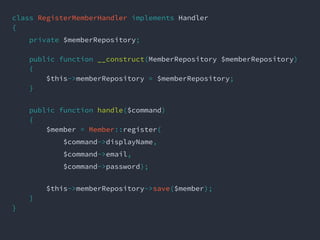

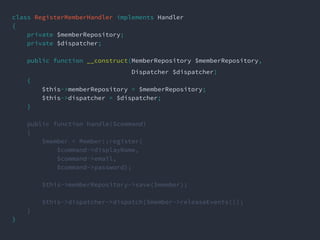

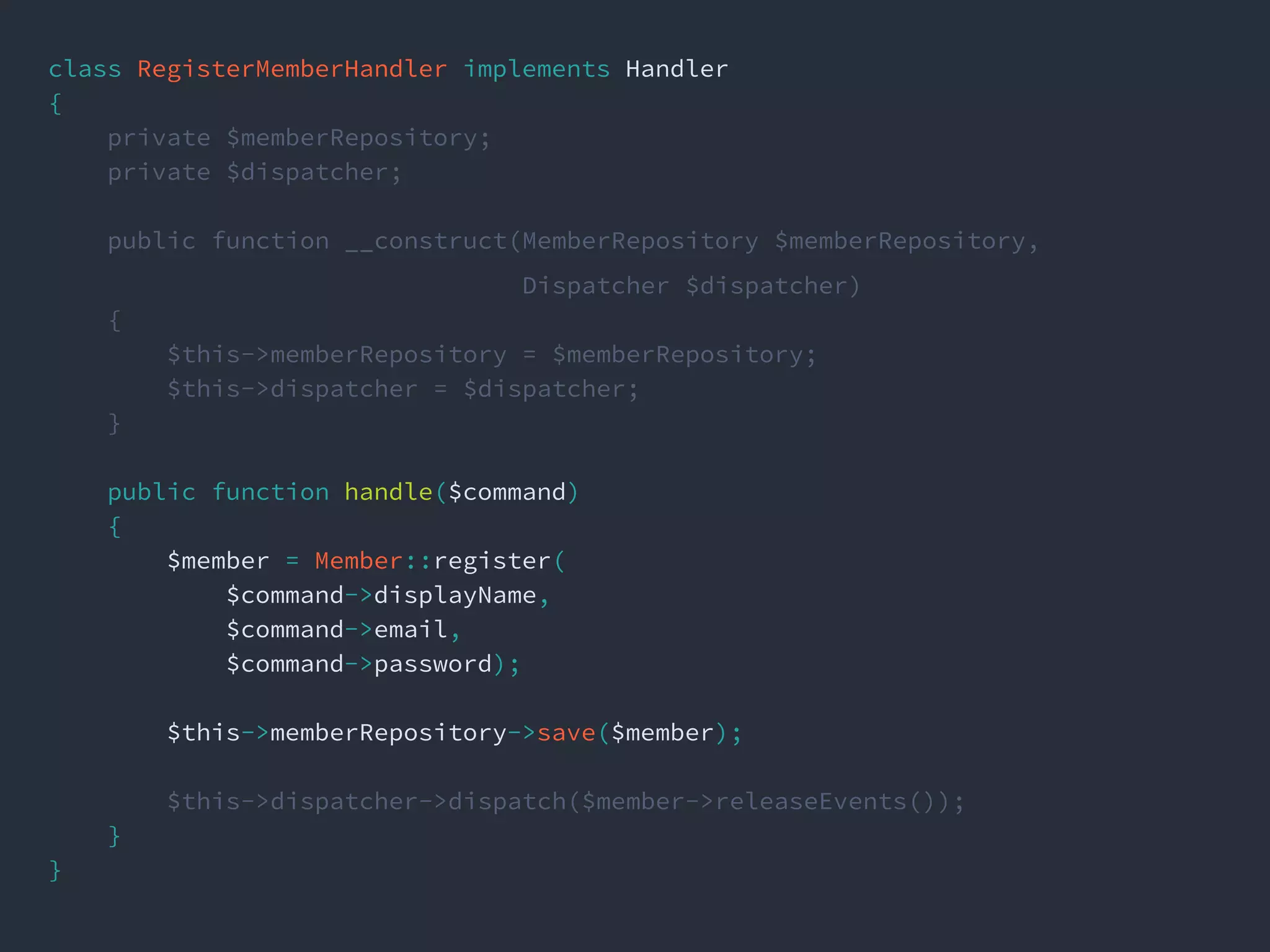

45. class RegisterMemberHandler implements Handler
{
private $memberRepository;
public function __construct(MemberRepository $memberRepository)
{
$this->memberRepository = $memberRepository;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
}
}

46. class RegisterMemberHandler implements Handler
{
private $memberRepository;
public function __construct(MemberRepository $memberRepository)
{
$this->memberRepository = $memberRepository;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
}
}

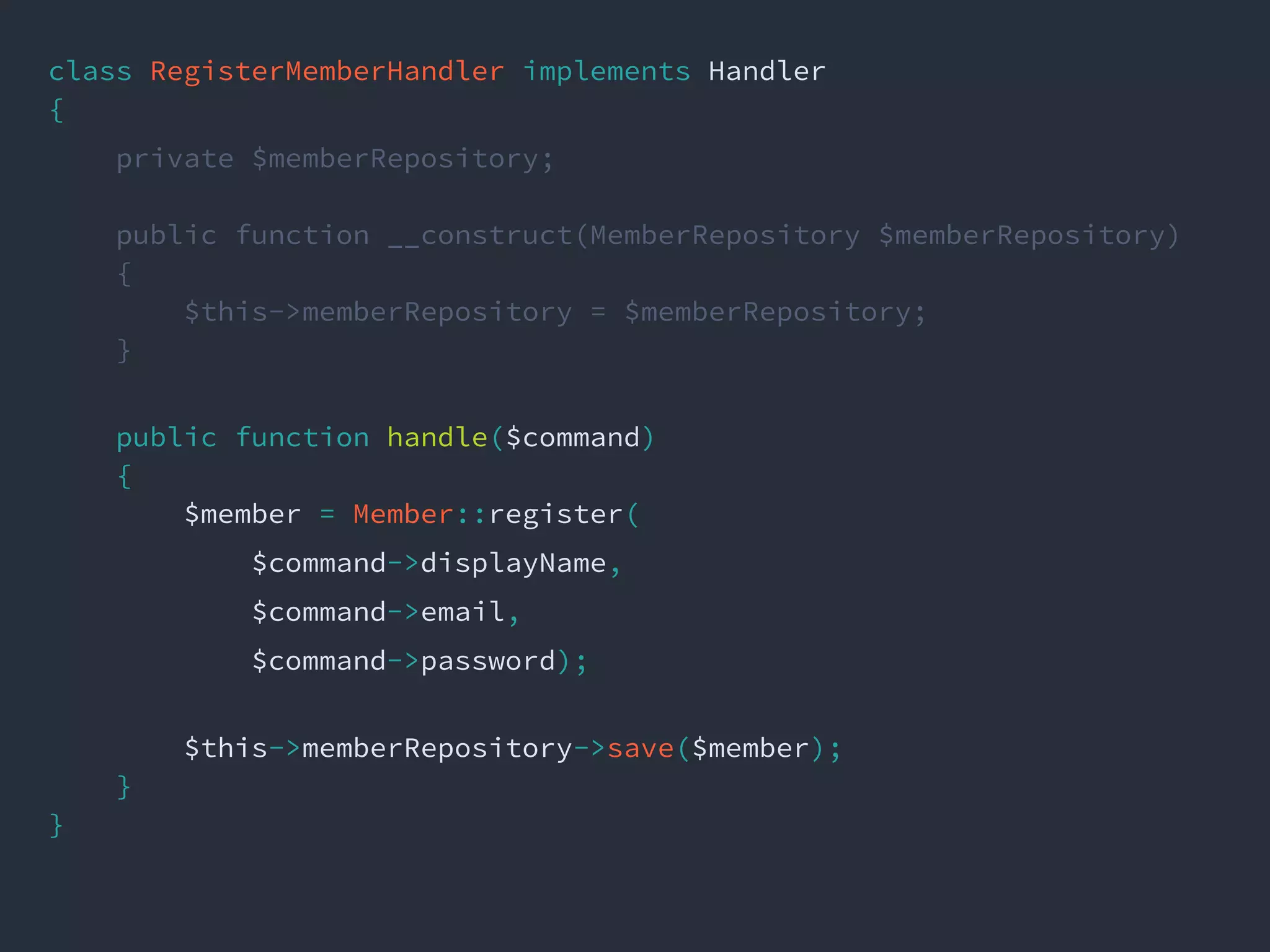

47. class RegisterMemberHandler implements Handler
{
private $memberRepository;
public function __construct(MemberRepository $memberRepository)
{
$this->memberRepository = $memberRepository;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
}
}

48. class RegisterMemberHandler implements Handler
{
private $memberRepository;
public function __construct(MemberRepository $memberRepository)
{
$this->memberRepository = $memberRepository;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
}
}

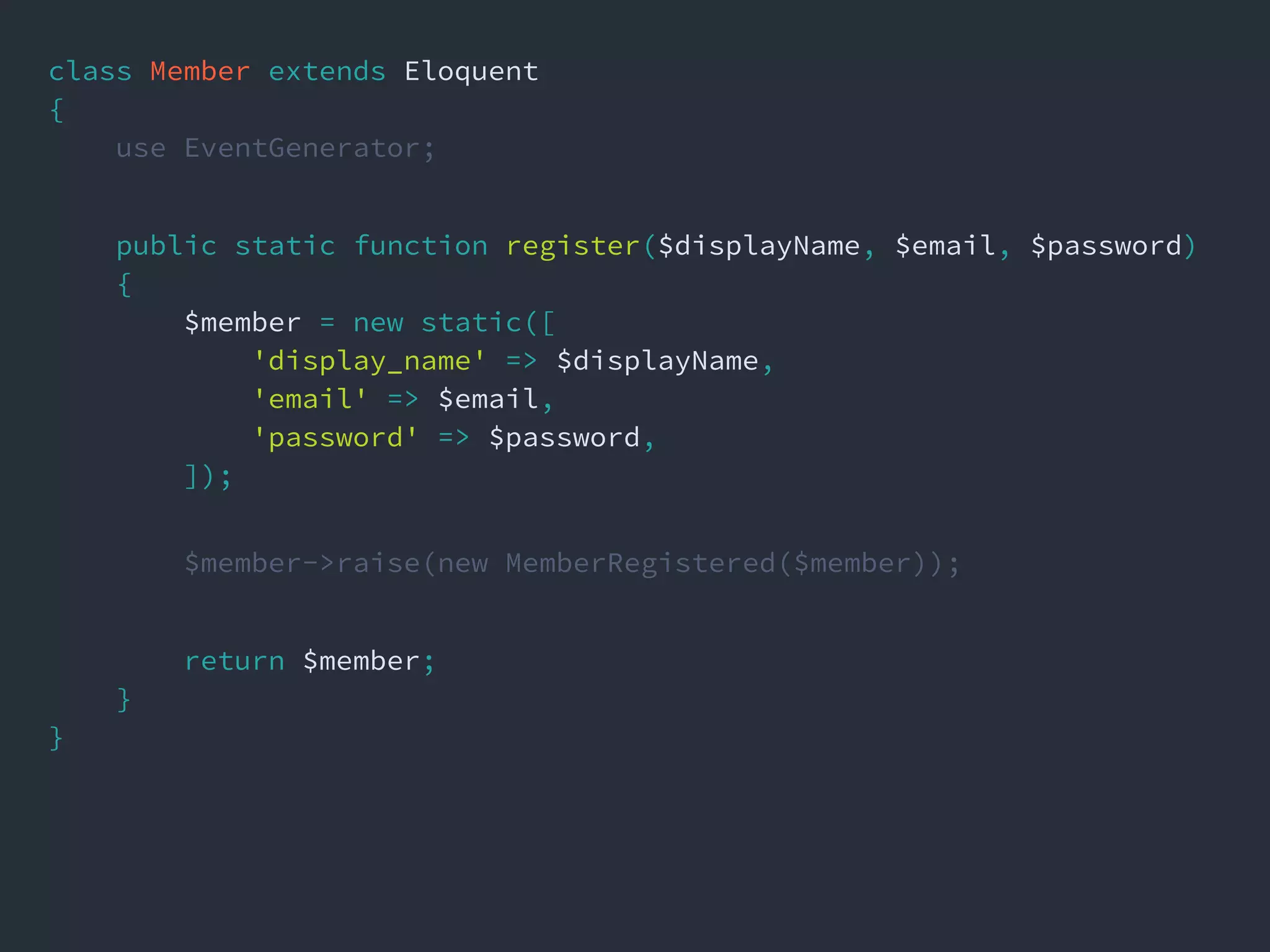

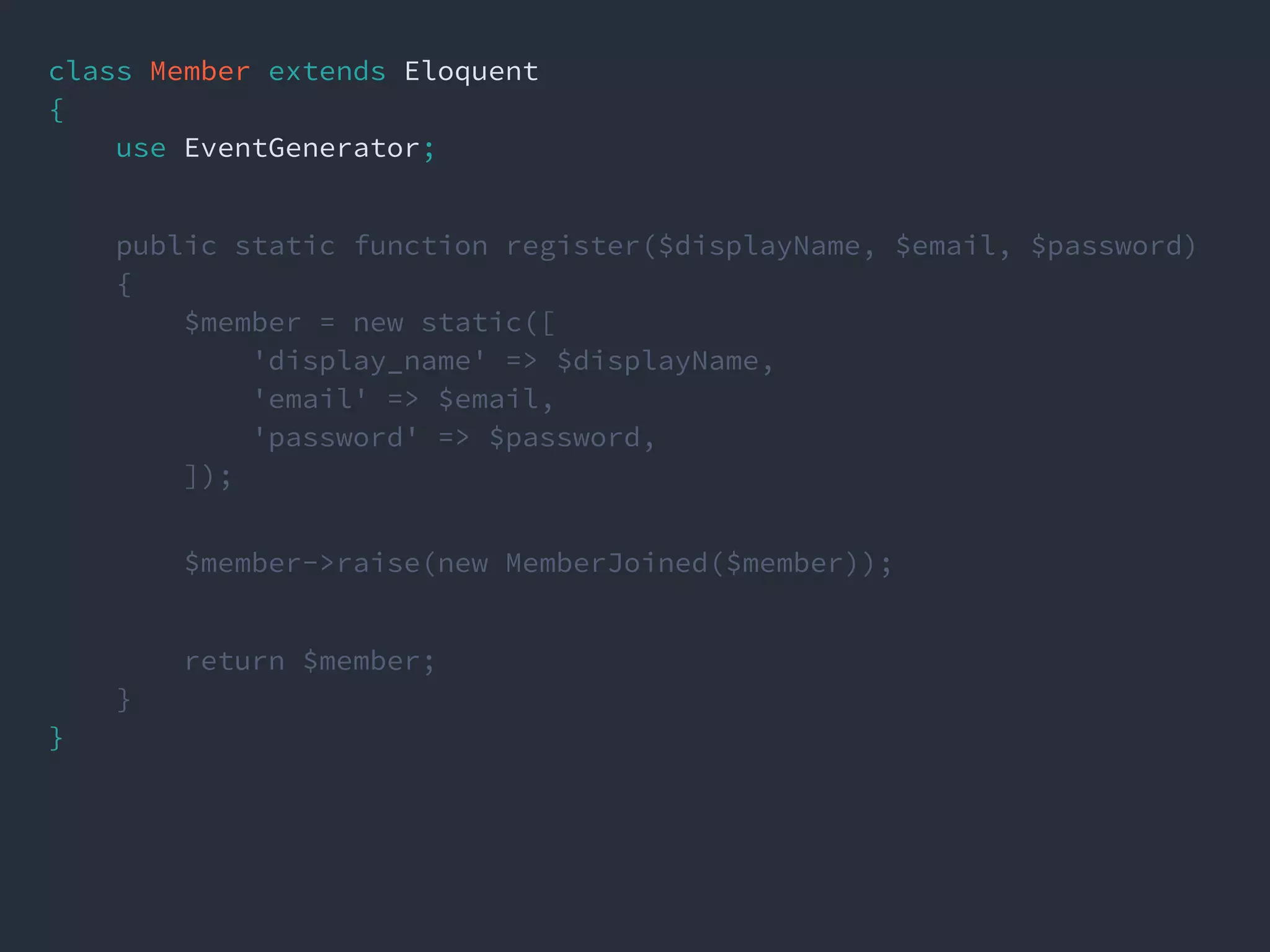

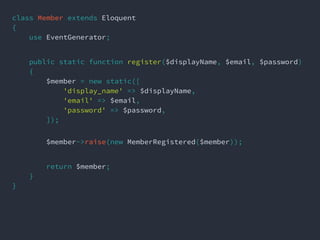

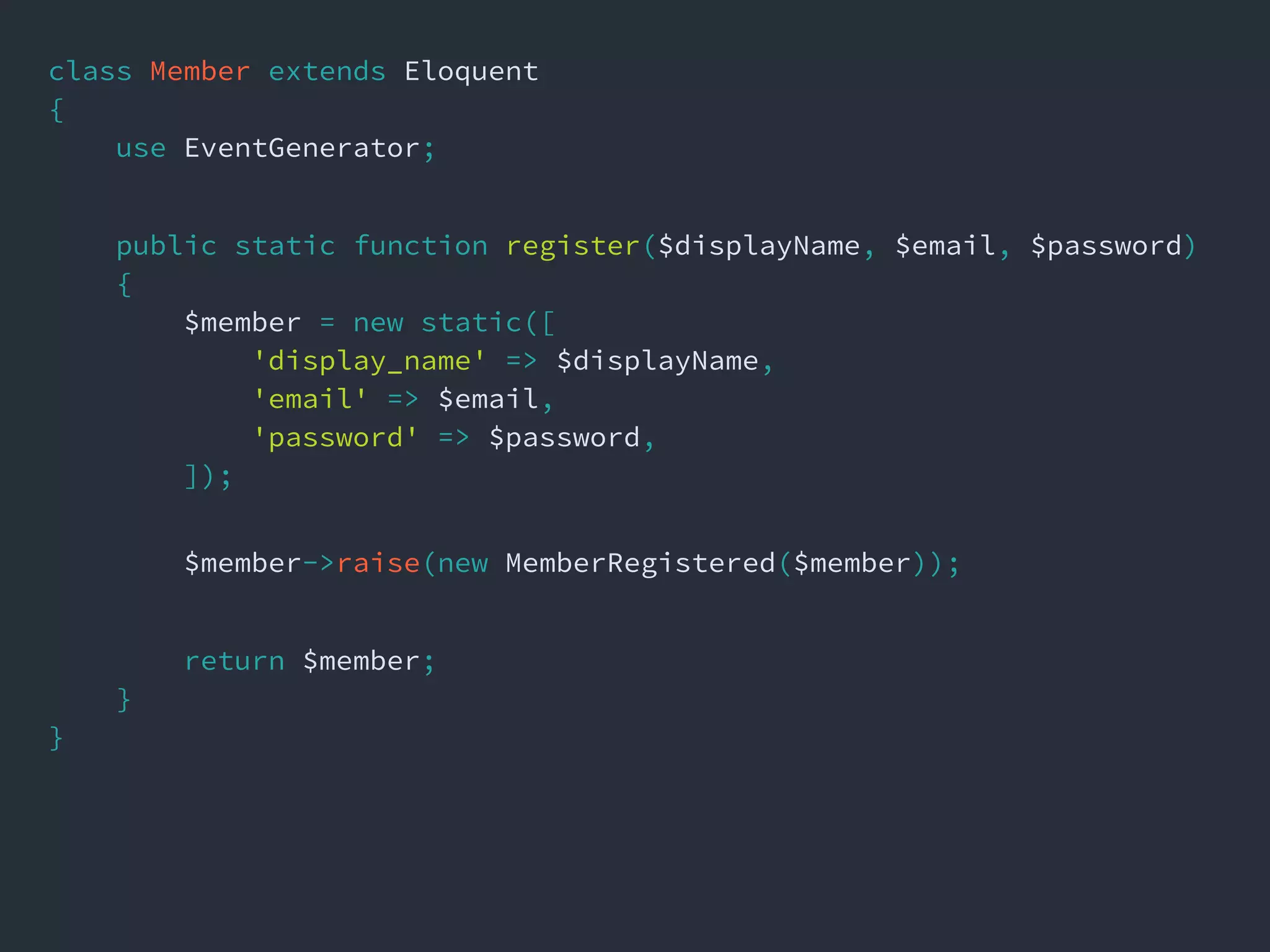

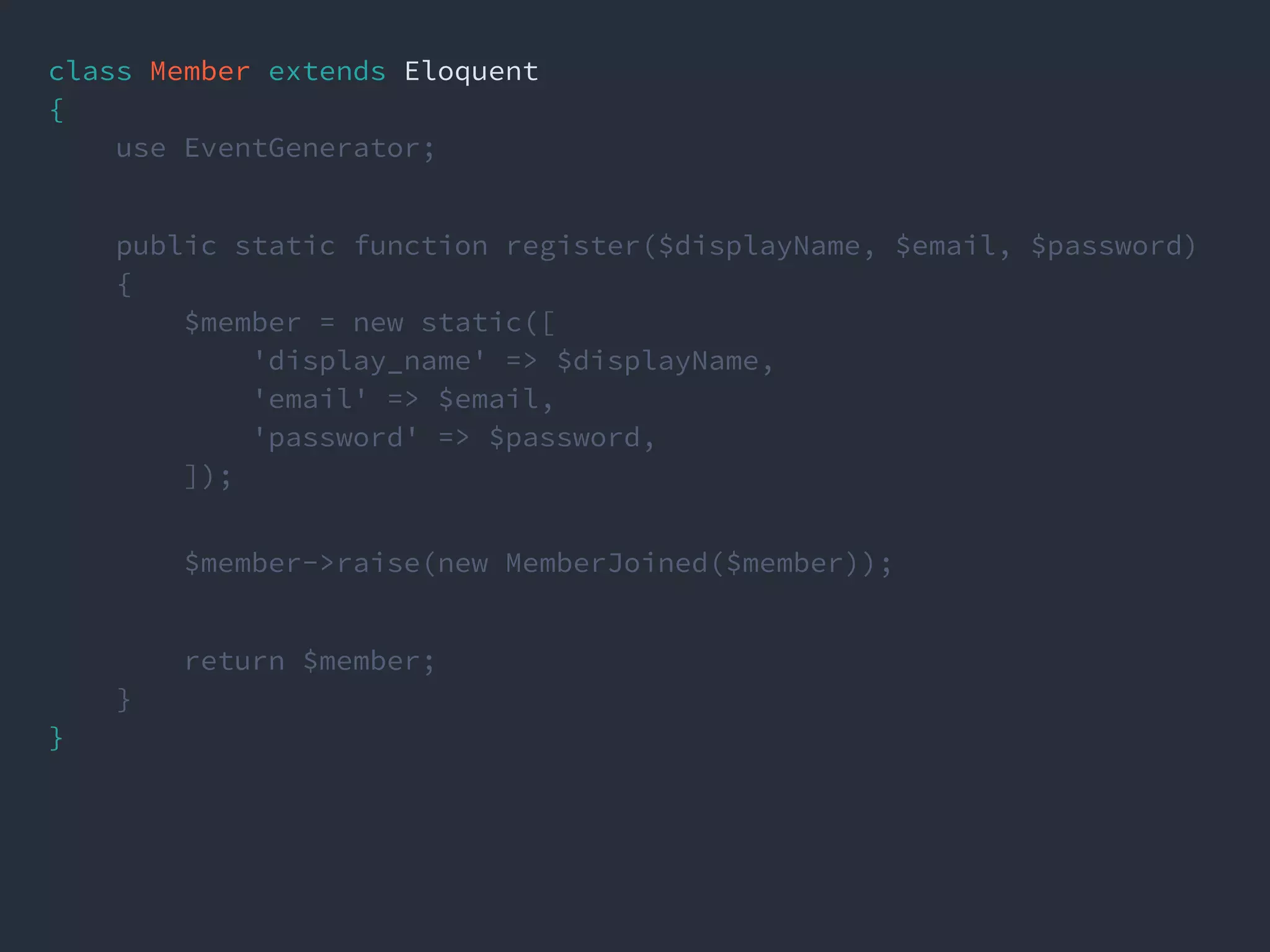

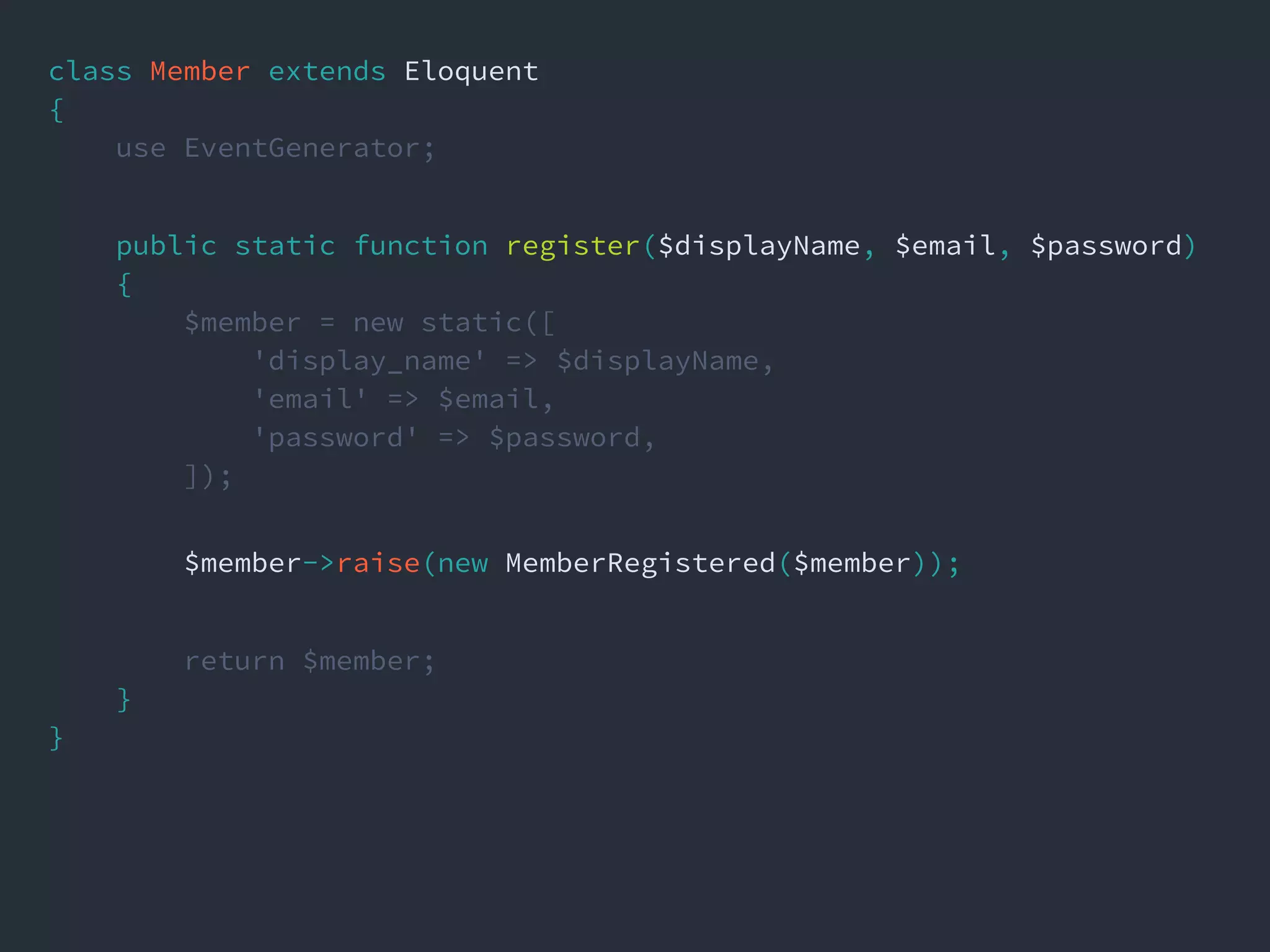

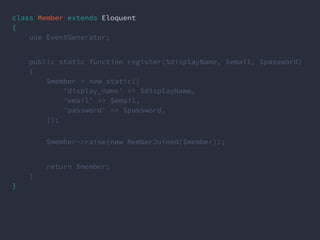

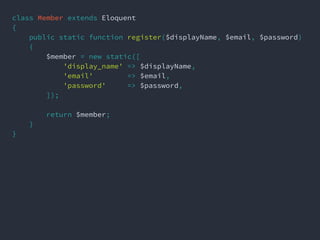

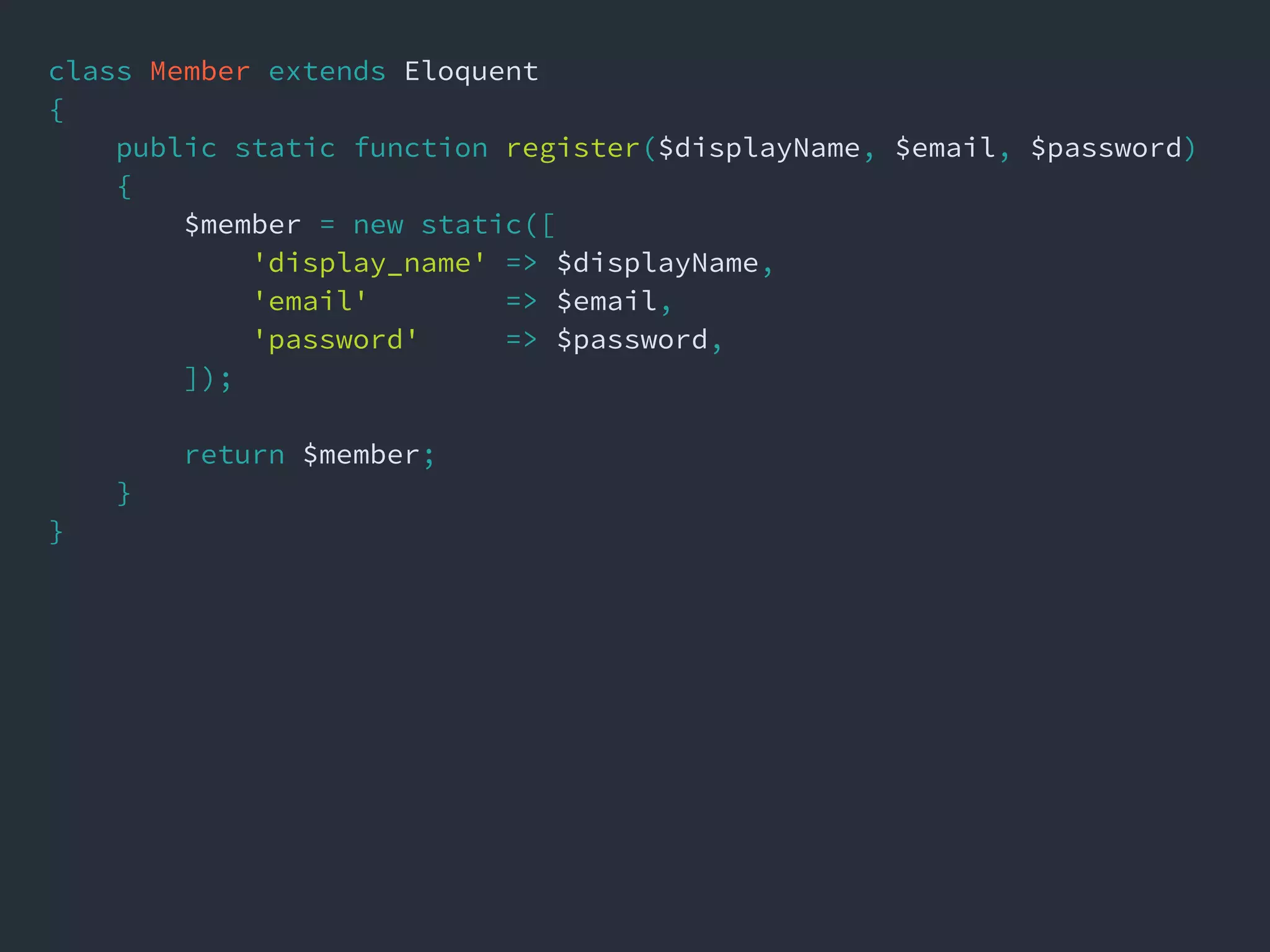

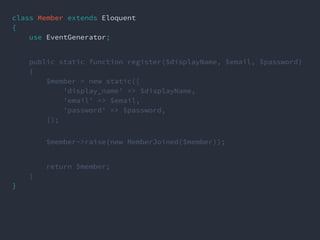

49. class Member extends Eloquent
{
public static function register($displayName, $email, $password)
{
$member = new static([
'display_name' => $displayName,
'email' => $email,
'password' => $password,
]);
return $member;
}
}

50. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
DOMAIN IMPLICATION

51. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

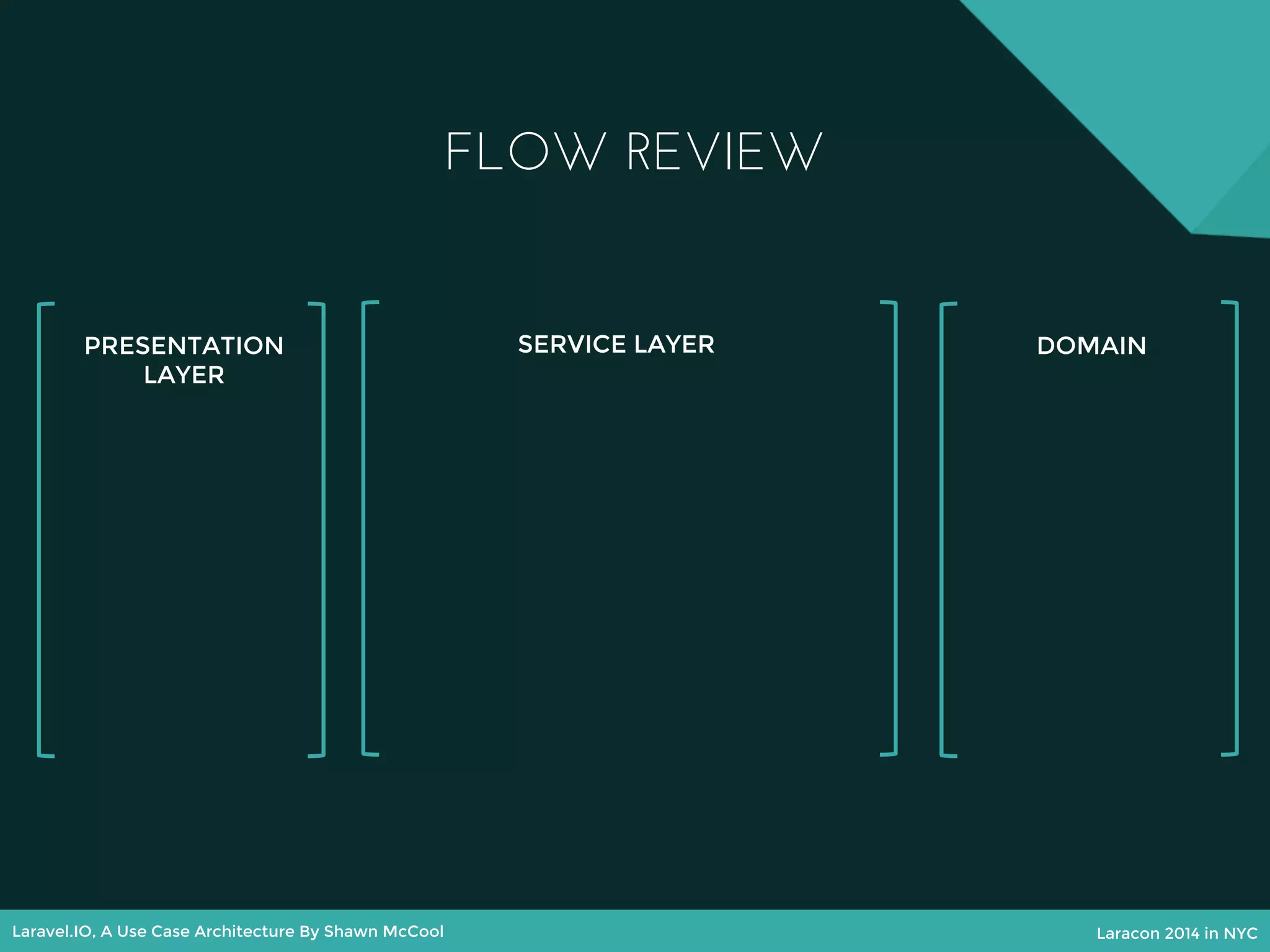

FLOW REVIEW
PRESENTATION
LAYER
SERVICE LAYER DOMAIN

52. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

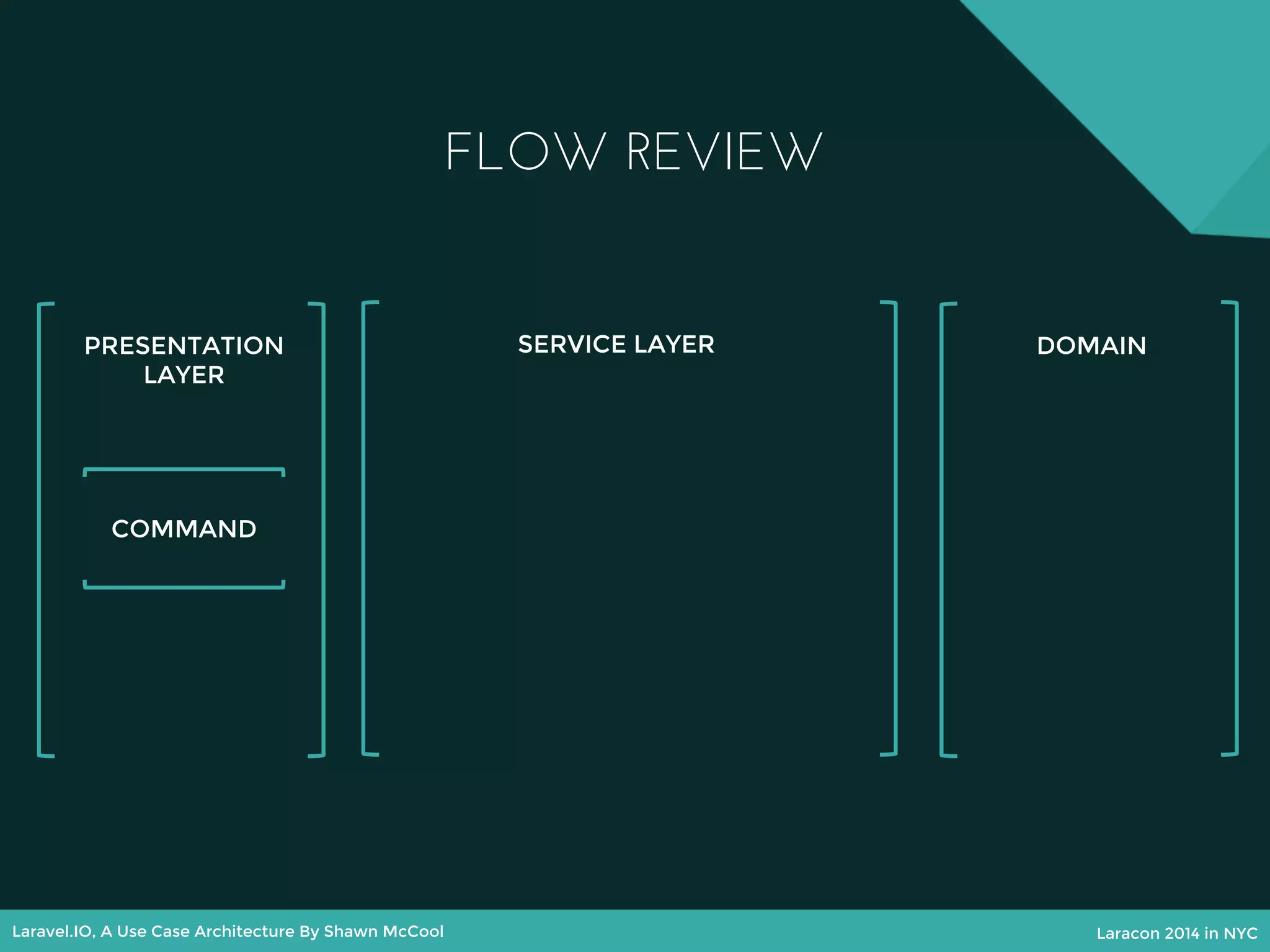

FLOW REVIEW
PRESENTATION
LAYER
SERVICE LAYER DOMAIN
COMMAND

53. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
FLOW REVIEW
PRESENTATION
LAYER
SERVICE LAYER DOMAIN
COMMAND
COMMAND
BUS

54. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
FLOW REVIEW
PRESENTATION
LAYER
SERVICE LAYER DOMAIN
COMMAND
COMMAND
BUS
COMMAND
HANDLER

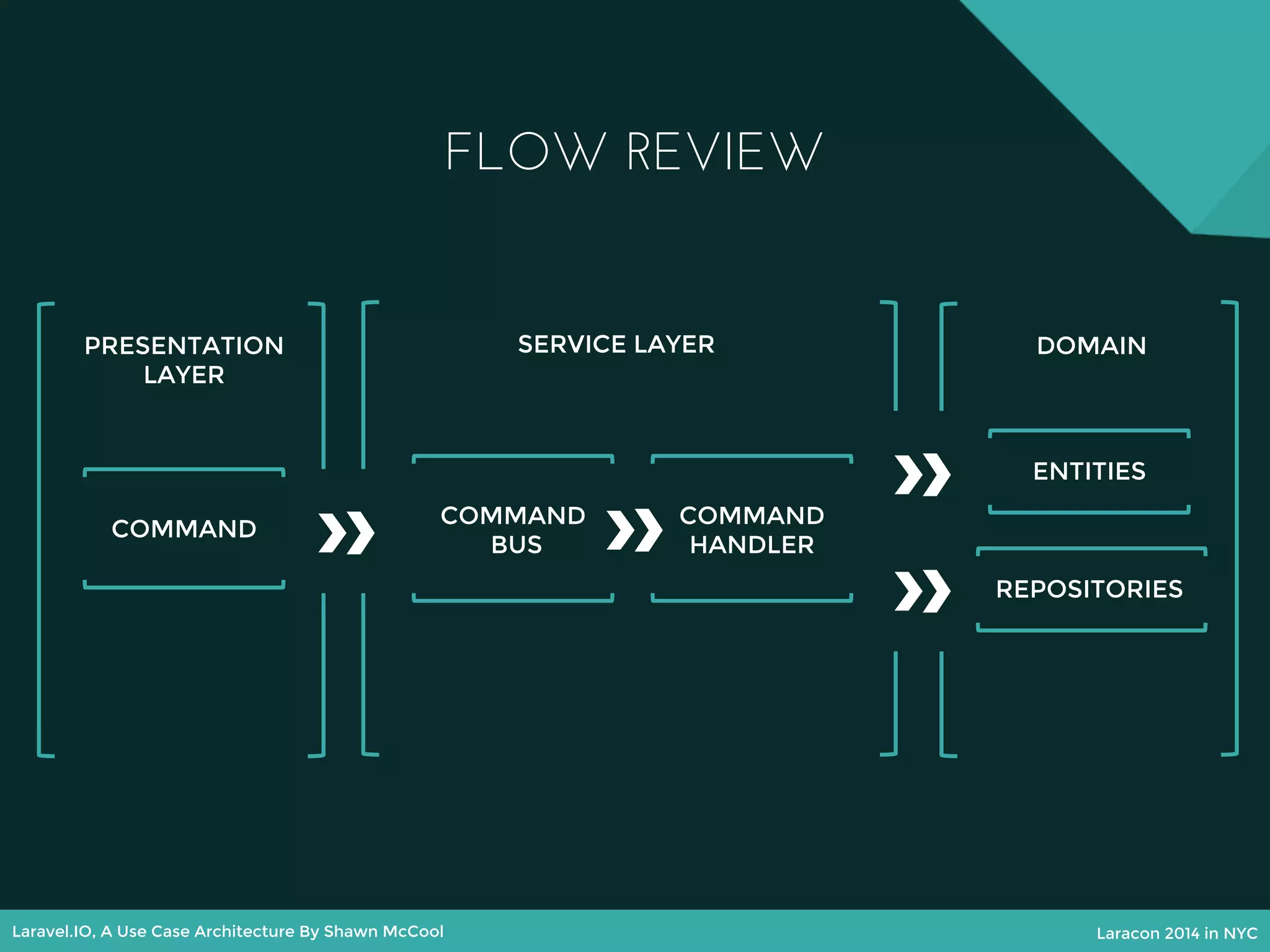

55. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
FLOW REVIEW
PRESENTATION
LAYER
SERVICE LAYER DOMAIN
COMMAND
COMMAND
BUS
COMMAND
HANDLER
ENTITIES
REPOSITORIES

56. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
HANDLING COMPLEX SEQUENCES

57. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

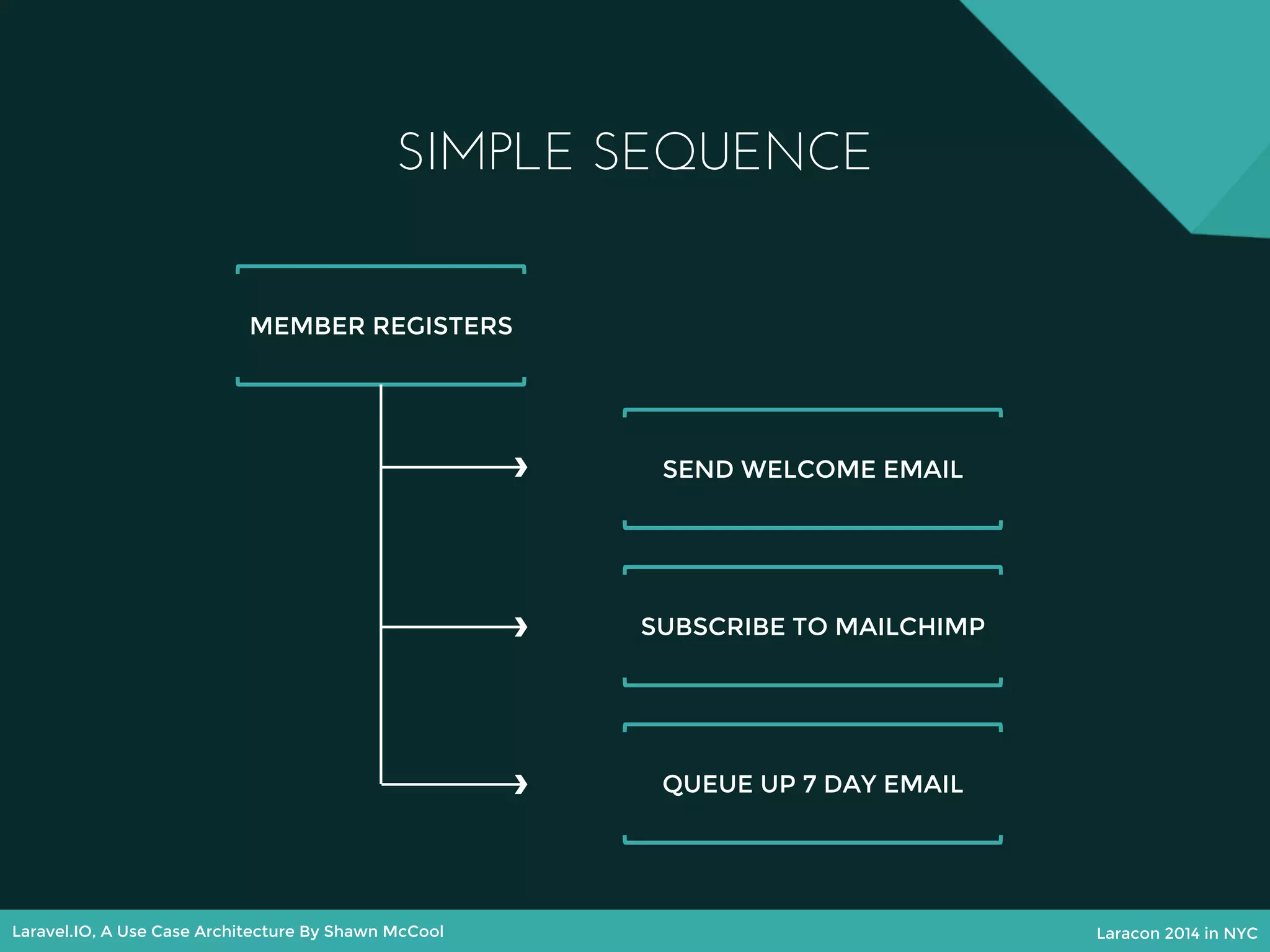

MEMBER REGISTERS
SEND WELCOME EMAIL
SUBSCRIBE TO MAILCHIMP
QUEUE UP 7 DAY EMAIL
SIMPLE SEQUENCE

58. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

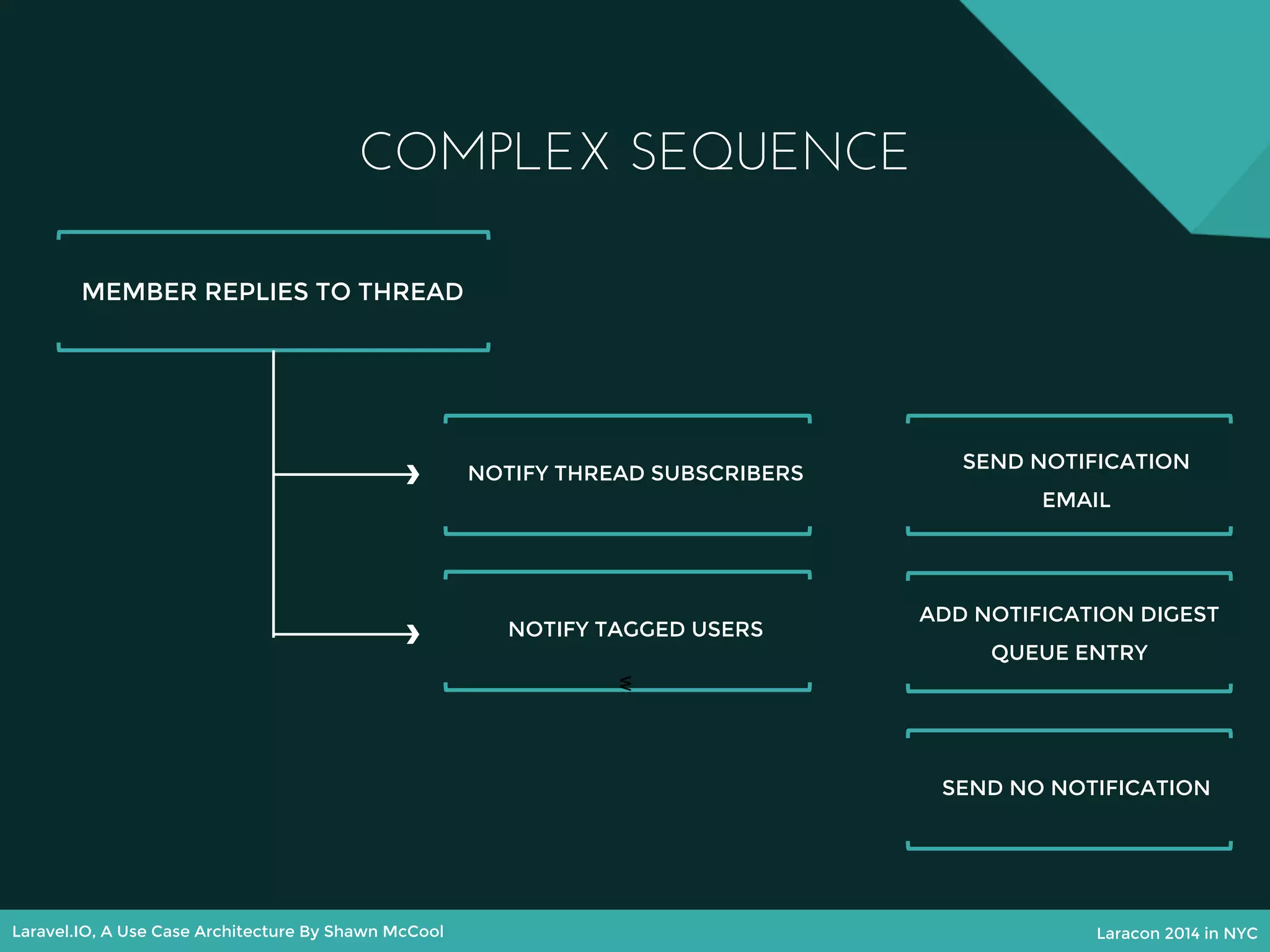

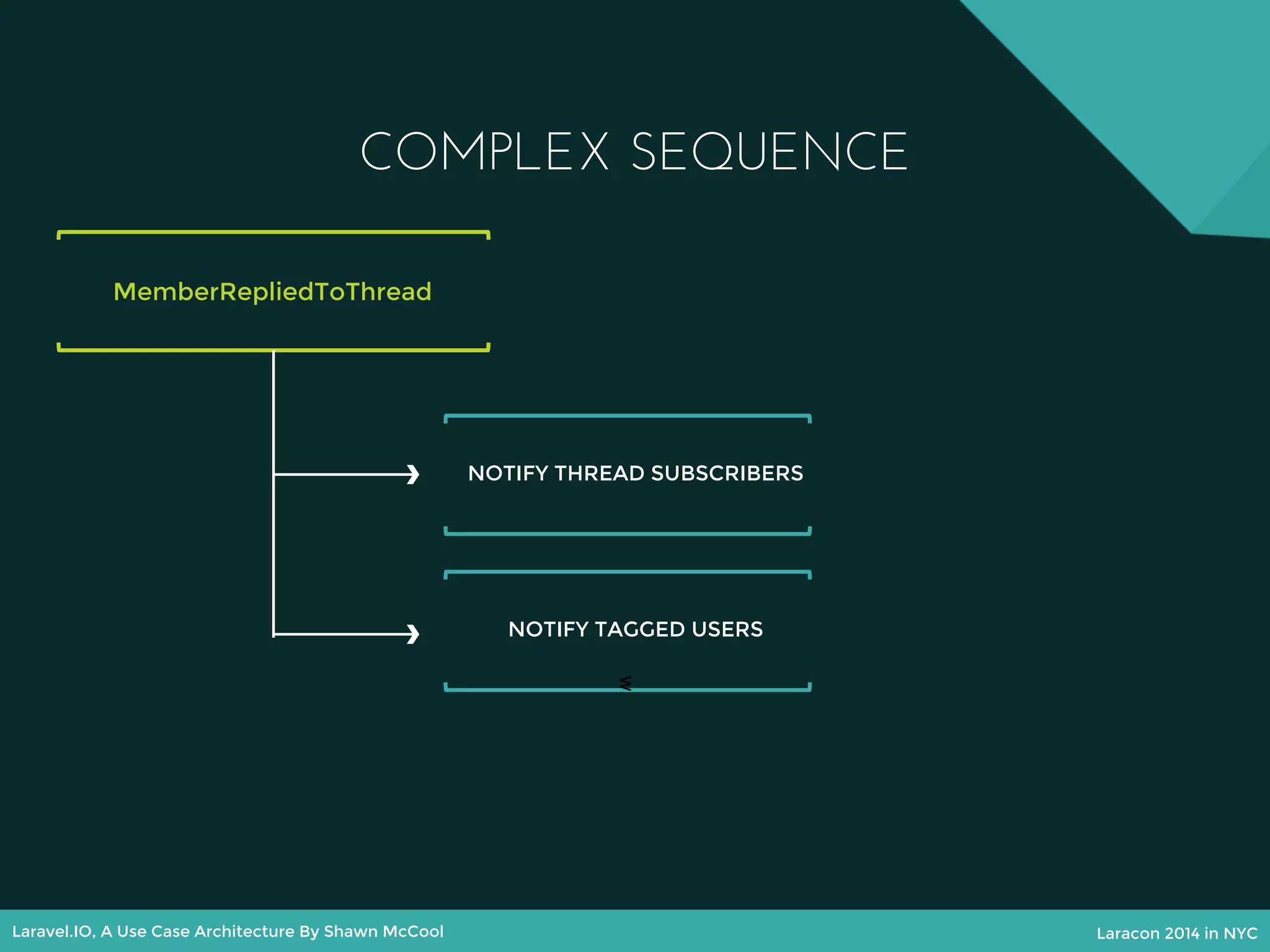

MEMBER REPLIES TO THREAD
NOTIFY THREAD SUBSCRIBERS
w
NOTIFY TAGGED USERS
COMPLEX SEQUENCE

59. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MEMBER REPLIES TO THREAD
NOTIFY THREAD SUBSCRIBERS
w
NOTIFY TAGGED USERS
COMPLEX SEQUENCE
SEND NOTIFICATION
EMAIL
ADD NOTIFICATION DIGEST
QUEUE ENTRY
SEND NO NOTIFICATION

60. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
DOMAIN EVENTS

61. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

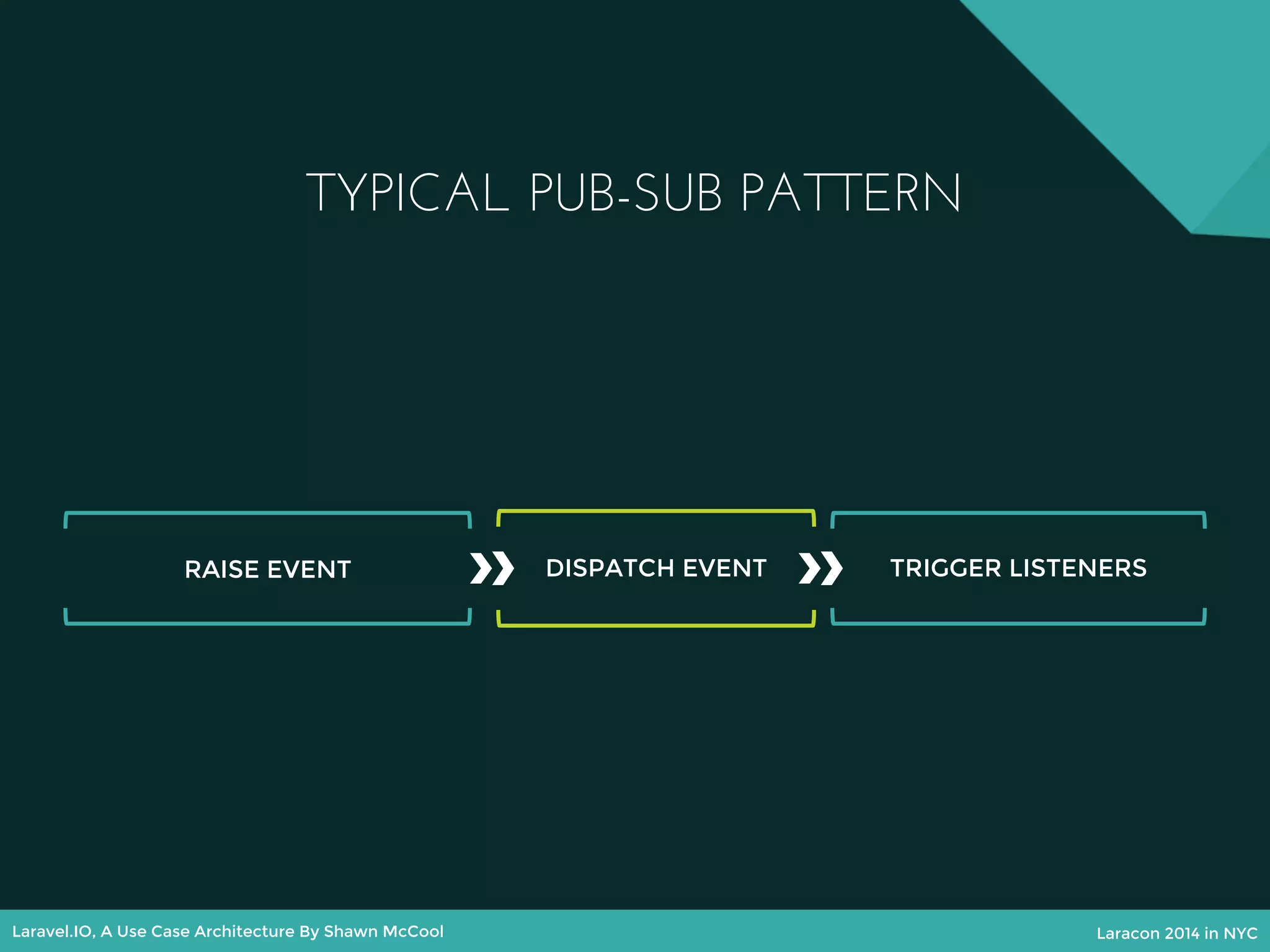

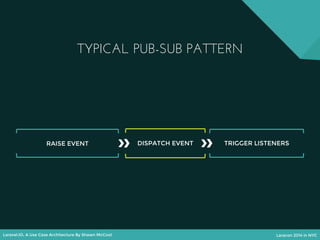

TYPICAL PUB-SUB PATTERN
DISPATCH EVENTRAISE EVENT TRIGGER LISTENERS

62. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
PRESENTATION LAYER
Controllers
Artisan Commands
Queue Listeners
SERVICE LAYER
Sending Email
Queueing up Jobs
Repository Implementations
Commands / Command Bus
DOMAIN
Entities
Repository Interfaces
A COMMON APPLICATION

63. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
PRESENTATION LAYER
Controllers
Artisan Commands
Queue Listeners
SERVICE LAYER
Sending Email
Queueing up Jobs
Repository Implementations
Commands / Command Bus
Event Dispatcher
DOMAIN
Entities
Repository Interfaces
Domain Events
A COMMON APPLICATION

64. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MEMBER REGISTERS
SEND WELCOME EMAIL
SUBSCRIBE TO MAILCHIMP
QUEUE UP 7 DAY EMAIL
DOMAIN EVENTS

65. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MEMBER REGISTERS
SEND WELCOME EMAIL
SUBSCRIBE TO MAILCHIMP
QUEUE UP 7 DAY EMAIL
EVENT / LISTENER BREAKDOWN

66. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberRegistered
SEND WELCOME EMAIL
SUBSCRIBE TO MAILCHIMP
QUEUE UP 7 DAY EMAIL
EVENT / LISTENER BREAKDOWN

67. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberRegistered
SEND WELCOME EMAIL
SUBSCRIBE TO MAILCHIMP
QUEUE UP 7 DAY EMAIL
EVENT / LISTENER BREAKDOWN

68. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberRegistered
SendWelcomeMail
SubscribeToMailchimp
SendOneWeekEmail
EVENT / LISTENER BREAKDOWN

69. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberRegistered SendWelcomeMail
SendOneWeekEmail
SubscribeToMailchimp
EVENTS LISTENERS
EVENT / LISTENER BREAKDOWN

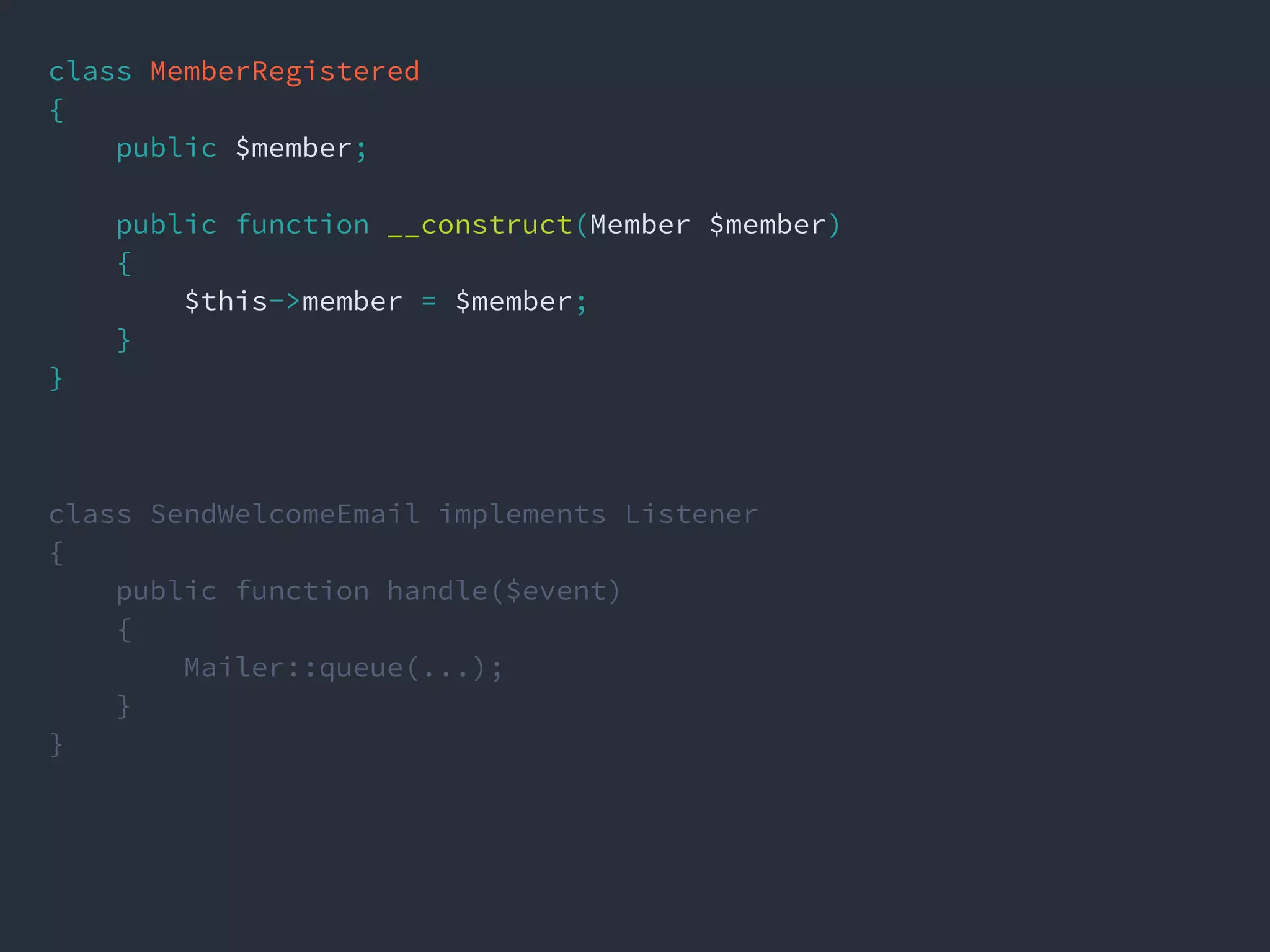

70. class MemberRegistered
{
public $member;
public function __construct(Member $member)
{
$this->member = $member;
}
}
class SendWelcomeEmail implements Listener
{
public function handle($event)
{
Mailer::queue(...);
}
}

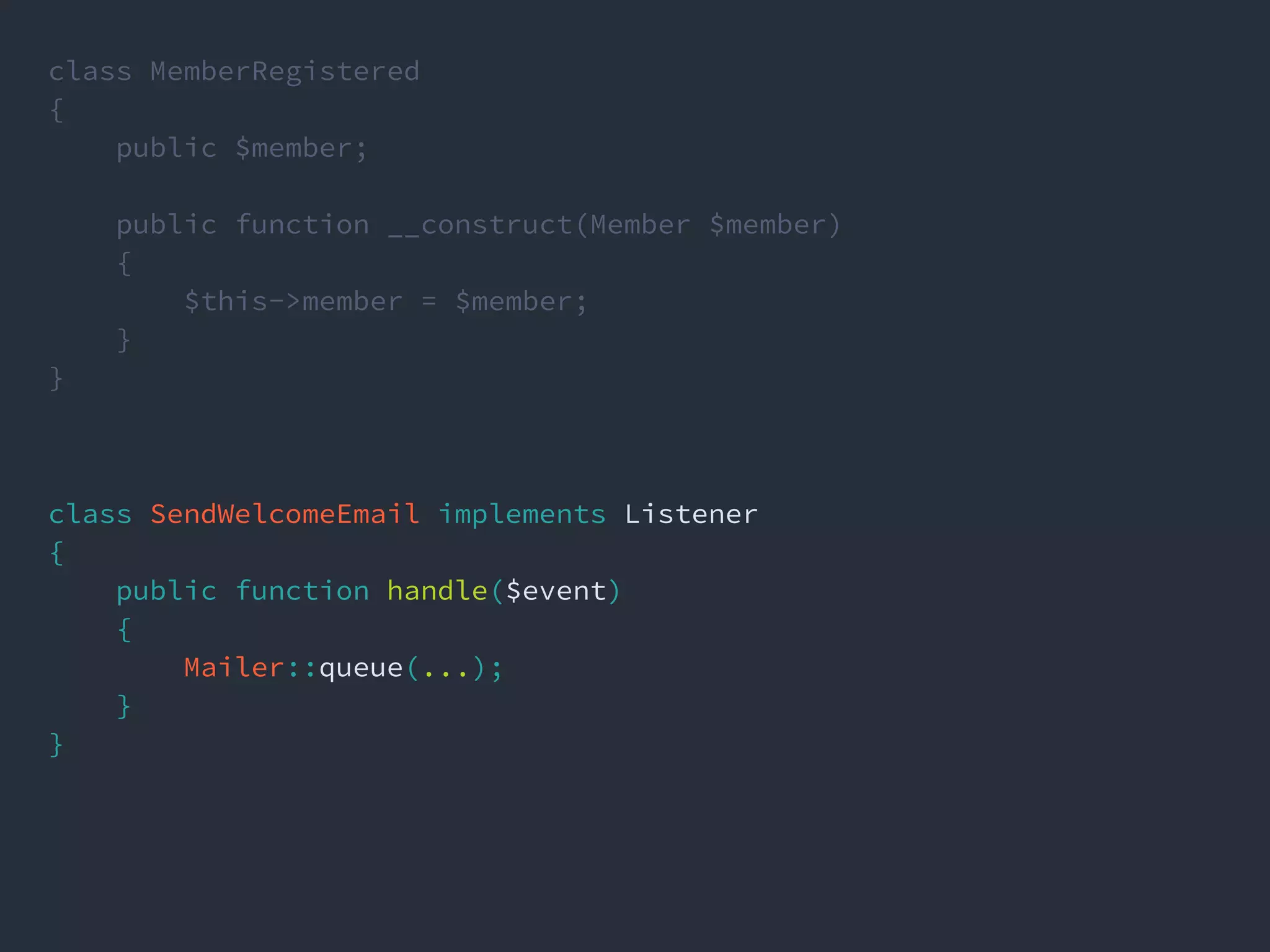

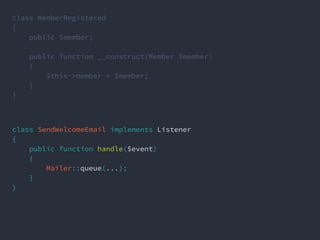

71. class MemberRegistered
{
public $member;
public function __construct(Member $member)
{
$this->member = $member;
}
}
class SendWelcomeEmail implements Listener
{
public function handle($event)
{
Mailer::queue(...);
}
}

72. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
THROWING DOMAIN EVENTS

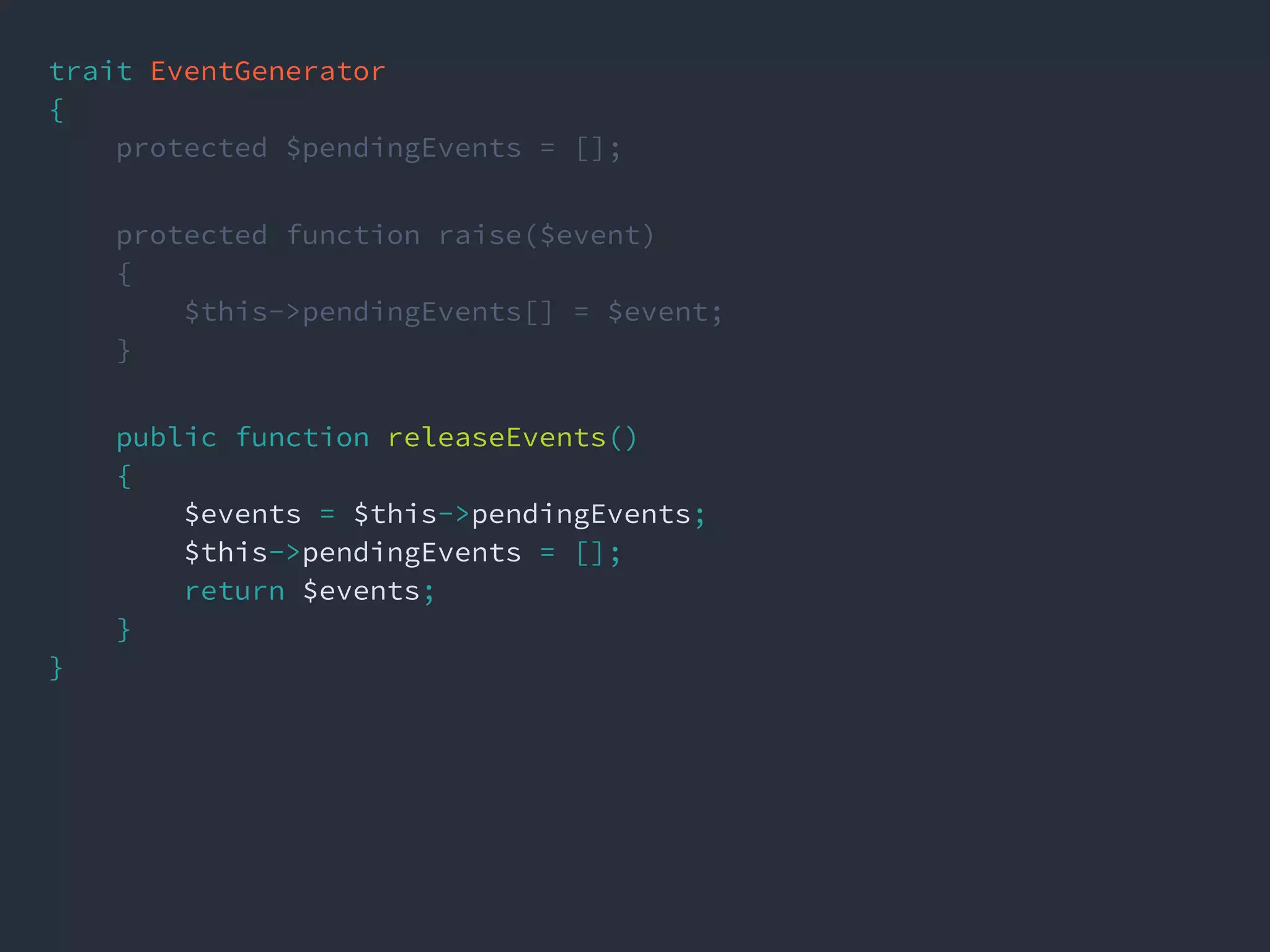

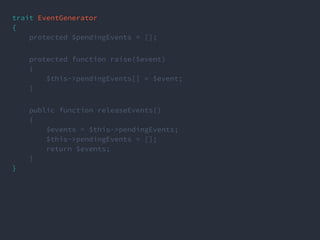

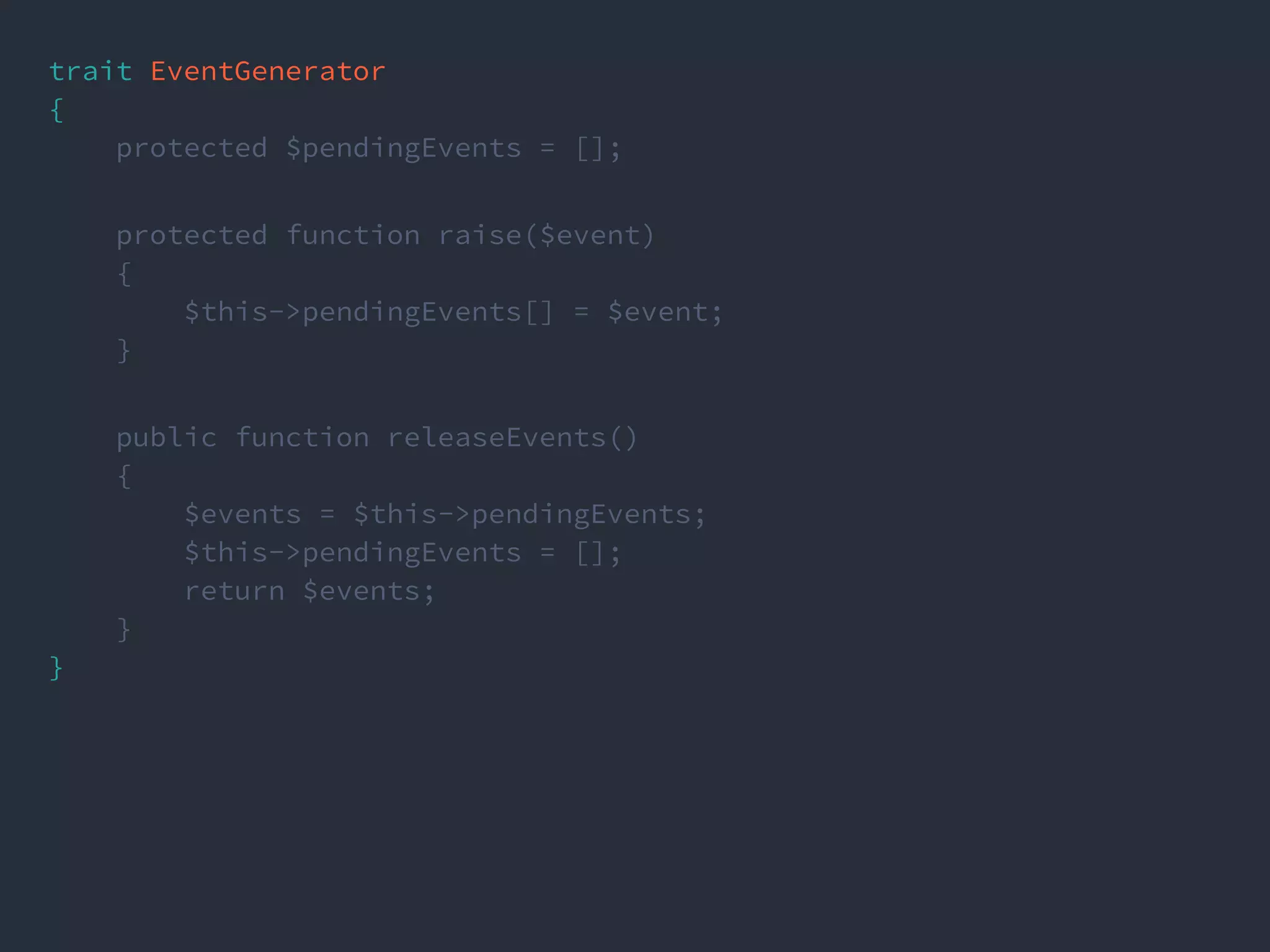

73. trait EventGenerator
{
protected $pendingEvents = [];
protected function raise($event)
{
$this->pendingEvents[] = $event;
}
public function releaseEvents()
{
$events = $this->pendingEvents;
$this->pendingEvents = [];
return $events;
}
}

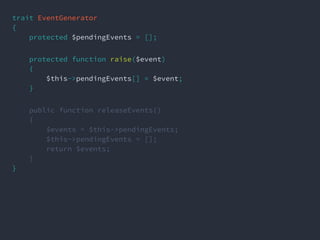

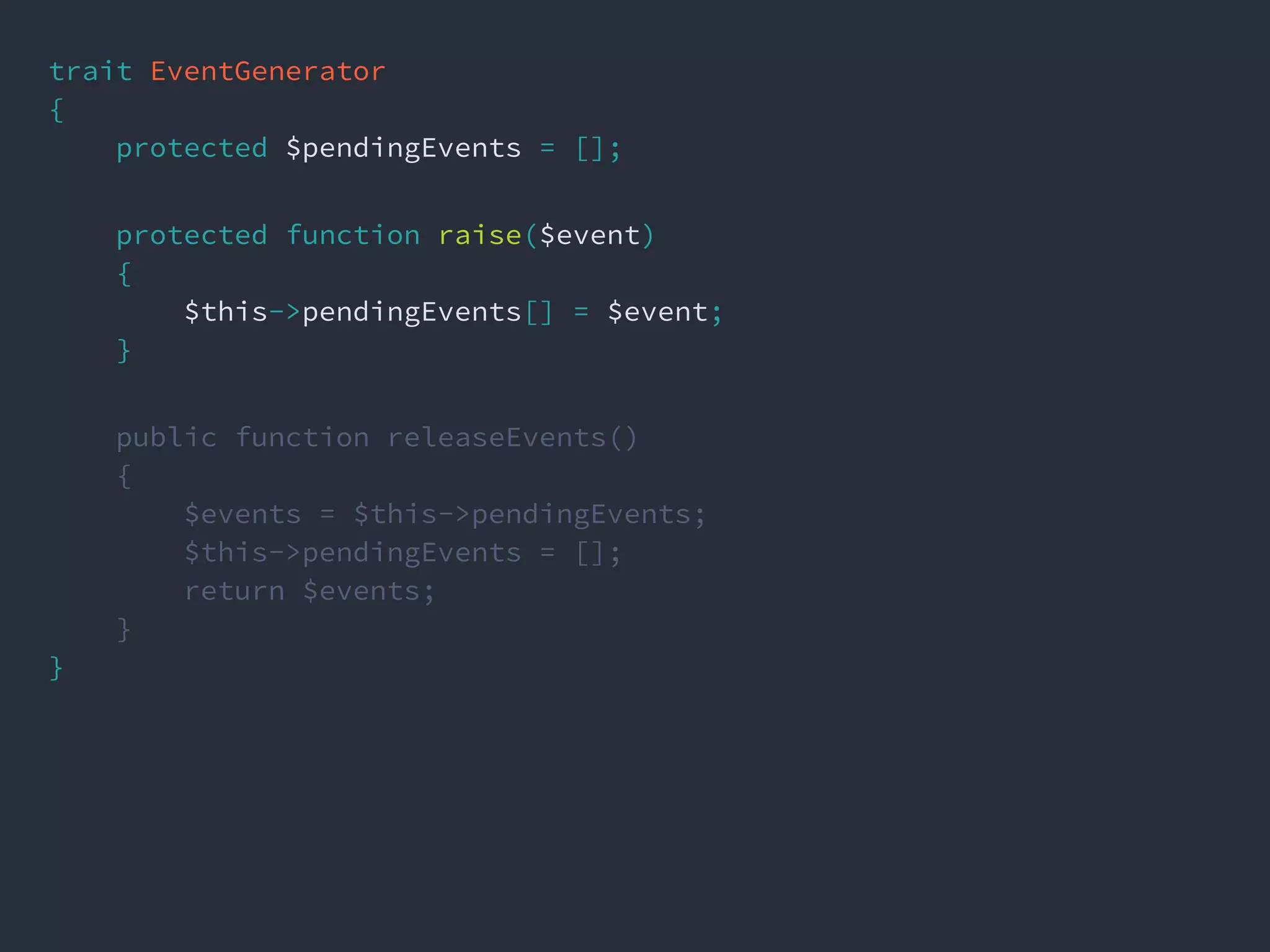

74. trait EventGenerator
{
protected $pendingEvents = [];
protected function raise($event)
{
$this->pendingEvents[] = $event;
}
public function releaseEvents()
{
$events = $this->pendingEvents;
$this->pendingEvents = [];
return $events;
}
}

75. trait EventGenerator
{
protected $pendingEvents = [];
protected function raise($event)
{
$this->pendingEvents[] = $event;
}
public function releaseEvents()
{
$events = $this->pendingEvents;
$this->pendingEvents = [];
return $events;
}
}

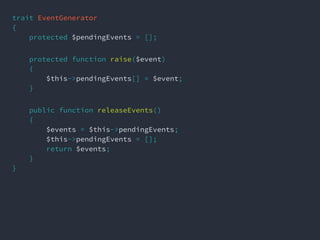

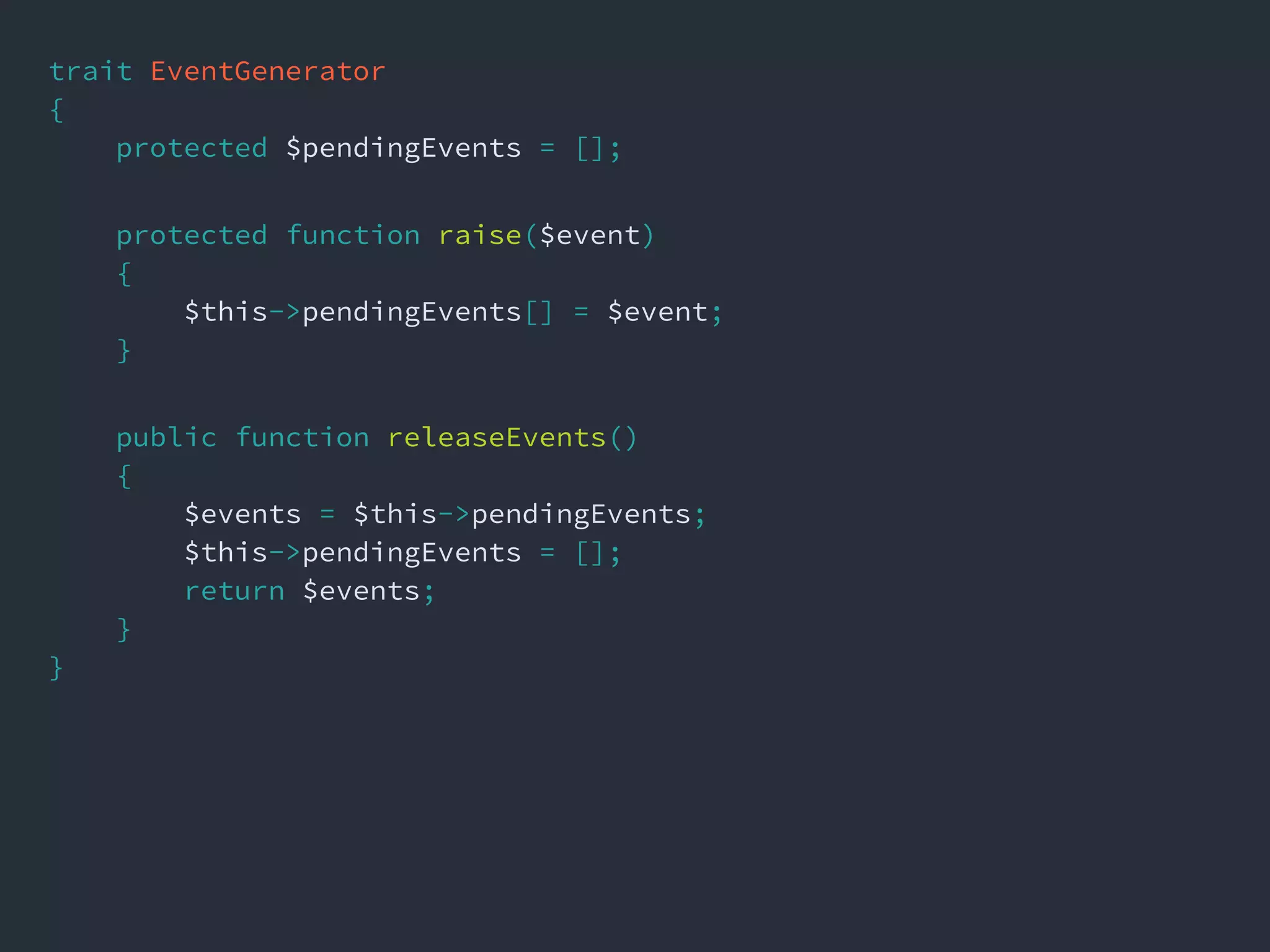

76. trait EventGenerator
{
protected $pendingEvents = [];
protected function raise($event)
{
$this->pendingEvents[] = $event;
}
public function releaseEvents()
{
$events = $this->pendingEvents;
$this->pendingEvents = [];
return $events;
}
}

77. class Member extends Eloquent
{
use EventGenerator;
public static function register($displayName, $email, $password)
{
$member = new static([
'display_name' => $displayName,
'email' => $email,
'password' => $password,
]);
$member->raise(new MemberJoined($member));
return $member;
}
}

78. class Member extends Eloquent
{
use EventGenerator;
public static function register($displayName, $email, $password)
{
$member = new static([
'display_name' => $displayName,
'email' => $email,
'password' => $password,
]);
$member->raise(new MemberRegistered($member));
return $member;
}
}

79. class Member extends Eloquent
{
use EventGenerator;
public static function register($displayName, $email, $password)
{
$member = new static([
'display_name' => $displayName,
'email' => $email,
'password' => $password,
]);
$member->raise(new MemberRegistered($member));
return $member;
}
}

80. class Member extends Eloquent
{
use EventGenerator;
public static function register($displayName, $email, $password)
{
$member = new static([
'display_name' => $displayName,
'email' => $email,
'password' => $password,
]);
$member->raise(new MemberRegistered($member));
return $member;
}
}

81. class Member extends Eloquent
{
use EventGenerator;
public static function register($displayName, $email, $password)
{
$member = new static([
'display_name' => $displayName,
'email' => $email,
'password' => $password,
]);
$member->raise(new MemberRegistered($member));
return $member;
}
}

82. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
EVENT DISPATCHING

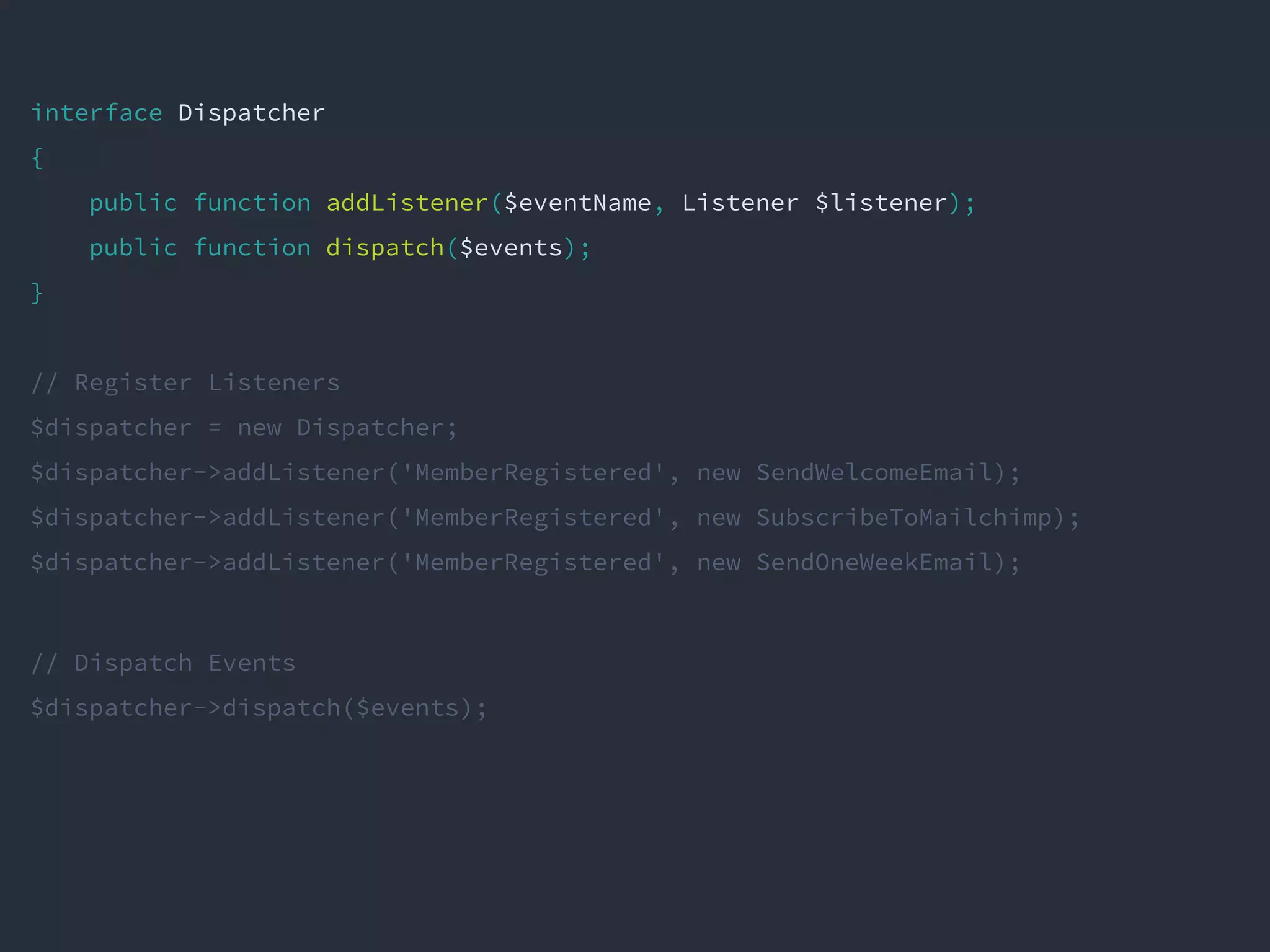

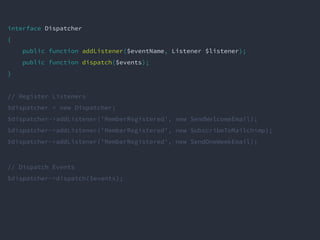

83. interface Dispatcher
{
public function addListener($eventName, Listener $listener);
public function dispatch($events);
}
// Register Listeners
$dispatcher = new Dispatcher;
$dispatcher->addListener('MemberRegistered', new SendWelcomeEmail);
$dispatcher->addListener('MemberRegistered', new SubscribeToMailchimp);
$dispatcher->addListener('MemberRegistered', new SendOneWeekEmail);
// Dispatch Events
$dispatcher->dispatch($events);

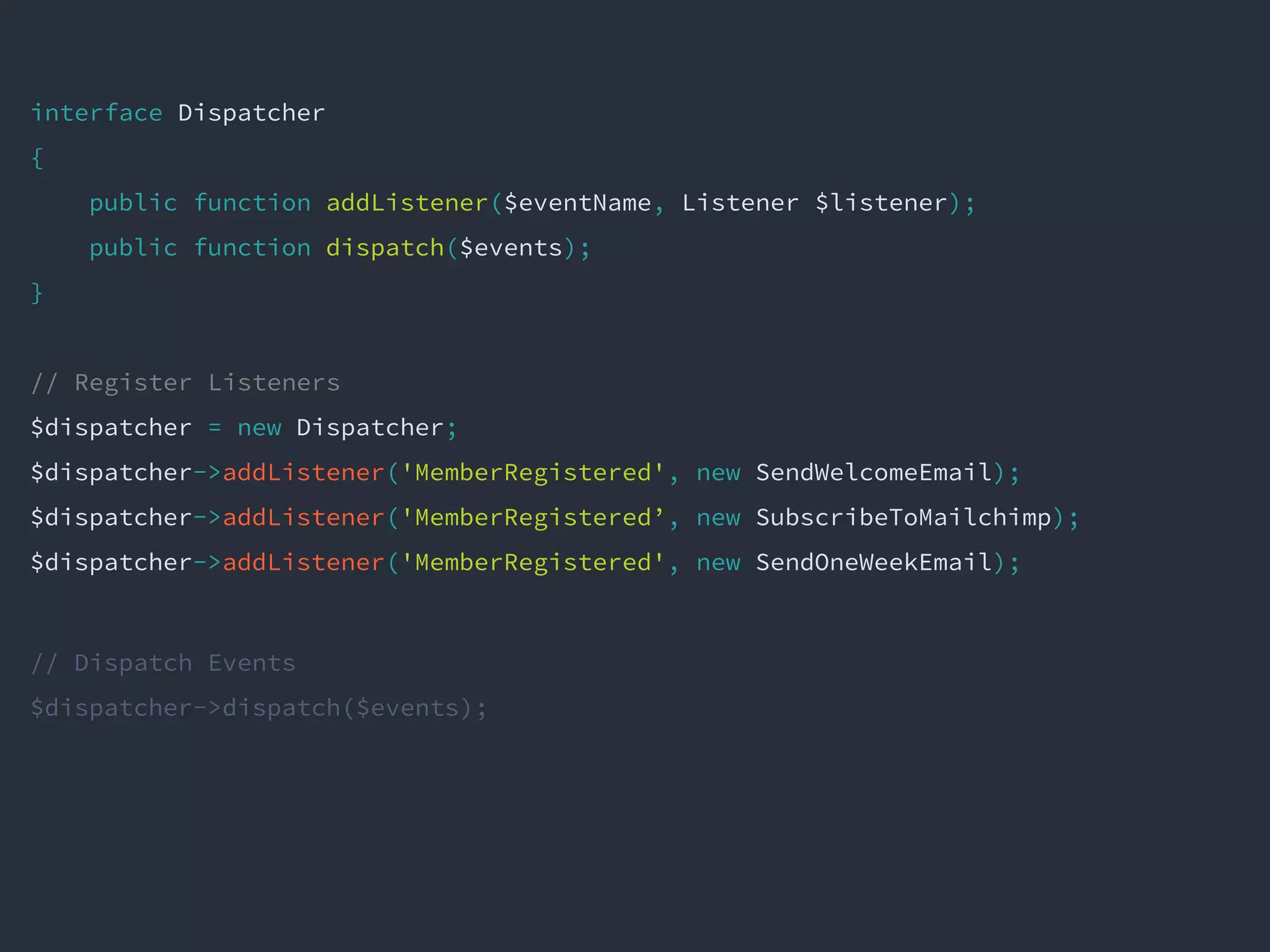

84. interface Dispatcher
{
public function addListener($eventName, Listener $listener);
public function dispatch($events);
}
// Register Listeners
$dispatcher = new Dispatcher;
$dispatcher->addListener('MemberRegistered', new SendWelcomeEmail);
$dispatcher->addListener('MemberRegistered’, new SubscribeToMailchimp);
$dispatcher->addListener('MemberRegistered', new SendOneWeekEmail);
// Dispatch Events
$dispatcher->dispatch($events);

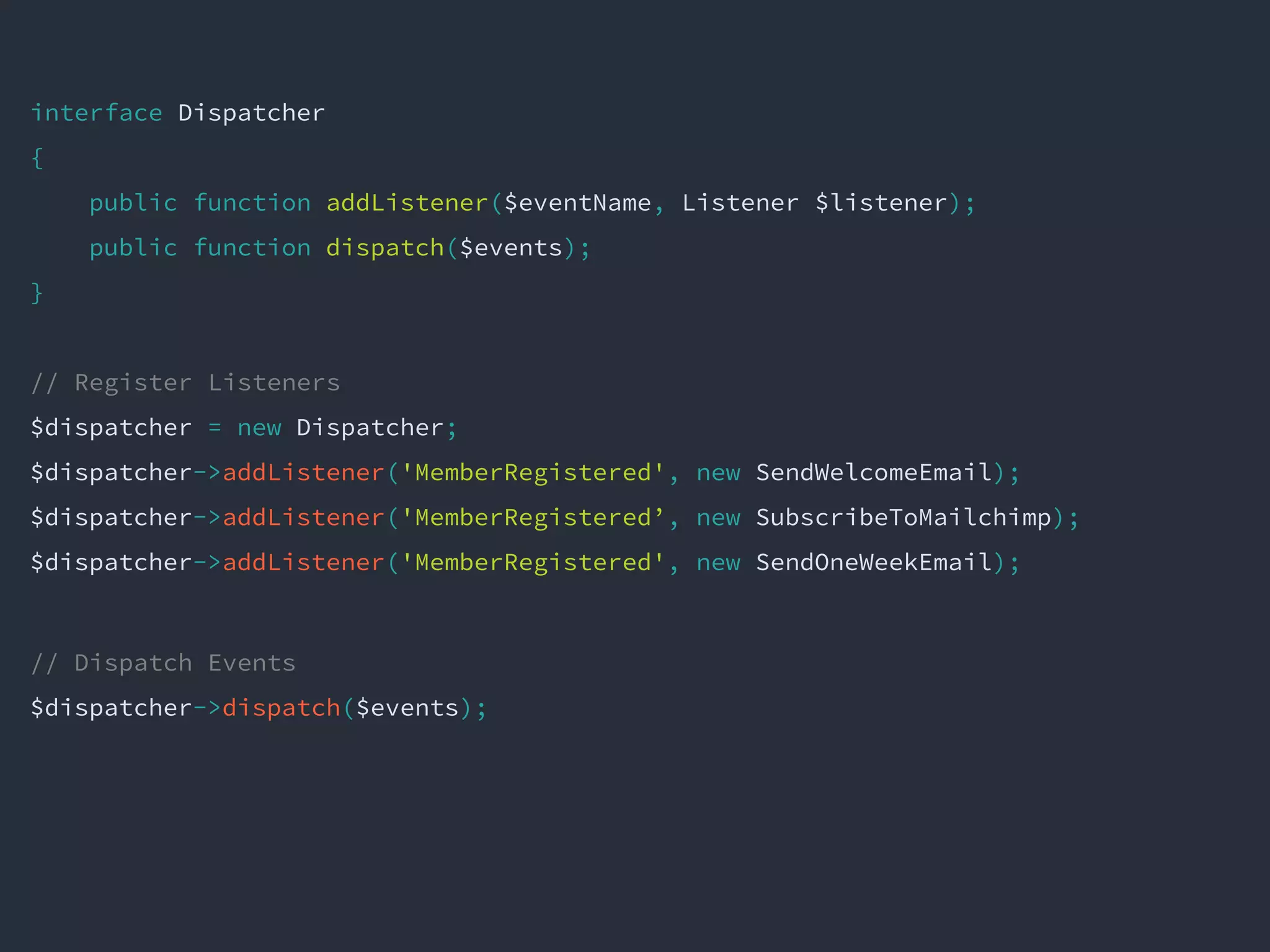

85. interface Dispatcher
{
public function addListener($eventName, Listener $listener);
public function dispatch($events);
}
// Register Listeners
$dispatcher = new Dispatcher;
$dispatcher->addListener('MemberRegistered', new SendWelcomeEmail);
$dispatcher->addListener('MemberRegistered’, new SubscribeToMailchimp);
$dispatcher->addListener('MemberRegistered', new SendOneWeekEmail);
// Dispatch Events
$dispatcher->dispatch($events);

86. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

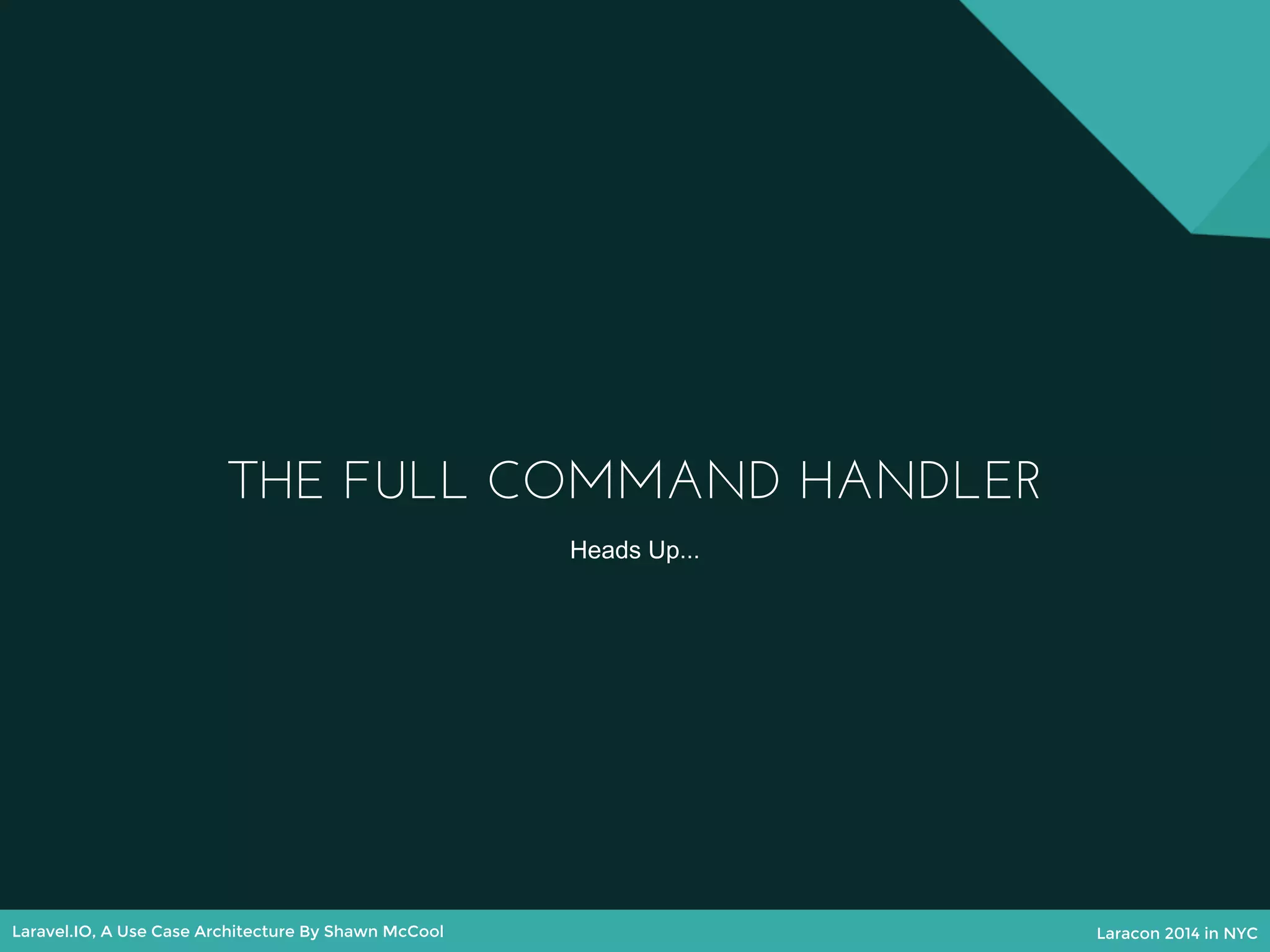

THE FULL COMMAND HANDLER
Heads Up...

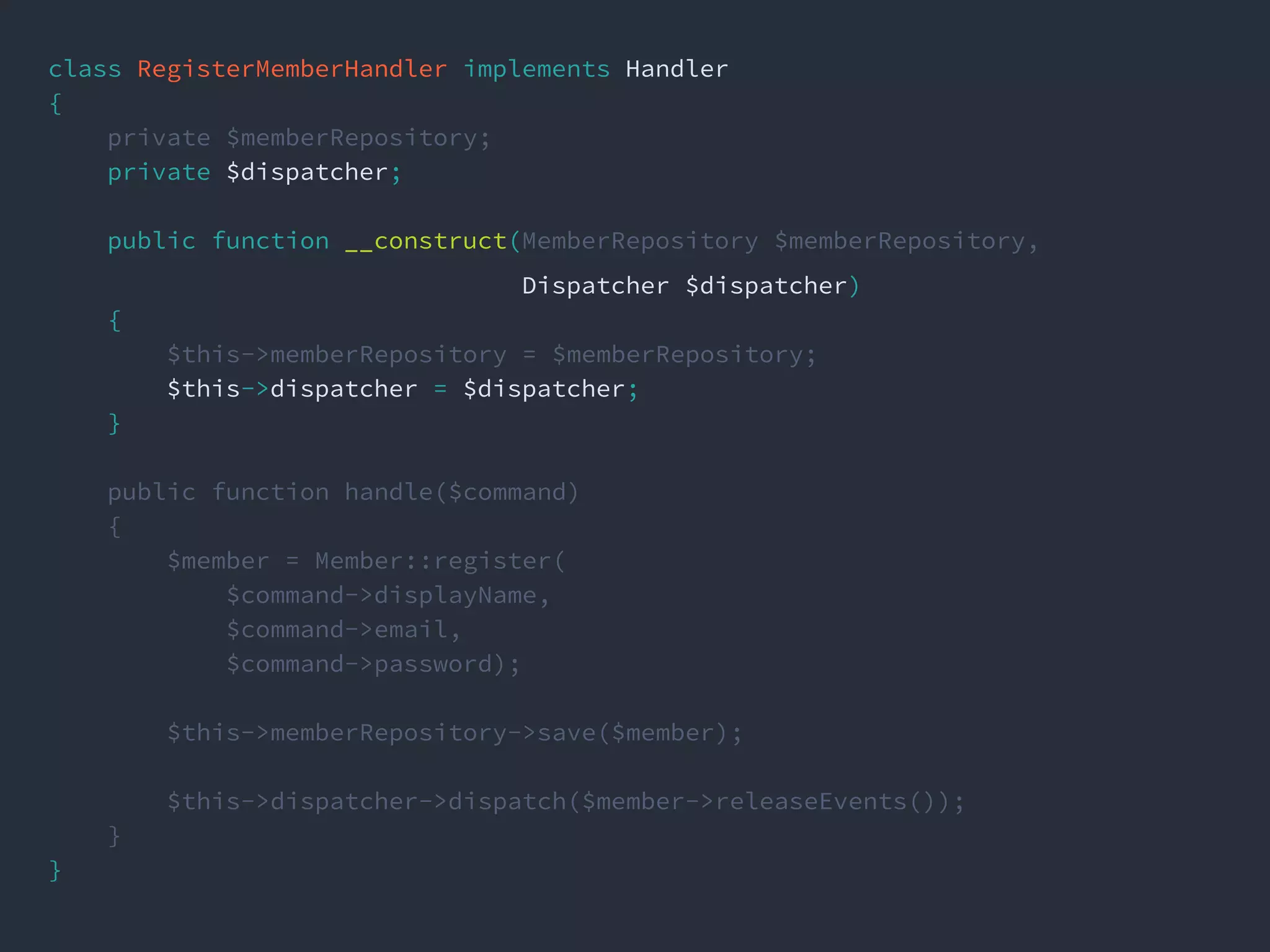

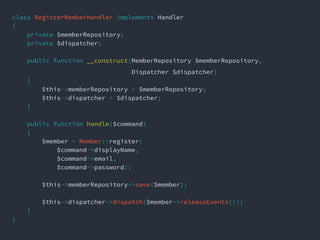

87. class RegisterMemberHandler implements Handler
{
private $memberRepository;
private $dispatcher;
public function __construct(MemberRepository $memberRepository,
Dispatcher $dispatcher)
{
$this->memberRepository = $memberRepository;
$this->dispatcher = $dispatcher;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
$this->dispatcher->dispatch($member->releaseEvents());
}
}

88. class RegisterMemberHandler implements Handler
{
private $memberRepository;
private $dispatcher;
public function __construct(MemberRepository $memberRepository,
Dispatcher $dispatcher)
{
$this->memberRepository = $memberRepository;
$this->dispatcher = $dispatcher;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
$this->dispatcher->dispatch($member->releaseEvents());
}
}

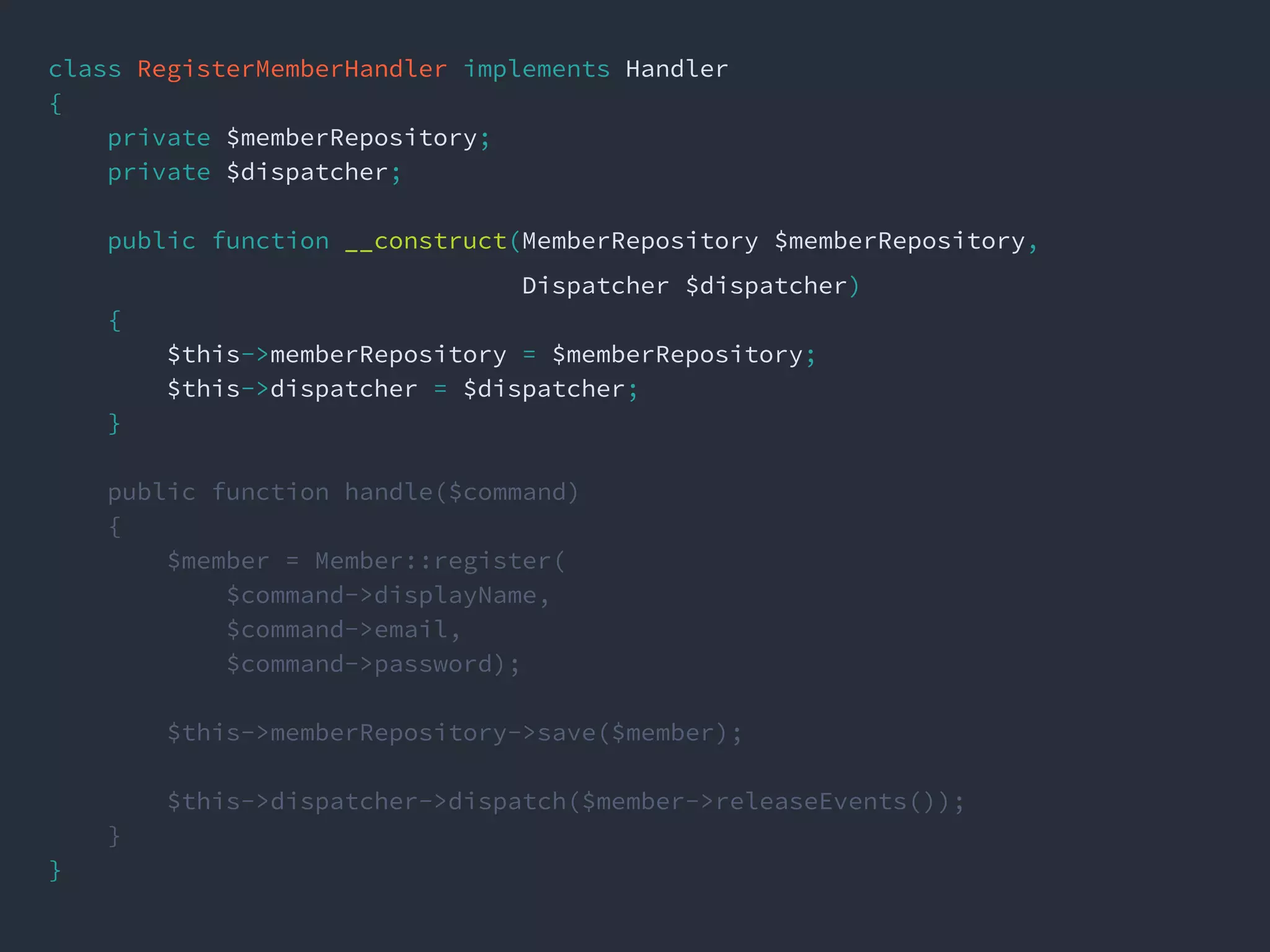

89. class RegisterMemberHandler implements Handler
{
private $memberRepository;
private $dispatcher;
public function __construct(MemberRepository $memberRepository,
Dispatcher $dispatcher)
{
$this->memberRepository = $memberRepository;
$this->dispatcher = $dispatcher;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
$this->dispatcher->dispatch($member->releaseEvents());
}
}

90. class RegisterMemberHandler implements Handler
{
private $memberRepository;
private $dispatcher;
public function __construct(MemberRepository $memberRepository,
Dispatcher $dispatcher)
{
$this->memberRepository = $memberRepository;
$this->dispatcher = $dispatcher;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
$this->dispatcher->dispatch($member->releaseEvents());
}
}

91. class RegisterMemberHandler implements Handler
{
private $memberRepository;
private $dispatcher;
public function __construct(MemberRepository $memberRepository,
Dispatcher $dispatcher)
{
$this->memberRepository = $memberRepository;
$this->dispatcher = $dispatcher;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
$this->dispatcher->dispatch($member->releaseEvents());
}
}

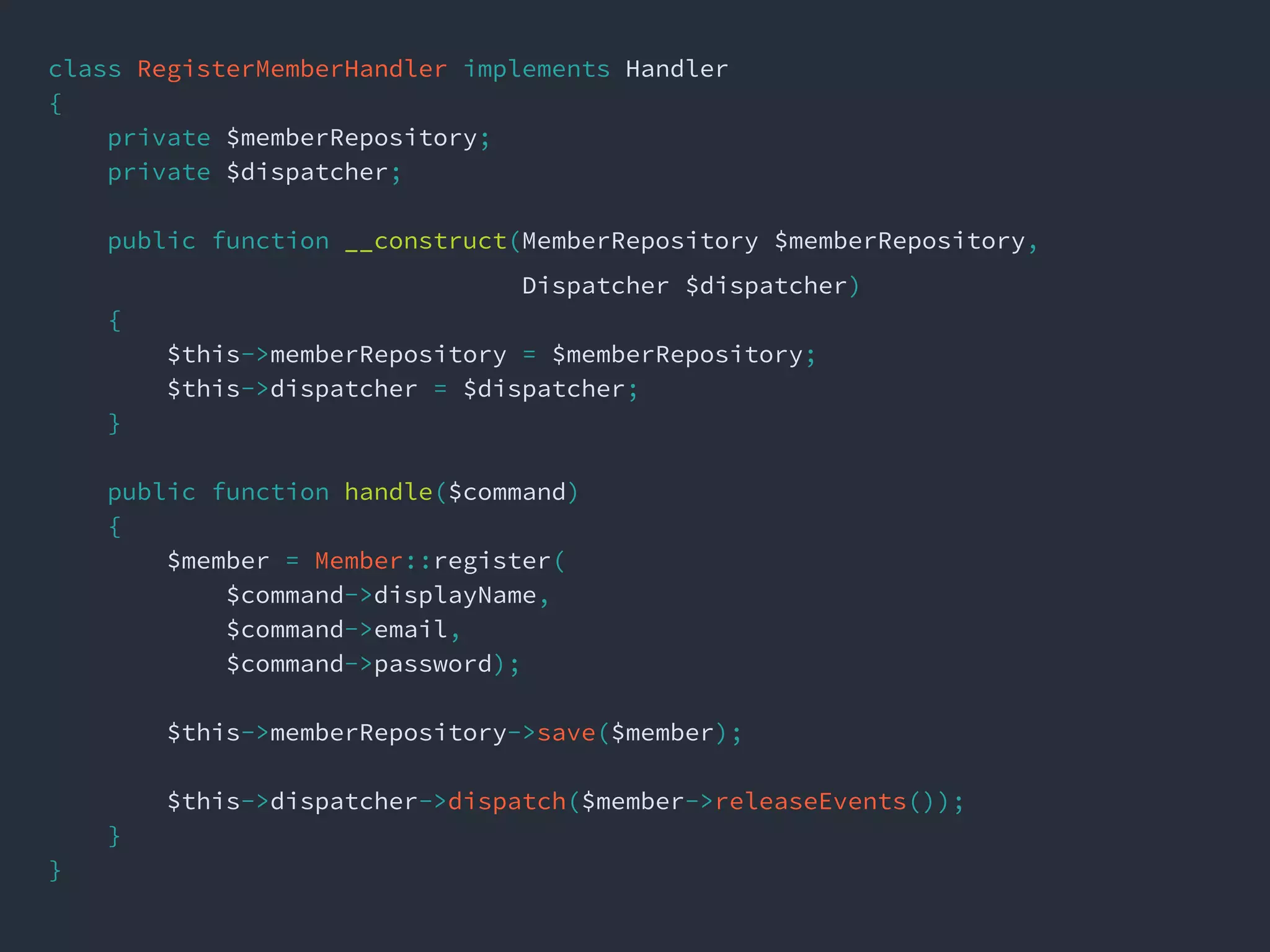

92. class RegisterMemberHandler implements Handler
{
private $memberRepository;
private $dispatcher;
public function __construct(MemberRepository $memberRepository,
Dispatcher $dispatcher)
{
$this->memberRepository = $memberRepository;
$this->dispatcher = $dispatcher;
}
public function handle($command)
{
$member = Member::register(
$command->displayName,
$command->email,
$command->password);
$this->memberRepository->save($member);
$this->dispatcher->dispatch($member->releaseEvents());
}
}

93. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MEMBER REPLIES TO THREAD
NOTIFY THREAD SUBSCRIBERS
w
NOTIFY TAGGED USERS
COMPLEX SEQUENCE
SEND NOTIFICATION
EMAIL
ADD NOTIFICATION DIGEST
QUEUE ENTRY
SEND NO NOTIFICATION

94. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MEMBER REPLIES TO THREAD
NOTIFY THREAD SUBSCRIBERS
w
NOTIFY TAGGED USERS
COMPLEX SEQUENCE

95. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MEMBER REPLIES TO THREAD
NOTIFY THREAD SUBSCRIBERS
w
NOTIFY TAGGED USERS
COMPLEX SEQUENCE

96. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberRepliedToThread
NOTIFY THREAD SUBSCRIBERS
w
NOTIFY TAGGED USERS
COMPLEX SEQUENCE

97. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberRepliedToThread
NOTIFY THREAD SUBSCRIBERS
NOTIFY TAGGED USERS
COMPLEX SEQUENCE

98. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberRepliedToThread
NotifyThreadSubscribers
NotifyTaggedUsers
COMPLEX SEQUENCE

99. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

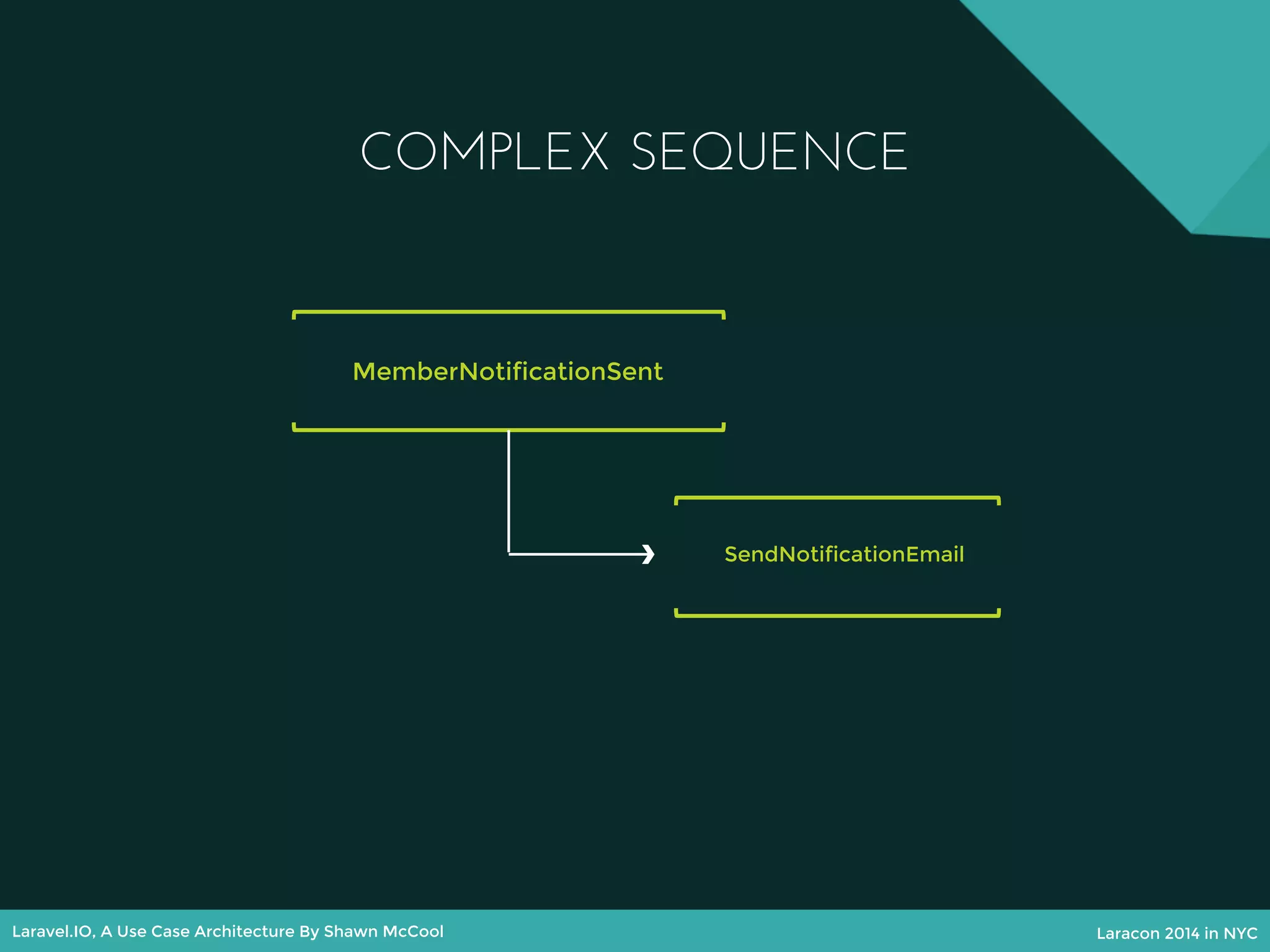

MEMBER IS NOTIFIED
COMPLEX SEQUENCE
SEND NOTIFICATION
EMAIL

100. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MEMBER IS NOTIFIED
COMPLEX SEQUENCE
SEND NOTIFICATION
EMAIL

101. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberNotificationSent
COMPLEX SEQUENCE
SEND NOTIFICATION
EMAIL

102. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberNotificationSent
COMPLEX SEQUENCE
SEND NOTIFICATION
EMAIL

103. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MemberNotificationSent
COMPLEX SEQUENCE
SendNotificationEmail

104. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

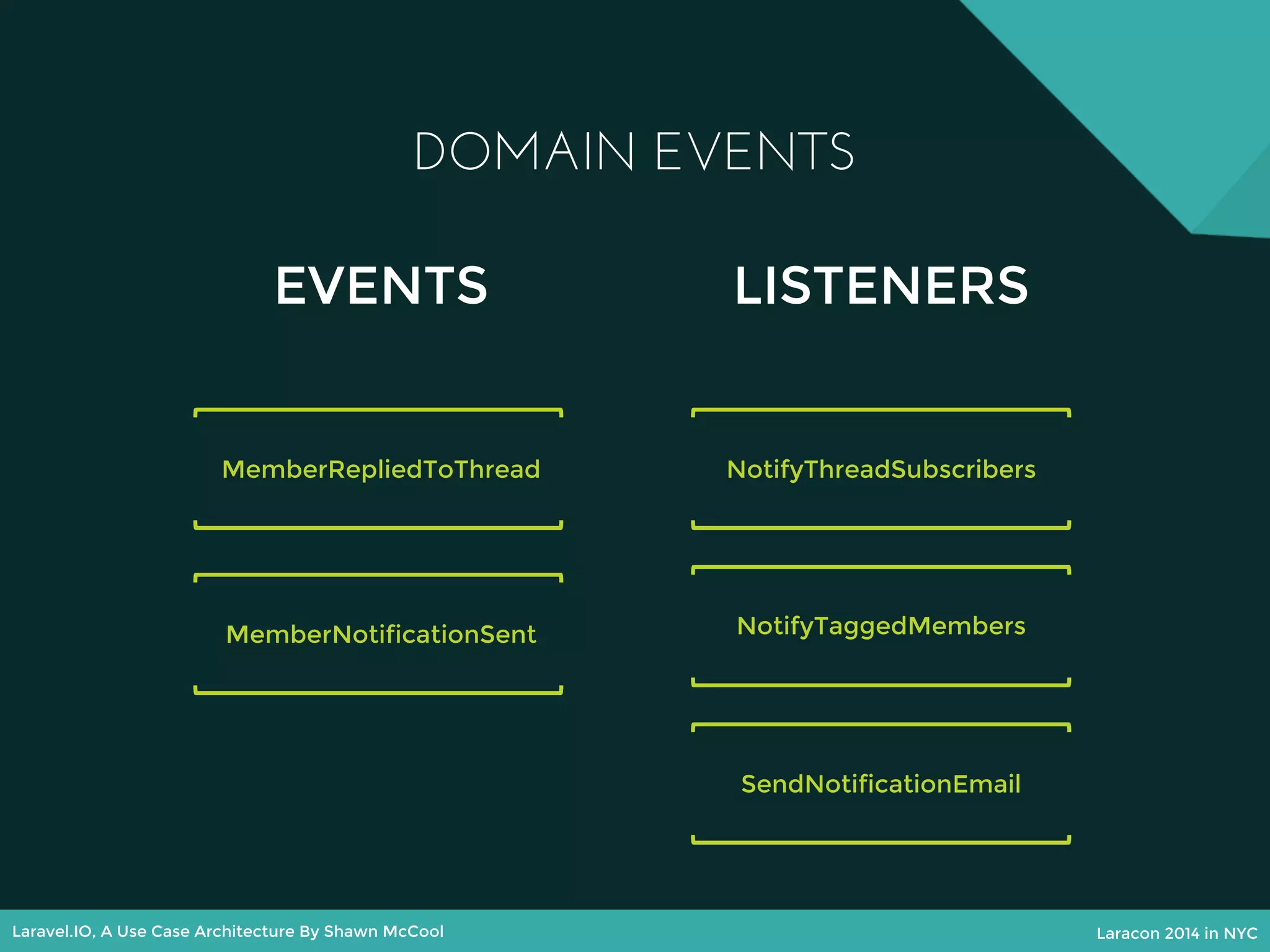

DOMAIN EVENTS
MemberRepliedToThread NotifyThreadSubscribers
SendNotificationEmail
NotifyTaggedMembers
EVENTS LISTENERS
MemberNotificationSent

105. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC

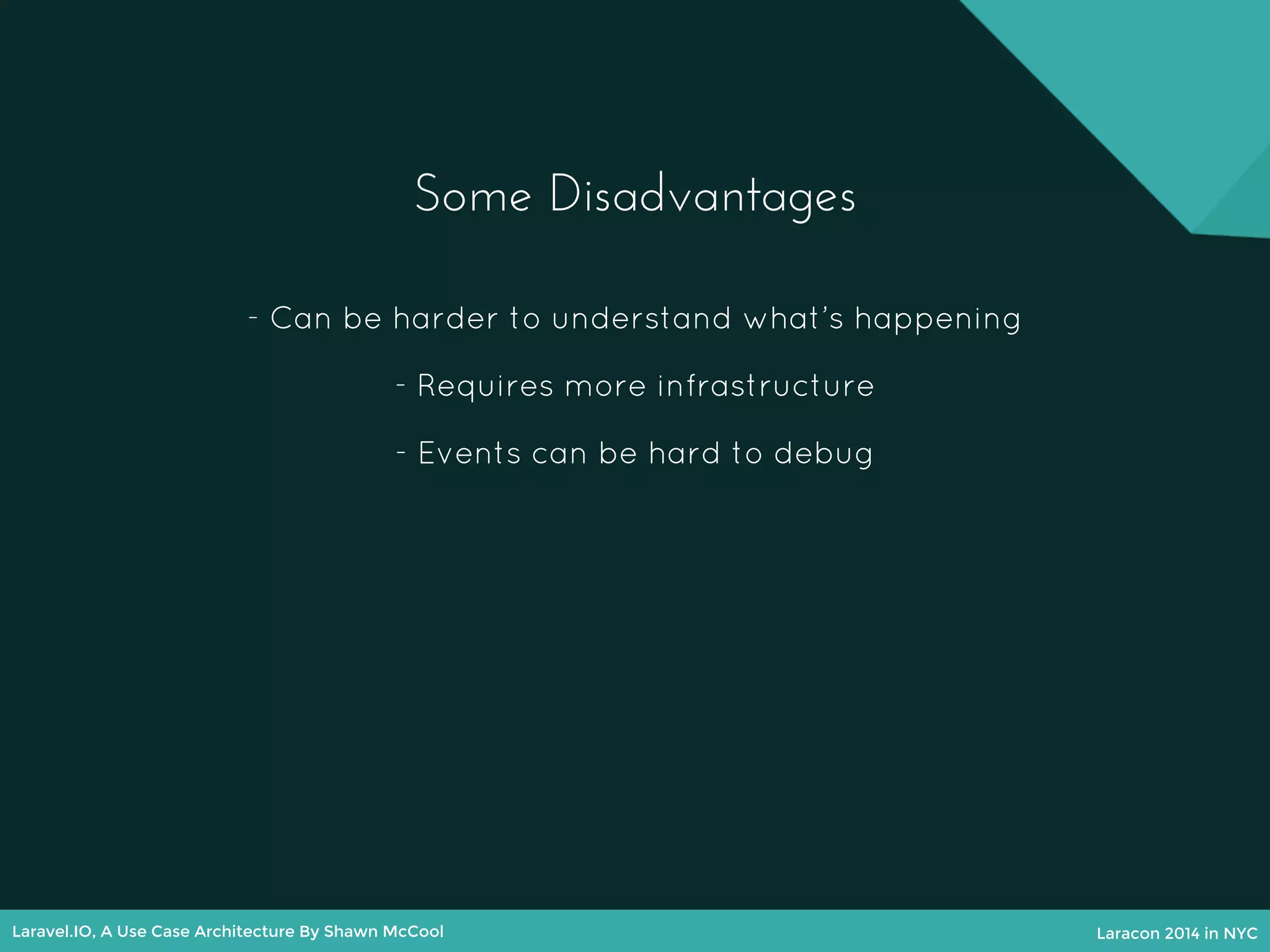

Some Disadvantages
- Can be harder to understand what’s happening
- Requires more infrastructure
- Events can be hard to debug

106. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
DOMAIN-DRIVEN DESIGN

107. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
MORE INFORMATION ABOUT DDD
http://verraes.net
http://rosstuck.com
http://dddinphp.org
Domain-Driven Design
by Eric Evans
Implementing Domain-Driven Design
by Vaughn Vernon

108. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
Even More Information
A very quick read + it’s free
http://www.infoq.com/minibooks/domain-driven-design-quickly
Martin Fowler
http://martinfowler.com/bliki/CommandOrientedInterface.html
http://martinfowler.com/eaaDev/DomainEvent.html

109. Tickets are available at http://Laracon.EU

110. Laravel.IO, A Use Case Architecture By Shawn McCool Laracon 2014 in NYC
Thank you Laracon 2014!
Hopefully, I talked so ridiculously fast
that there’s time for questions.
Twitter @ShawnMcCool
Special Thanks to Nick Spelt and Mitchell van Wijngaarden
