L5_Keys in DBMS Database Systems and Programming

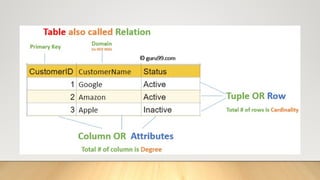

3. What is the degree and cardinality of this relation?

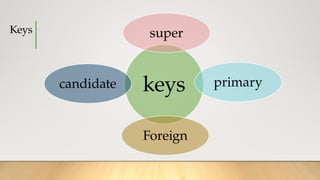

4. Keys
keys
super
primary
Foreign
candidate

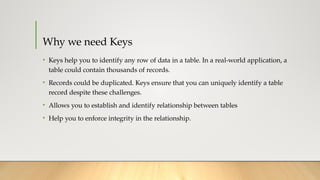

5. Why we need Keys
• Keys help you to identify any row of data in a table. In a real-world application, a
table could contain thousands of records.
• Records could be duplicated. Keys ensure that you can uniquely identify a table
record despite these challenges.
• Allows you to establish and identify relationship between tables
• Help you to enforce integrity in the relationship.

6. Types of Keys in Database Management System
• Super Key - A super key is a group of single or multiple attributes which
identifies rows in a table uniquely.
• Candidate Key - is a set of attributes that uniquely identify tuples in a table.
Candidate Key is a super key with no extraneous attributes.
• Primary Key - is a column or group of columns in a table that uniquely identify
every row in that table.
• Foreign Key - is a column that creates a relationship between two tables. The
purpose of Foreign keys is to maintain data integrity and allow navigation
between two different instances of an entity.

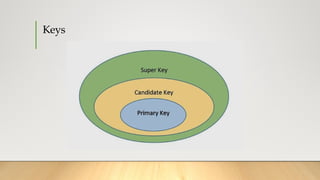

7. Keys

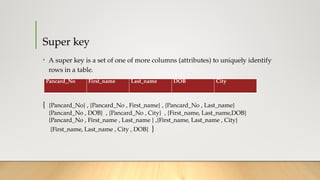

8. Super key
• A super key is a set of one of more columns (attributes) to uniquely identify
rows in a table.
Pancard_No First_name Last_name DOB City
{ {Pancard_No} , {Pancard_No , First_name} , {Pancard_No , Last_name}
{Pancard_No , DOB} , {Pancard_No , City} , {First_name, Last_name,DOB}
{Pancard_No , First_name , Last_name } ,{First_name, Last_name , City}
{First_name, Last_name , City , DOB} }

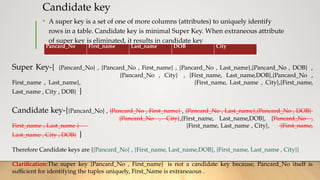

9. Candidate key
• A super key is a set of one of more columns (attributes) to uniquely identify
rows in a table. Candidate key is minimal Super Key. When extraneous attribute
of super key is eliminated, it results in candidate key
Pancard_No First_name Last_name DOB City
Super Key-{ {Pancard_No} , {Pancard_No , First_name} , {Pancard_No , Last_name},{Pancard_No , DOB} ,
{Pancard_No , City} , {First_name, Last_name,DOB},{Pancard_No ,
First_name , Last_name}, {First_name, Last_name , City},{First_name,
Last_name , City , DOB} }
Candidate key-{{Pancard_No} , {Pancard_No , First_name} , {Pancard_No , Last_name},{Pancard_No , DOB}
{Pancard_No , City},{First_name, Last_name,DOB}, {Pancard_No ,
First_name , Last_name } {First_name, Last_name , City}, {First_name,
Last_name , City , DOB} }
Therefore Candidate keys are {{Pancard_No} , {First_name, Last_name,DOB}, {First_name, Last_name , City}}
Clarification:The super key {Pancard_No , First_name} is not a candidate key because, Pancard_No itself is
sufficient for identifying the tuples uniquely, First_Name is extraneaous .

10. Primary key
Pancard_
No
First_na
me
Last_na
me
DOB City
ABC Jim Mathew 19-10-
1998
Coimba
tore
KLM Lilli Rose 11-02-
1999
Coimba
tore
PQR Jim Vijay 01-01-
2000
Bangalo
re
RRR Srijay Mathew 19-10-
1998
Hydera
bad
• Several distinct set of attributes
could serve as candidate keys.
• The candidate key which is primarily
chosen by the database designer is
the primary key.
Pancard
_No

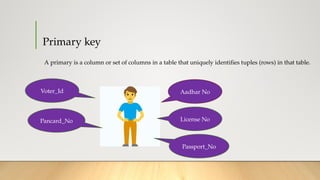

11. Primary key
A primary is a column or set of columns in a table that uniquely identifies tuples (rows) in that table.
Aadhar No
License No
Passport_No
Voter_Id
Pancard_No

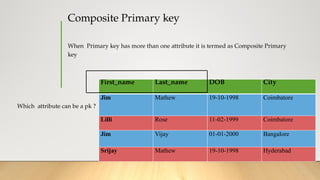

12. Composite Primary key
When Primary key has more than one attribute it is termed as Composite Primary
key
First_name Last_name DOB City
Jim Mathew 19-10-1998 Coimbatore
Lilli Rose 11-02-1999 Coimbatore
Jim Vijay 01-01-2000 Bangalore
Srijay Mathew 19-10-1998 Hyderabad
Which attribute can be a pk ?

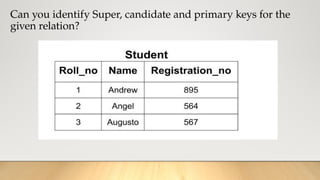

13. Can you identify Super, candidate and primary keys for the
given relation?

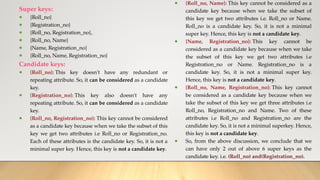

14. Super keys:
● {Roll_no}
● {Registration_no}
● {Roll_no, Registration_no},
● {Roll_no, Name}
● {Name, Registration_no}
● {Roll_no, Name, Registration_no}
Candidate keys:
● {Roll_no}: This key doesn't have any redundant or
repeating attribute. So, it can be considered as a candidate
key.
● {Registration_no}: This key also doesn't have any
repeating attribute. So, it can be considered as a candidate
key.
● {Roll_no, Registration_no}: This key cannot be considered
as a candidate key because when we take the subset of this
key we get two attributes i.e Roll_no or Registration_no.
Each of these attributes is the candidate key. So, it is not a
minimal super key. Hence, this key is not a candidate key.
● {Roll_no, Name}: This key cannot be considered as a
candidate key because when we take the subset of
this key we get two attributes i.e. Roll_no or Name.
Roll_no is a candidate key. So, it is not a minimal
super key. Hence, this key is not a candidate key.
● {Name, Registration_no}: This key cannot be
considered as a candidate key because when we take
the subset of this key we get two attributes i.e
Registration_no or Name. Registration_no is a
candidate key. So, it is not a minimal super key.
Hence, this key is not a candidate key.
● {Roll_no, Name, Registration_no}: This key cannot
be considered as a candidate key because when we
take the subset of this key we get three attributes i.e
Roll_no, Registration_no and Name. Two of these
attributes i.e Roll_no and Registration_no are the
candidate key. So, it is not a minimal superkey. Hence,
this key is not a candidate key.
● So, from the above discussion, we conclude that we
can have only 2 out of above 6 super keys as the
candidate key. i.e. (Roll_no) and(Registration_no).

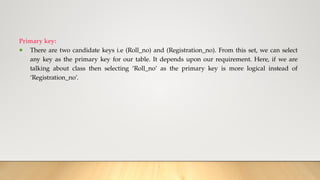

15. Primary key:
● There are two candidate keys i.e (Roll_no) and (Registration_no). From this set, we can select
any key as the primary key for our table. It depends upon our requirement. Here, if we are
talking about class then selecting ‘Roll_no’ as the primary key is more logical instead of
‘Registration_no’.

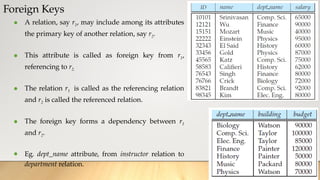

16. Foreign Keys
● A relation, say r1, may include among its attributes
the primary key of another relation, say r2.
● This attribute is called as foreign key from r1,
referencing to r2.
● The relation r1 is called as the referencing relation
and r2 is called the referenced relation.
● The foreign key forms a dependency between r1
and r2.
● Eg. dept_name attribute, from instructor relation to
department relation.

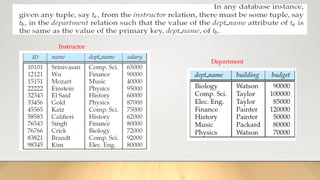

17. Instructor
Department

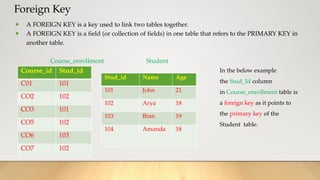

18. Foreign Key
● A FOREIGN KEY is a key used to link two tables together.
● A FOREIGN KEY is a field (or collection of fields) in one table that refers to the PRIMARY KEY in
another table.
Course_enrollment Student
Course_id Stud_id
C01 101
CO2 102
CO3 101
CO5 102
CO6 103
CO7 102
Stud_id Name Age
101 John 21
102 Arya 18
103 Bran 19
104 Amanda 18
In the below example
the Stud_Id column
in Course_enrollment table is
a foreign key as it points to
the primary key of the
Student table.

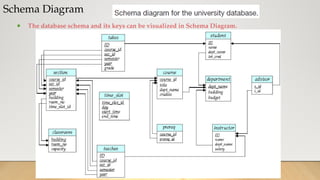

19. Schema Diagram
● The database schema and its keys can be visualized in Schema Diagram.

20. Summary
 Super Key
 Candidate Kay
 Primary Key
 Composite Key
 Foreign Key

21. Resource
● Text Book:
Silberschatz A Korth H F and SudharshanS , “Database System Concepts”, 6th Edition, TMH publishing
company limited, 2011.
7th edition of text book is released in 2019 https://www.db-book.com/db7/index.html
6th edition Textbook Link https://www.db-book.com/db6/index.html
○In 7th
edition , Chapter 2-Refer 2.3,2.4 for Keys and Schema diagram
