This document provides an overview of a Kubernetes training session. It introduces the trainer's background and experience with Kubernetes. The training covers Kubernetes concepts, production capabilities, workflows, includes a demo, and ends with a question and answer session. Key areas that will be reviewed include security, observability, package management, jobs, and additional capabilities needed for production deployments. Workflows that may be discussed include those for developers, operators, and testers.

1. KUBERNETES TRAINING

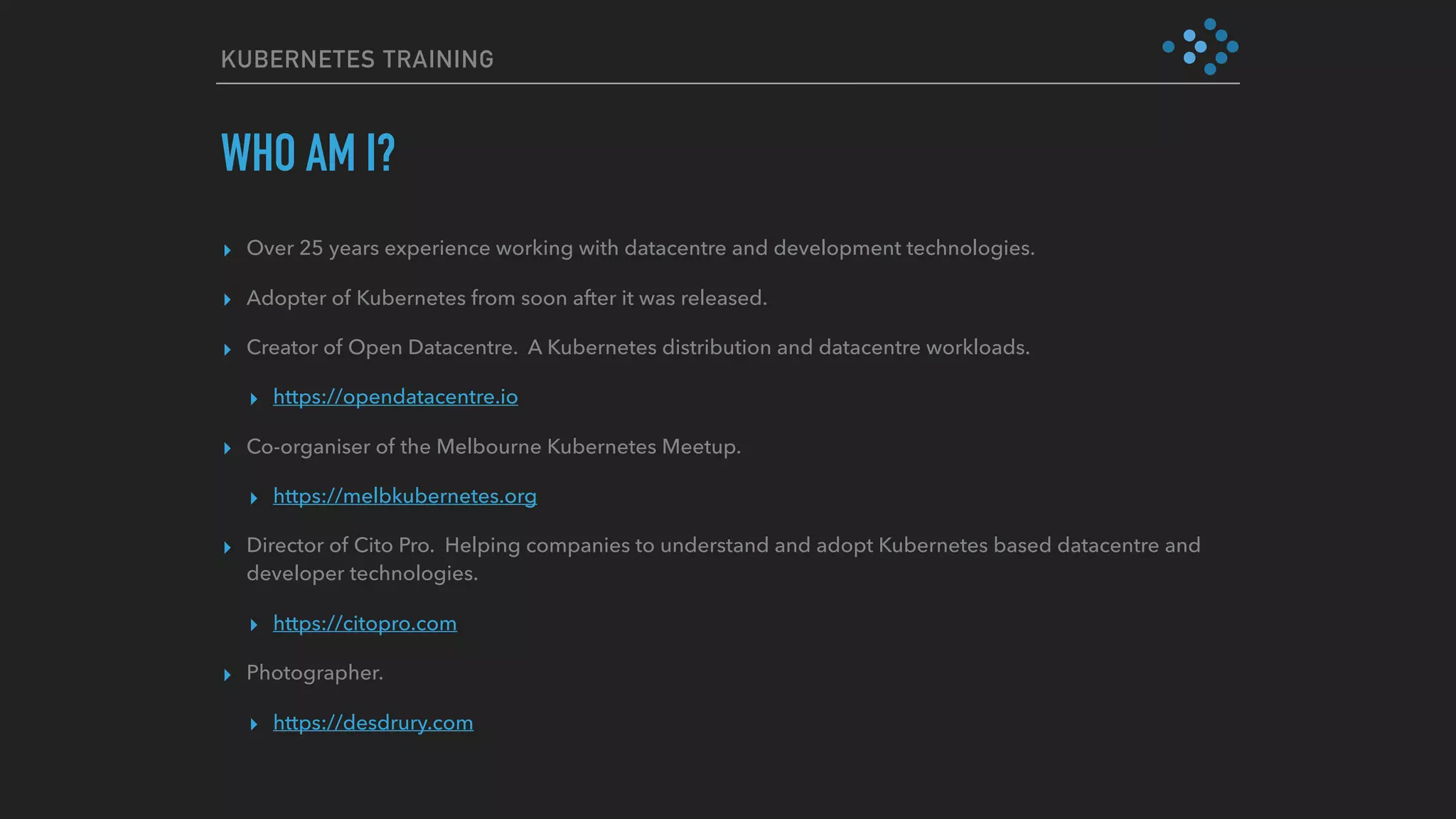

2. KUBERNETES TRAINING
WHO AM I?
▸ Over 25 years experience working with datacentre and development technologies.
▸ Adopter of Kubernetes from soon after it was released.
▸ Creator of Open Datacentre. A Kubernetes distribution and datacentre workloads.
▸ https://opendatacentre.io
▸ Co-organiser of the Melbourne Kubernetes Meetup.
▸ https://melbkubernetes.org
▸ Director of Cito Pro. Helping companies to understand and adopt Kubernetes based datacentre and
developer technologies.
▸ https://citopro.com
▸ Photographer.
▸ https://desdrury.com

3. KUBERNETES TRAINING
OVERVIEW
▸ Kubernetes Review
▸ Production Capabilities
▸ Workflows
▸ Demo
▸ Wrap Up
▸ Questions

4. KUBERNETES
REVIEW

5. KUBERNETES TRAINING
WHY USE KUBERNETES?
▸ Manage containers at scale.
▸ Declarative.
▸ Self healing.
▸ Service discovery.
▸ Run anywhere.
▸ https://kubernetes.io

6. KUBERNETES TRAINING
WHO IS USING KUBERNETES?
▸ Australia Post
▸ ANZ
▸ NBN
▸ MYOB
▸ Fairfax
▸ CBA
▸ ME Bank
▸ Victorian government.
▸ NSW government.
▸ Many others.

7. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Fundamental unit of deployment and scaling.
▸ Has one or more containers.
▸ Pod is allocated an IP address.
▸ Containers share the network interface.
▸ Storage volumes are mapped into the containers.
PODS

8. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Initialisation Containers.
▸ Set host kernel settings.
▸ Configure a database.
▸ Sidecar Containers.
▸ Ship logs.
▸ Configure secrets.
▸ Service mesh.
▸ Application Containers.
▸ Microservice.
▸ Database server.
PODS
Pod
Init Container
Sidecar Container
Application Container

9. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Labels are used to identify
resources, such as Pods.
▸ Selectors group resources
by selecting one of more
labels.
▸ An example is a Service
selecting the Pods for a
particular application.
LABELS AND SELECTORS
Pod
labels
name App-1
version 10.0.3
system core
Service
selectors
… …
… …
Pod
labels
… …
… …

10. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Deployments
▸ Replica Sets
▸ Daemon Sets
▸ Stateful Sets
▸ Cron Jobs
▸ Jobs
▸ Replication Controllers (deprecated)
WORKLOADS
▸ Wrappers for Pods

11. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Manages the lifecycle of Pods through ReplicaSets.
▸ Controls Pod upgrades / rollbacks.
▸ Allows Pods to be scaled.
DEPLOYMENT
Deployment ReplicaSet Pod

12. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Runs a Pod on each node by default.
▸ Nodes to run a Pod can be explicitly defined.
▸ Great for things like log / metric collectors, storage daemons,
etc.
DAEMONSET
NodeNodeNode
daemonset
Pod Pod Pod

13. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Manages sets of Pods that use storage.
▸ Gives each Pod a strong identity / name.
▸ Manages the order of Pod startup / teardown.
STATEFULSET
statefulset
Pod 1 Pod 2 Pod 3

14. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Runs Pod(s) to completion.
▸ Ensures a specified number
of Pods complete
successfully.
JOB
Pod
Job
PodPod

15. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ On a defined schedule.
▸ Runs a Job.
▸ Uses the Cron format to
define the schedule.
CRONJOB
CronJob
schedule 0 * * * *
Pod

16. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Service
▸ Ingress
DISCOVERY & LOAD BALANCING

17. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Groups a set of Pods using a
label selector.
▸ Provides a ClusterIP.
▸ Provides a DNS name.
▸ Configures routing so that
clients can communicate with
the Service endpoint.
▸ Balances requests to the Pods.
SERVICE
Service
selectors
… …
… …
Pod
labels
… …
… …

18. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ An Ingress resource configures an Ingress Controller.
▸ Provides external access to a Service.
INGRESS
Ingress
Ingress
Controller
Service

19. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Config Maps
▸ Persistent Volumes and Claims
▸ Secrets
CONFIG & STORAGE

20. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Allows configuration files to be stored independent of a
container image.
▸ Is mapped into a Pod.
CONFIGMAP
Pod
ConfigMap
app.yml …
…
…

21. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ A Persistent Volume (PV) represents some distributed storage volume.
▸ A Persistent Volume Claim (PVC) claims a PV for a Pod.
▸ Storage can come from a cloud provider or a storage provider such as
Ceph.
PERSISTENT VOLUMES & CLAIMS
Pod
Persistent
Volume
Claim
Persistent
Volume

22. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ Allows secrets to be stored independent of a container
image.
▸ Is mapped into a Pod as either files or environment variables.
SECRET
Pod
Secret
password XXXX
private.key …
…

23. KUBERNETES TRAINING
KUBERNETES CONCEPTS
▸ A NameSpace contains one or more Pods and / or other
Kubernetes resource types.
▸ A NameSpace can be thought of as like an environment.
NAMESPACE
Development
Staging
Production
Ingress Service PodPod
Persistent
Volume
Claim
Persistent
Volume
Claim
Persistent
Volume
Persistent
Volume

24. KUBERNETES TRAINING
CLUSTERS
▸ A cluster is composed of:
▸ A control plane that hosts the Kubernetes master components and
the Etcd key / value store.
▸ Worker nodes.
COMPONENTS
ControlPlaneWorkers
Worker
AZ 1 AZ 2 AZ 3
Master
Etcd
Master
Etcd
Master
Etcd
Worker Worker

25. KUBERNETES TRAINING
CLUSTERS
▸ Cloud
▸ AWS
▸ Google
▸ Azure
▸ Bare Metal (on-premise)
▸ KaaS (Kubernetes as a Service)
▸ GKE
▸ ACS
▸ EKS (in beta)
▸ Federated
TYPES

26. KUBERNETES TRAINING
CLUSTERS
▸ 1 cluster for Production / DR / Performance Testing.
▸ 1 cluster for Everything else.
▸ Or any other suitable configuration.
HOW MANY?

27. PRODUCTION
CAPABILITIES

28. CORE

29. KUBERNETES TRAINING
CORE PRODUCTION CAPABILITIES
▸ Security
▸ Administration
▸ Observability
▸ Package management
▸ Ingress
▸ Distributed storage
▸ Jobs
▸ Artefact storage
OVERVIEW

30. KUBERNETES TRAINING
SECURITY
▸ Authn
▸ Authz
▸ RBAC
▸ OIDC
▸ Identity store
▸ Secrets
▸ Network
▸ TLS
▸ SSO
▸ Vulnerability scanning
OVERVIEW

31. KUBERNETES TRAINING
ADMINISTRATION
▸ Dashboard
▸ Kubectl
▸ Backups
▸ Conformance
OVERVIEW

32. KUBERNETES TRAINING
OBSERVABILITY
▸ Metrics
▸ Logging
▸ Alerting
▸ Tracing
OVERVIEW

33. KUBERNETES TRAINING
OBSERVABILITY
▸ Prometheus and Grafana work great with Kubernetes
▸ Prometheus is the time series database.
▸ Grafana provides the dashboards.
METRICS
NodeNodeNodeNode
daemonset
Node Exporter
deployment
Prometheus
deployment
Grafana
deployment
Alert Manager
Node Exporter Node Exporter Node Exporter

34. KUBERNETES TRAINING
OBSERVABILITY
▸ Elasticsearch, Fluentbit and Kibana make for a great
centralised logging solution.
LOGGING
NodeNodeNodeNode
daemonset
Fluentbit
deployment
Kibana
Fluentbit Fluentbit Fluentbit
statefulset
Elasticsearch
Master
Elasticsearch
Master
statefulset
Elasticsearch
Data
Elasticsearch
Data
deployment
Elasticsearch Client Elasticsearch Client

35. KUBERNETES TRAINING
PACKAGE MANAGEMENT
▸ Helm is the official Kubernetes package manager.
▸ https://helm.sh
▸ https://github.com/kubernetes/charts
▸ https://hub.kubeapps.com
OVERVIEW

36. KUBERNETES TRAINING
INGRESS
▸ An Ingress Controller routes traffic to a Service based on the
configuration provided by an Ingress.
OVERVIEW
Pod
Ingress
Ingress
Controller
Service Pod

37. KUBERNETES TRAINING
STORAGE
▸ Needed for stateful workloads.
▸ Can be provided by a cloud.
▸ Or a storage provider such as Ceph.
▸ The storage provider can be hyperconverged, i.e. also
running as a workload on the cluster.
OVERVIEW

38. KUBERNETES TRAINING
JOBS
▸ There are many possible solutions for running CI/CD Jobs
within Kubernetes.
▸ Jenkins has great integration with Kubernetes.
▸ And can create dynamic build agents defined either through
configuration or by scripted pipelines.
OVERVIEW
checkout
code
build
push
package
chart
publish
chart
deploy

39. KUBERNETES TRAINING
ARTEFACTS
▸ Docker registry
▸ Helm Charts
▸ Binaries
▸ Binary caches
OVERVIEW

40. ADDITIONAL

41. KUBERNETES TRAINING
ADDITIONAL PRODUCTION CAPABILITIES
▸ Secrets management
▸ Service mesh
▸ Testing as a service
▸ Serverless
▸ Custom Operators
▸ Node autoscaling
▸ Etc
OVERVIEW

42. OTHER

43. KUBERNETES TRAINING
CNCF OVERVIEW

44. WORKFLOWS

45. KUBERNETES TRAINING
WORKFLOWS OVERVIEW
▸ Simple instructions / documentation on how to achieve a
specific goal.
▸ For:
▸ Developers;
▸ Operators;
▸ Testers;
▸ Etc.

46. KUBERNETES TRAINING
WORKFLOWS DEVELOPERS
▸ Local development and testing;
▸ Remote development and testing;
▸ How to use the CI/CD capability;
▸ Using Pull Requests (PRs);
▸ Release management;
▸ Creating dashboards;
▸ Etc.

47. KUBERNETES TRAINING
WORKFLOWS OPERATORS
▸ Upgrades;
▸ Debugging;
▸ Restores (backups should be automatic);
▸ Creating dashboards;
▸ Supporting cluster services;
▸ Developing Operators;
▸ Etc.

48. KUBERNETES TRAINING
WORKFLOWS TESTERS
▸ Setting up a representative environment;
▸ Running tests;
▸ Generating load;
▸ Tracing components;
▸ Creating dashboards;
▸ Etc.

49. DEMO

50. WRAP UP

51. KUBERNETES TRAINING
SUMMARY
▸ A Kubernetes cluster can be deployed to many different
destinations.
▸ But that is just the start.
▸ Then you need to deploy production quality workloads.
▸ And create simple workflows.

52. KUBERNETES TRAINING
NEXT STEPS
▸ Initial discovery. What needs to be built?
▸ Create a POC.
▸ Identity the gaps.
▸ Refine the solution.
▸ Ongoing training throughout the entire process.

53. QUESTIONS
