1. Kubeflow
on Google Kubernetes Engine
2018/04/25 Bear Su
1

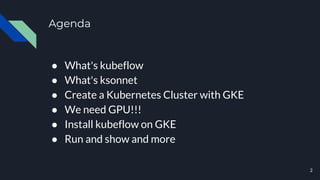

2. ● What's kubeflow
● What's ksonnet
● Create a Kubernetes Cluster with GKE
● We need GPU!!!
● Install kubeflow on GKE
● Run and show and more
Agenda
2

3. What's kubeflow
3

4. What's kubeflow
● JupyterHub
● TensorFlow Training Controller
● TensorFlow Serving Container
minikube Google Kubernetes EngineKubernetes on-permises
4

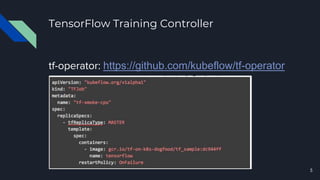

5. TensorFlow Training Controller
tf-operator: https://github.com/kubeflow/tf-operator
5

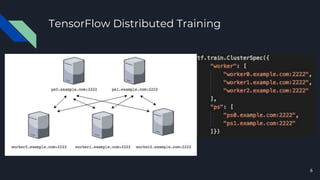

6. TensorFlow Distributed Training
6

7. Distributed Training Part 1
Simply define:
● MASTER
● WORKER
● PS(Parameter Server)
7

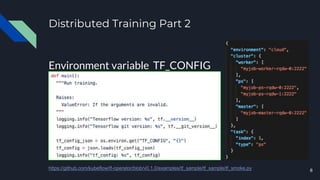

8. Distributed Training Part 2
Environment variable TF_CONFIG
8https://github.com/kubeflow/tf-operator/blob/v0.1.0/examples/tf_sample/tf_sample/tf_smoke.py

9. What's ksonnet
9

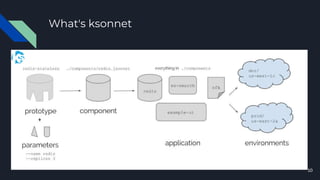

10. What's ksonnet
10

11. Create a Kubernetes Cluster with GKE
11

12. Create a Kubernetes Cluster with GKE
● Node vCPU >= 2
● Kubernetes version >= 1.9
● gcloud SDK
12

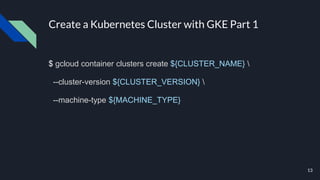

13. Create a Kubernetes Cluster with GKE Part 1
$ gcloud container clusters create ${CLUSTER_NAME}
--cluster-version ${CLUSTER_VERSION}
--machine-type ${MACHINE_TYPE}
13

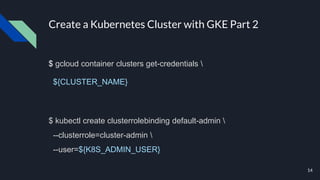

14. Create a Kubernetes Cluster with GKE Part 2
$ gcloud container clusters get-credentials
${CLUSTER_NAME}
$ kubectl create clusterrolebinding default-admin
--clusterrole=cluster-admin
--user=${K8S_ADMIN_USER}
14

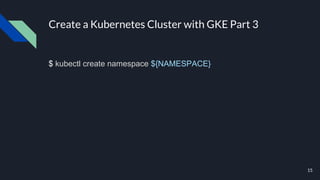

15. Create a Kubernetes Cluster with GKE Part 3
$ kubectl create namespace ${NAMESPACE}
15

16. We need GPU!!!
16

17. We need GPU!!!
● Kubernetes version >= 1.9
● Request GPU Quota
● Add node-pool with GPU
● Deploy NVIDIA GPU device driver
● Set pod resource limit
17
$ kubectl apply -f https://raw.githubusercontent.com/GoogleCloudPlatform/container-engine-accelerators/k8s-1.9/nvidia-
driver-installer/cos/daemonset-preloaded.yaml
https://cloud.google.com/kubernetes-engine/docs/concepts/gpus

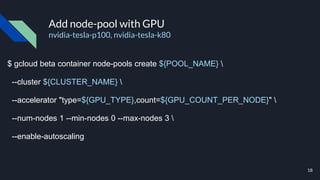

18. Add node-pool with GPU
nvidia-tesla-p100, nvidia-tesla-k80
$ gcloud beta container node-pools create ${POOL_NAME}
--cluster ${CLUSTER_NAME}
--accelerator "type=${GPU_TYPE},count=${GPU_COUNT_PER_NODE}"
--num-nodes 1 --min-nodes 0 --max-nodes 3
--enable-autoscaling
18

19. Install kubeflow on GKE
19

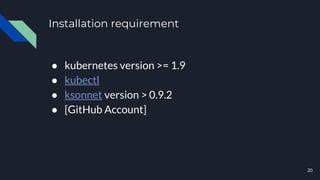

20. Installation requirement
● kubernetes version >= 1.9
● kubectl
● ksonnet version > 0.9.2
● [GitHub Account]
20

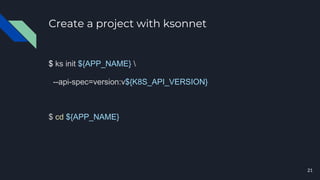

21. Create a project with ksonnet
$ ks init ${APP_NAME}
--api-spec=version:v${K8S_API_VERSION}
$ cd ${APP_NAME}
21

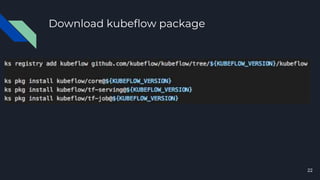

22. Download kubeflow package
22

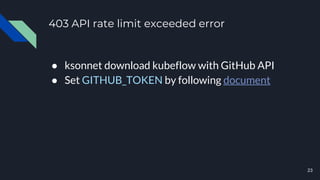

23. 403 API rate limit exceeded error
● ksonnet download kubeflow with GitHub API
● Set GITHUB_TOKEN by following document
23

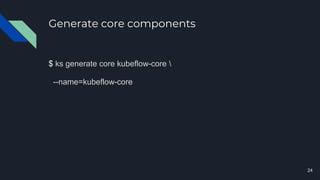

24. Generate core components
$ ks generate core kubeflow-core
--name=kubeflow-core
24

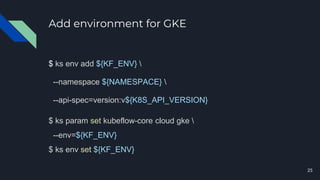

25. Add environment for GKE
$ ks env add ${KF_ENV}
--namespace ${NAMESPACE}
--api-spec=version:v${K8S_API_VERSION}
$ ks param set kubeflow-core cloud gke
--env=${KF_ENV}
$ ks env set ${KF_ENV}
25

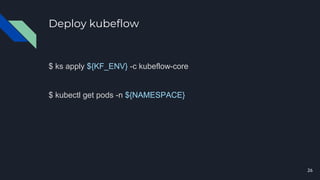

26. Deploy kubeflow
$ ks apply ${KF_ENV} -c kubeflow-core
$ kubectl get pods -n ${NAMESPACE}
26

27. Run and show and
more
27

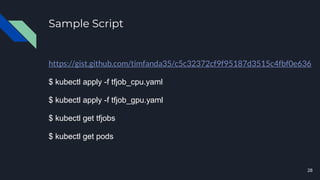

28. Sample Script
https://gist.github.com/timfanda35/c5c32372cf9f95187d3515c4fbf0e636
$ kubectl apply -f tfjob_cpu.yaml
$ kubectl apply -f tfjob_gpu.yaml
$ kubectl get tfjobs
$ kubectl get pods
28

29. Get training status
$ kubectl get tfjobs tf-smoke-cpu -o 'jsonpath={.status.phase}'
$ kubectl get tfjobs tf-smoke-cpu -o 'jsonpath={.status.state}'
29
phase - Indicates the phase of a job
● Creating
● Running
● CleanUp
● Failed
● Done
state - Provides the overall status of the job
● Running
● Succeeded
● Failed

30. Stackdriver Logging
30

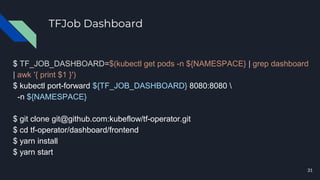

31. TFJob Dashboard
$ TF_JOB_DASHBOARD=$(kubectl get pods -n ${NAMESPACE} | grep dashboard
| awk '{ print $1 }')
$ kubectl port-forward ${TF_JOB_DASHBOARD} 8080:8080
-n ${NAMESPACE}
$ git clone git@github.com:kubeflow/tf-operator.git
$ cd tf-operator/dashboard/frontend
$ yarn install
$ yarn start
31

32. Thank you
32

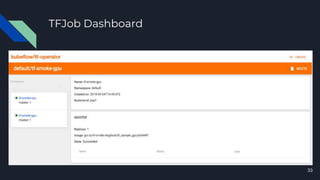

33. TFJob Dashboard
