- On December 22, 1999, Korean Air Cargo Flight 8509, a Boeing 747-2B5F aircraft, crashed shortly after takeoff from London Stansted Airport killing all 4 crew members. - The accident was caused by a combination of mechanical and human errors. One of the aircraft's Inertial Navigation Units had failed, providing incorrect roll data to the captain's indicator. Additionally, the crew failed to properly respond to warning signals and notice the aircraft's unsafe attitude. - Contributing factors included a lack of teamwork, knowledge, and awareness in the cockpit along with the airline's autocratic organizational culture which inhibited the first officer from speaking up. The accident may have been prevented by

1. HUMAN FACTOR STUDY CASES

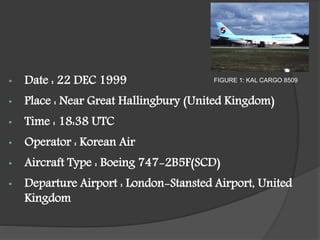

2. • Date : 22 DEC 1999
• Place : Near Great Hallingbury (United Kingdom)
• Time : 18:38 UTC
• Operator : Korean Air
• Aircraft Type : Boeing 747-2B5F(SCD)
• Departure Airport : London-Stansted Airport, United
Kingdom
FIGURE 1: KAL CARGO 8509

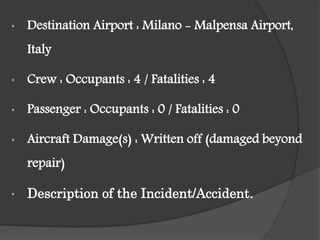

3. • Destination Airport : Milano - Malpensa Airport,
Italy
• Crew : Occupants : 4 / Fatalities : 4
• Passenger : Occupants : 0 / Fatalities : 0
• Aircraft Damage(s) : Written off (damaged beyond
repair)
• Description of the Incident/Accident.

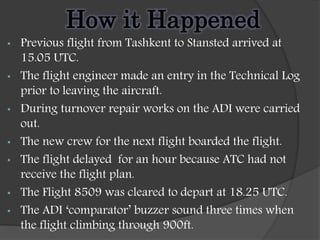

4. How it Happened
• Previous flight from Tashkent to Stansted arrived at
15.05 UTC.
• The flight engineer made an entry in the Technical Log
prior to leaving the aircraft.
• During turnover repair works on the ADI were carried
out.
• The new crew for the next flight boarded the flight.
• The flight delayed for an hour because ATC had not
receive the flight plan.
• The Flight 8509 was cleared to depart at 18.25 UTC.
• The ADI ‘comparator’ buzzer sound three times when
the flight climbing through 900ft.

5. •Climbing through 1400ft, ATC instructed the crew to
contact ‘London Control’.
•The aircraft banked left progressively and entered a
descent until struck the ground.
FIGURE 2 : During the impact

6. 1. MECHANICAL ERRORS.
2. HUMAN ERRORS

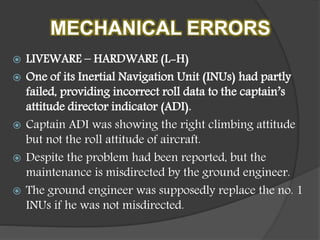

7. MECHANICAL ERRORS
 LIVEWARE – HARDWARE (L-H)
 One of its Inertial Navigation Unit (INUs) had partly
failed, providing incorrect roll data to the captain’s
attitude director indicator (ADI).
 Captain ADI was showing the right climbing attitude
but not the roll attitude of aircraft.
 Despite the problem had been reported, but the
maintenance is misdirected by the ground engineer.
 The ground engineer was supposedly replace the no. 1
INUs if he was not misdirected.

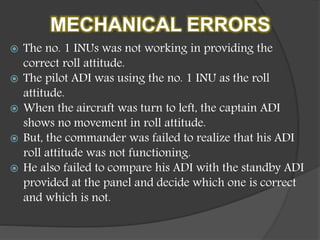

8. MECHANICAL ERRORS
 The no. 1 INUs was not working in providing the
correct roll attitude.
 The pilot ADI was using the no. 1 INU as the roll
attitude.
 When the aircraft was turn to left, the captain ADI
shows no movement in roll attitude.
 But, the commander was failed to realize that his ADI
roll attitude was not functioning.
 He also failed to compare his ADI with the standby ADI
provided at the panel and decide which one is correct
and which is not.

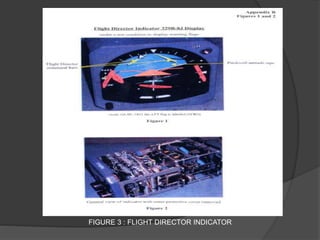

9. FIGURE 3 : FLIGHT DIRECTOR INDICATOR

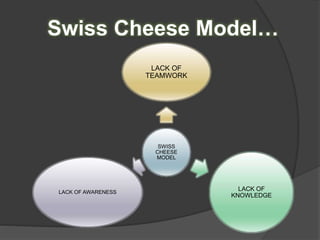

10. Swiss Cheese Model…
SWISS
CHEESE
MODEL
LACK OF
TEAMWORK
LACK OF
KNOWLEDGE
LACK OF AWARENESS

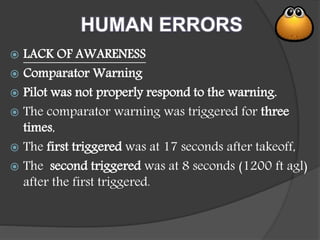

11. HUMAN ERRORS
 LACK OF AWARENESS
 Comparator Warning
 Pilot was not properly respond to the warning.
 The comparator warning was triggered for three
times,
 The first triggered was at 17 seconds after takeoff,
 The second triggered was at 8 seconds (1200 ft agl)
after the first triggered.

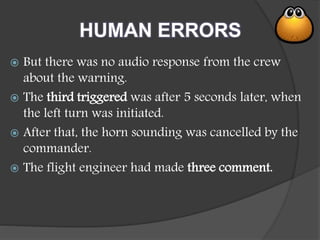

12. HUMAN ERRORS
 But there was no audio response from the crew
about the warning.
 The third triggered was after 5 seconds later, when
the left turn was initiated.
 After that, the horn sounding was cancelled by the
commander.
 The flight engineer had made three comment.

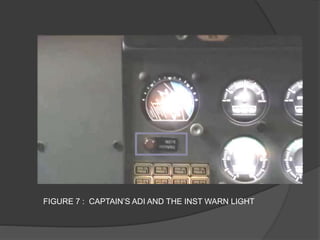

13. FIGURE 7 : CAPTAIN’S ADI AND THE INST WARN LIGHT

14. HUMAN ERRORS
 LACK OF TEAMWORK
 FIRST OFFICER ACTION
 The first officer either did not monitor the aircraft
attitude during the climbing turn or, did not alert the
commander to the extreme unsafe attitude that
developed.
 There was a marked difference in age and experience
between the commander and the first officer.
 Also, the first officer was inexperienced. (with 195
hours on type)
 The first officer had been criticized prior to takeoff. (By
the pilot)

15. HUMAN ERRORS
 Also, because of autocratic organizational
cockpit culture in Korea.
 He felt inhibited to bringing the situation
into the commander concerned.

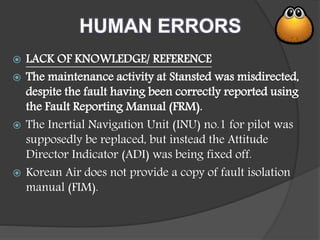

16. HUMAN ERRORS
 LACK OF KNOWLEDGE/ REFERENCE
 The maintenance activity at Stansted was misdirected,
despite the fault having been correctly reported using
the Fault Reporting Manual (FRM).
 The Inertial Navigation Unit (INU) no.1 for pilot was
supposedly be replaced, but instead the Attitude
Director Indicator (ADI) was being fixed off.
 Korean Air does not provide a copy of fault isolation
manual (FIM).

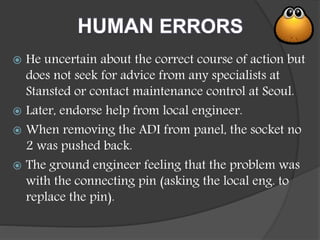

17. HUMAN ERRORS
 He uncertain about the correct course of action but
does not seek for advice from any specialists at
Stansted or contact maintenance control at Seoul.
 Later, endorse help from local engineer.
 When removing the ADI from panel, the socket no
2 was pushed back.
 The ground engineer feeling that the problem was
with the connecting pin (asking the local eng. to
replace the pin).

18. • The accident could have been prevented if Korea Air’s
accept The Internal Audit Report (20th September 1998)
written by an external New Zealand.
• Change their autocratic cockpit culture that has an
endemic level of complacency, arrogance and
incompetence.
•Repair the ADI with having the correct Fault Isolation
Manual and consider to replace INU.
• Do an observation of the maintenance before the plane
took off.

19. FIGURE 8: DISTANCE FROM AIRPORT TO THE CRASH SITE

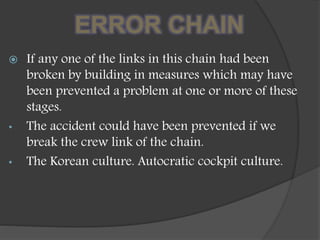

20. ERROR CHAIN
 If any one of the links in this chain had been
broken by building in measures which may have
been prevented a problem at one or more of these
stages.
• The accident could have been prevented if we
break the crew link of the chain.
• The Korean culture. Autocratic cockpit culture.

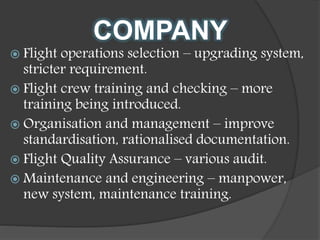

22. COMPANY
 Flight operations selection – upgrading system,
stricter requirement.
 Flight crew training and checking – more
training being introduced.
 Organisation and management – improve
standardisation, rationalised documentation.
 Flight Quality Assurance – various audit.
 Maintenance and engineering – manpower,
new system, maintenance training.

23. AVIATION INDUSTRY
 Safety Recommendation No 2003-62 – KAL update
their training and programmes.
 Safety Recommendation No 2003-63 – KAL review
their policy and procedures.
 Safety Recommendation No 2003-64 – Technical
log must have copied at ground.
 Safety Recommendation No 2003-65 – Carrying
dangerous good must be informed to the Authority.
 Safety Recommendation No 2003-66 – Review the
current methods of tracking air cargo.
 Safety Recommendation No 2003-67 – necessary
data and risk management advice.

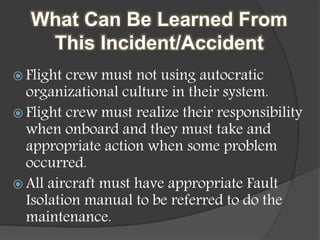

24. What Can Be Learned From
This Incident/Accident
 Flight crew must not using autocratic
organizational culture in their system.
 Flight crew must realize their responsibility
when onboard and they must take and
appropriate action when some problem
occurred.
 All aircraft must have appropriate Fault
Isolation manual to be referred to do the
maintenance.

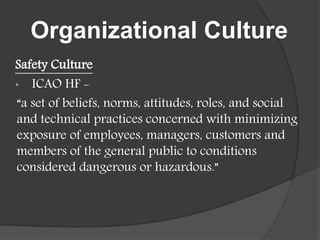

25. Organizational Culture
Safety Culture
• ICAO HF -
“a set of beliefs, norms, attitudes, roles, and social
and technical practices concerned with minimizing
exposure of employees, managers, customers and
members of the general public to conditions
considered dangerous or hazardous.”

26. Figure 9 : On 22 December 1999, Korean Air Cargo
Flight No: 8509 Aircraft: B747-2B5F (HL 7451) on a
cargo flight to Milan-Malpensa, Italy, crashed shortly
after takeoff from London Stansted Airport, Essex,
England killing all 4 on board

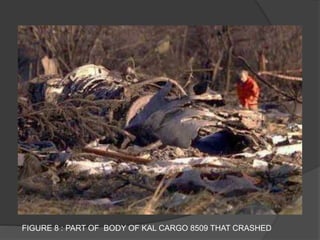

27. FIGURE 8 : PART OF BODY OF KAL CARGO 8509 THAT CRASHED

28. FIGURE 9 :AT THE SITE OF THE KAL CARGO 8509 CRASHED

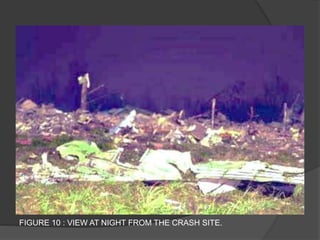

29. FIGURE 10 : VIEW AT NIGHT FROM THE CRASH SITE.

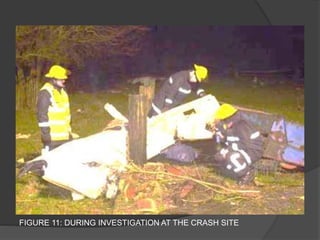

30. FIGURE 11: DURING INVESTIGATION AT THE CRASH SITE

31. FIGURE 12: VIEW FROM ABOVE OF THE CRASH SITE

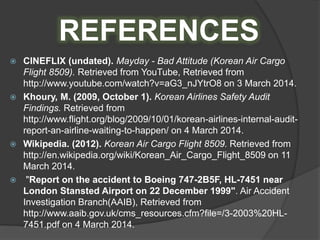

32. REFERENCES
