1. JOB NO. 01
WORKSHOP MANUFACTURING PRACTICES
BRANCH: MECHANICAL/CIVIL ENGINEERING
JOB NAME: TO MAKE A CROSS-LAP JOINT OF GIVEN DIMENSIONS
Fig. 1(a) 2-D sketch of one individual component of job.
V5 = 25 mm; V7 = 12.5 mm; H3 = H4 = 37.5 mm and H1 = H2 = 12.5 mm.
Fig. 1(b) Front view of one individual component of job.
Fig. 2 Both individual component of job.

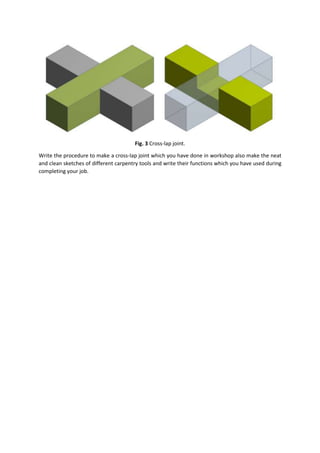

2. Fig. 3 Cross-lap joint.
Write the procedure to make a cross-lap joint which you have done in workshop also make the neat
and clean sketches of different carpentry tools and write their functions which you have used during
completing your job.
