The Jetstor NAS 724UXD is a powerful dual-controller unified storage solution designed for high availability with features like active-active architecture, advanced data protection, and efficient resource utilization. It supports various RAID configurations, caters to both file-level and block-level I/O, and is optimized for environments requiring consistent data availability and scalability. Notable benefits include zero downtime, high storage efficiency through compression and thin provisioning, and robust performance for diverse application workloads.

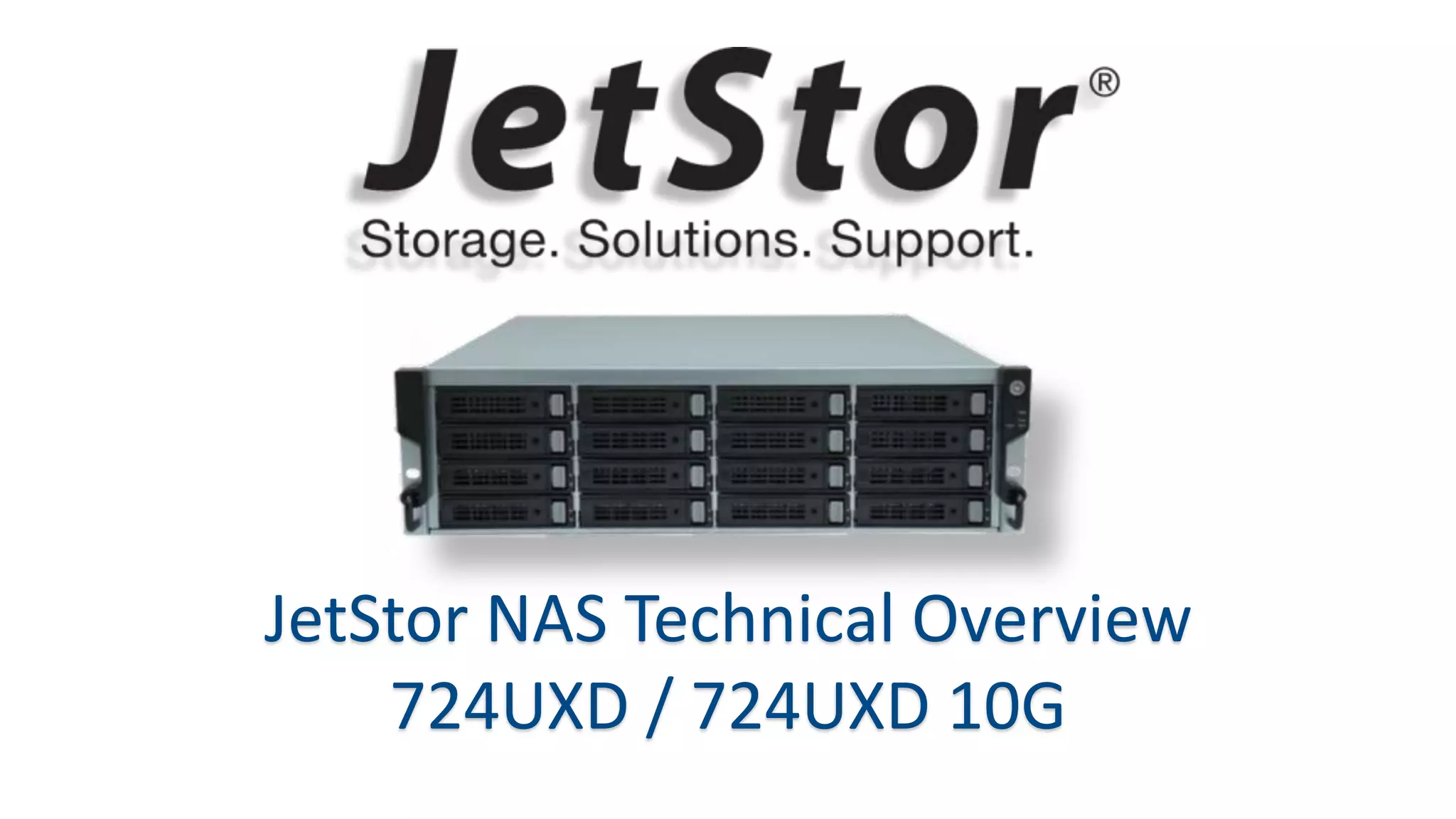

1. JetStor NAS Technical Overview
724UXD / 724UXD 10G

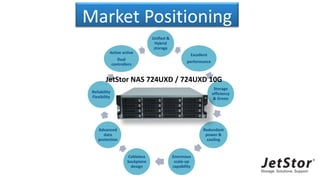

2. Market Positioning
Unified &
Hybrid
storage
Excellent
performance
Storage
efficiency
& Green
Redundant
power &
cooling
Enormous
scale-up
capability
Cableless
backplane
design
Advanced
data
protection
Reliability
Flexibility
Active active
Dual
controllers
JetStor NAS 724UXD / 724UXD 10G

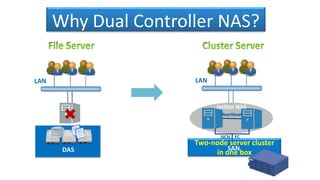

3. DAS
Why Dual Controller NAS?
LAN LAN
Two-node server cluster
in one box
SAN
Heartbeat
iSCSI FC
JetStor NAS

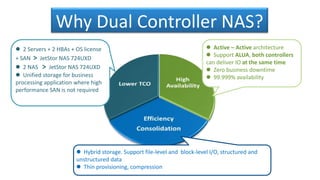

4. Why Dual Controller NAS?
 2 Servers + 2 HBAs + OS license
+ SAN > JetStor NAS 724UXD
 2 NAS > JetStor NAS 724UXD
 Unified storage for business
processing application where high
performance SAN is not required
 Active – Active architecture
 Support ALUA, both controllers
can deliver IO at the same time
 Zero business downtime
 99.999% availability
 Hybrid storage. Support file-level and block-level I/O, structured and
unstructured data
 Thin provisioning, compression

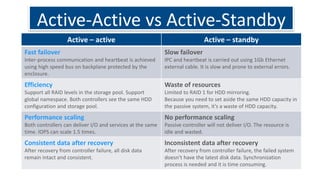

5. Active-Active vs Active-Standby
Active – active Active – standby
Fast failover
Inter-process communication and heartbeat is achieved
using high speed bus on backplane protected by the
enclosure.
Slow failover
IPC and heartbeat is carried out using 1Gb Ethernet
external cable. It is slow and prone to external errors.
Efficiency
Support all RAID levels in the storage pool. Support
global namespace. Both controllers see the same HDD
configuration and storage pool.
Waste of resources
Limited to RAID 1 for HDD mirroring.
Because you need to set aside the same HDD capacity in
the passive system, it’s a waste of HDD capacity.
Performance scaling
Both controllers can deliver I/O and services at the same
time. IOPS can scale 1.5 times.
No performance scaling
Passive controller will not deliver I/O. The resource is
idle and wasted.
Consistent data after recovery
After recovery from controller failure, all disk data
remain intact and consistent.
Inconsistent data after recovery
After recovery from controller failure, the failed system
doesn’t have the latest disk data. Synchronization
process is needed and it is time consuming.

6. Hardware Specs
Model JetStor NAS 724UXD JetStor NAS 724UXD 10G
NAS Controller Active-active dual controllers
Host interfaces
per controller
7x 1GbE ports
3x 1GbE ports
2x 10GbE ports (SFP+ or RJ45)
Processor Intel Xeon dual cores
Memory 16GB DDR3 ECC
Hard Drive Interface 6Gb/s, 12Gb/s SAS, SSD (3.5" and 2.5")
Expansion Enclosure 6Gb/s, 12Gb/s SAS series
Max. No. of Hard Drives 256
Form Factors 4U 24bays : 446.0 x 499.5 x 176.0mm (W x D x H)
Power Supply 4U 24bays : 550W 3x (80 PLUS Gold)
Fan Module 4U 24bays : redundant fan modules 2x

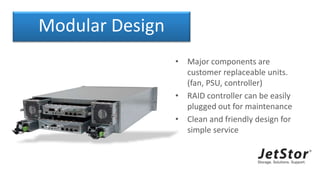

7. Modular Design
• Major components are
customer replaceable units.
(fan, PSU, controller)
• RAID controller can be easily
plugged out for maintenance
• Clean and friendly design for
simple service

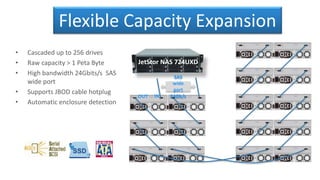

8. • Cascaded up to 256 drives
• Raw capacity > 1 Peta Byte
• High bandwidth 24Gbits/s SAS
wide port
• Supports JBOD cable hotplug
• Automatic enclosure detection
Flexible Capacity Expansion
JetStor NAS 724UXD
SAS
wide
port
24Gb/sINOUT

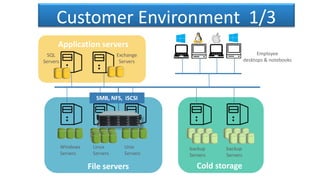

9. Windows
Servers
Linux
Servers
Unix
Servers
File servers
Customer Environment 1/3
backup
Servers
Cold storage
backup
Servers
SQL
Servers
Exchange
Servers
Employee
desktops & notebooks
Application servers
SMB, NFS, iSCSI

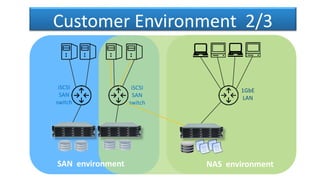

10. Customer Environment 2/3
1GbE
LAN
iSCSI
SAN
switch
iSCSI
SAN
switch
SAN environment NAS environment

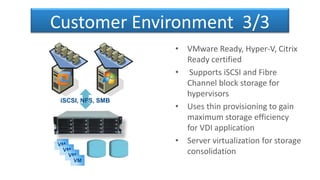

11. Customer Environment 3/3
• VMware Ready, Hyper-V, Citrix
Ready certified
• Supports iSCSI and Fibre
Channel block storage for
hypervisors
• Uses thin provisioning to gain
maximum storage efficiency
for VDI application
• Server virtualization for storage
consolidation
VM
VM
VM
VM
iSCSI, NFS, SMB

12. Software
Storage Manager

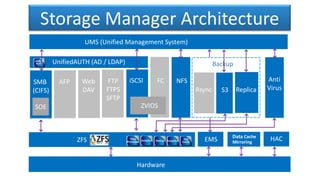

13. ZFS
Storage Manager Architecture
Hardware
EMS HAC
SMB
(CIFS)
SOE
AFP Web
DAV
FTP
FTPS
SFTP
iSCSI
UMS (Unified Management System)
FC
ZVIOS
NFS
Backup
Anti
Virus
UnifiedAUTH (AD / LDAP)
Data Cache
Mirroring
Rsync S3 Replica

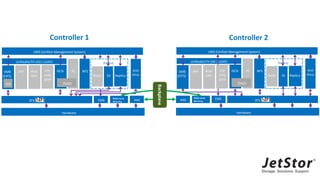

14. ZFS
Hardware
EMS HAC
SMB
(CIFS)
SOE
AFP Web
DAV
FTP
FTPS
SFTP
iSCSI
UMS (Unified Management System)
FC
ZVIOS
NFS
Backup
Anti
Virus
UnifiedAUTH (AD / LDAP)
Data Cache
Mirroring
Rsync S3 Replica
SOE
UnifiedAUTH (AD / LDAP)
Controller 1 Controller 2
SMB
(CIFS)
AFP Web
DAV
FTP
FTPS
SFTP
iSCSI FC
ZVIOS
NFS
Backup
Anti
VirusRsync S3 Replica
ZFS
Hardware
EMSHAC
Data Cache
Mirroring
UMS (Unified Management System)
Backplane

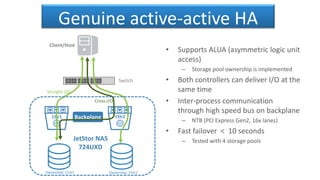

15. Genuine active-active HA
• Supports ALUA (asymmetric logic unit
access)
– Storage pool ownership is implemented
• Both controllers can deliver I/O at the
same time
• Inter-process communication
through high speed bus on backplane
– NTB (PCI Express Gen2, 16x lanes)
• Fast failover < 10 seconds
– Tested with 4 storage pools
Backplane
Client/Host
Switch
Ctlr1 Ctlr2
Ownership: Ctrlr1
Straight I/O
Ownership: Ctrlr2
Cross I/O
JetStor NAS
724UXD

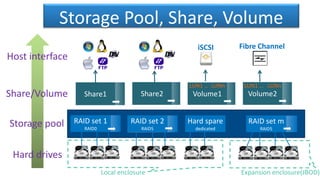

16. Storage Pool, Share, Volume
Local enclosure Expansion enclosure(JBOD)
Storage pool Hard spare
dedicated
Share1
Hard drives
Share2 Volume1 Volume2Share/Volume
Host interface
iSCSI Fibre Channel
LUN1 … LUNn LUN1 … LUNn
RAID set m
RAID5
RAID set 2
RAID5
RAID set 1
RAID0

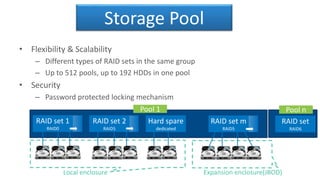

17. Storage Pool
• Flexibility & Scalability
– Different types of RAID sets in the same group
– Up to 512 pools, up to 192 HDDs in one pool
• Security
– Password protected locking mechanism
Local enclosure Expansion enclosure(JBOD)
Hard spare
dedicated
Pool 1 Pool n
RAID set
RAID6
RAID set m
RAID5
RAID set 2
RAID5
RAID set 1
RAID0

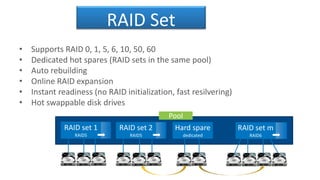

18. RAID Set
• Supports RAID 0, 1, 5, 6, 10, 50, 60
• Dedicated hot spares (RAID sets in the same pool)
• Auto rebuilding
• Online RAID expansion
• Instant readiness (no RAID initialization, fast resilvering)
• Hot swappable disk drives
Hard spare
dedicated
Pool
RAID set m
RAID6
RAID set 2
RAID5
RAID set 1
RAID5

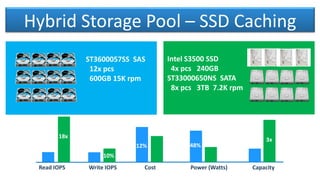

19. Hybrid Storage Pool – SSD Caching
ST3600057SS SAS
12x pcs
600GB 15K rpm
Intel S3500 SSD
4x pcs 240GB
ST33000650NS SATA
8x pcs 3TB 7.2K rpm
Read IOPS Write IOPS Cost Power (Watts) Capacity
12% 48%
3x
18x
10%

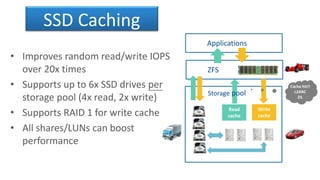

20. SSD Caching
• Improves random read/write IOPS
over 20x times
• Supports up to 6x SSD drives per
storage pool (4x read, 2x write)
• Supports RAID 1 for write cache
• All shares/LUNs can boost
performance
Applications
ZFS
Read
cache
Write
cache
Storage pool
Cache hit!!
L2ARC
ZIL

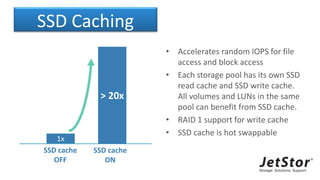

21. SSD Caching
• Accelerates random IOPS for file
access and block access
• Each storage pool has its own SSD
read cache and SSD write cache.
All volumes and LUNs in the same
pool can benefit from SSD cache.
• RAID 1 support for write cache
• SSD cache is hot swappable
SSD cache
OFF
SSD cache
ON
1x
> 20x

22. ZFS Benefits – Break Bottlenecks
Storage size is ever-
increasing
Storage efficiency is
low
Data integrity and data
protection become
more critical
Data management
costs are high

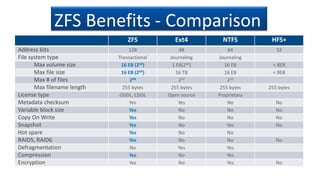

23. ZFS Benefits - Comparison
ZFS Ext4 NTFS HFS+
Address bits 128 48 64 32
File system type Transactional Journaling Journaling
Max volume size 16 EB (264) 1 EB(260) 16 EB < 8EB
Max file size 16 EB (264) 16 TB 16 EB < 8EB
Max # of files 248 232 232
Max filename length 255 bytes 255 bytes 255 bytes 255 bytes
License type GDDL, CDDL Open source Proprietary
Metadata checksum Yes Yes No No
Variable block size Yes No No No
Copy On Write Yes No No No
Snapshot Yes No Yes No
Hot spare Yes No No
RAID5, RAID6 Yes No No No
Defragmentation No Yes Yes
Compression Yes No Yes
Encryption Yes No Yes No

24. ZFS Benefits - Highlights
• MorethanjustanotherFS:filesystem+volumemanager+RAIDcontrollerallinone
• Immensescalability:128bitaddressspace
• End-to-enddataintegrity
– Everythingiscopyonwrite,alwaysondiskconsistent
– Everythingistransactional
– Everythingischecksumed,nosilentcorruption,nobadmetadata
– Enhanceddataprotection:snapshot,replication, poolscrubbing
• Storage efficiency
– Thinprovisioning,compression
• Simpleadministration

25. ZFS Benefits – Data Integrity
ZFS
EXT3
EXT4
Most SMB NAS use ext3/ext4 Journal file system, but any
unexpected shutdown may crash the Journal file system. This
causes some data loss or data inconsistency; the worse case will be
the file system crashing and whole data gone …
With JetStor NAS ZFS file system (that once belonged only to very
high-end products), there is 0% file system crash possibility and
always end-to-end protection of disk data consistency due to its
copy-on-write transactional model and self-healing architecture.

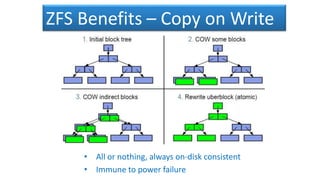

26. ZFS Benefits – Copy on Write
• All or nothing, always on-disk consistent
• Immune to power failure

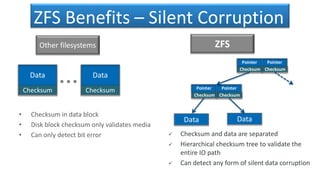

27. ZFS Benefits – Silent Corruption
Data
Checksum
Data
Checksum
● ● ●
Data Data
Pointer
Checksum
Pointer
Checksum
Pointer
Checksum
Pointer
Checksum
• Checksum in data block
• Disk block checksum only validates media
• Can only detect bit error  Checksum and data are separated
 Hierarchical checksum tree to validate the
entire IO path
 Can detect any form of silent data corruption
Other filesystems ZFS

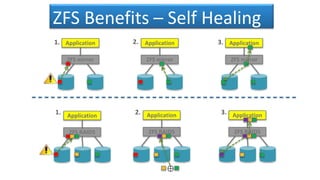

28. ZFS Benefits – Self Healing
Application
ZFS RAID5
Application
ZFS mirror
1. 3.2. Application
ZFS mirror
Application
ZFS mirror
1. Application
ZFS RAID5
Application
ZFS RAID5
2. 3.
⊕

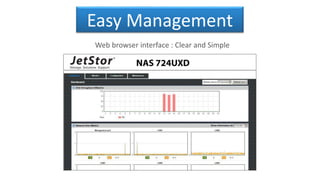

29. Easy Management
Web browser interface : Clear and Simple

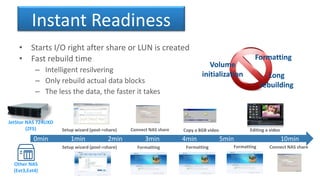

30. Instant Readiness
• Starts I/O right after share or LUN is created
• Fast rebuild time
– Intelligent resilvering
– Only rebuild actual data blocks
– The less the data, the faster it takes
Volume
initialization
Formatting
Long
rebuilding
0min 1min 2min 3min 4min 5min 10min
JetStor NAS 724UXD
(ZFS)
Other NAS
(Ext3,Ext4)
Setup wizard (pool->share)
Setup wizard (pool->share)
Connect NAS share
Formatting Formatting
Copy a 8GB video
Formatting Connect NAS share
Editing a video

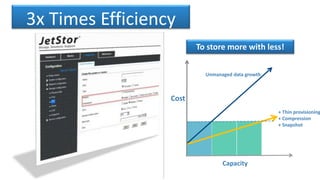

31. 3x Times Efficiency
Capacity
Cost
Unmanaged data growth
+ Thin provisioning
+ Compression
+ Snapshot
To store more with less!

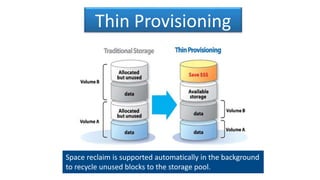

32. Thin Provisioning
Space reclaim is supported automatically in the background
to recycle unused blocks to the storage pool.

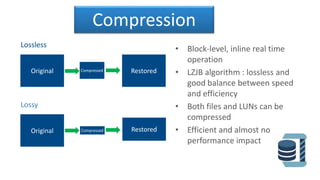

33. Compression
• Block-level, inline real time
operation
• LZJB algorithm : lossless and
good balance between speed
and efficiency
• Both files and LUNs can be
compressed
• Efficient and almost no
performance impact
Lossless
Original RestoredCompressed
Lossy
Original RestoredCompressed

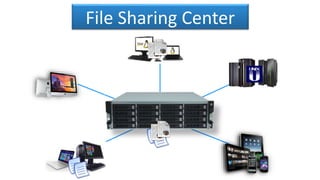

34. File Sharing Center

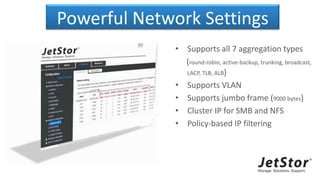

35. Powerful Network Settings
• Supports all 7 aggregation types
(round-robin, active-backup, trunking, broadcast,
LACP, TLB, ALB)
• Supports VLAN
• Supports jumbo frame (9000 bytes)
• Cluster IP for SMB and NFS
• Policy-based IP filtering

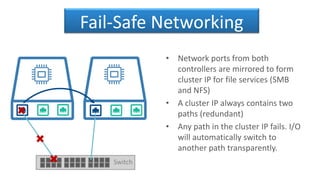

36. Fail-Safe Networking
• Network ports from both
controllers are mirrored to form
cluster IP for file services (SMB
and NFS)
• A cluster IP always contains two
paths (redundant)
• Any path in the cluster IP fails. I/O
will automatically switch to
another path transparently.
Switch

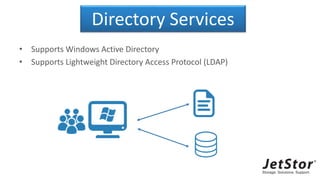

37. Directory Services
• Supports Windows Active Directory
• Supports Lightweight Directory Access Protocol (LDAP)

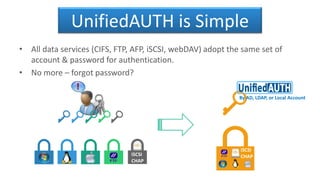

38. UnifiedAUTH is Simple
• All data services (CIFS, FTP, AFP, iSCSI, webDAV) adopt the same set of
account & password for authentication.
• No more – forgot password?
iSCSI
CHAP
By AD, LDAP, or Local Account
iSCSI
CHAP

39. Client OS Interoperability
• Host Operating Systems
– Microsoft Windows
– Linux : Red Hat, SUSE, CentOS
– Unix : Solaris
– VMware
– Hyper-V
– Citrix XenServer
• Backup Applications
– Symantec
– Veeam
– Acronis

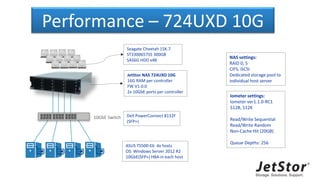

40. Performance – 724UXD 10G
ASUS TS500-E6 4x hosts
OS: Windows Server 2012 R2
10GbE(SFP+) HBA in each host
JetStor NAS 724UXD 10G
16G RAM per controller
FW V1.0.0
2x 10GbE ports per controller
Seagate Cheetah 15K.7
ST3300657SS 300GB
SAS6G HDD x48
Dell PowerConnect 8132F
(SFP+)
NAS settings:
RAID 0, 5
CIFS, iSCSI
Dedicated storage pool to
individual host server
Iometer settings:
Iometer ver1.1.0-RC1
512B, 512K
Read/Write Sequential
Read/Write Random
Non-Cache Hit (20GB)
Queue Depths: 256
10GbE Switch

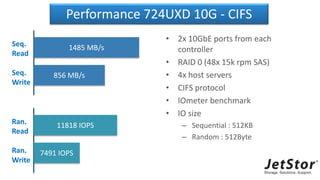

41. Performance 724UXD 10G - CIFS
• 2x 10GbE ports from each
controller
• RAID 0 (48x 15k rpm SAS)
• 4x host servers
• CIFS protocol
• IOmeter benchmark
• IO size
– Sequential : 512KB
– Random : 512Byte
Seq.
Read
Seq.
Write
1485 MB/s
856 MB/s
Ran.
Read
Ran.
Write
11818 IOPS
7491 IOPS

42. Performance 724UXD 10G - iSCSI
• 2x 10GbE ports from each
controller
• RAID 0 (48x 15k rpm SAS)
• 4x host servers
• iSCSI protocol
• IOmeter benchmark
• IO size
– Sequential : 512KB
– Random : 512Byte
Seq.
Read
Seq.
Write
1107 MB/s
922 MB/s
Ran.
Read
Ran.
Write
1589 IOPS
1315 IOPS

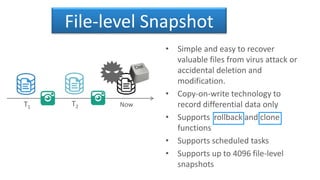

43. File-level Snapshot
• Simple and easy to recover
valuable files from virus attack or
accidental deletion and
modification.
• Copy-on-write technology to
record differential data only
• Supports rollback and clone
functions
• Supports scheduled tasks
• Supports up to 4096 file-level
snapshots
T1 T2 Now

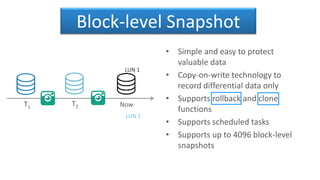

44. Block-level Snapshot
• Simple and easy to protect
valuable data
• Copy-on-write technology to
record differential data only
• Supports rollback and clone
functions
• Supports scheduled tasks
• Supports up to 4096 block-level
snapshots
T1 T2 Now
LUN 1
LUN 2

45. Backup – Replication
• Block-level replication using copy-
on-write snapshot technology
• Efficient differential data
replication
• Same technology for file and
block data
• Support up to 16 replication tasks
• Connection is established through
SSH protocol
JetStor 724UXD
JetStor 724UX JetStor 724UX
ZFS storage devices

46. Amazon S3 Backup
• Backup folders and files to public cloud storage
• Allows scheduled tasks and folder synchronization

47. JetStor Turbo Offload Engine
• Includes SOE (Samba Offload
Engine) and ZVIOS (ZFS Volume
IO Scheduler)
• Linux kernel modules
• Command coalescing
• Process multiple commands at
a time
• Support more outstanding I/O
• ZVIOS accelerates sequential
IOPS (small IO size)
8K 4K 4K 4K 4K
4K4K 4K 4K 4K
8K 16K
4K4K 8K 8K 8K
4K
8K 4K (x3) 4K (x2)
4K (x7)
8K 16K
8K (x3)
4K (x10)8K (x2)

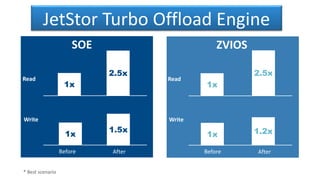

48. JetStor Turbo Offload Engine
SOE ZVIOS
Before After
Read
Write
Before After
Read
Write
1x
1x 1x
1.5x
2.5x
1x
1.2x
2.5x
* Best scenario

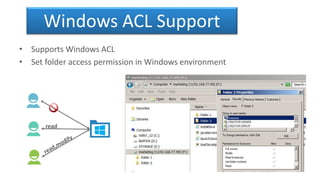

49. Windows ACL Support
• Supports Windows ACL
• Set folder access permission in Windows environment
read

50. Intel ISA-L Support
• Supports Intel Xeon processor
(Nehalem microarchitecture and
beyond)
• JetStor integrates ISA-L into
kernel mode codes in operating
system
• Faster XOR P+Q parity write
operations
• Multi-buffer hashing (MbH)
increases secure hash algorithm
speed by parallelism

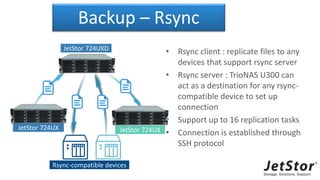

51. Backup – Rsync
• Rsync client : replicate files to any
devices that support rsync server
• Rsync server : TrioNAS U300 can
act as a destination for any rsync-
compatible device to set up
connection
• Support up to 16 replication tasks
• Connection is established through
SSH protocol
JetStor 724UXD
JetStor 724UX JetStor 724UX
Rsync-compatible devices

52. 20 Year Reputation
Design team with multiple product lifecycle experience
Citable deployment success for almost every application
Extensive knowledge of all storage technologies
Outstanding, readily available support staff
Online knowledge base and customer portal
VMware Technology Alliance Partner since 2004
www.acnc.com

53. Warranty and Support
3 years advanced replacement on all components
5 years drive replacement
Onsite service plans 24x7x4 and next day
Spare parts kits
Free phone and e-mail support
24x7x4 optional phone support
Optional 5 years warranty
Professional Onsite installation
Storage, SAN and connectivity design & consulting
www.acnc.com

54. Research Application
JetStor RAID Arrays Support Cutting-edge Physics Research
• Theoretical nuclear physics experimental data
• High-speed cameras investigate particle flows, saving over 20,000 high-resolution images
• Storing large data sets locally expedites research analysis
• JetStor SAS 516iS iSCSI RAID arrays
• JetStor SATA 416iS iSCSI RAID arrays
“JetStor RAID solutions enable us to quickly adapt storage to our very fluid
research environment.”
- Senior IT Manager
www.acnc.com

55. Multimedia Production
JetStor Delivers Performance Needed for
High-definition, 3D Film Production
• Secure, cost-effective solution for storing hundreds of terabytes of
production data
• High density, power efficient platforms deployed in a robust storage area
network (SAN)
• Four JetStor SAS 742F 42-bay FC RAID Arrays
• Two JetStor SAS 716F 16-bay RAID Arrays
• One JetStor SAS 724F 24-bay FC RAID Array
• Two Brocade 5300 SAN Switches
“JetStor arrays provide value, especially compared to costlier
enterprise-class solutions. They offer massive storage with
outstanding throughput at a much better price point.”
- Post Production Manager for Evergreen Studios
www.acnc.com

56. Education
JetStor RAID Arrays Enable Flawless Delivery
of On-line Courses
• ANGEL learning management suite delivers on-line courses to Penn State’s 96,000
students
• JetStor RAID arrays deliver content for repeated simulations of thousands of users
• JetStor SAS 516F 16 bay RAID array
• JetStor SATA 516F 16 bay RAID array
• Dell PowerEdge servers
“Our JetStors perform without incident, letting us focus on testing rather than
managing our storage.”
- Systems Administrator
www.acnc.com

57. VDI Application
School District Lowers Costs & Improves Performance with
JetStor
• Serves over 2,000 students with 286 employees
• An innovative combination of flash, solid-state, and mechanical storage used to virtualize
1,200 desktops, laptops, and tablets
• Boot up devices and log into class assignments without the latency of boot storms.
• JetStor SAS 724iFD FC SAN 24 bay RAID array
“When we ran a pilot with 250 virtualized desktops and just one JetStor 724iFD
chassis, the device never broke a sweat and we knew we made the right
decision.”
- Technical Services Manager
www.acnc.com

58. Telecom Provider Connects with an Economical & Reliable
Storage Solution
• JetStor & DataCore support the most demanding applications in SANsymphony-V
virtualized storage environments
• JetStor arrays are configured for RAID 5, ensuring data is protected even if a disk fails
• High-density solutions offer 42 bays for up to 168 terabytes of capacity in a 4U chassis
• JetStor 724S SAS units with 600GB drives VOIP projects
• JetStor units running in five states PA, IL, KY, TX and CA
“JetStor products give us rock-solid reliability and the freedom to choose cost-
effective disks that meet our needs, not the vendor’s.”
- Network Engineer
Telecom Application
www.acnc.com

59. JetStor® RAID Arrays Deliver Vital Software-as-a-Service to the
Construction Industry
• Barryhund provides its solution, called Online Plan Service, via hosting services and
software-as-a-service.
• Qty 4 JetStor 742S arrays link via a SAS switch to 3 servers, providing the benefits
of DAS with all the capabilities of shared storage.
• The JetStors are configured for RAID Level 0+1. RAID 0+1 delivers the same fault
tolerance as RAID level 5 & offers high I/O rates thanks to multiple stripe segments.
“If you need simple, reliable, fast, and clustered storage that takes very little
time to manage, then your answer is simple—JetStor.”
- Founder and CEO
Software-as-a-Service
www.acnc.com

60. Server Consolidation
JetStor RAID Arrays Enable Consolidation of Engineering &
Administration Servers
• Consolidated numerous legacy servers onto 75 virtual machines
• Support 1,900 employees at 32 facilities worldwide
• JetStor 516iS 16 bay RAID arrays
• JetStor 716iS 16bay RAID arrays
• JetStor 760iSD 60bay RAID arrays
• RAID 10
• Dell PowerEdge servers
“Thanks to JetStor, we can incrementally expand our storage capacity
quickly, easily, and very cost-effectively.”
- Technology Manager
www.acnc.com

61. Video Processing Backup
JetStor RAID Arrays Provide Continuous Backup
to 27 SAN & NAS Servers
• 500 GB projects are restored in just minutes, on demand
• Primary and off-site backup mirrored over 10Gb fibre channel
• 20 JetStor 516F RAID arrays
• ZFS public-domain file system
“By relying on ZFS and JetStor, we’ve met our business and IT needs well into
the future.”
- Studio Engineer
Leading Digital Video
Production Studio
Primary
Storage
Backup
Storage
www.acnc.com

62. THANK YOU!
www.acnc.com
