The document discusses smart city projects that require multi-petabyte surveillance storage solutions. It provides examples of how different organizations like cities, retirement communities, and school districts have leveraged SAN storage arrays from QSAN and JetStor, with capacities over 6 petabytes, to centrally manage video surveillance from over 1,000 IP cameras to improve safety and security. The storage solutions provide high performance, scalability, availability and the best total cost of ownership to meet the growing surveillance storage needs of smart city initiatives.

1. Safer Cities Multi Petabyte
Smart Cities Projects

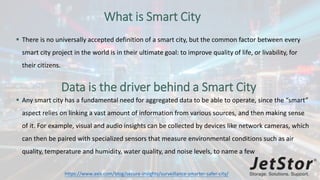

2. What is Smart City
 There is no universally accepted definition of a smart city, but the common factor between every
smart city project in the world is in their ultimate goal: to improve quality of life, or livability, for
their citizens.
Data is the driver behind a Smart City
 Any smart city has a fundamental need for aggregated data to be able to operate, since the “smart”
aspect relies on linking a vast amount of information from various sources, and then making sense
of it. For example, visual and audio insights can be collected by devices like network cameras, which
can then be paired with specialized sensors that measure environmental conditions such as air
quality, temperature and humidity, water quality, and noise levels, to name a few
https://www.axis.com/blog/secure-insights/surveillance-smarter-safer-city/

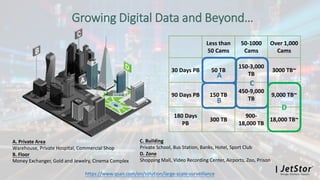

3. Growing Digital Data and Beyond…
https://www.qsan.com/en/solution/large-scale-surveillance
Less than
50 Cams
50-1000
Cams
Over 1,000
Cams
30 Days PB 50 TB
150-3,000
TB
3000 TB~
90 Days PB 150 TB
450-9,000
TB
9,000 TB~
180 Days
PB
300 TB
900-
18,000 TB
18,000 TB~
A
B
C
D
A. Private Area
Warehouse, Private Hospital, Commercial Shop
B. Floor
Money Exchanger, Gold and Jewelry, Cinema Complex
C. Building
Private School, Bus Station, Banks, Hotel, Sport Club
D. Zone
Shopping Mall, Video Recording Center, Airports, Zoo, Prison

4. Petabyte Storage Solution is Essential to
Smart City Surveillance

5. SAN or NAS?
http://www.intransa.com/wp-content/uploads/2017/04/Video-Storage-IP-SAN-vs-NAS-Whitepaper.pdf
NAS requires that writes to the storage access an additional layer, implemented by the network file
system. This extra file layer typically creates increased network traffic, resulting in unintended video
recording performance degradation and file fragmentation. SAN delivers consistent performance as
camera number grows without dropping frames or otherwise losing video.

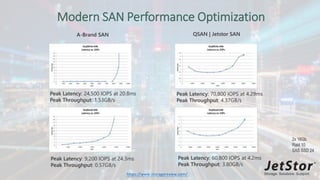

6. 2x 16Gb
Raid 10
SAS SSD 24Modern SAN Performance Optimization
Peak Latency: 60,800 IOPS at 4.2ms
Peak Throughput: 3.80GB/s
Peak Latency: 9,200 IOPS at 24.3ms
Peak Throughput: 0.57GB/s
Peak Latency: 70,800 IOPS at 4.29ms
Peak Throughput: 4.37GB/s
Peak Latency: 24,500 IOPS at 20.8ms
Peak Throughput: 1.53GB/s
A-Brand SAN QSAN | Jetstor SAN
https://www.storagereview.com/
2x 16Gb
Raid 10
SAS SSD 24

7. 2x 16Gb
Raid 10

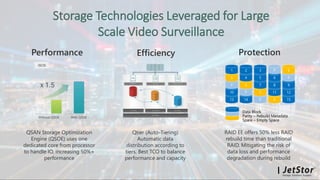

SAS SSD 24Storage Technologies Leveraged for Large
Scale Video Surveillance
QSAN Storage Optimization
Engine (QSOE) uses one
dedicated core from processor
to handle IO, increasing 50%+
performance
Performance Efficiency Protection
Qtier (Auto-Tiering)
Automatic data
distribution according to
tiers. Best TCO to balance
performance and capacity
13
10
P
S
1
14
P
S
4
2
P
S
7
5
3
S
11
8
6
P
15
12
9
P
S
Spare – Empty Space
Parity – Rebuild Metadata
Data Block
RAID EE offers 50% less RAID
rebuild time than traditional
RAID. Mitigating the risk of
data loss and performance
degradation during rebuild

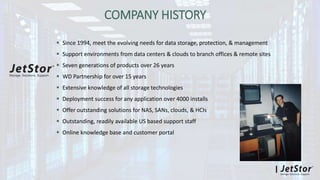

8. COMPANY HISTORY
 Since 1994, meet the evolving needs for data storage, protection, & management
 Support environments from data centers & clouds to branch offices & remote sites
 Seven generations of products over 26 years
 WD Partnership for over 15 years
 Extensive knowledge of all storage technologies
 Deployment success for any application over 4000 installs
 Offer outstanding solutions for NAS, SANs, clouds, & HCIs
 Outstanding, readily available US based support staff
 Online knowledge base and customer portal

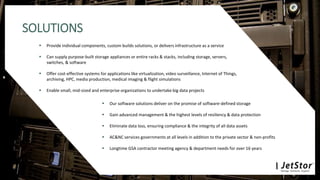

9. SOLUTIONS
 Provide individual components, custom builds solutions, or delivers infrastructure as a service
 Can supply purpose-built storage appliances or entire racks & stacks, including storage, servers,
switches, & software
 Offer cost-effective systems for applications like virtualization, video surveillance, Internet of Things,
archiving, HPC, media production, medical imaging & flight simulations
 Enable small, mid-sized and enterprise organizations to undertake big data projects
 Our software solutions deliver on the promise of software-defined storage
 Gain advanced management & the highest levels of resiliency & data protection
 Eliminate data loss, ensuring compliance & the integrity of all data assets
 AC&NC services governments at all levels in addition to the private sector & non-profits
 Longtime GSA contractor meeting agency & department needs for over 16 years

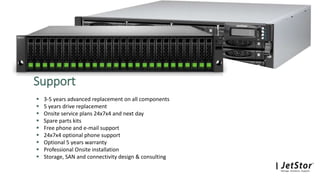

10.  3-5 years advanced replacement on all components
 5 years drive replacement
 Onsite service plans 24x7x4 and next day
 Spare parts kits
 Free phone and e-mail support
 24x7x4 optional phone support
 Optional 5 years warranty
 Professional Onsite installation
 Storage, SAN and connectivity design & consulting
Support

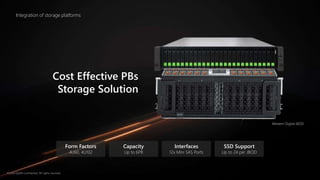

11. Cost Effective PBs
Storage Solution
Capacity
Up to 6PB
Interfaces
12x Mini SAS Ports
Form Factors
4U60, 4U102
SSD Support
Up to 24 per JBOD
©2020 QSAN Confidential. All rights reserved.
Integration of storage platforms
Western Digital JBOD

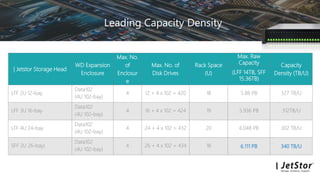

12. Leading Capacity Density
| Jetstor Storage Head
WD Expansion
Enclosure
Max. No.
of
Enclosur
e
Max. No. of
Disk Drives
Rack Space
(U)
Max. Raw
Capacity Capacity
Density (TB/U)(LFF 14TB, SFF
15.36TB)
LFF 2U 12-bay
Data102
(4U 102-bay)
4 12 + 4 x 102 = 420 18 5.88 PB 327 TB/U
LFF 3U 16-bay
Data102
(4U 102-bay)
4 16 + 4 x 102 = 424 19 5.936 PB 312TB/U
LFF 4U 24-bay
Data102
(4U 102-bay)
4 24 + 4 x 102 = 432 20 6.048 PB 302 TB/U
SFF 2U 26-bay)
Data102
(4U 102-bay)
4 26 + 4 x 102 = 434 18 6.111 PB 340 TB/U

13. .

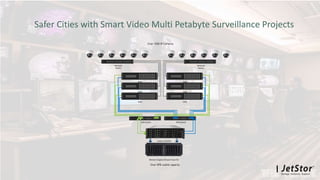

Safer Cities with Smart Video Multi Petabyte Surveillance Projects
JetStor 816iXDX
NVR
NVR
NVR
NVR
NVR
NVR
SAN Switch SAN Switch
Over 6PB usable capacity
Network
Switch
Network
Switch
Over 1000 IP Cameras
Western Digital Ultrastar Data102

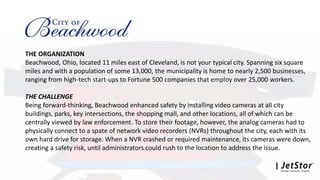

14. THE ORGANIZATION
Beachwood, Ohio, located 11 miles east of Cleveland, is not your typical city. Spanning six square
miles and with a population of some 13,000, the municipality is home to nearly 2,500 businesses,
ranging from high-tech start-ups to Fortune 500 companies that employ over 25,000 workers.
THE CHALLENGE
Being forward-thinking, Beachwood enhanced safety by installing video cameras at all city
buildings, parks, key intersections, the shopping mall, and other locations, all of which can be
centrally viewed by law enforcement. To store their footage, however, the analog cameras had to
physically connect to a spate of network video recorders (NVRs) throughout the city, each with its
own hard drive for storage. When a NVR crashed or required maintenance, its cameras were down,
creating a safety risk, until administrators could rush to the location to address the issue.

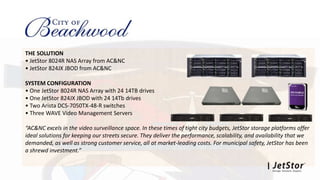

15. THE SOLUTION
• JetStor 8024R NAS Array from AC&NC
• JetStor 824JX JBOD from AC&NC
SYSTEM CONFIGURATION
• One JetStor 8024R NAS Array with 24 14TB drives
• One JetStor 824JX JBOD with 24 14Tb drives
• Two Arista DCS-7050TX-48-R switches
• Three WAVE Video Management Servers
“AC&NC excels in the video surveillance space. In these times of tight city budgets, JetStor storage platforms offer
ideal solutions for keeping our streets secure. They deliver the performance, scalability, and availability that we
demanded, as well as strong customer service, all at market-leading costs. For municipal safety, JetStor has been
a shrewd investment.”

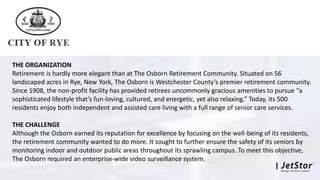

16. THE ORGANIZATION
Retirement is hardly more elegant than at The Osborn Retirement Community. Situated on 56
landscaped acres in Rye, New York, The Osborn is Westchester County’s premier retirement community.
Since 1908, the non-profit facility has provided retirees uncommonly gracious amenities to pursue “a
sophisticated lifestyle that’s fun-loving, cultured, and energetic, yet also relaxing.” Today, its 500
residents enjoy both independent and assisted care living with a full range of senior care services.
THE CHALLENGE
Although the Osborn earned its reputation for excellence by focusing on the well-being of its residents,
the retirement community wanted to do more. It sought to further ensure the safety of its seniors by
monitoring indoor and outdoor public areas throughout its sprawling campus. To meet this objective,
The Osborn required an enterprise-wide video surveillance system.

17. THE SOLUTION
One JetStor 816iX 16-bay iSCSI SAN Array and one JetStor 816JD 16-bay JBOD,
both with WD Purple™ 12TB HDD, from AC&NC
SYSTEM CONFIGURATION
• HP 2520 ProCurve switches with Gigabit Ethernet links
• HP 3500 ProCurve switch with Gigabit Ethernet links
• HP ProLiant 380 servers with Gigabit Ethernet links
• Milestone IP Video Management Software
• One JetStor 816iX iSCSI SAN Array & one JetStor 816J JBOD
“The JetStors simply work without issues and as RAID arrays, they also
ensure our video is preserved without any data loss.”

18. THE ORGANIZATION
Based in Spring Mills, PA and spanning a handful of rural communities in the middle of the state,
Penns Valley Area School District takes pride in its progressive education. Comprised of a high
school, middle school, and three elementary schools, the district integrates technologies into daily
instruction. K–6 students each have an Apple iPad Mini and older students have MacBook Air
laptops. Instruction is personalized and classrooms are creative learning spaces for group and
project learning.
THE CHALLENGE
To enhance security on its campuses, the District needed to support video surveillance cameras.
With each camera generating a megabyte of video every second, its legacy, multi-vendor storage
devices lacked the speed to store continuous video feeds from several hundred cameras,
undermining school safety.

19. THE SOLUTION
One JetStor 826iX 2U 26 bay All Flash Array from AC&NC
One JetStor 824iX 4U 24 bay Array from AC&NC
Two JetStor 812iX 2U 12 bay Arrays from AC&NC
SYSTEM CONFIGURATION
• One JetStor 826iX 2U 26 bay All Flash Array with 12 4TB SSDs
• One JetStor 824iX 4U 24 bay Array with 24 Ultrastar™ 10TB drives
• One JetStor 812iX 2U 12 bay Array with 12 Ultrastar 10TB drives
• One JetStor 812iX 2U 12 bay Array with 12 with Ultrastar 4TB drives
“Our JetStor Arrays deliver extraordinary performance and capacity, enabling us to meet the district’s present and
future needs. Moreover, we maximized our school budget by purchasing all four devices
for less than what a single unit from a major vendor would cost.”

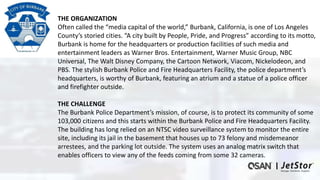

20. THE ORGANIZATION
Often called the “media capital of the world,” Burbank, California, is one of Los Angeles
County’s storied cities. “A city built by People, Pride, and Progress” according to its motto,
Burbank is home for the headquarters or production facilities of such media and
entertainment leaders as Warner Bros. Entertainment, Warner Music Group, NBC
Universal, The Walt Disney Company, the Cartoon Network, Viacom, Nickelodeon, and
PBS. The stylish Burbank Police and Fire Headquarters Facility, the police department’s
headquarters, is worthy of Burbank, featuring an atrium and a statue of a police officer
and firefighter outside.
THE CHALLENGE
The Burbank Police Department’s mission, of course, is to protect its community of some
103,000 citizens and this starts within the Burbank Police and Fire Headquarters Facility.
The building has long relied on an NTSC video surveillance system to monitor the entire
site, including its jail in the basement that houses up to 73 felony and misdemeanor
arrestees, and the parking lot outside. The system uses an analog matrix switch that
enables officers to view any of the feeds coming from some 32 cameras.

21. THE SOLUTION
One JetStor 816iX 16-bay iSCSI SAN Array with Ultrastar 12TB disks
from AC&NC
SYSTEM CONFIGURATION
• JetStor 816iX iSCSI SAN Array with gigabit iSCSI links to
the network video recorder
• Five American Dynamics VideoEdge IP Encoders
• American Dynamics VideoEdge Network Video Recorder
• Dell PowerEdge R710 Rack Server
“JetStor solutions are economical alternatives to the products of other storage vendors. We’ve long
partnered with AC&NC and our customers are very happy with its solutions.”

22. Thank you!
Gene Leyzarovich
Storage Guru
gene@acnc.com

23. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 23
Heritage of Innovation
1991 | IBM
Introduces MR Heads
2000 | SanDisk
First MLC NAND
2016 | SanDisk
First 64-layer 3D NAND Technology
2013 | HGST
First Helium HDD (6TB)
2015 | SanDisk
First 48-layer 3D NAND Technology
2017 | SanDisk
First 96-layer 3D NAND Technology
2009 | SanDisk
First 64GB X4 Flash
Memory
1988 | SunDisk1
Introduces System Flash
2006 | HGST
First 2.5-inch HDD PMR Technology
2013 | HGST
First 12Gb/s SAS SSD
2018 | Western Digital
OpenFlex™
2018 | Western Digital
EAMR Technology Breakthrough2
13,500+
active patents worldwide
1SunDisk later renamed SanDisk. 2-EAMR=Energy Assisted Magnetic Recording.
2008 | SanDisk
First TLC Flash
Memory
2019 | Western Digital
Zoned Storage
ZNS NVMe SSD
Development Platform

24. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 24
NAND
Components
Embedded
Flash Devices
Cards USB Portable
Storage
Direct-Attached
Storage
Network Attached
Storage & Personal
Cloud
Client HDDClient SSD
Enterprise
HDD
Enterprise
SSD
JBOD & JBOF Storage Servers
OpenFlex™
NVMe™-over-Fabric Storage
Memory
Extension Drive
Leading Portfolio Breadth and Depth
Solutions to capture, preserve, access and transform data
Capacity Enterprise
HDD

25. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 25
Gaming NAS ComputeSurveillance
Performance &
Design
Endurance &
Reliability
Value &
Performance
Endurance &
Multi-Streams
Enterprise
Transactional
Enterprise-
Grade
Purpose-Built Flash & HDDs
Diversified Storage Portfolio

26. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 26
Advanced Storage For Advanced Security
• Security Video Solutions are unique,
demanding applications
✓ Continuous recording, 24/7 operation
✓ Cameras in hard-to-reach locations
✓ Indoor/outdoor temp/humidity tolerance
✓ Maximize life and uptime with features to
proactively monitor storage
• Advanced solutions require advanced
edge-to-cloud storage from Western
Digital
WD Purple
Security Video Require Specialized Storage
for Reliable Long-Lasting Video Storage

27. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 27
Designed for Security Video

28. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 28
WD Purple® microSD Cards
For Mainstream and AI-enabled Security Cameras
 Designed for 24/7 continuous
operation
 High endurance for increased longevity
 Card health monitor for proactive
storage management
 Temperature and humidity tolerance for
indoor/outdoor use
For on-camera recording, plus real-time card health monitoring

29. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 29
 Designed for security video solutions
that operate 24/7
 AllFrame™ Technology for multiple
video streams
 Wide range of capacity points
 Compatible with hundreds of video
recording systems
WD Purple® Hard Disk Drives
For Mainstream DVRs/NVRs and Cloud Gateways
Supports write-heavy continuous workloads and wide capacity range

30. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 30
Rich Video Data and AI Drive SMART Use Cases
Health Detection Fleet management Smart Cities Security Smart Factory
Health detection –
Medical alerts, distress
detection, incident reporting
Traffic optimization, waste
management, greener
environment
Crowd management, real
time safety alerting
Operational cost savings,
automated quality control,
system reliability monitoring
Smart transportation –
School bus monitoring

31. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 31
 4X more increased streams per camera
 Aux / Pic / Playback / AI streams
 4K camera transition increases
on-board capacity
 AI streams
 Managed local Database for
metadata inferencing
 Higher capacity
 Max capacity (vs performance)
 Data integrity and longevity
 Durability
How Edge Architectures Are Shifting
AI & Video Data Drives Growth
Traditional Cameras DVR/NVR Video Analytics Server
Single Stream
AI-enabled End Points AI Enabled NVR Server Deep Learning Cloud
ML
Chi
pse
t
ML
Chips
et
GPU
GPU
GPU
FPG
A
Multi-Stream

32. 9/28/2020© 2020 Western Digital Corporation or its affiliates. All rights reserved. 32
Smart Video Storage Portfolio
Broad Endpoint-to-Cloud Video Storage Technology
Endpoint Solutions
AI-enabled IoT devices /
Cameras
Edge Solutions
Recorders / Edge Gateways
Cloud Solutions
Servers / Datacenters
Western Digital’s broad portfolio meets the need for wide capacities range, different endurance level and cost efficiency in this market
