1. Jetpack
Compose
uma nova forma de implementar UI no Android
Nelson Glauber
@nglauber

2. Jetpack
Compose
uma nova forma de implementar UI no Android
Nelson Glauber
@nglauber

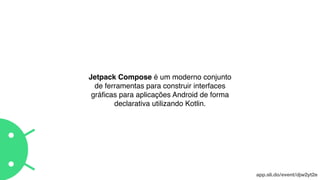

3. Jetpack Compose é um moderno conjunto
de ferramentas para construir interfaces
gráficas para aplicações Android de forma
declarativa utilizando Kotlin.
app.sli.do/event/djw2yt2e

4. app.sli.do/event/djw2yt2e
UI Imperativa x UI Declarativa
• UI Imperativa é onde uma entidade de UI (com uma classe View, por
exemplo) é totalmente construída e posteriormente é modificada
usando métodos e/ou propriedades públicas.
• Na UI Declarativa, o desenvolvedor descreve o estado da UI e deixa
o transicionamento desse estado por conta de um framework.

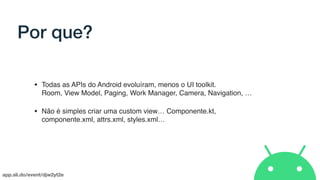

5. app.sli.do/event/djw2yt2e
Por que?
• Todas as APIs do Android evoluíram, menos o UI toolkit.
Room, View Model, Paging, Work Manager, Camera, Navigation, …
• Não é simples criar uma custom view… Componente.kt,
componente.xml, attrs.xml, styles.xml…

6. app.sli.do/event/djw2yt2e
Jetpack Compose
• Segue uma abordagem declarativa similar ao SwiftUI, ReactNative, e
Flutter.
• É uma biblioteca separada do S.O.
• É uma nova forma se se pensar na elaboração da UI: componentes ao
invés de telas; Composição no lugar de Herança.
• Compatível com aplicações Android existentes, podendo ser adotado
progressivamente.
• EXPERIMENTAL! Ainda está em versão alpha desde… ontem 😅

7. app.sli.do/event/djw2yt2e

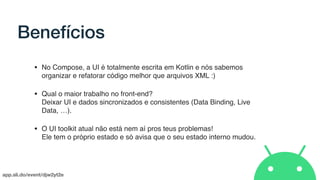

Benefícios
• No Compose, a UI é totalmente escrita em Kotlin e nós sabemos
organizar e refatorar código melhor que arquivos XML :)
• Qual o maior trabalho no front-end?
Deixar UI e dados sincronizados e consistentes (Data Binding, Live
Data, …).
• O UI toolkit atual não está nem aí pros teus problemas!
Ele tem o próprio estado e só avisa que o seu estado interno mudou.

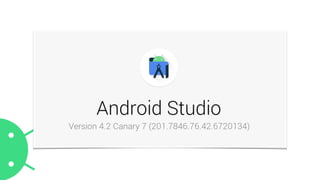

8. Android Studio 4.2
(Preview)

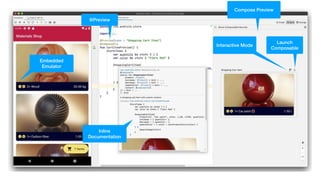

9. Compose Preview
Interactive Mode
Launch
Composable
Inline
Documentation
Embedded
Emulator
@Preview

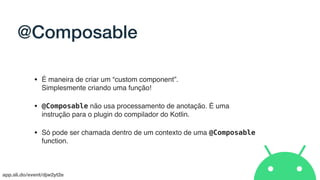

10. app.sli.do/event/djw2yt2e
@Composable
• É maneira de criar um “custom component”.
Simplesmente criando uma função!
• @Composable não usa processamento de anotação. É uma
instrução para o plugin do compilador do Kotlin.
• Só pode ser chamada dentro de um contexto de uma @Composable
function.

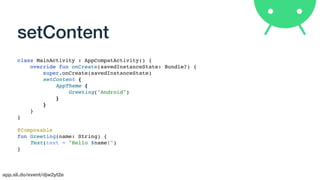

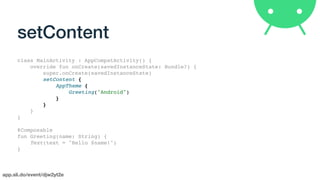

11. app.sli.do/event/djw2yt2e

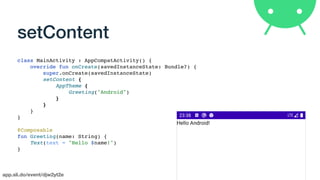

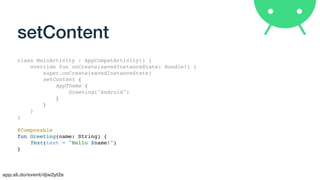

setContent
class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContent {
AppTheme {
Greeting("Android")
}
}
}
}
@Composable
fun Greeting(name: String) {
Text(text = "Hello $name!")
}

12. app.sli.do/event/djw2yt2e
setContent
class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContent {
AppTheme {
Greeting("Android")
}
}
}
}
@Composable
fun Greeting(name: String) {
Text(text = "Hello $name!")
}

13. app.sli.do/event/djw2yt2e
setContent
class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContent {
AppTheme {
Greeting("Android")
}
}
}
}
@Composable
fun Greeting(name: String) {
Text(text = "Hello $name!")
}

14. app.sli.do/event/djw2yt2e
setContent
class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContent {
AppTheme {
Greeting("Android")
}
}
}
}
@Composable
fun Greeting(name: String) {
Text(text = "Hello $name!")
}

15. app.sli.do/event/djw2yt2e
setContent
class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContent {
AppTheme {
Greeting("Android")
}
}
}
}
@Composable
fun Greeting(name: String) {
Text(stringResource(R.string.hello, name))
}

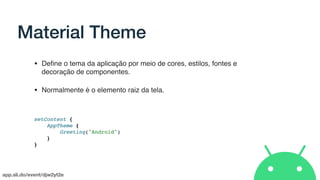

16. app.sli.do/event/djw2yt2e
Material Theme
• Define o tema da aplicação por meio de cores, estilos, fontes e
decoração de componentes.
• Normalmente é o elemento raiz da tela.
setContent {
AppTheme {
Greeting("Android")
}
}

17. app.sli.do/event/djw2yt2e
Material Theme
@Composable
fun AppTheme(
darkTheme: Boolean = isSystemInDarkTheme(),
content: @Composable () -> Unit) {
val colors = if (darkTheme) {
DarkColorPalette
} else {
LightColorPalette
}
MaterialTheme(
colors = colors,
typography = typography,
shapes = shapes,
content = content
)
}
private val DarkColorPalette =
darkColors(
primary = purple200,
primaryVariant = purple700,
secondary = teal200
)
private val LightColorPalette =
lightColors(
primary = purple500,
primaryVariant = purple700,
secondary = teal200
)

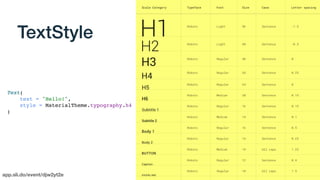

18. app.sli.do/event/djw2yt2e
TextStyle
Text(
text = "Hello!",
style = MaterialTheme.typography.h4
)

19. app.sli.do/event/djw2yt2e

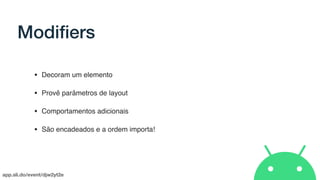

Modifiers
• Decoram um elemento
• Provê parâmetros de layout
• Comportamentos adicionais
• São encadeados e a ordem importa!

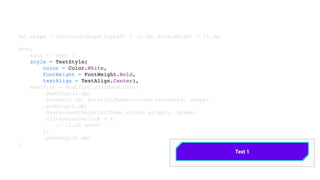

20. val shape = CutCornerShape(topLeft = 16.dp, bottomRight = 16.dp)
Text(
text = "Text 1",
style = TextStyle(
color = Color.White,
fontWeight = FontWeight.Bold,
textAlign = TextAlign.Center),
modifier = Modifier.fillMaxWidth()
.padding(16.dp)
.border(2.dp, MaterialTheme.colors.secondary, shape)
.padding(1.dp)
.background(MaterialTheme.colors.primary, shape)
.clickable(onClick = {
// Click event
})
.padding(16.dp)
)

21. val shape = CutCornerShape(topLeft = 16.dp, bottomRight = 16.dp)
Text(
text = "Text 1",
style = TextStyle(
color = Color.White,
fontWeight = FontWeight.Bold,
textAlign = TextAlign.Center),
modifier = Modifier.fillMaxWidth()
.padding(16.dp)
.border(2.dp, MaterialTheme.colors.secondary, shape)
.padding(1.dp)
.background(MaterialTheme.colors.primary, shape)
.clickable(onClick = {
// Click event
})
.padding(16.dp)
)

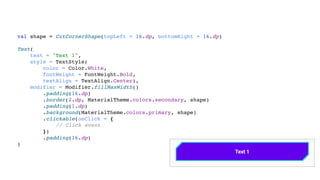

22. val shape = CutCornerShape(topLeft = 16.dp, bottomRight = 16.dp)
Text(
text = "Text 1",
style = TextStyle(
color = Color.White,
fontWeight = FontWeight.Bold,
textAlign = TextAlign.Center),
modifier = Modifier.fillMaxWidth()
.padding(16.dp)
.border(2.dp, MaterialTheme.colors.secondary, shape)
.padding(1.dp)
.background(MaterialTheme.colors.primary, shape)
.clickable(onClick = {
// Click event
})
.padding(16.dp)
)

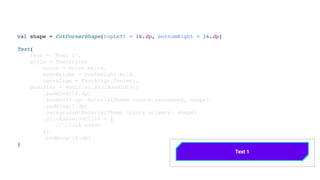

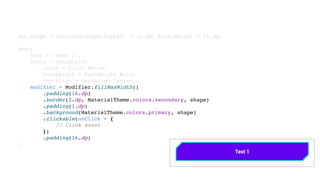

23. val shape = CutCornerShape(topLeft = 16.dp, bottomRight = 16.dp)
Text(
text = "Text 1",
style = TextStyle(
color = Color.White,
fontWeight = FontWeight.Bold,
textAlign = TextAlign.Center),
modifier = Modifier.fillMaxWidth()
.padding(16.dp)
.border(2.dp, MaterialTheme.colors.secondary, shape)
.padding(1.dp)
.background(MaterialTheme.colors.primary, shape)
.clickable(onClick = {
// Click event
})
.padding(16.dp)
)

24. val shape = RoundedCornerShape(8.dp)
Text(
text = "Text 1",
style = TextStyle(
color = Color.White,
fontWeight = FontWeight.Bold,
textAlign = TextAlign.Center),
modifier = Modifier.fillMaxWidth()
.padding(16.dp)
.border(2.dp, MaterialTheme.colors.secondary, shape)
.padding(1.dp)
.background(MaterialTheme.colors.primary, shape)
.clickable(onClick = {
// Click event
})
.padding(16.dp)
)

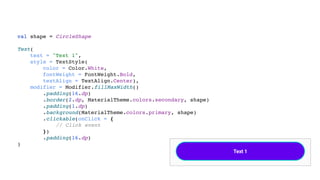

25. val shape = CircleShape
Text(
text = "Text 1",
style = TextStyle(
color = Color.White,
fontWeight = FontWeight.Bold,
textAlign = TextAlign.Center),
modifier = Modifier.fillMaxWidth()
.padding(16.dp)
.border(2.dp, MaterialTheme.colors.secondary, shape)
.padding(1.dp)
.background(MaterialTheme.colors.primary, shape)
.clickable(onClick = {
// Click event
})
.padding(16.dp)
)

26. app.sli.do/event/djw2yt2e

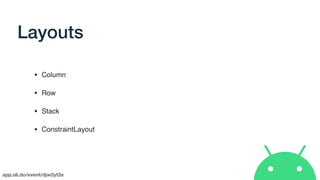

Layouts
• Column
• Row
• Stack
• ConstraintLayout

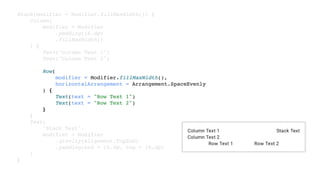

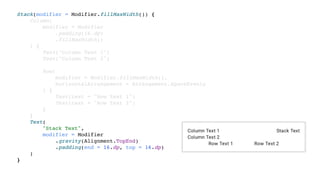

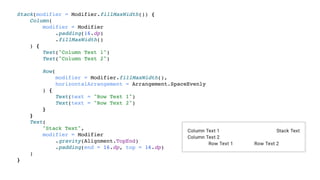

27. Stack(modifier = Modifier.fillMaxWidth()) {
Column(
modifier = Modifier
.padding(16.dp)
.fillMaxWidth()
) {
Text("Column Text 1")
Text("Column Text 2")
Row(
modifier = Modifier.fillMaxWidth(),
horizontalArrangement = Arrangement.SpaceEvenly
) {
Text(text = "Row Text 1")
Text(text = "Row Text 2")
}
}
Text(
"Stack Text",
modifier = Modifier
.gravity(Alignment.TopEnd)
.padding(end = 16.dp, top = 16.dp)
)
}

28. Stack(modifier = Modifier.fillMaxWidth()) {
Column(
modifier = Modifier
.padding(16.dp)
.fillMaxWidth()
) {
Text("Column Text 1")
Text("Column Text 2")
Row(
modifier = Modifier.fillMaxWidth(),
horizontalArrangement = Arrangement.SpaceEvenly
) {
Text(text = "Row Text 1")
Text(text = "Row Text 2")
}
}
Text(
"Stack Text",
modifier = Modifier
.gravity(Alignment.TopEnd)
.padding(end = 16.dp, top = 16.dp)
)
}

29. Stack(modifier = Modifier.fillMaxWidth()) {
Column(
modifier = Modifier
.padding(16.dp)
.fillMaxWidth()
) {
Text("Column Text 1")
Text("Column Text 2")
Row(
modifier = Modifier.fillMaxWidth(),
horizontalArrangement = Arrangement.SpaceEvenly
) {
Text(text = "Row Text 1")
Text(text = "Row Text 2")
}
}
Text(
"Stack Text",
modifier = Modifier
.gravity(Alignment.TopEnd)
.padding(end = 16.dp, top = 16.dp)
)
}

30. Stack(modifier = Modifier.fillMaxWidth()) {
Column(
modifier = Modifier
.padding(16.dp)
.fillMaxWidth()
) {
Text("Column Text 1")
Text("Column Text 2")
Row(
modifier = Modifier.fillMaxWidth(),
horizontalArrangement = Arrangement.SpaceEvenly
) {
Text(text = "Row Text 1")
Text(text = "Row Text 2")
}
}
Text(
"Stack Text",
modifier = Modifier
.gravity(Alignment.TopEnd)
.padding(end = 16.dp, top = 16.dp)
)
}

31. app.sli.do/event/djw2yt2e
ConstraintLayout

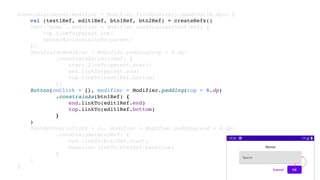

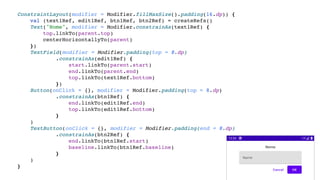

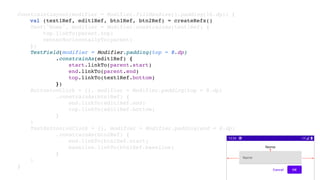

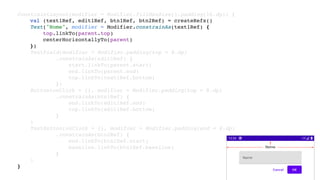

32. ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) {
val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs()
Text("Nome", modifier = Modifier.constrainAs(text1Ref) {
top.linkTo(parent.top)
centerHorizontallyTo(parent)
})
TextField(modifier = Modifier.padding(top = 8.dp)
.constrainAs(edit1Ref) {
start.linkTo(parent.start)
end.linkTo(parent.end)
top.linkTo(text1Ref.bottom)
})
Button(onClick = {}, modifier = Modifier.padding(top = 8.dp)
.constrainAs(btn1Ref) {
end.linkTo(edit1Ref.end)
top.linkTo(edit1Ref.bottom)
}
)

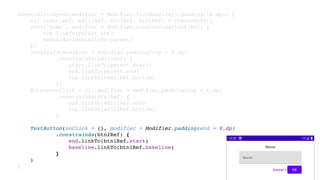

TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp)
.constrainAs(btn2Ref) {
end.linkTo(btn1Ref.start)
baseline.linkTo(btn1Ref.baseline)
}
)
}

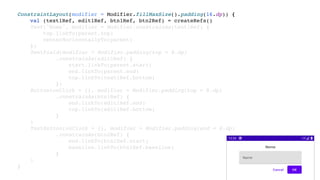

33. ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) {
val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs()
Text("Nome", modifier = Modifier.constrainAs(text1Ref) {
top.linkTo(parent.top)
centerHorizontallyTo(parent)
})
TextField(modifier = Modifier.padding(top = 8.dp)
.constrainAs(edit1Ref) {
start.linkTo(parent.start)
end.linkTo(parent.end)
top.linkTo(text1Ref.bottom)
})
Button(onClick = {}, modifier = Modifier.padding(top = 8.dp)
.constrainAs(btn1Ref) {
end.linkTo(edit1Ref.end)
top.linkTo(edit1Ref.bottom)
}
)
TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp)
.constrainAs(btn2Ref) {
end.linkTo(btn1Ref.start)
baseline.linkTo(btn1Ref.baseline)
}
)
}

34. ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) {
val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs()
Text("Nome", modifier = Modifier.constrainAs(text1Ref) {
top.linkTo(parent.top)
centerHorizontallyTo(parent)
})
TextField(modifier = Modifier.padding(top = 8.dp)
.constrainAs(edit1Ref) {
start.linkTo(parent.start)
end.linkTo(parent.end)
top.linkTo(text1Ref.bottom)
})
Button(onClick = {}, modifier = Modifier.padding(top = 8.dp)
.constrainAs(btn1Ref) {
end.linkTo(edit1Ref.end)
top.linkTo(edit1Ref.bottom)
}
)
TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp)
.constrainAs(btn2Ref) {
end.linkTo(btn1Ref.start)
baseline.linkTo(btn1Ref.baseline)
}
)
}

35. ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) {
val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs()
Text("Nome", modifier = Modifier.constrainAs(text1Ref) {
top.linkTo(parent.top)
centerHorizontallyTo(parent)
})
TextField(modifier = Modifier.padding(top = 8.dp)
.constrainAs(edit1Ref) {
start.linkTo(parent.start)
end.linkTo(parent.end)
top.linkTo(text1Ref.bottom)
})
Button(onClick = {}, modifier = Modifier.padding(top = 8.dp)
.constrainAs(btn1Ref) {
end.linkTo(edit1Ref.end)
top.linkTo(edit1Ref.bottom)
}
)
TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp)
.constrainAs(btn2Ref) {
end.linkTo(btn1Ref.start)
baseline.linkTo(btn1Ref.baseline)
}
)
}

36. ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) {
val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs()
Text("Nome", modifier = Modifier.constrainAs(text1Ref) {
top.linkTo(parent.top)
centerHorizontallyTo(parent)
})
TextField(modifier = Modifier.padding(top = 8.dp)
.constrainAs(edit1Ref) {
start.linkTo(parent.start)
end.linkTo(parent.end)
top.linkTo(text1Ref.bottom)
})
Button(onClick = {}, modifier = Modifier.padding(top = 8.dp)
.constrainAs(btn1Ref) {
end.linkTo(edit1Ref.end)
top.linkTo(edit1Ref.bottom)
}
)
TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp)
.constrainAs(btn2Ref) {
end.linkTo(btn1Ref.start)
baseline.linkTo(btn1Ref.baseline)
}
)
}

37. ConstraintLayout(modifier = Modifier.fillMaxSize().padding(16.dp)) {
val (text1Ref, edit1Ref, btn1Ref, btn2Ref) = createRefs()
Text("Nome", modifier = Modifier.constrainAs(text1Ref) {
top.linkTo(parent.top)
centerHorizontallyTo(parent)
})
TextField(modifier = Modifier.padding(top = 8.dp)
.constrainAs(edit1Ref) {
start.linkTo(parent.start)
end.linkTo(parent.end)
top.linkTo(text1Ref.bottom)
})
Button(onClick = {}, modifier = Modifier.padding(top = 8.dp)
.constrainAs(btn1Ref) {
end.linkTo(edit1Ref.end)
top.linkTo(edit1Ref.bottom)
}
)
TextButton(onClick = {}, modifier = Modifier.padding(end = 8.dp)
.constrainAs(btn2Ref) {
end.linkTo(btn1Ref.start)
baseline.linkTo(btn1Ref.baseline)
}
)
}

38. app.sli.do/event/djw2yt2e

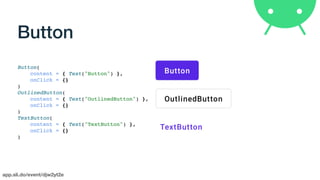

Button
Button(
content = { Text("Button") },
onClick = {}
)
OutlinedButton(
content = { Text("OutlinedButton") },
onClick = {}
)
TextButton(
content = { Text("TextButton") },
onClick = {}
)

39. app.sli.do/event/djw2yt2e

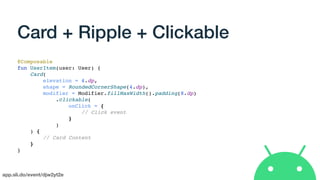

Card + Ripple + Clickable
@Composable
fun UserItem(user: User) {
Card(
elevation = 4.dp,
shape = RoundedCornerShape(4.dp),
modifier = Modifier.fillMaxWidth().padding(8.dp)
.clickable(
onClick = {
// Click event
}
)
) {
// Card Content
}
}

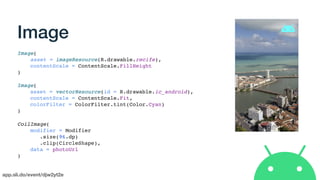

40. app.sli.do/event/djw2yt2e
Image(
asset = imageResource(R.drawable.recife),
contentScale = ContentScale.FillHeight
)
Image(
asset = vectorResource(id = R.drawable.ic_android),
contentScale = ContentScale.Fit,
colorFilter = ColorFilter.tint(Color.Cyan)
)
CoilImage(
modifier = Modifier
.size(96.dp)
.clip(CircleShape),
data = photoUrl
)

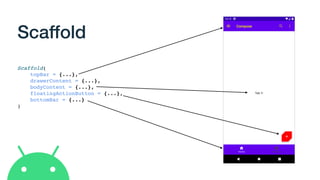

41. Scaffold
Scaffold(
topBar = {...},
drawerContent = {...},
bodyContent = {...},
floatingActionButton = {...},
bottomBar = {...}
)

42. TopAppBar(
backgroundColor = MaterialTheme.colors.primary,
contentColor = Color.Yellow,
title = { Text(text = "Compose") },
actions = {
IconButton(
onClick = {},
icon = { Icon(Icons.Default.Search) }
)
DropdownMenu(…)
},
navigationIcon = {
IconButton(
icon = { Icon(Icons.Default.Menu) },
onClick = {
scaffoldState.drawerState.open()
}
)
}
)

43. FloatingActionButton(
onClick = {},
icon = { Icon(Icons.Filled.Add) },
backgroundColor = Color.Red,
contentColor = Color.White,
shape = CutCornerShape(
topLeft = 20.dp, bottomRight = 20.dp
)
)

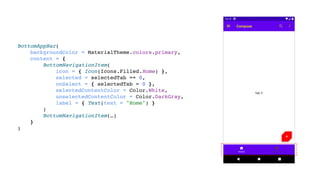

44. BottomAppBar(
backgroundColor = MaterialTheme.colors.primary,
content = {
BottomNavigationItem(
icon = { Icon(Icons.Filled.Home) },
selected = selectedTab == 0,
onSelect = { selectedTab = 0 },
selectedContentColor = Color.White,
unselectedContentColor = Color.DarkGray,
label = { Text(text = "Home") }
)
BottomNavigationItem(…)
}
)

45. BottomAppBar(
backgroundColor = MaterialTheme.colors.primary,
content = {
BottomNavigationItem(
icon = { Icon(Icons.Filled.Home) },
selected = selectedTab == 0,
onSelect = { selectedTab = 0 },
selectedContentColor = Color.White,
unselectedContentColor = Color.DarkGray,
label = { Text(text = "Home") }
)
BottomNavigationItem(…)
}
)

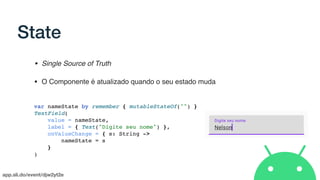

46. app.sli.do/event/djw2yt2e
State
• Single Source of Truth
• O Componente é atualizado quando o seu estado muda
var nameState by remember { mutableStateOf("") }
TextField(
value = nameState,
label = { Text("Digite seu nome") },
onValueChange = { s: String ->
nameState = s
}
)

47. app.sli.do/event/djw2yt2e

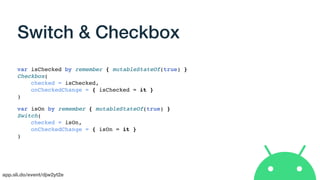

Switch & Checkbox
var isChecked by remember { mutableStateOf(true) }
Checkbox(
checked = isChecked,
onCheckedChange = { isChecked = it }
)
var isOn by remember { mutableStateOf(true) }
Switch(
checked = isOn,
onCheckedChange = { isOn = it }
)

48. app.sli.do/event/djw2yt2e

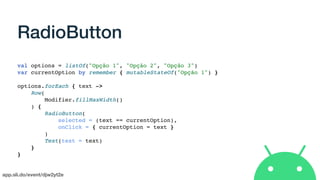

RadioButton
val options = listOf("Opção 1", "Opção 2", "Opção 3")
var currentOption by remember { mutableStateOf("Opção 1") }
options.forEach { text ->
Row(
Modifier.fillMaxWidth()
) {
RadioButton(
selected = (text == currentOption),
onClick = { currentOption = text }
)
Text(text = text)
}
}

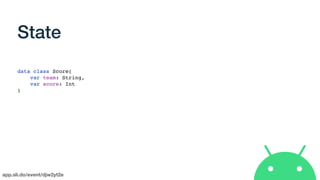

49. app.sli.do/event/djw2yt2e
State
data class Score(
var team: String,
var score: Int
)

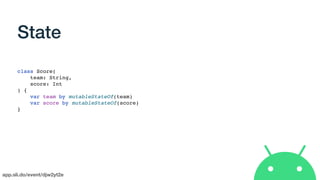

50. app.sli.do/event/djw2yt2e
State
class Score(
team: String,
score: Int
) {
var team by mutableStateOf(team)
var score by mutableStateOf(score)
}

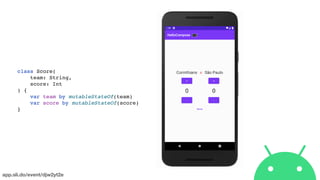

51. app.sli.do/event/djw2yt2e
class Score(
team: String,
score: Int
) {
var team by mutableStateOf(team)
var score by mutableStateOf(score)
}

52. @Composable
fun TeamScore(score: Score) {
Column(horizontalGravity = Alignment.CenterHorizontally) {
Text(text = score.team, style = MaterialTheme.typography.h6)
Button(
content = { Text("+") },
onClick = { score.score += 1 }
)
Text(text = score.score.toString(), style = MaterialTheme.typography.h5)
Button(
content = { Text("-") },
onClick = { score.score = max(score.score - 1, 0) }
)
}
}

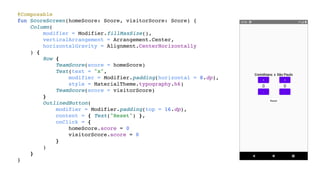

53. @Composable
fun ScoreScreen(homeScore: Score, visitorScore: Score) {
Column(
modifier = Modifier.fillMaxSize(),
verticalArrangement = Arrangement.Center,
horizontalGravity = Alignment.CenterHorizontally
) {
Row {
TeamScore(score = homeScore)
Text(text = "x",
modifier = Modifier.padding(horizontal = 8.dp),
style = MaterialTheme.typography.h6)
TeamScore(score = visitorScore)
}
OutlinedButton(
modifier = Modifier.padding(top = 16.dp),
content = { Text("Reset") },
onClick = {
homeScore.score = 0
visitorScore.score = 0
}
)
}
}

54. https://link.medium.com/Uax00dnd31

55. app.sli.do/event/djw2yt2e

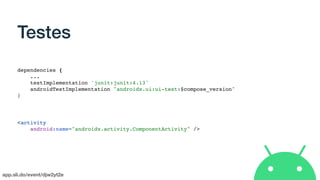

Testes
dependencies {
...
testImplementation 'junit:junit:4.13'
androidTestImplementation "androidx.ui:ui-test:$compose_version"
}
<activity
android:name="androidx.activity.ComponentActivity" />

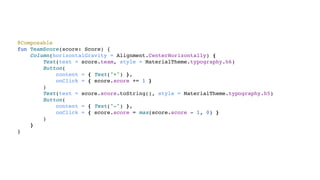

56. @Composable
fun TeamScore(score: Score) {
Column(horizontalGravity = Alignment.CenterHorizontally) {
Text(text = score.team, style = MaterialTheme.typography.h6)
Button(
content = { Text("+") },
onClick = { score.score += 1 }
)
Text(text = score.score.toString(), style = MaterialTheme.typography.h5)
Button(
content = { Text("-") },
onClick = { score.score = max(score.score - 1, 0) }
)
}
}

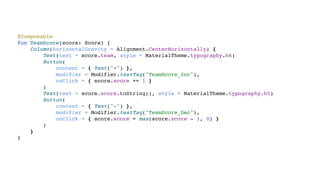

57. @Composable
fun TeamScore(score: Score) {
Column(horizontalGravity = Alignment.CenterHorizontally) {
Text(text = score.team, style = MaterialTheme.typography.h6)
Button(
content = { Text("+") },
modifier = Modifier.testTag("TeamScore_Inc"),
onClick = { score.score += 1 }
)
Text(text = score.score.toString(), style = MaterialTheme.typography.h5)
Button(
content = { Text("-") },
modifier = Modifier.testTag("TeamScore_Dec"),
onClick = { score.score = max(score.score - 1, 0) }
)
}
}

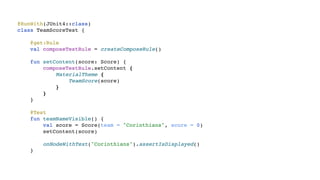

58. @RunWith(JUnit4::class)
class TeamScoreTest {
@get:Rule
val composeTestRule = createComposeRule()
fun setContent(score: Score) {
composeTestRule.setContent {
MaterialTheme {
TeamScore(score)
}
}
}
@Test
fun teamNameVisible() {
val score = Score(team = "Corinthians", score = 0)
setContent(score)
onNodeWithText("Corinthians").assertIsDisplayed()
}

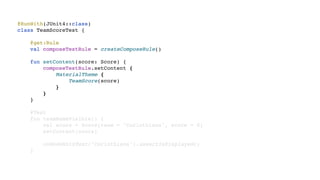

59. @RunWith(JUnit4::class)
class TeamScoreTest {
@get:Rule
val composeTestRule = createComposeRule()
fun setContent(score: Score) {
composeTestRule.setContent {
MaterialTheme {
TeamScore(score)
}
}
}
@Test
fun teamNameVisible() {
val score = Score(team = "Corinthians", score = 0)
setContent(score)
onNodeWithText("Corinthians").assertIsDisplayed()
}

60. @RunWith(JUnit4::class)
class TeamScoreTest {
@get:Rule
val composeTestRule = createComposeRule()
fun setContent(score: Score) {
composeTestRule.setContent {
MaterialTheme {
TeamScore(score)
}
}
}
@Test
fun teamNameVisible() {
val score = Score(team = "Corinthians", score = 0)
setContent(score)
onNodeWithText("Corinthians").assertIsDisplayed()
}

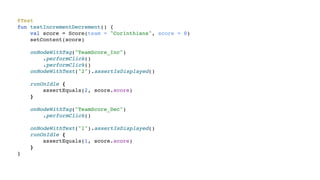

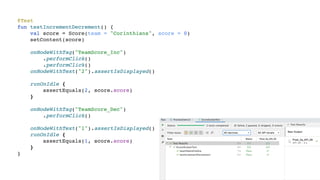

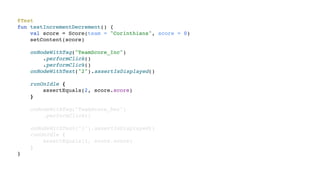

61. @Test
fun testIncrementDecrement() {
val score = Score(team = "Corinthians", score = 0)
setContent(score)
onNodeWithTag("TeamScore_Inc")
.performClick()
.performClick()
onNodeWithText("2").assertIsDisplayed()
runOnIdle {
assertEquals(2, score.score)
}
onNodeWithTag("TeamScore_Dec")
.performClick()
onNodeWithText("1").assertIsDisplayed()
runOnIdle {
assertEquals(1, score.score)
}
}

62. @Test
fun testIncrementDecrement() {
val score = Score(team = "Corinthians", score = 0)
setContent(score)
onNodeWithTag("TeamScore_Inc")
.performClick()
.performClick()
onNodeWithText("2").assertIsDisplayed()
runOnIdle {
assertEquals(2, score.score)
}
onNodeWithTag("TeamScore_Dec")
.performClick()
onNodeWithText("1").assertIsDisplayed()
runOnIdle {
assertEquals(1, score.score)
}
}

63. @Test
fun testIncrementDecrement() {
val score = Score(team = "Corinthians", score = 0)
setContent(score)
onNodeWithTag("TeamScore_Inc")
.performClick()
.performClick()
onNodeWithText("2").assertIsDisplayed()
runOnIdle {
assertEquals(2, score.score)
}
onNodeWithTag("TeamScore_Dec")
.performClick()
onNodeWithText("1").assertIsDisplayed()
runOnIdle {
assertEquals(1, score.score)
}
}

64. @Test
fun testIncrementDecrement() {
val score = Score(team = "Corinthians", score = 0)
setContent(score)
onNodeWithTag("TeamScore_Inc")
.performClick()
.performClick()
onNodeWithText("2").assertIsDisplayed()
runOnIdle {
assertEquals(2, score.score)
}
onNodeWithTag("TeamScore_Dec")
.performClick()
onNodeWithText("1").assertIsDisplayed()
runOnIdle {
assertEquals(1, score.score)
}
}

65. app.sli.do/event/djw2yt2e

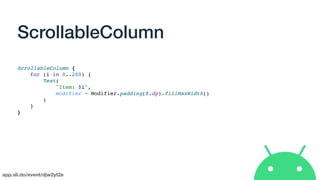

ScrollableColumn
ScrollableColumn {
for (i in 0..200) {
Text(
"Item: $i",
modifier = Modifier.padding(8.dp).fillMaxWidth()
)
}
}

66. app.sli.do/event/djw2yt2e

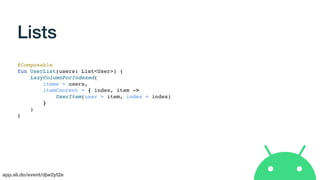

Lists
@Composable
fun UserList(users: List<User>) {
LazyColumnFor(
items = users,
modifier = Modifier.fillMaxSize()) {
UserItem(user = it)
}
}

67. app.sli.do/event/djw2yt2e
Lists
@Composable
fun UserList(users: List<User>) {
LazyColumnForIndexed(
items = users,
itemContent = { index, item ->
UserItem(user = item, index = index)
}
)
}

68. Interoperabilidade

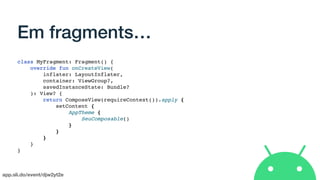

69. app.sli.do/event/djw2yt2e
Em fragments…
class MyFragment: Fragment() {
override fun onCreateView(
inflater: LayoutInflater,
container: ViewGroup?,
savedInstanceState: Bundle?
): View? {
return ComposeView(requireContext()).apply {
setContent {
AppTheme {
SeuComposable()
}
}
}
}
}

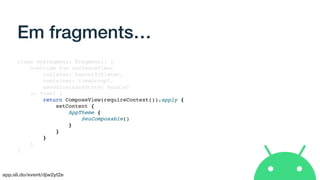

70. app.sli.do/event/djw2yt2e
Em fragments…
class MyFragment: Fragment() {
override fun onCreateView(
inflater: LayoutInflater,
container: ViewGroup?,
savedInstanceState: Bundle?
): View? {
return ComposeView(requireContext()).apply {
setContent {
AppTheme {
SeuComposable()
}
}
}
}
}

71. app.sli.do/event/djw2yt2e

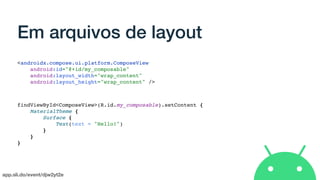

Em arquivos de layout
<androidx.compose.ui.platform.ComposeView
android:id="@+id/my_composable"
android:layout_width="wrap_content"
android:layout_height="wrap_content" />
findViewById<ComposeView>(R.id.my_composable).setContent {
MaterialTheme {
Surface {
Text(text = "Hello!")
}
}
}

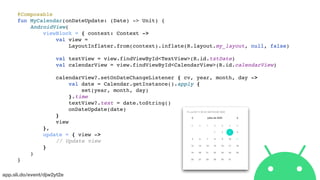

72. app.sli.do/event/djw2yt2e
@Composable
fun MyCalendar(onDateUpdate: (Date) -> Unit) {
AndroidView(
viewBlock = { context: Context ->
val view =
LayoutInflater.from(context).inflate(R.layout.my_layout, null, false)
val textView = view.findViewById<TextView>(R.id.txtDate)
val calendarView = view.findViewById<CalendarView>(R.id.calendarView)
calendarView?.setOnDateChangeListener { cv, year, month, day ->
val date = Calendar.getInstance().apply {
set(year, month, day)
}.time
textView?.text = date.toString()
onDateUpdate(date)
}
view
},
update = { view ->
// Update view
}
)
}

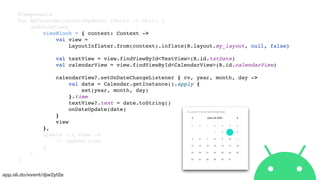

73. app.sli.do/event/djw2yt2e
@Composable
fun MyCalendar(onDateUpdate: (Date) -> Unit) {
AndroidView(
viewBlock = { context: Context ->
val view =
LayoutInflater.from(context).inflate(R.layout.my_layout, null, false)
val textView = view.findViewById<TextView>(R.id.txtDate)
val calendarView = view.findViewById<CalendarView>(R.id.calendarView)
calendarView?.setOnDateChangeListener { cv, year, month, day ->
val date = Calendar.getInstance().apply {
set(year, month, day)
}.time
textView?.text = date.toString()
onDateUpdate(date)
}
view
},
update = { view ->
// Update view
}
)
}

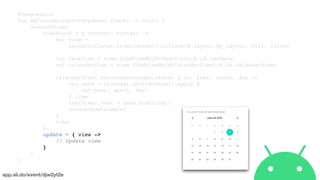

74. app.sli.do/event/djw2yt2e
@Composable
fun MyCalendar(onDateUpdate: (Date) -> Unit) {
AndroidView(
viewBlock = { context: Context ->
val view =
LayoutInflater.from(context).inflate(R.layout.my_layout, null, false)
val textView = view.findViewById<TextView>(R.id.txtDate)
val calendarView = view.findViewById<CalendarView>(R.id.calendarView)
calendarView?.setOnDateChangeListener { cv, year, month, day ->
val date = Calendar.getInstance().apply {
set(year, month, day)
}.time
textView?.text = date.toString()
onDateUpdate(date)
}
view
},
update = { view ->
// Update view
}
)
}

75. app.sli.do/event/djw2yt2e
Resources
• stringResources(R.string.your_string)
• dimensionResource(R.dimen.padding_small)
• colorResource(R.color.blue)
• …

76. Mudança de
estado

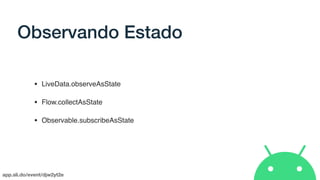

77. app.sli.do/event/djw2yt2e
Observando Estado
• LiveData.observeAsState
• Flow.collectAsState
• Observable.subscribeAsState

78. app.sli.do/event/djw2yt2e

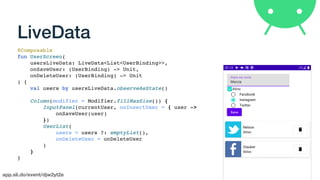

LiveData
@Composable
fun UserScreen(
usersLiveData: LiveData<List<UserBinding>>,
onSaveUser: (UserBinding) -> Unit,
onDeleteUser: (UserBinding) -> Unit
) {
val users by usersLiveData.observeAsState()
Column(modifier = Modifier.fillMaxSize()) {
InputPanel(currentUser, onInsertUser = { user ->
onSaveUser(user)
})
UserList(
users = users ?: emptyList(),
onDeleteUser = onDeleteUser
)
}
}

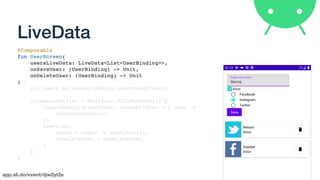

79. app.sli.do/event/djw2yt2e
LiveData
@Composable
fun UserScreen(
usersLiveData: LiveData<List<UserBinding>>,
onSaveUser: (UserBinding) -> Unit,
onDeleteUser: (UserBinding) -> Unit
) {
val users by usersLiveData.observeAsState()
Column(modifier = Modifier.fillMaxSize()) {
InputPanel(currentUser, onInsertUser = { user ->
onSaveUser(user)
})
UserList(
users = users ?: emptyList(),
onDeleteUser = onDeleteUser
)
}
}

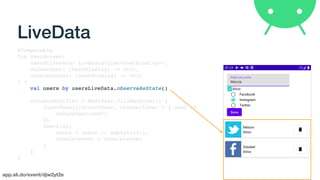

80. app.sli.do/event/djw2yt2e
LiveData
@Composable
fun UserScreen(
usersLiveData: LiveData<List<UserBinding>>,
onSaveUser: (UserBinding) -> Unit,
onDeleteUser: (UserBinding) -> Unit
) {
val users by usersLiveData.observeAsState()
Column(modifier = Modifier.fillMaxSize()) {
InputPanel(currentUser, onInsertUser = { user ->
onSaveUser(user)
})
UserList(
users = users ?: emptyList(),
onDeleteUser = onDeleteUser
)
}
}

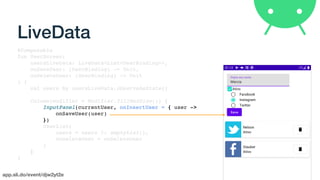

81. app.sli.do/event/djw2yt2e
LiveData
@Composable
fun UserScreen(
usersLiveData: LiveData<List<UserBinding>>,
onSaveUser: (UserBinding) -> Unit,
onDeleteUser: (UserBinding) -> Unit
) {
val users by usersLiveData.observeAsState()
Column(modifier = Modifier.fillMaxSize()) {
InputPanel(currentUser, onInsertUser = { user ->
onSaveUser(user)
})
UserList(
users = users ?: emptyList(),
onDeleteUser = onDeleteUser
)
}
}

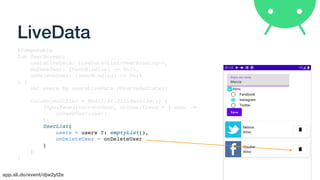

82. app.sli.do/event/djw2yt2e
LiveData
@Composable
fun UserScreen(
usersLiveData: LiveData<List<UserBinding>>,
onSaveUser: (UserBinding) -> Unit,
onDeleteUser: (UserBinding) -> Unit
) {
val users by usersLiveData.observeAsState()
Column(modifier = Modifier.fillMaxSize()) {
InputPanel(currentUser, onInsertUser = { user ->
onSaveUser(user)
})
UserList(
users = users ?: emptyList(),
onDeleteUser = onDeleteUser
)
}
}

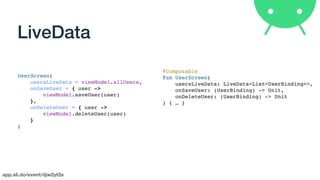

83. app.sli.do/event/djw2yt2e
LiveData
UserScreen(
usersLiveData = viewModel.allUsers,
onSaveUser = { user ->
viewModel.saveUser(user)
},
onDeleteUser = { user ->
viewModel.deleteUser(user)
}
)
@Composable
fun UserScreen(
usersLiveData: LiveData<List<UserBinding>>,
onSaveUser: (UserBinding) -> Unit,
onDeleteUser: (UserBinding) -> Unit
) { … }

84. Coroutines

85. app.sli.do/event/djw2yt2e

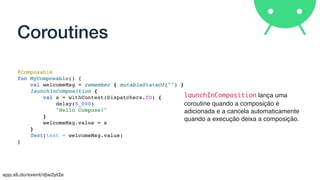

Coroutines
@Composable
fun MyComposable() {
val welcomeMsg = remember { mutableStateOf("") }
launchInComposition {
val s = withContext(Dispatchers.IO) {
delay(5_000)
"Hello Compose!"
}
welcomeMsg.value = s
}
Text(text = welcomeMsg.value)
}
launchInComposition lança uma
coroutine quando a composição é
adicionada e a cancela automaticamente
quando a execução deixa a composição.

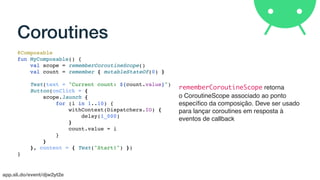

86. app.sli.do/event/djw2yt2e
Coroutines
@Composable
fun MyComposable() {
val scope = rememberCoroutineScope()
val count = remember { mutableStateOf(0) }
Text(text = "Current count: ${count.value}")
Button(onClick = {
scope.launch {
for (i in 1..10) {
withContext(Dispatchers.IO) {
delay(1_000)
}
count.value = i
}
}
}, content = { Text("Start!") })
}
rememberCoroutineScope retorna
o CoroutineScope associado ao ponto
específico da composição. Deve ser usado
para lançar coroutines em resposta à
eventos de callback

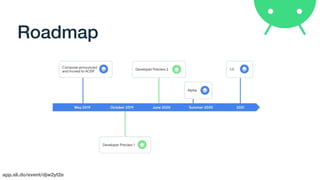

87. app.sli.do/event/djw2yt2e
Roadmap

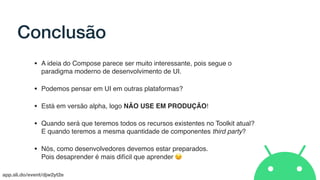

88. app.sli.do/event/djw2yt2e
Conclusão
• A ideia do Compose parece ser muito interessante, pois segue o
paradigma moderno de desenvolvimento de UI.
• Podemos pensar em UI em outras plataformas?
• Está em versão alpha, logo NÃO USE EM PRODUÇÃO!
• Quando será que teremos todos os recursos existentes no Toolkit atual?
E quando teremos a mesma quantidade de componentes third party?
• Nós, como desenvolvedores devemos estar preparados.
Pois desaprender é mais difícil que aprender 😉

89. app.sli.do/event/djw2yt2e

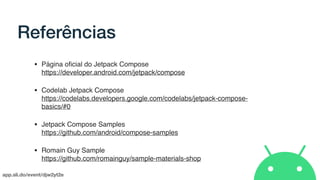

Referências
• Página oficial do Jetpack Compose
https://developer.android.com/jetpack/compose
• Codelab Jetpack Compose
https://codelabs.developers.google.com/codelabs/jetpack-compose-
basics/#0
• Jetpack Compose Samples
https://github.com/android/compose-samples
• Romain Guy Sample
https://github.com/romainguy/sample-materials-shop

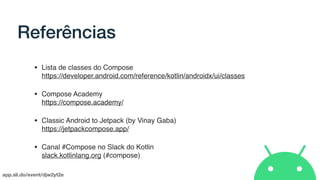

90. app.sli.do/event/djw2yt2e
Referências
• Lista de classes do Compose
https://developer.android.com/reference/kotlin/androidx/ui/classes
• Compose Academy
https://compose.academy/
• Classic Android to Jetpack (by Vinay Gaba)
https://jetpackcompose.app/
• Canal #Compose no Slack do Kotlin
slack.kotlinlang.org (#compose)

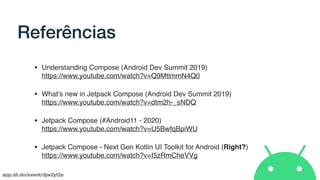

91. app.sli.do/event/djw2yt2e
Referências
• Understanding Compose (Android Dev Summit 2019)
https://www.youtube.com/watch?v=Q9MtlmmN4Q0
• What’s new in Jetpack Compose (Android Dev Summit 2019)
https://www.youtube.com/watch?v=dtm2h-_sNDQ
• Jetpack Compose (#Android11 - 2020)
https://www.youtube.com/watch?v=U5BwfqBpiWU
• Jetpack Compose - Next Gen Kotlin UI Toolkit for Android (Right?)
https://www.youtube.com/watch?v=I5zRmCheVVg

92. app.sli.do/event/djw2yt2e

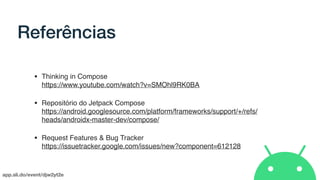

Referências
• Thinking in Compose
https://www.youtube.com/watch?v=SMOhl9RK0BA
• Repositório do Jetpack Compose
https://android.googlesource.com/platform/frameworks/support/+/refs/
heads/androidx-master-dev/compose/
• Request Features & Bug Tracker
https://issuetracker.google.com/issues/new?component=612128

93. Obrigado!
Nelson Glauber
@nglauber
