The Agfa Graphics :Jeti 3348 HSS is a high-speed solvent printer that can print up to 2500 square feet per hour. It uses revolutionary TurbTech drying technology and 48 print heads to achieve the highest speeds of any grand format printer. The printer also offers options for true backlit printing and a mesh plate for flexible media handling. It provides high productivity and quality for competitive markets.

1. AGFA GRAPHICS
:JETI 3348 HSS HIGH SPEED SOLVENT
Breakthrough High Speed Solvent Printing
The : Jeti 3348 HSS introduces revolutionary new TurbTech
drying technology to deliver 2500 sqft/hr (232,25 m²/hr).
The :Jeti 3348 HSS with 48 Spectra print heads is
unquestionably the fastest 3.25m (10’8”) metre grand-format
printer on the market today. True 300 dpi and 4 colour printing
on the :Jeti 3348 HSS, puts it in a class of its own.
Productivity, quality and low running costs, let the :Jeti 3348
HSS give you the edge in today’s competitive markets.

2. In-house decoration - canvas
True Back-lit Option
The :Jeti 3348 HSS also is available with the True Back-lit option
enabling printing on both sides of the media which allows for brilliant
backlit signage. Using specialized custom software and a camera,
the True Back-lit option tracks your print and compensates on the fly
to provide perfect registration.
TurbTech Drying
The :Jeti 3348 introduces revolutionary TurbTech drying technology.
TurbTech marries conventional mesh back heaters with the
revolutionary TurbTech front drying system, which uses non-laminar
warm air flow drying technology, to lower vapour pressures and
deliver high speed drying without overheating today’s low cost
substrates.
Linear Rail Technology
The :Jeti 3348 uses the latest linear motor drives to deliver digitally
accurate, high speed head motion at up to 2 metres per second. This
technology, previously only used on :Jeti UV printers, delivers the
speed and accuracy necessary to deliver 2500 sqft/hr (232,25 m²/hr)
of production.
Vacuum Plate Stability
To handle modern low cost substrates, the :Jeti 3348 has a Vacuum
plate under the print zone to hold substrates securely in place while
printing. This increased media stability by reducing wrinkles and edge
curl to avoid head strikes both ensures that you are able to maximize
productivity and have optimal image quality.
Mesh Plate Built In
To ensure maximum flexibility, the print plate has a trough area built
in underneath the print zone to allow you to turn off the vacuum plate
and run open mesh material. Ink is gathered cleanly in the plate and
ensures that your print is picture perfect.

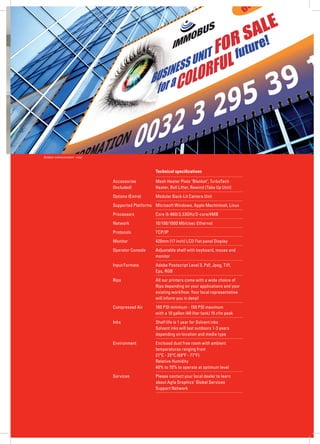

3. AGFA GRAPHICS
Outdoor communication - vinyl
Technical specifications
Accessories Mesh Heater Plate ‘Blanket’, TurboTech
(Included) Heater, Roll Lifter, Rewind (Take Up Unit)
Options (Extra) Modular Back-Lit Camera Unit
Supported Platforms Microsoft Windows, Apple Machintosh, Linux
Processors Core i5-660/3.33GHz/2-core/4MB
Network 10/100/1000 Mbit/sec Ethernet
Protocols TCP/IP
Monitor 420mm (17 inch) LCD Flat panel Display
Operator Console Adjustable shelf with keyboard, mouse and
monitor
Input Formats Adobe Postscript Level 3, Pdf, Jpeg, Tiff,
Eps, RGB
Rips All our printers come with a wide choice of
Rips depending on your applications and your
existing workflow. Your local representative
will inform you in detail
Compressed Air 100 PSI minimum - 150 PSI maximum
with a 10 gallon (40 liter tank) 15 cfm peak
Inks Shelf life is 1 year for Solvent inks
Solvent inks will last outdoors 1-3 years
depending on location and media type
Environment Enclosed dust free room with ambient
temperatures ranging from
21ºC - 25ºC (69ºF - 77ºF)
Relative Humidity
40% to 70% to operate at optimum level
Services Please contact your local dealer to learn
about Agfa Graphics’ Global Services
Support Network

4. AGFA GRAPHICS
:JETI 3348 HSS High Speed Solvent
Technical specifications
Technology Spectra High Performance Piezoelectric
Jetting Assembly, quantity 48
Print Resolution Prints high quality at True 300 dpi 4 color
(600 apparent)
Media Dimensions Roll substrate max size: 10’8” (3.25 meter)
wide.
Max diameter is 12” (30.48 cm) on a 3”
(7.62 cm) inside core
Media Types Reinforced vinyl, pressure sensitive vinyl,
canvas, fabrics, mesh, paper and more
Printing Speeds Up to 2500 sqft/hr (232,25 m²/hr)
Weight 4,500 lbs (2041 kg) uncrated
Add 1000 lbs (451 kg) for crating
Printer Dimensions 74”h x 71”w x271”l
(188 cm x 180 cm x 688 cm)
Power Consumption 36 KVA (48A)
Electrical 400Y / 230V, 3 Phase 50/60 Hz
Requirements
Copyright 2010 by Agfa Graphics N.V. All rights reserved. Printed in Belgium.
Agfa and the Agfa Rhombus are registered trade marks of Agfa-Gevaert AG.
:Jeti is a trademark of Agfa Graphics N.V.
All product specifications are subject to change without prior notice.
NGT7M GB 102010
