This document summarizes the features of a medium format heat press manufactured by Z.I. de Pastabrac. It can handle plates up to 1250 x 850 mm. Key features include a sliding lower plate for easy loading, independent temperature controls for even heating, strong pneumatic cylinders that distribute pressure evenly, and an electronic control panel that allows for precise temperature and time settings. The heat press is suitable for transferring designs to sports goods, textiles, and hard substrates like ceramic and wood.

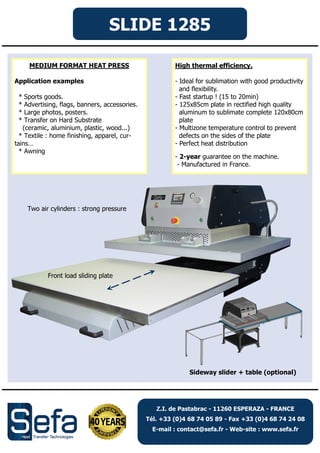

1. SLIDE 1285
Z.I. de Pastabrac - 11260 ESPERAZA - FRANCE
Tél. +33 (0)4 68 74 05 89 - Fax +33 (0)4 68 74 24 08
E-mail : contact@sefa.fr - Web-site : www.sefa.fr
MEDIUM FORMAT HEAT PRESS
Application examples
* Sports goods.
* Advertising, flags, banners, accessories.
* Large photos, posters.
* Transfer on Hard Substrate
(ceramic, aluminium, plastic, wood...)
* Textile : home finishing, apparel, cur-
tains…
* Awning
Two air cylinders : strong pressure
High thermal efficiency.
- Ideal for sublimation with good productivity
and flexibility.
- Fast startup ! (15 to 20min)
- 125x85cm plate in rectified high quality
aluminum to sublimate complete 120x80cm
plate
- Multizone temperature control to prevent
defects on the sides of the plate
- Perfect heat distribution
- 2-year guarantee on the machine.
- Manufactured in France.
Front load sliding plate
Sideway slider + table (optional)

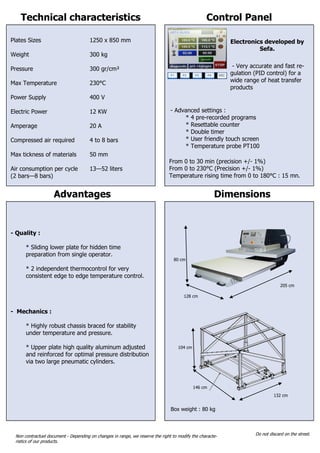

2. Advantages Dimensions
Technical characteristics
132 cm
146 cm
104 cm
Box weight : 80 kg
1250 x 850 mm
300 kg
300 gr/cm²
230°C
400 V
12 KW
20 A
4 to 8 bars
50 mm
13—52 liters
80 cm
128 cm
205 cm
- Quality :
* Sliding lower plate for hidden time
preparation from single operator.
* 2 independent thermocontrol for very
consistent edge to edge temperature control.
- Mechanics :
* Highly robust chassis braced for stability
under temperature and pressure.
* Upper plate high quality aluminum adjusted
and reinforced for optimal pressure distribution
via two large pneumatic cylinders.
Do not discard on the street.
Plates Sizes
Weight
Pressure
Max Temperature
Power Supply
Electric Power
Amperage
Compressed air required
Max tickness of materials
Air consumption per cycle
(2 bars—8 bars)
Non contractuel document - Depending on changes in range, we reserve the right to modify the characte-
ristics of our products.
Control Panel
Electronics developed by
Sefa.
From 0 to 30 min (precision +/- 1%)
From 0 to 230°C (Precision +/- 1%)
Temperature rising time from 0 to 180°C : 15 mn.
- Very accurate and fast re-
gulation (PID control) for a
wide range of heat transfer
products
- Advanced settings :
* 4 pre-recorded programs
* Resettable counter
* Double timer
* User friendly touch screen
* Temperature probe PT100
