The Onset Q40i is an ultra-high resolution flatbed printer capable of delivering high production speeds up to 305 m2/hr. It has a higher 9 picolitre drop size compared to typical 27 picolitre printers, resulting in up to 1200 dpi resolution for crisp images and fine text. The 15-zone vacuum table and automated functions reduce setup times and increase productivity. Sophisticated detectors help protect the substrate and printheads for improved reliability.

1. High Resolution - The Onset Q40i has been developed to address the growing market for an ultra-high-quality flatbed printer
capable of delivering high production speeds. It delivers a 9 picolitre drop size, compared to the 27 picolitre drop size used on the
Onset S40i. This results in up to 1200 dpi apparent resolution which produces ultra-crisp images, fine lines, sharp text and smooth
tonal graduations with output quality close to offset litho. Onset Q40i prints up to 305 m2
/hr using a satin bi-directional mode,
equating to 61 full-bed sheets per hour.
Fast Setup Times - The 15-zone vacuum table reduces bed masking requirements, which shortens setup times and increases overall
output.
Productivity - Innovative UV sensors continually monitor the machine condition and automatically inform the operator when
cleaning is required. The frequency of cleaning depends on the type and volume of work, so unnecessary maintenance is avoided
and productivity is increased.
Reliability - Sophisticated mechanical substrate height detectors deliver improved accuracy and reliability to help protect both the
substrate and the printheads.
Image Quality - The Onset Q40i has a 6-colour configuration with light colours for improved tones and graduations.
Ease of Use - The addition of a ‘machine setup files’ function allows a huge number of variables to be captured and reloaded again
and again, enabling machine operators to change quickly between substrates.

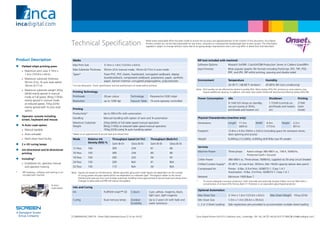

2. Technical Specification
Product Description
„„ Flatbed inkjet printing press
zz Maximum print area 3.14 m x
1.6 m (123.6 in x 63 in)
zz Maximum substrate thickness
50 mm (2 in), ¾ auto load option
18 mm (0.71 in)
zz Maximum substrate weight 20 kg
(44 lb) evenly spread in manual
mode at full speed, 80 kg (176 lb)
evenly spread in manual mode
at reduced speed, 10 kg (22 lb)
evenly spread with ¾ auto load
option
„„ Operator console including
screen, keyboard and mouse
„„ ¾ Auto Load option
zz Manual laytable
zz Auto-unloader
zz Multi-sheet feed facility
„„ 2 x UV curing lamps
„„ Uni-directional and bi-directional
printing
„„ Including*
zz Installation kit, operator manual
and operator training
* RIP hardware, software and training is not
included with machine
Media
Max Print Size 3.14 m x 1.6 m (123.6 in x 63 in)
Max Substrate Thickness 50 mm (2 in) manual mode, 18 mm (0.71in) in auto mode
Types* Foam PVC, PVC sheets, foamboard, corrugated cardboard, display
board/cardstock, compressed cardboard, polystyrene, paper, synthetic
paper, banner material, corrugated polypropylene, polycarbonate
* List not exhaustive. Check specification and test performance of media before printing.
Printing Technology
Printheads 28 per colour Technology Piezoelectric DOD inkjet
Resolution up to 1200 dpi Vacuum Table 15-zone operator controlled
Printing
Productivity* Up to 305 m2
/hr with automation
Handling Manual handling with option of semi and ¾ automation
Maximum Substrate
Weight
20 kg (44 lb) at full table speed manual operation
80 kg (176 lb) at reduced table speed manual operation
10 kg (22 lb) using ¾ auto handling option
* Based on an approximate 8 second load and unload time.
Mode Relative Ink
Density (RID) %
Throughput Speed (m2
/hr) Throughput (Beds/hr)
Satin Bi-Di Gloss Bi-Di Satin Bi-Di Gloss Bi-Di
12 Pass 100 305 234 61 46
16 Pass 100 300 234 60 46
18 Pass 100 295 225 59 45
24 Pass 150 209 N/A 41 N/A
32 Pass 150 173 N/A 34 N/A
Note: Figures are based on full bed prints. Where specified, gloss print mode figures are dependent on the number
of curing passes and pass speed (which are dependent on substrate type). Throughput relates to the actual
finished print area per hour and includes automatic handling times (approximate 8 second load and unload time).
Changes to gloss level and RID will reduce throughput.
Inks and Curing
Ink FUJIFILM Uvijet™ OZ Colours Cyan, yellow, magenta, black,
light cyan, light magenta
Curing Dual mercury lamps Outdoor
Durability
Up to 2 years UV with fade and
water resistance
Q
RIP (not included with machine)
Software Options Wasatch SoftRIP, ColorGATE® Production Server or Caldera GrandRIP+
Input Formats Most popular graphic file formats including PostScript, EPS, TIFF, PSD,
PDF, and JPG. RIP whilst printing, queuing and double sided
Environment Temperature Humidity
20-30 °C / 68-86 °F Ambient 45-80% RH (non-condensing)
Note: Print quality can be affected by relative humidity (RH). When below 45% RH, printing on some plastics may
require additional cleaning. In addition, anti-static bars (when fitted) will become less effective below 45% RH.
Power Consumption Idle Shutdown Printing
9.1 kW (UV lamps on standby,
vacuum pump at 30 Hz,
printheads and heaters on)
1.72 kW (controls on,
printheads and heaters
on)
27 kW
(satin
mode)
Physical Characteristics (machine only)
Dimensions Length 11.3 m
(445 in)
Width 4.4 m
(173 in)
Height 2.2 m
(87 in)
Footprint 13.8 m x 5.9 m (543 in x 232 in) (including space for exclusion zones,
door opening and access)
Weight 6,000 kg (13,228 lb), 4,000 kg (8,818 lb) max lift weight
Services
Machine Power Three-phase Rated voltage 380-480 V ac, 100 A, 50/60 Hz,
Protective Earth / Ground
Chiller Power 380-480 V ac, Three-phase, 50/60 Hz, supplied via 30 amp circuit breaker
Chilled Coolant Supply* 25-40 °C at max 6 bar, 30 l/min, Min 18 kW capacity (above dew point)
Compressed Air Printer - 6 Bar, 0.3 m3
/min, ISO8573.1: Class 1.4.1
Automation - 6 Bar, 2 m3
/min, ISO8573.1: Class 1.4.1
Network Minimum 1000 Base T
* To ensure adequate corrosion protection, both internally and externally located chillers must be filled with a
concentration of at least 25% Fernox Alphi-11 Protector or an equivalent glycol-based protector.
Optional Automation
Max Sheet Size 3.14 m x 1.6 m (123.6 in x 63 in) Max Sheet Weight 10 kg (22 lb)
Min Sheet Size 1.0 m x 1.0 m (39.4 in x 39.4 in)
1, 2 or 3 Sheet Loading Side registration pins provided to accommodate multiple sheet loading
¾ Auto
Load option
While every reasonable effort has been made to ensure the accuracy and appropriateness of the content of this document, Inca Digital
Printers Limited can not be held responsible for any errors, omissions or consequential loss/damage how so ever caused. The information
supplied is subject to change without notice due to on-going design improvement and a unit may differ in detail from that described.
