Presentation given at Jazoon on using JavaFX with alternative languages. Includes updates for GroovyFX and the JavaFX 2.0 Beta.

1. JavaFX 2.0 With Alternative Languages - Groovy, Clojure, Scala, Fantom, and Visage Stephen Chin Chief Agile Methodologist, GXS steveonjava@gmail.com tweet: @steveonjava

2. About the Presenter Stephen Chin Java Champion Family Man Chief Agile Methodologist, GXS Author, Pro JavaFX Platform OSCON Java Conference Chair Motorcyclist

3. Pro JavaFX 2 Platform Coming Soon! Coming 2nd half of this year All examples rewritten in Java Will cover the new JavaFX 2.0 APIs 3

4. Disclaimer: This is code-heavy THE FOLLOWING IS INTENDED TO STIMULATE CREATIVE USE OF JVM LANGUAGES. AFTER WATCHING THIS PRESENTATION YOU MAY FEEL COMPELLED TO START LEARNING A NEW JVM LANGUAGE AND WANT TO APPLY IT AT YOUR WORKPLACE. THE PRESENTER IS NOT LIABLE FOR ANY INNOVATION, BREAKTHROUGHS, OR NP-COMPLETE SOLUTIONS THAT MAY RESULT.

5. JavaFX With Java

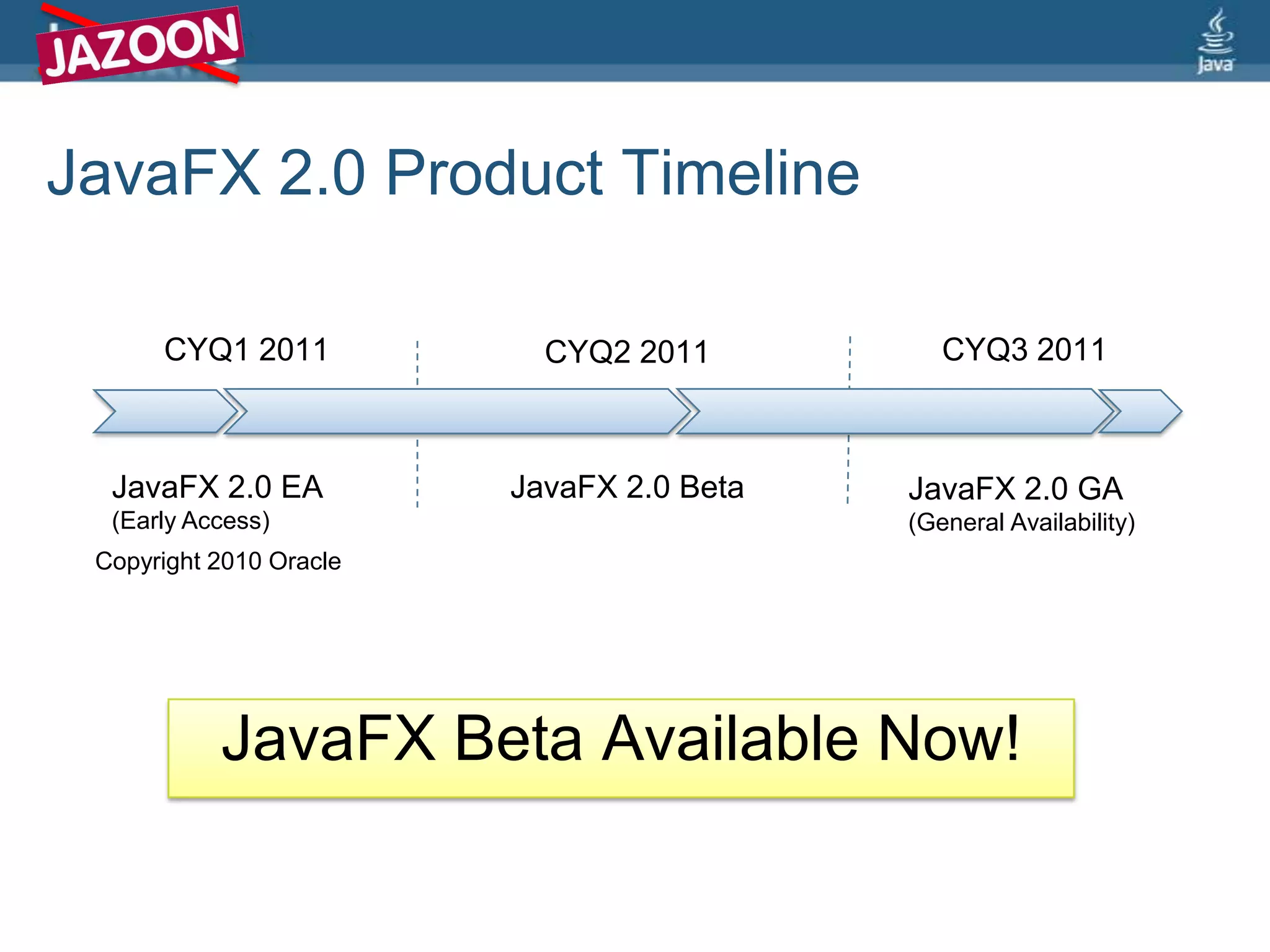

6. JavaFX 2.0 Product Timeline CYQ1 2011 CYQ3 2011 CYQ2 2011 JavaFX 2.0 EA (Early Access) JavaFX 2.0 Beta JavaFX 2.0 GA (General Availability) Copyright 2010 Oracle JavaFX Beta Available Now!

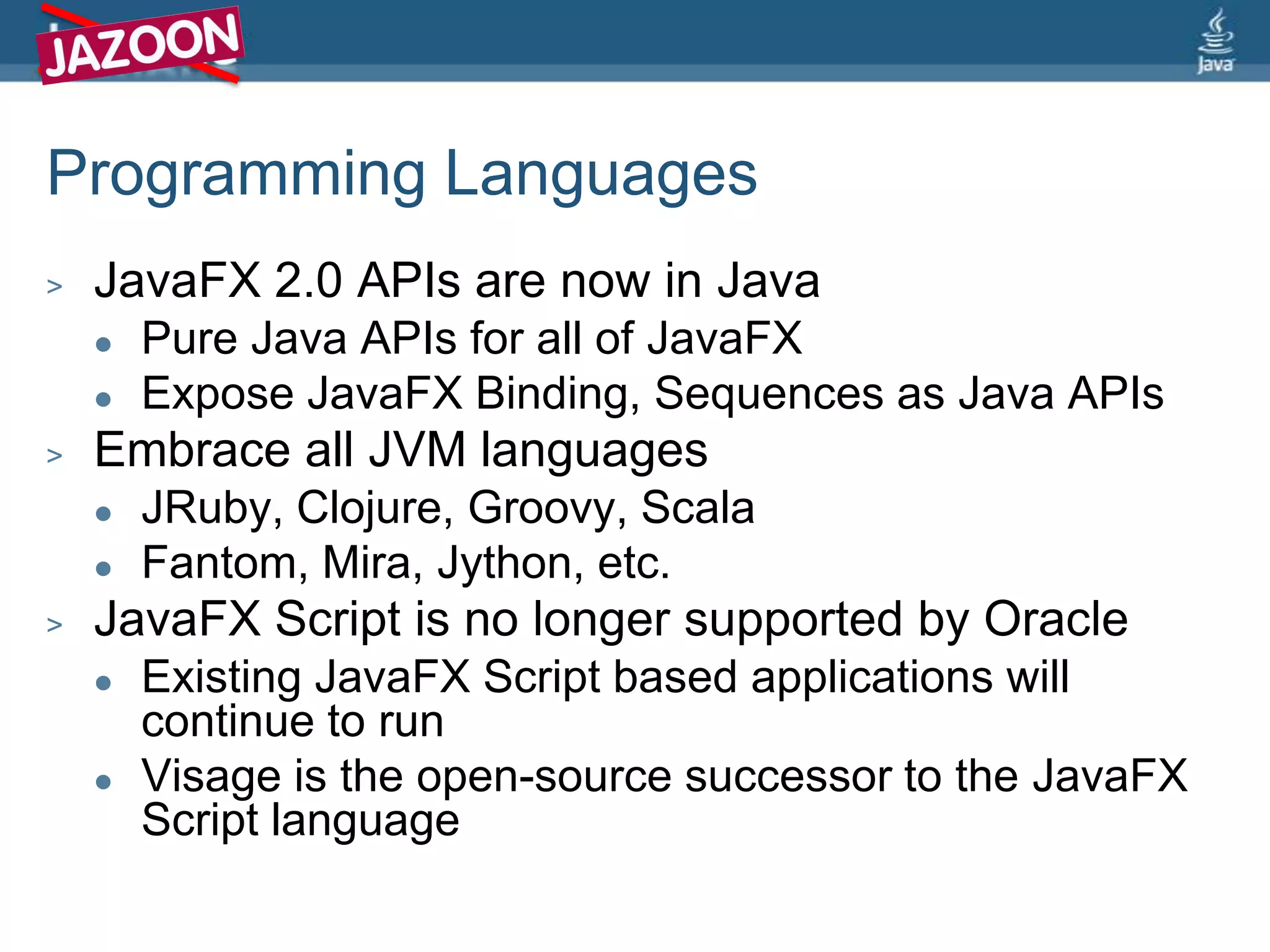

7. Programming Languages JavaFX 2.0 APIs are now in Java Pure Java APIs for all of JavaFX Expose JavaFX Binding, Sequences as Java APIs Embrace all JVM languages JRuby, Clojure, Groovy, Scala Fantom, Mira, Jython, etc. JavaFX Script is no longer supported by Oracle Existing JavaFX Script based applications will continue to run Visage is the open-source successor to the JavaFX Script language

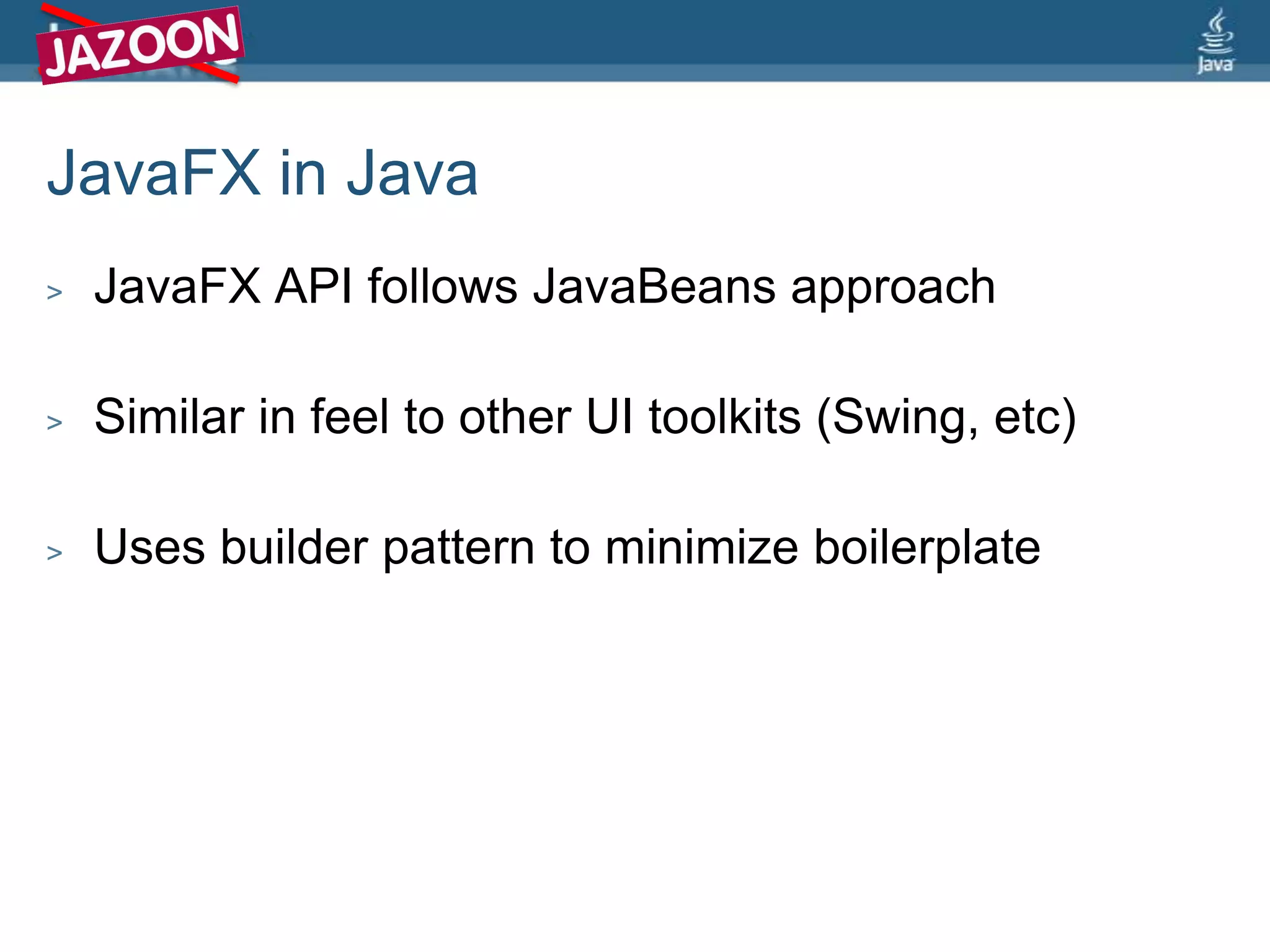

8. JavaFX in Java JavaFX API follows JavaBeans approach Similar in feel to other UI toolkits (Swing, etc) Uses builder pattern to minimize boilerplate

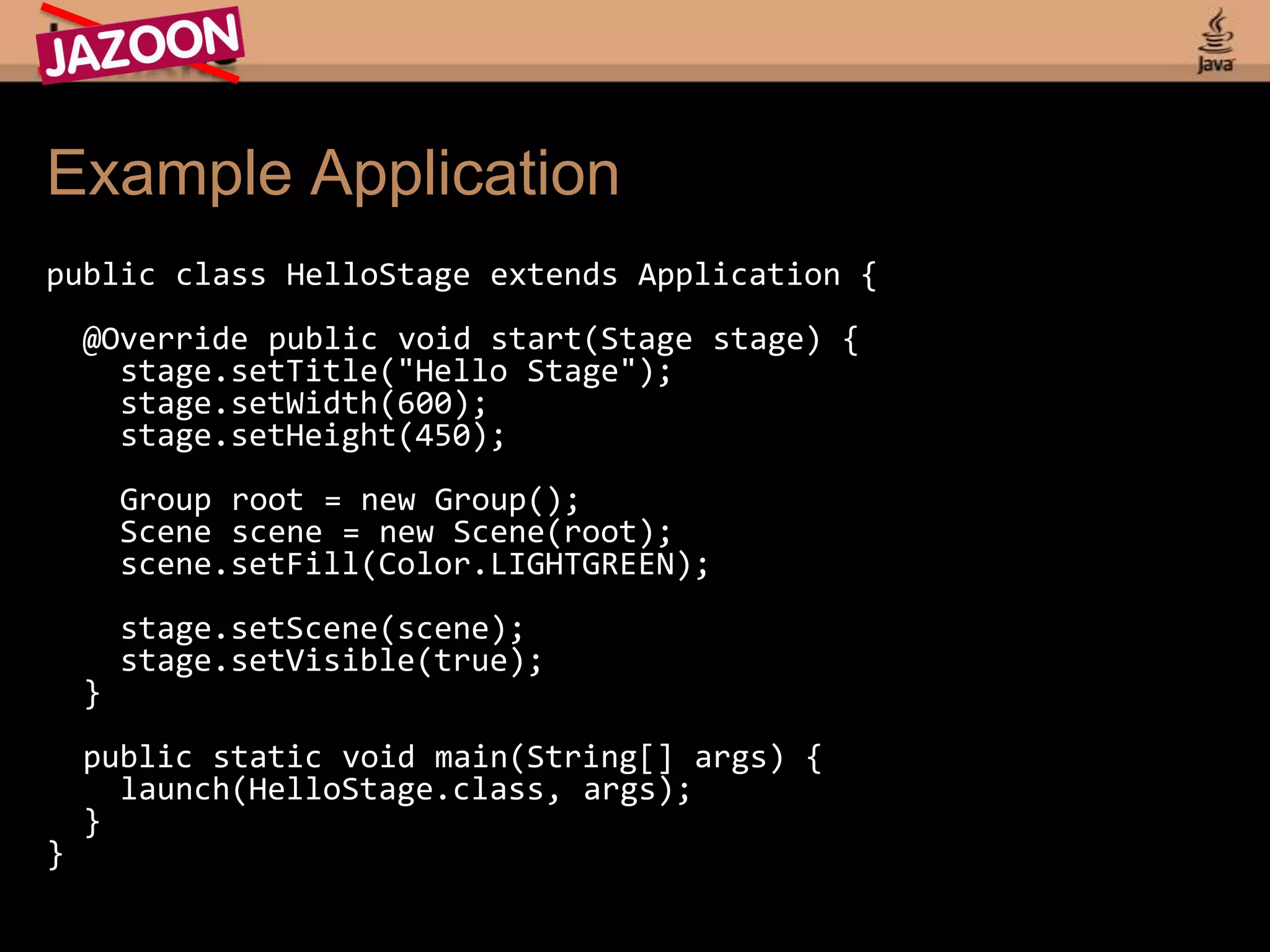

9. Example Application public class HelloStage extends Application { @Override public void start(Stage stage) { stage.setTitle("Hello Stage"); stage.setWidth(600); stage.setHeight(450); Group root = new Group(); Scene scene = new Scene(root); scene.setFill(Color.LIGHTGREEN); stage.setScene(scene); stage.setVisible(true); } public static void main(String[] args) { launch(HelloStage.class, args); } }

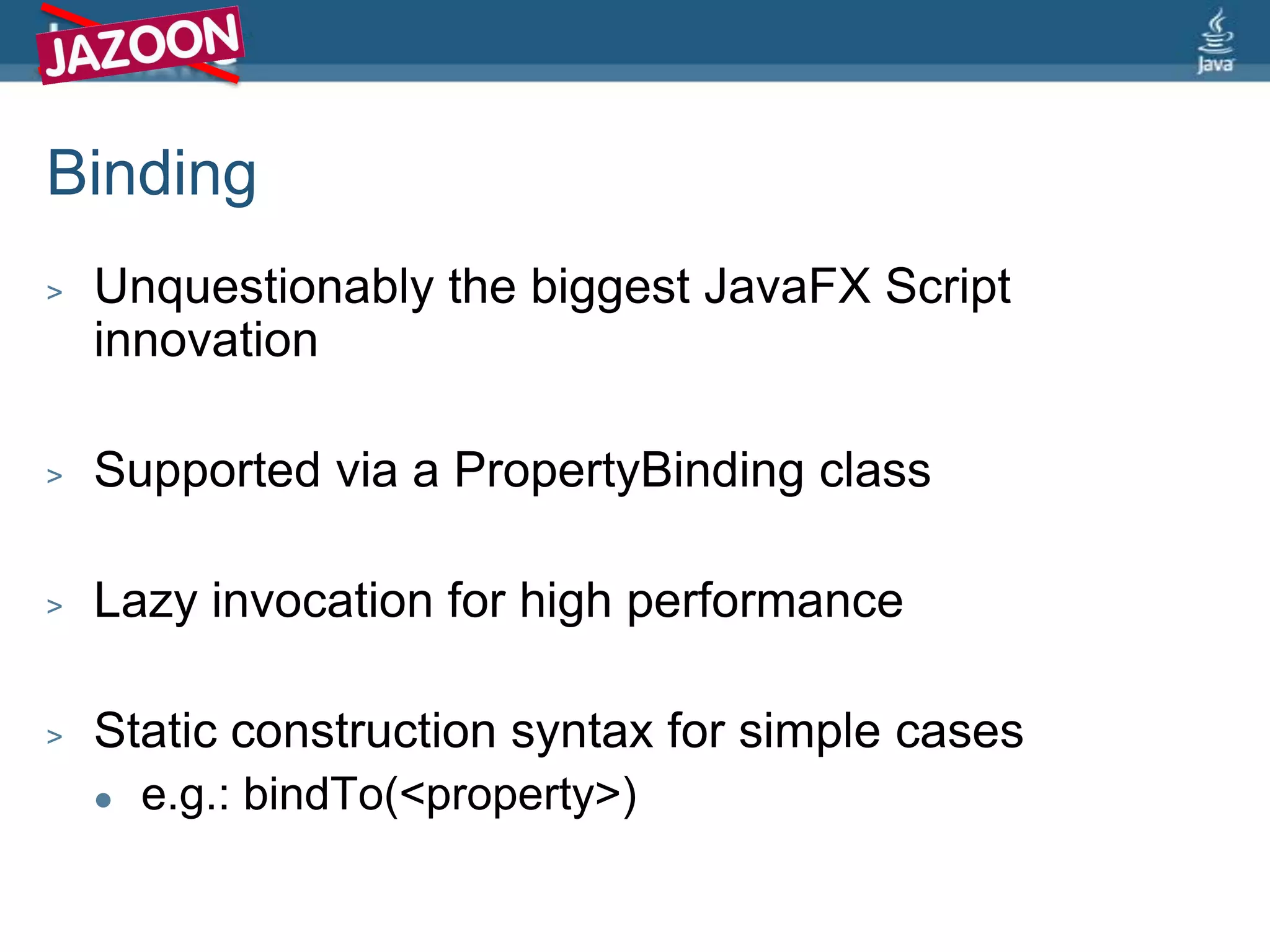

10. Binding Unquestionably the biggest JavaFX Script innovation Supported via a PropertyBinding class Lazy invocation for high performance Static construction syntax for simple cases e.g.: bindTo(<property>)

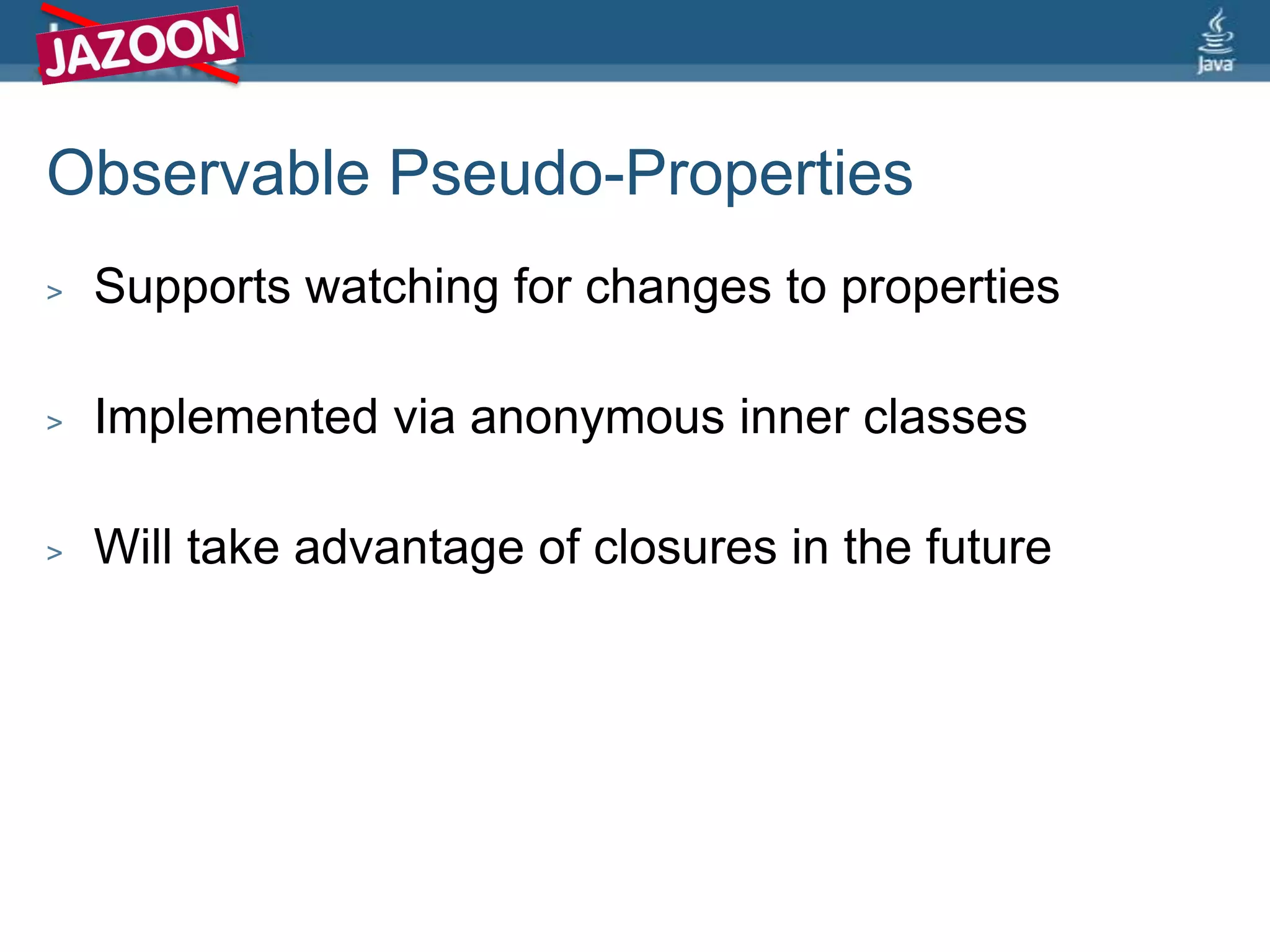

11. Observable Pseudo-Properties Supports watching for changes to properties Implemented via anonymous inner classes Will take advantage of closures in the future

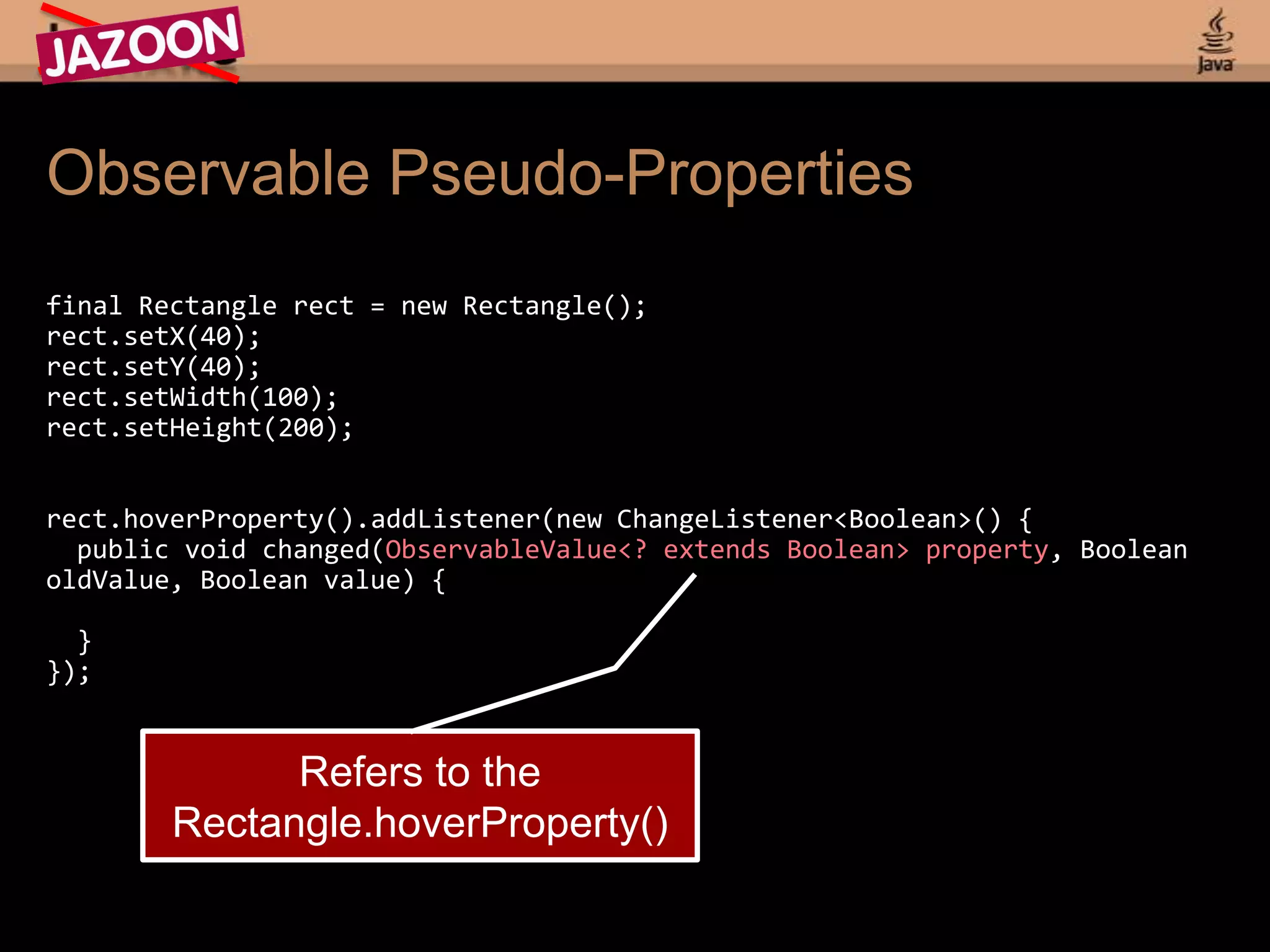

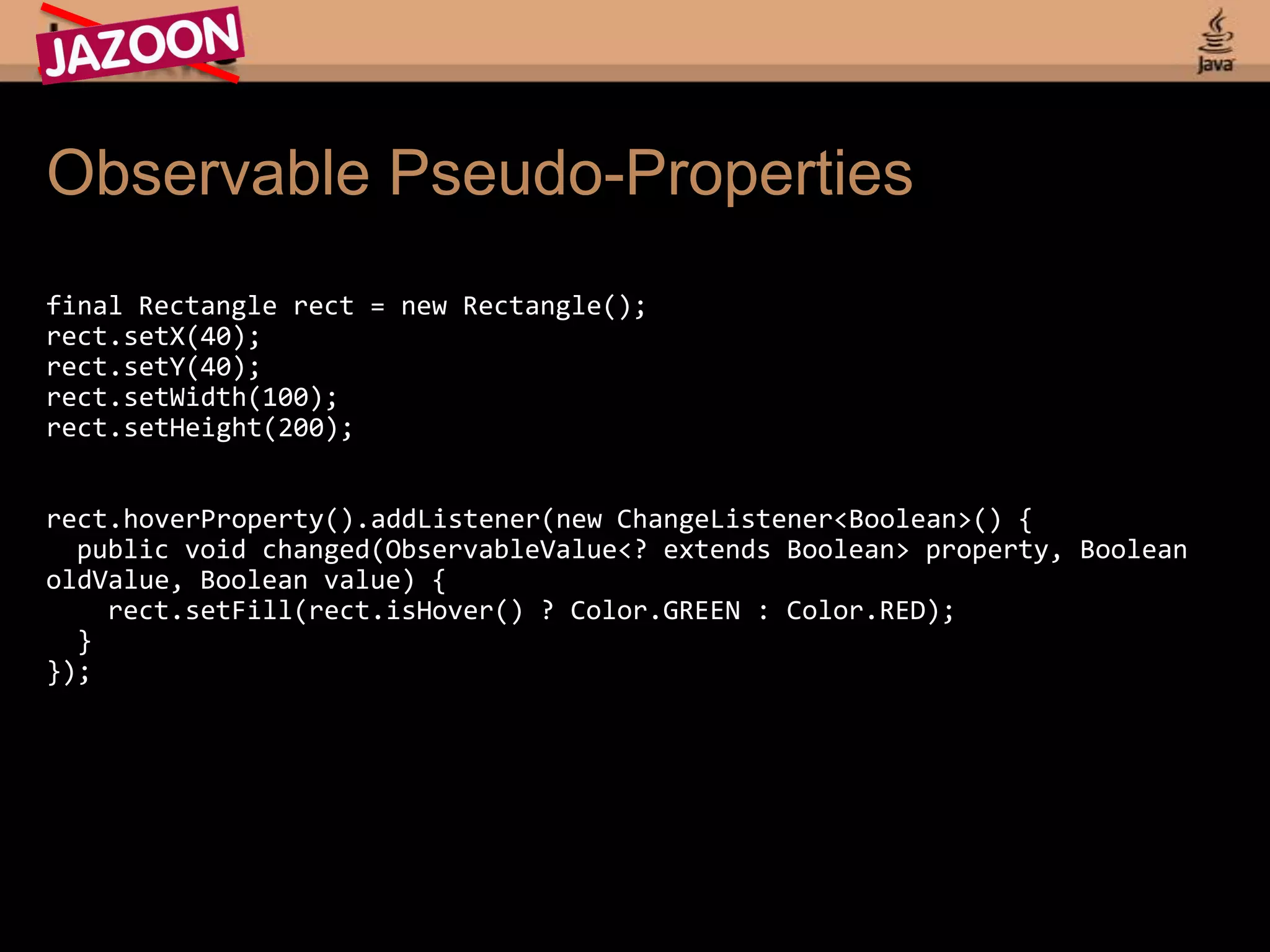

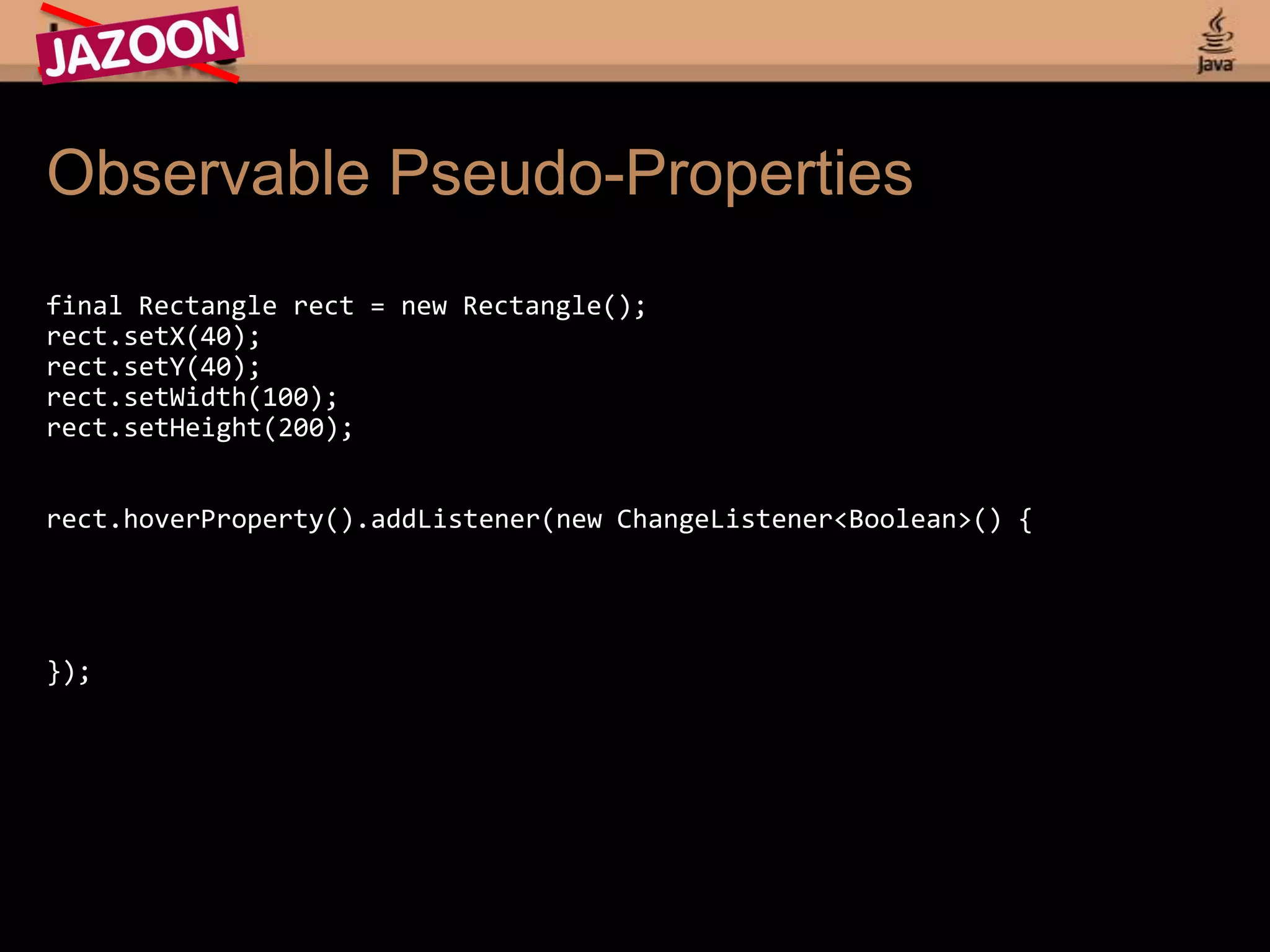

12. Observable Pseudo-Properties final Rectangle rect = new Rectangle(); rect.setX(40); rect.setY(40); rect.setWidth(100); rect.setHeight(200); rect.hoverProperty().addListener(new ChangeListener<Boolean>() { });

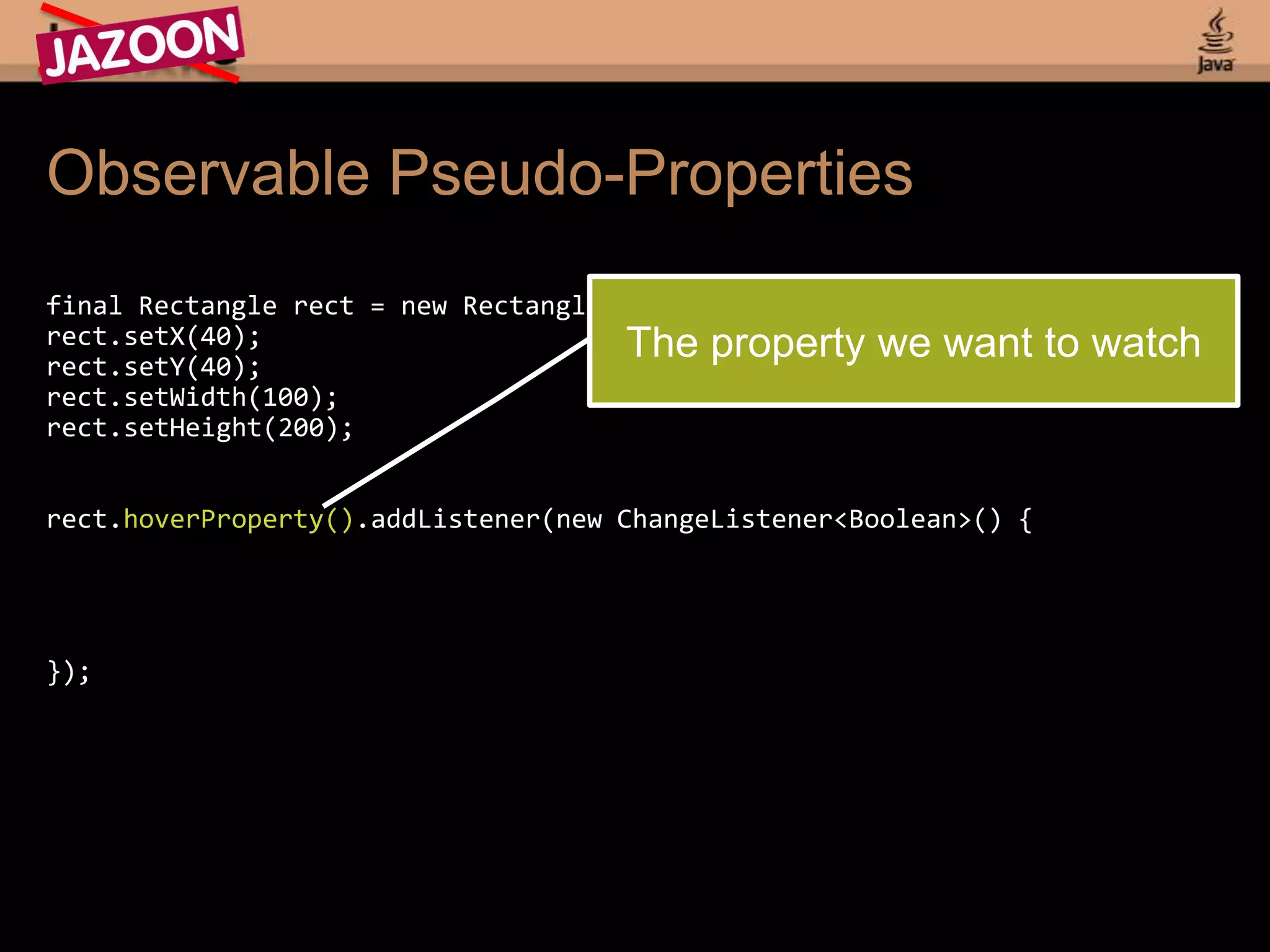

13. Observable Pseudo-Properties final Rectangle rect = new Rectangle(); rect.setX(40); rect.setY(40); rect.setWidth(100); rect.setHeight(200); rect.hoverProperty().addListener(new ChangeListener<Boolean>() { }); The property we want to watch

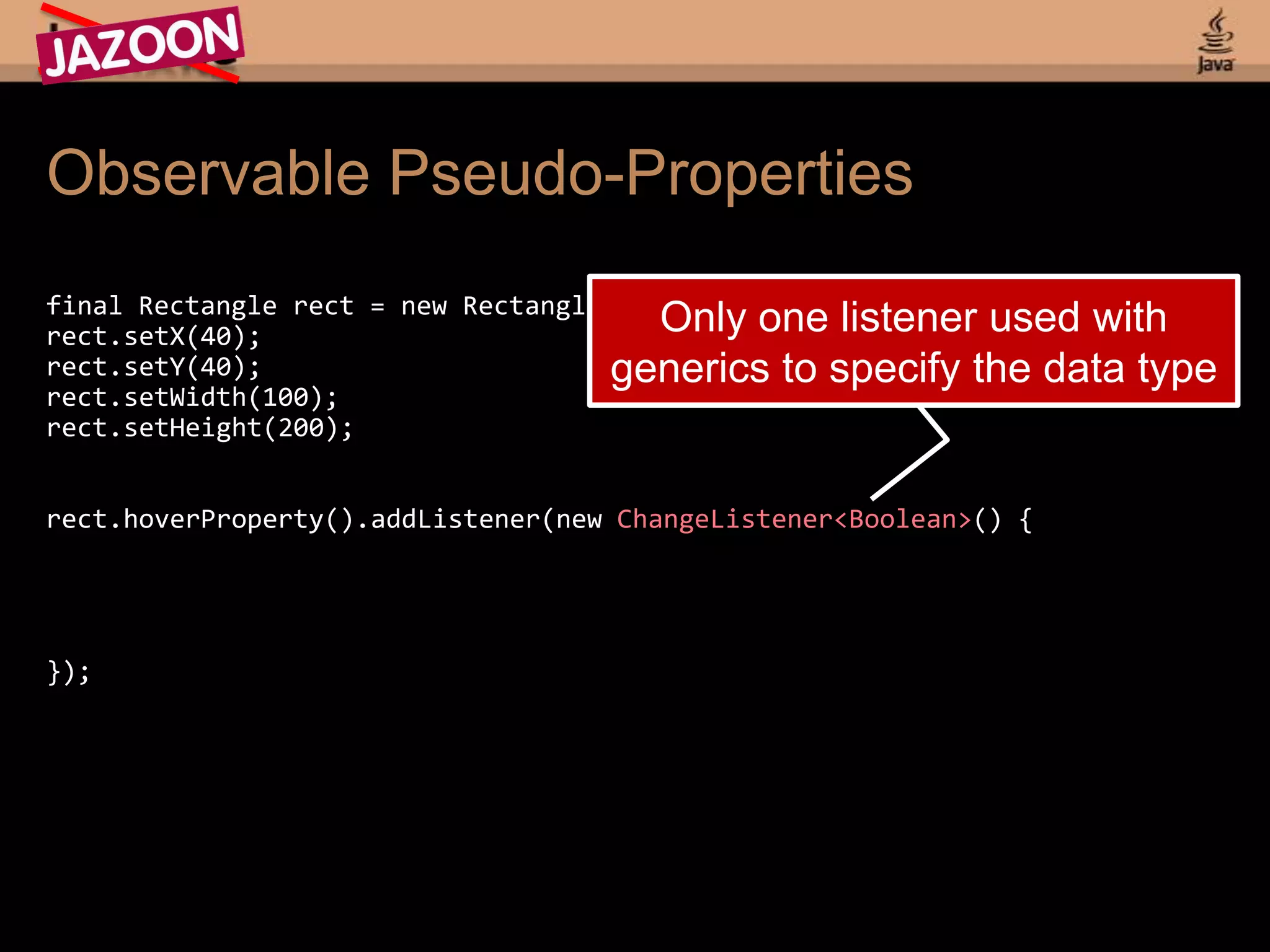

14. Observable Pseudo-Properties final Rectangle rect = new Rectangle(); rect.setX(40); rect.setY(40); rect.setWidth(100); rect.setHeight(200); rect.hoverProperty().addListener(new ChangeListener<Boolean>() { }); Only one listener used with generics to specify the data type

15. Observable Pseudo-Properties final Rectangle rect = new Rectangle(); rect.setX(40); rect.setY(40); rect.setWidth(100); rect.setHeight(200); rect.hoverProperty().addListener(new ChangeListener<Boolean>() { public void changed(ObservableValue<? extends Boolean> property, Boolean oldValue, Boolean value) { } }); Refers to the Rectangle.hoverProperty()

16. Observable Pseudo-Properties final Rectangle rect = new Rectangle(); rect.setX(40); rect.setY(40); rect.setWidth(100); rect.setHeight(200); rect.hoverProperty().addListener(new ChangeListener<Boolean>() { public void changed(ObservableValue<? extends Boolean> property, Boolean oldValue, Boolean value) { rect.setFill(rect.isHover() ? Color.GREEN : Color.RED); } });

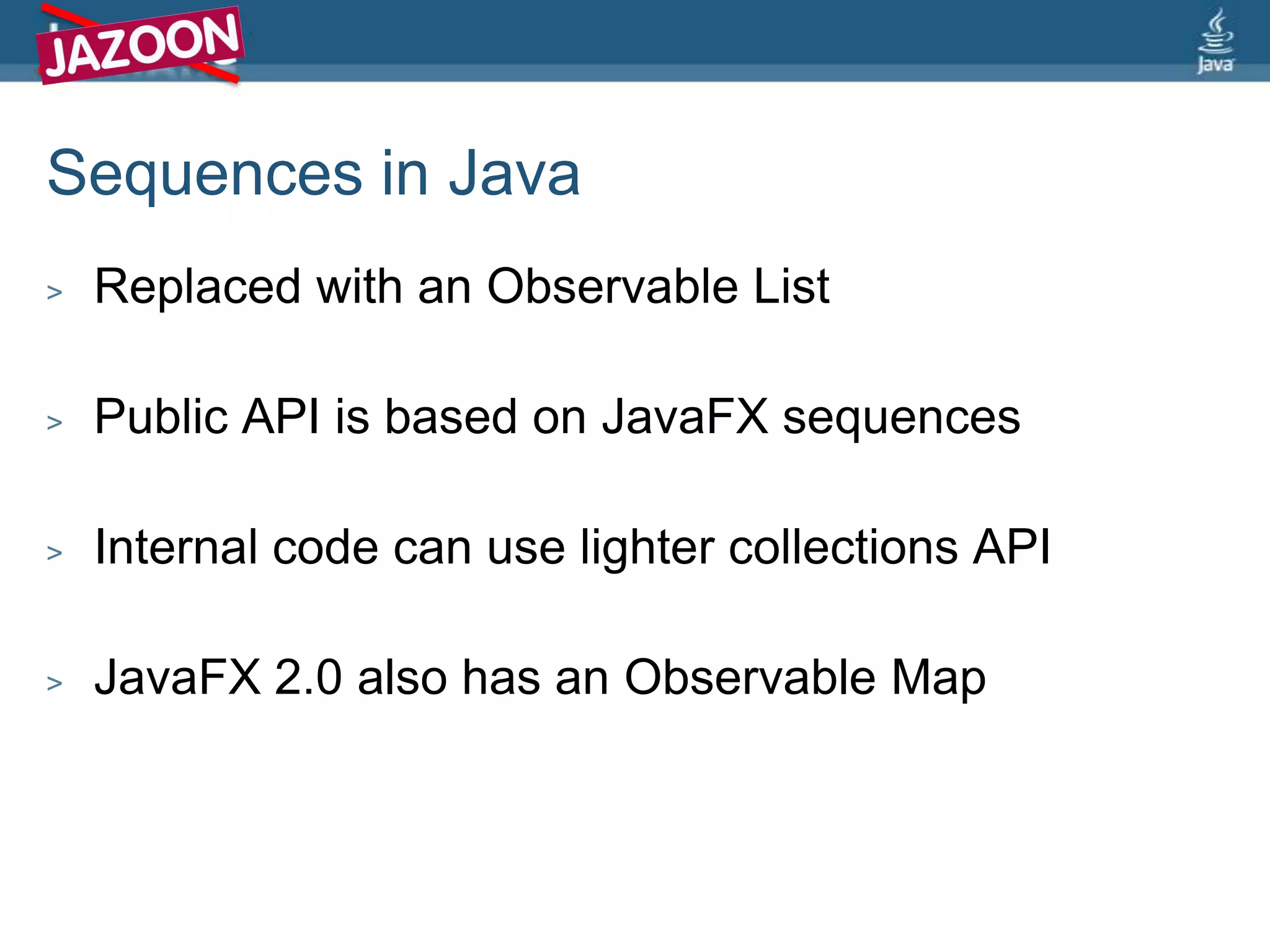

17. Sequences in Java Replaced with an Observable List Public API is based on JavaFX sequences Internal code can use lighter collections API JavaFX 2.0 also has an Observable Map

18. JavaFX With JRuby

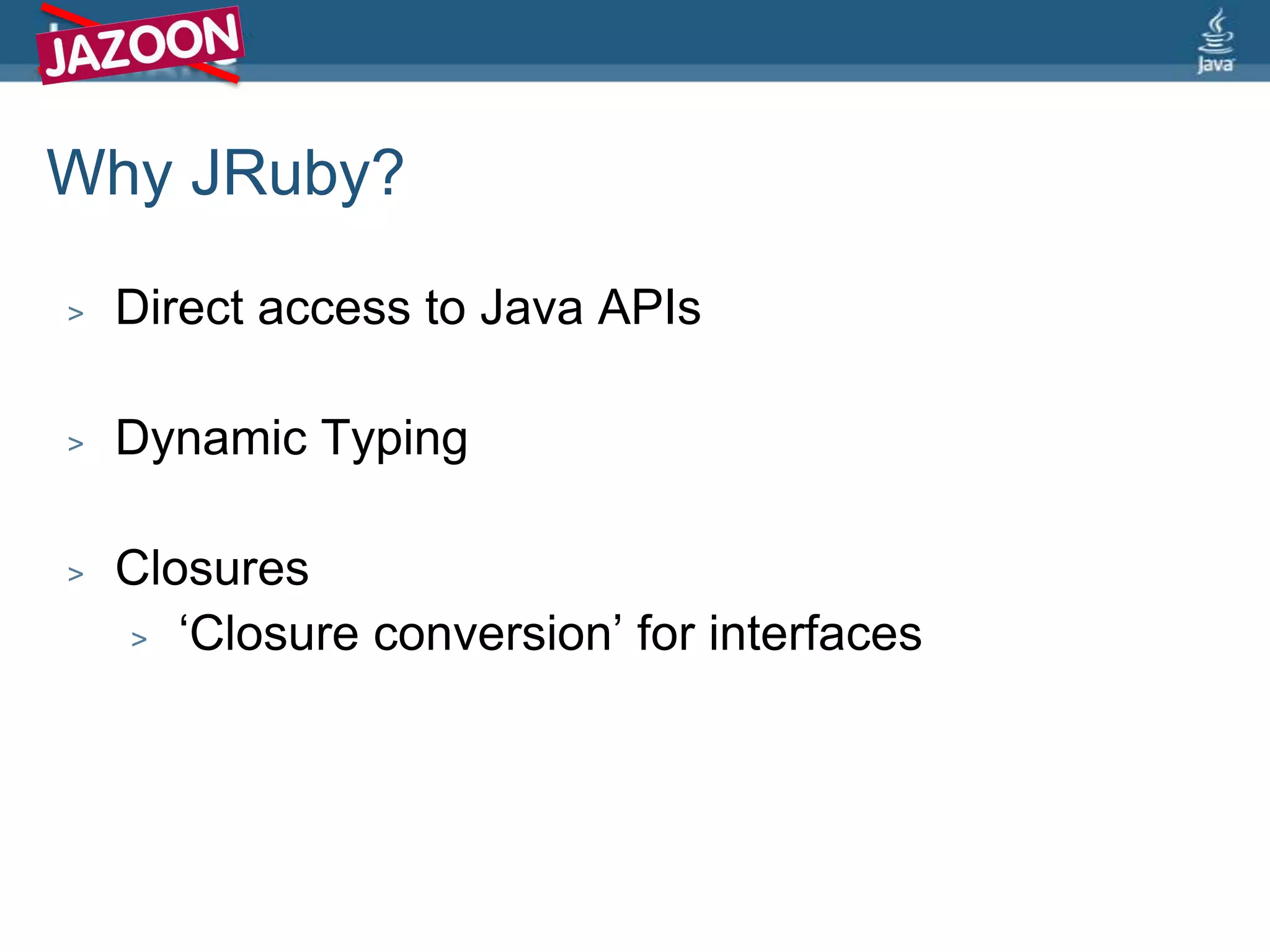

20. Dynamic Typing

21. Closures

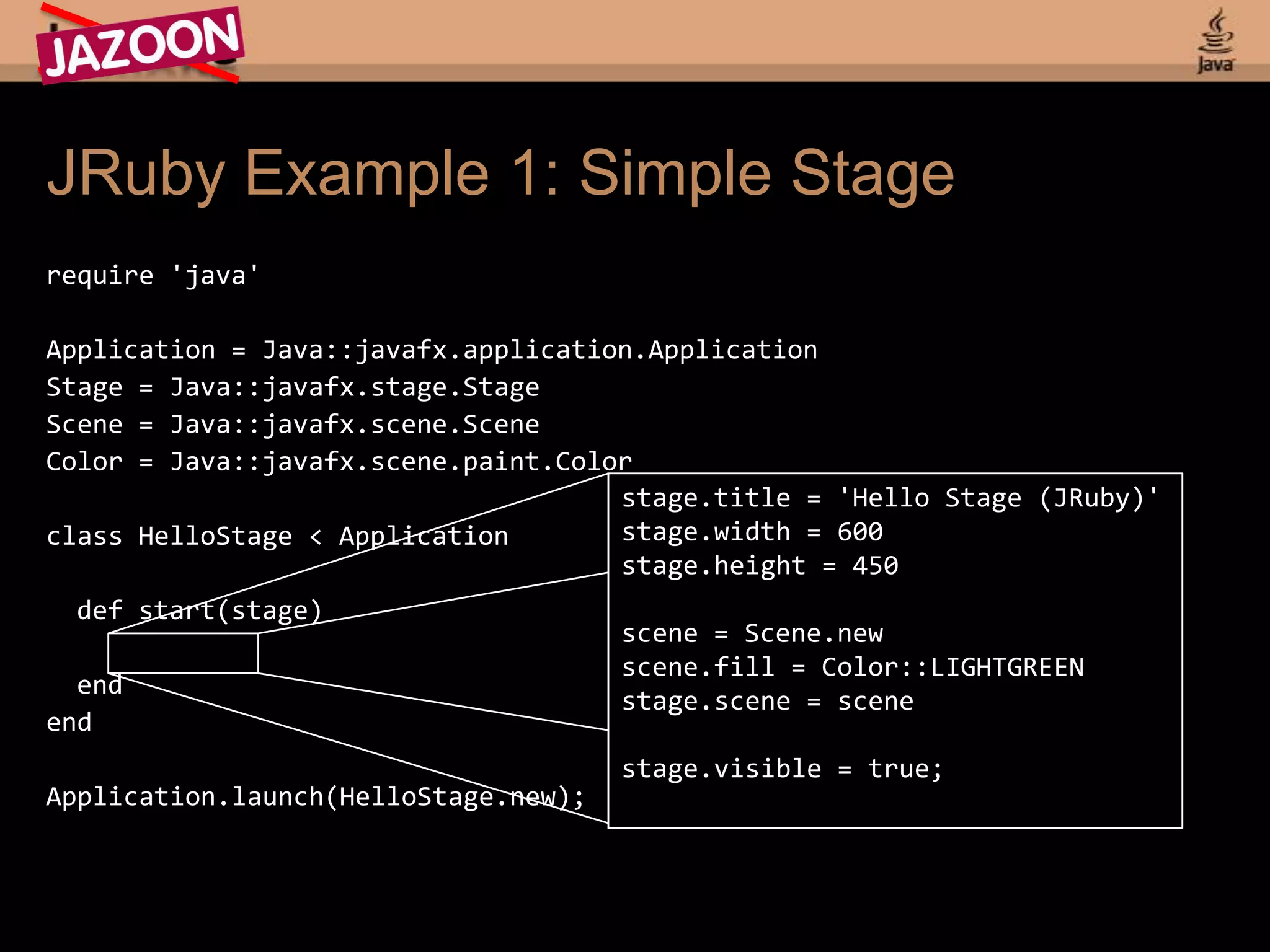

23. JRuby Example 1: Simple Stage require 'java' Application = Java::javafx.application.Application Stage = Java::javafx.stage.Stage Scene = Java::javafx.scene.Scene Color = Java::javafx.scene.paint.Color class HelloStage< Application def start(stage) ..... end end Application.launch(HelloStage.new); stage.title = 'Hello Stage (JRuby)' stage.width = 600 stage.height = 450 scene = Scene.new scene.fill = Color::LIGHTGREEN stage.scene = scene stage.visible = true;

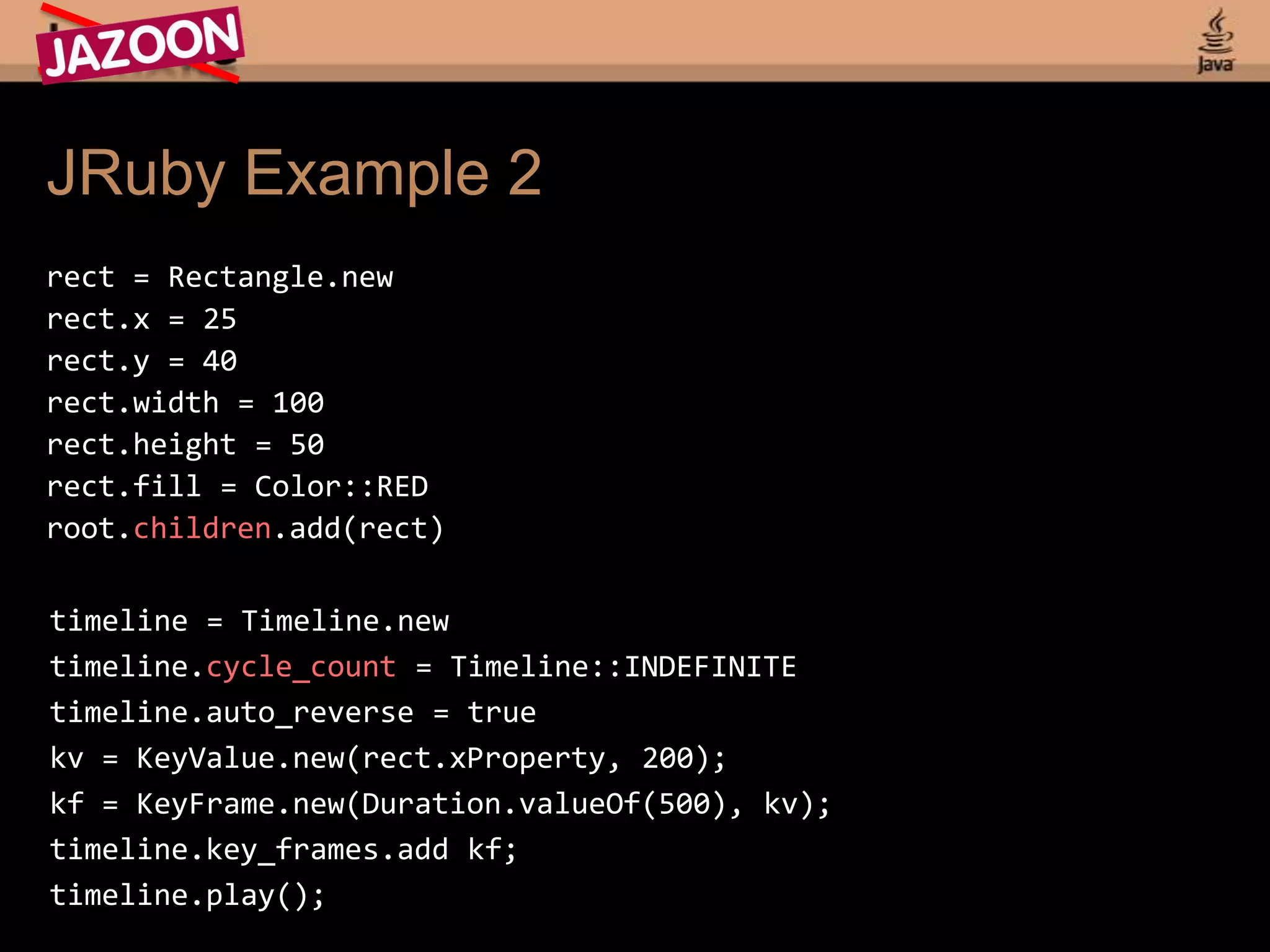

24. JRuby Example 2 rect = Rectangle.new rect.x = 25 rect.y = 40 rect.width = 100 rect.height = 50 rect.fill = Color::RED root.children.add(rect) timeline = Timeline.new timeline.cycle_count= Timeline::INDEFINITE timeline.auto_reverse = true kv = KeyValue.new(rect.xProperty, 200); kf = KeyFrame.new(Duration.valueOf(500), kv); timeline.key_frames.addkf; timeline.play();

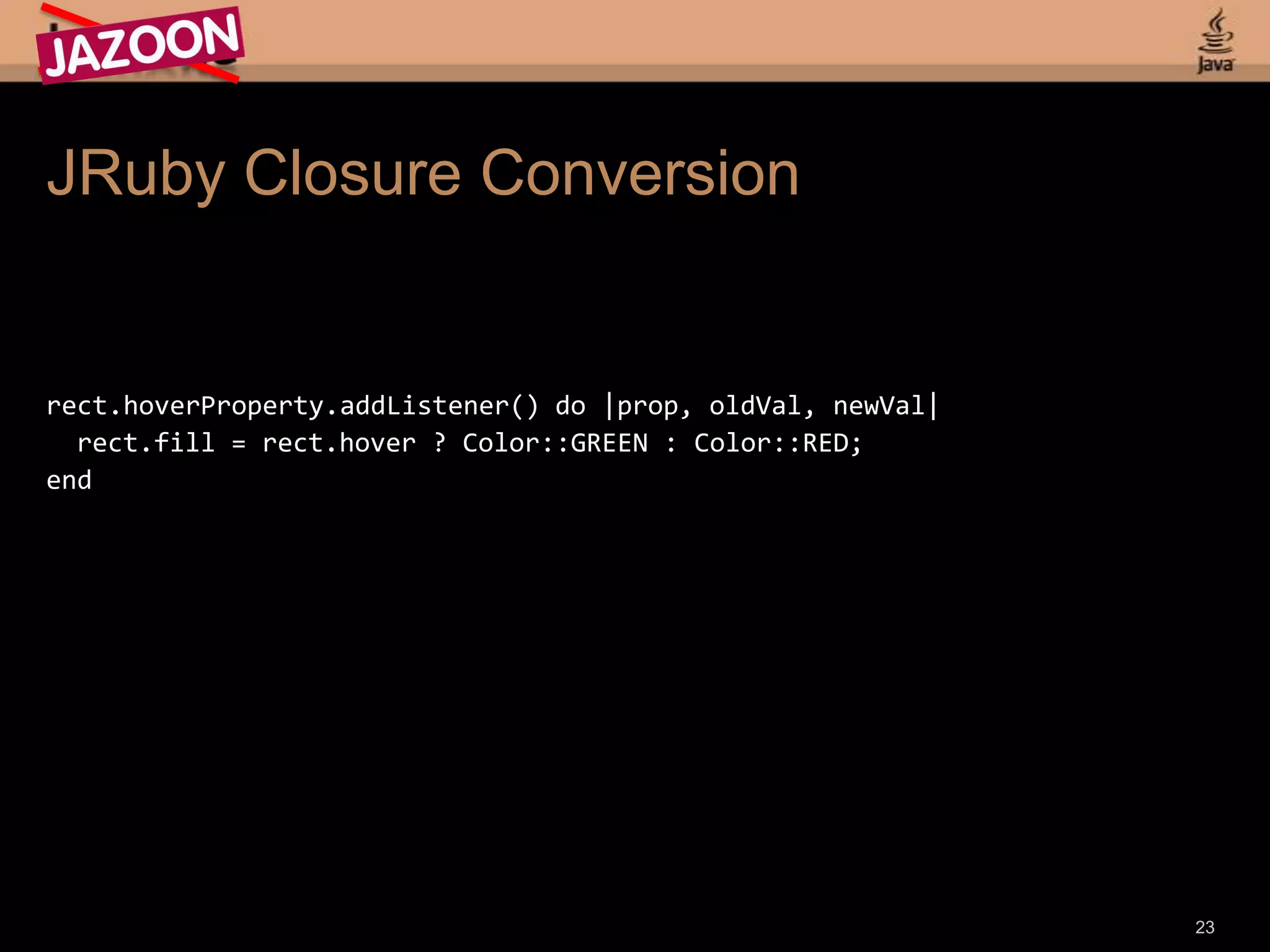

25. JRuby Closure Conversion rect.hoverProperty.addListener() do |prop, oldVal, newVal| rect.fill = rect.hover ? Color::GREEN : Color::RED; end 23

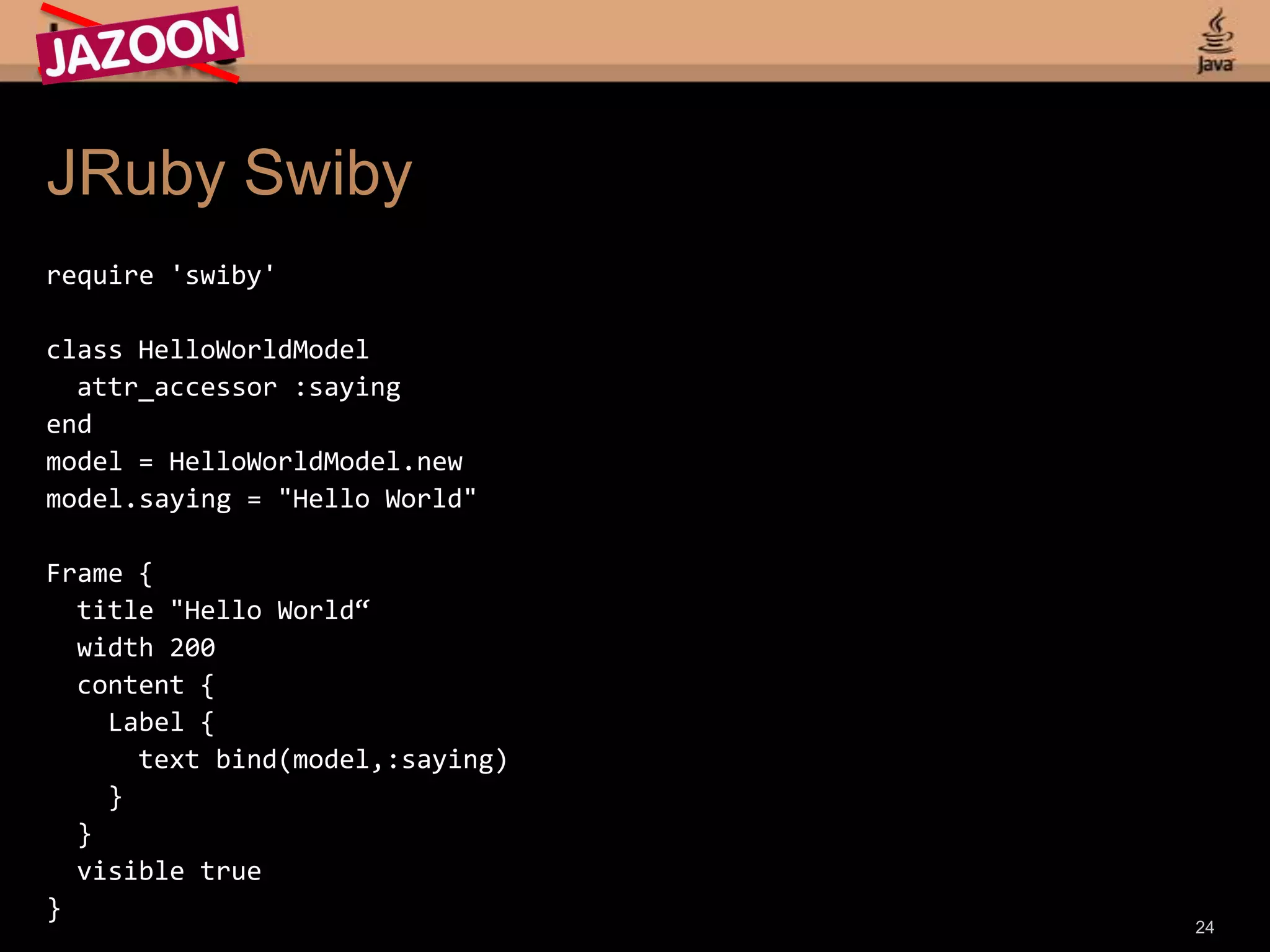

26. JRubySwiby require 'swiby' class HelloWorldModel attr_accessor :saying end model = HelloWorldModel.new model.saying = "Hello World" Frame { title "Hello World“ width 200 content { Label { text bind(model,:saying) } } visible true } 24

27. 25 JavaFX With Clojure Artwork by Augusto Sellhorn http://sellmic.com/

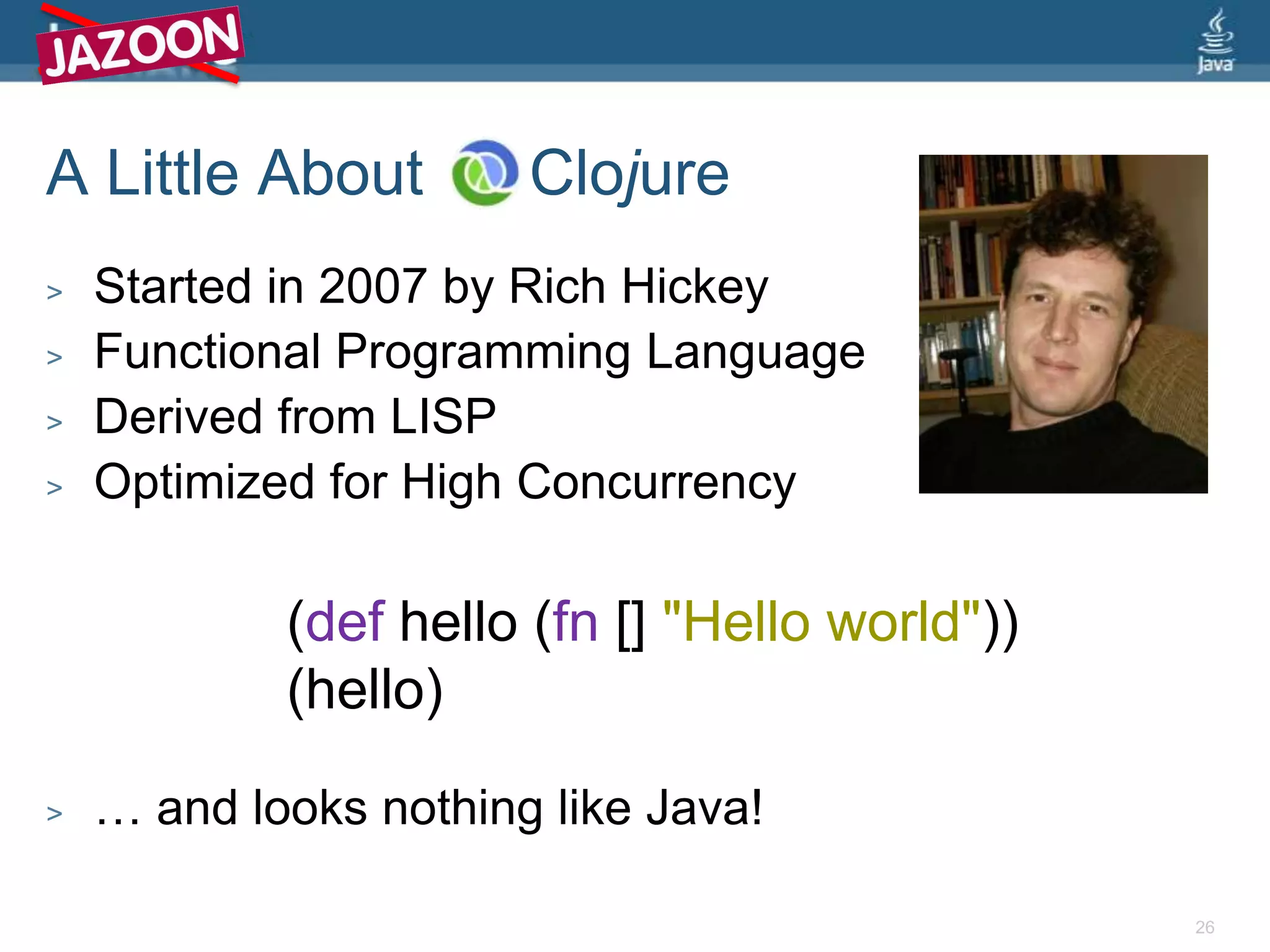

28. A Little About Clojure Started in 2007 by Rich Hickey Functional Programming Language Derived from LISP Optimized for High Concurrency … and looks nothing like Java! 26 (def hello (fn [] "Hello world")) (hello)

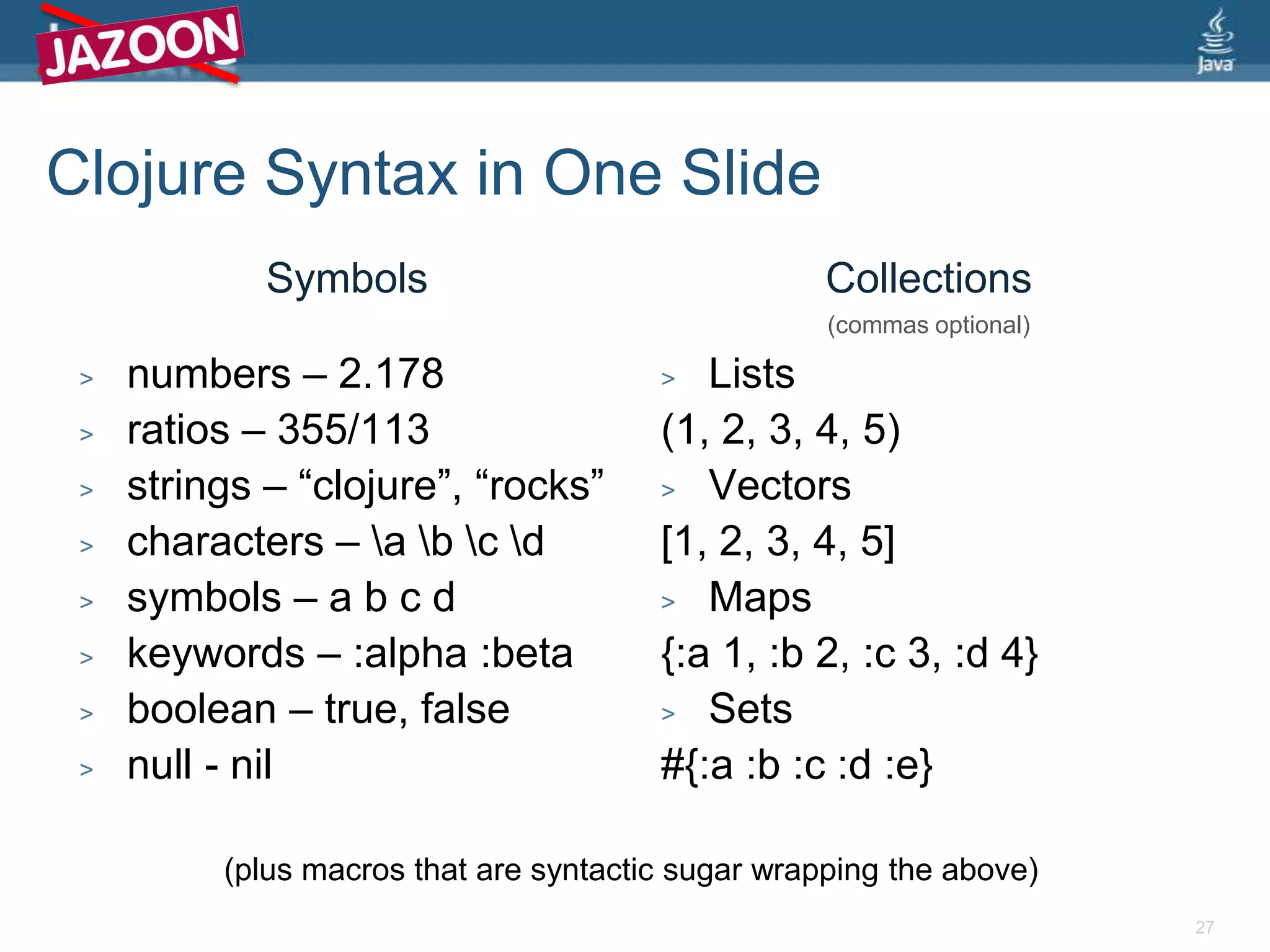

29. Clojure Syntax in One Slide Symbols numbers – 2.178 ratios – 355/113 strings – “clojure”, “rocks” characters – symbols – a b c d keywords – :alpha :beta boolean – true, false null - nil Collections (commas optional) Lists (1, 2, 3, 4, 5) Vectors [1, 2, 3, 4, 5] Maps {:a 1, :b 2, :c 3, :d 4} Sets #{:a :b :c :d :e} 27 (plus macros that are syntactic sugar wrapping the above)

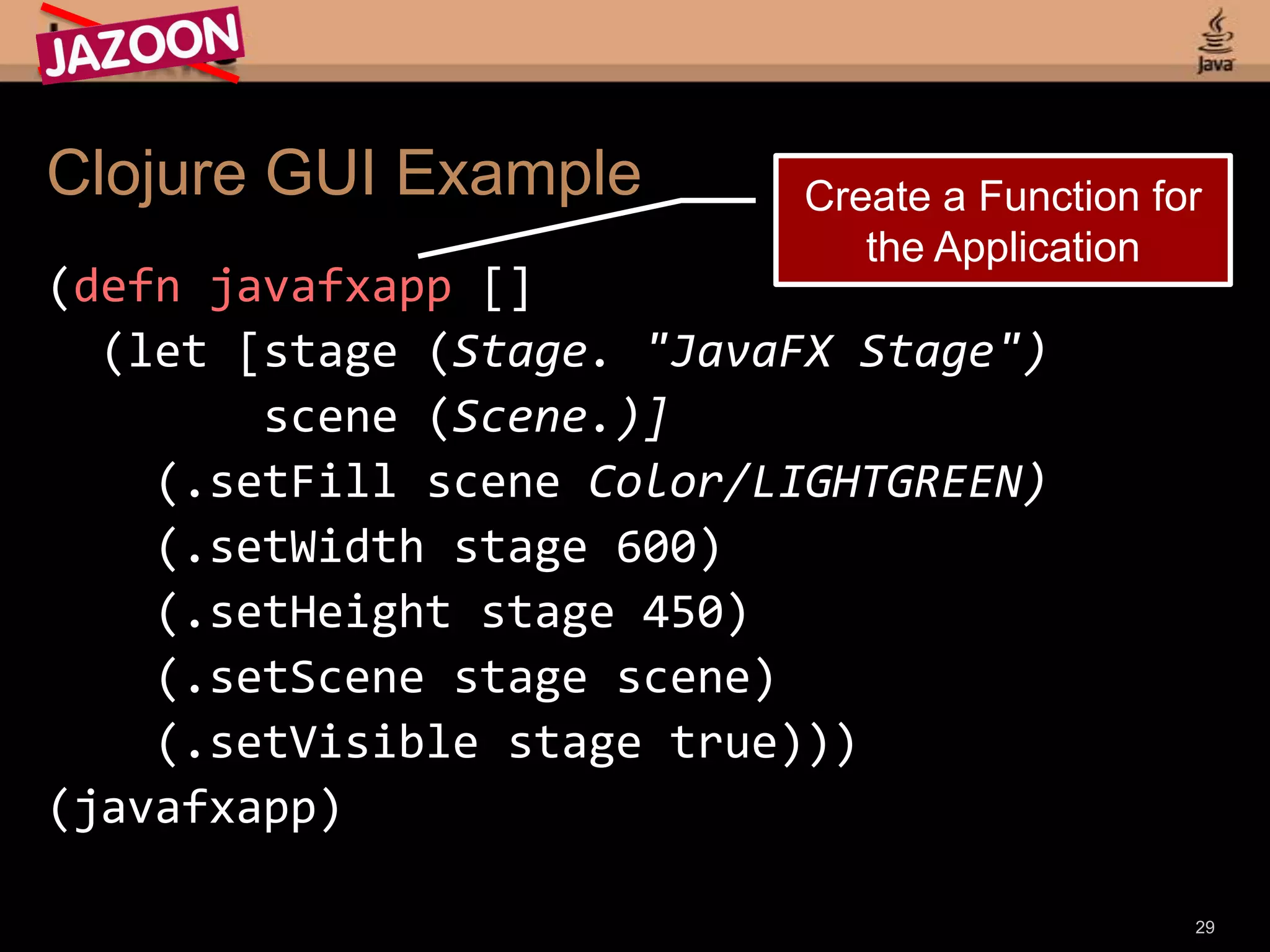

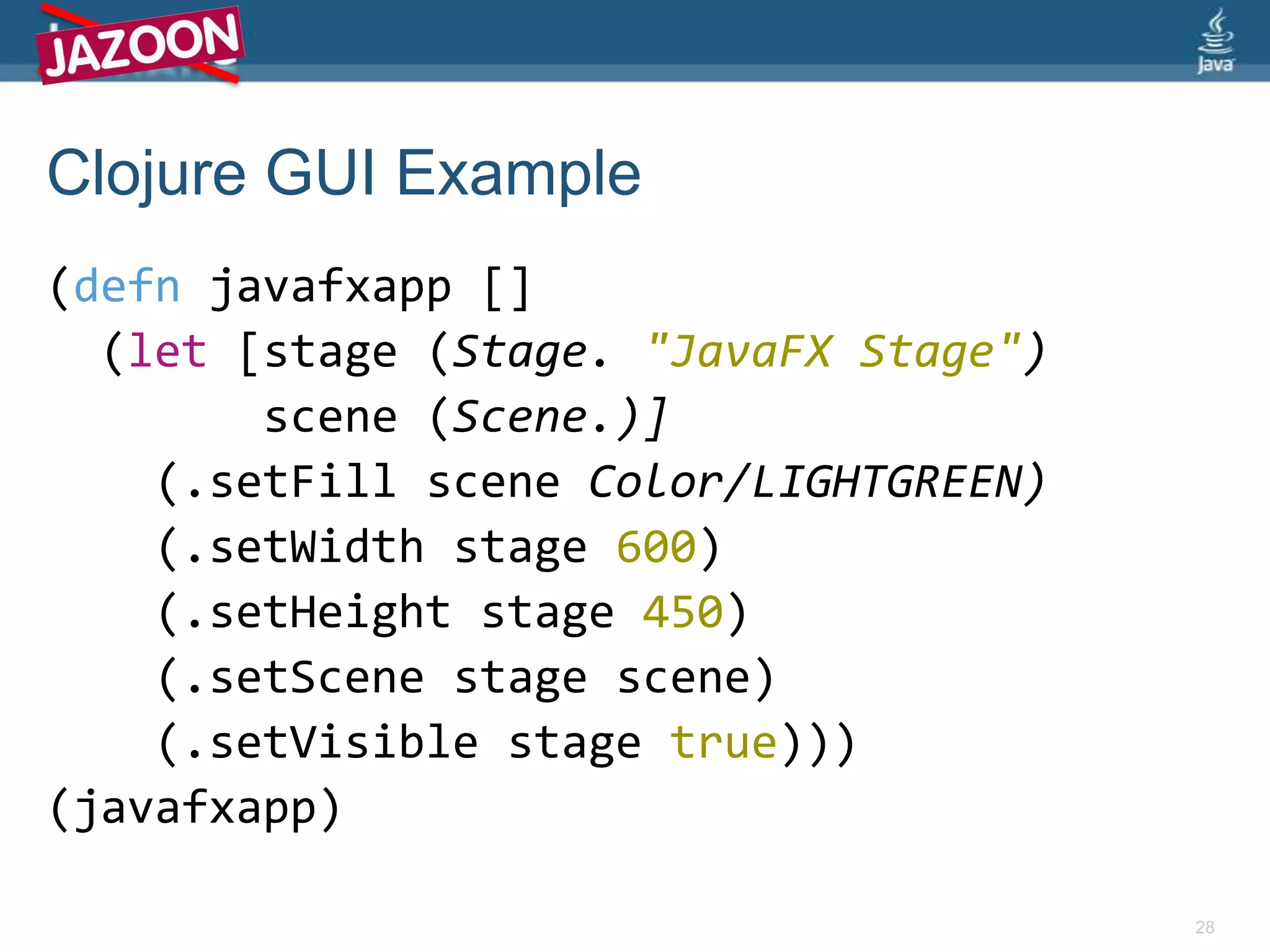

30. Clojure GUI Example (defnjavafxapp [] (let [stage (Stage. "JavaFX Stage") scene (Scene.)] (.setFill scene Color/LIGHTGREEN) (.setWidth stage 600) (.setHeight stage 450) (.setScene stage scene) (.setVisible stage true))) (javafxapp) 28

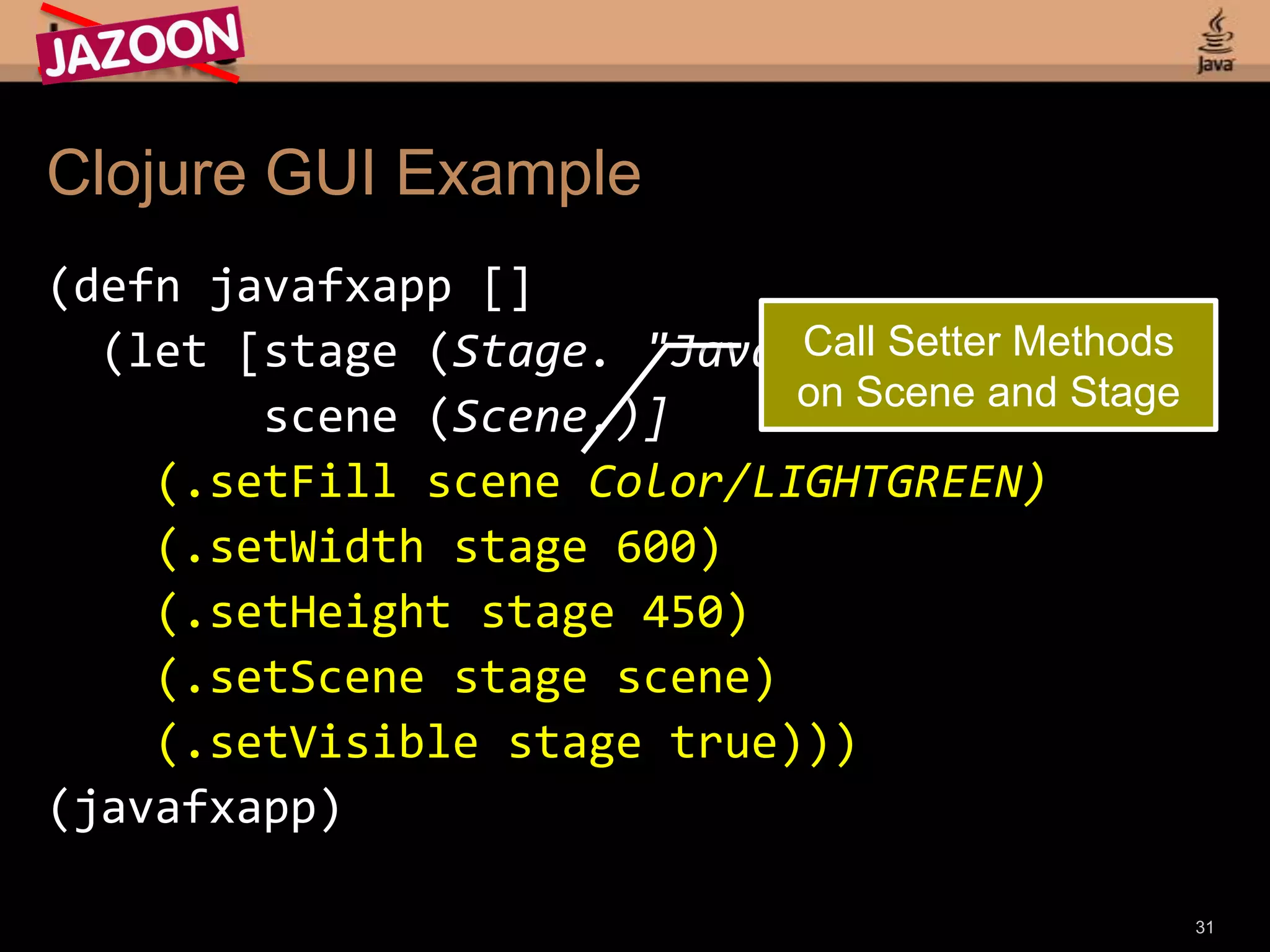

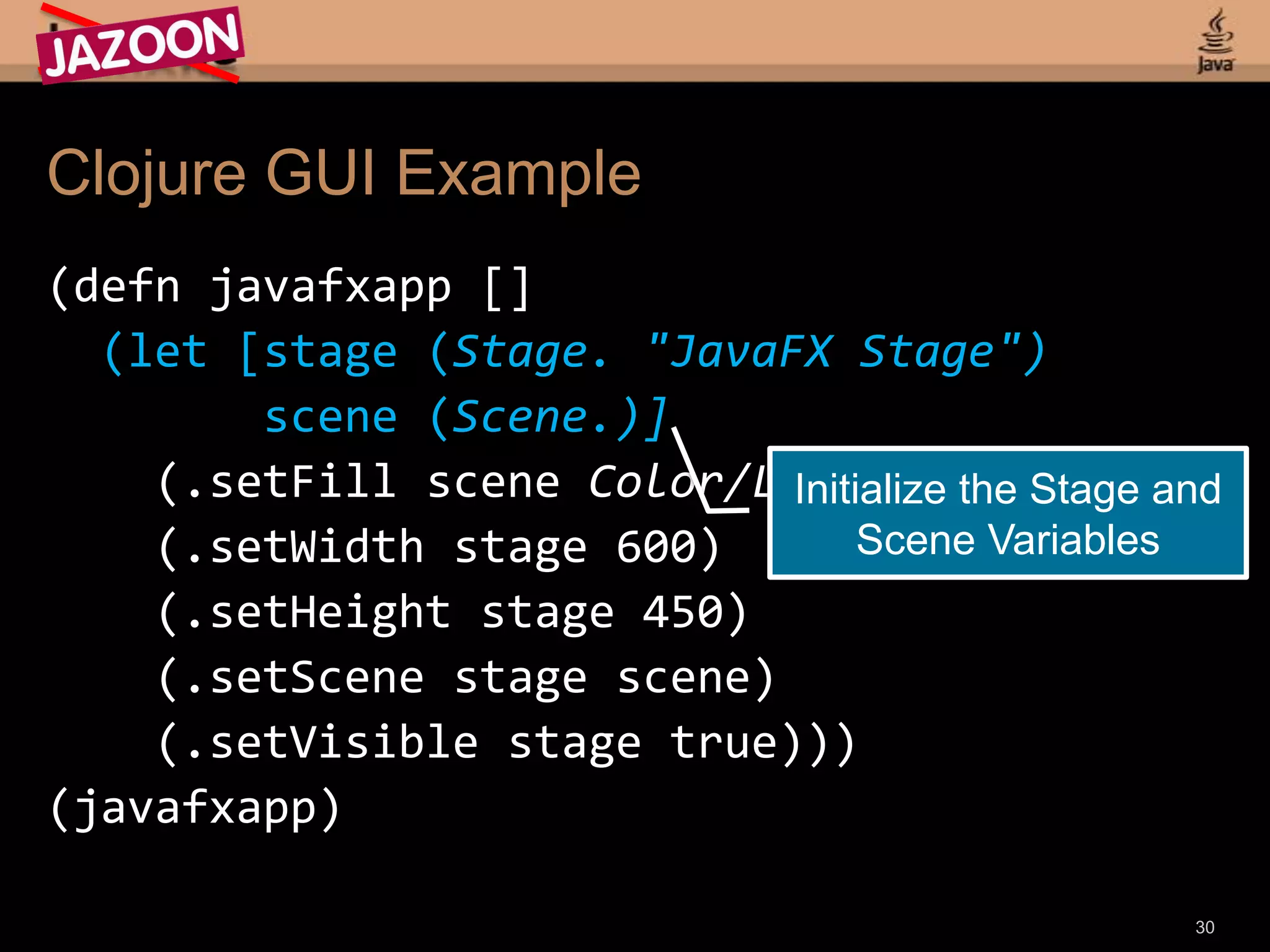

31. Clojure GUI Example (defnjavafxapp[] (let [stage (Stage. "JavaFX Stage") scene (Scene.)] (.setFill scene Color/LIGHTGREEN) (.setWidth stage 600) (.setHeight stage 450) (.setScene stage scene) (.setVisible stage true))) (javafxapp) 29 Create a Function for the Application

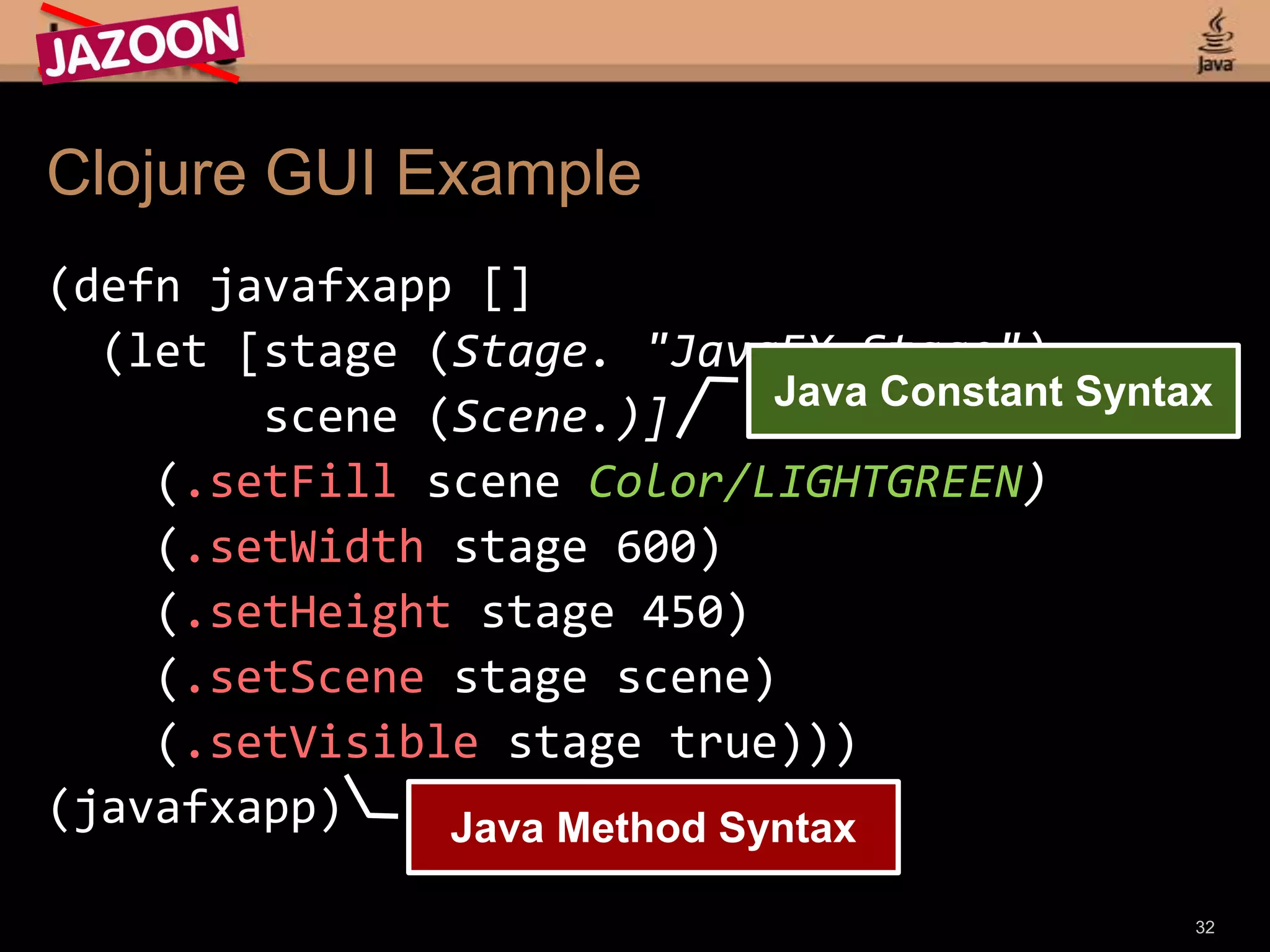

32. Clojure GUI Example (defnjavafxapp [] (let [stage (Stage. "JavaFX Stage") scene (Scene.)] (.setFill scene Color/LIGHTGREEN) (.setWidth stage 600) (.setHeight stage 450) (.setScene stage scene) (.setVisible stage true))) (javafxapp) 30 Initialize the Stage and Scene Variables

33. Clojure GUI Example (defnjavafxapp [] (let [stage (Stage. "JavaFX Stage") scene (Scene.)] (.setFill scene Color/LIGHTGREEN) (.setWidth stage 600) (.setHeight stage 450) (.setScene stage scene) (.setVisible stage true))) (javafxapp) 31 Call Setter Methods on Scene and Stage

34. Clojure GUI Example (defnjavafxapp [] (let [stage (Stage. "JavaFX Stage") scene (Scene.)] (.setFillscene Color/LIGHTGREEN) (.setWidthstage 600) (.setHeightstage 450) (.setScenestage scene) (.setVisiblestage true))) (javafxapp) 32 Java Constant Syntax Java Method Syntax

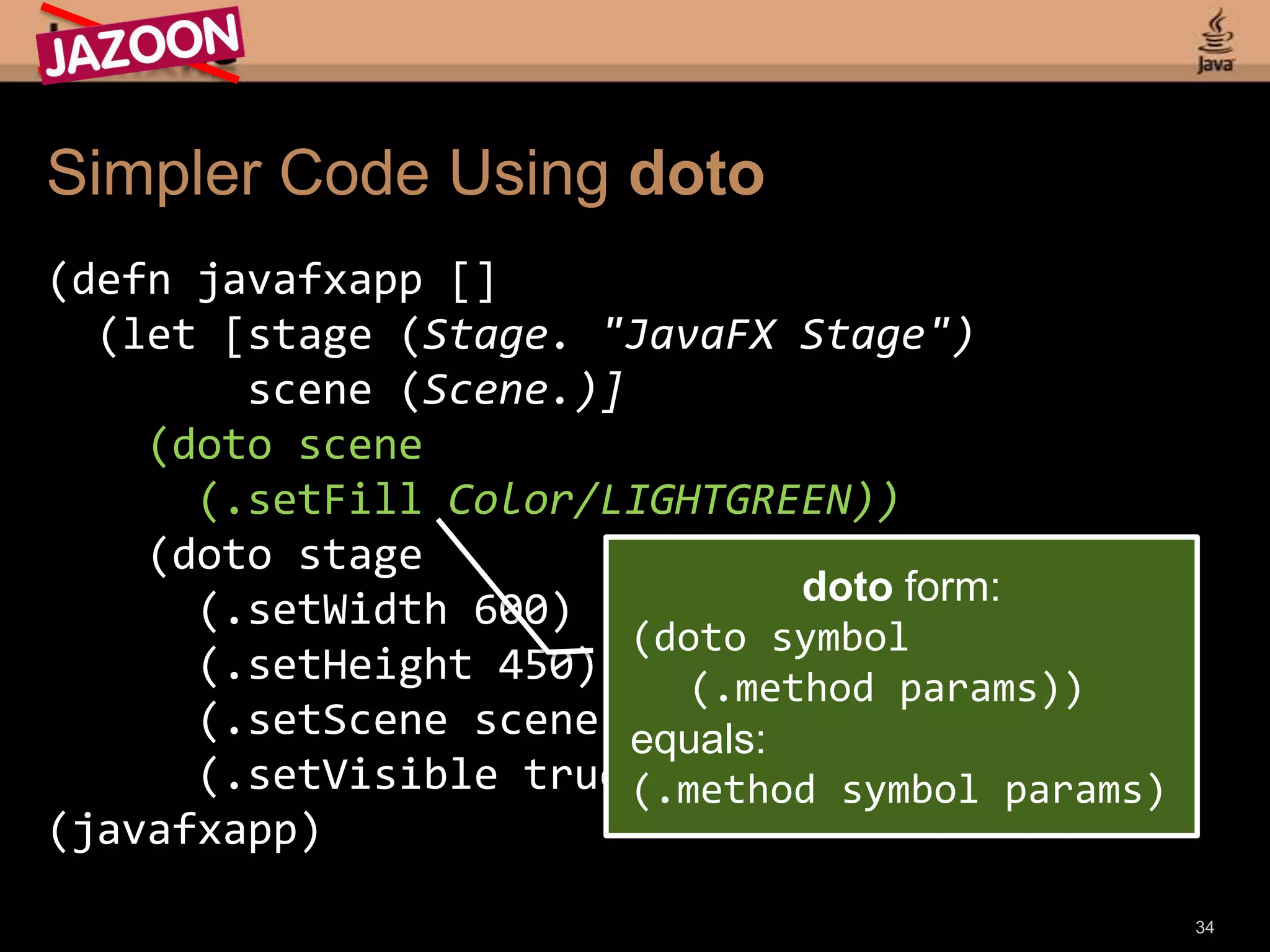

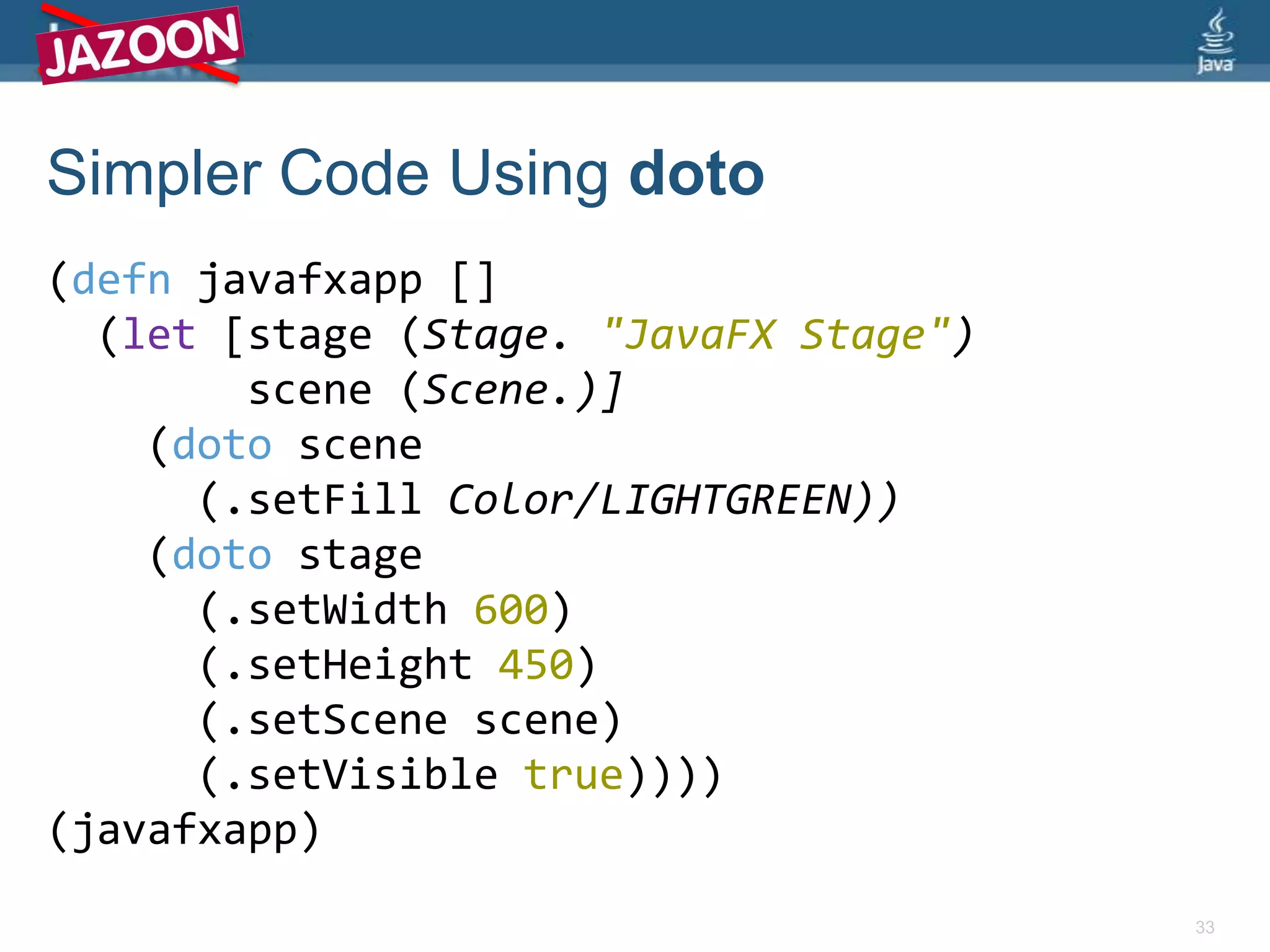

35. Simpler Code Using doto (defnjavafxapp [] (let [stage (Stage. "JavaFX Stage") scene (Scene.)] (doto scene (.setFillColor/LIGHTGREEN)) (doto stage (.setWidth600) (.setHeight450) (.setScene scene) (.setVisibletrue)))) (javafxapp) 33

36. Simpler Code Using doto (defnjavafxapp [] (let [stage (Stage. "JavaFX Stage") scene (Scene.)] (doto scene (.setFillColor/LIGHTGREEN)) (doto stage (.setWidth 600) (.setHeight 450) (.setScene scene) (.setVisible true)))) (javafxapp) 34 doto form: (doto symbol (.method params)) equals: (.method symbol params)

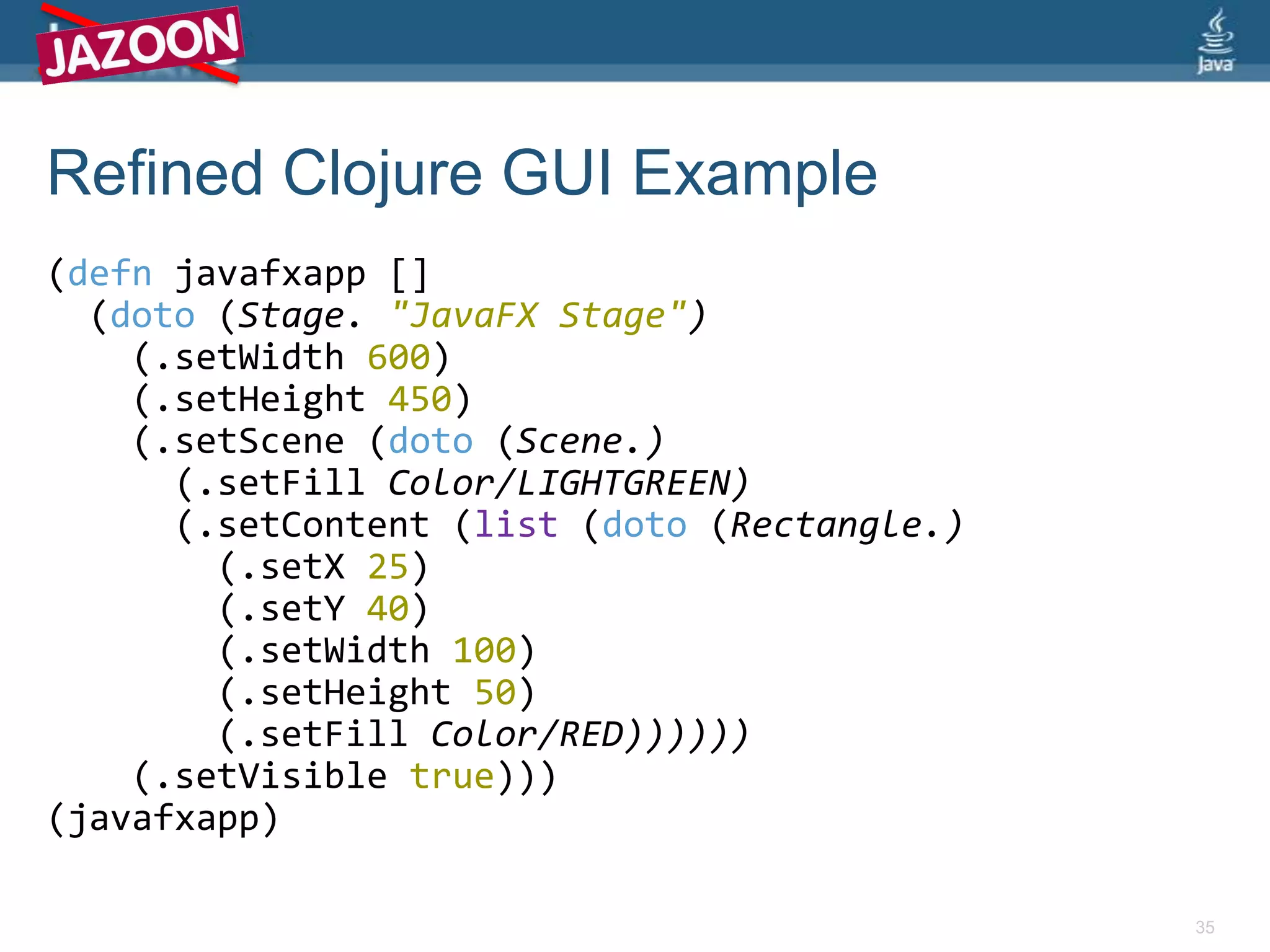

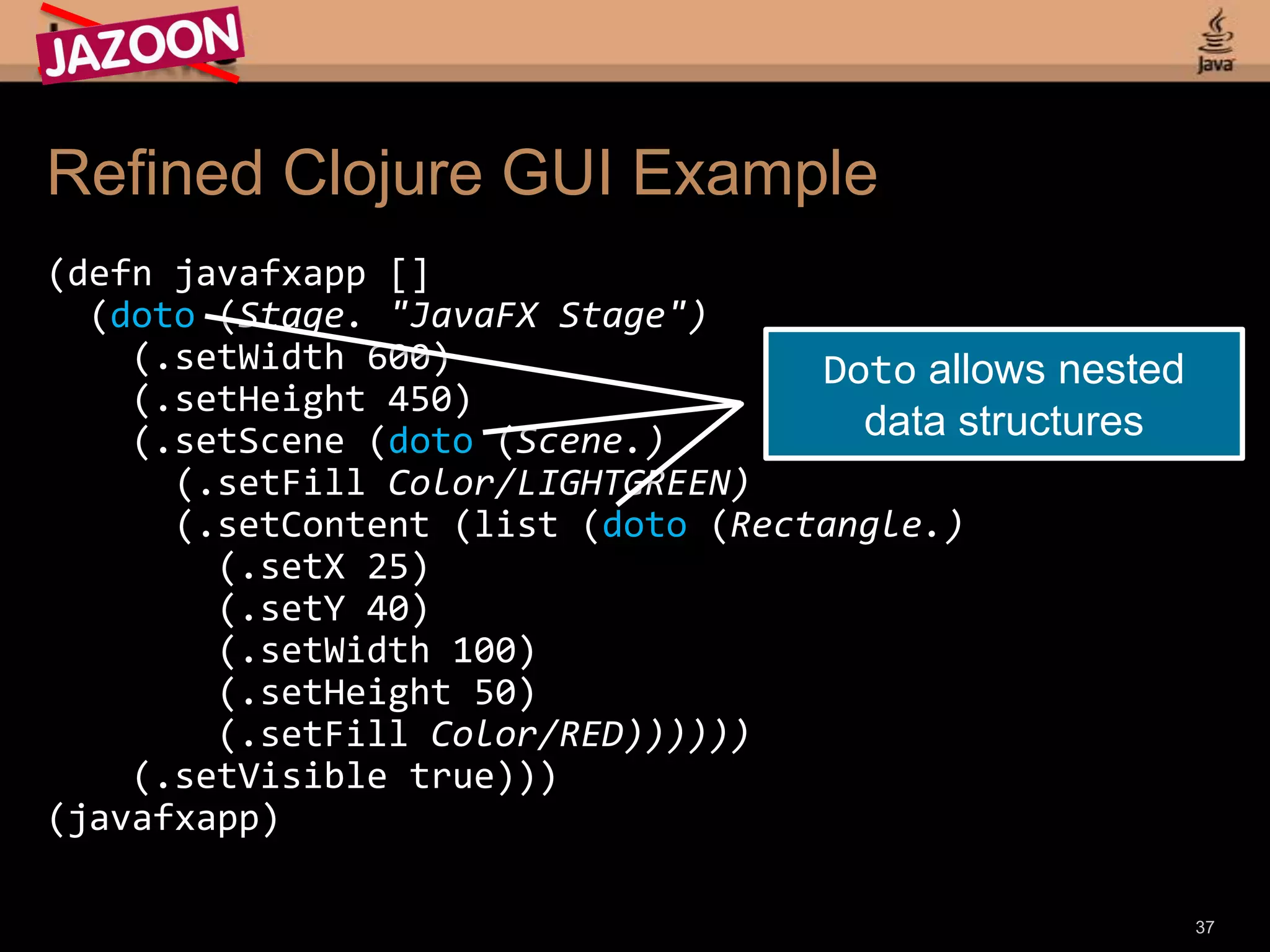

37. Refined Clojure GUI Example (defnjavafxapp [] (doto (Stage. "JavaFX Stage") (.setWidth600) (.setHeight450) (.setScene (doto (Scene.) (.setFillColor/LIGHTGREEN) (.setContent (list (doto (Rectangle.) (.setX25) (.setY40) (.setWidth100) (.setHeight50) (.setFillColor/RED)))))) (.setVisibletrue))) (javafxapp) 35

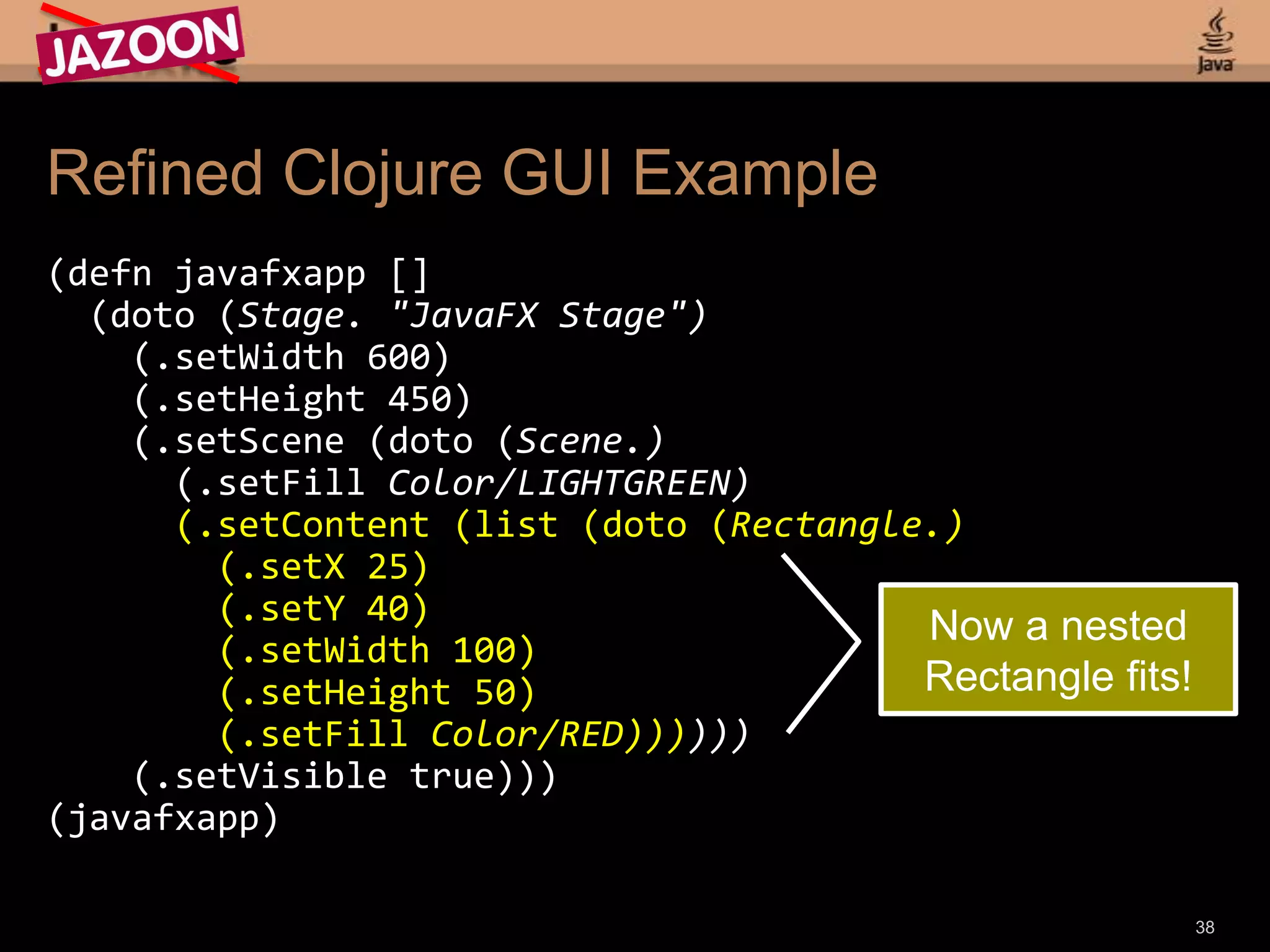

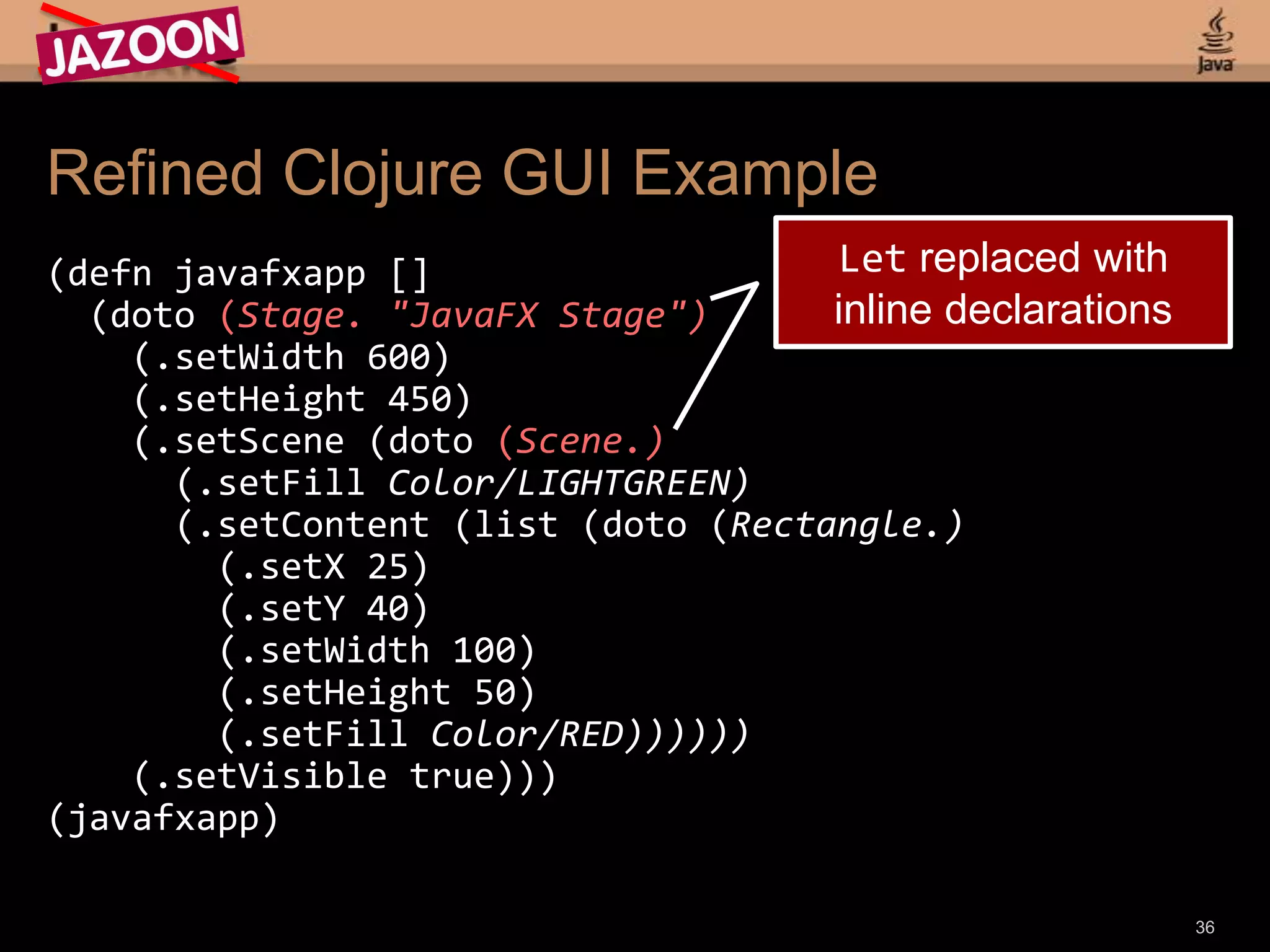

38. Refined Clojure GUI Example (defnjavafxapp [] (doto(Stage. "JavaFX Stage") (.setWidth 600) (.setHeight 450) (.setScene (doto(Scene.) (.setFillColor/LIGHTGREEN) (.setContent (list (doto (Rectangle.) (.setX 25) (.setY 40) (.setWidth 100) (.setHeight 50) (.setFillColor/RED)))))) (.setVisible true))) (javafxapp) 36 Let replaced with inline declarations

39. Refined Clojure GUI Example (defnjavafxapp [] (doto (Stage. "JavaFX Stage") (.setWidth 600) (.setHeight 450) (.setScene (doto (Scene.) (.setFillColor/LIGHTGREEN) (.setContent (list (doto (Rectangle.) (.setX 25) (.setY 40) (.setWidth 100) (.setHeight 50) (.setFillColor/RED)))))) (.setVisible true))) (javafxapp) 37 Doto allows nested data structures

40. Refined Clojure GUI Example (defnjavafxapp [] (doto (Stage. "JavaFX Stage") (.setWidth 600) (.setHeight 450) (.setScene (doto (Scene.) (.setFillColor/LIGHTGREEN) (.setContent (list (doto (Rectangle.) (.setX 25) (.setY 40) (.setWidth 100) (.setHeight 50) (.setFillColor/RED)))))) (.setVisible true))) (javafxapp) 38 Now a nested Rectangle fits!

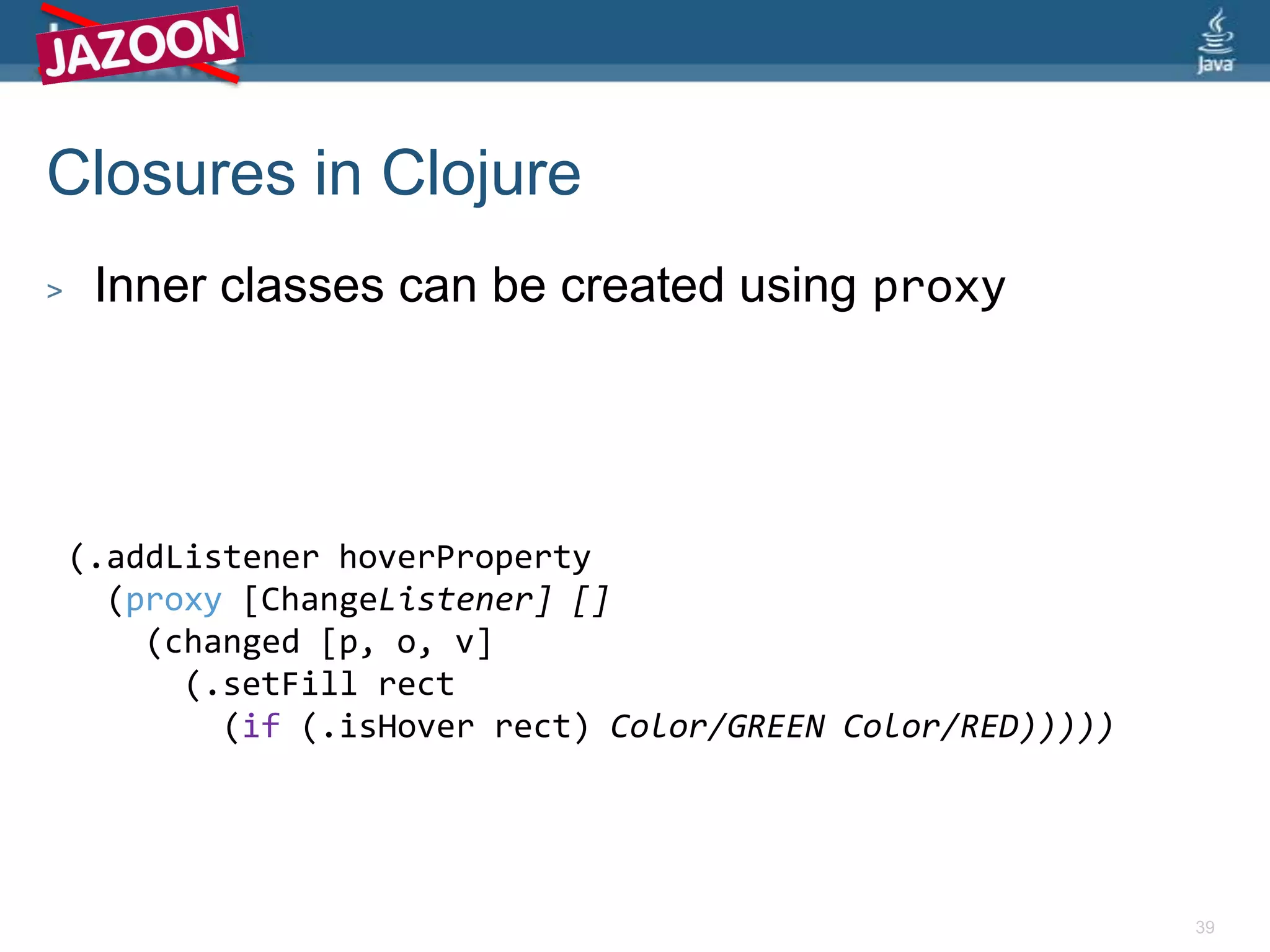

41. Closures in Clojure 39 Inner classes can be created using proxy (.addListenerhoverProperty (proxy [ChangeListener] [] (changed [p, o, v] (.setFillrect (if (.isHoverrect) Color/GREEN Color/RED)))))

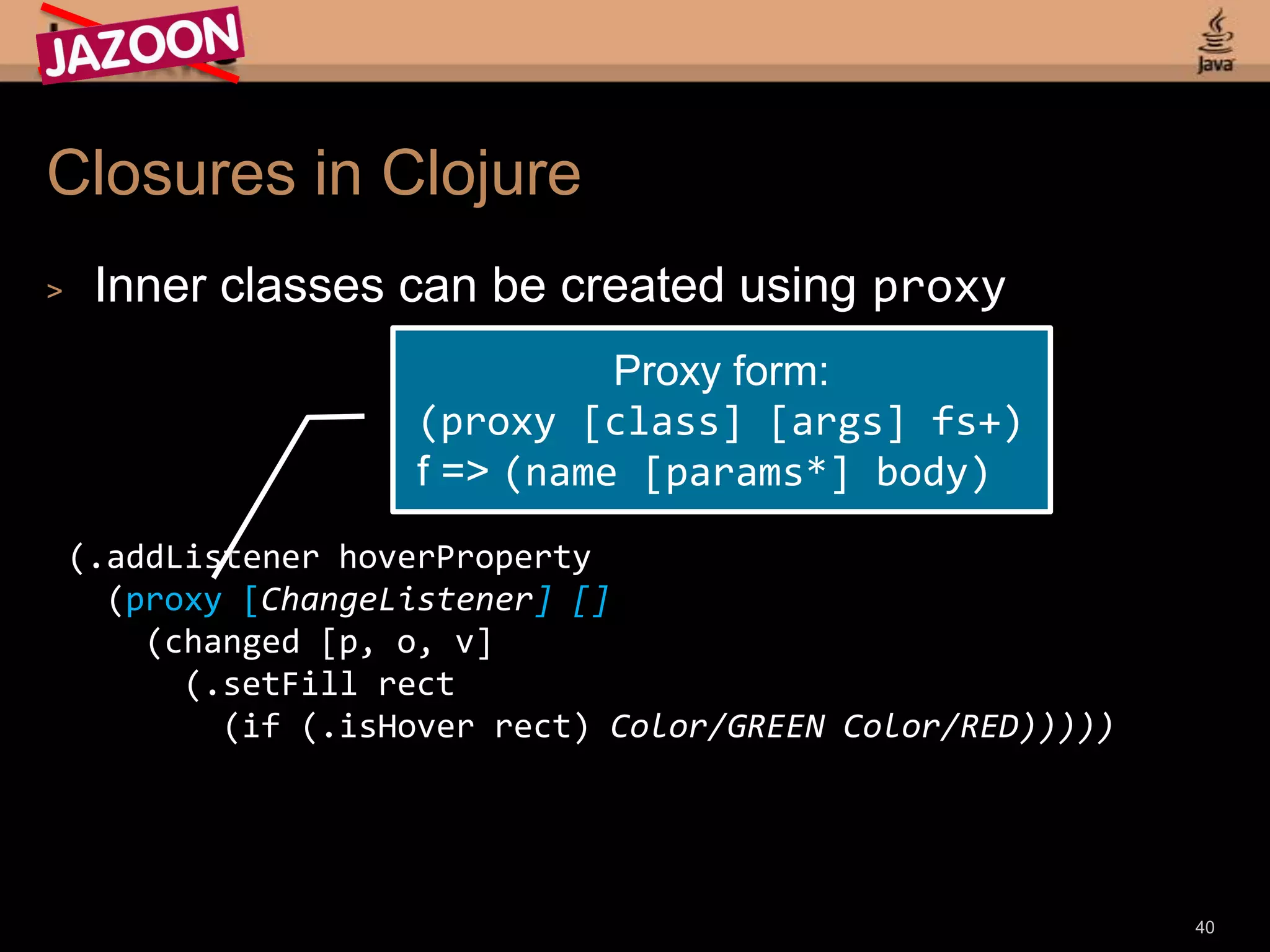

42. Closures in Clojure Inner classes can be created using proxy 40 Proxy form: (proxy [class] [args] fs+) f => (name [params*] body) (.addListenerhoverProperty (proxy[ChangeListener][] (changed [p, o, v] (.setFillrect (if (.isHoverrect) Color/GREEN Color/RED)))))

43. JavaFX With Groovy

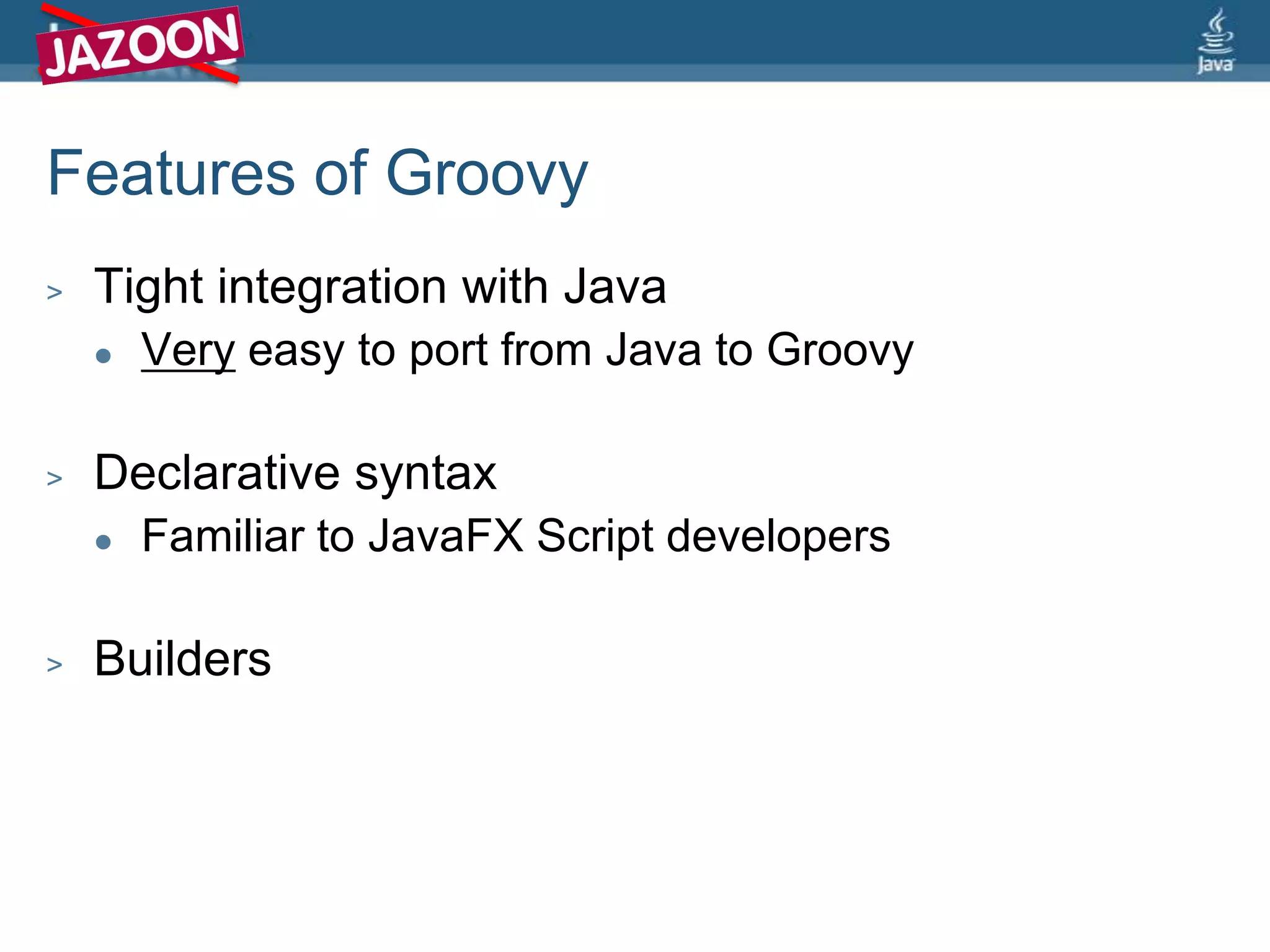

44. Features of Groovy Tight integration with Java Very easy to port from Java to Groovy Declarative syntax Familiar to JavaFX Script developers Builders

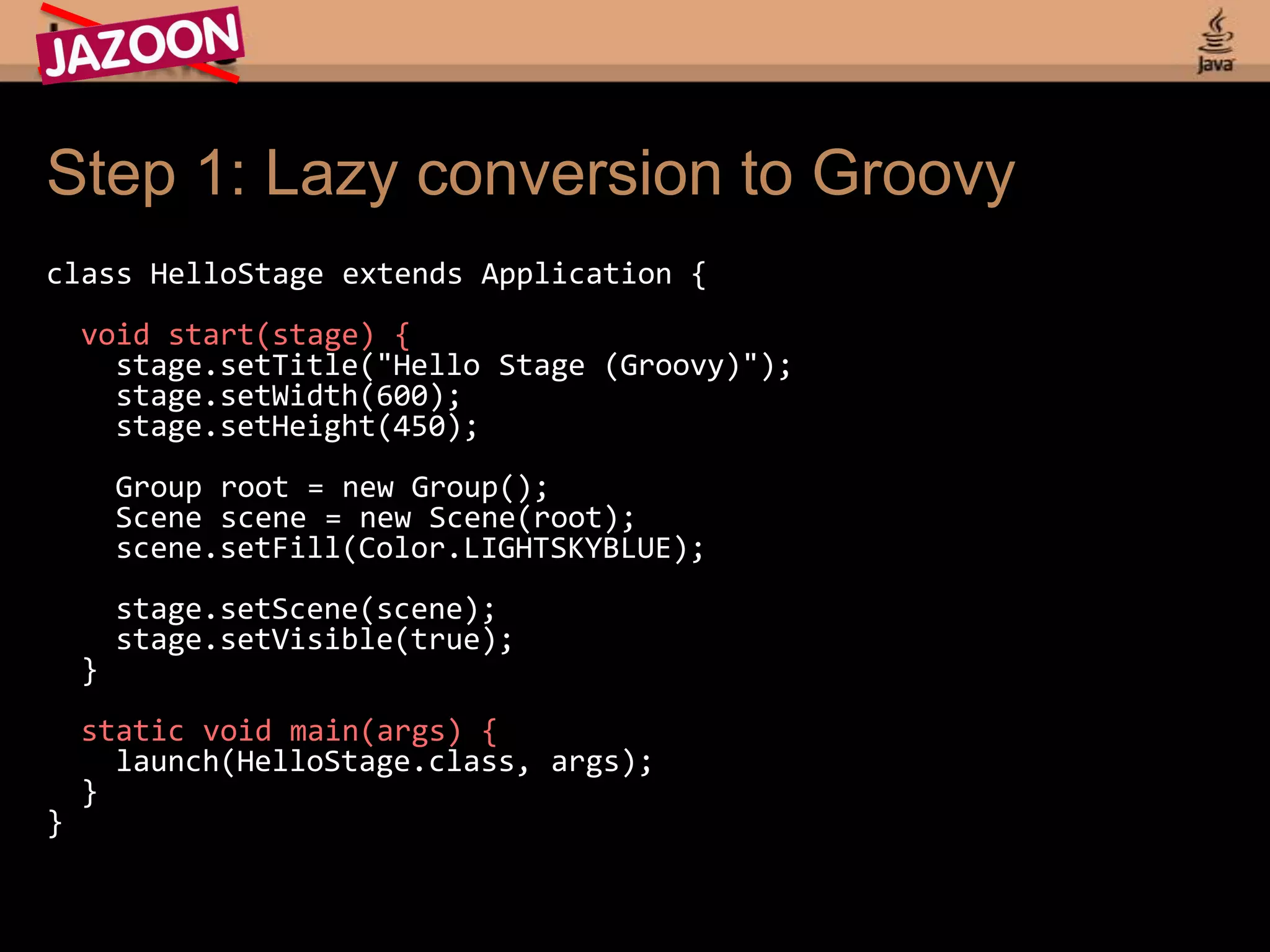

45. Step 1: Lazy conversion to Groovy class HelloStage extends Application { void start(stage) { stage.setTitle("Hello Stage (Groovy)"); stage.setWidth(600); stage.setHeight(450); Group root = new Group(); Scene scene = new Scene(root); scene.setFill(Color.LIGHTSKYBLUE); stage.setScene(scene); stage.setVisible(true); } static void main(args) { launch(HelloStage.class, args); } }

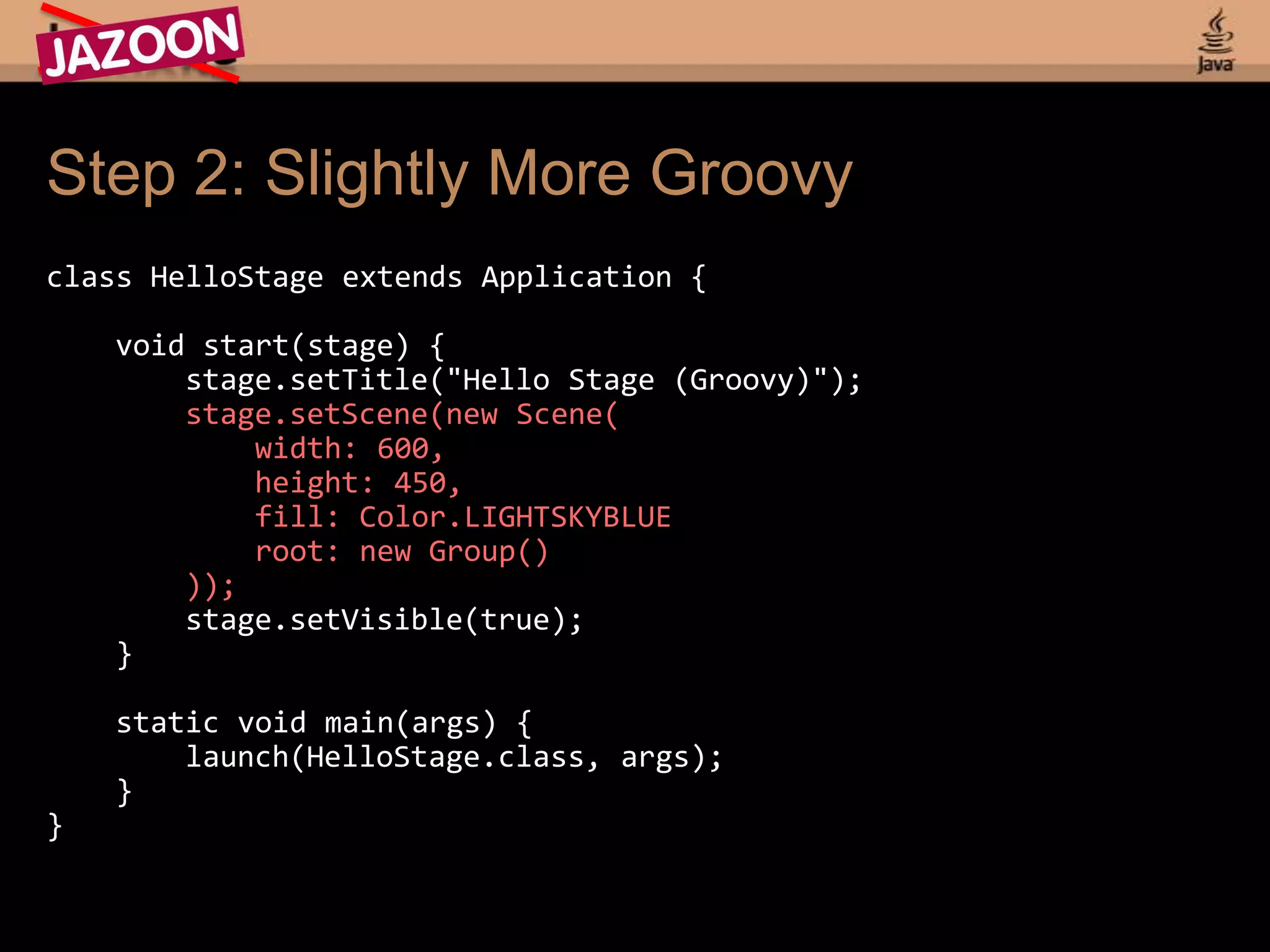

46. Step 2: Slightly More Groovy class HelloStage extends Application { void start(stage) { stage.setTitle("Hello Stage (Groovy)"); stage.setScene(new Scene( width: 600, height: 450, fill: Color.LIGHTSKYBLUE root: new Group() )); stage.setVisible(true); } static void main(args) { launch(HelloStage.class, args); } }

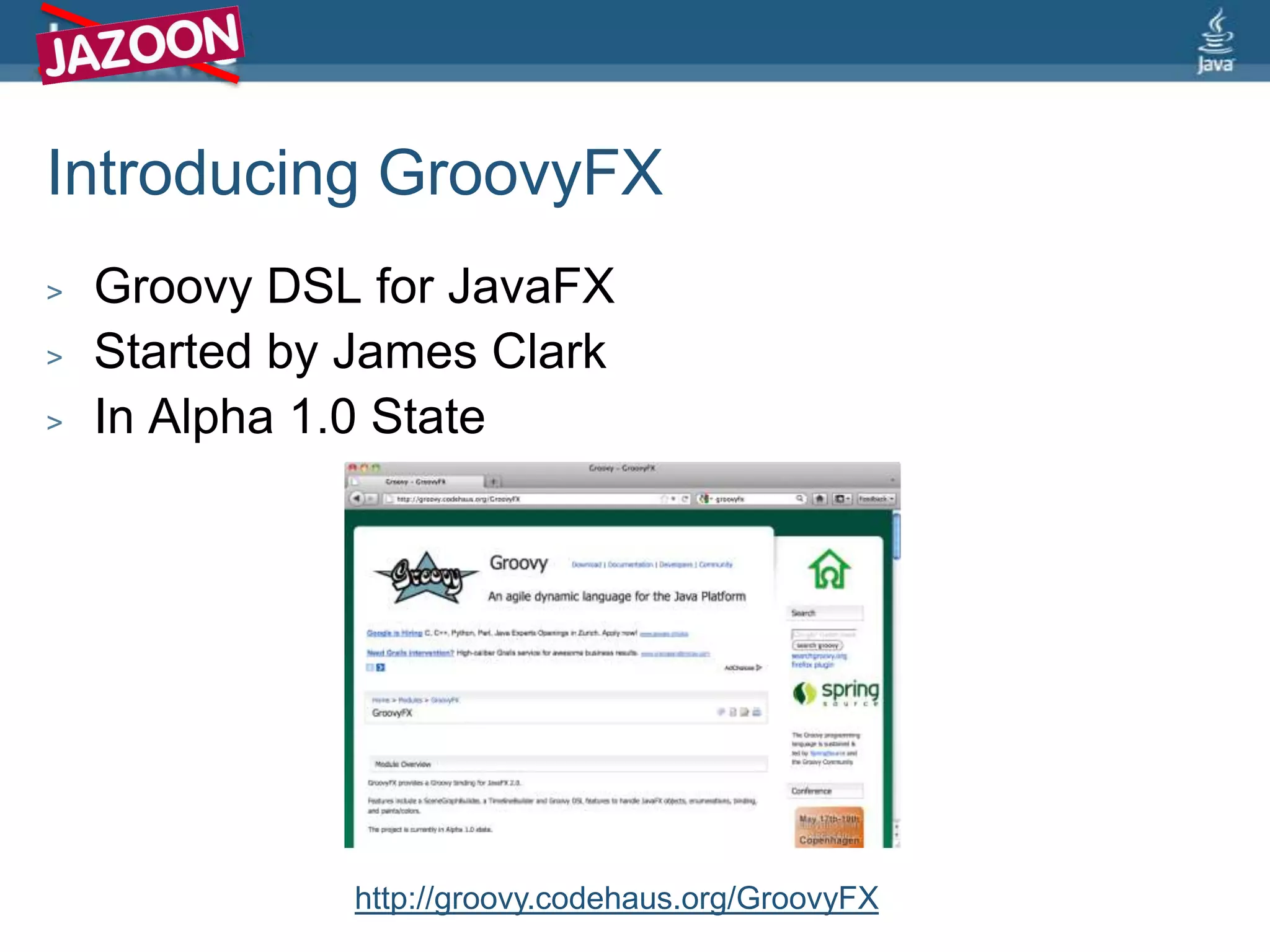

47. Introducing GroovyFX Groovy DSL for JavaFX Started by James Clark In Alpha 1.0 State http://groovy.codehaus.org/GroovyFX

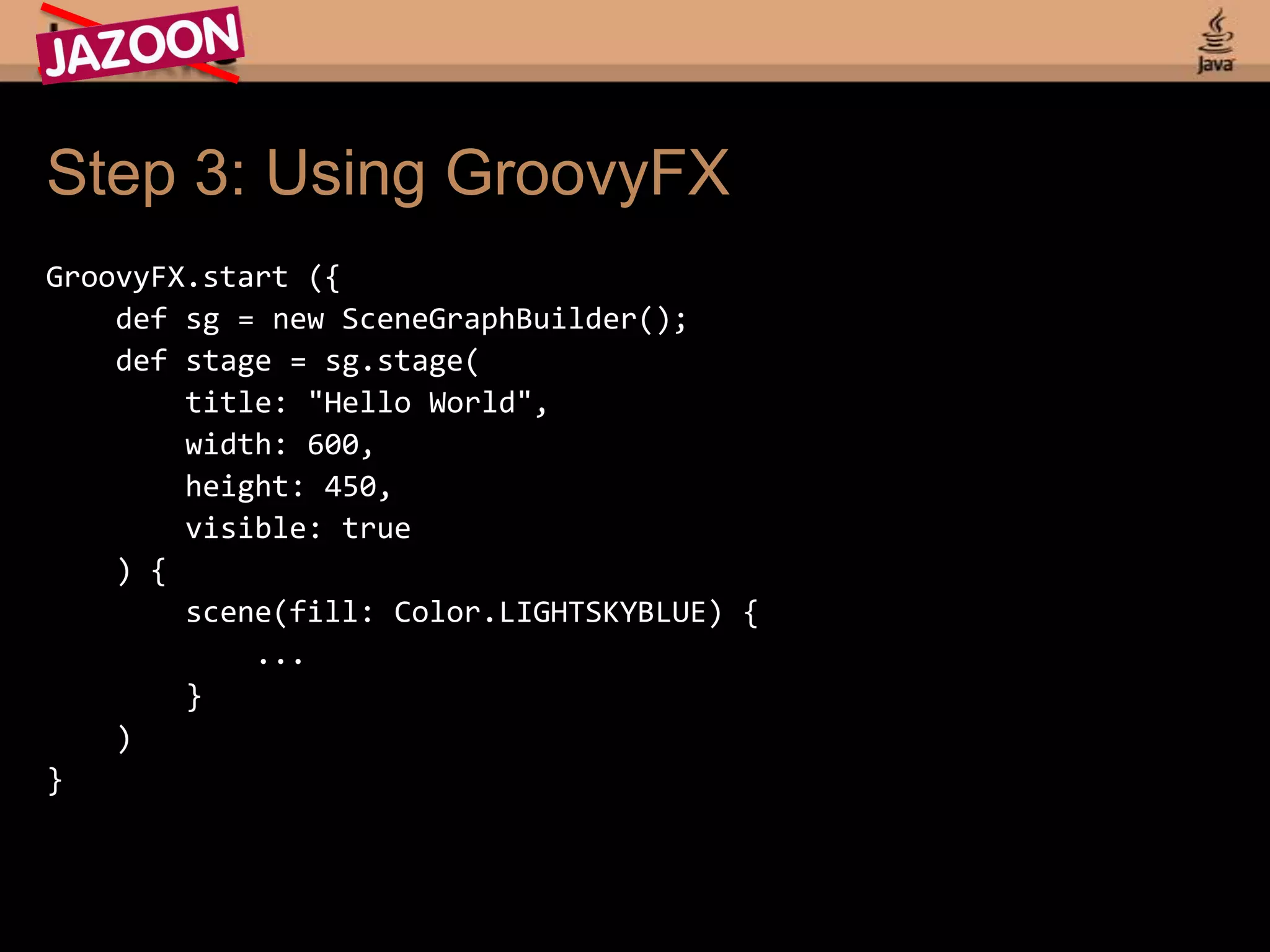

48. Step 3: Using GroovyFX GroovyFX.start ({ def sg = new SceneGraphBuilder(); def stage = sg.stage( title: "Hello World", width: 600, height: 450, visible: true ) { scene(fill: Color.LIGHTSKYBLUE) { ... } ) }

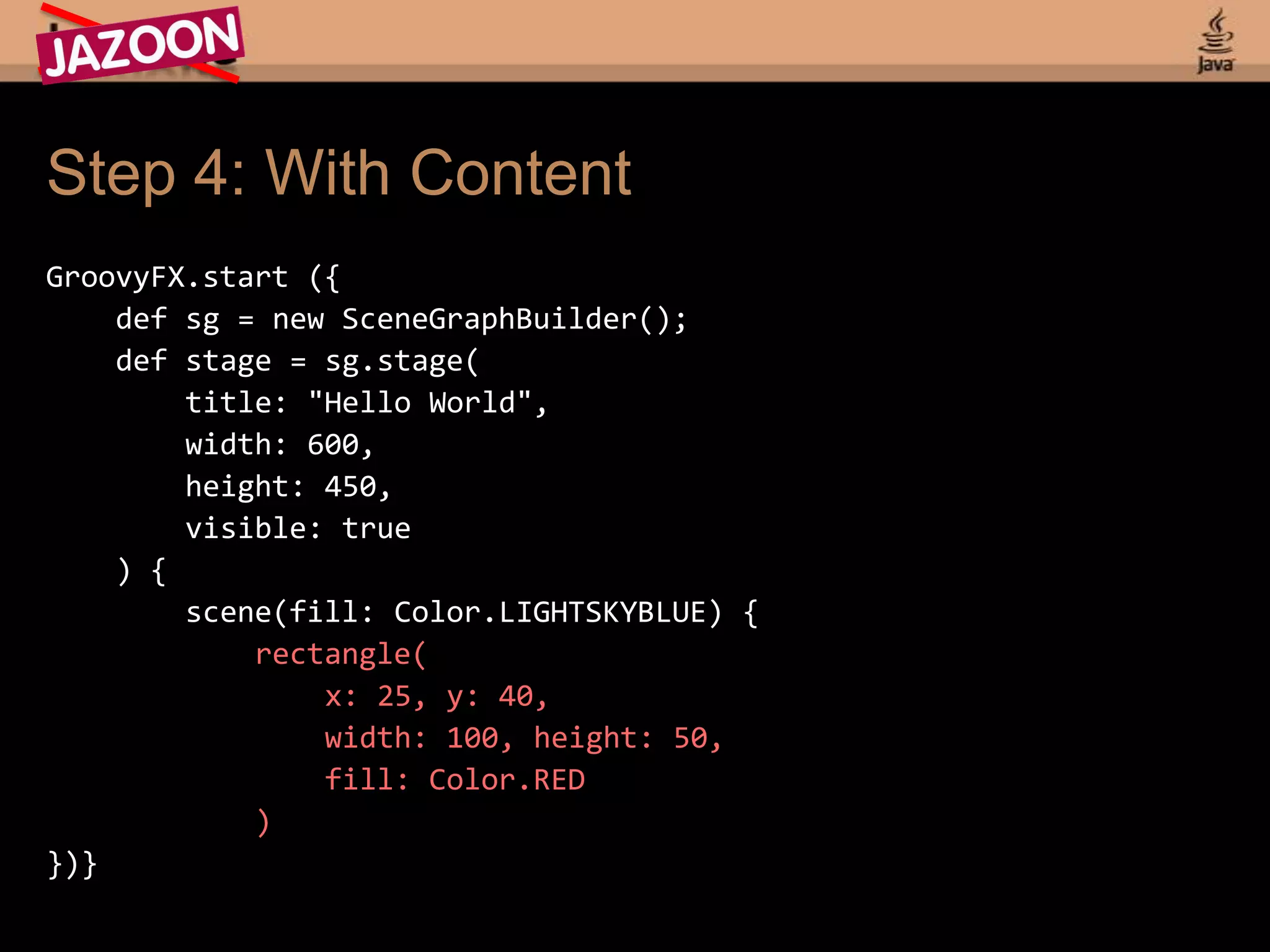

49. Step 4: With Content GroovyFX.start ({ def sg = new SceneGraphBuilder(); def stage = sg.stage( title: "Hello World", width: 600, height: 450, visible: true ) { scene(fill: Color.LIGHTSKYBLUE) { rectangle( x: 25, y: 40, width: 100, height: 50, fill: Color.RED ) })}

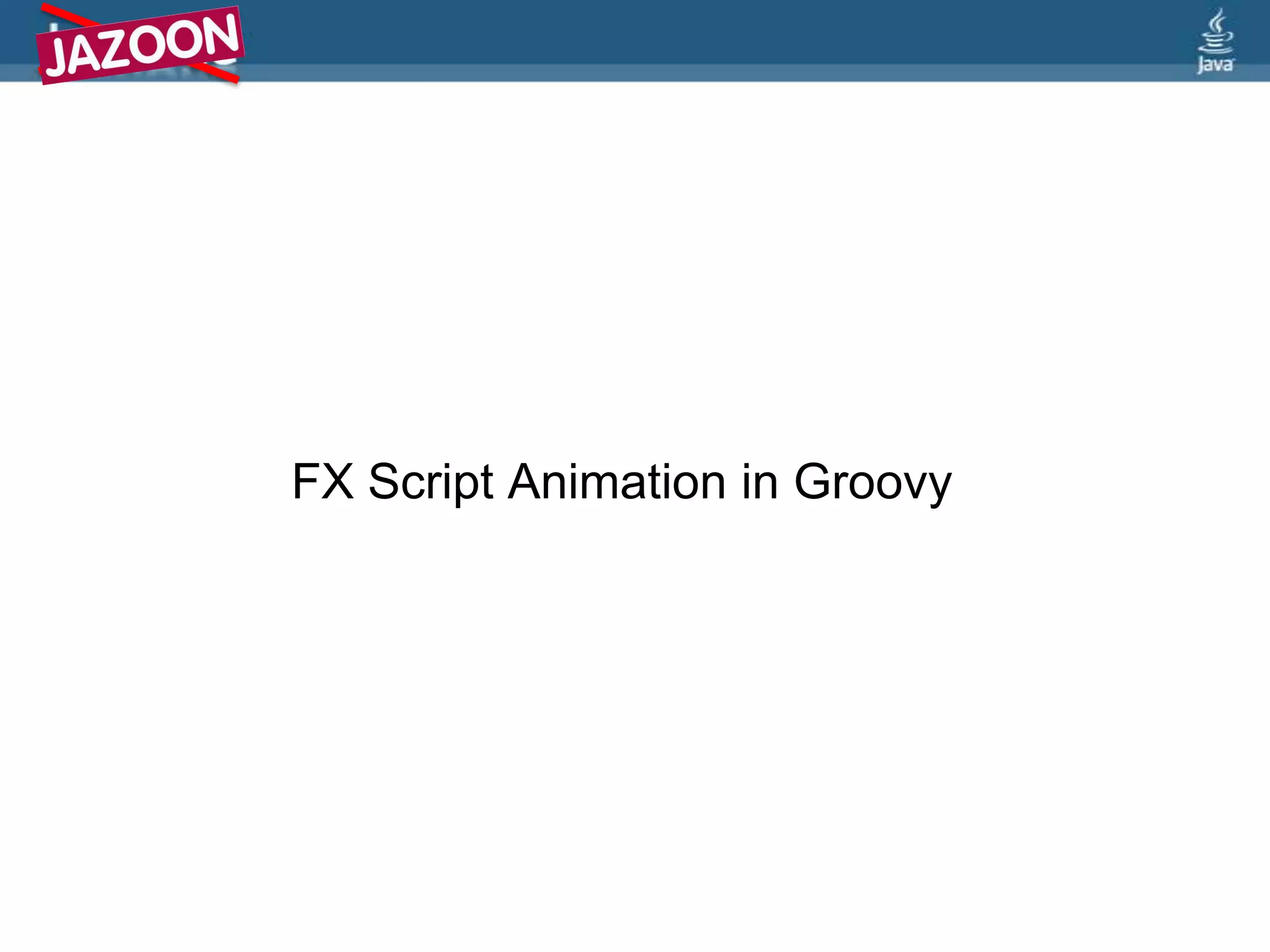

50. FX Script Animation in Groovy

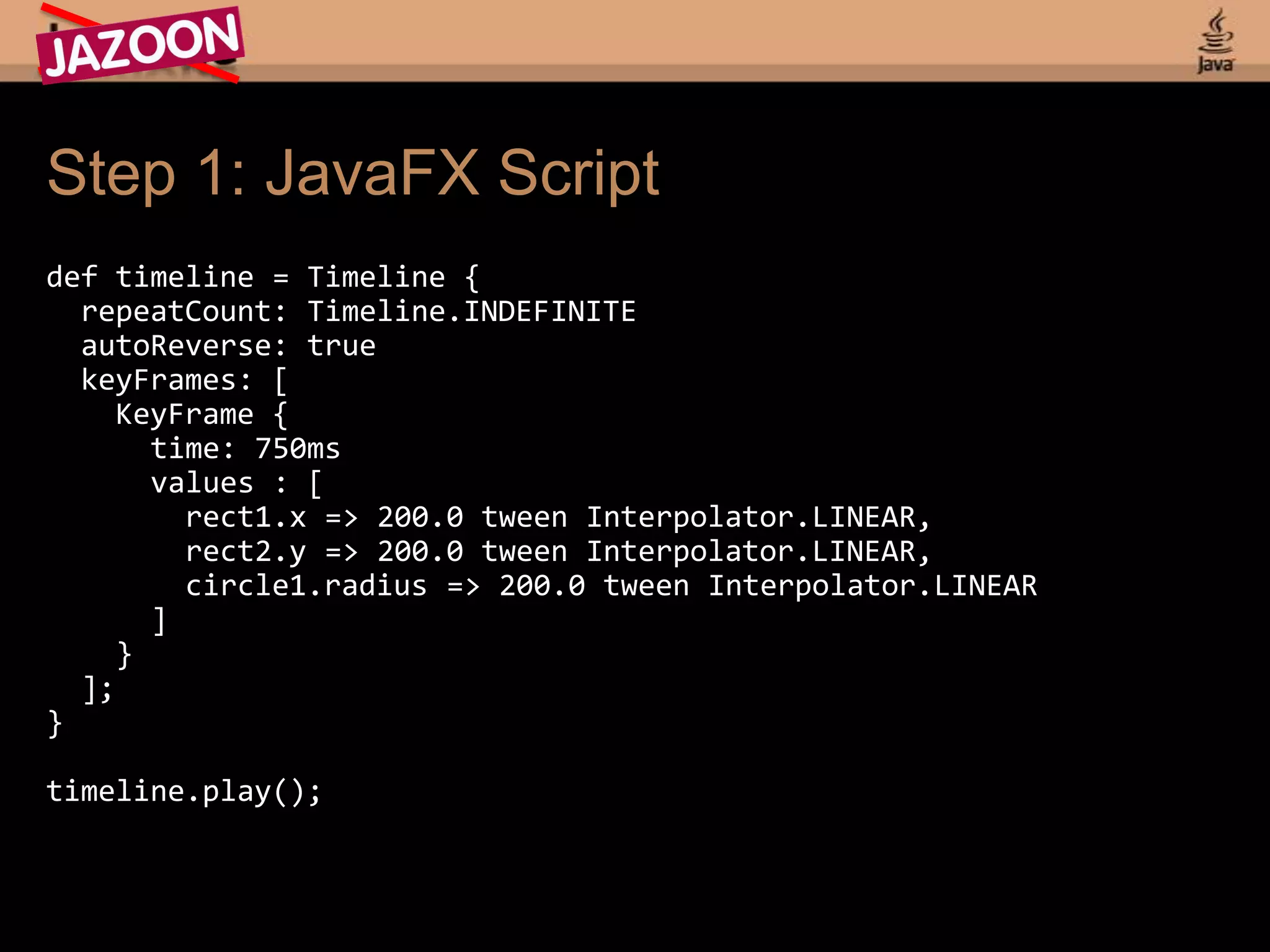

51. Step 1: JavaFX Script def timeline = Timeline { repeatCount: Timeline.INDEFINITE autoReverse: true keyFrames: [ KeyFrame { time: 750ms values : [ rect1.x => 200.0 tweenInterpolator.LINEAR, rect2.y => 200.0 tweenInterpolator.LINEAR, circle1.radius => 200.0 tweenInterpolator.LINEAR ] } ]; } timeline.play();

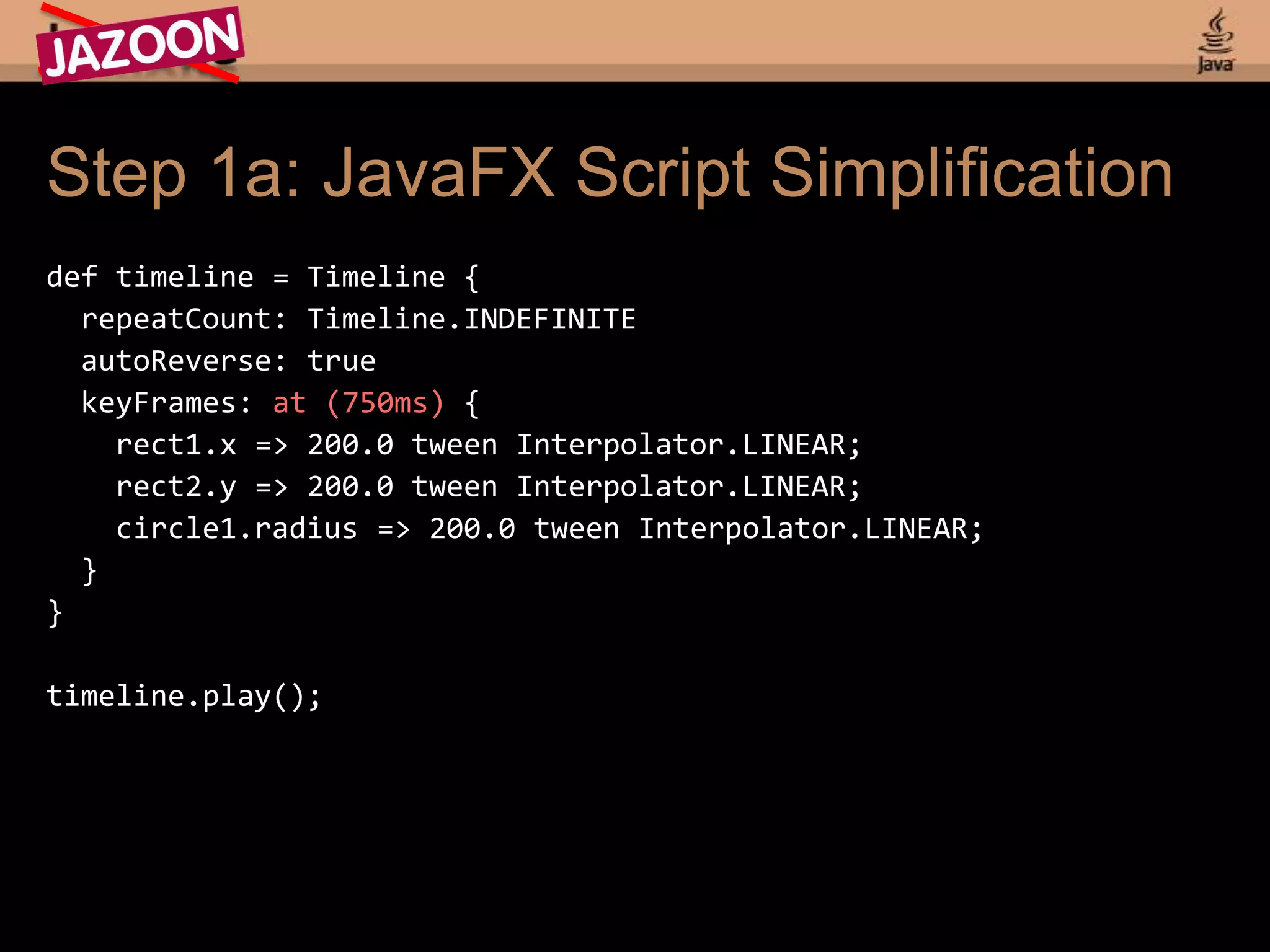

52. Step 1a: JavaFX Script Simplification def timeline = Timeline { repeatCount: Timeline.INDEFINITE autoReverse: true keyFrames: at (750ms) { rect1.x => 200.0 tween Interpolator.LINEAR; rect2.y => 200.0 tween Interpolator.LINEAR; circle1.radius => 200.0 tween Interpolator.LINEAR; } } timeline.play();

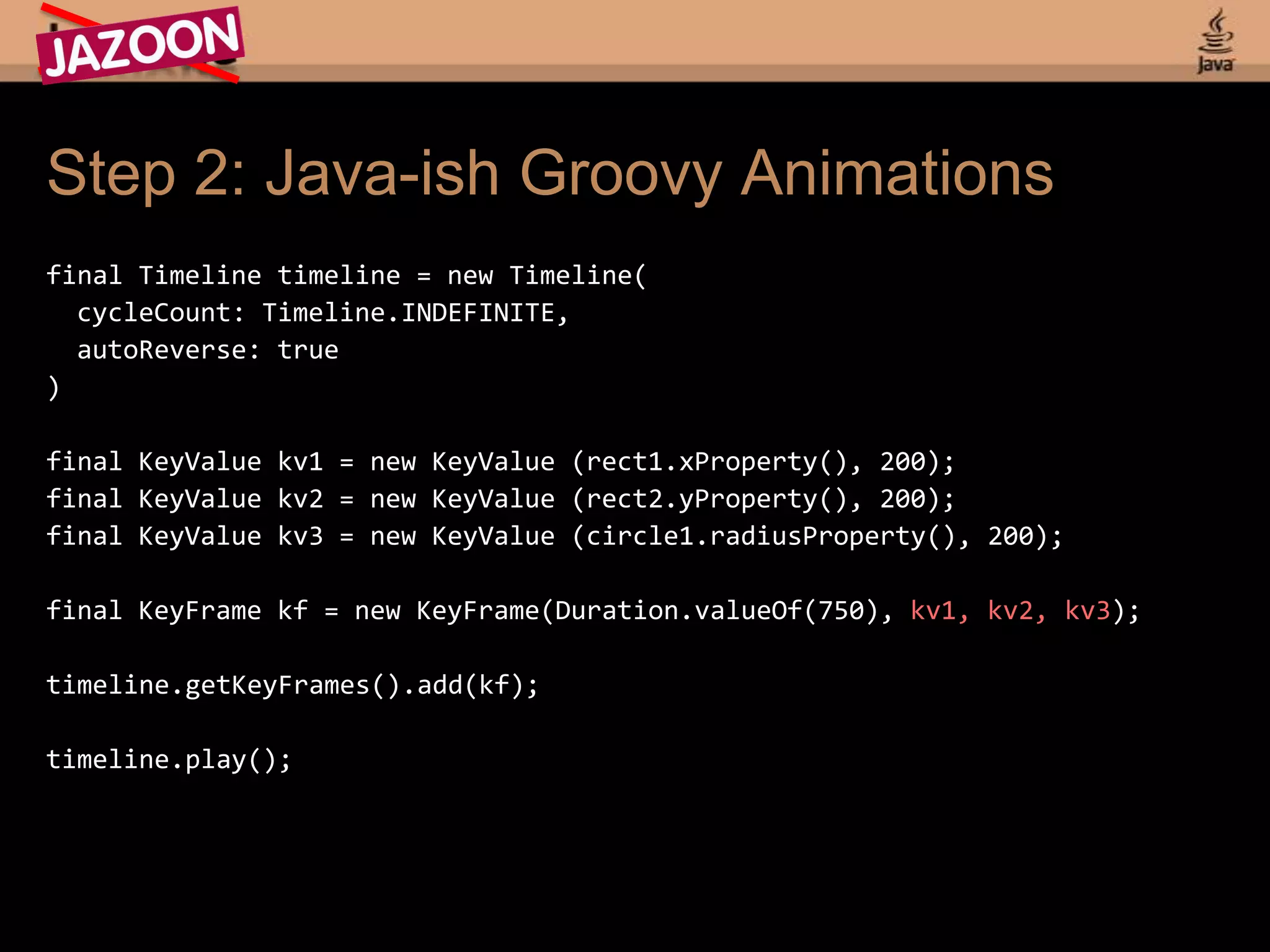

53. Step 2: Java-ish Groovy Animations final Timeline timeline = new Timeline( cycleCount: Timeline.INDEFINITE, autoReverse: true ) final KeyValue kv1 = new KeyValue (rect1.xProperty(), 200); final KeyValue kv2 = new KeyValue (rect2.yProperty(), 200); final KeyValue kv3 = new KeyValue (circle1.radiusProperty(), 200); final KeyFramekf = new KeyFrame(Duration.valueOf(750), kv1, kv2, kv3); timeline.getKeyFrames().add(kf); timeline.play();

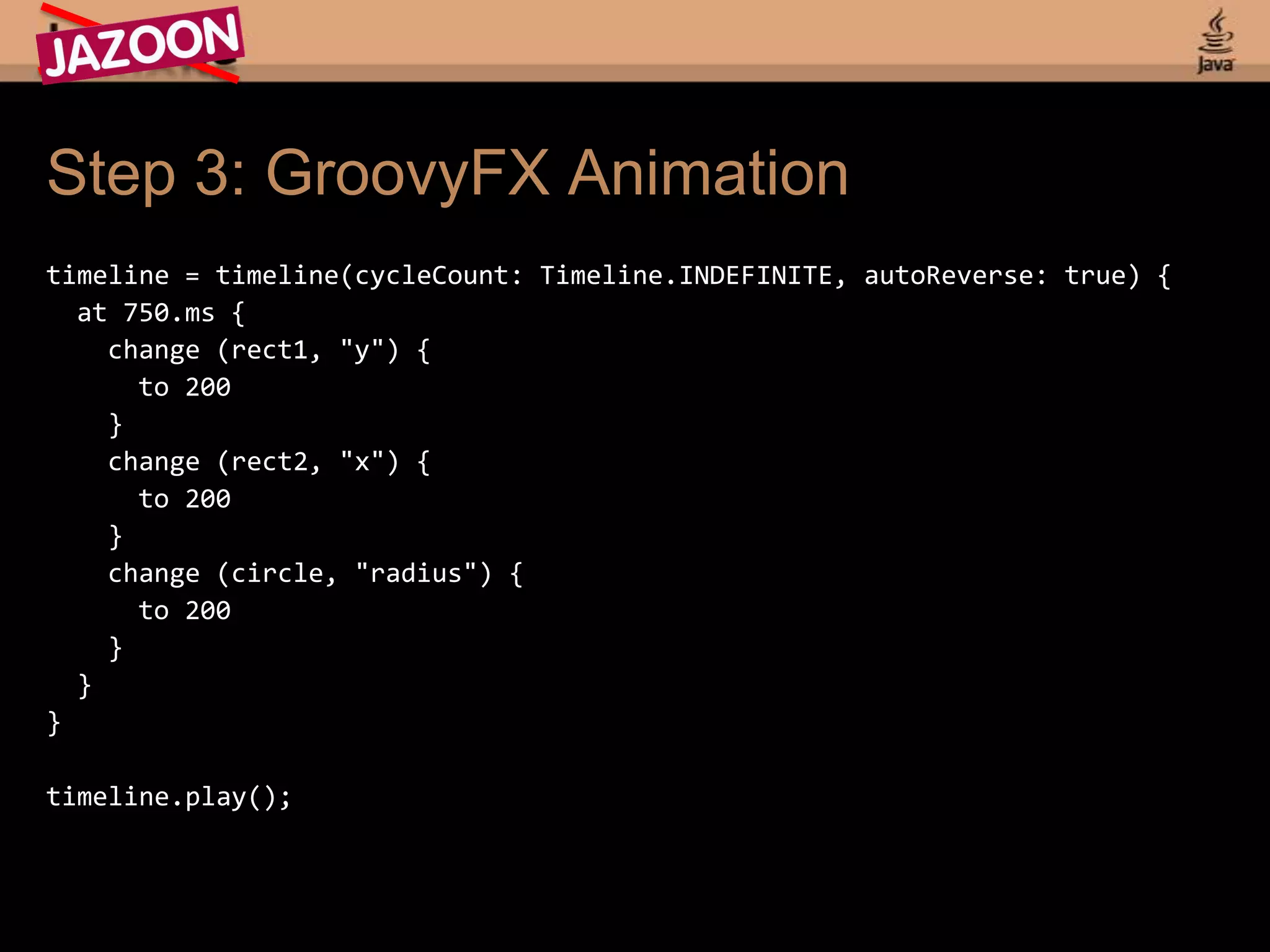

54. Step 3: GroovyFX Animation timeline = timeline(cycleCount: Timeline.INDEFINITE, autoReverse: true) { at 750.ms { change (rect1, "y") { to 200 } change (rect2, "x") { to 200 } change (circle, "radius") { to 200 } } } timeline.play();

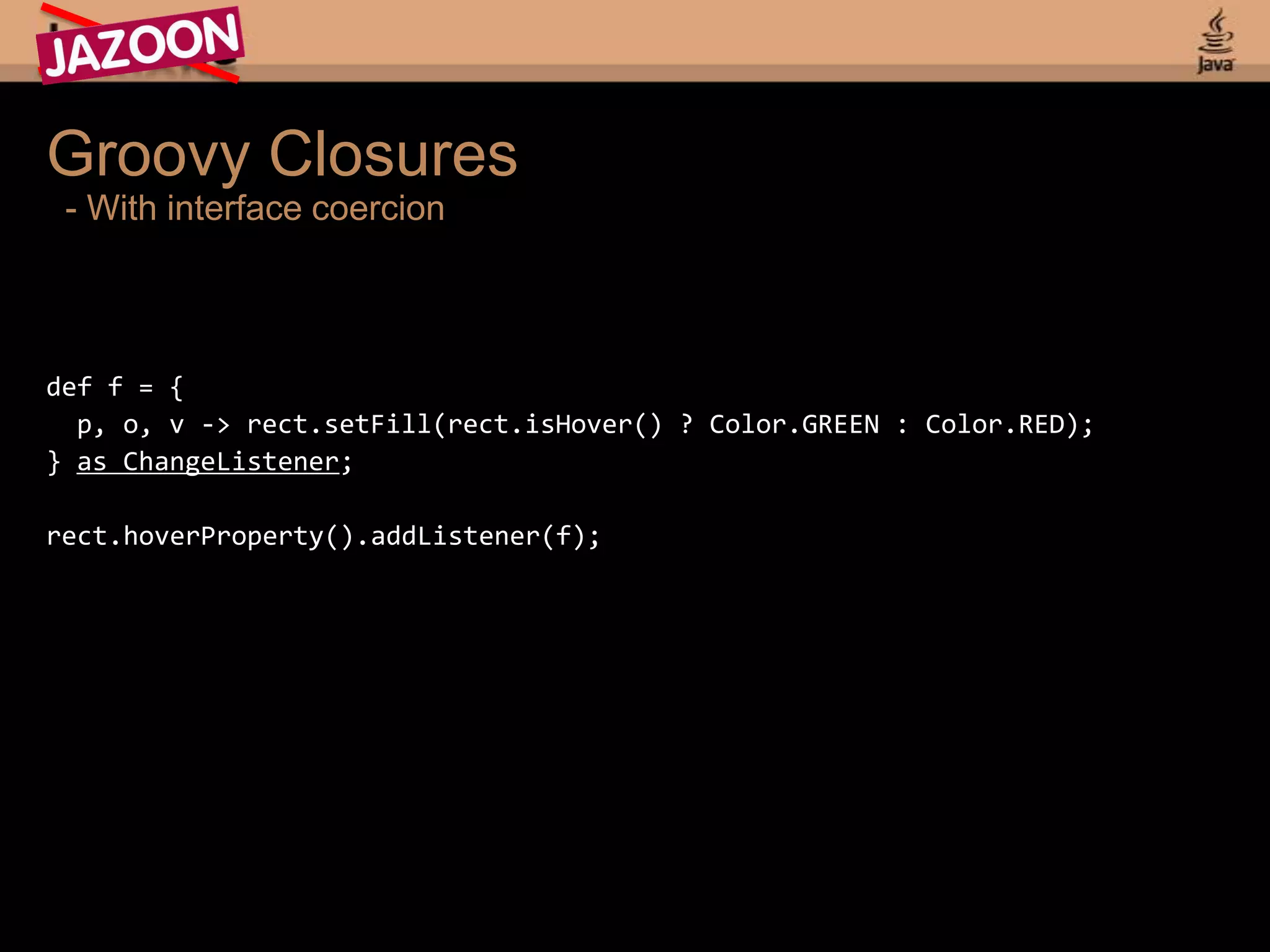

55. Groovy Closures - With interface coercion def f = { p, o, v -> rect.setFill(rect.isHover() ? Color.GREEN : Color.RED); } as ChangeListener; rect.hoverProperty().addListener(f);

56. 54 JavaFX With Scala

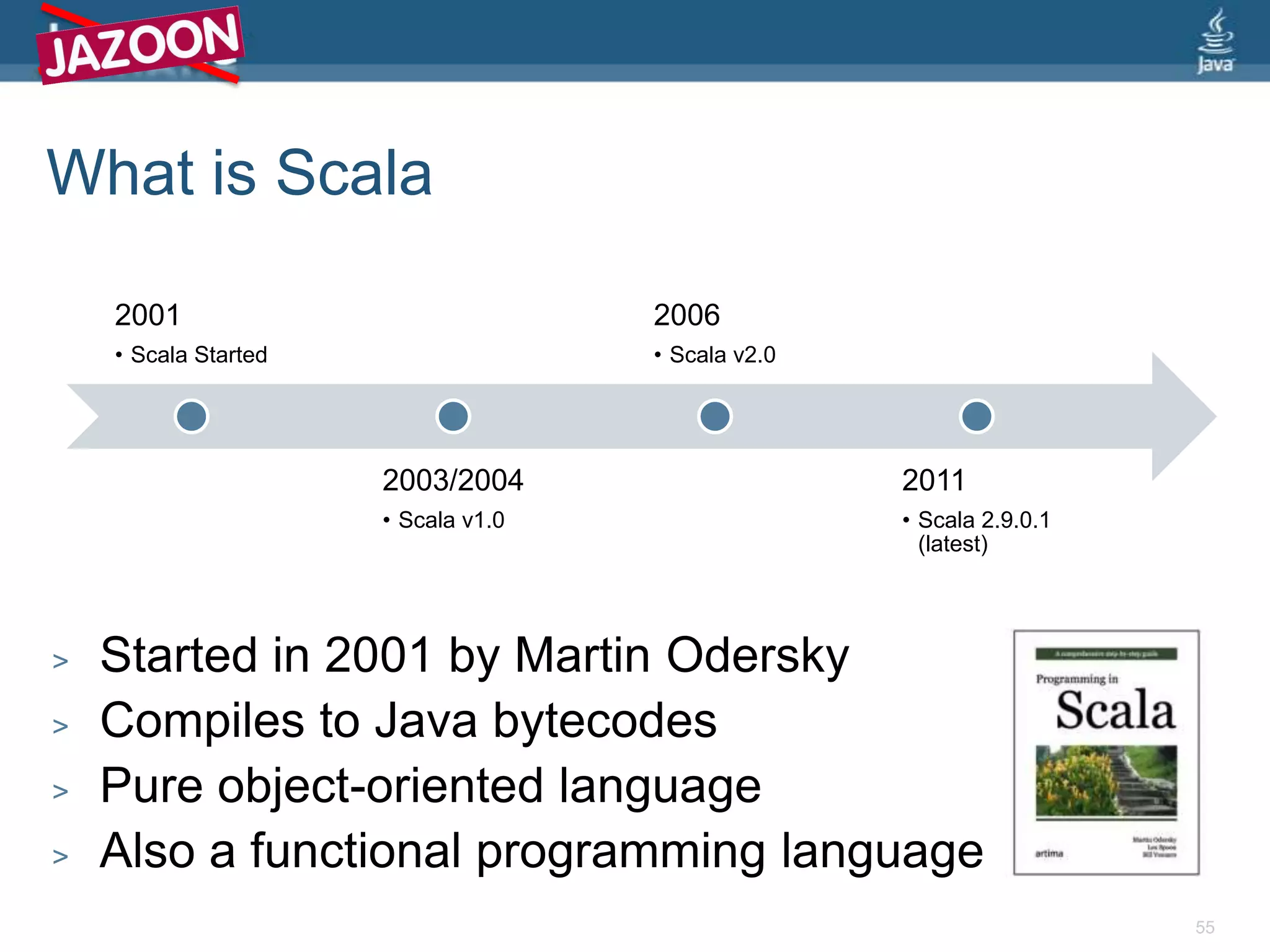

57. What is Scala Started in 2001 by Martin Odersky Compiles to Java bytecodes Pure object-oriented language Also a functional programming language 55

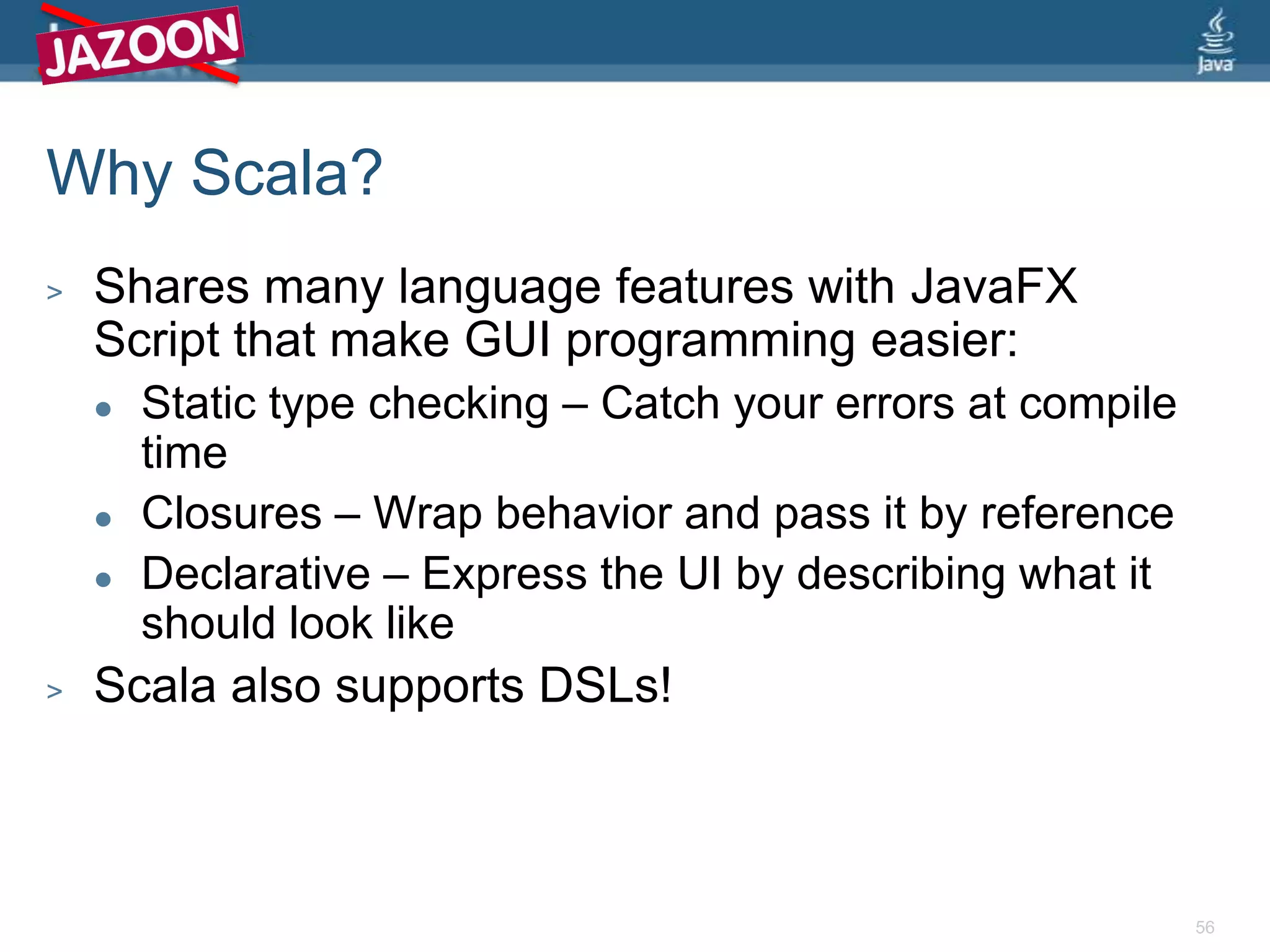

58. Why Scala? Shares many language features with JavaFX Script that make GUI programming easier: Static type checking – Catch your errors at compile time Closures – Wrap behavior and pass it by reference Declarative – Express the UI by describing what it should look like Scala also supports DSLs! 56

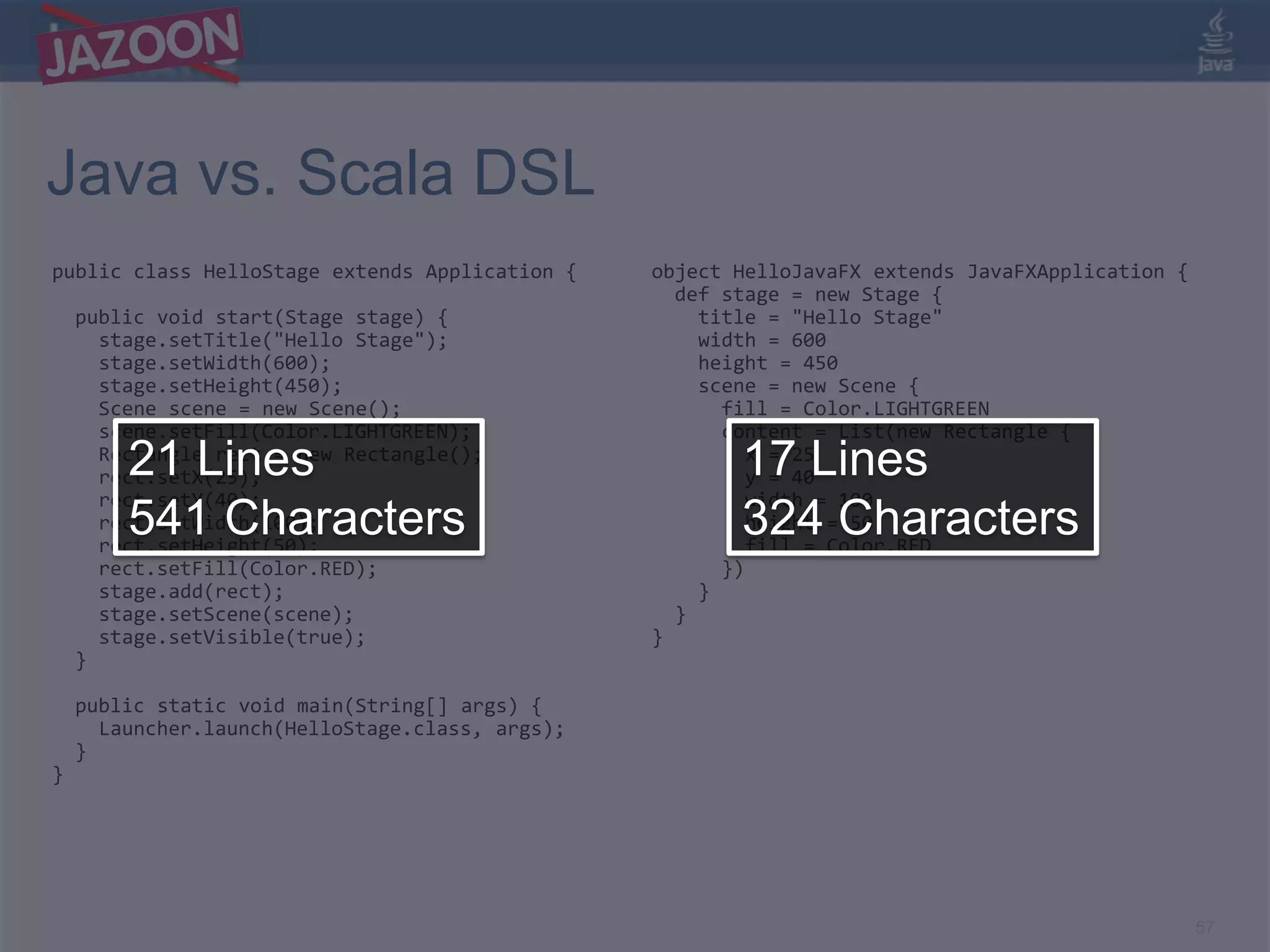

59. Java vs. Scala DSL public class HelloStage extends Application { public void start(Stage stage) { stage.setTitle("Hello Stage"); stage.setWidth(600); stage.setHeight(450); Scene scene = new Scene(); scene.setFill(Color.LIGHTGREEN); Rectangle rect = new Rectangle(); rect.setX(25); rect.setY(40); rect.setWidth(100); rect.setHeight(50); rect.setFill(Color.RED); stage.add(rect); stage.setScene(scene); stage.setVisible(true); } public static void main(String[] args) { Launcher.launch(HelloStage.class, args); } } object HelloJavaFX extends JavaFXApplication { def stage = new Stage { title = "Hello Stage" width = 600 height = 450 scene = new Scene { fill = Color.LIGHTGREEN content = List(new Rectangle { x = 25 y = 40 width = 100 height = 50 fill = Color.RED }) } } } 57 21 Lines 541 Characters 17 Lines 324 Characters

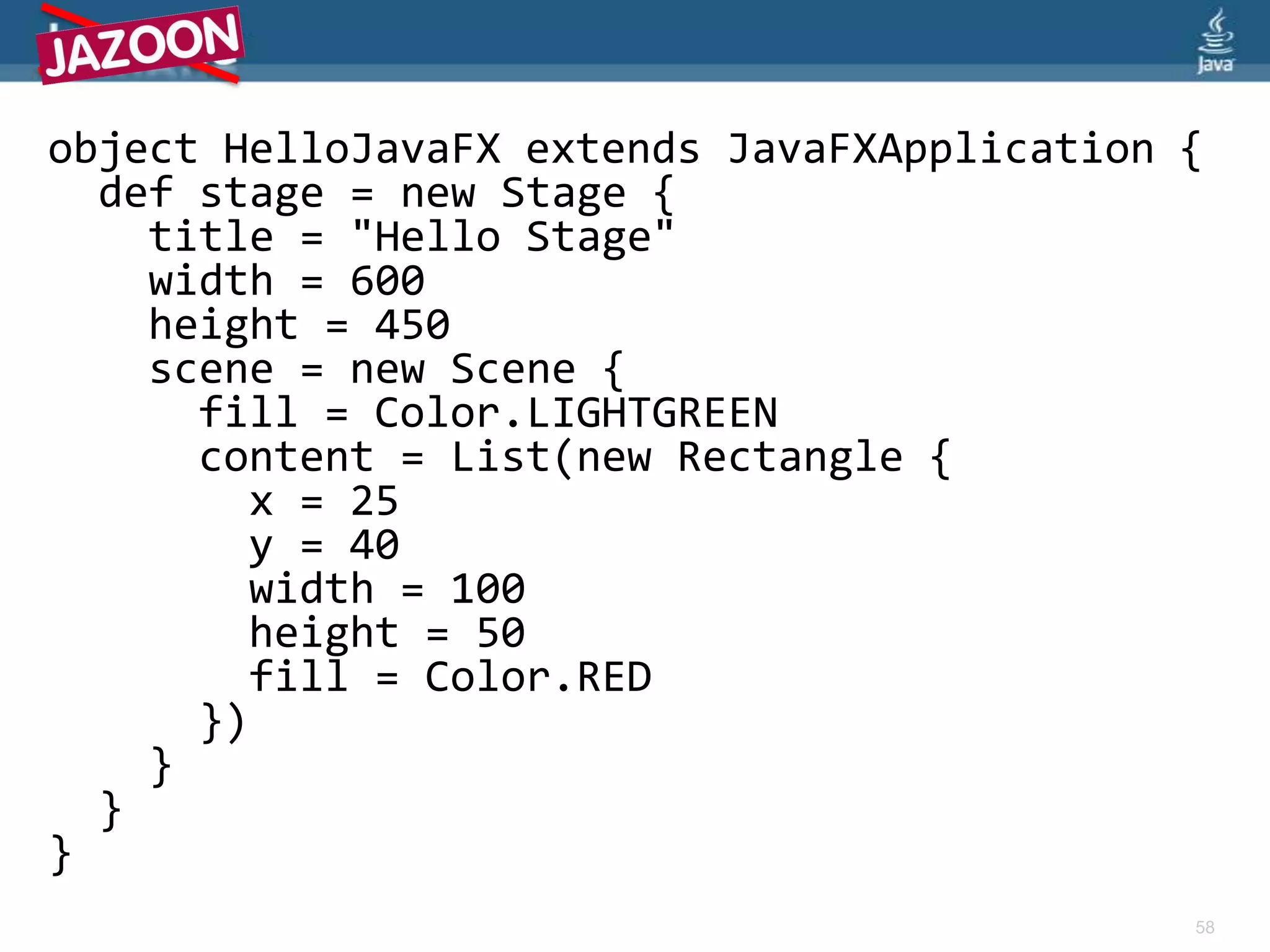

60. object HelloJavaFX extends JavaFXApplication { def stage = new Stage { title = "Hello Stage" width = 600 height = 450 scene = new Scene { fill = Color.LIGHTGREEN content = List(new Rectangle { x = 25 y = 40 width = 100 height = 50 fill = Color.RED }) } } } 58

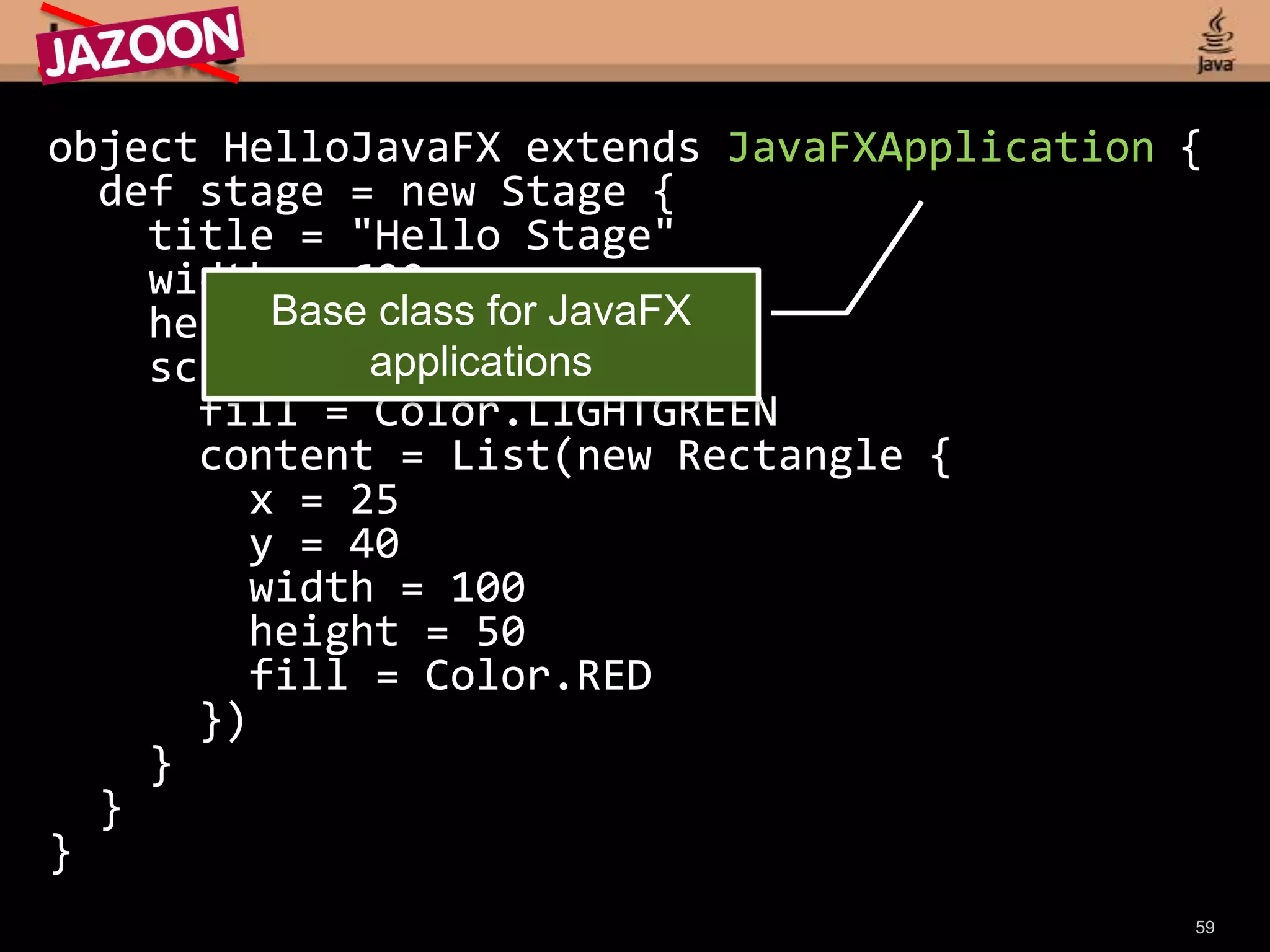

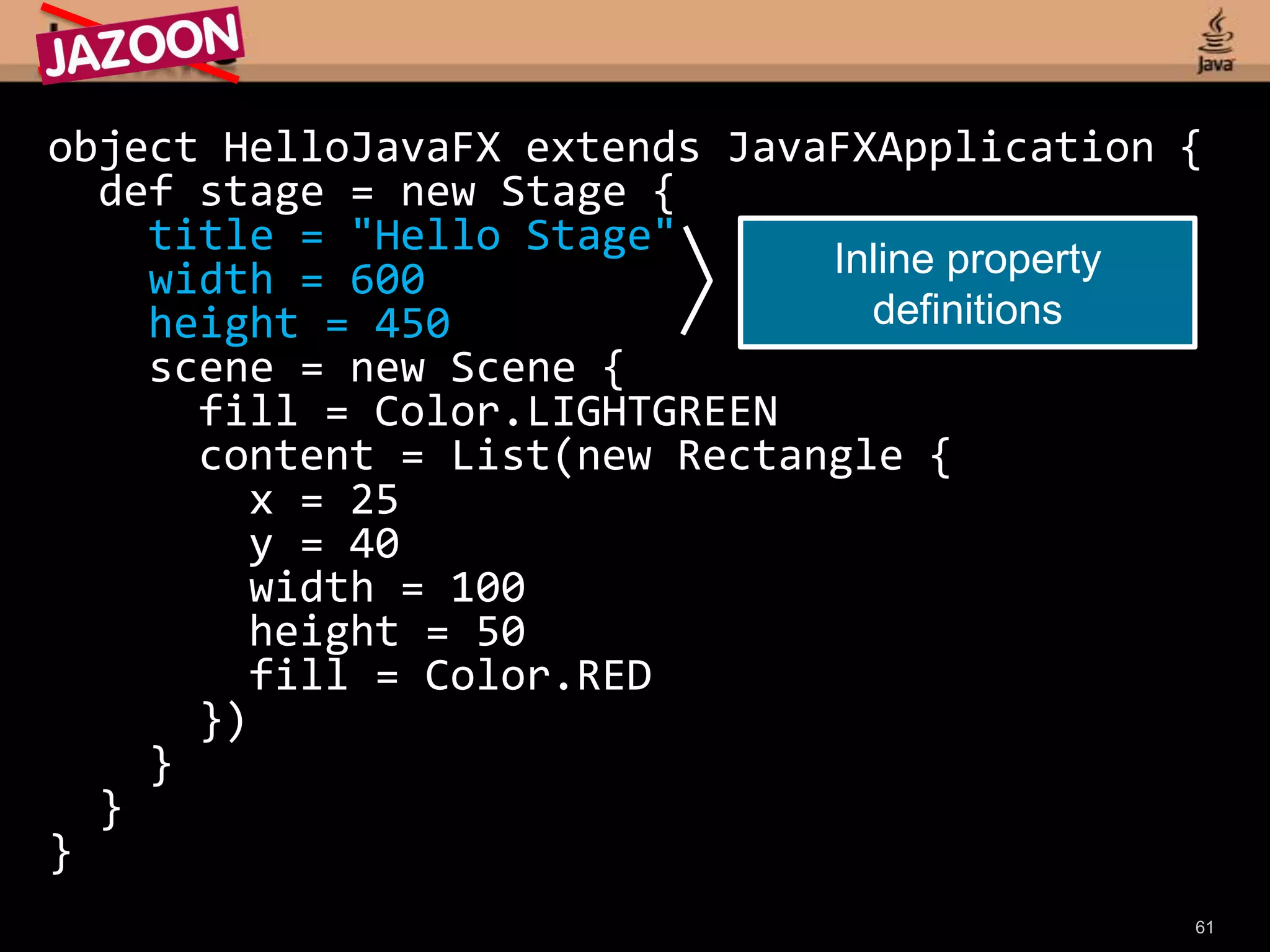

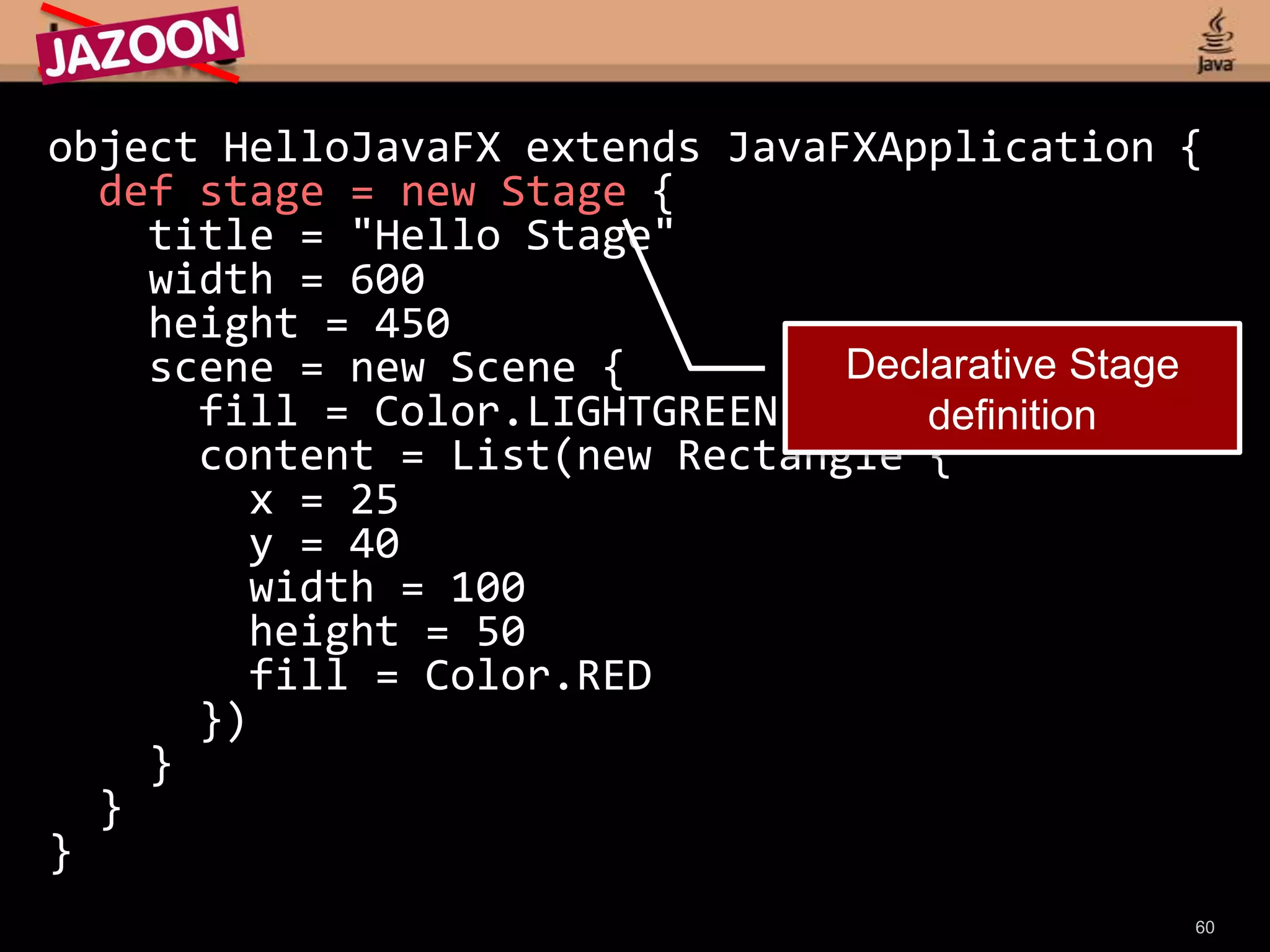

61. 59 object HelloJavaFX extends JavaFXApplication { def stage = new Stage { title = "Hello Stage" width = 600 height = 450 scene = new Scene { fill = Color.LIGHTGREEN content = List(new Rectangle { x = 25 y = 40 width = 100 height = 50 fill = Color.RED }) } } } object HelloJavaFX extends JavaFXApplication { def stage = new Stage { title = "Hello Stage" width = 600 height = 450 scene = new Scene { fill = Color.LIGHTGREEN content = List(new Rectangle { x = 25 y = 40 width = 100 height = 50 fill = Color.RED }) } } } Base class for JavaFX applications

62. 60 object HelloJavaFX extends JavaFXApplication { def stage = new Stage { title = "Hello Stage" width = 600 height = 450 scene = new Scene { fill = Color.LIGHTGREEN content = List(new Rectangle { x = 25 y = 40 width = 100 height = 50 fill = Color.RED }) } } } Declarative Stage definition

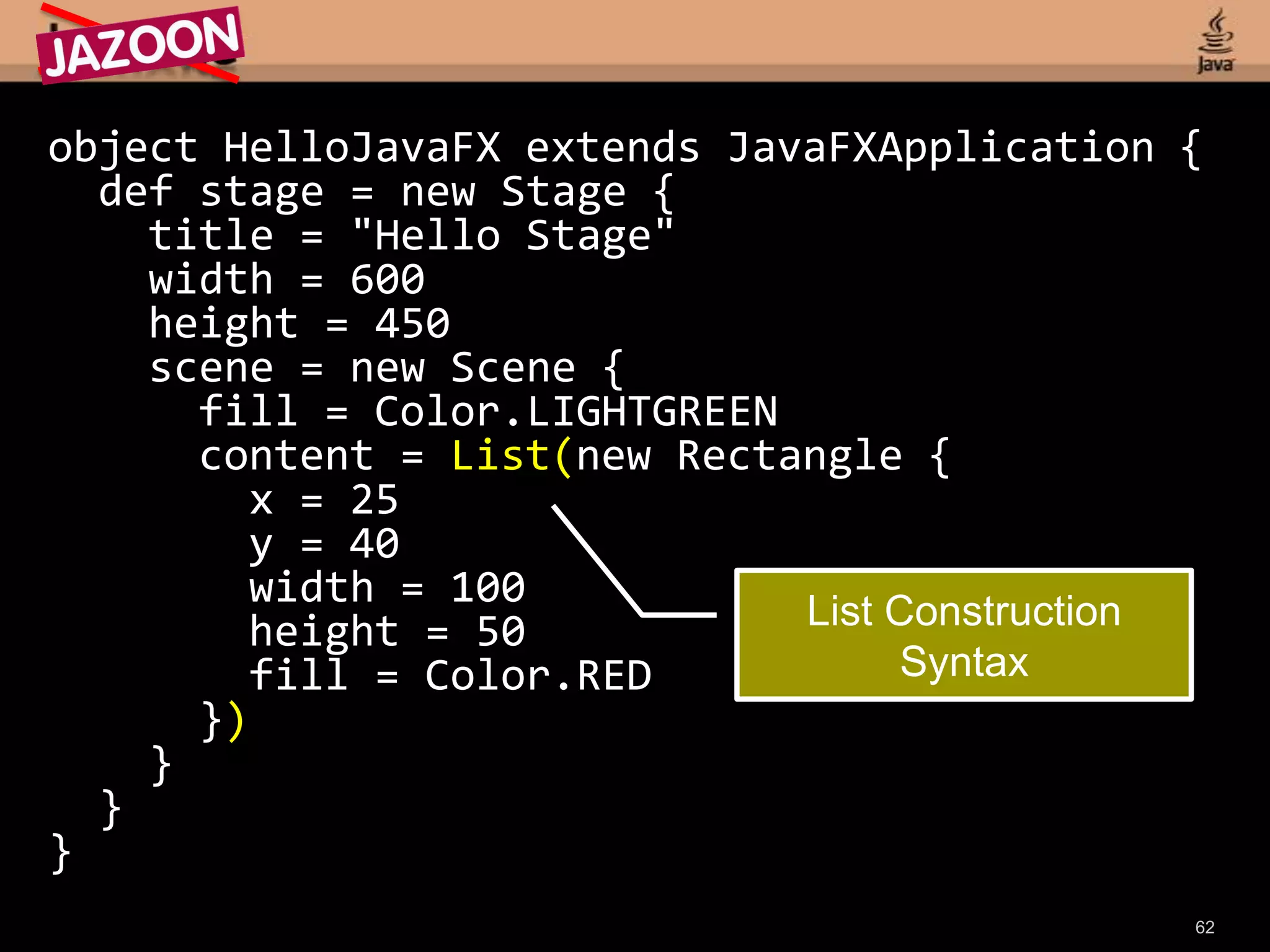

63. 61 object HelloJavaFX extends JavaFXApplication { def stage = new Stage { title = "Hello Stage" width = 600 height = 450 scene = new Scene { fill = Color.LIGHTGREEN content = List(new Rectangle { x = 25 y = 40 width = 100 height = 50 fill = Color.RED }) } } } Inline property definitions

64. 62 object HelloJavaFX extends JavaFXApplication { def stage = new Stage { title = "Hello Stage" width = 600 height = 450 scene = new Scene { fill = Color.LIGHTGREEN content = List(new Rectangle { x = 25 y = 40 width = 100 height = 50 fill = Color.RED }) } } } List Construction Syntax

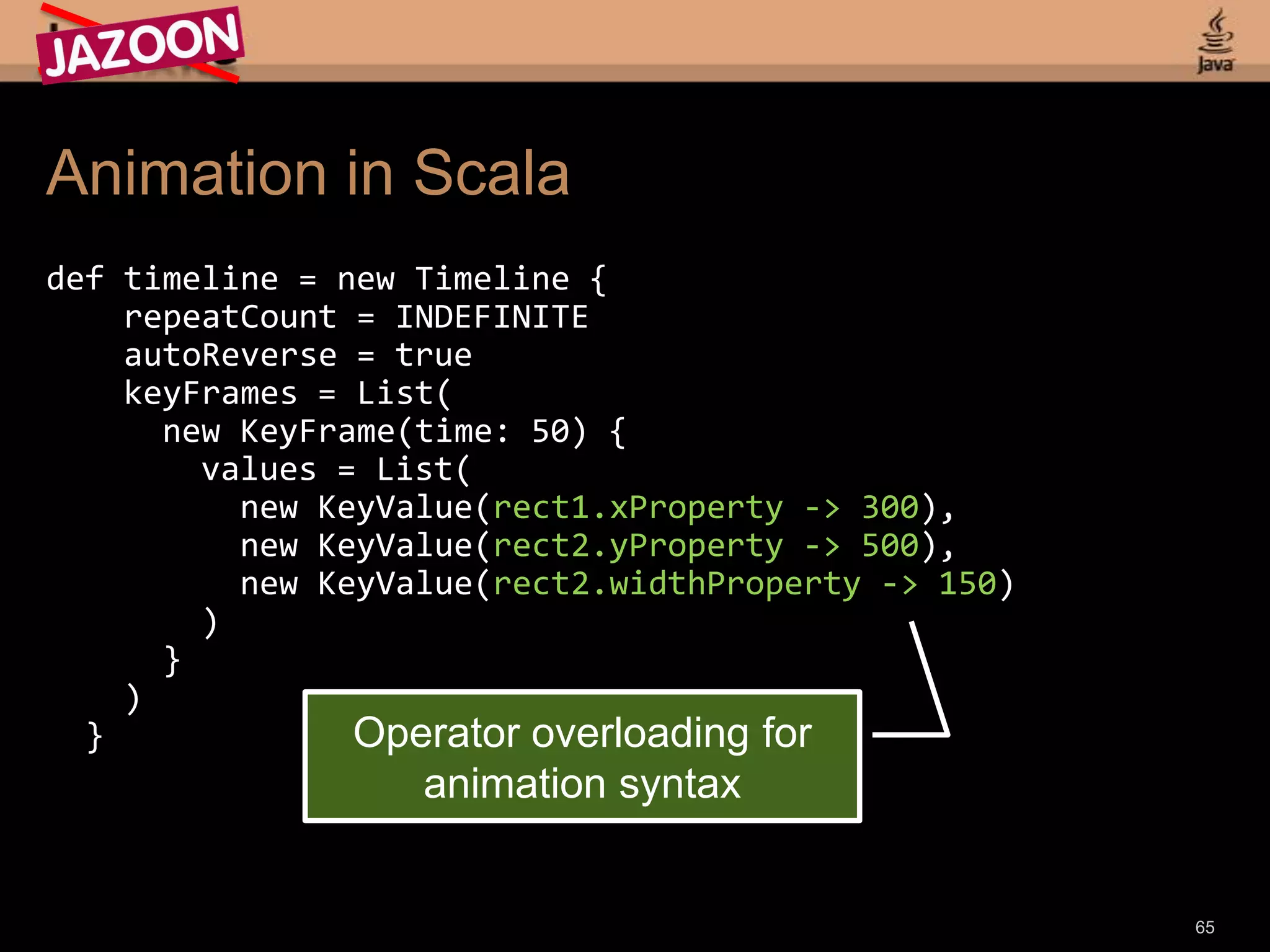

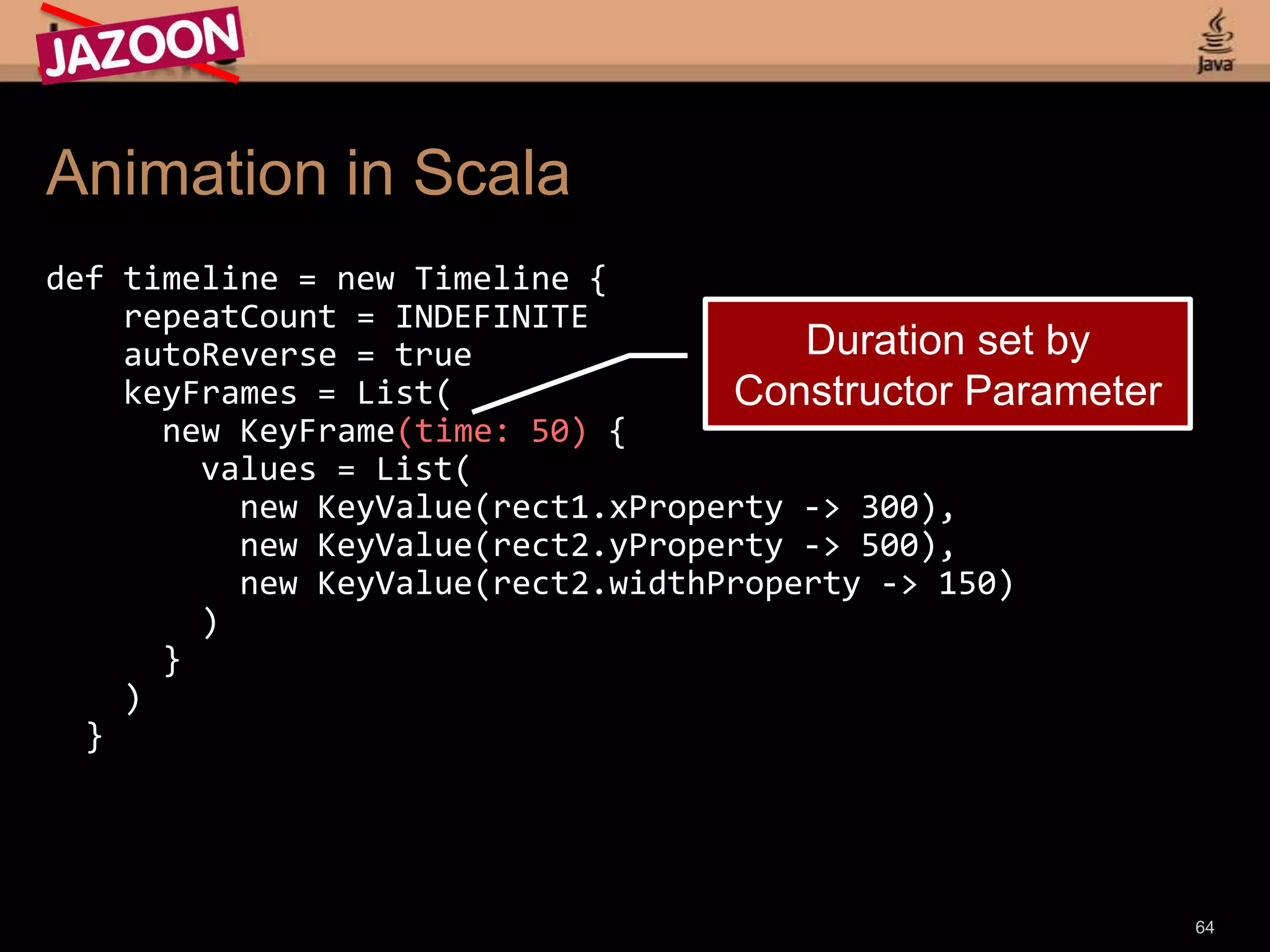

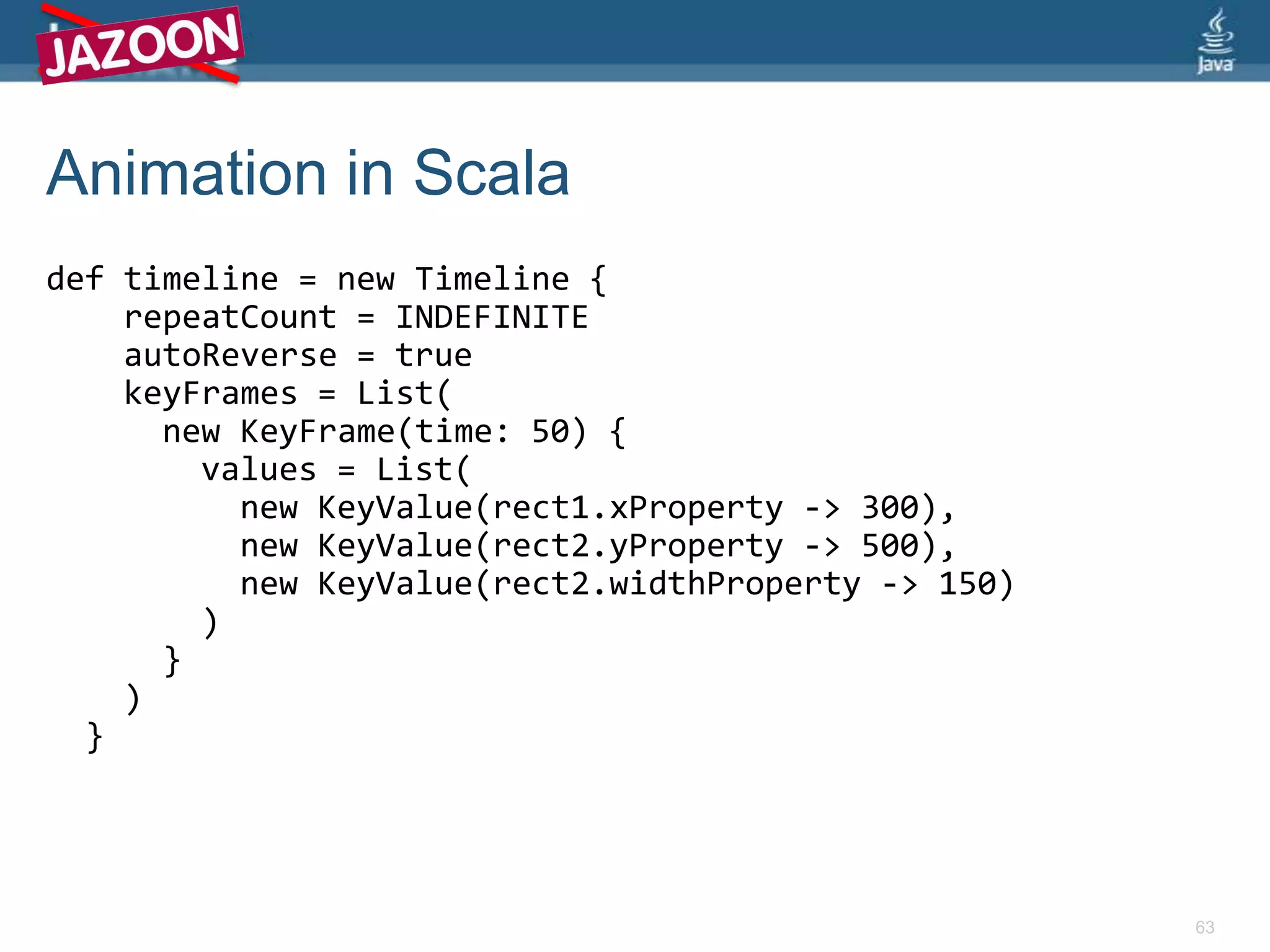

65. Animation in Scala def timeline = new Timeline { repeatCount = INDEFINITE autoReverse = true keyFrames = List( new KeyFrame(time: 50) { values = List( new KeyValue(rect1.xProperty -> 300), new KeyValue(rect2.yProperty -> 500), new KeyValue(rect2.widthProperty -> 150) ) } ) } 63

66. def timeline = new Timeline { repeatCount = INDEFINITE autoReverse = true keyFrames = List( new KeyFrame(time: 50) { values = List( new KeyValue(rect1.xProperty -> 300), new KeyValue(rect2.yProperty -> 500), new KeyValue(rect2.widthProperty -> 150) ) } ) } Animation in Scala 64 Duration set by Constructor Parameter

67. Animation in Scala 65 def timeline = new Timeline { repeatCount = INDEFINITE autoReverse = true keyFrames = List( new KeyFrame(time: 50) { values = List( new KeyValue(rect1.xProperty -> 300), new KeyValue(rect2.yProperty -> 500), new KeyValue(rect2.widthProperty -> 150) ) } ) } Operator overloading for animation syntax

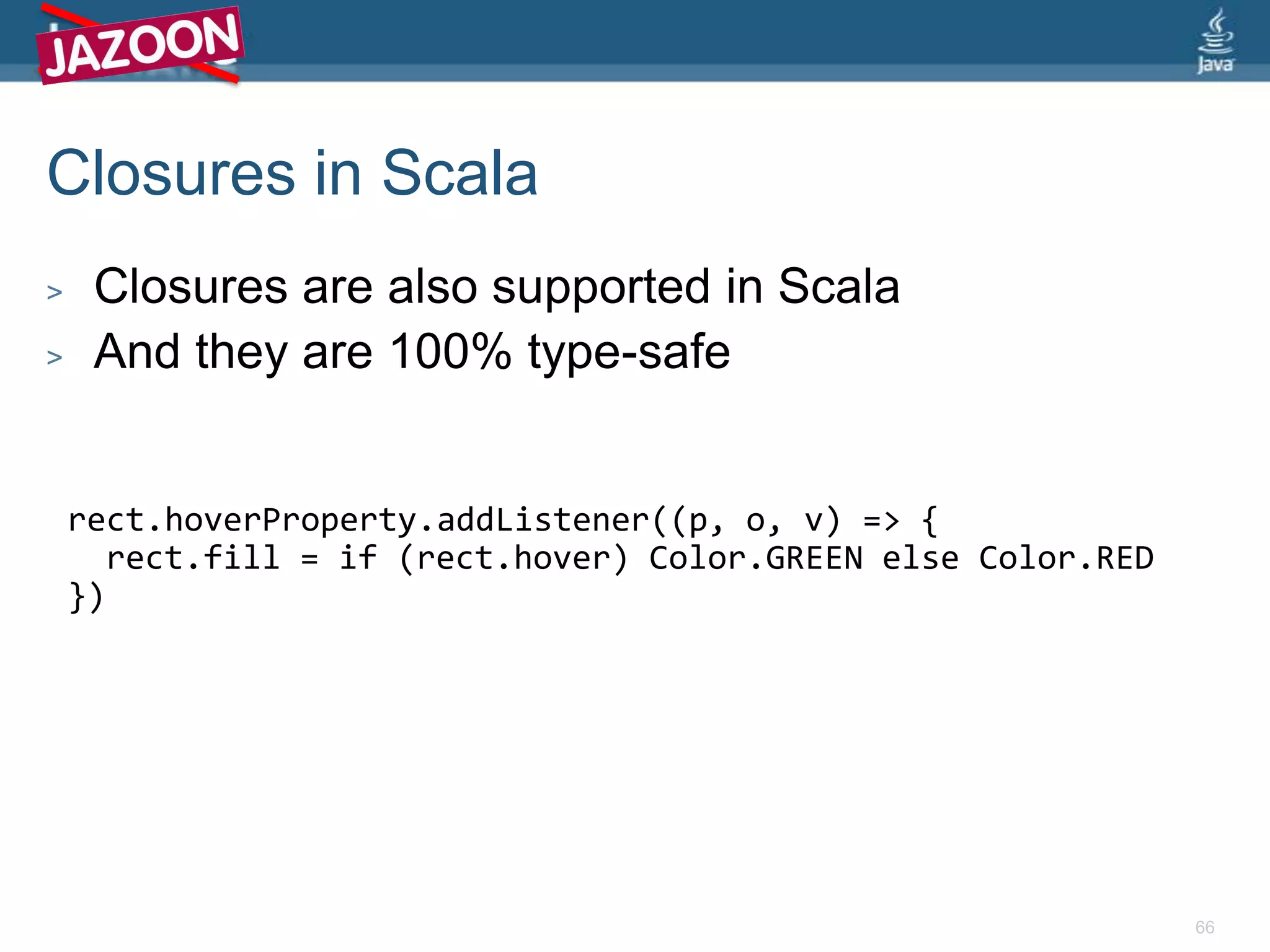

68. Closures in Scala 66 Closures are also supported in Scala And they are 100% type-safe rect.hoverProperty.addListener((p, o, v) => { rect.fill = if (rect.hover) Color.GREEN else Color.RED })

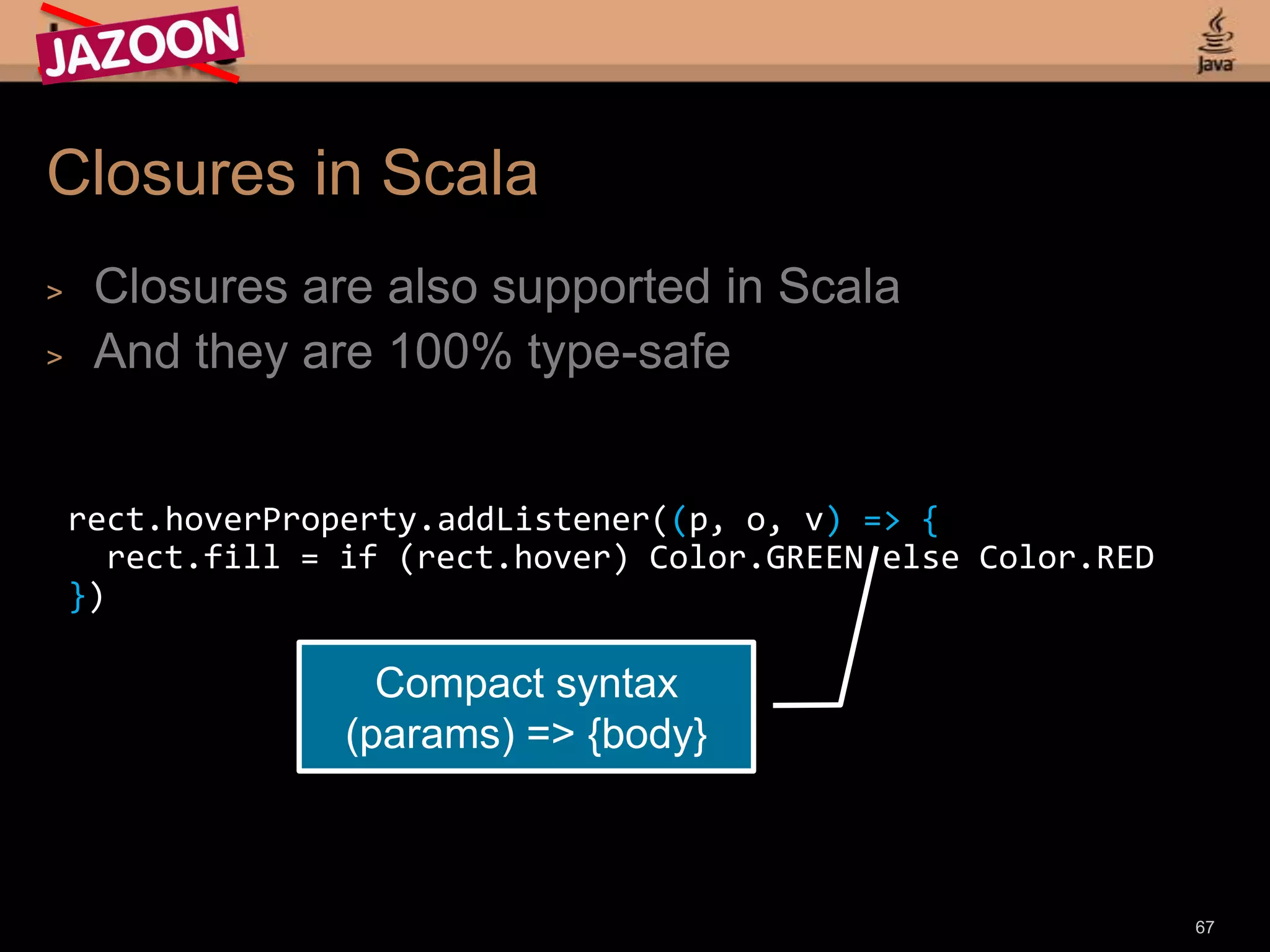

69. Closures in Scala Closures are also supported in Scala And they are 100% type-safe 67 rect.hoverProperty.addListener((p, o, v) => { rect.fill = if (rect.hover) Color.GREEN else Color.RED }) Compact syntax (params) => {body}

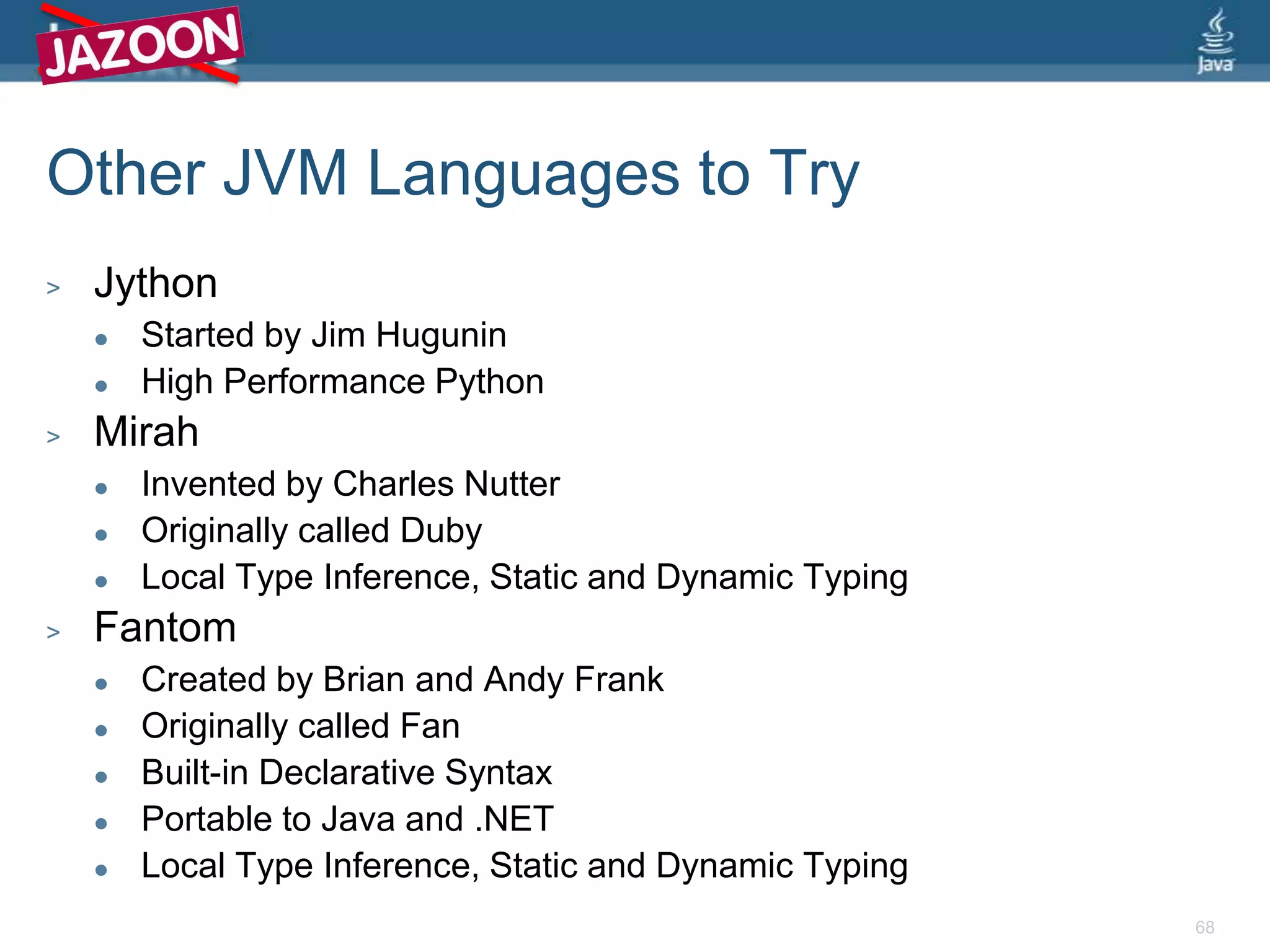

70. Other JVM Languages to Try Jython Started by Jim Hugunin High Performance Python Mirah Invented by Charles Nutter Originally called Duby Local Type Inference, Static and Dynamic Typing Fantom Created by Brian and Andy Frank Originally called Fan Built-in Declarative Syntax Portable to Java and .NET Local Type Inference, Static and Dynamic Typing 68

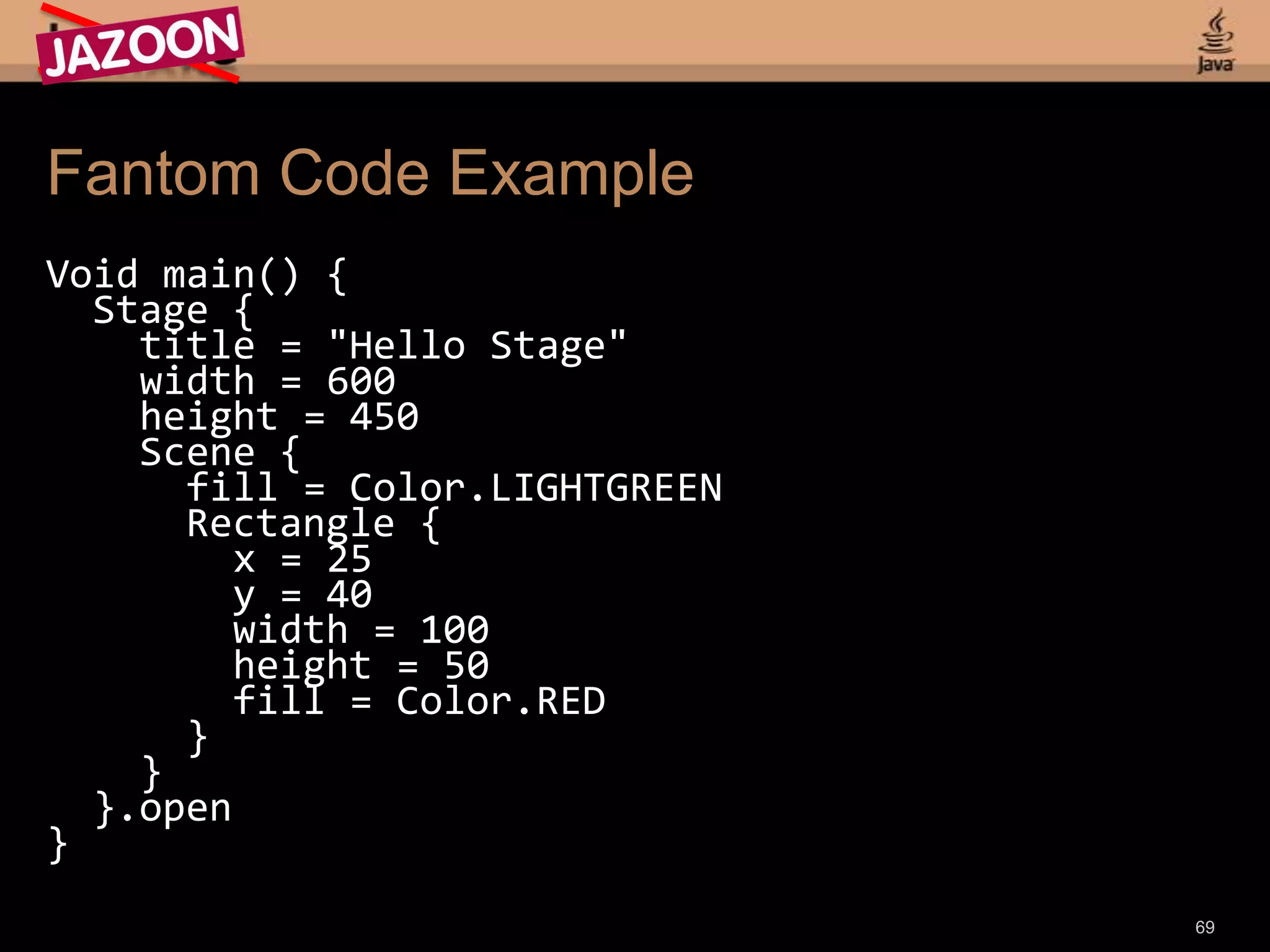

71. Fantom Code Example Void main() { Stage { title= "Hello Stage" width= 600 height= 450 Scene { fill= Color.LIGHTGREEN Rectangle { x= 25 y= 40 width= 100 height= 50 fill= Color.RED } } }.open } 69

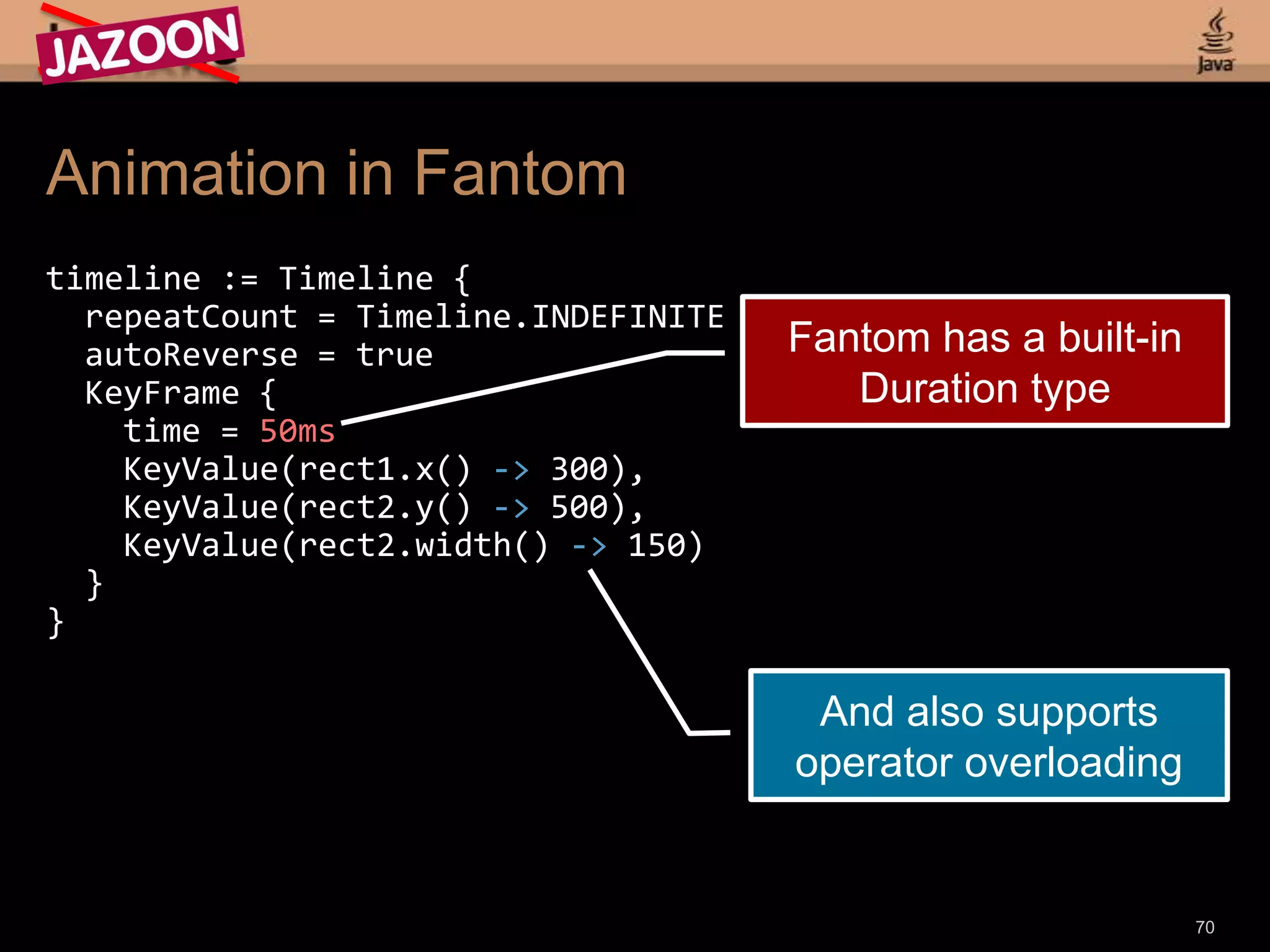

72. timeline := Timeline { repeatCount = Timeline.INDEFINITE autoReverse = true KeyFrame { time = 50ms KeyValue(rect1.x()-> 300), KeyValue(rect2.y() -> 500), KeyValue(rect2.width() -> 150) } } Animation in Fantom 70 Fantom has a built-in Duration type And also supports operator overloading

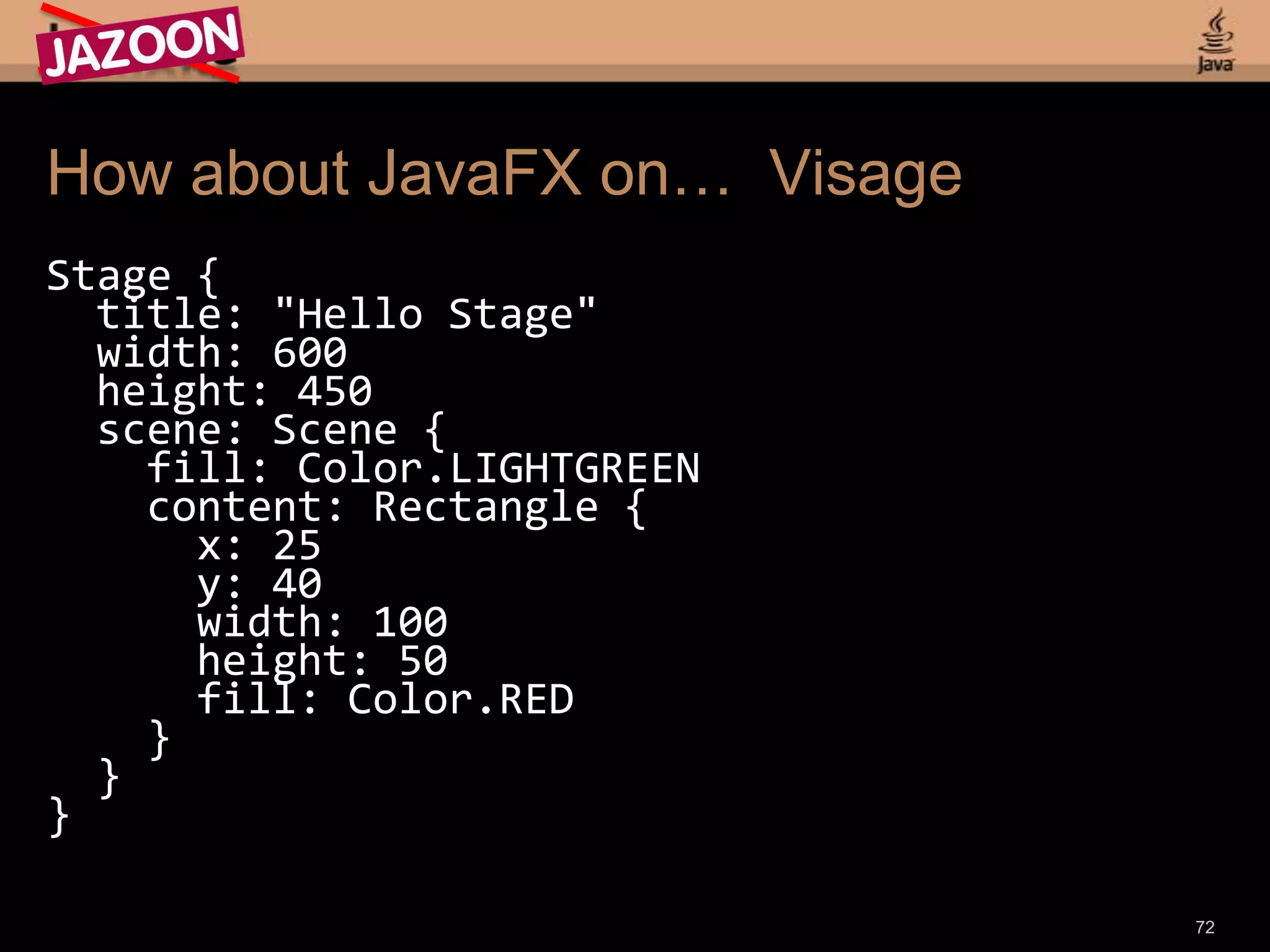

74. How about JavaFX on… Visage Stage { title: "Hello Stage" width: 600 height: 450 scene: Scene { fill: Color.LIGHTGREEN content: Rectangle { x: 25 y: 40 width: 100 height: 50 fill: Color.RED } } } 72

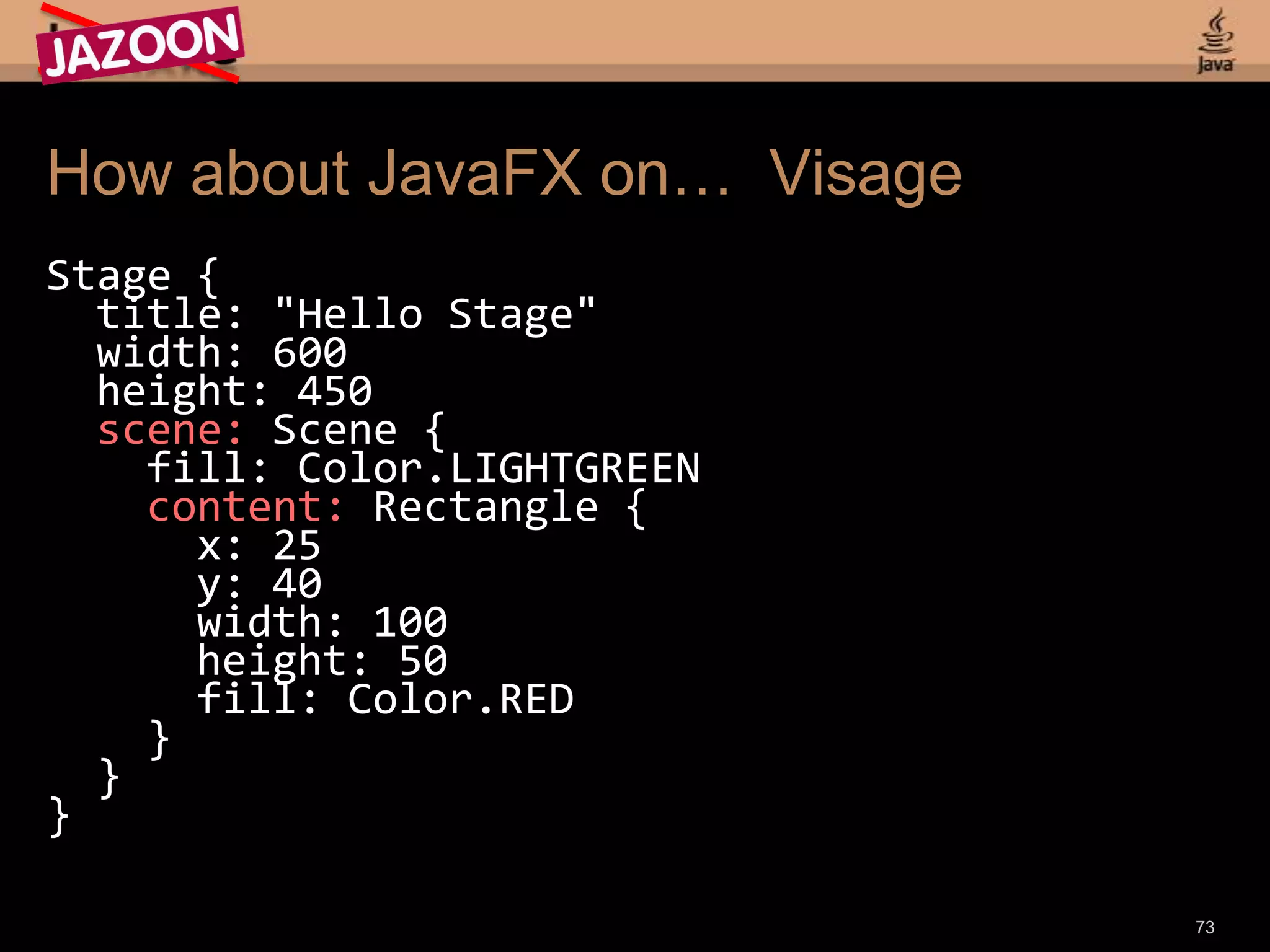

75. How about JavaFX on… Visage Stage { title: "Hello Stage" width: 600 height: 450 scene: Scene { fill: Color.LIGHTGREEN content: Rectangle { x: 25 y: 40 width: 100 height: 50 fill: Color.RED } } } 73

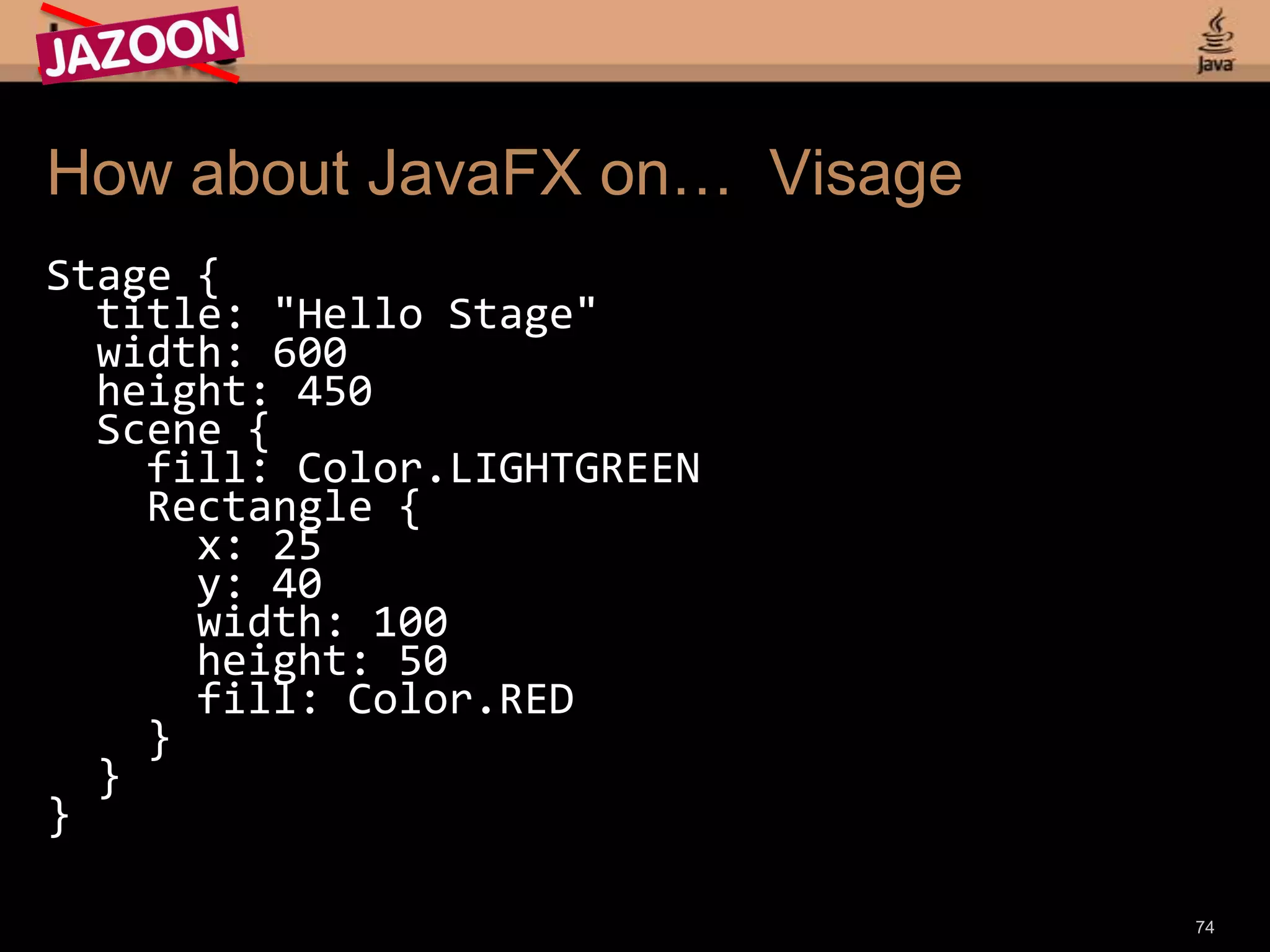

76. How about JavaFX on… Visage Stage { title: "Hello Stage" width: 600 height: 450 Scene { fill: Color.LIGHTGREEN Rectangle { x: 25 y: 40 width: 100 height: 50 fill: Color.RED } } } 74

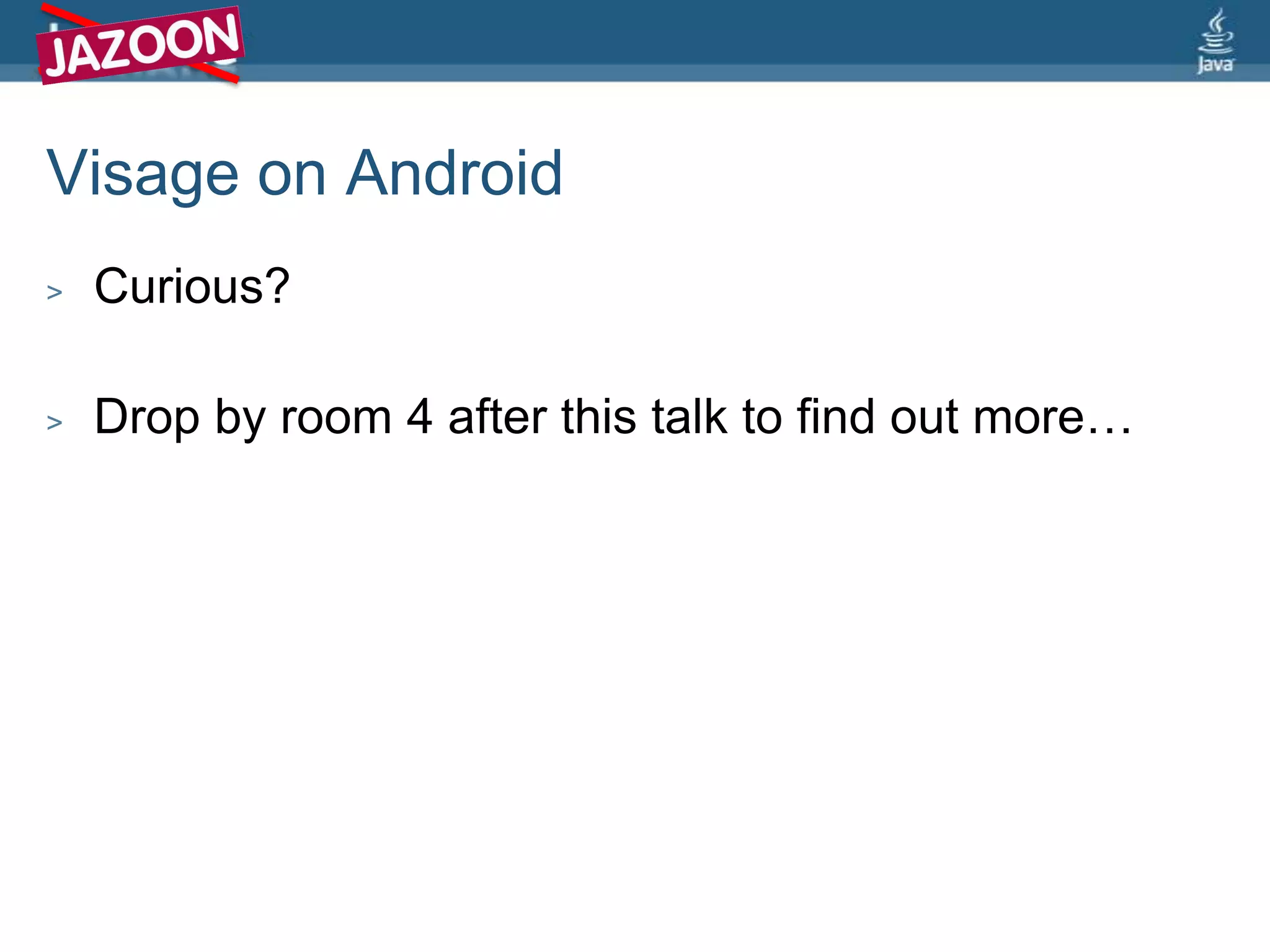

77. Visage on Android Curious? Drop by room 4 after this talk to find out more…

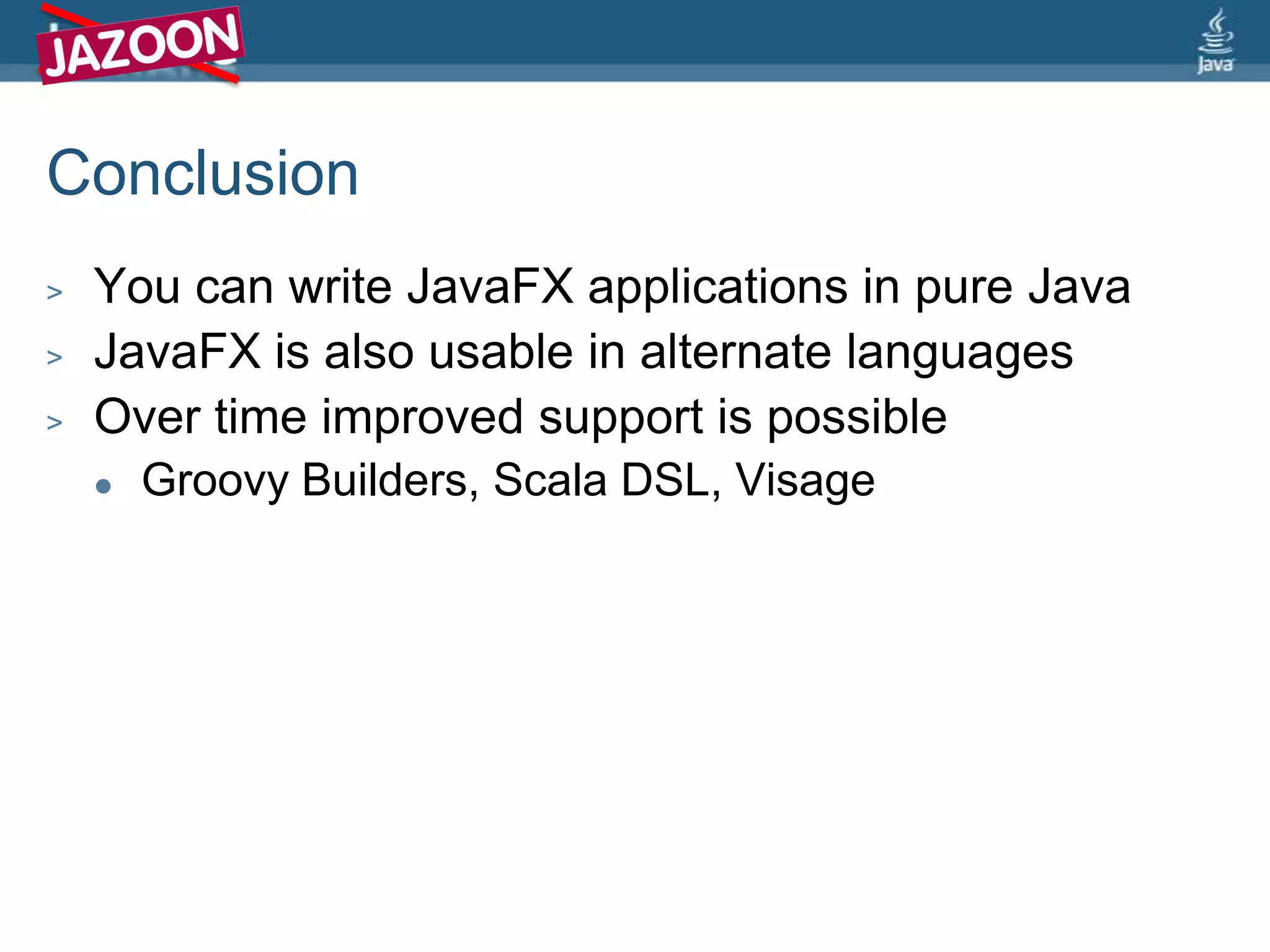

78. Conclusion You can write JavaFX applications in pure Java JavaFX is also usable in alternate languages Over time improved support is possible Groovy Builders, Scala DSL, Visage

79. 77 Stephen Chin steveonjava@gmail.com tweet: @steveonjava
