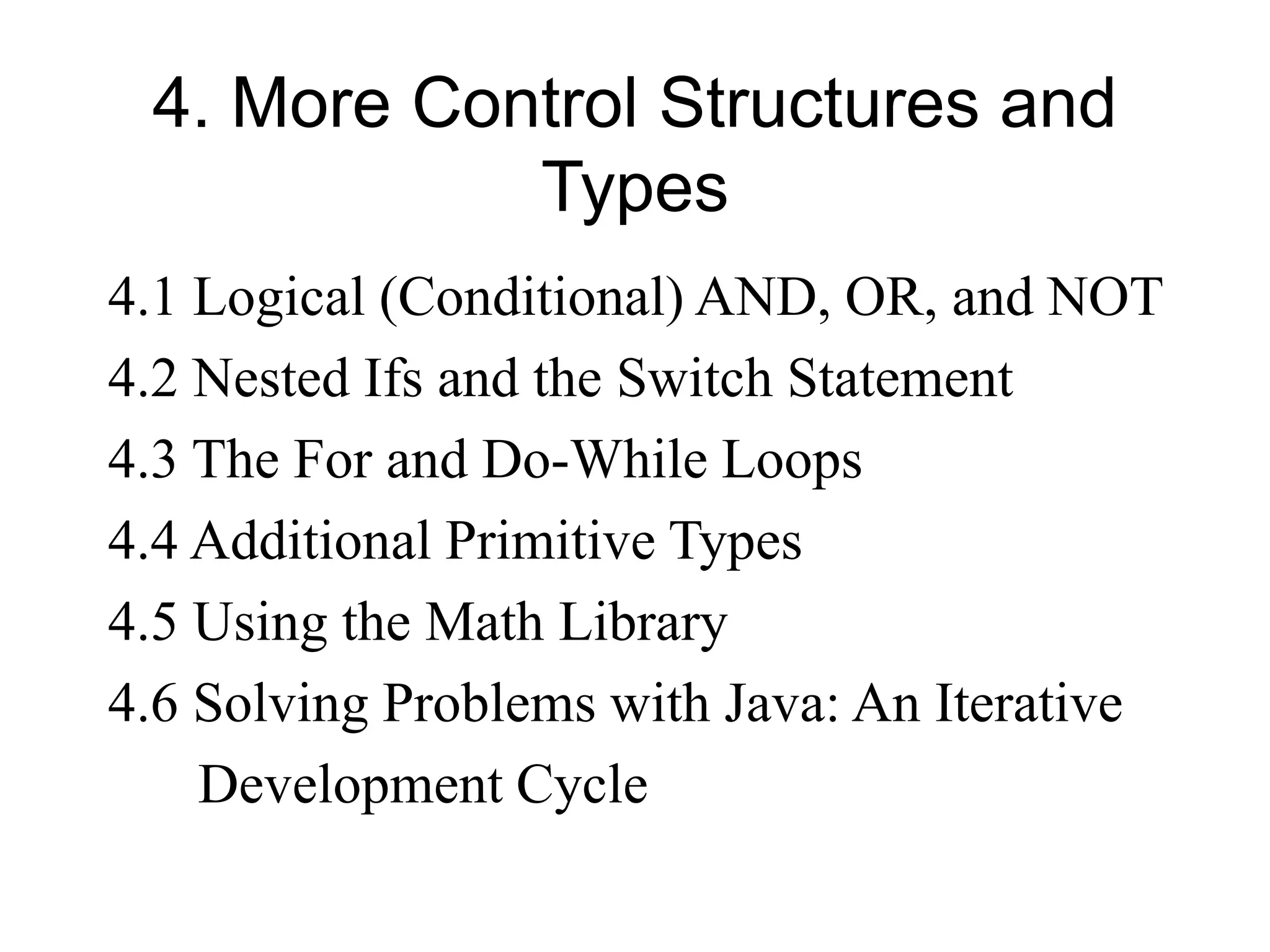

4. More Control Structures and
Types
4.1 Logical (Conditional) AND, OR, and NOT
4.2 Nested Ifs and the Switch Statement
4.3 The For and Do-While Loops
4.4 Additional Primitive Types
4.5 Using the Math Library
4.6 Solving Problems with Java: An Iterative
Development Cycle

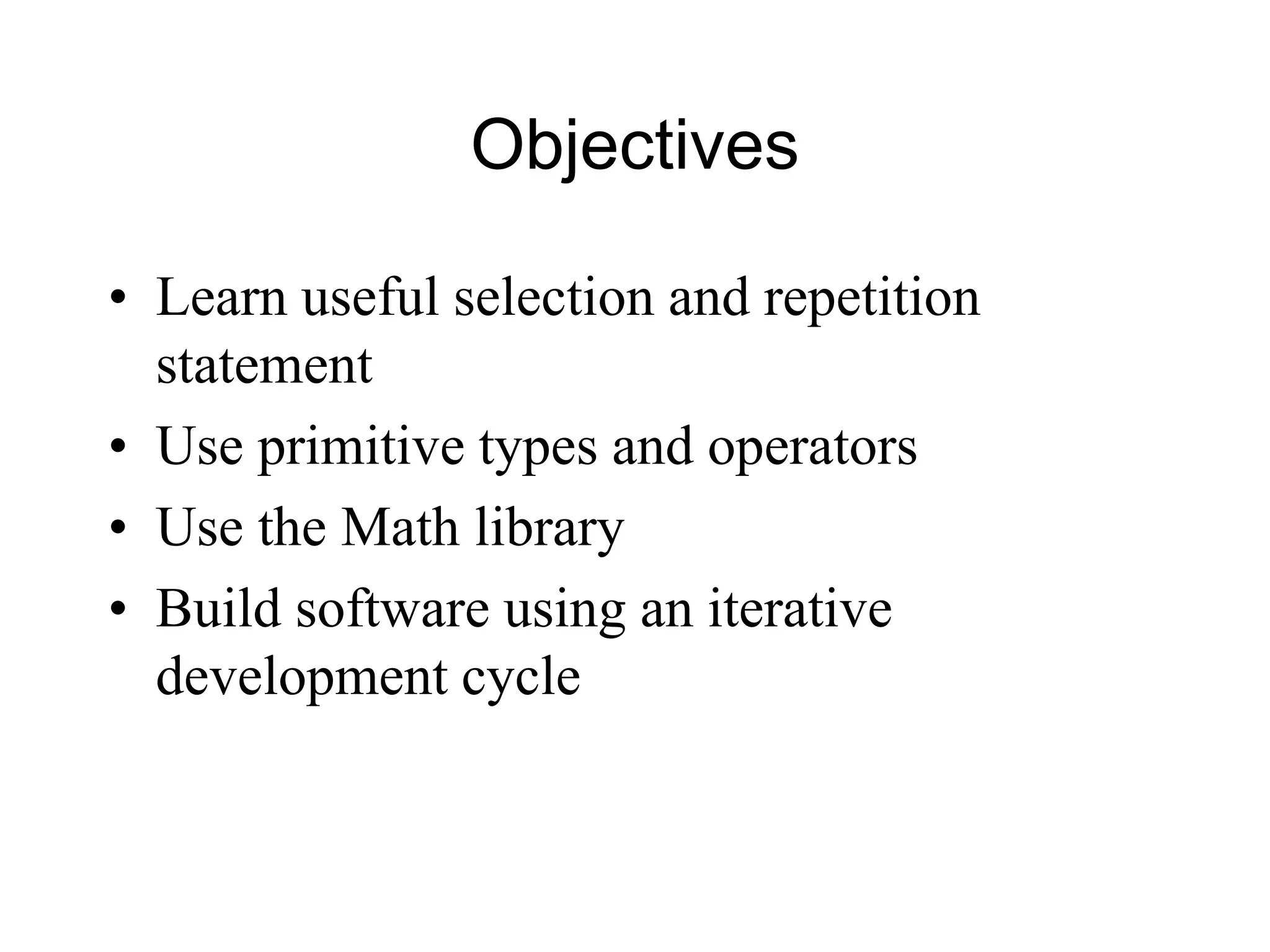

Objectives
• Learn useful selection and repetition
statement
• Use primitive types and operators
• Use the Math library
• Build software using an iterative
development cycle

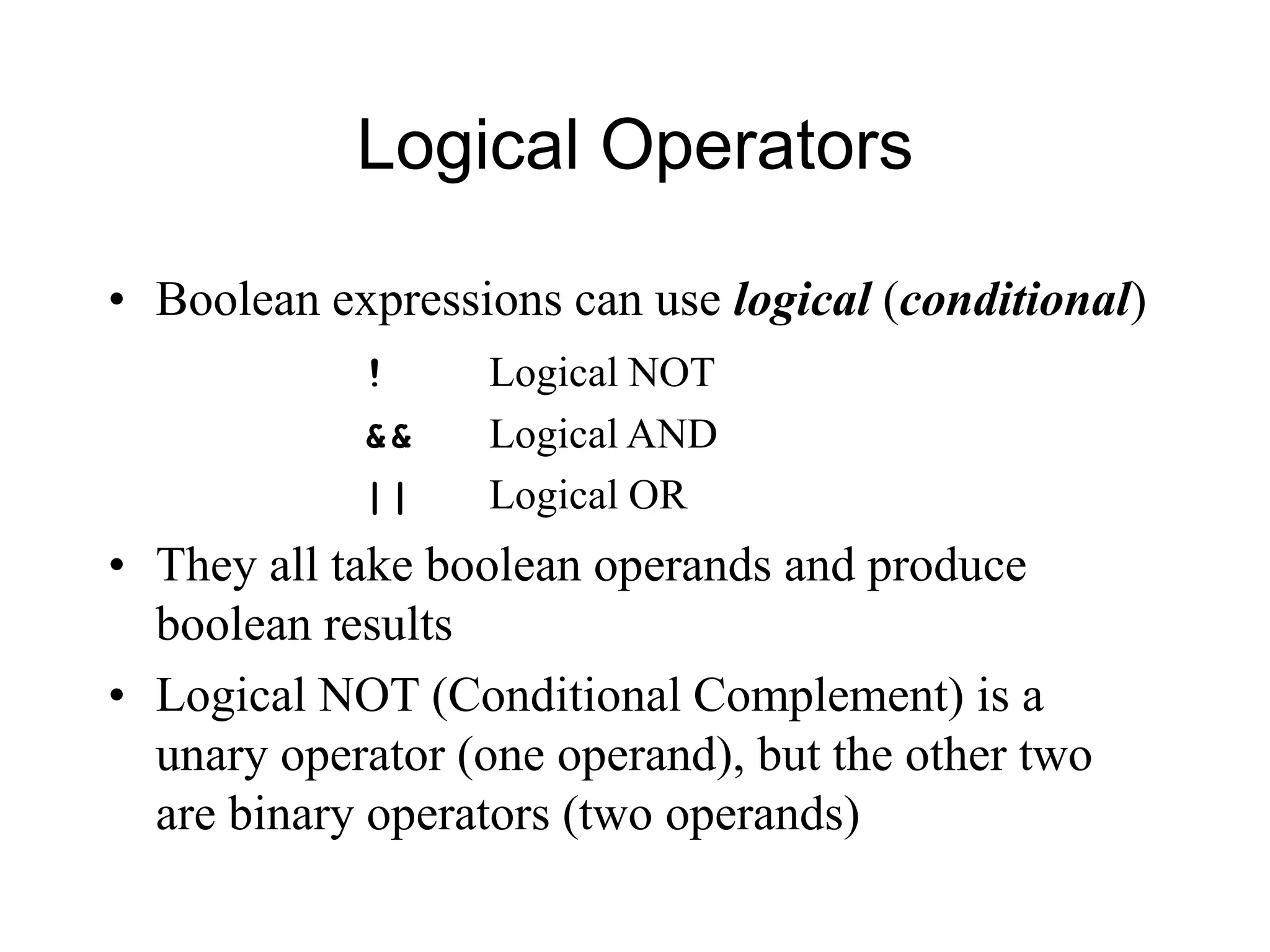

Logical Operators
• Boolean expressions can use logical (conditional)
! Logical NOT
&& Logical AND
|| Logical OR
• They all take boolean operands and produce
boolean results
• Logical NOT (Conditional Complement) is a
unary operator (one operand), but the other two
are binary operators (two operands)

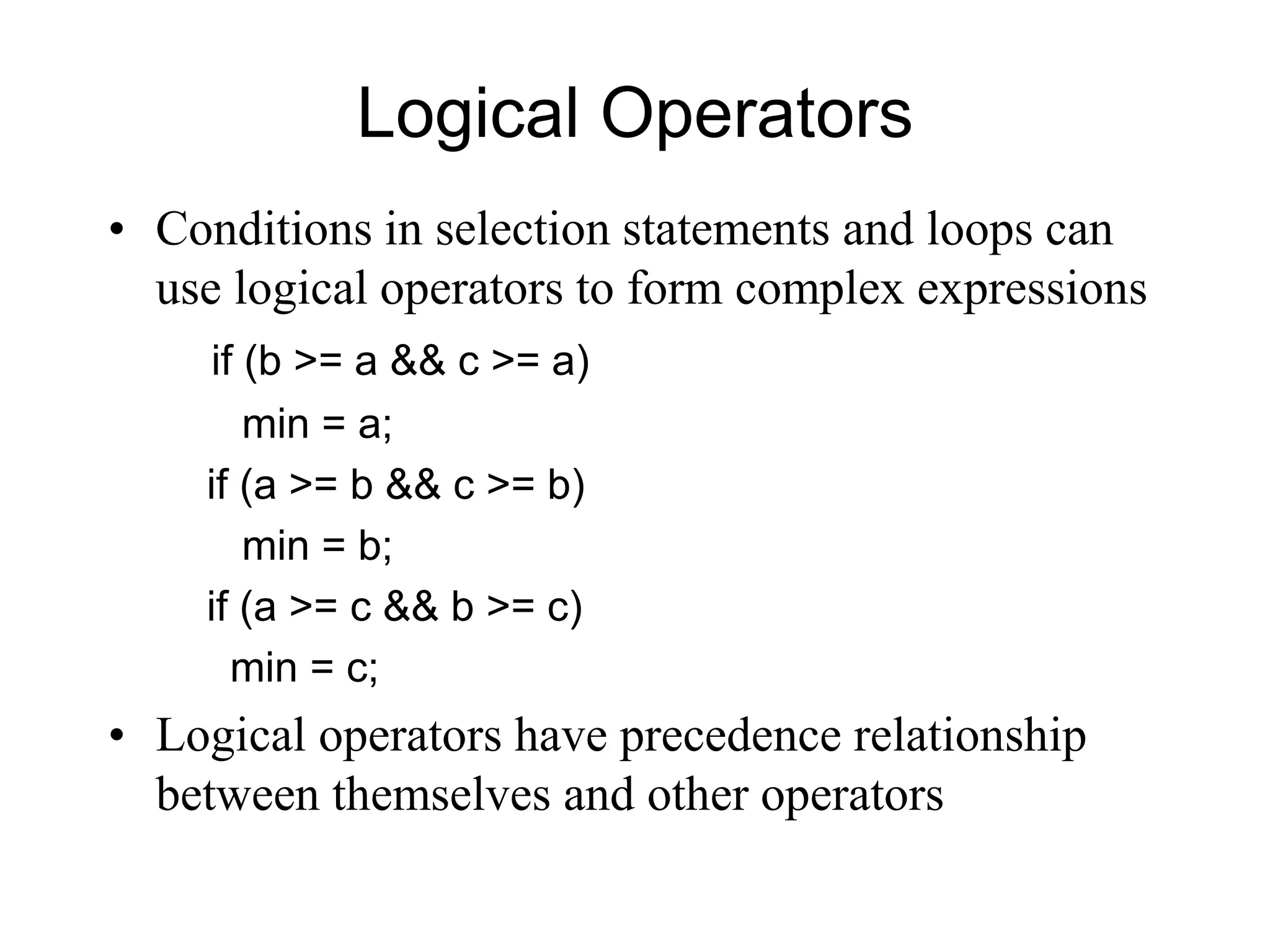

Logical Operators
• Conditions in selection statements and loops can
use logical operators to form complex expressions
if (b >= a && c >= a)
min = a;
if (a >= b && c >= b)
min = b;
if (a >= c && b >= c)
min = c;
• Logical operators have precedence relationship
between themselves and other operators

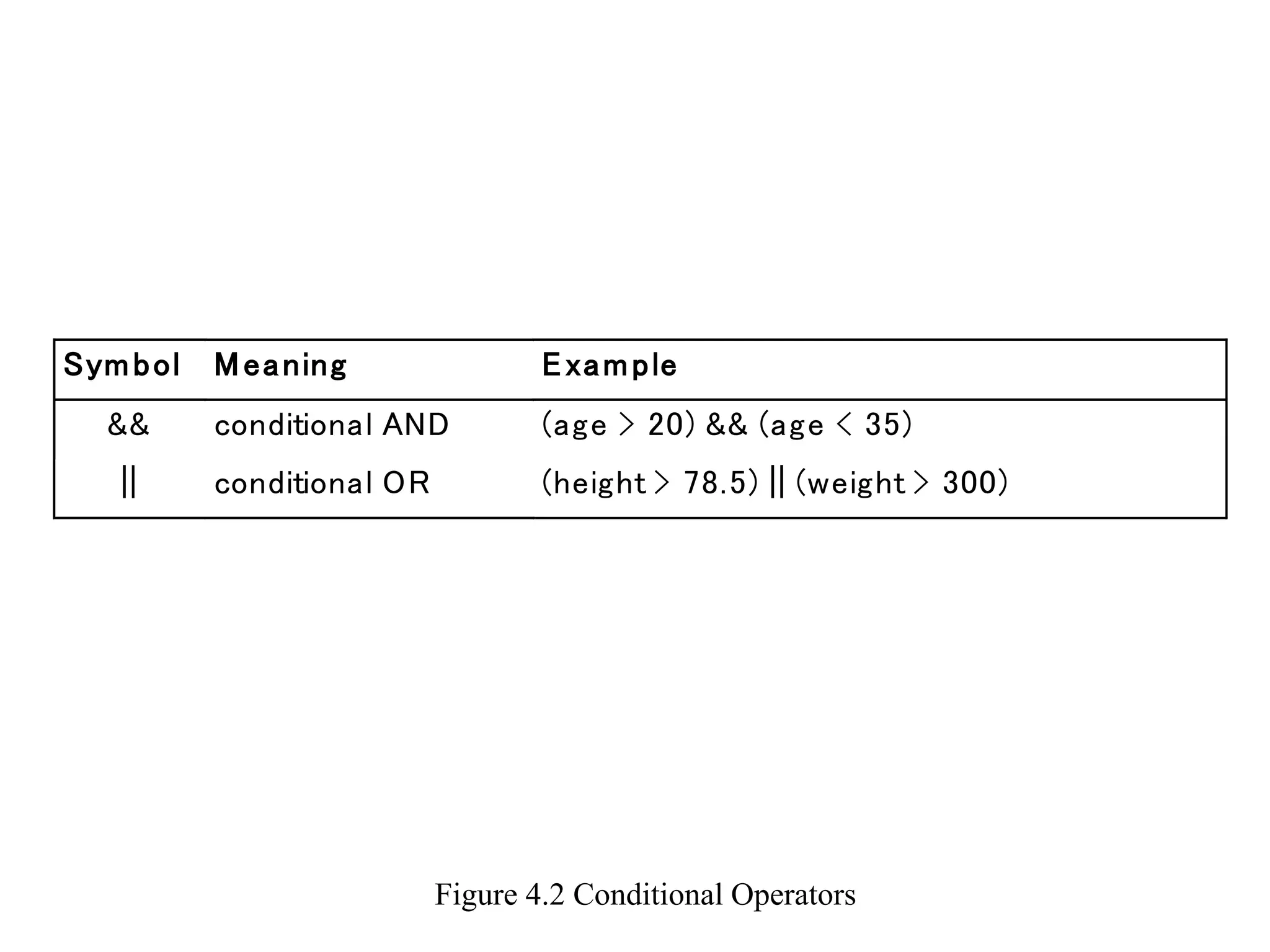

Symbol Meaning Example
&& conditional AND (age > 20) && (age < 35)
|| conditional OR (height > 78.5) || (weight > 300)
Figure 4.2 Conditional Operators

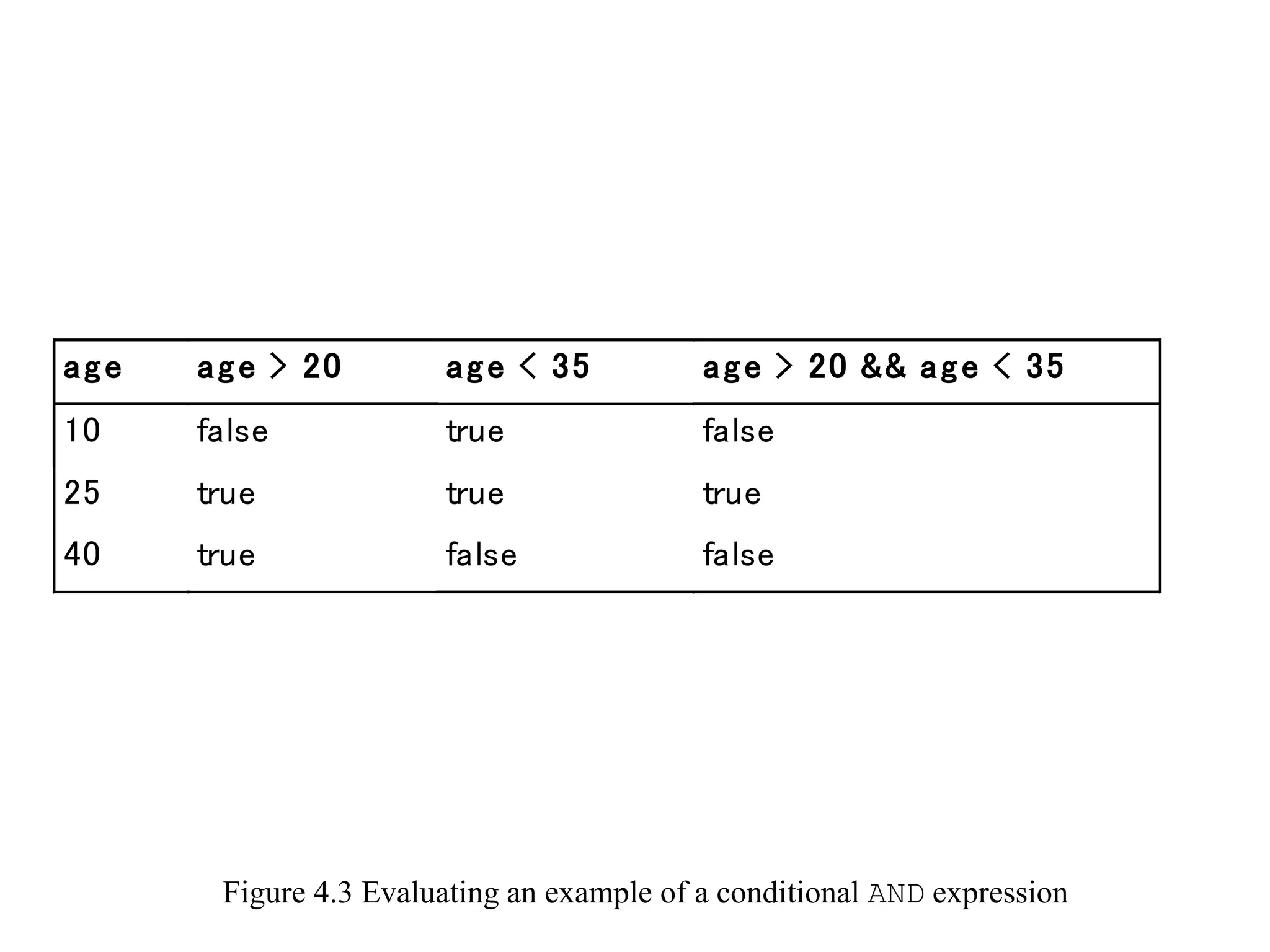

age age > 20 age < 35 age > 20 && age < 35
10 false true false
25 true true true
40 true false false
Figure 4.3 Evaluating an example of a conditional AND expression
A B A && B
true true true
true false false
false (don't care) false

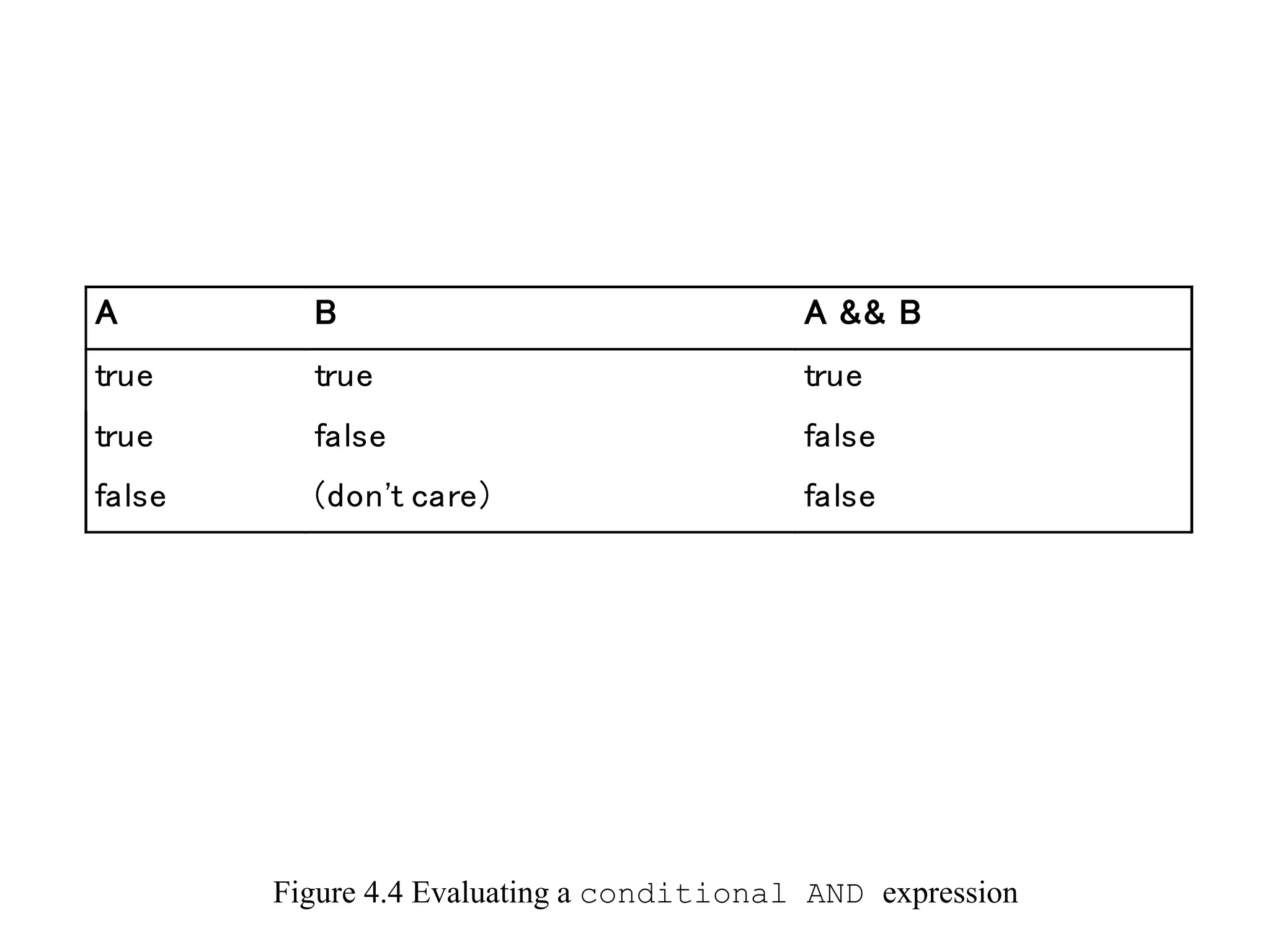

Figure 4.4 Evaluating a conditional AND expression
height weight height > 78.5 weight > 300 (height>78.5) || (weight>300)
62 125 false false false
80 250 true false true
72 310 false true true
80 325 true true true

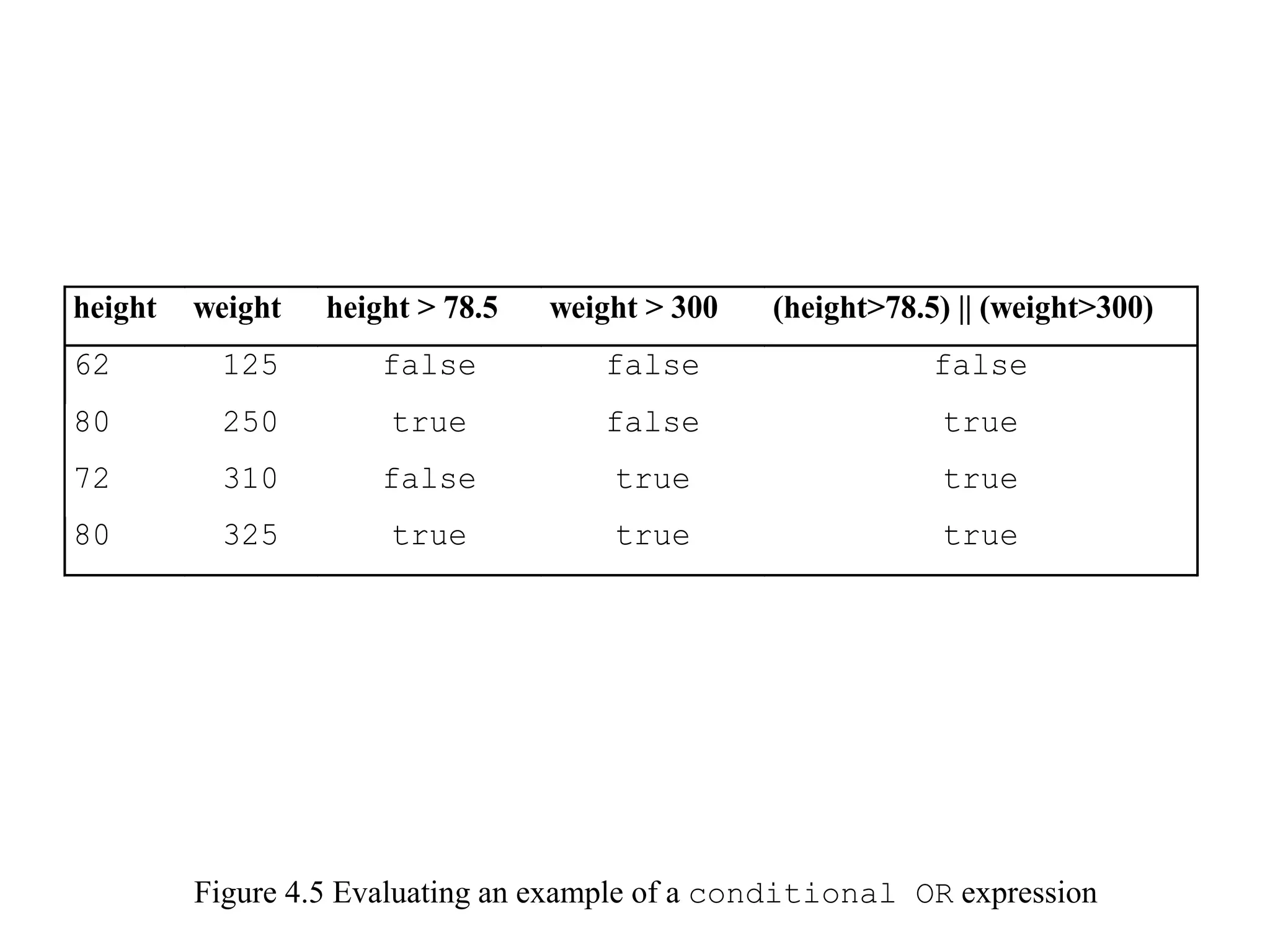

Figure 4.5 Evaluating an example of a conditional OR expression

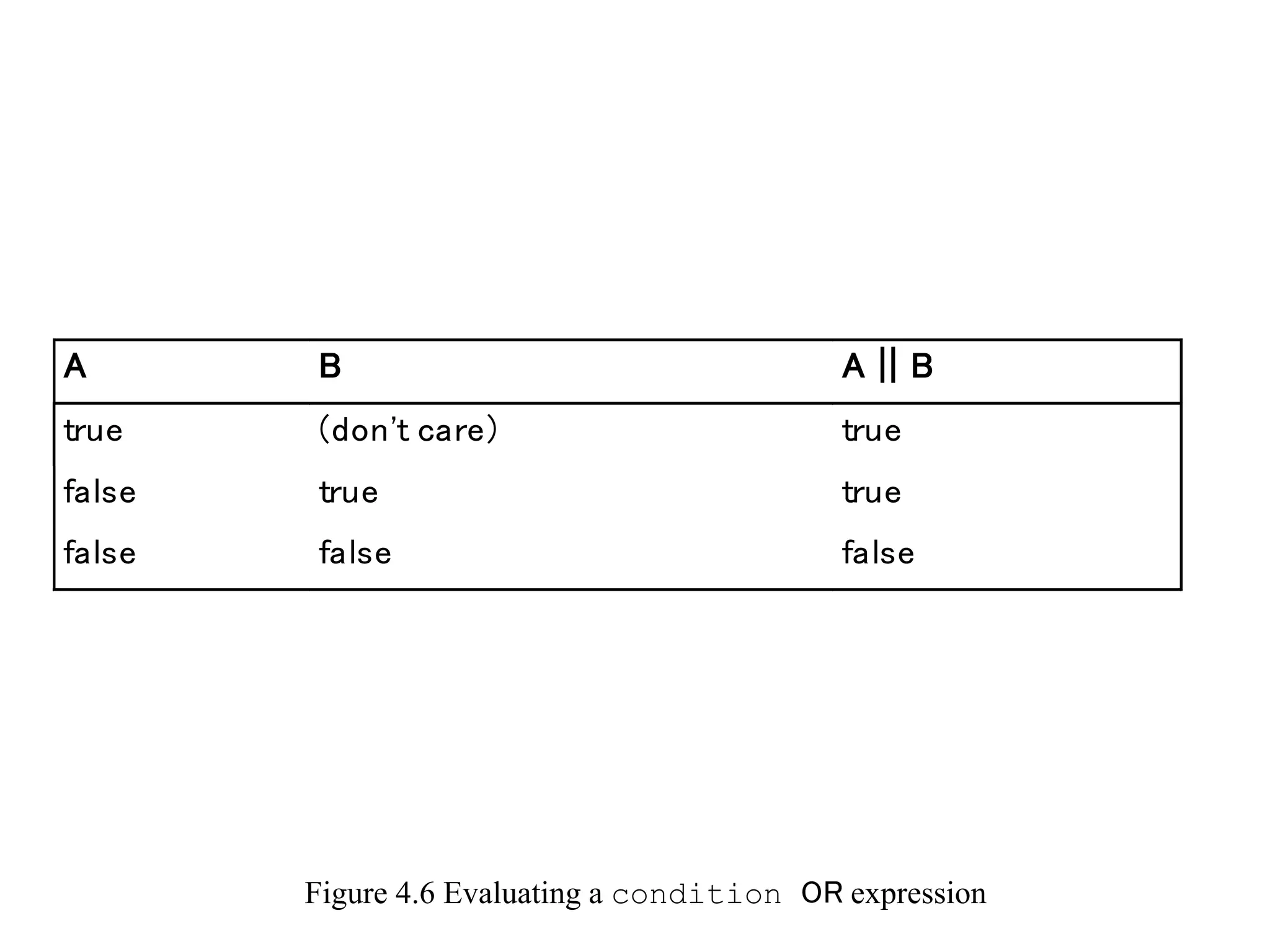

A B A || B
true (don't care) true
false true true
false false false
Figure 4.6 Evaluating a condition OR expression
A !A
true false
false true

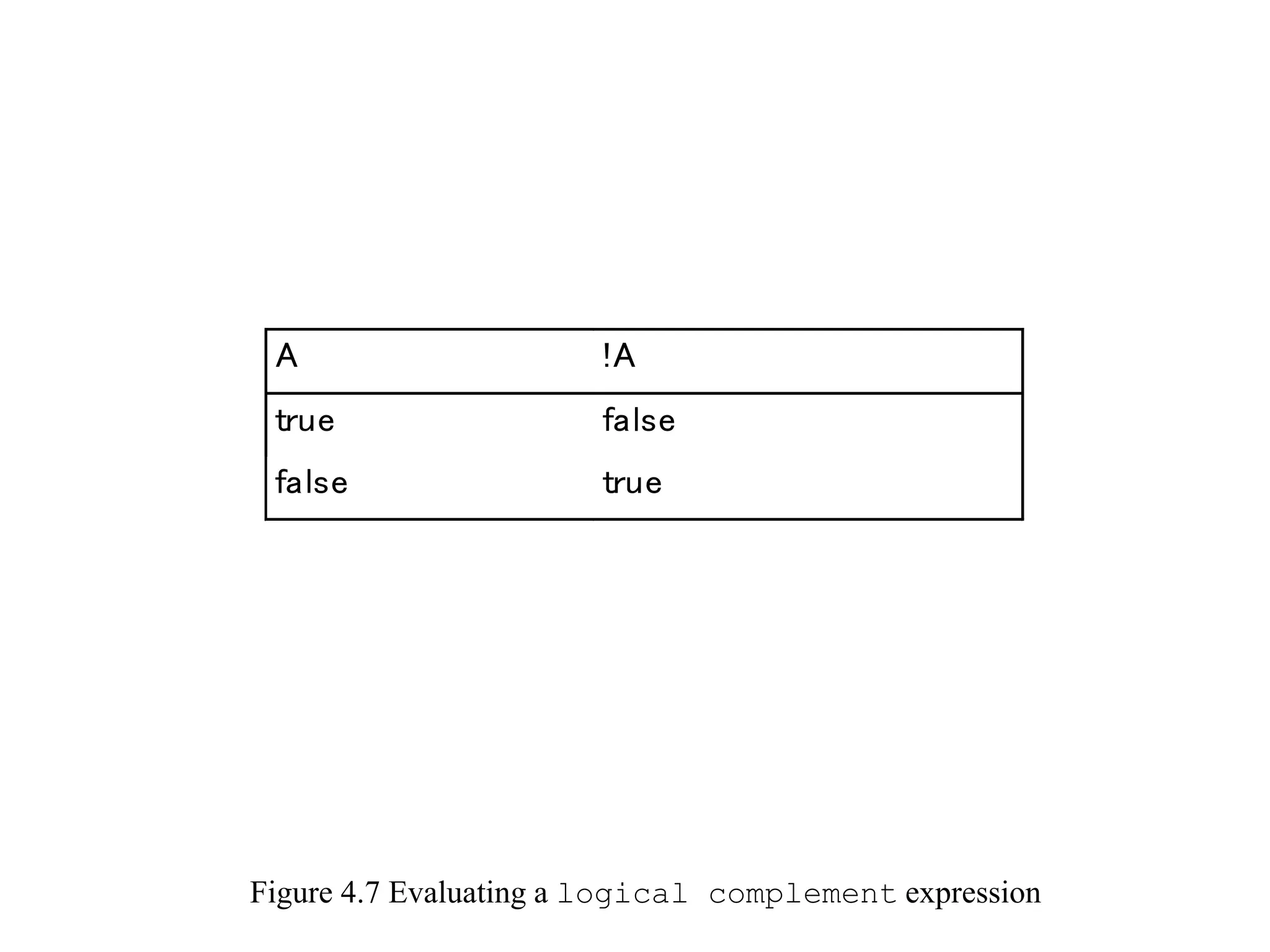

Figure 4.7 Evaluating a logical complement expression

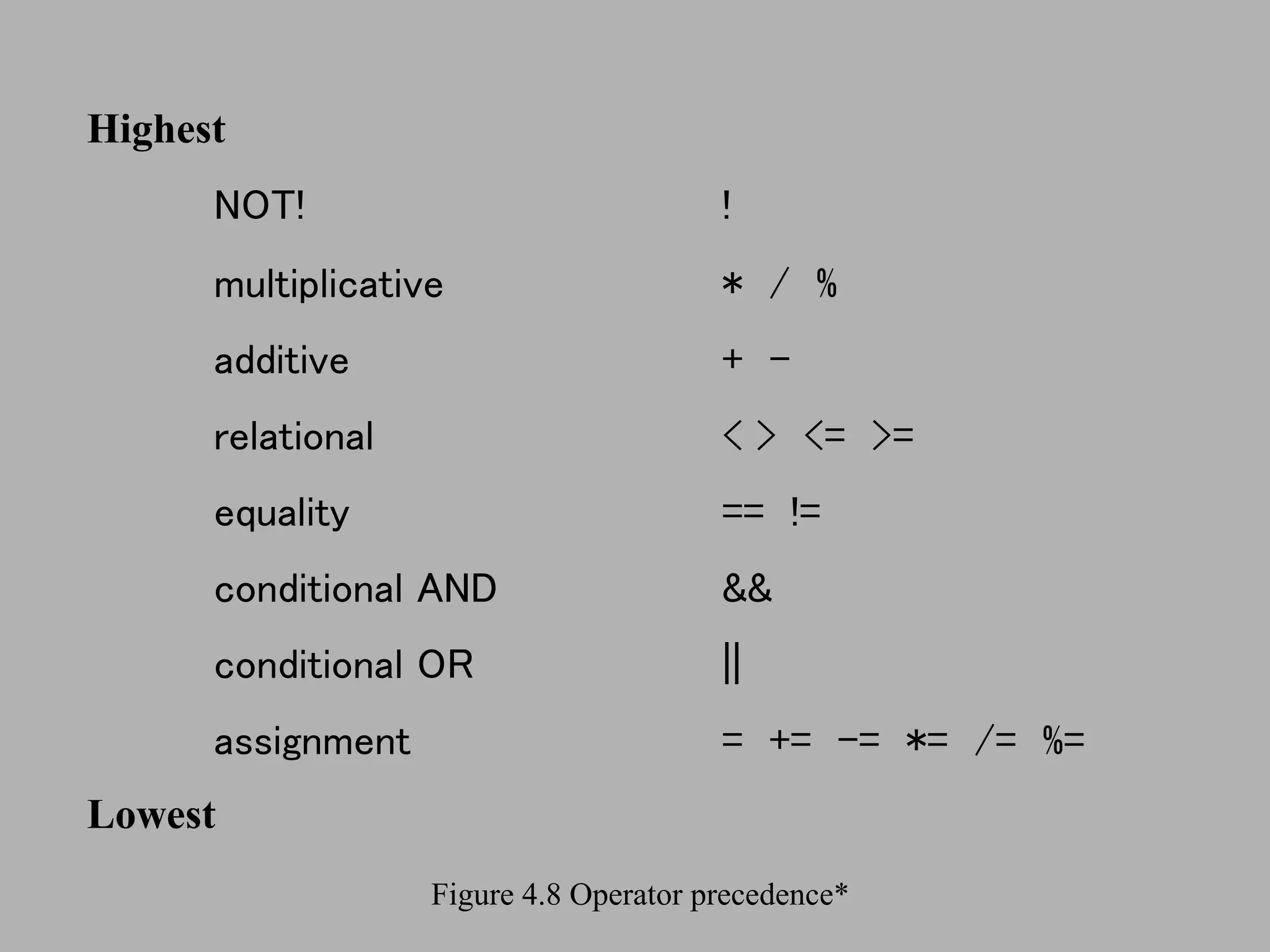

Figure 4.8 Operator precedence*
Highest
NOT! !
multiplicative * / %
additive + -
relational < > <= >=
equality == !=
conditional AND &&
conditional OR ||
assignment = += -= *= /= %=
Lowest

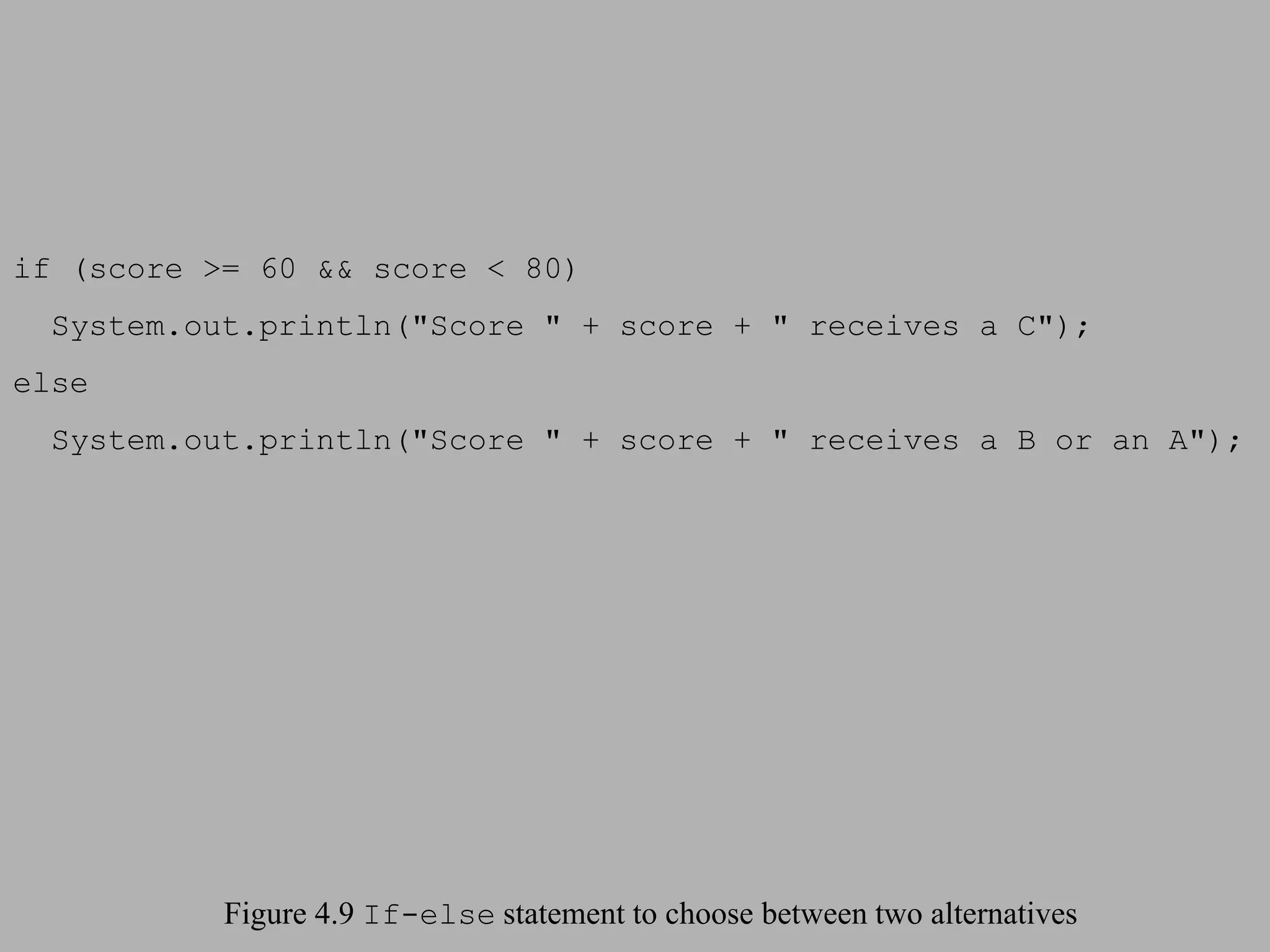

if (score >= 60 && score < 80)
System.out.println("Score " + score + " receives a C");
else
System.out.println("Score " + score + " receives a B or an A");
Figure 4.9 If-else statement to choose between two alternatives

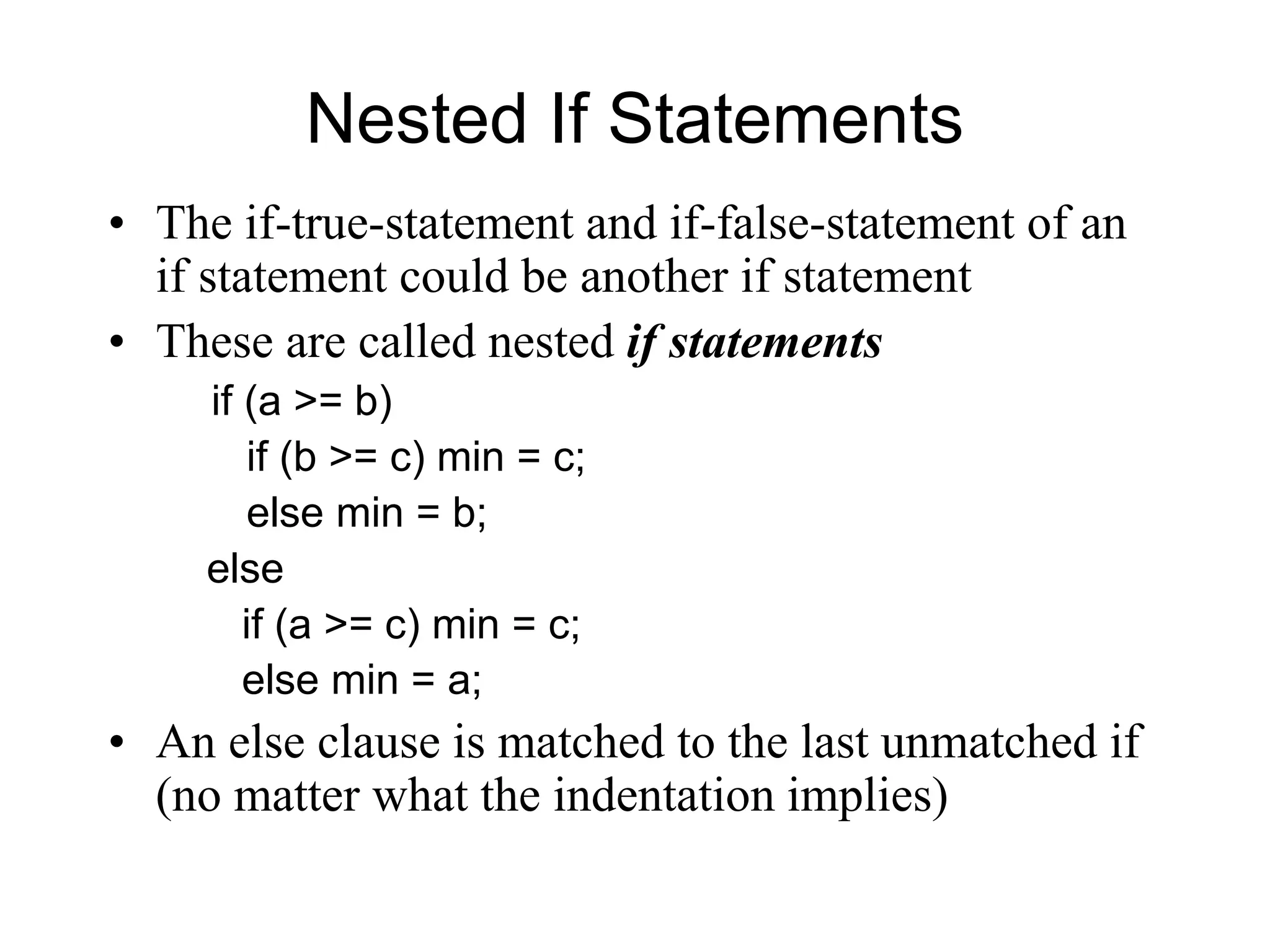

Nested If Statements
• The if-true-statement and if-false-statement of an
if statement could be another if statement
• These are called nested if statements
if (a >= b)
if (b >= c) min = c;
else min = b;
else
if (a >= c) min = c;
else min = a;
• An else clause is matched to the last unmatched if
(no matter what the indentation implies)

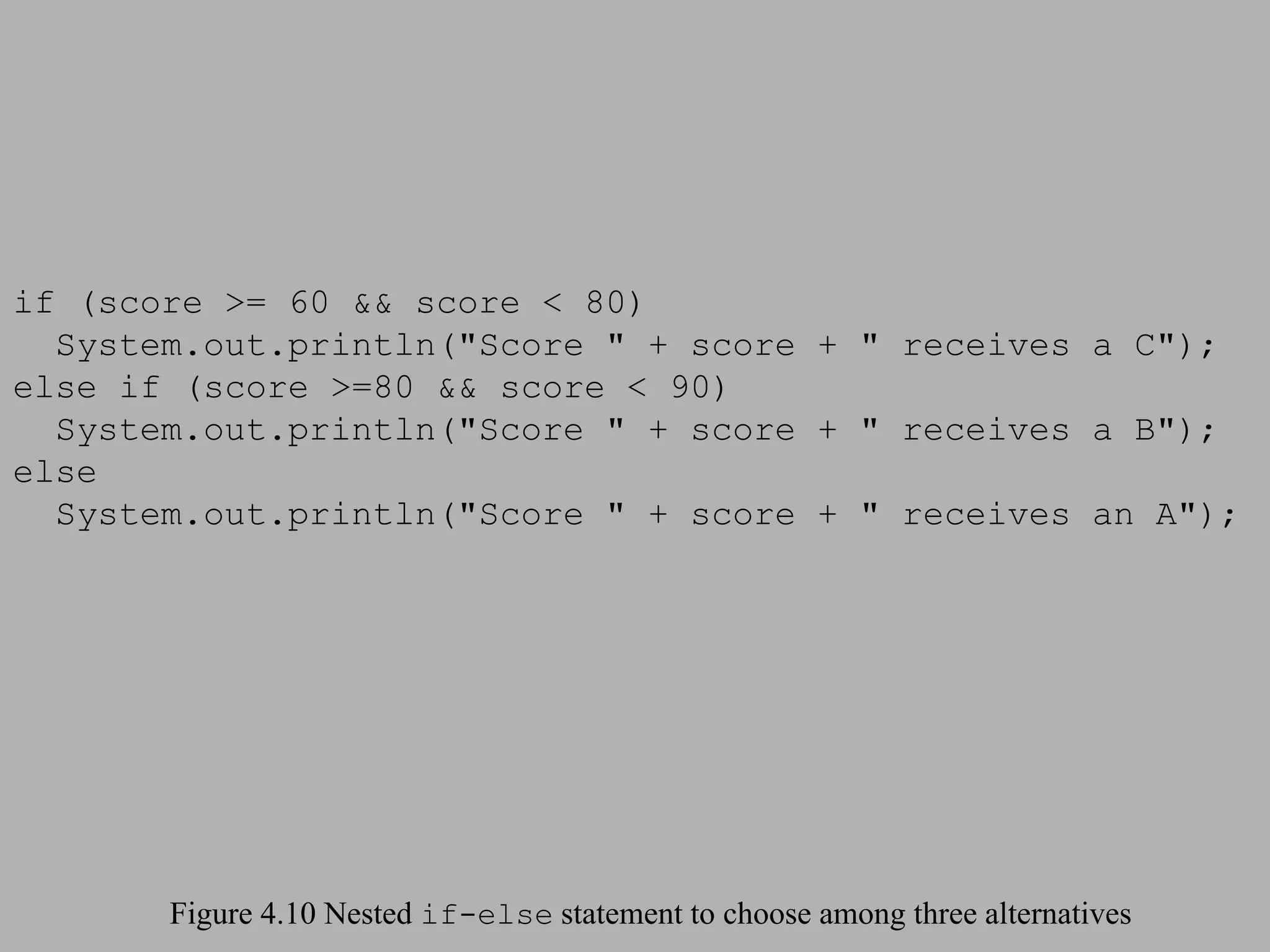

Figure 4.10 Nested if-else statement to choose among three alternatives
if (score >= 60 && score < 80)
System.out.println("Score " + score + " receives a C");
else if (score >=80 && score < 90)
System.out.println("Score " + score + " receives a B");
else
System.out.println("Score " + score + " receives an A");

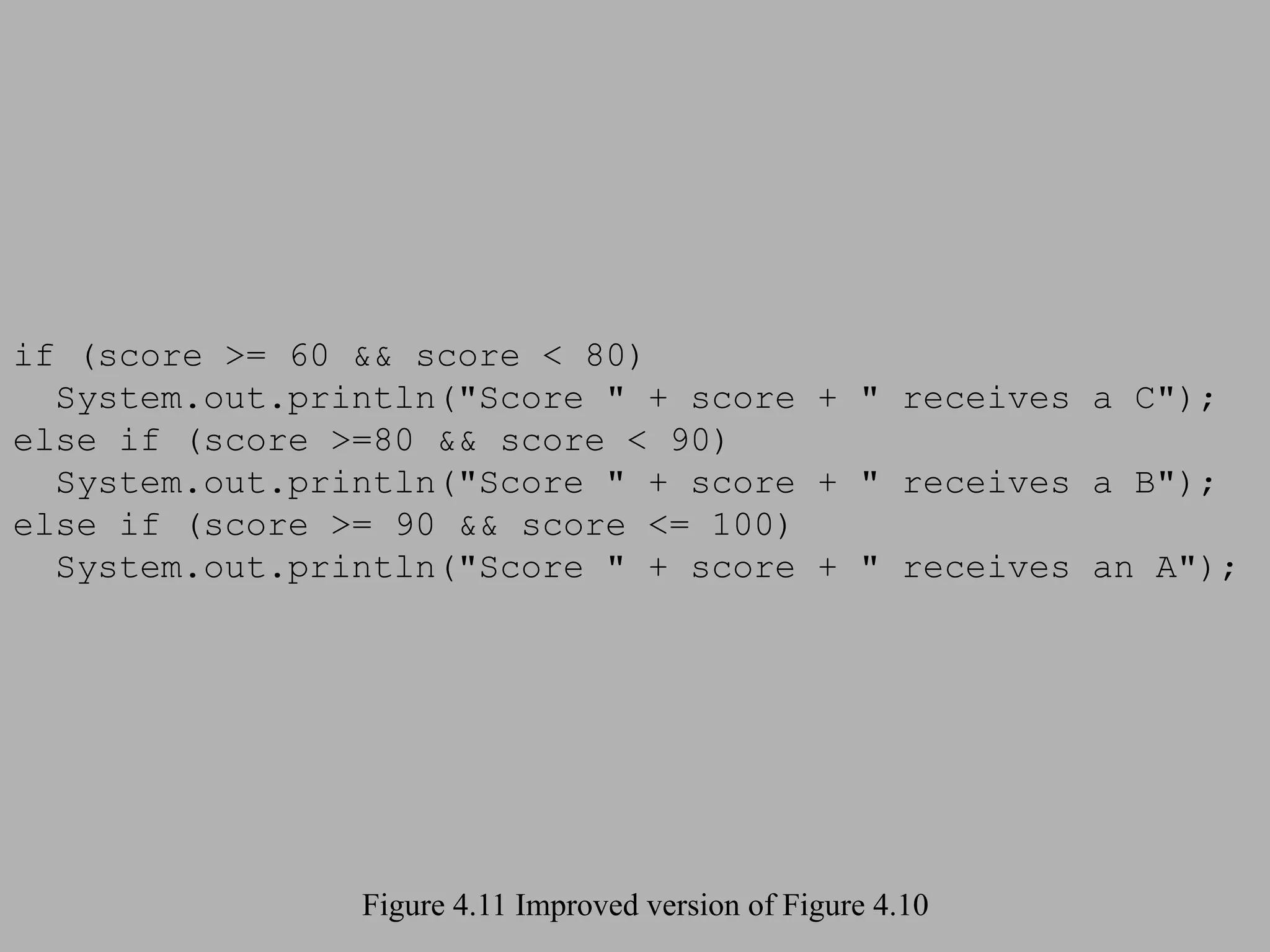

Figure 4.11 Improved version of Figure 4.10
if (score >= 60 && score < 80)
System.out.println("Score " + score + " receives a C");
else if (score >=80 && score < 90)
System.out.println("Score " + score + " receives a B");
else if (score >= 90 && score <= 100)
System.out.println("Score " + score + " receives an A");

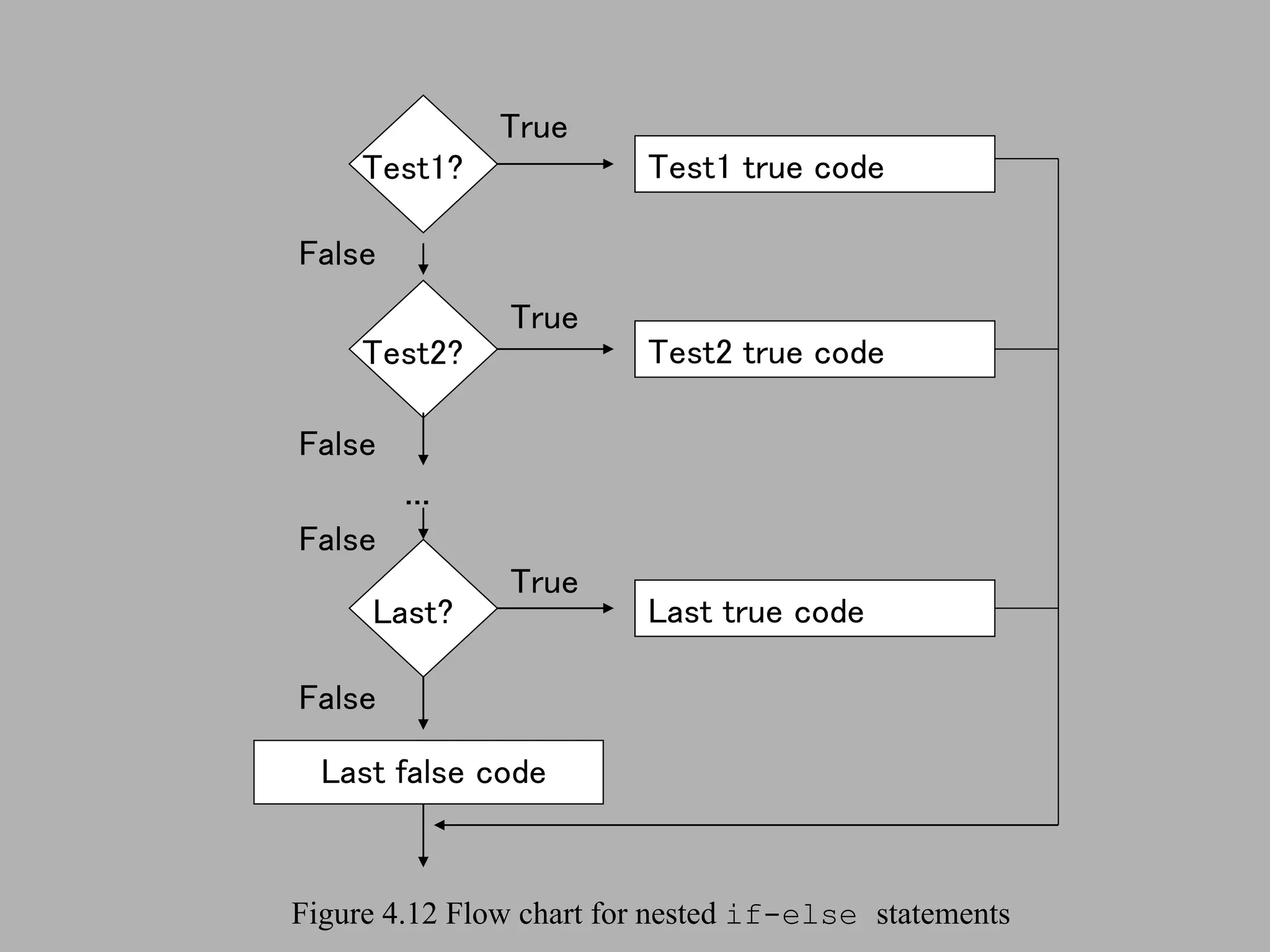

Figure 4.12 Flow chart for nested if-else statements
Last?
Last false code
...
Last true code
True
False
False
Test1?
Test2?
Test1 true code
Test2 true code
True
True
False
False

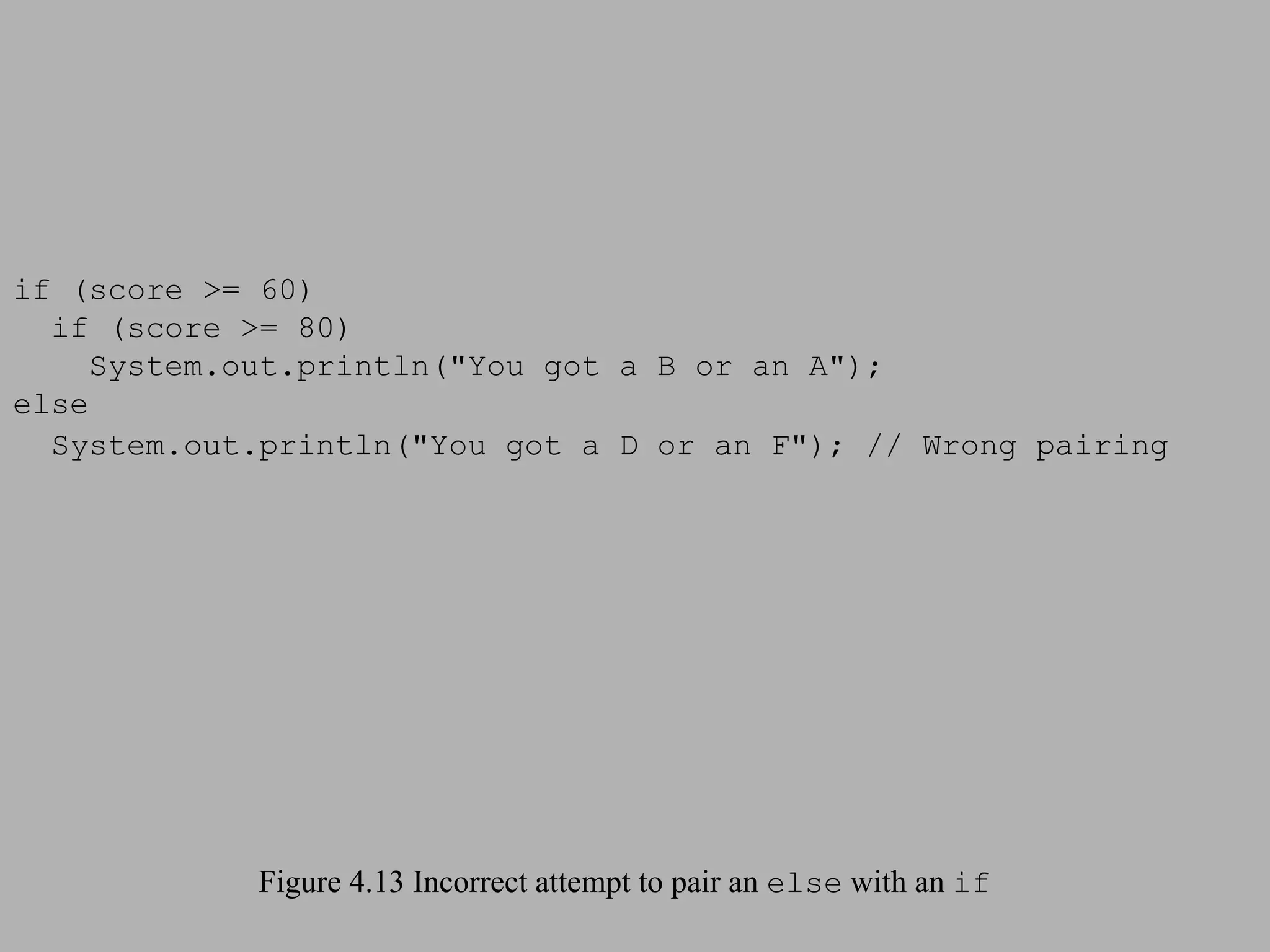

Figure 4.13 Incorrect attempt to pair an else with an if
if (score >= 60)
if (score >= 80)
System.out.println("You got a B or an A");
else
System.out.println("You got a D or an F"); // Wrong pairing

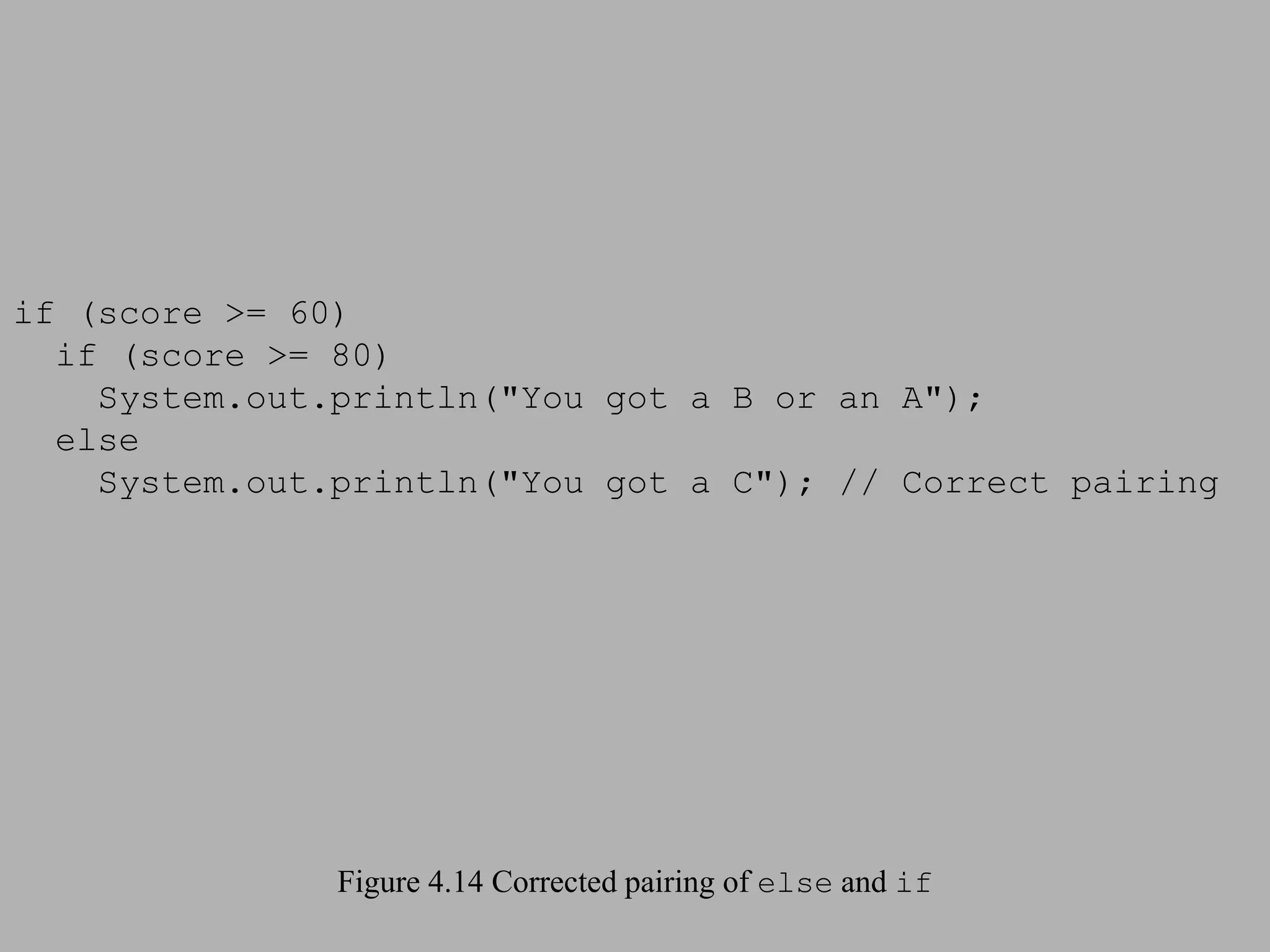

Figure 4.14 Corrected pairing of else and if
if (score >= 60)
if (score >= 80)
System.out.println("You got a B or an A");
else
System.out.println("You got a C"); // Correct pairing

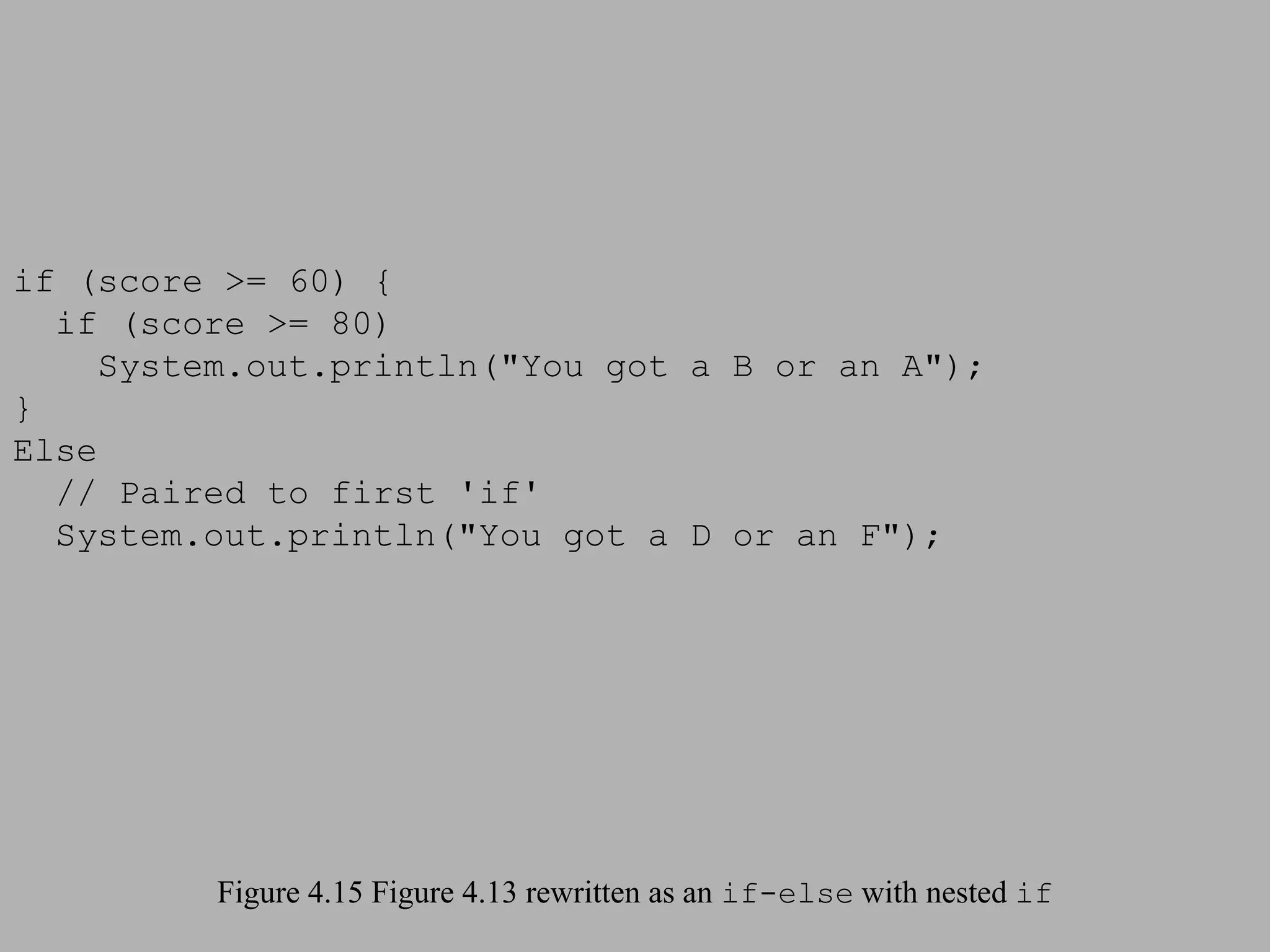

Figure 4.15 Figure 4.13 rewritten as an if-else with nested if
if (score >= 60) {
if (score >= 80)
System.out.println("You got a B or an A");
}
Else
// Paired to first 'if'
System.out.println("You got a D or an F");

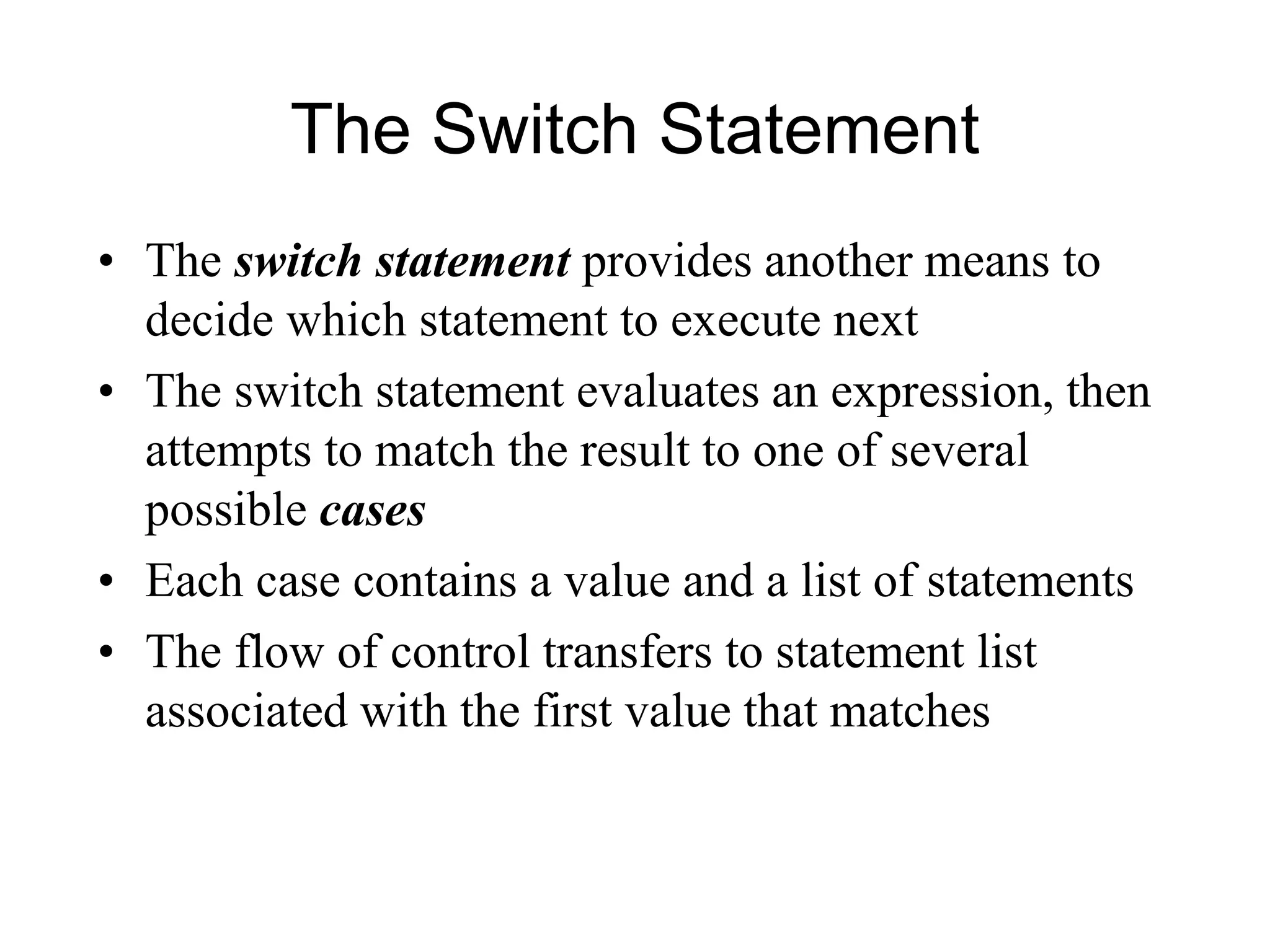

The Switch Statement
• The switch statement provides another means to
decide which statement to execute next
• The switch statement evaluates an expression, then
attempts to match the result to one of several
possible cases
• Each case contains a value and a list of statements
• The flow of control transfers to statement list
associated with the first value that matches

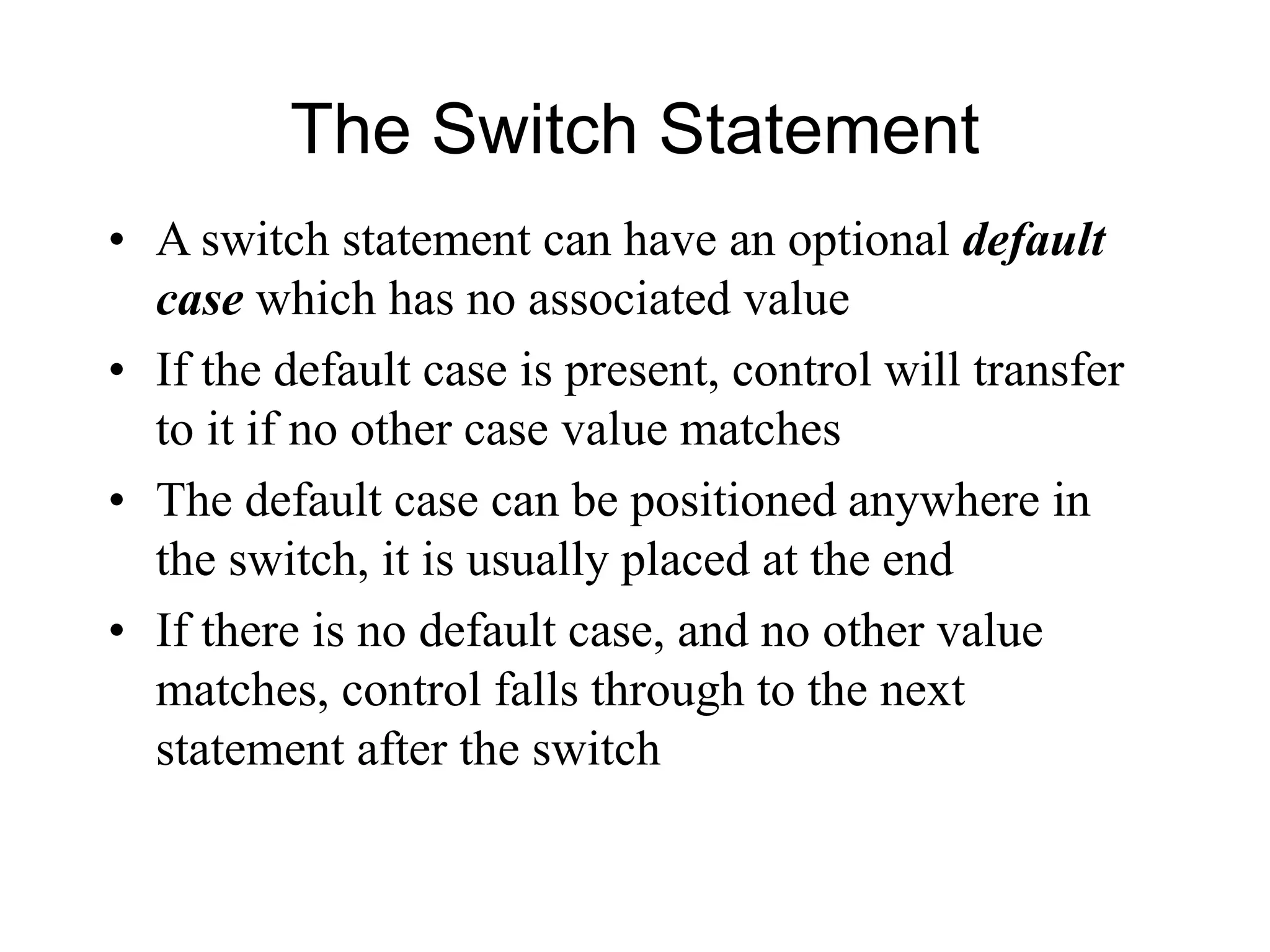

The Switch Statement
• A switch statement can have an optional default
case which has no associated value
• If the default case is present, control will transfer
to it if no other case value matches
• The default case can be positioned anywhere in
the switch, it is usually placed at the end
• If there is no default case, and no other value
matches, control falls through to the next
statement after the switch

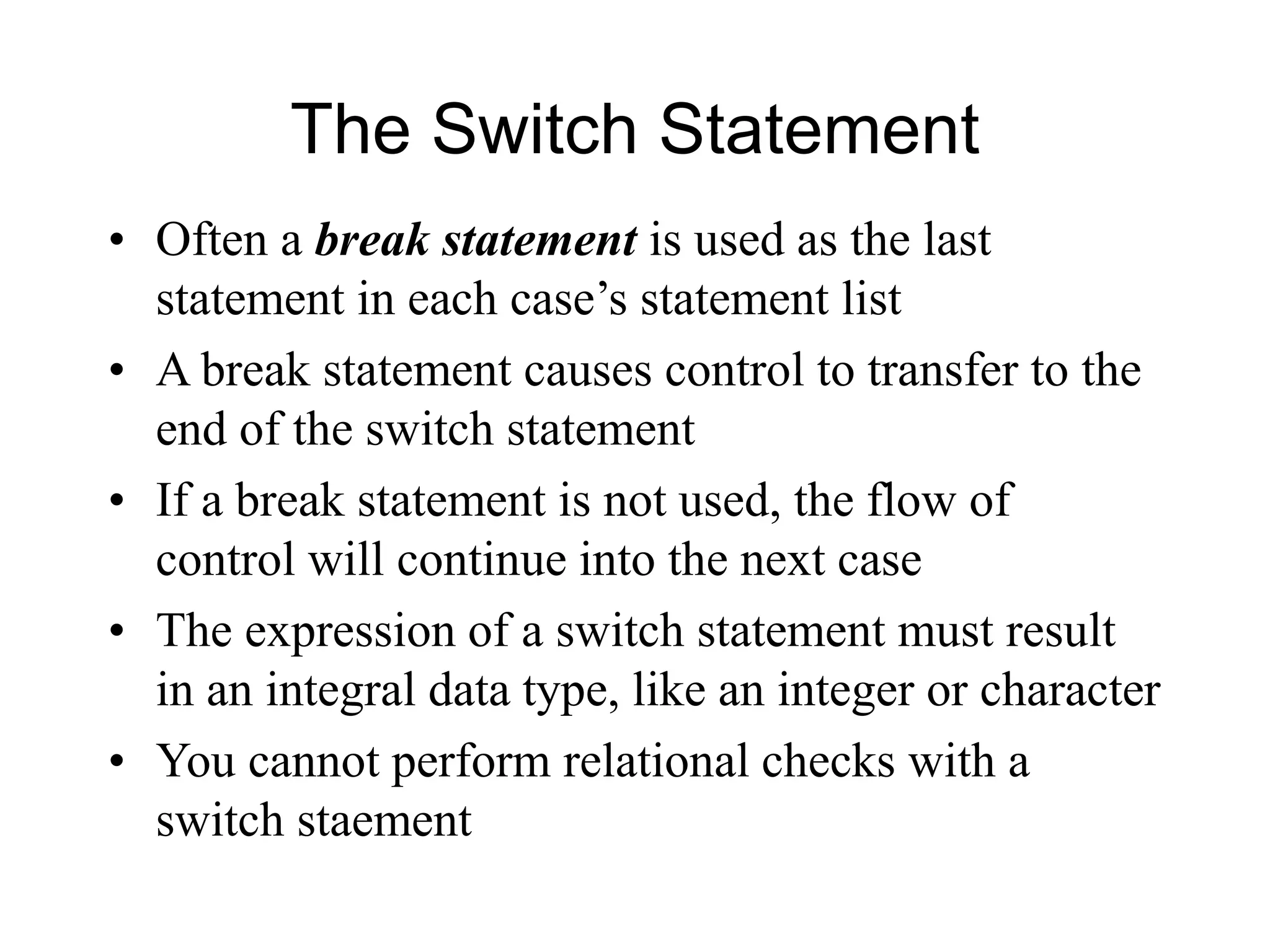

The Switch Statement
• Often a break statement is used as the last
statement in each case’s statement list
• A break statement causes control to transfer to the
end of the switch statement
• If a break statement is not used, the flow of
control will continue into the next case
• The expression of a switch statement must result
in an integral data type, like an integer or character
• You cannot perform relational checks with a
switch staement

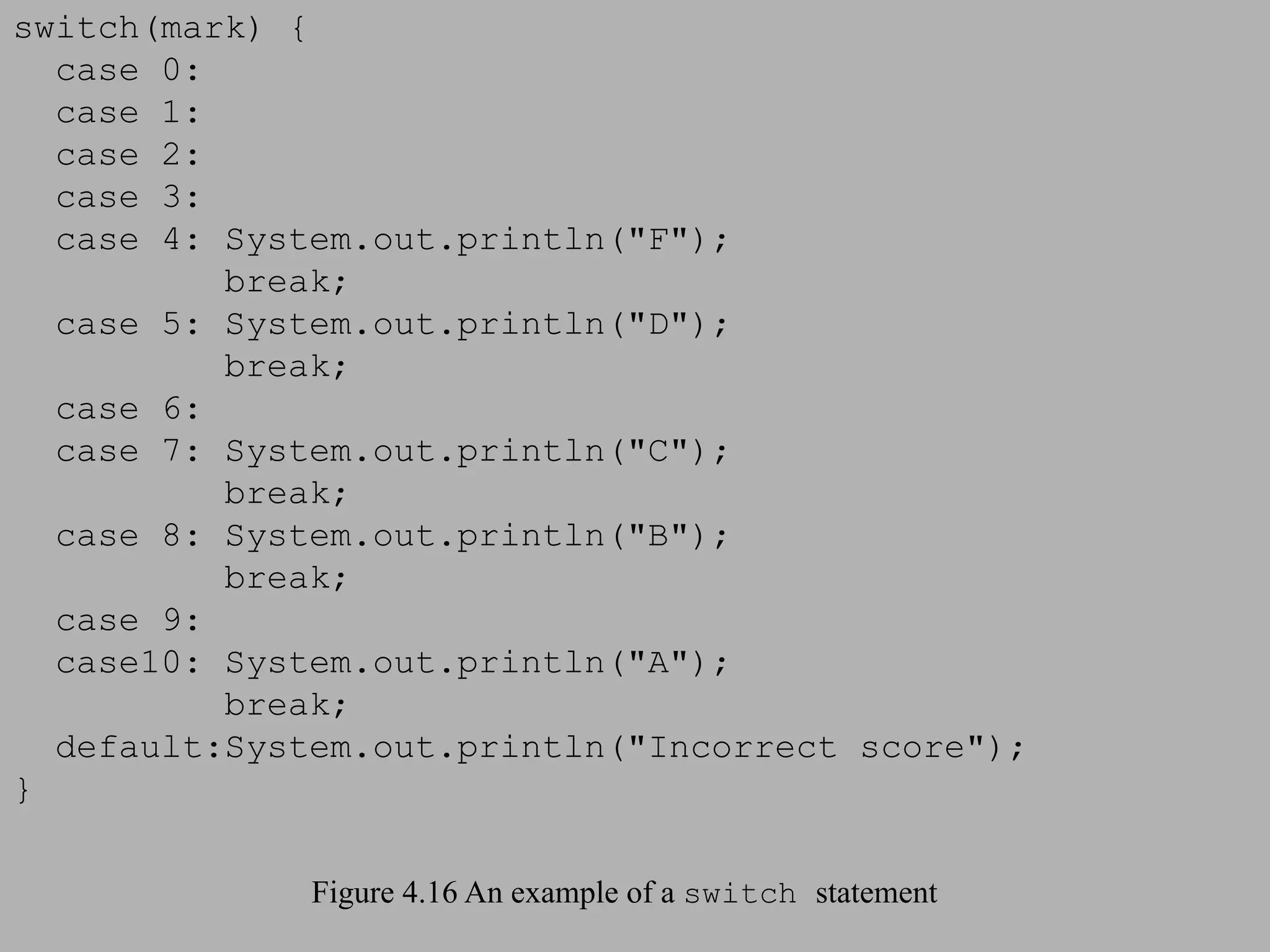

Figure 4.16 An example of a switch statement
switch(mark) {
case 0:
case 1:
case 2:
case 3:
case 4: System.out.println("F");
break;
case 5: System.out.println("D");
break;
case 6:
case 7: System.out.println("C");
break;
case 8: System.out.println("B");
break;
case 9:
case10: System.out.println("A");
break;
default:System.out.println("Incorrect score");
}

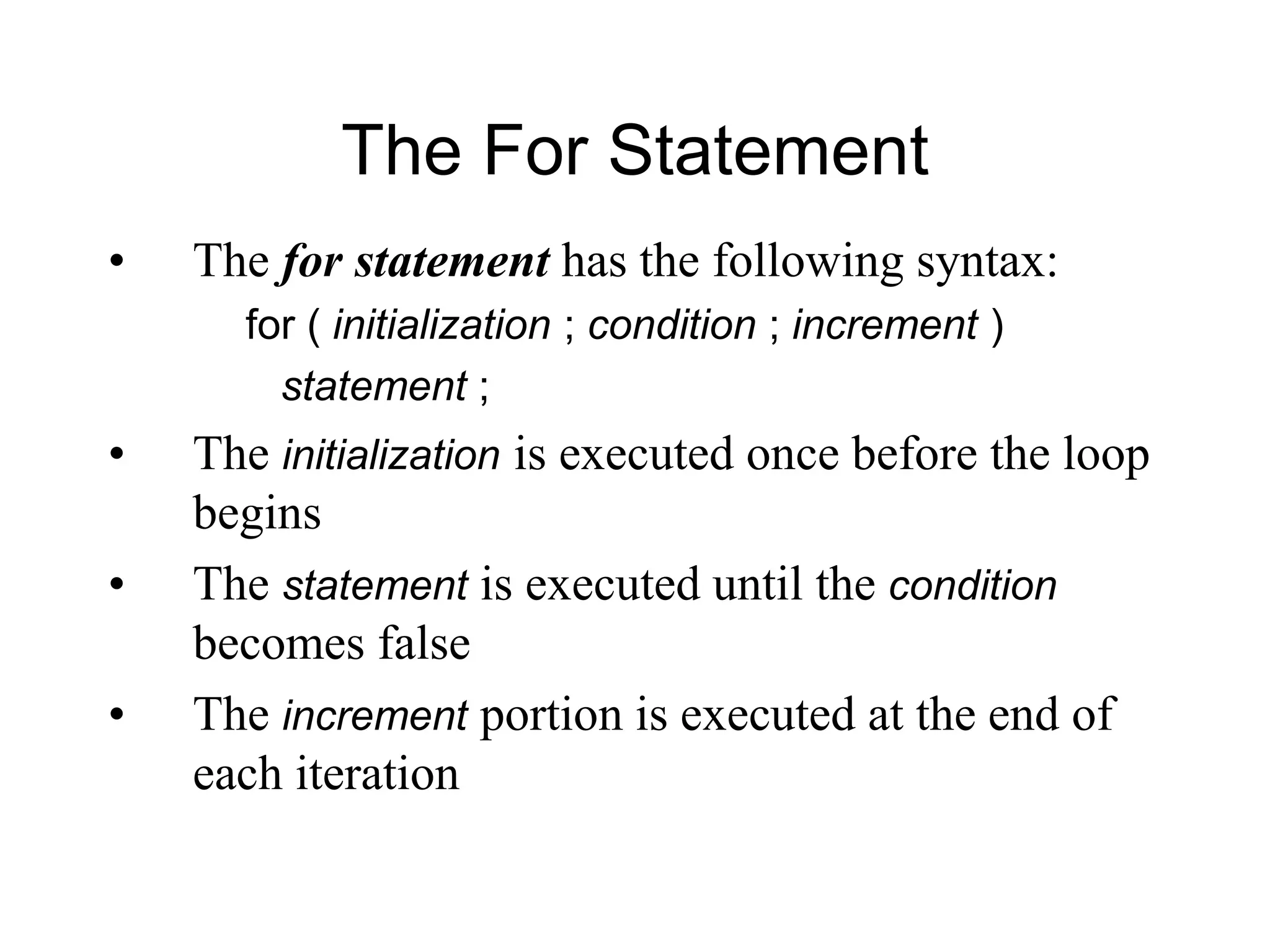

The For Statement
• The for statement has the following syntax:
for ( initialization ; condition ; increment )
statement ;
• The initialization is executed once before the loop
begins
• The statement is executed until the condition
becomes false
• The increment portion is executed at the end of
each iteration

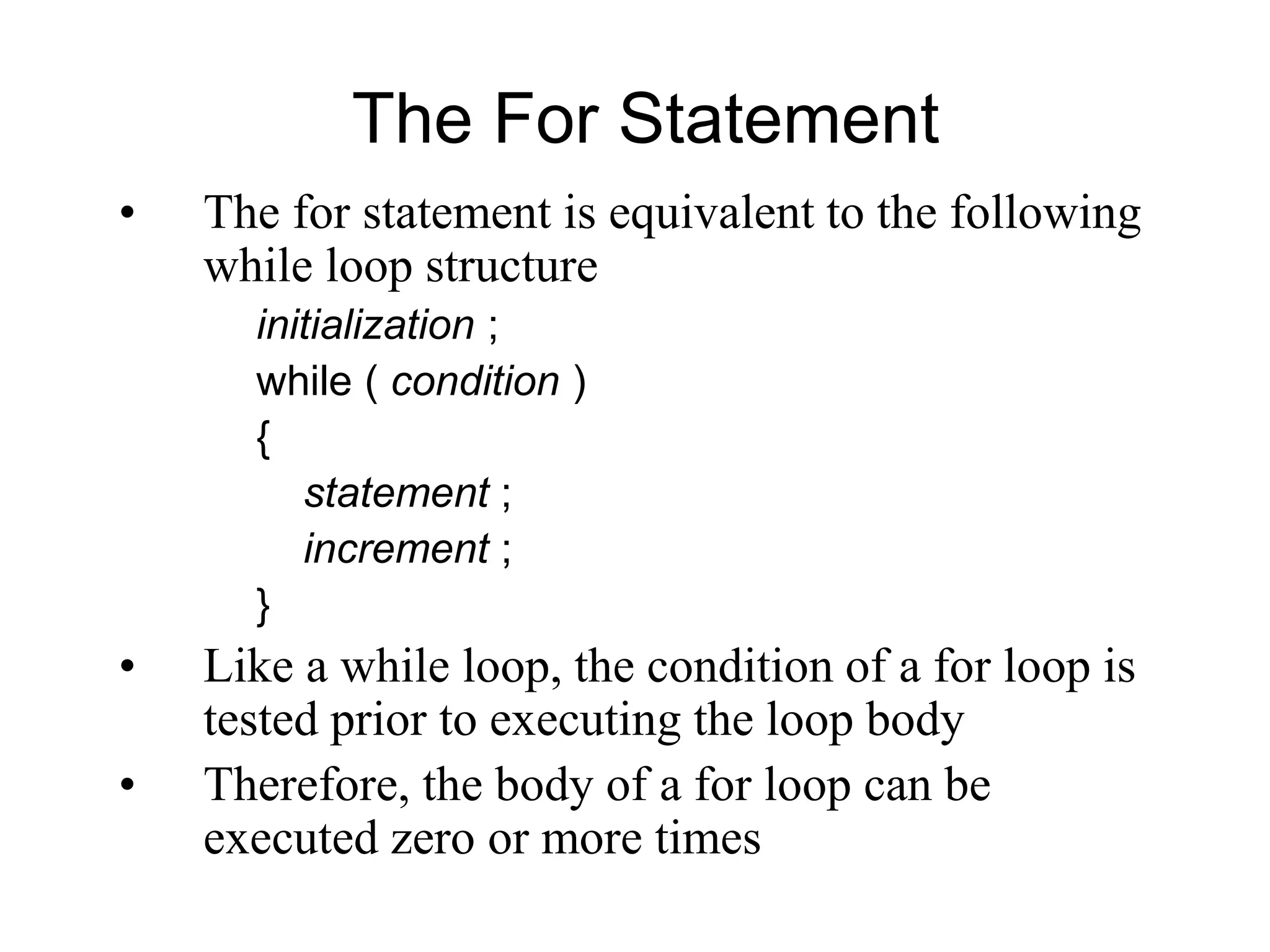

The For Statement
• The for statement is equivalent to the following
while loop structure
initialization ;
while ( condition )
{
statement ;
increment ;
}
• Like a while loop, the condition of a for loop is
tested prior to executing the loop body
• Therefore, the body of a for loop can be
executed zero or more times

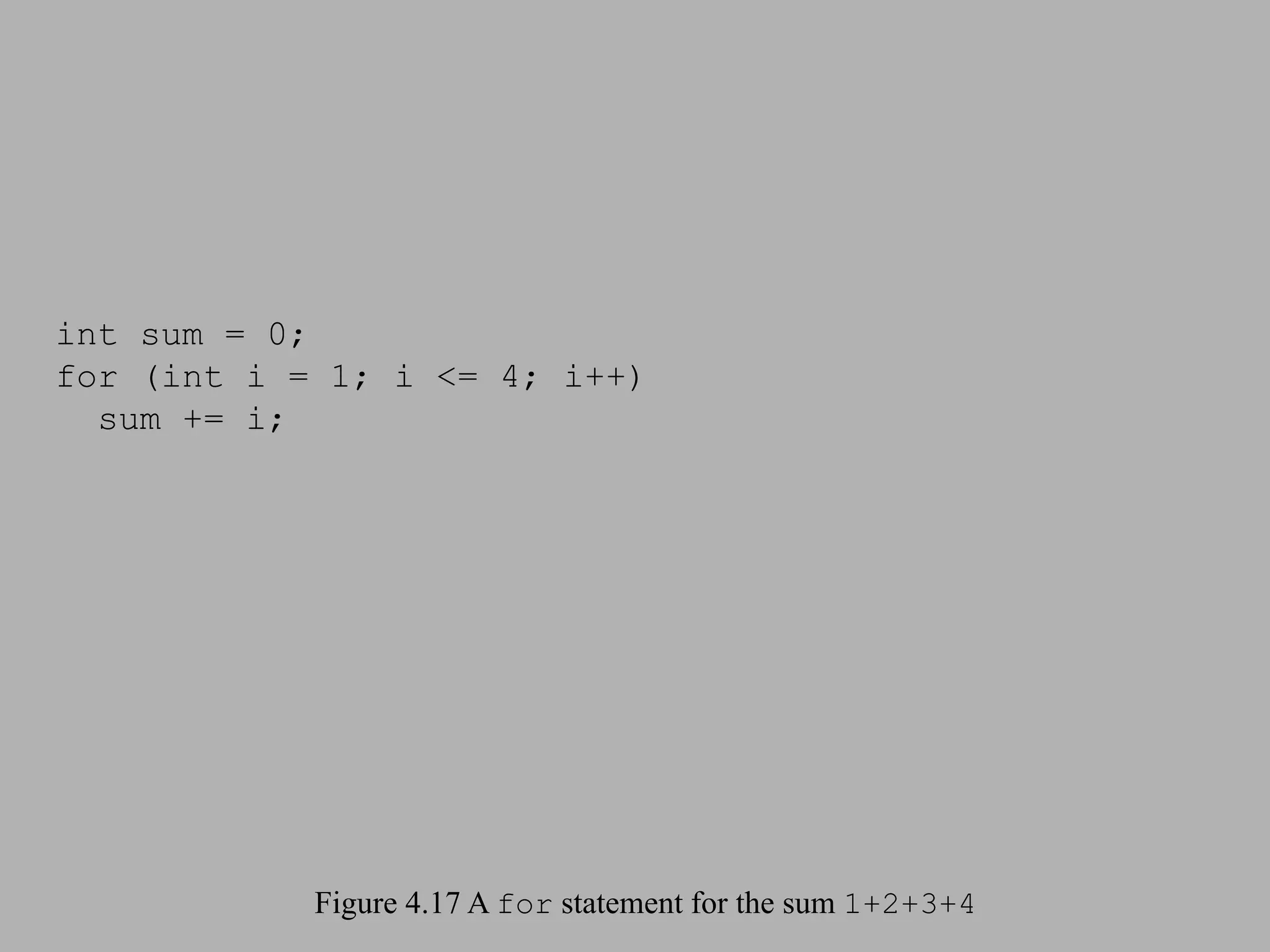

Figure 4.17 A for statement for the sum 1+2+3+4
int sum = 0;
for (int i = 1; i <= 4; i++)
sum += i;
initialize i = 1
test 1 <= 4 is true
execute body sum += 1 (result: sum = 0 + 1 = 1)
update i++ (result: i = 2)
test 2 <= 4 is true
execute body sum += 2 (result: sum = 1 + 2 = 3)
update i++ (result: i = 3)
test 3 <= 4 is true
execute body sum += 3 (result: sum = 3 + 3 = 6)
update i++ (result: i + 4)
test 4 <= 4 is true
execute body sum += 4 (result: sum = 6 + 4 = 10)
update i++ (result: i = 5)
test 5 <= 4 is false

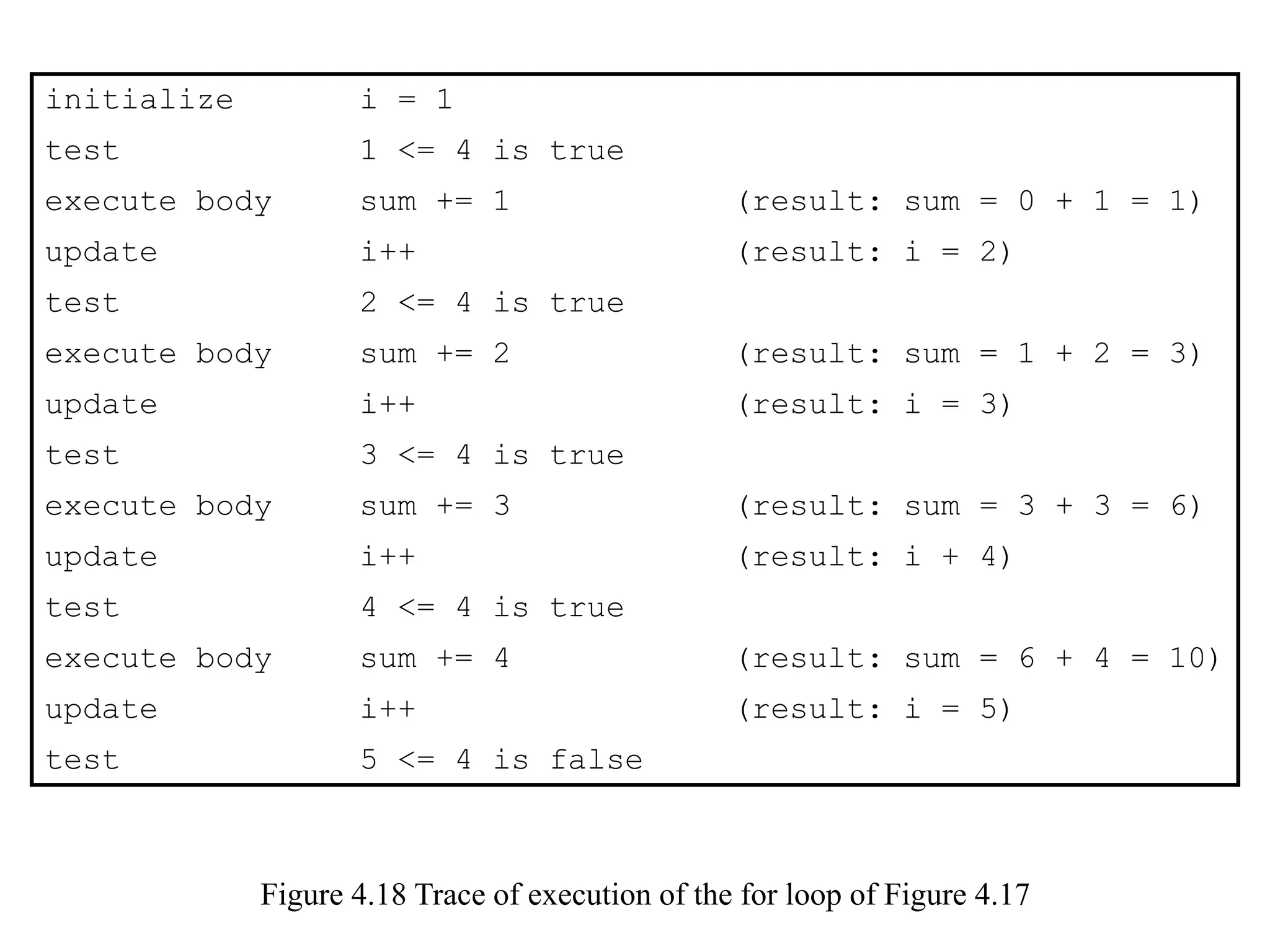

Figure 4.18 Trace of execution of the for loop of Figure 4.17

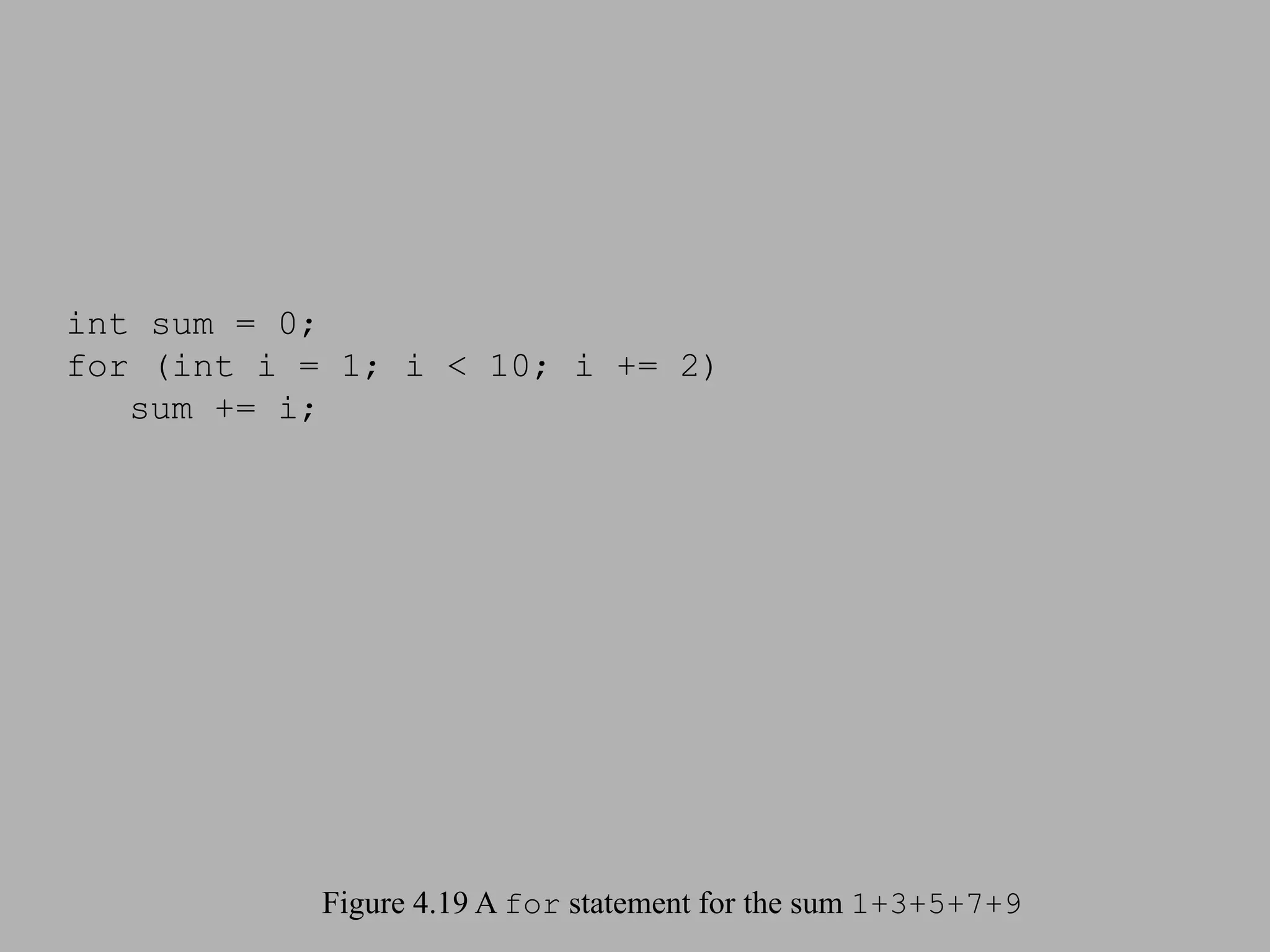

Figure 4.19 A for statement for the sum 1+3+5+7+9
int sum = 0;
for (int i = 1; i < 10; i += 2)
sum += i;

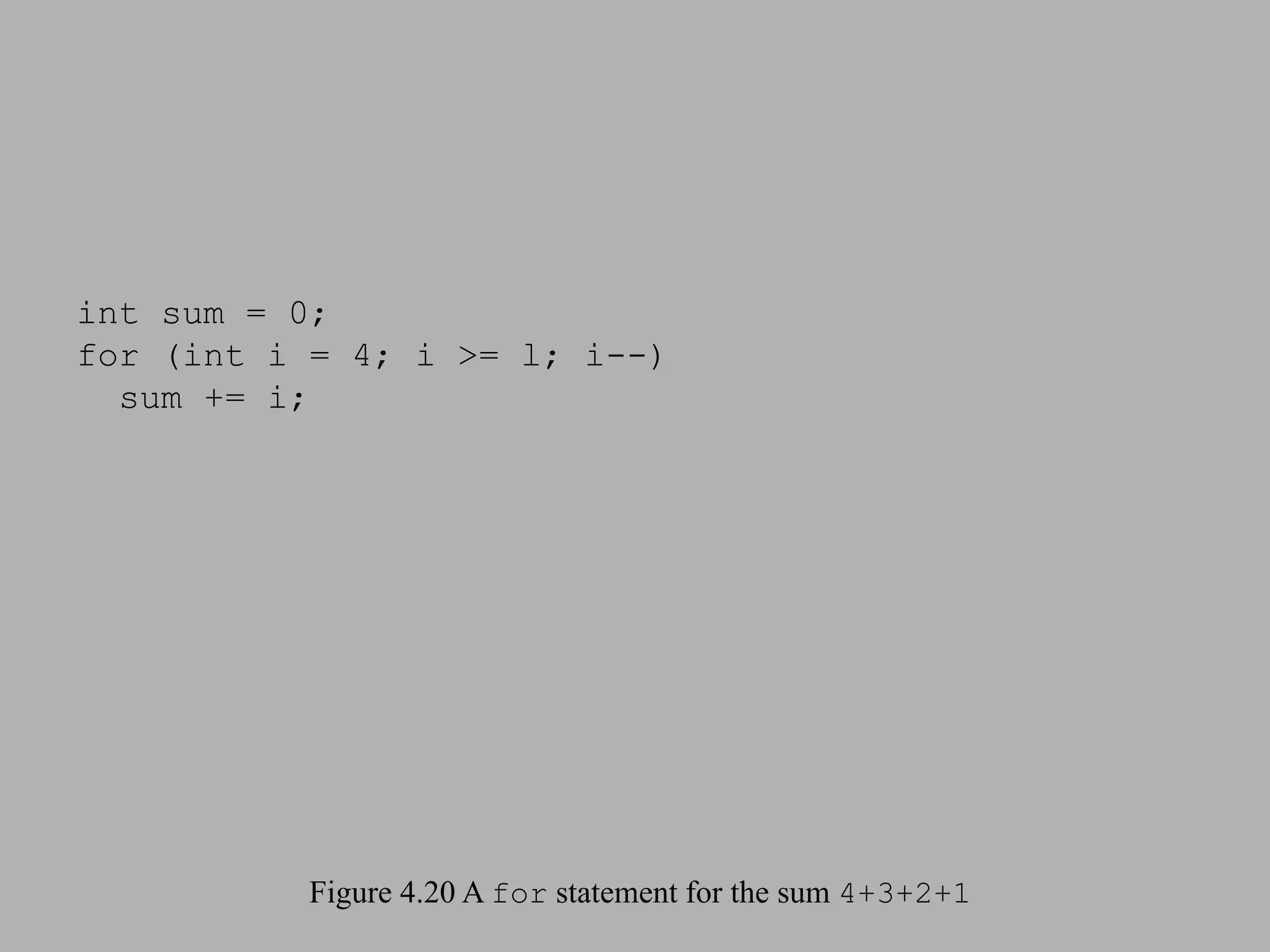

Figure 4.20 A for statement for the sum 4+3+2+1
int sum = 0;
for (int i = 4; i >= l; i--)
sum += i;

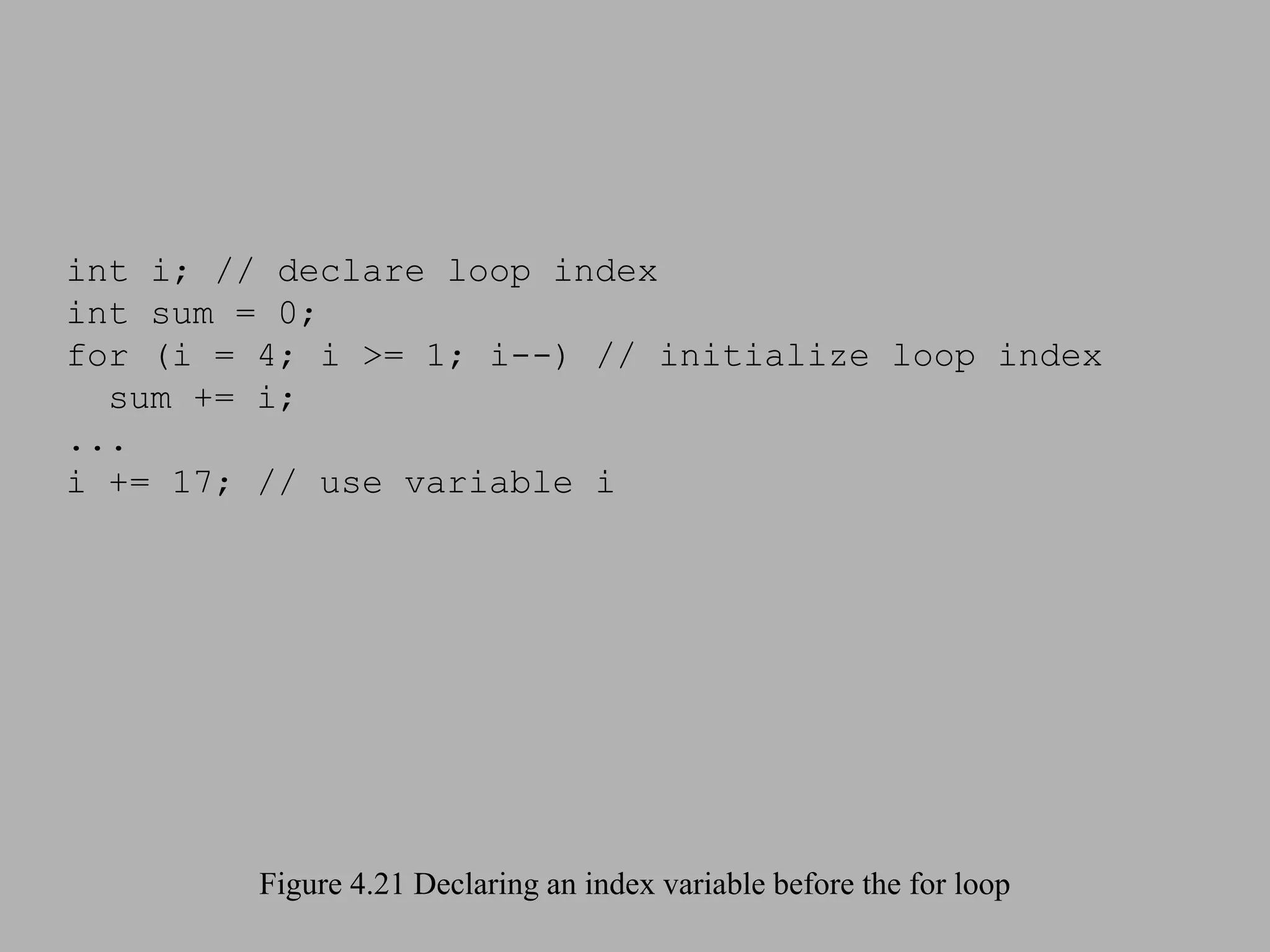

Figure 4.21 Declaring an index variable before the for loop
int i; // declare loop index
int sum = 0;
for (i = 4; i >= 1; i--) // initialize loop index
sum += i;
...
i += 17; // use variable i

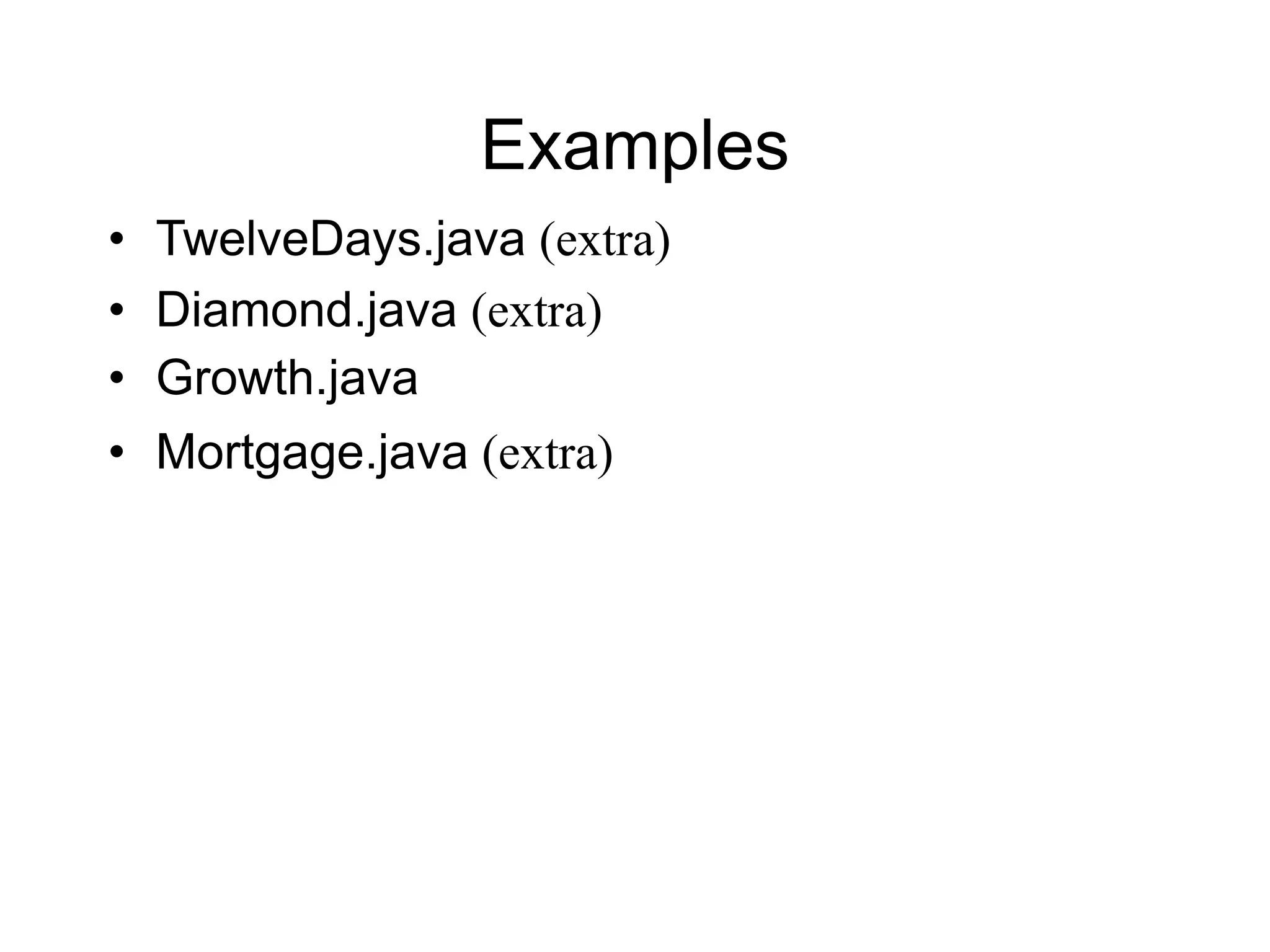

Examples
• TwelveDays.java (extra)
• Diamond.java (extra)
• Growth.java
• Mortgage.java (extra)

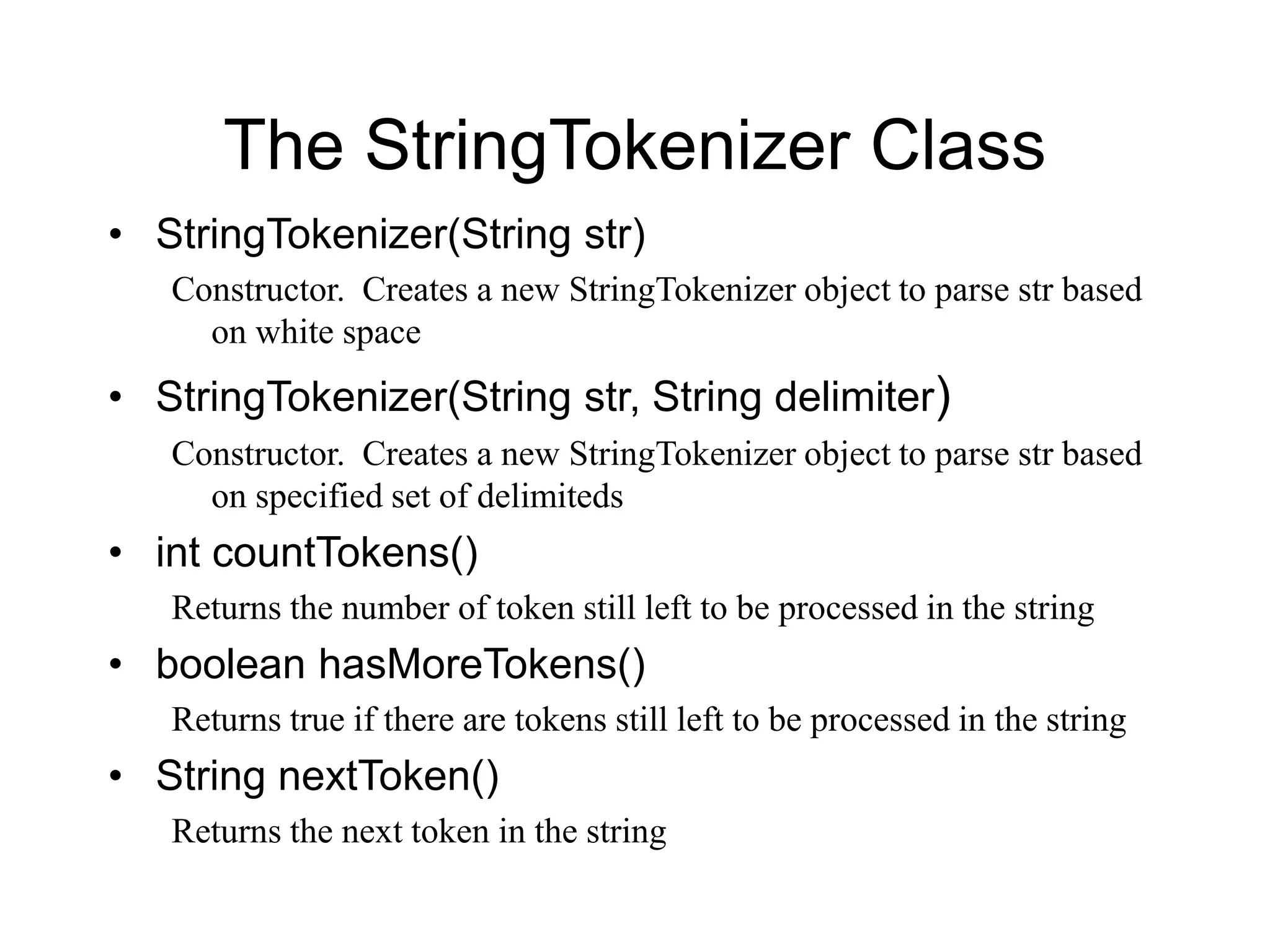

The StringTokenizer Class
• StringTokenizer(String str)
Constructor. Creates a new StringTokenizer object to parse str based
on white space
• StringTokenizer(String str, String delimiter)
Constructor. Creates a new StringTokenizer object to parse str based
on specified set of delimiteds
• int countTokens()
Returns the number of token still left to be processed in the string
• boolean hasMoreTokens()
Returns true if there are tokens still left to be processed in the string
• String nextToken()
Returns the next token in the string

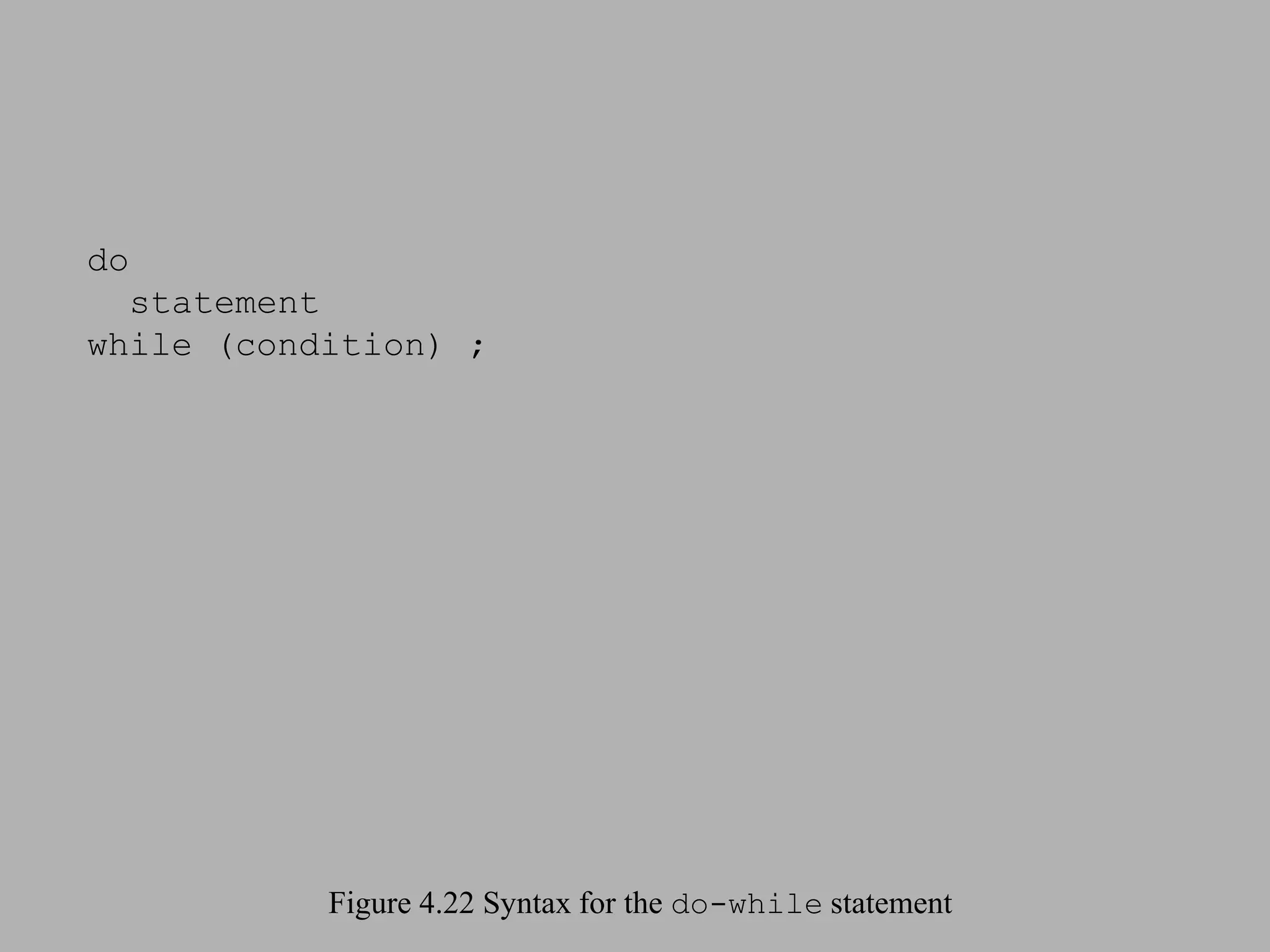

Figure 4.22 Syntax for the do-while statement
do
statement
while (condition) ;

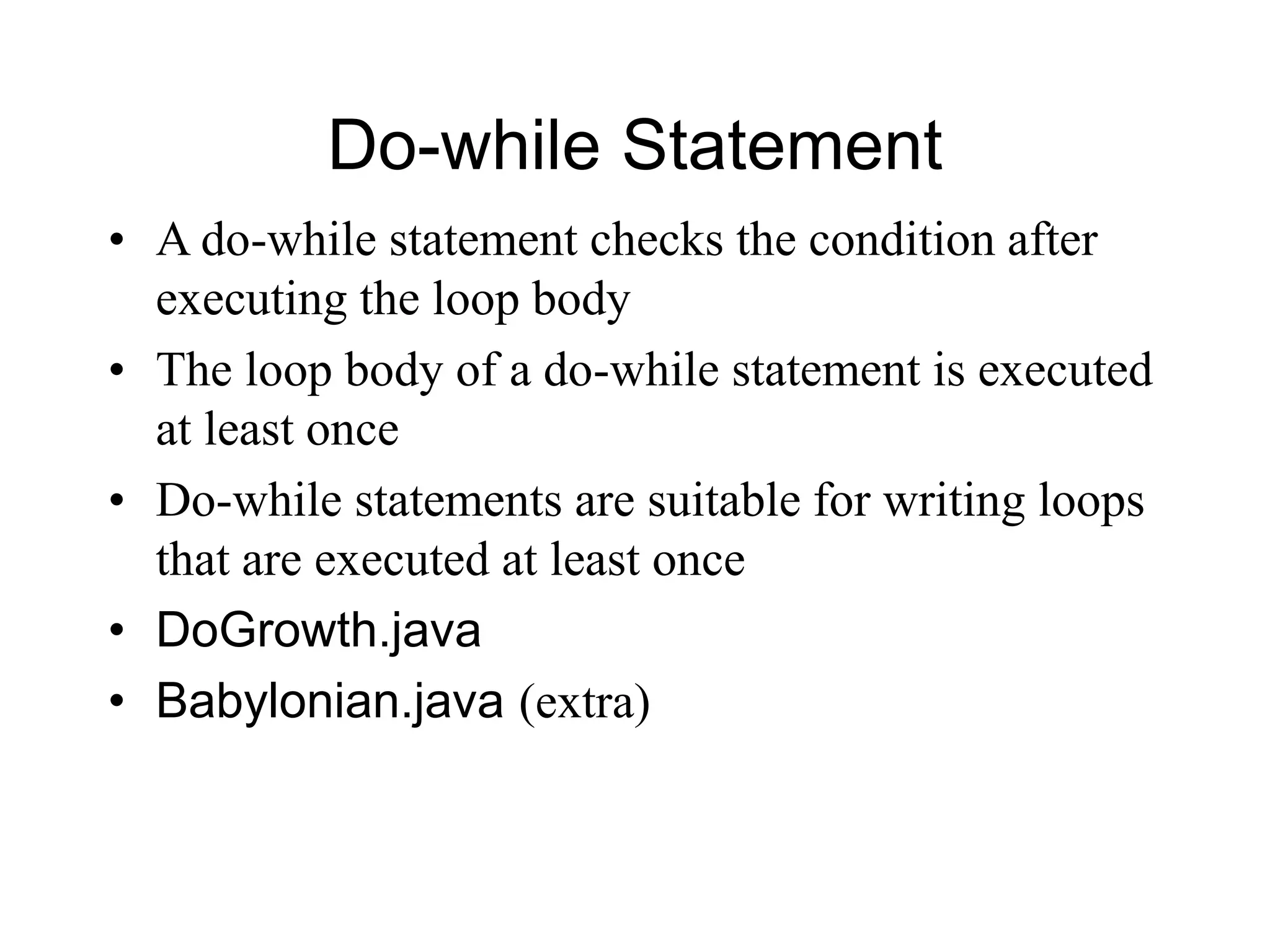

Do-while Statement
• A do-while statement checks the condition after
executing the loop body
• The loop body of a do-while statement is executed
at least once
• Do-while statements are suitable for writing loops
that are executed at least once
• DoGrowth.java
• Babylonian.java (extra)
Figure 4.23 Pseudocode for example 4.5 enhancement
do {
Compute balance as in Example 4.5
Ask the user -- Repeat or Quit?
} while (User chooses to repeat);

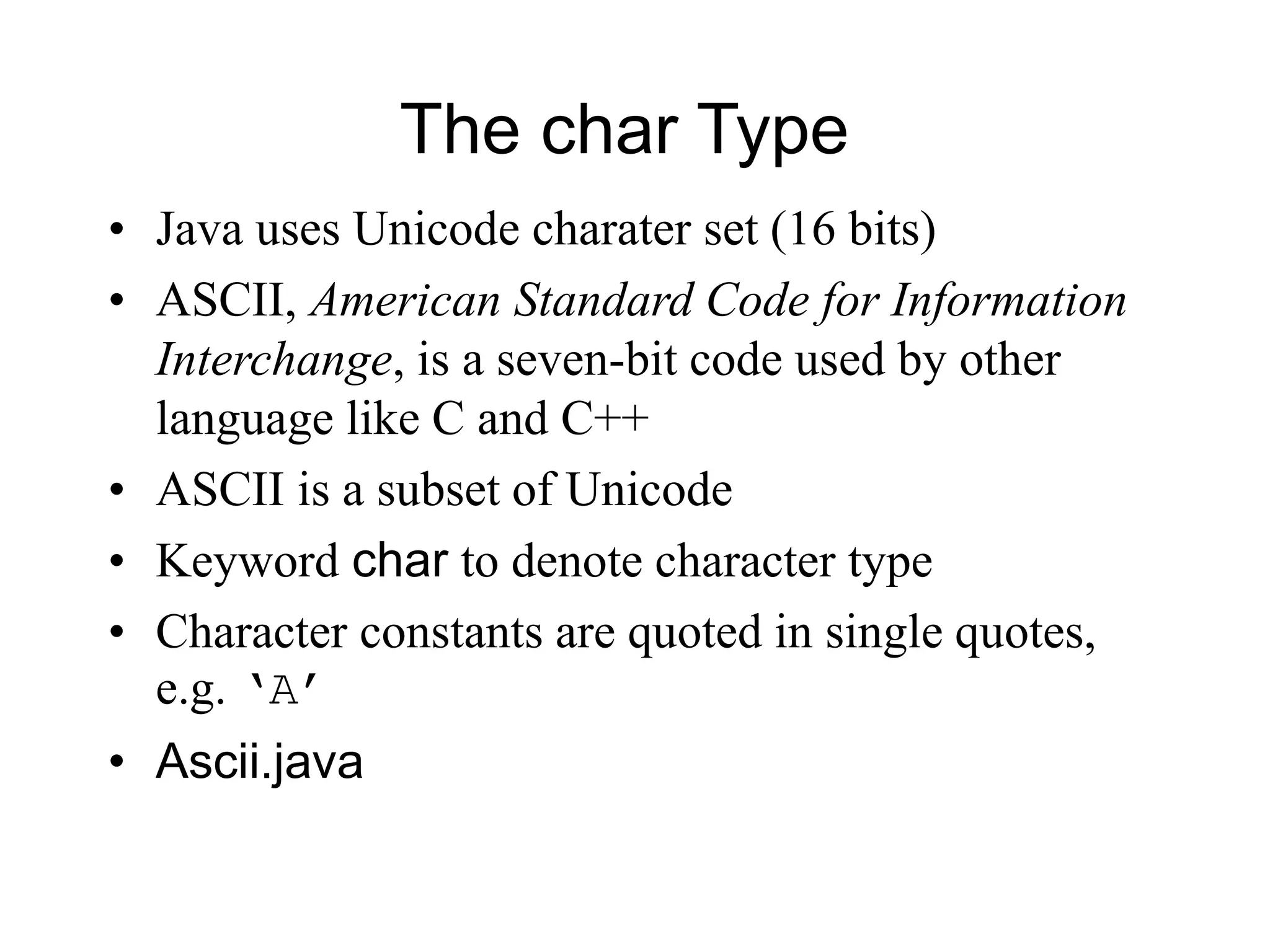

The char Type
• Java uses Unicode charater set (16 bits)
• ASCII, American Standard Code for Information
Interchange, is a seven-bit code used by other
language like C and C++
• ASCII is a subset of Unicode
• Keyword char to denote character type
• Character constants are quoted in single quotes,
e.g. ‘A’
• Ascii.java

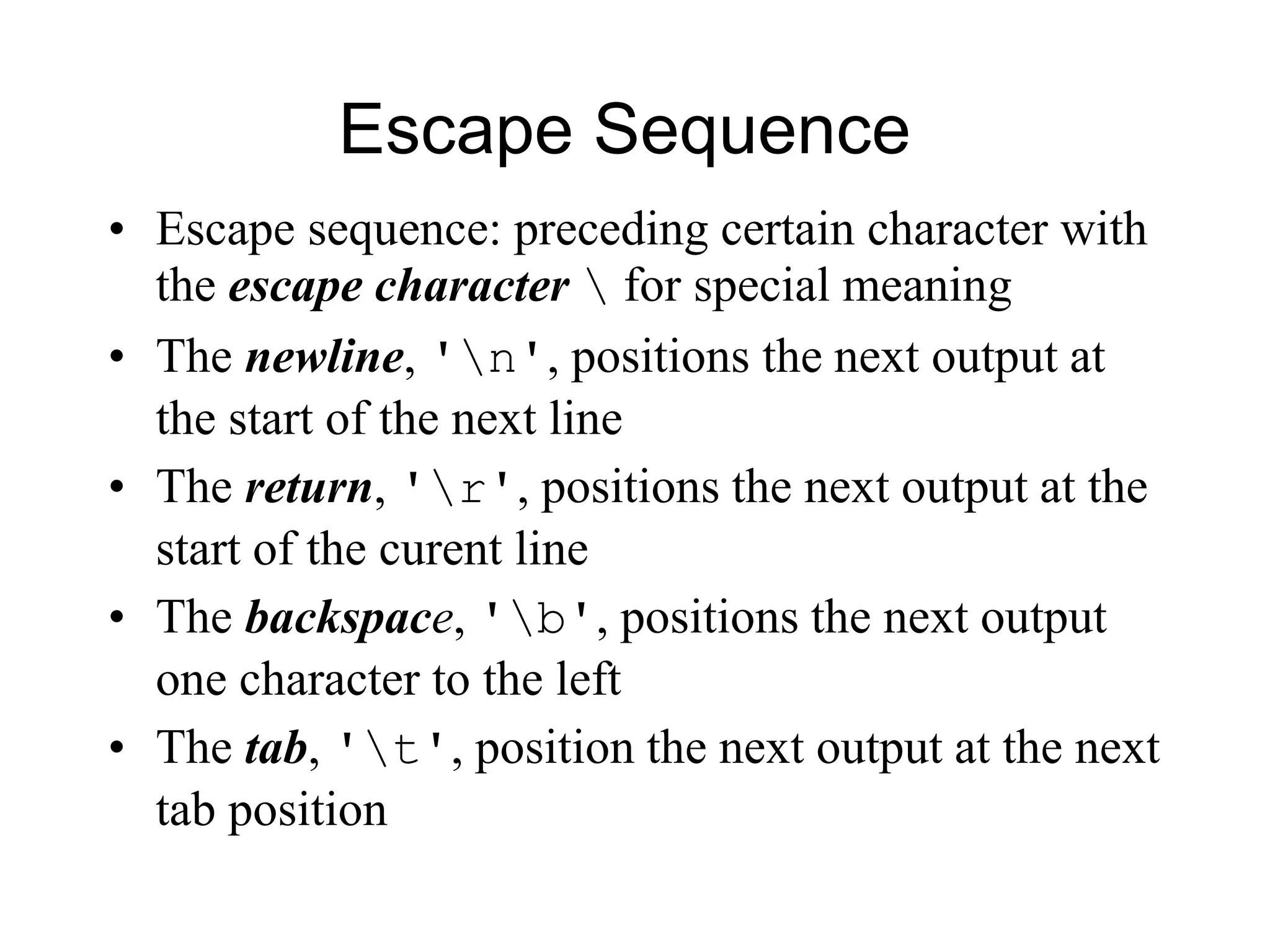

Escape Sequence
• Escape sequence: preceding certain character with
the escape character  for special meaning
• The newline, 'n', positions the next output at
the start of the next line
• The return, 'r', positions the next output at the
start of the curent line
• The backspace, 'b', positions the next output
one character to the left
• The tab, 't', position the next output at the next
tab position

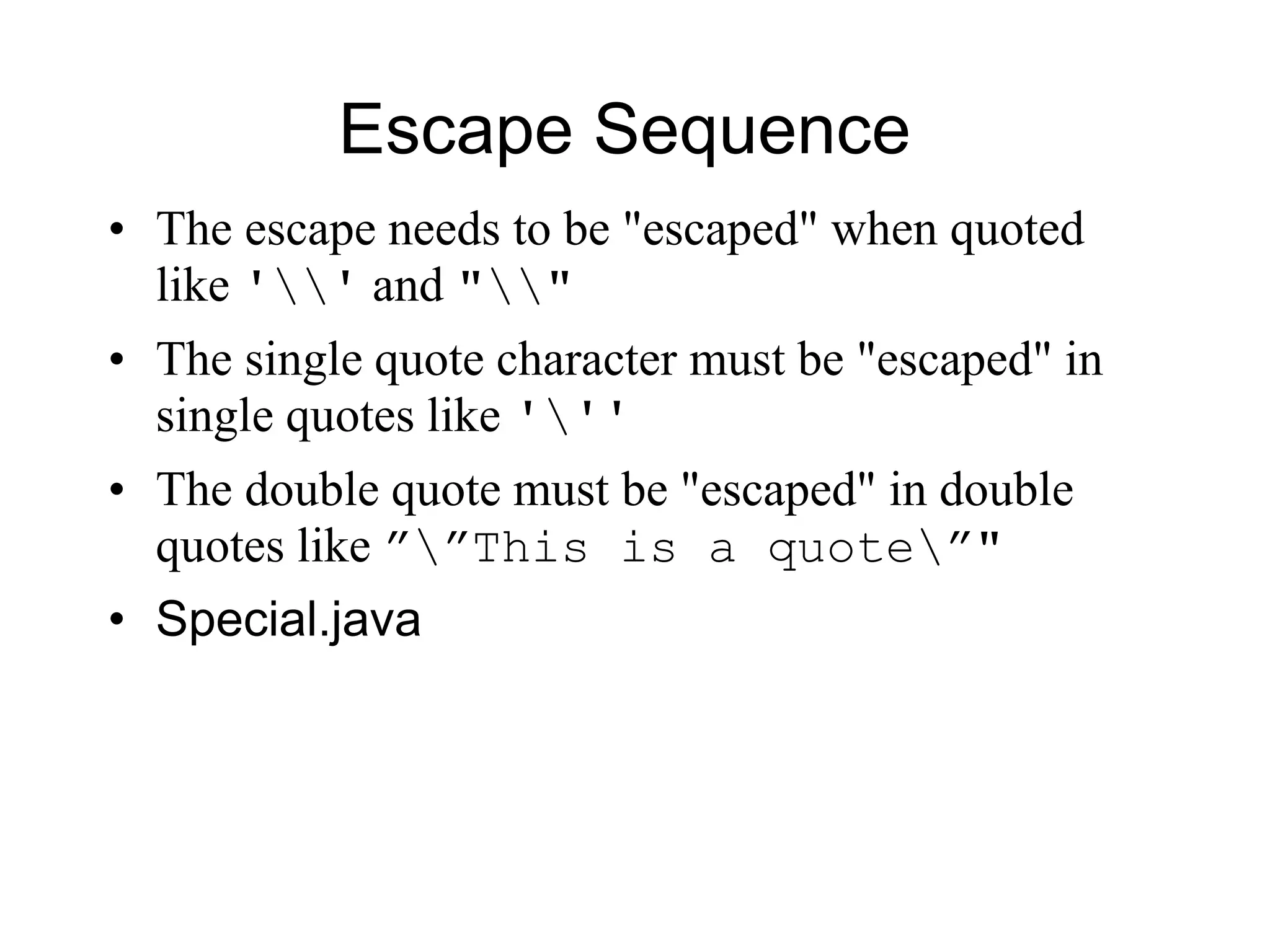

Escape Sequence
• The escape needs to be "escaped" when quoted
like '' and ""
• The single quote character must be "escaped" in
single quotes like '''
• The double quote must be "escaped" in double
quotes like ””This is a quote”"
• Special.java
backlash
Special
Character
Meaning
n newline, move to the start of the next line
t tab
b backspace
r return, move to the start of the current line
" double quote
n newline, move to the start of the next line

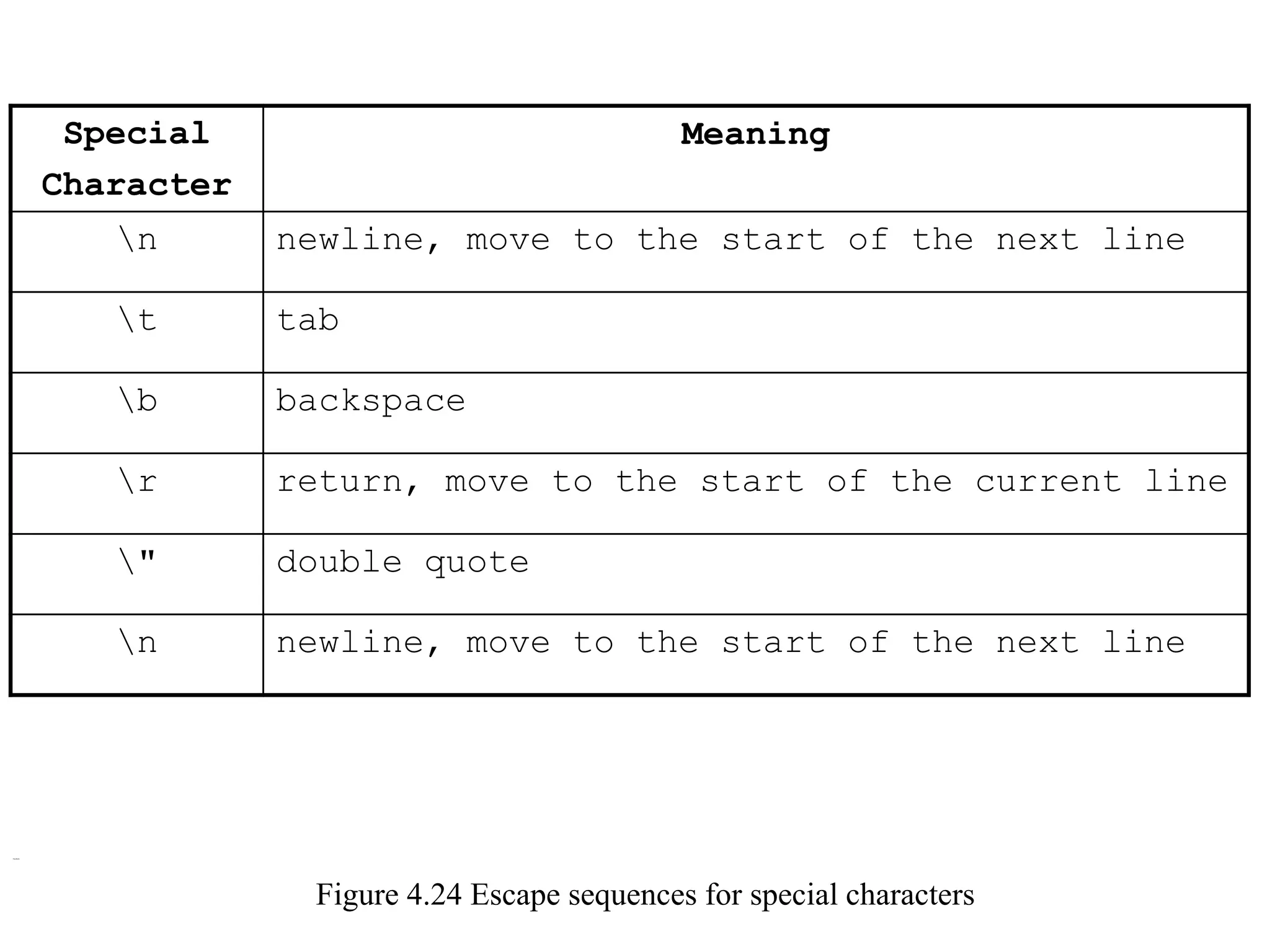

Figure 4.24 Escape sequences for special characters

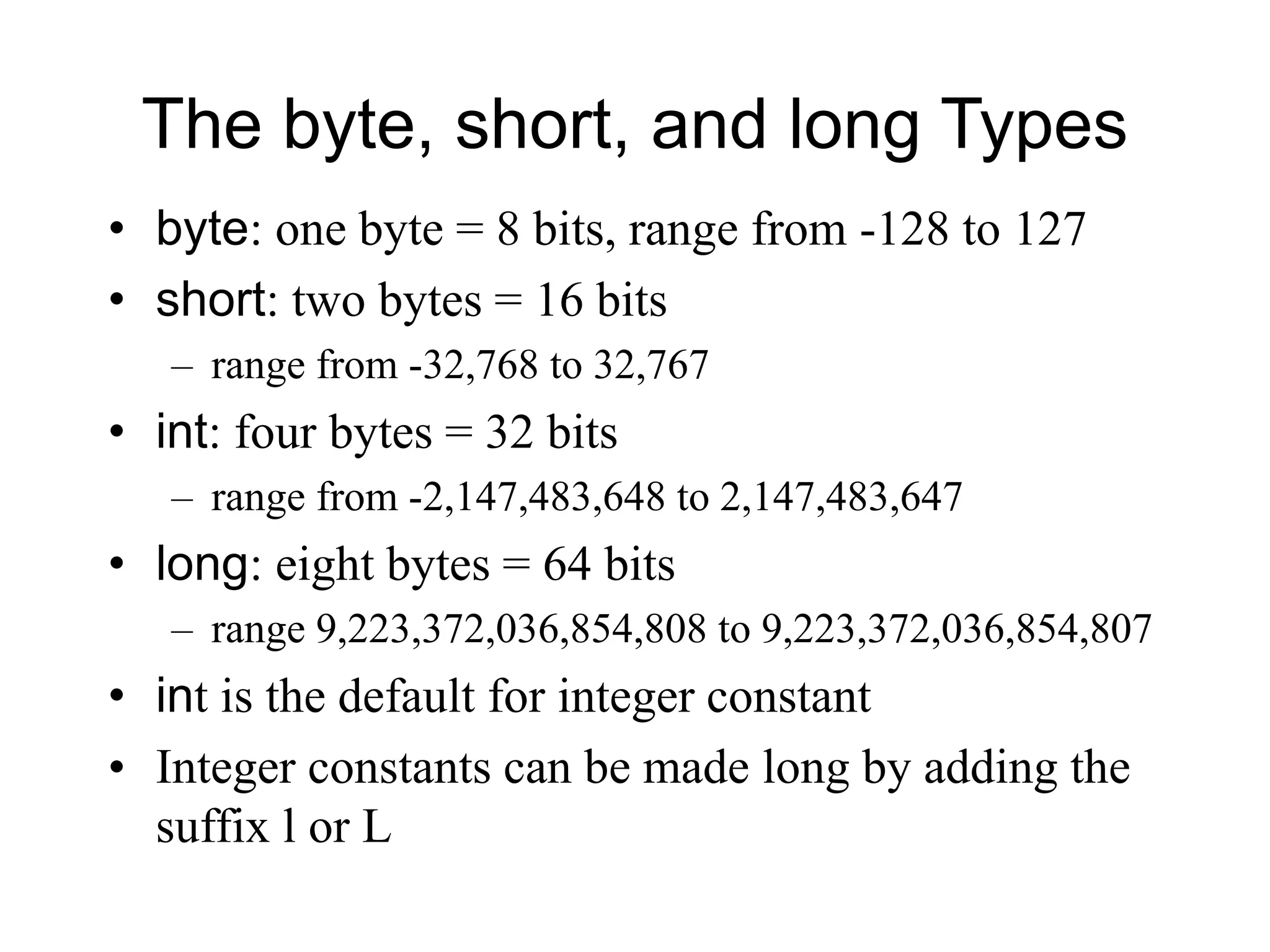

The byte, short, and long Types
• byte: one byte = 8 bits, range from -128 to 127
• short: two bytes = 16 bits
– range from -32,768 to 32,767
• int: four bytes = 32 bits
– range from -2,147,483,648 to 2,147,483,647
• long: eight bytes = 64 bits
– range 9,223,372,036,854,808 to 9,223,372,036,854,807
• int is the default for integer constant
• Integer constants can be made long by adding the
suffix l or L

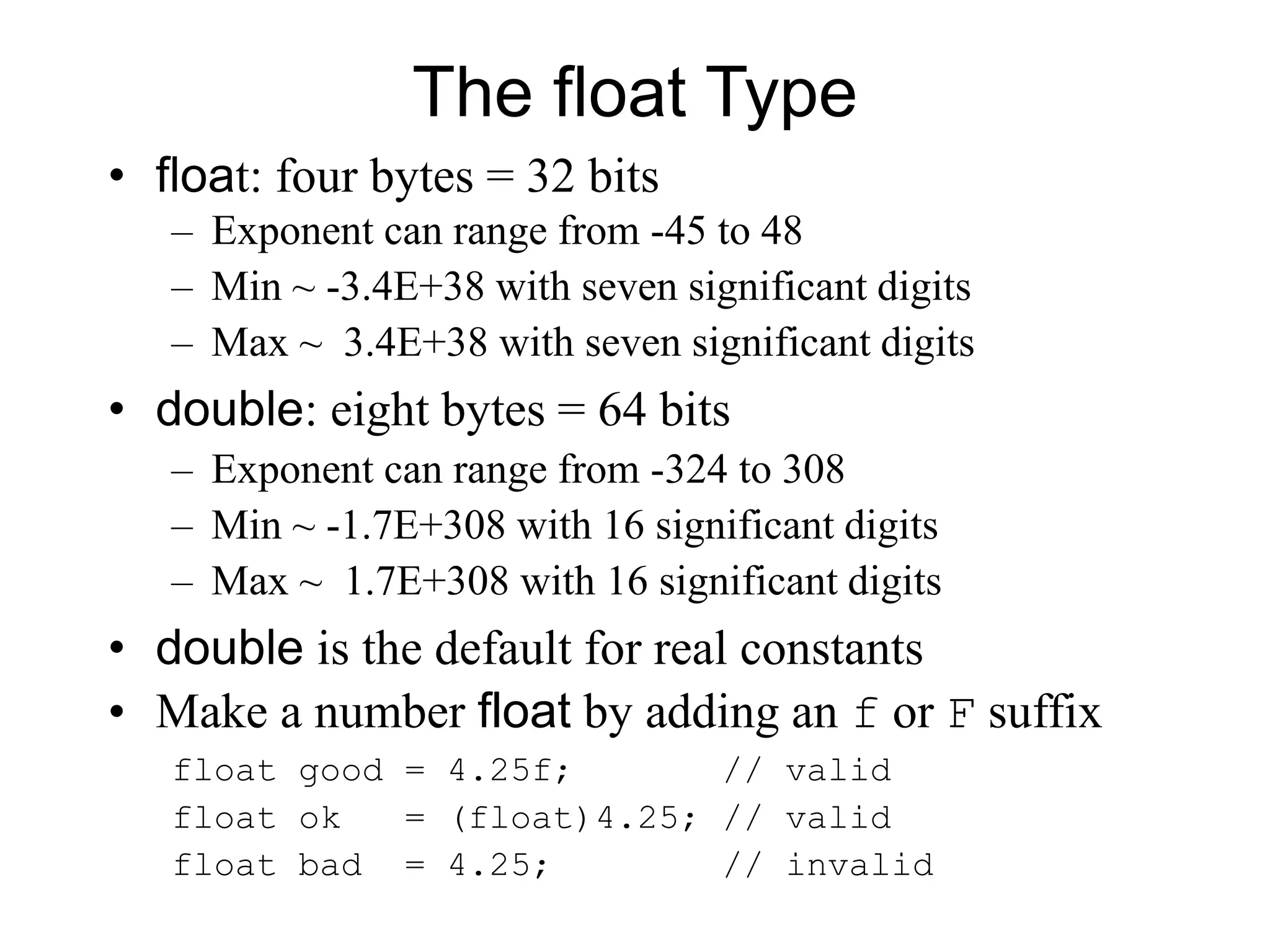

The float Type
• float: four bytes = 32 bits
– Exponent can range from -45 to 48
– Min ~ -3.4E+38 with seven significant digits
– Max ~ 3.4E+38 with seven significant digits
• double: eight bytes = 64 bits
– Exponent can range from -324 to 308
– Min ~ -1.7E+308 with 16 significant digits
– Max ~ 1.7E+308 with 16 significant digits
• double is the default for real constants
• Make a number float by adding an f or F suffix
float good = 4.25f; // valid
float ok = (float)4.25; // valid
float bad = 4.25; // invalid

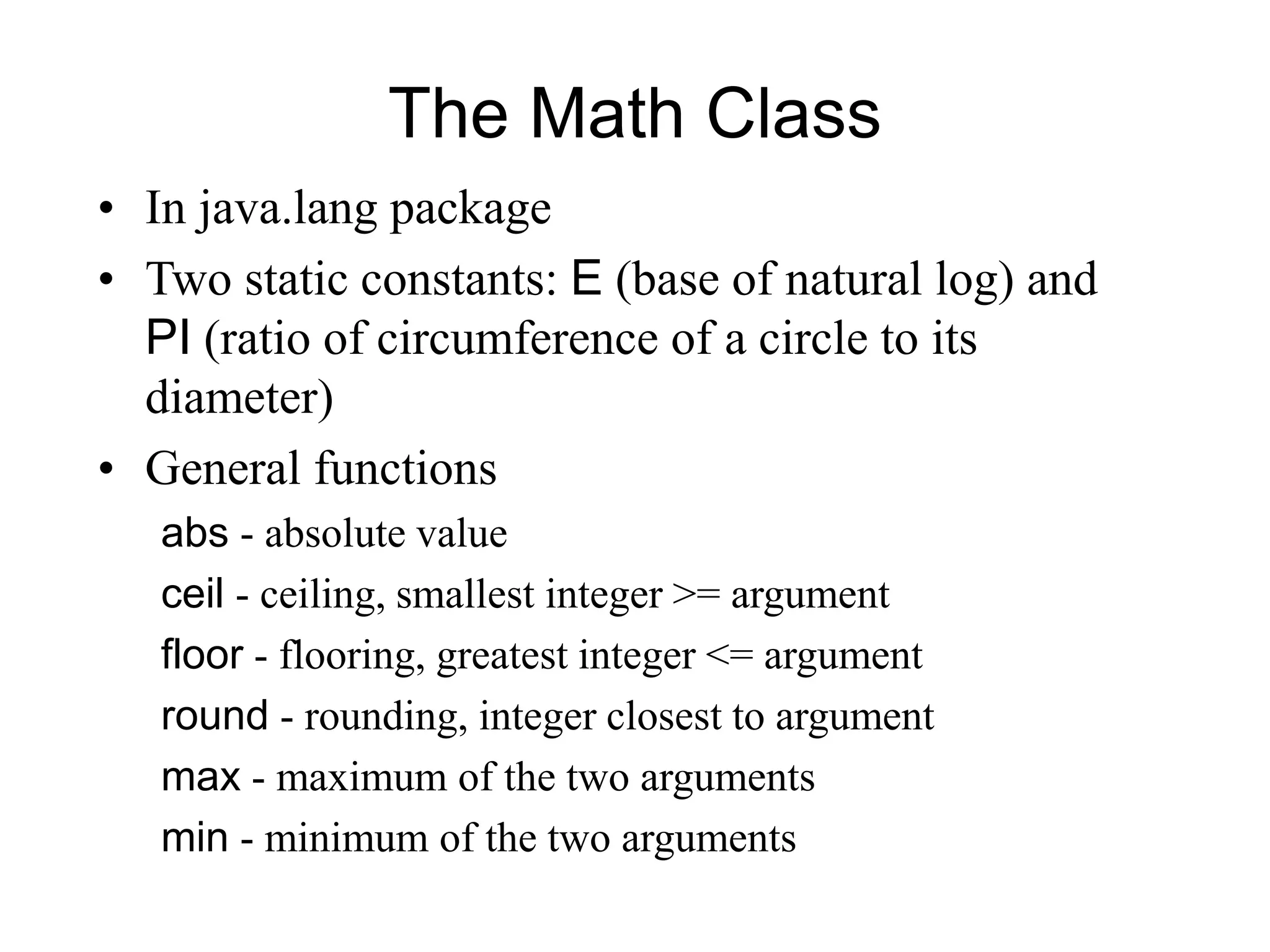

The Math Class
• In java.lang package
• Two static constants: E (base of natural log) and
PI (ratio of circumference of a circle to its
diameter)
• General functions
abs - absolute value
ceil - ceiling, smallest integer >= argument
floor - flooring, greatest integer <= argument
round - rounding, integer closest to argument
max - maximum of the two arguments
min - minimum of the two arguments
The Math Class
• Simple mathematical operations
sqrt(double a) - Return the square root of the argument
pow(double a, double b) - Returns of value of the first
argument raised to the power of the second argument
log(double a) - Returns the natural logarithm (base e) of
a double value
exp(double a) - Returns the exponential number e (i.e.,
2.718...) raised to the power of a double value
• Random number
random() - Returns a double value with a positive sign,
greater than or equal to 0.0 and less than 1.0
The Math Class
• Trigonometric functions
sin, cos, tan - sine, cosine, and tangent
asin, acos, atan- arc-sine, arc-cosine, and arc-tangent
atan2(double a, double b) - Returns the theta
component in the polar coordinates (r, theta)
corresponding to the point (b, a) in Cartesian
coordinates
• Degree/Radian conversion
toDegrees(double angrad) - Converts an angle in
radians to the equivalent angle measured in degrees
toRadians(double angdeg) - Converts an angle in
degrees to the equivalent angle measured in radians
The Math Class
• Library.java
• Toss.java
• CoinToss.java

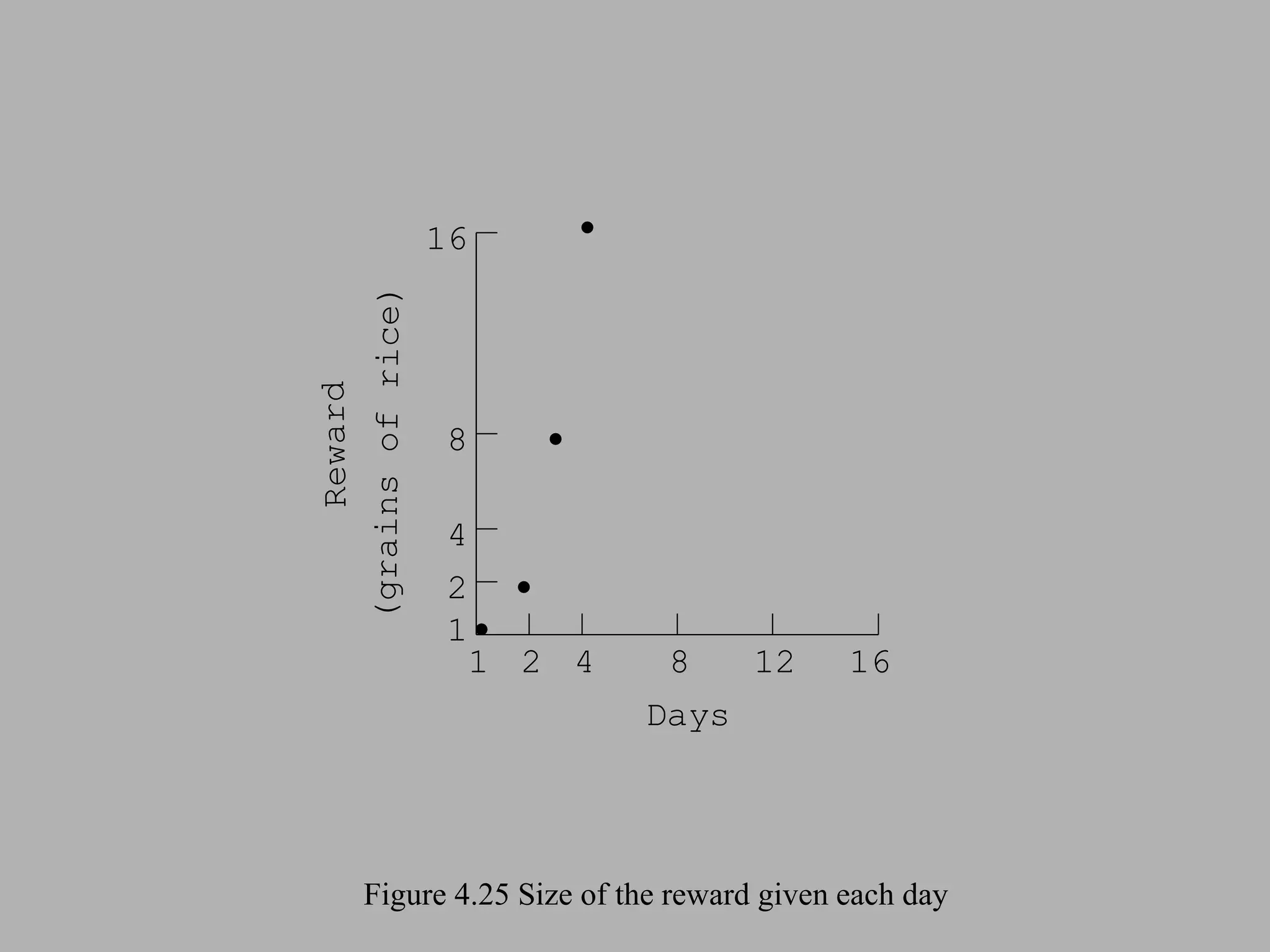

Figure 4.25 Size of the reward given each day
1
1
2
4
8
12 16
16
8
4
2
Days

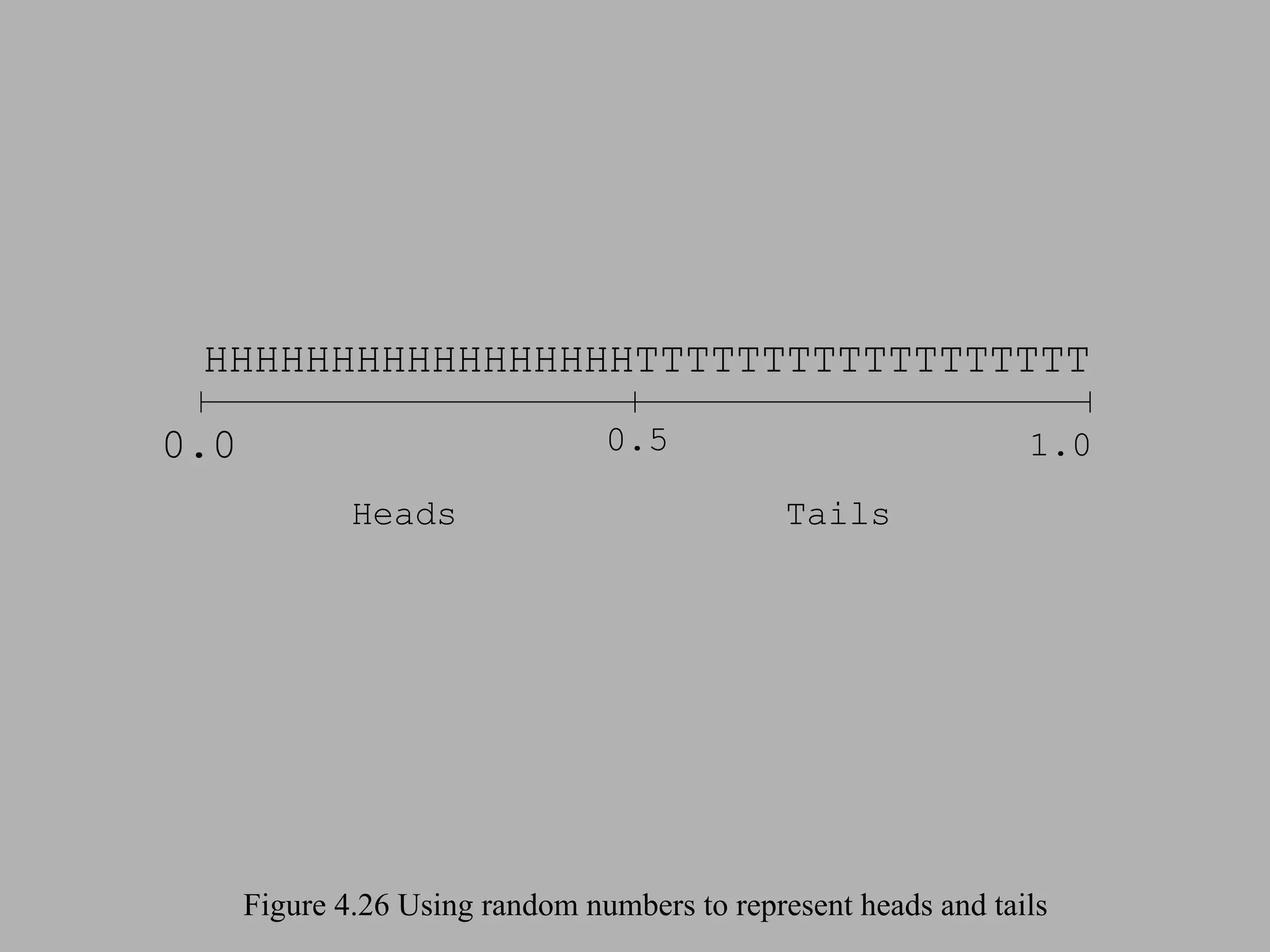

Figure 4.26 Using random numbers to represent heads and tails
0.0 0.5 1.0
HHHHHHHHHHHHHHHHHTTTTTTTTTTTTTTTTTT
Heads Tails

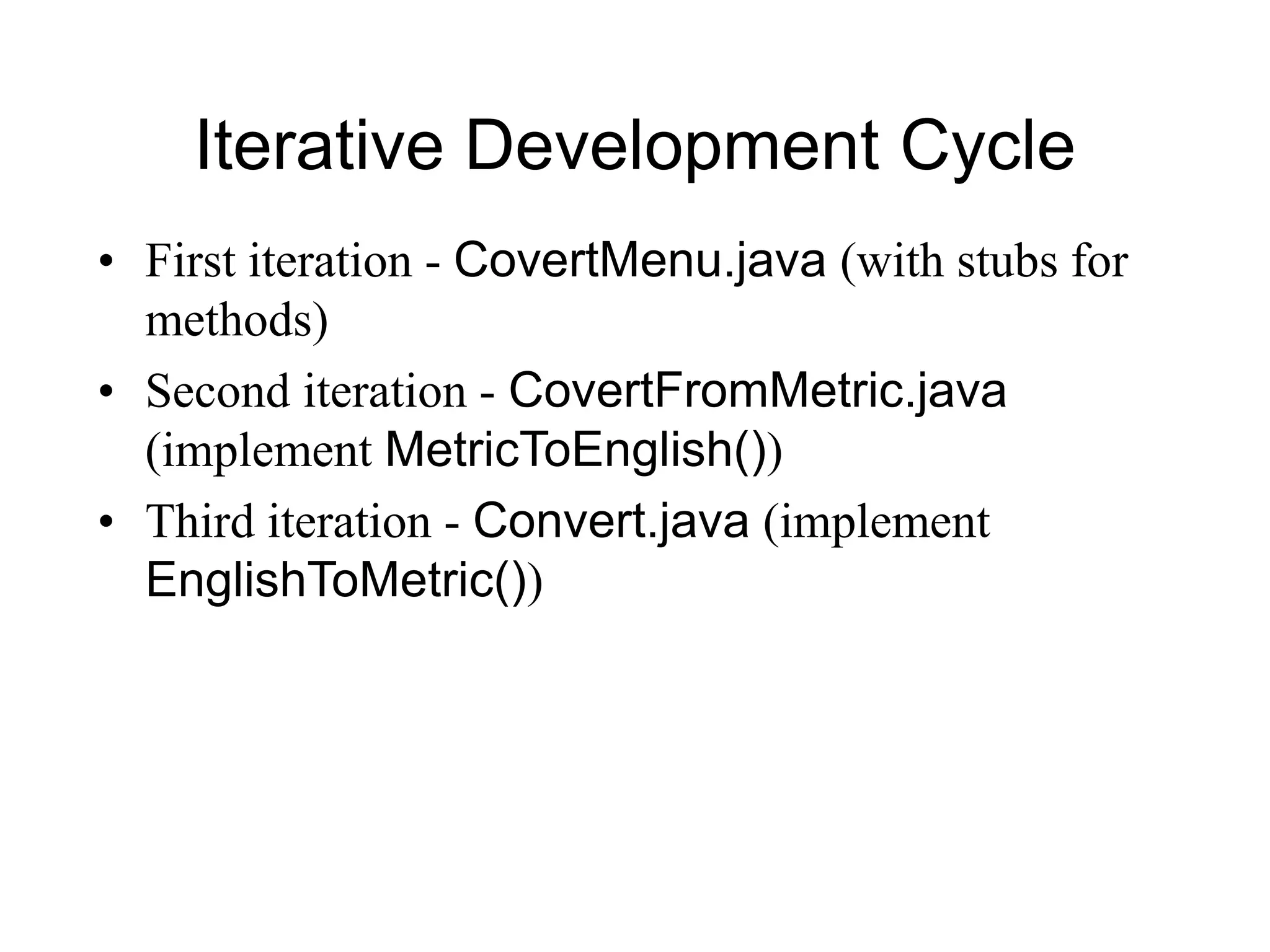

Iterative Development Cycle
• First iteration - CovertMenu.java (with stubs for
methods)
• Second iteration - CovertFromMetric.java
(implement MetricToEnglish())
• Third iteration - Convert.java (implement
EnglishToMetric())

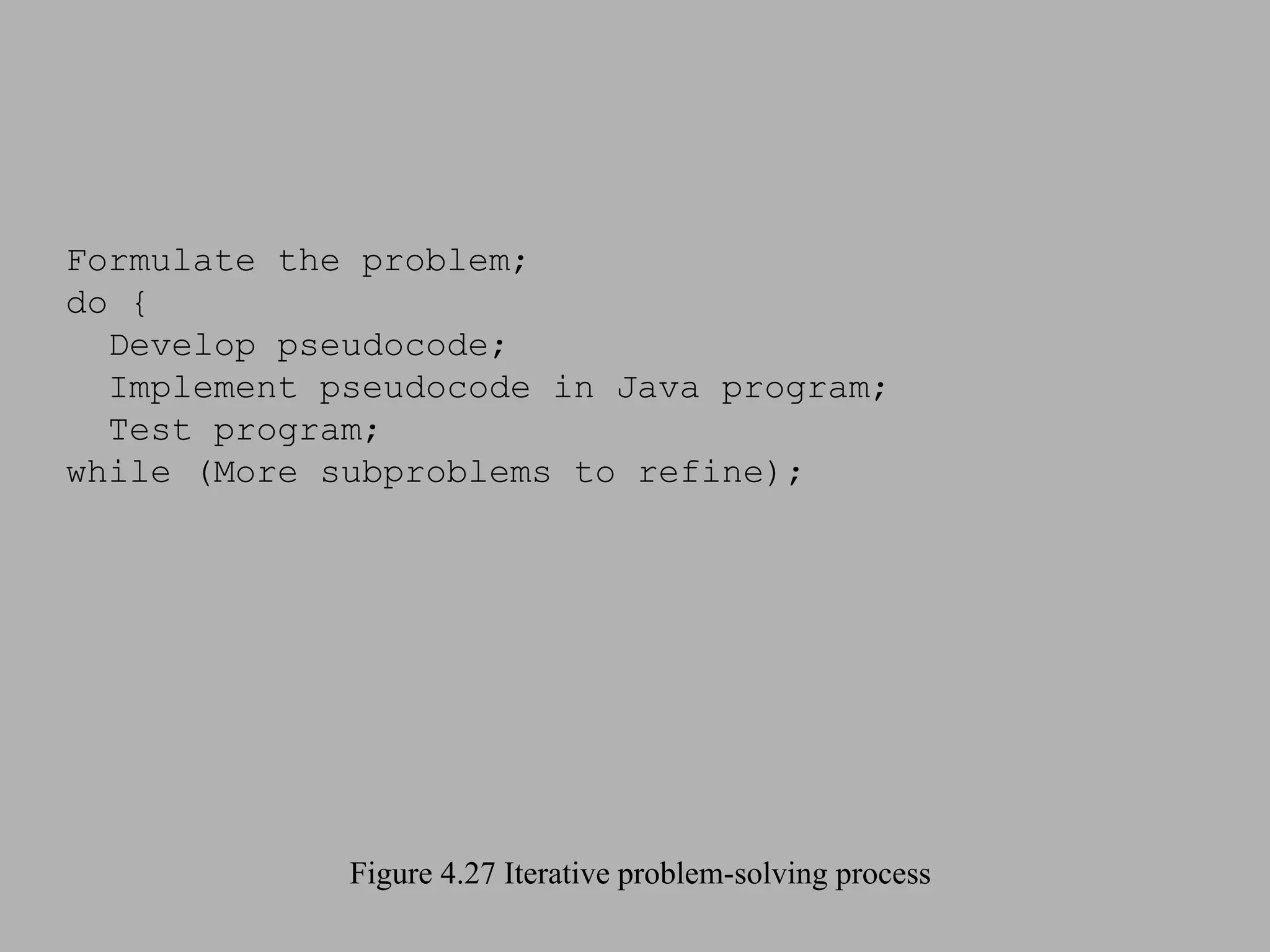

Figure 4.27 Iterative problem-solving process
Formulate the problem;
do {
Develop pseudocode;
Implement pseudocode in Java program;
Test program;
while (More subproblems to refine);

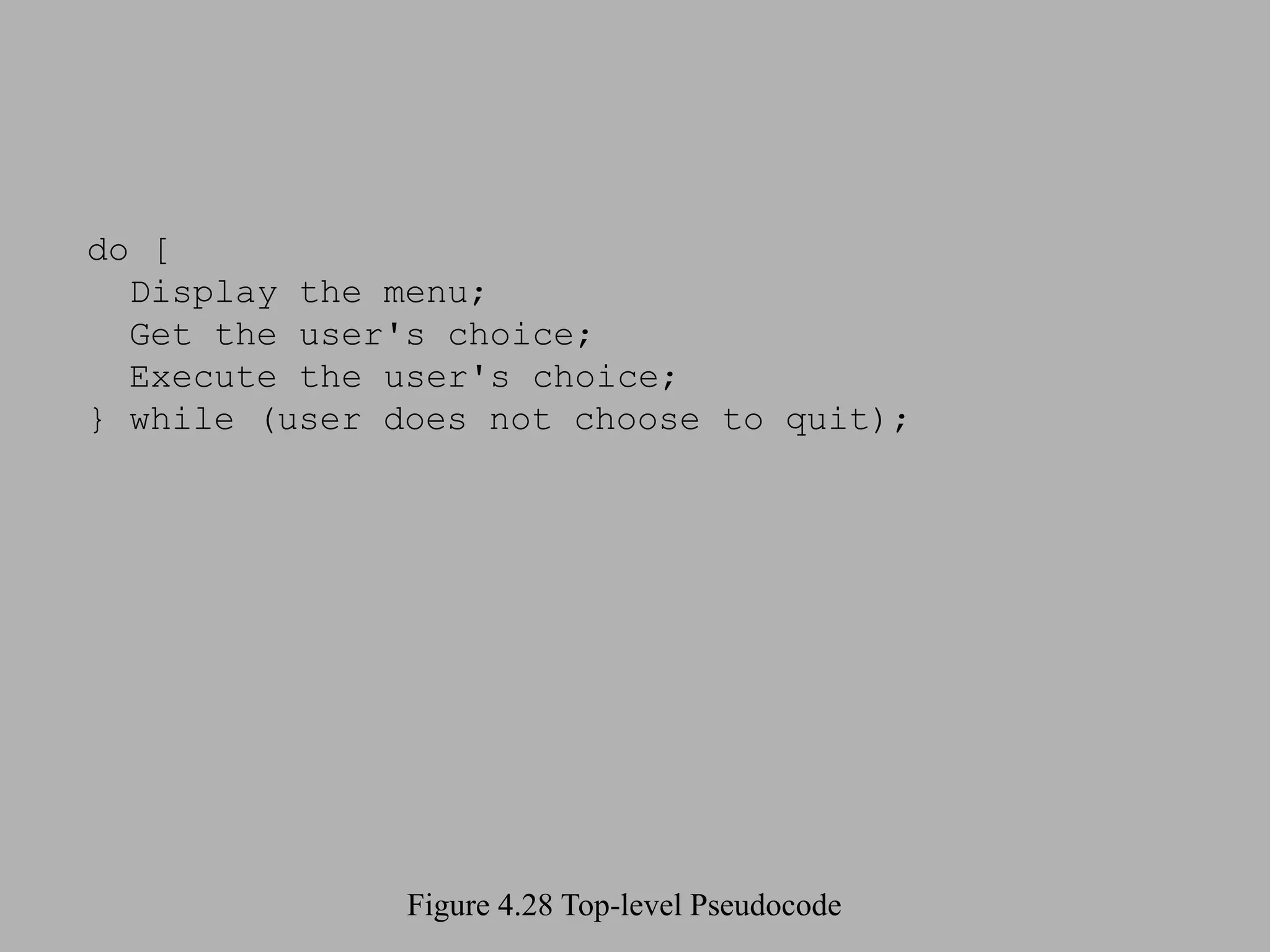

Figure 4.28 Top-level Pseudocode
do [
Display the menu;
Get the user's choice;
Execute the user's choice;
} while (user does not choose to quit);

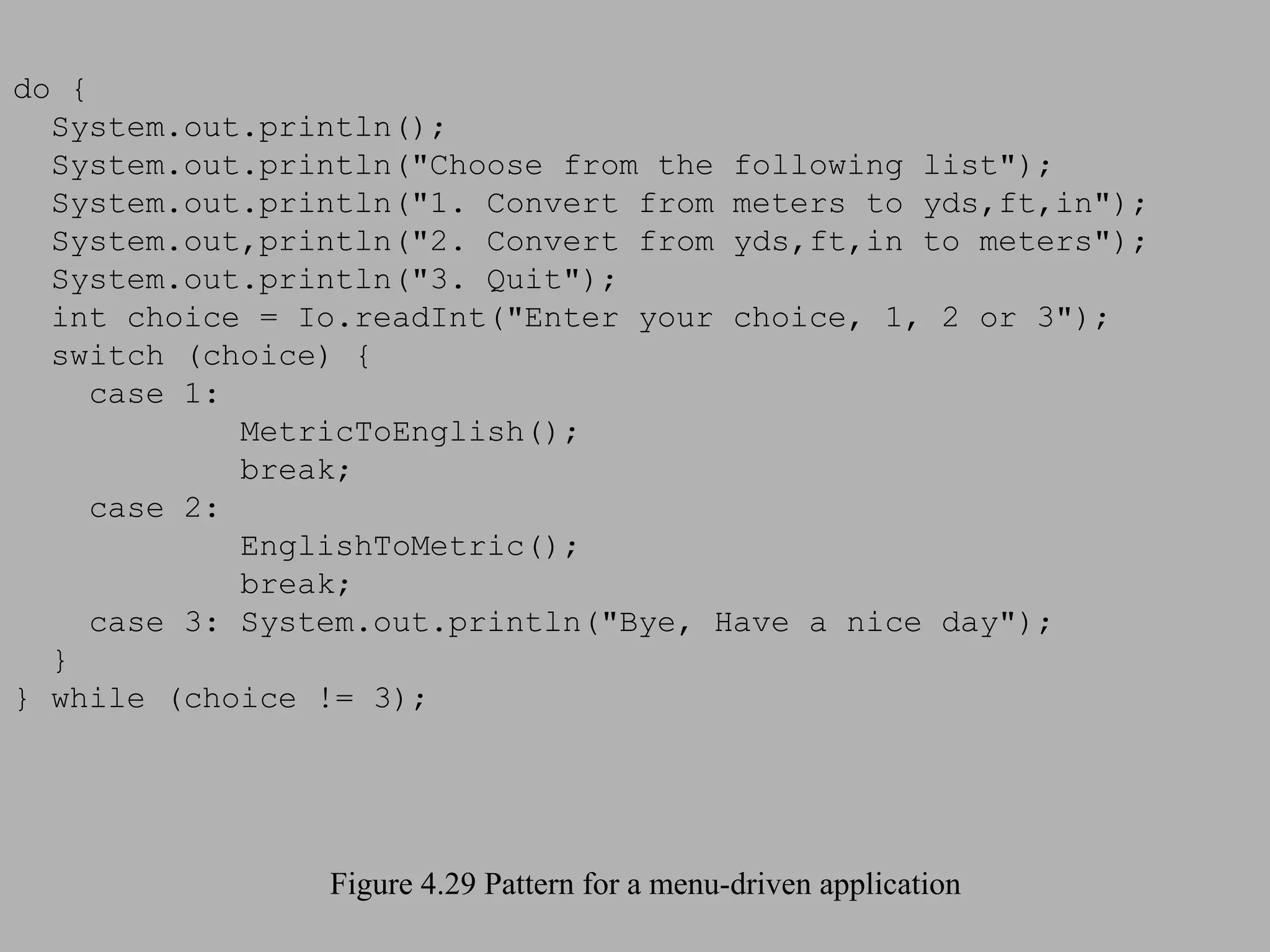

Figure 4.29 Pattern for a menu-driven application
do {
System.out.println();
System.out.println("Choose from the following list");
System.out.println("1. Convert from meters to yds,ft,in");
System.out,println("2. Convert from yds,ft,in to meters");
System.out.println("3. Quit");
int choice = Io.readInt("Enter your choice, 1, 2 or 3");
switch (choice) {
case 1:
MetricToEnglish();
break;
case 2:
EnglishToMetric();
break;
case 3: System.out.println("Bye, Have a nice day");
}
} while (choice != 3);

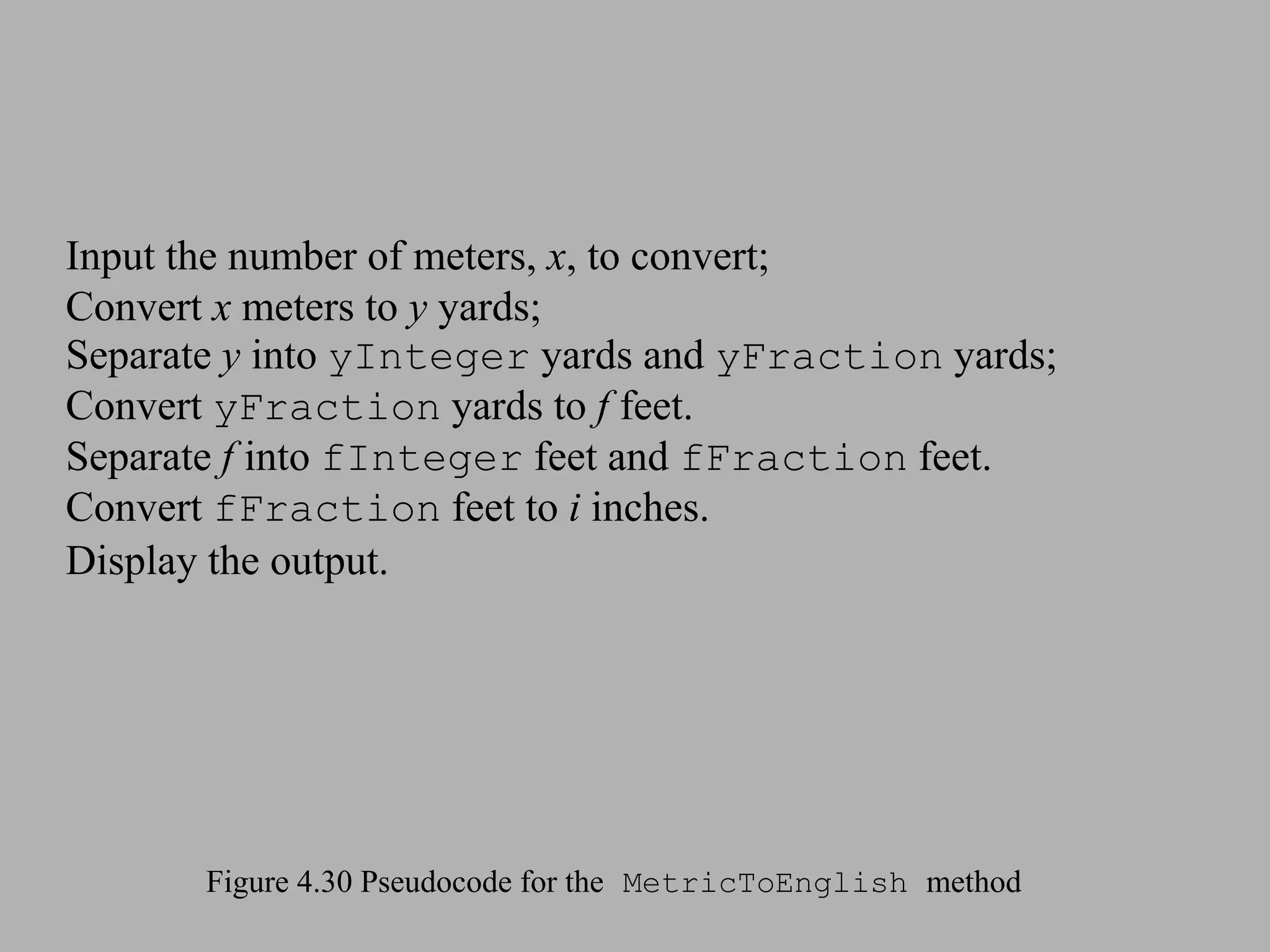

Figure 4.30 Pseudocode for the MetricToEnglish method
Input the number of meters, x, to convert;
Convert x meters to y yards;
Separate y into yInteger yards and yFraction yards;
Convert yFraction yards to f feet.
Separate f into fInteger feet and fFraction feet.
Convert fFraction feet to i inches.
Display the output.

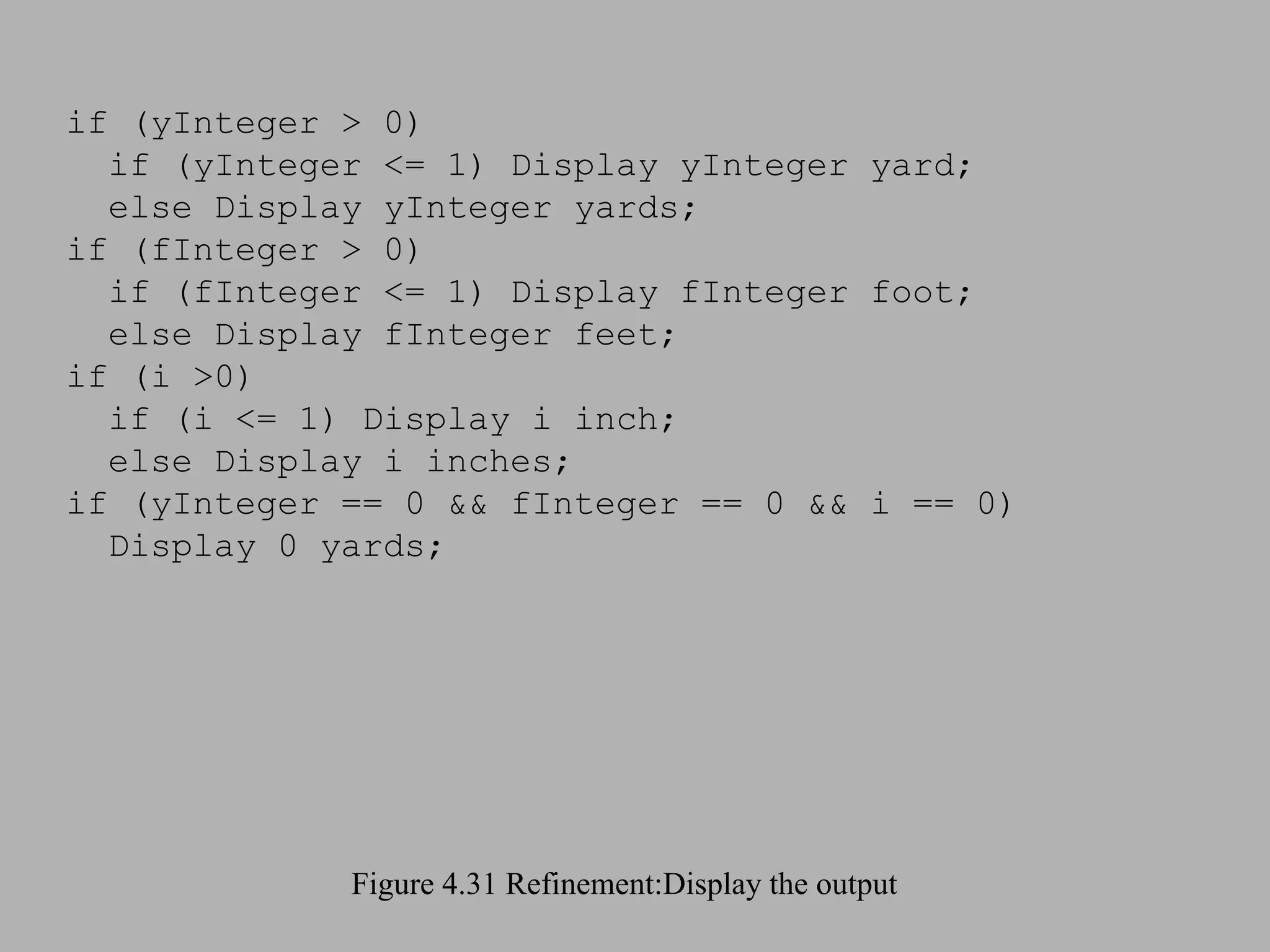

Figure 4.31 Refinement:Display the output
if (yInteger > 0)
if (yInteger <= 1) Display yInteger yard;
else Display yInteger yards;
if (fInteger > 0)
if (fInteger <= 1) Display fInteger foot;
else Display fInteger feet;
if (i >0)
if (i <= 1) Display i inch;
else Display i inches;
if (yInteger == 0 && fInteger == 0 && i == 0)
Display 0 yards;

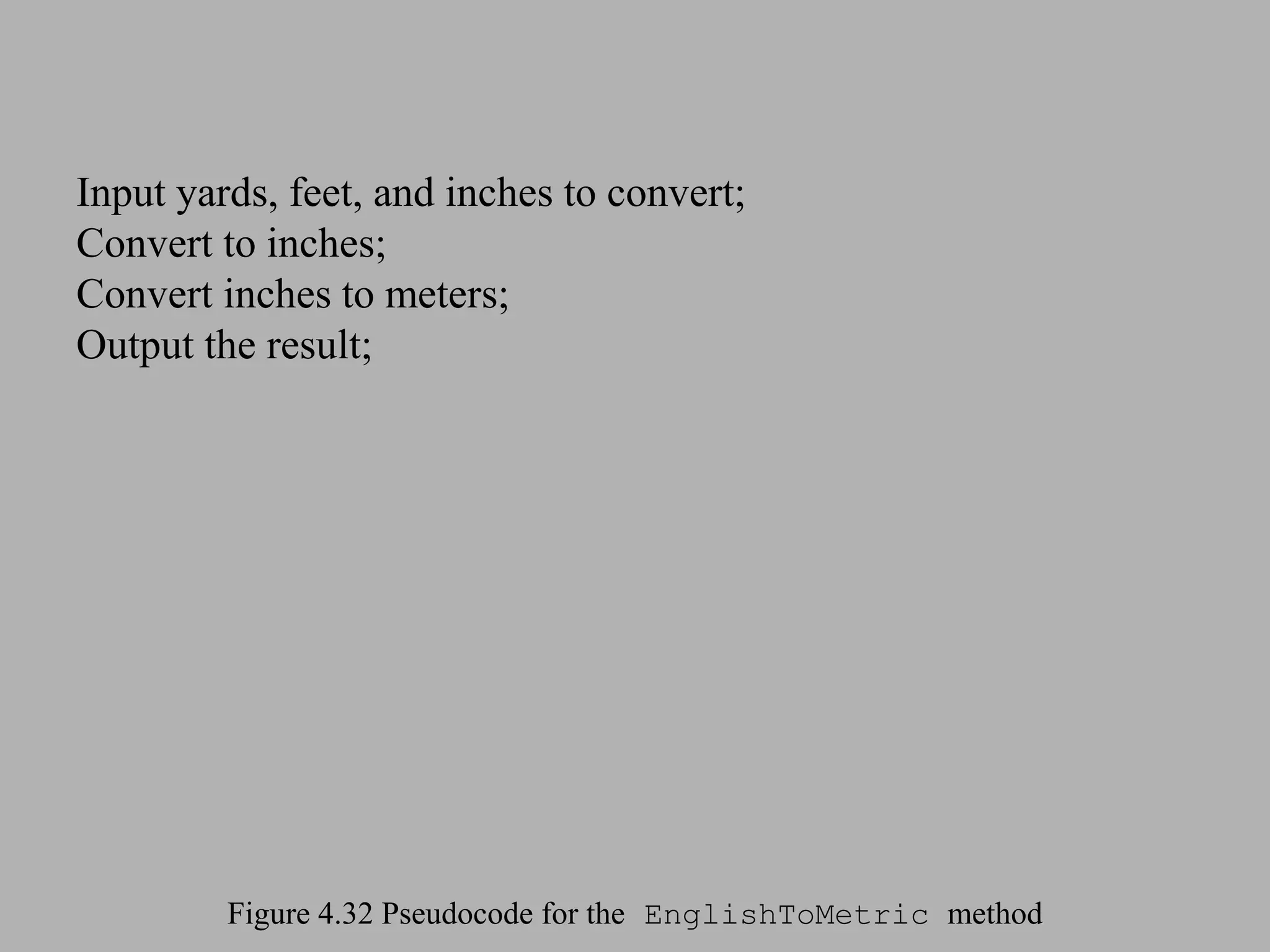

Figure 4.32 Pseudocode for the EnglishToMetric method
Input yards, feet, and inches to convert;
Convert to inches;
Convert inches to meters;
Output the result;

More Related Content

Similar to java switch

Control statements-Computer programming
Control statements-Computer programmingControl statements-Computer programming
Control statements-Computer programming
nmahi96

Pi j1.3 operators
Pi j1.3 operatorsPi j1.3 operators
Pi j1.3 operators
mcollison

CONTROLSTRUCTURES.ppt
CONTROLSTRUCTURES.pptCONTROLSTRUCTURES.ppt
CONTROLSTRUCTURES.ppt
Sanjjaayyy

Basics of Control Statement in C Languages
Basics of Control Statement in C LanguagesBasics of Control Statement in C Languages
Basics of Control Statement in C Languages
Chandrakant Divate

What is c
What is cWhat is c
What is c
Nitesh Saitwal

3. control statements
3. control statements3. control statements
3. control statements
amar kakde

The Three Basic Selection Structures in C++ Programming Concepts
The Three Basic Selection Structures in C++ Programming ConceptsThe Three Basic Selection Structures in C++ Programming Concepts
The Three Basic Selection Structures in C++ Programming Concepts
Tech

The Ultimate FREE Java Course Part 1
The Ultimate FREE Java Course Part 1The Ultimate FREE Java Course Part 1
The Ultimate FREE Java Course Part 1
Coursetro Com

Control structure
Control structureControl structure
Control structure
Liam Delector

java - Introduction , control structures
java - Introduction , control structuresjava - Introduction , control structures
java - Introduction , control structures
sandhyakiran10

Control Structures.pptx
Control Structures.pptxControl Structures.pptx
Control Structures.pptx
ssuserfb3c3e

Acm aleppo cpc training introduction 1
Acm aleppo cpc training introduction 1Acm aleppo cpc training introduction 1
Acm aleppo cpc training introduction 1
Ahmad Bashar Eter

Java learning
Java learningJava learning
Java learning
moew3

Chapter3
Chapter3Chapter3
Chapter3
Subhadip Pal

Programming in Arduino (Part 2)
Programming in Arduino  (Part 2)Programming in Arduino  (Part 2)
Programming in Arduino (Part 2)
Niket Chandrawanshi

Basic_Java_02.pptx
Basic_Java_02.pptxBasic_Java_02.pptx
Basic_Java_02.pptx
Kajal Kashyap

Dti2143 chap 4 control statement part 2
Dti2143 chap 4 control statement part 2Dti2143 chap 4 control statement part 2
Dti2143 chap 4 control statement part 2alish sha


Similar to java switch (20)

Control statements-Computer programming
Control statements-Computer programmingControl statements-Computer programming
Control statements-Computer programming

Pi j1.3 operators
Pi j1.3 operatorsPi j1.3 operators
Pi j1.3 operators

CONTROLSTRUCTURES.ppt
CONTROLSTRUCTURES.pptCONTROLSTRUCTURES.ppt
CONTROLSTRUCTURES.ppt

Basics of Control Statement in C Languages
Basics of Control Statement in C LanguagesBasics of Control Statement in C Languages
Basics of Control Statement in C Languages

What is c
What is cWhat is c
What is c

3. control statements
3. control statements3. control statements
3. control statements

05 operators
05   operators05   operators
05 operators

The Three Basic Selection Structures in C++ Programming Concepts
The Three Basic Selection Structures in C++ Programming ConceptsThe Three Basic Selection Structures in C++ Programming Concepts
The Three Basic Selection Structures in C++ Programming Concepts

Introduction to c part -1
Introduction to c   part -1Introduction to c   part -1
Introduction to c part -1

The Ultimate FREE Java Course Part 1
The Ultimate FREE Java Course Part 1The Ultimate FREE Java Course Part 1
The Ultimate FREE Java Course Part 1

Control structure
Control structureControl structure
Control structure

04.ppt
04.ppt04.ppt
04.ppt

java - Introduction , control structures
java - Introduction , control structuresjava - Introduction , control structures
java - Introduction , control structures

Control Structures.pptx
Control Structures.pptxControl Structures.pptx
Control Structures.pptx

Acm aleppo cpc training introduction 1
Acm aleppo cpc training introduction 1Acm aleppo cpc training introduction 1
Acm aleppo cpc training introduction 1

Java learning
Java learningJava learning
Java learning

Chapter3
Chapter3Chapter3
Chapter3

Programming in Arduino (Part 2)
Programming in Arduino  (Part 2)Programming in Arduino  (Part 2)
Programming in Arduino (Part 2)

Basic_Java_02.pptx
Basic_Java_02.pptxBasic_Java_02.pptx
Basic_Java_02.pptx

Dti2143 chap 4 control statement part 2
Dti2143 chap 4 control statement part 2Dti2143 chap 4 control statement part 2
Dti2143 chap 4 control statement part 2


Recently uploaded

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...
ThomasParaiso2

Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptxSecstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx
nkrafacyberclub

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Albert Hoitingh

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing
Aftab Hussain

Elevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object CalisthenicsElevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object Calisthenics
Dorra BARTAGUIZ

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1
DianaGray10

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)
Ralf Eggert

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales
Laura Byrne

Generative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to ProductionGenerative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to Production
Aggregage

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

Free Complete Python - A step towards Data Science
Free Complete Python - A step towards Data ScienceFree Complete Python - A step towards Data Science
Free Complete Python - A step towards Data Science
RinaMondal9

FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdfFIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview
Prayukth K V

FIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdfFIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph
Guy Korland

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
Neo4j

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect
Kari Kakkonen

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
91mobiles


Recently uploaded (20)

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...

Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptxSecstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing

Elevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object CalisthenicsElevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object Calisthenics

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales

Generative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to ProductionGenerative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to Production

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

Free Complete Python - A step towards Data Science
Free Complete Python - A step towards Data ScienceFree Complete Python - A step towards Data Science
Free Complete Python - A step towards Data Science

FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdfFIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf
FIDO Alliance Osaka Seminar: Passkeys at Amazon.pdf

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview

FIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdfFIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdf

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf


java switch

  • 1. 4. More Control Structures and Types 4.1 Logical (Conditional) AND, OR, and NOT 4.2 Nested Ifs and the Switch Statement 4.3 The For and Do-While Loops 4.4 Additional Primitive Types 4.5 Using the Math Library 4.6 Solving Problems with Java: An Iterative Development Cycle
  • 2. Objectives • Learn useful selection and repetition statement • Use primitive types and operators • Use the Math library • Build software using an iterative development cycle
  • 3. Logical Operators • Boolean expressions can use logical (conditional) ! Logical NOT && Logical AND || Logical OR • They all take boolean operands and produce boolean results • Logical NOT (Conditional Complement) is a unary operator (one operand), but the other two are binary operators (two operands)
  • 4. Logical Operators • Conditions in selection statements and loops can use logical operators to form complex expressions if (b >= a && c >= a) min = a; if (a >= b && c >= b) min = b; if (a >= c && b >= c) min = c; • Logical operators have precedence relationship between themselves and other operators
  • 5. Symbol Meaning Example && conditional AND (age > 20) && (age < 35) || conditional OR (height > 78.5) || (weight > 300) Figure 4.2 Conditional Operators
  • 6. age age > 20 age < 35 age > 20 && age < 35 10 false true false 25 true true true 40 true false false Figure 4.3 Evaluating an example of a conditional AND expression
  • 7. A B A && B true true true true false false false (don't care) false Figure 4.4 Evaluating a conditional AND expression
  • 8. height weight height > 78.5 weight > 300 (height>78.5) || (weight>300) 62 125 false false false 80 250 true false true 72 310 false true true 80 325 true true true Figure 4.5 Evaluating an example of a conditional OR expression
  • 9. A B A || B true (don't care) true false true true false false false Figure 4.6 Evaluating a condition OR expression
  • 10. A !A true false false true Figure 4.7 Evaluating a logical complement expression
  • 11. Figure 4.8 Operator precedence* Highest NOT! ! multiplicative * / % additive + - relational < > <= >= equality == != conditional AND && conditional OR || assignment = += -= *= /= %= Lowest
  • 12. if (score >= 60 && score < 80) System.out.println("Score " + score + " receives a C"); else System.out.println("Score " + score + " receives a B or an A"); Figure 4.9 If-else statement to choose between two alternatives
  • 13. Nested If Statements • The if-true-statement and if-false-statement of an if statement could be another if statement • These are called nested if statements if (a >= b) if (b >= c) min = c; else min = b; else if (a >= c) min = c; else min = a; • An else clause is matched to the last unmatched if (no matter what the indentation implies)
  • 14. Figure 4.10 Nested if-else statement to choose among three alternatives if (score >= 60 && score < 80) System.out.println("Score " + score + " receives a C"); else if (score >=80 && score < 90) System.out.println("Score " + score + " receives a B"); else System.out.println("Score " + score + " receives an A");
  • 15. Figure 4.11 Improved version of Figure 4.10 if (score >= 60 && score < 80) System.out.println("Score " + score + " receives a C"); else if (score >=80 && score < 90) System.out.println("Score " + score + " receives a B"); else if (score >= 90 && score <= 100) System.out.println("Score " + score + " receives an A");
  • 16. Figure 4.12 Flow chart for nested if-else statements Last? Last false code ... Last true code True False False Test1? Test2? Test1 true code Test2 true code True True False False
  • 17. Figure 4.13 Incorrect attempt to pair an else with an if if (score >= 60) if (score >= 80) System.out.println("You got a B or an A"); else System.out.println("You got a D or an F"); // Wrong pairing
  • 18. Figure 4.14 Corrected pairing of else and if if (score >= 60) if (score >= 80) System.out.println("You got a B or an A"); else System.out.println("You got a C"); // Correct pairing
  • 19. Figure 4.15 Figure 4.13 rewritten as an if-else with nested if if (score >= 60) { if (score >= 80) System.out.println("You got a B or an A"); } Else // Paired to first 'if' System.out.println("You got a D or an F");
  • 20. The Switch Statement • The switch statement provides another means to decide which statement to execute next • The switch statement evaluates an expression, then attempts to match the result to one of several possible cases • Each case contains a value and a list of statements • The flow of control transfers to statement list associated with the first value that matches
  • 21. The Switch Statement • A switch statement can have an optional default case which has no associated value • If the default case is present, control will transfer to it if no other case value matches • The default case can be positioned anywhere in the switch, it is usually placed at the end • If there is no default case, and no other value matches, control falls through to the next statement after the switch
  • 22. The Switch Statement • Often a break statement is used as the last statement in each case’s statement list • A break statement causes control to transfer to the end of the switch statement • If a break statement is not used, the flow of control will continue into the next case • The expression of a switch statement must result in an integral data type, like an integer or character • You cannot perform relational checks with a switch staement
  • 23. Figure 4.16 An example of a switch statement switch(mark) { case 0: case 1: case 2: case 3: case 4: System.out.println("F"); break; case 5: System.out.println("D"); break; case 6: case 7: System.out.println("C"); break; case 8: System.out.println("B"); break; case 9: case10: System.out.println("A"); break; default:System.out.println("Incorrect score"); }
  • 24. The For Statement • The for statement has the following syntax: for ( initialization ; condition ; increment ) statement ; • The initialization is executed once before the loop begins • The statement is executed until the condition becomes false • The increment portion is executed at the end of each iteration
  • 25. The For Statement • The for statement is equivalent to the following while loop structure initialization ; while ( condition ) { statement ; increment ; } • Like a while loop, the condition of a for loop is tested prior to executing the loop body • Therefore, the body of a for loop can be executed zero or more times
  • 26. Figure 4.17 A for statement for the sum 1+2+3+4 int sum = 0; for (int i = 1; i <= 4; i++) sum += i;
  • 27. initialize i = 1 test 1 <= 4 is true execute body sum += 1 (result: sum = 0 + 1 = 1) update i++ (result: i = 2) test 2 <= 4 is true execute body sum += 2 (result: sum = 1 + 2 = 3) update i++ (result: i = 3) test 3 <= 4 is true execute body sum += 3 (result: sum = 3 + 3 = 6) update i++ (result: i + 4) test 4 <= 4 is true execute body sum += 4 (result: sum = 6 + 4 = 10) update i++ (result: i = 5) test 5 <= 4 is false Figure 4.18 Trace of execution of the for loop of Figure 4.17
  • 28. Figure 4.19 A for statement for the sum 1+3+5+7+9 int sum = 0; for (int i = 1; i < 10; i += 2) sum += i;
  • 29. Figure 4.20 A for statement for the sum 4+3+2+1 int sum = 0; for (int i = 4; i >= l; i--) sum += i;
  • 30. Figure 4.21 Declaring an index variable before the for loop int i; // declare loop index int sum = 0; for (i = 4; i >= 1; i--) // initialize loop index sum += i; ... i += 17; // use variable i
  • 31. Examples • TwelveDays.java (extra) • Diamond.java (extra) • Growth.java • Mortgage.java (extra)
  • 32. The StringTokenizer Class • StringTokenizer(String str) Constructor. Creates a new StringTokenizer object to parse str based on white space • StringTokenizer(String str, String delimiter) Constructor. Creates a new StringTokenizer object to parse str based on specified set of delimiteds • int countTokens() Returns the number of token still left to be processed in the string • boolean hasMoreTokens() Returns true if there are tokens still left to be processed in the string • String nextToken() Returns the next token in the string
  • 33. Figure 4.22 Syntax for the do-while statement do statement while (condition) ;
  • 34. Do-while Statement • A do-while statement checks the condition after executing the loop body • The loop body of a do-while statement is executed at least once • Do-while statements are suitable for writing loops that are executed at least once • DoGrowth.java • Babylonian.java (extra)
  • 35. Figure 4.23 Pseudocode for example 4.5 enhancement do { Compute balance as in Example 4.5 Ask the user -- Repeat or Quit? } while (User chooses to repeat);
  • 36. The char Type • Java uses Unicode charater set (16 bits) • ASCII, American Standard Code for Information Interchange, is a seven-bit code used by other language like C and C++ • ASCII is a subset of Unicode • Keyword char to denote character type • Character constants are quoted in single quotes, e.g. ‘A’ • Ascii.java
  • 37. Escape Sequence • Escape sequence: preceding certain character with the escape character for special meaning • The newline, 'n', positions the next output at the start of the next line • The return, 'r', positions the next output at the start of the curent line • The backspace, 'b', positions the next output one character to the left • The tab, 't', position the next output at the next tab position
  • 38. Escape Sequence • The escape needs to be "escaped" when quoted like '' and "" • The single quote character must be "escaped" in single quotes like ''' • The double quote must be "escaped" in double quotes like ””This is a quote”" • Special.java
  • 39. backlash Special Character Meaning n newline, move to the start of the next line t tab b backspace r return, move to the start of the current line " double quote n newline, move to the start of the next line Figure 4.24 Escape sequences for special characters
  • 40. The byte, short, and long Types • byte: one byte = 8 bits, range from -128 to 127 • short: two bytes = 16 bits – range from -32,768 to 32,767 • int: four bytes = 32 bits – range from -2,147,483,648 to 2,147,483,647 • long: eight bytes = 64 bits – range 9,223,372,036,854,808 to 9,223,372,036,854,807 • int is the default for integer constant • Integer constants can be made long by adding the suffix l or L
  • 41. The float Type • float: four bytes = 32 bits – Exponent can range from -45 to 48 – Min ~ -3.4E+38 with seven significant digits – Max ~ 3.4E+38 with seven significant digits • double: eight bytes = 64 bits – Exponent can range from -324 to 308 – Min ~ -1.7E+308 with 16 significant digits – Max ~ 1.7E+308 with 16 significant digits • double is the default for real constants • Make a number float by adding an f or F suffix float good = 4.25f; // valid float ok = (float)4.25; // valid float bad = 4.25; // invalid
  • 42. The Math Class • In java.lang package • Two static constants: E (base of natural log) and PI (ratio of circumference of a circle to its diameter) • General functions abs - absolute value ceil - ceiling, smallest integer >= argument floor - flooring, greatest integer <= argument round - rounding, integer closest to argument max - maximum of the two arguments min - minimum of the two arguments
  • 43. The Math Class • Simple mathematical operations sqrt(double a) - Return the square root of the argument pow(double a, double b) - Returns of value of the first argument raised to the power of the second argument log(double a) - Returns the natural logarithm (base e) of a double value exp(double a) - Returns the exponential number e (i.e., 2.718...) raised to the power of a double value • Random number random() - Returns a double value with a positive sign, greater than or equal to 0.0 and less than 1.0
  • 44. The Math Class • Trigonometric functions sin, cos, tan - sine, cosine, and tangent asin, acos, atan- arc-sine, arc-cosine, and arc-tangent atan2(double a, double b) - Returns the theta component in the polar coordinates (r, theta) corresponding to the point (b, a) in Cartesian coordinates • Degree/Radian conversion toDegrees(double angrad) - Converts an angle in radians to the equivalent angle measured in degrees toRadians(double angdeg) - Converts an angle in degrees to the equivalent angle measured in radians
  • 45. The Math Class • Library.java • Toss.java • CoinToss.java
  • 46. Figure 4.25 Size of the reward given each day 1 1 2 4 8 12 16 16 8 4 2 Days
  • 47. Figure 4.26 Using random numbers to represent heads and tails 0.0 0.5 1.0 HHHHHHHHHHHHHHHHHTTTTTTTTTTTTTTTTTT Heads Tails
  • 48. Iterative Development Cycle • First iteration - CovertMenu.java (with stubs for methods) • Second iteration - CovertFromMetric.java (implement MetricToEnglish()) • Third iteration - Convert.java (implement EnglishToMetric())
  • 49. Figure 4.27 Iterative problem-solving process Formulate the problem; do { Develop pseudocode; Implement pseudocode in Java program; Test program; while (More subproblems to refine);
  • 50. Figure 4.28 Top-level Pseudocode do [ Display the menu; Get the user's choice; Execute the user's choice; } while (user does not choose to quit);
  • 51. Figure 4.29 Pattern for a menu-driven application do { System.out.println(); System.out.println("Choose from the following list"); System.out.println("1. Convert from meters to yds,ft,in"); System.out,println("2. Convert from yds,ft,in to meters"); System.out.println("3. Quit"); int choice = Io.readInt("Enter your choice, 1, 2 or 3"); switch (choice) { case 1: MetricToEnglish(); break; case 2: EnglishToMetric(); break; case 3: System.out.println("Bye, Have a nice day"); } } while (choice != 3);
  • 52. Figure 4.30 Pseudocode for the MetricToEnglish method Input the number of meters, x, to convert; Convert x meters to y yards; Separate y into yInteger yards and yFraction yards; Convert yFraction yards to f feet. Separate f into fInteger feet and fFraction feet. Convert fFraction feet to i inches. Display the output.
  • 53. Figure 4.31 Refinement:Display the output if (yInteger > 0) if (yInteger <= 1) Display yInteger yard; else Display yInteger yards; if (fInteger > 0) if (fInteger <= 1) Display fInteger foot; else Display fInteger feet; if (i >0) if (i <= 1) Display i inch; else Display i inches; if (yInteger == 0 && fInteger == 0 && i == 0) Display 0 yards;
  • 54. Figure 4.32 Pseudocode for the EnglishToMetric method Input yards, feet, and inches to convert; Convert to inches; Convert inches to meters; Output the result;
