JVM is the abstract machine that executes Java bytecode. JRE provides the runtime environment and implements the JVM. JDK includes JRE plus development tools. The JVM loads class bytecode into memory areas like the method area and heap. Each thread gets its own stack for method calls. Core OOP concepts in Java include encapsulation, inheritance, polymorphism, and abstraction. Access modifiers control visibility. Methods can be overloaded or overridden. Classes and variables can be marked as final, abstract, or static. Java supports primitive types and reference types. Reference variables point to objects in memory rather than containing values. Primitive types are passed by value while references are passed by reference.

1. Java Basics
Omid Sohrabi

2. JVM vs JRE vs JDK
JVM (Java Virtual Machine) is an abstract
machine. It is a specification that provides runtime
environment in which java bytecode can be
executed.
JRE is used to provide runtime environment. It is
the implementation of JVM. It physically exists. It
contains set of libraries + other files that JVM uses
at runtime.
JDK is an acronym for Java Development Kit. It
physically exists. It contains JRE + development
tools.

3. JVM vs JRE vs JDK

4. JVM
Function of java virtual machine
The bytecode is generated by java compiler in a JVM
understandable format.
As a programmer we develop a java application and
when we compile a java program, the compiler will
generate .class (dot class) file.
The .class file contains byte code (Special java
instructions).
To execute a java program we take the help of JVM (java
virtual machine) to the JVM we have to provide .class
file as the input.

5. JVM

6. JVM
1.Method Area:
• Java Virtual Machine Method Area can be used for
storing all the class code and method code.
• All classes bytecode is loaded and stored in this run
time area , and all static variables are created in this
area.

7. JVM
2.Heap Memory:
• JVM Heap Area can be used for storing all the objects that are
created.
• It is the main memory of JVM , all objects of classes :- non
static variables memory are created in this run time area.
• This runtime area memory is finite memory.
• This area can be configured at the time of setting up of
runtime environment using non standard option like
• This can be expandable by its own , depending on the object
creation.
• Method area and Heap area both are sharable memory areas.

8. JVM

9. JVM

10. JVM

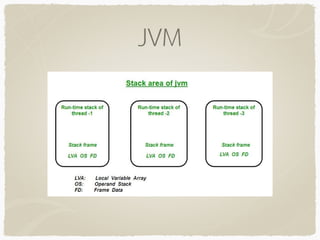

3.Java Stack:
• For every thread, JVM creates a separate stack at the
time of thread creation. The memory for a Java Virtual
Machine stack does not need to be contiguous. The
Java virtual machine only performs two operations
directly on Java Stacks: it pushes and pops frames
• After completing all method calls the stack becomes
empty and that empty stack is destroyed by the JVM
just before terminating the thread.

11. Java
OOP:
• Object orientation is built on the foundations of
encapsulation, abstraction, inheritance, and
polymorphism
interface
• Apart from the inherited behavior, in interface the
derived class specializes its behavior by adding to or
overriding base class behavior.

12. Java
Access Modifiers
• Access modifiers determine the level of visibility
• Public , Private, Protected , Default
• One significant difference between these two access modifiers arises
when we talk about a subclass belonging to another package than its
superclass. In this case, protected members are accessible in the
subclass, whereas default members are not.
NOTE
• Use the explicit thisqualifier when accessing fields inside instance
methods or constructors to avoid ambiguity in referring to variable
names.

13. Override & Overload
• Polymorphism can be of two forms: static and dynamic.
• The signature of a method is made up of the method
name, number of arguments, and types of arguments.
You can overload methods with same name but with
different signatures. Since return type and exception
specification are not part of the signature, you cannot
overload methods based on return type or exception
specification alone

14. Nonaccess modifiers
Nonaccess modifiers change the default behavior of a Java
class and its members.
Abstract, static, final, synchronized, native ,...
A synchronized method can’t be accessed by multiple
threads
A native method calls and makes use of libraries and
methods implemented in other programming languages
such as C or C++. You can’t mark classes, interfaces, or
variables with this modifier.

15. Abstract
An abstract class can’t be instantiated
An abstract class may or may not define an abstract method. But a
concrete class can’t define an abstract method.
An interface is an abstract entity by default. The Java compiler
automatically adds the keyword abstract to the definition of an
interface. Thus, adding the keyword abstract to the definition of an
interface is redundant.

16. Final
The keyword final can be used with the declaration of a class,
variable, or method. It can’t be used with the declaration of an
interface.
A class that’s marked final can’t be extended by another class
A final variable can’t be reassigned a value. It can be assigned a
value only once
A final method defined in a base class can’t be overridden by a
derived class

17. Static
static variables belong to a class. They’re common to all instances
of a class and aren’t unique to any instance of a class
A static variable is shared by all the objects of a class.
static methods aren’t associated with objects and can’t use any of
the instance variables of a class. You can define static methods to
access or manipulate static variables

18. Static
Neither static methods nor static variables can access the non-
static variables and methods of a class. But the reverse is true:
non- static variables and methods can access
You can’t prefix the definition of a top-level class or an interface
with the keyword static. A top-level class or interface is one that
isn’t defined within another class or interface.

19. Data Types

20. Primitive vs. Reference
conversion
a primitive variable contains its value, and conversion of a primitive
variable means irreversible changes in its value
casting a reference variable doesn’t touch the object it refers to,
but only labels this object in another way, expanding or narrowing
opportunities to work with it
A reference is like a remote control to an object. The remote control
has more or fewer buttons depending on its type, and the object
itself is stored in a heap. When we do casting, we change the type
of the remote control but don’t change the object itself.

21. Primitive vs. Reference
Upcastingis casting a subtype to a supertype, upward to the
inheritance tree
Unlike upcasting, downcasting can fail if the actual object type is
not the target object type

22. Primitive vs. Reference
We can use == operators for reference comparison (address
comparison) and .equals() method for content comparison. In
simple words, == checks if both objects point to the same memory
location whereas .equals() evaluates to the comparison of values in
the objects.

23. Variables
Variables can have multiple scopes: class, instance, local, and
method parameters.
Instance variables are defined and accessible within an object.
They’re accessible to all the instance methods of a class.
Class variables are shared by all the objects of a class—they can be
accessed even if there are no objects of the class
Local and instance variables can be defined using the same name.
In a method,
if a local variable exists with the same name as an instance
variable, the local variable takes precedence

24. NOTE
When you pass a primitive variable to a method, its value remains
the same after the execution of the method. This doesn’t change,
regardless of whether the method reassigns the primitive to
another variable or modifies it.
