It's the arts! Playing around with the Android canvas
- 1. It’s the arts! Playing with the Android canvas (or Let’s have a pretext to vandalize art)

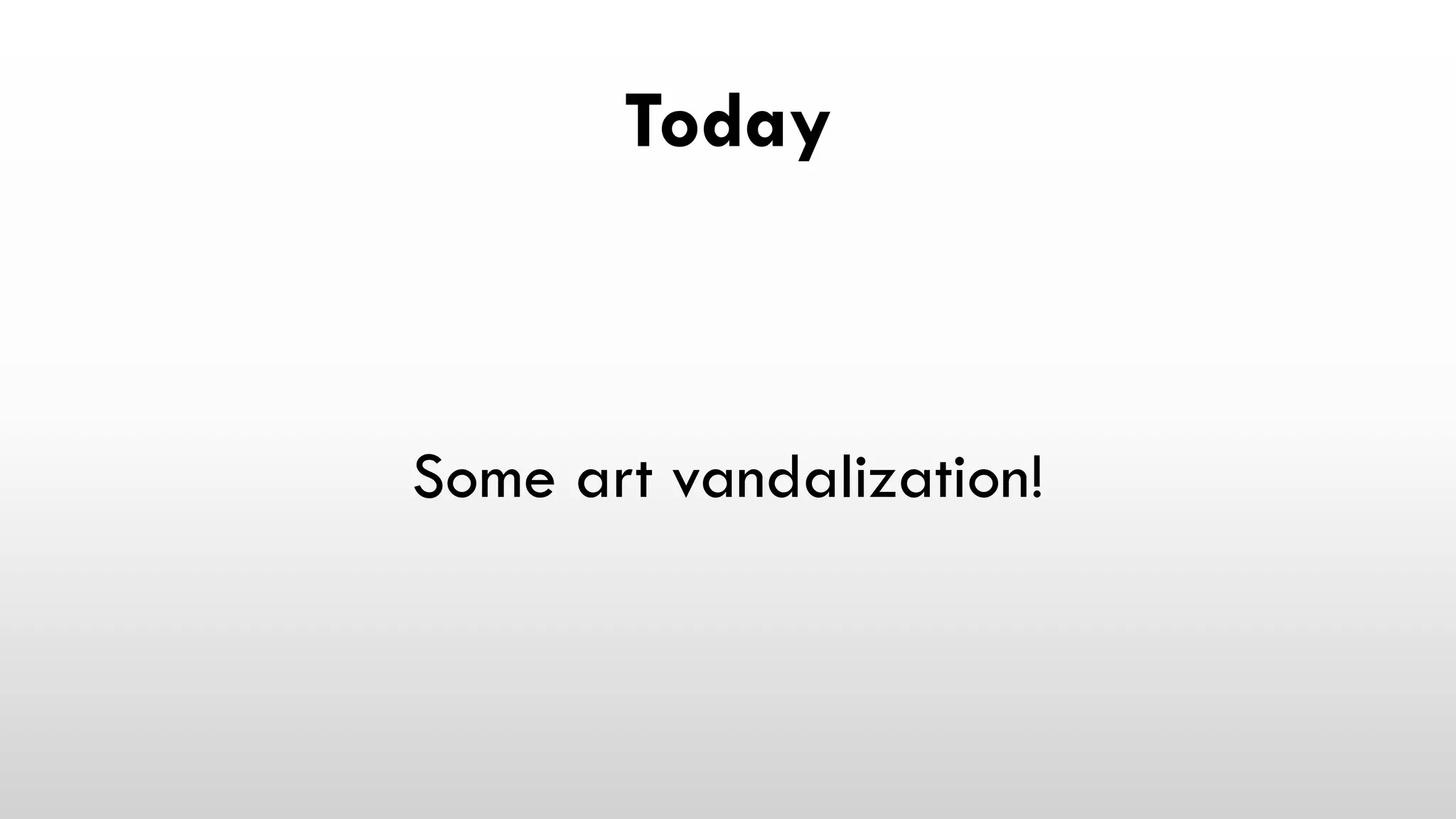

- 3. Today Introduction to canvas Composing and transforming Animations!
- 5. But first, setup things: http://sergiandreplace.com/canvas
- 7. How we paint things in Android?
- 9. Renderscript (using a hammer to crack a nut) (and not really for drawing)
- 11. What is exactly a “canvas”?

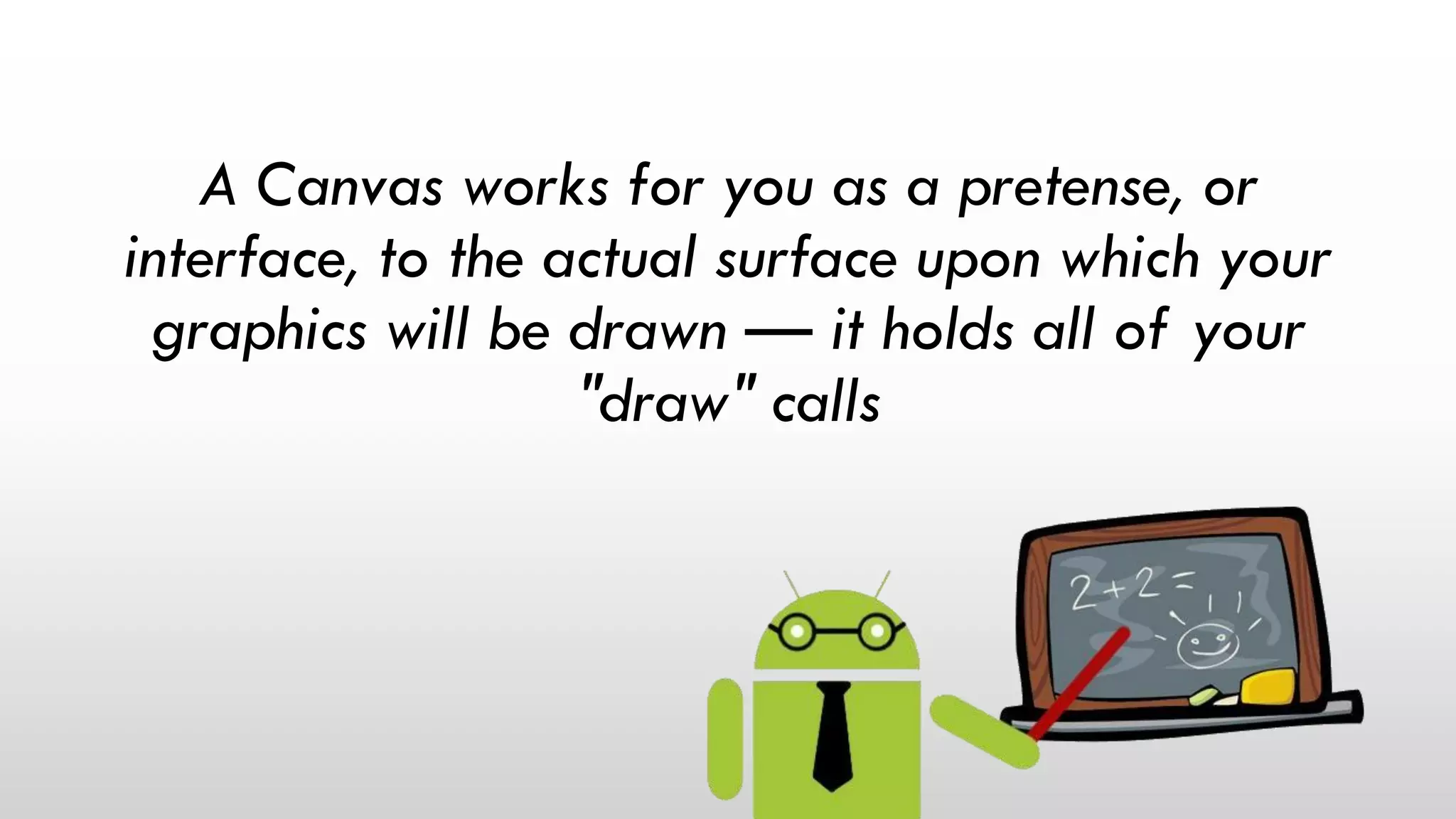

- 12. A Canvas works for you as a pretense, or interface, to the actual surface upon which your graphics will be drawn — it holds all of your "draw" calls

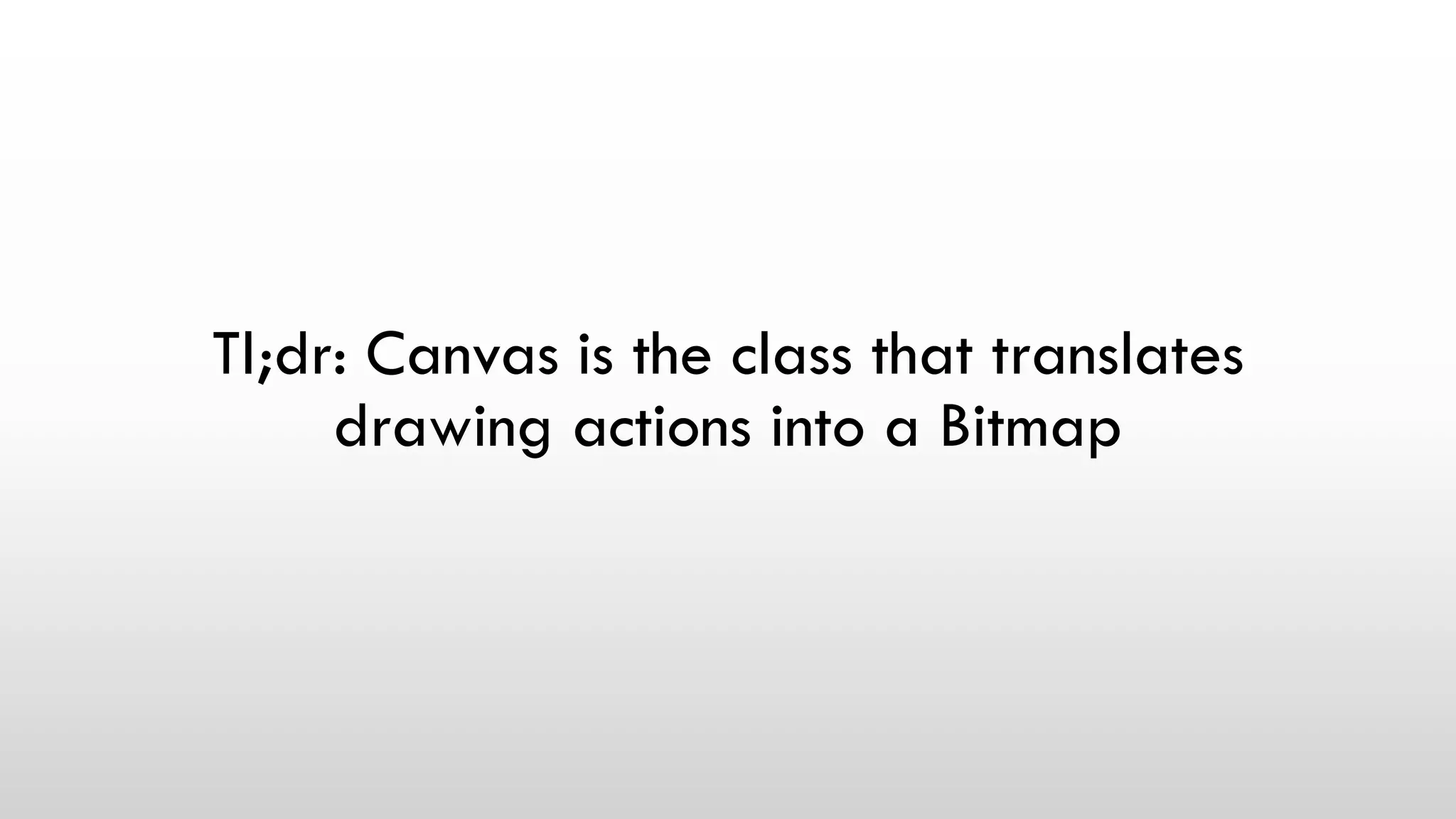

- 14. Tl;dr: Canvas is the class that translates drawing actions into a Bitmap

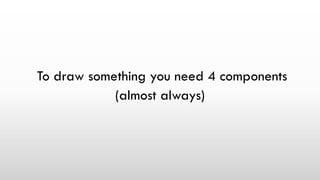

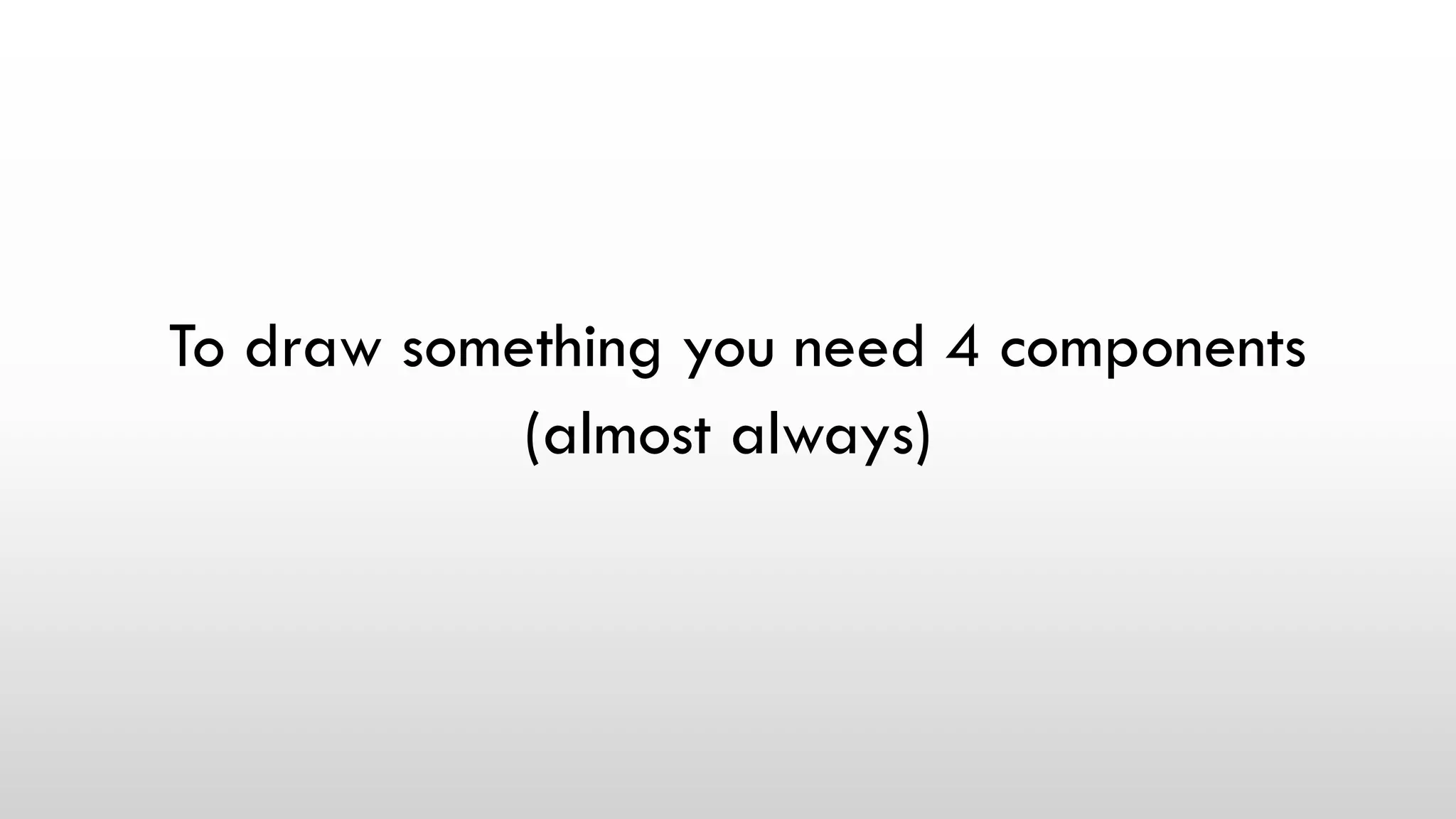

- 15. To draw something you need 4 components (almost always)

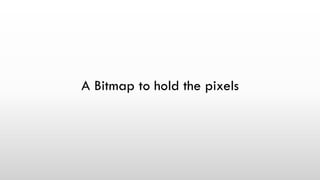

- 16. A Bitmap to hold the pixels

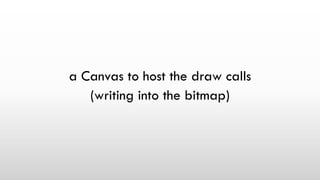

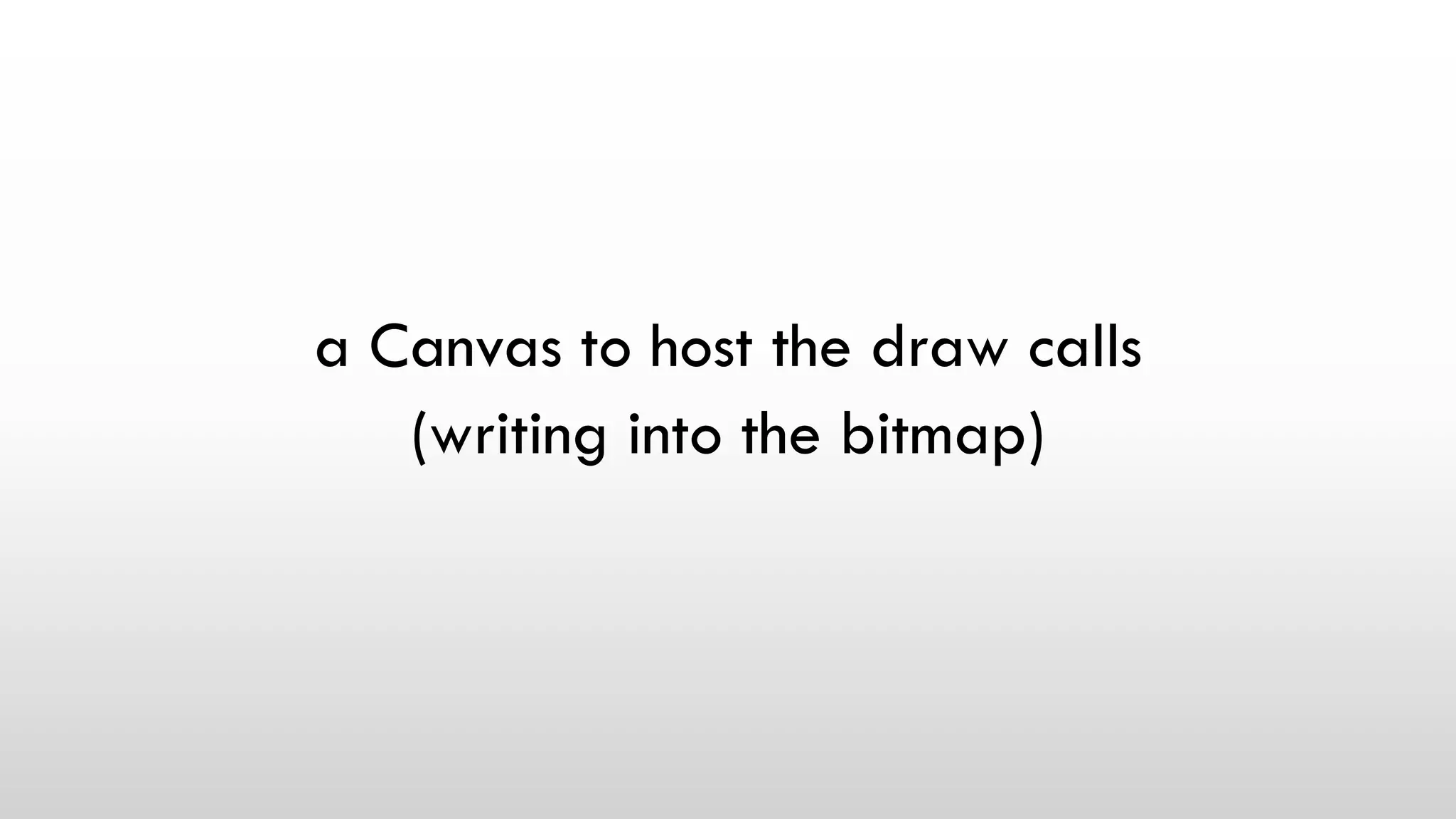

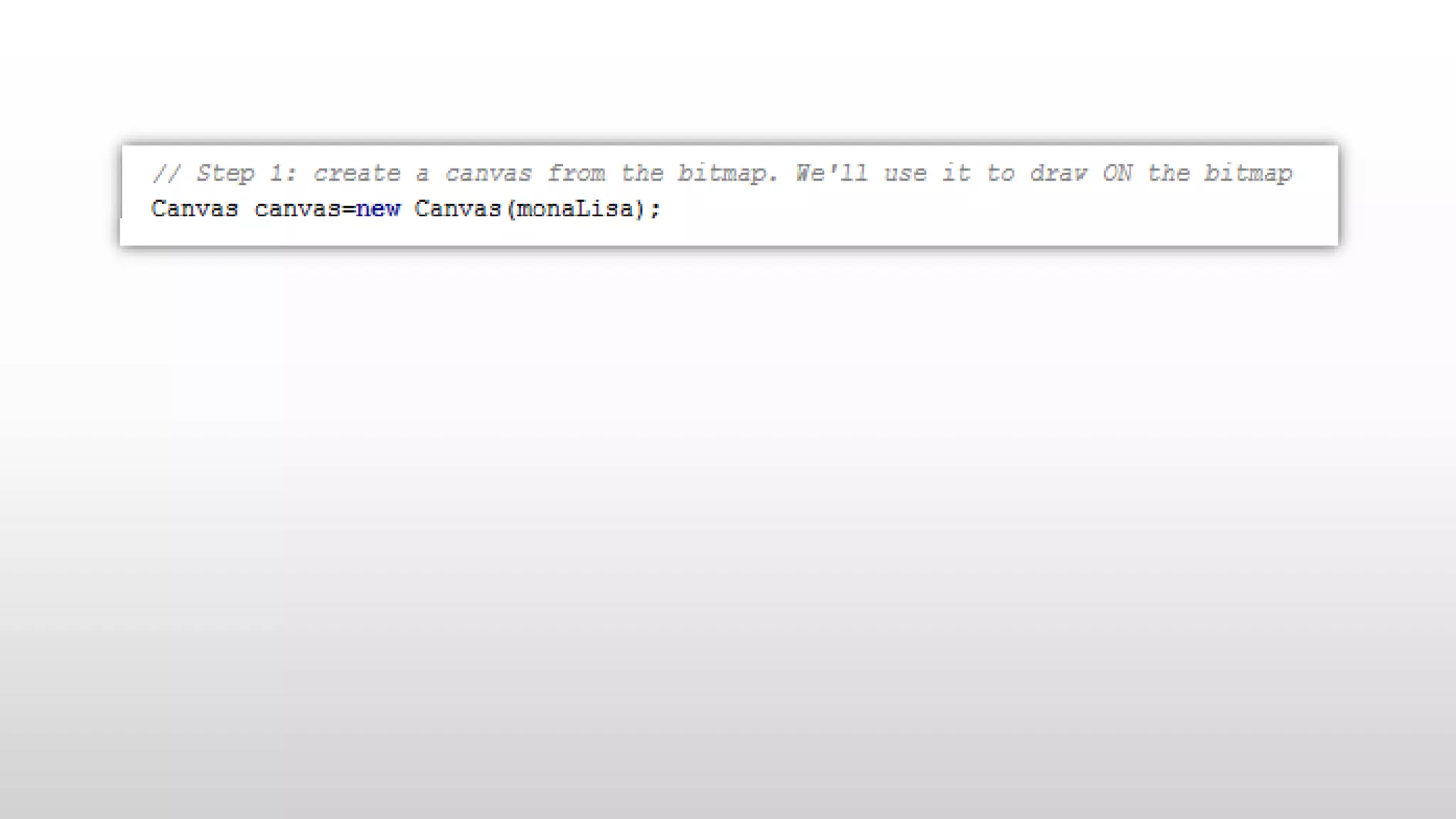

- 17. a Canvas to host the draw calls (writing into the bitmap)
- 18. a drawing primitive (e.g. Rect, Path, text, Bitmap)

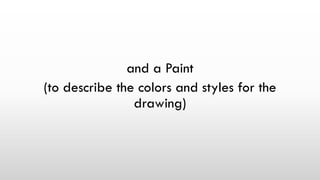

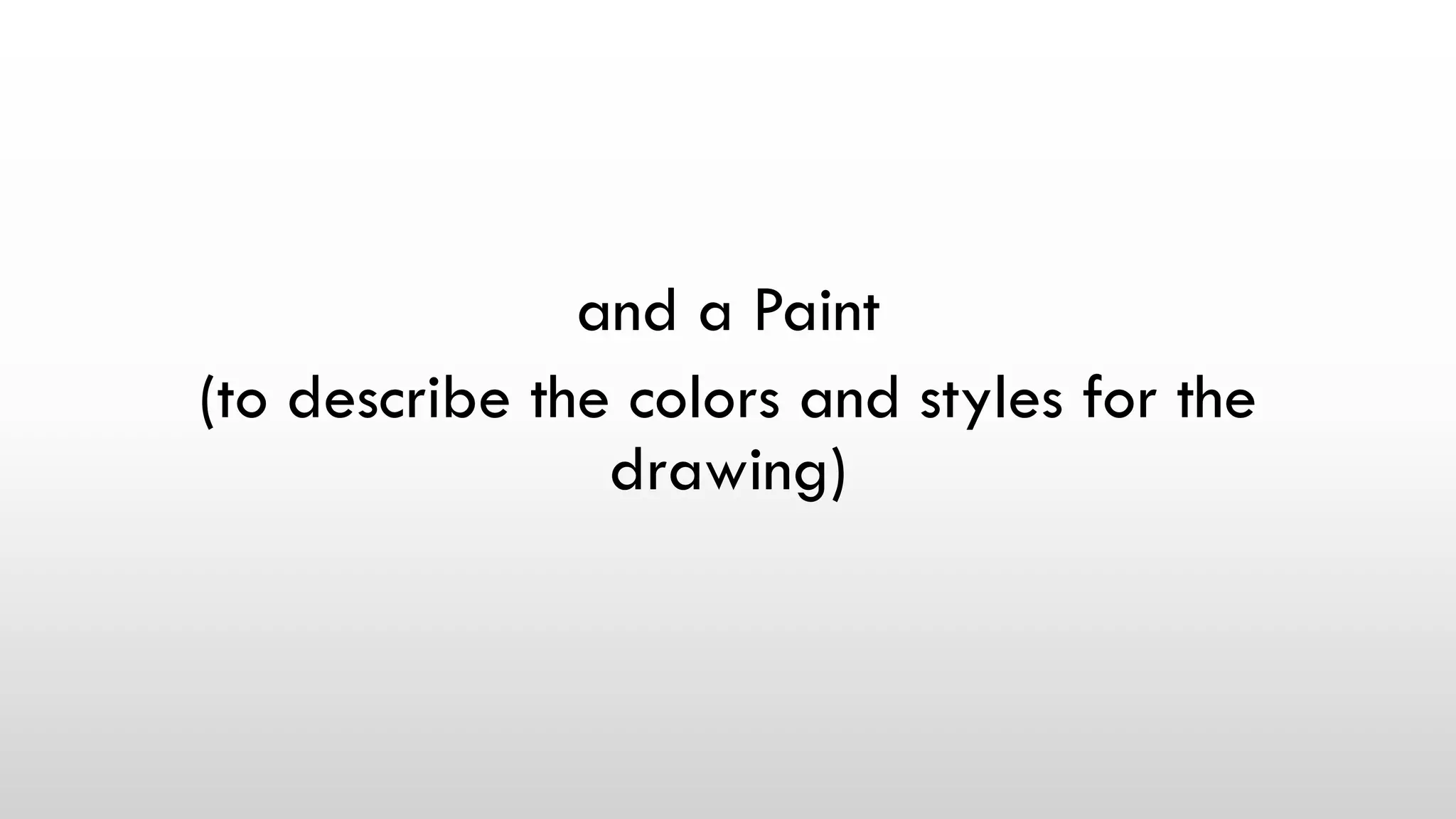

- 19. and a Paint (to describe the colors and styles for the drawing)

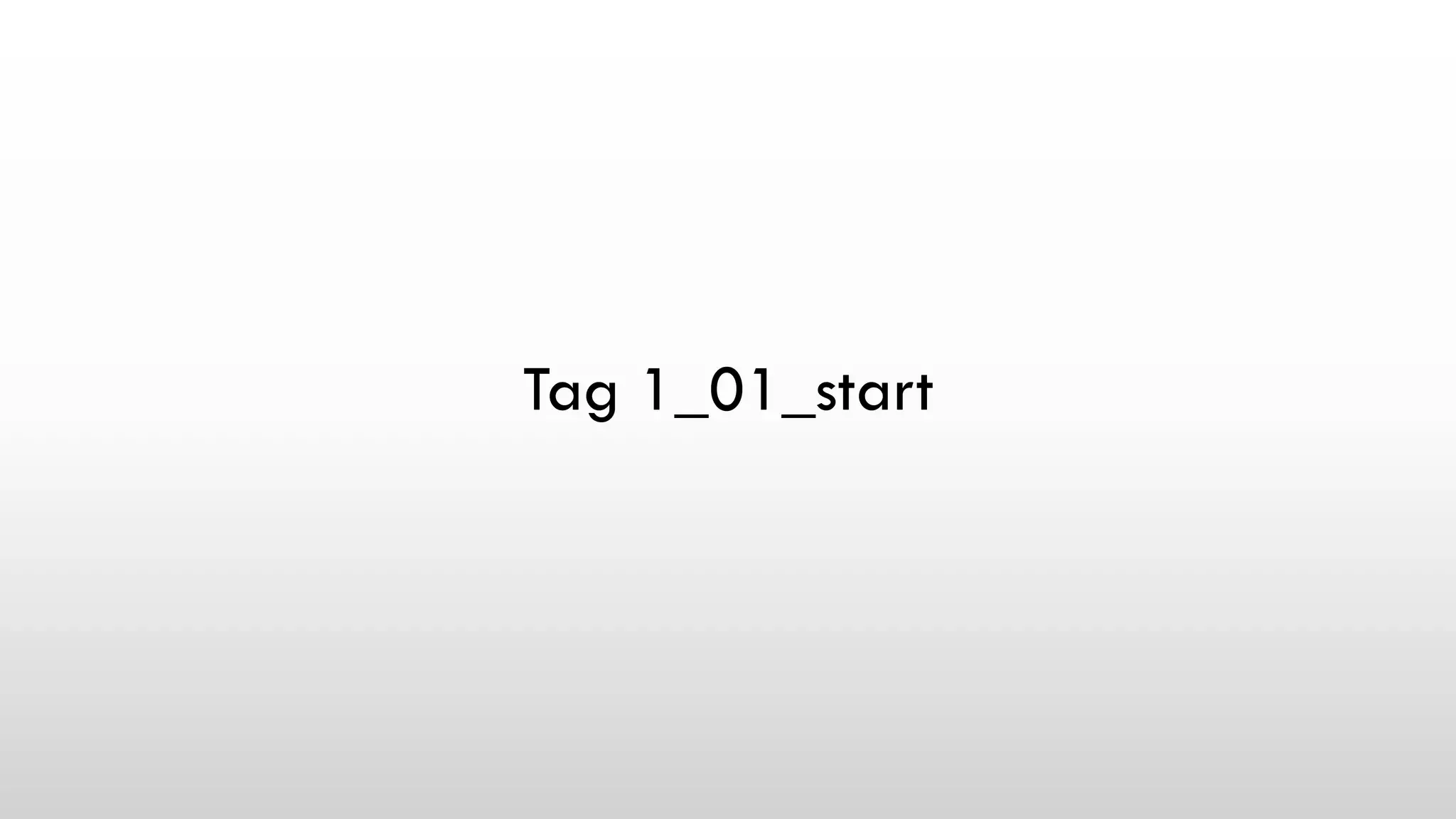

- 21. Tag 1_01_start

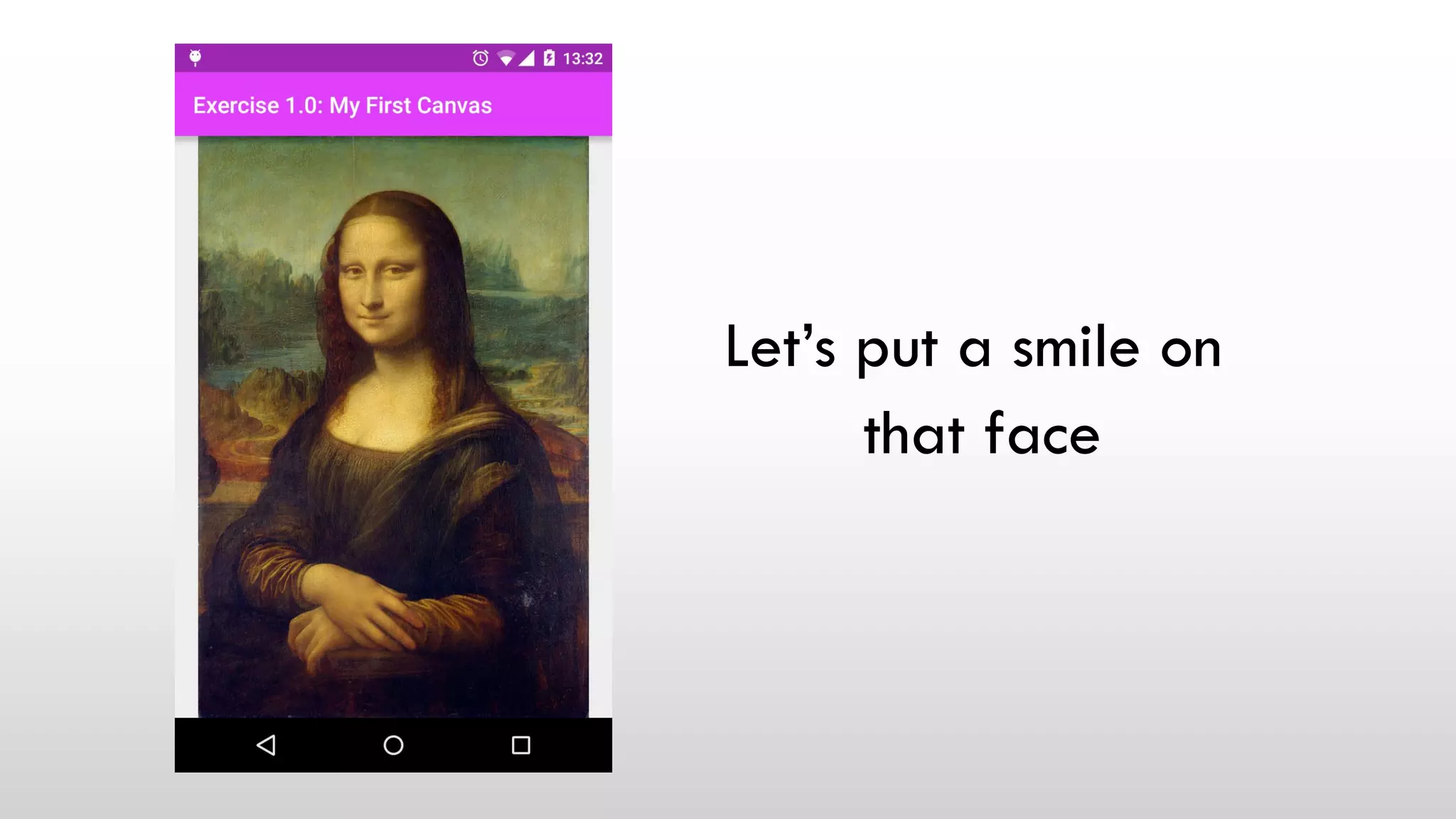

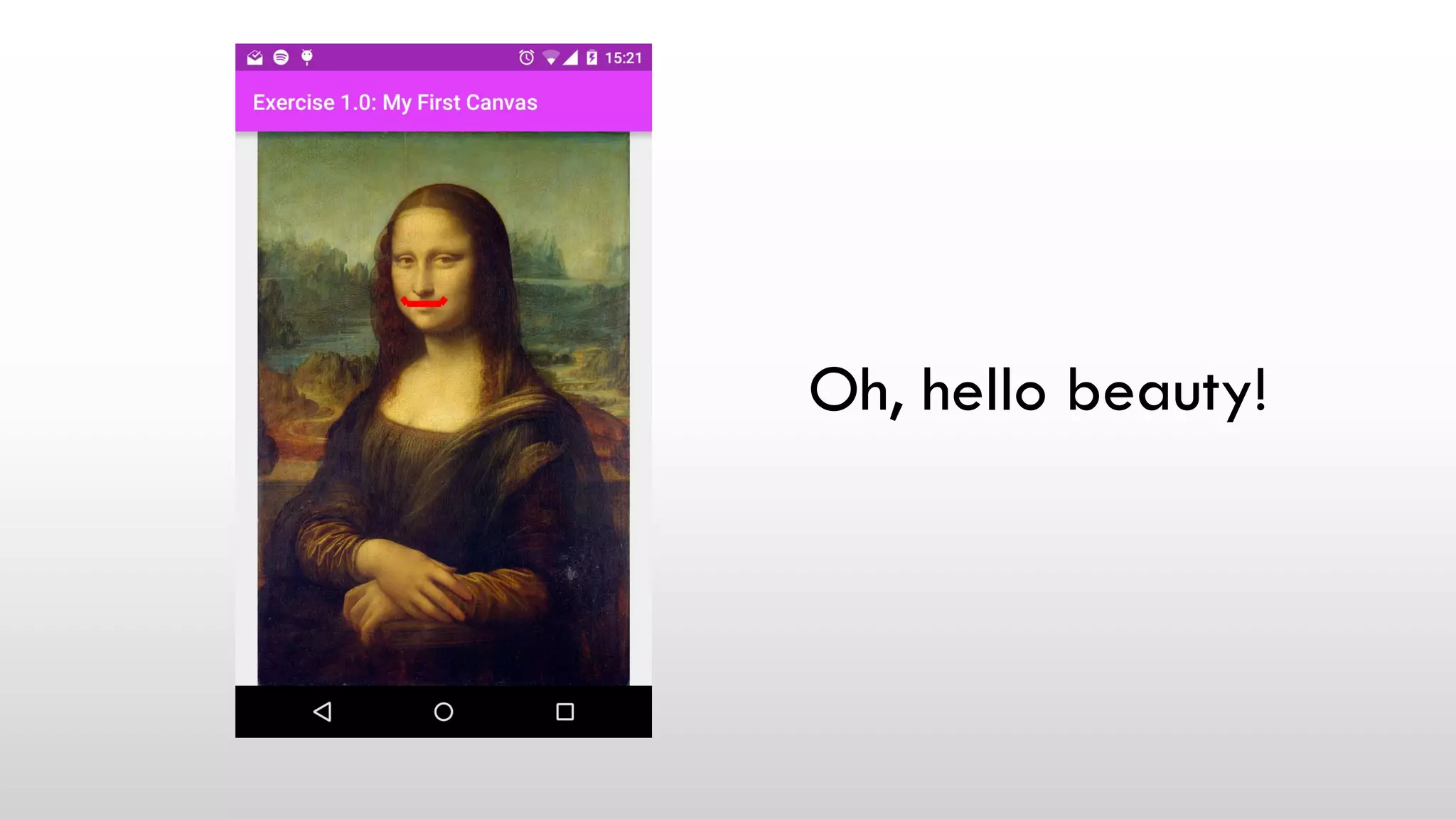

- 22. Let’s put a smile on that face

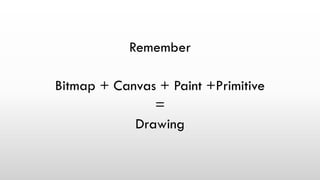

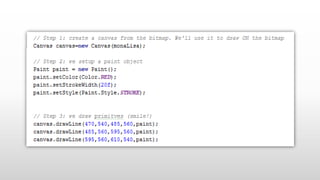

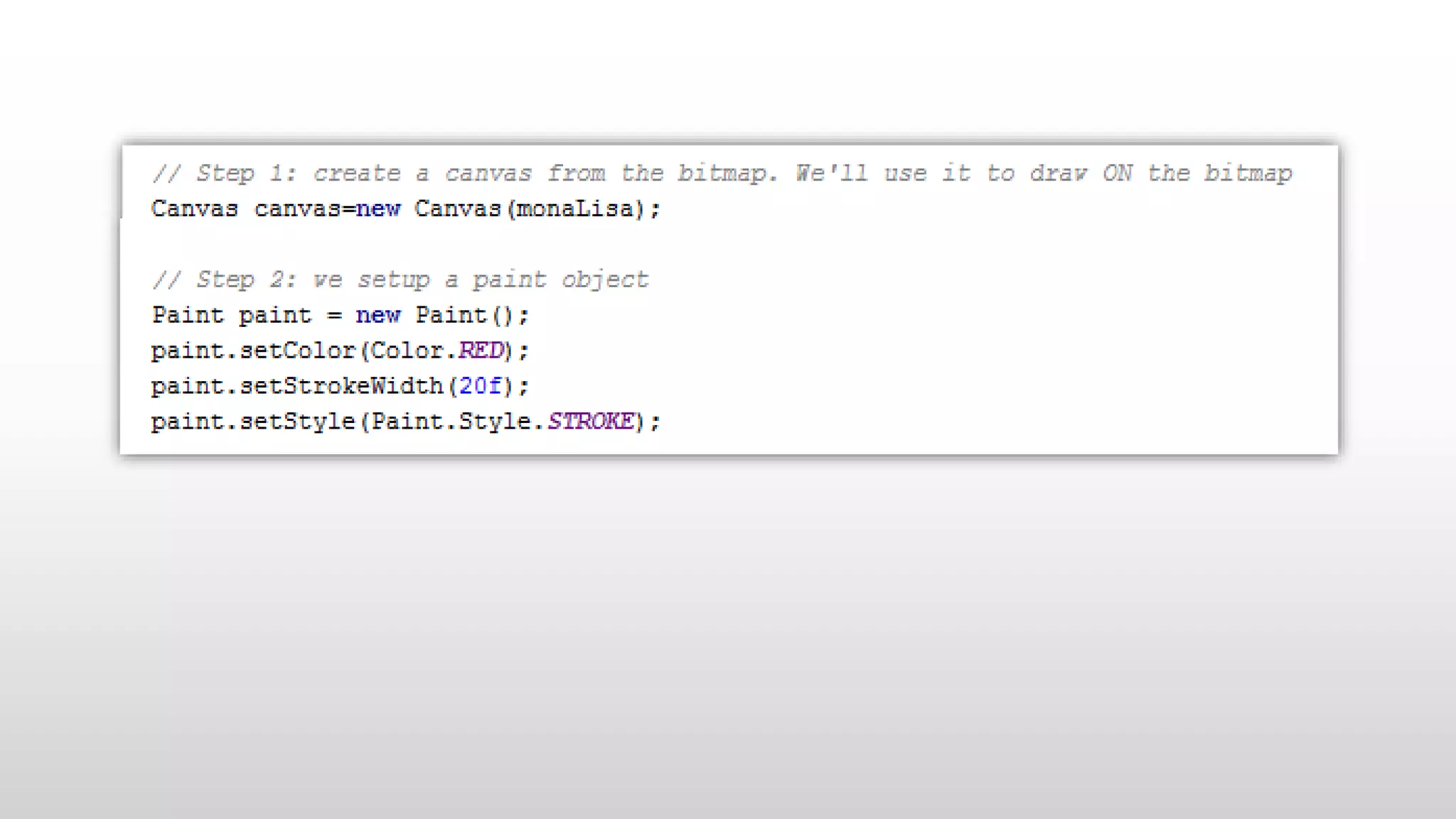

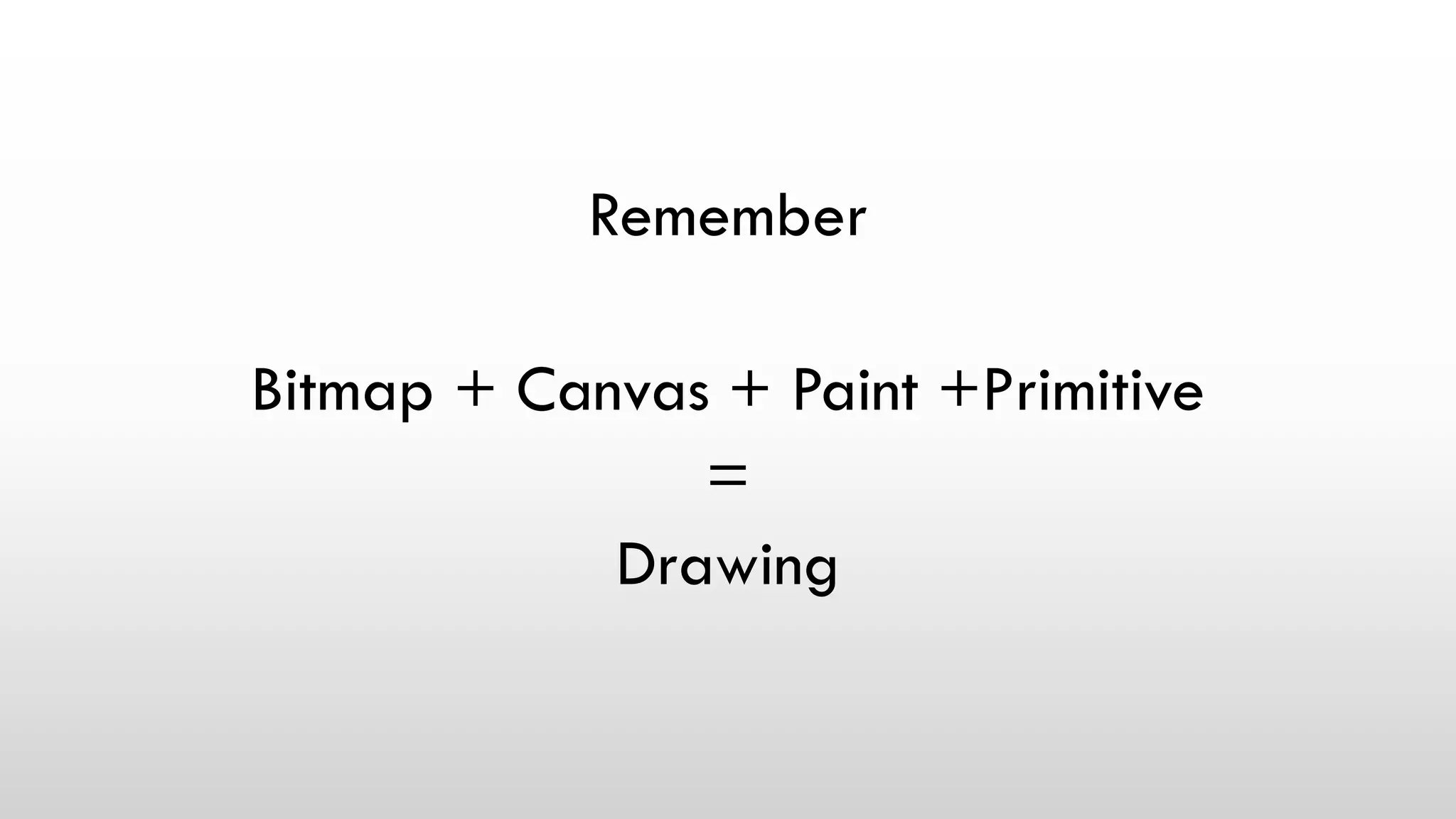

- 27. Remember Bitmap + Canvas + Paint +Primitive = Drawing

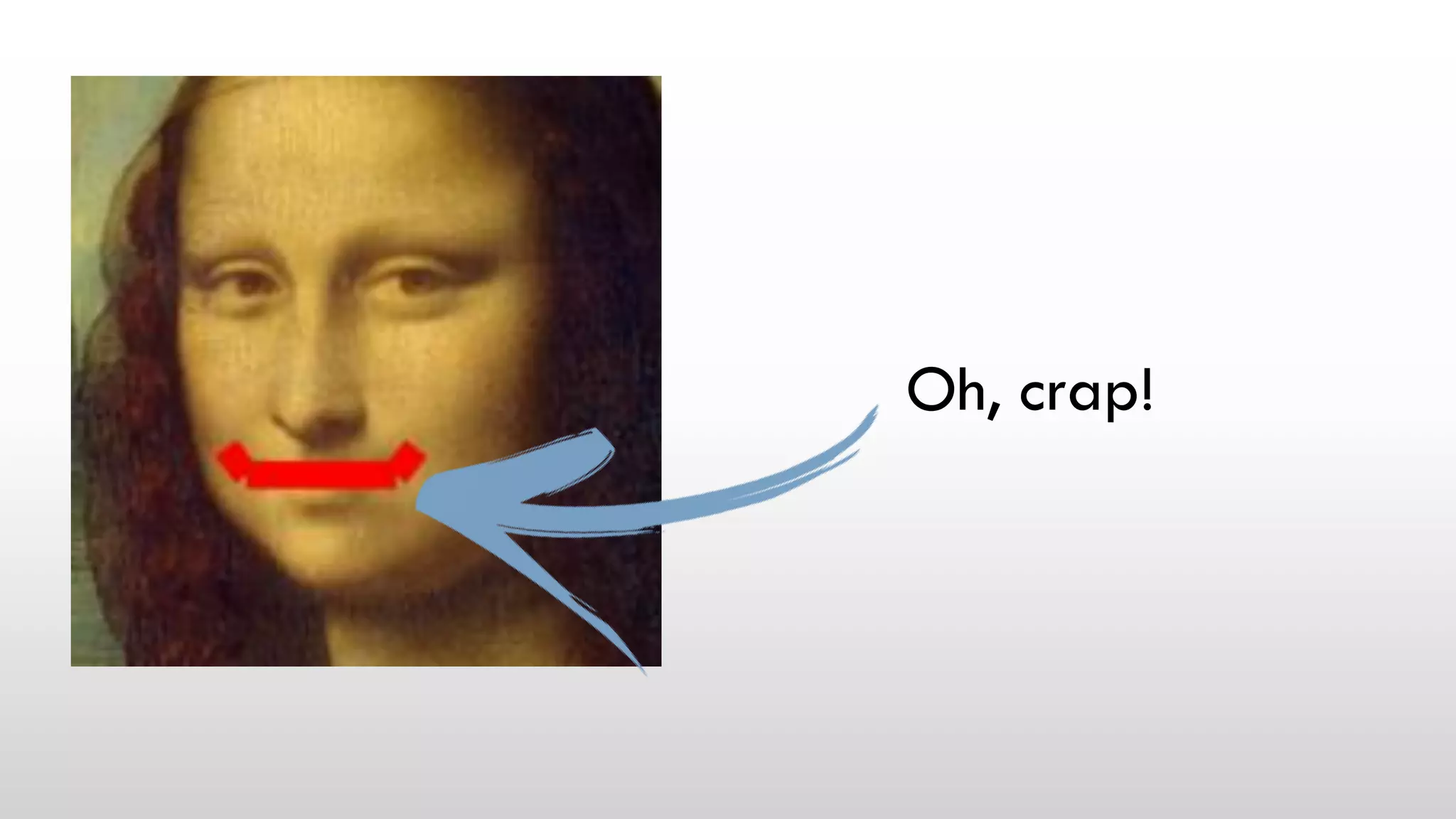

- 28. Oh, crap!
- 29. Let’s improve that smile

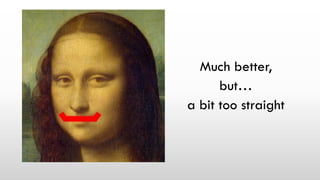

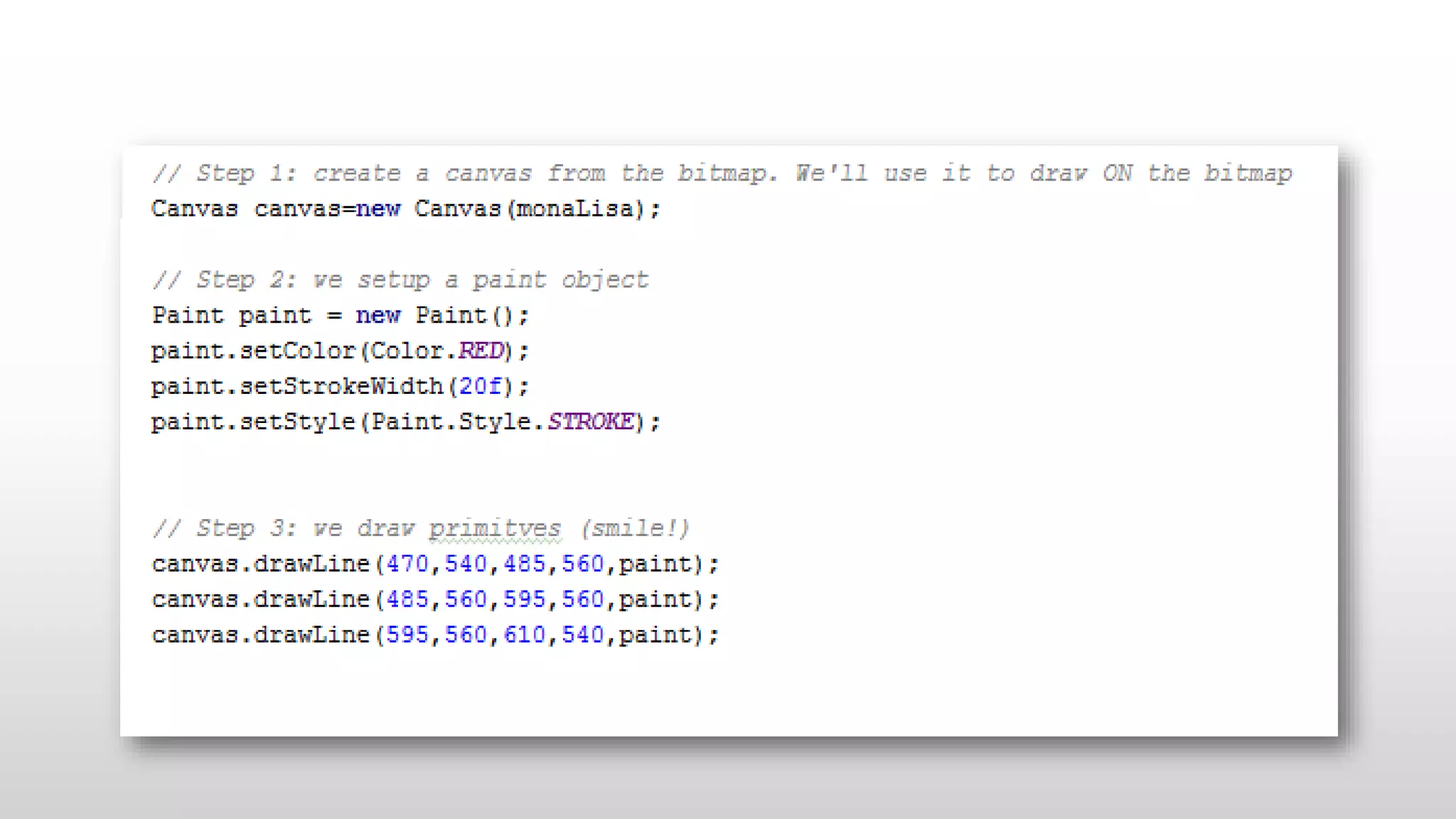

- 31. Much better, but… a bit too straight

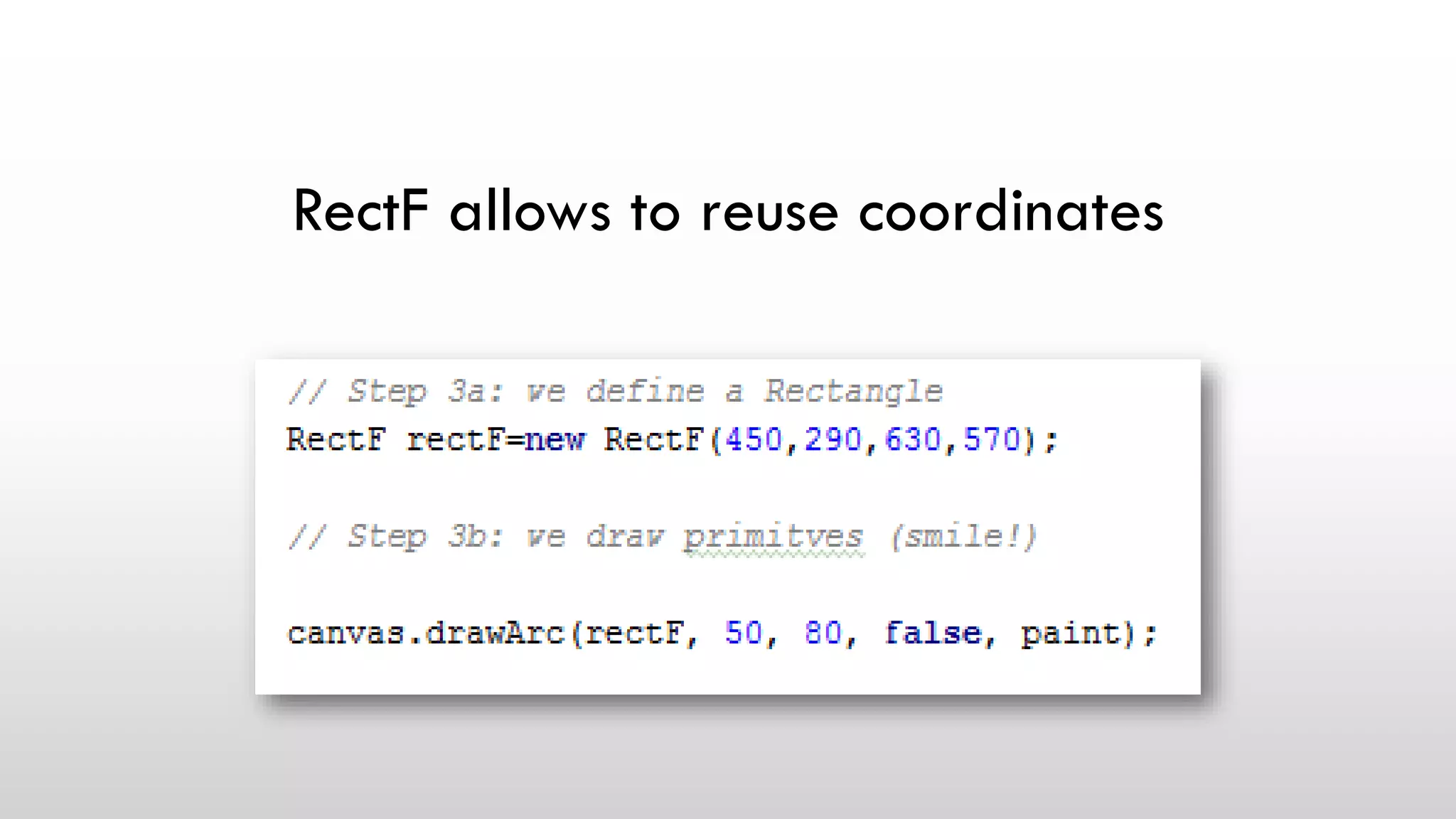

- 32. RectF allows to reuse coordinates
- 33. Bellisima! but…
- 35. Tag start_1_02

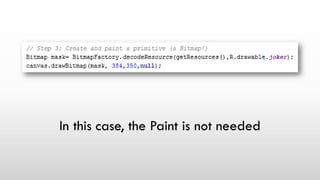

- 36. In this case, the Paint is not needed

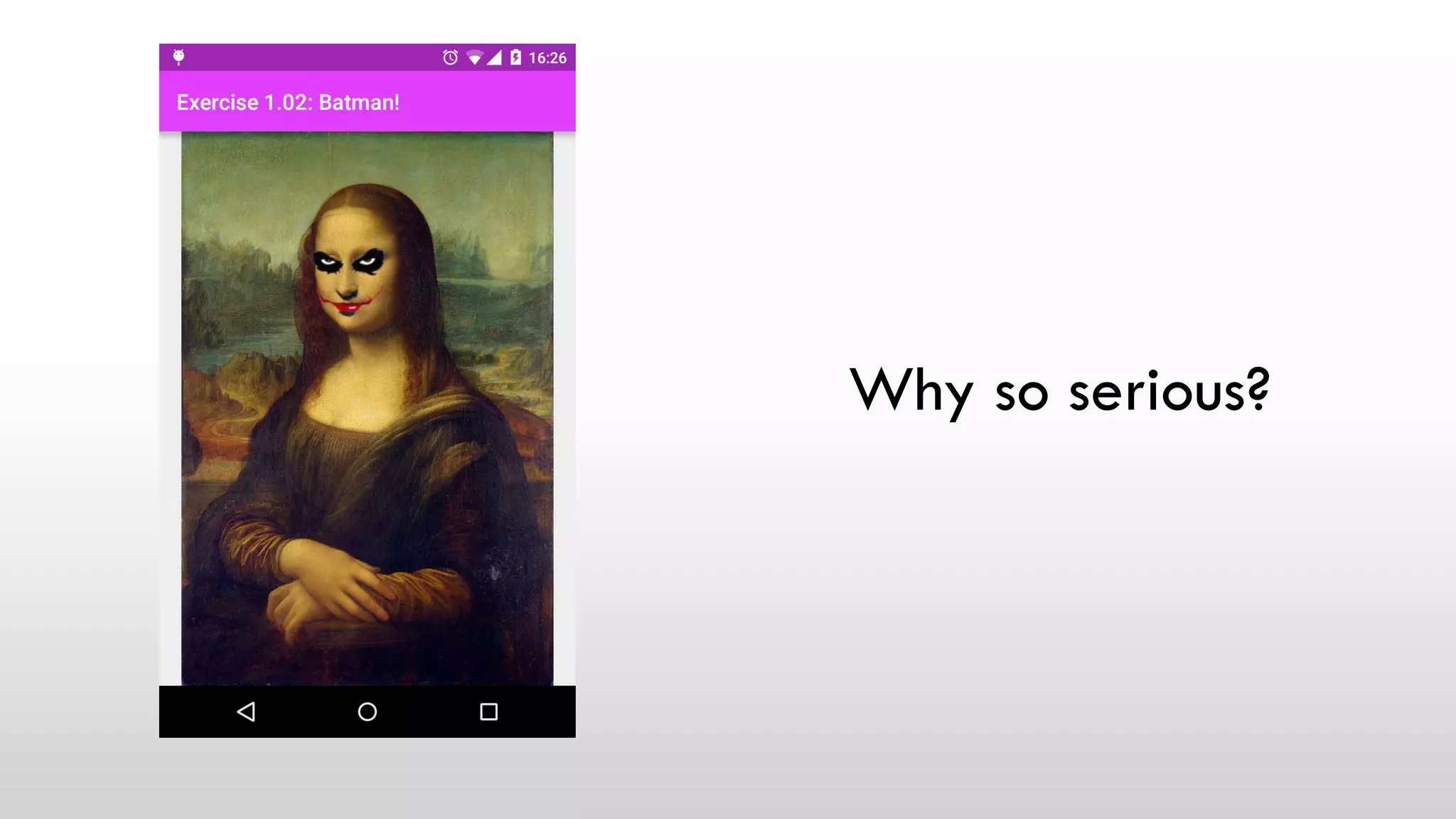

- 37. Why so serious?

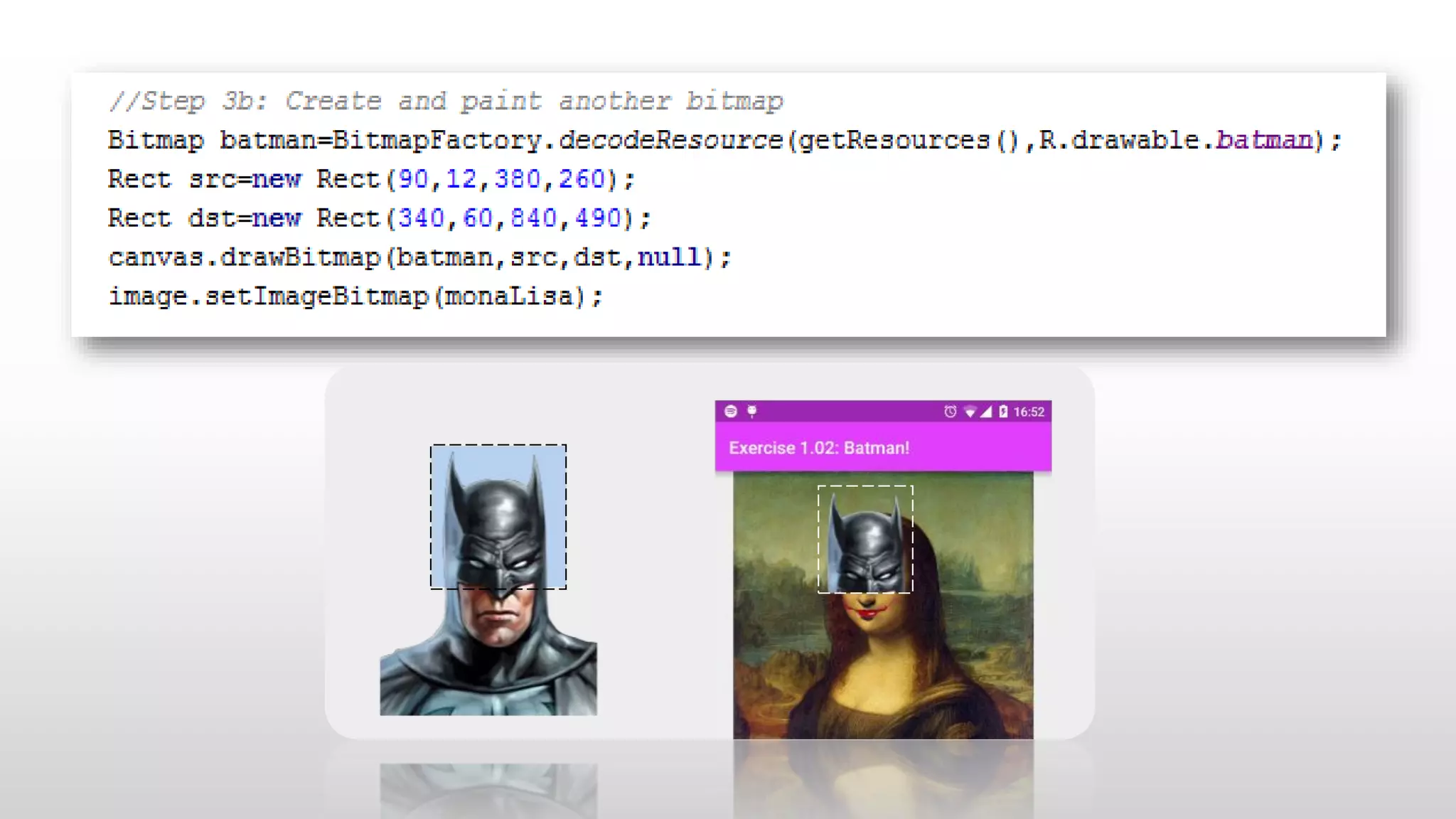

- 38. Here comes the cape crusader!

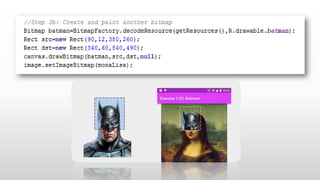

- 40. Let’s get crazy with the rects!

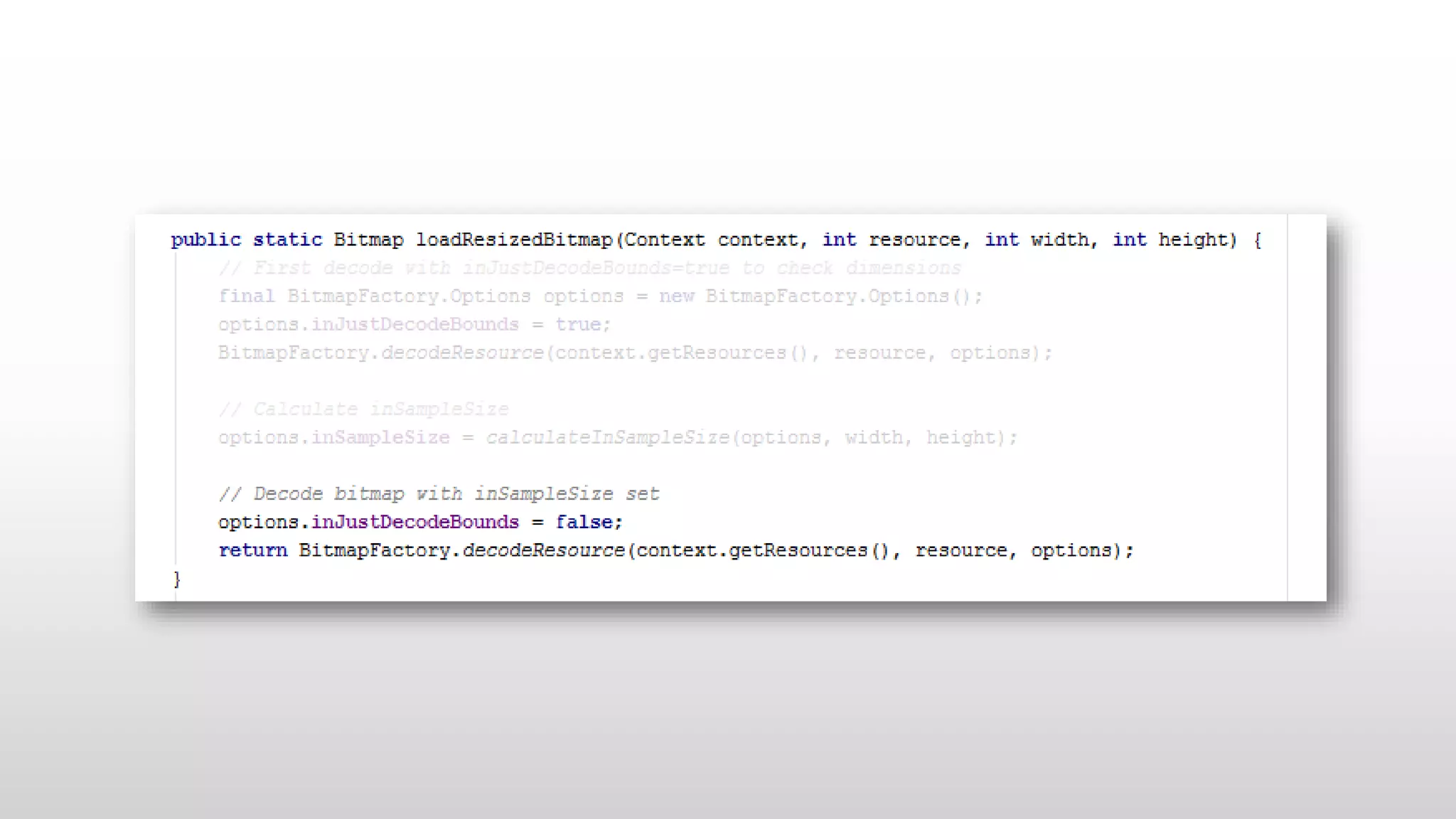

- 41. Let’s talk about Bitmaps

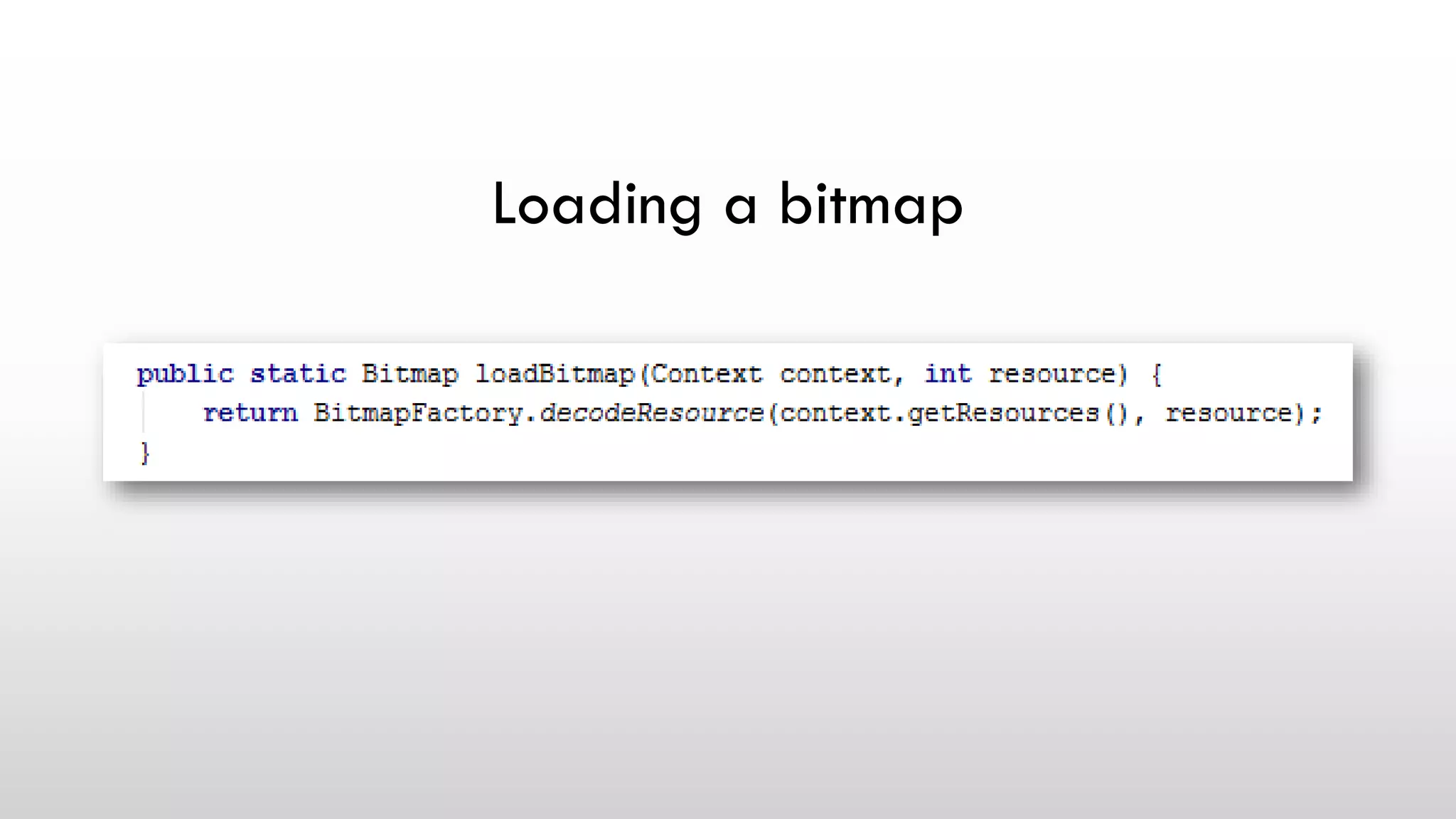

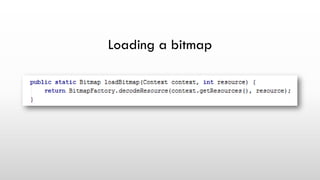

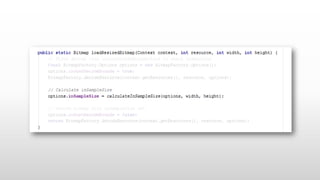

- 42. Loading a bitmap
- 43. But…

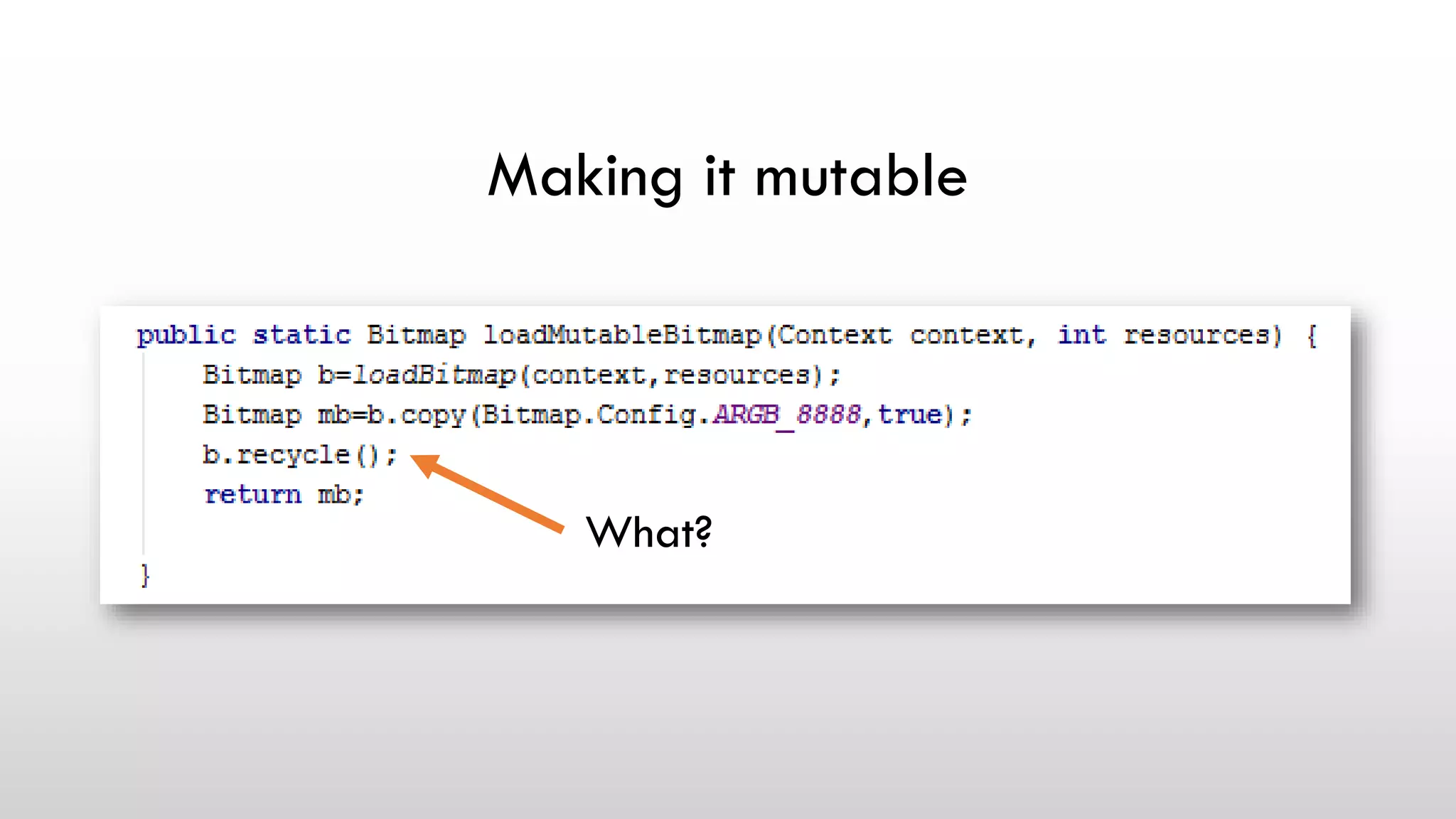

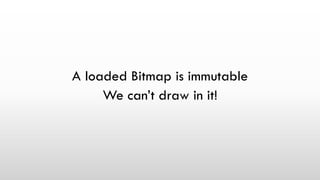

- 44. A loaded Bitmap is immutable We can’t draw in it!

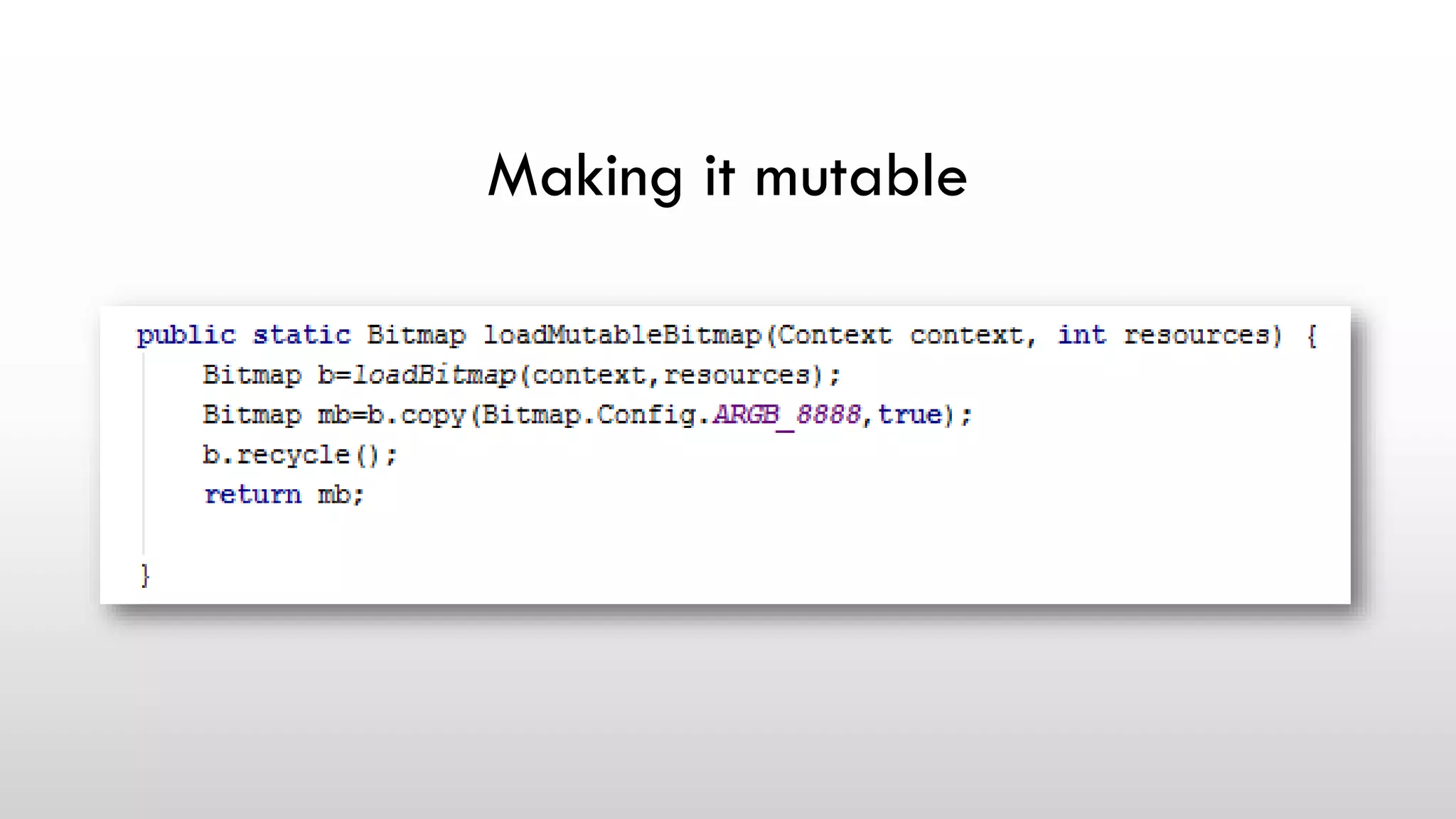

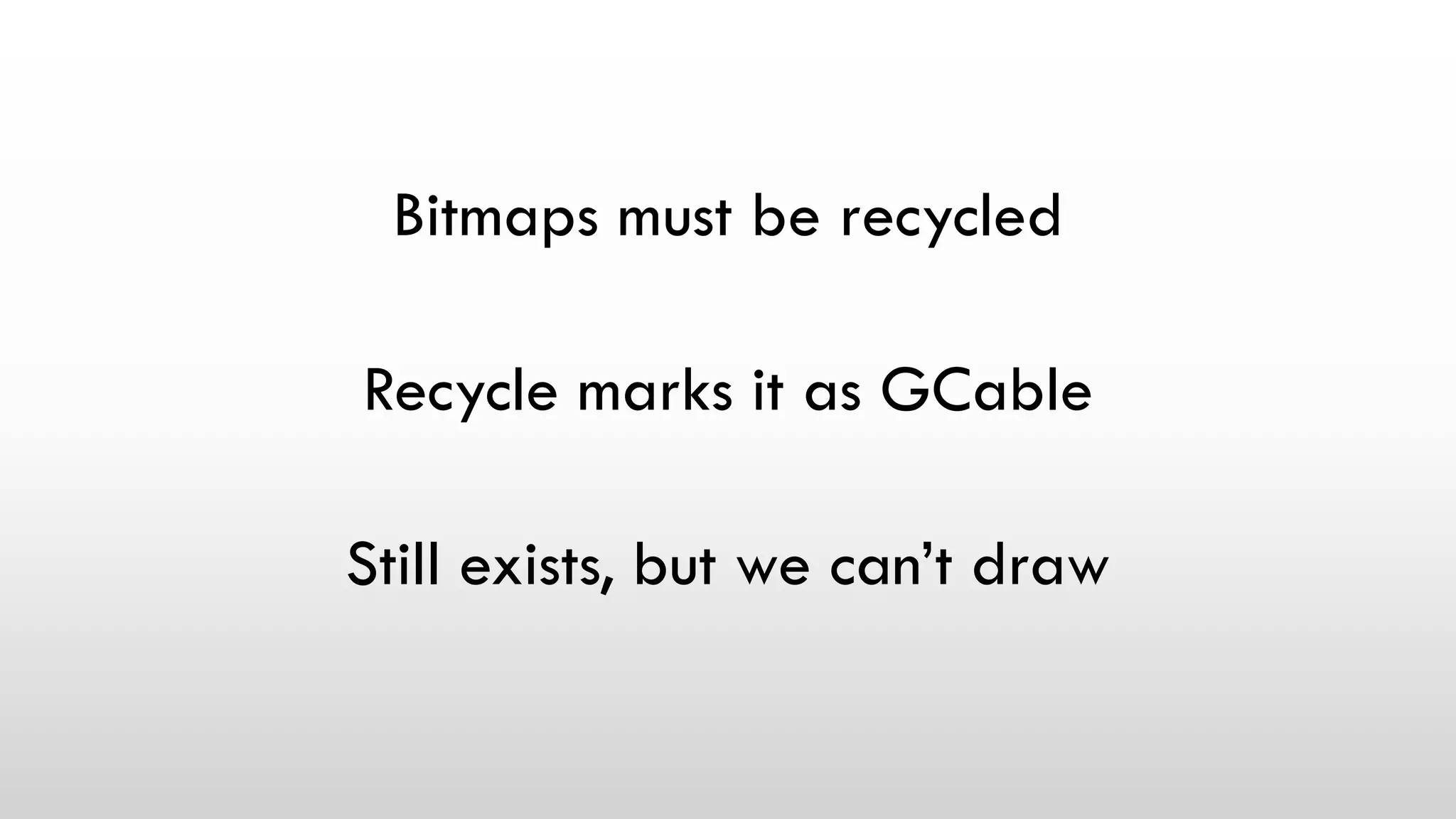

- 47. Bitmaps must be recycled Recycle marks it as GCable Still exists, but we can’t draw

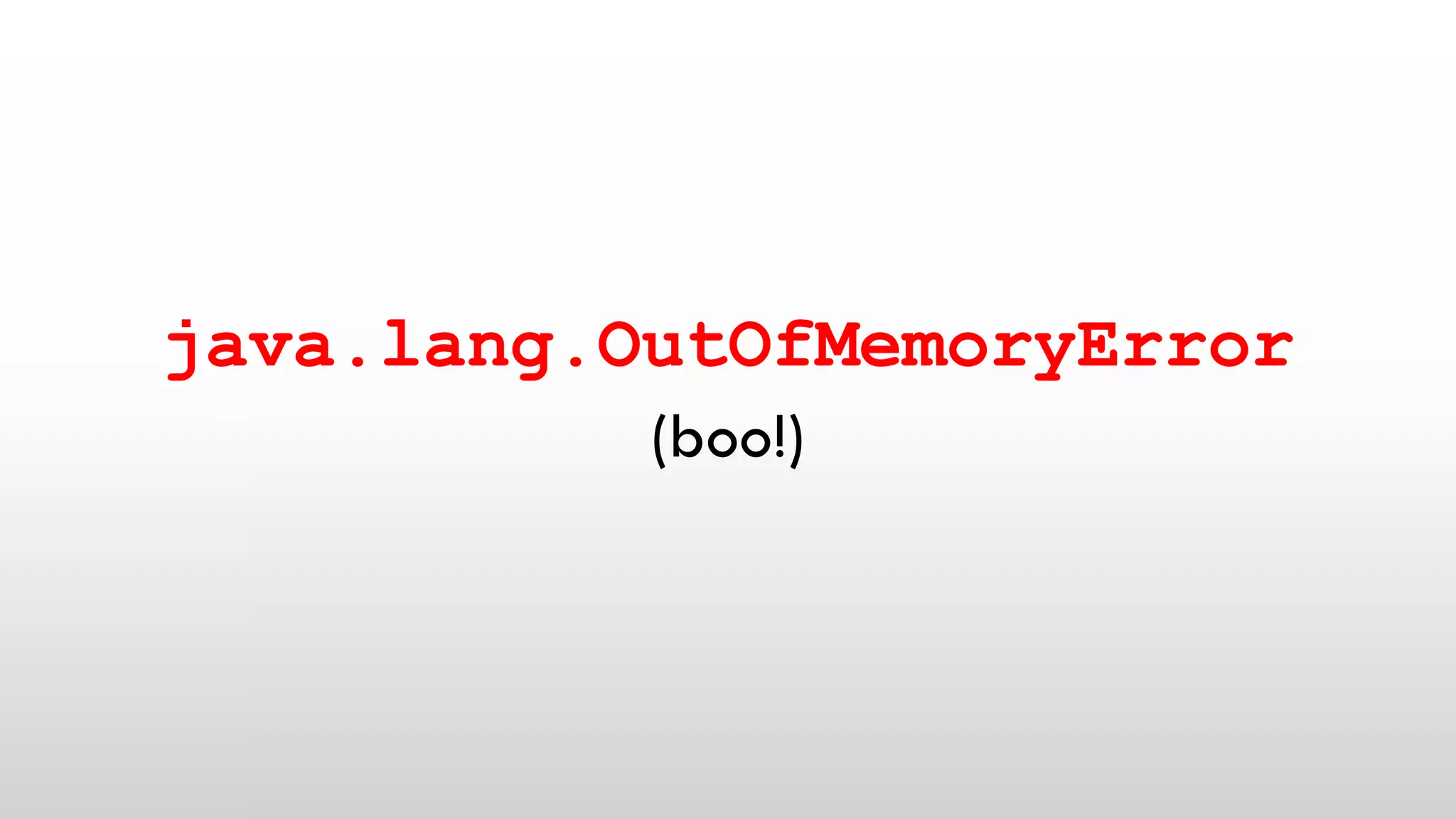

- 48. Bitmaps are huge

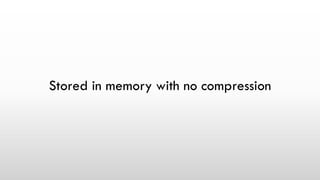

- 49. Stored in memory with no compression

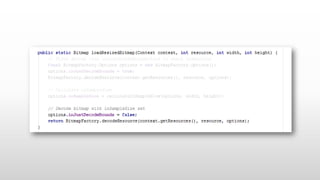

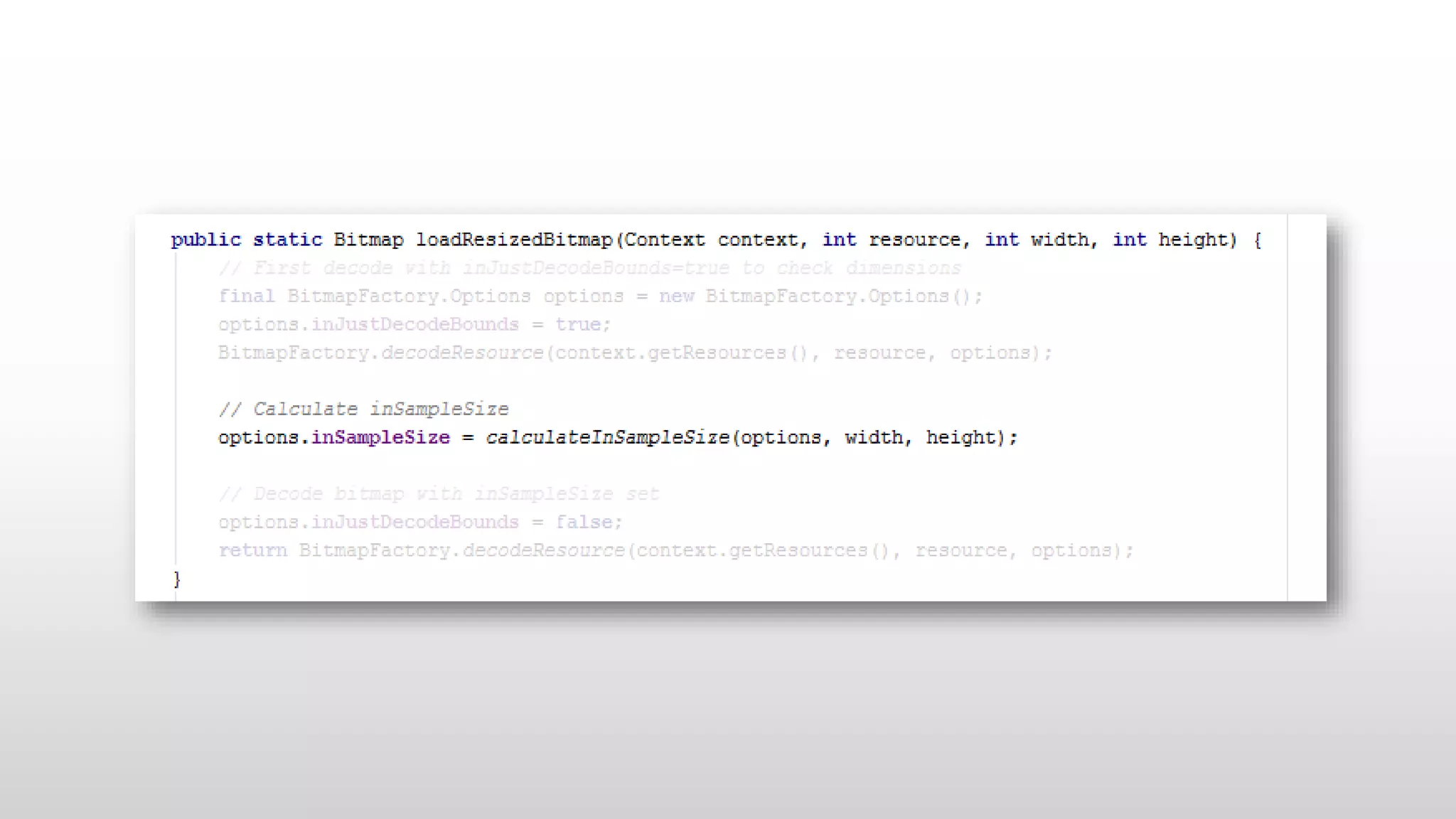

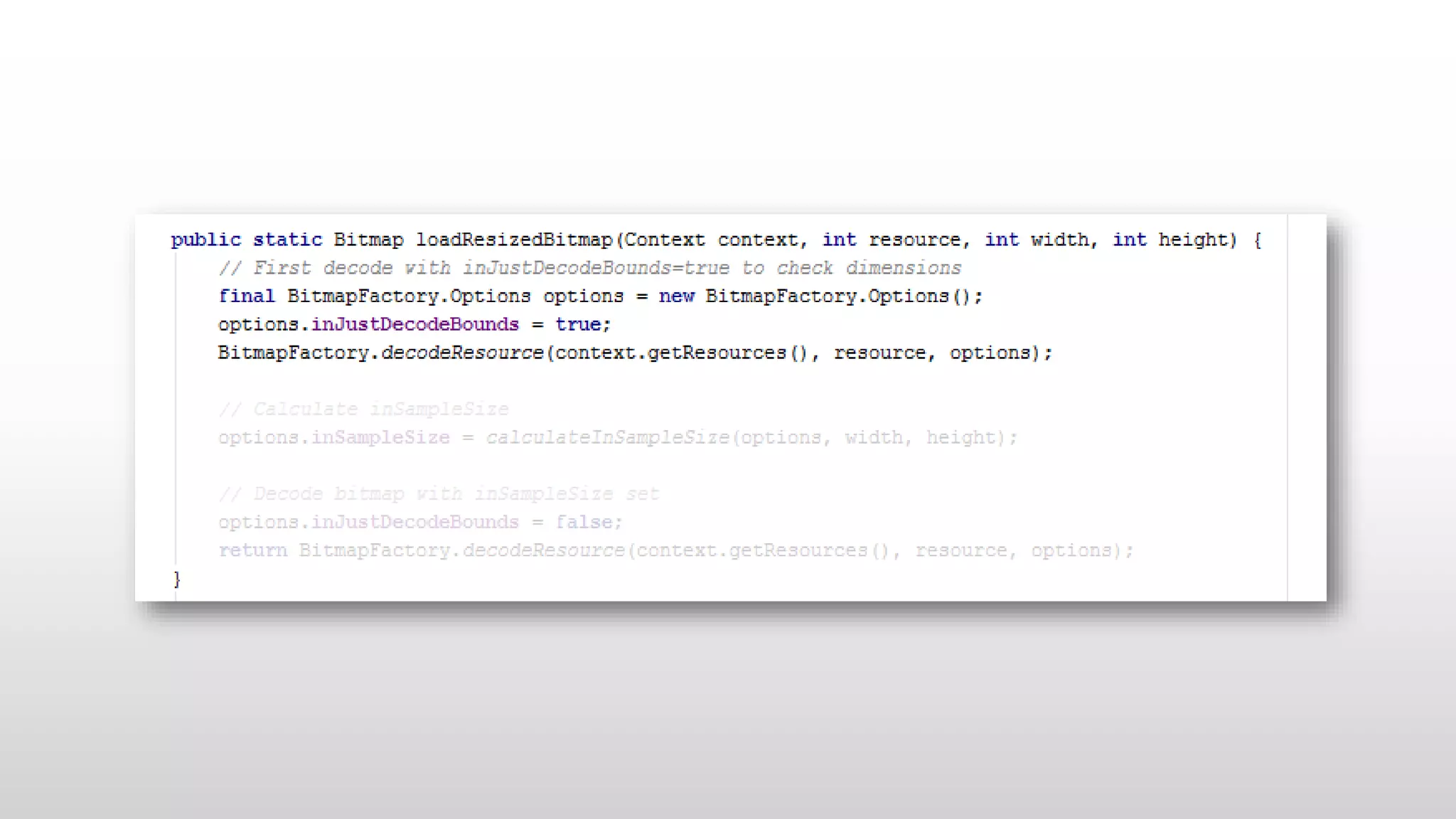

- 51. Why to load a huge bitmap if target draw is small?
- 57. Painting on the activity is cool, but…
- 58. Painting views is cooler
- 59. Anatomy of a drawing view

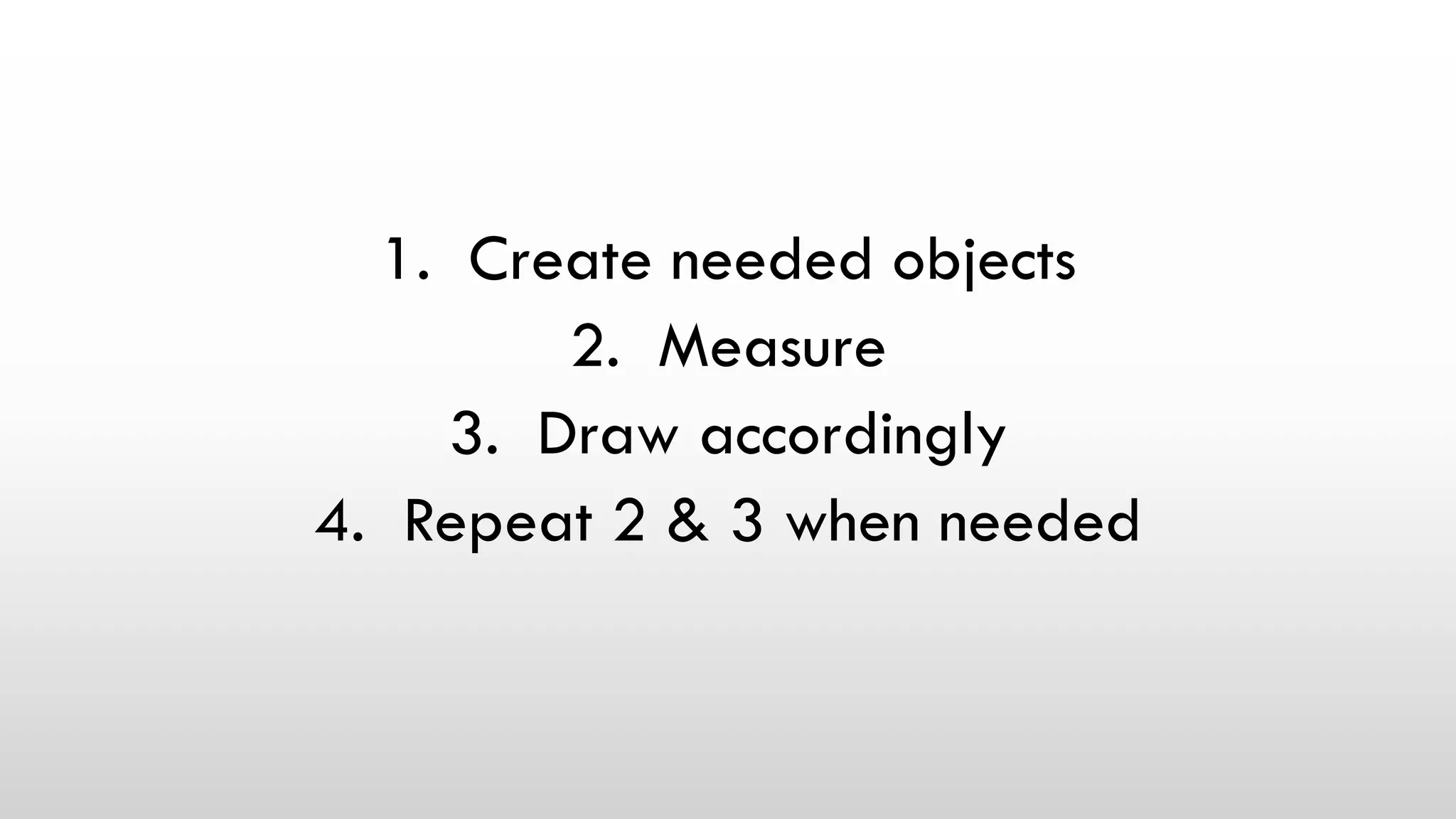

- 60. 1. Create needed objects 2. Measure 3. Draw accordingly 4. Repeat 2 & 3 when needed

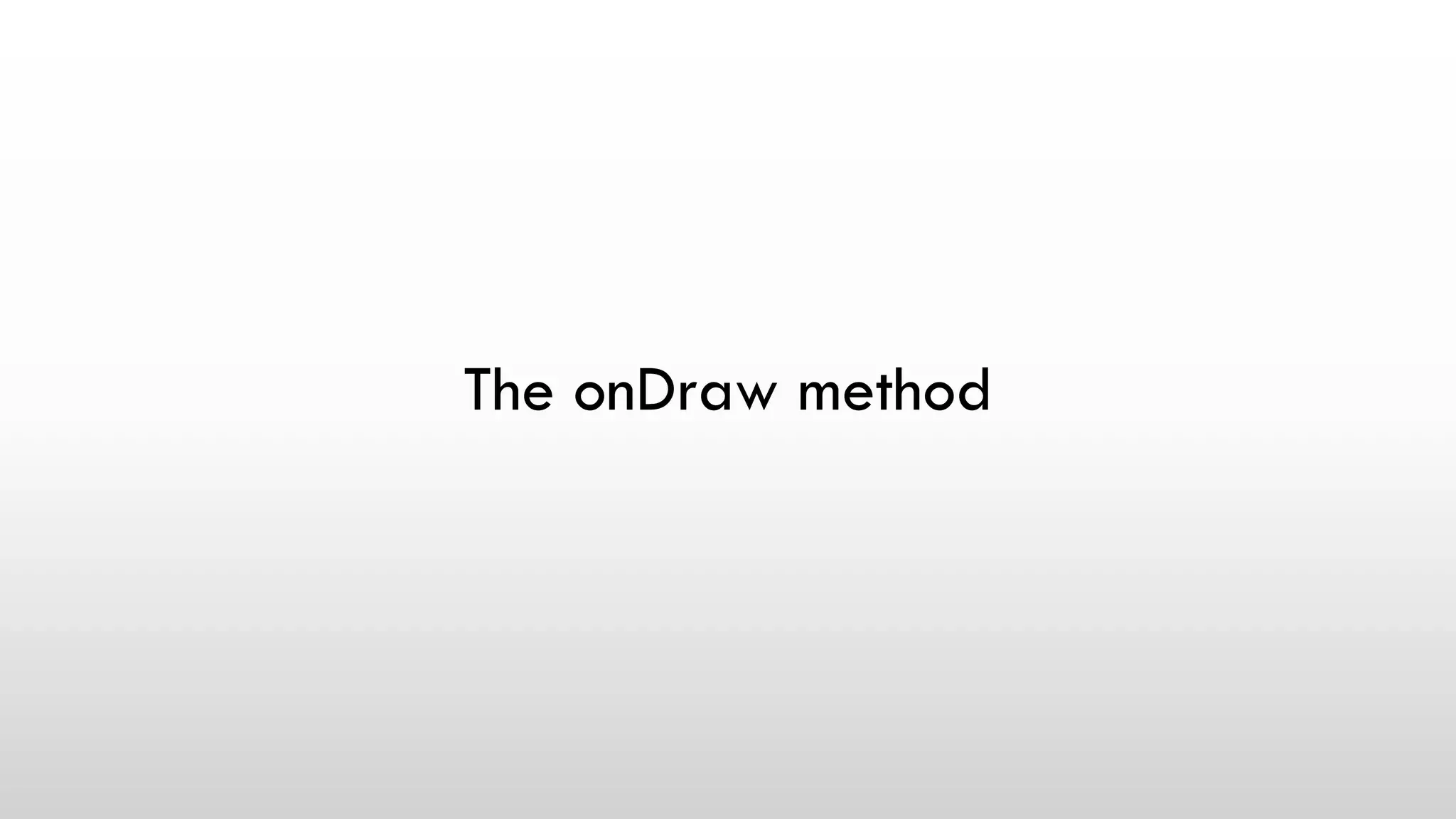

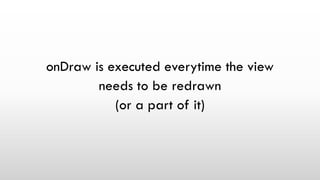

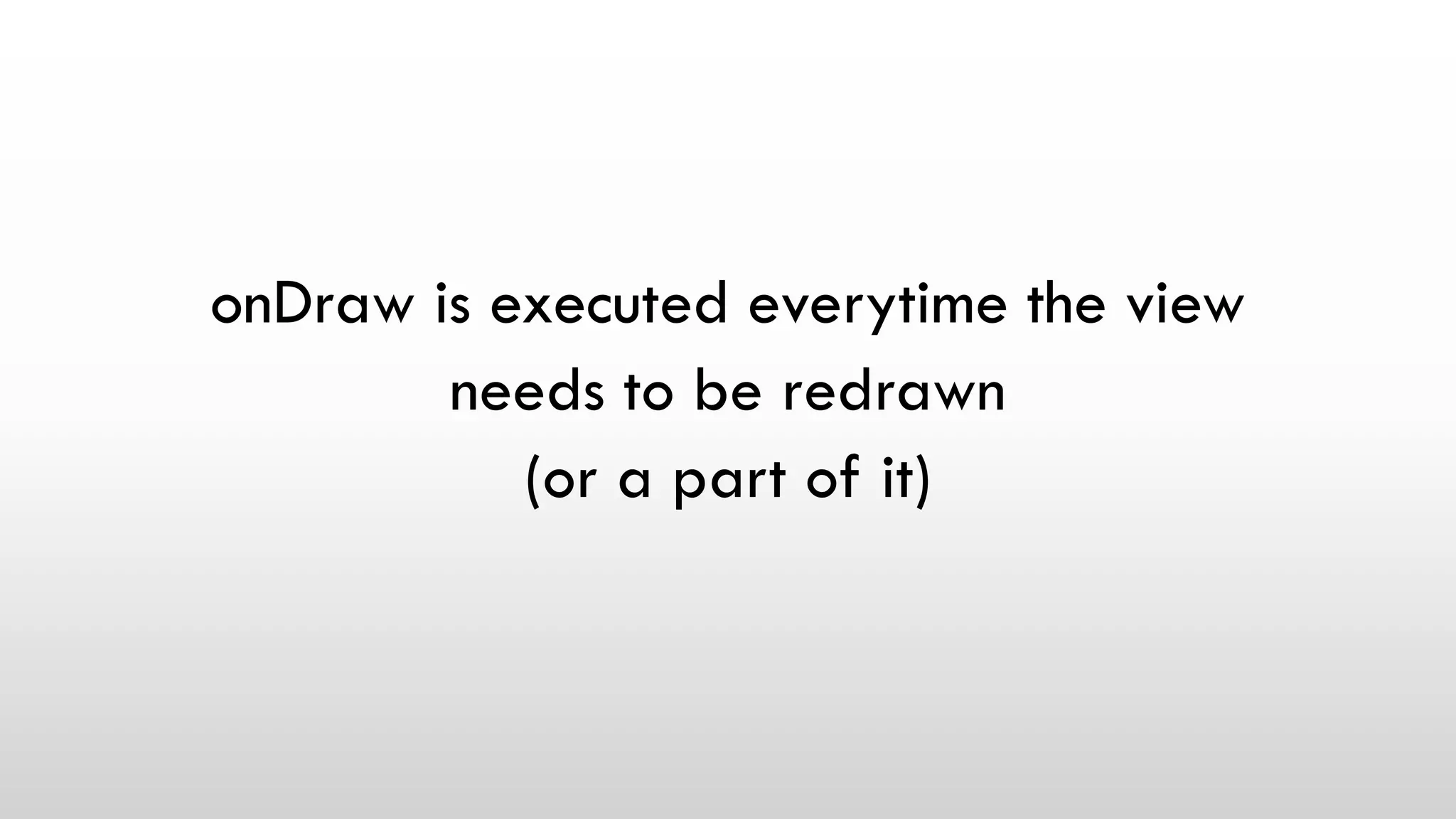

- 62. onDraw is executed everytime the view needs to be redrawn (or a part of it)

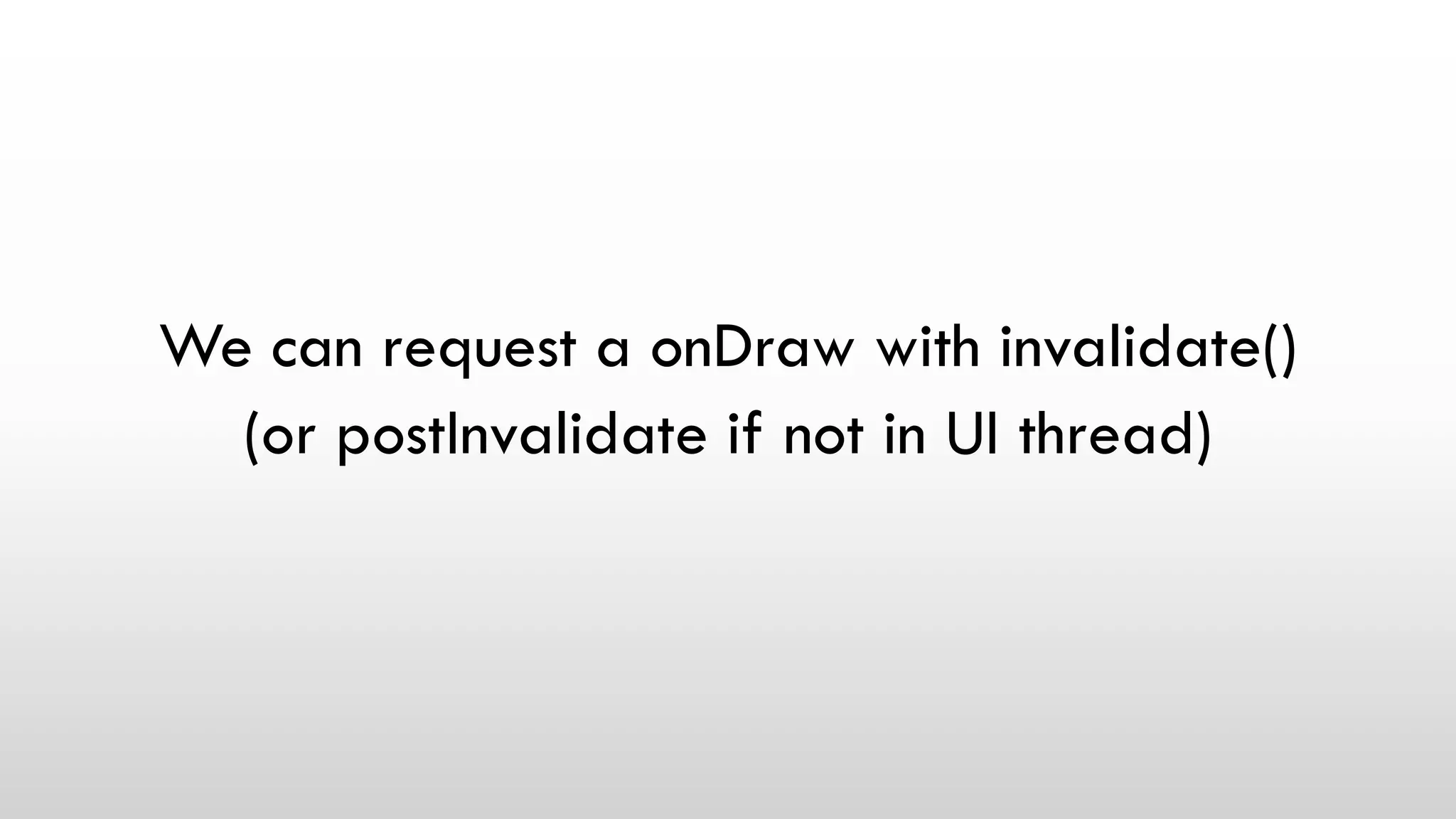

- 63. We can request a onDraw with invalidate() (or postInvalidate if not in UI thread)

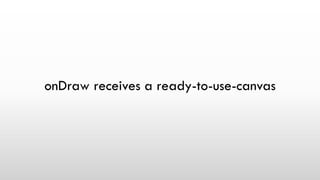

- 64. onDraw receives a ready-to-use-canvas
- 66. Tag 2_01_start

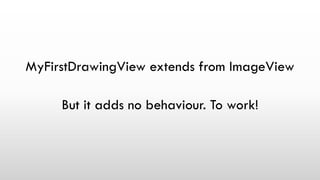

- 67. MyFirstDrawingView extends from ImageView But it adds no behaviour. To work!

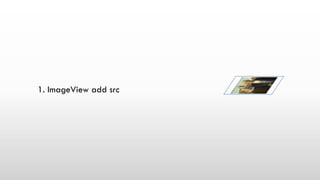

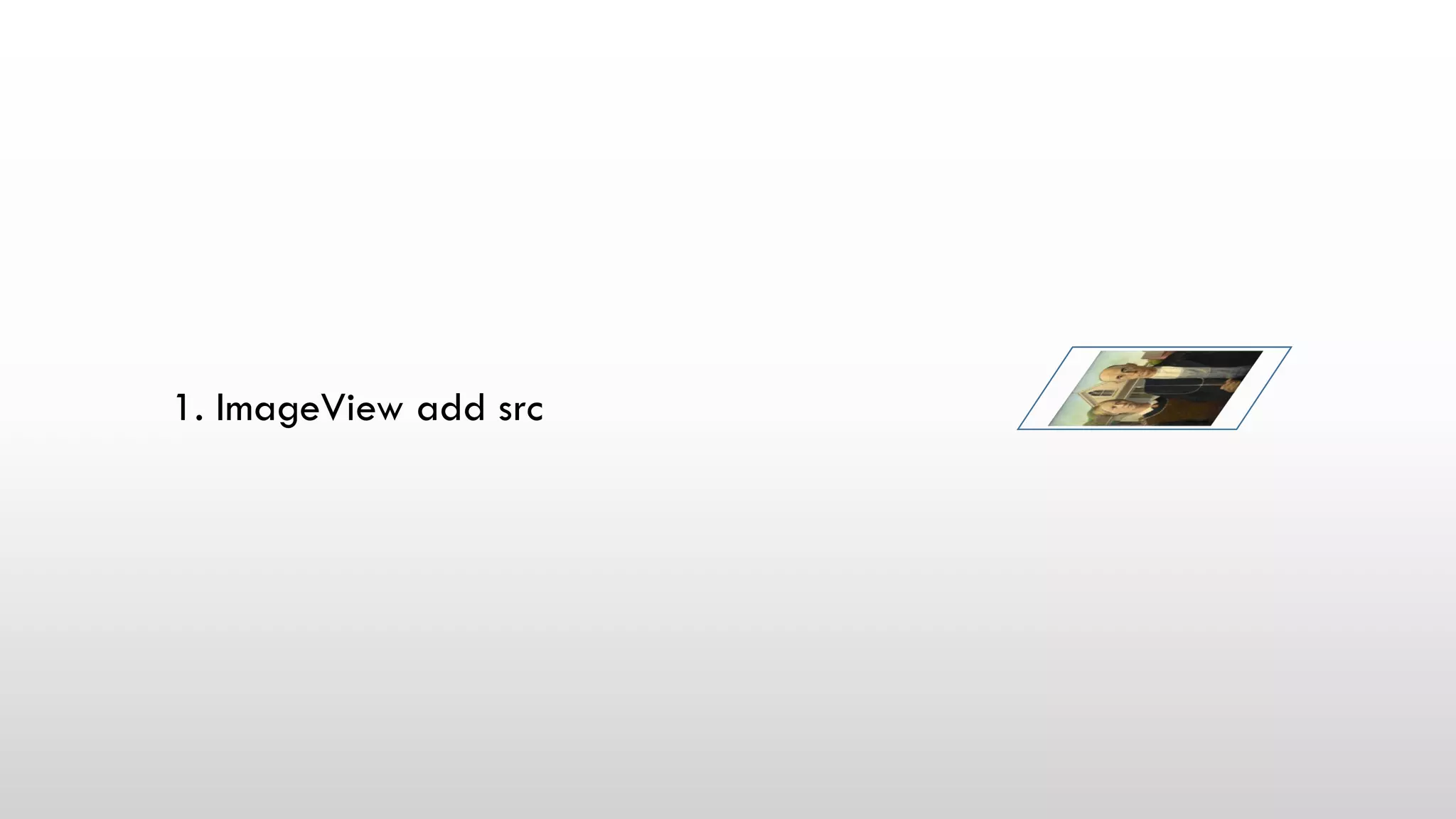

- 69. 1. ImageView add src

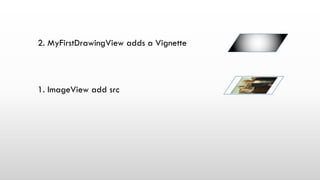

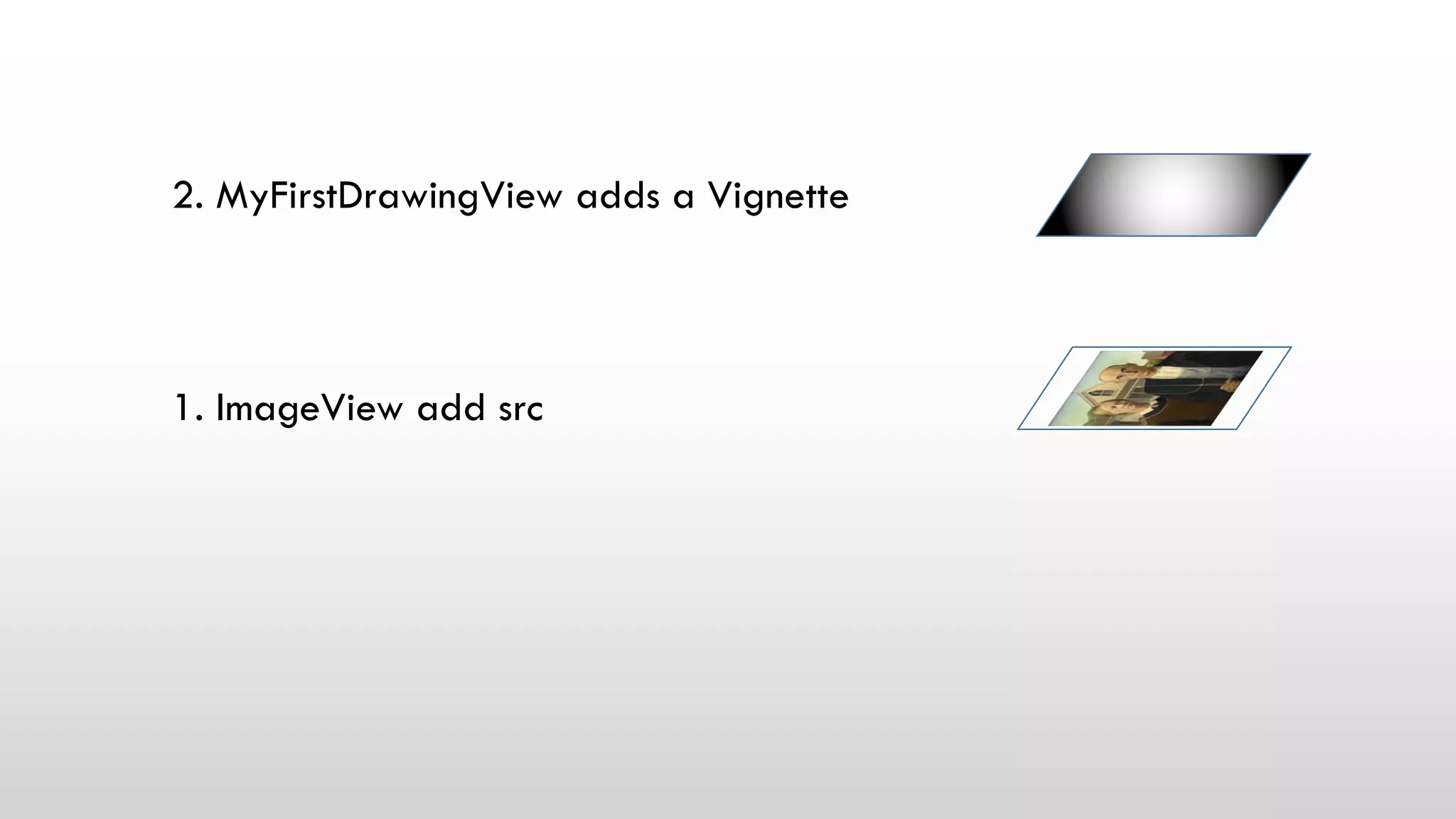

- 70. 1. ImageView add src 2. MyFirstDrawingView adds a Vignette

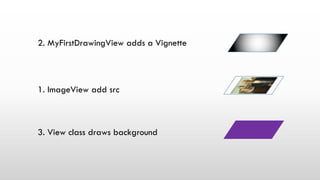

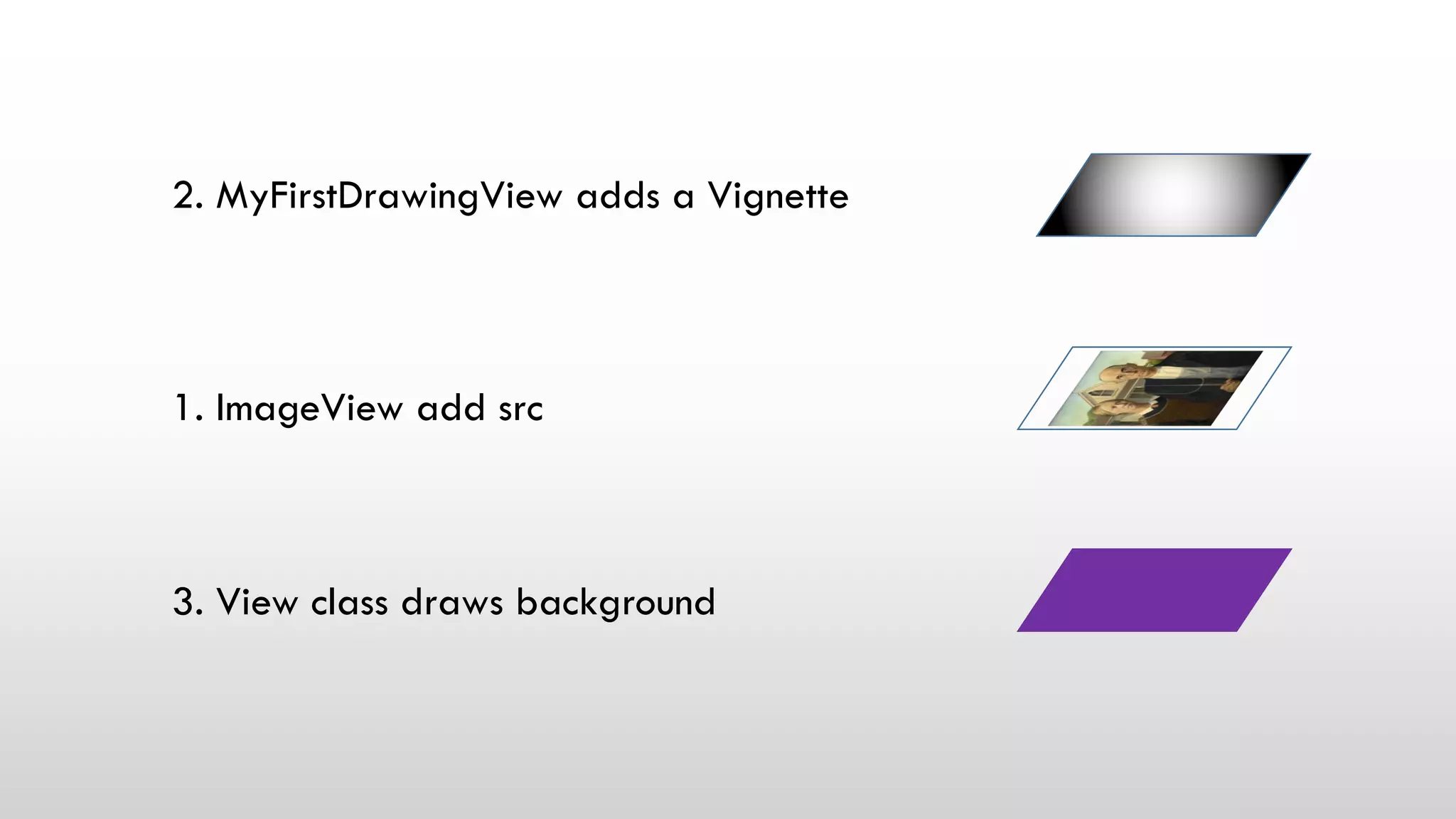

- 71. 3. View class draws background 1. ImageView add src 2. MyFirstDrawingView adds a Vignette
- 72. 3. View class draws background 1. ImageView add src 2. MyFirstDrawingView adds a Vignette

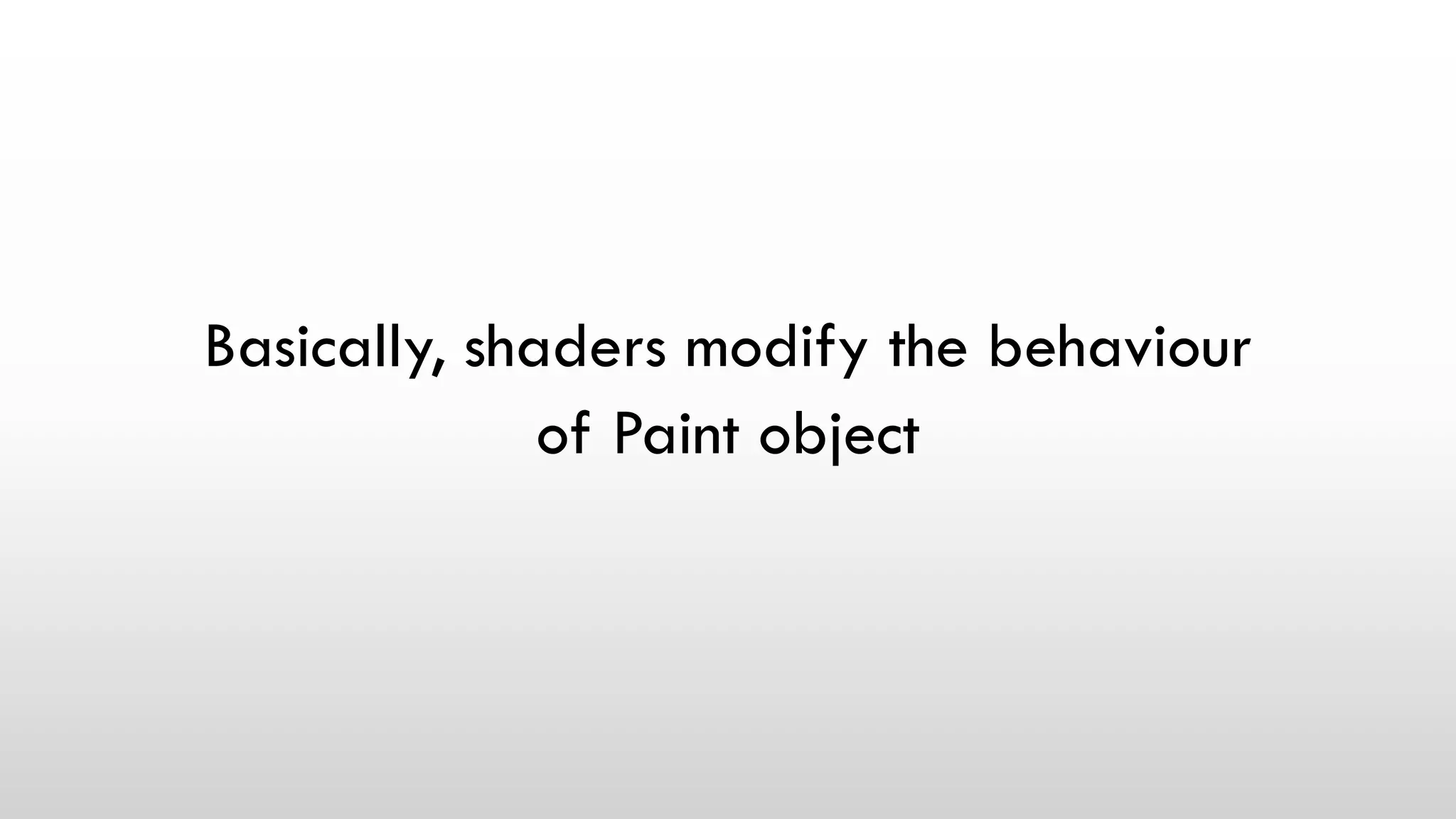

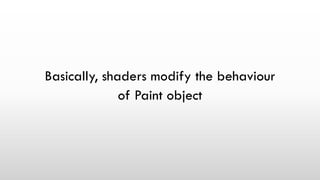

- 74. Basically, shaders modify the behaviour of Paint object

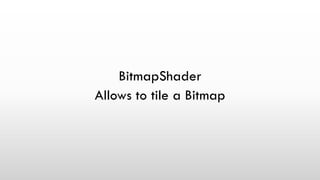

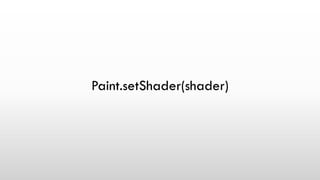

- 75. BitmapShader Allows to tile a Bitmap

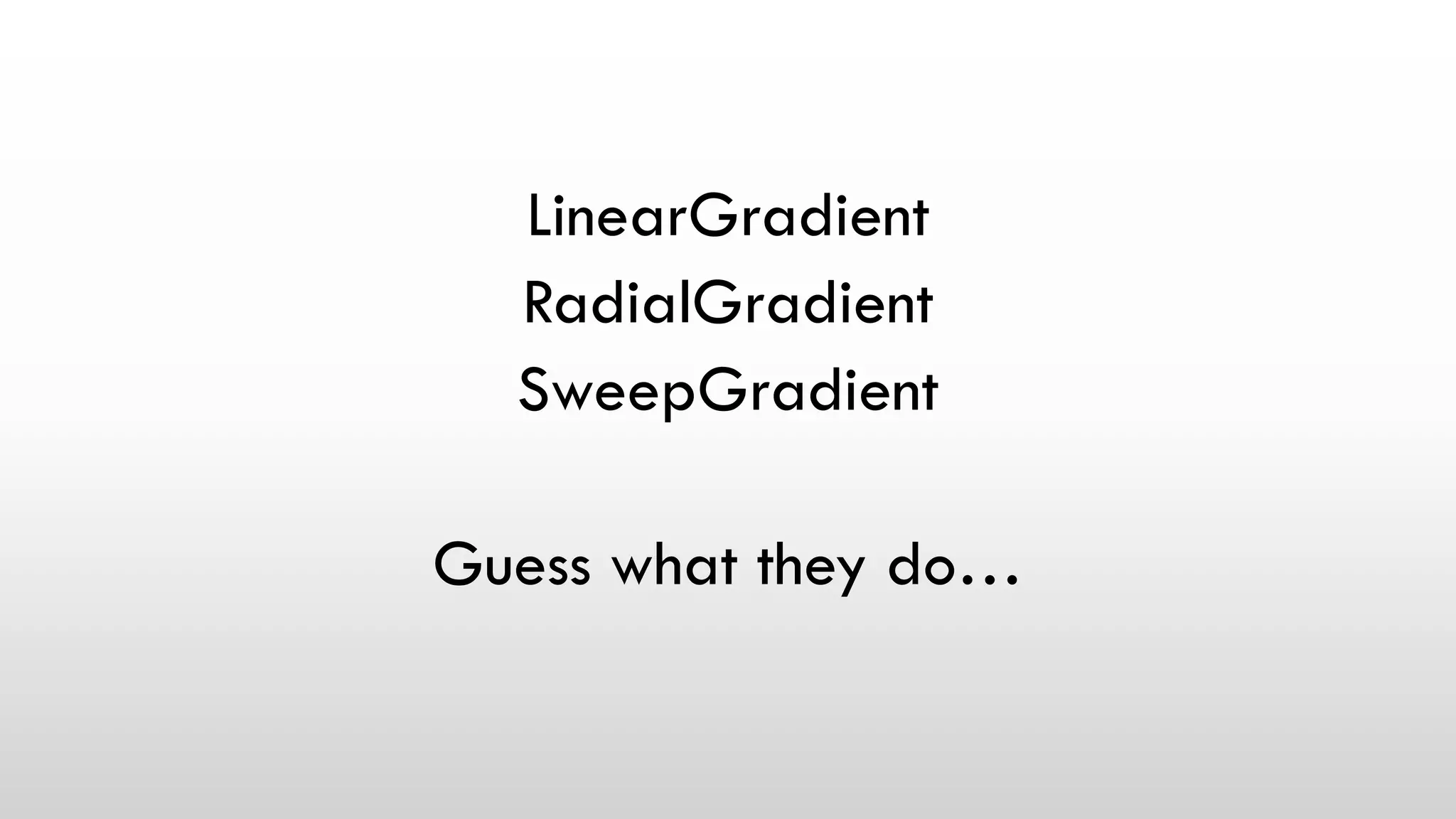

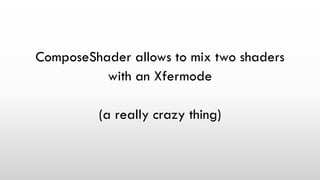

- 77. ComposeShader allows to mix two shaders with an Xfermode (a really crazy thing)

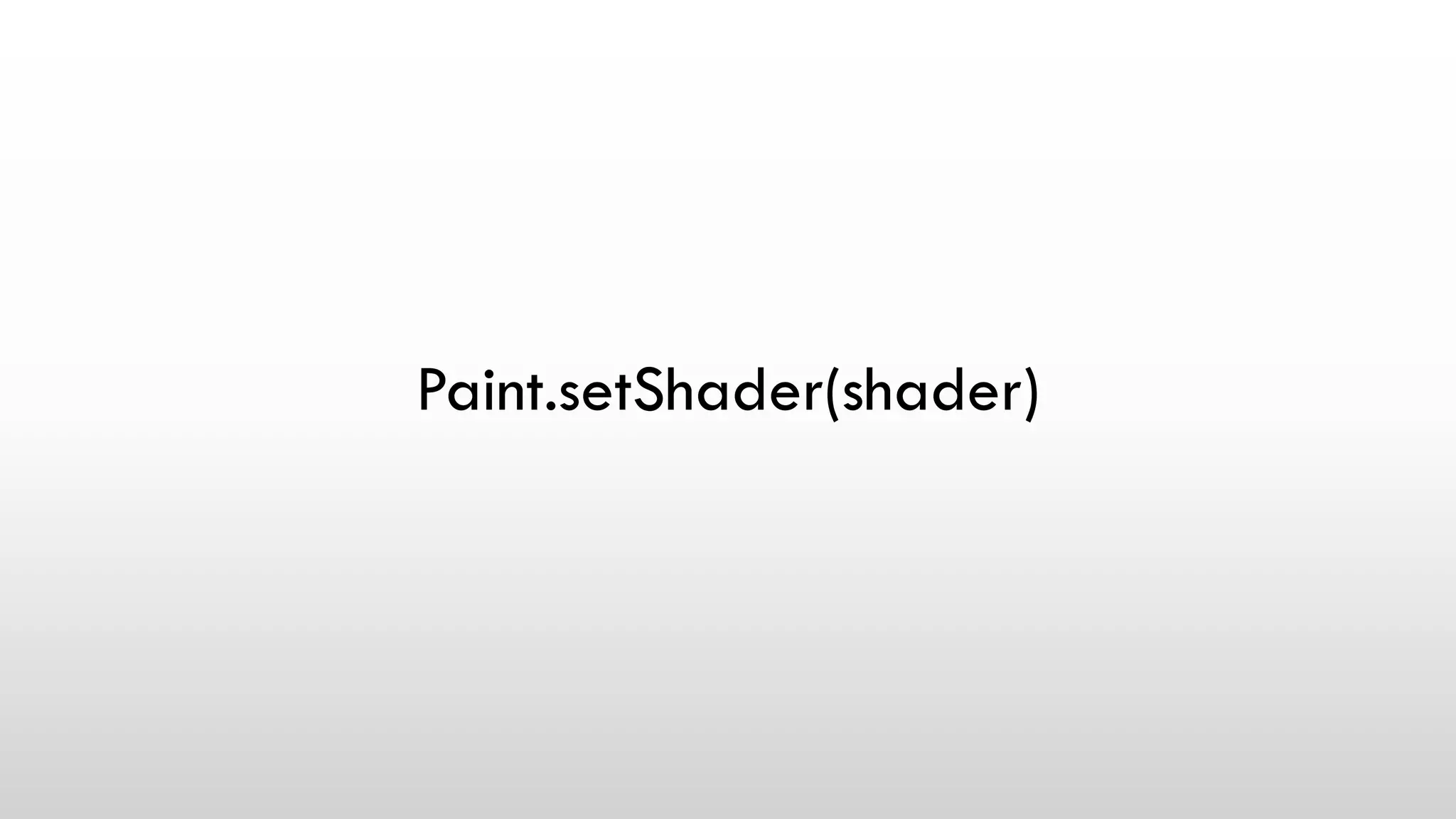

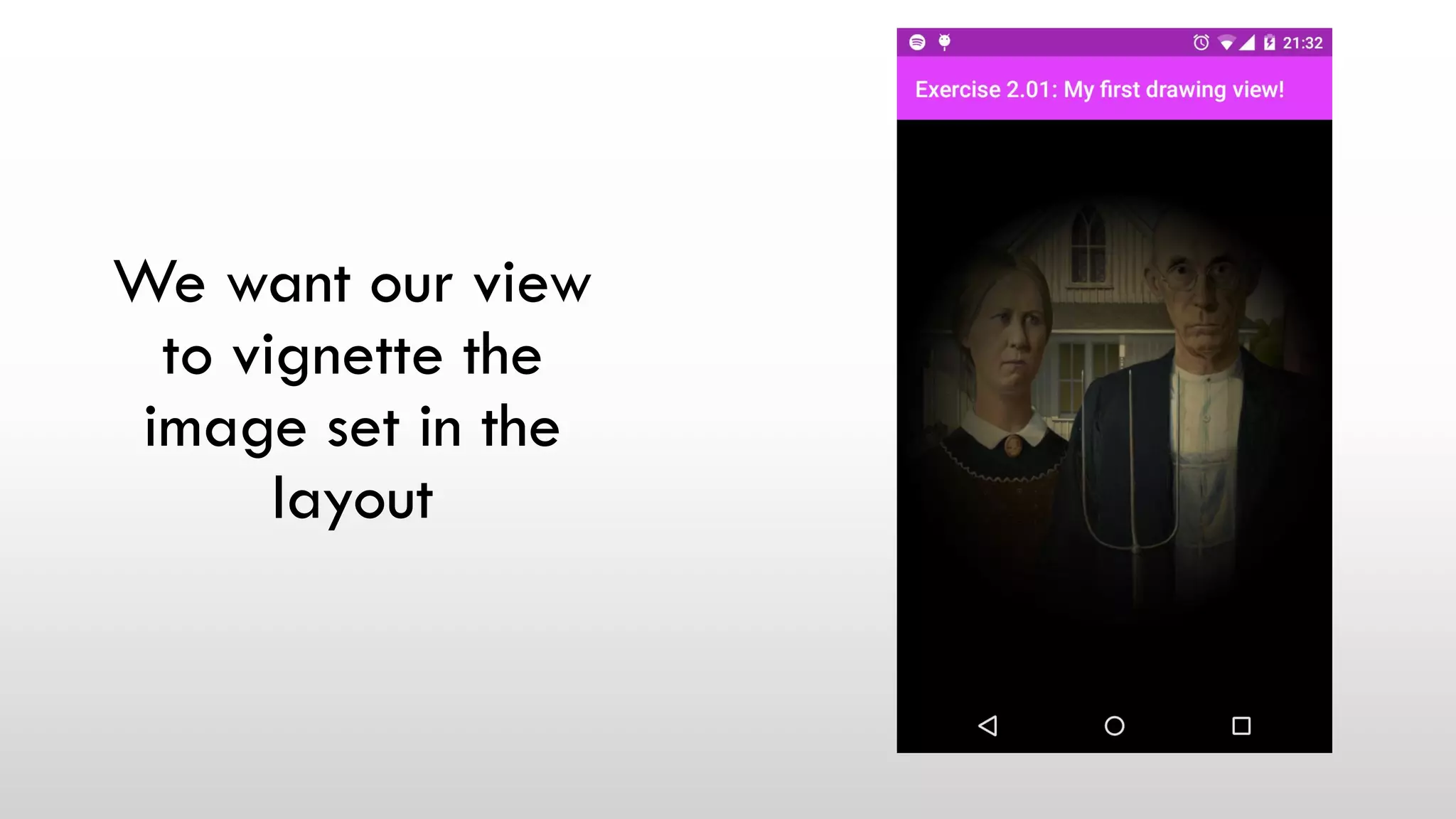

- 81. We want our view to vignette the image set in the layout

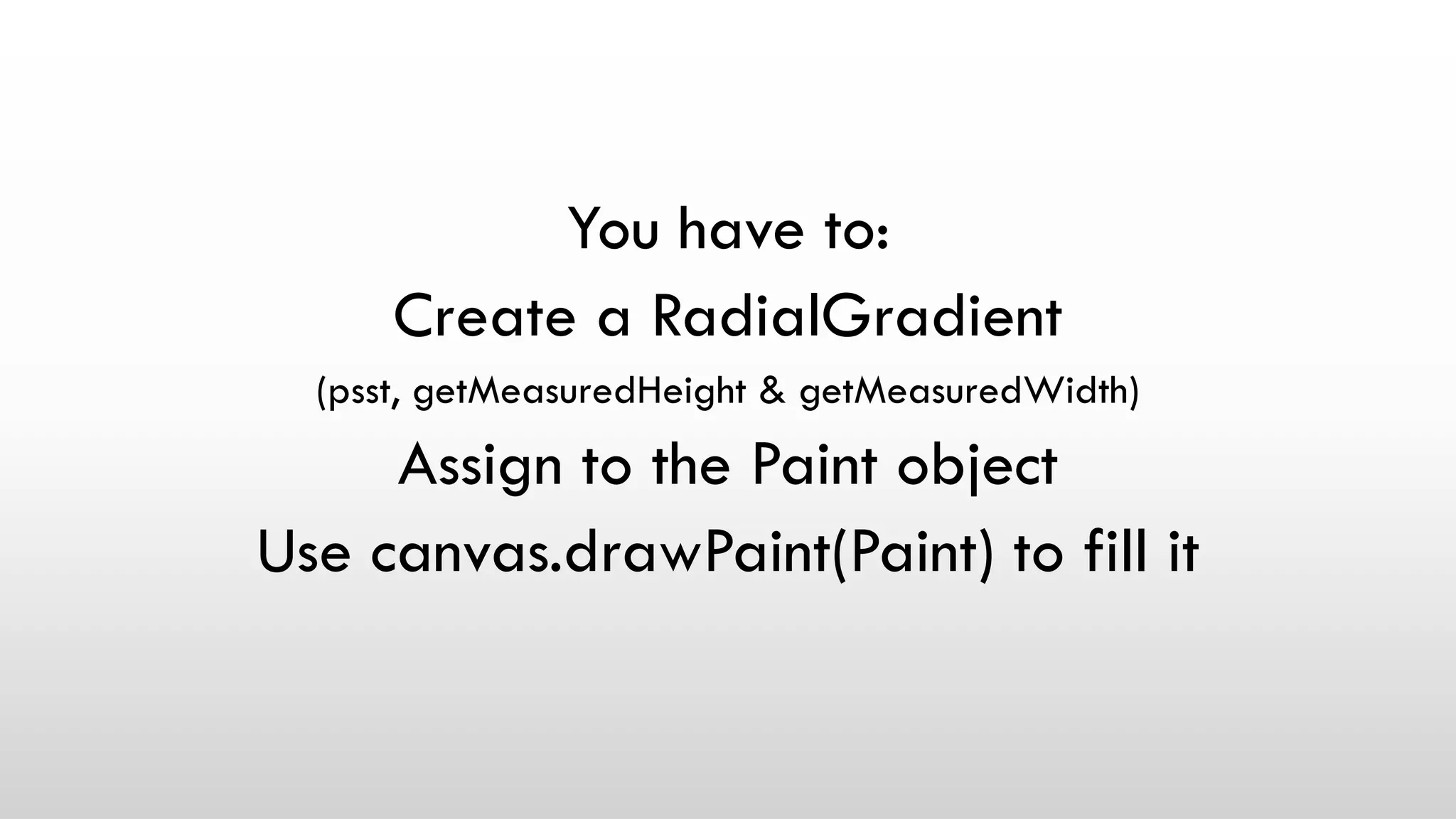

- 82. You have to: Create a RadialGradient (psst, getMeasuredHeight & getMeasuredWidth) Assign to the Paint object Use canvas.drawPaint(Paint) to fill it

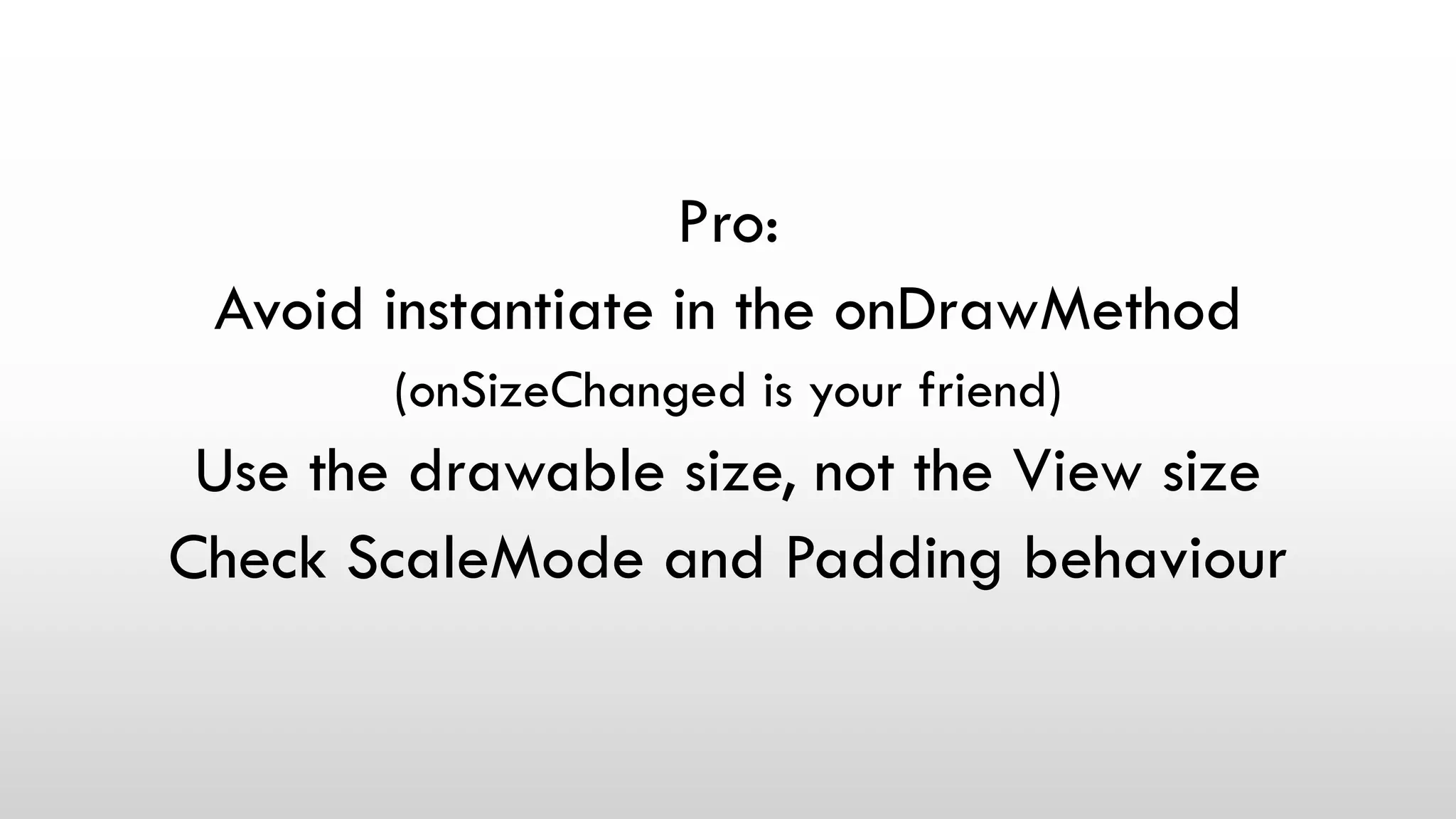

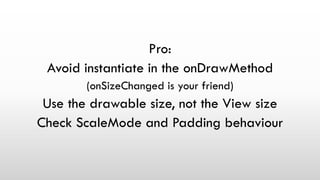

- 83. Pro: Avoid instantiate in the onDrawMethod (onSizeChanged is your friend) Use the drawable size, not the View size Check ScaleMode and Padding behaviour

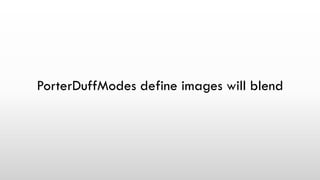

- 85. PorterDuffModes define images will blend

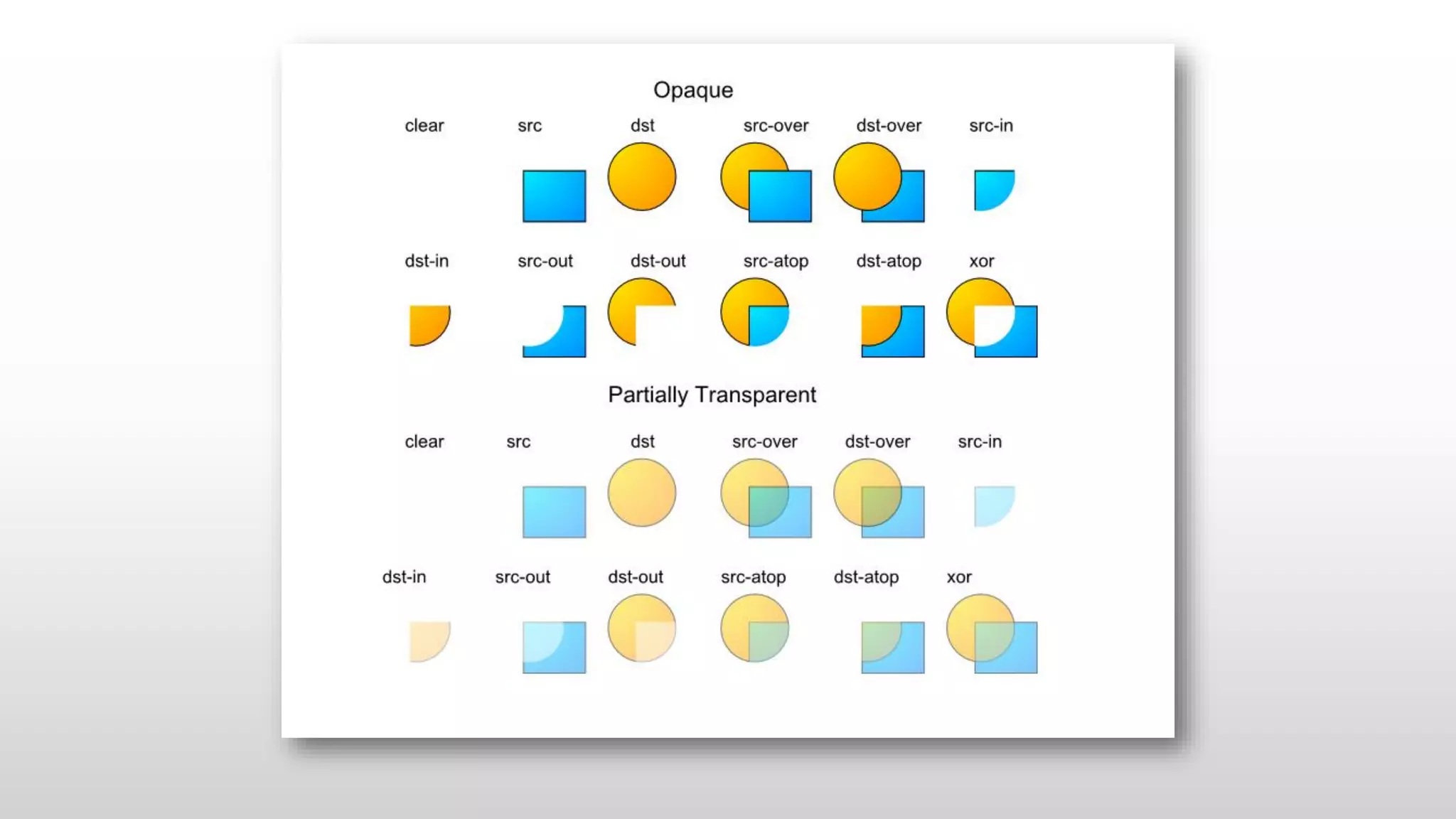

- 89. Don’t worry, trial and error
- 90. We could also save a layer
- 91. Saving layers allows us to make transformations

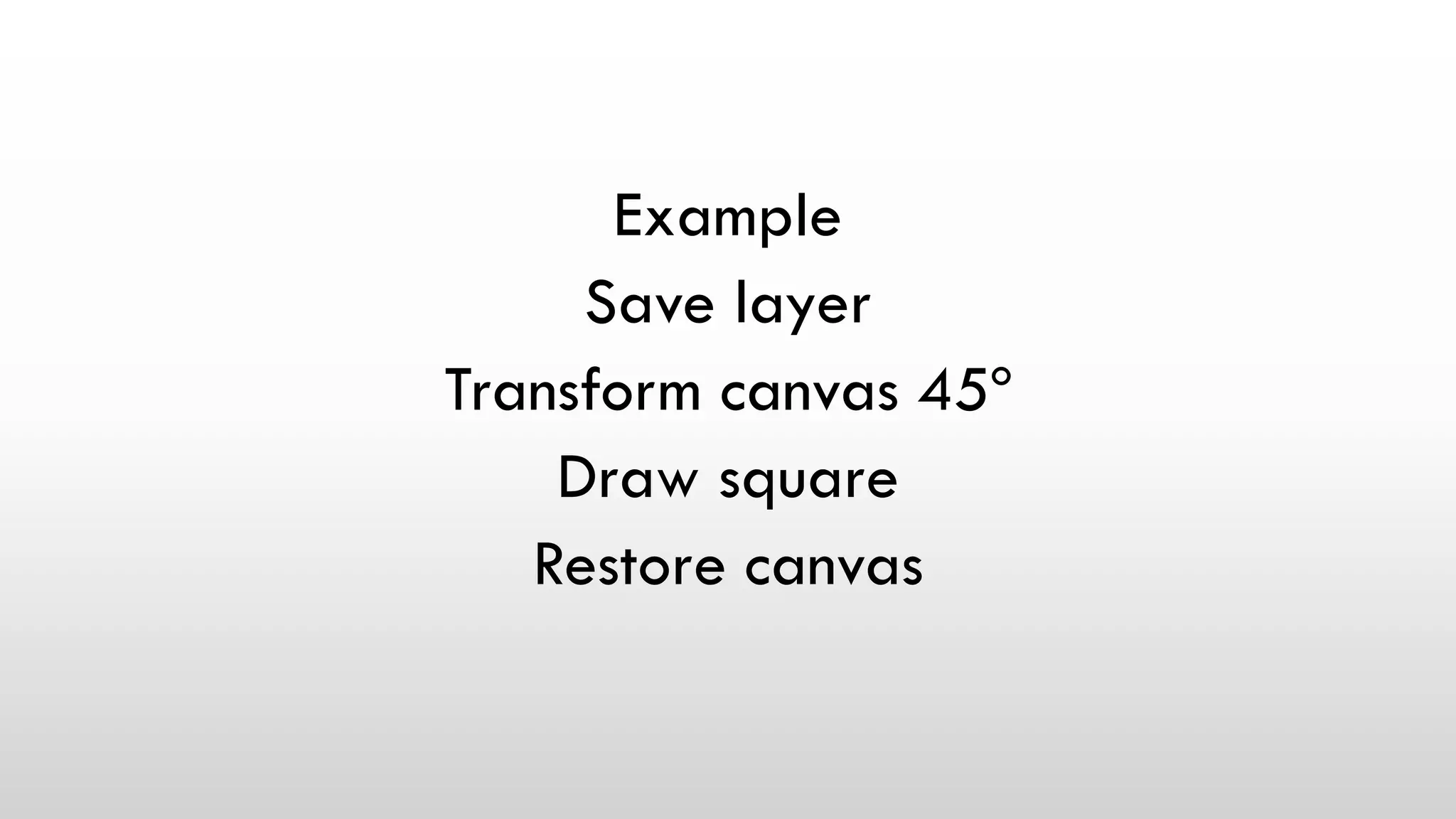

- 92. Example Save layer Transform canvas 45º Draw square Restore canvas
- 93. More on transformations later on

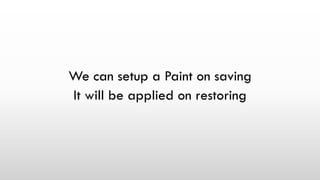

- 94. We can setup a Paint on saving It will be applied on restoring

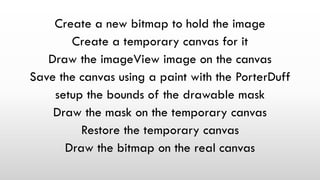

- 97. Create a new bitmap to hold the image Create a temporary canvas for it Draw the imageView image on the canvas Save the canvas using a paint with the PorterDuff setup the bounds of the drawable mask Draw the mask on the temporary canvas Restore the temporary canvas Draw the bitmap on the real canvas

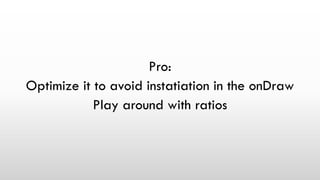

- 98. Pro: Optimize it to avoid instatiation in the onDraw Play around with ratios

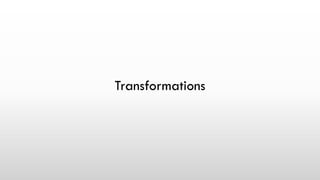

- 99. Transformations

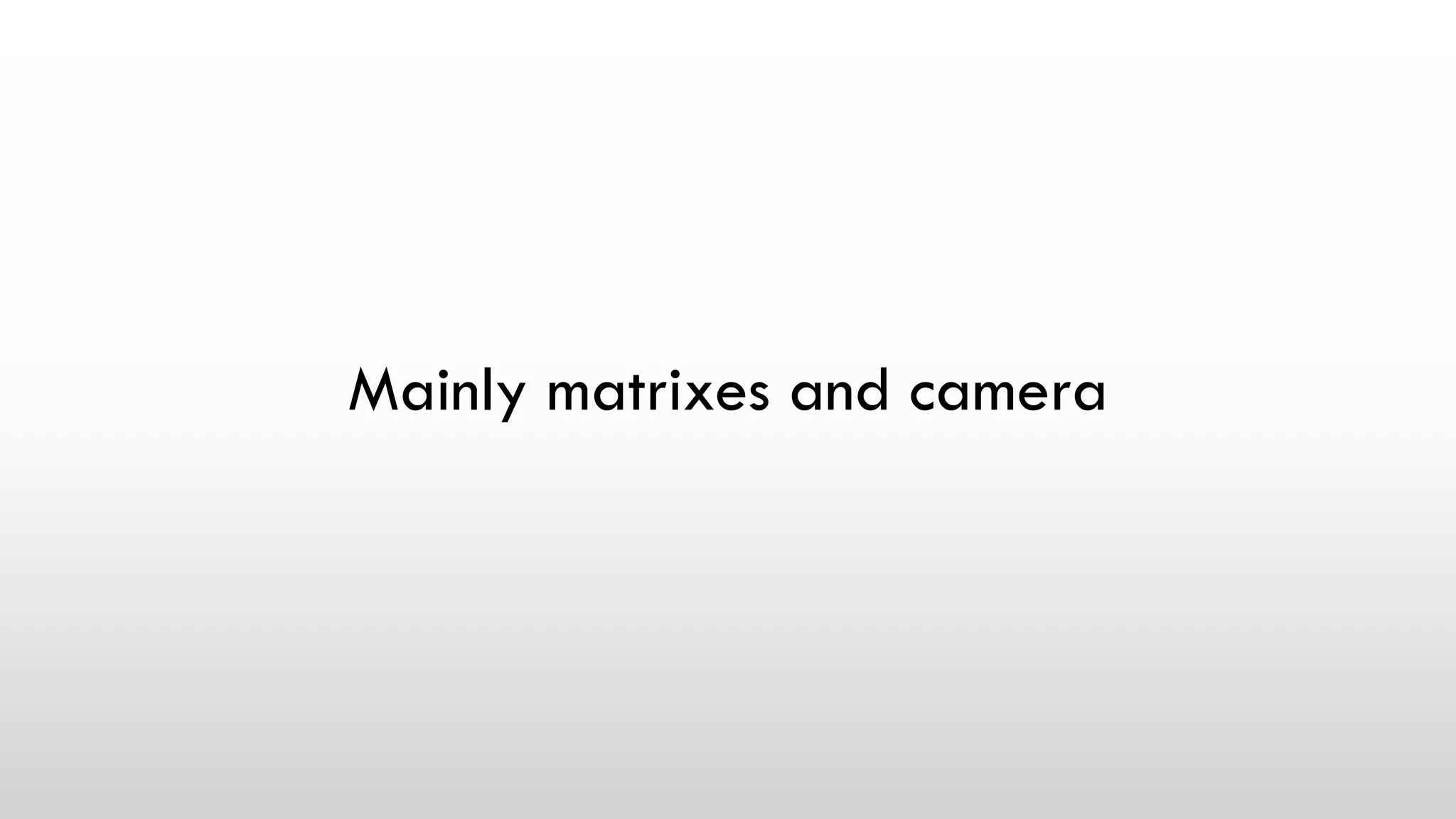

- 100. Mainly matrixes and camera
- 101. Stoping too obvious jokes before is too late

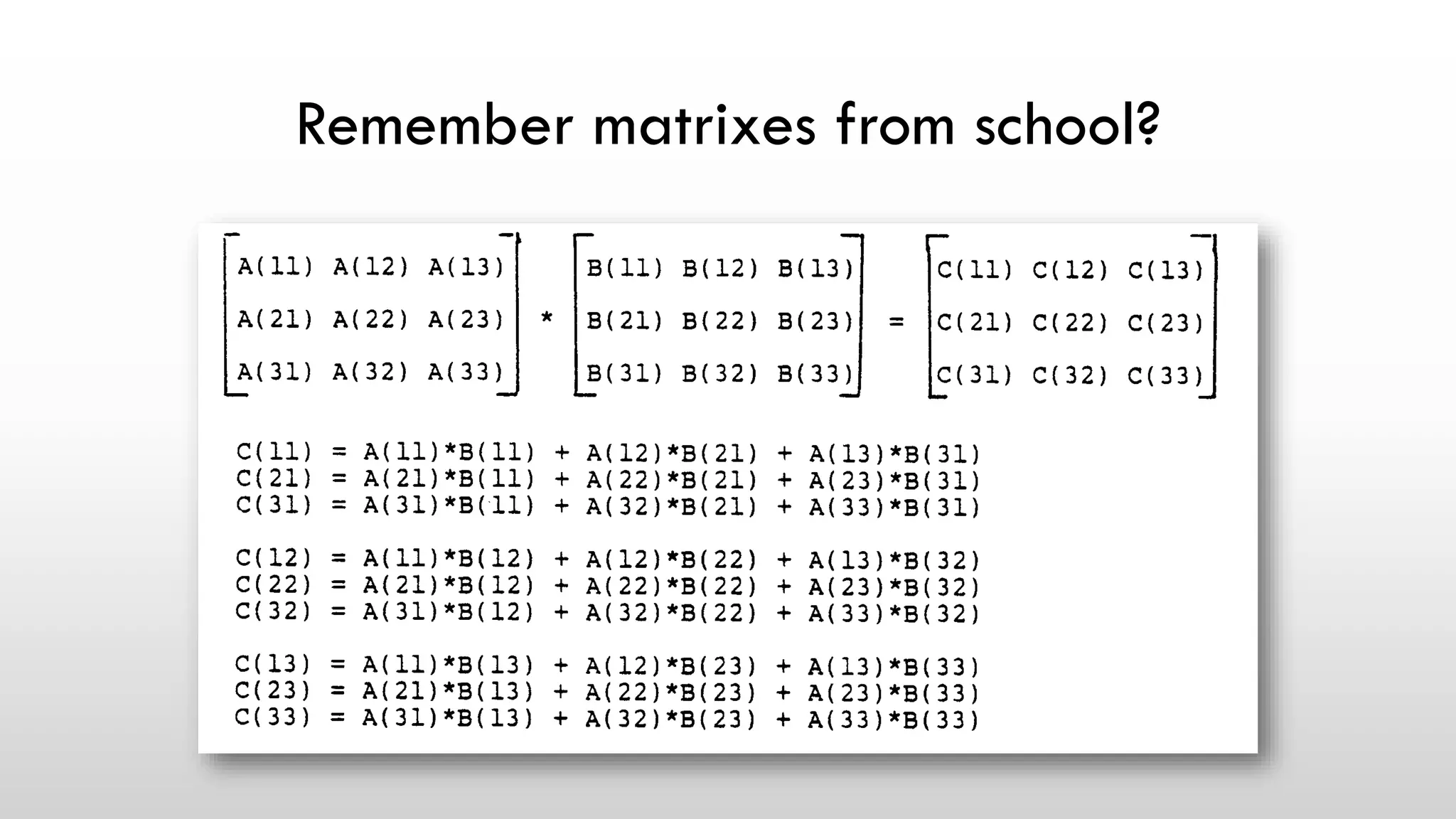

- 102. Remember matrixes from school?
- 103. Haha. Don’t worry

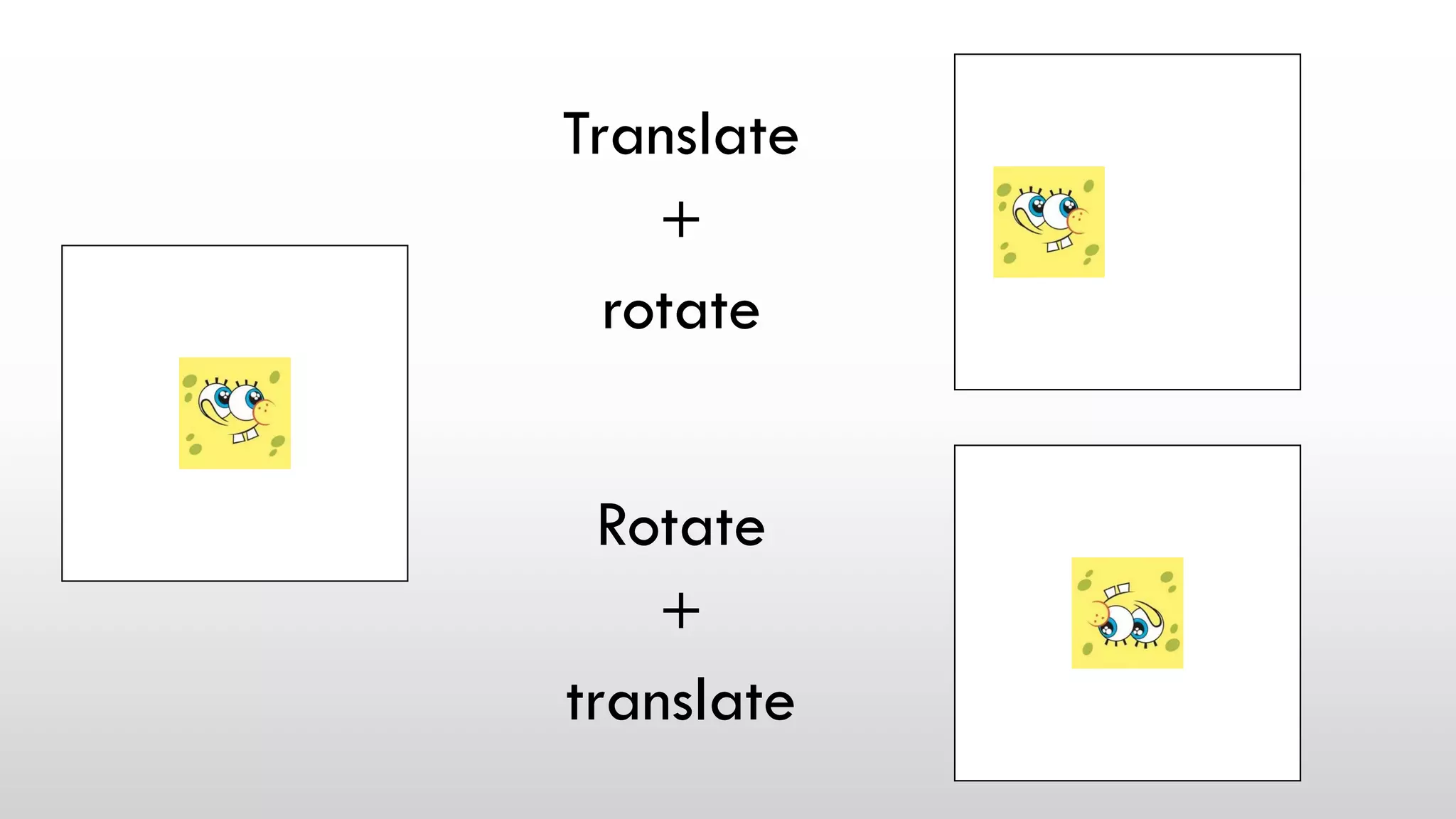

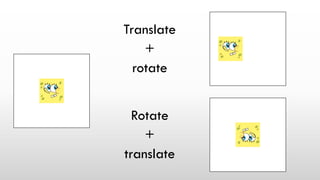

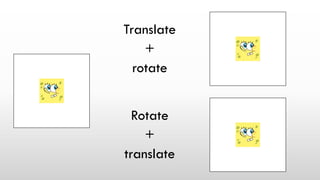

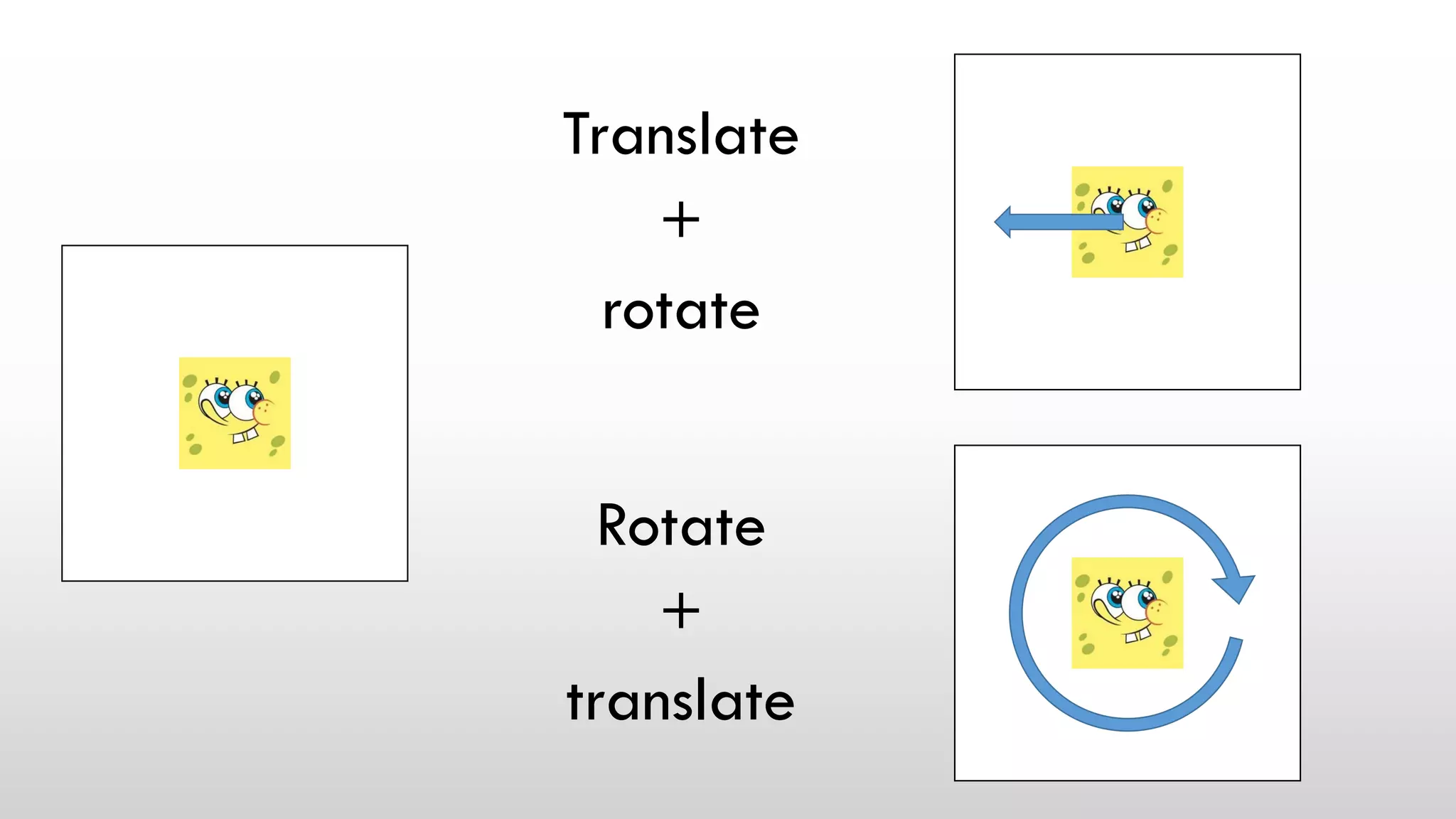

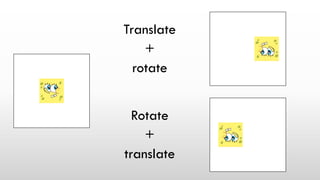

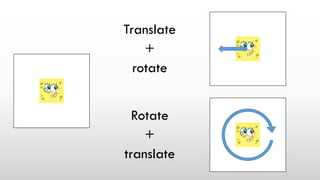

- 104. But remember Operations order is important

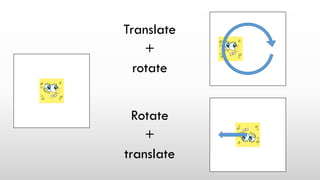

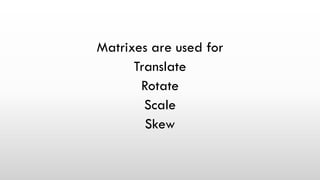

- 105. Matrixes are used for Translate Rotate Scale Skew

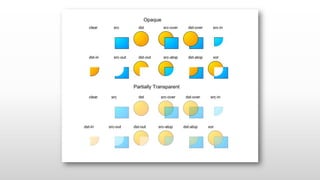

- 107. We must use preOperation and postOperation to concatenat

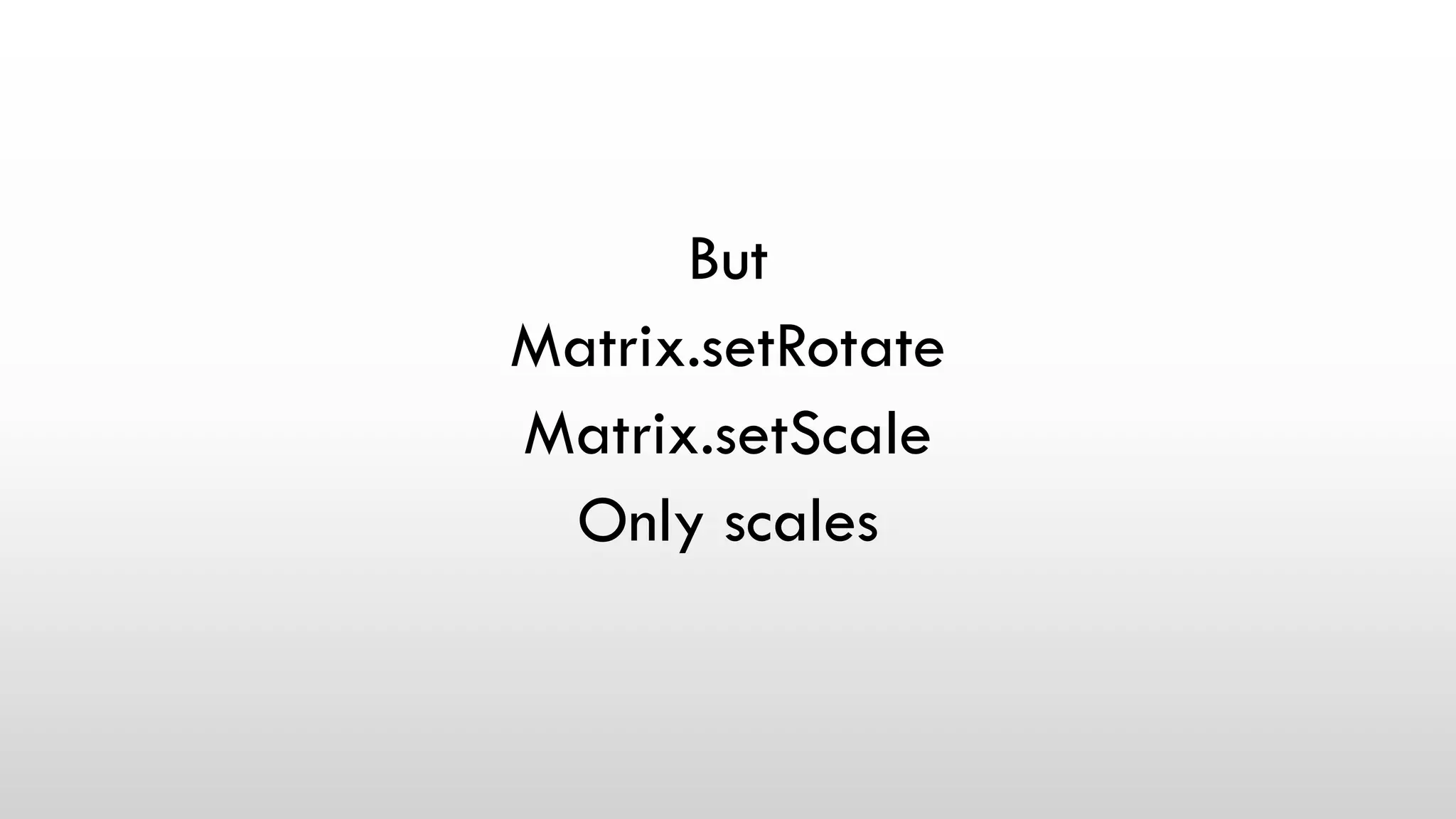

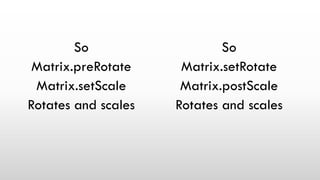

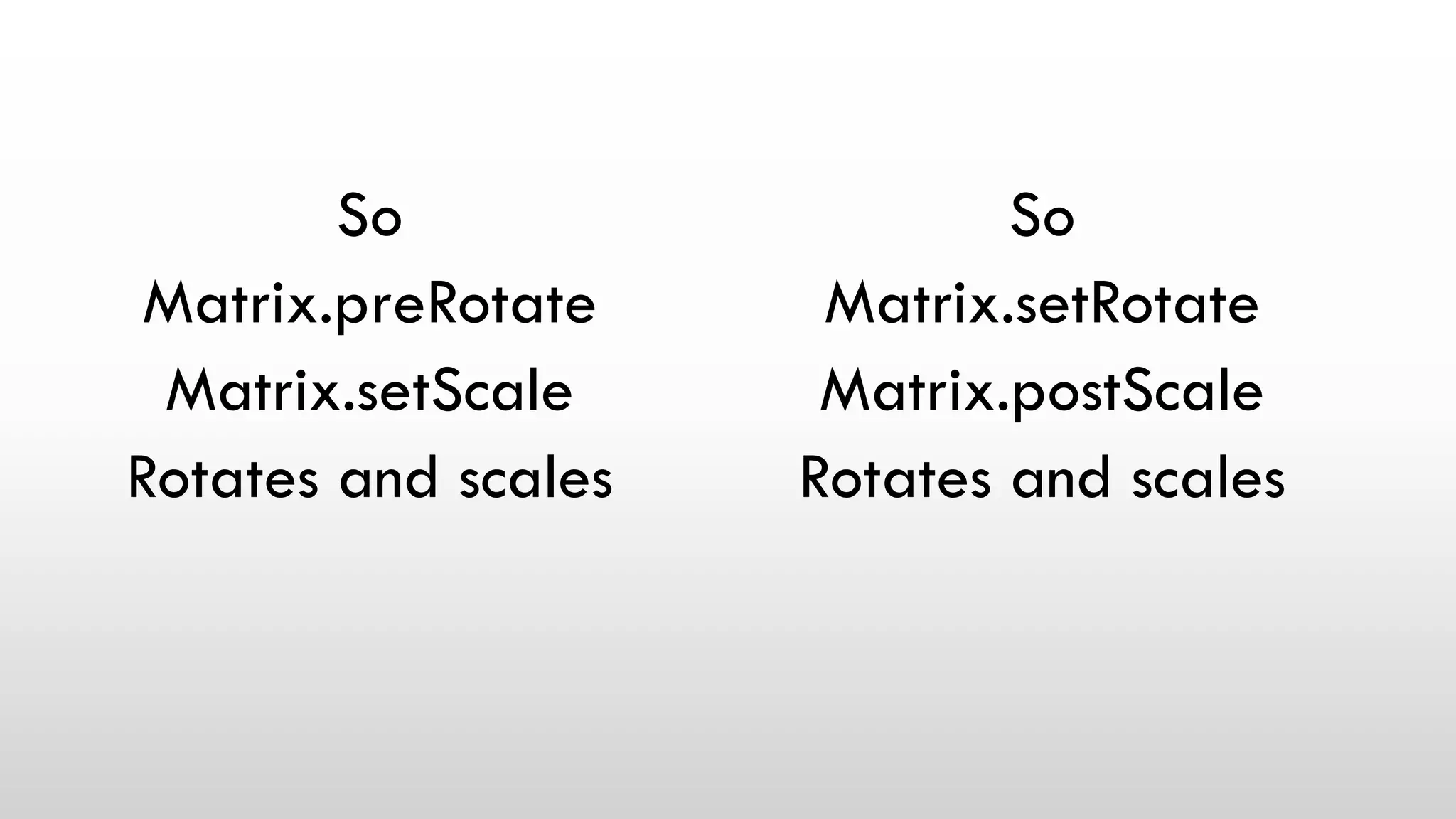

- 108. So Matrix.preRotate Matrix.setScale Rotates and scales So Matrix.setRotate Matrix.postScale Rotates and scales

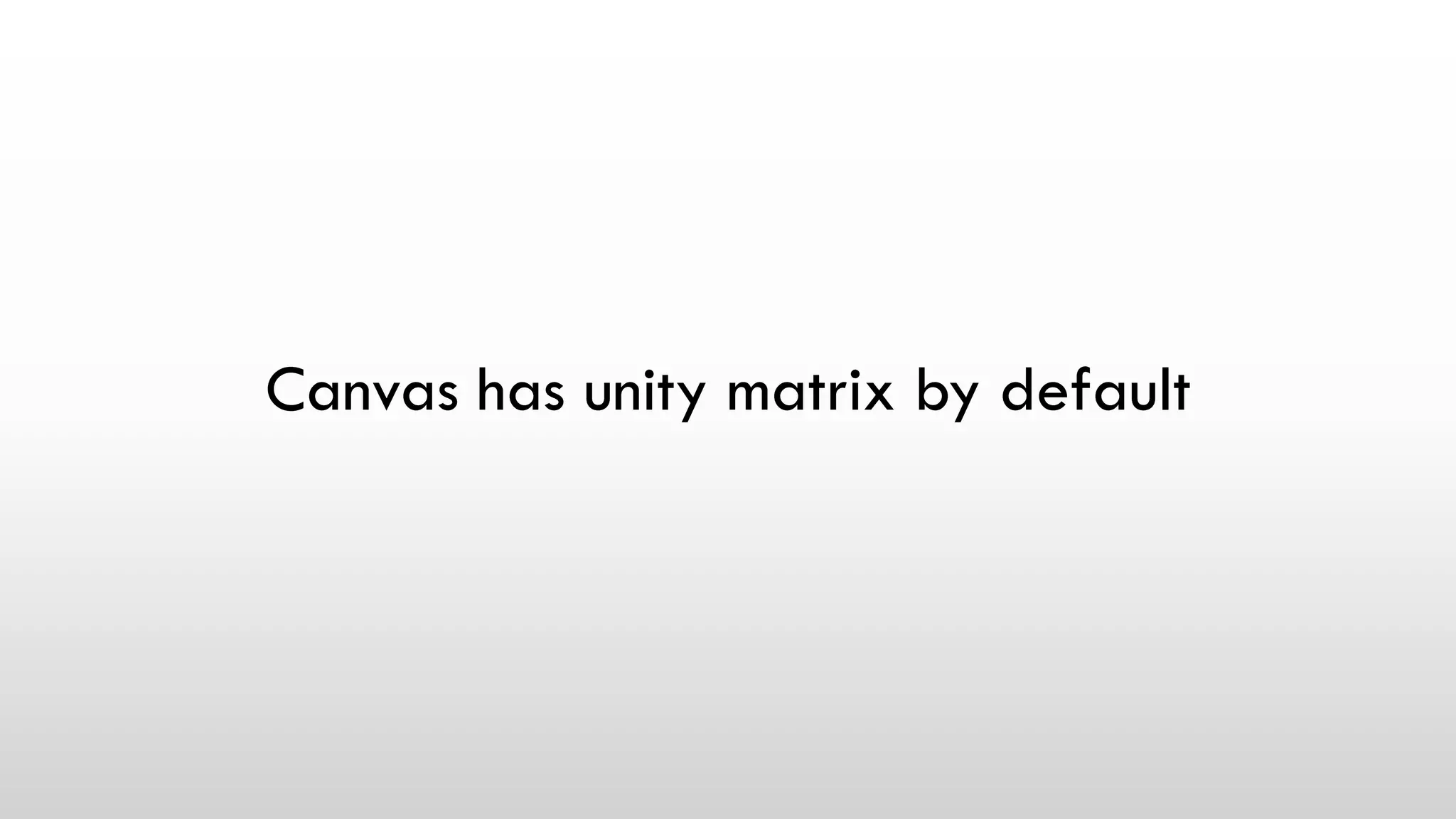

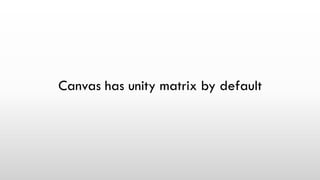

- 109. Canvas has unity matrix by default
- 110. Be careful!

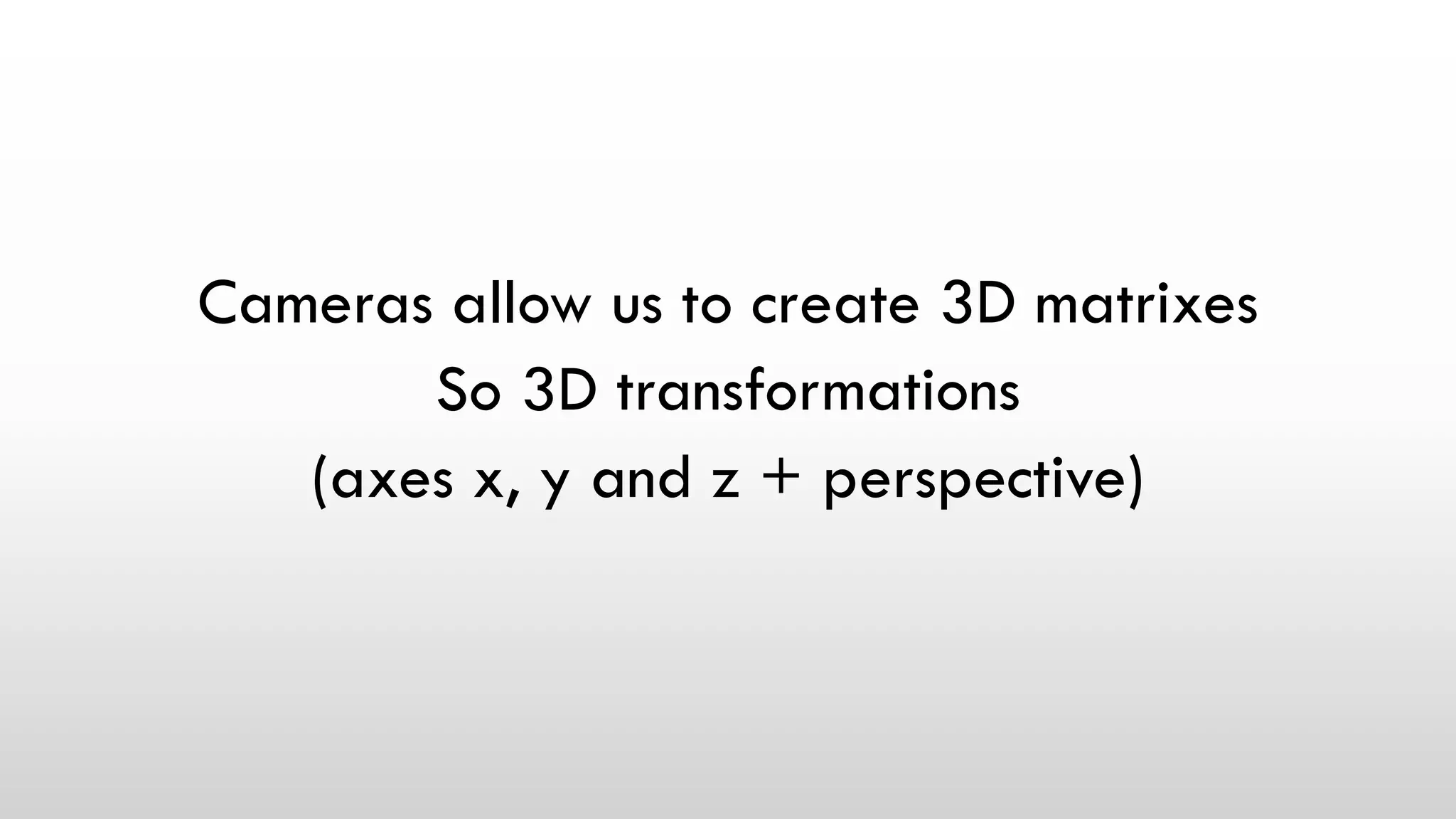

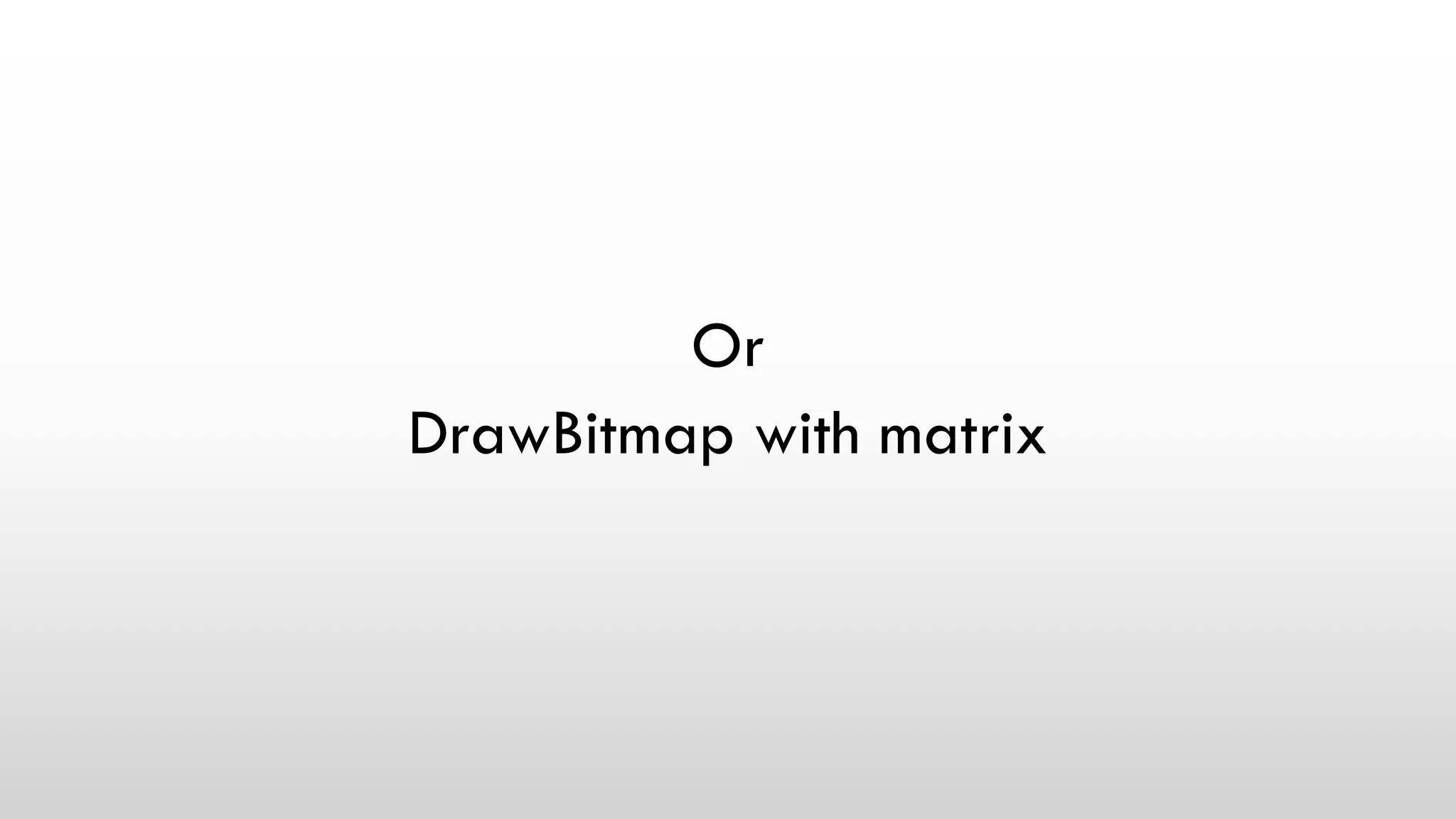

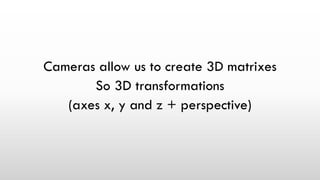

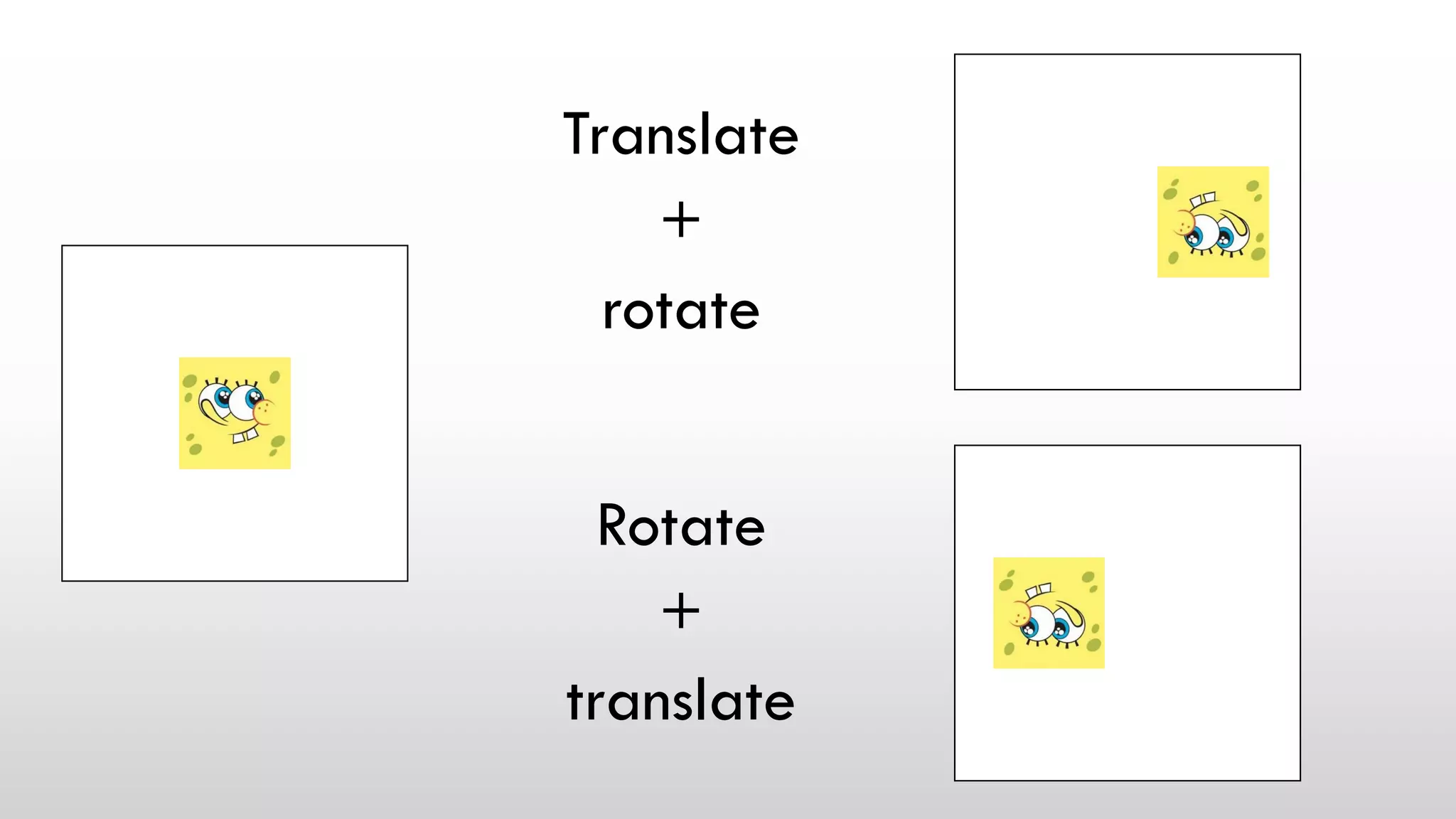

- 118. Cameras allow us to create 3D matrixes So 3D transformations (axes x, y and z + perspective)

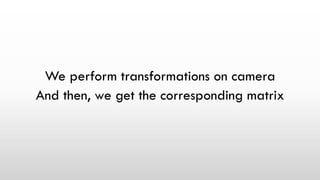

- 119. We perform transformations on camera And then, we get the corresponding matrix
- 121. Tag 2_03_start

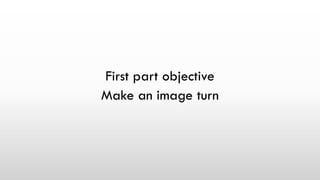

- 122. First part objective Make an image turn

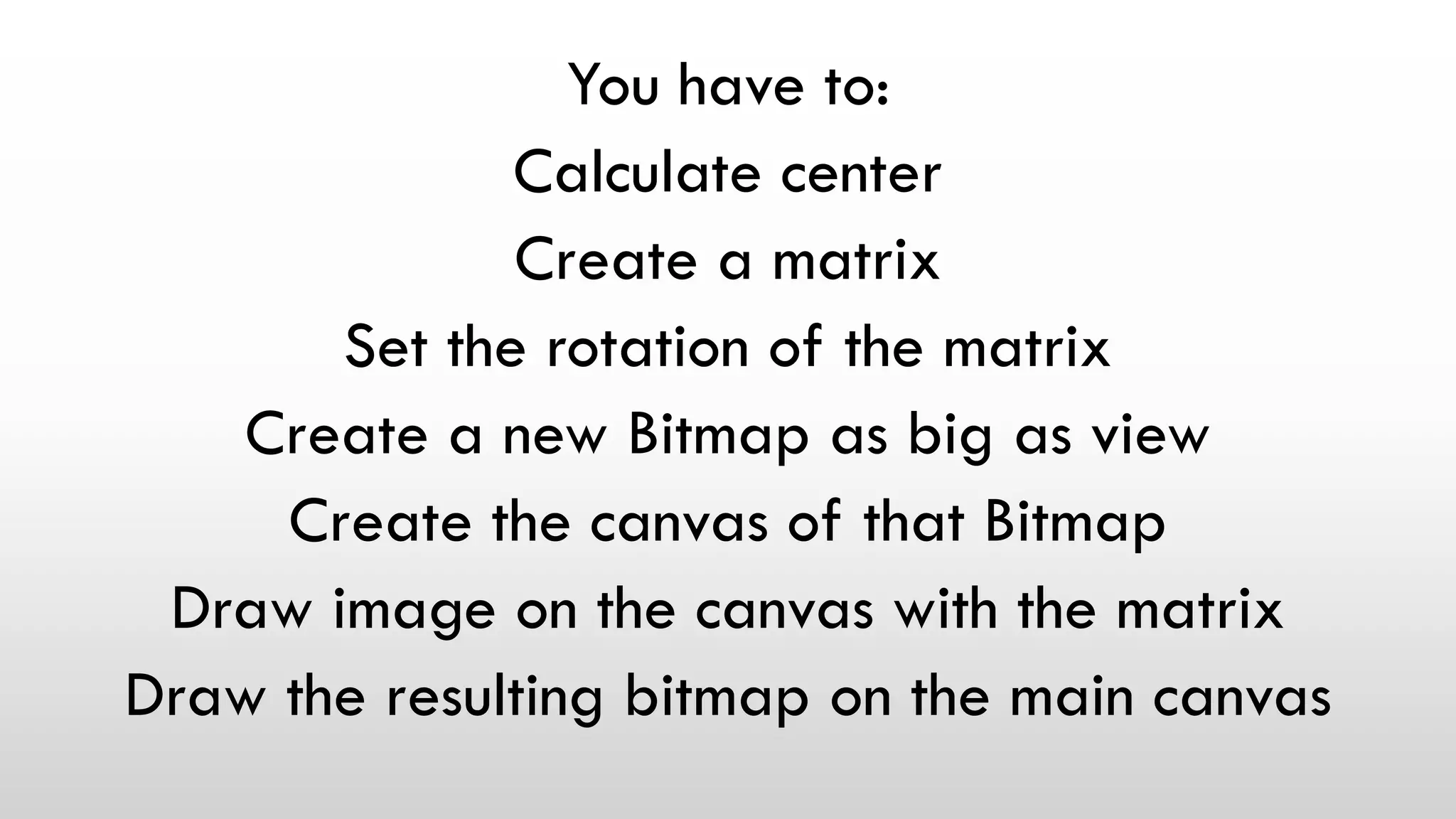

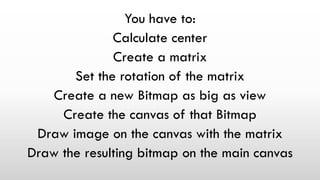

- 123. You have to: Calculate center Create a matrix Set the rotation of the matrix Create a new Bitmap as big as view Create the canvas of that Bitmap Draw image on the canvas with the matrix Draw the resulting bitmap on the main canvas

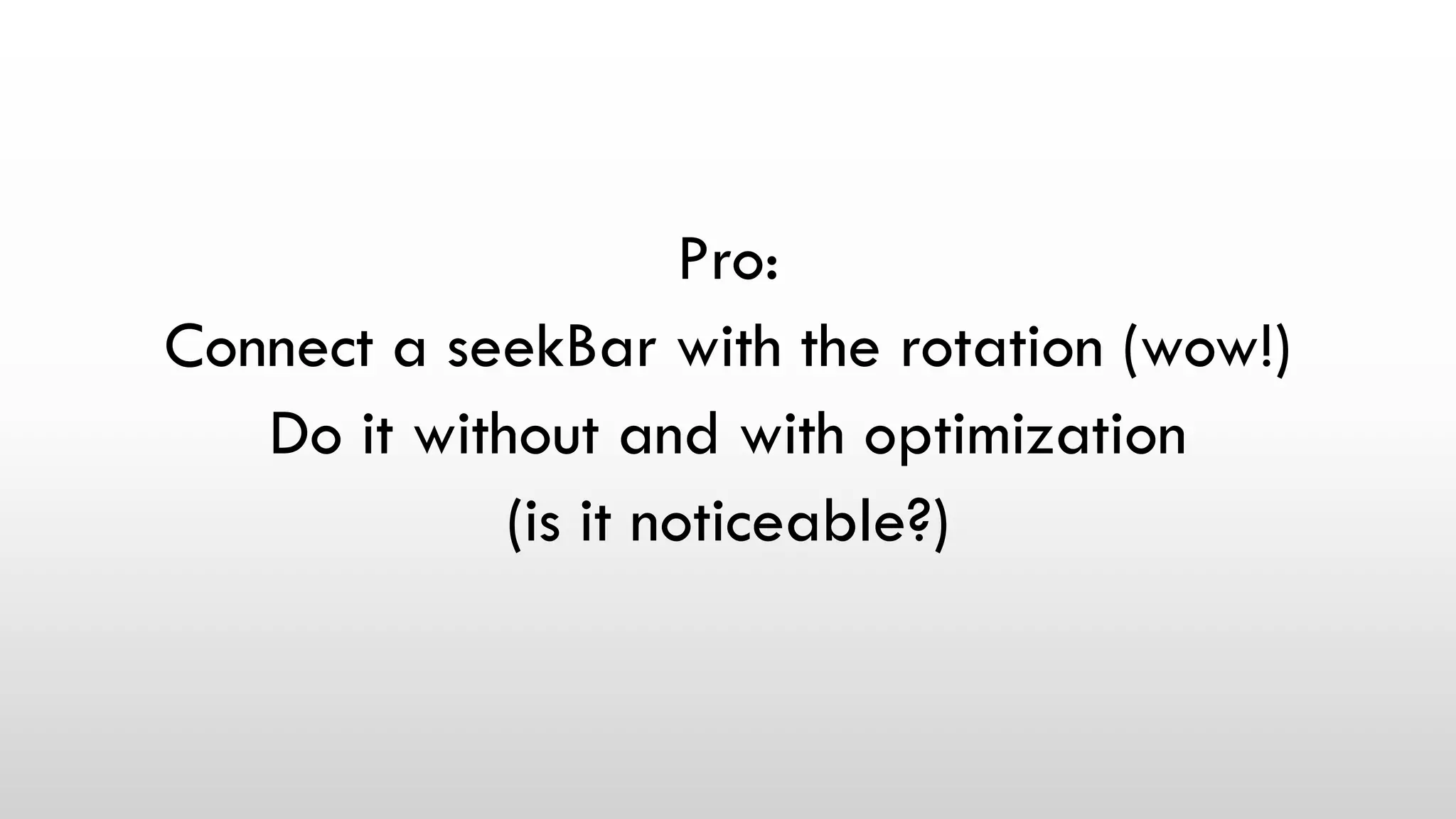

- 124. Pro: Connect a seekBar with the rotation (wow!) Do it without and with optimization (is it noticeable?)
- 125. Remember!
- 126. All these operations and stuff is cute
- 127. Combined are WOW!
- 128. Animations
- 129. We are not going to talk about Animation or Animator class
- 130. But how to move all the things we learned

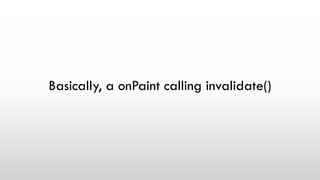

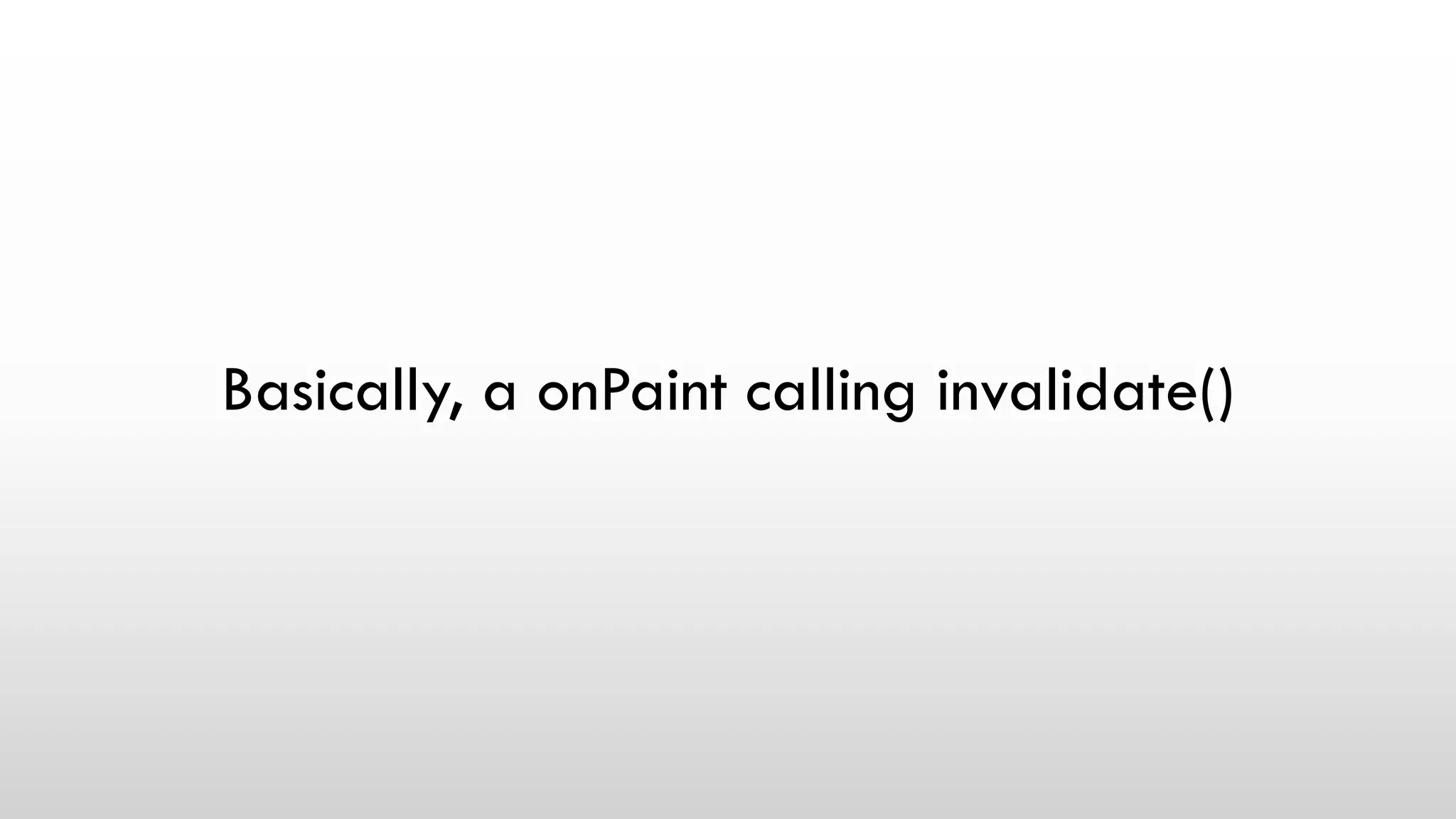

- 131. Basically, a onPaint calling invalidate()
- 132. Things to keep in mind
- 133. Speed
- 134. We want to achieve as FPS as possible

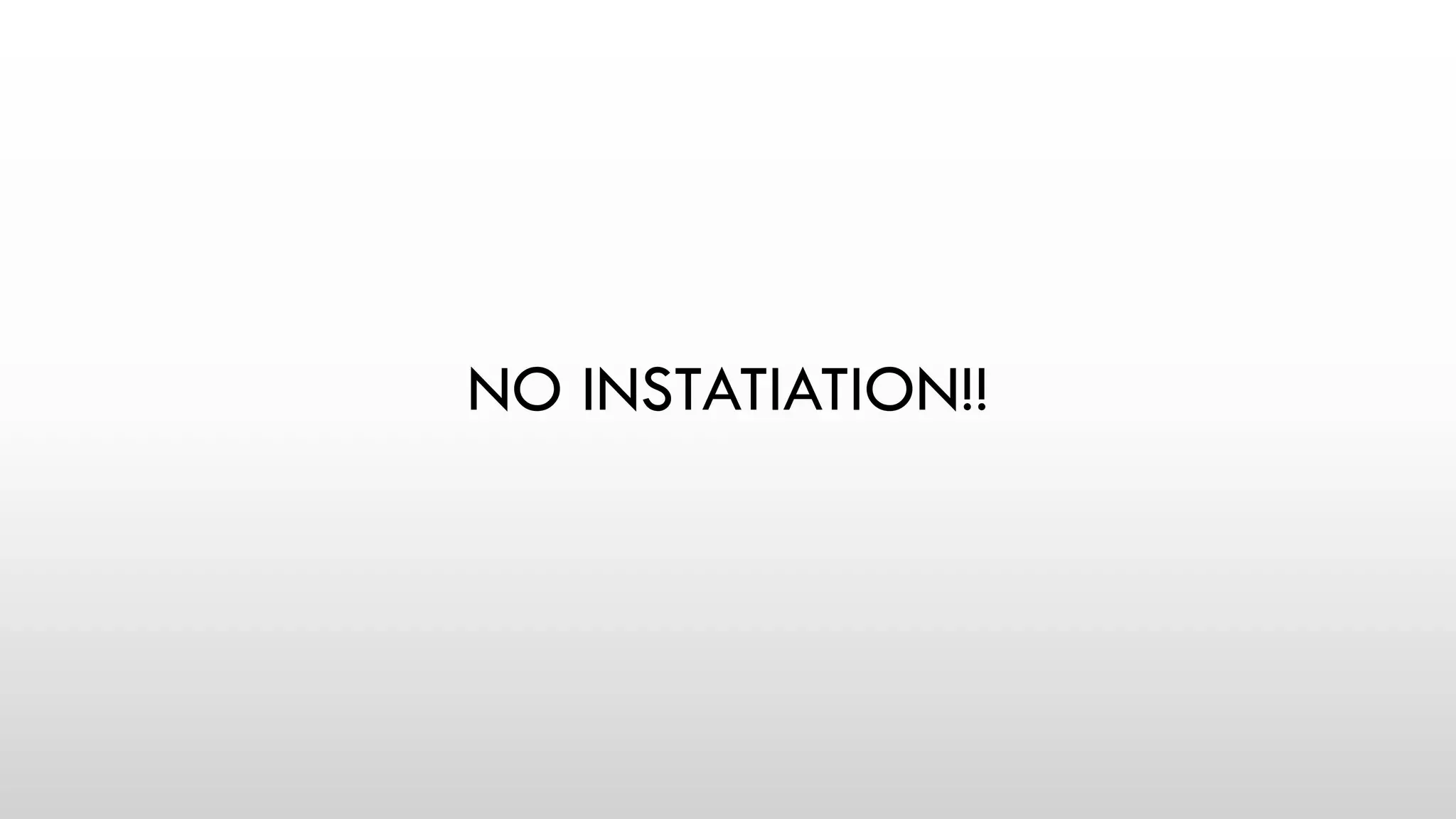

- 135. NO INSTATIATION!!

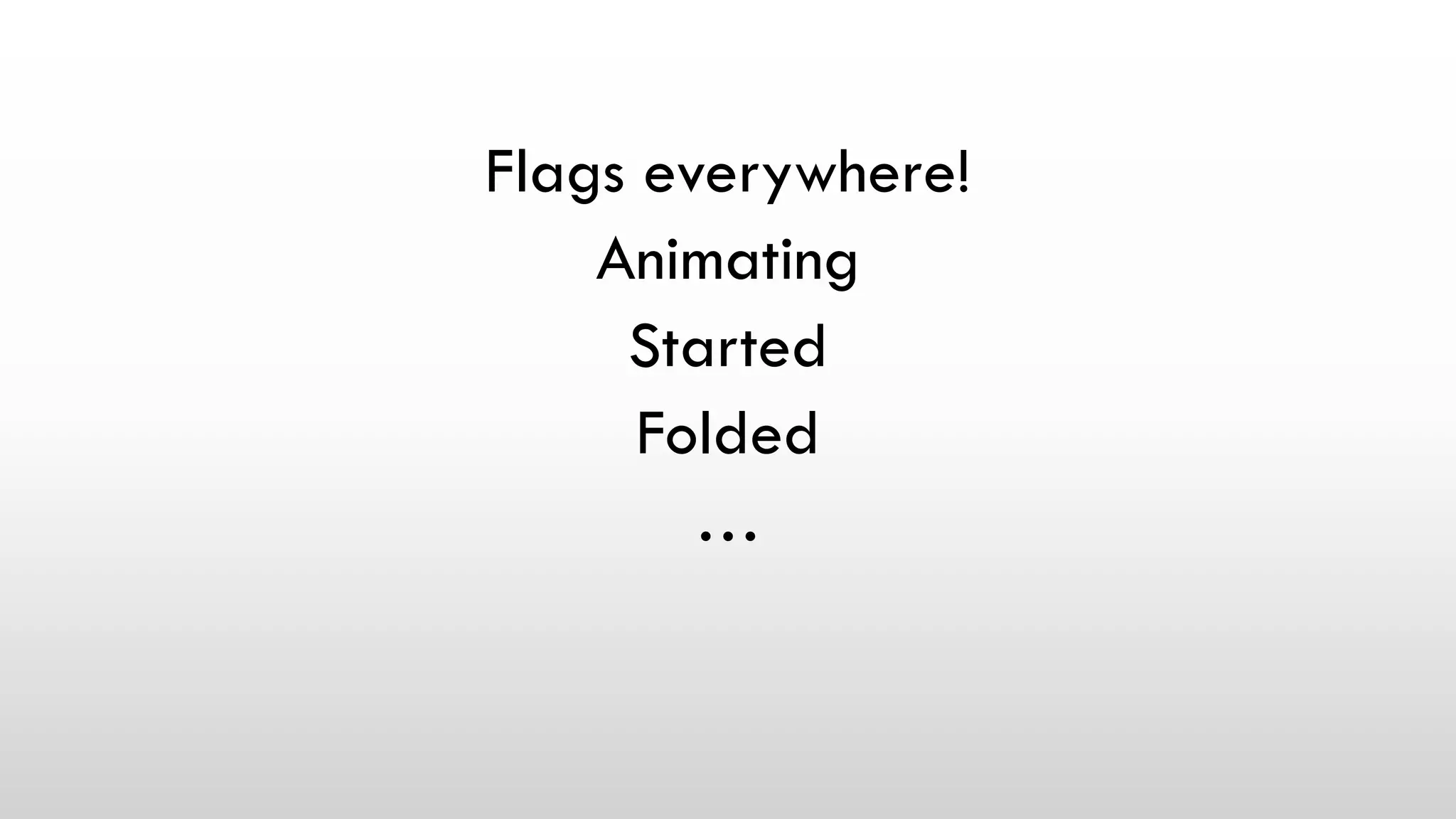

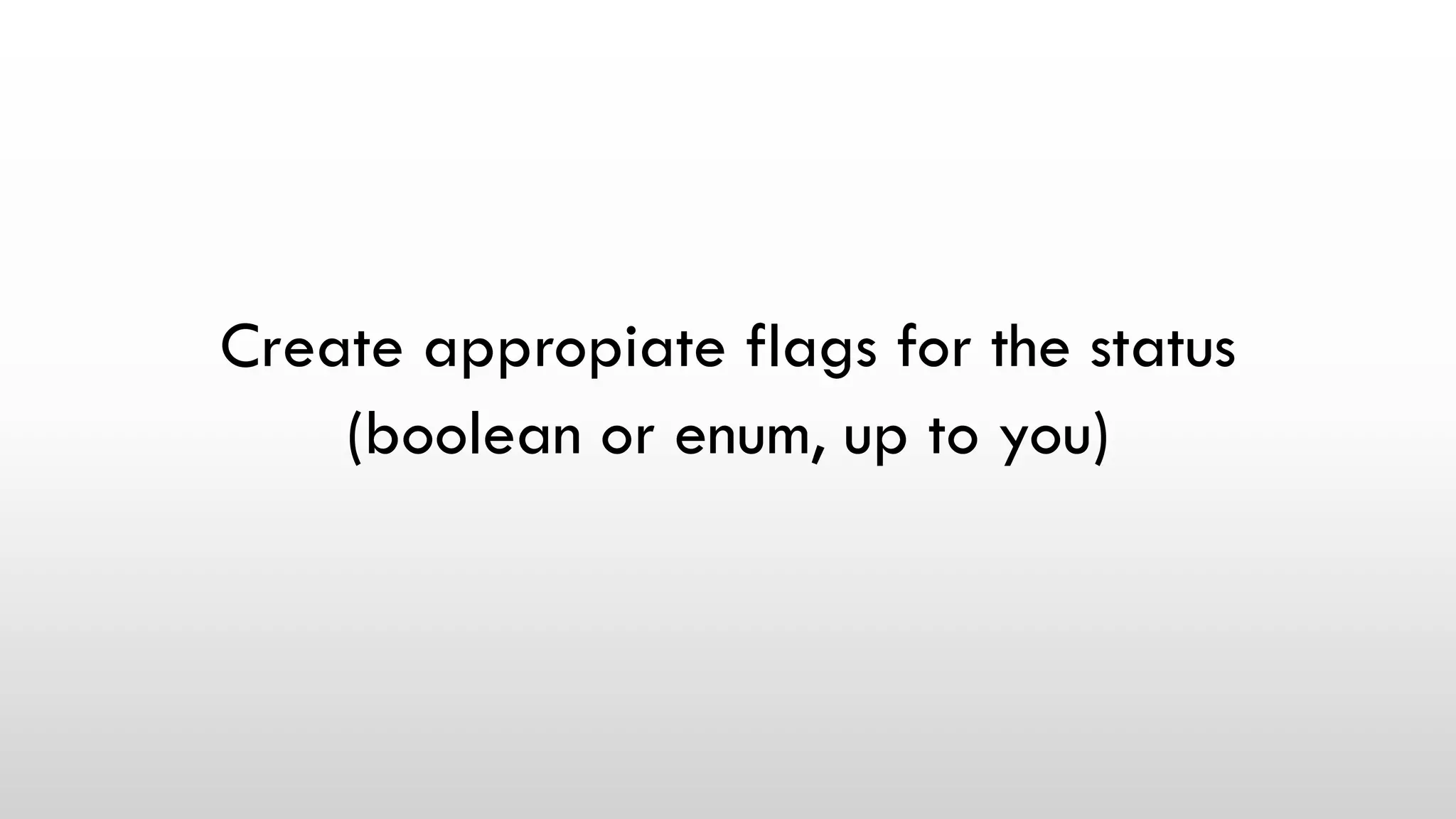

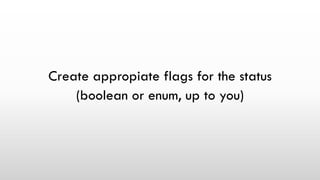

- 138. Create appropiate flags for the status (boolean or enum, up to you)

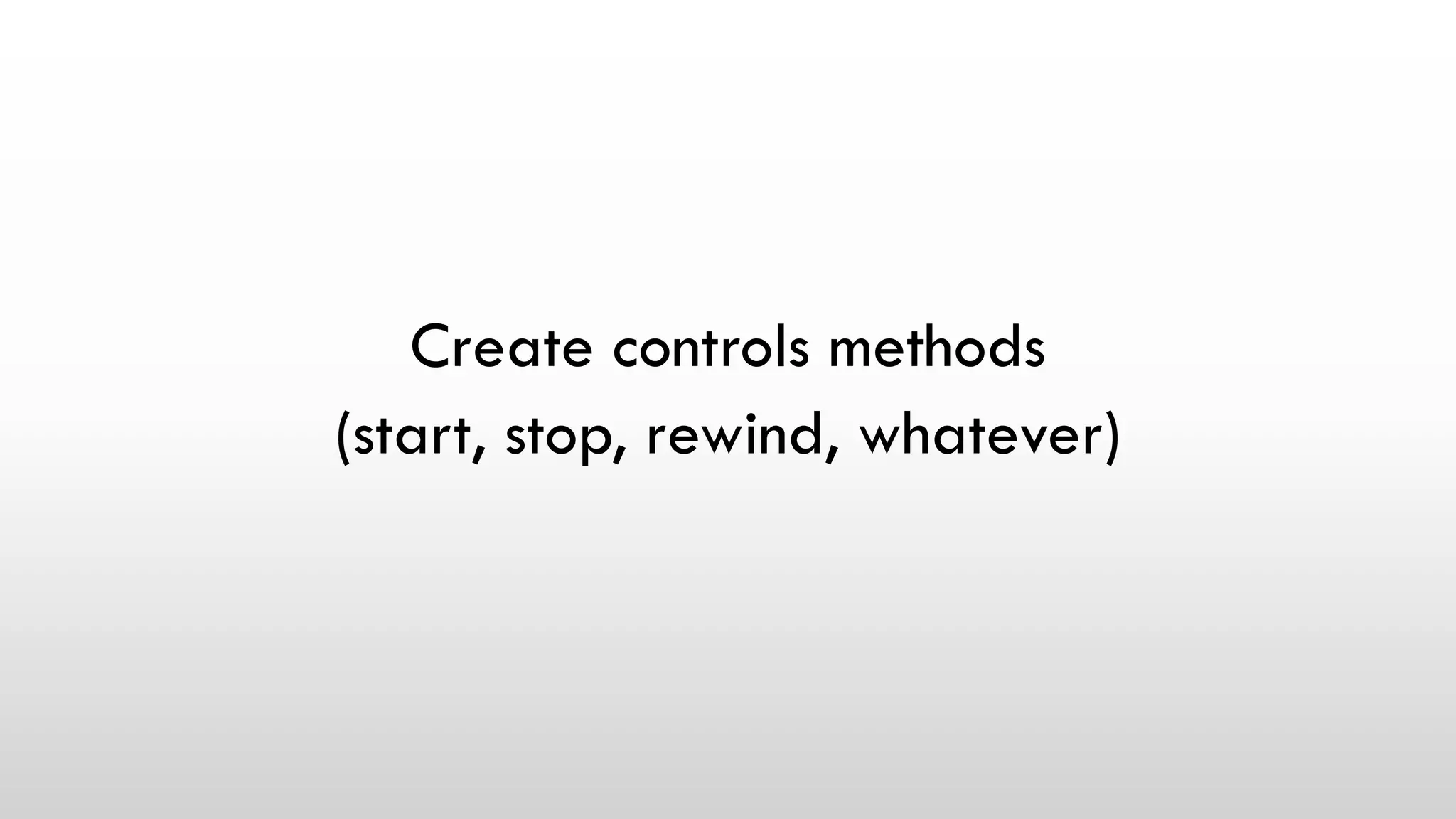

- 139. Create controls methods (start, stop, rewind, whatever)

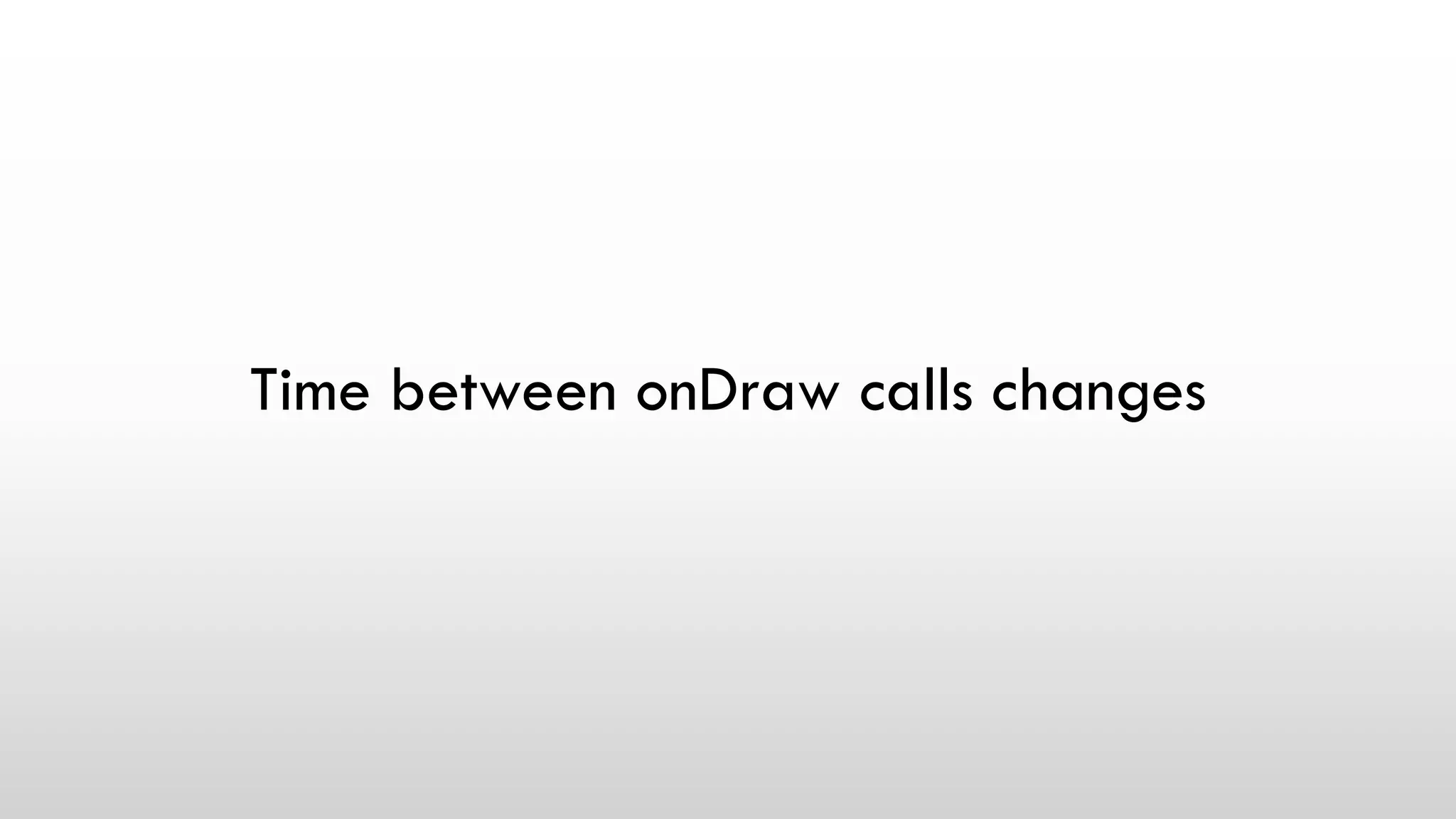

- 140. Time between onDraw calls changes

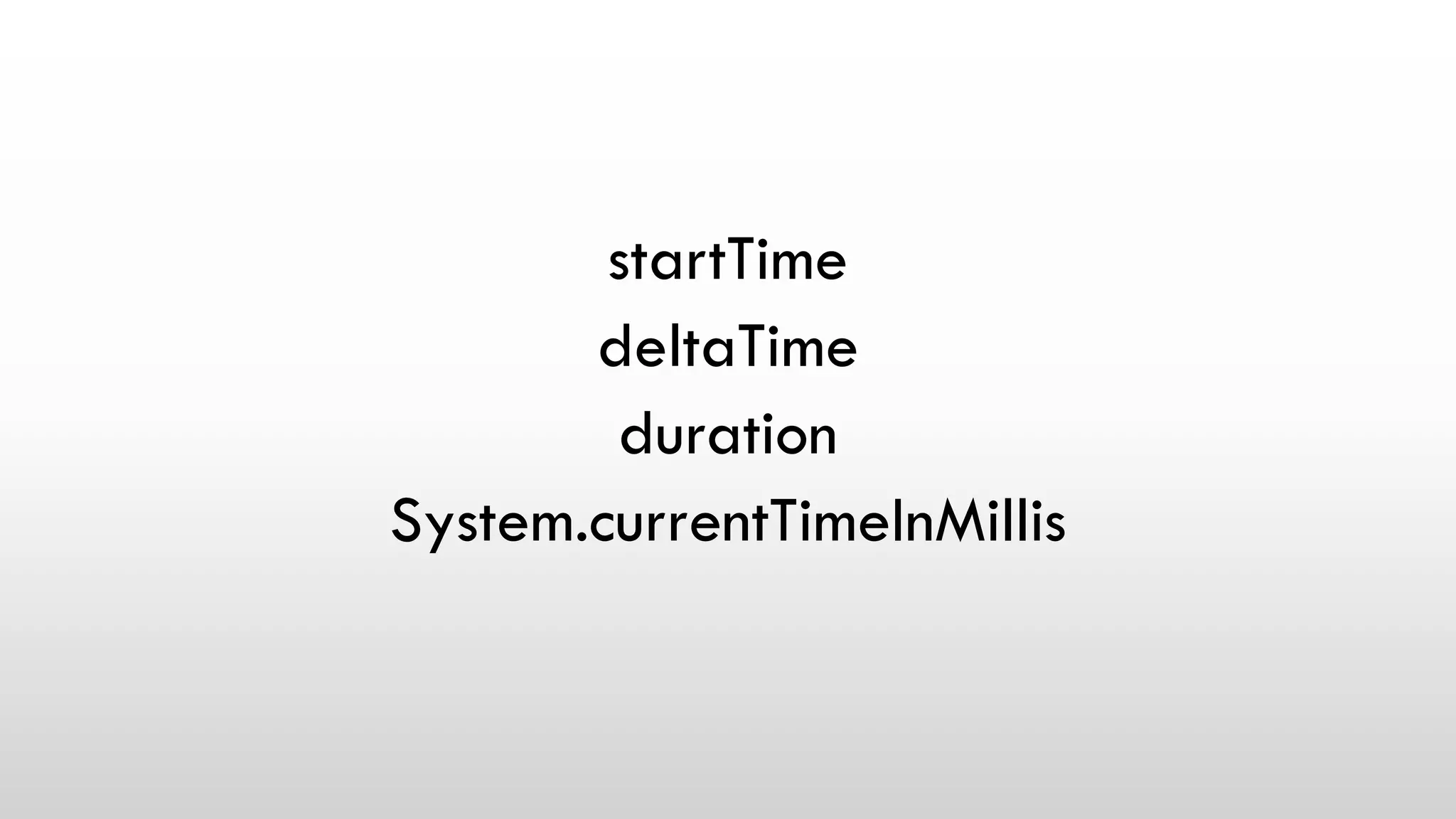

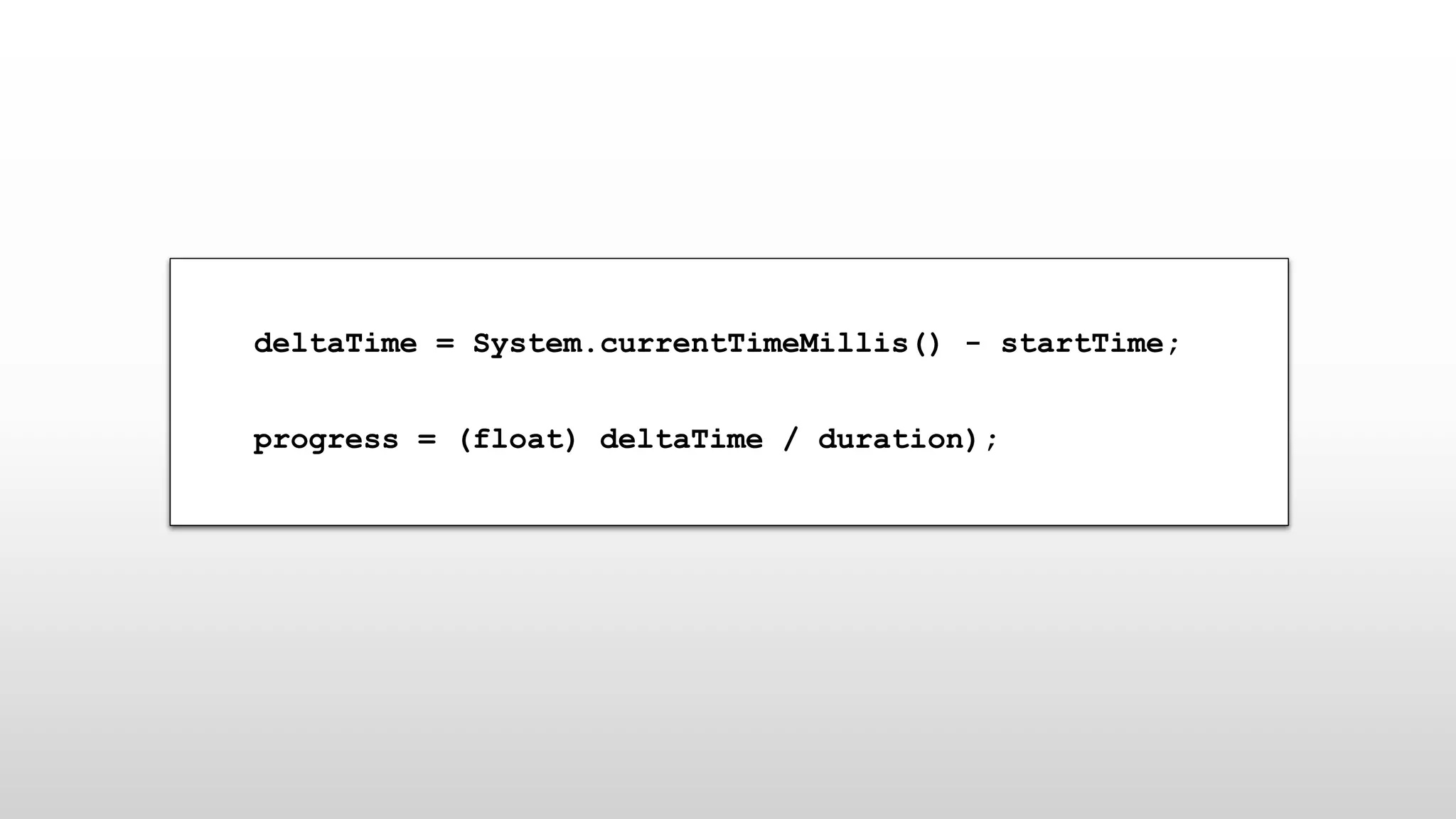

- 142. deltaTime = System.currentTimeMillis() - startTime; progress = (float) deltaTime / duration);
- 143. Animation pattern (well, my pattern)
- 144. Make the methods setup the states
- 145. In the onDraw

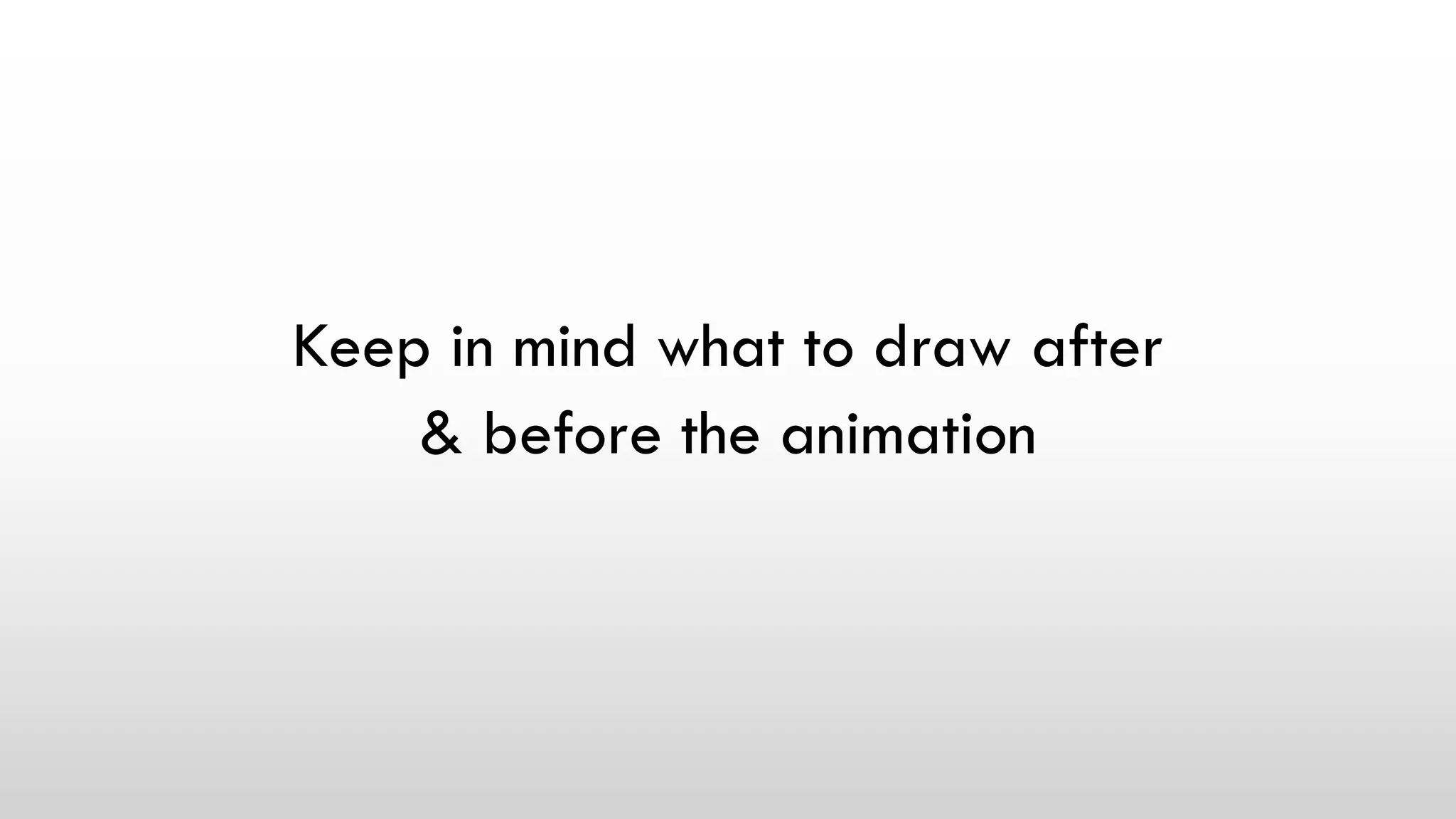

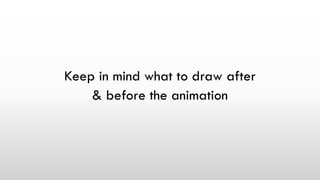

- 147. Keep in mind what to draw after & before the animation
- 148. Cache, cache and cache
- 149. Include also animating states

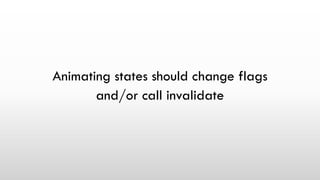

- 150. Animating states should change flags and/or call invalidate

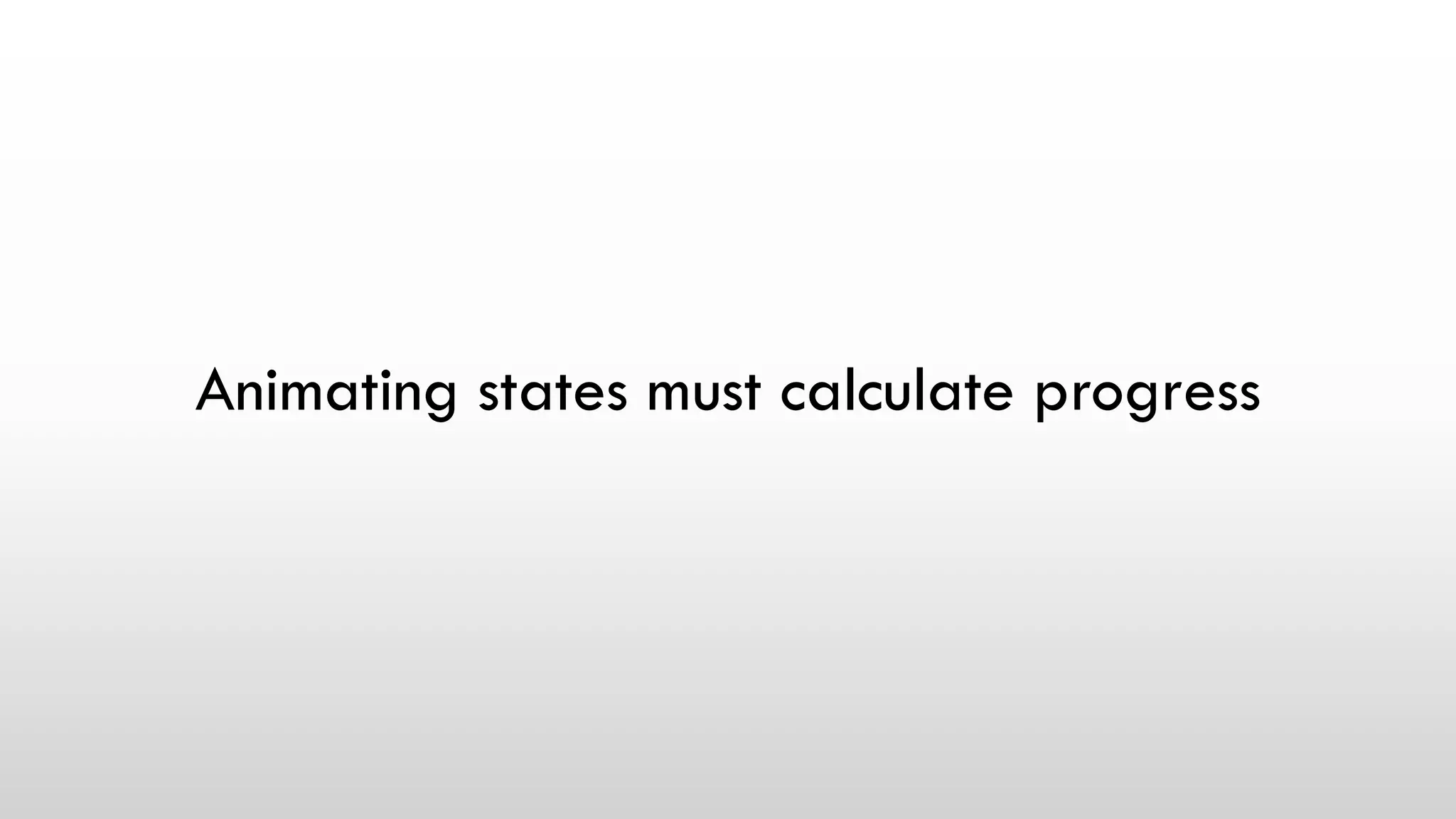

- 151. Animating states must calculate progress
- 152. Interpolators

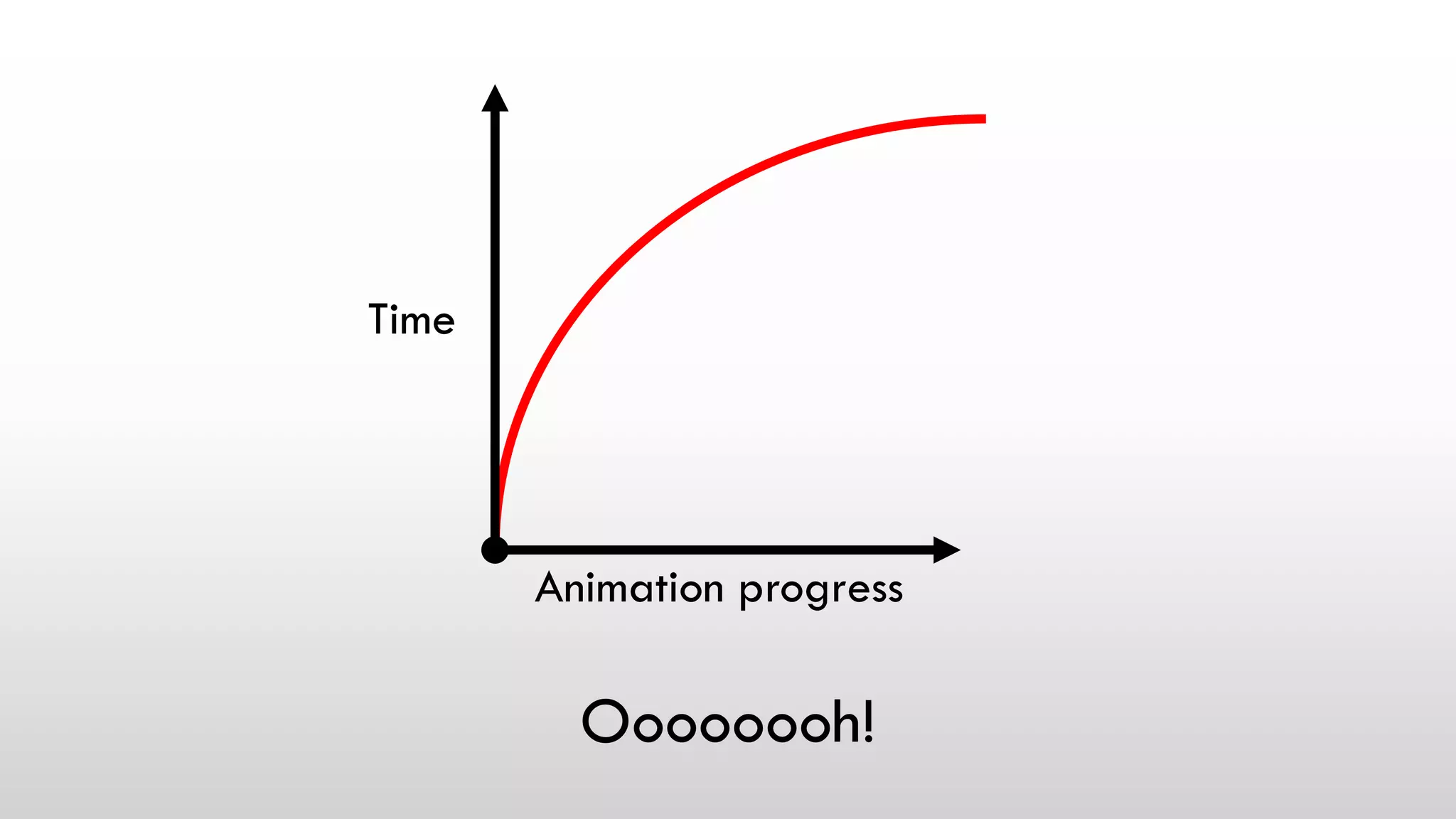

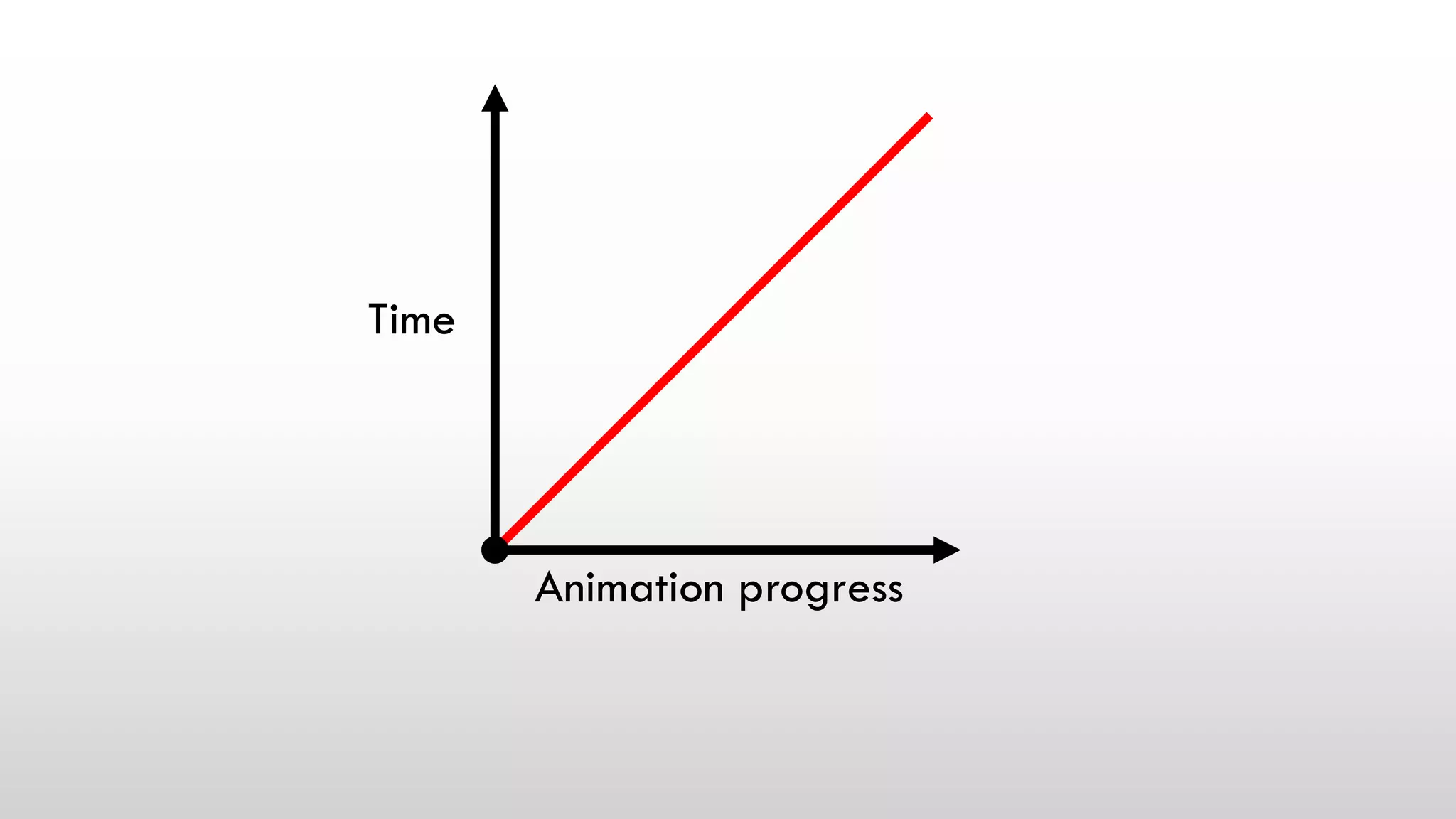

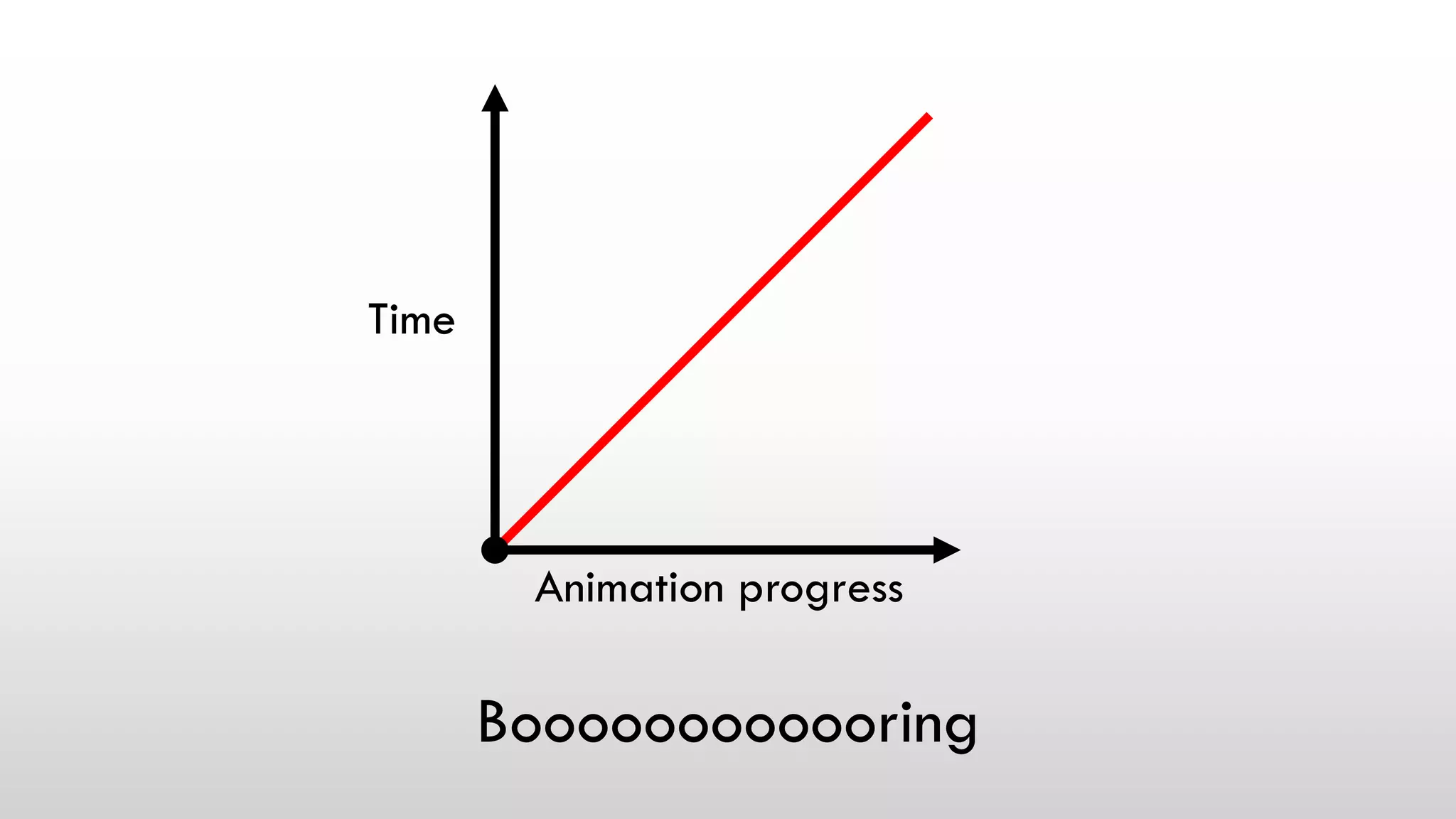

- 153. Used to add realism to the animations

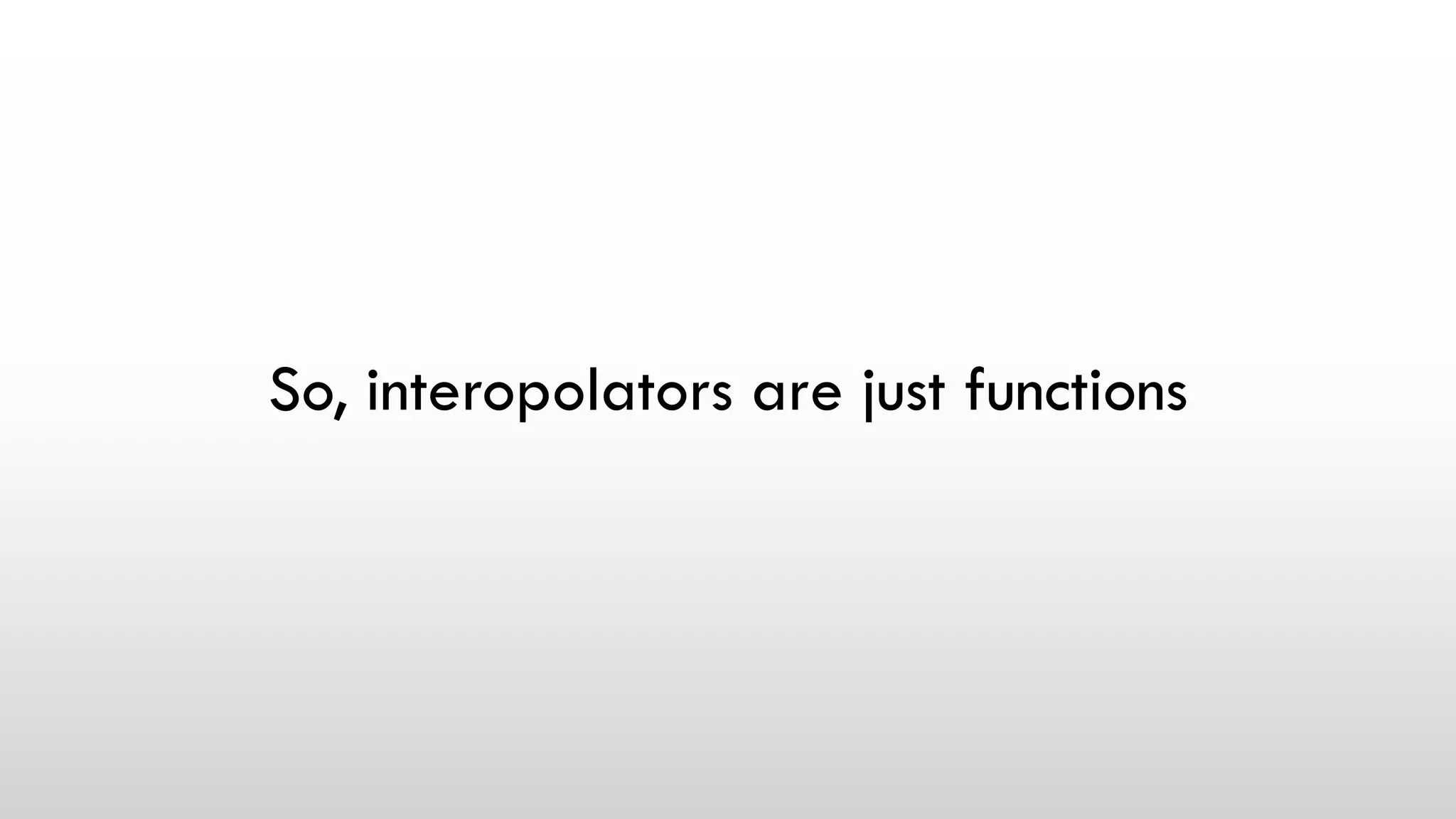

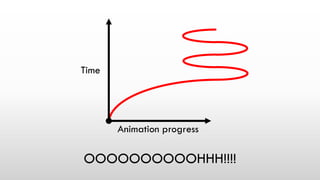

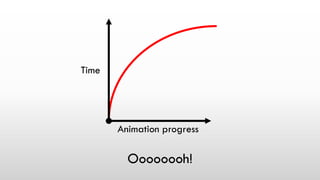

- 158. So, interopolators are just functions
- 159. f(delta time) = interpolated time
- 160. deltaTime = System.currentTimeMillis() - startTime; progress = (float) deltaTime / duration);

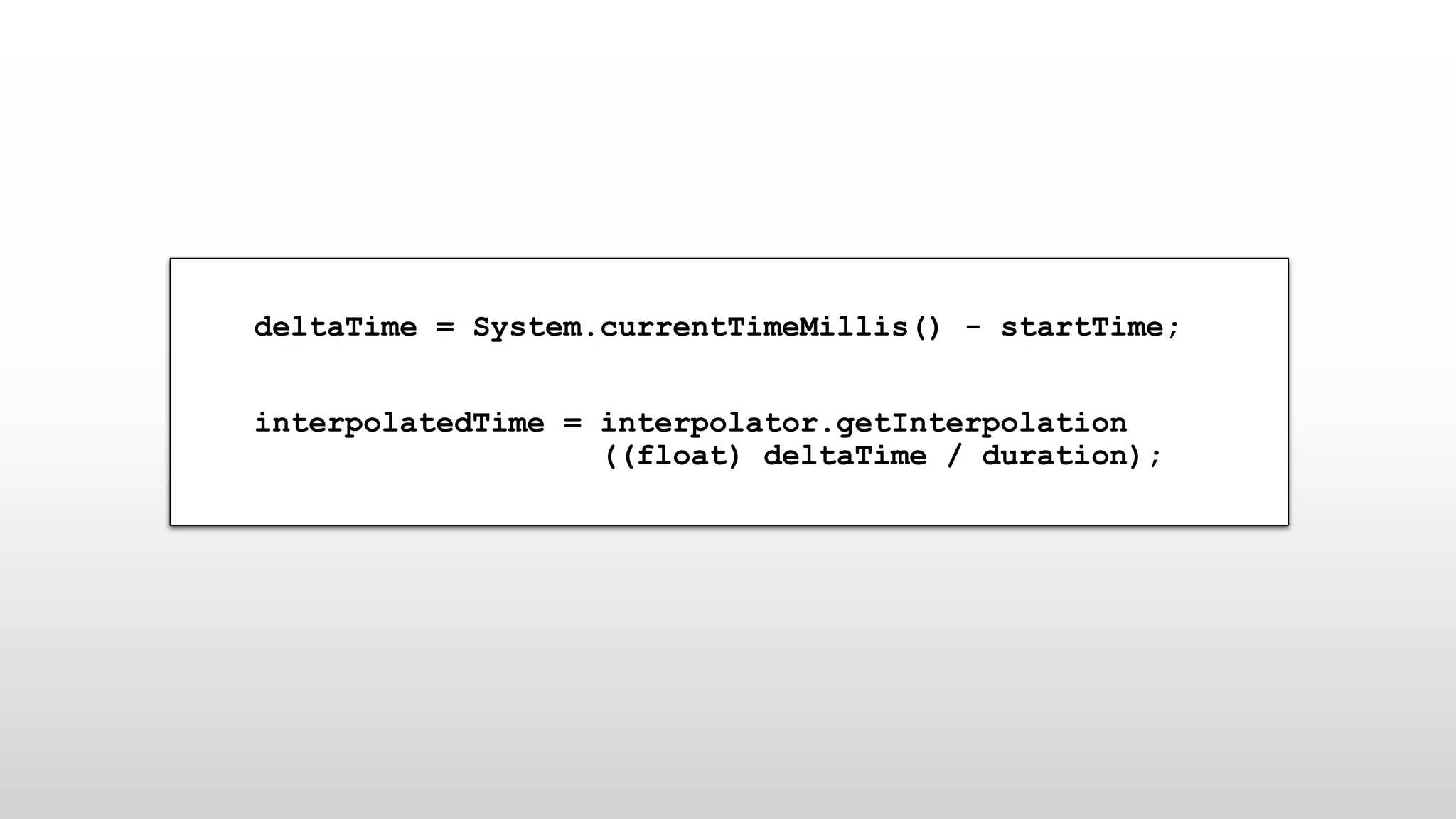

- 161. deltaTime = System.currentTimeMillis() - startTime; interpolatedTime = interpolator.getInterpolation ((float) deltaTime / duration);
- 163. Tag 3_01_start
- 164. Newspaper effect!

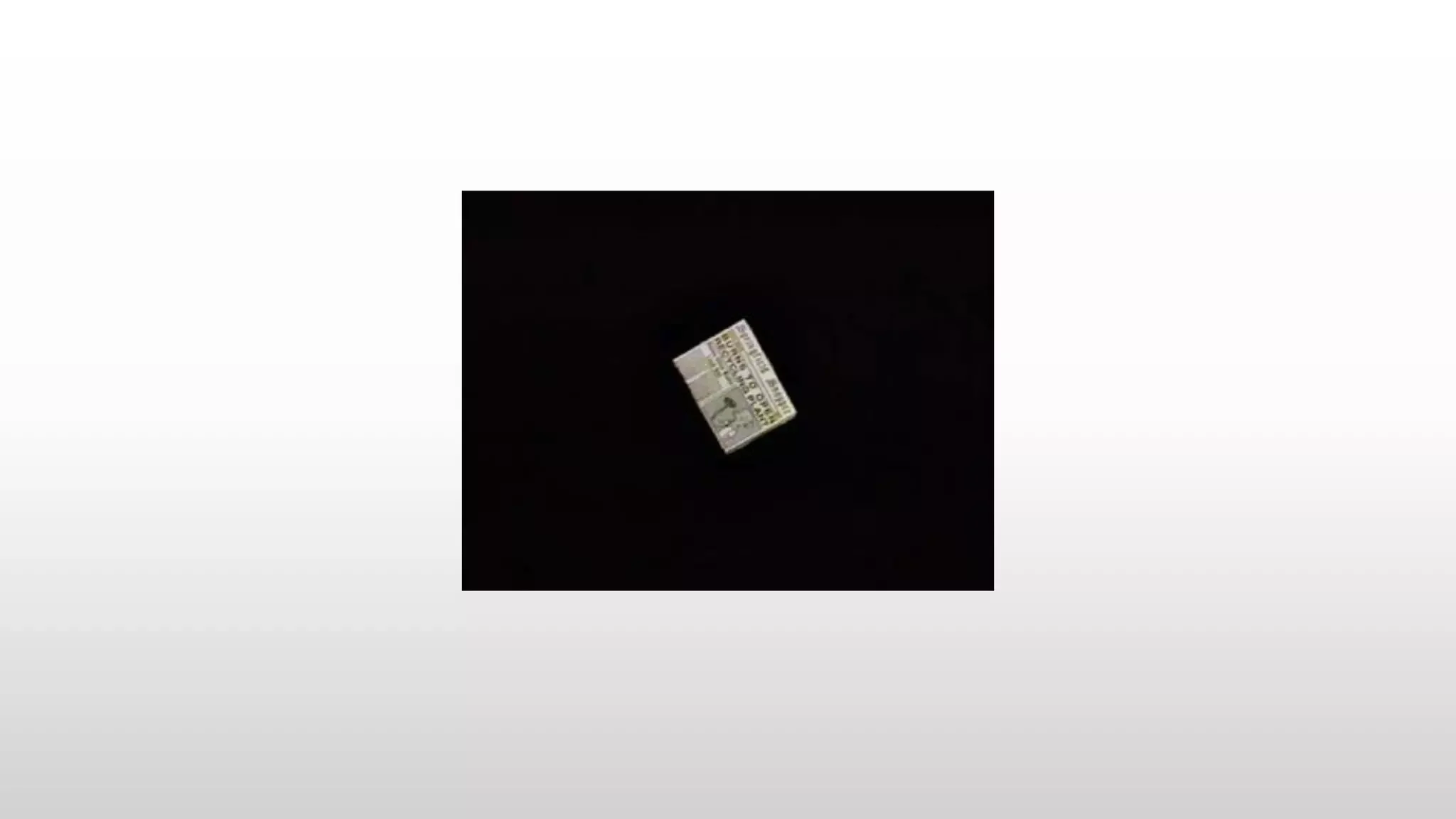

- 165. Newspaper effect!
- 166. Follow the pattern and fill it up comments

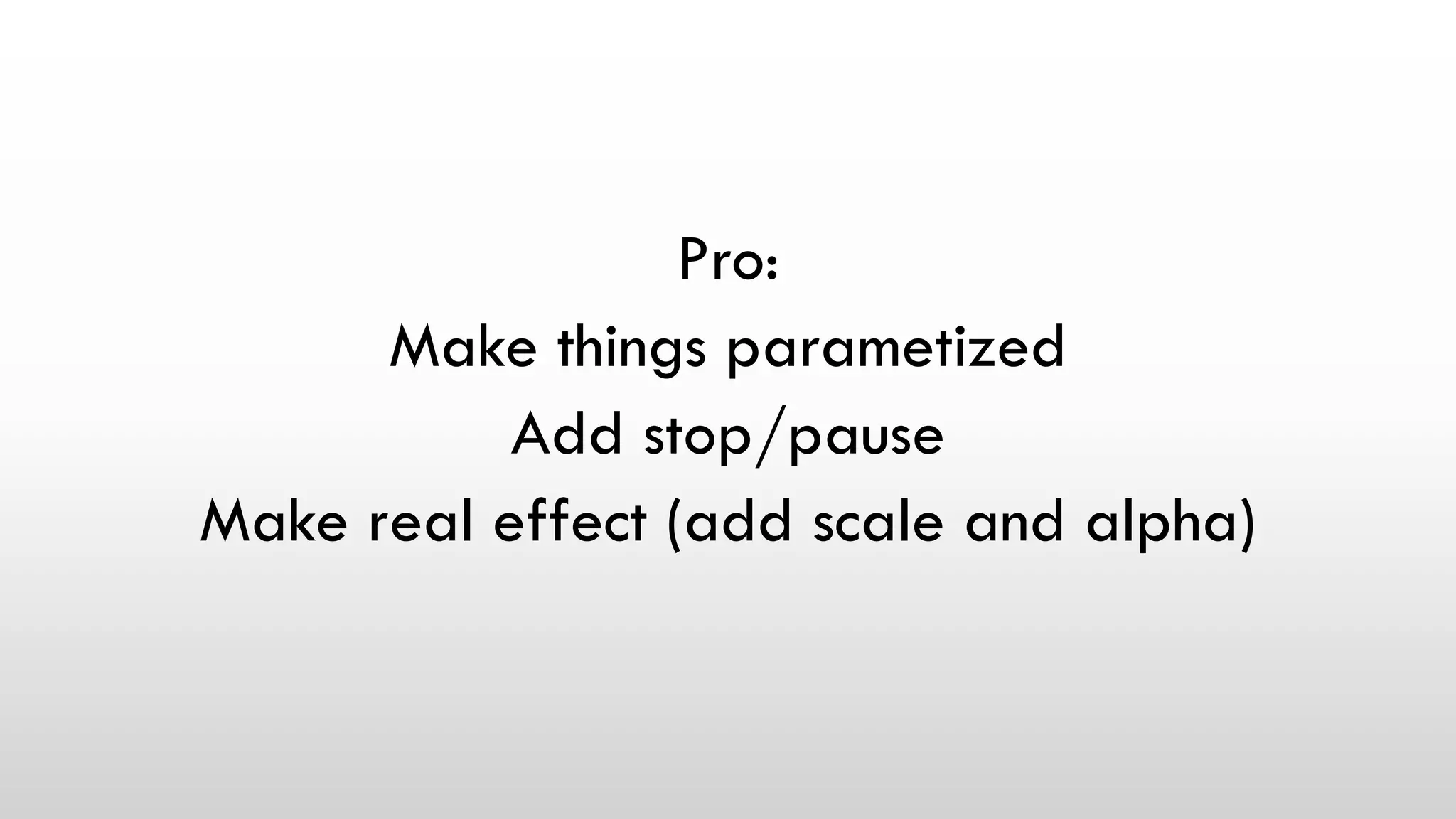

- 167. Pro: Make things parametized Add stop/pause Make real effect (add scale and alpha)
- 168. Did you finish the exercise?
- 169. So we are finished
- 170. There are many other things in Canvas
- 171. Believe me
- 172. Just check drawing text stuff
- 173. Whoever made the TextView is my hero
- 174. Whoever made EditText is my God
- 175. Hope you enjoyed
- 176. Willing to see the things you make with all this
- 177. Share them in the GDG group!
