The document outlines a master plan for Inner Sunset Park, focusing on creating a walkable, community-oriented neighborhood with improved access to Golden Gate Park and public transportation. Proposed enhancements include gathering spaces, parklets, sidewalk improvements, and better transit links, along with greening elements like trees and public art. The plan aims to enhance the area's unique character and promote positive community interaction.
More Related Content
Ispn 4
- 1. Inner Sunset ParkNeighbors Neighborhood Planning Jack Verdon AIA
- 2. So why amaster plan?

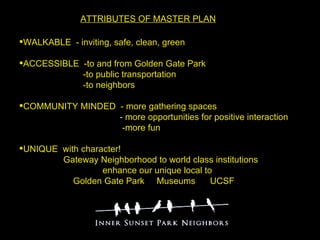

- 3. ATTRIBUTES OF MASTERPLAN WALKABLE - inviting, safe, clean, green ACCESSIBLE -to and from Golden Gate Park -to public transportation -to neighbors COMMUNITY MINDED - more gathering spaces - more opportunities for positive interaction -more fun UNIQUE with character! Gateway Neighborhood to world class institutions enhance our unique local to Golden Gate Park Museums UCSF

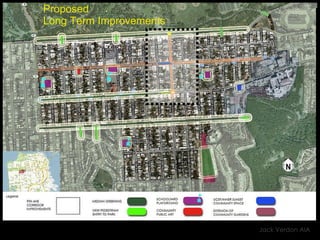

- 4. Proposed LongTerm Improvements Jack Verdon AIA
- 5. Inner Sunset Gateway Jack Verdon AIA Golden Gate Park Gateway Commercial Square Transit Link N-Judah Bus lines 6,43,44,66 Pavement To Parks Parklet Propose sidewalk improvements Farmer’s Market

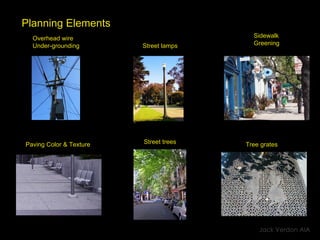

- 6. Planning Elements Overhead wire Under-grounding Street trees Street lamps Sidewalk Greening Paving Color & Texture Tree grates Jack Verdon AIA

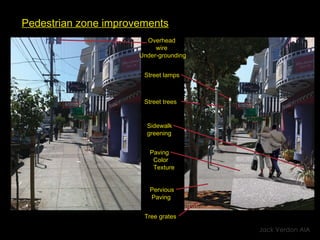

- 7. Pedestrian zone improvements Overhead wire Under-grounding Street trees Street lamps Sidewalk greening Paving Color Texture Pervious Paving Tree grates Jack Verdon AIA
- 8.
- 9. Transit link -Bus Hub Jack Verdon AIA Street lamp Green Wall

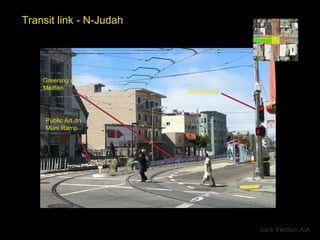

- 10. Transit link -N-Judah Jack Verdon AIA Street lamp Public Art on Muni Ramp Greening of Median

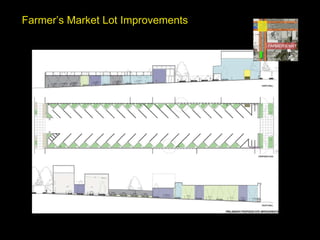

- 11. Farmer’s Market LotImprovements

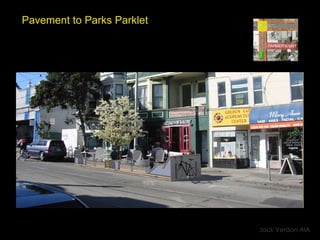

- 12. Pavement to ParksParklet Jack Verdon AIA

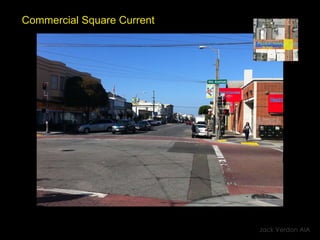

- 13. Commercial Square CurrentJack Verdon AIA
- 14. Commercial Square ProposedUtility under-grounding Crosswalk striping Public Art Street lamps Stone Pavers 9th to 10th Jack Verdon AIA

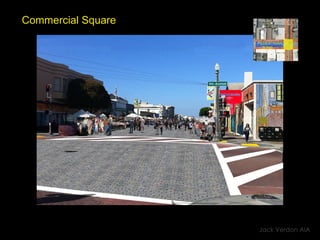

- 15. Commercial Square Jack Verdon AIA
- 16. Lincoln Ave Median Jack Verdon AIA

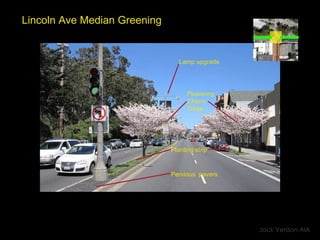

- 17. Lincoln Ave MedianGreening Pervious pavers Flowering Cherry Trees Lamp upgrade Planting strip Jack Verdon AIA

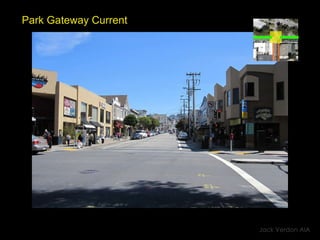

- 18. Park Gateway CurrentJack Verdon AIA
- 19. Park Gateway ConceptJack Verdon AIA Cherry Trees Stone pavers at intersection Contrasting stone pavers at Crosswalks Street lamps Public art - Gateway Utilies Under-grounding

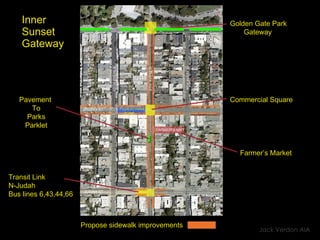

- 20. Inner Sunset Gateway Golden Gate Park Gateway Commercial Square Transit Link N-Judah Bus lines 6,43,44,66 Pavement To Parks Parklet Propose sidewalk improvements Farmer’s Market Jack Verdon AIA
- 21.
Editor's Notes
- #3 Wired! This image prompted proposed improvements
- #4 1. Lincoln Ave median greening & public art 2. Irving St & 9th Ave pedestrian sidewalk improvements 3. Gateway Neighbors /Commercial Zone A. Pedestrian safety improvements B. Community gathering spaces
- #5 1. Lincoln Ave median greening & public art 2. Irving St & 9th Ave pedestrian sidewalk improvements 3. Gateway Neighbors /Commercial Zone A. Pedestrian safety improvements B. Community gathering spaces
- #7 Improvements : Overhead wire under-grounding - big impact - long term Regularly spaces street trees - of same variety - creates uniformed, cohesive enviornment Street lamps -use of G.G. park lamps A. creates a connection and entry to/from the park B. provides better/safer pedestrian way lighting - supported by SFPD 4.Sidewalk greening -potted plants and/or curbside planting strips 5. Sidewalk Paving A. Lighter color with exposed stones and larger pattern areas (6x9 vs. 3x3 squares) B. Pervious paving along curdside/city utility zone - Green strategy 6. Tree grates -design reflecting neighborhood character
- #8 Improvements : Overhead wire under-grounding - big impact - long term Regularly spaces street trees - of same variety - creates uniformed, cohesive enviornment Street lamps -use of G.G. park lamps A. creates a connection and entry to/from the park B. provides better/safer pedestrian way lighting - supported by SFPD 4.Sidewalk greening -potted plants and/or curbside planting strips 5. Sidewalk Paving A. Lighter color with exposed stones and larger pattern areas (6x9 vs. 3x3 squares) B. Pervious paving along curdside/city utility zone - Green strategy 6. Tree grates -design reflecting neighborhood character
- #9 With street fair
- #10 Enlarged
- #11 Planting median-Enlarged
- #13 This design has recently been submitted to the SF Pavement to Parks Parklet program. The program allows the a temporary structure to occupy 2 city street parking spots 2 spots in front of Arizmendi bakery was chosen to be the neighborhood pilot project location due to the pedestrian congestion in front of the neighborhood bakery. While this proposal is intended to improve pedestrian traffic front of Arizmendi’s it is open to the public.
- #15 Square open to traffic
- #16 With street fair
