Emergent Middleware to Support Interoperability in Mobile Collaborative Applications
This document discusses emergent middleware to support interoperability in mobile collaborative applications. It outlines an approach using dynamic synthesis of mediators to enable interoperability between heterogeneous systems. The key steps involve using ontologies to perform functional and behavioral matching between systems, generating mapping processes, and deploying the mappings as an emergent middleware artifact to enable interoperability. Challenges include dealing with heterogeneity, ensuring dependability of the synthesized mediators, and involving users in the adaptation process.
More Related Content
Similar to Emergent Middleware to Support Interoperability in Mobile Collaborative Applications
Emergent Middleware to Support Interoperability in Mobile Collaborative Applications
- 1. Emergent Middleware to Support Interoperability in Mobile Collaborative Applications Valérie Issarny, Inria PRO, EPI ARLES Workshop ISM, 24/04/13

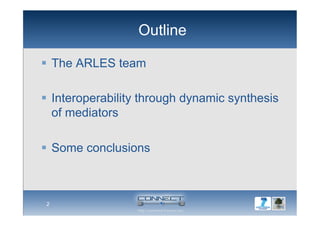

- 2. Outline The ARLESteam Interoperability through dynamic synthesis of mediators Some conclusions 2

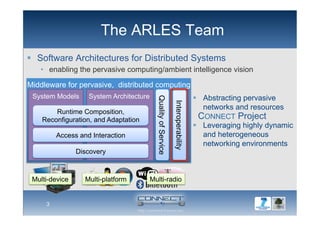

- 3. Middleware for pervasive,distributed computing System Architecture The ARLES Team Software Architectures for Distributed Systems • enabling the pervasive computing/ambient intelligence vision 3 d computing QualityofService Interoperability CONNECT Project Multi-radio Abstracting pervasive networks and resources Leveraging highly dynamic and heterogeneous networking environments System Models Access and Interaction Runtime Composition, Reconfiguration, and Adaptation Discovery Multi-device Multi-platform

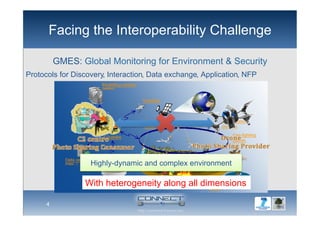

- 4. Facing the InteroperabilityChallenge GMES: Global Monitoring for Environment & Security Protocols for Discovery 4 , Interaction, Data exchange, Application, NFP With heterogeneity along all dimensions Highly-dynamic and complex environment

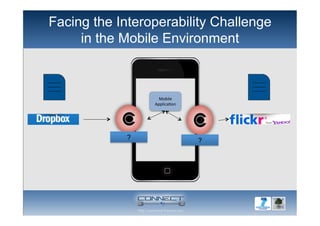

- 5. Facing the InteroperabilityChallenge in the Mobile Environment Mobile Applica,on ??

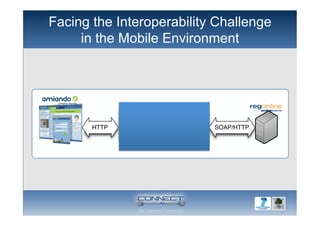

- 6. Facing the InteroperabilityChallenge in the Mobile Environment Amiando to Regonline Mediator SOAP/HTTPHTTP EventFind() Login() GetEvents()EventRead()

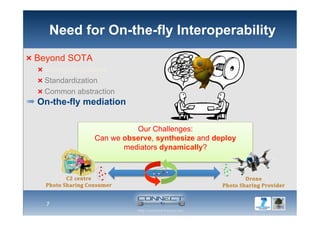

- 7. Looking for Babelfish… Adapt protocol on the fly using an intermediary system: the mediator Our Challenges: Can we observe, synthesize and deploy mediators dynamically? Need for On-the-fly Interoperability × Beyond SOTA × Changing systems × Standardization × Common abstraction ➠ On-the-fly mediation 7

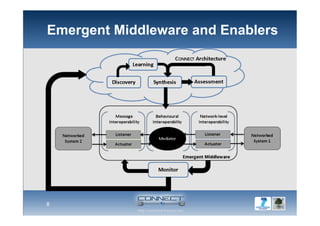

- 8. 8 Emergent Middleware andEnablers

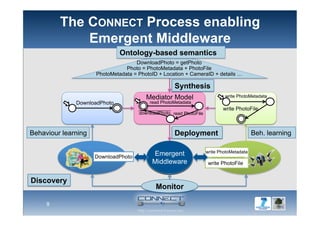

- 9. The CONNECT Processenabling Emergent Middleware 9 DownloadPhoto write PhotoFile write PhotoMetadata Behaviour learning Beh. learning read PhotoFile Mediator Model downloadPhoto read PhotoMetadata Deployment Monitor Emergent Middleware Ontology-based semantics DownloadPhoto = getPhoto Photo = PhotoMetadata + PhotoFile PhotoMetadata = PhotoID + Location + CameraID + details … Synthesis Deployment write PhotoFile write PhotoMetadata DownloadPhoto Discovery

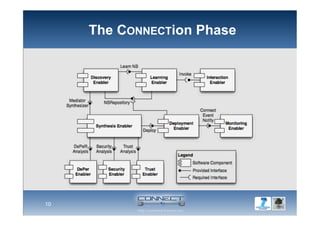

- 10.

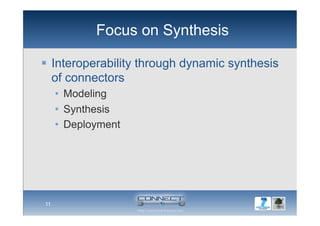

- 11. Focus on Synthesis 11 Interoperability through dynamic synthesis of connectors • Modeling • Synthesis • Deployment

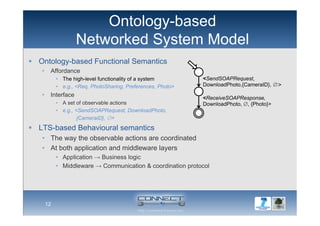

- 12. Ontology-based Networked System Model Ontology-based Functional Semantics • Affordance • The high-level functionality of a system • e.g., <Req, PhotoSharing, Preferences, Photo> • Interface • A set of observable actions • e.g., <SendSOAPRequest, DownloadPhoto, {CameraID}, ∅> LTS-based Behavioural semantics • The way the observable actions are coordinated • At both application and middleware layers • Application → Business logic • Middleware → Communication & coordination protocol 12 Interface Networked System Affordance Behaviour 1 0..n 1 Ontologies <SendSOAPRequest, DownloadPhoto,{CameraID}, ∅> <ReceiveSOAPResponse, DownloadPhoto, ∅, {Photo}>
- 13. Emergent Middleware Synthesis Informedby Ontologies System (NS2) Functional MatchingSystem (NS1) Ontologies Does it make sense for NS1 and NS2 to interact? 13
- 14. Functional Matching 14 System 2System1 AffC2= <Req, PhotoSharing, {CameraID}, {PhotoFile}> AffDrone = <Prov, PhotoSharing, ∅, {Photo}> What is the relation between a PhotoFile and Photo ?

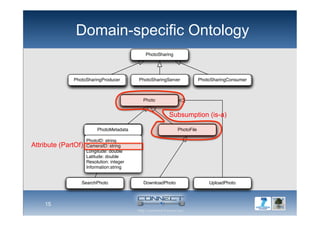

- 15. Domain-specific Ontology 15 PhotoSharingProducer PhotoSharingServerPhotoSharingConsumer PhotoMetadata PhotoFile Photo SearchPhoto DownloadPhoto UploadPhoto PhotoSharing PhotoSharingProducer PhotoSharingServer PhotoSharingConsumer PhotoMetadata PhotoFile Photo SearchPhoto DownloadPhoto UploadPhoto PhotoSharing Subsumption (is-a) PhotoID: string CameraID: string Longitude: double Latitude: double Resolution: integer Information:string Attribute (PartOf)

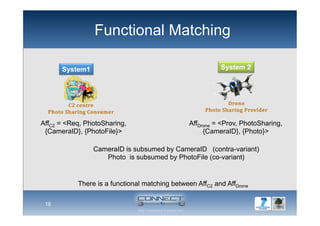

- 16. Functional Matching 16 System 2System1 AffC2= <Req, PhotoSharing, {CameraID}, {PhotoFile}> AffDrone = <Prov, PhotoSharing, {CameraID}, {Photo}> There is a functional matching between AffC2 and AffDrone CameraID is subsumed by CameraID (contra-variant) Photo is subsumed by PhotoFile (co-variant)
- 17. Emergent Middleware Synthesis Informedby Ontologies Middleware Abstraction Middleware Abstraction System (NS2) Functional Matching Yes System (NS1) Middleware-agnostic Networked System (NS2) Middleware-agnostic System (NS1) Ontologies Abstract from the communication protocol details and concentrate on application semantics 17

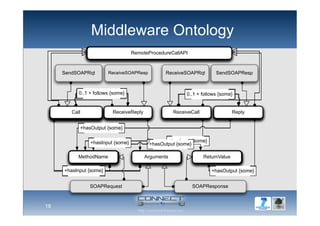

- 18. Middleware Ontology 18 RemoteProcedureCallAPI MethodName ArgumentsReturnValue 0..1 + follows {some} 0..1 + follows {some} RemoteProcedureCallAPI ReceveReply ReceiveCall Reply MethodName Arguments ReturnValue 0..1 + follows {some} +hasInput {some} +hasOutput {some} +hasOutput {some} +hasInput {some} +hasOutput {some} Call 0..1 + follows {some} +hasInput {some} +hasInput {some} Call RemoteProcedureCallAPI ReceveReply ReceiveCall Reply MethodName Arguments ReturnValue 0..1 + follows {some} +hasInput {some} +hasOutput {some} +hasOutput {some} +hasInput {some} +hasOutput {some} SendSOAPRespReceiveSOAPResp ReceiveSOAPRqt SOAPRequest SOAPResponse SendSOAPRqt Call 0..1 + follows {some} +hasInput {some} ReceiveReply ReceiveCall ReplyCall

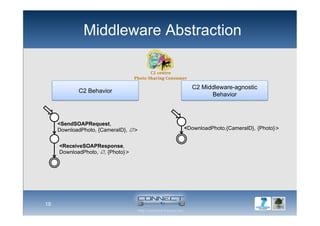

- 19. Middleware Abstraction 19 <SendSOAPRequest, DownloadPhoto, {CameraID},∅> <ReceiveSOAPResponse, DownloadPhoto, ∅, {Photo}> <DownloadPhoto,{CameraID}, {Photo}> C2 Behavior C2 Middleware-agnostic Behavior

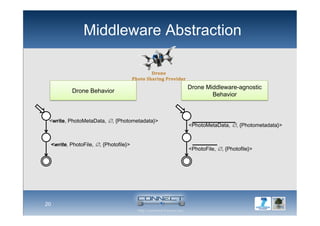

- 20. Middleware Abstraction 20 Drone Behavior DroneMiddleware-agnostic Behavior <write, PhotoMetaData, ∅, {Photometadata}> <write, PhotoFile, ∅, {Photofile}> <PhotoMetaData, ∅, {Photometadata}> <PhotoFile, ∅, {Photofile}>

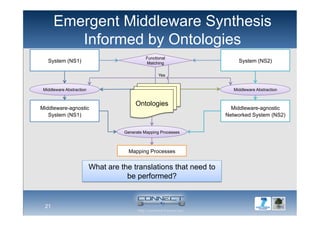

- 21. Emergent Middleware Synthesis Informedby Ontologies Middleware Abstraction Middleware Abstraction System (NS2) Functional Matching Yes System (NS1) Middleware-agnostic Networked System (NS2) Middleware-agnostic System (NS1) Ontologies 21 Generate Mapping Processes Mapping Processes What are the translations that need to be performed?

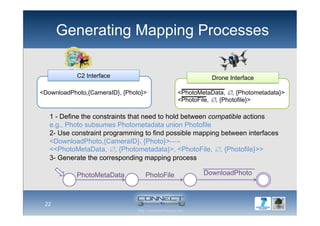

- 22. Generating Mapping Processes 22 DroneInterfaceC2 Interface <DownloadPhoto,{CameraID}, {Photo}> <PhotoMetaData, ∅, {Photometadata}> <PhotoFile, ∅, {Photofile}> DownloadPhotoPhotoMetaData PhotoFile 1 - Define the constraints that need to hold between compatible actions 2- Use constraint programming to find possible mapping between interfaces <DownloadPhoto,{CameraID}, {Photo}>⟼ <<PhotoMetaData, ∅, {Photometadata}>, <PhotoFile, ∅, {Photofile}>> e.g., Photo subsumes Photometadata union Photofile 3- Generate the corresponding mapping process

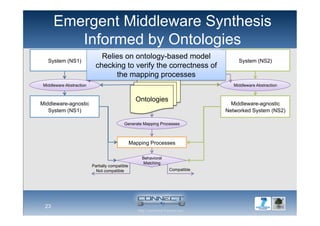

- 23. Emergent Middleware Synthesis Informedby Ontologies Middleware Abstraction Middleware Abstraction Compatible Partially compatible Not compatible Behavioral Matching System (NS2) Functional Matching Yes System (NS1) Middleware-agnostic Networked System (NS2) Middleware-agnostic System (NS1) Ontologies 23 Generate Mapping Processes Mapping Processes Relies on ontology-based model checking to verify the correctness of the mapping processes

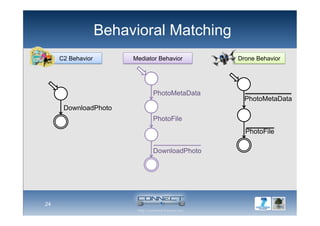

- 24.

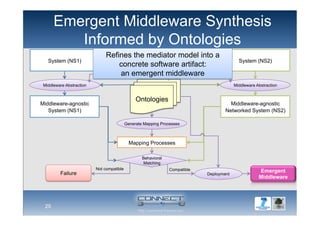

- 25. Emergent Middleware Synthesis Informedby Ontologies Middleware Abstraction Middleware Abstraction CompatibleNot compatible Behavioral Matching System (NS2) Functional Matching Yes System (NS1) Middleware-agnostic Networked System (NS2) Middleware-agnostic System (NS1) Ontologies 25 Generate Mapping Processes Mapping Processes Deployment Emergent Middleware Refines the mediator model into a concrete software artifact: an emergent middleware Failure

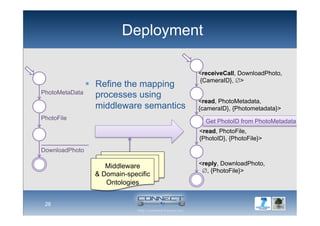

- 26. Deployment Refine themapping processes using middleware semantics 26 <receiveCall, DownloadPhoto, {CameraID}, ∅> <read, PhotoMetadata, {cameraID}, {Photometadata}> <reply, DownloadPhoto, ∅, {PhotoFile}> <read, PhotoFile, {PhotoID}, {PhotoFile}> PhotoMetaData PhotoFile DownloadPhoto Get PhotoID from PhotoMetadata Middleware & Domain-specific Ontologies

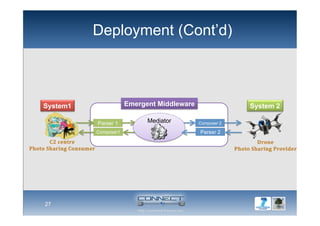

- 27. Deployment (Cont’d) 27 Composer 2 Parser2 Parser 1 Composer1 Emergent Middleware Mediator System 2System1

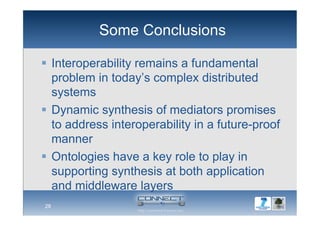

- 28. Some Conclusions Interoperabilityremains a fundamental problem in today’s complex distributed systems Dynamic synthesis of mediators promises to address interoperability in a future-proof manner Ontologies have a key role to play in supporting synthesis at both application and middleware layers 28

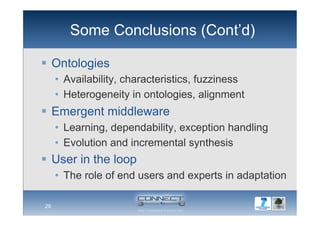

- 29. Some Conclusions (Cont’d) Ontologies • Availability, characteristics, fuzziness • Heterogeneity in ontologies, alignment Emergent middleware • Learning, dependability, exception handling • Evolution and incremental synthesis User in the loop • The role of end users and experts in adaptation 29
- 30. Thanks to colleagues: AmelBennaceur, Nikolaos Georgantas Animesh Pathak & Ambientic contributors Thank you

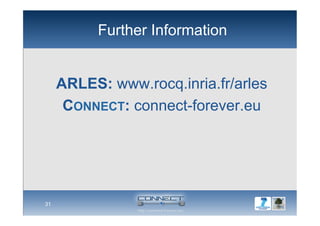

- 31. Further Information ARLES: www.rocq.inria.fr/arles CONNECT:connect-forever.eu 31
