The document outlines Dassault Systèmes' ecodesign strategy, which integrates environmental considerations into the design process through Lifecycle Assessment (LCA) and Product Lifecycle Management (PLM). It emphasizes sustainable practices by focusing on material and energy reduction, reusability, and compliance with environmental regulations. The presentation also highlights tools and platforms for assessing environmental impact and improving product sustainability in various industries, particularly aerospace.

1. Dassault Systèmes
Sustainable Innovation
Integrating
EcoDesign & LCA
with
CAD & PLM
Le Bourget
Clean Sky chalet
2011, June 20th
Jean-Pierre THERET
EcoDesign leader in Europe
jeanpierre.theret@3ds.com
+33 6 6023 4767
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only

2. Dassault Systèmes Brands
Virtual Product
Search Base
3D MCAD
Application
User
Virtual Testing
Experience
PLM Virtual
Collaboration Production
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only

3. Environmental Issues
Too much
Green
House
Gazes
(GHG)
Too
much
wastes
SOLUTIONS ?
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only

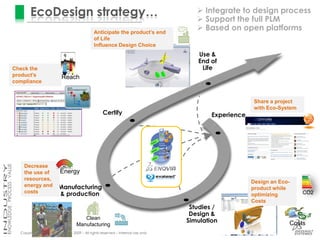

4. EcoDesign strategy…  Integrate to design process
 Support the full PLM
Anticipate the product’s end
 Based on open platforms
of Life
Influence Design Choice
Use &
End of
Check the Life
product’s Reach
compliance
Share a project
with Eco-System
Certify Experience
Decrease
the use of Energy
resources,
Design an Eco-
energy and Manufacturing product while
costs & production CO2
optimizing
Costs
Studies /
Design &
Clean
Simulation Costs
Manufacturing
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only

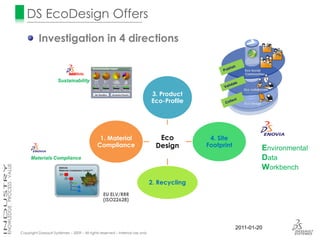

5. DS EcoDesign Offers
Investigation in 4 directions Reduction in the material
intensity
Reduction of energy intensity
Reduction of toxic materials
Promote reusability
Sustainability
Improved recyclability
3. Product Use of renewable resources
Eco-Profile Greater durability
Increase service intensity
1. Material Eco 4. Site
Compliance Design Footprint
Environmental
Materials Compliance Data
Workbench
2. Recycling
EU ELV/RRR
(ISO22628)
2011-01-20
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only

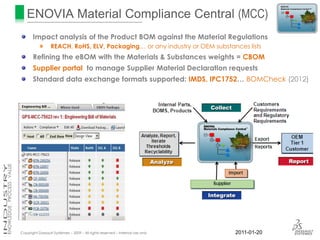

6. ENOVIA Material Compliance Central (MCC)
Impact analysis of the Product BOM against the Material Regulations
REACH, RoHS, ELV, Packaging… or any industry or OEM substances lists
Refining the eBOM with the Materials & Substances weights = CBOM
Supplier portal to manage Supplier Material Declaration requests
Standard data exchange formats supported: IMDS, IPC1752… BOMCheck (2012)
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only 2011-01-20

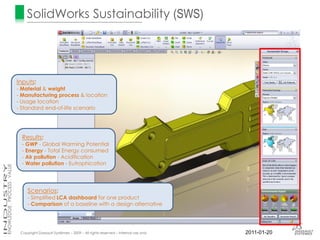

7. SolidWorks Sustainability (SWS)
Inputs:
- Material & weight
- Manufacturing process & location
- Usage location
- Standard end-of-life scenario
Results:
- GWP - Global Warming Potential
- Energy - Total Energy consumed
- Air pollution - Acidification
- Water pollution - Eutrophication
Scenarios:
- Simplified LCA dashboard for one product
- Comparison of a baseline with a design alternative
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only 2011-01-20

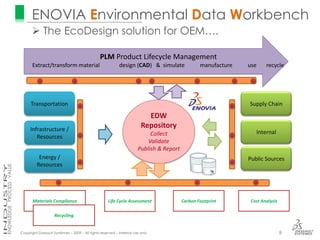

8. ENOVIA Environmental Data Workbench
 The EcoDesign solution for OEM….
PLM Product Lifecycle Management
Extract/transform material design (CAD) & simulate manufacture use recycle
Transportation Supply Chain
EDW
Infrastructure /
Repository
Collect Internal
Resources
Validate
Publish & Report
Energy / Public Sources
Resources
Materials Compliance Life Cycle Assessment Carbon Footprint Cost Analysis
Recycling
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only 8

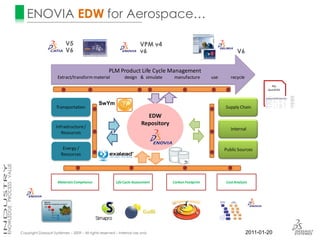

9. ENOVIA EDW for Aerospace…
V5 VPM v4
V6 v6 V6
PLM Product Life Cycle Management
Extract/transform material design & simulate manufacture use recycle
My
QuickFDS
SwYm
Transportation Supply Chain
Repository
EDW
Publish
Repository
Infrastructure / Internal
Resources Validate
Collect
Energy / Public Sources
Resources
Materials Compliance Life Cycle Assessment Carbon Footprint Cost Analysis
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only 2011-01-20

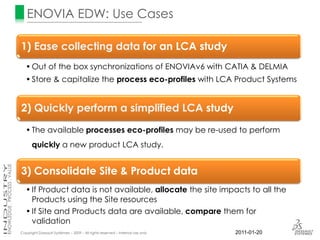

10. ENOVIA EDW: Use Cases
1) Ease collecting data for an LCA study
• Out of the box synchronizations of ENOVIAv6 with CATIA & DELMIA
• Store & capitalize the process eco-profiles with LCA Product Systems
2) Quickly perform a simplified LCA study
• The available processes eco-profiles may be re-used to perform
quickly a new product LCA study.
3) Consolidate Site & Product data
• If Product data is not available, allocate the site impacts to all the
Products using the Site resources
• If Site and Products data are available, compare them for
validation
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only 2011-01-20

11. ENOVIA EDW : EcoDesign Business Scenarios
Compliancy Regulations
Need: check the Product Compliancy to the Materials (restricted
substances usages), Recycling or End of Life EU regulations
Targets : EU REACH, RoHS, ELV/RRR, WEEE…
Product Environmental Profile Declaration (EPD)
Need : communicate the environmental performance of the Product to
Customers (B2B) or to End-Users (B2C)
LCA targeted tools: GaBi, SimaPro, EIME (E&E), OpenLCA…
Product EcoDesign
Need: design a better « eco-friendly » product, reduce environmental
impacts all along the lifecycle & energy costs, ease recycling at the end of
life
Approach: integrate ecological indicators & innovation in the Design
Process
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only 2011-01-20

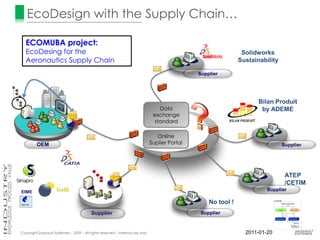

12. EcoDesign with the Supply Chain…
ECOMUBA project:
EcoDesing for the Solidworks
Aeronautics Supply Chain Sustainability
Supplier
Bilan Produit
Data by ADEME
exchange
standard
Online
OEM Suplier Portal Supplier
ATEP
/CETIM
EIME Supplier
No tool !
Supplier Supplier
Copyright Dassault Systèmes – 2009 – All rights reserved – Internal use only 2011-01-20

13. Dassault Systèmes – EcoDesign Offer
JeanPierre.THERET@3ds.com
+33 (0)6 60 23 47 67
Dassault Systèmes, EcoDesign leader
Ariane.PELLAS@3ds.com
+33 (0)6 1143 2254
Dassault Systèmes, Aerospace & Innovation
