Create IoT with Open Source Hardware, Tizen and HTML5

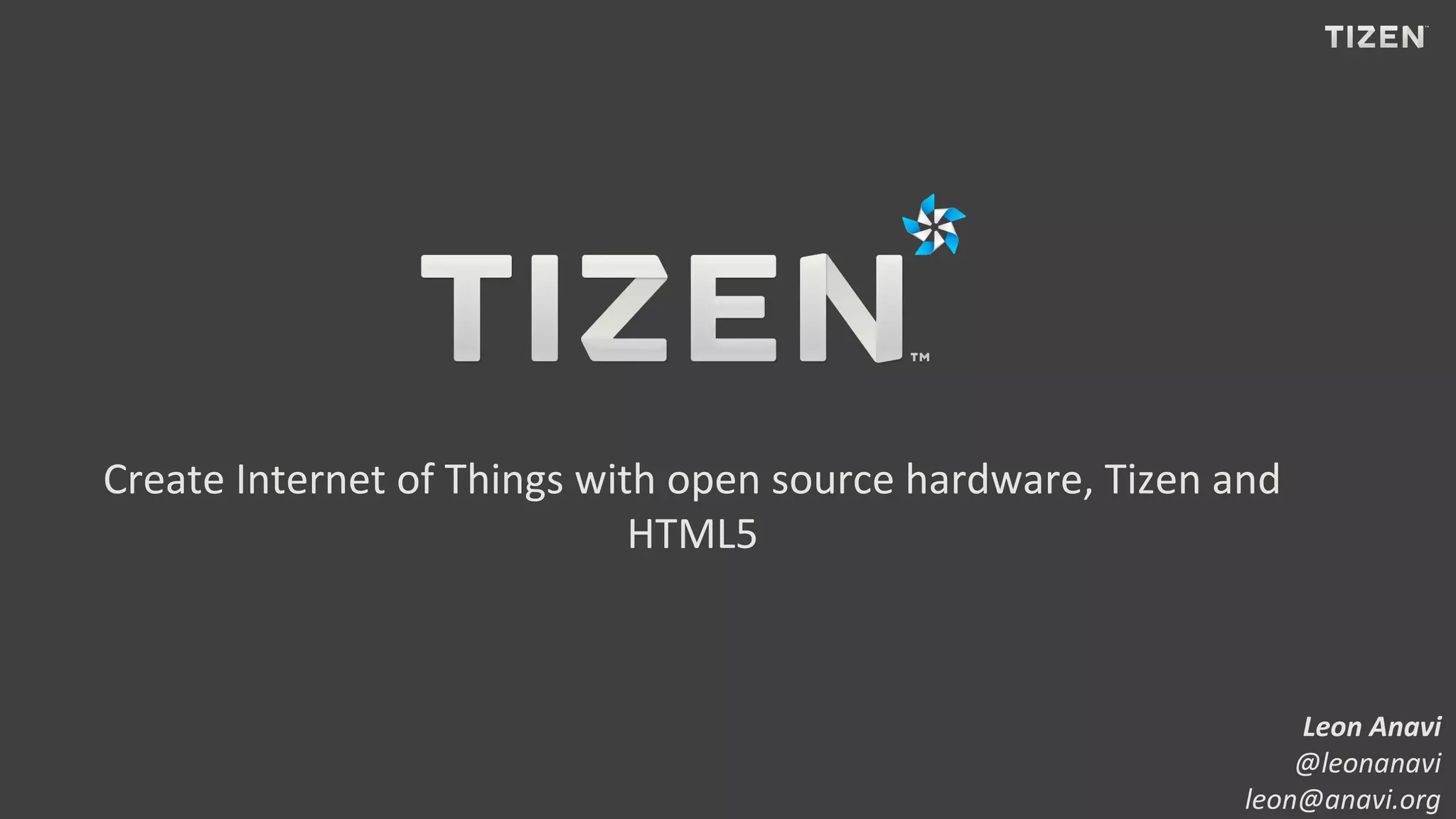

- 1. Create Internet of Things with open source hardware, Tizen and HTML5 Leon Anavi @leonanavi leon@anavi.org

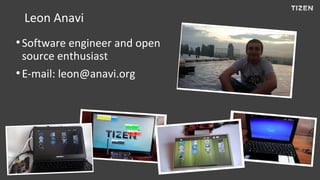

- 2. Leon Anavi ● Software engineer and open source enthusiast ● E-mail: leon@anavi.org

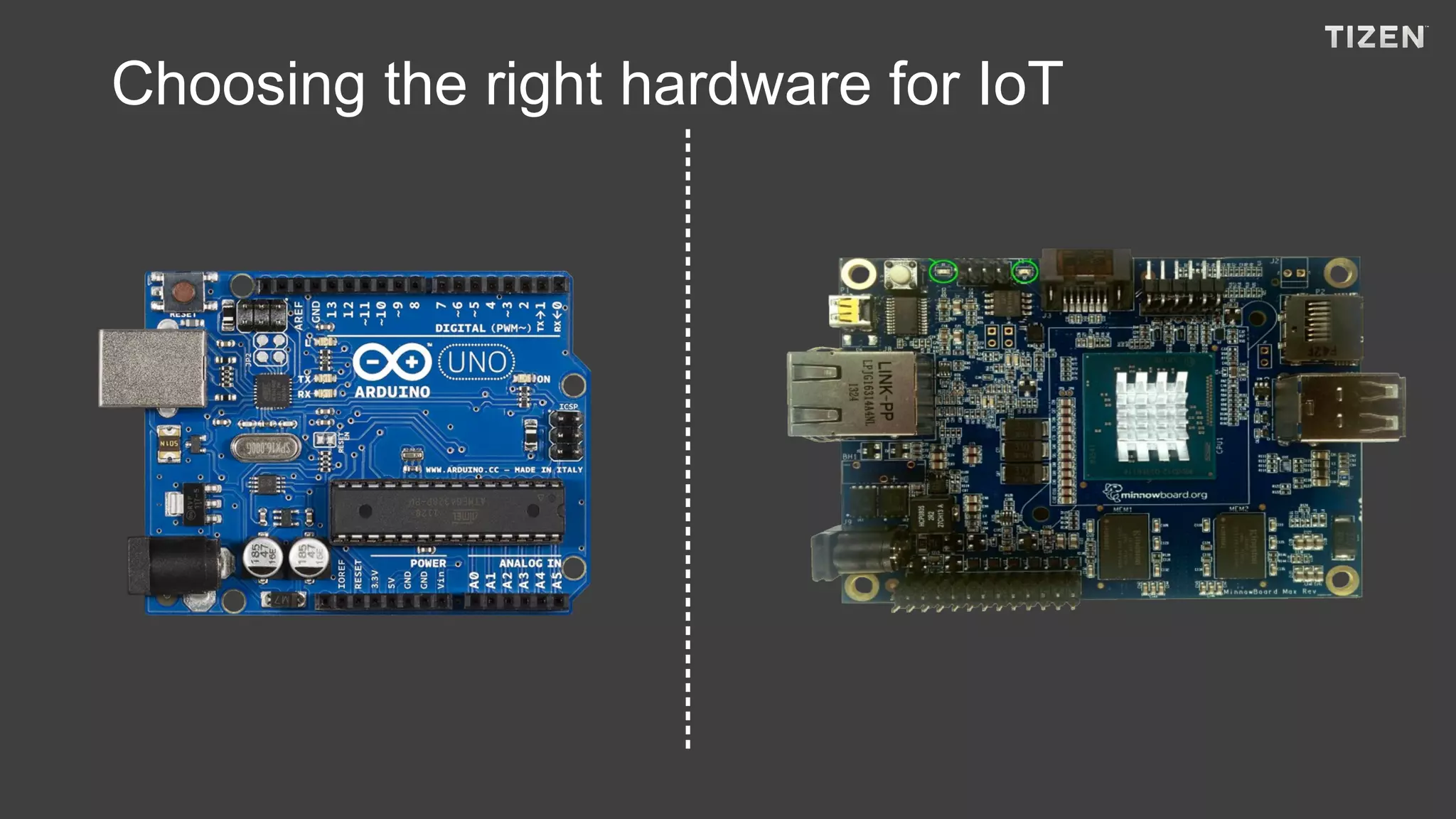

- 3. Choosing the right hardware for IoT

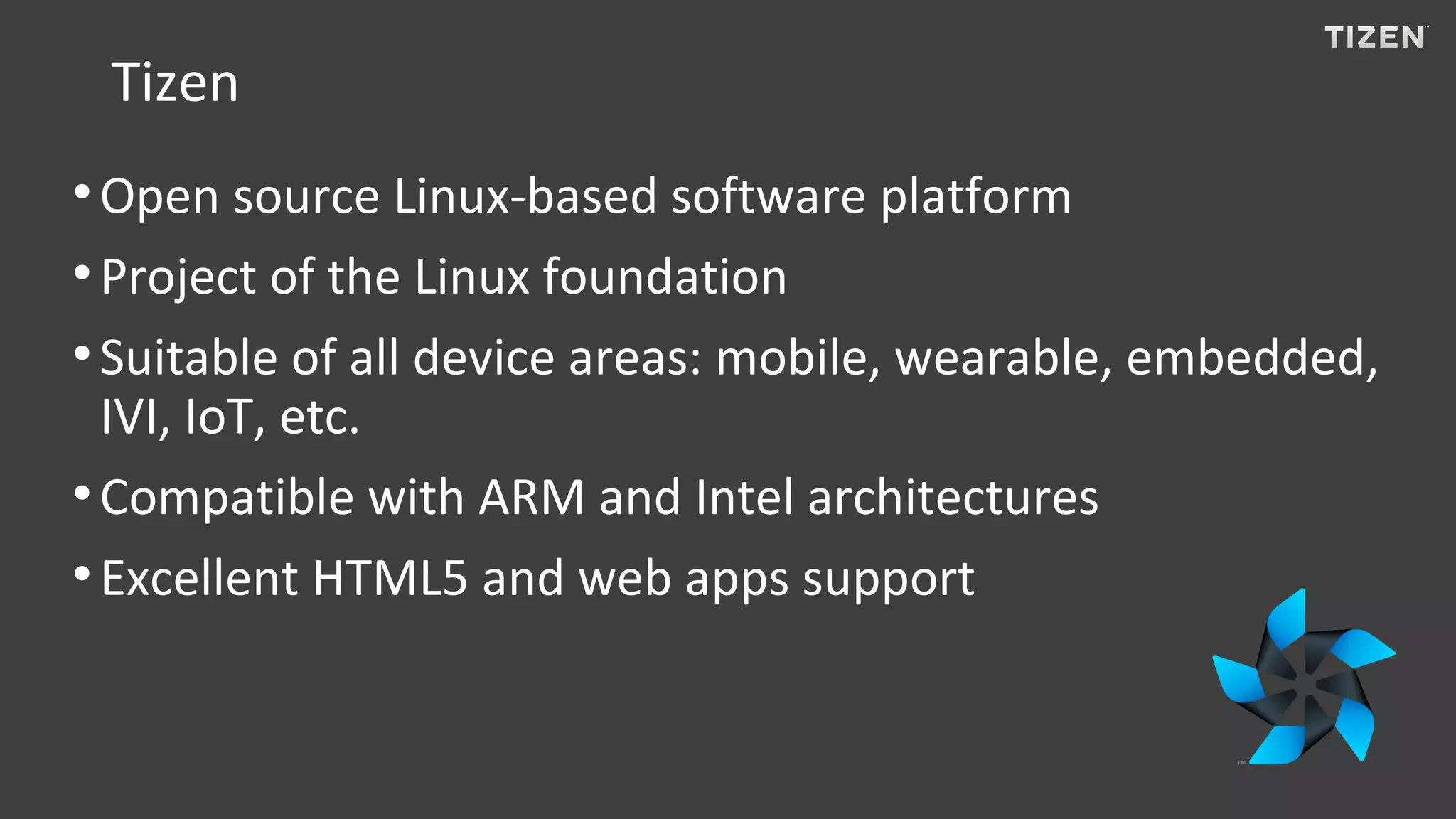

- 4. Tizen ● Open source Linux-based software platform ● Project of the Linux foundation ● Suitable of all device areas: mobile, wearable, embedded, IVI, IoT, etc. ● Compatible with ARM and Intel architectures ● Excellent HTML5 and web apps support

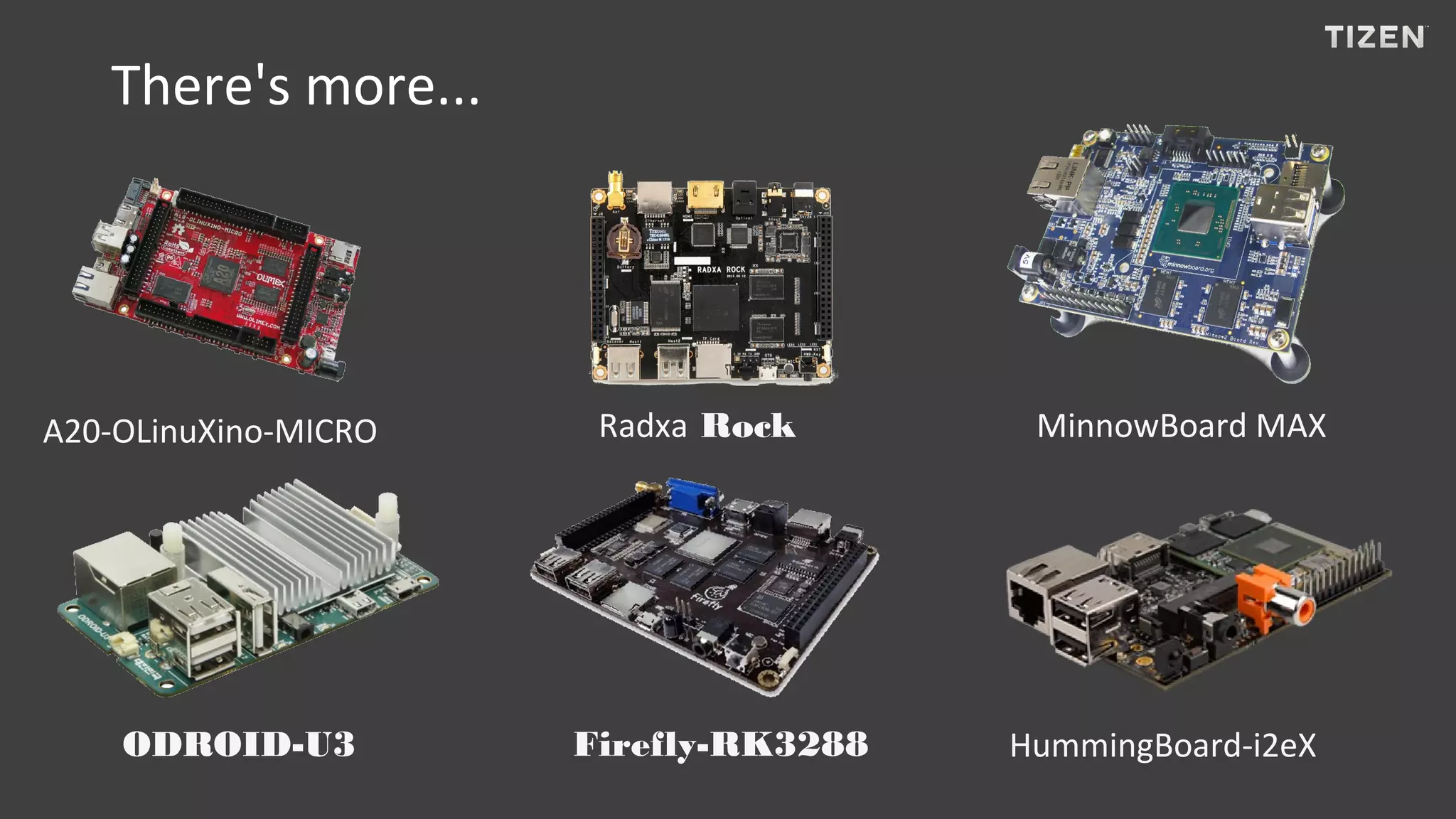

- 6. There's more... 6 A20-OLinuXino-MICRO Radxa Rock MinnowBoard MAX ODROID-U3 Firefly-RK3288 HummingBoard-i2eX

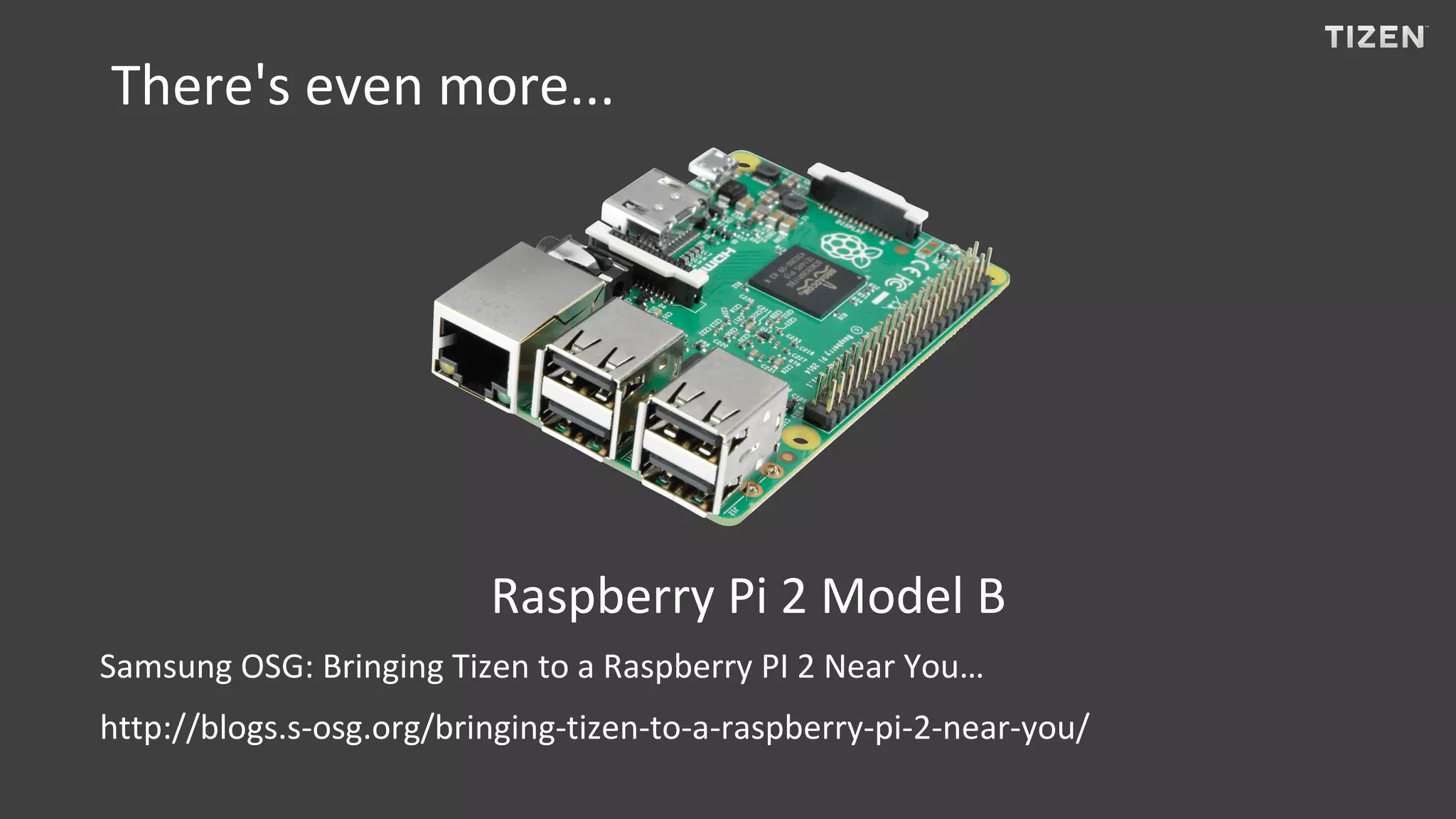

- 7. There's even more... 7 Raspberry Pi 2 Model B Samsung OSG: Bringing Tizen to a Raspberry PI 2 Near You… http://blogs.s-osg.org/bringing-tizen-to-a-raspberry-pi-2-near-you/

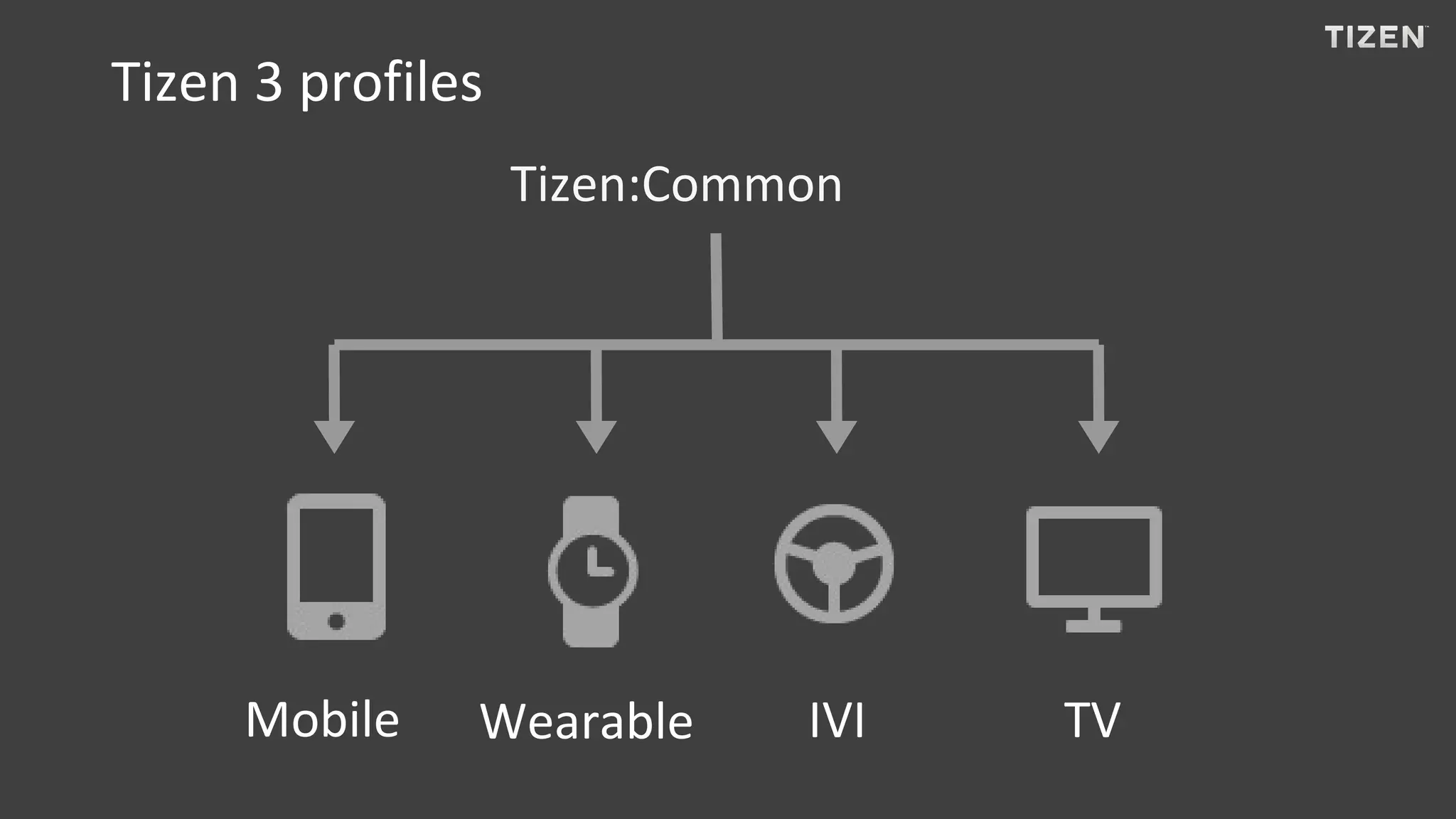

- 8. Tizen 3 profiles Tizen:Common Mobile Wearable IVI TV

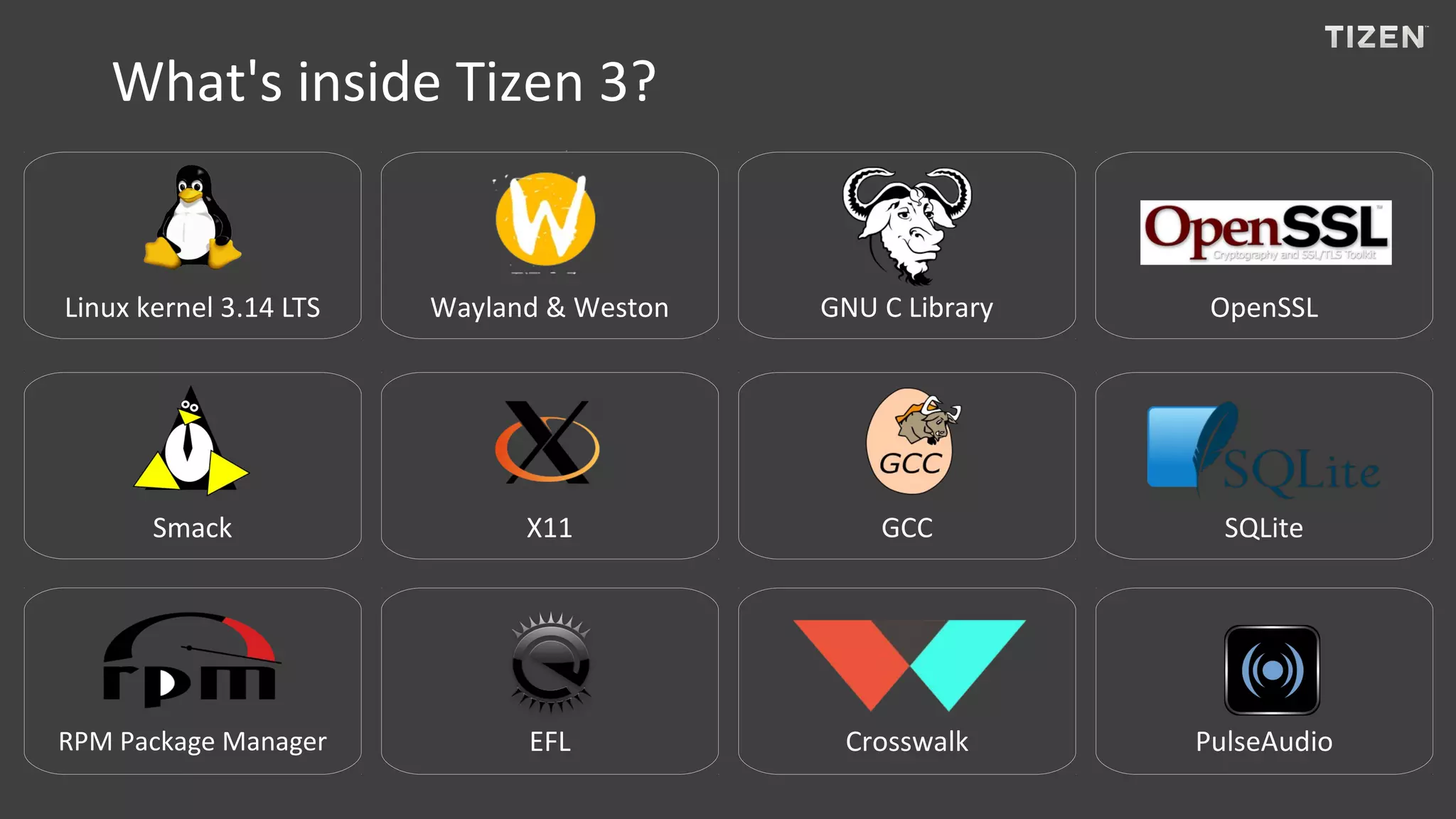

- 9. What's inside Tizen 3? Linux kernel 3.14 LTS Smack RPM Package Manager GNU C Library GCC Crosswalk OpenSSL SQLite PulseAudio Wayland & Weston X11 EFL

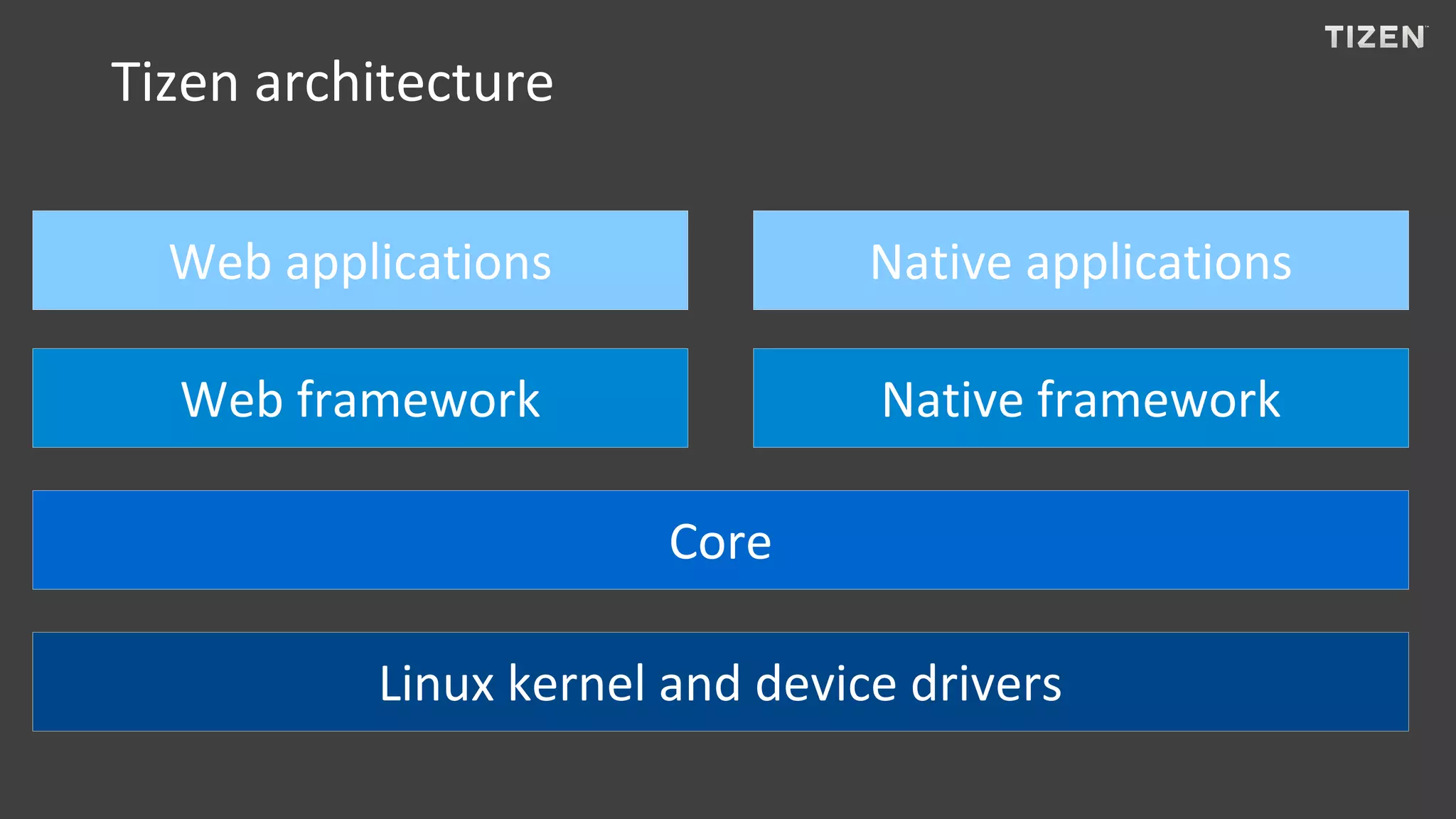

- 10. Tizen architecture Web applications Web framework Native framework Core Linux kernel and device drivers Native applications

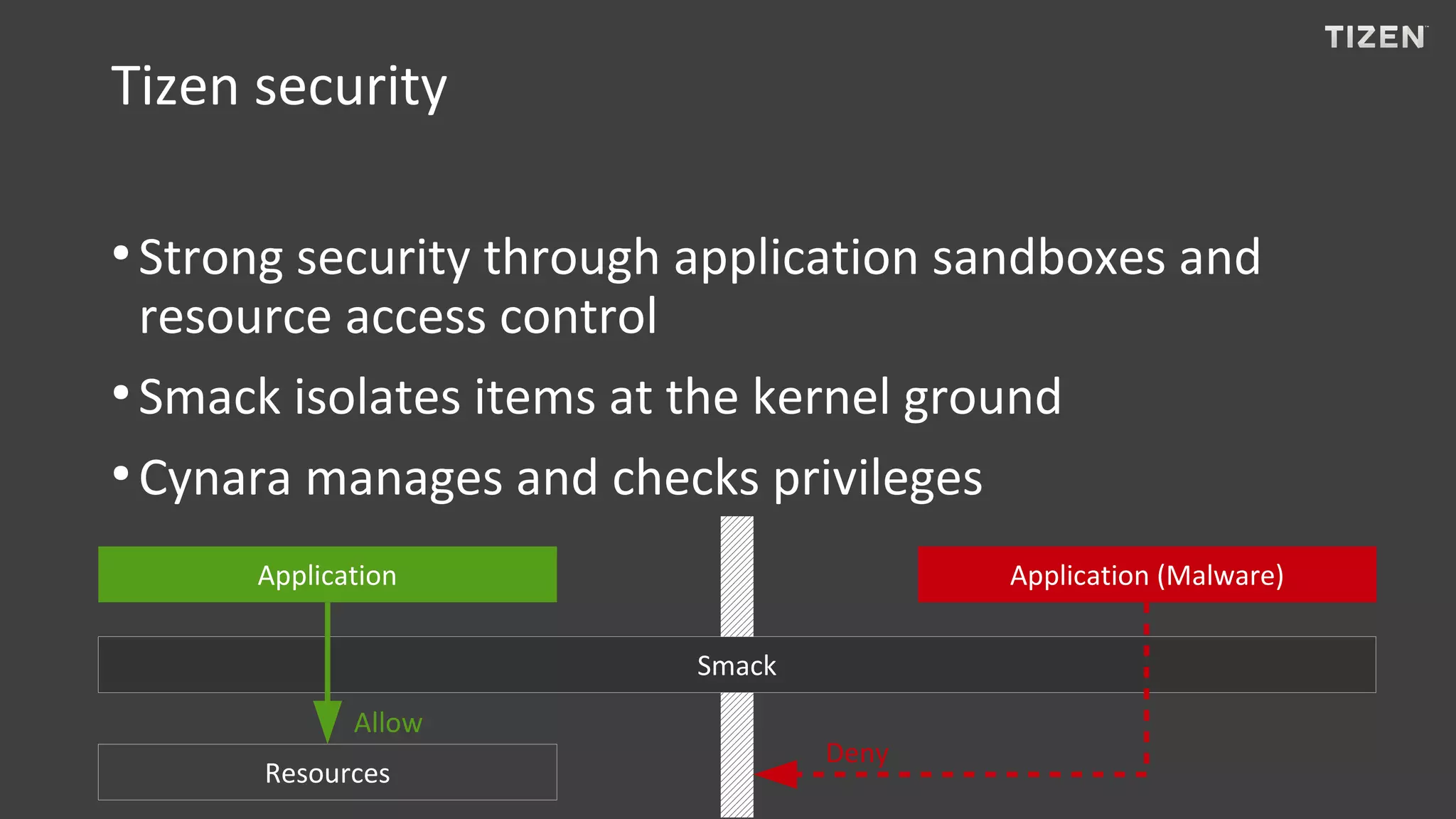

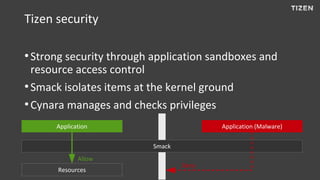

- 11. Tizen security ● Strong security through application sandboxes and resource access control ● Smack isolates items at the kernel ground ● Cynara manages and checks privileges Application Smack Application (Malware) Resources Allow Deny

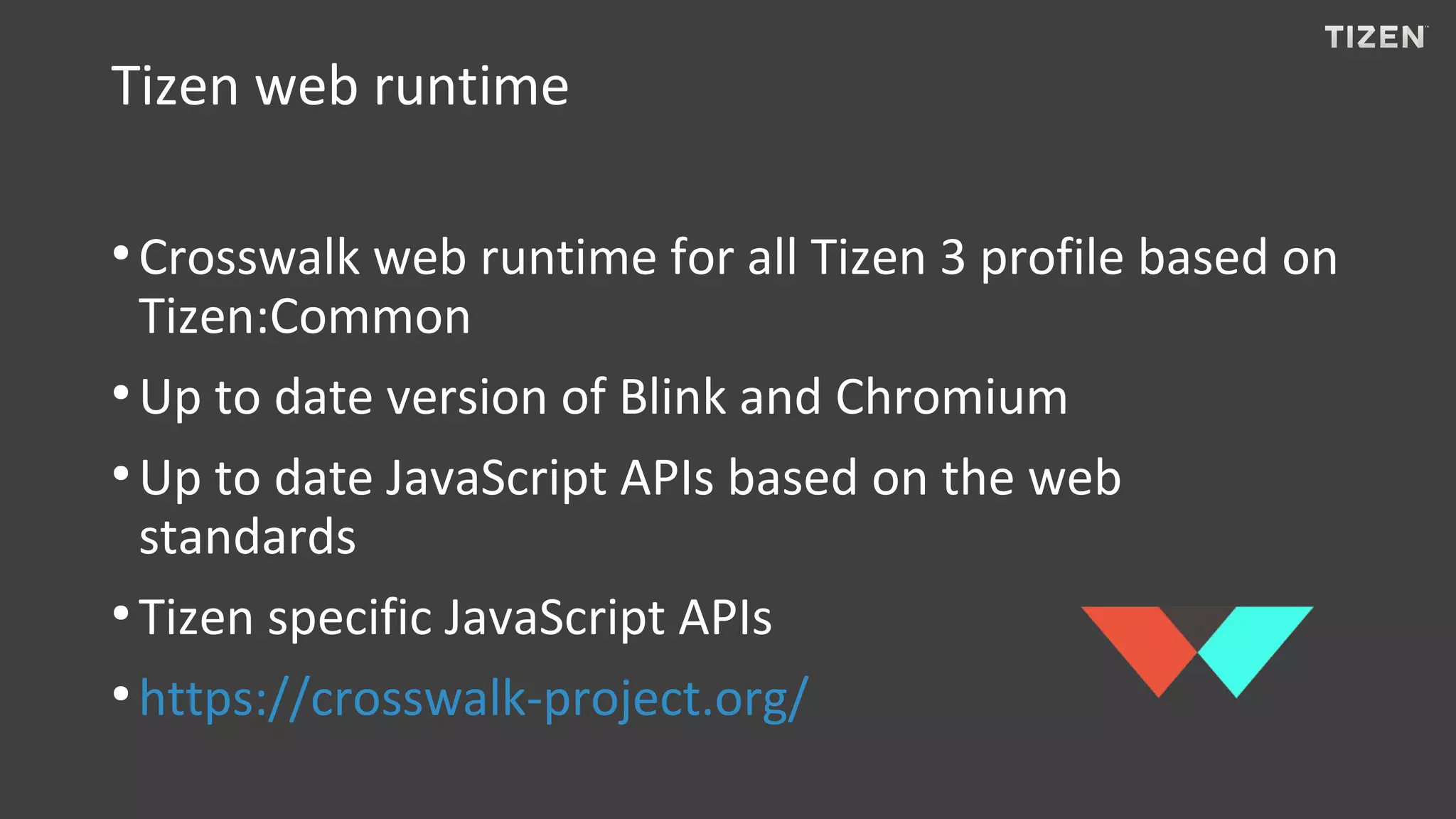

- 12. Tizen web runtime ● Crosswalk web runtime for all Tizen 3 profile based on Tizen:Common ● Up to date version of Blink and Chromium ● Up to date JavaScript APIs based on the web standards ● Tizen specific JavaScript APIs ● https://crosswalk-project.org/

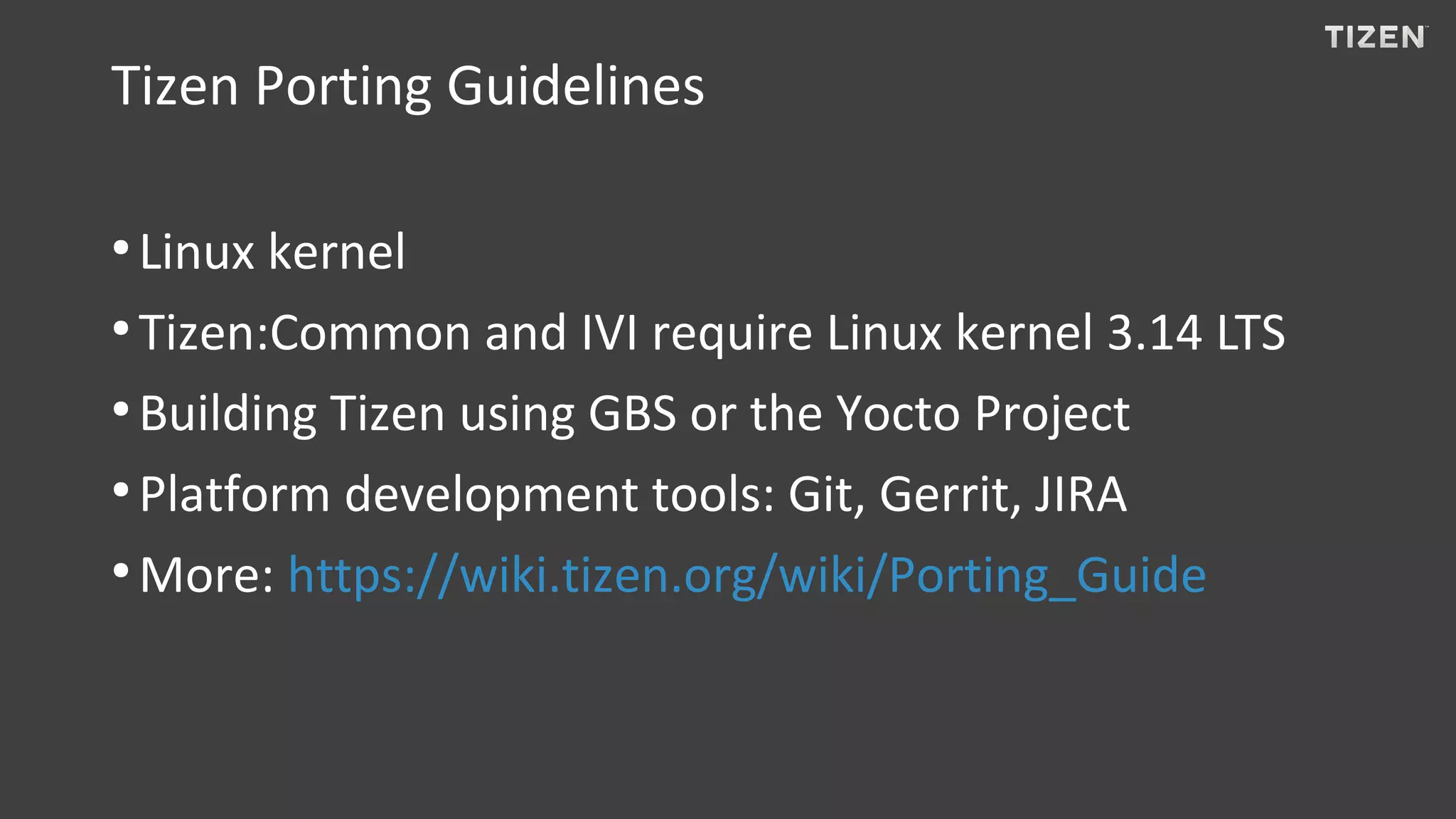

- 13. Tizen Porting Guidelines ● Linux kernel ● Tizen:Common and IVI require Linux kernel 3.14 LTS ● Building Tizen using GBS or the Yocto Project ● Platform development tools: Git, Gerrit, JIRA ● More: https://wiki.tizen.org/wiki/Porting_Guide

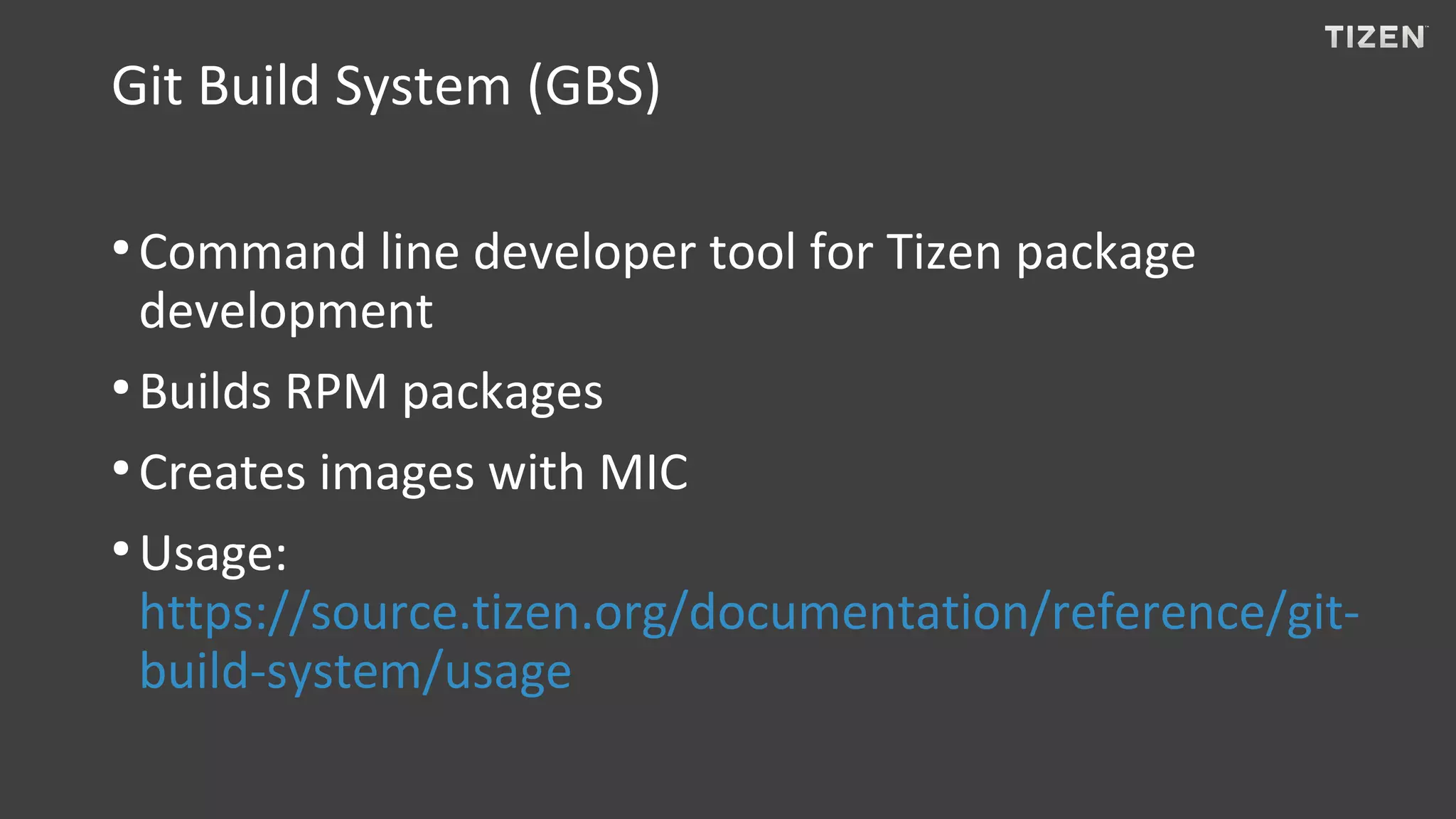

- 14. Git Build System (GBS) ● Command line developer tool for Tizen package development ● Builds RPM packages ● Creates images with MIC ● Usage: https://source.tizen.org/documentation/reference/git- build-system/usage

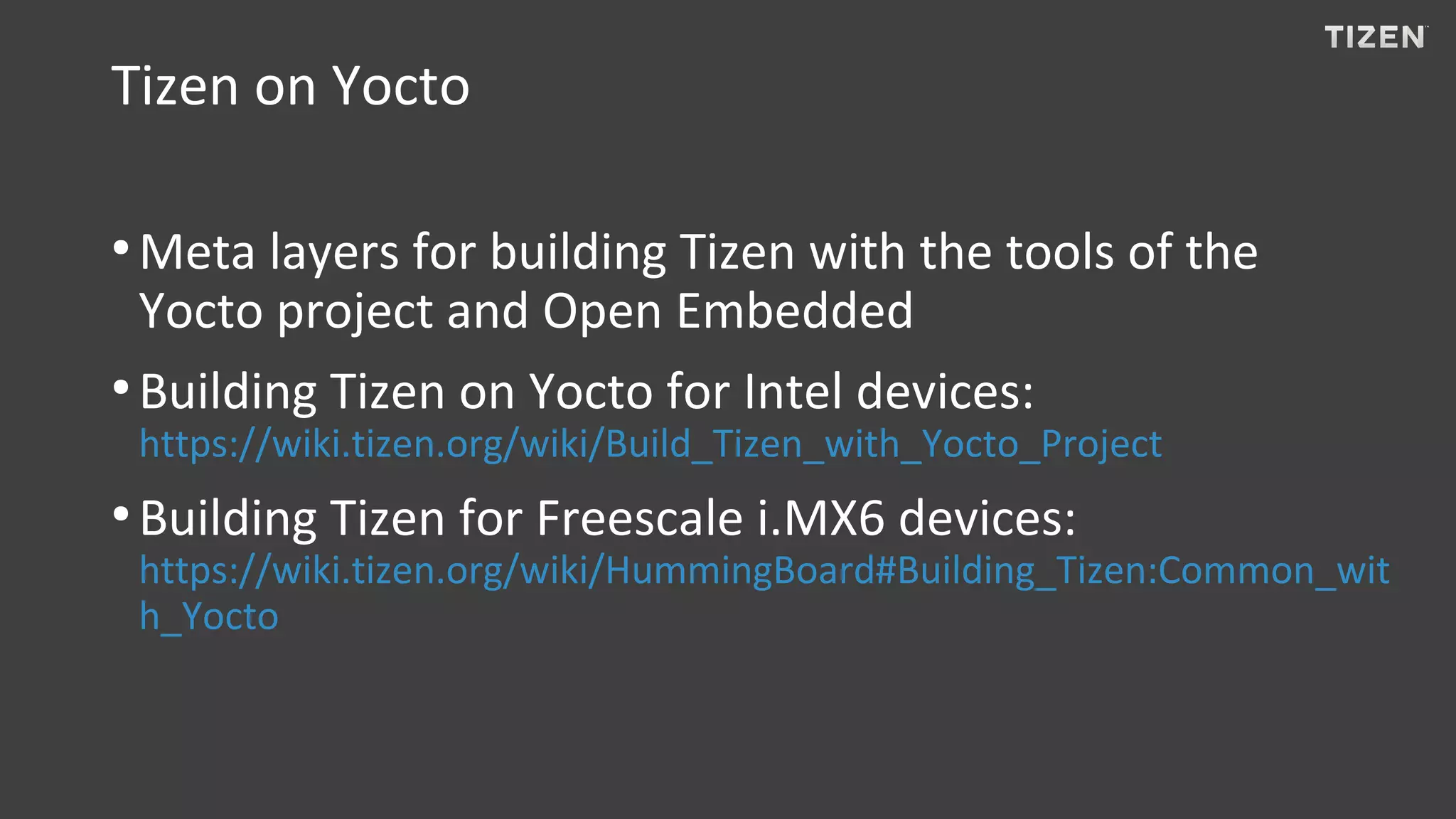

- 15. Tizen on Yocto ● Meta layers for building Tizen with the tools of the Yocto project and Open Embedded ● Building Tizen on Yocto for Intel devices: https://wiki.tizen.org/wiki/Build_Tizen_with_Yocto_Project ● Building Tizen for Freescale i.MX6 devices: https://wiki.tizen.org/wiki/HummingBoard#Building_Tizen:Common_wit h_Yocto

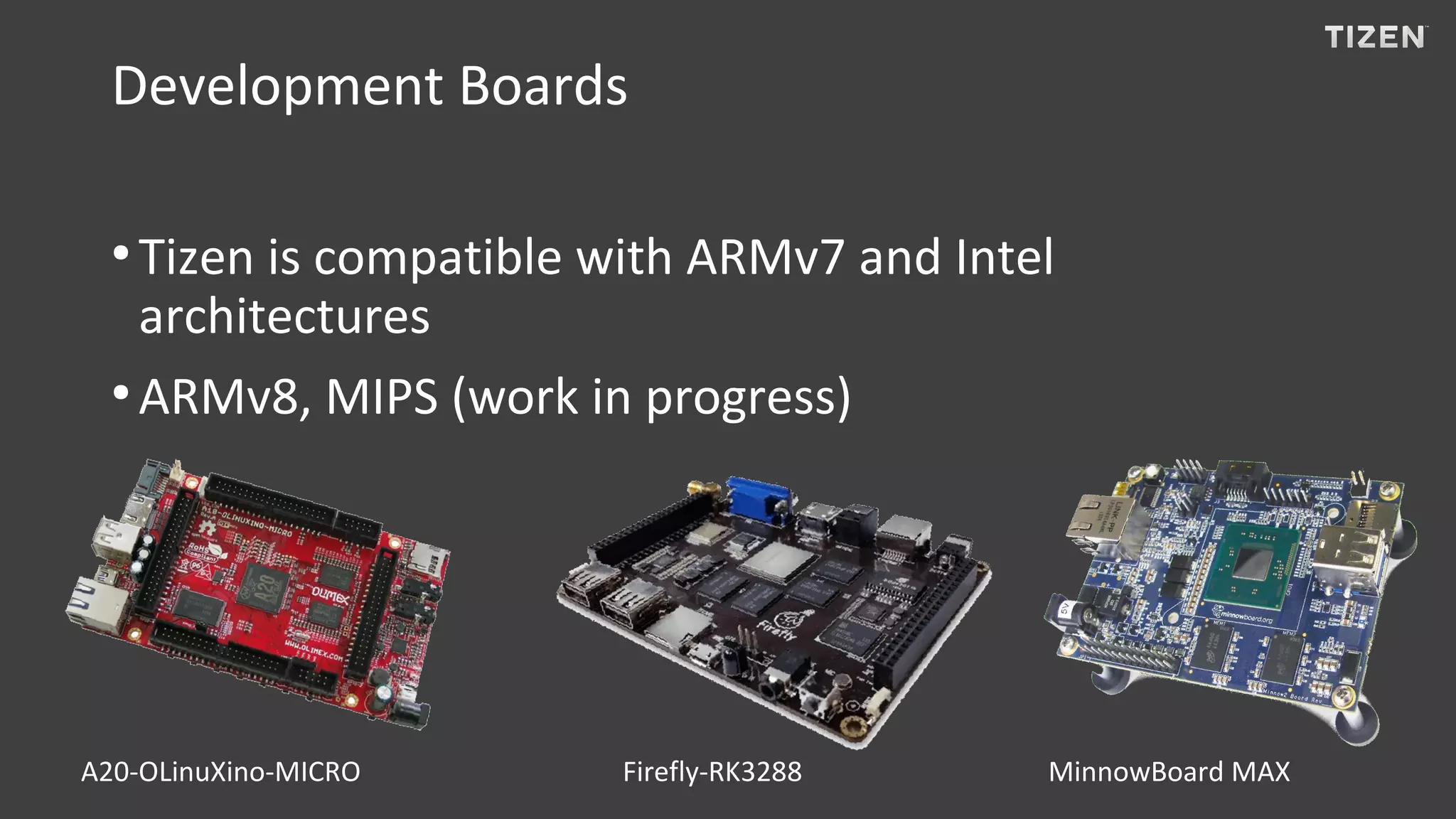

- 16. Development Boards ● Tizen is compatible with ARMv7 and Intel architectures ● ARMv8, MIPS (work in progress) A20-OLinuXino-MICRO Firefly-RK3288 MinnowBoard MAX

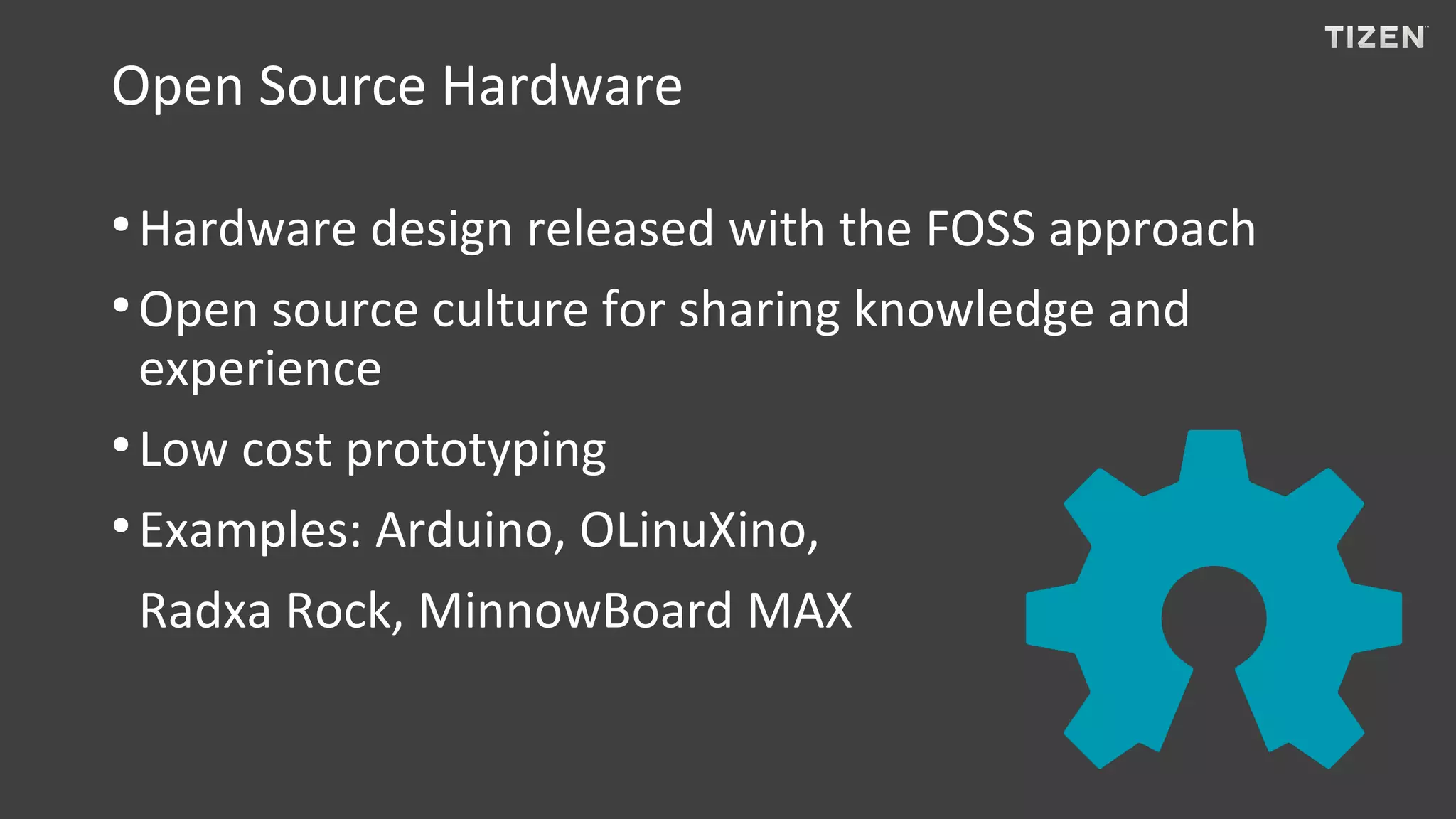

- 17. Open Source Hardware ● Hardware design released with the FOSS approach ● Open source culture for sharing knowledge and experience ● Low cost prototyping ● Examples: Arduino, OLinuXino, Radxa Rock, MinnowBoard MAX

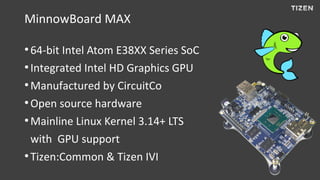

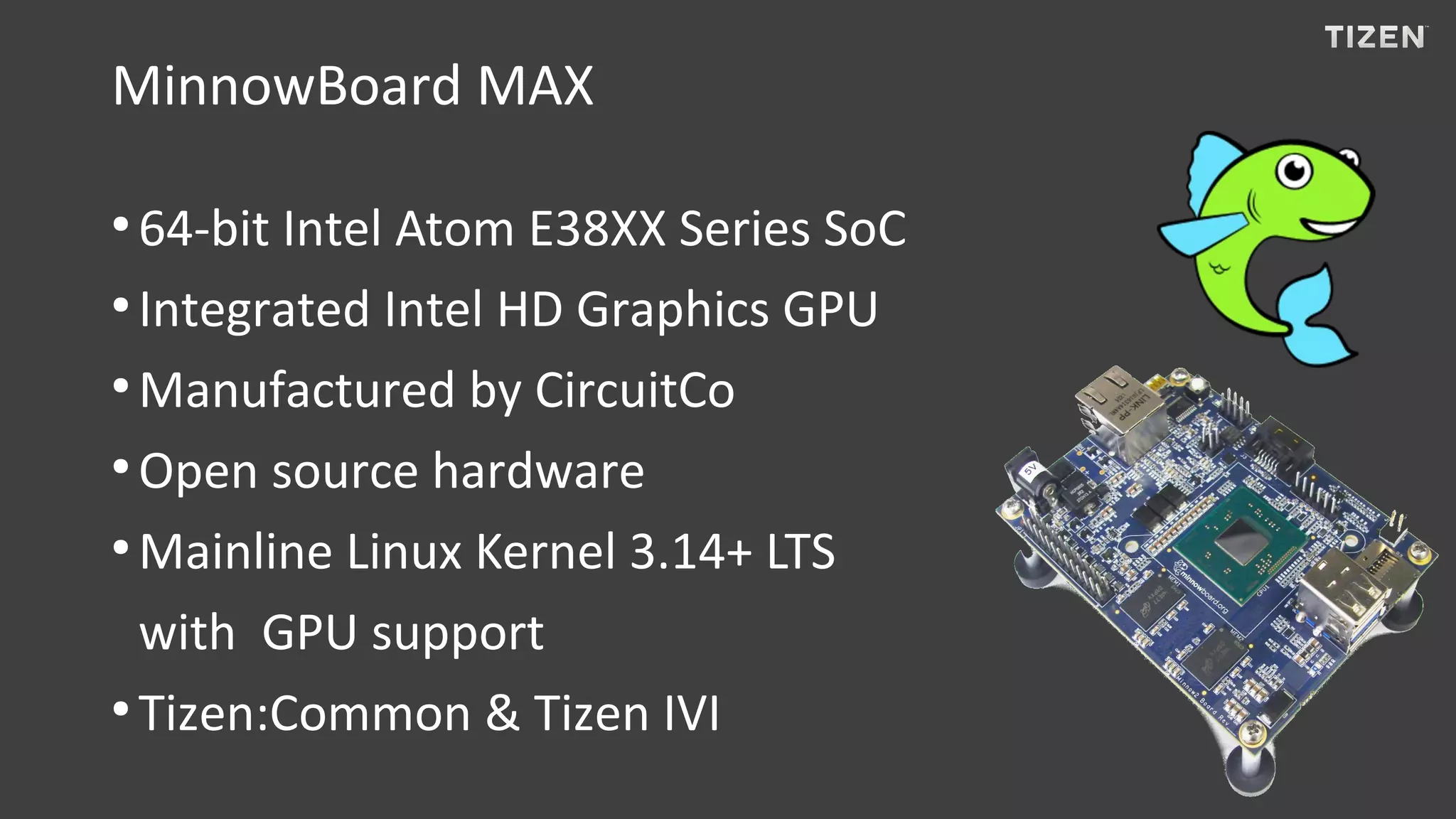

- 18. MinnowBoard MAX ● 64-bit Intel Atom E38XX Series SoC ● Integrated Intel HD Graphics GPU ● Manufactured by CircuitCo ● Open source hardware ● Mainline Linux Kernel 3.14+ LTS with GPU support ● Tizen:Common & Tizen IVI

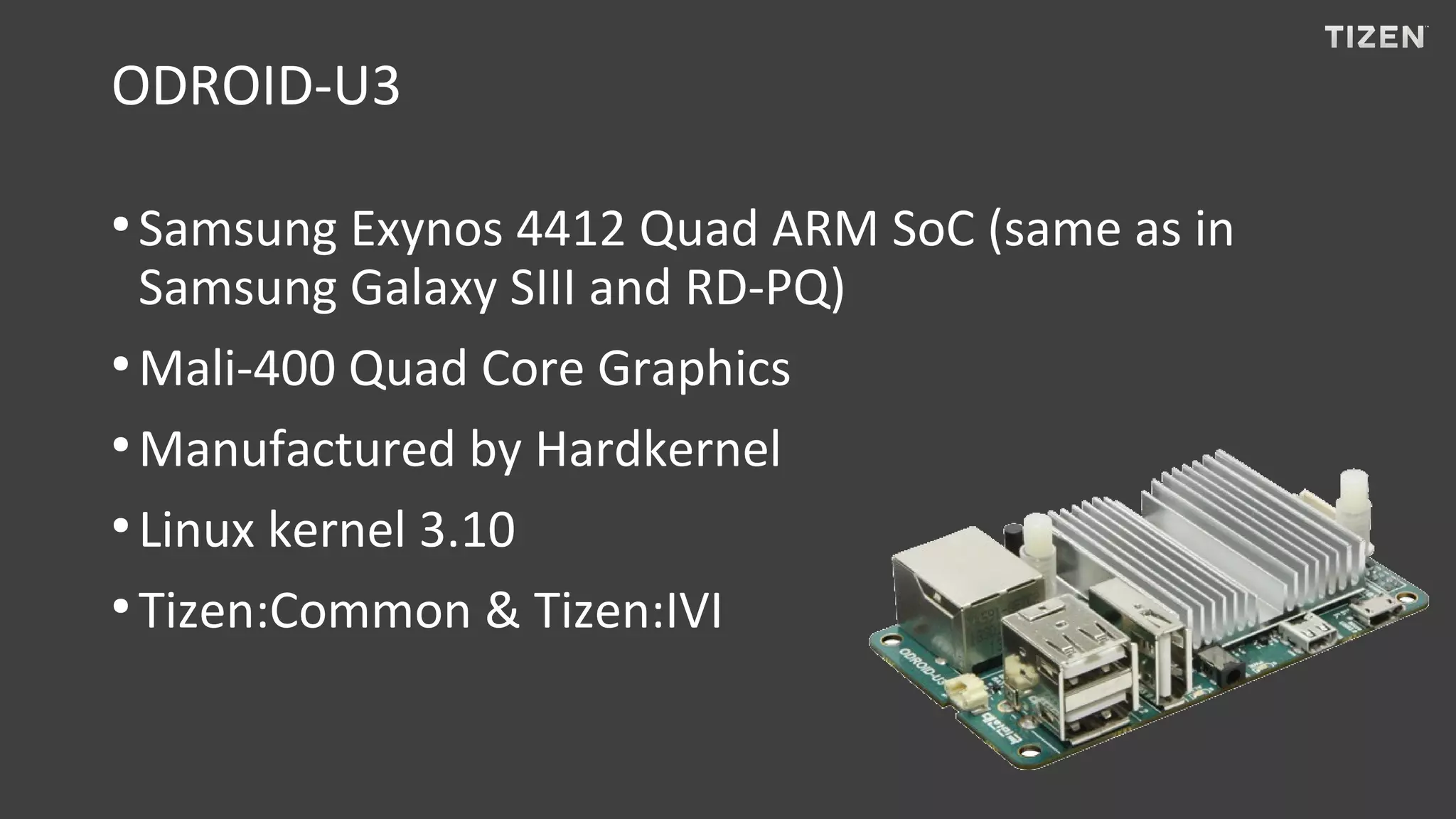

- 19. ODROID-U3 ● Samsung Exynos 4412 Quad ARM SoC (same as in Samsung Galaxy SIII and RD-PQ) ● Mali-400 Quad Core Graphics ● Manufactured by Hardkernel ● Linux kernel 3.10 ● Tizen:Common & Tizen:IVI

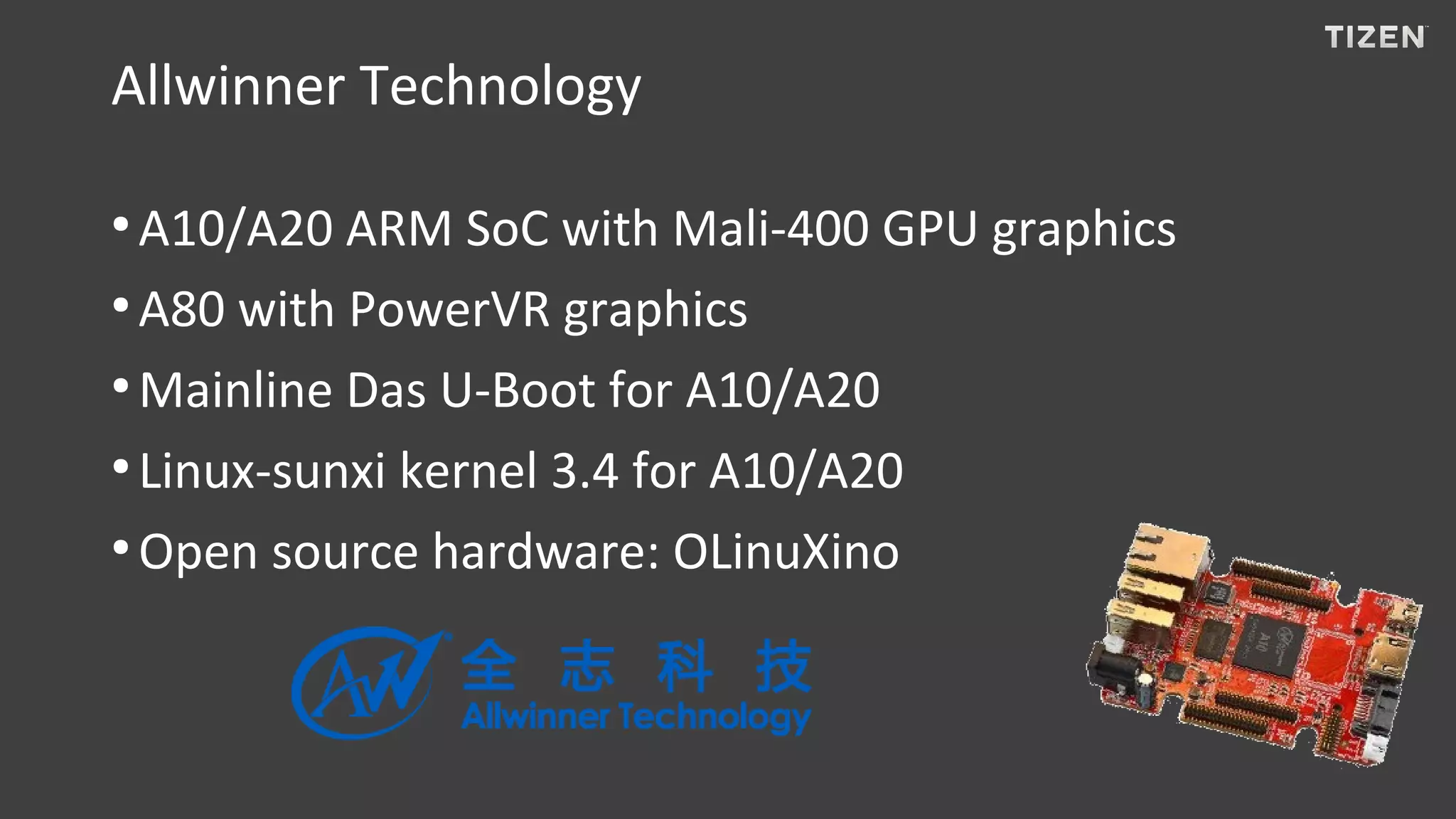

- 20. Allwinner Technology ● A10/A20 ARM SoC with Mali-400 GPU graphics ● A80 with PowerVR graphics ● Mainline Das U-Boot for A10/A20 ● Linux-sunxi kernel 3.4 for A10/A20 ● Open source hardware: OLinuXino

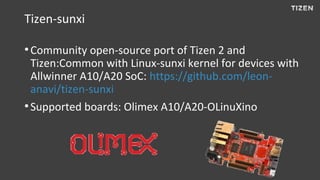

- 21. Tizen-sunxi ● Community open-source port of Tizen 2 and Tizen:Common with Linux-sunxi kernel for devices with Allwinner A10/A20 SoC: https://github.com/leon- anavi/tizen-sunxi ● Supported boards: Olimex A10/A20-OLinuXino

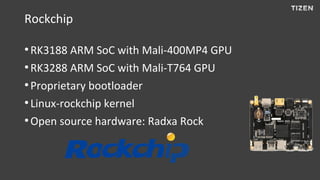

- 22. Rockchip ● RK3188 ARM SoC with Mali-400MP4 GPU ● RK3288 ARM SoC with Mali-T764 GPU ● Proprietary bootloader ● Linux-rockchip kernel ● Open source hardware: Radxa Rock

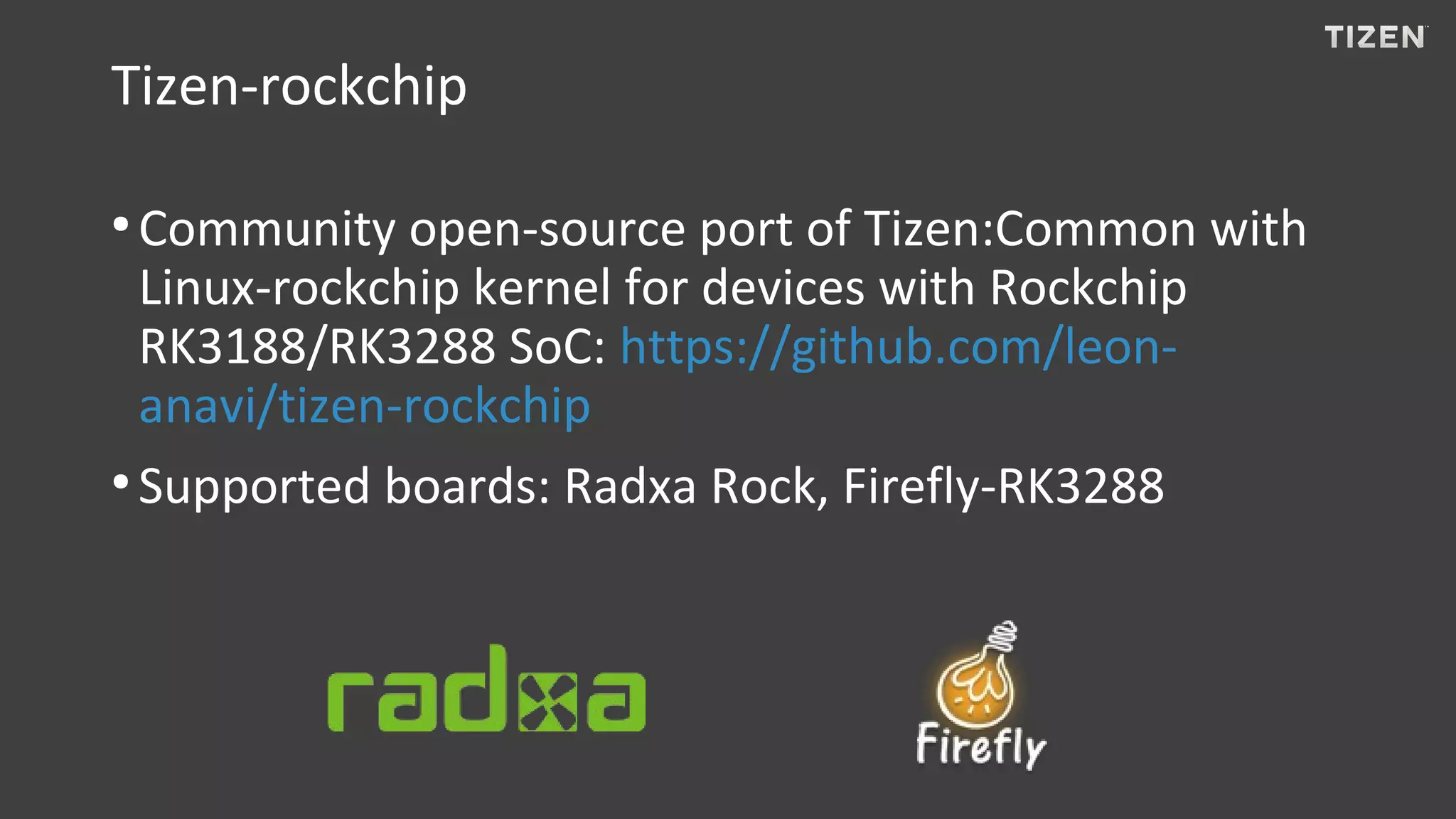

- 23. Tizen-rockchip ● Community open-source port of Tizen:Common with Linux-rockchip kernel for devices with Rockchip RK3188/RK3288 SoC: https://github.com/leon- anavi/tizen-rockchip ● Supported boards: Radxa Rock, Firefly-RK3288

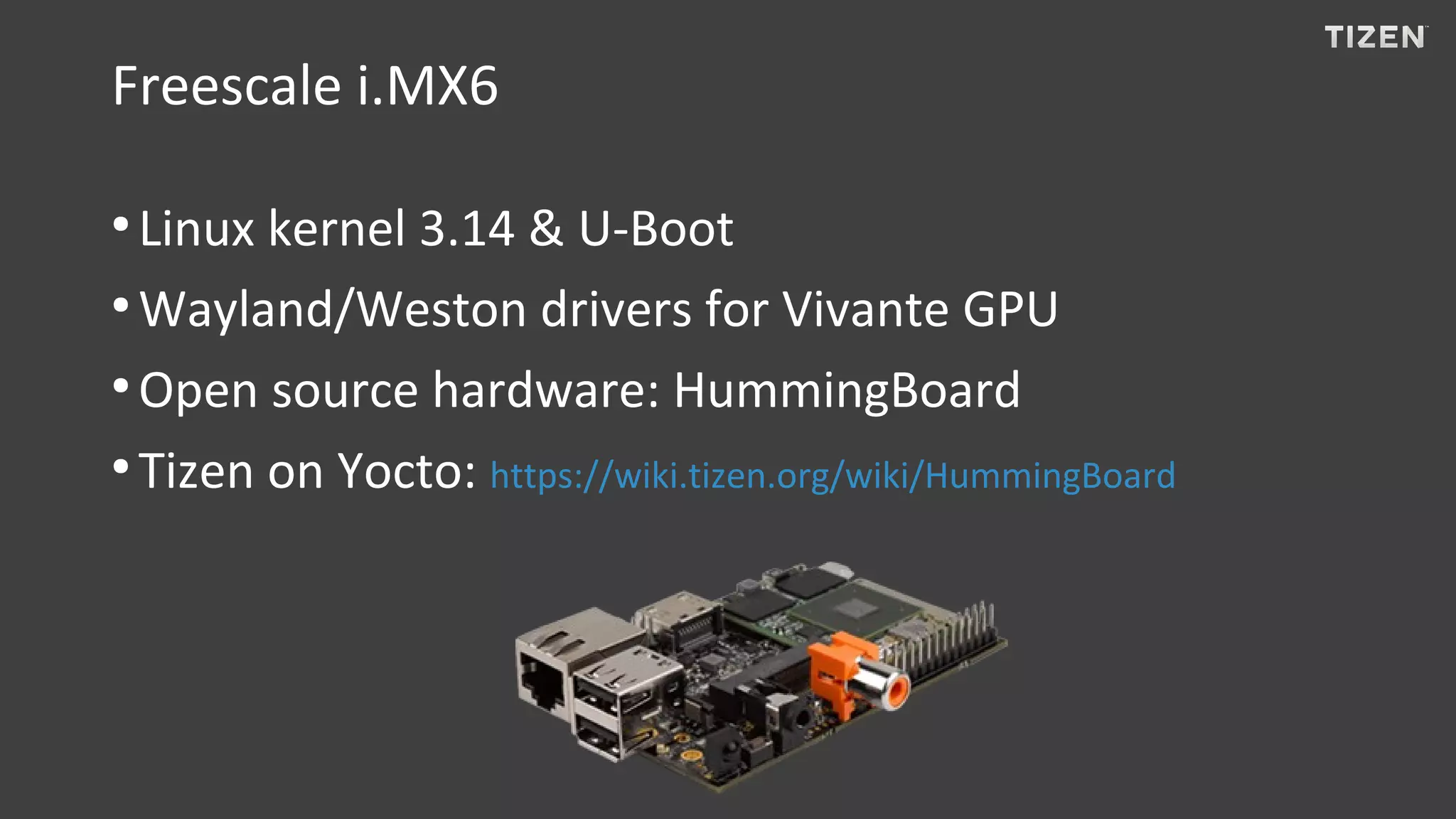

- 24. Freescale i.MX6 ● Linux kernel 3.14 & U-Boot ● Wayland/Weston drivers for Vivante GPU ● Open source hardware: HummingBoard ● Tizen on Yocto: https://wiki.tizen.org/wiki/HummingBoard

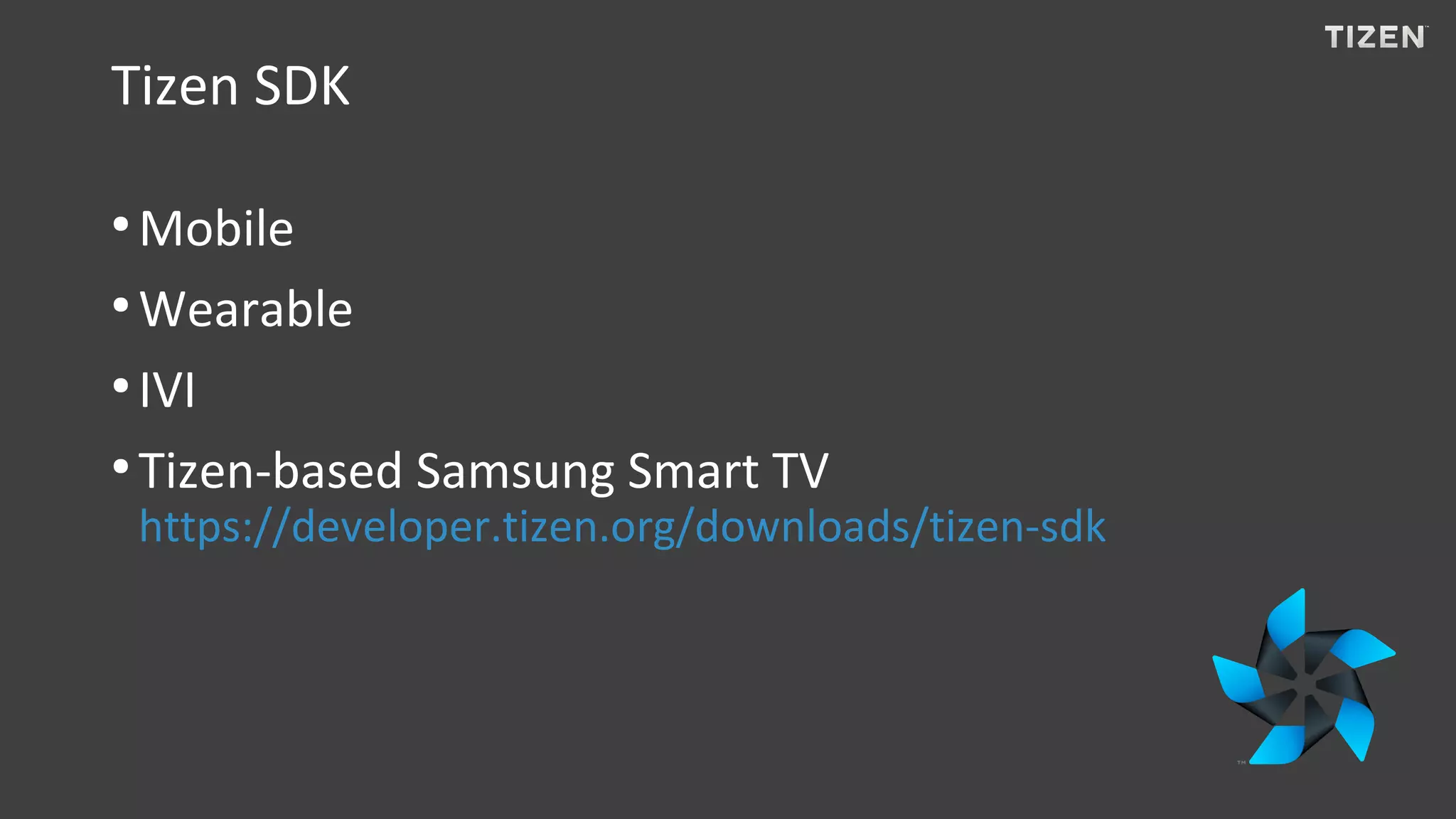

- 25. Tizen SDK ● Mobile ● Wearable ● IVI ● Tizen-based Samsung Smart TV https://developer.tizen.org/downloads/tizen-sdk

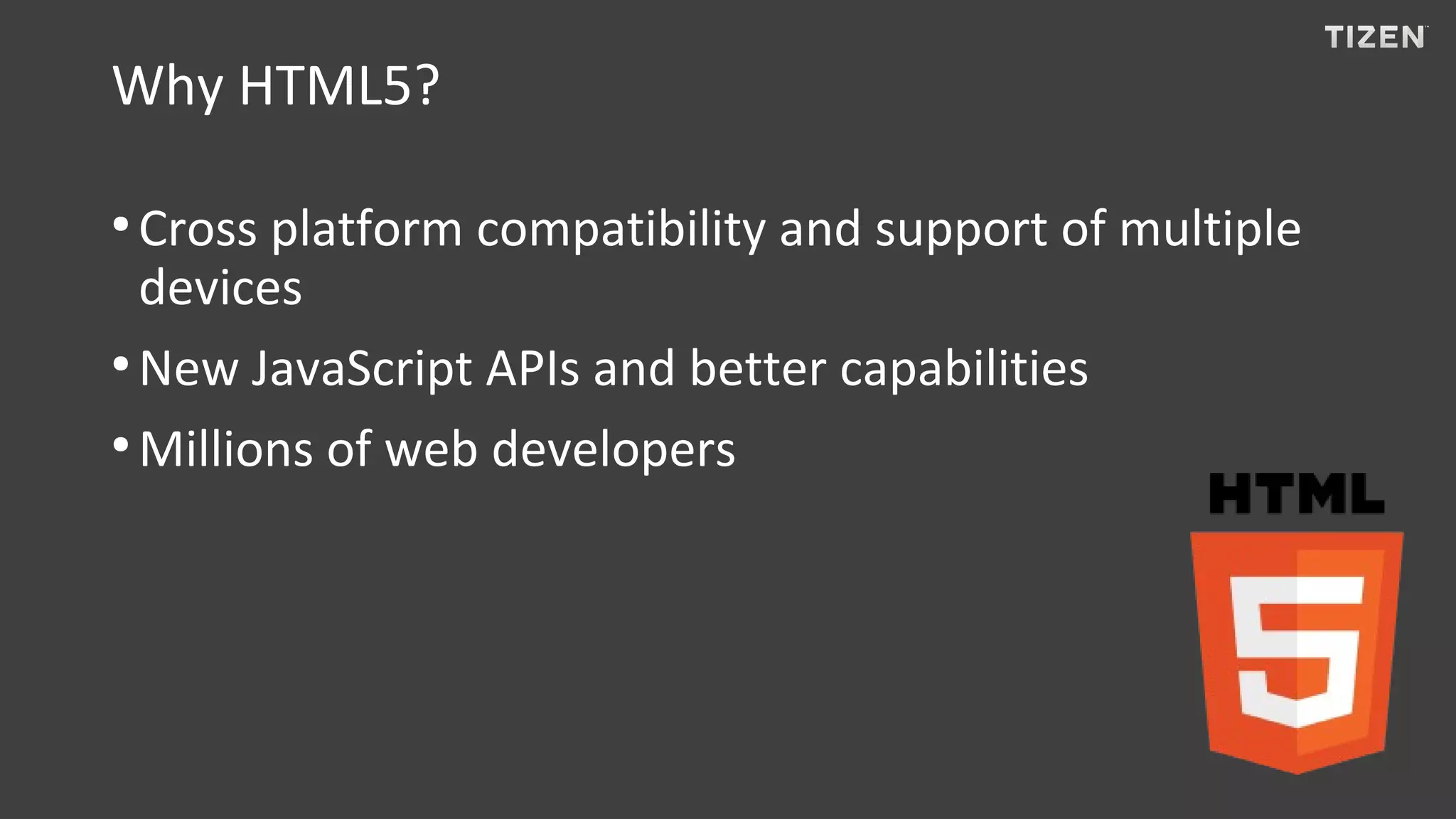

- 26. Why HTML5? ● Cross platform compatibility and support of multiple devices ● New JavaScript APIs and better capabilities ● Millions of web developers

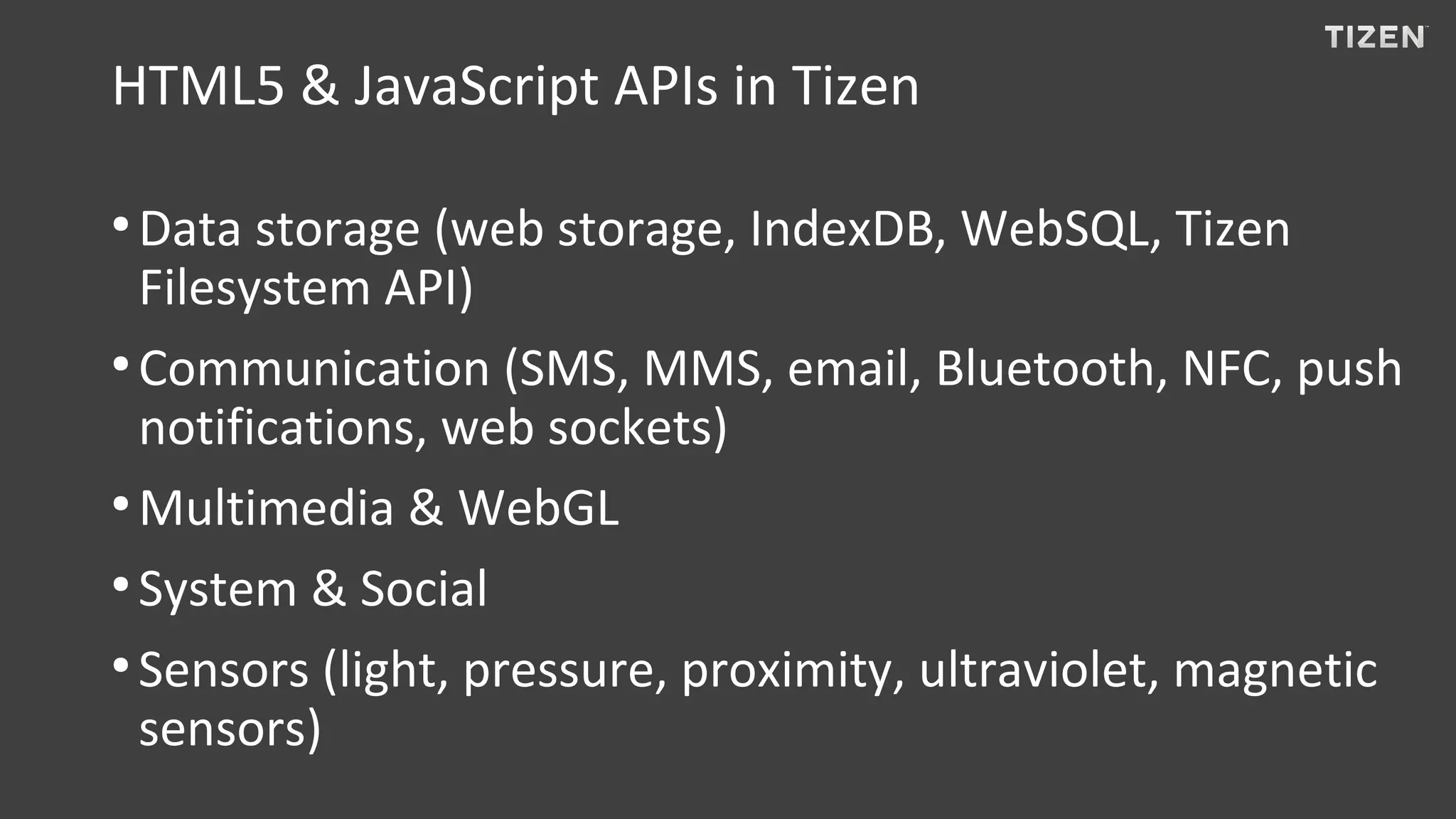

- 27. HTML5 & JavaScript APIs in Tizen ● Data storage (web storage, IndexDB, WebSQL, Tizen Filesystem API) ● Communication (SMS, MMS, email, Bluetooth, NFC, push notifications, web sockets) ● Multimedia & WebGL ● System & Social ● Sensors (light, pressure, proximity, ultraviolet, magnetic sensors)

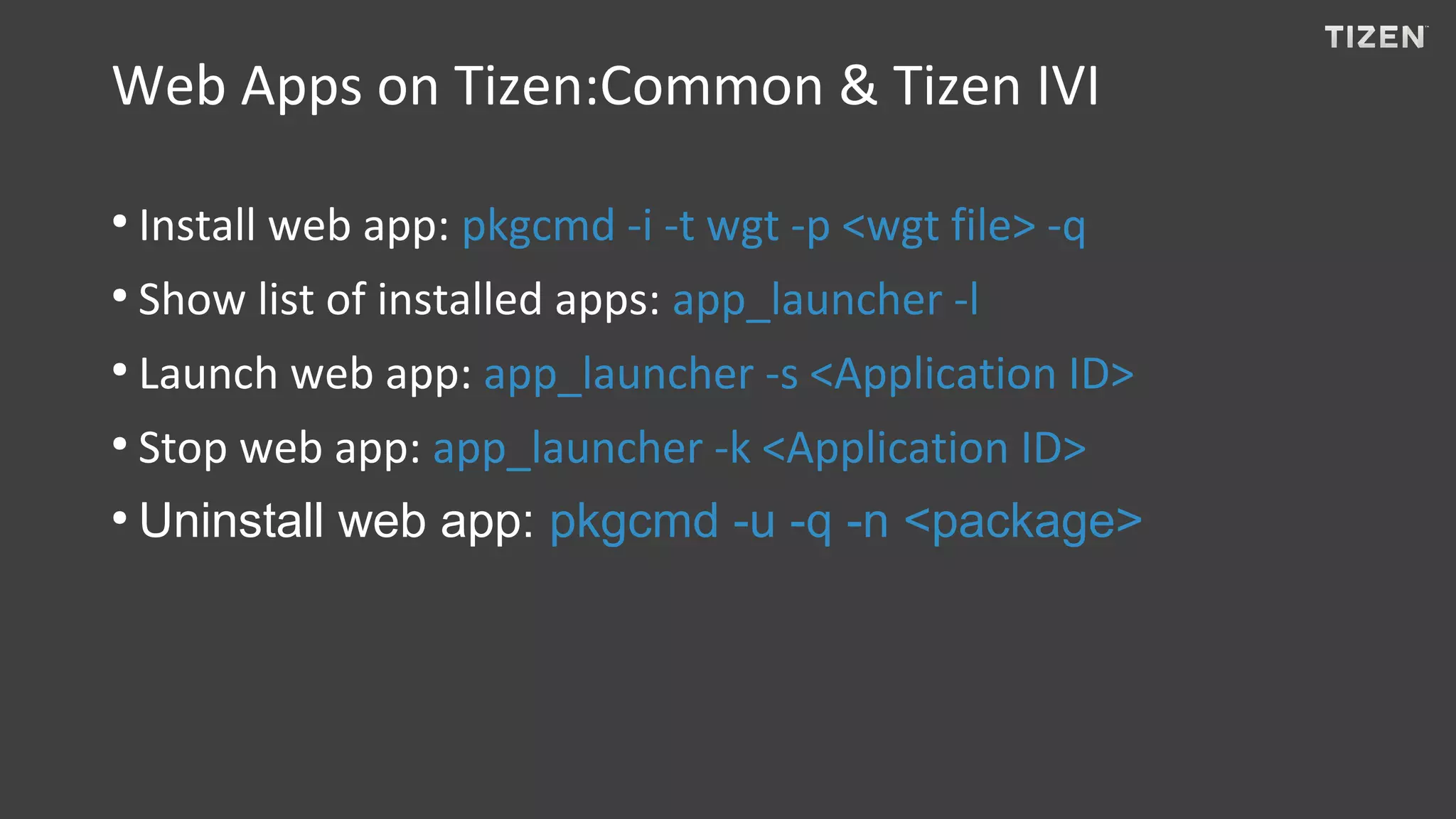

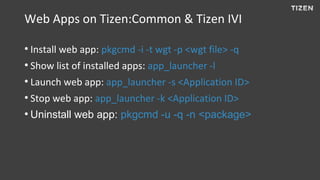

- 28. Web Apps on Tizen:Common & Tizen IVI ● Install web app: pkgcmd -i -t wgt -p <wgt file> -q ● Show list of installed apps: app_launcher -l ● Launch web app: app_launcher -s <Application ID> ● Stop web app: app_launcher -k <Application ID> ● Uninstall web app: pkgcmd -u -q -n <package>

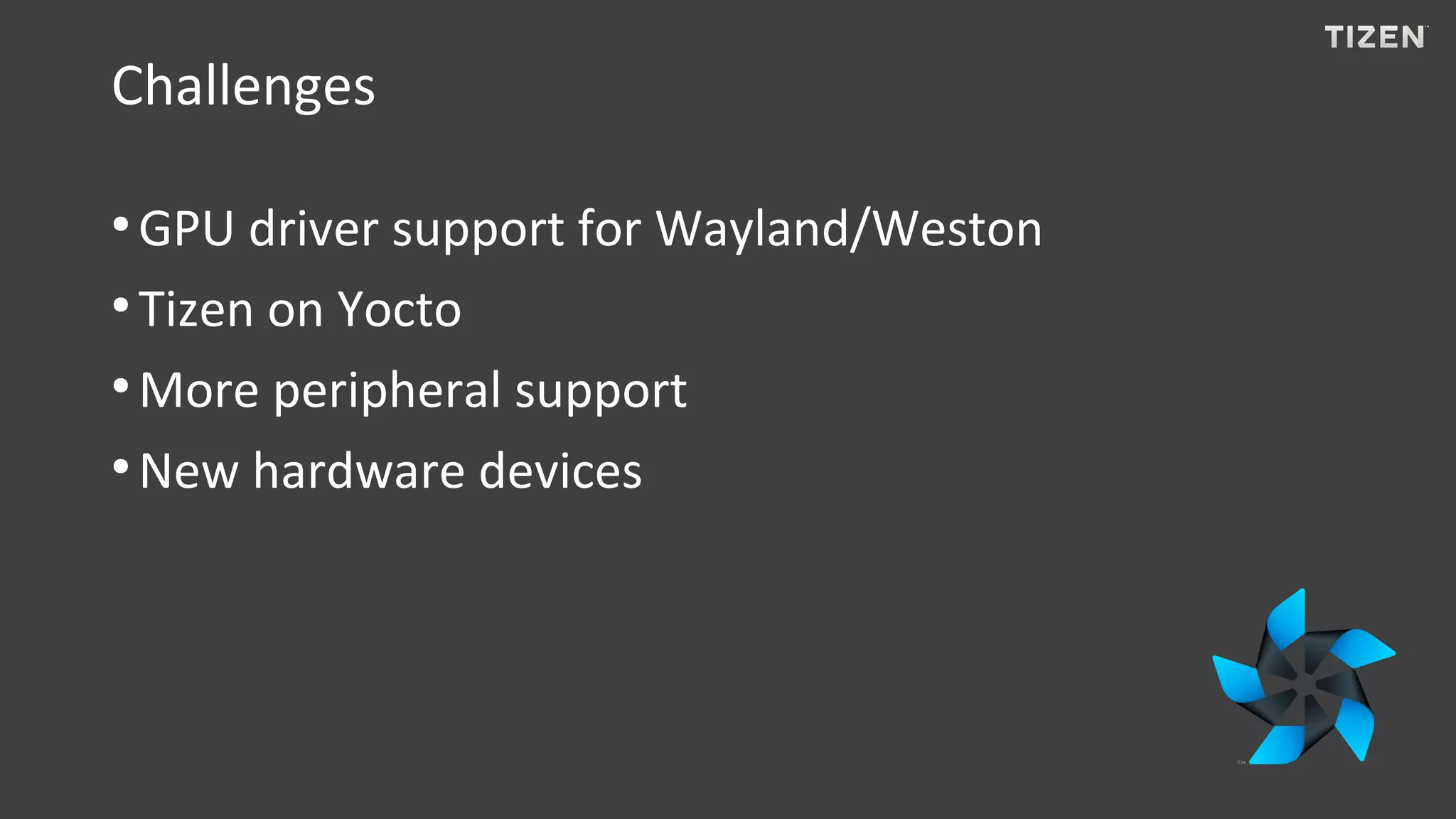

- 29. Challenges ● GPU driver support for Wayland/Weston ● Tizen on Yocto ● More peripheral support ● New hardware devices

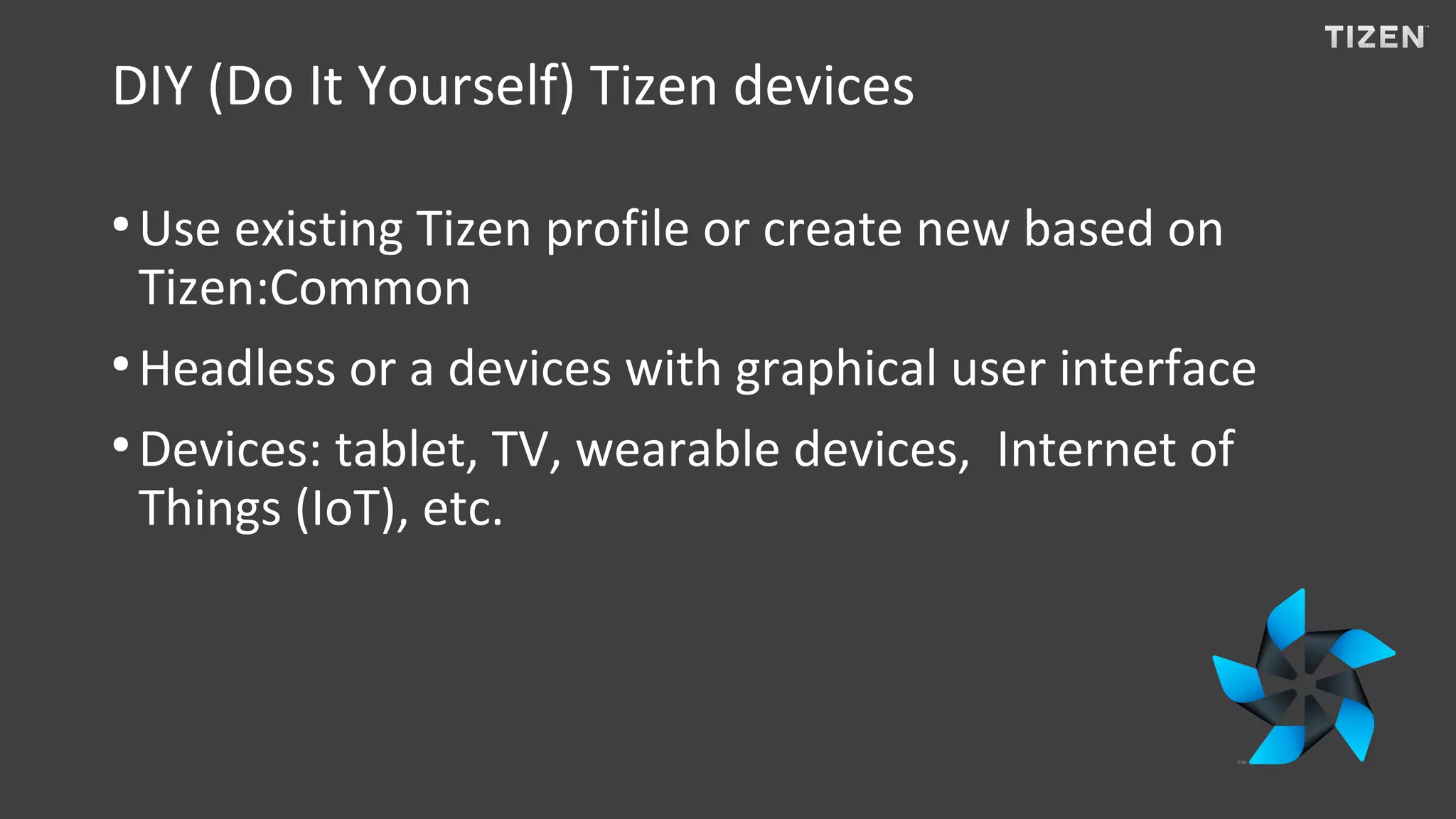

- 30. DIY (Do It Yourself) Tizen devices ● Use existing Tizen profile or create new based on Tizen:Common ● Headless or a devices with graphical user interface ● Devices: tablet, TV, wearable devices, Internet of Things (IoT), etc.

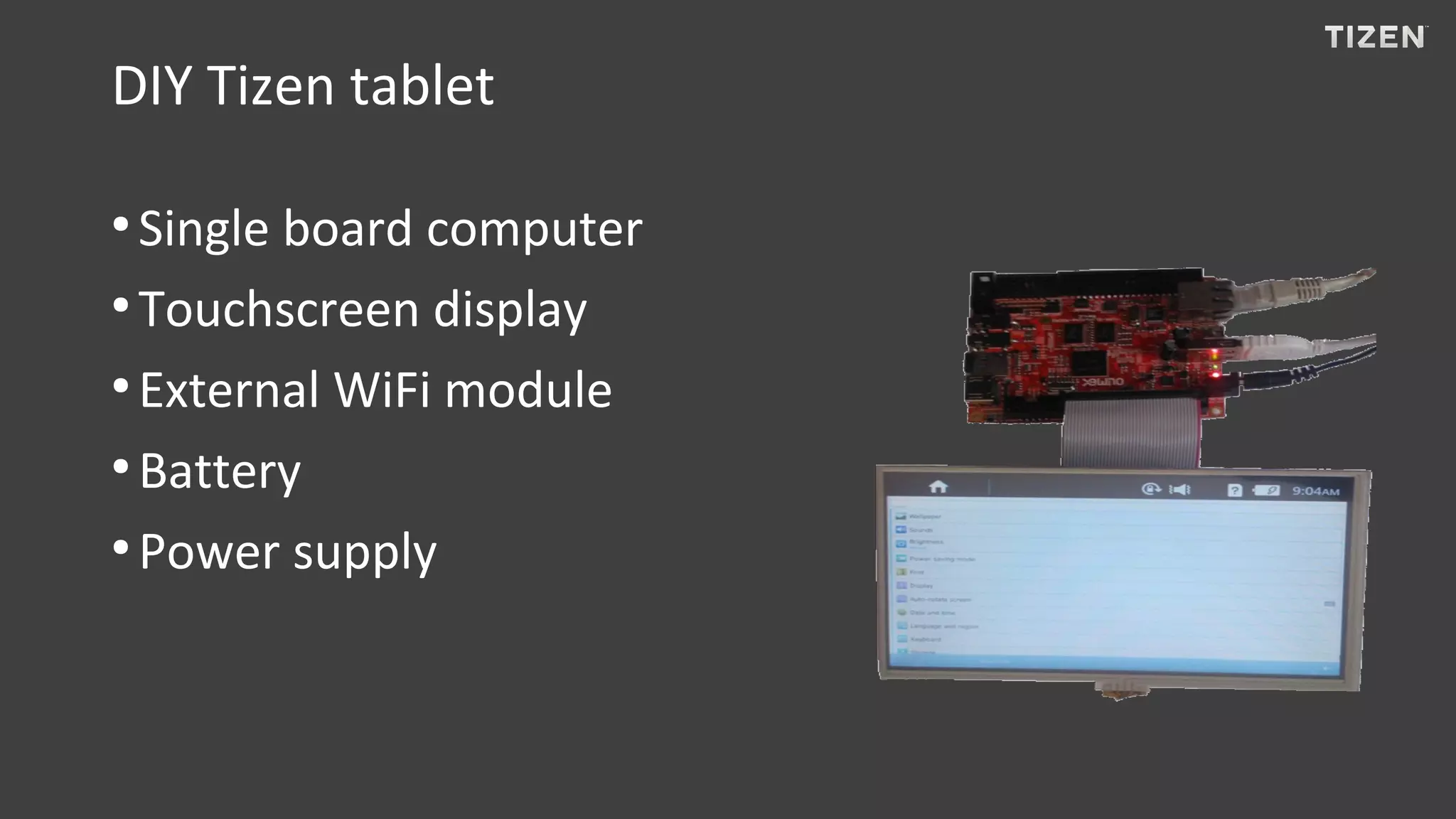

- 31. DIY Tizen tablet ● Single board computer ● Touchscreen display ● External WiFi module ● Battery ● Power supply

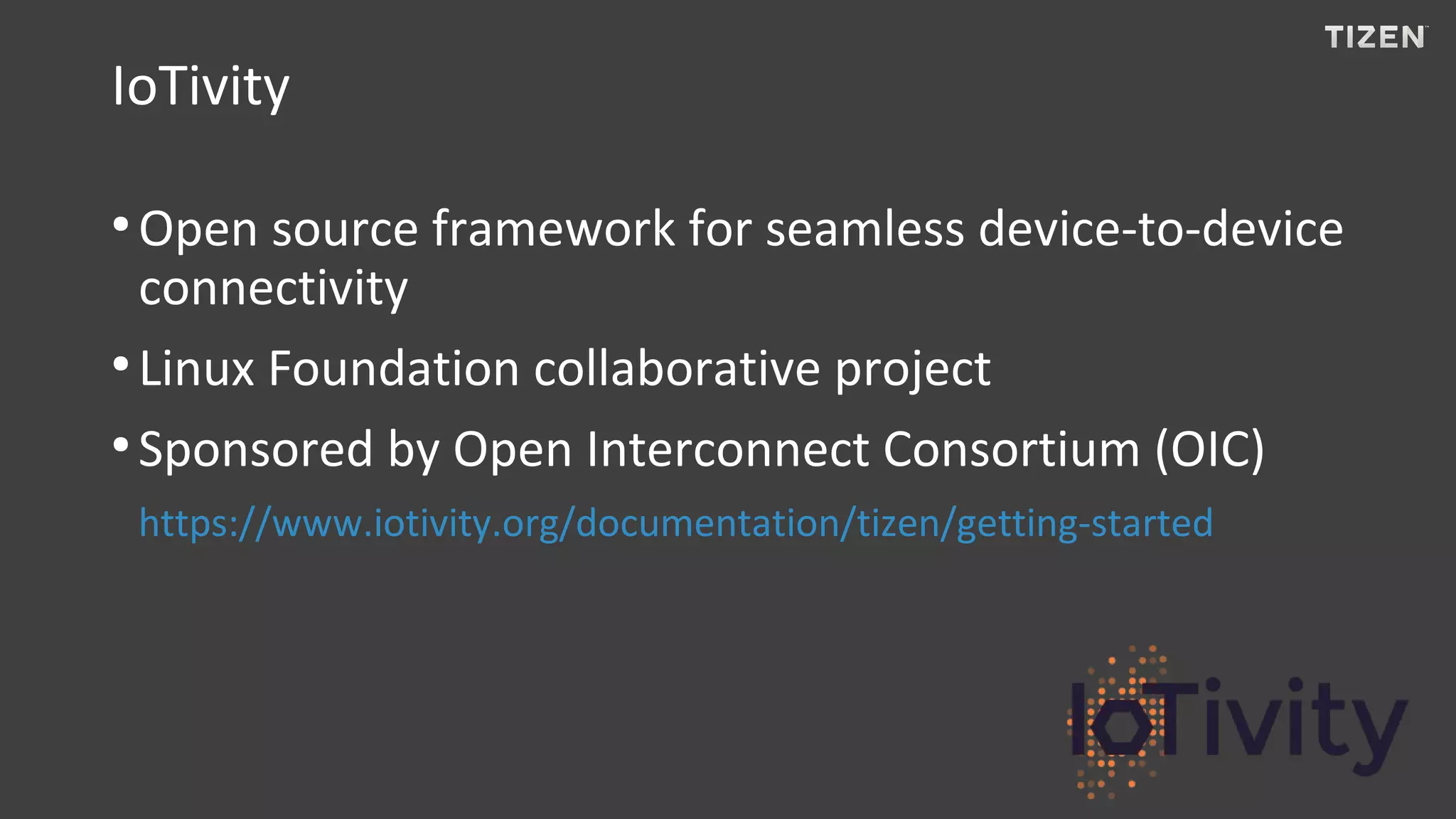

- 32. IoTivity ● Open source framework for seamless device-to-device connectivity ● Linux Foundation collaborative project ● Sponsored by Open Interconnect Consortium (OIC) https://www.iotivity.org/documentation/tizen/getting-started
- 34. Tizen Cookbook ● 30% discount code until 22 July 2015: HKOSCON https://www.packtpub.com/application- development/tizen-cookbook

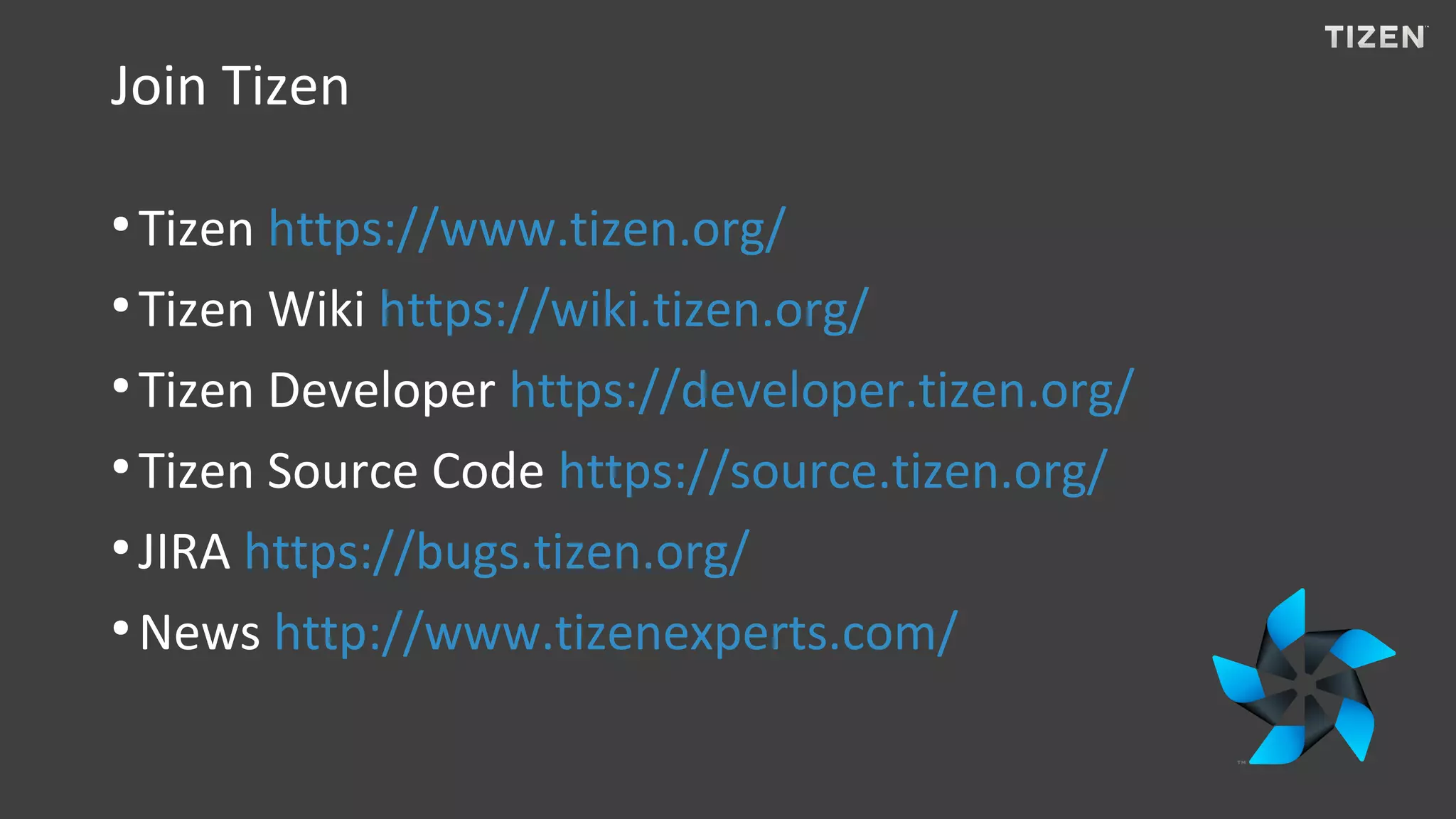

- 35. Join Tizen ● Tizen https://www.tizen.org/ ● Tizen Wiki https://wiki.tizen.org/ ● Tizen Developer https://developer.tizen.org/ ● Tizen Source Code https://source.tizen.org/ ● JIRA https://bugs.tizen.org/ ● News http://www.tizenexperts.com/
- 36. Thank you
