This is a quick introduction to a management system used in zhone to manage different nodes like MxK, MALC and other access nodes manufactured by zhone.
2. Copyright 2016 | The Networker | basimaly.wordpress.com

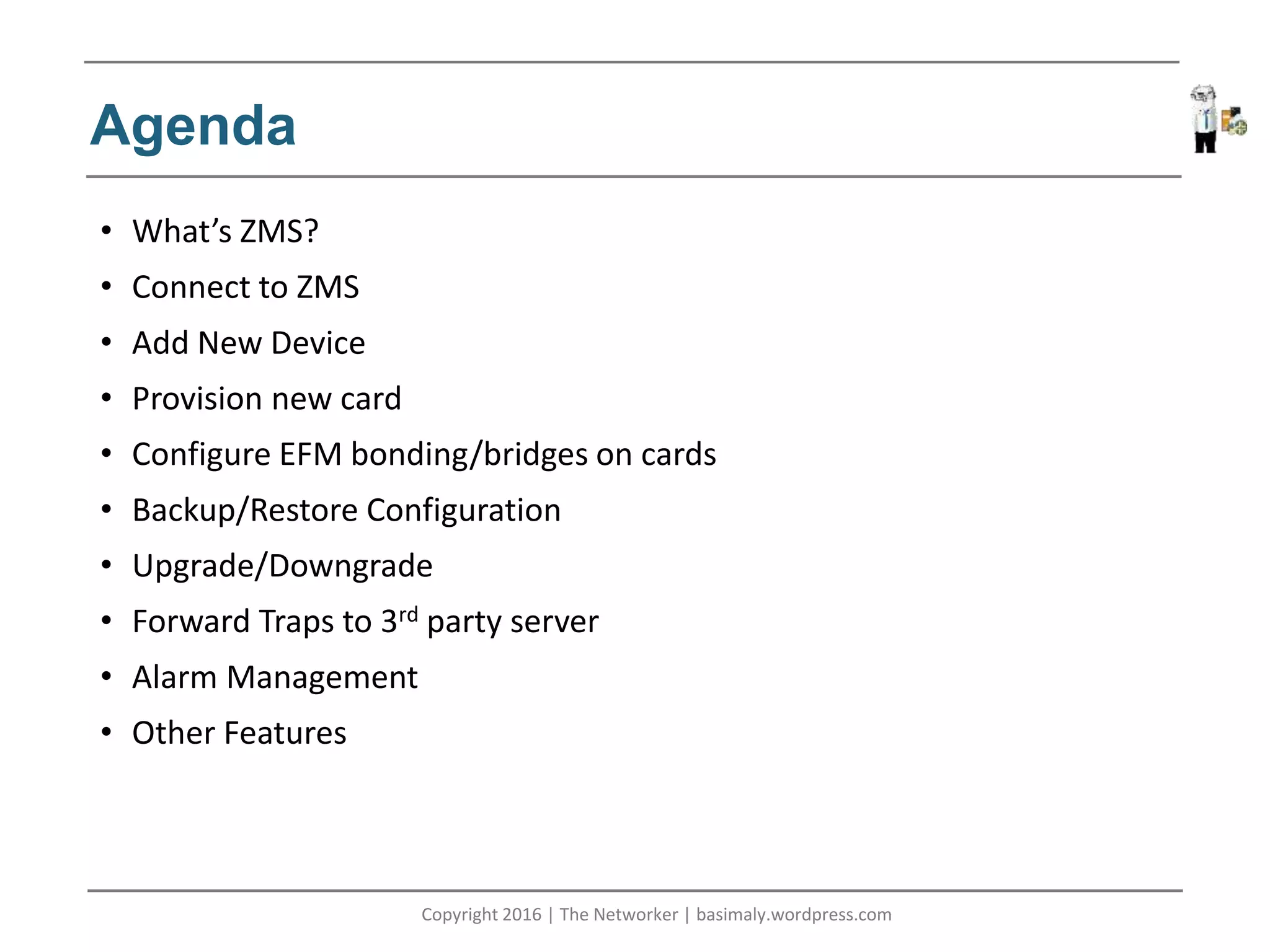

• What’s ZMS?
• Connect to ZMS
• Add New Device
• Provision new card
• Configure EFM bonding/bridges on cards
• Backup/Restore Configuration
• Upgrade/Downgrade
• Forward Traps to 3rd party server
• Alarm Management
• Other Features
Agenda
3. Copyright 2016 | The Networker | basimaly.wordpress.com
• Remote management software of Zhone network
elements
• Provides an real-time graphical monitoring of the
network
• Quick turn-up of devices and ease of service
provisioning
0.What’s ZMS?
4. Copyright 2016 | The Networker | basimaly.wordpress.com
• ZMS is a client / server based program. This means
the user downloads the client application to talk to
the server.
• All configuration steps, device information, alarm
management, etc. is done by the server.
• Software upgrades are done on the server, and
published to the clients.
1.Connect to ZMS
5. Copyright 2016 | The Networker | basimaly.wordpress.com
ZMS Client(NetHorizon)
• Java Application
• Communicates to ZMS Server
• Provides operator GUI console to Server
functions
• Maps with device status icons
• Detailed chassis views
• Real-time alarm and operational status
6. Copyright 2016 | The Networker | basimaly.wordpress.com
Connect to ZMS
Add ServerIP to
hosts file
7. Copyright 2016 | The Networker | basimaly.wordpress.com
Connect to ZMS
<serverIP>:7001/zms
Download and install the
client
8. Copyright 2016 | The Networker | basimaly.wordpress.com
Connect to ZMS
9. Copyright 2016 | The Networker | basimaly.wordpress.com
Connect to ZMS
Location of Devices
Alarms Summary
Devices
10. Copyright 2016 | The Networker | basimaly.wordpress.com
• Provide IP address of zhone device
• Provide SNMP community
• Make sure no errors appear after sync
2.Add New Device
11. Copyright 2016 | The Networker | basimaly.wordpress.com
Add new device
Right Click on and
choose Add
12. Copyright 2016 | The Networker | basimaly.wordpress.com
Add new device
MXK IP address
SNMP Community
Wait few moments
to sync
13. Copyright 2016 | The Networker | basimaly.wordpress.com
Add new device
Category
Cards
Device Alarm
14. Copyright 2016 | The Networker | basimaly.wordpress.com
3.Add New Card
Right Click on Card and
choose Add
Note the white border around the
selected card
15. Copyright 2016 | The Networker | basimaly.wordpress.com
Add new card
ZMS detect the s/w
needed from that card
Hit Next
16. Copyright 2016 | The Networker | basimaly.wordpress.com
Add new card
Card is added successfully
17. Copyright 2016 | The Networker | basimaly.wordpress.com
Create new EFM Bond
Assign links (members) to newly created EFM
Create bridges (vlans) over this bond
4.EFM Bond Config
18. Copyright 2016 | The Networker | basimaly.wordpress.com
EFM Bond Config
Choose the Card
Choose Bond Groups
section,Right click on it
Click on Add
19. Copyright 2016 | The Networker | basimaly.wordpress.com
EFM Bond Config
Choose type to be
EFM
Click on Add
Choose Descriptive Name
20. Copyright 2016 | The Networker | basimaly.wordpress.com
EFM Bond Config
Choose Group
Physicals
Choose Assign Links
21. Copyright 2016 | The Networker | basimaly.wordpress.com
EFM Bond Config
Choose links
Click OK
22. Copyright 2016 | The Networker | basimaly.wordpress.com
EFM Bond Config
Choose the bond
Click on Manage
Bridging
23. Copyright 2016 | The Networker | basimaly.wordpress.com
EFM Bond Config
Make sure bond is
choosen
Select bridge category
(downlink)
Select type of birdge
(tagged/untagged)
Select Vlan ID
24. Copyright 2016 | The Networker | basimaly.wordpress.com
Example
Make sure bond is
choosen
Select type of birdge
(tagged/untagged)
Select Vlan ID
25. Copyright 2016 | The Networker | basimaly.wordpress.com
• You can schedule daily/weekly backup for
configuration at specific time (each Thursday at
9:35PM)
• Configuration file name contains IP address for the
device and time/date for configuration process
• Make sure the backup process returns “Success”
5.Backup/Restore Configuration
26. Copyright 2016 | The Networker | basimaly.wordpress.com
Backup Config
Right Click on
Device itself
Choose to Backup
27. Copyright 2016 | The Networker | basimaly.wordpress.com
Backup Config
Status of Backup
Choose either scheduled or
immediate
28. Copyright 2016 | The Networker | basimaly.wordpress.com
Restore Config
Status of Backup
Choose either scheduled or
immediate
Right Click on
Device itself
Choose to Restore
29. Copyright 2016 | The Networker | basimaly.wordpress.com
Restore ConfigName of your
choice
Date
IP address
30. Copyright 2016 | The Networker | basimaly.wordpress.com
• ZMS can upgrade/downgrade multiple devices at
the same time
• TFTP server should be available during
upgrade/downgrade process (you can provide
primary and secondary TFTP server for redundancy)
6.Upgrade/Downgrade
35. Copyright 2016 | The Networker | basimaly.wordpress.com
Forward Traps
Configure IP address for the
receiver
Configure Common
Community between them
36. Copyright 2016 | The Networker | basimaly.wordpress.com
8.Alarm Management
The icon next to the device
represents the highest level
alarm that currently exists on
the device. In the example,
both Zhone Malc and malc-199
have Critical alarms present.
Alarms are divided into:
Critical
Major
Minor
Warning
Information
37. Copyright 2016 | The Networker | basimaly.wordpress.com
Alarm Management
To view the alarms on a
device, highlight the device
and click the Alarm button on
the toolbar.
To view all alarms for the
network, select the region (in
this case, Default Region) and
click on the Alarm button.
38. Copyright 2016 | The Networker | basimaly.wordpress.com
Alarm Management
Zhone Device
currently
has Major and
Critical alarms
39. Copyright 2016 | The Networker | basimaly.wordpress.com
• Inventory System
• Statistics
9.Other Features
40. Copyright 2016 | The Networker | basimaly.wordpress.com
Other: inventory
41. Copyright 2016 | The Networker | basimaly.wordpress.com
Other: inventory
Module Name
S/W version
S/N
42. Copyright 2016 | The Networker | basimaly.wordpress.com
Other: Statistics
You can graph
statistics for
certain
bond/uplink port
Real-time Statistics
DSL
Voice
ATM
Ethernet
