1. Introduction to sensors &
Actuators
L. Ratnayake
(MBA, BSc, DNIIT SE, Dip. Network Eng., Certificate in Brain
Controlled Robotics)

2. Piezo plate
• Can create sound output or signal inputs using
this.
• Mainly used to take input of vibrations.
• Can use to create knock based locker, sonic
steamers, earthquake detector.

3. Gear Motor
• Uses for creating RC cars and
robots
• Has high ratio geared motor
wheels for high power
• Can power using 5V and
need a motor driver or a
shield to function.

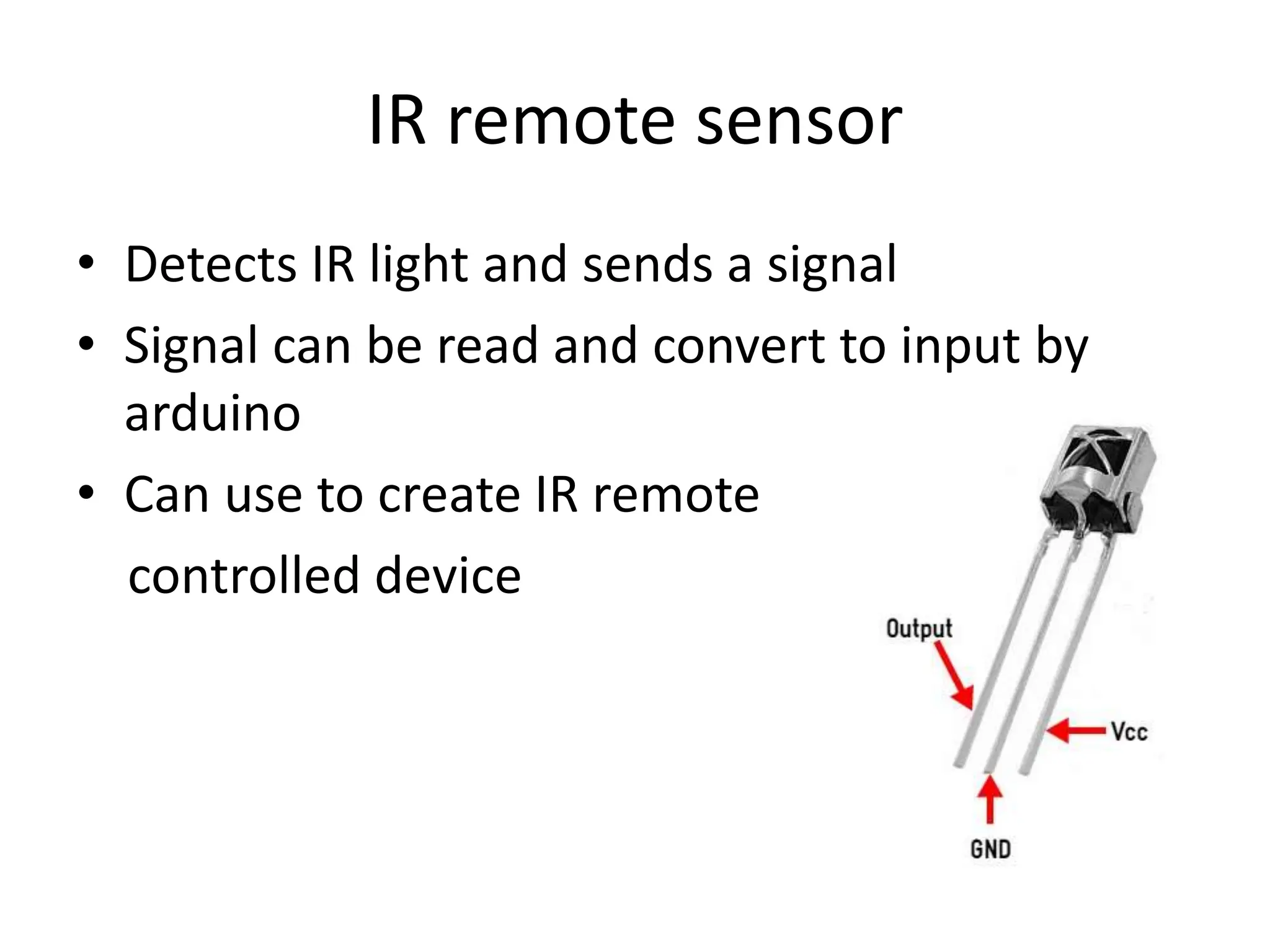

4. IR remote sensor
• Detects IR light and sends a signal
• Signal can be read and convert to input by
arduino
• Can use to create IR remote
controlled device

5. Piezo speaker
• Uses a piezo plate to create a small speaker
• Comes as inbuilt motherboard speaker.
• Can use as a monophonic melody buzzer with
arduino

6. Servo motor 9G
• Can have 180 degree
movement using this item.
• Used for open close of
doors or pointing an item in
any direction.
• Uses servo.h header to
activate.
• Pinout as vcc, gnd and pwm
(works with pwm pins)

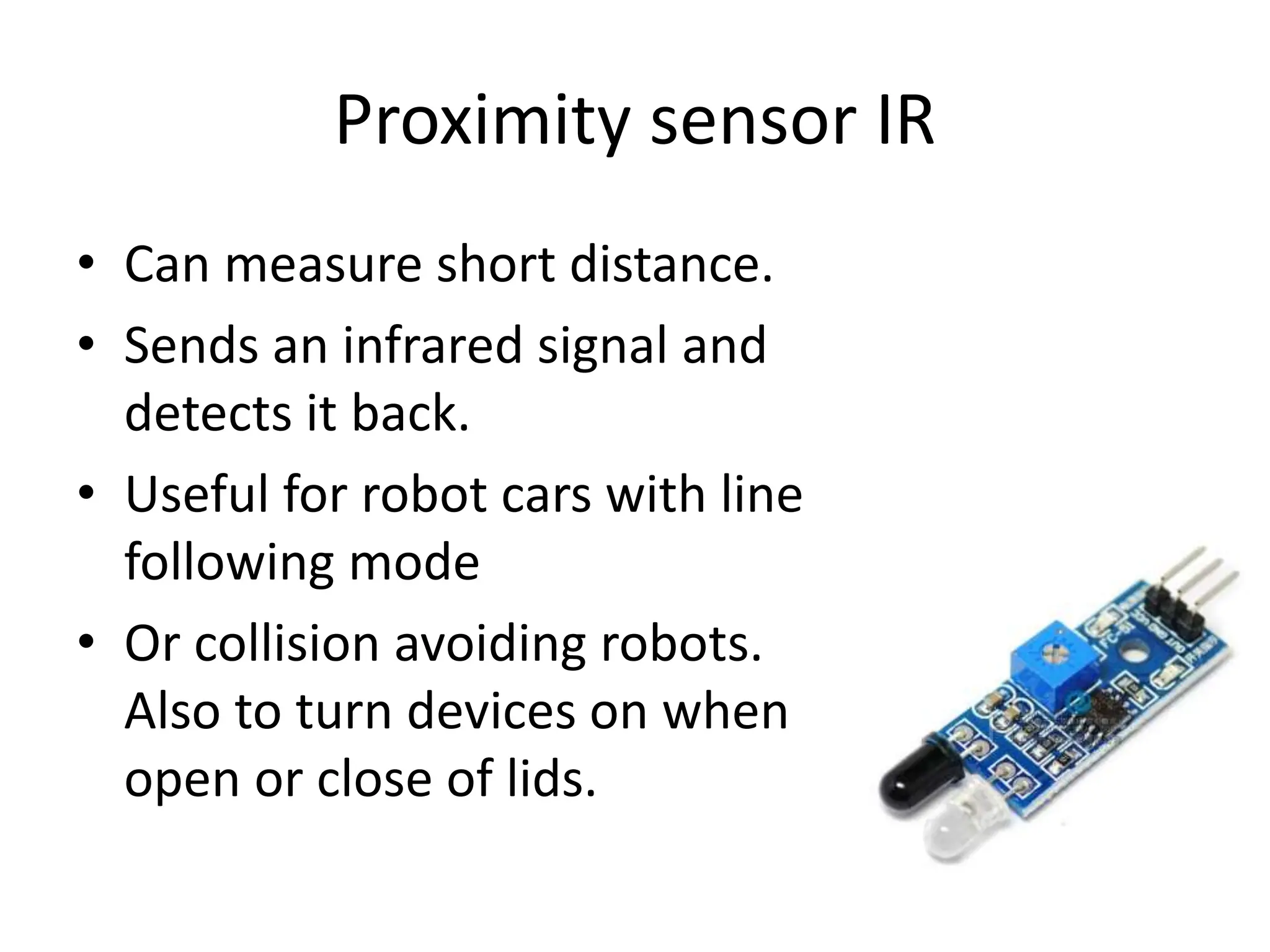

7. Proximity sensor IR
• Can measure short distance.
• Sends an infrared signal and
detects it back.
• Useful for robot cars with line
following mode
• Or collision avoiding robots.
Also to turn devices on when
open or close of lids.

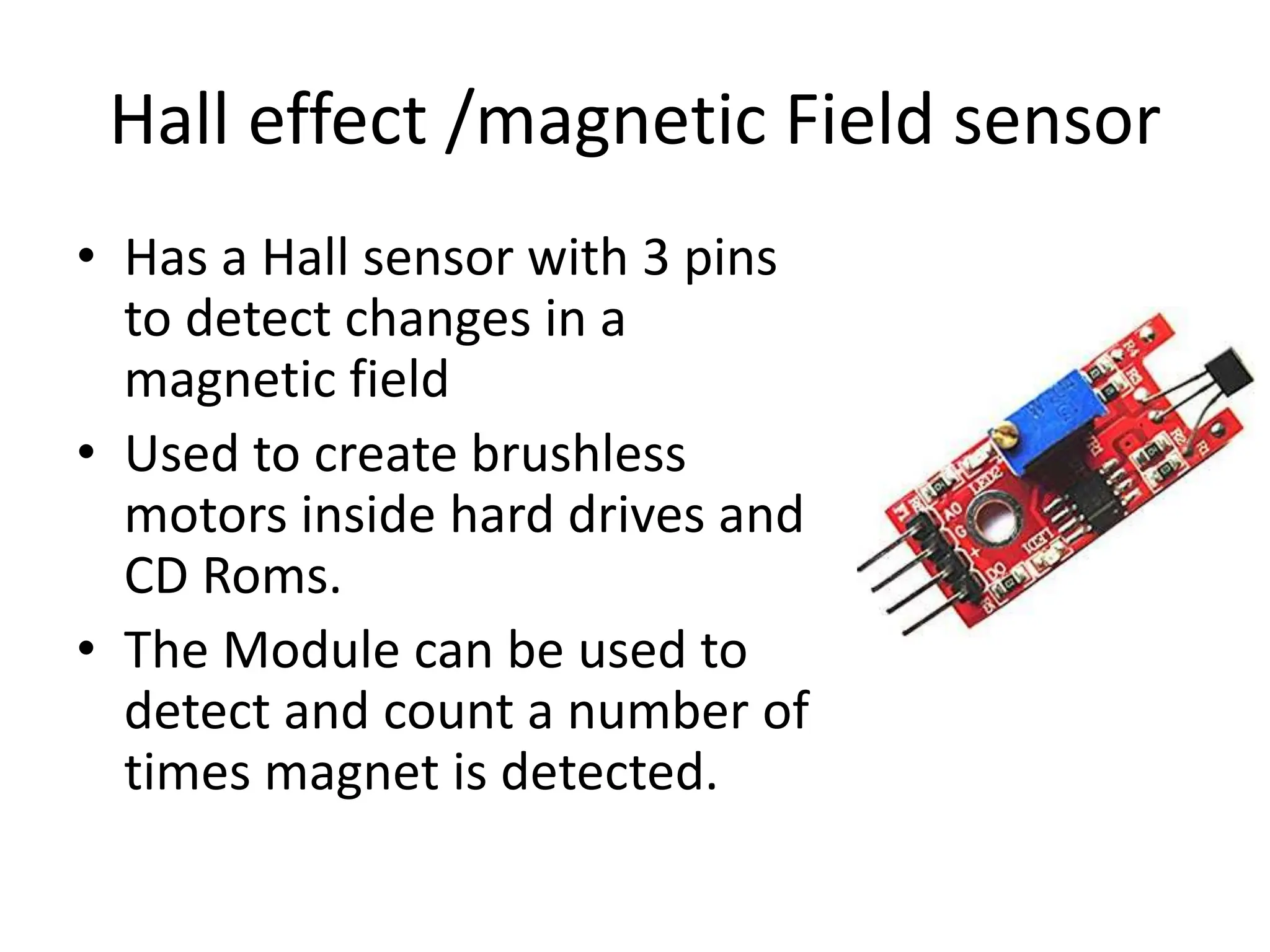

8. Hall effect /magnetic Field sensor
• Has a Hall sensor with 3 pins
to detect changes in a
magnetic field
• Used to create brushless
motors inside hard drives and
CD Roms.
• The Module can be used to
detect and count a number of
times magnet is detected.

9. Ultrasonic sensor
• HC-SR04 Uses ultrasonic sound waves to get
the distance
• Need to convert the received signal using a
math to cm, mm, meter
• Useful for collision avoid robots or distance
measurement device.

10. Temperature Sensor LM35
• 3 pin sensor or 2 pin sensor
• Can detect temperature
• Use analog reading.
• Directly connect to arduino
analog pins.
• Change GRN and OUT pins
to correct input.

11. Voltage Relay
• Can operate two sircuits using this actuator
• Relay operated using 5V
• Can operate 12v dc to 230V ac
• Application to household bulbs, fans, tv etc.

12. Photo Light sensor
• Can detect changes of light
• Comes as a module or 2 pin
unit
• Can use for auto turn on
bulbs or motors in the dark
• Can also adjust brightness of
a light using this

13. Gas sensor
• MQ-2 Smoke Gas Sensor
• Can detect LPG Propane Butane and Hydrogen
• Detector Module for Arduino
• Can create gas leak detectors, alcohol sensors,
Air quality testers
• MQ 135 can detect NH3,
NOx, alcohol, Benzene,
smoke,CO2

14. Motor Shield/Driver
• H bridge motor driver
• Can use with 2 or 4 motors
• Can go forward or backward
• Can programme left and right to go different
ways.
• Can apply 5 to 8 volts

15. LCD Module 1602A
• Has 16 character into
2 lines
• Can utilize to still or
animation text
• Can be used to display
messages.
• Can use with a keypad
to create devices.
• Can use I2C LCD
Adapter to use 4 pin
interface
