High School level (years 9-10 in Australia, ages 14-16) introduction to programming course, based on the language Processing, includes class material, exercises, examples, and tests. Course ran for 2 terms in 2014. Feel free to use as is, borrow ideas, etc. 2nd class.

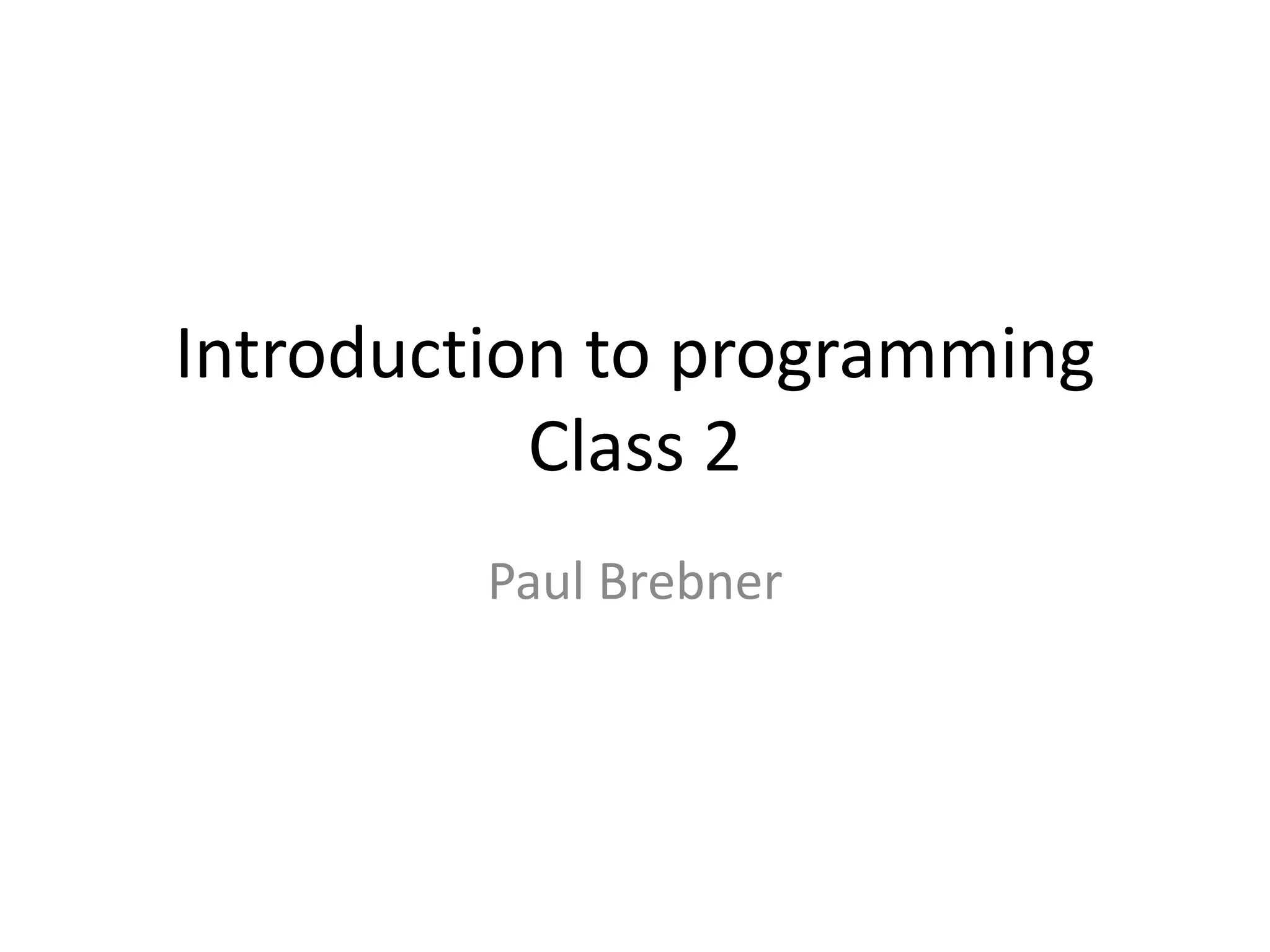

1. Introduction to programming
Class 2
Paul Brebner

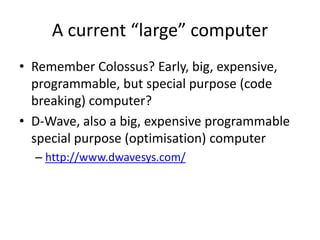

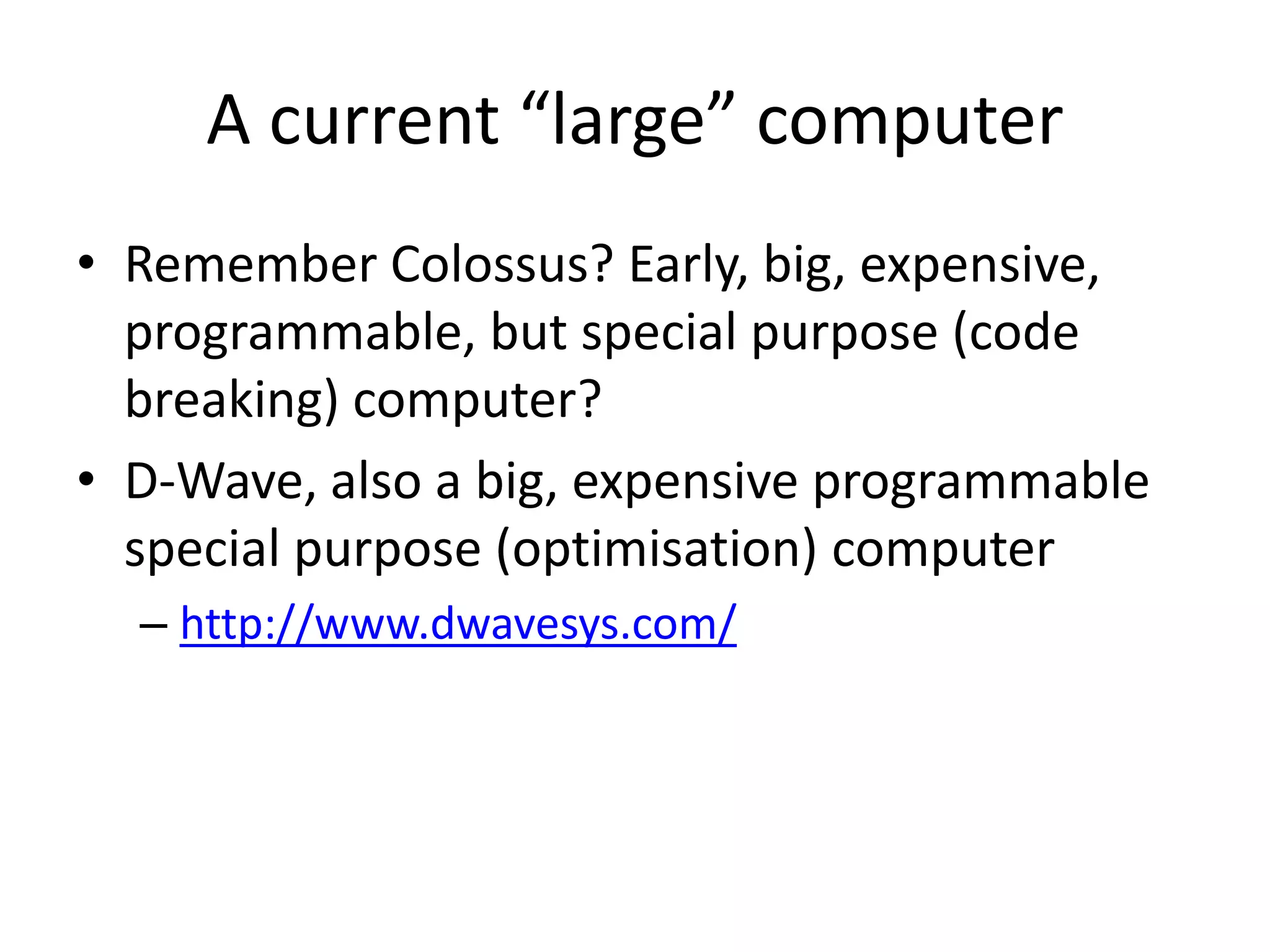

2. A current “large” computer
• Remember Colossus? Early, big, expensive,
programmable, but special purpose (code
breaking) computer?
• D-Wave, also a big, expensive programmable
special purpose (optimisation) computer
– http://www.dwavesys.com/

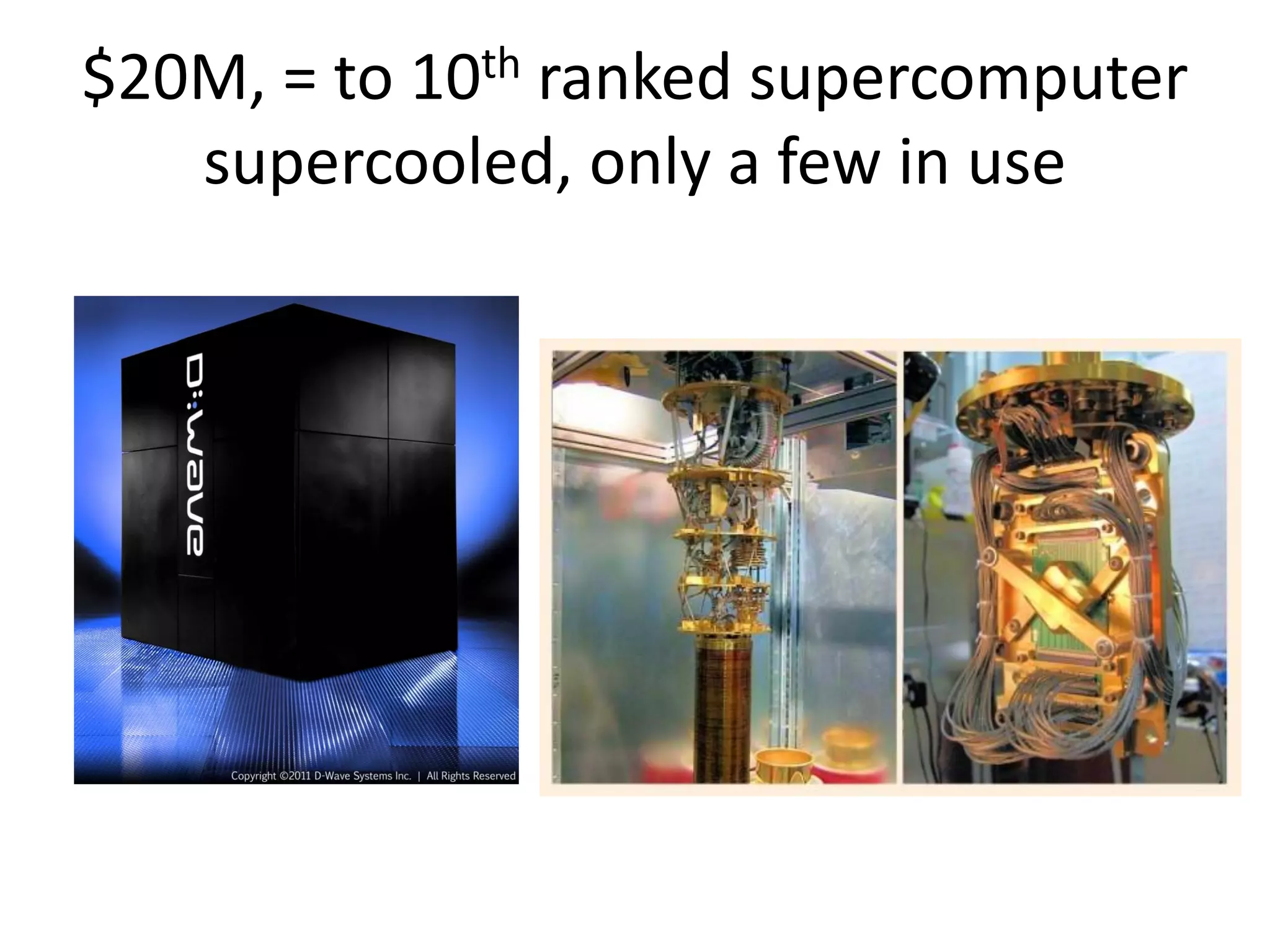

3. $20M, = to 10th ranked supercomputer
supercooled, only a few in use

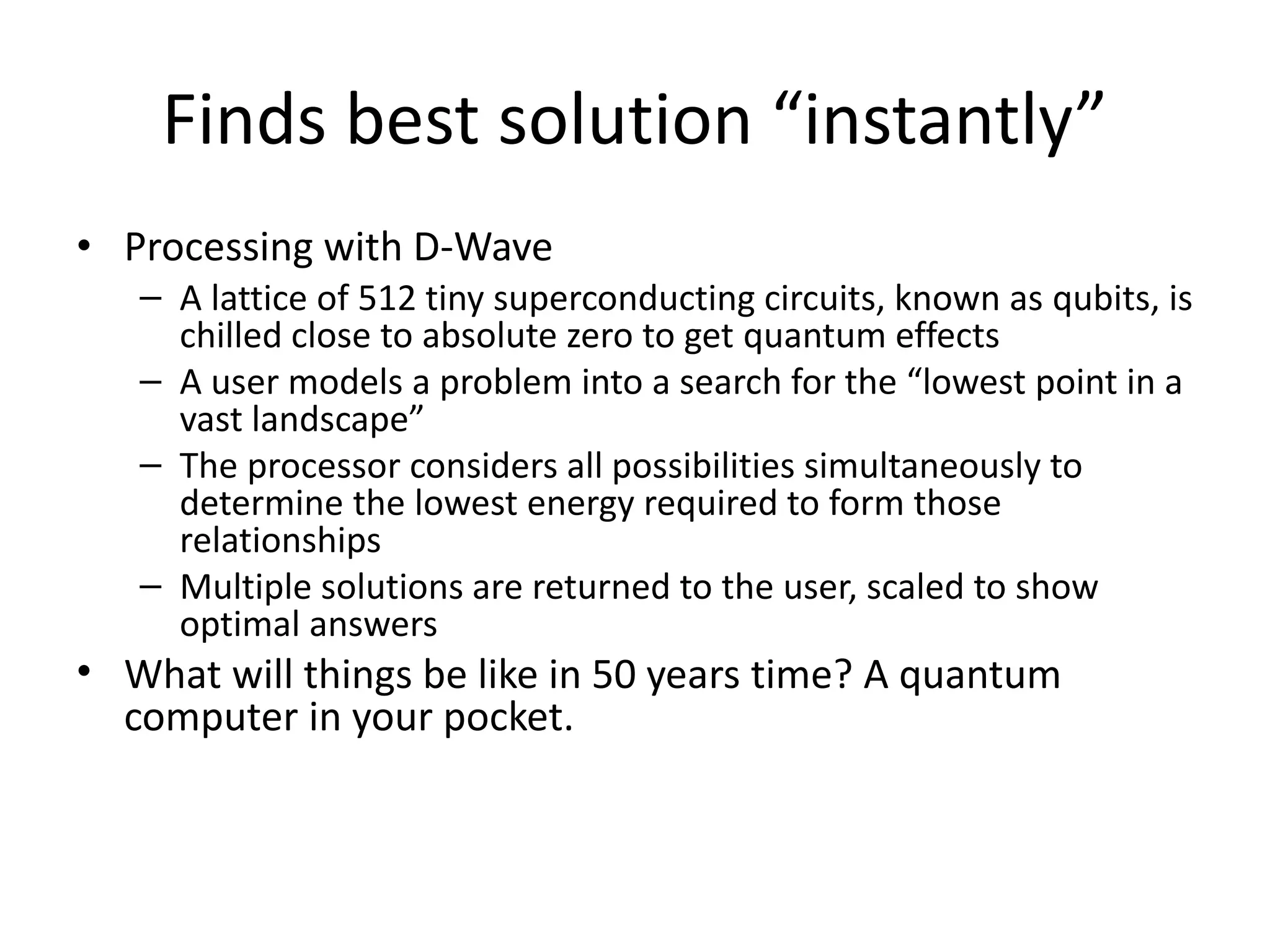

4. Finds best solution “instantly”
• Processing with D-Wave
– A lattice of 512 tiny superconducting circuits, known as qubits, is
chilled close to absolute zero to get quantum effects
– A user models a problem into a search for the “lowest point in a
vast landscape”
– The processor considers all possibilities simultaneously to
determine the lowest energy required to form those
relationships
– Multiple solutions are returned to the user, scaled to show
optimal answers
• What will things be like in 50 years time? A quantum
computer in your pocket.

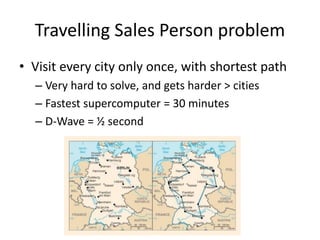

5. Travelling Sales Person problem
• Visit every city only once, with shortest path
– Very hard to solve, and gets harder > cities
– Fastest supercomputer = 30 minutes
– D-Wave = ½ second

6. Revision
• How far did you get with the Exercises from
Class 1?
• Process “Exhibition” examples
– A few more

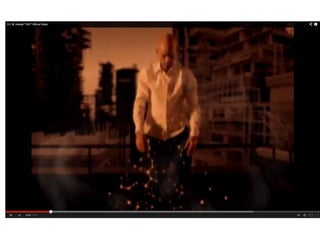

• http://processing.org/exhibition/works/starnursery/ind
ex_link.html (Needs Quicktime) Software for the R.E.M.
video Animal (youtube, screenshot next slide)
• http://processing.org/exhibition/works/yellowtail/inde
x_link.html

8. Your favourites?
• ???

9. Processing progress
• Activity 2
– Can you find your way around Processing
Environment ok? Examples? Reference? Tutorial?
– Running programs?
– Statements and comments
– Setup() and draw()
– Variables
– Basic/primitive data types
– Any questions?

10. Statements and Comments.
• Statements are the elements that make up programs. The ";" (semi-colon)
symbol is used to end statements. It is called the "statement terminator."
• Comments are used for making notes to help people better understand
programs. A comment begins with two forward slashes ("//").
• // The size function is a statement that tells the computer // how large to make
the window.
// Each function statement has zero or more parameters.
// Parameters are data passed into the function
// and are used as values for telling the computer what to do.
size(640, 360);
// The background function is a statement that tells the computer
// which color (or gray value) to make the background of the display window
background(204, 153, 0);

11. Variables
• A named place to store something – what?
– The Type of the thing.
• Syntax
type name; // undefined initial value
type name = value; // assign an initial value.
Note that “=“ means “put the value into the name” (not
equals which is “==“)!
• Examples
int numberOfPizzas = 12; // int are 32 bit integers
boolean iLikePizza = true; // boolean is true or false (maybe)
char theFirstLetterOfTheAlphabet = ‘a’; // “not a String”
float howMuchOfThePizzaIGot = 0.3333333; // 32bit decimal

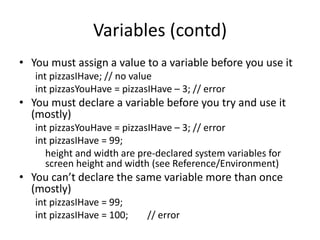

12. Variables (contd)
• You must assign a value to a variable before you use it
int pizzasIHave; // no value
int pizzasYouHave = pizzasIHave – 3; // error
• You must declare a variable before you try and use it
(mostly)
int pizzasYouHave = pizzasIHave – 3; // error
int pizzasIHave = 99;
height and width are pre-declared system variables for
screen height and width (see Reference/Environment)
• You can’t declare the same variable more than once
(mostly)
int pizzasIHave = 99;
int pizzasIHave = 100; // error

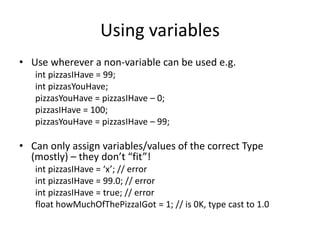

13. Using variables
• Use wherever a non-variable can be used e.g.
int pizzasIHave = 99;
int pizzasYouHave;
pizzasYouHave = pizzasIHave – 0;
pizzasIHave = 100;
pizzasYouHave = pizzasIHave – 99;
• Can only assign variables/values of the correct Type
(mostly) – they don’t “fit”!
int pizzasIHave = ‘x’; // error
int pizzasIHave = 99.0; // error
int pizzasIHave = true; // error
float howMuchOfThePizzaIGot = 1; // is 0K, type cast to 1.0

14. Processing progress
• Activity 2 part 3
– Did you manage to install Processing environment?
School? Home?
– How far did you get with Tutorials 1 & 2?
• We will using selected parts of a Processing text
book:
– Getting Started with Processing, by Reas and Fry
– This course was based on Processing V2.
– Note: This is available as an ebook:
– http://shop.oreilly.com/product/0636920031406.do

16. PAGE 9
Example 2-1: Draw an Ellipse
In the editor, type the following:
ellipse(50, 50, 80, 80);
This line of code means “draw an ellipse, with the center 50 pixels over
from the left and 50 pixels down from the top, with a width and height of
80 pixels.” Click the Run button.
If you’ve typed everything correctly, you’ll see the ellipse image above. If
you didn’t type it correctly, the Message Area will turn red and complain
about an error. If this happens, make sure that you’ve copied the example
code exactly: the numbers should be contained within parentheses
and have commas between each of them, and the line should end with a
semicolon.
One of the most difficult things about getting started with programming
is that you have to be very specific about the syntax. The Processing
software isn’t always smart enough to know what you mean, and can be
quite fussy about the placement of punctuation. You’ll get used to it with a
little practice.

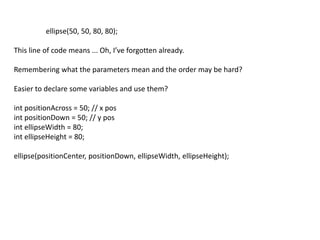

17. ellipse(50, 50, 80, 80);
This line of code means ... Oh, I’ve forgotten already.
Remembering what the parameters mean and the order may be hard?
Easier to declare some variables and use them?
int positionAcross = 50; // x pos
int positionDown = 50; // y pos
int ellipseWidth = 80;
int ellipseHeight = 80;
ellipse(positionCenter, positionDown, ellipseWidth, ellipseHeight);

18. More programming examples
• PAGE 10 Ex 2.2
– Add 2 variables for white (255) and black (0).
– Where do mouseX and mouseY come from?
– You can make special variables called CONSTANTS than can only be assigned to once and never
change their value
• final int WHITE = 255;
• final int BLACK = 0;
• final int GREY = WHITE/2;
• Try changing their value after first assignment...?
• E.g. WHITE = BLACK; // ???
• PAGE 14 top, right-click on orange text in editor and get help!
• Chapter 3 Draw
– X and y coordinates
– Functions and parameters
• Page 16 Ex 3.1
– size()
• Page 16 Ex 3.2
– point()
– Use the height and width system variables if you like

19. More programming examples
• Basic shapes
– Do up to Ex 3.7
• Drawing order Page 22 Ex 3.9-3.13
– Processing programs executed in order
– Shapes drawn later are drawn over the top of earlier shapes
• Colour (Page 26)
– Gray scales (white = 255, black = 0)
– Ex 3.14, Ex 3.15

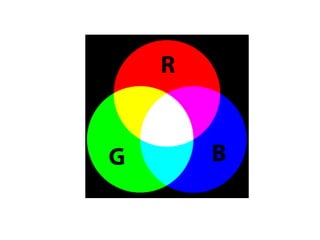

– Page 28 Ex 3.16 Colour (RGB) Additive colour model see next slide
• What’s the difference between fill(255) and fill(255, 255, 255)?
– Try the colour selector
• What’s pure red? Pure green? Pure blue? How do you get orange? Yellow? Purple?
• Color is a Type in Processing (remember it was invented by Americans so NOT COLOUR)
– color orange = color(255, 132, 0);
– fill(orange);
• Try making some fruit and vegetable color variables and displaying them all on the screen
• E.g. Orange, tomato, apple, watermelon, grape, banana, etc.
– Ex 3.17 transparency

21. Can you draw a bowl? Hint: P. 20 arc() function
And for your next trick... (Next slide)

22. Giuseppe Arcimboldo an Italian painter best known for
portrait heads made entirely of such objects as fruits,
vegetables, flowers, fish, and books
