This document provides an introduction and overview of Hadoop. It discusses why Hadoop is useful for large-scale data processing, describes the key components of the Hadoop ecosystem like HDFS and MapReduce, and how to deploy and write programs on Hadoop clusters. It also addresses common questions around testing Hadoop jobs and discusses some advanced Hadoop techniques beyond basic MapReduce jobs.

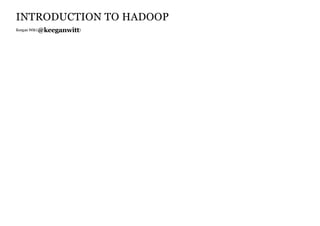

1. INTRODUCTION TO HADOOP
Keegan Witt ( )@keeganwitt

2. SLIDES
http://bit.ly/cm14_hadoop

3. WHO'S THE SCHLUB?

4. AGENDA

5. THINGS I'LL TALK ABOUT
Why Hadoop?
Hadoop ecosystem
Deploying Hadoop
Writing your first
job
Testing your first
job
Why not Hadoop?
Advanced usages

6. THINGS I WON'T TALK ABOUT
Anything I lack prod experience in
Configuring & managing a Hadoop cluster
Querying & data mining (e.g. Hive, Pig, Mahout, Flume)

7. WHY RIDE THE ELEPHANT?
Source: Hadoop

8. THE PROBLEM
Growing data
Disks are slow
Need higher throughput
More unstructured data

9. DESIRABLE FEATURES
Scale out, not up
Easy to use
Built­in backups
Built­in fault tolerance

10. USE CASES
Text mining/pattern recognition
Graph processing
Collaborative filtering
Clustering

11. Amazon
AOL
Autodesk
eBay
Google*
Groupon
HP
IBM
Intel
J.P. Morgan
Last.fm
LinkedIn
NASA
Navteq
NSA
Rackspace
Samsung
StumbleUpon
Twitter
Visa
Yahoo
WHO ELSE IS RIDING?

12. CONTRIBUTORS
Source: Cloudera

13. WHAT IS HADOOP?
Source: Unknown

14. HADOOP ECOSYSTEM

15. HDFS
Source: Timo Elliot

16. HDFS ARCHITECTURE
Source: Hadoop

17. HDFS ARCHITECTURE
Source: Computer Geek Blog

18. HBASE
Source: eQuest

19. HBASE ARCHITECTURE
Source: Lars George's Blog

20. HBASE HDFS STRUCTURE
HFILES
HLOGS (WALS)
/hbase
/<Table>
/<Region>
/<ColumnFamiy>
/<StoreFile>
/hbase
/.logs
/<RegionServer>
/<HLog>

21. LOGICAL VIEW
Source: Manoj Khangaonkar's Blog

22. MAPREDUCE

23. DATA VIEW
Source: Google

24. SERVER VIEW
Source: Hortonworks

25. PHYSICAL VIEW
Source: Microsoft

26. DISTRIBUTING LOAD

27. PROCESS VIEW
Source: Rohit Menon's blog

28. YARN & MAPREDUCE 2
Source: Hortonworks

29. PARSING
Source: Optimal.io

30. SHUFFLE
Source: Yahoo

31. DEPLOYING HADOOP
Source: Dilbert

32. DEPLOYING HADOOP
FOR EXPERIMENTING
FOR REAL
on
From distribution's packages
From source
Cloudera QuickStart VM
Hortonworks Sandbox
Amazon EMR
Cloudera CDH
Hortonworks HDP
MapR
Microsoft HDInsight Azure

33. CONFIGURING HADOOP
DEFAULTS
core­site.xml
hdfs­site.xml
mapred­site.xml
hbase­site.xml
hive­site.xml
yarn­site.xml
OVERRIDING
Configuration conf = new Configuration();
conf.set("<optionKey>", "<optionValue>");

34. WRITING YOUR FIRST JOB
Source: CloudTweaks

35. DRIVER
Source: (slightly modified)
public class WordCount_Driver {
public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();
Job job = new Job(conf, "wordcount");
job.setOutputKeyClass(Text.class);
job.setOutputValueClass(IntWritable.class);
job.setMapperClass(WordCount_Mapper.class);
job.setReducerClass(WordCount_Reducer.class);
job.setInputFormatClass(TextInputFormat.class);
job.setOutputFormatClass(TextOutputFormat.class);
FileInputFormat.addInputPath(job, new Path(args[0]));
FileOutputFormat.setOutputPath(job, new Path(args[1]));
System.exit(job.waitForCompletion(true) ? 0 : 1);
}
}
Hadoop

36. MAPPER
Source:
public class WordCount_Mapper
extends Mapper<LongWritable, Text, Text, IntWritable> {
private final static IntWritable one = new IntWritable(1);
private Text word = new Text();
public void map(LongWritable key, Text value, Context context)
throws IOException, InterruptedException {
String line = value.toString();
StringTokenizer tokenizer = new StringTokenizer(line);
while (tokenizer.hasMoreTokens()) {
word.set(tokenizer.nextToken());
context.write(word, one);
}
}
}
Hadoop

37. REDUCER
Source:
public class WordCount_Reducer
extends Reducer<Text, IntWritable, Text, IntWritable> {
public void reduce(Text key, Iterable<IntWritable> values,
Context context) throws IOException, InterruptedException {
int sum = 0;
for (IntWritable val : values) {
sum += val.get();
}
context.write(key, new IntWritable(sum));
}
}
Hadoop

38. TESTING YOUR FIRST JOB

39. MAP TEST
Source: (slightly modified)
public class WordCount_Mapper_Test {
private MapDriver<LongWritable, Text, Text, IntWritable> mapDriver;
@Before
public void setUp() {
WordCount_Mapper mapper = new WordCount_Mapper();
mapDriver = new MapDriver<LongWritable, Text, Text, IntWritable>();
mapDriver.setMapper(mapper);
}
@Test
public void testMapper() {
mapDriver.withInput(new LongWritable(1), new Text("cat cat dog"))
.withOutput(new Text("cat"), new IntWritable(1))
.withOutput(new Text("cat"), new IntWritable(1))
.withOutput(new Text("dog"), new IntWritable(1))
.runTest();
}
}
MRUnit

40. REDUCE TEST
Source: (slightly modified)
public class WordCount_Reducer_Test {
private ReduceDriver<Text, IntWritable, Text, IntWritable> reduceDriver;
@Before
public void setUp() {
WordCount_Reducer reducer = new WordCount_Reducer();
reduceDriver = new ReduceDriver<Text, IntWritable, Text, IntWritable>();
reduceDriver.setReducer(reducer);
}
@Test
public void testReducer() {
List<IntWritable> catValues = new ArrayList<IntWritable>();
catValues.add(new IntWritable(1));
catValues.add(new IntWritable(1));
List<IntWritable> dogValues = new ArrayList<IntWritable>();
dogValues.add(new IntWritable(1));
reduceDriver.withInput(new Text("cat"), catValues)
.withInput(new Text("dog"), dogValues)
.withOutput(new Text("cat"), new IntWritable(2))
.withOutput(new Text("dog"), new IntWritable(1))
.runTest();
}
}
MRUnit

41. MAPREDUCE TEST
Source: (slightly modified)
public class WordCount_MapReduce_Test {
private MapReduceDriver<LongWritable, Text, Text, IntWritable, Text, IntWritable> mapReduceDriver;
@Before
public void setUp() {
WordCount_Mapper mapper = new WordCount_Mapper();
WordCount_Reducer reducer = new WordCount_Reducer();
mapReduceDriver = new MapReduceDriver<LongWritable, Text, Text, IntWritable, Text, IntWritable>();
mapReduceDriver.setMapper(mapper);
mapReduceDriver.setReducer(reducer);
}
@Test
public void testMapReduce() {
mapReduceDriver.withInput(new LongWritable(1), new Text("cat cat dog"))
.addOutput(new Text("cat"), new IntWritable(2))
.addOutput(new Text("dog"), new IntWritable(1))
.runTest();
}
}
MRUnit

42. WHAT ABOUT TDD?

43. WHAT ABOUT SYSTEM TESTING?
(Sematext )
MiniCluster
HBaseTestingUtility example

44. DEMO

45. WHY NOT RIDE THE ELEPHANT?
Source: geek & poke

46. WHY NOT RIDE THE ELEPHANT?
Request/response model
External clients
Not much data
Young

47. BEYOND WORD COUNT

48. DEPENDENCIES
HADOOP_CLASSPATH
Überjar
­libjars
CLASSPATH ORDERING
HADOOP_USER_CLASSPATH_FIRST
mapreduce.task.classpath.first ­> true

49. CUSTOM COUNTERS
public enum KeegansCounters {
FOO,
BAR;
}
// ...
context.getCounter(KeegansCounters.FOO).increment(1);

50. JOB FLOWS
&
Sequentially in main()
Use JobControl in main()
Multiple Hadoop jar commands
Oozie
Azkaban
ChainMapper
ChainReducer

51. SQOOP PROCESS OVERVIEW
Source: DevX

52. SQOOPING DATA FROM RDBMSS
sqoop import
‐‐connect jdbc:mysql://foo.com/db
‐‐table orders
‐‐fields‐terminated‐by 't'
‐‐lines‐terminated‐by 'n'

53. SQOOPING DATA INTO RDBMSS
sqoop export
‐‐connect jdbc:mysql://foo.com/db
‐‐table bar
‐‐export‐dir /hdfs_path/bar_data

54. COMPRESSING INTERMEDIATE DATA
COMPRESSING OUTPUT
mapred.compress.map.output ‐> true
mapred.map.output.compression.codec ‐> com.hadoop.compression.lzo.SnappyCodec
FileOutputFormat.setCompressOutput(job, true);
FileOutputFormat.setOutputCompressorClass(job, BZip2Codec.class);

55. SKIPPING BAD RECORDS

56. PROFILING JOBS
HPROF
Trial and error

57. DISTRIBUTED CACHE
COMMANDLINE (USING INTERFACE)
­files
­archives
­libjars
PROGRAMMATICALLY
TOOL
public void addCacheFile(URI uri)
public void addCacheArchive(URI uri)
public void addFileToClassPath(Path file)
public void addArchiveToClassPath(Path archive)

58. SECONDARY SORTING
STEPS
Change key to composite
Create Partitioner and grouping Comparator on original key
Create sort Comparator on composite key

59. SECONDARY SORTING EXAMPLE
job.setPartitionerClass(FirstPartitioner.class);
job.setSortComparatorClass(KeyComparator.class);
job.setGroupingComparatorClass(GroupComparator.class);

60. RESOURCES

61. BOOKS

62. LINKS
http://hadoop.apache.org/
http://mrunit.apache.org/
http://hbase.apache.org/
http://avro.apache.org/
http://www.cascading.org/
http://pig.apache.org/
http://hive.apache.org/
http://flume.apache.org/
http://oozie.apache.org/
https://github.com/azkaban/azkaban
http://crunch.apache.org/
http://spark.incubator.apache.org/
http://developer.yahoo.com/hadoop/tutorial/
http://sortbenchmark.org/
https://github.com/cloudera/impala

63. QUESTIONS?
