Decision Model & Notation
(DMN)
An Introduction
Max Tay, OCEB® Business Advanced, CBPP®
© 2014 Max Tay, MaxConsilium Pty Ltd
Decision Model & Notation
(DMN)
 A common notation for decision models
developed by Object Management Group, for
user from both business and technical
including:
◦ business analysts designing decision models;
◦ technical developers automating the decisions in
processes; and
◦ business people who manage and monitor those
decisions.
 Its purpose is to provide the constructs that are
needed to model decisions in diagrams,
accurately defined by business analysts, and
optionally automated.
 It is designed to be useable alongside BPMN.
© 2014 Max Tay, MaxConsilium Pty Ltd
Basic Concepts
In the context of DMN, a decision is an act of:
 determining an output value,
 based on a number of input values,
 using logic defining how the output is determined
from the inputs.
Decision model is defined in two levels:
 Decision requirements level
◦ define the decisions to be made, the
interrelationships, and the required components for
the decision logic.
 Decision logic level
◦ define the required decisions in some form of logic
representation at sufficient detail enabling validation
and/or automation.
© 2014 Max Tay, MaxConsilium Pty Ltd
© 2014 Max Tay, MaxConsilium Pty Ltd

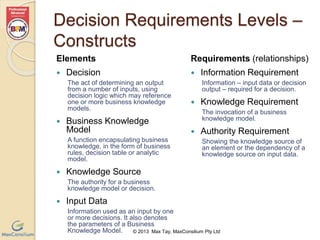

Decision Requirements Levels –
Constructs
Elements
© 2013 Max Tay, MaxConsilium Pty Ltd
 Decision
The act of determining an output
from a number of inputs, using
decision logic which may reference
one or more business knowledge
models.
 Business Knowledge
Model
A function encapsulating business
knowledge, in the form of business
rules, decision table or analytic
model.
 Knowledge Source
The authority for a business
knowledge model or decision.
 Input Data
Information used as an input by one
or more decisions. It also denotes
the parameters of a Business
Knowledge Model.
Requirements (relationships)
 Information Requirement
Information – input data or decision
output – required for a decision.
 Knowledge Requirement
The invocation of a business
knowledge model.
 Authority Requirement
Showing the knowledge source of
an element or the dependency of a
knowledge source on input data.
Decision Requirements Level –
Notation
Elements
© 2013 Max Tay, MaxConsilium Pty Ltd
 Decision
 Business Knowledge
Model
 Knowledge Source
 Input Data
Requirements (relationships)
 Information Requirement
 Knowledge Requirement
 Authority Requirement

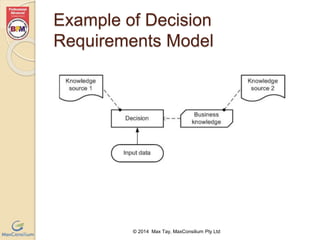

Example of Decision
Requirements Model
© 2014 Max Tay, MaxConsilium Pty Ltd
Knowledge Source and Authority
Requirement
 Business knowledge derived from (authority
requirements) business artefacts and legislative artefact
(knowledge sources).
 Business knowledge derived from predictive analytic
model based on the input data and decision.
© 2014 Max Tay, MaxConsilium Pty Ltd
Decision Requirements Models –
DRG and DRD
Decision Requirements Graph (DRG)
 A DRG is composed of elements connected
by requirements and is self-contained.
◦ All the modelled requirements for any
Decision in the DRG – its immediate sources
of information, knowledge and authority – are
present in the same DRG.
Decision Requirements Diagram (DRD)
 A DRD only presents a particular view of a
DRG, which may be a partial or filtered
display.
© 2014 Max Tay, MaxConsilium Pty Ltd
Examples of DRG and DRDs
© 2014 Max Tay, MaxConsilium Pty Ltd

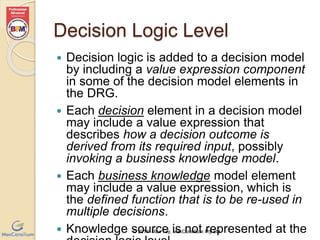

Decision Logic Level
 Decision logic is added to a decision model
by including a value expression component
in some of the decision model elements in
the DRG.
 Each decision element in a decision model
may include a value expression that
describes how a decision outcome is
derived from its required input, possibly
invoking a business knowledge model.
 Each business knowledge model element
may include a value expression, which is
the defined function that is to be re-used in
multiple decisions.
 Knowledge source is not represented at the
© 2014 Max Tay, MaxConsilium Pty Ltd
decision logic level.
Decision Logic Level
Modelling
 The notation for decision logic is “boxed expressions”
which is associated with Elements of Decision
Requirements Diagram.
 Represented in any of the following forms:
◦ Invocation (for Decision element),
◦ decision tables,
◦ calculations,
◦ if/then/else logic,
◦ simple data structures, and
◦ externally defined logic from Java and PMML into
executable expressions with formally defined
semantics
◦ A literal expression language provided by DMN –
Friendly Enough Expression Language (FEEL).
© 2014 Max Tay, MaxConsilium Pty Ltd

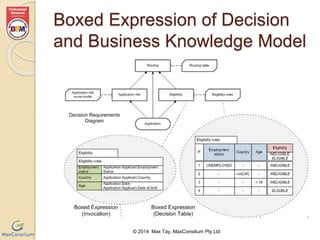

Boxed Expression of Decision
and Business Knowledge Model
© 2014 Max Tay, MaxConsilium Pty Ltd

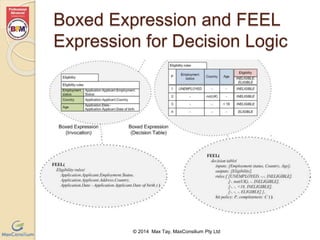

Boxed Expression and FEEL
Expression for Decision Logic
© 2014 Max Tay, MaxConsilium Pty Ltd
Representing Business Knowledge
Model using DMN Decision Table
© 2014 Max Tay, MaxConsilium Pty Ltd
DMN Decision Table
 A DMN decision table consists of:
◦ name,
◦ set of inputs, each input optionally associated with a
type and list of input values,
◦ set of outputs, each output optionally associated with
a type and list of output values,
◦ list of rules in rows or columns of the table, where
each rule is composed of the specific input entries
and output entries of the table row (or column).
 Input values for the rules must be exclusive, i.e. input
values do not overlap.
 A decision table is complete when the list of rules
contain all possible combinations of input values.
◦ An incomplete table may specify a default output.
© 2014 Max Tay, MaxConsilium Pty Ltd
Syntax of DMN Decision
Table
Input expression 1 Input expression 2 Output name
value 1a, value 1b value 2a, value 2b value 3a, value 3b
1 value 1a value 2a value 3a
2 value 1b value 2b value 3b
© 2014 Max Tay, MaxConsilium Pty Ltd
Decision name
HC
Name of
Decision Table
Rule
number
Set of Inputs
Output(s)
Multiple output
columns allowed
Double line between inputs
section and outputs section, and
between inputs/outputs headers
and the rule entry cells.
Lists of expected values
(optional)
Hit
policy
Completeness
indicator

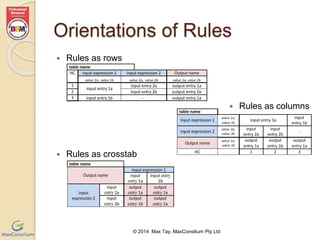

Orientations of Rules
© 2014 Max Tay, MaxConsilium Pty Ltd
 Rules as rows
 Rules as columns
 Rules as crosstab
DMN Decision Table Hit
Policy
 The hit policy specifies:
◦ what the result of the decision table is where
there are multiple matches for a given set of
inputs.
◦ contains additional information that can be used
to check correctness of decision table at design-time.
 The hit policy indication is mandatory and is
summarized using a single character in a
particular decision table cell.
 The hit policy MUST default to Unique.
◦ Decision tables with the Unique hit policy do not
contain rules with overlapping input entries.
© 2014 Max Tay, MaxConsilium Pty Ltd

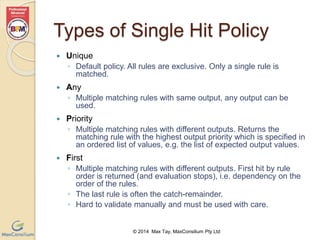

Types of Single Hit Policy
© 2014 Max Tay, MaxConsilium Pty Ltd
 Unique
◦ Default policy. All rules are exclusive. Only a single rule is
matched.
 Any
◦ Multiple matching rules with same output, any output can be
used.
 Priority
◦ Multiple matching rules with different outputs. Returns the
matching rule with the highest output priority which is specified in
an ordered list of values, e.g. the list of expected output values.
 First
◦ Multiple matching rules with different outputs. First hit by rule
order is returned (and evaluation stops), i.e. dependency on the
order of the rules.
◦ The last rule is often the catch-remainder.
◦ Hard to validate manually and must be used with care.

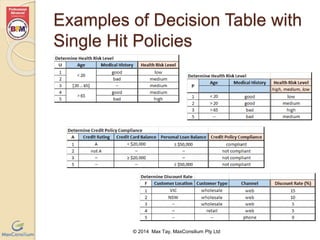

Examples of Decision Table with
Single Hit Policies
© 2014 Max Tay, MaxConsilium Pty Ltd
Types of Multiple Hit Policy for
Single Output Decision Table
 No order
◦ Returns all hits in a unique list in arbitrary
order.
 Output order
◦ Returns all hits in decreasing priority
order.
◦ Output priorities are specified in an
ordered list of values.
 Rule order
◦ Returns all hits in rule order, i.e.
dependency on the order of the rules.
© 2014 Max Tay, MaxConsilium Pty Ltd

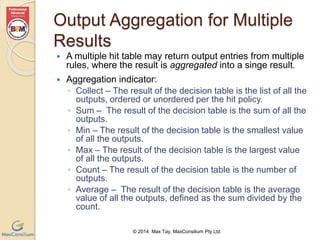

Output Aggregation for Multiple
Results
 A multiple hit table may return output entries from multiple
rules, where the result is aggregated into a singe result.
 Aggregation indicator:
◦ Collect – The result of the decision table is the list of all the
outputs, ordered or unordered per the hit policy.
◦ Sum – The result of the decision table is the sum of all the
outputs.
◦ Min – The result of the decision table is the smallest value
of all the outputs.
◦ Max – The result of the decision table is the largest value
of all the outputs.
◦ Count – The result of the decision table is the number of
outputs.
◦ Average – The result of the decision table is the average
value of all the outputs, defined as the sum divided by the
count.
© 2014 Max Tay, MaxConsilium Pty Ltd

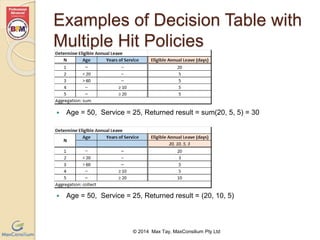

Examples of Decision Table with
Multiple Hit Policies
 Age = 50, Service = 25, Returned result = sum(20, 5, 5) = 30
 Age = 50, Service = 25, Returned result = (20, 10, 5)
© 2014 Max Tay, MaxConsilium Pty Ltd

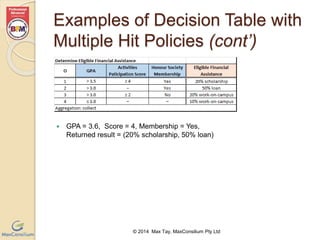

Examples of Decision Table with
Multiple Hit Policies (cont’)
 GPA = 3.6, Score = 4, Membership = Yes,
Returned result = (20% scholarship, 50% loan)
© 2014 Max Tay, MaxConsilium Pty Ltd

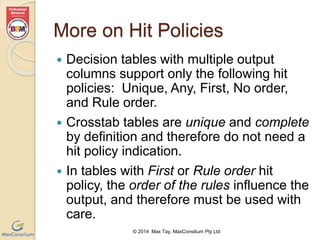

More on Hit Policies
 Decision tables with multiple output
columns support only the following hit
policies: Unique, Any, First, No order,
and Rule order.
 Crosstab tables are unique and complete
by definition and therefore do not need a
hit policy indication.
 In tables with First or Rule order hit
policy, the order of the rules influence the
output, and therefore must be used with
care.
© 2014 Max Tay, MaxConsilium Pty Ltd
© 2014 Max Tay, MaxConsilium Pty Ltd

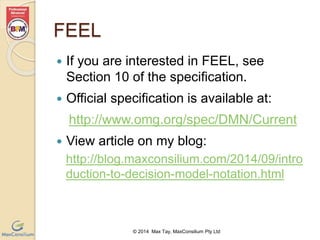

FEEL
 If you are interested in FEEL, see
Section 10 of the specification.
 Official specification is available at:
http://www.omg.org/spec/DMN/Current
 View article on my blog:
http://blog.maxconsilium.com/2014/09/intro
duction-to-decision-model-notation.html
© 2014 Max Tay, MaxConsilium Pty Ltd

More Related Content

What's hot

Create a 'Customer 360' with Master Data Management for Financial Services
Create a 'Customer 360' with Master Data Management for Financial ServicesCreate a 'Customer 360' with Master Data Management for Financial Services
Create a 'Customer 360' with Master Data Management for Financial ServicesPerficient, Inc.

DMBOK 2.0 and other frameworks including TOGAF & COBIT - keynote from DAMA Au...
DMBOK 2.0 and other frameworks including TOGAF & COBIT - keynote from DAMA Au...DMBOK 2.0 and other frameworks including TOGAF & COBIT - keynote from DAMA Au...
DMBOK 2.0 and other frameworks including TOGAF & COBIT - keynote from DAMA Au...
Christopher Bradley

Data modelling 101
Data modelling 101Data modelling 101
Data modelling 101
Christopher Bradley

Les Base de Données NOSQL
Les Base de Données NOSQLLes Base de Données NOSQL
Les Base de Données NOSQL
kamar MEDDAH

Master Data Management
Master Data ManagementMaster Data Management
Master Data Management
Luis Ortiz

Business Process Management Training 1
Business Process Management Training 1Business Process Management Training 1
Business Process Management Training 1
Naval Vithalani CSPO® CSM®

Data Warehouse Basics
Data Warehouse BasicsData Warehouse Basics
Data Warehouse Basics
Ram Kedem

Base de données graphe et Neo4j
Base de données graphe et Neo4jBase de données graphe et Neo4j
Base de données graphe et Neo4j
Boris Guarisma

Data Modeling is Data Governance
Data Modeling is Data GovernanceData Modeling is Data Governance
Data Modeling is Data Governance
DATAVERSITY

Essential Reference and Master Data Management
Essential Reference and Master Data ManagementEssential Reference and Master Data Management
Essential Reference and Master Data Management
DATAVERSITY

Big data architecture
Big data architectureBig data architecture
Big data architecture
Dr. Jasmine Beulah Gnanadurai

Introduction to DCAM, the Data Management Capability Assessment Model
Introduction to DCAM, the Data Management Capability Assessment ModelIntroduction to DCAM, the Data Management Capability Assessment Model
Introduction to DCAM, the Data Management Capability Assessment Model
Element22

Fiz ile Tedarikçi Portali
Fiz ile Tedarikçi PortaliFiz ile Tedarikçi Portali
Fiz ile Tedarikçi Portali
Egemen Kaya

‏‏‏‏Chapter 9: Data Warehousing and Business Intelligence Management
‏‏‏‏Chapter 9: Data Warehousing and Business Intelligence Management‏‏‏‏Chapter 9: Data Warehousing and Business Intelligence Management
‏‏‏‏Chapter 9: Data Warehousing and Business Intelligence Management
Ahmed Alorage

Dimensional Modeling
Dimensional ModelingDimensional Modeling
Dimensional Modeling
Sunita Sahu

BPMN 2.0 Fundamentals
BPMN 2.0 FundamentalsBPMN 2.0 Fundamentals
BPMN 2.0 Fundamentals
Enrique Ponce De Leon

Big Data Modeling
Big Data ModelingBig Data Modeling
Big Data Modeling
Hans Hultgren

Process Mining - Chapter 5 - Process Discovery
Process Mining - Chapter 5 - Process DiscoveryProcess Mining - Chapter 5 - Process Discovery
Process Mining - Chapter 5 - Process Discovery
Wil van der Aalst

Data Mesh 101
Data Mesh 101Data Mesh 101
Data Mesh 101
ChrisFord803185

Camunda BPM 7.2: Connectors, Data, Scripting (English)
Camunda BPM 7.2: Connectors, Data, Scripting (English)Camunda BPM 7.2: Connectors, Data, Scripting (English)
Camunda BPM 7.2: Connectors, Data, Scripting (English)
camunda services GmbH


What's hot (20)

Create a 'Customer 360' with Master Data Management for Financial Services
Create a 'Customer 360' with Master Data Management for Financial ServicesCreate a 'Customer 360' with Master Data Management for Financial Services
Create a 'Customer 360' with Master Data Management for Financial Services

DMBOK 2.0 and other frameworks including TOGAF & COBIT - keynote from DAMA Au...
DMBOK 2.0 and other frameworks including TOGAF & COBIT - keynote from DAMA Au...DMBOK 2.0 and other frameworks including TOGAF & COBIT - keynote from DAMA Au...
DMBOK 2.0 and other frameworks including TOGAF & COBIT - keynote from DAMA Au...

Data modelling 101
Data modelling 101Data modelling 101
Data modelling 101

Les Base de Données NOSQL
Les Base de Données NOSQLLes Base de Données NOSQL
Les Base de Données NOSQL

Master Data Management
Master Data ManagementMaster Data Management
Master Data Management

Business Process Management Training 1
Business Process Management Training 1Business Process Management Training 1
Business Process Management Training 1

Data Warehouse Basics
Data Warehouse BasicsData Warehouse Basics
Data Warehouse Basics

Base de données graphe et Neo4j
Base de données graphe et Neo4jBase de données graphe et Neo4j
Base de données graphe et Neo4j

Data Modeling is Data Governance
Data Modeling is Data GovernanceData Modeling is Data Governance
Data Modeling is Data Governance

Essential Reference and Master Data Management
Essential Reference and Master Data ManagementEssential Reference and Master Data Management
Essential Reference and Master Data Management

Big data architecture
Big data architectureBig data architecture
Big data architecture

Introduction to DCAM, the Data Management Capability Assessment Model
Introduction to DCAM, the Data Management Capability Assessment ModelIntroduction to DCAM, the Data Management Capability Assessment Model
Introduction to DCAM, the Data Management Capability Assessment Model

Fiz ile Tedarikçi Portali
Fiz ile Tedarikçi PortaliFiz ile Tedarikçi Portali
Fiz ile Tedarikçi Portali

‏‏‏‏Chapter 9: Data Warehousing and Business Intelligence Management
‏‏‏‏Chapter 9: Data Warehousing and Business Intelligence Management‏‏‏‏Chapter 9: Data Warehousing and Business Intelligence Management
‏‏‏‏Chapter 9: Data Warehousing and Business Intelligence Management

Dimensional Modeling
Dimensional ModelingDimensional Modeling
Dimensional Modeling

BPMN 2.0 Fundamentals
BPMN 2.0 FundamentalsBPMN 2.0 Fundamentals
BPMN 2.0 Fundamentals

Big Data Modeling
Big Data ModelingBig Data Modeling
Big Data Modeling

Process Mining - Chapter 5 - Process Discovery
Process Mining - Chapter 5 - Process DiscoveryProcess Mining - Chapter 5 - Process Discovery
Process Mining - Chapter 5 - Process Discovery

Data Mesh 101
Data Mesh 101Data Mesh 101
Data Mesh 101

Camunda BPM 7.2: Connectors, Data, Scripting (English)
Camunda BPM 7.2: Connectors, Data, Scripting (English)Camunda BPM 7.2: Connectors, Data, Scripting (English)
Camunda BPM 7.2: Connectors, Data, Scripting (English)


Similar to Introduction to DMN

Testing begins with requirements - Presentation to BCS SIGiST jun15
Testing begins with requirements - Presentation to BCS SIGiST jun15Testing begins with requirements - Presentation to BCS SIGiST jun15
Testing begins with requirements - Presentation to BCS SIGiST jun15
Paul Vincent

Presentation Vendavo Event Theo Slaats
Presentation Vendavo Event Theo SlaatsPresentation Vendavo Event Theo Slaats
Presentation Vendavo Event Theo Slaats
Theo Slaats

Strat Pro White Paper
Strat Pro   White PaperStrat Pro   White Paper
Strat Pro White Paper
Pedro Dudiuk

A G S006 Little 091807
A G S006  Little 091807A G S006  Little 091807
A G S006 Little 091807
Dreamforce07

presentation_Differentiation_Workshop_Kunal
presentation_Differentiation_Workshop_Kunalpresentation_Differentiation_Workshop_Kunal
presentation_Differentiation_Workshop_KunalKunal Sharma

Introduction to some DMN patterns and their value
Introduction to some DMN patterns and their valueIntroduction to some DMN patterns and their value
Introduction to some DMN patterns and their value
Denis Gagné

Build vs Partner - How to Choose by fmr PayPal Product Leader
Build vs Partner - How to Choose by fmr PayPal Product LeaderBuild vs Partner - How to Choose by fmr PayPal Product Leader
Build vs Partner - How to Choose by fmr PayPal Product Leader
Product School

CPA Week 2015 Commercial Acumen Presentation - Kym Williams, BRS
CPA Week 2015 Commercial Acumen Presentation - Kym Williams, BRSCPA Week 2015 Commercial Acumen Presentation - Kym Williams, BRS
CPA Week 2015 Commercial Acumen Presentation - Kym Williams, BRS
Sarah Edson

A Deep Dive into HPCM for Planning and Essbase Professionals
A Deep Dive into HPCM for Planning and Essbase ProfessionalsA Deep Dive into HPCM for Planning and Essbase Professionals
A Deep Dive into HPCM for Planning and Essbase Professionals
Alithya

Best Practices in Targeted Legacy Modernization
Best Practices in Targeted Legacy ModernizationBest Practices in Targeted Legacy Modernization
Best Practices in Targeted Legacy Modernization
Decision Management Solutions

Achieving Pricing Excellence in the Age of Business Transformation
Achieving Pricing Excellence in the Age of Business TransformationAchieving Pricing Excellence in the Age of Business Transformation
Achieving Pricing Excellence in the Age of Business Transformation
Apttus

Chapter 5
Chapter 5Chapter 5
Chapter 5
Abebe Manaye

Asset finance systems projects guide 101
Asset finance systems projects guide 101Asset finance systems projects guide 101
Asset finance systems projects guide 101
David Pedreno

Improve Performance with Enhanced Insight into Profitability and Costs Utiliz...
Improve Performance with Enhanced Insight into Profitability and Costs Utiliz...Improve Performance with Enhanced Insight into Profitability and Costs Utiliz...
Improve Performance with Enhanced Insight into Profitability and Costs Utiliz...
Edgewater

Oracle EPM Day Boston - Improving Performance with Enhanced Insight into Pro...
Oracle EPM Day Boston -  Improving Performance with Enhanced Insight into Pro...Oracle EPM Day Boston -  Improving Performance with Enhanced Insight into Pro...
Oracle EPM Day Boston - Improving Performance with Enhanced Insight into Pro...
Alithya

Improve Performance with Enhanced Insight into Profitability and Costs using ...
Improve Performance with Enhanced Insight into Profitability and Costs using ...Improve Performance with Enhanced Insight into Profitability and Costs using ...
Improve Performance with Enhanced Insight into Profitability and Costs using ...
Alithya

Profitability & Cost Management Cloud Service: Have It Your Way
Profitability & Cost Management Cloud Service: Have It Your WayProfitability & Cost Management Cloud Service: Have It Your Way
Profitability & Cost Management Cloud Service: Have It Your Way
Alithya


Similar to Introduction to DMN (20)

Testing begins with requirements - Presentation to BCS SIGiST jun15
Testing begins with requirements - Presentation to BCS SIGiST jun15Testing begins with requirements - Presentation to BCS SIGiST jun15
Testing begins with requirements - Presentation to BCS SIGiST jun15

Presentation Vendavo Event Theo Slaats
Presentation Vendavo Event Theo SlaatsPresentation Vendavo Event Theo Slaats
Presentation Vendavo Event Theo Slaats

Strat Pro White Paper
Strat Pro   White PaperStrat Pro   White Paper
Strat Pro White Paper

A G S006 Little 091807
A G S006  Little 091807A G S006  Little 091807
A G S006 Little 091807

presentation_Differentiation_Workshop_Kunal
presentation_Differentiation_Workshop_Kunalpresentation_Differentiation_Workshop_Kunal
presentation_Differentiation_Workshop_Kunal

Introduction to some DMN patterns and their value
Introduction to some DMN patterns and their valueIntroduction to some DMN patterns and their value
Introduction to some DMN patterns and their value

Build vs Partner - How to Choose by fmr PayPal Product Leader
Build vs Partner - How to Choose by fmr PayPal Product LeaderBuild vs Partner - How to Choose by fmr PayPal Product Leader
Build vs Partner - How to Choose by fmr PayPal Product Leader

CPA Week 2015 Commercial Acumen Presentation - Kym Williams, BRS
CPA Week 2015 Commercial Acumen Presentation - Kym Williams, BRSCPA Week 2015 Commercial Acumen Presentation - Kym Williams, BRS
CPA Week 2015 Commercial Acumen Presentation - Kym Williams, BRS

A Deep Dive into HPCM for Planning and Essbase Professionals
A Deep Dive into HPCM for Planning and Essbase ProfessionalsA Deep Dive into HPCM for Planning and Essbase Professionals
A Deep Dive into HPCM for Planning and Essbase Professionals

Best Practices in Targeted Legacy Modernization
Best Practices in Targeted Legacy ModernizationBest Practices in Targeted Legacy Modernization
Best Practices in Targeted Legacy Modernization

Clarity It Sourcing Diagnostic Presentation
Clarity It Sourcing Diagnostic PresentationClarity It Sourcing Diagnostic Presentation
Clarity It Sourcing Diagnostic Presentation

Management Control System
Management Control SystemManagement Control System
Management Control System

Achieving Pricing Excellence in the Age of Business Transformation
Achieving Pricing Excellence in the Age of Business TransformationAchieving Pricing Excellence in the Age of Business Transformation
Achieving Pricing Excellence in the Age of Business Transformation

Chapter 5
Chapter 5Chapter 5
Chapter 5

Break even analysis
Break even analysisBreak even analysis
Break even analysis

Asset finance systems projects guide 101
Asset finance systems projects guide 101Asset finance systems projects guide 101
Asset finance systems projects guide 101

Improve Performance with Enhanced Insight into Profitability and Costs Utiliz...
Improve Performance with Enhanced Insight into Profitability and Costs Utiliz...Improve Performance with Enhanced Insight into Profitability and Costs Utiliz...
Improve Performance with Enhanced Insight into Profitability and Costs Utiliz...

Oracle EPM Day Boston - Improving Performance with Enhanced Insight into Pro...
Oracle EPM Day Boston -  Improving Performance with Enhanced Insight into Pro...Oracle EPM Day Boston -  Improving Performance with Enhanced Insight into Pro...
Oracle EPM Day Boston - Improving Performance with Enhanced Insight into Pro...

Improve Performance with Enhanced Insight into Profitability and Costs using ...
Improve Performance with Enhanced Insight into Profitability and Costs using ...Improve Performance with Enhanced Insight into Profitability and Costs using ...
Improve Performance with Enhanced Insight into Profitability and Costs using ...

Profitability & Cost Management Cloud Service: Have It Your Way
Profitability & Cost Management Cloud Service: Have It Your WayProfitability & Cost Management Cloud Service: Have It Your Way
Profitability & Cost Management Cloud Service: Have It Your Way


Recently uploaded

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph
Guy Korland

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptxSecstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx
nkrafacyberclub

Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™
Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™
Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™
UiPathCommunity

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect
Kari Kakkonen

FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdfFIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance

UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4
DianaGray10

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance

FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdfFIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days
Adtran

FIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdfFIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview
Prayukth K V

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales
Laura Byrne

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events
Ana-Maria Mihalceanu

The Metaverse and AI: how can decision-makers harness the Metaverse for their...
The Metaverse and AI: how can decision-makers harness the Metaverse for their...The Metaverse and AI: how can decision-makers harness the Metaverse for their...
The Metaverse and AI: how can decision-makers harness the Metaverse for their...
Jen Stirrup

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
91mobiles

Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...
BookNet Canada

Enhancing Performance with Globus and the Science DMZ
Enhancing Performance with Globus and the Science DMZEnhancing Performance with Globus and the Science DMZ
Enhancing Performance with Globus and the Science DMZ
Globus

zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex ProofszkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
Alex Pruden

Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !
KatiaHIMEUR1


Recently uploaded (20)

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptxSecstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx

Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™
Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™
Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect

FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdfFIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf
FIDO Alliance Osaka Seminar: FIDO Security Aspects.pdf

UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf

FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdfFIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days

FIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdfFIDO Alliance Osaka Seminar: Overview.pdf
FIDO Alliance Osaka Seminar: Overview.pdf

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events

The Metaverse and AI: how can decision-makers harness the Metaverse for their...
The Metaverse and AI: how can decision-makers harness the Metaverse for their...The Metaverse and AI: how can decision-makers harness the Metaverse for their...
The Metaverse and AI: how can decision-makers harness the Metaverse for their...

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf

Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...

Enhancing Performance with Globus and the Science DMZ
Enhancing Performance with Globus and the Science DMZEnhancing Performance with Globus and the Science DMZ
Enhancing Performance with Globus and the Science DMZ

zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex ProofszkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs

Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !


Introduction to DMN

  • 1. Decision Model & Notation (DMN) An Introduction Max Tay, OCEB® Business Advanced, CBPP® © 2014 Max Tay, MaxConsilium Pty Ltd
  • 2. Decision Model & Notation (DMN)  A common notation for decision models developed by Object Management Group, for user from both business and technical including: ◦ business analysts designing decision models; ◦ technical developers automating the decisions in processes; and ◦ business people who manage and monitor those decisions.  Its purpose is to provide the constructs that are needed to model decisions in diagrams, accurately defined by business analysts, and optionally automated.  It is designed to be useable alongside BPMN. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 3. Basic Concepts In the context of DMN, a decision is an act of:  determining an output value,  based on a number of input values,  using logic defining how the output is determined from the inputs. Decision model is defined in two levels:  Decision requirements level ◦ define the decisions to be made, the interrelationships, and the required components for the decision logic.  Decision logic level ◦ define the required decisions in some form of logic representation at sufficient detail enabling validation and/or automation. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 4. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 5. Decision Requirements Levels – Constructs Elements © 2013 Max Tay, MaxConsilium Pty Ltd  Decision The act of determining an output from a number of inputs, using decision logic which may reference one or more business knowledge models.  Business Knowledge Model A function encapsulating business knowledge, in the form of business rules, decision table or analytic model.  Knowledge Source The authority for a business knowledge model or decision.  Input Data Information used as an input by one or more decisions. It also denotes the parameters of a Business Knowledge Model. Requirements (relationships)  Information Requirement Information – input data or decision output – required for a decision.  Knowledge Requirement The invocation of a business knowledge model.  Authority Requirement Showing the knowledge source of an element or the dependency of a knowledge source on input data.
  • 6. Decision Requirements Level – Notation Elements © 2013 Max Tay, MaxConsilium Pty Ltd  Decision  Business Knowledge Model  Knowledge Source  Input Data Requirements (relationships)  Information Requirement  Knowledge Requirement  Authority Requirement
  • 7. Example of Decision Requirements Model © 2014 Max Tay, MaxConsilium Pty Ltd
  • 8. Knowledge Source and Authority Requirement  Business knowledge derived from (authority requirements) business artefacts and legislative artefact (knowledge sources).  Business knowledge derived from predictive analytic model based on the input data and decision. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 9. Decision Requirements Models – DRG and DRD Decision Requirements Graph (DRG)  A DRG is composed of elements connected by requirements and is self-contained. ◦ All the modelled requirements for any Decision in the DRG – its immediate sources of information, knowledge and authority – are present in the same DRG. Decision Requirements Diagram (DRD)  A DRD only presents a particular view of a DRG, which may be a partial or filtered display. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 10. Examples of DRG and DRDs © 2014 Max Tay, MaxConsilium Pty Ltd
  • 11. Decision Logic Level  Decision logic is added to a decision model by including a value expression component in some of the decision model elements in the DRG.  Each decision element in a decision model may include a value expression that describes how a decision outcome is derived from its required input, possibly invoking a business knowledge model.  Each business knowledge model element may include a value expression, which is the defined function that is to be re-used in multiple decisions.  Knowledge source is not represented at the © 2014 Max Tay, MaxConsilium Pty Ltd decision logic level.
  • 12. Decision Logic Level Modelling  The notation for decision logic is “boxed expressions” which is associated with Elements of Decision Requirements Diagram.  Represented in any of the following forms: ◦ Invocation (for Decision element), ◦ decision tables, ◦ calculations, ◦ if/then/else logic, ◦ simple data structures, and ◦ externally defined logic from Java and PMML into executable expressions with formally defined semantics ◦ A literal expression language provided by DMN – Friendly Enough Expression Language (FEEL). © 2014 Max Tay, MaxConsilium Pty Ltd
  • 13. Boxed Expression of Decision and Business Knowledge Model © 2014 Max Tay, MaxConsilium Pty Ltd
  • 14. Boxed Expression and FEEL Expression for Decision Logic © 2014 Max Tay, MaxConsilium Pty Ltd
  • 15. Representing Business Knowledge Model using DMN Decision Table © 2014 Max Tay, MaxConsilium Pty Ltd
  • 16. DMN Decision Table  A DMN decision table consists of: ◦ name, ◦ set of inputs, each input optionally associated with a type and list of input values, ◦ set of outputs, each output optionally associated with a type and list of output values, ◦ list of rules in rows or columns of the table, where each rule is composed of the specific input entries and output entries of the table row (or column).  Input values for the rules must be exclusive, i.e. input values do not overlap.  A decision table is complete when the list of rules contain all possible combinations of input values. ◦ An incomplete table may specify a default output. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 17. Syntax of DMN Decision Table Input expression 1 Input expression 2 Output name value 1a, value 1b value 2a, value 2b value 3a, value 3b 1 value 1a value 2a value 3a 2 value 1b value 2b value 3b © 2014 Max Tay, MaxConsilium Pty Ltd Decision name HC Name of Decision Table Rule number Set of Inputs Output(s) Multiple output columns allowed Double line between inputs section and outputs section, and between inputs/outputs headers and the rule entry cells. Lists of expected values (optional) Hit policy Completeness indicator
  • 18. Orientations of Rules © 2014 Max Tay, MaxConsilium Pty Ltd  Rules as rows  Rules as columns  Rules as crosstab
  • 19. DMN Decision Table Hit Policy  The hit policy specifies: ◦ what the result of the decision table is where there are multiple matches for a given set of inputs. ◦ contains additional information that can be used to check correctness of decision table at design-time.  The hit policy indication is mandatory and is summarized using a single character in a particular decision table cell.  The hit policy MUST default to Unique. ◦ Decision tables with the Unique hit policy do not contain rules with overlapping input entries. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 20. Types of Single Hit Policy © 2014 Max Tay, MaxConsilium Pty Ltd  Unique ◦ Default policy. All rules are exclusive. Only a single rule is matched.  Any ◦ Multiple matching rules with same output, any output can be used.  Priority ◦ Multiple matching rules with different outputs. Returns the matching rule with the highest output priority which is specified in an ordered list of values, e.g. the list of expected output values.  First ◦ Multiple matching rules with different outputs. First hit by rule order is returned (and evaluation stops), i.e. dependency on the order of the rules. ◦ The last rule is often the catch-remainder. ◦ Hard to validate manually and must be used with care.
  • 21. Examples of Decision Table with Single Hit Policies © 2014 Max Tay, MaxConsilium Pty Ltd
  • 22. Types of Multiple Hit Policy for Single Output Decision Table  No order ◦ Returns all hits in a unique list in arbitrary order.  Output order ◦ Returns all hits in decreasing priority order. ◦ Output priorities are specified in an ordered list of values.  Rule order ◦ Returns all hits in rule order, i.e. dependency on the order of the rules. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 23. Output Aggregation for Multiple Results  A multiple hit table may return output entries from multiple rules, where the result is aggregated into a singe result.  Aggregation indicator: ◦ Collect – The result of the decision table is the list of all the outputs, ordered or unordered per the hit policy. ◦ Sum – The result of the decision table is the sum of all the outputs. ◦ Min – The result of the decision table is the smallest value of all the outputs. ◦ Max – The result of the decision table is the largest value of all the outputs. ◦ Count – The result of the decision table is the number of outputs. ◦ Average – The result of the decision table is the average value of all the outputs, defined as the sum divided by the count. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 24. Examples of Decision Table with Multiple Hit Policies  Age = 50, Service = 25, Returned result = sum(20, 5, 5) = 30  Age = 50, Service = 25, Returned result = (20, 10, 5) © 2014 Max Tay, MaxConsilium Pty Ltd
  • 25. Examples of Decision Table with Multiple Hit Policies (cont’)  GPA = 3.6, Score = 4, Membership = Yes, Returned result = (20% scholarship, 50% loan) © 2014 Max Tay, MaxConsilium Pty Ltd
  • 26. More on Hit Policies  Decision tables with multiple output columns support only the following hit policies: Unique, Any, First, No order, and Rule order.  Crosstab tables are unique and complete by definition and therefore do not need a hit policy indication.  In tables with First or Rule order hit policy, the order of the rules influence the output, and therefore must be used with care. © 2014 Max Tay, MaxConsilium Pty Ltd
  • 27. © 2014 Max Tay, MaxConsilium Pty Ltd FEEL  If you are interested in FEEL, see Section 10 of the specification.  Official specification is available at: http://www.omg.org/spec/DMN/Current  View article on my blog: http://blog.maxconsilium.com/2014/09/intro duction-to-decision-model-notation.html
  • 28. © 2014 Max Tay, MaxConsilium Pty Ltd
