Downloaded 53 times
![Create a Broker
$ ${ARTEMIS_HOME}/bin/artemis create mybroker
[... some interactions e.g. username, password ...]
done! Your system can make 0.5 writes per millisecond, your journ
You can now start the broker by executing:
"/path/to/artemis/mybroker/bin/artemis" run
Or you can run the broker in the background using:
"/path/to/artemis/mybroker/bin/artemis-service" start
16](https://image.slidesharecdn.com/introductiontoapacheactivemqartemis-170929165642/85/Introduction-to-Apache-ActiveMQ-Artemis-16-320.jpg)
![Run the Broker
$ cd mybroker
$ bin/artemis run
_ _ _
/ ____| |_ ___ __ __(_) _____
/ _ | _ __|/ _ / | |/ __/
/ ___ | / |_/ __/ |/| | |___
/_/ _| ______|_| |_|_|/___ /
Apache ActiveMQ Artemis 2.3.0
[...]
18](https://image.slidesharecdn.com/introductiontoapacheactivemqartemis-170929165642/85/Introduction-to-Apache-ActiveMQ-Artemis-18-320.jpg)
Uploaded byYoshimasa Tanabe
Introduction to Apache ActiveMQ Artemis
Apache ActiveMQ Artemis is a high performance, flexible, and lightweight message broker that supports clustering, high availability, and multi-protocol communication. It provides asynchronous messaging, decoupling of producers and consumers, and routing capabilities through the broker. The broker can be run in clustered and replicated configurations for scalability and reliability. It supports common protocols like AMQP, OpenWire, MQTT, STOMP, and HTTP for communication. Getting started involves creating a broker instance, configuring it, running the broker, and running producer and consumer clients to send and receive messages.
More Related Content
Similar to Introduction to Apache ActiveMQ Artemis
Introduction to Apache ActiveMQ Artemis
- 1. Introduction to ApacheActiveMQ Artemis 田邊 義真(たなべ よしまさ) 第二十回 #渋谷java @emaggame morec.at このドキュメントのリポジトリ 1

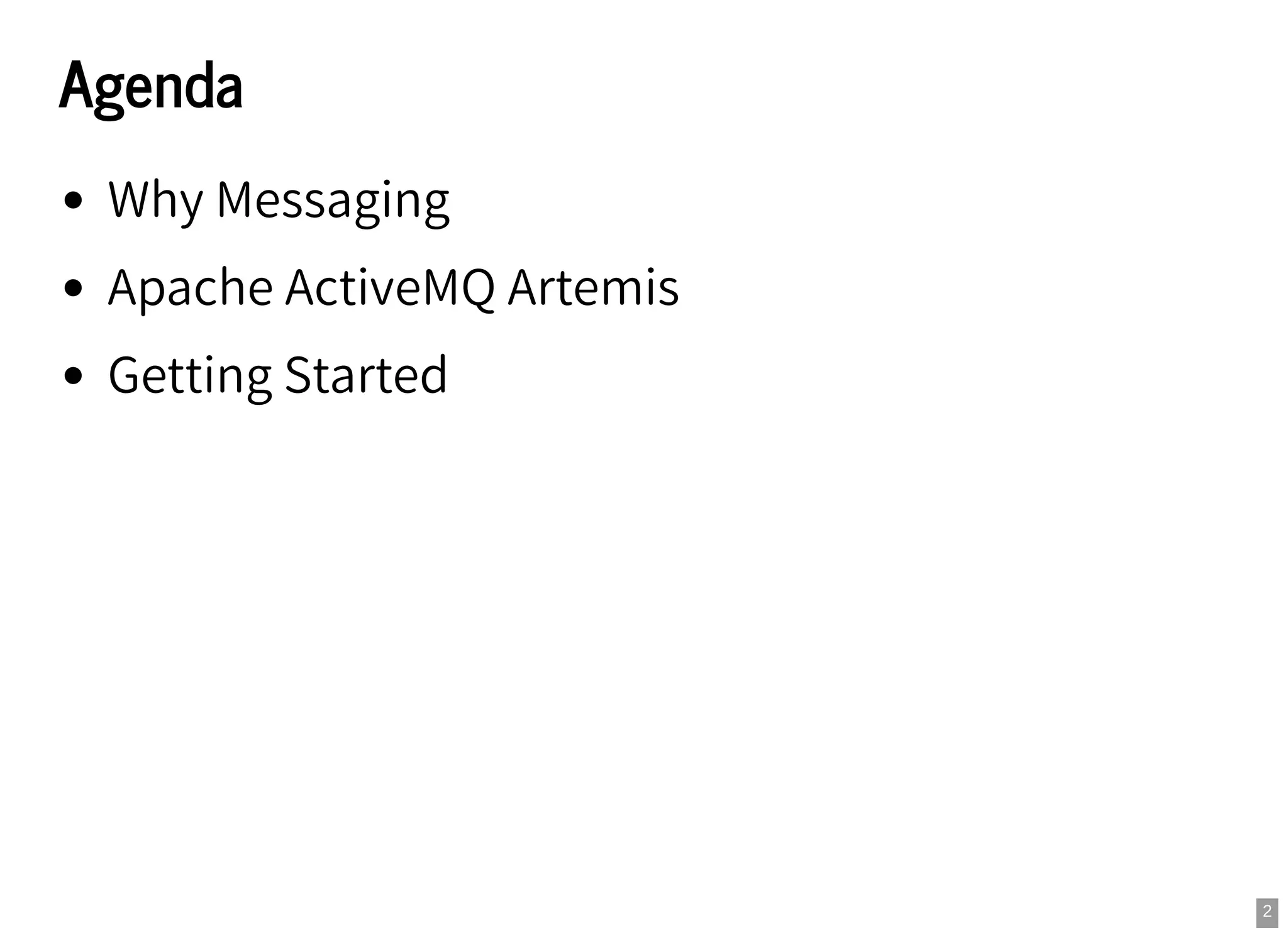

- 2. Agenda Why Messaging Apache ActiveMQArtemis Getting Started 2
- 3. Why Messaging Asynchronous MessagingPassing Decoupling between Producers and Consumers Routing by Broker e.g. Selector, Security and Flow Control 3
- 4.
- 5.
- 6. Broker Implementations : Java :Scala, Java : Erlang … Apache ActiveMQ Artemis Apache Kafka RabbitMQ 6
- 7. Apache ActiveMQ Artemis HighPerformance Flexible Clustering & HA Multi Protocols Support 7
- 8. High Performance Evaluating persistent,replicated message queues - SoftwareMill 8
- 9. High Performance Journal Implementations:Message Persistence Java NIO Linux Asynchronous IO Memory mapped Apache ActiveMQ Artemis File Journal (Default) - Apache ActiveMQ Artemis User Manual 9
- 10. Flexible Clustering &HA Clustering TCP / UDP / Server-Side Message Load Balancing Client-Side Load balancing Message Redistribution High Availability Replication Shared Store JGroups 10
- 11. Clustering Clusters - ApacheActiveMQ Artemis User Manual 11
- 12. High Availability Replication High Availabilityand Failover - Apache ActiveMQ Artemis User Manual 12

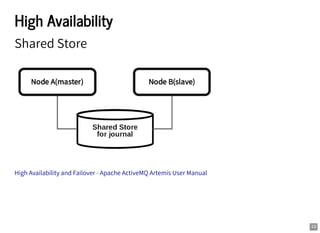

- 13. High Availability Shared Store HighAvailability and Failover - Apache ActiveMQ Artemis User Manual 13
- 14. Multi Protocols Support AMQP OpenWire MQTT STOMP HornetQ HTTP(Tunnel/ REST Interface) 14
- 15. Getting Started 1. Createa Broker 2. Run the Broker 3. Run Clients(Producer / Consumer) 15
- 16. Create a Broker $${ARTEMIS_HOME}/bin/artemis create mybroker [... some interactions e.g. username, password ...] done! Your system can make 0.5 writes per millisecond, your journ You can now start the broker by executing: "/path/to/artemis/mybroker/bin/artemis" run Or you can run the broker in the background using: "/path/to/artemis/mybroker/bin/artemis-service" start 16
- 17. Setup the Broker Editmybroker/etc/broker.xml. Apache ActiveMQ Artemis User Manual <acceptors> <acceptor name="artemis"> tcp://0.0.0.0:61616?protocols=CORE,AMQP,STOMP,... </acceptor> </acceptors> <addresses> <address name="exampleQueue"> <anycast> <queue name="exampleQueue"/> </anycast> </address> </addresses> Configuring the Transport Apache ActiveMQ Artemis Addressing and Queues 17
- 18. Run the Broker $cd mybroker $ bin/artemis run _ _ _ / ____| |_ ___ __ __(_) _____ / _ | _ __|/ _ / | |/ __/ / ___ | / |_/ __/ |/| | |___ /_/ _| ______|_| |_|_|/___ / Apache ActiveMQ Artemis 2.3.0 [...] 18
- 19. Run Producer import org.apache.activemq.artemis.api.jms.ActiveMQJMSClient; importorg.apache.activemq.artemis.jms.client.ActiveMQConnectionF import javax.jms.JMSContext; import javax.jms.Queue; Queue queue = ActiveMQJMSClient.createQueue("exampleQueue"); try (ActiveMQConnectionFactory cf = new ActiveMQConnectionFactory JMSContext context = cf.createContext()) { context .createProducer() .send(queue, "Hello, Artemis!"); } 19
- 20. Run Consumer Queue queue= ActiveMQJMSClient.createQueue("exampleQueue"); try (ActiveMQConnectionFactory cf = new ActiveMQConnectionFactory JMSContext context = cf.createContext()) { String message = context .createConsumer(queue) .receiveBody(String.class); System.out.println("Received: " + message); } Received: Hello, Artemis! 20
- 21. REST Interface Producer Consumer $ curl-XPOST -H 'Content-Type: application/json' http://localhost:8080/queues/orders/create -d ' { "order" : "Test Order" }' $ curl -XPOST http://localhost:8080/queues/orders/pull-consumers { "order" : "Test Order" } REST Interface - Apache ActiveMQ Artemis User Manual 21
- 22. Management Console Management Console- Apache ActiveMQ Artemis User Manual 22
- 23. Summary High Performance Flexible Clustering& HA Multi Protocols Support 23
- 24.
