The document discusses the circuit breaker pattern, which allows a subsystem to fail gracefully without causing a complete system failure. It is primarily used in microservice architectures to handle failures that are inevitable. A circuit breaker acts like a physical circuit breaker, where it trips open after failures exceed a threshold for a period of time to prevent cascading failures. The document then demonstrates the circuit breaker pattern using Spring Cloud, Eureka, Hystrix and Zuul in a sample application topology.

1. FRONTLINE SYSTEMS
Circuit Breaker Pattern Vikash Kodati
13th July2016

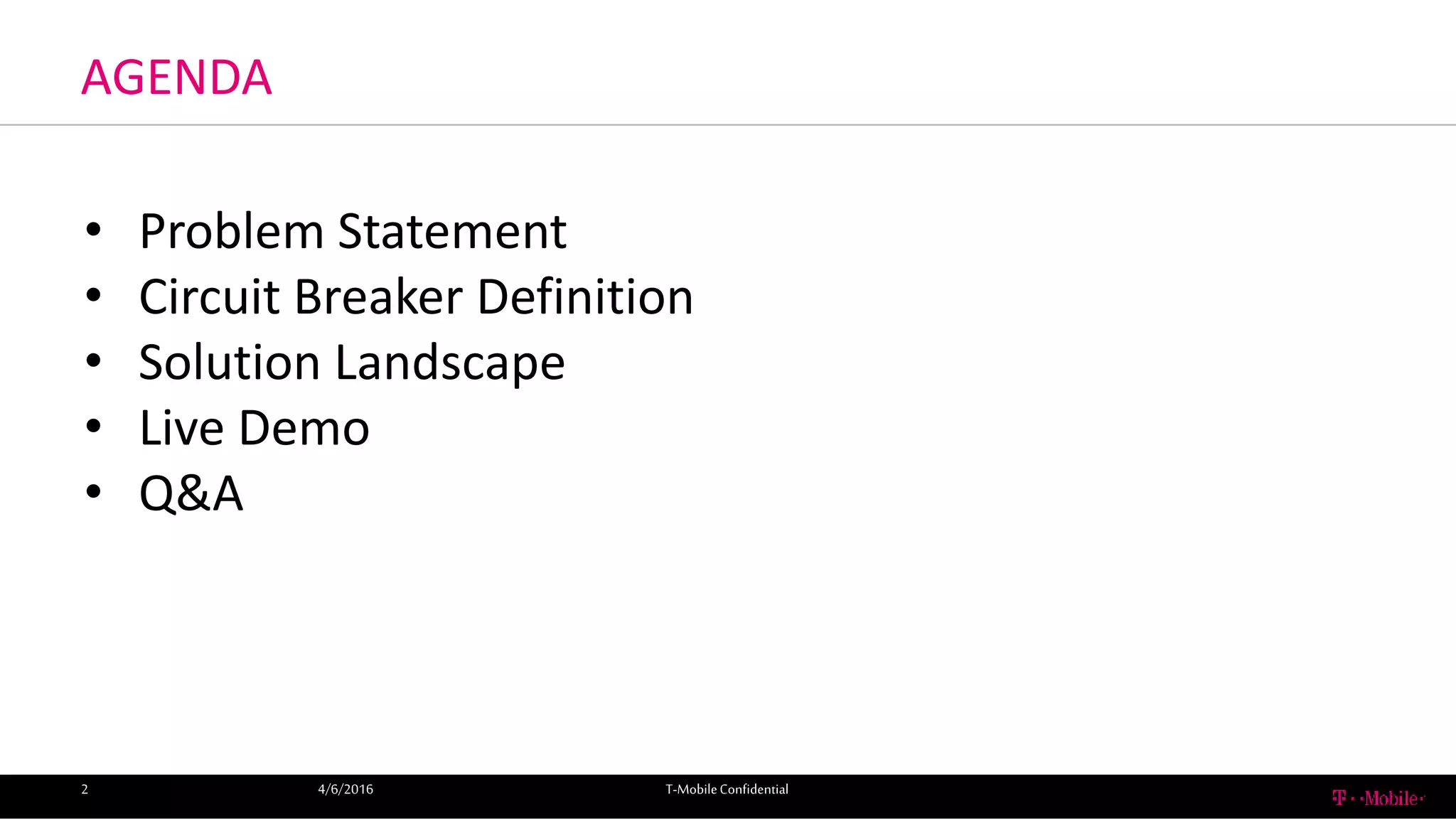

2. AGENDA
4/6/2016 T-MobileConfidential2
• Problem Statement
• Circuit Breaker Definition
• Solution Landscape
• Live Demo
• Q&A

3. CHARACTERISTICS OF MICROSERVICE
6/13/2016 T-MobileConfidential3
• Componentization via services
• Organized around business capabilities
• Products not projects
• Smart endpoints and dump pipes
• Decentralized Data Management
• Infrastructure Automation
• Design for failure

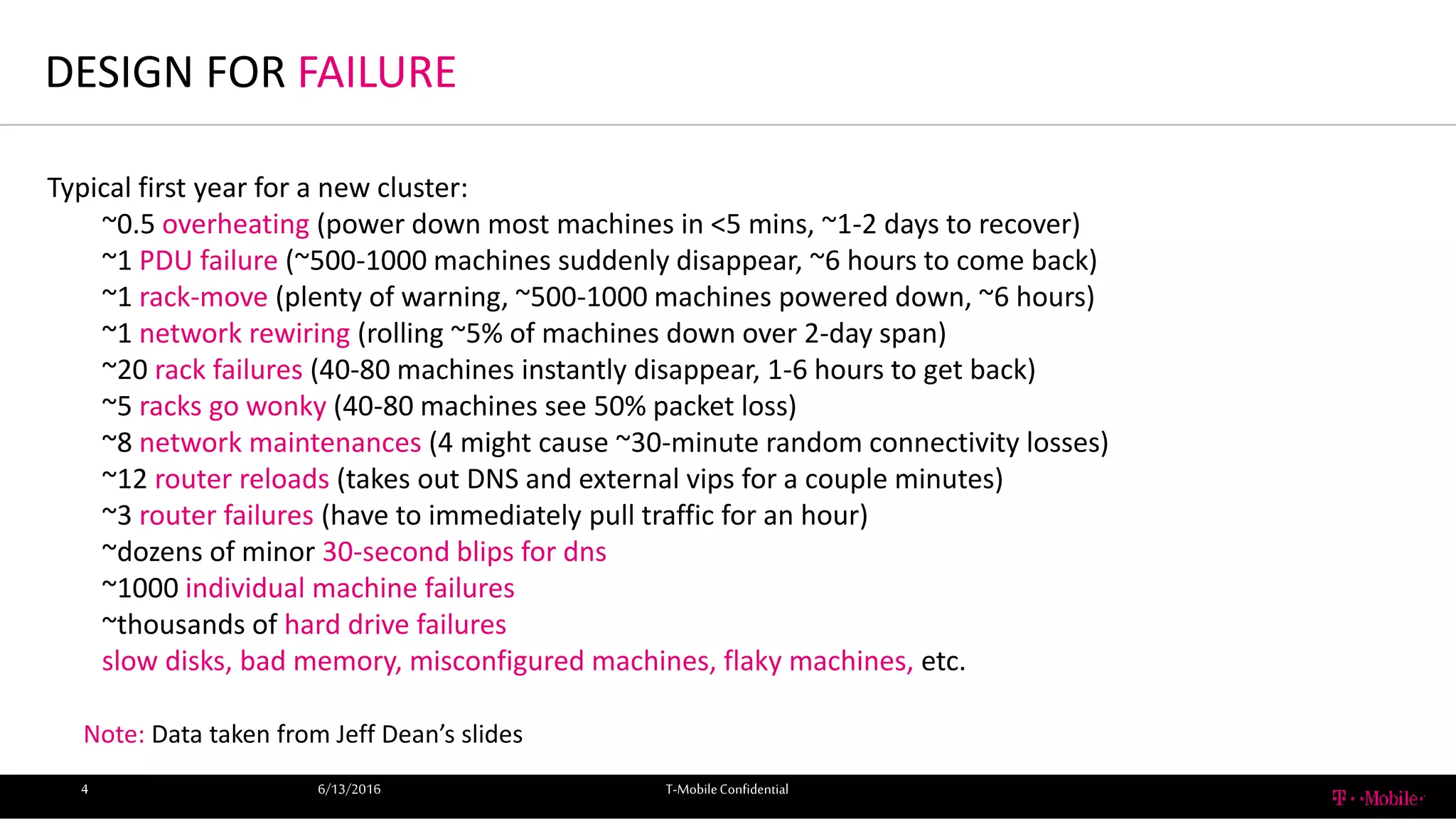

4. DESIGN FOR FAILURE
6/13/2016 T-MobileConfidential4
Typical first year for a new cluster:
~0.5 overheating (power down most machines in <5 mins, ~1-2 days to recover)
~1 PDU failure (~500-1000 machines suddenly disappear, ~6 hours to come back)
~1 rack-move (plenty of warning, ~500-1000 machines powered down, ~6 hours)
~1 network rewiring (rolling ~5% of machines down over 2-day span)
~20 rack failures (40-80 machines instantly disappear, 1-6 hours to get back)
~5 racks go wonky (40-80 machines see 50% packet loss)
~8 network maintenances (4 might cause ~30-minute random connectivity losses)
~12 router reloads (takes out DNS and external vips for a couple minutes)
~3 router failures (have to immediately pull traffic for an hour)
~dozens of minor 30-second blips for dns
~1000 individual machine failures
~thousands of hard drive failures
slow disks, bad memory, misconfigured machines, flaky machines, etc.
Note: Data taken from Jeff Dean’s slides

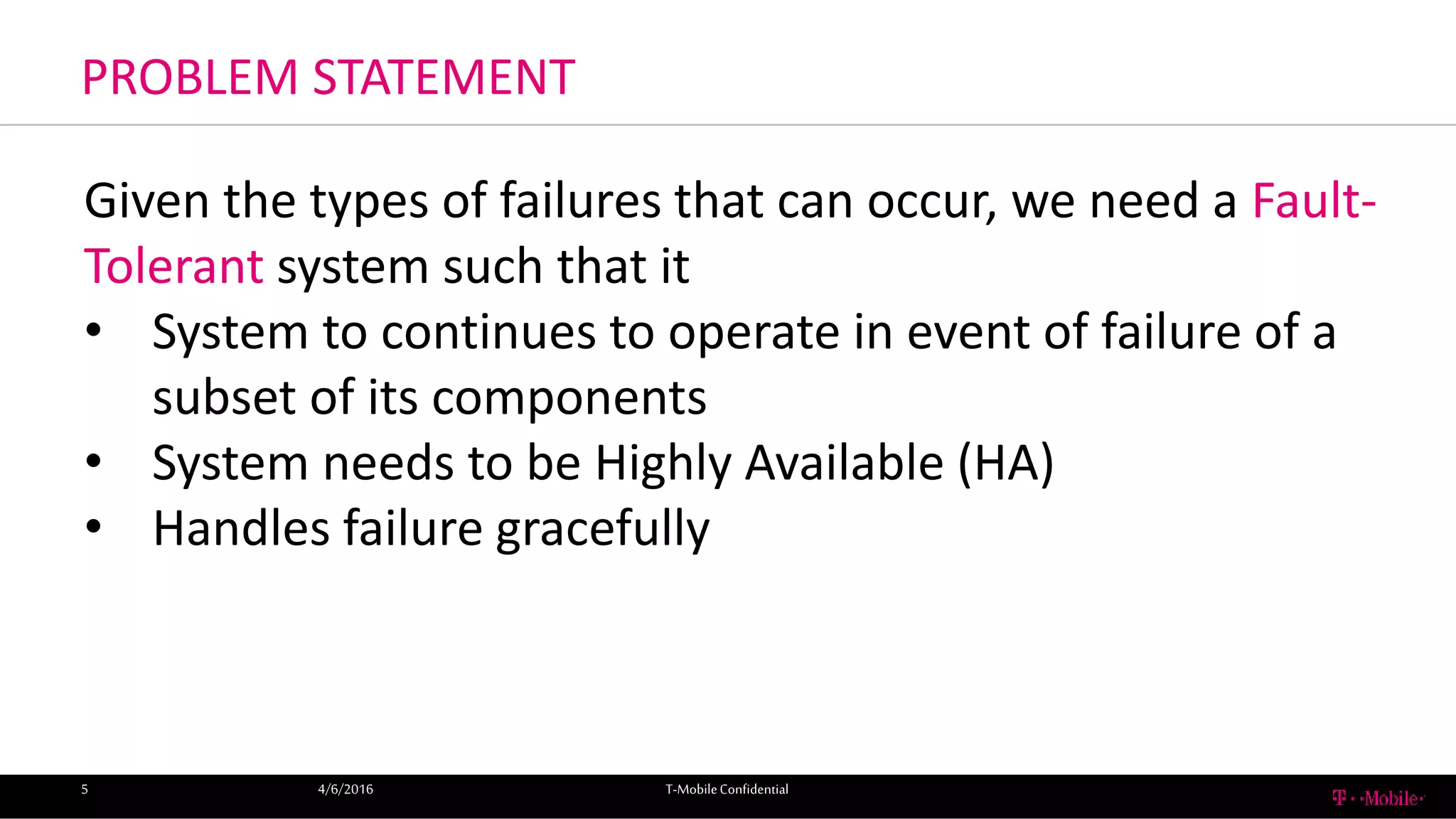

5. PROBLEM STATEMENT
4/6/2016 T-MobileConfidential5
Given the types of failures that can occur, we need a Fault-
Tolerant system such that it
• System to continues to operate in event of failure of a
subset of its components
• System needs to be Highly Available (HA)
• Handles failure gracefully

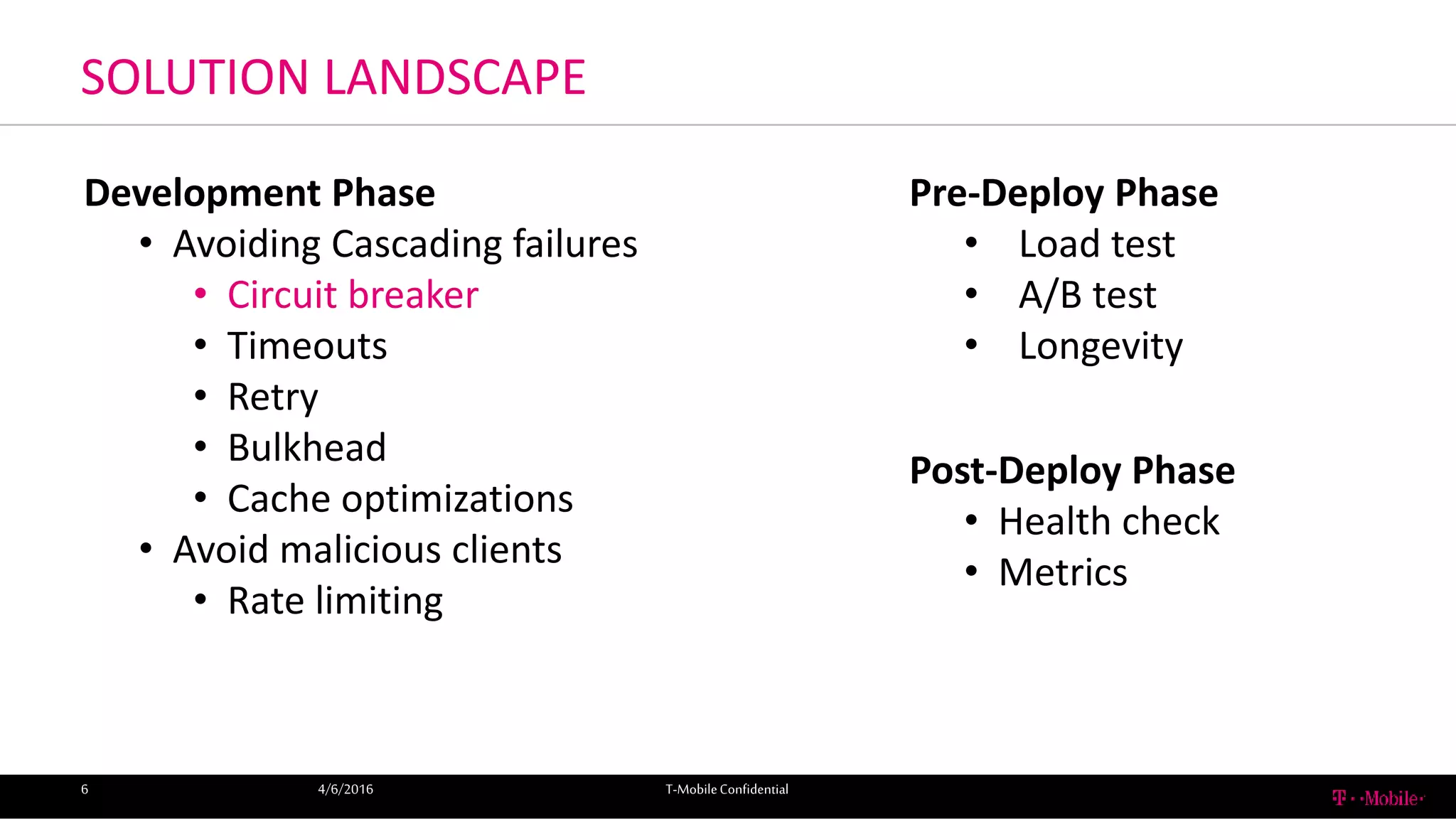

6. SOLUTION LANDSCAPE
4/6/2016 T-MobileConfidential6
Development Phase
• Avoiding Cascading failures
• Circuit breaker
• Timeouts
• Retry
• Bulkhead
• Cache optimizations
• Avoid malicious clients
• Rate limiting
Pre-Deploy Phase
• Load test
• A/B test
• Longevity
Post-Deploy Phase
• Health check
• Metrics

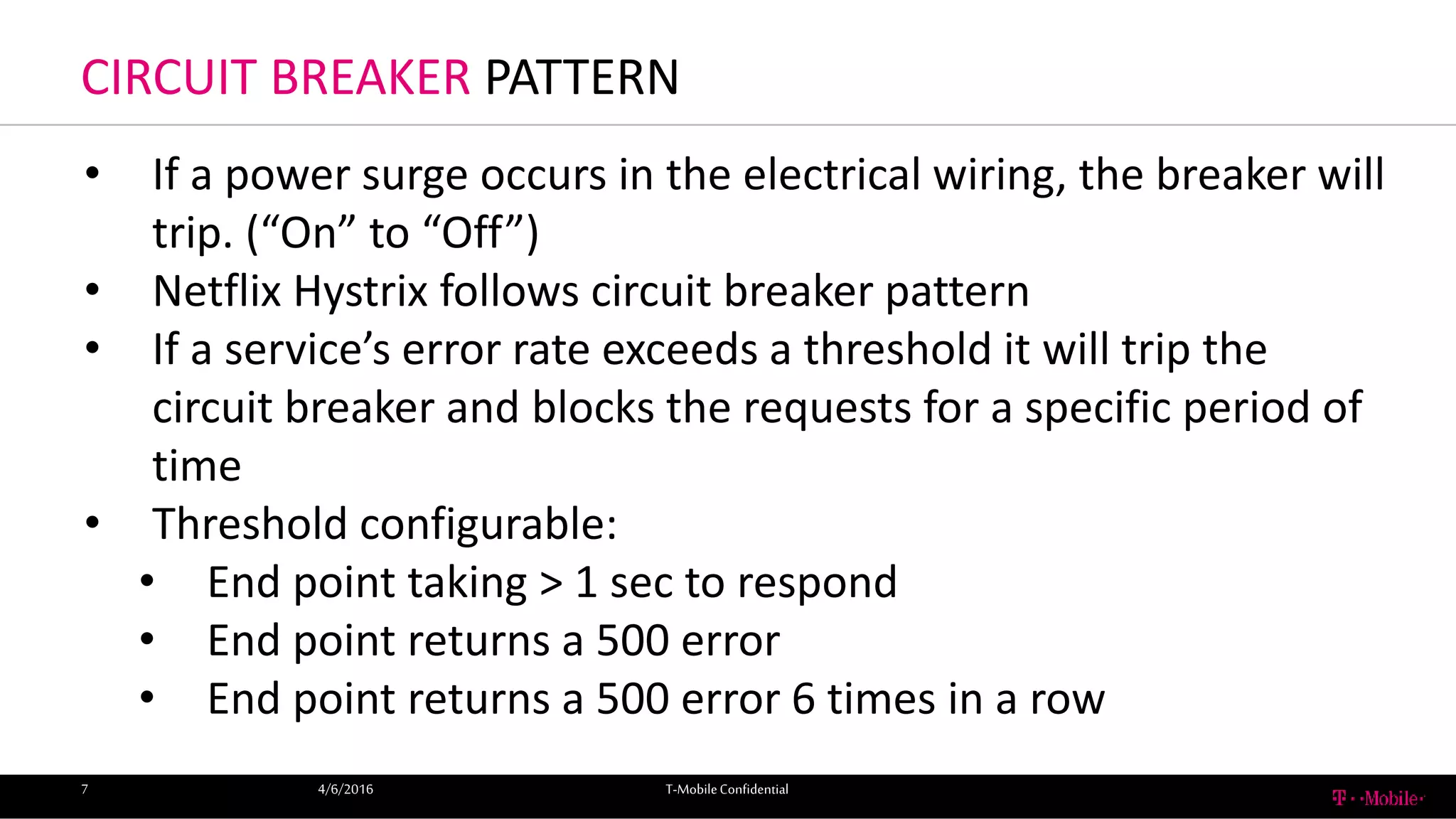

7. CIRCUIT BREAKER PATTERN
4/6/2016 T-MobileConfidential7
• If a power surge occurs in the electrical wiring, the breaker will
trip. (“On” to “Off”)
• Netflix Hystrix follows circuit breaker pattern
• If a service’s error rate exceeds a threshold it will trip the
circuit breaker and blocks the requests for a specific period of
time
• Threshold configurable:
• End point taking > 1 sec to respond
• End point returns a 500 error
• End point returns a 500 error 6 times in a row

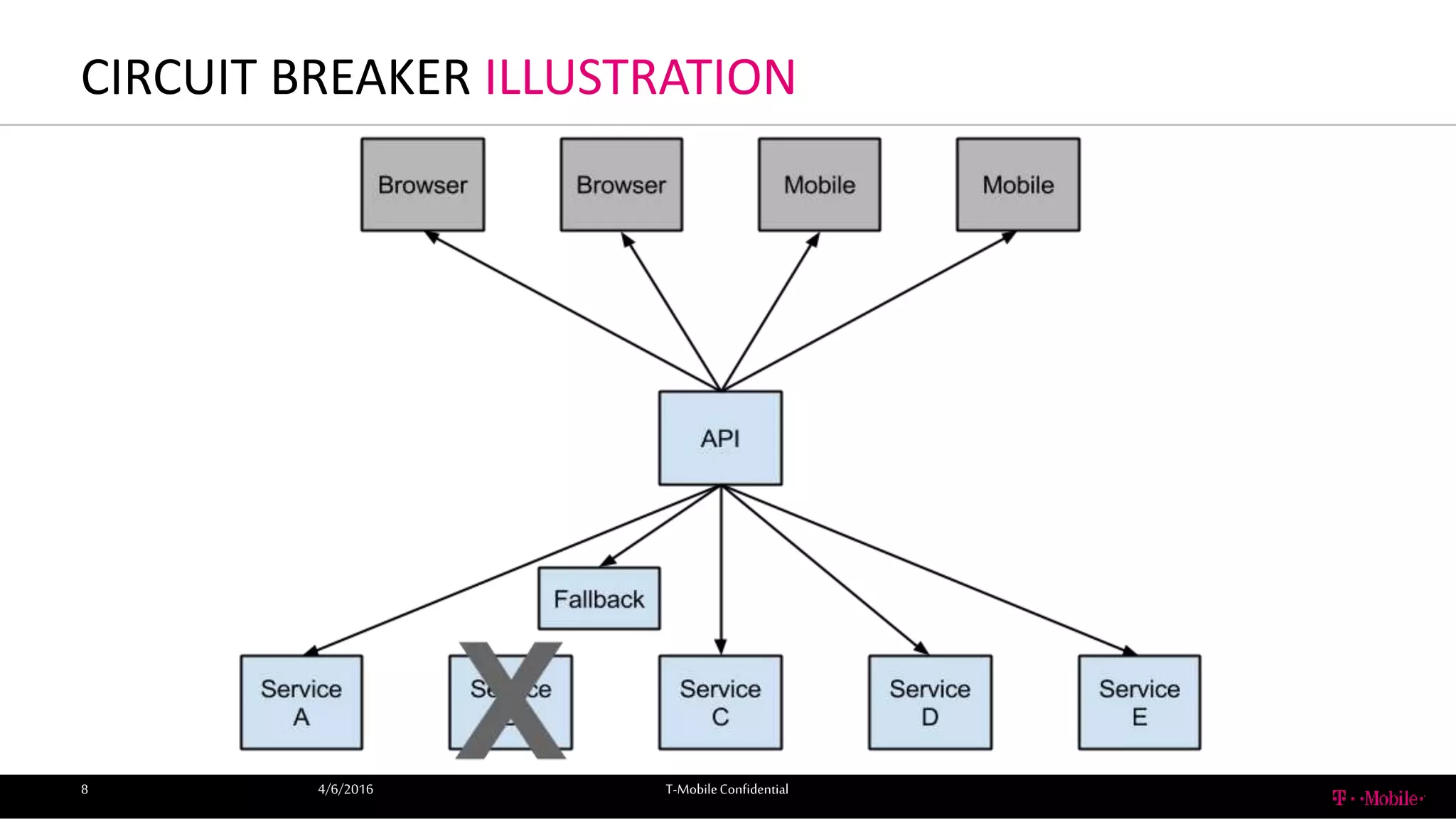

8. CIRCUIT BREAKER ILLUSTRATION
4/6/2016 T-MobileConfidential8

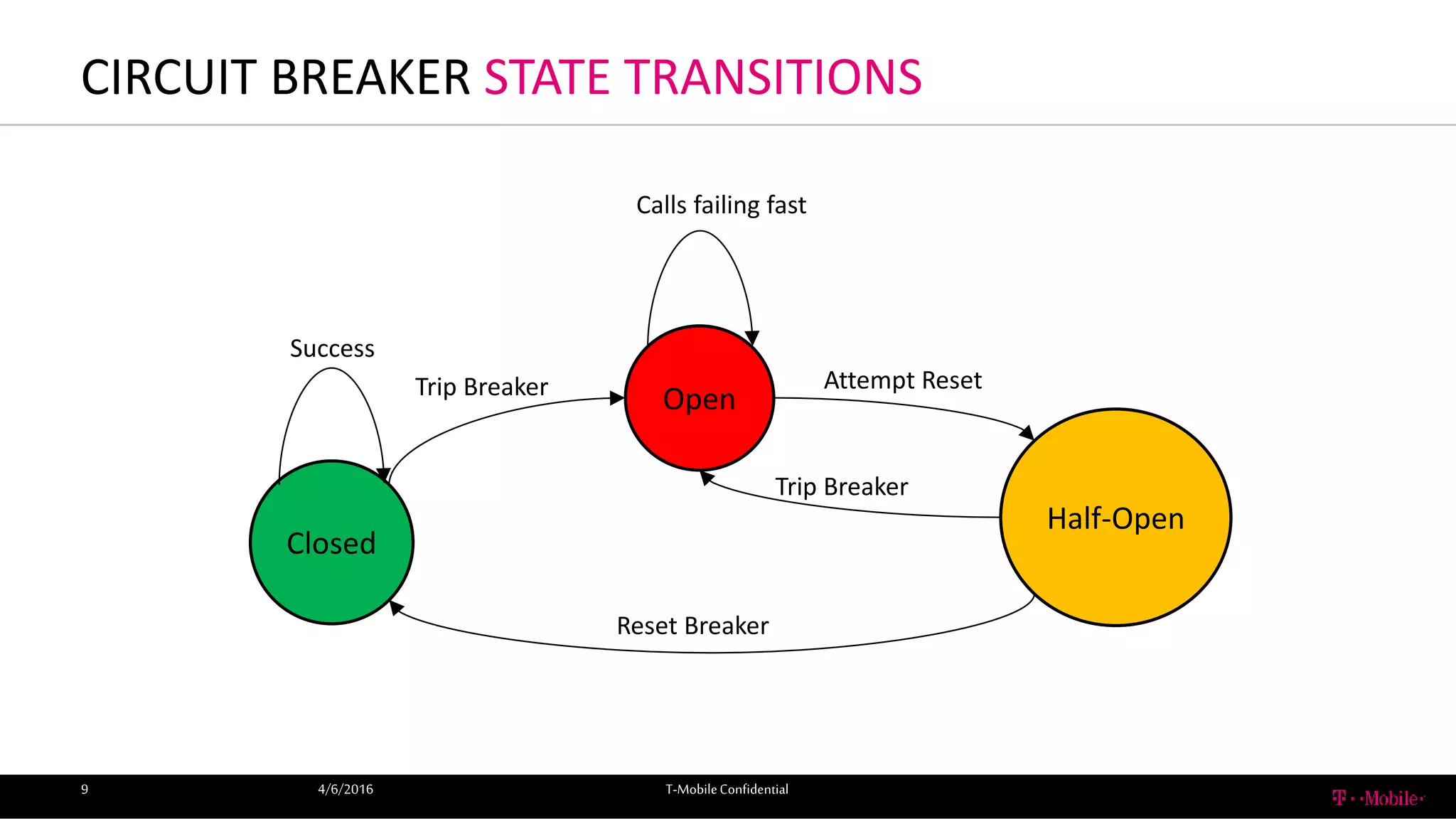

9. CIRCUIT BREAKER STATE TRANSITIONS
4/6/2016 T-MobileConfidential9
Closed
Open
Half-Open
Success
Trip Breaker
Calls failing fast
Attempt Reset
Trip Breaker
Reset Breaker

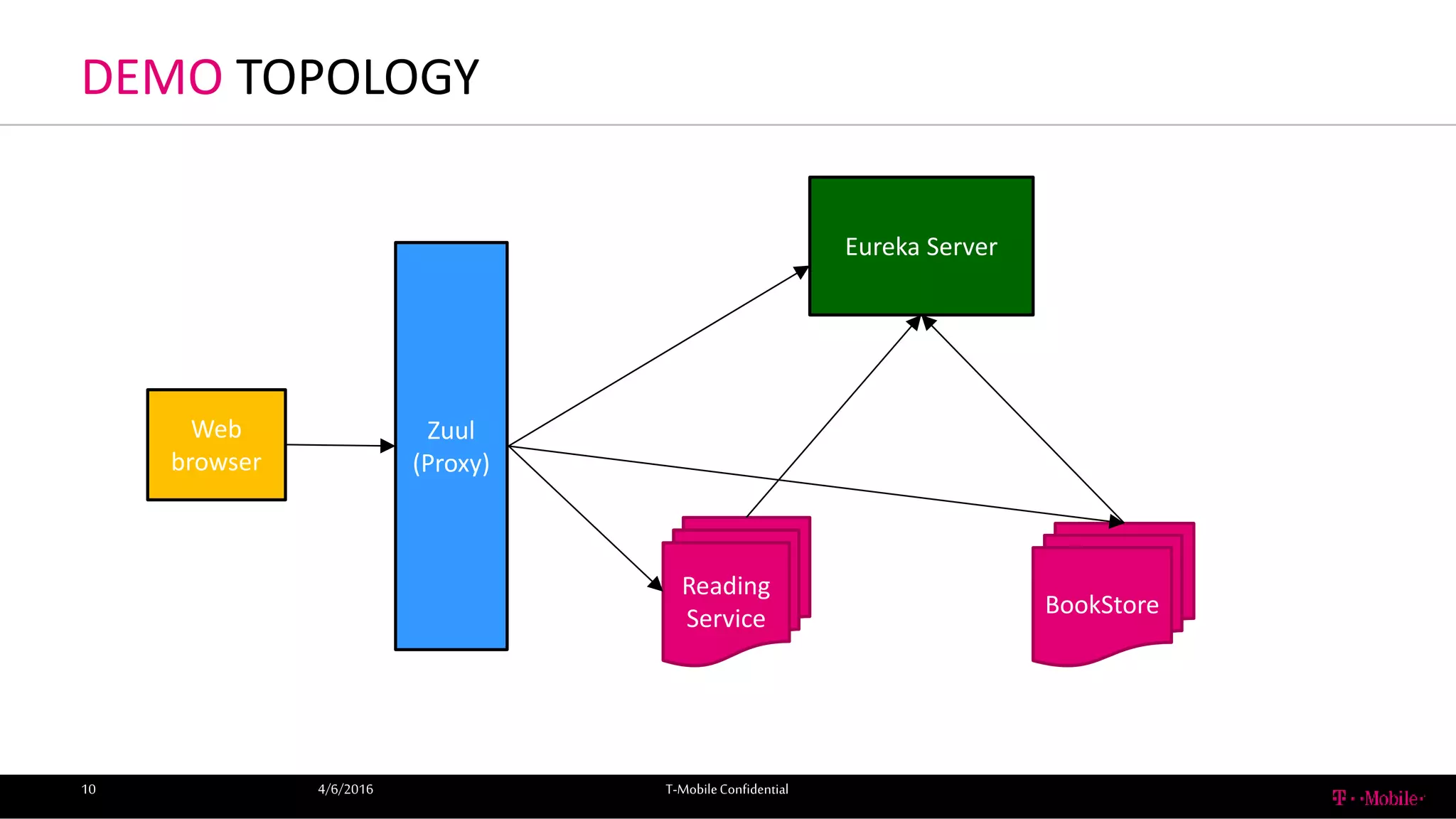

10. DEMO TOPOLOGY
4/6/2016 T-MobileConfidential10
Web
browser
Zuul
(Proxy)
Eureka Server
Reading
Service
BookStore

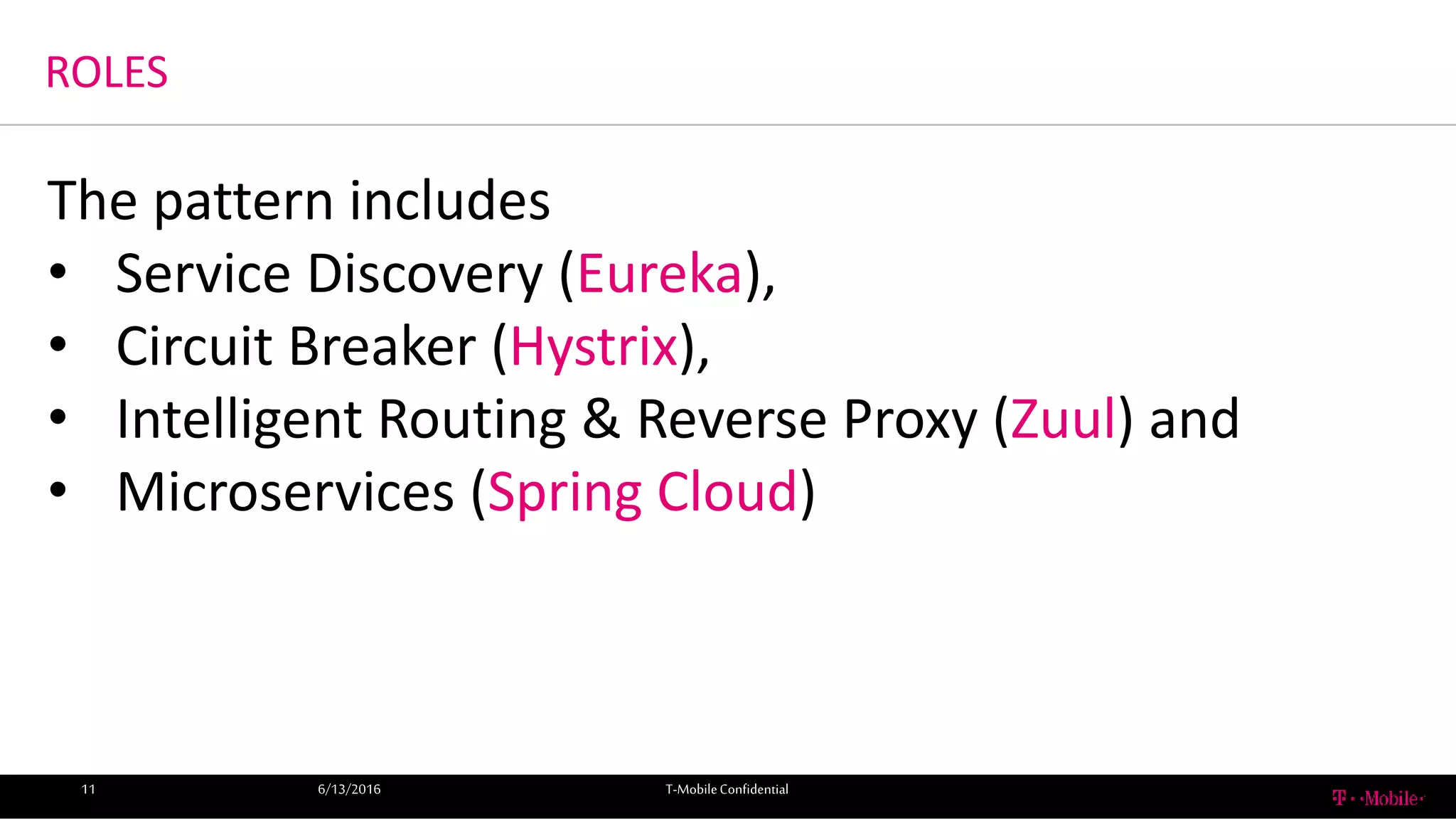

11. ROLES
6/13/2016 T-MobileConfidential11
The pattern includes
• Service Discovery (Eureka),
• Circuit Breaker (Hystrix),
• Intelligent Routing & Reverse Proxy (Zuul) and
• Microservices (Spring Cloud)

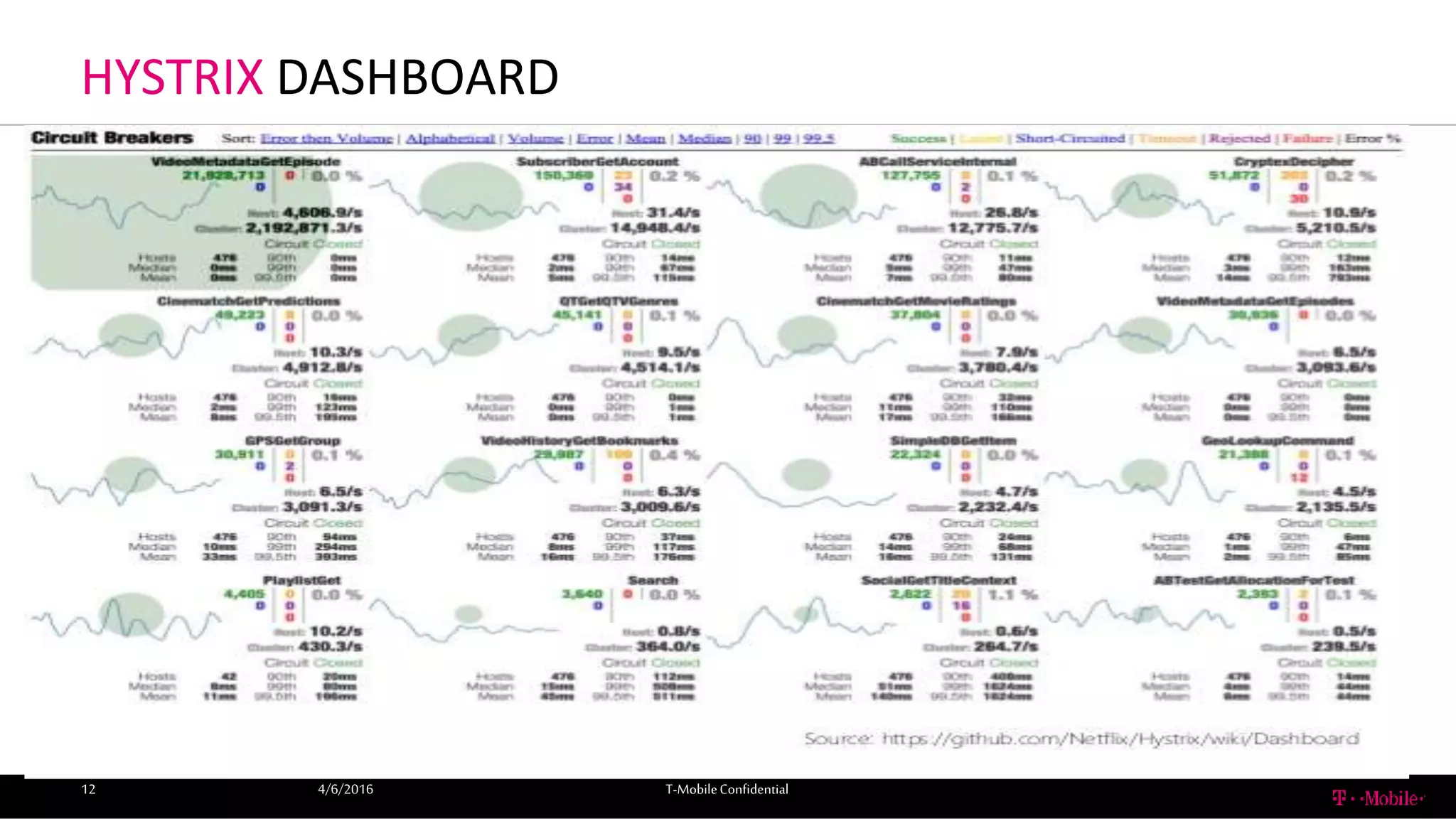

12. HYSTRIX DASHBOARD
4/6/2016 T-MobileConfidential12

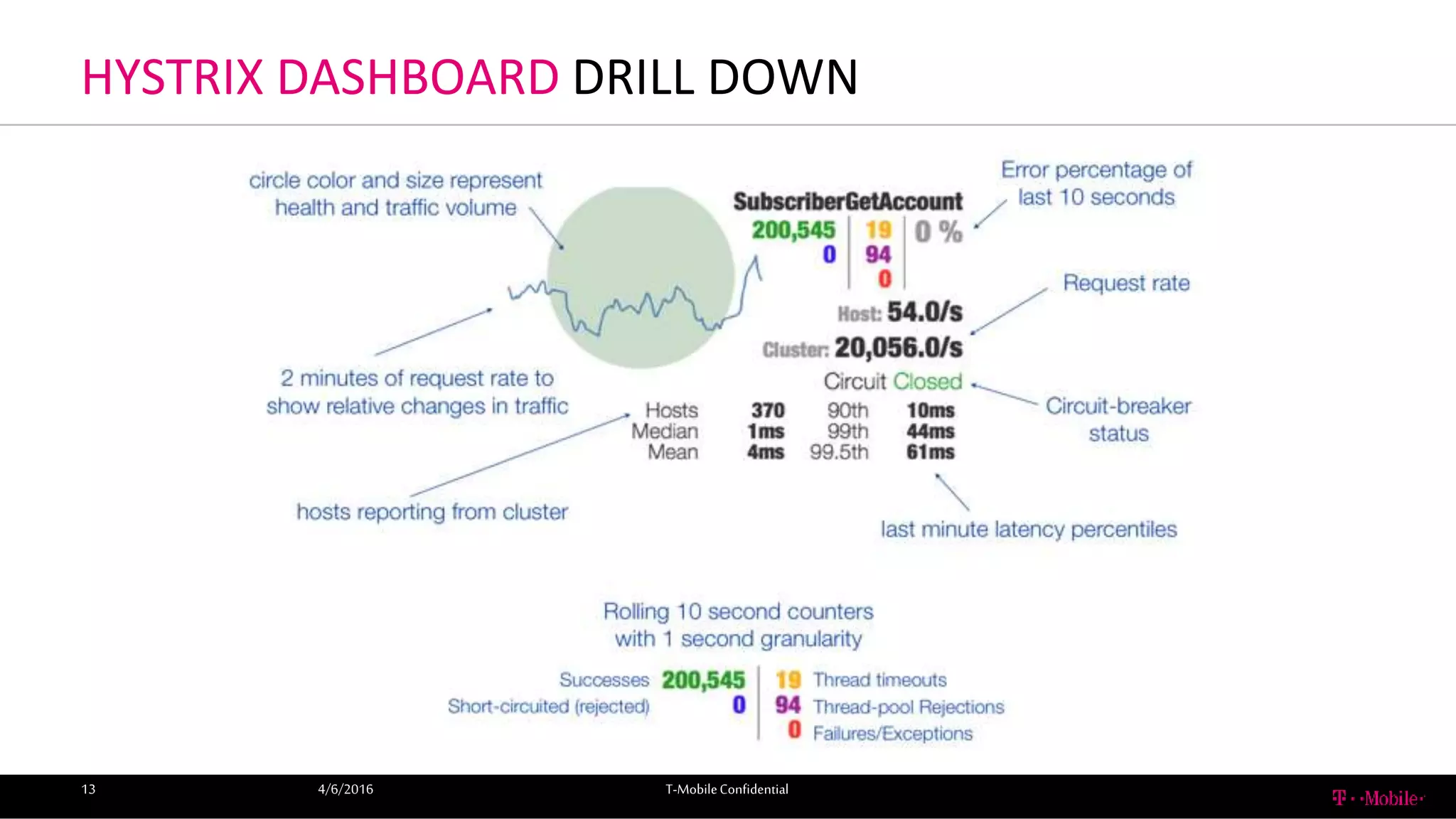

13. HYSTRIX DASHBOARD DRILL DOWN
4/6/2016 T-MobileConfidential13

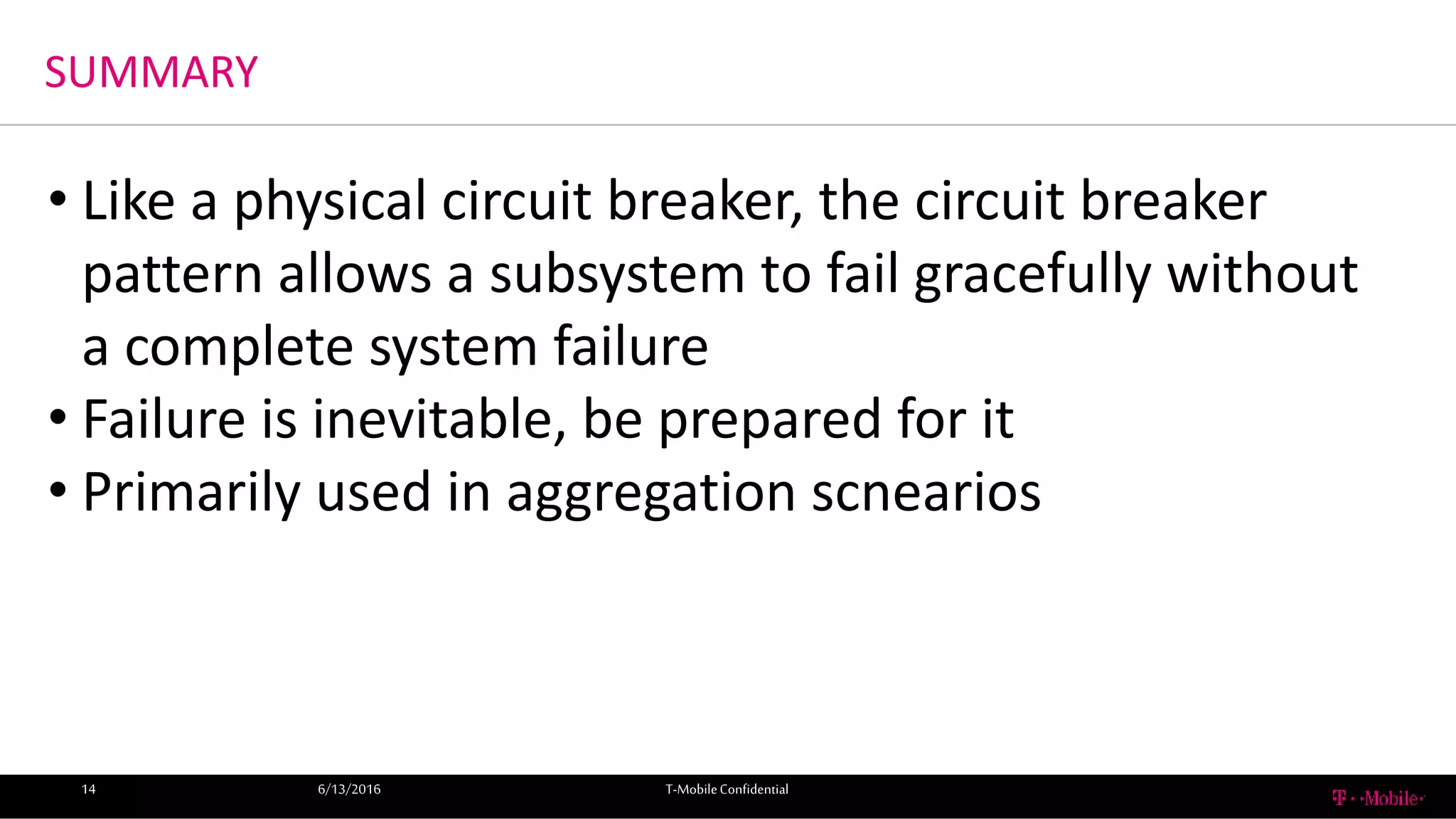

14. SUMMARY
6/13/2016 T-MobileConfidential14
• Like a physical circuit breaker, the circuit breaker
pattern allows a subsystem to fail gracefully without
a complete system failure
• Failure is inevitable, be prepared for it
• Primarily used in aggregation scnearios
